ECS K7S5A User Manual

Preface

Copyright
This publication, including all photographs, illus trations and software, is protected un­der international copyright laws, with al l ri ghts reserved. Neither this manual, nor any of the material cont ai ned herei n, may be reproduced without written consent of the au­thor.
Version 3.1b
The information in this document is subject to change without notice. The manuf ac­turer makes no representat i ons or warranties with respect to the cont ent s hereof and specifically disclaims any implied warranties of merchantability or fitness for any par­ticular purpose. The manuf acturer reserves the right to revise this publication and to make changes from time to time in t he content hereof without obligation of t he manu­facturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation. Other product names used in this manual are the properties of their respective owners
and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tes ted and found to comply with the limits for a Class B digi ­tal device, pursuant to P art 15 of the FCC Rules. These limi ts are designed to provide reasonable protection against harmful interference in a resi dent i al i nstallation. This equipment generates, uses, and can radiate radio frequency energy and, if not in­stalled and used in accordanc e with the instructions, may cause harmful interference to radio communicati ons. However, there is no guarantee that interference will not oc­cur in a particular instal l ation. If this equipm ent does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving ant enna.
Increase the separation between the equipment and the receiver.
Connect the equipment onto an out l et on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV tec hni cian for help.
Shielded interconnect cabl es and a shielded AC power cable must be employed with this equipment to ens ure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manu­facturer could void the user' s authority to operate the equipm ent .
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the follow­ing conditions:
This device may not cause harmful interference, and
This device must accept any interference received, i ncluding interference
that may cause undesi red operat i on.
Canadian Department of Communications
This class B digit al apparatus meets all requirements of the Canadian Interferenc e­causing Equipment Regulations.
Cet appareil numérique de la clas se B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.
About the Manual
The manual consists of the following:
Chapter 1
Introducing the Mainboard
Chapter 2
Installing the Mainboard
Chapter 3
Using BIOS
Chapter 4
Using the Mainboard Software
Describes features of the mainboard, and provides a shipping checkli st.
Go to page 1
Describes installation of mainboard components.
page 5
Go to
Provides information on us i ng the BIOS Setup Utility.
page 21
Go to
Describes the mainboard software. Go to
page 33
ii
T
AABBLLEE OOFF
T
Preface i Features and Packing List Translations 錯誤! 尚未定義書籤。
C
OONNTTEENNTTS
C
S
CHAPTER 1 1
Introducing the Mainboard 1
Introduction................................................................................................ 1
Checklist.................................................................................................... 1
Standard Items................................................................................................. 1
Features .................................................................................................... 2
Choosing a Computer Case....................................................................... 3
Mainboard Components............................................................................ 4
CHAPTER 2 5
Installing the Mainboard 5
Safety Precautions..................................................................................... 5
Quick Guide............................................................................................... 5
Installing the Mainboard in a Case............................................................. 6
Checking Jumper Settings......................................................................... 6
Setting Jumpers...............................................................................................6
Checking Jumper Settings ............................................................................... 7
Jumper Settings............................................................................................... 7
Connecting Case Components.................................................................. 8
The FPI Connector .......................................................................................... 9
Installing Hardware.................................................................................. 10
Installing the Processor.................................................................................. 10
Installing Memory Modules .......................................................................... 12
Installing a Hard Disk Drive/CD-ROM......................................................... 13
Installing a Floppy Diskette Drive................................................................. 15
Installing Add-on Cards................................................................................. 15
Connecting Optional Devices........................................................................ 17
Connecting I/O Devices ........................................................................... 19
CHAPTER 3 21
Using BIOS 21
About the Setup Utility............................................................................. 21
The Standard Configuration........................................................................... 21
Running the Setup Utility.............................................................................. 22
Using BIOS.............................................................................................. 22
Standard CMOS Features.............................................................................. 23
Advanced Setup Page.................................................................................... 24
Power Management Setup Page .................................................................... 26
PCI / Plug and Play Setup.............................................................................. 27
iii
Load Optimal Settings................................................................................... 28
Load Best Performance Settings.................................................................... 28
Features Setup Page....................................................................................... 28
CPU PnP Setup Page..................................................................................... 30
Hardware Monitor Page.................................................................................31
Change Password...........................................................................................32
Change or Remove the Password .................................................................. 32
Exit................................................................................................................ 32
CHAPTER 4 33
Using the Mainboard Software 33
About the Software CD-ROM...................................................................33
Auto-installing under Windows 98/ME/2000/XP....................................... 33
Running Setup............................................................................................... 34
Manual Installation................................................................................... 35
Utility Software Reference....................................................................... 36
iv
CChhaapptteerr 11

Introducing the Mainboar d

IInnttrroodduuccttiioonn
Congratulations on purchasing the K7S5A mainboard. This mainboard has a Socket-A processor socket for the type of AMD K7 processors. You can install any one of these processors on the mainboard. The mainboard supports front­side bus speeds of 200/266MHz.
This mainboard uses the SiS 735 chipset which supports a 4X specification AGP slot for highly graphics display, DDR interface and Ultra DMA 33/66/100 function, provides outstanding high system performance under all types of system operations. The mainboard has a built-in AC97 Codec, provides an AMR (Audio Modem Riser) slot to support Audio and Modem application, and has a built-in 10BaseT/100BaseTX Network Interface. In addition, the main­board has an extended set of ATX I/O Ports including PS/2 keyboard and mouse ports, two USB ports, a parallel port, and two serial ports. Two extra USB ports can be added using the Extended USB Module that connects to the mainboard.
This mainboard has all the features you need to develop a powerful multime­dia workstation. The board is ATX size and has power connectors for an ATX power supply.
CChheecckklliisstt
Compare the mainboard’s package contents with the following checklist:

Standard Items

One mainboard
One diskette drive ribbon cable
One IDE drive ribbon cable
Software support CD
The User’s Manual
FFeeaattuurreess
Processor
Memory
Expansion Slots
Onboard IDE channels
Power Supply and Power Management
AC’97 Audio Codec
Built-in Ethernet LAN (optional)
Onboard I/O Ports
Hardware Moni­toring
Supports AMD Athlon XP/Athlon/Duron processors
Supports 200/266 MHz Front-Side Bus
Note: Processors are automatical ly configured using
firmware and a synchronous Host/DRAM Clock Scheme.
Two 168-pin DIMM slots for SDRAM memory modules
Two 184-pin DIMM slots for DDR memory modules
Support SDRAM up to 133 MHz /DDR up to 266 MHz
memory bus
Maximum installed memory is 1GB
Note: You cannot use SDRAM and DDR simultane-
ously.
One AMR slot for a special audio/ modem riser card
One AGP4X slot for AGP 2.0-compliant interface
Five 32-bit PCI slots f or P CI 2.2-compliant bus interface
Primary and Secondary PCI IDE channels
Support for PIO (programmable input/output) modes
Support for Multiword DMA modes
Support for Bus Mastering and Ult ra DMA 33/66/100
modes
ATX power supply connector
Meets ACPI 1.0b and APM 1.2 requirements, keyboard
power on/off
Supports RTC Alarm, Wake On Modem, AC97 Wake-Up and USB Wake-Up
Compliant AC97 2.2 speci fication
Supports 18-bit ADC (Analog Digi t al Converter) and DAC
(Digital Analog Converter) as well as 18-bit stereo full­duplex codec
Built-in 10BaseT/100Bas eTX Ethernet LA N
LAN controller integrates Fast Ethernet MAC and PHY
compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3.263 TP-PMD standards
Compliant with ACPI 1. 0 and t he Network Device Class Power Management 1.0
High Performance provided by 100Mbps cl ock generator and data recovery circuit for 100Mbps receiver
Built-in Multi-threaded IO Link Del i veri ng 1. 2GB/s
Provides PC99 Color Connectors f or easy peripheral
device connections
Floppy disk drive connector with 1Mb/s t ransfer rate
Two serial ports with 16550-compatible fast UART
One parallel port with ECP and EPP support
Two USB ports and optional two USB ports module
Two PS/2 ports for keyboard and mous e
One infrared port connector for optional module
Built-in hardware monitoring for CP U & System temperat ures, fan speeds and mainboard voltages .
2
Onboard Flash ROM
Dimensions
Supports Plug and Play confi guration of peripheral devices and expansion cards
ATX form factor (30.5cm x 24.4cm)
CChhoooossiinngg aa CCoommppuutteerr CCaassee
There are many types of computer cases on the market. The mainboard com­plies with the specifications for the ATX system case. Some features on the mainboard are implemented by cabling connectors on the mainboard to indi­cators and switches on the system case. Ensure that your case supports all the features required. The mainboard can support one floppy diskette drive and four enhanced IDE drives. Ensure that your case has sufficient power and space for all the drives that you intend to install.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O template in the case matches the I/O ports installed on the rear edge of the mainboard.
This mainboard has an ATX form factor of 30.5 x 24.4 cm. Choose a case that accommodates this form factor.
This concludes Chapter 1. The next chapter explains how to install the main­board.
3
MMaaiinnbbooaarrdd CCoommppoonneennttss
4
CChhaapptteerr 22

Installing the Mainboard

SSaaffeettyy PPrreeccaauuttiioonnss
Follow these safety precautions when installing the mainboard:
W ear a grounding strap attached to a grounded device to avoid damage from static electricity.
Discharge static electricity by touching the metal case of a safely grounded object before working on the mainboard.
Leave components in the static-proof bags they came in.
Hold all circuit boards by the edges. Do not bend circuit boards.
QQuuiicckk GGuuiiddee
This Quick Guide suggests the steps you can take to assemble your system with the mainboards.
The following table provides a reference for installing specific components:
Locating Mainboard Components Installing the Mainboard in a Case Setting Jumpers Installing Case Components Installing the CPU Installing Memory Installing an HDD and CD-ROM Drive Installing an FDD Installing Add-on Cards Connecting Options Connecting Peripheral (I/O) Devices
Go to page 4 Go to page 6 Go to page 6 Go to page 8 Go to page 10 Go to page 12 Go to page 13 Go to page 15 Go to page 15 Go to page 17 Go to page 19
IInnssttaalllliinngg tthhee MMaaiinnbbooaarrdd iinn aa CCaassee
Refer to the following illustration and instructions for installing the mainboard in a case:
This illustration shows an ex­ample of a mainboard being installed in a tower-type case:
Note: Do not overtighten
the screws as this can stress the main­board.
Most system cases have mounting brackets i nstalled in the case, which correspond to the holes in the mainboard. Place the mainboard over the mounting brackets and secure the mainboard onto the mount ­ing brackets with screws.
2. Secure the mainboard with screws where approp ria t e .
1. Place the mainboard over the mounting brackets.
Ensure that your case has an I/O template that supports the I/O ports and expansion slots on your mainboard.
CChheecckkiinngg JJuummppeerr SSeettttiinnggss
This section explains how to set jumpers for correct configuration of the main­board.

Setting Jumpers

Use the mainboard jumpers to set system configuration options. Jumpers with more than one pin are numbered. When setting the jumpers, ensure that the jumper caps are placed on the correct pins.
The illustrations below show a 2-pin jumper. When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is OPE N.
Short Open
This illustration shows a 3-pin jumper. Pins 1 and 2 are SHORT.
1
2
3
6

Checking Jumper Settings

The following illustration shows the location of the mainboard jumpers. Pin 1 is labeled.

Jumper Settings

Jumper Type Description Setting (default)
JP1 3-pin Keyboard Power
On Selector
JP4 3-pin Clear CMOS
jumper
JP1: Keyboard Power On Selector
If you enable the keyboard power on feature, you can use hot keys on your keyboard as a power on/off switch for the system.
Note: The system must provide 1A on the +5VSB (+5V Standby) signal before
using the Keyboard Power On function.
JP4: Clear CMOS Jumper
Use this jumper to clear the contents of the CMOS memory. You may need to clear the CMOS memory if the settings in the Setup Utility are incorrect and prevent your mainboard from operating. To clear the CMOS memory, discon-
1-2: Disable Key­board Power On
2-3: Enable Key­board Power On
1-2: Clear CMOS
2-3: Normal
7
1
1
JP1
JP4
nect all the power cables from the mainboard and then move the jumper cap into the CLEAR setting for a few seconds.
CCoonnnneeccttiinngg CCaassee CCoommppoonneennttss
After you have installed the mainboard into a case, you can begin connecting the mainboard components. Refer to the following:
1. Connect the power connector from the power supply to the ATX_PWR1 connector on the mainboard.
2. Connect the CPU cooling fan cable to CPUFAN.
3. If there is a cooling fan installed in the system chassis, connect the cable from the cooling fan to the SYSFAN fan power connector on the mainboard.
4. Connect the case switches and indicator LEDs to the FP1 header JP 2 for on­board LAN LED.
5. Connect the case speaker cable to SPK1.
SPK1: Speaker Connector
Connect the cable from the PC speaker to the SPK1 header on the mainboard.
Pin Signal Name
1
SPKR
2
NC
3
Ground
4
+5V
JP2: Onboard LAN LED Connections
If you have a set indicator LEDs for the onboard LAN communication, you can connect the LED cable to the header JP2.
Pins 1-2 are for Link LED. Pins 3-4 are for 10/100 Mbps mode LED, the on­board LAN run in 100 Mbps mode when the LED lit.
8
Pin Signal Name
1
Link LED
2
VCC
3
Ground
4
10/100 Mbps mode LED

The FPI Connector

This panel connector provides a set of switch and LED connectors found on ATX case. Refer to the table below for information.
Pin Signal Name Function
1 HD_LED_P Hard disk LED (positive) 2 FP PWR/SLP MSG LED [dual color or single color (+)] 3 HD_LED_N Hard disk active LED (negative) 4 FP PWR/SLP MSG LED [dual color or single col or (-)] 5 RST_SW_N Reset Switch 6 PWR_SW_P Power Switch 7 RST_SW_P Reset Switch 8 PWR_SW_N Power Switch 9 RSVD Reserved
10 NC No pin
FP1
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indica­tion that data is being read from or written to the hard drive. For the LED to function properly, an IDE drive should be connected to the onboard IDE inter­face. The LED will also show activity for devices connected to the SCSI (hard drive activity LED) connector.
Power / Sleep / Message Waiting LED
Connecting pins 2 and 4 to a single- or dual-color, front panel mounted LED provides power on/off, sleep, and message waiting indication.
Reset Switch
Supporting the reset function requires connecting pins 5 and 7 to a momen­tary-contact switch that is normally open. When the switch is closed, the board resets and runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at least 50 ms to signal the power supply to switch on or off. The time requirement is due to internal debounce circuitry. After receiving a power on/off signal, at least two seconds elapses before the power supply recog­nizes another on/off signal.
9
IInnssttaalllliinngg HHaarrddwwaarree

Installing the Processor

Caution: When install i ng a CP U heatsink and cooling fan make sure that you DO NOT scratch the mainboard or any of the surface-mount resistors with the clip of the cooling fan. If the cli p of the cool ing fan scrapes across the mainboard, you may cause serious damage to the mainboard or its components.
On most mainboards, there are small surface-mount resi stors near the processor socket, which may be damaged if the cooling fan is carelessly installed.
Avoid using cooling fans with sharp edges on the fan casing and the clips. Also, install the cooling fan in a well-l i t work area so that you can clearly see the mainboard and processor socket.
Before installing the Processor
This mainboard automatically determines the CPU clock frequency and sys­tem bus frequency for the processor. You may be able to change these settings by making changes to jumpers on the mainboard, or changing the settings in the system Setup Utility. We strongly recommend that you do not overclock processors or other components to run faster than their rated speed.
Warning: Overclocking components can adversely affect the reliability of the system and introduce errors into your system. Overclocking can per­manently damage the mainboard by generating excess heat in components that are run beyond the rated limits.
This mainboard has a Socket 462 processor socket. When choosing a p roc­essor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.
The following processors are currently supported by this mainboard.
Athlon XP: 1500+~2000+, FSB: 266 MHz Athlon: 650 MHz~1.4 GHz, FSB: 200 MHz, 266 MHz Duron: 550 MHz~ 1.3GHz, FSB: 200 MHz
10
CPU Installation Procedure
The following illustration shows CPU installation components:
Note: The pin-1 corner is marked with an arrow
Follow these instructions to install the CPU:
1. Pull the CPU socket l ocking lever away from the sock et to unhook it and raise the locking lever to the upright position.
2. Match the corner on the CPU marked with an arrow with pin A-1 on the CPU socket (the corner with the pinhole noticeably missing). Insert the processor into the socket. Do not use f orce.
3. Swing the locking lever down and hook it under the lat ch on the edge of the socket.
4. Apply thermal grease to t he top of the CPU.
5. Lower the CPU cooling fan/heatsink assembly onto the CPU
6. Secure the two retention clips on either side of the fan/heatsink unit onto the Socket 462 base.
11
Fan/heatsink unit
secured to socket
7. Connect the CPU Cooling Fan power cable connector to the CPUFAN connector.
Notes:
To achieve better airflow rates and heat dissipation, we suggest that
you use a high quality fan with 4800 rpm at l east.
CPU fan and heatsink inst al lation procedures may vary with the type of CPU fan/heatsink suppl i ed. The form and size of fan/heatsink may also vary.

Installing Memory Modules

The mainboard has two 168-pin/184-pin DIMM sockets for SDRAM/DDR (Double Data Rate) SDRAM system memory modules.
DDR SDRAM provides 800 MBps or 1 GBps data transfer depending on whether the bus is 100 MHz or 133 MHz. It doubles the rate to 1.6 GBps and
2.1 GBps by transferring data on both the rising and falling edges of the clock. DDR SDRAM uses additional power and ground lines and requires 184-pin
2.5V unbuffered DIMM module rather than the 168-pin 3.3V unbuffered DIMMs used by SDRAM.
Installation Procedure
You must instal l at least one memory module in order to use the m ai n­board.
Note: You cannot use DDR
SDRAM and SDRAM simultaneously.
Refer to the following to install the memory modules.
1. Push the latches on each side of the DIMM slot down.
2. Align the memory module with the slot. The DIMM slots are keyed with notches and the DIMMs are keyed with cutouts so that they can only be installed correctly.
12
3. Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot:
Latch
Cutout
Notch
Latch
Latch
Notches
Cutouts
Latch
DDR SDRAM Module SDRAM Module
4. Install the DIMM module into the slot and press it firmly down until it seats correctly. The slot latches are levered upwards and latch on to the edges of the DIMM.
5. Install any remaining DIMM modules.

Installing a Hard Disk Drive/CD-ROM

This section describes how to install IDE devices such as a hard disk drive and a CD-ROM drive.
About IDE Devices
Your mainboar d has a primary and secondary IDE channel interface (IDE1 and IDE2). An IDE ribbon cable supporting two IDE devices is bundled with the main­board.
If you want to install more than two IDE devices, get a second IDE cable and you can add two more devices to the secondary IDE channel.
IDE devices have jumpers or switches that are used to set t he IDE device as MASTER or SLAVE. Refer to the IDE device user’s manual. When installing two IDE devices on one cable, ensure that one device is set to MASTER and the other device is set to SLAVE. The documentation of your IDE device explains how to do this.
About UltraDMA
This mainboard supports UltraDMA 66/100. UDMA is a technology that accel­erates the performance of devices in the IDE channel. To maximize performance, install IDE devices that support UDMA and use 80-pin IDE ca­bles that support UDMA 66/100.
13
Installing a Hard Disk Drive
1. Install the hard disk dri ve i nt o t he dri ve cage in your system case.
2. Plug the IDE cable into IDE 1 (A):
Note: Ribbon cable connectors are usually keyed so that they c an only be installed correct l y on the device connector. If the connector is not keyed, mak e sure that you match the pin-1 side of t he cable connector with the pin-1 side of the device connector. Each connector has the pin-1 side clearly m arked. The pin-1 side of each ribbon ca­ble is always marked with a colored stripe on the cable.
3. Plug an IDE cable connector i nto the hard disk drive IDE connector (B). It doesn't matter which connector on the cable you use.
4. Plug a power cable from the case power supply i nto the power connector on the hard disk drive (C).
When you first start up your system, the BIOS should automatically detect your hard disk drive. If it doesn’t, enter the Setup Utility and use the IDE Hard Disk Auto Detect feature to configure the hard disk drive that you have in­stalled.
Installing a CD-ROM/DVD Drive
1. Install the CD-ROM/DVD drive into t he dri ve cage in your system case.
2. Plug the IDE cable into IDE 1 (A). If you have already installed an HDD, use the other connec­tor on the IDE cable.
Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector. If the c onnector is not keyed, make sure that you match the pin-1 side of the cable connector with the pin-1 side of the device connec­tor. Each connector has the pin-1 side clearly marked. The pin-1 side of each ribbon cable is always marked with a colored stripe on the cable.
3. Plug an IDE cable connector i nto the CD-ROM/DVD drive IDE connector (B). It doesn't matter which connector on the cable you use.
4. Plug a power cable from the case power supply i nto the power connector on the CD-ROM/DVD drive (C).
5. Use the audio cable provided with the CD-ROM/DVD drive to connect to the mainboard CD-in connector CDIN1 or CDIN2 (D).
When you first start up your system, the BIOS should automatically detect your CD-ROM/DVD drive. If it doesn’t, enter the Setup Utility and configure the CD-ROM/DVD drive that you have installed.
14

Installing a Floppy Diskette Drive

The mainboard has a floppy diskette drive (FDD) interface and ships with a diskette drive ribbon cable that supports one or two floppy diskette drives. You can install a 5.25-inch drive and a 3.5-inch drive with various capacities. The floppy diskette drive cable has one type of connector for a 5.25-inch drive and another type of connector for a 3.5-inch drive.
1. Install the FDD into the dri ve c age i n your system case.
2. Plug the FDD cable into FDC (A):
Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector. If the c onnector is not keyed, make sure that you match the pin-1 side of the cable connector with the pin-1 side of the device connec­tor. Each connector has the pin-1 side clearly marked. The pin-1 side of each ribbon cable is always marked with a colored stripe on the cable.
3. Plug the correct connector on the FDD cable for the 5.25-inch or 3. 5-i nch drive into the FDD connector (B).
4. Plug a power cable from the case power supply i nto the power connector on the FDD (C).
When you first start up your system, go immediately to the Setup Utility to configure the floppy diskette drives that you have installed.

Installing Add-on Cards

This mainboard has five 32-bit PCI (Peripheral Components Interconnect) expansion slots, one AGP slot, and one AMR slot.
15
AGP Slot The AGP slot is used t o install a graphics adapter that supports the
PCI Slots PCI slots are used to install expansion cards t hat have the 32-bit PCI
AMR Slot The AMR (Audio Modem Riser) slot is an industry standard slot t hat
Note: Before installing an add-on card, check the documentation for the card
Follow these instructions to install an add-on card:
1. Remove a blanking plate from the system cas e corresponding to the slot you are going to use.
2. Install the edge connect or of the add-on card into the expansion slot. Ensure that t he edge con­nector is correctly s eated in the slot.
4xAGP specifications and has a 4xAGP edge connector.
Note: The above layout is for reference only. The AGP slot
may be different from your mainboard. Please refer to actual shipment.
interface.
allows for the installati on of a special audio/modem ri ser card. Differ­ent territories have different regulations regarding the specif i cations of a modem card. You can purchase an AMR card that is approved in your area and install it direct l y into the AMR slot.
carefully. If the card is not Plug and Play, you may have to manually con­figure the card before installation.
3. Secure the metal bracket of the card to the system case with a screw.
Note: For some add-on cards, for example graphics adapters and network adapters,
you have to insta ll drive rs a nd sof tw are bef ore y ou can be gin us ing the add-on card.
16

Connecting Optional Devices

Refer to the following for information on connecting the mainboard’s optional devices:
FP_AUD1O: Front panel MIC/Speaker Out header
This header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access.
Pin Signal Name Pin Signal Name
1
AUD_MIC
3
AUD_MIC_BIAS
5
AUD_FPOUT_R
7
HP_ON
9
AUD_FPOUT_L
17
2 4 6 8
10
AUD_GND AUD_VCC GND KEY GND
USB1: Extended USB hea d er
The mainboard has USB ports installed on the rear edge I/O port array. Some computer cases have a special module that mounts USB ports at the front of the case. If you have this kind of case, use auxiliary USB connectors USB1 to connect the front-mounted ports to the mainboard.
Pin Signal Name Pin Signal Name
1
VERG_FP_USBPWR0
3
USB_FP_P0-
5
USB_FP_P0+
7
GROUND
9
KEY
2
VERG_FP_USBPWR0
4
USB_FP_P1-
6
USB_FP_P1+
8
GROUND
10
USB_FP_OC0
WOL1: Wake On LAN
If you have i nstalle d a LAN card , use th e cable pro vided wi th the ca rd to plug into the mainboard WOL1 connector. This enables the Wake On LAN (WOL1) feature. When your system is in a power-saving mode, any LAN signal auto­matically resumes the system. You must enable this item using the Power Management page of the Setup Utility.
Pin Signal Name
1
5VSB
2
Ground
3
SENSE
IR1: Infrared port
The mainboard supports an Infrared (IR1) data port. Infrared ports allow the wireless exchange of information between your computer and similarly equipped devices such as printers, laptops, Personal Digital Assistants (PDAs), and other computers.
Pin Signal Name Pin Signal Name
1
NC
2
Key
3
+5V
4
Ground
5
IRTX
6
IRRX
18
CCoonnnneeccttiinngg II//OO DDeevviicceess
The backplane of the mainboard has the following I/O ports:
PS/2
mouse
PS/2
keyboard
PS/2 Mouse Use the upper PS/2 port to connect a PS/2 point-
PS/2 Keyboard Use the lower PS/2 port to connec t a PS/2 key-
LAN Port (optional)
USB Ports LPT1 Use LPT1 to connect printers or other parallel
COM1/2 Use the COM ports to connect serial devices
Game Port Use the game port to connec t a joystick or a
Audio Ports Use the three audio ports to connect audio de-
LAN port
USB
ports
Parallel port (LPT1)
Serial port
COM 1
Serial port
COM 2
ing device.
board. Use the LAN port to connect to the network.
Use the USB ports to c onnect USB devices.
communicat i ons devices.
such as mice or fax/modems. COM1 is identif i ed by the system as COM1/3. COM2 is identified by the system as COM2/4.
MIDI device.
vices. The left side j ack is for a stereo line-out signal. The middle jack is for a stereo line-in signal. The right side jack is for a microphone.
Game port
Microphone Line-in
Line-out
19
External Connector Color Coding
Many connectors now use standard colors as shown in the table below.
Connector Color
Audio line-in Light blue
Audio line-out Lime
Digital monitor/f l at panel White
IEEE 1394 Grey
Microphone Pink
MIDI/game Gold
Parallel Burgundy
PS/2-compatibl e keyboard Purple
PS/2-compatible mouse Green
Serial Teal or Turquoise
Speaker out/subwoofer Orange
Right-to-left speaker Brown
USB Black
Video out Yellow
SCSI, network, telephone, modem None
This concludes Chapter 2. The next chapter covers the BIOS.
20
CChhaapptteerr 33

Using BIOS

AAbboouutt tthhee SSeettuupp UUttiilliittyy
The computer uses the latest AMI BIOS with support for Windows Plug and Play. The CMOS chip on the mainboard contains the ROM setup instructions for configuring the mainboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
Hard drives, diskette drives, and peripherals
Video display type and display options
Password protection from unauthorized use
Power management features
The settings made in the Setup Utility affect how the computer performs. Be­fore using the Setup Utility, ensure that you understand the Setup Utility options.
This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.
This Setup Utility should be used:
when changing the system configuration
when a configuration error is detected and you are prompted to
make changes to the Setup Utility
when trying to resolve IRQ conflicts
when making changes to the Power Management configuration
when changing the password or making other changes to the Secu-
rity Setup

Running the Setup Utility

Each time your computer starts, before the operating system loads, a mes­sage appears on the screen that prompts you to “Hit <DEL> if you want to run SETUP”. When you see this message, press the Delete key and the Main menu page of the Setup Utility appears on your monitor.
AMIBIOS SIMPLE SETUP UTILITY – VERSION 1.21.06
(C) 2000 American Megatrends, I nc. All Rights Reserved
Standard CMOS Setup Advanced Setup Power Management Setup PCI / Plug and Play Setup Load Optimal Settings Load Best Performance Settings
Esc : Quit : Select Item (Shift)F2 : Change Color F5 : Old Values F6 : Optimal values F7 : Best performance values F10 : Save&Exit
Standard CMOS setup for changing ti me, date, hard disk type, etc.
BIOS Navigation Keys
The BIOS navigation keys are listed below:
Key Function
Esc Exits the current menu
←↑↓→
+/–/PU/PD Modifies the selected fi el d's values
F10 Saves the current configuration and exits setup
F1 Displays a screen that describes all key funct i ons F5 Loads previously saved values to CMOS F6 Loads a minimum configuration for troubleshooting. F7 Loads an optimum set of values for peak performance
Scrolls through the items on a menu
Features Setup CPU PnP Setup Hardware Monitor Change Password Exit
UUssiinngg BBIIOOSS
When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.
Some options (marked with a triangle
) lead to submenus that enable you
22
to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.
In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle .

Standard CMOS Features

Use this page to set basic information such as the date, the time, the IDE de­vices, and the diskette drives. If you press the F3 key, the system will automatically detect and configure the hard disks on the IDE channels.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C) 2000 American Megatrends, I nc. All Rights Reserved
Date (mm/dd/yy) : Mon Dec 17, 2001 Time (hh/mm/ss) : 13:53:25 LBA Blk PIO 32Bit Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Auto On Pri Slave : Auto On Sec Master : Auto On Sec Slave : Auto On
Floppy Drive A : 1.44 MB 3 1/2 Floppy Drive B : Not Instal led
Month : Jan – Dec ESC : Exit Day : 01 – 31 ↑↓ : Select Item Year : 1901 – 2099 PU/PD/+/- : Modify (Shift)F2 : Color F3 : Detect All HDD
Date & Time
Use these items to set the system date and time
Pri Master/Pri Slave/Sec Master/Sec Slave
Use these items to configure devices connected to the Primary and Secon­dary IDE channels. To configure an IDE hard disk drive, choose Auto. If the Auto setting fails to find a hard disk drive, set it to User, and then fill in the hard disk characteristics (Size, Cyls, etc.) manually. If you have a CD-ROM drive, select the setting CDROM. If you have an ATAPI device with removable media (e.g. a ZIP drive or an LS-120) select Floptical.
Floppy Drive A/Floppy Drive B
Use these items to set the size and capacity of the floppy diskette drive(s) installed in the system.
23

Advanced Setup Page

Use this page to set more advanced information about your system. Take some care with this page. Making changes can affect the operation of your computer.
AMIBIOS SETUP – ADVANCED SETUP
(C) 2000 American Megatrends, I nc. All Rights Reserved
Quick Boot Enabled
st
Boot Device IDE-0
1
nd
2
Boot Device Floppy
rd
Boot Device CDROM
3 Try Other Boot Devices Yes S.M.A.R.T. for Hard Disks Disabled BootUp Num-Lock On Floppy Drive Swap Disabled Floppy Drive Seek Disabled Password Check Setup Boot To OS/2 > 64MB No L1 Cache Enabled L2 Cache Enabled System BIOS Cacheable Enabled Timing Setting Mode Normal SDR/DDR CAS Latency SPD Auto Detect DIMM/PCI Clk Disabled Clk Gen Spread Spectrum Disabled
ESC : Quit ↑↓←→ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
Quick Boot
If you enable this item, the system starts up more quickly be elimination some of the power on test routines.
1st Boot Device/ 2nd Boot Device/ 3rd Boot Device
Use thes e items to de termine th e device ord er the comp uter uses t o look for an operating system to load at start-up time.
Try Other Boot Device
If you enable this item, the system will also search for other boot devices if it fails to find an operating system from the first two locations.
S.M.A.R.T. for Hard Disks
Enable this item if any IDE hard disks support the S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature.
BootUp Num-Lock
This item determines if the Num Lock key is active or inactive at system start­up time.
Floppy Drive Swap
If you have two diskette drives installed and you enable this item, drive A be­comes drive B and drive B becomes drive A.
24
Floppy Drive Seek
If you enable this item, your system will check all floppy disk drives at start up. Disable this item unless you are using an old 360KB drive.
Password Check
If you have entered a password for the system, use this item to determine if the password is requi red to ent er the Set up Utili ty (Setup) or requ ired both at start-up and to enter the Setup Utility (Always).
Boot to OS/2 > 64MB
Enable this item if you are booting the OS/2 operating system and you have more than 64MB of system memory installed.
L1/L2 Cache
Leave these items enabled since all the processors that can be installed on this board have internal cache memory.
System BIOS Cacheable
If you enable this item, a segment of the system BIOS will be cached to main memory for faster execution.
Timing Setting Mode
Use this item to determine the timing setting mode of the memory. We rec­ommend that you leave this item at the default value.
SDR/DDR CAS Latency
This item determines the operation of the SDRAM /DDR memory CAS (col­umn address strobe). We recommend that you leave this item at the default value. The 2T setting requires faster memory that specifically supports this mode.
Auto Detect DIMM/PCI Clk
Use this item to enable the DIMMs or PCI slots to detect automatically device then generating clock.
Clk Gen Spread Spectrum
Use this item to enable the clock to generate spread spectrum.
25
Power Management Setup Page
This page sets some of the parameters for system power management opera­tion.
AMIBIOS SETUP – POWER MANAGEMENT SETUP
(C) 2000 American Megatrends, I nc. All Rights Reserved
ACPI Aware O/S Yes Power Management Enabled Suspend Time Out Disabled Hard Disk Time Out Disabled Ring On Power On Disabled RTC Alarm Power On Disabled RTC Alarm Date Every Day RTC Alarm Hour 12 RTC Alarm Minute 30 RTC Alarm Second 00 KeyBoard PowerOn Function Disabled Power On by LAN Disabled
ESC : Quit ↑↓←→ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load Optimal values F7 : Load Best performance values
ACPI Aware O/S
Enable this item if you are using an O/S that supports ACPI function such as Windows 98/ME /2000.
Power Management
Use this item to select a power management scheme. Both APM and ACPI are supported.
Suspend Time Out
This sets the timeout for Suspend mode in minutes. If the time selected passes without any system activity, the computer will enter power-saving Sus­pend mode.
Hard Disk Time Out
This sets the timeout to power down the hard disk drive, if the time selected passes without any hard disk activity.
Ring On Power On
The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Fax/Modem. You must use an ATX power supply in order to use this feature.
RTC Alarm Power On / Date / Hour / Minute / Second
The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the sys­tem’s RTC (realtime clock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.
26
KeyBoard Power On Function
If you enable this item, you can turn the system on and off by pressing hot keys on the keyboard. You must enable the Keyboard Power On jumper and use an ATX power supply in order to use this feature.
Power On by LAN
Your system can enter a software power down. If you enable this item, the system can automatically resume if there is traffic on the network adapter.

PCI / Plug and Play Setup

This page sets some of the parameters for devices installed on the PCI bus and devices that use the system plug and play capability.
AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP
(C) 2000 American Megatrends, I nc. All Rights Reserved
Plug and Play Aware O/S Yes Primary Graphics Adapter PCI Allocate IRQ to PCI VGA Yes
ESC : Quit ↑↓←→ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
Plug and Play Aware O/S
Enable this item if you are using an O/S that supports Plug and Play such as Windows 95/98/ME.
Primary Graphics Adapter
This item indicates if the primary graphics adapter uses the PCI or the AGP bus. The default PCI setting still lets the onboard display work and allows the use of a second display card installed in a PCI slot.
Allocate IRQ to PCI VGA
If this item is enabled, an IRQ will be assigned to the PCI VGA graphics sys­tem. You set this value to No to free up an IRQ.
27

Load Optimal Settings

If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the Setup Utility loads a set of fail-safe default values. These default values are not very demanding and they should allow your system to function with most kinds of hardware and memory chips.
Note: It is highly recommended that users enter this option to load optimal val-
ues for accessing the best performance.

Load Best Performance Settings

If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the Setup Utility loads a set of best-performance default val­ues. These default values are quite demanding and your system might not function properly if you are using slower memory chips or other low­performance components.

Features Setup Page

This page sets some of the parameters for peripheral devices connected to the system.
AMIBIOS SETUP – FEATURES SETUP
(C) 2000 American Megatrends, I nc. All Rights Reserved
OnBoard FDC Enabled OnBoard Serial PortA 3F8h/COM1 OnBoard Serial PortB 2F8h/COM2 Serial Port2 Mode Normal OnBoard Parallel Port 378h Parallel Port Mode Normal Parallel Port IRQ 7 Parallel Port DMA N/A OnBoard Game Port 201h OnBoard MIDI Port 300h MIDI Port IRQ 10 OnBoard PCI IDE Both OnBoard AC’97 Sound Enabled OnBoard AC’97 Modem Enabled USB Function Support Enabled USB Function for DOS Disabled
ESC : Quit ↑↓←→ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
OnBoard FDC
Use this item to enable or disable the onboard floppy disk drive interface.
OnBoard Serial PortA/B
Use these items to enable or disable the onboard COM1/2 serial port, and to assign a port address.
Serial Port2 Mode
Use this item to allocate the resources of the second serial port. Under Nor­mal, the resources are allocated to the onboard serial port. Under ASKIR or IrDA, the resources are allocated to the onboard IR port.
28
Onboard Parallel Port
Use this item to enable or disable the onboard LPT1 parallel port, and to as­sign a port address. The Auto setting will detect and available address.
Parallel Port Mode
Use this item to set the parallel port mode. You can select SPP (Standard Parallel Port), ECP (Extended Capabilities Port), EPP (Enhanced Parallel Port), or ECP + EPP.
Parallel Port IRQ
Use this item to assign either IRQ 5 or 7 to the parallel port.
Parallel Port DMA
Use this item to assign a DMA channel to the parallel port. The options are 0, 1 and 3.
OnBoard Game Port
Use this item to enable or disable the onboard Game port.
OnBoard MIDI Port
Use this item to enable or disable the onboard MIDI port, and to assign a port address.
MIDI Port IRQ
Use this item to assign an IRQ to the MIDI port.
Onboard PCI IDE
Use this item to enable or disable either or both of the onboard Primary and Secondary IDE channels.
Onboard AC’97 Sound
This item enables or disables the onboard AC’97 audio chip.
Onboard AC’97 Modem
This item enables or disables the onboard AC’97 modem chip.
USB Function Support
Enable this item if you plan to use the USB ports on this mainboard.
USB Function for DOS
Enable this item if you plan to use the USB ports on this mainboard in a DOS environment.
29

CPU PnP Setup Page

This page lets you manually configure the mainboard for the CPU. The system will automatically detect the kind of CPU that you have installed and make the appropriate adjustments to the items on this page.
AMIBIOS SETUP – CPU PnP Setup Page
(C) 2000 American Megatrends, I nc. All Rights Reserved
CPU Brand AMD K7 CPU Type Athlon CPU Speed 700MHz CPU Core Voltage 1.700 V CPU Ratio 7.0 CPU Frequency 100MHz DRAM Frequency 100MHz
ESC : Quit ↑↓←→ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load Optimal values F7 : Load Best performance values
CPU Brand/Type/ Core Voltage/Ratio /Frequency
These items show the kind, core voltage, ratio and frequency of CPU that has installed in your system.
CPU Speed
Use this item to set the CPU speed that has installed in your system.
DRAM Frequency
Use this item to set the frequency of DRAM that has installed in your system.
Note: If you manually set the wrong speed and the system won’t run properly,
press the Page Up key while the system is booting and a default setting will replace the incorrect CPU setting.
30

Hardware Monitor Page

This page sets some of the parameters for the hardware monitoring function of this mainboard.
AMIBIOS SETUP – Hardware Monitor Page
(C) 2000 American Megatrends, I nc. All Rights Reserved
--- System Hardware --­Vcore 2.000 V
Vcc2.5V 2.500 V Vcc3.3V 3.300 V Vcc5V 5.000 V +12V 12.000 V SB3V 3.300 V
-12V -12.000 V SB5V 5.000 V VBAT 3.300 V System Fan Speed CPU Fan Speed System Temperature CPU Temperature 30°C/86°F
ESC : Quit ↑↓←→ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load Optimal values
F7 : Load Best Performance Values
Voltage Measurements & FAN Speeds
These items indicate cooling fan speeds in RPM and the various system volt­age measurements.
System / CPU Temperature
These items display CPU and system temperature measurement.
31

Change Password

If you highlight this item and press Enter, a dialog box appears which lets you enter a Supervisor password. You can enter no more than six letters or num­bers. Press Enter after you have typed in the password. A second dialog box asks you to retype the password for confirmation. Press Enter after you have retyped it correctly. The password is then required to access the Setup Utility or for that and at start-up, depending on the setting of the Password Check item in Advanced Setup.

Change or Remove the Password

Highlight this item, press Enter and type in the current password. At the next dialog box, type in the new password, or just press Enter to disable password protection.

Exit

Highlight this item and press Enter to save the changes that you have made in the Setup Utility configuration and exit the program. When the Save and Exit dialog box appears, press Y to save and exit, or press N to exit without
32
CChhaapptteerr 44

Using the Mainboard Software

AAbboouutt tthhee SSooffttwwaarree CCDD--RROOMM
The support software CD-ROM that is included in the mainboard package contains all the drivers and utility programs needed to properly run the bun­dled products. Below you can find a brief description of each software program, and the location for your mainboard version. More information on some programs is available in a README file, located in the same directory as the software.
Note: Never try to install software from a folder that is not specified for use with
your mainboard.
Before installing any software, always inspect the folder for files named RE­ADME.TXT, INSTALL.TXT, or something similar. These files may contain important information that is not included in this manual.
AAuuttoo--iinnssttaalllliinngg uunnddeerr WWiinnddoowwss 9988//MMEE//22000000//XXPP
The Auto-install CD-ROM makes it easy for you to install the drivers and soft­ware for your mainboard.
Note: If the Auto-install CD-ROM does not work on y our sy ste m , y ou can still in-
stall drivers through the f ile m ana ger for y our OS (f or e xa m ple, W indow s Explorer). Refer to Utility Folder Insta llation Notes late r in this chapter.
The support software CD-ROM disc loads automatically under Windows 98/ME/2000/XP. When you insert the CD-ROM disc in the CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.
Note: If the opening screen doesn't appear, double-click the file "setup.exe" in
the root directory.
33
Setup Tab
Setup Click the Setup button to run the software installation program.
Select from the menu which software you want to install.
Browse CD
Exit The Exit button closes the Auto Setup window.
The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support CD.
Before installing the software from Windows Explorer, look for a file named README.TXT, INSTALL.TXT or something similar. This file may contain important information to help you install the software correctly.
Some software is installed in separate folders for different oper­ating systems, such as DOS, WIN NT, or WIN98/95. Always go to the correct folder for the kind of OS you are using.
To install the software, execute a file named SETUP.EXE or INSTALL.E XE by double-clicking the file and then following the instructions on the screen.
Application Tab
Lists the software utilities that are available on the CD.
Read Me Tab
Displays the path for all software and drivers available on the CD.

Running Setup

Follow these instructions to install device drivers and software for the main­board:

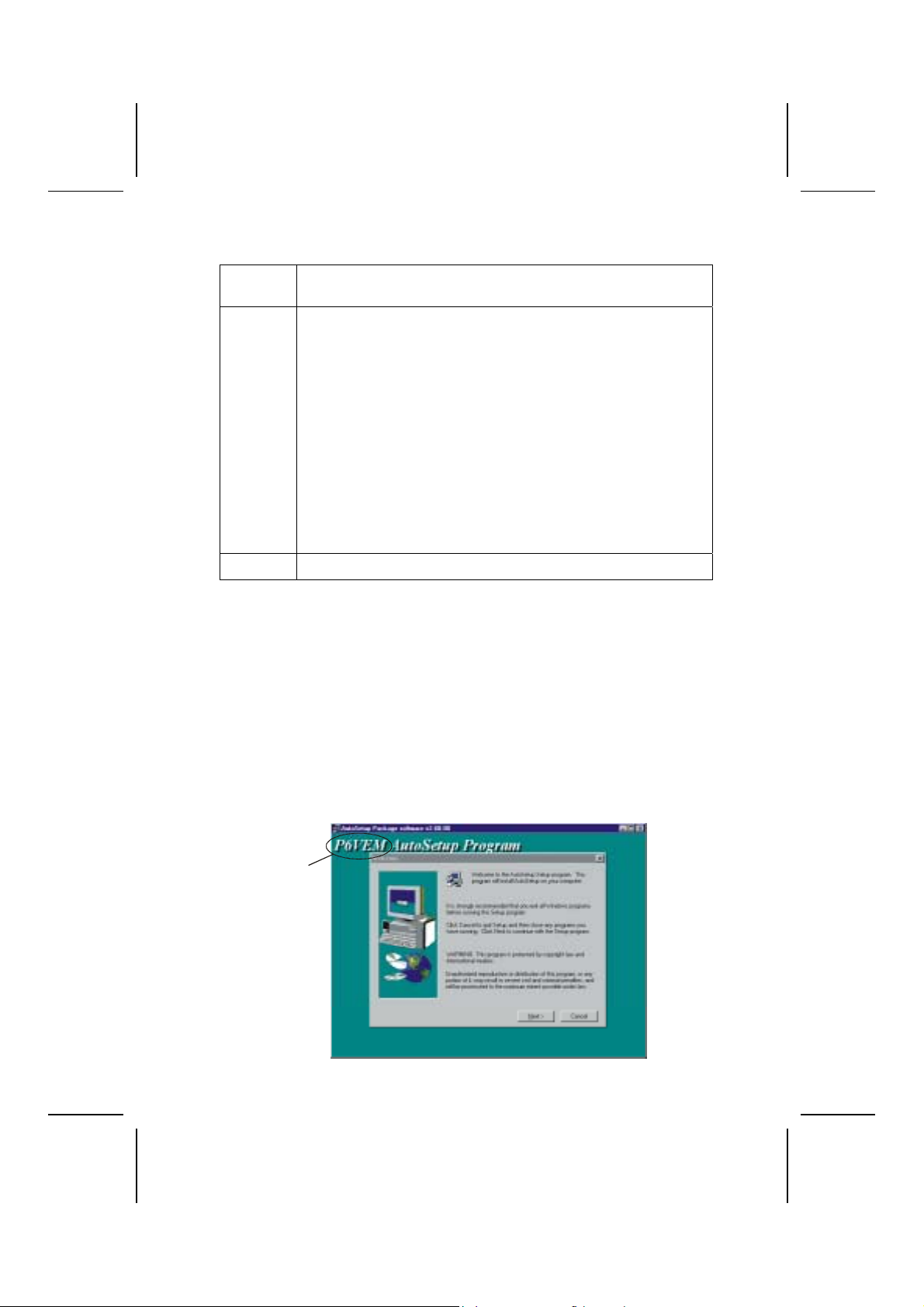

1. Click Setup. The installation program begins:
Mainboard ID
34
Note: The following screens are examples only. The screens and driver lists will
be different according to t he mainboard you are installing.
The mainboard identification is located in the upper left-hand corner.
2. Click Next. The following screen appears:
3. Check the box next to the items you want to install. The default options are recommended.
4. Click Next run the Installation Wizard. An item installation screen appears:
5. Follow the instructions on the screen to install the items.
Drivers and software are automatically installed in sequence. Follow the on­screen instructions, confirm commands and allow the computer to restart a few times to complete the installation.
MMaannuuaall IInnssttaallllaattiioonn
35
Insert the CD in the CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your mainboard.
Look for the chipset and mainboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installa­tion. Other drivers have the setup program located in the operating system subfolder.
If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.
UUttiilliittyy SSooffttwwaarree RReeffeerreennccee
All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.
Note: These software(s) are subject to change at anytime without prior notice.
Please refer to the support CD for available software.
AWARD Flash Memory Utility
This utility lets you erase the system BIOS stored on a Flash Memory chip on the mainboard, and lets you copy an updated version of the BIOS to the chip. Proceed with caution when using this program. If you erase the current BIOS and fail to write a new BIOS, or write a new BIOS that is incorrect, your sys­tem will malfunction. Refer to Chapter 3, Using BIOS for more information.
WinFlash Utility
The Award WinFlash utility is a Windows version of the DOS Award BIOS flash writer utility. The utility enables you to flash the system BIOS stored on a Flash Memory chip on the mainboard while in a Windows environment. This utility is currently available for WINXP\ME\2000\98SE. To install the WinFlash utility, run WINFLASH.EXE from the following directory:
\UTILITY\WINFLASH 1.51
PC-CILLIN 2002
The PC-CILLIN 2002 software program provides anti-virus protection for your system. This program is available for W indows 2000/ME/98SE/XP and W in­dows NT. Be sure to check the readme.txt and install the appropriate anti-virus software for your operating system.
We strongly recommend users to install this free anti-virus software to help protect your system against viruses.
36 37
MediaRing Ta lk – Telephony Software
To install the MediaRing Talk voice modem software for the built-in modem, go to the directory \UTILITY\MEDIARING TALK, then run MRTALK­SETUP72.EXE to install the application software.
Super Voice – Fax/Modem Software
To install the Super Voice voice, fax, data communication application for use with the built-in fax/modem, go the directory \UTILITY\SUPER_VOICE, then run PICSHELL.EXE to install the application software.
CD Ghost
The CD Ghost software enables you to create a virtual cabinet of CD-ROM drives on your system to help you categorize and organize your CD collection. A user-friendly interface assists you in quickly creating images of both CDs and DVDs onto your system. To install the software, run SETUP.EXE from the following directory:
\UTILITY\CDGHOST\ENG\CDGHOST
Recovery Genius
The Recovery Genius software program is an innovative windows application system that protects your Hard Disk Drive from virus intrusion, accidental deletions and from system corruption. To install the Recovery Genius software program run SETUP.EXE from the following directory:
\UTILITY\RECOVERY GENIUS\ENG\RECOVERYGENIUS
Language Genius
The Language Genius is a software –based product that helps you to learn new languages. To install the Language Genius software program run SETUP.EXE from the following directory:
\UTILITY\LANGUAGE GENIUS\ENG\LANGUAGEGENIUS
PageABC
The PageABC application software enables you to create your very own home page. To install the PageABC, go to the directory \UTILITYPageABC, and then run SETUP.EXE to install the application software.
This concludes Chapter 4.
Loading...
