ECS H81H3-M User Manual

H81H3-M

USER MANUAL

Preface

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment onto an outlet on a circuit different from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

H81H3-M

USER MANUAL

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.

The manual consists of the following:

Describes features of the motherboard.

page 1

Describes installation of motherboard components.

page 7

page 25

page 61

Installing the Motherboard

Introducing the Motherboard

Provides information on using the BIOS Setup Utility.

Describes the motherboard software.

Limits and methods of measurement of radio disturbance characteristics of information technology equipment

EN 55022

EN 61000-3-2

Disturbances in supply systems caused

EN 61000-3-3

Disturbances in supply systems caused by household appliances and similar electrical equipment “ Voltage fluctuations”

EN 55024

Information technology equipment-Immunity characteristicsLimits and methods of measurement

EN 60950

Safety for information technology equipment including electrical business equipment

CE marking

About the Manual



This device is in conformity with the following EC/EMC directives:

Chapter 4

Chapter 1

Chapter 2

Chapter 3 Using BIOS

Using the Motherboard Software

Chapter 5 Trouble Shooting

Provides basic trouble shooting tips.

page 65

iii

H81H3-M USER MANUAL

Chapter 2 7

Installing the Motherboard 7

Safety Precautions.............................................................................7

Installing the Motherboard in a Chassis......................................7

Checking Jumper Settings.................................................................8

Installing Hardware..................................................................9

Installing the Processor.............................................................9

Installing the CPU Cooler.........................................................11

Installing Memory Modules....................................................12

Installing Add-on Cards...........................................................13

Connecting Optional Devices..................................................15

Installing a SATA Hard Drive...................................................22

Connecting Case Components.......................................................23

Front Panel Header.................................................................25

TABLE OF CONTENTS

Preface i

Chapter 1 1

Introducing the Motherboard 1

Introduction...................................................................................1

Pakage Contents............................................................................1

Specifications................................................................................2

Motherboard Components..........................................................4

I/O Ports..............................................................................................6

Chapter 3 27

Using BIOS 27

About the Setup Utility................................................................27

The Standard Configuration....................................................27

Entering the Setup Utility........................................................27

Resetting the Default CMOS Values.....................................28

Using BIOS........................................................................................28

BIOS Navigation Keys..............................................................29

Main Menu.............................................................................30

Advanced Menu......................................................................31

Chipset Menu..........................................................................46

M.I.B III(MB Intelligent Bios III) Menu....................................53

Boot Menu...............................................................................59

Security Menu..........................................................................60

Exit Menu................................................................................61

H81H3-M

USER MANUAL

Chapter 4 63

Using the Motherboard Software 63

Auto-installing under Windows XP/7/8......................................63

Running Setup.........................................................................63

Manual Installation..........................................................................65

Chapter 5 67

Trouble Shooting 67

Start up problems during assembly..............................................67

Start up problems after prolong use............................................68

Maintenance and care tips..............................................................68

Basic Troubleshooting Flowchart...................................................69

H81H3-M USER MANUAL

Chapter 1

Introducing the Motherboard

Introduction

Thank you for choosing the H81H3-M motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the LGA1150 Haswell socket for latest 4th Generation Intel® CoreTM Family/Pentium® Celeron® processors for high-end business or personal desktop markets.

This motherboard is based on Intel

H81 Express Chipset for best desktop platform solution. H81 is a single-chip, highly integrated, high performance Hyper-Threading peripheral controller, unmatched by any other single chip-device controller. This motherboard supports up to 32 GB of system memory with DDR3 1600 SDRAM. High resolution graphics via PCI Express x16 slot, intended for Graphics Interface, is fully compliant to the PCI Express Base Specification revision 2.0. It provides two PCI rev

2.2 slots and one PCI Express x1 rev 2.0 slot for extending usage.

It implements an EHCI (Enhanced Host Controller Interface) compliant interface that provides eight USB 2.0 ports (four USB 2.0 ports at the back panel and two USB 2.0 headers support additional four USB 2.0 ports, please refer to chapter 2 parts of Front Panel USB headers for more details). This motherboard implements two USB

3.0 ports at rear I/O with blue connectors also.

The motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and PS/2 keyboard connectors, one VGA port , one DVI port, one HDMI port,one RJ45 LAN connector, four USB 2.0 ports, two USB 3.0 ports, and audio jacks 6-ch for microphone, line-in and line-out.

In addition, this motherboard supports two SATA 3Gb/s and two SATA 6Gb/s connectors for expansion.

Your motherboard package ships with the following items:

Package Contents

H81H3-M Motherboard User Manual DVD I/O Shield 2 SATA 6Gb/s Cables

    

The package contents above are for reference only, please take the actual package items as standard.

Chapter 1

H81H3-M USER MANUAL

CPU

Specifications

• Intel® H81 Chipset

Chipset

• DDR3 memory architecture

• 4 x 240-pin DDR3 DIMM sockets support up to 32 GB

• Supports Dual DDR3

1600 MHz DDR3 SDRAM

Memory

• 1 x PCI Express x16 Gen2 slot

• 1 x PCI Express x1 Gen2 slot

• 2 x PCI slots

• Supported by Intel® H81 Express Chipset 2 x Serial ATA 3Gb/s devices

2 x Serial ATA 6Gb/s devices

Expansion Slots

Storage

• 1 x PS/2 keyboard and PS/2 mouse connectors

• 1 x VGA port

• 1 x DVI port

• 1 x HDMI port

• 4 x USB 2.0 ports

• 1 x RJ45 LAN connector

• 2 x USB 3.0 ports

• Audio jacks 6-ch for microphone, line-in and line-out

Rear Panel I/O

• LGA1150 Haswell socket for latest 4th Generation Intel® Core

Family /Pentium®/Celeron® processors

• Supports “Hyper-Threading” technology CPU

Note: Please go to ECS website for the latest CPU support list.

Note: Please go to ECS website for the latest Memory support list.

• 1 x 24-pin ATX Power Supply connector

• 1 x 4-pin 12V Power connector

• 1 x 4-pin CPU_FAN connector

• 1 x 4-pin SYS_FAN connector

• 1 x Front Panel audio header

• 1 x Front Panel switch/LED header

• 1 x ME_UNLOCK header

• 1 x LPT header

• 1 x SPDFIO header

• 2 x Serial SATA 3Gb/s connectors

• 2 x Serial SATA 6Gb/s connectors

• 2 x USB 2.0 headers support additional four USB 2.0 ports

• 1 x Case open header

• 1 x TPM header

• 1 x Serial port header (COM)

• 1 x CLR_CMOS header

• 1 x BZ header

Internal I/O Connectors & Headers

• Realtek ALC662-VD0-GR 48P 6-Ch HD audio CODEC

• Compliant with HD audio specification

Audio

LAN • Realtek RTL8111G 32P Gigabit Lan

H81H3-M USER MANUAL

Chapter 1

• AMI BIOS with 64Mb SPI Flash ROM

• Supports Plug and Play, STR (S3)/STD (S4), Hardware monitor, Multi Boot

• Supports ACPI & DMI

• Audio, LAN, can be disabled in BIOS

• F7 hot key for boot up devices option

• Support PgUp clear CMOS Hotkey (Has PS2 KB Model only)

System BIOS

Form Factor • Micro-ATX Size, 244mm x 220mm

Chapter 1

H81H3-M USER MANUAL

Motherboard Components

H81H3-M USER MANUAL

Chapter 1

Table of Motherboard Components

LABEL COMPONENTS

LGA1150 haswell socket for latest 4th Generation Intel®

Core™ Family/ Pentium®/Celeron® Processors

2. CPU_FAN 4-pin CPU cooling fan connector

3. SYS_FAN 4-pin system cooling fan connector

4. DDR3_1~4 240-pin DDR3 SDRAM slots

5. ATX_POWER Standard 24-pin ATX power connector

6. SATA_3~4 Serial ATA 3.0 Gb/s connectors

7. SATA3_1~2 Serial ATA 6.0 Gb/s connectors

8. F_PANEL Front panel switch/LED header

9. CLR_CMOS Clear CMOS jumper

10. BZ Buzzer

11. CASE CASE open header

12. ME_UNLOCK ME unlock header-for factory use only

13. F_USB1~2 Front panel USB 2.0 headers

14. TPM Trusted Platform Module header

15. COM Onboard serial port header

16. LPT Printer header

17. F_AUDIO Front panel audio header

18. PCI1~2 32-bit add-on card slots

19. PCIE1 PCI Express x1 slot

20. SPDIFO SPDIF out header

21. PCIEX16 PCI Express slot for graphics interface

22. ATX12V 4-pin +12V power connector

1. CPU Socket

Chapter 1

H81H3-M USER MANUAL

I/O Ports

1. PS/2 Mouse(green)

Use the upper PS/2 port to connect a PS/2 mouse.

2. PS/2 Keyboard(purple) Use the lower PS/2 port to connect a PS/2 keyboard.

3. VGA Port

Connect your monitor to the VGA port.

4. DVI Port

Connect your monitor to the DVI port.

5. HDMI Port

You can connect the display device to the HDMI port.

6. USB 2.0 Ports

Use the USB 2.0 ports to connect USB 2.0 devices.

7. USB 3.0 Ports

Use the USB 3.0 ports to connect USB 3.0 devices.

8. LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

9. Line-in(blue) It can be connected to an external CD/DVD player, Tape player or other audio devices for audio input.

10. Line-out(lime) It is used to connect to speakers or headphones.

11. Microphone(pink) It is used to connect to a microphone.

LAN LED Status Description

OFF No da ta Orange blinking Active OFF No link Green Link

Activity LED

Link LED

LAN Port

Chapter 2

H81H3-M USER MANUAL

Chapter 2

Installing the Motherboard

2-1. Safety Precautions

2-2. Installing the motherboard in a Chassis

This motherboard carries a Micro ATX form factor of 244 x 220 mm. Choose a chassis that accommodates this form factor. Make sure that the I/O template in the chassis matches the I/O ports installed on the rear edge of the motherboard. Most system chassis have mounting brackets installed in the chassis, which corresponds to the holes in the motherboard. Place the motherboard over the mounting brackets and secure the motherboard onto the mounting brackets with screws.

Follow these safety precautions when installing the motherboard:

• Wear a grounding strap attached to a grounded device to avoid damage from static electricity.

• Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard.

• Leave components in the static-proof bags.

• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.

Do not over-tighten the screws as this can stress the motherboard.

Chapter 2

H81H3-M USER MANUAL

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.

To avoid the system instability after clearing CMOS, we recommend users to enter the main BIOS setting page to “Load Default Settings” and then “Save and Exit Setup”.

2-3. Checking Jumper Settings

Chapter 2

H81H3-M USER MANUAL

2-4. Installing Hardware

2-4-1. Installing the Processor

• This motherboard has an LGA1150 haswell socket.

• When choosing a processor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.

• You may be able to change the settings in the system Setup Utility. We strongly recommend you do not over-clock processor or other components to run faster than their rated speed.

• The following illustration shows CPU installation components.

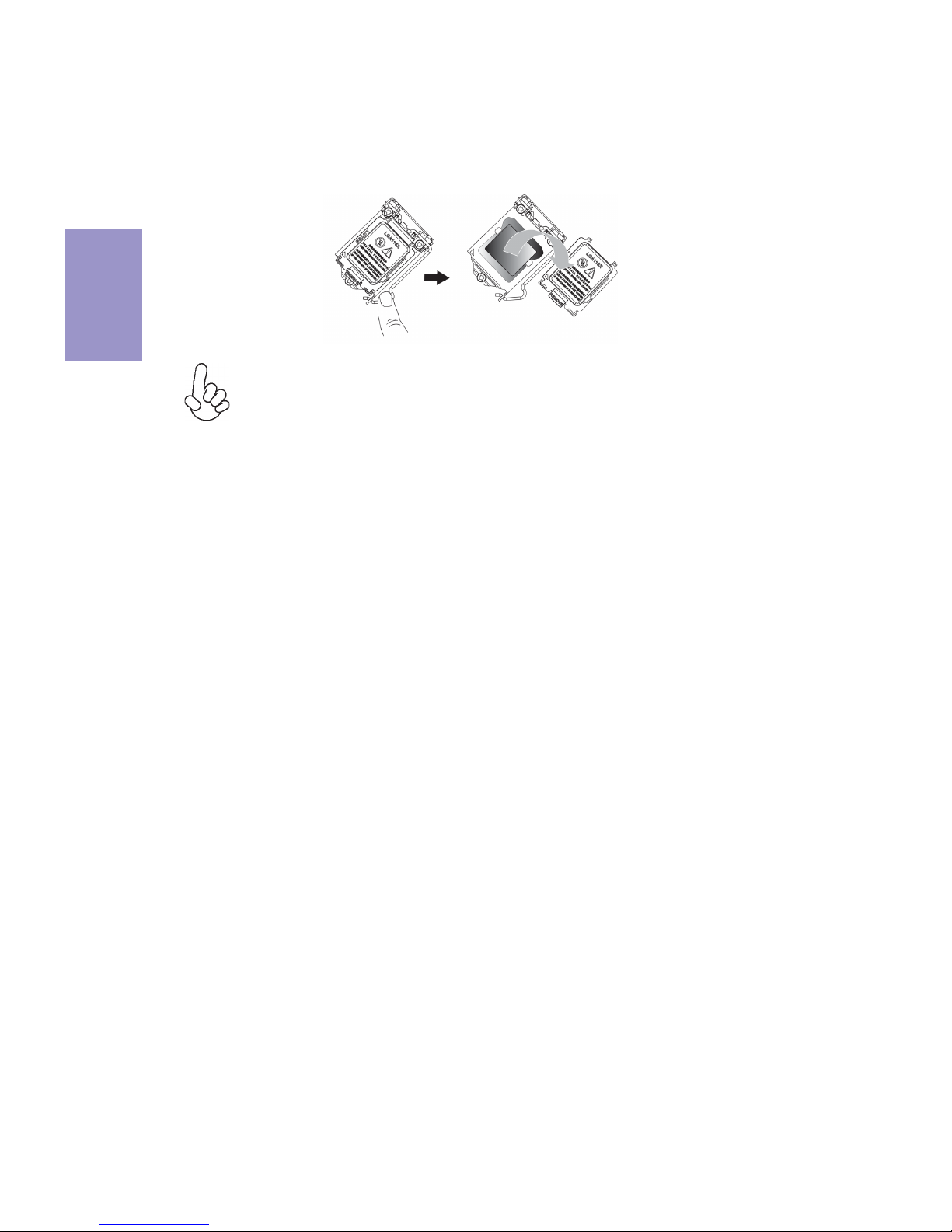

A. Press the hook of lever down with your thumb and pull it to the right side to release it from retention tab.

B. Lift the tail of the load lever and rotate the load plate to fully open position.

C. Grasp the edge of the package substrate. Make sure pin 1 indicator is on your bottom-left side. Aim at the socket and place the package carefully into the socket by purely vertical motion.

Chapter 2

H81H3-M USER MANUAL

D. Rotate the load plate onto the package IHS (Intergraded Heat Spreader). Engage the load lever while pressing down lightly onto the load plate. Secure the load lever with the hook under retention tab. Then the cover will flick automatically.

Please save and replace the cover onto the CPU socket if processor is removed.

Chapter 2

H81H3-M USER MANUAL

A. Apply some thermal grease onto the contacted area between the heatsink and the CPU, and make it to be a thin layer.

B. Fasten the cooling fan supporting base onto the CPU socket on the motherboard. And make sure the CPU fan is plugged to the CPU fan connector.

C. Connect the CPU cooler power connector to the CPU_FAN connector.

2-4-2. Installing the CPU Cooler

• Install the cooling fan in a well-lit work area so that you can clearly see the motherboard and processor socket.

• Avoid using cooling fans with sharp edges in case the fan casing and the clips cause serious damage to the motherboard or its components.

• To achieve better airflow rates and heat dissipation, we suggest that you use a high quality fan with 3800 rpm at least. CPU fan and heat sink installation procedures may vary with the type of CPU fan/heatsink supplied. The form and size of fan/heatsink may also vary.

• DO NOT remove the CPU cap from the socket before installing a CPU.

• Return Material Authorization (RMA) requests will be accepted only if the motherboard comes with the cap on the LGA1150 haswell socket.

• The following illustration shows how to install CPU fan.

Chapter 2

H81H3-M USER MANUAL

2-4-3. Installing Memory Modules

• This motherboard accommodates four memory modules. It can support four 240-pin DDR3 1600.

• Do not remove any memory module from its antistatic packaging until you are ready to install it on the motherboard. Handle the modules only by their edges. Do not touch the components or metal parts. Always wear a grounding strap when you handle the modules.

• You must install at least one module in any of the four slots. Total memory capacity is 32 GB.

• Refer to the following to install the memory modules.

C. The slot latches are levered upwards and latch on to the edges of the

DIMM.

A. Push the latches on each side of the DIMM slot down.

B. Install the DIMM module into the slot and press it firmly down until it

seats correctly. Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot.

Chapter 2

H81H3-M USER MANUAL

2-4-4. Installing Add-on Cards

The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard’s features and capabilities. With these efficient facilities, you can increase the motherboard’s capabilities by adding hardware that performs tasks that are not part of the basic system.

PCIEX16 Slot

The PCI Express x16 slot is used to install an external PCI Express graphics card that is fully compliant to the PCI Express Base Specification revision 2.0.

Before installing an add-on card, check the documentation for the card carefully. If the card is not Plug and Play, you may have to manually configure the card before installation.

The PCI Express x1 slot is fully compliant to the PCI Express Base Specification revision 2.0.

PCIE1 Slot

This motherboard is equipped with two standard PCI slots. PCI stands for Peripheral Component Interconnect and is a bus standard for expansion cards, which for the most part, is a supplement of the older ISA bus standard. The PCI slots on this board are PCI v2.2 compliant.

PCI1~2 Slots

Chapter 2

H81H3-M USER MANUAL

1 Remove a blanking plate from the system case corresponding to the slot

you are going to use.

2 Install the edge connector of the add-on card into the expansion slot.

Ensure that the edge connector is correctly seated in the slot.

3 Secure the metal bracket of the card to the system case with a screw.

1. For some add-on cards, for example graphics adapters and network adapters, you have to install drivers and software before you can begin using the add-on card.

2. The onboard PCI interface does not support 64-bit SCSI cards.

Follow these instructions to install an add-on card:

Please refer the following illustrations to install the add-on card:

Install the VGA Card in the PCIEX16 slot

Install the VGA Card in the PCI slot

Install the LAN Card in the PCIE1 slot

Chapter 2

H81H3-M USER MANUAL

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional devices:

SATA3_1~2 connectors are used to support the Serial ATA 6Gb/s device, and SATA_3~4 connectors are used to support the Serial ATA 3Gb/s device, simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Parallel ATA interface. But maintains register compatibility and software compatibility with Parallel ATA.

1 & 2. SATA_3~4 & SATA3_1~2: Serial ATA Connectors

No. Components No. Components

1SATA_3~46 TPM

2 SATA3 _1 ~2 7 COM

3CASE8 LPT

4 ME_UNLOCK 9 F_AUDIO

5F_USB1~210 SPDIFO

Chapter 2

H81H3-M USER MANUAL

3. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis equipped with instrusion detection switch and needs to be enabled in BIOS.

4. ME_UNLOCK: ME Unlock Header

Chapter 2

H81H3-M USER MANUAL

The motherboard has two USB 2.0 headers supporting four USB 2.0 ports. Additionally, some computer cases have USB ports at the front of the case. If you have this kind of case, use auxiliary USB connector to connect the front-mounted ports to the motherboard.

5. F_USB1~2: Front Panel USB 2.0 Headers

Please make sure that the USB cable has the same pin assignment as indicated above. A different pin assignment may cause damage or system hang-up.

6. TPM:Trusted Platform Module Header

Trusted platform module(TPM) is a published specification detailing a microcontroller that can store secured information, and implementations of that specification.

Chapter 2

H81H3-M USER MANUAL

7. COM: Onboard Serial Port Header

Connect a serial port extension bracket to this header to add a serial port to your system.

This is a header that can be used to connect to the printer, scanner or other devices.

8. LPT: Onboard parallel port header

Chapter 2

H81H3-M USER MANUAL

The front panel audio header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access. This header supports HD audio by default. If you want connect an AC

’ 97 front panel audio to HD onboard headers,

please set as below picture.

9. F_AUDIO: Front Panel Audio Header

If you use AC’ 97 Front Panel, please tick off the option of “Disabled Front Panel Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel Detect ” .

AC’ 97 Audio Configuration: To enable the front panel audio connector to support AC97 Audio mode.

Chapter 2

H81H3-M USER MANUAL

* For reference only

If you use AC

’ 97 Front Panel, please don’ t tick off “ Using Front Jack Detect ” . If you

use HD Audio Front Panel, please tick off the option of “Using Front Jack Detect ”.

* For reference only

Chapter 2

H81H3-M USER MANUAL

This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface) output to digital multimedia device through optical fiber or coaxial connector.

10. SPDIFO: SPDIF out header

Chapter 2

H81H3-M USER MANUAL

2-4-6. Installing a SATA Hard Drive

About SATA Connectors

Your motherboard features four SATA connectors supporting a total of four drives. SATA refers to Serial ATA (Advanced Technology Attachment) is the standard interface for the IDE hard drives which are currently used in most PCs. These connectors are well designed and will only fit in one orientation. Locate the SATA connectors on the motherboard and follow the illustration below to install the SATA hard drives.

To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the Serial ATA protocol. This SATA cable comes with a SATA power cable. You can connect either end of the SATA cable to the SATA hard drive or the connector on the motherboard.

Refer to the illustration below for proper installation:

1 Attach either cable end to the connector on the motherboard. 2 Attach the other cable end to the SATA hard drive. 3 Attach the SATA power cable to the SATA hard drive and connect the other

end to the power supply.

* For reference only

Installing Serial ATA Hard Drives

This section describes how to install a SATA Hard Drive.

Chapter 2

H81H3-M USER MANUAL

1 & 2. CPU_FAN & SYS_FAN (CPU Cooling FAN Connector) & (System Cooling FAN Connector)

After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following:

Connect the CPU cooling fan cable to CPU_FAN. Connect the system cooling fan connector to SYS_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A ~ 2.2A (26.4W max) at +12V.

2-4-7. Connecting Case Components

No. Components No. Components

1 CPU_FAN 4 F_PANEL

2SYS_FAN5 BZ

3 ATX_POWER 6 ATX1 2V

Chapter 2

H81H3-M USER MANUAL

3 & 6. ATX_POWER (ATX 24-pin Power Connector) & ATX12V (ATX 12V Power Connector)

The ATX 24-pin connector allows you to connect to ATX v2.x power supply.

With ATX v2.x power supply, users please note that when installing 24-pin power cable, the latches of power cable and the ATX match perfectly.

Connecting 24-pin power cable

24-pin power cable

Connect the standard power supply connector to ATX_POWER. Connect the auxiliary case power supply connector to ATX12V.

The ATX12V4P power connector is used to provide power to the CPU.

When installing 4-pin power cable, the latches of power cable and the ATX12V4P match perfectly.

Connecting 4-pin power cable

4-pin power cable

Chapter 2

H81H3-M USER MANUAL

Hard Drive Activity LED

Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that data is being read from or written to the hard drive. For the LED to function properly, an IDE drive should be connected to the onboard IDE interface. The LED will also show activity for devices connected to the SCSI (hard drive activity LED) connector.

Power/Sleep/Message waiting LED

Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides power on/off, sleep, and message waiting indication.

Reset Switch

Supporting the reset function requires connecting pin 5 and 7 to a momentary-contact switch that is normally open. When the switch is closed, the board resets and runs POST.

Power Switch

Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at least 50 ms to signal the power supply to switch on or off. The time requirement is due to internal de-bounce circuitry. After receiving a power on/off signal, at least two seconds elapses before the power supply recognizes another on/off signal.

4. F_PANEL: Front Panel Header

The front panel header (F_PANEL) provides a standard set of switch and LED headers commonly found on ATX or Micro ATX cases. Refer to the table below for information:

Chapter 2

H81H3-M USER MANUAL

5. BZ: Buzzer Header

Connect the case buzzer cable to BZ.

This concludes Chapter 2. The next chapter covers the BIOS.

Chapter 3

H81H3-M USER MANUAL

About the Setup Utility

The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration

• when a configuration error is detected and you are prompted to make changes to the Setup Utility

• when trying to resolve IRQ conflicts

• when making changes to the Power Management configuration

• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Chapter 3

Using BIOS

• Hard drives, diskette drives and peripherals

• Video display type and display options

• Password protection from unauthorized use

• Power Management features

Chapter 3

H81H3-M USER MANUAL

Press the delete key to access BIOS Setup Utility.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>.

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with an icon

) lead to submenus that enable you to change

the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

Resetting the Default CMOS Values

When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. You simply need to Load Default Settings to reset the default CMOS values.

Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.

Chapter 3

H81H3-M USER MANUAL

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION

Scrolls through the items on a menu

+/- Change Opt.

F2 Previous Value

F3 Optimized Defaults

F1 General Help

ESC Exits the current menu



Enter Select

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by an icon .

F4 Save & Exit

1. For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture’s website for updated manual.

2. In this Gui BIOS, you can operate by mouse or keyboard. Click : select item; Double click: enter; Right click: exit.

Chapter 3

H81H3-M USER MANUAL

Main Menu

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

System Language (English)

This item is used to set system language.

This menu shows the information of BIOS and enables you to set the system language, date and time.

Choose the system default language

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

BIOS Information

System Language English

System Date Thu 05/22/2014

System Time 00:01:23

Chapter 3

H81H3-M USER MANUAL

The Advanced menu items allow you to change the settings for the CPU and other system.

Advanced Menu

LAN Configuration Parameters

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

LAN Configuration PC Health Status

Power Management Setup PCI Express Configuration ACPI Settings CPU Configuration SATA Configuration USB Configuration Super IO Configuration Trusted Computing Intel (R) Smart Connect Technology

Chapter 3

H81H3-M USER MANUAL

LAN Configuration

The item in the menu shows the LAN-related information that the BIOS automatically detects.

Onboard LAN Controller (Enabled)

Use this item to enable or disable Onboard LAN controller.

Press <Esc> to return to the Advanced Menu page.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

LAN Configuration

Onboard LAN Controller Enabled

Enabled/Disabled Onboard LAN Controller

Chapter 3

H81H3-M USER MANUAL

PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

Scroll to this item and press <Enter> to view the following screen:

Smart Fan Function

CPU Smart Fan/System Smart Fan Control (Enabled)

These items enable you to define the CPU smart fun/system smart fan by smartly adjusting the CPU smart fan/system smart fan. When it is set at certain temperature, the CPU smart fan/system smart fan PWM value will change accordingly.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

CPU Temperature (DTS) 47 System Temperature 27

C CPU Fan Speed 3629RPM System Fan Speed 0 RPM Processor Input Voltage 1.728 V DIMM Voltage 1.524V

TCC Activation Temperature (DTS) 75

Smart Fan Function

PC Health Status

Main Advanced Chipset M.I.B. III Boot Security Exit

CPU Smart Fan Control Enabled Smart Fan Mode Normal

Smart Fan start PWM value 180 Smart Fan start PWM TEMP (DTS) 45 DeltaT +3 Smart Fan Slope PWM value 10 PWM value / unite CPU Fan Full Speed Offset (DTS) 52

System Smart Fan Control Enabled Smart Fan Mode Normal

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Smart Fan start PWM value 180 Smart Fan start PWM TEMP (DTS) 45 DeltaT +3 Smart Fan Slope PWM value 10 PWM value / unite System Fan Full Speed Offset (DTS) 52

Enable CPU Smart Fan

Chapter 3

H81H3-M USER MANUAL

Press <Esc> to return to the PC Health Status page.

• CPU Temperature (DTS)

• System Temperature

• CPU Fan Speed

• System Fan Speed

• Processor Input Voltage

• DIMM Voltage

• TCC Activation Temperature (DTS)

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as CPU & DIMM voltage, CPU & System fan speed...etc.

Press <Esc> to return to the Advanced Menu page.

Smart Fan Mode (Normal)

This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a better operation environment. If you choose Normal mode, the fan speed will be auto adjusted depending on the CPU temperature. If you choose Quite mode, the fan speed will be auto minimized for quiet environment. If you choose Silent mode, the fan speed will be auto restricted to make system more quietly. If you choose Manual mode, the fan speed will be adjust depending on users’ parameters.

Chapter 3

H81H3-M USER MANUAL

Power Management Setup

This page sets up some parameters for system power management operation.

Resume By PME (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the PCI/PCI-E Modem or PCI/PCI-E LAN card. You must use an ATX power supply in order to use this feature. Use this item to do wake-up action if inserting the PCI/PCI-E card.

Resume By USB (Disabled)

This item allows you to enable or disable the USB device wakeup function from S3 mode.

EUP Function (Enabled)

This item allows user to enable or disable EUP support.

Resume By RING (Disabled)

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state.

Power LED Type (Dual Color LED)

This item shows the type of the Power LED.

Resume By PS2 MS (Disabled)

This item enables or disables you to allow mouse activity to awaken the system from power saving mode.

Resume By PS2 KB (Disabled)

This item enables or disables you to allow keyboard activity to awaken the system from power saving mode.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

About Resume by Ring

Resume By RING Resume By PME

Disabled

Resume By USB Disabled Resume By PS2 KB Disabled Resume By PS2 MS Resume By RTC Alarm

Disabled

EUP Function Power LED Type

Disabled

Enabled

Press <Esc> to return to the Advanced Menu page.

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system’s RTC (realtime clock). Use the items below this one to set the date and time of the wakeup alarm. You must use an ATX power supply in order to use this feature.

Power Management Setup

Dual Color LED

Chapter 3

H81H3-M USER MANUAL

PCI Express Configuration

This page sets up PCI Express configuration.

PCI Express 16X Speed (Auto)

This item allows you to set the PCIe X16 Speed.

Press <Esc> to return to the Advanced Menu page.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Configure PCI Express 16X Speed B0 : D1 : F0 Gen1-Gen3

NB PCI Express Configuration

PCI Express 16X PCI Express 16X Speed Auto

PCI Express Configuration

PCIE1 PCIe Speed Auto

PCIE1 PCIe Speed (Auto)

This item allows you to set the PCI Express Speed.

Chapter 3

H81H3-M USER MANUAL

ACPI Settings

The item in the menu shows the highest ACPI sleep state when the system enters suspend.

ACPI Sleep State [S3 (Suspend to RAM)]

This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default).

Press <Esc> to return to the Advanced Menu page.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

ACPI Settings

ACPI Sleep State S3 (Suspend to RAM)

Chapter 3

H81H3-M USER MANUAL

CPU Configuration

The item in the menu shows the CPU.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Enabled for windows XP and Linuxe (OS optimized for Hyper-Threading Technology) and Disabled for other OS ( OS not optimized for HyperThreading Technology).When Disabled only one thread per enabled core is enabled.

CPU Configuration

Intel (R) Core (TM) i7-4765T CPU @ 2.00GHZ EM64T Supported Processor Speed 2000 MHZ Processor Stepping 306c3 Microcode Revision 17 Processor Cores 4 Intel HT Technology Supported Intel VT-X Technology Supported

Enabled

Inetel (R) Core (TM) i7-4765T CPU @ 2.00GHZ

This is display field and displays the information of the CPU installed in your computer.

EM64T (Supported)

This item shows the computer supports EM64T.

Processor Speed (2000 MHZ)

This item shows the current processor speed.

Processor Stepping (306c3)

This item shows the processor stepping version.

Microcode Revision (17)

This item shows the Microcode revision.

Processor Cores (4)

This item shows the core number of the processor.

Intel HT Technology (Supported)

This item shows the computer supports Intel HT Technology.

Intel VT-X Technology (Supported)

This item shows the computer supports Intel VT-X Technology.

Hyper-threading (Enabled)

This item only available when the chipset supports Hyper-threading and you are using a Hyper-threading CPU.

Hyper-threading

Active Processor Cores All Limit CPUID Maximum Disabled Execute Disabled Bit Enabled Intel Virtualization Technology Enabled LakeTiny Feature Enabled CPU C3 Report Enabled CPU C6 Report Enabled CPU C7 Report C7s Package C State limit AUTO Enhanced Halt (C1E) Enabled

Active Processor Cores (All)

Use this item to control the number of active processor cores.

Chapter 3

H81H3-M USER MANUAL

Limit CPUID Maximum (Disabled)

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT

4.0.

Execute Disabled Bit (Enabled)

This item allows the processor to classify areas in memory by where application code can excute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code excution, preventing damage or worm propagation. Replacing older computers with Excute Disable Bit enabled systems can halt worm attacks, reducing the need for virus related repair.

Intel Virtualization Technology (Enabled)

When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandor Pool Technology.

LakeTiny Feature (Enabled)

Use this item to enable or disable the LakeTiny for C state configuration.

CPU C3 Report (Enabled)

Use this item to enable or disable CPU C3 (ACPI C2) report to OS.

CPU C6 Report (Enabled)

Use this item to enable or disable CPU C6 (ACPI C3) report to OS.

CPU C7 Report (C7s)

Use this item to enable or disable CPU C7 report to OS.

Package C State limit (AUTO)

Use this item to set package C state limit.

Enhanced Halt (C1E)

Use this item to enable or disable the Enhanced C1 state.

Press <Esc> to return to the Advanced Menu page.

Chapter 3

H81H3-M USER MANUAL

SATA Port1~4 (Not Present)

This motherboard supports four SATA channels and each channel allows one SATA device to be installed. Use these items to configure each device on the SATA channel.

SATA Configuration

Use this item to show the mode of serial SATA configuration options.

Press <Esc> to return to the Advanced Menu page.

/Click: Select Item

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

F1: General Help F Disabled2: PreviouDisableds Values

F3: Optimized Defaults F4: Save & Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

F1: General Help F2: Previous Values

ESC/Right Click: Exit

Main Advanced Chipset M.I.B. III Boot Security Exit

/Click: Select Item

F3: Optimized Defaults F4: Save & Exit

Spin up Device (Disabled)

On an edge detect from 0 to 1, the PCH starts a COMRESET initization sequence to the device.

SATA Mode (AHCI Mode)

Use this item to select SATA mode.

SATA Configuration

SATA Mode AHCI Mode

SATA Port1 Not Present Spin Up Device Disabled External SATA Disabled

SATA Port2 Not Present Spin Up Device Disabled External SATA Disabled

SATA Port3 Not Present Spin Up Device Disabled External SATA Disabled

SATA Port4 Not Present Spin Up Device Disabled External SATA Disabled

Determines how SATA controller(s) operate.

External SATA (Disabled)

Use this item to enable or disable External SATA Support.

Chapter 3

H81H3-M USER MANUAL

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

USB Configuration

Use this item to show the information of USB configuration.

Legacy USB Support (Enabled)

Use this item to enable or disable support for legacy USB devices.

Press <Esc> to return to the Advanced Menu page.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

USB Configuration

All USB Devices Enabled

Legacy USB Support Enabled

USB Support Parameters

Chapter 3

H81H3-M USER MANUAL

Super IO Configuration

Use this item to show the information of Super IO configuration.

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=3F8h; IRQ=4;)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Serial Port 0 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Set Parameters of Serial Port 0 (COMA)

Super IO Configuration

Super IO Chip IT8728 Serial Port 0 Configuration

Parallel Port Configuration

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Serial Port

Serial Port 0 Configuration

Serial Port Enabled Device Settings IO=3F8h; IRQ=4;

Change Settings Auto

Press <Esc> to return to the Super IO Configuration page.

Super IO Chip (IT8728)

This item shows the information of the super IO chip.

Chapter 3

H81H3-M USER MANUAL

Parallel Port Configuration

Scroll to this item and press <Enter> to view the following screen:

Parallel Port (Enabled)

This item allows you to enable or disable parallel port.

Device Settings (IO=378h; IRQ=5; DMA=3;)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Device Mode (ECP Mode)

This item shows the information of the device mode.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Enabled or Disabled Parallel Port (LPT/LPTE)

Parallel Port Configuration

Parallel Port Enabled Device Settings IO=378h; IRQ=5; DMA=3;

Change Settings Auto Device Mode ECP Mode

Press <Esc> to return to the Super IO Configuration page.

Chapter 3

H81H3-M USER MANUAL

Trusted Computing

Use this item to show the information of trusted computing configuration.

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Main Advanced Chipset M.I.B. III Boot Security Exit

Configuration

TPM Support Enabled

Current Status Information NO Security Device Found

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

TPM Support (Enabled)

Use this item to enable or disable the TPM support. O.S. will not show TPM. Reset of platform is required.

NO Security Device Found

This item shows the information of the security device.

Current Status Information

This item shows the information of current TPM status.

Press <Esc> to return to the Advanced Menu page.

Chapter 3

H81H3-M USER MANUAL

ISCT Support (Disabled)

Use this item to enable or disable ISCT support.

Press <Esc> to return to the Advanced Menu page.

Intel(R) Smart Connect Technology

Use this item to show the information of Intel(R) Smart Connect Technology.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Enable/Disable ISCT Support

ISCT Support Disabled

Chapter 3

H81H3-M USER MANUAL

The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system.

Chipset Menu

System Agent (SA) Parameters.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

System Agent Configuration PCH Configuration ME Configuration

IGD Memory (64M)

This item shows the information of the IGD (Internal Graphics Device) memory.

This item allows you to select graphics controller to use as the primary boot device.

DVMT Memory (256M)

When set to Fixed Mode, the graphics driver will reserve a fixed position of the system memory as graphics memory, according to system and graphics requirements.

Initiate Graphic Adapter (Auto)

System Agent Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Select which of IGFX/PEG/PCI Graphics device should be Primary Display or Select SG for Switchable Gfx.

System Agent Configuration

Initiate Graphic Adapter Auto

IGD Memory 64M DVMT Memory 256M IGD Multi-Monitor Disabled

CPU SA Audio Device Enabled

Chapter 3

H81H3-M USER MANUAL

IGD Multi-Monitor (Disabled)

This item allows you to enable or disable the IGD Multi-Monitor.

Press <Esc> to return to the Chipset Menu page.

CPU SA Audio Device (Enabled)

This item allows you to enable or disable the CPU SA Audio device.

Multi-Monitor technology

Please note that Multi-Monitor technology supports up to four monitors: one or two Intel integrated Graphics and one or two PCI-Express graphics devices under Windows 7/8.

Multi-Monitor technology can help you to increase the area available for programs running on a single computer system through using multiple display devices.

It is not only to increase larger screen viewing but also to improving personal productivity.

Step 1. Insert ECS drives DVD to run Auto setup or browse the DVD to install Intel chipset drivers, VGA and sound drivers.(If you want know the detail information, please refer to chapter 4.)

Intel Integrated Graphics

PCI-Express Graphics

Chapter 3

H81H3-M USER MANUAL

Step 3. Enable IGD Multi-Monitor from BIOS. In the following BIOS screen, please set IGD Multi-Monitor to [Enabled].

Step 2. Install all the drivers of PCI-Express graphic cards. Click the Browse CD item, then appears the following screen. Select the driver you want to install(e.g NVIDIA GeForce 8400 GS(Microsoft Corporation-WDDM v1.1)) and double click it.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Select which of IGFX/PEG/PCI Graphics device should be Primary Display or Select SG for Switchable Gfx.

System Agent Configuration

Initiate Graphic Adapter Aut o

IGD Memory 64M DVMT Memory 256M IGD Multi-Monitor Enabled

CPU SA Audio Device Enabled

Chapter 3

H81H3-M USER MANUAL

2.Select display devices, set the multiple displays option and to extend destop for display “Multi-Monitor technology”.

Change the apprearance of your displays

Control Panel All Control Panel Items Display Screen Resolution

Search Control Panel

Detect

Identify

3. DELL U2410Display:

Resolution:

1920 x 1200 (recommended)

Orientation: Landscape

Disconnect this displayMultiple displays:

Make this my main display

Advance settings

Make text and other items larger or smaller What display settings should I choose?

OK Cancel Apply

You must select Apply before making additional changes.!

Extend desktop to this display Disconnect this display

Step 4. Change the appearance of your displays under Windows 7/8.

Change the apprearance of your displays

Control Panel All Control Panel Items Display Screen Resolution

Search Control Panel

Detect

Identify

1. DELL U2410Display:

Resolution:

1920 x 1200 (recommended)

Orientation: Landscape

Extend desktop to this displayMultiple displays:

This is currently your main display.

Advance settings

Make text and other items larger or smaller What display settings should I choose?

OK Cancel Apply

Show the path of the setting location

Display devices

The type of the display

Set the multiple displays

1. Enter the Control Panel menu, select the Display in the All Control Panel Items and click the Screen Resolution, then appears the following screen.

Chapter 3

H81H3-M USER MANUAL

Change the apprearance of your displays

Control Panel All Control Panel Items Display Screen Resolution

Search Control Panel

Detect

Identify

4. AL1717Display:

Resolution: 1920 x 1200 (recommended)

Orientation: Landscape

Disconnect this displayMultiple displays:

Make this my main display

Advance settings

Make text and other items larger or smaller What display settings should I choose?

OK Cancel Apply

You must select Apply before making additional changes.

Change the apprearance of your displays

Control Panel All Control Panel Items Display Screen Resolution

Search Control Panel

Detect

Identify

4. AL1717Display:

Resolution:

1920 x 1200 (recommended)

Orientation: Landscape

Extend desktop to this displayMultiple displays:

Make this my main display

Advance settings

Make text and other items larger or smaller What display settings should I choose?

OK Cancel Apply

You must select Apply before making additional changes.

3 4

Chapter 3

H81H3-M USER MANUAL

PCH Configuration

Scroll to this item and press <Enter> to view the following screen:

Restore AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status.

Azalia HD Audio (Enabled)

This item enables or disables Azalia HD audio.

Case Open Warning (Disabled)

This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case.

Chassis Opened (No)

This item indicates whether the case has been opened.

Press <Esc> to return to the Chipset Menu page.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Select AC Power state when Power is re-applied after a power failure.

PCH Configuration

Restore AC Power Loss Power Off

Audio Configuration Azalia HD Audio

Enabled

Case Open Warning Disabled Chassis Opened No

Chapter 3

H81H3-M USER MANUAL

ME Configuration

Scroll to this item and press <Enter> to view the following screen:

ME Control (Enabled)

Use this item to enable or disable the ME Firmware.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Enable/Disable ME Firmware

Management Engine Technology Configuration

ME Control Enabled

ME FW Version 9.1.0.1120

ME FW Version (9.1.0.1120)

This item shows the ME FW version.

Press <Esc> to return to the Chipset Menu page.

Chapter 3

H81H3-M USER MANUAL

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

M.I.B. III (MB Intelligent BIOS III) Menu

CPU OverClocking Configuration

Scroll to this item to view the following screen:

+/- : Change Opt.

Enter/Dbl Click : Select



: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults

ESC/Right Click: Exit

F4: Save & Exit



Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

CPU OverClocking Configuration

M.I.B. III (MB Intelligent BIOS III)

CPU OverClocking Configuration

North Bridge Configuration

Memory Configuration Over Voltage Configuration

Spread Spectrum Auto

Intel (R) Core (TM) i7-4765T CPU @ 2.00GHZ Processor Speed 2000 MHz Memory Frequency 1067 MHz Total Memory 4096 MB (DDR3 )

Main Advanced Chipset M.I.B. III Boot Security Exit

CPU Ratio 20

Package Current Lock Disabled

IA Core Current Maximum Enhanced Intel SpeedStep Technology Enabled Turbo Mode Enabled Runtime Turbo Enable Disabled Boot performance mode Max Non-Turbo Perfor... Package TDP Lock Enable Disabled Long Duration Power Limit Override Maximum Power Limit 1 Time(Second) 8 Power Limit 2 Switch Enabled Short Duration Power Limit Override Maximum 1 Core Ratio Limit 30 2 Core Ratio Limit 29 3 Core Ratio Limit 27 4 Core Ratio Limit 26 Disable OverClocking Lock Enabled

Package Current Lock

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

CPU Ratio (20)

This item allows users to control non turbo CPU ratio.

Package Current Lock (Disabled)

This item allows you to enable or disable the package current lock.

Chapter 3

H81H3-M USER MANUAL

Enhanced Intel SpeedStep Technology (Enabled)

This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Technology).

Turbo Mode (Enabled)

This item allows you to control the Intel Turbo Boost Technology.

1 /2 /3 /4 Core Ratio Limit (30/29/27/26)

These items show the Core Ratio Limit Value.

IA Core Current (Maximum)

This item allows you to set IA Core Current Max.

Boot performance mode (Max Non-Turbo Perfor...)

Use this item to select the performance state that the BIOS will set before OS handoff.

Package TDP Lock Enable (Disabled)

This item allows you to enable or disable the package TDP lock.

Long Duration Power Limit Override (Maximum)

Intel(R) Turbo Boost Technology will use this power limit during the long duration power limit time window.

Power Limit 1 Time(Second) (8)

This item allows you to set the power limit 1 time.

Power Limit 2 Switch (Enabled)

This item allows you to enable or disable the power limit 2 switch.

Disable OverClocking Lock (Enabled)

This item allows you to control the OverClocking lock.

Press <Esc> to return to the M.I.B. III Menu page.

Short Duration Power Limit Override (Maximum)

Intel(R) Turbo Boost Technology will use this power limit for a very short duration. After that, the long duration power limit will be honored.

Runtime Turbo Enable (Disabled)

This item allows users to control non turbo CPU ratio.

Chapter 3

H81H3-M USER MANUAL

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Graphics Core Ratio Limit

Intel Graphics Configuration

Graphics Core Ratio Limit 24

Graphics Voltage (1/256) 255

Graphics Core Ratio Limit (24)

This item allows you to control the internal GFX core ratio.

Press <Esc> to return to the M.I.B. III Menu page.

North Bridge Configuration

Scroll to this item to view the following screen:

Graphics Voltages (255)

This item allows you to adjust the Graphics Voltages.

Chapter 3

H81H3-M USER MANUAL

Main Advanced Chipset M.I.B. III Boot Security Exit

The selection of Memory Profiles which impacts memory sizing behavior.

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Memory Configuration

Scroll to this item to view the following screen:

Memory Information

Memory RC Version 1.7.1.0 Memory Frequency 1067 Mhz Total Memory 4096 MB (DDR3)

Memory Profiles Automatic

Memory Frequency 1600

Timing Default Current Target tCL 9 9 9 tRCD 9 9 9 tRP 9 9 9 tRAS 28 28 28 NMode 1 1 Auto tWR 12 12 12 tRFC 240 240 240 tRRD 9 9 9 tWTR 6 6 6 tRTP 6 6 6 tCWL 8 8 8 tREFI 6240 6240 6240 tFAW 32 32 32 tWRPRE Auto tCPDED Auto tPRPDEN Auto OdtReadDelay Auto tCKE Auto tCCD Auto tWPRE Auto tRPRE Auto tRDRD Auto tRDRD_dr Auto

Memory RC Version (1.7.1.0)

This item shows the information of the memory RC version.

Memory Frequency (1067 Mhz)

This item shows the information of the memory frequency.

Total Memory (4096 MB (DDR3))

This item shows the information of the total memory.

Memory Profiles (Automatic)

This item enables you to set the memory profiles. The selection of memory profiles

impacts memory sizing behavior.

Press <Esc> to return to the M.I.B. III Menu page.

Chapter 3

H81H3-M USER MANUAL

Over Voltage Configuration

Scroll to this item to view the following screen:

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Ch0WriteVref 0.762 V (Auto)

This item allows you to adjust the Ch0WriteVref from 0 to 108, and the default is 54, 1 step is 4mV.

Ch1WriteVref 0.762 V (Auto)

This item allows you to adjust the Ch1WriteVref from 0 to 108, and the default is 54, 1 step is 4mV.

ChVrefCA 0.762 V (Auto)

This item allows you to adjust the ChVrefCA from 0 to 108, and the default is 54, 1 step is 4mV.

ChowriteVref 0-108. Default = 54, 1 Step = 4 mV.

DIMM Voltage 1.500 V Auto

Ch0WriteVref 0.762 V

Auto

Ch1WriteVref 0.762 V Auto ChVrefCA 0.762 V Auto ChReadVref 0.762 V Auto

CPU Adaptive Voltage Target(mV) 0 CPU Voltage Mode Adaptive CPU Voltage Offset(mV) 0 Offset Preflx +

RING/Cache Adaptive Voltage Target(mV) 0 RING/Cache Voltage Mode Adaptive RING/Cache Voltage Offset(mV) 0 Offset Prefix +

SVID Control Enable Enabled SVID Override Voltage Target(mV) 0

FIVR Faults Enable Enabled FIVR Efficiency Enable Enabled

GT Adaptive Voltage Target(mV) 0 GT Voltage Mode Adaptive GT Voltage Offset (mV) 0 Offset Prefix +

UNCORE Voltage Offset (mV) 0 Offset Prefix +

IOA Voltage Offset (mV) 0 Offset Prefix +

DIMM Voltage 1.500V (Auto)

This item allows you to adjust the DIMM Voltage.

Chapter 3

H81H3-M USER MANUAL

CPU/RING/Cache/GT Adaptive Voltage Target(mV) (0)

This item allows you to adjust the CPU/RING/Cache/GT Adaptive voltage target from 0 to 2000mV.

CPU/RING/Cache/GT Voltage Mode (Adaptive)

This item allows you to set the CPU/RING/Cache/GT voltage mode.

CPU/RING/Cache/GT/UNCORE/IOA/IOD Voltage Offset(mV) (0)

This item allows you to adjust the CPU/RING/Cache/GT/UNCORE/IOA/IOD voltage offset from -1000 to 998mV.

Offset Prefix (+)

This item allows you to select the offset value as positive (+) or negative (-).

SVID Control Enable (Enabled)

This item allows you to enable or disable the SVID control. If this function be disabled, it will not be changed until CPU powers down.

SVID Override Voltage Target(mV) (0)

This item allows you to adjust the SVID override voltage target, up to 2500mV.

FIVR Faults Enable (Enabled)

This item allows you to enable or disable the FIVR faults.

If this function is disabled,

it will not be changed until CPU powers down.

FIVR Efficiency Enable (Enabled)

This item allows you to enable or disable the FIVR efficiency. If this function is dis-

abled, it will not be changed until CPU powers down.

Press <Esc> to return to the M.I.B. III Menu page.

Intel (R) Core (TM) i7-4765T CPU @ 2.00GHZ

This is display-only field and displays the information of the CPU installed in your computer.

Processor Speed (2000 MHz)

This item shows the CPU speed.

Memory Frequency (1333 MHz)

This item shows the memory frequency.

Total Memory (4096 MB (DDR3))

This item shows the total memory.

Spread Spectrum (Auto)

If you enable spread spectrum, it can significantly reduce the EMI (Electro-Magnetic Interference) generated by the system.

ChReadVref 0.762 V (Auto)

This item allows you to adjust the ChReadVref from 0 to 108, and the default is 54, 1 step is 4mV.

Chapter 3

H81H3-M USER MANUAL

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

This page enables you to set the keyboard NumLock state.

Boot Menu

Boot Configuration

This item shows the information of the Boot Configuration.

Operation System Select (Windows 7 or other OS)

This item is used to select the operation system.

Launch PXE OpROM (Disabled)

The item enables or disables launch PXE Option ROM.

Launch Storage OpROM (Enabled)

Use this item to enable or disable the Storage OpROM.

Fast Boot (Disabled)

This item enables or disables boot with initialization of a minimal set of device required to launch active boot option. Has no effect for BBS boot options.

Bootup NumLock State (On)

This item enables you to select NumLock state.

Quiet Boot (Enabled)

This item enables or disables quiet boot.

Boot mode select (LEGACY)

Use this item to select boot mode.

Set Boot Priority

This item enables you to set boot priority for all boot devices.

Boot Option #1 /2 /3 /4 /5 /6 /7

These items show the boot priorities.

Windows 7 or other OS: Boot policy for Legacy OS.

Windows 8: Boot policy for UEFI OS without Compatibility Support Module(CSM).

Manual: User customized CSM parameters & boot policy.

Boot Configuration

Operation System Select Windows 7 or other OS

Launch PXE OpROM Disabled Launch Strorage OpROM Enabled

Fast Boot Disabled

Bootup NumLock State On Quiet Boot Enabled Boot mode select LEGACY

Set Boot Priority Boot Option #1 Hard Disk Boot Option #2 CD/DVD Boot Option #3 USB/Floppy Boot Option #4 USB CD/DVD Boot Option #5 USB Hard Disk Boot Option #6 USB Flash Boot Option #7 Network

Hard Disk Drive/ CDROM/DVD Drive BBS Priorities

These items enable you to specify the sequence of loading the operating system. Press <Enter> to see the submenu.

Chapter 3

H81H3-M USER MANUAL

This page enables you to set setup administrator password and user password.

Security Menu

Administrator Password Status (Not Install)

This item shows administrator password installed or not.

User Password Status (Not Install)

This item shows user password installed or not.

Secure Boot (Disabled)

This item is used to control the secure boot flow, it is possible only if system runs in User Mode.

System Mode (Setup)

This item allows you to set the system mode.

Main Advanced Chipset M.I.B. III Boot Security Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Set Administrator Password

Administrator Password

System Mode Setup Secure Boot Not Active

Secure Boot

Disabled

Administrator Password Status Not Install User Password Status Not Install

Chapter 3

H81H3-M USER MANUAL

Boot Override

Use this item to select the boot device.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any changes that you have made.

Restore Defaults

This item enables you to restore defaults to all the setup options.

Discard Changes and Exit

This item enables you to exit system setup without saving any changes.

Discard Changes and Reset

This item enables you to reset system setup without saving any changes.

This page enables you to exit system setup after saving or without saving the changes.

Exit Menu

Save Changes and Exit

This item enables you to exitt the system setup after saving the changes.

Save Changes and Reset

This item enables you to reset system setup after saving the changes.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

Restore User Defaults

This item enables you to restore the user defaults.

Main Advanced Chipset M.I.B. III Boot Security Exit

Go back to EZ Mode

Back to EZ Mode

Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Back to EZ Mode

This item enables you to back to EZ mode.

Chapter 3

H81H3-M USER MANUAL

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer’s Website. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the motherboard.

1 If your motherboard has a BIOS protection jumper, change the setting to

allow BIOS flashing.

2 If your motherboard has an item called Firmware Write Protect in Ad-

vanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)

3 Prepare a bootable device or create a bootable system disk. (Refer to

Windows online help for information on creating a bootable system disk.)

4 Download the Flash Utility and new BIOS file from the manufacturer’s

Web site. Copy these files to the bootable device.

5 Turn off your computer and insert the bootable device in your computer.

(You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)

6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file

name of the new BIOS and then press <Enter>. Example: AFUDOS.EXE

040706.ROM

7 When the installation is complete, remove the bootable device from the

computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

H81H3-M USER MANUAL

Chapter 4

Using the Motherboard Software

The auto-install DVD-ROM makes it easy for you to install the drivers and software. The support software DVD-ROM disc loads automatically under Windows XP/7/8. When you insert the DVD-ROM disc in the DVD-ROM drive, the auto-run feature will automatically bring up the installation screen. The screen has four buttons on it:

Setup, Utilities, Browse CD and Exit.

Auto-installing under Windows XP/7/8

Displays the path for all software and drivers available on the disk.

Open Windows Explorer and show the contents of the support disk.

Click “Exit” button to close the Auto-Setup

window.

Browse CD:

Click the “Setup” button to select and run the software installation program.

Click the “ Utilities” button to select and install ECS Intelligent Utility.

Information:

Follow these instructions to install device drivers and software for the motherboard:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

1. Click Setup. The installation program begins:

Running Setup

The motherboard identification is located in the upper left-hand corner.

H81H3-M USER MANUAL

Chapter 4

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install. The default options are recommended.

5. Follow the instructions on the screen to install the items.

4. Click Next to run the Installation Wizard. An item installation screen appears:

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

Windows 8 will show the following screen after system restart, you must select “Desktop” in the bottom left to install the next driver.

H81H3-M USER MANUAL

Chapter 4

If the auto-install DVD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Look

for the chipset and motherboard model, and then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

Manual Installation

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Windows 7/8 will appear below UAC (User Account Control) message after the system restart. You must select “Yes” to install the next driver. Continue

this process to complete the drivers installation.

H81H3-M USER MANUAL

Chapter 4

eBLU

ECS eBLU utility makes BIOS update faster and easier. eBLU will list the latest BIOS with a default check-mark. Click”install” button to install.

eDLU

ECS eDLU utility makes updating drivers fast and easy. eDLU saves time and hassle by listing all the latest drivers online. Just select the one you prefer and start to download and install the drivers.

eSF

eSF(Smart Fan) utility provides easy and safe way to adjust fan speed in accordance with your PC’s system loading and temperature.

It has five modes to adjust fan speed in a safe range without entering the BIOS to optimize your system cooling environment.

Microsoft .NET Framework 3.5 is required.

H81H3-M USER MANUAL

Chapter 5

Trouble Shooting

Start up problems during assembly

After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips. You may also log onto our ECS website for more information:

a) System does not power up and the fans are not running.

1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Make sure the power cord is plugged into the wall socket & the switch on the Power Supply Unit (PSU) is turned “ on “ as well. Turn on again to see if the CPU and power supply fans are running.

2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.

3. Check the CPU FAN connector is connected to the motherboard.

4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.

5. Check the 12V power connector is connected to the motherboard.

6. Check that the 12V power & ATX connectors are fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

b) Power is on, fans are running but there is no display

1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.

2. Check the VGA adapter card (if applicable) is inserted properly.

3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected. a. continuous 3 short beeps: memory not detected b. 1 long beep and 8 short beeps: VGA not detected

c) The PC suddenly shuts down while booting up.

1. The CPU may experience overheating so it will shutdown to protect itself. Apply the thermal grease onto the CPU heatsink & ensure the CPU fan is well-connected with the CPU heatsink. Check if the CPU fan is working properly while the system is running.

http:// www.ecs.com.tw/ECSWebSite/Support/Support_FAQ.aspx?MenulD=49& childid=M 49&LanlD=0

H81H3-M USER MANUAL

Chapter 5

Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.

1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.

2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and

Start up problems after prolong use

After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.

1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.

2. Check the CPU cooler fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.

3. Check that the 12V power & ATX connectors are fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

4. Remove the hard drive, optical drive or DDR memory to determine which of these components may be at fault.

areas of high moisture content.

3. Routinely clean the CPU cooler fan to remove dust and hair.

4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.

5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.

6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.

Maintenance and care tips

2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.

5. Check whether there is any bulked up electrolytic capacitor or abnormal component.

Please logo onto our ECS website: http://www.ecs.com.tw/ECSWebSite/Support/ Technical_Support_List.aspx?MenuID=50&LanID=0 for more information.

uBrewoP

desserpsino

.tratsotsliafCPtub

seY

ylppuSrewoPfikcehC

tinU

gnikrowsi)USP(

dnuospeeBynA

kcehcdnaSOMCRLC

rewopV21UPCfi

detcennocsi

CPehttratseR

?draobroUSPhtiwmelborP

AMRtcatnoc>-melborpdraobfI

deulpsidrocrewopCAgg

?nodenrutsihctiwsUSPdna

seY

melborpdraoB

AMRtcatnoc>-

:speebtrohs3fI-

ylreporptonyromemMMID

eruliafyromemrodetresni

:speebtrohs8dnapeebgnol1fI-

detcetedtonAGV

seY

neercsTSOPtatlaH

seY

OMCRLdnaSCtser.tra

AMRtcatnoc,liaffI

seY

eussiecivedlarehpireP

.melborpDDH-

,rorreputesSOMC-

d .SOMCRLCoteen

tsotliafmetsySelbatsnurotra

esSOIByfidomre

.gn

M SOCRLCtratserdna

hctiwsUSPnonruT

tekcosllawottcennocro

.tratserdna

hrotinomfikcehCsa

sid

yalp

rotinomfikcehC

yalpsidsah

Basic Troubleshooting Flowchart

6 9

H81H3-M USER MANUAL

Chapter 5

Memo

ECS H81H3-M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
