ECS G10IL1 Schematics

5

4

3

2

1

Project Name : G10IL1 (2008-06-24)

D D

Platform :Atom N270 +945GSE+ICH7M(SB)

PAGE

CONTENT

1.

INDEX

2.

SYSTEM BLOCK DIAGRAM

3.

POWER DIAGRAM & SEQUENCE

4.

GPIO & Power Consumption

5.

CPU Atom N270 1/2

6.

C C

B B

A A

CPU Atom N270 2/2

7.

CLOCK GEN (ICS9LPR365)

8.

NB HOST/VSS 1/5

9.

NB DMI / VGS

10.

NB DDR INTERFACE / VSS 3/5

11.

NB I/O POWER 4/5

12.

DDR2 SODIMM

13.

CRT / LVDS

14.

ICH7M RTC / SATA / HDA / LPC 1/3

15.

ICH7M SYS / GPIO / PCIE / USB 2/3

16.

ICH7M Power 3/3

17.

USB / WEBCAM / SATA

18.

LED / 3G / TP / BT/ SSD

19.

Minicard

20.

LAN RTL8102E

21.

Cardreader (RTS5158E)

22.

FAN / DC_IN / LID / KB

23.

EC IT8512 / BIOS

24.

VCC SW

25.

+1.5V /+1.05VS (OZ8318)

26.

CPU CORE (MAX8770)

27.

0.9VS / +1.8VS (OZ811)

28.

+3.3VA / +5VA (OZ815)

29.

BATT IN / CHARGER (OZ8602)

30.

Coyote

31.

CODEC / AMP / INT_MIC / SPK

32.

EXT_MIC / HEADPHONE / MDC

33.

Appendix Ver. History

Release Date PCB P/N NotePCBA P/NVersion

2008-06-24 C0

2008-06-24 C0 35GWG1010-C0

M/B Schematic Version Change List

PCB Description

B12008-05-22

37GG10000-B1
37GG10000-C0

PCB MAIN BD FOR G10IL1 REV:A1
PCB MAIN BD FOR G10IL1 REV:B1
PCB MAIN BD FOR G10IL1 REV:C0

82GG10000-A137GG10000-A1A1
82GG10000-B1
82GG10000-C0

Daughter Board Schematic Version Change List

PCB P/N PCB DescriptionRelease Date Version PCBA P/N

35G9G1000-C0 80G9G1000-C0

C02008-06-24

35GWG1000-C0

PCB MODEM BOARD BD FOR G10IL1 REV:C0

PCB EDGE BOARD BD FOR G10IL1 REV:C0

PCB HSPA BOARD BD FOR G10IL1 REV:C0

80GWG1010-C0
80GWG1000-C0C02008-06-24

Initial

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

INDEX

INDEX

1

INDEX

5008

5008

5008

C

C

C

of

of

of

133Thursday, June 26, 2008

133Thursday, June 26, 2008

133Thursday, June 26, 2008

20

5

4

3

2

1

SYSTEM BLOCK DIAGRAM

CPU

Diamondville-SC

FCBGA-8

D D

SO-DIMM0

200 Pin

Headphone Out x 1
INT Mic In x 1
MIC/Line In x 1

Internal SPK

4 2W x 2

C C

RJ11

Amplifier

APA2068 ALC662

16 Pin SOP

Modem

Daughter Board

USB x 1

17

B B

no-stuff
CRYSTAL

12MHZ

Card CON

SSD

Cardreader

RTS5158E

LQFP 48

21

18

Mini Card

12

Codec

48 Pin LQFP

USB x 1

USB x 1

WEBCAM

3G

DDR2 RAM BUS
2GB MAX MEMORY
400/533MHZ

SMBUS

AZALIZA

31

USB4

17

USB7
USB3

17

USB1

17

USB0
USB6

18

USB5

USB2

North Bridge

DMI
X2

South Bridge

945GSE

998 Pin FCBGA

ICH7M

652 Pin BGA

45nm 22*22478 balls

5,6

FSB
400/533MHZ

9,10,11

Controll Link

14,15,16

LPC

Flash Rom

8 Pin M-SOP

Charger

A A

FAN

3 Pin

SPI

22

GPIO

29

22

Embedded Controller (EC)

ITE8512E-CX

SMBUS 1

LVDS

RGB

PCIE1

PCIE2

SATA0

SPI I/F

*Option

Coyote

22

THERMAL SENSOR

EMC1402

LCD

13

13

CRT

Mini Card x 1

RTL8102E(10/100)

HDD x 1

2.5" SATAI/II

CRYSTAL

40MHZ

CRYSTAL

30

32.768KHZ

PS/2

K/B Matrix

SMBUS 0

5

19

LAN

64 Pin QFN

27

CRYSTAL

32.768KHZ

25

T/P

18

6 Pin

Internal K/B

20

32.768KHZ

22

RTC

CRYSTAL

25MHZ

RJ45

Title

Title

CPU Thermal Sensor75Clock Gen

EMC1402

5

4

3

CRYSTAL

14.318MHZ

Battery

21

7

10 Pin

2

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

G10ILX

G10ILX

G10ILX

SYSTEM BLOCK DIAGRAM

SYSTEM BLOCK DIAGRAM

SYSTEM BLOCK DIAGRAM

5008

5008

5008

1

of

of

of

233Thursday, June 26, 2008

233Thursday, June 26, 2008

233Thursday, June 26, 2008

C

C

C

5

POWER BLOCK DIAGRAM

4

3

2

1

System Poewr On Sequence

VID0
VID1

D D

VID2
VID3
VID4
VID5
VID6

MAX8770

IMVP-6

OZ8138

C C

B B

OZ815

A A

VIN

ME4410
ME4410

VIN

ME4410
ME4410

VIN

ME4410
ME4410

VIN

ME4410
ME4410

VIN

ME4410
ME4410

+1.5V

+1.8VS

+3VA

+5VS

+CPU_CORE

6A/8A

6A/8A

APL5331

5A/7A

APL5331

OZ811

P1503BVG

P1503BVG

6A/8A

P1503BVG

+2.5V

3A

+3VS

+3V

+5V

VIN

ME4410
ME4410

+0.9VS

0.25A/1A

Adaptor or Battery

+5VA_LDO

PWRSW

+3VA / +5VA

+3.3VS_ON

*

+3.3VS_ON

+1.05V

7.2A/10A

1A

VINSW

+5VS

+3.3VS

+1.8VS_DDR_ON

+1.8VS

+0.9VS

RSMRST#

*

PWRBTN#

*

PM_SLP_S4#

*

*

PM_SLP_S3#

*

*

+5V_ON

*

+5V

+3.3V

+1.5V_ON

*

+1.5V

+1.05V

VCORE_ON

*

+CPU_CORE

PWROK

*

H_PWRGD

PCIRST# / PLTRST#

CPURST#

EC Control Pin (O/P)

*

EC Control Pin(I/P)

*

*

3.3VS_ON_HV

3.3VS_ON_HV

5V_ON_HV

+1.5V_ON

+1.5V_ON

1ms

5ms

10ms

20ms

5ms

20ms

110ms(min)

20ms

1ms

1ms

5ms

100ms

150ms

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

POWER DIAGRAM & SEQUENCE

POWER DIAGRAM & SEQUENCE

POWER DIAGRAM & SEQUENCE

5008

5008

5008

1

G10ILX

G10ILX

G10ILX

C

C

C

of

of

of

333Thursday, June 26, 2008

333Thursday, June 26, 2008

333Thursday, June 26, 2008

5

4

3

2

1

ICH7M

GPIO

PM_BM_BUSY#

GPIO0

EC_EXTSMI#

GPIO1
GPIO2

D D

C C

B B

INT_PIRQE#
INT_PIRQF#

GPIO3
GPIO4
GPIO5

INT_PIRQH#

GPIO6

BIOS_REC

GPIO7

EC_EXTSMI#

GPIO8

N.C

GPIO9

N.C

GPIO10

N.C
SMB_ALERT#

GPIO12

N.C

GPIO13

N.C

GPIO14

N.C

GPIO15

N.C

SB_SPI_EN#

GPIO17
GPIO18

STPPCI#

SATA1GP

GPIO19
GPIO20

STPCPU#

GPIO21

SATA0GP
GPIO22 PCI_REQ#4
GPIO24

NC

NC

GPIO25

NC

GPIO26
GPIO27

BIOS_REC
GPIO28

NC

GPIO29

USB_OC#5

USB_OC#6

GPIO30
GPIO31

USB_OC#7
GPIO32

PM_CLKRUN#
GPIO33

NC
NC
NC

GPIO35 GPE1
GPIO36

SATA2GP
GPIO37

SATA3GP

NC

GPIO38

NC

GPIO39

USB_OC#1

GPIO40

USB_OC#2

GPIO41
GPIO42

USB_OC#3

USB_OC#4

GPIO43
GPIO48

GNT4#

GPA0
GPA1
GPA2
GPA3
GPA4
GPA5
GPA6
GPA7
GPB0
GPB1
GPB2
GPB3
GPB4
GPB5
GPB6
GPB7
GPC0
GPC1
GPC2
GPC3
GPC4
GPC5
GPC6
GPC7
GPD0
GPD1
GPD2
GPD3
GPD4
GPD5
GPD6
GPD7
GPE0GPIO34

GPE2
GPE3
GPE4
GPE5
GPE6
GPE7
GPF0
GPF1
GPF2
GPF3
GPF4
GPF5
GPF6
GPF7
GPG0
GPG1
GPG2
GPG6
GPH0
GPH1
GPH2
GPH3
GPH4
GPH5
GPH6

ITE8512E

GPIO

P_ID0
P_ID1
PWR_LED#
Wirelan_B/T_ON
BTL_BEEP
LED1
PM_RSMRST#
EC_BL_PWM
PM_SLP_S4#
PM_SLP_S3#
+1.05VS_ON
BAT_SMBCLK
BAT_SMBDAT
H_A20GATE
H_RCIN#
LED2
+1.5V_on
SMB_CLK
SMB_DAT

N.C

LCDSW0

N.C

LCDSW1
N.C
ADAP_IN
PWRBTN#
EC_LPCRST#

N.C

EC_EXTSMI#
N.C
CHG_ON#
EC_BL_EN
LID#
SET_V
PWROK
Vcore_ON
PWRSW
CHG_G_LED
CHG_R_LED
MUTE
COYTOE_RDY
SB_SPI_EN#
Coyote_VDDP_on
N.C
TP_CLK
TP_DATA

N.C
N.C

EC_WDOG OK

FLFRAME#
WEBCAN_ON

+1.8VS_ON
SENBAT_V
3G_ON
+5V_ON

RF_LED_ON

Default

Pull/Mode
UP / GPI /GPI/ADC
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
Dn / GPI
/ GPI
/ GPI
/ GPO
UP / Func1
Dn / GPI
Dn / GPI
/ GPI
/ GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
UP / GPI
UP / GPI
UP / GPI
UP / Func1
UP / GPI
UP / GPI
UP / GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
UP / GPI
Dn / GPI
Dn / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
Dn/GPO/TM
Dn/GPO/ID7

Dn/GPI/ID0
Dn/GPI/ID1
Dn/GPI/ID2
Dn/GPI/ID3
Dn/GPI/ID4
Dn/GPI/ID5
Dn/GPI/ID6

GPI1
GPI2
GPI3
GPI4INT_PIRQG#
GPI5
GPI6
GPI7
GPJ0
GPJ1
GPJ2
GPJ3GPIO11
GPJ4
GPJ5

ITE8512E

GPIO

BATT_TEMP
ADAPTOR_I
BAT_V
DDR2_TEMP
BAT_I
SLP_S3_COY
EC_BSEL0
SYS_TEMP
EC_BRGHT
CHG_I
FAN_CTRL0
CHG_REF

N.C

PM_THROTTING#

Default

Pull/Mode

/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/DAC
/GPI/DAC
/GPI/DAC
/GPI/DAC
/GPI/DAC
/GPI/DAC

CPU CORE(V)

IMVP-6+

945GSE

ICC(mA)

VCC

+3.3V
+1.8VS
+1.5V

14688.52

+1.05

VCC ICC(mA)

+5V
+5VS

2 10
347

+3.3V

212

+3.3VS

1988

+1.5V

1634

Diamondville

ICC(A)
3GPI0

1.2

W

262

0.87

5.733178

86

0.129

15.43

ICH7M

mW

102

1145.1

699.6
2982

1715.7+1.05V

TEMP( )

105

TEMP( )

70

W

TEMP( )

3.3

90

ITE8512E

ICC(mA)VCC

+3.3V

100

CLOCK GENERATOR

ICC(mA)VCC

250

+3.3V

ALC662

ICC(mA)

VCC

+3.3V(DVDD)
+5V(AVDD)

APA2068

ICC(mA)

VCC

20

+5V

EMC1402

ICC

VCC

170uA

+3.3V

RTL81102E

VCC

ICC(mA)

+3.3VS

103
198

+1.8VS

367

+1.5VS

40
51

330

825

132
255

100

0.56

339.9

356.4

550.5

mW

mW

mW

mW

mW

mW

TEMP( )

70

TEMP( )

70

TEMP( )

70

TEMP( )

85

TEMP( )

150

TEMP( )

70

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

GPIO & Power Consumption

GPIO & Power Consumption

GPIO & Power Consumption

5008

5008

5008

1

of

of

of

433Thursday, June 26, 2008

433Thursday, June 26, 2008

433Thursday, June 26, 2008

C

C

C

5

4

3

2

1

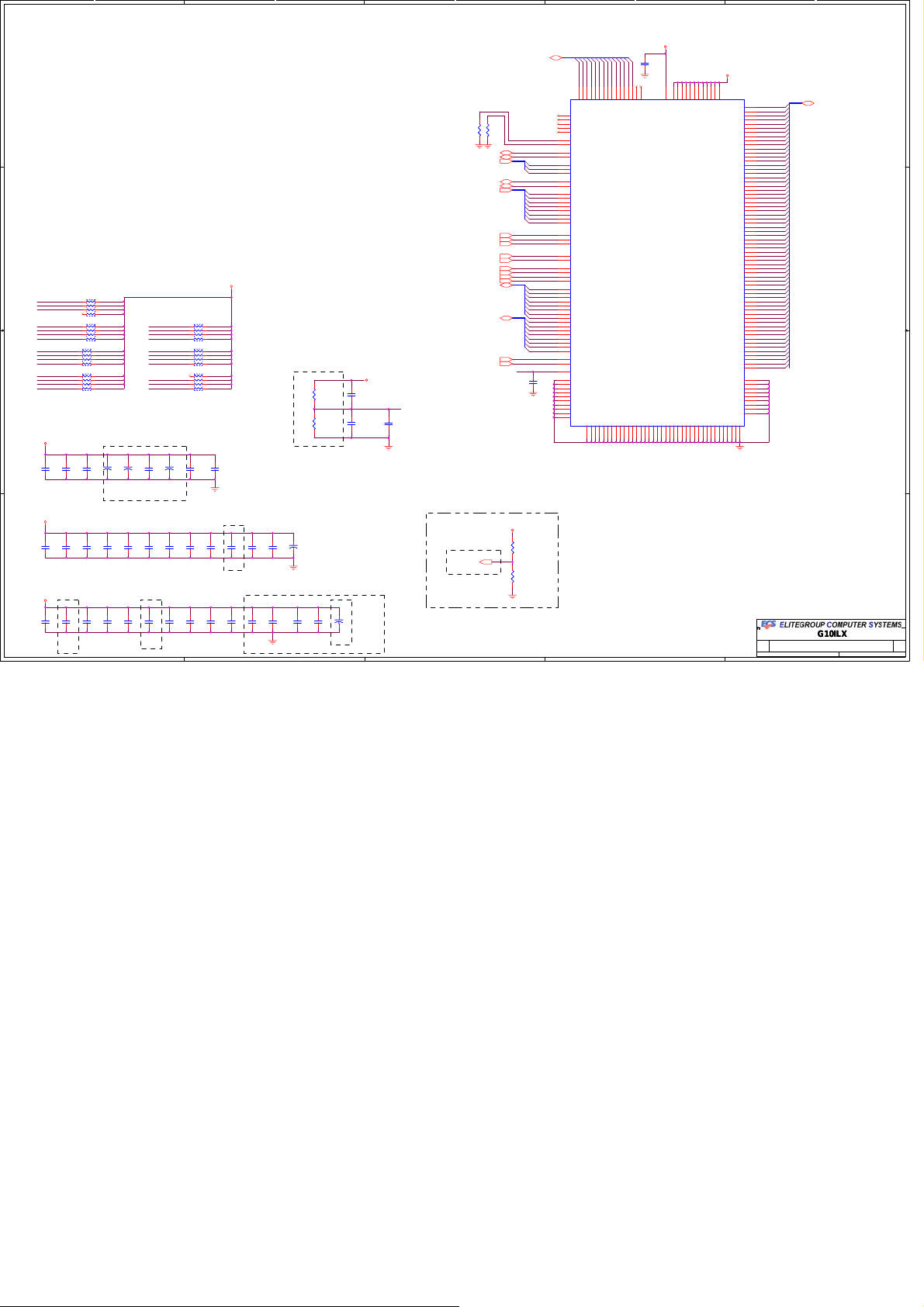

H_A#[31:3]8

D D

H_ADSTB#08
H_REQ#[4:0]8

H_A#[35:3]8

H_STPCLK#14

C C

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16

TP15TP15

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35

H_ADSTB#18

H_A20M#14
H_FERR#14
H_IGNNE#14

H_INTR14
H_NMI14
H_SMI#14

U4A

U4A

P21

A[3]#

H20

A[4]#

N20

A[5]#

R20

A[6]#

J19

A[7]#

N19

A[8]#

G20

A[9]#

M19

A[10]#

H21

A[11]#

L20

A[12]#

M20

A[13]#

K19

A[14]#

J20

A[15]#

L21

A[16]#

K20

ADSTB[0]#

Z0501

D17

AP0

N21

REQ[0]#

J21

REQ[1]#

G19

REQ[2]#

P20

REQ[3]#

R19

REQ[4]#

C19

A[17]#

F19

A[18]#

E21

A[19]#

A16

A[20]#

D19

A[21]#

C14

A[22]#

C18

A[23]#

C20

A[24]#

E20

A[25]#

D20

A[26]#

B18

A[27]#

C15

A[28]#

B16

A[29]#

B17

A[30]#

C16

A[31]#

A17

A[32]#

B14

A[33]#

B15

A[34]#

A14

A[35]#

B19

ADSTB[1]#

M18

AP1

U18

A20M#

T16

FERR#

J4

IGNNE#

R16

STPCLK#

T15

LINT0

R15

LINT1

U17

SMI#

D6

NC1

G6

NC2

H6

NC3

K4

NC4

K5

NC5

M15

NC6

L16

NC7

Diamondville_SC_Rev1

Diamondville_SC_Rev1

V19

ADS#

Y19

BNR#

U21

BPRI#

ADDR

GROUP

0

ADDR

GROUP

0

T21

DEFER#

T19

DRDY#

Y18

DBSY#

T20

BR0#

H_IERR#

F16

IERR#

H_INIT#_IN

V16

INIT#

W20

LOCK#

CONTROL

CONTROL

H_CPURST#

D15

RESET#

H_RS#0

W18

RS[0]#

H_RS#1

Y17

RS[1]#

H_RS#2

U20

RS[2]#

W19

TRDY#

AA17

HIT#

V20

HITM#

K17

BPM[0]#

TP42TP42

J18

BPM[1]#

H15

BPM[2]#

J15

ADDR GROUP 1

ADDR GROUP 1

PROCHOT#

THERM

THERM

THERMTRIP#

H CLK

H CLK

NC

NC

XDP/ITP SIGNALS

XDP/ITP SIGNALS

BPM[3]#

PRDY#
PREQ#

TRST#

THRMDA
THRMDC

BCLK[0]
BCLK[1]

RSVD3
RSVD2
RSVD1

K18
J16
M17

TCK

N16

TDI

M16

TDO

L17

TMS

K16
V15

BR1#

G17
E4
E5

H17

V11
V12

C21
C1
A3

.

.

TP44TP44

PREQ#
TCK
TDI
TDO
TMS
TRST#
Z0503

H_PROCHOT#_IN
H_THERMDA
H_THERMDC

PM_THRMTRIP#

+1.05V

TP11TP11

H_ADS# 8
H_BNR# 8
H_BPRI# 8

H_DEFER# 8
H_DRDY# 8
H_DBSY# 8

H_BREQ#0 8

R68

R68

1 2

H_LOCK# 8

H_CPURST# 8

H_TRDY# 8
H_HIT# 8

H_HITM# 8

R73

R73
750-04

750-04

1 2

D10

D10

A C

@BAT54

@BAT54

PM_THRMTRIP# 14

CLK_CPU_BCLK 7
CLK_CPU_BCLK# 7

1K-04

1K-04

+1.05V

R84

R84
330--04

330--04

1 2

EC_PROCHOT# 23

H_INIT# 14

H_RS#[2:0] 8

H_D#[63:0]8

H_D#[63:0]8

+1.05V

12

R34

R34
1K-1-04

1K-1-04

H_GTLREF place within 0.5''

12

C85

C85

R33

R33
2K-1-04

2K-1-04

.1U-16-04Y-Z

.1U-16-04Y-Z

H_DSTBN#08
H_DSTBP#08

H_DINV#08

H_DSTBN#18
H_DSTBP#18
H_DINV#18

R245 @1K-04R245 @1K-04

1 2

R244 @1K-04R244 @1K-04

1 2

CPU_BSEL09,23
CPU_BSEL19
CPU_BSEL29

BSEL

FSB

FSB400
FSB533

H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15

H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31

TP13TP13
TP6TP6

TP8TP8
TP14TP14
TP7TP7

TP9TP9

TP3TP3

H_GTLREF
TEST1
TEST2
Z0506
Z0507
H_EXTBGREF

Z0509
Z0510
Z0511

BSEL1

Z0505

Y11

W10

Y12
AA14
AA11

W12

AA16

Y10

Y9

Y13

W15

AA13

Y16

W13
AA9

W9

Y14

Y15

W16

V9

AA5

Y8

W3

U1
W7
W6

Y7

AA6

Y3
W2

V3

U2

AA8

V2
W4

Y4

Y5

Y6

R4

A7

U5

V5
T17

R6

M6

N15

N6
P17

H5

G5

BSEL0BSEL2

000
100

U4B

U4B

D[0]#
D[1]#
D[2]#
D[3]#
D[4]#
D[5]#
D[6]#
D[7]#
D[8]#
D[9]#
D[10]#
D[11]#
D[12]#
D[13]#
D[14]#
D[15]#
DSTBN[0]#
DSTBP[0]#
DINV[0]#
DP#0

D[16]#
D[17]#
D[18]#
D[19]#
D[20]#
D[21]#
D[22]#
D[23]#
D[24]#
D[25]#
D[26]#
D[27]#

T3

D[28]#
D[29]#
D[30]#
D[31]#
DSTBN[1]#
DSTBP[1]#
DINV[1]#
DP#1

GTLREF
ACLKPH
DCLKPH
BINIT#
EDM
EXTBGREF
FORCEPR#
HFPLL
MCERR#

T6

RSP#

J6

BSEL[0]
BSEL[1]
BSEL[2]

Diamondville_SC_Rev1

Diamondville_SC_Rev1

MHZ

H_D#32

R3

D[32]#

H_D#33

R2

D[33]#

H_D#34

P1

D[34]#

H_D#35

N1

DATA GRP 0 DATA GRP 1

DATA GRP 0 DATA GRP 1

D[35]#

H_D#36

M2

D[36]#

H_D#37

P2

D[37]#

H_D#38

J3

D[38]#

H_D#39

N3

D[39]#

H_D#40

G3

D[40]#

H_D#41

H2

D[41]#

H_D#42

N2

D[42]#

H_D#43

L2

D[43]#

H_D#44

DATA GRP 2

DATA GRP 2

M3

D[44]#

H_D#45

J2

D[45]#

H_D#46

H1

D[46]#

H_D#47

J1

D[47]#

K2

DSTBN[2]#

K3

DSTBP[2]#

L1

DINV[2]#

Z0512Z0504

M4

DP#2

H_D#48

C2

D[48]#

H_D#49

G2

D[49]#

H_D#50

F1

D[50]#

H_D#51

D3

D[51]#

H_D#52

B4

D[52]#

H_D#53

E1

D[53]#

H_D#54

A5

D[54]#

H_D#55

C3

D[55]#

H_D#56

A6

D[56]#

H_D#57

F2

D[57]#

H_D#58

C6

D[58]#

H_D#59

B6

D[59]#

H_D#60

B3

D[60]#

H_D#61

DATA GRP 3

DATA GRP 3

C4

D[61]#

H_D#62

C7

D[62]#

H_D#63

D2

D[63]#

E2

DSTBN[3]#

F3

DSTBP[3]#

C5

DINV[3]#

Z0513

D4

DP#3

COMP0

T1

COMP[0]

COMP1

T2

COMP[1]

COMP2

F20

COMP[2]

COMP3

F21

COMP[3]

MISC

MISC

R18

DPRSTP#

R17

DPSLP#

U4

DPWR#

V17

PWRGOOD

N18

SLP#

Z0514

A13

CORE_DET

H_CMREF

B7

CMREF[1]

100
133

H_D#[63:0] 8

H_DSTBN#2 8
H_DSTBP#2 8
H_DINV#2 8

TP4TP4

H_D#[63:0] 8

COMP0/2 TRACE 27.4 OHM +-15%
COMP1/3 TRACE 55 OHM +-15%
within 0.5''

H_DSTBN#3 8
H_DSTBP#3 8
H_DINV#3 8

TP5TP5

R239 27.4-1-04R239 27.4-1-04

1 2

R240 54.9-1-04R240 54.9-1-04

1 2

R75 27.4-1-04R75 27.4-1-04

1 2

R74 54.9-1-04R74 54.9-1-04

1 2

H_DPRSTP# 14
H_DPSLP# 14
H_DPWR# 8
H_PWRGD 14
H_CPUSLP# 8,14

TP10TP10

Close to CPU within 20mil

Modify Rev:B

R85 @56-04R85 @56-04

H_FERR#

1 2

H_IERR#

R273 56-04R273 56-04

1 2

H_CPURST#

R258 @56-04R258 @56-04

1 2

H_STPCLK#

R69 @56-04R69 @56-04

1 2

R263 56-04R263 56-04

TDI

1 2

R262 @56-1-04R262 @56-1-04

TDO

1 2

TMS

R261 56-04R261 56-04

1 2

PREQ#

R259 56-04R259 56-04

1 2

H_A#32

R257 1K-04R257 1K-04

1 2

R252 1K-04R252 1K-04

H_A#33

1 2

R253 1K-04R253 1K-04

H_A#34

1 2

H_A#35

R251 1K-04R251 1K-04

1 2

TRST#

R260 56-04R260 56-04

1 2

TCK

R277 56-04R277 56-04

1 2

Modify Rev:B

R71 @1K-04R71 @1K-04

H_A20M#

1 2

R242 @1K-04R242 @1K-04

H_IGNNE#

1 2

H_SMI#

R70 @56-04R70 @56-04

1 2

H_DPSLP#

R86 @1K-04R86 @1K-04

1 2

H_DPRSTP#

R79 @1K-04R79 @1K-04

1 2

R87 @1K-04R87 @1K-04

H_PWRGD

1 2

R246 @1K-04R246 @1K-04

H_DPWR#

1 2

+1.05V

+1.05V

Modify Rev:B

+CPU_CORE

12

R89

R89
100K-04

100K-04

B B

R72 1K-04R72 1K-04

1 2

Z0515PM_THRMTRIP#

C131

C131
.1U-16-04Y-Z

.1U-16-04Y-Z

Q12

Q12

B

TR-2N3904

TR-2N3904

E C

C145

C145
1U-10-06Y-Z

1U-10-06Y-Z

AUX_OFF 28

+1.05V +1.05V

12

R38

R38
1K-1-04

1K-1-04

12

R37

R37

C92

C92

2K-1-04

2K-1-04

.1U-16-04Y-Z

.1U-16-04Y-Z

H_EXTBGREFH_CMREF

C405

C405
1U-16-04Y-Z

1U-16-04Y-Z

12

R250

R250
1K-1-04

1K-1-04

12

R243

R243
2K-1-04

2K-1-04

CPU Thermal Sensor

R234 68-06R234 68-06

+3.3V

Close to IC

R237 0-04R237 0-04

1 2

H_THERMDC

R236 0-04R236 0-04

A A

1 2

5

1 2

2200P-50-04X-K

2200P-50-04X-K

VDD_7421

C388

C388

2.2U-6.3-06R-K

2.2U-6.3-06R-K

U2

THERMDAH_THERMDA

2

7
8
6

ALERT#

R233

R233

1 2

@10K-04

@10K-04

SMBDAT_EC 7,22,23
SMBCLK_EC 7,22,23

R235

R235

1 2

100K-04

100K-04

4

VDD_7421

IC

EMC1402
ADT7421
LM95245

SETTING

R34

R32

0R0R

100R_1 100R_1

0R

0R

@10K
@10K

R41

*

10K

3

VDD1D+

C390

C390

THERMDC

ADATA

4

THERM#

SCLK

3

D-

ALERT

GND

EMC1402U2EMC1402

5

Used for Balance +1.05V & GND

+1.05V

C105

C118

C118
.1U-16-04Y-Z

.1U-16-04Y-Z

C105
.1U-16-04Y-Z

.1U-16-04Y-Z

2

C157

C157
.1U-16-04Y-Z

.1U-16-04Y-Z

C158

C158
.1U-16-04Y-Z

.1U-16-04Y-Z

C150

C150

C122

C122

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

C81

C81
.1U-16-04Y-Z

.1U-16-04Y-Z

5008

5008

5008

C78

C78
.1U-16-04Y-Z

.1U-16-04Y-Z

CPU Diamondville 1/2

CPU Diamondville 1/2

CPU Diamondville 1/2

G10ILX

G10ILX

G10ILX

1

of

of

of

533Thursday, June 26, 2008

533Thursday, June 26, 2008

533Thursday, June 26, 2008

C

C

C

5

D D

VCCPC64
VCCPC63
VCCPC62
VCCPC61

VCCSENSE

VSSSENSE

+1.05V

C9

VTT1

D9

VTT2

E9

VTT3

F8

VTT4

F9

VTT5

G8

VTT6

G14

VTT7

H8

VTT8

H14

VTT9

J8

VTT10

J14

VTT11

K8

VTT12

K14

VTT13

L8

VTT14

L14

VTT15

M8

VTT16

M14

VTT17

N8

VTT18

N14

VTT19

P8

VTT20

P14

VTT21

R8

VTT22

R14

VTT23

T8

VTT24

T14

VTT25

U8

VTT26

U9

VTT27

U10

VTT28

U11

VTT29

U12

VTT30

U13

VTT31

U14

VTT32

F14
F13
E14
E13

H_VID0 22,26
H_VID1 22,26
H_VID2 22,26
H_VID3 22,26
H_VID4 22,26
H_VID5 22,26
H_VID6 22,26

+CPU_CORE

12

130mA

R254

R254
100-1-04

100-1-04

C408

C408

0.1U-10-04X-K

0.1U-10-04X-K

12

R255

R255
100-1-04

100-1-04

CPU_VCCA

D7

VCCA

F15

VID[0]

D16

VID[1]

E18

VID[2]

G15

VID[3]

G16

VID[4]

E17

VID[5]

G18

VID[6]

VCORE_VCCSENSE

C13

VCORE_VSSSENSE

D13

U4C

U4C

+1.05V

V10

VCCF

A9

VCCQ1

B9

VCCQ2

+CPU_CORE

A10

VCCP1

A11

C C

B B

VCCP2

A12

VCCP3

B10

VCCP4

B11

VCCP5

B12

VCCP6

C10

VCCP7

C11

VCCP8

C12

VCCP9

D10

VCCP10

D11

VCCP11

D12

VCCP12

E10

VCCP13

E11

VCCP14

E12

VCCP15

F10

VCCP16

F11

VCCP17

F12

VCCP18

G10

VCCP19

G11

VCCP20

G12

VCCP21

H10

VCCP22

H11

VCCP23

H12

VCCP24

J10

VCCP25

J11

VCCP26

J12

VCCP27

K10

VCCP28

K11

VCCP29

K12

VCCP30

L10

VCCP31

L11

VCCP32

L12

VCCP33

M10

VCCP34

M11

VCCP35

M12

VCCP36

N10

VCCP37

N11

VCCP38

N12

VCCP39

P10

VCCP40

P11

VCCP41

P12

VCCP42

R10

VCCP43

R11

VCCP44

R12

VCCP45

Diamondville_SC_Rev1

Diamondville_SC_Rev1

+1.5V

B38

B38
0-06

0-06

C407

C407

4.7U-10-08Y-Z

4.7U-10-08Y-Z

VCORE_VCCSENSE 26

VCORE_VSSSENSE 26

4

+CPU_CORE

C96

C96

C425

C425

C424

C424

4.7U-10-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

C91

C91

C114

C114

C423

C423

2.2U-10-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

C441

C441

C451

C451

C452

C452

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C429

C429

C428

C428

C430

C430

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

100P-50-04N-J

100P-50-04N-J

Modify Rev:C

+1.05V

C414

C414

C456

C456

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C466

C466

C412

C412

3

C426

C426

4.7U-10-08R-K

4.7U-10-08R-K

C100

C100

2.2U-10-06R-K

2.2U-10-06R-K

C446

C448

C448

C433

C433

C446

C431

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C449

C449

100P-50-04N-J

100P-50-04N-J

0.1U-10-04X-K

0.1U-10-04X-K

Modify Rev:C

C431

C427

C427

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C432

C432

C435

C435

100P-50-04N-J

100P-50-04N-J

0.1U-10-04X-K

0.1U-10-04X-K

C447

C447

C445

C445

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C450

C450

C453

C453

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

2500mA

C130

C130

C409

C409

C468

C468

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C454

C454

C460

C460

C156

C156

C396

C396

C411

C411

0.1U-10-04X-K

0.1U-10-04X-K

C415

C415

C395

C395

C162

C162

C159

C159

0.1U-10-04X-K

0.1U-10-04X-K

4.7U-10-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

C413

C413

C420

C420

2

U4D

U4D

A2

VSS1

A4

VSS2

A8

VSS4

A15

VSS5

A18

VSS6

A19

VSS7

A20

VSS8

B1

VSS9

B2

VSS10

B5

VSS11

B8

VSS12

B13

VSS13

B20

VSS14

B21

VSS15

C8

VSS16

C17

VSS17

D1

VSS18

D5

VSS19

D8

VSS20

D14

VSS21

D18

VSS22

D21

VSS23

E3

VSS24

E6

VSS25

E7

VSS26

E8

VSS27

E15

VSS28

E16

VSS29

E19

VSS30

F4

VSS31

F5

VSS32

F6

VSS33

F7

VSS34

F17

VSS35

F18

VSS36

G1

VSS37

G4

VSS38

G7

VSS39

G9

VSS41

G13

VSS42

G21

VSS45

H3

VSS46

H4

VSS48

H7

VSS49

H9

VSS51

H13

VSS52

H16

VSS53

H18

VSS54

H19

VSS55

J5

VSS56

J7

VSS57

J9

VSS58

J13

VSS59

J17

VSS60

K1

VSS61

K6

VSS62

K7

VSS63

K9

VSS64

K13

VSS65

K15

VSS66

K21

VSS67

L3

VSS68

L4

VSS69

L5

VSS70

L6

VSS71

L7

VSS72

L9

VSS73

L13

VSS74

L15

C410

C410

C143

C143

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

C455

C455

C467

C467

VSS75

L18

VSS76

L19

VSS77

M1

VSS78

M5

VSS79

M7

VSS80

M9

VSS81

M13

VSS82

M21

VSS83

N4

VSS84

Diamondville_SC_Rev1

Diamondville_SC_Rev1

VSS162
VSS161
VSS160
VSS159
VSS158
VSS157
VSS156
VSS155
VSS154
VSS153
VSS152
VSS151
VSS149
VSS148
VSS147
VSS146
VSS145
VSS144
VSS143
VSS142
VSS141
VSS140
VSS139
VSS138
VSS137
VSS136
VSS135
VSS134
VSS133
VSS132
VSS131
VSS130
VSS129
VSS128
VSS127
VSS126
VSS125
VSS124
VSS123
VSS122
VSS121
VSS120
VSS119
VSS118
VSS117
VSS116
VSS115
VSS114
VSS113
VSS112
VSS111
VSS110
VSS109
VSS108
VSS107
VSS106
VSS105
VSS104
VSS103
VSS102
VSS101
VSS100

1

N5
N7
N9
N13
N17
P3
P4
P5
P6
P7
P9
P13
P15
P16
P18
P19
R1
R5
R7
R9
R13
R21
T4
T5
T7
T9
T10
T11
T12
T13
T18
U3
U6
U7
U15
U16
U19
V1
V4
V6
V7
V8
V13
V14
V18
V21
W1
W5
W8
W11
W14
W17
W21
Y1
Y2
Y20
Y21
AA2
AA3
AA4
AA7
AA10
AA12

VSS99

AA15

VSS98

AA18

VSS97

AA19

VSS96

AA20

VSS95

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

A A

5

4

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

3

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

2

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

CPU Diamondville 2/2

CPU Diamondville 2/2

CPU Diamondville 2/2

633Thursday, June 26, 2008

633Thursday, June 26, 2008

633Thursday, June 26, 2008

1

of

of

of

C

C

C

5

D D

+3.3V

R373

R373

10K-04

10K-04

1 2

CLKREQB#

Reserved FOR EMI

FSB

FSB533

BSEL

5

CLK_CARD48
CLK_USB48
CLK_ICH14
CLK_EC_LPC

BSEL2
FSLC

Bsel [0..2] VIH = 0.7V VIL = 0.3V

BSEL0

BSEL1

FSLA

FSLB

0

0

0

0

CLK_BSEL2

0

CLK_BSEL1

1

CLK_BSEL0

CPU

PCI

MHZ

11
1

MHZ

100FSB400

33 100

133

C514 @10P-25-04NC514 @10P-25-04N
C520 @10P-25-04NC520 @10P-25-04N
C552 @10P-25-04NC552 @10P-25-04N
C539 @10P-25-04NC539 @10P-25-04N

C C

B B

A A

4

+3.3V

B42

B42
BD-QT1608RL120HC

BD-QT1608RL120HC

C492

C501

C501

C500

C500

C547

C547

C537

C537

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

+1.05V

R364

R364
@1K-04

@1K-04

1 2

R363

R363
1K-04

1K-04

1 2

R328

R328
1K-04

1K-04

1 2

+1.05V

R321

R321

2.2K-04

2.2K-04

1 2

PCI-E
MHZ

4

.1U-16-04Y-Z

MCH_CLK_REQ#9
CLK_DEBUG BD19,30

CLK_EC_LPC23

CLK_SB_PCI15

CLK_CARD4821
CLK_USB4815

CLK_ICH1415

NB_DOT_96CLK9

NB_DOT_96CLK#9

SMBCLK_EC5,22,23
SMBDAT_EC5,22,23

C519

C519

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

R374 475-1-04R374 475-1-04

1 2

R358 33-04R358 33-04

1 2

R350 33-04R350 33-04

1 2

R329 33-04R329 33-04

1 2

C513 @5P-25-04NC513 @5P-25-04N

R322 33-04R322 33-04

1 2

R330 33-04R330 33-04

1 2

R391 33-04R391 33-04

1 2

R98 0-04R98 0-04

1 2

R97 0-04R97 0-04

1 2

C492

.1U-16-04Y-Z

.1U-16-04Y-Z

XTAL_OUT
XTAL_IN

PCI2
PCI3
PIC4/LCDCK_SEL
PCIF5/ITP_EN

CLK_BSEL0
CLK_BSEL1
CLK_BSEL2

DOT_96
DOT_96#

3

1A

CLK_VDDA

U16

U16

2

VDD_PCI

9

VDD_48

16

VDD_PLL3

39

VDD_SRC

55

VDD_CPU

61

VDD_REF

59

XTAL_OUT

60

XTAL_IN

1

PCI_0/CLKREQ_A#

CLKREQB#

3

PCI_1/CLKREQ_B#

4

PCI_2

5

PCI_3

6

PCI_4/LCDCLK_SEL

7

PCIF_5/ITP_EN

10

USB_48MHz/FS_A

57

FS_B/TEST_MODE

62

REF/FS_C/TEST_SEL

13

SRC_0/DOT_96

14

SRC_0#/DOT_96#

64

SCL

63

SDA

8

VSS_PCI

11

VSS_48

15

VSS_I/O

19

VSS_PLL3

23

VSS_SRC_1

29

VSS_SRC_2

42

VSS_SRC_3

52

VSS_CPU

58

VSS_REF

ICS9LPRS365BG

ICS9LPRS365BG

XTAL_OUT
XTAL_IN

Y6

Y6

14.318MHz_49_SMT

14.318MHz_49_SMT

R344

R344

1 2

10M-1-04

10M-1-04

C544

C544

C517

C517

20P-50-04N-J

20P-50-04N-J

20P-50-04N-J

20P-50-04N-J

Ce = 2*CL - ( Cs + Ci )
CL = Crystal Load Cap = 20P
Ci = IC internal Cap = 5P
Cs = 2P
Ce = Crystal external Cap = 33P

3

VDD_I/O

VDD_PLL3_I/O
VDD_SRC_I/O_1
VDD_SRC_I/O_2
VDD_SRC_I/O_3

VDD_CPU_I/O

CPU_STOP#

PCI_STOP#

CKPWRGD/PD#

CPU_0#

CPU_1_MCH

CPU_1_MCH#
SRC_8/CPU_ITP

SRC_8#/CPU_ITP#

LCDCLK/27M

LCDCLK#/27M_SS

SRC_2#

SRC_3/CLKREQ_C#

SRC_3#/CLKREQ_D#

SRC_4#
SRC_6#

SRC_7/CLKREQ_F#

SRC_7#/CLKREQ_E#

SRC_9#
SRC_10

SRC_10#

SRC_11/CLKREQ_H#

SRC_11#/CLKREQ_G#

2

+1.05V

B11

1A

CLK_VDD_IO

C165

C165

C511

C511

C488

C488

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

12
20
26
36
45
49

37
38
56

54

CPU_0

53
51
50
47
46

48

NC

17
18

21

SRC_2

22
24
25
27

SRC_4

28
41

SRC_6

40
44
43
30

SRC_9

31
34
35
33
32

Modify Rev:C

1 2

R353 10K-04R353 10K-04

1 2

R377 10K-04R377 10K-04

PM_STPCPU#
PM_STPPCI#
CLK_GEN_PWRGD

PM_STPCPU# 15
PM_STPPCI# 15

CLK_CPU_BCLK 5
CLK_CPU_BCLK# 5
CLK_MCH_BCLK 8
CLK_MCH_BCLK# 8

NB_LVDS_SSCLK 9
NB_LVDS_SSCLK# 9

CLK_ICH_SATA 14
CLK_ICH_SATA# 14

GCLK 9
GCLK# 9
CLK_DMI_ICH 15
CLK_DMI_ICH# 15

CLK_PCIE_NEW_CARD 19
CLK_PCIE_NEW_CARD# 19
CLK_PCIE_GLAN 20
CLK_PCIE_GLAN# 20

0 = Pin17/18 LCDCLK & DOT_96 for internal graphic controller support
1 = Pin17/18 27M & 27M_SS & SRC_0 for external graphic controller
support

PIC4/LCDCK_SEL

12

R337

R337
10K-04

10K-04

2

B11

BD-QT1608RL120HC

BD-QT1608RL120HC

C494

C494

C163

C163

C496

C496

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

+3.3V

+3.3V

Modify Rev:C

12

R317

R317
@4.7k-04

@4.7k-04

R312 0-04R312 0-04

C512

C512
@.1U-16-04Y-Z

@.1U-16-04Y-Z

CLK REQ O/PFrom

B SRC4MCH_GCLK

Modify Rev:B

1 2

12

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

1

VCORE_CLK_EN 15

0= Pin46/47 SRC output.
1= Pin46/47 ITP output.

PCIF5/ITP_EN

12

R338

R338
10K-04

10K-04

0 = Overclocking of CPU and SRC Allowed
1 = Overclocking of CPU and SRC NOT
allowed

PCI2

R357

R357
10K-04

10K-04

G10ILX

G10ILX

G10ILX

CLOCK GEN

CLOCK GEN

CLOCK GEN

5008

5008

5008

1

of

of

of

733Thursday, June 26, 2008

733Thursday, June 26, 2008

733Thursday, June 26, 2008

C

C

C

5

4

3

2

1

U3E

U3E

AH33

VSS1

Y33

VSS2

V33

VSS3

R33

VSS4

G33

VSS5

AK32

VSS6

D D

C C

B B

AG32

VSS7

AE32

VSS8

AC32

VSS9

AA32

VSS10

U32

VSS11

H32

VSS12

E32

VSS13

C32

VSS14

AM31

VSS15

AJ31

VSS16

AA31

VSS17

U31

VSS18

T31

VSS19

R31

VSS20

P31

VSS21

N31

VSS22

M31

VSS23

J31

VSS24

F31

VSS25

AL30

VSS26

AG30

VSS27

AE30

VSS28

AC30

VSS29

AA30

VSS30

Y30

VSS31

V30

VSS32

U30

VSS33

G30

VSS34

E30

VSS35

B30

VSS36

AA29

VSS37

U29

VSS38

R29

VSS39

P29

VSS40

N29

VSS41

M29

VSS42

H29

VSS43

E29

VSS44

B29

VSS45

AK28

VSS46

AH28

VSS47

AE28

VSS48

AA28

VSS49

U28

VSS50

T28

VSS51

J28

VSS52

D28

VSS53

AM27

VSS54

AF27

VSS55

AB27

VSS56

AA27

VSS57

Y27

VSS58

U27

VSS59

T27

VSS60

R27

VSS61

P27

VSS62

N27

VSS63

M27

VSS64

G27

VSS65

E27

VSS66

C27

VSS67

B27

VSS68

AL26

VSS69

AH26

VSS70

W26

VSS71

U26

VSS72

AN25

VSS73

AK25

VSS74

AG25

VSS75

AE25

VSS76

J25

VSS77

G25

VSS78

A25

VSS79

H23

VSS80

F23

VSS81

B23

VSS82

AM22

VSS83

AJ22

VSS84

AF22

VSS85

G22

VSS86

E22

VSS87

J21

VSS88

H21

VSS89

F21

VSS90

AM20

VSS91

AK20

VSS92

AH20

VSS93

AF20

VSS94

D20

VSS95

W19

VSS96

R19

VSS97

AM18

VSS98

AH18

VSS99

AF18

VSS100

U18

VSS101

H18

VSS102

D18

VSS103

AK17

VSS104

V17

VSS105

T17

VSS106

F17

VSS107

B17

VSS108

AH16

VSS109

U16

VSS110

945GMS

945GMS

VSS

VSS

VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
VSS161
VSS162
VSS163
VSS164
VSS165
VSS166
VSS167
VSS168
VSS169
VSS170
VSS171
VSS172
VSS173
VSS174
VSS175
VSS176
VSS177
VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185

J16
AL15
AG15
W15
R15
F15
D15
AM14
AH14
AE14
H14
B14
F13
D13
AL12
AG12
H12
B12
AN11
AJ11
AE11
AM9
AJ9
AB9
W9
R9
M9
J9
F9
C9
A9
AL8
AG8
AE8
U8
AA7
V7
R7
N7
H7
E7
B7
AL6
AG6
AE6
AB6
W6
T6
M6
K6
AN5
AJ5
B5
AA4
V4
R4
N4
K4
H4
E4
AL3
AD3
W3
T3
B3
AK2
AH2
AF2
AB2
M2
K2
H2
F2
V1
R1

Reference Voltage for RCOMP

10mil/20mil W/S

H_YRCOMP

12

R52

R52

24.9-1-04

24.9-1-04

C117

C117
.1U-16-04Y-Z

.1U-16-04Y-Z

H_DVREF

C125

C125
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V

+1.05V

+1.05V

12

R48

R48

54.9-1-04

54.9-1-04

10mil/20mil W/S

H_YSCOMP

+1.05V

12

R57

R57
221-1-04

221-1-04

10mil/20mil W/S 10mil/20mil W/S

H_YSWING

12

R55

R55
100-1-04

100-1-04

+1.05V

12

R65

R65
100-1-04

100-1-04

12

R62

R62
200-1-04

200-1-04

12

R81

R81

24.9-1-04

24.9-1-04

12

R82

R82

54.9-1-04

54.9-1-04

12

R90

R90
221-1-04

221-1-04

12

R88

R88
100-1-04

100-1-04

10mil/20mil W/S

H_XRCOMP

10mil/20mil W/S

H_XSCOMP

H_XSWING

C135

C135
.1U-16-04Y-Z

.1U-16-04Y-Z

C95 closed to NB within 100mil

H_D#[63:0]5 H_A#[35:3] 5

H_XRCOMP

H_XSCOMP
H_XSWING
H_YRCOMP
H_YSCOMP
H_YSWING

H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63

U3A

U3A

C4

HD0#

F6

HD1#

H9

HD2#

H6

HD3#

F7

HD4#

E3

HD5#

C2

HD6#

C3

HD7#

K9

HD8#

F5

HD9#

J7

HD10#

K7

HD11#

H8

HD12#

E5

HD13#

K8

HD14#

J8

HD15#

J2

HD16#

J3

HD17#

N1

HD18#

M5

HD19#

K5

HD20#

J5

HD21#

H3

HD22#

J4

HD23#

N3

HD24#

M4

HD25#

M3

HD26#

N8

HD27#

N6

HD28#

K3

HD29#

N9

HD30#

M1

HD31#

V8

HD32#

V9

HD33#

R6

HD34#

T8

HD35#

R2

HD36#

N5

HD37#

N2

HD38#

R5

HD39#

U7

HD40#

R8

HD41#

T4

HD42#

T7

HD43#

R3

HD44#

T5

HD45#

V6

HD46#

V3

HD47#

W2

HD48#

W1

HD49#

V2

HD50#

W4

HD51#

W7

HD52#

W5

HD53#

V5

HD54#

AB4

HD55#

AB8

HD56#

W8

HD57#

AA9

HD58#

AA8

HD59#

AB1

HD60#

AB7

HD61#

AA2

HD62#

AB5

HD63#

A10

HXRCOMP

A6

HXSCOMP

C15

HXSWING

J1

HYRCOMP

K1

HYSCOMP

H1

HYSWING

945GMS

945GMS

HOST

HOST

HADS#
HADSTB0#
HADSTB1#

H_AVREF

HBNR#

HBPRI#

HBREQ0#

HCPURST#

HDVREF

HCLKN

HCLKP

HDBSY#

HDEFER#

HDINV0#
HDINV1#
HDINV2#
HDINV3#

HDPWR#

HDRDY#
HDSTBN0#
HDSTBN1#
HDSTBN2#
HDSTBN3#
HDSTBP0#
HDSTBP1#
HDSTBP2#
HDSTBP3#

HHITM#
HLOCK#
HREQ0#
HREQ1#
HREQ2#
HREQ3#
HREQ4#

HRS0#
HRS1#
HRS2#

HCPUSLP#

HTRDY#

H_A#3

F8

HA3#

H_A#4

D12

HA4#

H_A#5

C13

HA5#

H_A#6

A8

HA6#

H_A#7

E13

HA7#

H_A#8

E12

HA8#

H_A#9

J12

HA9#

H_A#10

B13

HA10#

H_A#11

A13

HA11#

H_A#12

G13

HA12#

H_A#13

A12

HA13#

H_A#14

D14

HA14#

H_A#15

F14

HA15#

H_A#16

J13

HA16#

H_A#17

E17

HA17#

H_A#18

H15

HA18#

H_A#19

G15

HA19#

H_A#20

G14

HA20#

H_A#21

A15

HA21#

H_A#22

B18

HA22#

H_A#23

B15

HA23#

H_A#24

E14

HA24#

H_A#25

H13

HA25#

H_A#26

C14

HA26#

H_A#27

A17

HA27#

H_A#28

E15

HA28#

H_A#29

H17

HA29#

H_A#30

D17

HA30#

H_A#31

G17

HA31#

F10
C12
H16

H_DVREF

E2
B9
C7
G8
B10

H_DVREF

E1
AA6

AA5
C10
C6

H_DINV#0

H5

H_DINV#1

J6

H_DINV#2

T9

H_DINV#3

U6
G7
E6

H_DSTBN#0

F3

H_DSTBN#1

M8

H_DSTBN#2

T1

H_DSTBN#3

AA3

H_DSTBP#0

F4

H_DSTBP#1

M7

H_DSTBP#2

T2

H_DSTBP#3

AB3

C8

HHIT#

B4
C5

H_REQ#0

G9

H_REQ#1

E9

H_REQ#2

G12

H_REQ#3

B8

H_REQ#4

F12

H_RS#0

A5

H_RS#1

B6

H_RS#2

G10

H_CPUSLP#_GMCH

E8
E10

H_ADS# 5
H_ADSTB#0 5
H_ADSTB#1 5

H_BNR# 5
H_BPRI# 5
H_BREQ#0 5
H_CPURST# 5

CLK_MCH_BCLK# 7
CLK_MCH_BCLK 7
H_DBSY# 5
H_DEFER# 5
H_DINV#[3:0] 5

H_DPWR# 5
H_DRDY# 5
H_DSTBN#[3:0] 5

H_DSTBP#[3:0] 5

H_HIT# 5
H_HITM# 5
H_LOCK# 5

H_REQ#[4:0] 5

H_RS#[2:0] 5

R285 0-04R285 0-04

1 2

H_TRDY# 5

H_CPUSLP# 5,14

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

NB HOST/VSS

NB HOST/VSS

NB HOST/VSS

5008

5008

5008

1

of

of

of

833Thursday, June 26, 2008

833Thursday, June 26, 2008

833Thursday, June 26, 2008

C

C

C

5

4

3

2

1

CFG CONTROL

CFG2 CFG1 CFG0

D D

CHECK ?

CHECK ?

C C

+1.8VS

B B

12

R238

R238

80.6-1-04

80.6-1-04

12

R28

R28

80.6-1-04

80.6-1-04

M_RCOMPN

M_RCOMPP

DMI_RXN015
DMI_RXN115
DMI_RXP015
DMI_RXP115

DMI_TXN015
DMI_TXN115
DMI_TXP015
DMI_TXP115

MA_CK012
MA_CK112

MA_CK#012
MA_CK#112

MA_CKE012
MA_CKE112

MA_CS#012
MA_CS#112

MA_ODT012
MA_ODT112

M_RCOMPN
M_RCOMPP
M_VREF_MCH0
M_VREF_MCH1

+1.8VS +1.8VS

12

R40

R40
10K-1-04

10K-1-04

0.05A

12

R43

R43
10K-1-04

10K-1-04

M_VREF_MCH0

C99

C99
.1U-16-04Y-Z

.1U-16-04Y-Z

U3B

U3B

Y29

DMI_RXN0

Y32

DMI_RXN1

Y28

DMI_RXP0

Y31

DMI_RXP1

V28

DMI_TXN0

V31

DMI_TXN1

V29

DMI_TXP0

V32

DMI_TXP1

DMI

DMI

AF33

SM_CK0
SM_CK1

SM_CK2
SM_CK3

SM_CK0#
SM_CK1#

SM_CK2#
SM_CK3#

SM_CKE0
SM_CKE1
SM_CKE2
SM_CKE3

SM_CS0#
SM_CS1#
SM_CS2#
SM_CS3#

SMOCDCOMP0
SMOCDCOMP1

SM_ODT0
SM_ODT1
SM_ODT2
SM_ODT3

SMRCOMPN
SMRCOMPP
SMVREF0
SMVREF1

MCH_RSVD1
MCH_RSVD2
MCH_RSVD7
MCH_RSVD8
MCH_RSVD9

CFG/RSVD

CFG/RSVD

DDR2 MUXING

DDR2 MUXING

ICHSYNC#

BM_BUSY#

EXT_TS0#

PM

PM

EXT_TS1#/DPRSLPVR

THRMTRIP#

PWROK

RSTIN#

DREF_CLKN
DREF_CLKP

CLK

CLK

DREF_SSCLKN
DREF_SSCLKP

CLKREQB

945GMS

945GMS

12

R522

R522
10K-1-04

10K-1-04

0.05A

12

R523

R523
10K-1-04

10K-1-04

AG1
AJ1

AM30
AG33

AF1
AK1

AN30
AN21

AN22
AF26
AF25

AG14
AF12
AK14
AH12

AJ21
AF11

AE12
AF14
AJ14
AJ12

AN12
AN14
AA33

AE1

CFG0
CFG1
CFG2
CFG3
CFG5
CFG6

C18
E18
G20
G18
J20
J18

K32
K31
C17
F18
A3

E31
G21
F26
H26
J15
AB29
W27

A27
A26
J33
H33
J22

M_VREF_MCH1

C696

C696
.1U-16-04Y-Z

.1U-16-04Y-Z

00001

CFG3
CFG5

MCH_CFG5

PM_DPRSLPVR_IN
DELAY_VR_PWRGOOD

GMCH_RST#

Add R?/R?/C? for Layout

FSB

533
400

0

CPU_BSEL0 5,23
CPU_BSEL1 5
CPU_BSEL2 5

12

12

R275

R275

R256

R256

@2.2K-1-04

@2.2K-1-04

2.2K-1-04

2.2K-1-04

PCI Express Graphics Lane

0 = DMIX2

*

1=DMI X4 945GMS no support

MCH_SYNC# 15
PM_BM_BUSY# 15

R283 0-04R283 0-04

R45 100-04R45 100-04

Modify Rev:B

NB_DOT_96CLK# 7
NB_DOT_96CLK 7
NB_LVDS_SSCLK# 7
NB_LVDS_SSCLK 7
MCH_CLK_REQ# 7

Colse to NB

PM_DPRSLPVR 15,26
DELAY_VR_PWRGOOD 15,26

PLT_RST# 15,19,20,23,30

DELAY_VR_PWRGOOD

C406

C406
.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:B

Disable SDVO

R264 @2.2K-04R264 @2.2K-04

SDVOCTRL_DATA

1 2

GCLK#7
GCLK7

NB_DCC_CLK13
NB_CRT_BLUE13
NB_CRT_GREEN13
NB_CRT_RED13

R286

R286
150-04

150-04

1 2

CHECK ?

+3.3V

R91 10K-04R91 10K-04

MCH_CLK_REQ#

1 2

R278 10K-04R278 10K-04

LCTLA_CLK

1 2

R279 10K-04R279 10K-04

LCTLB_CLK

1 2

R280 10K-04R280 10K-04

LVDS_EDID_CLK

1 2

R281 10K-04R281 10K-04

LVDS_EDID_DAT

1 2

R265 10K-04R265 10K-04

NB_FP_EN

1 2

NB_DCC_DATA13

NB_CRT_VSYNC13

NB_CRT_HSYNC13

R83

R83

R284

R284

150-04

150-04

150-04

150-04

1 2

1 2

LVDS_EDID_CLK13

LVDS_EDID_DAT13

NB_FP_EN13

R270 255-1-04R270 255-1-04

LCD_BL_EN13

1 2

R271 1.5K-1-04R271 1.5K-1-04

LVDSA_CLKN13
LVDSA_CLKP13

LVDSA_N113
LVDSA_N213
LVDSA_N313

LVDSA_P113
LVDSA_P213
LVDSA_P313

NB_CRT_IREF

LCTLA_CLK
LCTLB_CLK

L_IBG

H27
J27
Y26

AA26

H20
H22
A24
A23
E25
F25
C25
D25
F27
D27
H25

H30
G29
F28
E28
G28
H28
K30
K27
J29
J30
K29

D30
C30
A30
A29

G31
F32
D31

H31
G32
C31

F33
D33
F30

E33
D32
F29

U3F

U3F

SDVOCTRL_DATA
SDVOCTRL_CLK
GCLKN
GCLKP

DDCCLK
DDCDATA
BLUE
BLUE#
GREEN
GREEN#
RED
RED#
VSYNC
HSYNC
REFSET

LBKLT_CTRL
LBKLT_EN
LCTLA_CLK
LCTLB_CLK
LDDC_CLK
LDDC_DATA
LVDD_EN
LIBG
LVBG
LVREFH
LVREFL

LACLKN
LACLKP
LBCLKN
LBCLKP

LADATAN0
LADATAN1
LADATAN2

LADATAP0
LADATAP1
LADATAP2

LBDATAN0
LBDATAN1
LBDATAN2

LBDATAP0
LBDATAP1
LBDATAP2

SDVO_FLDSTALL#

MISC

MISC

SDVO_FLDSTALL

SDVOB_GREEN#

LVDS VGA

LVDS VGA

945GMS

945GMS

EXP_COMPI

EXP_ICOMPO

SDV0_TVCLKIN#

SDVO_INT#

SDVO_TVCLKIN

SDVO_INT

SDVO

SDVO

SDVOB_RED#

SDVOB_BLUE#

SDVOB_CLKN

SDVOB_RED

SDVOB_GREEN

SDVOB_BLUE
SDVOB_CLKP

TVDAC_A
TVDAC_B
TVDAC_C

TV_REFSET

TV_IRTNA

TV

TV

TV_IRTNB
TV_IRTNC

TV_DCONSEL0
TV_DCONSEL1

+1.5V

R49

R49

24.9-1-04

24.9-1-04

PEG_COMP

R28
M28

N30
R30
T29

M30
P30
T30

P28
N32
P32
T32

N28
M32
P33
R32

+1.5V

A21
C20
E20
G23
B21
C21
D21

G26
J26

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

NB(2)_DMI/VGA/MICS

NB(2)_DMI/VGA/MICS

NB(2)_DMI/VGA/MICS

933Thursday, June 26, 2008

933Thursday, June 26, 2008

933Thursday, June 26, 2008

1

of

of

of

C

C

C

5

MA_DQ[63:0] 12

MA_BA[2:0]

U3C

U3C

SA_DQ0
SA_DQ1
SA_DQ2
SA_DQ3
SA_DQ4
SA_DQ5
SA_DQ6
SA_DQ7
SA_DQ8
SA_DQ9
SA_DQ10
SA_DQ11
SA_DQ12
SA_DQ13
SA_DQ14
SA_DQ15
SA_DQ16
SA_DQ17
SA_DQ18
SA_DQ19
SA_DQ20
SA_DQ21
SA_DQ22
SA_DQ23
SA_DQ24
SA_DQ25
SA_DQ26
SA_DQ27
SA_DQ28
SA_DQ29
SA_DQ30
SA_DQ31
SA_DQ32
SA_DQ33
SA_DQ34
SA_DQ35
SA_DQ36
SA_DQ37
SA_DQ38
SA_DQ39
SA_DQ40
SA_DQ41
SA_DQ42
SA_DQ43
SA_DQ44
SA_DQ45
SA_DQ46
SA_DQ47
SA_DQ48
SA_DQ49
SA_DQ50
SA_DQ51
SA_DQ52
SA_DQ53
SA_DQ54
SA_DQ55
SA_DQ56
SA_DQ57
SA_DQ58
SA_DQ59
SA_DQ60
SA_DQ61
SA_DQ62
SA_DQ63

SB_CAS#
SB_RAS#
SB_WE#

945GMS

945GMS

MA_DM[7:0]

MA_DQS[7:0] 12

MA_DQS#[7:0] 12

MAA_A[13:0] 12

AK12

SA_BS_0

AH11

SA_BS_1

AG17

SA_BS_2

AB30

SA_DM0

AL31

SA_DM1

AF30

SA_DM2

AK26

SA_DM3

AL9

SA_DM4

AG7

SA_DM5

AK5

SA_DM6

AH3

SA_DM7

AC28

SA_DQS0

AJ30

SA_DQS1

AK33

SA_DQS2

AL25

SA_DQS3

AN9

SA_DQS4

AH8

SA_DQS5

AM2

SA_DQS6

AE3

SA_DQS7

AC29

SA_DQS0#

AK30

SA_DQS1#

AJ33

SA_DQS2#

AM25

SA_DQS3#

AN8

SA_DQS4#

AJ8

SA_DQS5#

AM3

SA_DQS6#

AE2

SA_DQS7#

AJ15

SA_MA0

AM17

SA_MA1

AM15

SA_MA2

AH15

SA_MA3

AK15

SA_MA4

AN15

SA_MA5

AJ18

SA_MA6

AF19

SA_MA7

AN17

SA_MA8

AL17

SA_MA9

AG16

SA_MA10

AL18

SA_MA11

AG18

SA_MA12

AL14

SA_MA13

AJ17

SA_CAS#

AK18

SA_RAS#

DDR2 SYSTEM MEMORY

DDR2 SYSTEM MEMORY

AN28

SA_RCVENINB

AM28

SA_RCVENOUTB

AH17

SA_WEB

AH21

SB_BS_0

AJ20

SB_BS_1

AE27

SB_BS_2

AN20

SB_MA0

AL21

SB_MA1

AK21

SB_MA2

AK22

SB_MA3

AL22

SB_MA4

AH22

SB_MA5

AG22

SB_MA6

AF21

SB_MA7

AM21

SB_MA8

AE21

SB_MA9

AL20

SB_MA10

AE22

SB_MA11

AE26

SB_MA12

AE20

SB_MA13

D D

MA_DQ0

AC31

MA_DQ1

AB28

MA_DQ2

AE33

MA_DQ3

AF32

MA_DQ4

AC33

MA_DQ5

AB32

MA_DQ6

AB31

MA_DQ7

AE31

MA_DQ8

AH31

MA_DQ9

AK31

MA_DQ10

AL28

MA_DQ11

AK27

MA_DQ12

AH30

MA_DQ13

AL32

MA_DQ14

AJ28

MA_DQ15

AJ27

MA_DQ16

AH32

MA_DQ17

AF31

MA_DQ18

AH27

MA_DQ19

AF28

MA_DQ20

AJ32

MA_DQ21

AG31

MA_DQ22

AG28

MA_DQ23

AG27

C C

B B

MA_DQ24
MA_DQ25
MA_DQ26
MA_DQ27
MA_DQ28
MA_DQ29
MA_DQ30
MA_DQ31
MA_DQ32
MA_DQ33
MA_DQ34
MA_DQ35
MA_DQ36
MA_DQ37
MA_DQ38
MA_DQ39
MA_DQ40
MA_DQ41
MA_DQ42
MA_DQ43
MA_DQ44
MA_DQ45
MA_DQ46
MA_DQ47
MA_DQ48
MA_DQ49
MA_DQ50
MA_DQ51
MA_DQ52
MA_DQ53
MA_DQ54
MA_DQ55
MA_DQ56
MA_DQ57
MA_DQ58
MA_DQ59
MA_DQ60
MA_DQ61
MA_DQ62
MA_DQ63

AN27
AM26
AJ26
AJ25
AL27
AN26
AH25
AG26
AM12
AL11

AH9

AK9
AM11
AK11

AM8

AK8

AG9

AF9

AF8

AK6

AF7
AG11

AJ6
AH6
AN6
AM6
AK3

AL2
AM5

AL5

AJ3

AJ2
AG2
AF3
AE7
AF6
AH5
AG3
AG5
AF5

AG19
AG21
AG20

MA_BA0
MA_BA1
MA_BA2

MA_DM0
MA_DM1
MA_DM2
MA_DM3
MA_DM4
MA_DM5
MA_DM6
MA_DM7

MA_DQS0
MA_DQS1
MA_DQS2
MA_DQS3
MA_DQS4
MA_DQS5
MA_DQS6
MA_DQS7

MA_DQS#0
MA_DQS#1
MA_DQS#2
MA_DQS#3
MA_DQS#4
MA_DQS#5
MA_DQS#6
MA_DQS#7

MAA_A0
MAA_A1
MAA_A2
MAA_A3
MAA_A4
MAA_A5
MAA_A6
MAA_A7
MAA_A8
MAA_A9
MAA_A10
MAA_A11
MAA_A12
MAA_A13

Z1001
Z1002

TP1TP1
TP2TP2

MA_CAS#
MA_RAS#

MA_WE#

4

+1.05V +1.5V

+1.05V

3

U3H

U3H

T25

VCC_NCTF1

R25

VCC_NCTF2

P25

VCC_NCTF3

N25

VCC_NCTF4

M25

VCC_NCTF5

P24

VCC_NCTF6

N24

VCC_NCTF7

M24

VCC_NCTF8

Y22

VCC_NCTF9

W22

VCC_NCTF10

V22

VCC_NCTF11

U22

VCC_NCTF12

T22

VCC_NCTF13

R22

VCC_NCTF14

P22

VCC_NCTF15

N22

VCC_NCTF16

M22

VCC_NCTF17

Y21

VCC_NCTF18

W21

VCC_NCTF19

V21

VCC_NCTF20

U21

VCC_NCTF21

T21

VCC_NCTF22

R21

VCC_NCTF23

P21

VCC_NCTF24

N21

VCC_NCTF25

M21

VCC_NCTF26

Y20

VCC_NCTF27

W20

VCC_NCTF28

V20

VCC_NCTF29

U20

VCC_NCTF30

T20

VCC_NCTF31

R20

VCC_NCTF32

P20

VCC_NCTF33

N20

VCC_NCTF34

M20

VCC_NCTF35

Y19

VCC_NCTF36

P19

VCC_NCTF37

N19

VCC_NCTF38

M19

VCC_NCTF39

Y18

VCC_NCTF40

P18

VCC_NCTF41

N18

VCC_NCTF42

NCTF

NCTF

M18

VCC_NCTF43

Y17

VCC_NCTF44

P17

VCC_NCTF45

N17

VCC_NCTF46

M17

VCC_NCTF47

Y16

VCC_NCTF48

P16

VCC_NCTF49

N16

VCC_NCTF50

M16

VCC_NCTF51

Y15

VCC_NCTF52

P15

VCC_NCTF53

N15

VCC_NCTF54

M15

VCC_NCTF55

Y14

VCC_NCTF56

W14

VCC_NCTF57

V14

VCC_NCTF58

U14

VCC_NCTF59

T14

VCC_NCTF60

R14

VCC_NCTF61

P14

VCC_NCTF62

N14

VCC_NCTF63

M14

VCC_NCTF64

T10

VTT_NCTF1

R10

VTT_NCTF2

P10

VTT_NCTF3

N10

VTT_NCTF4

L10

VTT_NCTF5

D1

VTT_NCTF6

M10

MCH_RSVD3

A18

MCH_RSVD4

AB10

MCH_RSVD5

AA10

MCH_RSVD6

945GMS

945GMS

VCCAUX_NCTF1
VCCAUX_NCTF2
VCCAUX_NCTF3
VCCAUX_NCTF4
VCCAUX_NCTF5
VCCAUX_NCTF6
VCCAUX_NCTF7
VCCAUX_NCTF8

VCCAUX_NCTF9
VCCAUX_NCTF10
VCCAUX_NCTF11
VCCAUX_NCTF12
VCCAUX_NCTF13
VCCAUX_NCTF14
VCCAUX_NCTF15
VCCAUX_NCTF16
VCCAUX_NCTF17
VCCAUX_NCTF18
VCCAUX_NCTF19
VCCAUX_NCTF20
VCCAUX_NCTF21
VCCAUX_NCTF22
VCCAUX_NCTF23
VCCAUX_NCTF24
VCCAUX_NCTF25
VCCAUX_NCTF26
VCCAUX_NCTF27
VCCAUX_NCTF28
VCCAUX_NCTF29
VCCAUX_NCTF30
VCCAUX_NCTF31
VCCAUX_NCTF32
VCCAUX_NCTF33
VCCAUX_NCTF34
VCCAUX_NCTF35
VCCAUX_NCTF36
VCCAUX_NCTF37
VCCAUX_NCTF38

VSS_NCTF1
VSS_NCTF2
VSS_NCTF3
VSS_NCTF4
VSS_NCTF5
VSS_NCTF6
VSS_NCTF7
VSS_NCTF8

VSS_NCTF9
VSS_NCTF10
VSS_NCTF11
VSS_NCTF12
VSS_NCTF13
VSS_NCTF14
VSS_NCTF15
VSS_NCTF16
VSS_NCTF17
VSS_NCTF18
VSS_NCTF19

CFG19

MCH_RSVD10
MCH_RSVD11
MCH_RSVD12
MCH_RSVD13
MCH_RSVD14
MCH_RSVD15
MCH_RSVD16
MCH_RSVD17
MCH_RSVD18
MCH_RSVD19
MCH_RSVD20
MCH_RSVD21
MCH_RSVD22
MCH_RSVD23
MCH_RSVD24
MCH_RSVD25

AD25
AC25
AB25
AD24
AC24
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
K14
AD13
Y13
W13
V13
U13
T13
R13
P13
N13
M13
AD12
Y12
W12
V12
U12
T12
R12
P12
N12
M12
AD11
AD10
K10
AN33
AA25
V25
U25
AA22
AA21
AA20
AA19
AA18
AA17
AA16
AA15
AA14
AA13
A4
A33
B2
AN1
C1

K28
K25

K26
R24
T24
K21
K19
K20
K24
K22
J17
K23
K17
K12
K13
K16
K15

2

U3G

U3G

W33

NC1

AM33

NC2

AL33

NC3

C33

NC4

B33

NC5

AN32

NC6

A32

NC7

AN31

NC8

W28

NC9

V27

NC10

W29

NC11

J24

NC12

H24

NC13

W32

NC14

G24

NC15

F24

NC16

E24

NC17

D24

NC18

K33

NC19

A31

NC20

E21

NC21

C23

NC22

AN19

NC23

AM19

NC24

AL19

NC25

AK19

NC26

AJ19

NC27

AH19

NC28

AN3

NC29

Y9

NC30

J19

NC31

H19

NC32

G19

NC33

F19

NC34

E19

NC35

D19

NC36

C19

NC37

B19

NC38

A19

NC39

Y8

NC40

G16

NC41

F16

NC42

E16

NC43

D16

NC44

C16

NC45

B16

NC46

AN2

NC47

A16

NC48

Y7

NC49

AM4

NC50

AF4

NC51

AD4

NC52

AL4

NC53

AK4

NC54

W31

NC55

AJ4

NC56

AH4

NC57

AG4

NC58

AE4

NC59

AM1

NC60

945GMS

945GMS

NC

NC

MCH_RSVD26
MCH_RSVD27
MCH_RSVD28
MCH_RSVD29
MCH_RSVD30
MCH_RSVD31
MCH_RSVD32
MCH_RSVD33
MCH_RSVD34
MCH_RSVD35
MCH_RSVD36
MCH_RSVD37
MCH_RSVD38
MCH_RSVD39
MCH_RSVD40
MCH_RSVD41
MCH_RSVD42

W30

NC61

Y6

NC62

AL1

NC63

Y5

NC64

Y10

NC65

W10

NC66

W25

NC67

V24

NC68

U24

NC69

V10

NC70

U10

NC71

K18

NC72

Y25
Y24
AB22
AB21
AB19
AB16
AB14
AA12
W24
AA24
AB24
AB20
AB18
AB15
AB13
AB12
AB17

1

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

5008

5008

5008

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

NB DDR INTERFACE/VSS

NB DDR INTERFACE/VSS

NB DDR INTERFACE/VSS

10 33Thursday, June 26, 2008

10 33Thursday, June 26, 2008

10 33Thursday, June 26, 2008

1

of

of

of

C

C

C

5

4

3

2

1

C71

C71

C27

C27

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C72

C72

2.2U-10-06Y-Z

2.2U-10-06Y-Z

+2.5V

10mA

C461

C461

100P-50-04N-J

100P-50-04N-J

Modify Rev:C

C90

C90
.1U-16-04Y-Z

.1U-16-04Y-Z

1U-16-04Y-Z

1U-16-04Y-Z

C45

C45

1U-10-06Y-Z

1U-10-06Y-Z

C73

C73

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C24

C24
1U-16-04Y-Z

1U-16-04Y-Z

C404

C404

100P-50-04N-J

100P-50-04N-J

CRTDAC_AGND

20mA

C23

C23

.1U-16-04Y-Z

.1U-16-04Y-Z

+1.5V

+2.5V

2mA

C462

C462
.1U-16-04Y-Z

.1U-16-04Y-Z

C116

C116
1U-10-06Y-Z

1U-10-06Y-Z

Modify Rev:C

C474

C474

4.7U-10-08Y-Z

4.7U-10-08Y-Z

VCCSM=1720mA

C69

C69

1U-10-06Y-Z

1U-10-06Y-Z

Modify Rev:C

C63

C63
.1U-16-04Y-Z

.1U-16-04Y-Z

C70

C70
1U-10-06Y-Z

1U-10-06Y-Z

Modify Rev:B

B9

0-06B90-06

C402

C402

100P-50-04N-J

100P-50-04N-J

C142

C142
@.1U-16-04Y-Z

@.1U-16-04Y-Z

C144

C144
1U-10-06Y-Z

1U-10-06Y-Z

C476

C476
100P-50-04N-J

100P-50-04N-J

C637

C637

100P-50-04N-J

100P-50-04N-J

C37

C37
1U-10-06Y-Z

1U-10-06Y-Z

C60

C60
.1U-16-04Y-Z

.1U-16-04Y-Z

C113

C113
.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:B

C399

C399
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.5V

+3.3V

C638

C638

C639

C639

.1U-16-04Y-Z

.1U-16-04Y-Z

C25

C25
1U-16-04Y-Z

1U-16-04Y-Z

C74

C74
1U-10-06Y-Z

1U-10-06Y-Z

+2.5V

+1.8VS

C706

C706

C640

C640

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

.1U-16-04Y-Z

.1U-16-04Y-Z

C43

C43
1U-10-06Y-Z

1U-10-06Y-Z

C707

C707

C26

C26

1U-16-04Y-Z

1U-16-04Y-Z

1U-16-04Y-Z

1U-16-04Y-Z

60mA150mA

+2.5V

C470

C470

C477

C477

100P-50-04N-J

100P-50-04N-J

.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:C

70mA

MCH_CRT_DAC

C140

C140

C149

C149

.01U-16-04X-K

.01U-16-04X-K

2.2U-10-06Y-Z

2.2U-10-06Y-Z

Modify Rev:C Solve the display ripple

R95

R95

1 2

0_06

0_06

C109

C109
.1U-16-04Y-Z

.1U-16-04Y-Z

C148

C148
.1U-16-04Y-Z

.1U-16-04Y-Z

C121

C121
.1U-16-04Y-Z

.1U-16-04Y-Z

C88

C88
.1U-16-04Y-Z

.1U-16-04Y-Z

C97

C97
.1U-16-04Y-Z

.1U-16-04Y-Z

C107

C107
.1U-16-04Y-Z

.1U-16-04Y-Z

+2.5V

MCH_PEG_HPLL

D11

D11

SCH-BAT54-PH

SCH-BAT54-PH

C110

C110
.1U-16-04Y-Z

.1U-16-04Y-Z

MCH_VCCA_DPLLA

C139

C139
.1U-16-04Y-Z

.1U-16-04Y-Z

MCH_VCCA_DPLLB

C119

C119
.1U-16-04Y-Z

.1U-16-04Y-Z

MCH_VCCA_HPLL

C84

C84
.1U-16-04Y-Z

.1U-16-04Y-Z

MCH_VCCA_MPLL

C94

C94
.1U-16-04Y-Z

.1U-16-04Y-Z

VCCA_3GPLL

C106

C106
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V

AC

R47

R47

1 2

0_06

0_06

R94

R94

1 2

0_06

0_06

R56

R56

1 2

0_06

0_06

R36

R36

1 2

0_06

0_06

R39

R39

1 2

0_06

0_06

R44

R44

1 2

0_06

0_06

50mA

50mA

50mA

45mA

45mA

50mA

+1.5V

VCCA_TVBG

VSSA_TVBG

VCCD_TVDAC

VCCD_LVDS0
VCCD_LVDS1
VCCD_LVDS2

VCCHV0
VCCHV1
VCCHV2
VCCSM0
VCCSM1
VCCSM2
VCCSM3
VCCSM4
VCCSM5
VCCSM6
VCCSM7
VCCSM8

VCCSM9
VCCSM10
VCCSM11
VCCSM12
VCCSM13
VCCSM14
VCCSM15
VCCSM16
VCCSM17
VCCSM18
VCCSM19
VCCSM20
VCCSM21
VCCSM22
VCCSM23
VCCSM24
VCCSM25
VCCSM26
VCCSM27
VCCSM28
VCCSM29
VCCSM30
VCCSM31
VCCSM32
VCCSM33
VCCSM34
VCCSM35
VCCSM36
VCCSM37
VCCSM38
VCCSM39
VCCSM40
VCCSM41
VCCSM42
VCCSM43
VCCSM44
VCCSM45
VCCSM46
VCCSM47
VCCSM48
VCCSM49
VCCSM50
VCCSM51

VCCA_MPLL

VCCA_HPLL
VCCA_DPLLA
VCCA_DPLLB

VCCD_HMPLL1
VCCD_HMPLL2
VCCTX_LVDS0
VCCTX_LVDS1

VCC3G0

VCC3G1
VCCA_3GPLL
VCCA_3GBG
VSSA_3GBG

VCC_SYNC

VSSA_CRTDAC

VCCA_LVDS

VSSALVDS

24mA

+1.5V +1.5V

Modify Rev:B

B20
A20
B22
A22
D22
C22
D23
E23
F20
F22
C28
B28
A28
E26
D26
C26

Z1105

AB33

Z1106

AM32
AN29
AM29
AL29
AK29
AJ29
AH29
AG29
AF29
AE29
AN24
AM24
AL24
AK24
AJ24
AH24
AG24
AF24
AE24

Z1107

AN18
AN16
AM16
AL16
AK16
AJ16
AN13
AM13
AL13
AK13
AJ13
AH13
AG13
AF13

C77 .1U-16-04Y-ZC77 .1U-16-04Y-Z

AE13

Z1108

AN4
AM10
AL10

C79 .1U-16-04Y-ZC79 .1U-16-04Y-Z

AK10

Z1109

AH1
AH10
AG10
AF10
AE10
AN7
AM7
AL7
AK7
AJ7
AH7
AN10
AJ10

MCH_VCCA_MPLL

AD1

MCH_VCCA_HPLL

AD2

MCH_VCCA_DPLLA

B26

MCH_VCCA_DPLLB

J32
AE5
AD5
D29
C29

MCH_PEG_HPLL

U33
T33

VCCA_3GPLL

V26
N33
M33
J23

MCH_CRT_DAC

C24
B24

CRTDAC_AGND

B25
B31
B32

P1

VTT41

L1

VTT42

G1

VTT43

U1

VTT44

Y1

VTT45

+1.05V

Modify Rev:B

C400

C400
100P-50-04N-J

100P-50-04N-J

C75

C75
.1U-16-04Y-Z

.1U-16-04Y-Z

C76

C76
.1U-16-04Y-Z

.1U-16-04Y-Z

C463

C463

.1U-16-04Y-Z

.1U-16-04Y-Z

C444

C444
100P-50-04N-J

100P-50-04N-J

C634

C634
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V

C633

C633
.1U-16-04Y-Z

.1U-16-04Y-Z

C465

C465

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C632

C632
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V

C422

C422

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C439

C439
.1U-16-04Y-Z

.1U-16-04Y-Z

C403

C403
1U-10-04R

1U-10-04R

C459

C459

780mA

2.2U-10-06Y-Z

2.2U-10-06Y-Z

2940mA

C458

C458

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C416

C416

100P-50-04N-J

100P-50-04N-J

C418

C418

2.2U-10-06Y-Z

2.2U-10-06Y-Z

Modify Rev:C

1250mA

C141

C141
1U-10-04R

1U-10-04R

Modify Rev:C

C417

C417

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C457

C457
100P-50-04N-J

100P-50-04N-J

U3D

U3D

T26

VCC0
VCC1
VCC2
VCC3
VCC4
VCC5
VCC6
VCC7
VCC8
VCC9
VCC10
VCC11
VCC12
VCC13
VCC14
VCC15
VCC16
VCC17
VCC18
VCC19
VCC20
VCC21

VCC_AUX1
VCC_AUX2
VCC_AUX3
VCC_AUX4
VCC_AUX5
VCC_AUX6
VCC_AUX7
VCC_AUX8
VCC_AUX9
VCC_AUX10
VCC_AUX11
VCC_AUX12
VCC_AUX13
VCC_AUX14
VCC_AUX15
VCC_AUX16
VCC_AUX17
VCC_AUX18
VCC_AUX19
VCC_AUX20
VCC_AUX21
VCC_AUX22
VCC_AUX23
VCC_AUX24
VCC_AUX25
VCC_AUX26
VCC_AUX27
VCC_AUX28

VTT0
VTT1
VTT2
VTT3
VTT4
VTT5
VTT6
VTT7
VTT8
VTT9
VTT10
VTT11
VTT12
VTT13
VTT14
VTT15
VTT16
VTT17
VTT18
VTT19
VTT20
VTT21
VTT22
VTT23
VTT24
VTT25
VTT26
VTT27
VTT28
VTT29
VTT30
VTT31
VTT32
VTT33
VTT34
VTT36
VTT35
VTT37
VTT38
VTT39
VTT40

945GMS

945GMS

VCCA_TVDACA0
VCCA_TVDACA1
VCCA_TVDACB0
VCCA_TVDACB1
VCCA_TVDACC0
VCCA_TVDACC1

VCCDQ_TVDAC

POWER

POWER

VCCA_CRTDAC0
VCCA_CRTDAC1

Z1101

Z1102

Z1103
Z1104

C120

C120
.47U-16-06Y-Z

.47U-16-06Y-Z

R26
P26
N26

M26

V19
U19
T19

W18

V18
T18
R18

W17

U17
R17

W16

V16
T16
R16
V15
U15
T15

AD33
AD32
AD31
AD30
AD29
AD28
AD27
AC27
AD26
AC26
AB26
AE19
AE18
AF17
AE17
AF16
AE16
AF15
AE15

J14
J10

H10
AE9
AD9

U9
AD8
AD7
AD6

A14
D10

P9

L9

D9

P8

L8

D8

P7

L7

D7

A7

P6

L6

G6

D6

U5

P5

L5

G5

D5

Y4

U4

P4

L4

G4

D4

Y3

U3

P3

L3

G3

D3

Y2

U2

P2

L2

G2

D2
AA1

F1

C437

C437

C438

C438

.1U-16-04Y-Z

.1U-16-04Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

C419

C419

C434

C434
1U-10-04R

1U-10-04R

C464

C464

1U-10-06Y-Z

1U-10-06Y-Z

C87

C87

100P-50-04N-J

100P-50-04N-J

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C138

C138

C436

C436

.47U-16-06Y-Z

.47U-16-06Y-Z

1U-10-04R

1U-10-04R

C136

C136
.47U-16-06Y-Z

.47U-16-06Y-Z

C101

C101
.47U-16-06Y-Z

.47U-16-06Y-Z

D D

+1.5V

C635

C635

C636

C636

1U-10-04R

1U-10-04R

1U-10-04R

1U-10-04R

C C

B B

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

NB I/O POWER

NB I/O POWER

NB I/O POWER

5008

5008

5008

1

of

of

of

11 33Thursday, June 26, 2008

11 33Thursday, June 26, 2008

11 33Thursday, June 26, 2008

C

C

C

5

4

3

2

1

MAA_A[13:0]10

MAA_A2

MAA_A3

MAA_A1

MAA_A0

MAA_A8

MAA_A7

MAA_A6

MAA_A5

D D

R26

R26

R27

R27

10K

10K

10K

10K

Z1201

+3.3V

12

12

Z1202

MA_BA0
MA_BA1
MA_BA2

MA_CS#0
MA_CS#1

MA_DM0
MA_DM2
MA_DM1
MA_DM3
MA_DM4
MA_DM5
MA_DM6
MA_DM7

MA_WE#
MA_CAS#
MA_RAS#

MA_CKE0
MA_CKE1

MA_CK0
MA_CK1
MA_CK#0
MA_CK#1

MA_DQS0
MA_DQS2
MA_DQS1
MA_DQS3
MA_DQS4
MA_DQS5
MA_DQS6
MA_DQS7
MA_DQS#0
MA_DQS#2
MA_DQS#1
MA_DQS#3
MA_DQS#4
MA_DQS#5
MA_DQS#6
MA_DQS#7

MA_ODT0
MA_ODT1

DDR_VREF

RT1

RT1

VR-ERT-J1VR103J

VR-ERT-J1VR103J

R249

R249

1.5K-1-04

1.5K-1-04

C51

C51

0.1u

0.1u

SB_SMB_DATA15
SB_SMB_CLK15

MA_BA[2:0]

MA_CS#09
MA_CS#19

MA_DM[7:0]

MA_WE#
MA_CAS#

MA_DQS[7:0]10

MA_DQS#[7:0]10

Modify Rev:B

SYS_TEMP23

3

MA_RAS#

MA_CKE09
MA_CKE19

MA_CK09
MA_CK19
MA_CK#09
MA_CK#19

MA_ODT09
MA_ODT19

C C

DDR Terminatation

RN8 56-8P4R-04RN8 56-8P4R-04

MAA_A7

1

RN7 56-8P4R-04RN7 56-8P4R-04

RN6 56-8P4R-04RN6 56-8P4R-04

1
3

RN5

RN5

1
3

C366

C366

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C36

C36

.1U-16-04Y-Z

.1U-16-04Y-Z

100P-50-04N-J

100P-50-04N-J

C710

C710

.1U-16-04Y-Z

.1U-16-04Y-Z

2.2U-10-06Y-Z

2.2U-10-06Y-Z

8

3

6
5724

1

8

3

6
5724

8
6

5724

56-8P4R-04

56-8P4R-04

8
6

5724

MA_BA1
MA_WE#
MA_BA0
MAA_A0

MA_ODT1
MA_RAS#
MA_CS#1
MA_CAS#

MA_ODT0
MAA_A13
MA_CS#0

Modify Rev:C

C374

C374

C373

C373

.1U-16-04Y-Z

.1U-16-04Y-Z

C61

C61

100P-50-04N-J

100P-50-04N-J

C62

C62

.1U-16-04Y-Z

.1U-16-04Y-Z

5

C371

C371

C365

C369

C369

100P-50-04N-J

100P-50-04N-J

C59

C59

.1U-16-04Y-Z

.1U-16-04Y-Z

C52

C52

.1U-16-04Y-Z

.1U-16-04Y-Z

C365

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

.1U-16-04Y-Z

.1U-16-04Y-Z

C38

C38

C58

C58

C41

C41

1U-10-06Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

C50

C50

C44

C44

C39

C39

1U-10-06Y-Z

1U-10-06Y-Z

2.2U-10-06Y-Z

2.2U-10-06Y-Z

MAA_A11
MA_CKE1

MA_BA2
MAA_A4
MA_CKE0
MAA_A6

MAA_A8
MAA_A9
MAA_A12
MAA_A2

MAA_A10
MAA_A1
MAA_A3
MAA_A5

B B

+0.9VS

C368

C368

+1.8VS

C35

C35

A A

+1.8VS

C31

C31

RN4 56-8P4R-04RN4 56-8P4R-04

1

8

3

6
5724

RN3 56-8P4R-04RN3 56-8P4R-04

1

8

3

6
5724

RN2 56-8P4R-04RN2 56-8P4R-04

1

8

3

6
5724

C367

C367

.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:B

C46

C46

C42

C42

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C34

C34

C40

C40

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C372

C372

+0.9VS

.1U-16-04Y-Z

.1U-16-04Y-Z

C55

C55

4.7U-10-08Y-Z

4.7U-10-08Y-Z

Modify Rev:B

C22

C22

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C53

C53
.1U-16-04Y-Z

.1U-16-04Y-Z

C47

C47
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.8VS

DDR_VREF

C48

C48
1000P-25-04X-K

1000P-25-04X-K

12

R21

R21
10K-1-04

10K-1-04

12

R23

R23
10K-1-04

10K-1-04

Modify Rev:B

Thermistor

C65

C65

C56

C56

C641

C641

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

100P-50-04N-J

100P-50-04N-J

Modify Rev:C

C708

C708

C709

C709

C54

C54

C64

C64

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4

C724

C724

100P-50-04N-J

100P-50-04N-J

2.2U-10-06Y-Z

2.2U-10-06Y-Z

2.2U-10-06Y-Z

2.2U-10-06Y-Z

102A1101A2100A498

A0

163

NC/TEST

50

NC

69

NC

83

NC

120

NC

198

SA0

200

SA1

195

SDA

197

SCL

107

BA0

106

BA1

85

BA2

110

S0#

115

NC/S1#

10

DM0

26

DM1

52

DM2

67

DM3

130

DM4

147

DM5

170

DM6

185

DM7

109

WE#

113

CAS#

108

RAS#

79

CKE0

80

NC/CKE1

30

CK0

164

CK1

32

CK#0

166

CK#1

13

DQS0

31

DQS1

51

DQS2

70

DQS3

131

DQS4

148

DQS5

169

DQS6

188

DQS7

11

DQS#0

29

DQS#1

49

DQS#2

68

DQS#3

129

DQS#4

146

DQS#5

167

DQS#6

186

DQS#7

114

ODT0

119

NC/ODT1

1

VREF

184

VSS

187

VSS

190

VSS

193

VSS

196

VSS

171

VSS

172

VSS

177

VSS

178

VSS

183

VSS

MAA_A4

99

92

A3

A597A694A7

VSS3VSS8VSS9VSS12VSS15VSS18VSS21VSS24VSS27VSS28VSS33VSS34VSS39VSS40VSS

VSS

2

+3.3V

C32

C32

0.1u

0.1u

MAA_A13

MAA_A12

MAA_A11

MAA_A10

MAA_A9

91

89

116

105

A893A9

199

A1190A12

A10/AP

NC/A1486NC/A1584NC/A13

VDDSPD

VSS

VSS

VSS

VSS

VSS54VSS59VSS60VSS65VSS66VSS71VSS72VSS78VSS

42

53

47

41

48

2

+1.8VS

CN20

CN20

103

104

111

112

117

118

81

VDD96VDD

VDD

VDD

VDD

VDD95VDD88VDD87VDD82VDD

VSS

VSS77VSS

121

122

MA_DQ7

6

VDD

VDD

DQ5

MA_DQ5

7

DQ1

MA_DQ6

19

DQ3

MA_DQ3

16

DQ7

MA_DQ1

4

DQ4

MA_DQ0

5

DQ0

MA_DQ2

14

DQ6

MA_DQ4

17

DQ2

MA_DQ16

20

DQ12

MA_DQ17

22

DQ13

MA_DQ18

36

DQ14

MA_DQ22

37

DQ11

MA_DQ20

25

DQ9

MA_DQ23

23

DQ8

MA_DQ21

35

DQ10

MA_DQ19

38

DQ15

MA_DQ8

45

DQ17

MA_DQ9

43

DQ16

MA_DQ12

55

DQ18

MA_DQ11

57

DQ19

MA_DQ13

44

DQ20

MA_DQ10

46

DQ21

MA_DQ14

56

DQ22

MA_DQ15

58

DQ23

MA_DQ29

61

DQ24

MA_DQ24

63

DQ25

MA_DQ28

62

DQ28

MA_DQ27

75

DQ27

MA_DQ30

74

DQ30

MA_DQ26

64

DQ29

MA_DQ25

73

DQ26

MA_DQ31

76

DQ31

MA_DQ32

123

DQ32

MA_DQ37

125

DQ33

MA_DQ39

135

DQ34

MA_DQ34

137

DQ35

MA_DQ36

124

DQ36

MA_DQ33

126

DQ37

MA_DQ35

134

DQ38

MA_DQ38

136

DQ39

MA_DQ40

141

DQ40

MA_DQ41

140

DQ44

MA_DQ42

151

DQ42

MA_DQ43

153

DQ43

MA_DQ44

142

DQ45

MA_DQ45

143

DQ41

MA_DQ46

152

DQ46

MA_DQ47

154

DQ47

MA_DQ48

157

DQ48

MA_DQ49

159

DQ49

MA_DQ50

173

DQ50

MA_DQ51

175

DQ51

MA_DQ52

158

DQ52

MA_DQ53

160

DQ53

MA_DQ54

174

DQ54

MA_DQ55

176

DQ55

MA_DQ56

179

DQ56

MA_DQ57

181

DQ57

MA_DQ58

189

DQ58

MA_DQ59

191

DQ59

MA_DQ60

180

DQ60

MA_DQ61

182

DQ61

MA_DQ62

192

DQ62

MA_DQ63

194

DQ63

145

VSS

149

VSS

150

VSS

155

VSS

156

VSS

161

VSS

162

VSS

165

VSS

168

VSS

VSS

VSS

VSS

VSS

VSS

VSS

PIN NC3~4=GND POWER

139

133

144

138

132

127

128

F_ASOA421-N4SN-7F

F_ASOA421-N4SN-7F

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

MA_DQ[63:0] 10

G10ILX

G10ILX

G10ILX

DDR2 SODIMM

DDR2 SODIMM

DDR2 SODIMM

5008

5008

5008

1

of

of

of

12 33Thursday, June 26, 2008

12 33Thursday, June 26, 2008

12 33Thursday, June 26, 2008

C

C

C

5

+3.3V

Modify Rev:C

U24
74AHC1G08

74AHC1G08

1

4

M-SOT353

M-SOT353

2

3 5

U25

U25
74AHC1G08

74AHC1G08

1

4

2

M-SOT353

M-SOT353

3 5

NB_DCC_CLK9

NB_DCC_DATA9

Modify Rev:B

NB_CRT_HSYNC9

NB_CRT_VSYNC9

D D

C C

4

NB_CRT_RED9

NB_CRT_GREEN9

NB_CRT_BLUE9

R29

R29

2.2K-04

2.2K-04

R42

R42

2.2K-04

2.2K-04

NB_H
NB_V

Q6

FET-2N7002Q6FET-2N7002

Q9

DGS

DGS

FET-2N7002Q9FET-2N7002

R519 0-04R519 0-04
R520 0-04R520 0-04

Modify Rev:B
Modify Rev:C

CRT_DDC_CLK

R31

R31

2.2K-04

2.2K-04

R41

R41

2.2K-04

2.2K-04

CRT_DDC_DATA

Modify Rev:B

D27

D27

AC

BAS16

BAS16

NB_H

NB_V

+3.3V

3

Modify Rev:B

B7 BD-QT1608RL060B7 BD-QT1608RL060
B6 BD-QT1608RL060B6 BD-QT1608RL060U24
B5 BD-QT1608RL060B5 BD-QT1608RL060
B4 0-06B4 0-06
B3 0-06B3 0-06

R35

R35

C93

R51

R51

R46

R46

C111

C111

150-1-04

150-1-04

150-1-04

150-1-04

1 2

1 2

@10P-25-04N

@10P-25-04N

+5V

C93

C103

C103

150-1-04

150-1-04

1 2

@10P-25-04N

@10P-25-04N

@10P-25-04N

@10P-25-04N

C102

C102

C108

C108

10P-25-04N

10P-25-04N

10P-25-04N

10P-25-04N

2

1

CRT Conn.

CRT_RED
CRT_GREEN
CRT_BLUE
CRT_HSYNC_CON
CRT_VSYNC_CON

C95

C95

C82

C82

C89

C89

10P-25-04N

10P-25-04N

10P-25-04N

10P-25-04N

10P-25-04N

10P-25-04N

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+5V

AC

D8

D8

D8

D8

SCH-BAT54-PH

SCH-BAT54-PH

C86

C86

CRT_RED
Z1301
CRT_GREEN

CRT_BLUE

CRT_DDC_DATA
CRT_HSYNC_CON
CRT_VSYNC_CON

CRT_DDC_CLK

CN6

CN6

GND2

1
9
2

10

3

11

4

12

5

13

6

14

7

15

8

GND1

CON-DSUB-C10517-11505-ALL

CON-DSUB-C10517-11505-ALL

LVDS & INVERTER

Close to LCD_CONN

1A

C486

C486

C489

C489

@.1U-25-06Y-Z

@.1U-25-06Y-Z

+3.3V

LCDVCC

LCDSW1

VIN_LCD

C484

C484
@1U-25-06R-K

@1U-25-06R-K

VIN_LCD

C487

C487
@220P-50-04N-J

@220P-50-04N-J

CN9

CN9

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20
21 22
23 24
25 26
27 28
29 30

CON-WTB-3760-F30C-51R

CON-WTB-3760-F30C-51R

LCDSW0

BL_ON

C481

C481
.1U-16-04Y-Z

.1U-16-04Y-Z

EMI

C167

C167
.1U-25-06Y-Z

.1U-25-06Y-Z

LVDS_EDID_CLK 9
LVDS_EDID_DAT 9

LVDSA_P2 9
LVDSA_N2 9

LVDSA_P3 9
LVDSA_N3 9

LCDSW0 23LCDSW123

+5V_LCD

C478

C478
.1U-16-04Y-Z

.1U-16-04Y-Z

LCDVCC

C134

C134

.1U-16-04Y-Z

.1U-16-04Y-Z

EC_BL_PWM 23

To solve the White gerber issue with No BL funtion

+3.3V

Modify Rev:B

12

R302

R302
10K-04

10K-04

+5V

BL_ON

C646

C646
@.1U-16-04Y-Z

@.1U-16-04Y-Z

Q18

Q18
FET-SI2301BDS

FET-SI2301BDS

DS

12

R306

R306

G

47K-1-04

47K-1-04

Z1302

DS

Q35

Q35

G

FET-2N7002

FET-2N7002

12

R104

R104
@1K-04

@1K-04

+5V_LCD

Modify Rev:C

+3.3V

B50

B50

BD-QT1608RL030HC

BD-QT1608RL030HC

NB_FP_EN9

EC_BL_EN23

LCD_BL_EN9

Modify Rev:C

D26 @BAS16D26 @BAS16

D18 BAS16D18 BAS16

D17 BAS16D17 BAS16

VIN

B13 @0-06B13 @0-06

B B

.1U-16-04Y-Z

.1U-16-04Y-Z

LVDSA_P19
LVDSA_N19

LVDSA_CLKP9

LVDSA_CLKN9

A A

Panel

ID

5

*

SW0 SW1

11

10

00

LCDSW0
LCDSW1

R297 @10K-04R297 @10K-04
R301 @10K-04R301 @10K-04

4

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

NB DVI-I CON

NB DVI-I CON

NB DVI-I CON

5008

5008

5008

1

of

of

of

13 33Thursday, June 26, 2008

13 33Thursday, June 26, 2008

13 33Thursday, June 26, 2008

C

C

C

5

4

3

2

1

D D

C C

B B

+3.3VA

D23

D23

A C

SCH-BAT54-PH

SCH-BAT54-PH

D22

D22

BAT_D

A C

12

SCH-BAT54-PH

SCH-BAT54-PH

R379

R379
1K-04

1K-04

SUB_BAT+

12

BT1

BT1

CON-BAT-BHKB7410AP2PT-KTS

CON-BAT-BHKB7410AP2PT-KTS

+3.3VA_RTC

+3.3VA_RTC_R

R381 0-04R381 0-04

1 2

R382 20K-1-04R382 20K-1-04

1 2

12

R383

R383

1M-04

1M-04

ACZ_BITCLK31,32

ACZ_SYNC31,32
ACZ_RST#31,32

ACZ_SDATAIN031
ACZ_SDATAIN132

ACZ_SDATAOUT31,32

SATA_LED#18,23

For Singal issue & device not found !

12

R179

R179
330K-04

330K-04

INTVRMEN

12

Disable VccSus1.05 VRM Mode

R478

R478
@0-04

@0-04

INTVRMEN R184

1 (DEFAULT)

0

+3.3VA_RTC

C567

C567
1U-10-06Y-Z

1U-10-06Y-Z

C568

C568

C566

C566

.22U-16-06X-K

.22U-16-06X-K

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C626

C626

22P-50-04N-J

22P-50-04N-J

within 500 mils

R603

STUFF NO STUFF

NO STUFF STUFF

Modify Rev:C

TP40TP40

R476

R476

1 2

33-04

33-04

R492 33-04R492 33-04

1 2

R475 33-04R475 33-04

1 2

R477 33-04R477 33-04

1 2

SATA_RXN017
SATA_RXP017
SATA_TXN017
SATA_TXP017

CLK_ICH_SATA#7
CLK_ICH_SATA7

C619

C619

15P-50-04N-J

15P-50-04N-J

Y7

32.768KHz_SMDY732.768KHz_SMD

1 4

C618

C618

15P-50-04N-J

15P-50-04N-J

Disable VccSus1.05 VRM Mode
EE_CS has internal pull-down.
EE_DOUT has internal pull-up.

ACZ_BITCLK_IN
ACZ_SYNC_IN

ACZ_RST#_IN

ACZ_SDATOUT_IN

C604 0-04C604 0-04
C602 0-04C602 0-04

Modify Rev:C

R432 24.3-1-04R432 24.3-1-04

12

R484

R484

10M-1-04

10M-1-04

RTC_X1

RTC_X2
RTC_RST#
SM_INTRUDER#

INTVRMEN

SATA_TXN0_C
SATA_TXP0_C

SATARBIASN

IDEIRQ#
IDE_IORDY

AF18

AH10
AG10

AF15
AH15
AF16
AH16
AG16
AE15

AB1
AB2

AA3

Y5
W4

W1
Y1
Y2
W3

V3
U3
U5

V4
T5

U7
V6
V7

U1
R6

R5
T2

T3
T1

T4

AF3
AE3
AG2
AH2

AF7
AE7
AG6
AH6

AF1
AE1

RTC_X1

U17A

U17A

RTCX1
RTCX2

RTCRST#
INTRUDER#

INTVRMEN
EE_CS

EE_SHCLK
EE_DOUT
EE_DIN

LAN_CLK
LAN_RSTSYNC
LAN_RXD0

LAN_RXD1
LAN_RXD2

LAN_TXD0
LAN_TXD1
LAN_TXD2

ACZ_BIT_CLK
ACZ_SYNC

ACZ_RST#
ACZ_SDIN0

ACZ_SDIN1
ACZ_SDIN2

ACZ_SDOUT
SATALED#
SATA0RXN

SATA0RXP
SATA0TXN
SATA0TXP

SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP

SATA_CLKN
SATA_CLKP

SATARBIASN
SATARBIASP

DIOR#
DIOW#
DDACK#
IDEIRQ
IORDY
DDREQ

ICH7M

ICH7M

R454 @0-04R454 @0-04

1 2

Modify Rev:C

LPCCPU

LPCCPU

RTCLAN

RTCLAN

AC-97/AZALIA

AC-97/AZALIA

SATA

SATA

IDE

IDE

LDRQ0#

LDRQ1#/GPIO23

LFRAME#
A20GATE

CPUSLP#

TP1/DPRSTP#

TP2/DPSLP#

FERR#

GPIO49/CPUPWRGD

IGNNE#

INIT3_3V#

STPCLK#

THERMTRIP#

DCS1#
DCS3#

AA6

LAD0

AB5

LAD1

AC4

LAD2

Y6

LAD3

AC3
AA5

AB3
AE22

AH28

A20M#

AG27
AF24

AH25
AG26
AG24

AG22
AG21
AF22

INIT#

AF25

INTR

AG23

RCIN#

AH24

NMI

AF23

SMI#

AH22
AF26

AB15

DD0

AE14

DD1

AG13

DD2

AF13

DD3

AD14

DD4

AC13

DD5

AD12

DD6

AC12

DD7

AE12

DD8

AF12

DD9

AB13

DD10

AC14

DD11

AF14

DD12

AH13

DD13

AH14

DD14

AC15

DD15

AH17

DA0

AE17

DA1

AF17

DA2

AE16
AD16

COYOTE_CLK_IN 30

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

H_A20GATE

R92 @0-04R92 @0-04

Z1401

1 2

H_FERR#

RC_IN = KBC RESET OK

H_THERMTRIP_R

R323 24.9-1-04R323 24.9-1-04

1 2

LPC_AD[3:0] 19,23,30

LDRQ1# 19
LPC_FRAME# 19,23,30
H_A20GATE 23

H_A20M# 5
H_CPUSLP# 5,8
H_DPRSTP# 5,26

H_DPSLP# 5
H_FERR# 5
H_PWRGD 5

H_IGNNE# 5
H_INIT# 5

H_INTR 5
H_RCIN# 23
H_NMI 5

H_SMI# 5
H_STPCLK# 5

Close to SB in 2".

R311 56-04R311 56-04

H_FERR#
H_DPRSTP#
H_DPSLP#

H_A20GATE
H_RCIN#
IDEIRQ#
IDE_IORDY

+1.05V

12

R318

R318
56-04

56-04

PM_THRMTRIP# 5

H_THERMTRIP_R

PM_THRMTRIP# space 2:1

C515

C515
@.1U-16-04Y-Z

@.1U-16-04Y-Z

1 2

R331 @56-04R331 @56-04

1 2

R332 @56-04R332 @56-04

1 2

R339 8.2K-04R339 8.2K-04

1 2

R340 10K-04R340 10K-04

1 2

R405 10K-04R405 10K-04

1 2

R398 4.7K-04R398 4.7K-04

1 2

+1.05V

+3.3V

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

5008

5008

5008

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

ICH9M RTC/SATA/HDA/LPC 1/3

ICH9M RTC/SATA/HDA/LPC 1/3

ICH9M RTC/SATA/HDA/LPC 1/3

1

of

of

of

14 33Thursday, June 26, 2008

14 33Thursday, June 26, 2008

14 33Thursday, June 26, 2008

C

C

C

5

4

3

2

1

SBSPI_EN# ,SB_GPIO48 , defaul
internal PU ,SBSPI_EN# is the MSB

MSB1LSB

TP21TP21

R166

R166

1 2

@0-04

@0-04
R165

R165

1 2

@0-04

@0-04

PCI_RST# 19

PLT_RST# 9,19,20,23,30
CLK_SB_PCI 7

Internal AND with PWROK.

MCH_SYNC# 9

Modify Rev:C
fine tune sequence

DELAY_VR_PWRGOOD9,26

VCORE_CLK_EN SB_VRMPWGD

PM_STPPCI#7

PM_STPCPU#7

Bios C/S

1

LPC

10

SPI

SB_SPI_EN# 23

With Coyote Add R
W/o Coyote Remove the R

LAN IDSEL=AD24 Device=8,
1394 IDSEL=AD20 Device=5

R324

R324

0-04

0-04

1 2

0-04

0-04

R333

R333

1 2

ACZ_SPKR31

PM_BM_BUSY#9

R376 @0-04R376 @0-04

1 2

R352 @0-04R352 @0-04

1 2

Modify Rev:C

PCIE_WAKE#19,20

INT_SERIRQ19,23,30

PM_THROTTING#23

EC_EXTSMI#23

close SB

C525

C525
.1U-16-04Y-Z

.1U-16-04Y-Z

TP19TP19

ICH_SMBCLK
ICH_SMBDATA
LINK_ALERT#
SMLINK0
SMLINK1

PM_RI#

ACZ_SPKR

PM_SUS_STAT#
PM_SYS_RST#

PM_BM_BUSY#

SMB_ALERT#
PM_STPPCI_ICH#

PM_STPCPU_ICH#

BIOS_REC

PM_CLKRUN#

PCIE_WAKE#
INT_SERIRQ
PM_THROTTING#

SB_VRMPWGD

3

1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2

1
3

1 2
1 2
1 2
1 2

1 2
1 2
1 2
1 2

1 2
1 2
1 2
1 2
1 2
1 2

1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2

1 2
1 2

DGS

DGS

8
6

5724

+3.3V

5

8.2K-8P4R-04

8.2K-8P4R-04

12

R408

R408
@100K-04

@100K-04

G

12

R224

R224

4.7K-04

4.7K-04

Z1501

Q30

Q30
FET-2N7002

FET-2N7002

Q3
FET-2N7002Q3FET-2N7002

Z1502

+3.3V

+3.3VS

Modify Rev:C

+3.3V

fine tune sequence

12

R354

R354
@10K-04

@10K-04

VCORE_CLK_EN

DS

Q44

Q44

@FET-2N7002

@FET-2N7002

12

R17

R17

4.7K-04

4.7K-04

+3.3V

+3.3V

PCI_FRAME#

R396 8.2K-04R396 8.2K-04
R435 8.2K-04R435 8.2K-04

PCI_IRDY#
PCI_TRDY#

R412 8.2K-04R412 8.2K-04
R395 8.2K-04R395 8.2K-04

PCI_STOP#
PCI_SERR#

PCI_DEVSEL#

PCI_PERR#
PCI_LOCK#
PCI_REQ#4
PCI_REQ#5

PCI_RST#
PM_CLKRUN#
INT_SERIRQ

INT_PIRQH#

INT_PIRQF#

INT_PIRQE#

INT_PIRQG#

PCI_REQ#2
PCI_REQ#3
INT_PIRQD#
PCI_REQ#1

INT_PIRQB#
PCI_REQ#0
INT_PIRQA#
INT_PIRQC#

BIOS_REC

PM_THROTTING#

ACZ_SPKR
MCH_SYNC#
PM_DPRSLPVR
PM_BM_BUSY#

PM_RI#
SMB_ALERT#
PM_SYS_RST#
SMLINK0
SMLINK1
PCIE_WAKE#
EC_EXTSMI#
ICH_SMBCLK
ICH_SMBDATA
LINK_ALERT#
PM_BATLOW#
SUS_CLK
PLT_RST#
ICH_SLP_S3#
ICH_SLP_S4#

PM_RSMRST#
PWROK

VCORE_CLK_EN#26

R426 8.2K-04R426 8.2K-04
R413 8.2K-04R413 8.2K-04
R427 8.2K-04R427 8.2K-04
R420 8.2K-04R420 8.2K-04
R404 8.2K-04R404 8.2K-04
R431 8.2K-04R431 8.2K-04
R372 @8.2K-04R372 @8.2K-04
R389 8.2K-04R389 8.2K-04
R351 8.2K-04R351 8.2K-04

RN1

RN1

R386 8.2K-04R386 8.2K-04
R403 8.2K-04R403 8.2K-04
R448 8.2K-04R448 8.2K-04
R387 8.2K-04R387 8.2K-04

R453 8.2K-04R453 8.2K-04
R439 8.2K-04R439 8.2K-04
R457 8.2K-04R457 8.2K-04
R442 8.2K-04R442 8.2K-04

R348 10K-04R348 10K-04
R359 8.2K-04R359 8.2K-04
R356 @4.7K-04R356 @4.7K-04
R375 @10K-04R375 @10K-04
R361 100K-04R361 100K-04
R397 @10K-04R397 @10K-04

R309 10K-04R309 10K-04
R335 10K-04R335 10K-04
R336 10K-04R336 10K-04
R315 10K-04R315 10K-04
R316 10K-04R316 10K-04
R355 10K-04R355 10K-04
R390 10K-04R390 10K-04
R221 2.2K-04R221 2.2K-04
R222 2.2K-04R222 2.2K-04
R310 10K-04R310 10K-04
R349 8.2K-04R349 8.2K-04
R371 @10K-04R371 @10K-04
R109 @8.2K-04R109 @8.2K-04
R319 4.7K-04R319 4.7K-04
R326 4.7K-04R326 4.7K-04

R493 10K-04R493 10K-04
R480 10K-04R480 10K-04

ICH_SMBCLK

ICH_SMBDATA

D D

C C

B B

A A

INT_PIRQA#
INT_PIRQB#
INT_PIRQC#
INT_PIRQD#

12

12

R220

R220
10K-04

10K-04

12

R16

R16
10K-04

10K-04

R334

R334
@100K-04

@100K-04

U17B

U17B

E18
C18
A16

F18
E16
A18
E17
A17
A15
C14
E14
D14
B12
C13
G15
G13
E12
C11
D11
A11
A10

F11

F10

E9

D9

B9

A8

A6

C7

B6

E6

D6

A3

B4

C5

AE5
AD5
AG4
AH4
AD9

ICH7M

ICH7M

SB_SMB_CLK 12

SB_SMB_DATA 12

AD0

REQ0#

PCI

PCI

AD1
AD2

REQ1#
AD3
AD4

REQ2#
AD5
AD6

REQ3#
AD7
AD8

REQ4#/GPIO22

AD9

GNT4#/GPIO48

AD10

REQ5#/GPIO1

AD11

GNT5#/GPIO17
AD12
AD13

C/BE0#

AD14

C/BE1#

AD15

C/BE2#

AD16

C/BE3#
AD17
AD18
AD19
AD20

PCIRST#

AD21

DEVSEL#

AD22

PERR#
AD23

PLOCK#

AD24

SERR#
AD25

STOP#
AD26
AD27

FRAME#
AD28
AD29

PLTRST#
AD30

PCICLK

AD31

Interrupt I/F

Interrupt I/F

PIRQA#

GPIO2/PIRQE#

PIRQB#

GPIO3/PIRQF#

PIRQC#

GPIO4/PIRQG#

PIRQD#B5GPIO5/PIRQH#

MISC

MISC

RSVD[1]

RSVD[6]

RSVD[2]

RSVD[7]

RSVD[3]

RSVD[8]
RSVD[4]
RSVD[5]

MCH_SYNC#

PCI_REQ#0

D7
E7

GNT0#

PCI_REQ#1

C16
D16

GNT1#

PCI_REQ#2

C17
D17

GNT2#

PCI_REQ#3

E13
F13

GNT3#

PCI_REQ#4

A13

SB_GPIO48

A14

PCI_REQ#5

C8

SBSPI_EN#

D8
B15

C12
D12
C15

PCI_IRDY#

A7

IRDY#

E10

PAR

B18

PCI_DEVSEL#

A12

PCI_PERR#

C9

PCI_LOCK#

E11

PCI_SERR#

B10

PCI_STOP#

F15

PCI_TRDY#

F14

TRDY#

PCI_FRAME#

F16

PLT_RST#

C26
A9
B19

PME#

INT_PIRQE#

G8

INT_PIRQF#

F7

INT_PIRQG#

F8

INT_PIRQH#

G7

AE9
AG8
AH8
F21

TP3

AH20

VCORE_CLK_EN7

Modify Rev:B

4

PCIE_AC couping cap within 250miles

SB_SPI_CLK30

SB_CS0_N130

SB_SPI_DO30
SB_SPI_DI30

+3.3VS

U17C

U17C

SMBCLK
SMBDATA
LINKALERT#
SMLINK0
SMLINK1

RI#
SPKR

SUS_STAT#
SYS_RST#

GPIO0/BM_BUSY#
GPIO11/SMBALERT#
GPIO18/STPPCI#

GPIO20/STPCPU#
GPIO26
GPIO27

GPIO28
GPIO32/CLKRUN#
GPIO33/AZ_DOCK_EN#

U2

GPIO34/AZ_DOCK_RST#
WAKE#

SERIRQ
THRM#

VRMPWRGD
GPIO6

GPIO7
GPIO8

ICH7M

ICH7M

C495 .1U-10V-04R-KC495 .1U-10V-04R-K

C499 .1U-10V-04R-KC499 .1U-10V-04R-K

C490 .1U-10V-04R-KC490 .1U-10V-04R-K

C493 .1U-10V-04R-KC493 .1U-10V-04R-K

PCIE_TXN120
PCIE_TXP120

PCIE_TXN219
PCIE_TXP219

C22
B22
A26
B25
A25

A28
A19

A27
A22

AB18

B23

AC20
AF21

A21
B21

E23
AG18
AC19

F20
AH21
AF20

AD22
AC21

AC18

E21

R469 10K-04R469 10K-04
R456 10K-04R456 10K-04
R447 10K-04R447 10K-04
R468 10K-04R468 10K-04
R452 10K-04R452 10K-04
R462 10K-04R462 10K-04
R465 10K-04R465 10K-04
R461 10K-04R461 10K-04

CLOSE TO ICH9M

SATA

SATA

SMB

SMB

SYS

GPIO

SYS

GPIO

Power MGT

Power MGT

GPIO

GPIO

PCIE_RXN120
PCIE_RXP120

PCIE_RXN219
PCIE_RXP219

R491 15-04R491 15-04

1 2

R474 15-04R474 15-04

1 2

R490 15-04R490 15-04

1 2

R473 15-04R473 15-04

1 2

1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2

GPIO21/SATA0GP
GPIO19/SATA1GP
GPIO36/SATA2GP
GPIO37/SATA3GP

GPIO

GPIO

CLK14
CLK48

SUSCLK

Clocks

Clocks

SLP_S3#
SLP_S4#
SLP_S5#

PWROK

GPIO16/DPRSLPVR

TP0/BATLOW#

PWRBTN#

LAN_RST#

RSMRST#

GPIO9
GPIO10
GPIO12
GPIO13
GPIO14
GPIO15
GPIO24
GPIO25
GPIO35
GPIO38
GPIO39

U17D

U17D

F26

PERn1

F25

PCIE_TXN1_IN
PCIE_TXP1_IN

PCIE_TXN2_IN
PCIE_TXP2_IN

HDCP_SPI_CLK
Coyote_SPI_CS0#

HDCP_SPI_SI
HDCP_SPI

AF19
AH18
AH19
AE19

AC1
B2

C20
B24

D23
F22

AA4
AC22
C21
C23

C19
Y4
E20

A20
F19
E19
R4
E22
R3
D20
AD21
AD20
AE20

PERp1

E28

PETn1

E27

PETp1

H26

PERn2

H25

PERp2

G28

PETn2

G27

PETp2

K26

PERn3

K25

PERp3

J28

PETn3

J27

PETp3

M26

PERn4

M25

PERp4

L28

PETn4

L27

PETp4

P26

PERn5

P25

PERp5

N28

PETn5

N27

PETp5

T25

PERn6

T24

PERp6

R28

PETn6

R27

PETp6

R2

SPI_CLK

P6

SPI_CS#

P1

SPI_ARB

P5

SPI_MOSI

P2

SPI_MISO

USB_OC#0

D3

OC0#

USB_OC#1

C4

OC1#

USB_OC#2

D5

OC2#

USB_OC#3

D4

OC3#

USB_OC#4

E5

OC4#

USB_OC#5

C3

OC5#/GPIO29

USB_OC#6 USBRBIAS#

A2

OC6#/GPIO30

USB_OC#7

B3

OC7#/GPIO31

ICH7M

ICH7M

SATA0GP
SATA1GP
SATA2GP
SATA3GP

SUS_CLK

R320 100-1-04R320 100-1-04

ICH_SLP_S3#

1 2

ICH_SLP_S4#

R327 100-1-04R327 100-1-04

1 2

ICH_SLP_S5#
PWROK
ICH_DPRSLPVR PM_DPRSLPVR

R360 499-04R360 499-04

PM_BATLOW#

PLT_RST#

1 2

R479 100-1-04R479 100-1-04

2

PCI-Express

PCI-Express

Direct Media Interface

Direct Media Interface

SPI

SPI

USB

USB

CLK_ICH14 7
CLK_USB48 7

TP20TP20

PWROK 23

1 2

PWRBTN# 23

PM_RSMRST#RSMRST#_ICH

DMI0RXN
DMI0RXP
DMI0TXN
DMI0TXP

DMI1RXN
DMI1RXP
DMI1TXN
DMI1TXP

DMI2RXN
DMI2RXP
DMI2TXN
DMI2TXP

DMI3RXN
DMI3RXP
DMI3TXN
DMI3TXP

DMI_CLKN
DMI_CLKP

DMI_ZCOMP
DMI_IRCOMP

USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P

USBRBIAS#

USBRBIAS

SATA3GP
SATA1GP
SATA2GP
SATA0GP

PM_SLP_S3#
PM_SLP_S4#

RN9 10K-8P4R-04RN9 10K-8P4R-04

V26
V25
U28
U27

Y26
Y25
W28
W27

AB26
AB25
AA28
AA27

AD25
AD24
AC28
AC27

AE28
AE27

C25
D25

F1
F2
G4
G3
H1
H2
J4
J3
K1
K2
L4
L5
M1
M2
N4
N3

D2
D1

DMI_TXN0 9
DMI_TXP0 9
DMI_RXN0 9
DMI_RXP0 9

DMI_TXN1 9
DMI_TXP1 9
DMI_RXN1 9
DMI_RXP1 9

VCCA3GP

12

R108

CLK_DMI_ICH# 7
CLK_DMI_ICH 7

DMI_ZCOMP

USB_PN0 18
USB_PP0 18
USB_PN1 17
USB_PP1 17
USB_PN2 21
USB_PP2 21
USB_PN3 17
USB_PP3 17
USB_PN4 17
USB_PP4 17
USB_PN5 18
USB_PP5 18
USB_PN6 18
USB_PP6 18
USB_PN7 17
USB_PP7 17

R471 22.6-1-04R471 22.6-1-04

+3.3V

1

8

3

6
5724

PM_SLP_S3# 20,23,30
PM_SLP_S4# 23

PM_DPRSLPVR 9,26

PM_RSMRST# 23

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

5008

5008

5008

Date: Sheet

Date: Sheet

Date: Sheet

R108

24.9-1-04

24.9-1-04

12

G10ILX

G10ILX

G10ILX

ICH7M SYS/GPIO/PCIE/USB

ICH7M SYS/GPIO/PCIE/USB

ICH7M SYS/GPIO/PCIE/USB

15 33Thursday, June 26, 2008

15 33Thursday, June 26, 2008

15 33Thursday, June 26, 2008

1

of

of

of

C

C

C

5

+5VREF

+3.3V

AC

12

D24

D24

R162

R162
10-04

10-04

SCH-BAT54-PH

+1.5V

C270

C270
.1U-16-04Y-Z

.1U-16-04Y-Z

12

R136

R136

0-08

0-08

C204

C204

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C510

C510

4.7U-10-08Y-Z

4.7U-10-08Y-Z

SB_DMIPLL

C498

C498

.1U-16-04Y-Z

.1U-16-04Y-Z

SCH-BAT54-PH

C224

C224
.1U-16-04Y-Z

.1U-16-04Y-Z

770mA

VCCA3GP

C203

C203

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C202

C202

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C184

C184

.1U-16-04Y-Z

.1U-16-04Y-Z

C188

C188

.1U-16-04Y-Z

.1U-16-04Y-Z

C497

C497

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

+5VS +3.3VS

AC

12

R175

R175
10-04

10-04

PCI-E

C192

C192

C187

C187

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C180

C180

C190

C190

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

Vcc1_5_A=1.01A

+1.5V

C589

C589

1U-6.3V-06R-K

1U-6.3V-06R-K

+1.5V

C302

C302

.1U-16-04Y-Z

.1U-16-04Y-Z

C611

C611

1U-6.3V-06R-K

1U-6.3V-06R-K

D D

C C

+1.5V

B41

B41

BD-QT1005RL030

BD-QT1005RL030

B B

+1.5V

R466

R466

0-04

0-04

SB_SATAPLL VCCSUS_1_05

C609

C609
.1U-16-04Y-Z

.1U-16-04Y-Z

D25

D25

SCH-BAT54-PH

SCH-BAT54-PH

C297

C297
.1U-16-04Y-Z

.1U-16-04Y-Z

C178

C178

.1U-16-04Y-Z

.1U-16-04Y-Z

C189

C189

.1U-16-04Y-Z

.1U-16-04Y-Z

C586

C586

.1U-16-04Y-Z

.1U-16-04Y-Z

C296

C296

.1U-16-04Y-Z

.1U-16-04Y-Z

10mA

+1.5V

C191

C191

.1U-16-04Y-Z

.1U-16-04Y-Z

C193

C193

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

C179

C179

.1U-16-04Y-Z

.1U-16-04Y-Z

C275

C275

.1U-16-04Y-Z

.1U-16-04Y-Z

C597

C597

C596

C596

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3VS

R463 0-04R463 0-04

4

U17F

VCC5REF

V5REF_SUS

C194

C194

.1U-16-04Y-Z

.1U-16-04Y-Z

C631

C631

.1U-16-04Y-Z

.1U-16-04Y-Z

SB_DMIPLL

C598

C598

C587

C587

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

SB_SATAPLL

C588

C588

.1U-16-04Y-Z

.1U-16-04Y-Z

C216

C216
.1U-16-04Y-Z

.1U-16-04Y-Z

Vcc_USBPLL

C613

C613
1U-6.3V-06R-K

1U-6.3V-06R-K

U17F

G10

V5REF[1]

AD17

V5REF[2]

F6

V5REF_Sus

AA22

Vcc1_5_B[1]

AA23

Vcc1_5_B[2]

AB22

Vcc1_5_B[3]

AB23

Vcc1_5_B[4]

AC23

Vcc1_5_B[5]

AC24

Vcc1_5_B[6]

AC25

Vcc1_5_B[7]

AC26

Vcc1_5_B[8]

AD26

Vcc1_5_B[9]

AD27

Vcc1_5_B[10]

AD28

Vcc1_5_B[11]

D26

Vcc1_5_B[12]

D27

Vcc1_5_B[13]

D28

Vcc1_5_B[14]

E24

Vcc1_5_B[15]

E25

Vcc1_5_B[16]

E26

Vcc1_5_B[17]

F23

Vcc1_5_B[18]

F24

Vcc1_5_B[19]

G22

Vcc1_5_B[20]

G23

Vcc1_5_B[21]

H22

Vcc1_5_B[22]

H23

Vcc1_5_B[23]

J22

Vcc1_5_B[24]

J23

Vcc1_5_B[25]

K22

Vcc1_5_B[26]

K23

Vcc1_5_B[27]

L22

Vcc1_5_B[28]

L23

Vcc1_5_B[29]

M22

Vcc1_5_B[30]

M23

Vcc1_5_B[31]

N22

Vcc1_5_B[32]

N23

Vcc1_5_B[33]

P22

Vcc1_5_B[34]

P23

Vcc1_5_B[35]

R22

Vcc1_5_B[36]

R23

Vcc1_5_B[37]

R24

Vcc1_5_B[38]

R25

Vcc1_5_B[39]

R26

Vcc1_5_B[40]

T22

Vcc1_5_B[41]

T23

Vcc1_5_B[42]

T26

Vcc1_5_B[43]

T27

Vcc1_5_B[44]

T28

Vcc1_5_B[45]

U22

Vcc1_5_B[46]

U23

Vcc1_5_B[47]

V22

Vcc1_5_B[48]

V23

Vcc1_5_B[49]

W22

Vcc1_5_B[50]

W23

Vcc1_5_B[51]

Y22

Vcc1_5_B[52]

Y23

Vcc1_5_B[53]

B27

Vcc3_3[1]

AG28

VccDMIPLL

AB7

Vcc1_5_A[1]

AC6

Vcc1_5_A[2]

AC7

Vcc1_5_A[3]

AD6

Vcc1_5_A[4]

AE6

Vcc1_5_A[5]

AF5

Vcc1_5_A[6]

AF6

Vcc1_5_A[7]

AG5

Vcc1_5_A[8]

AH5

Vcc1_5_A[9]

AD2

VccSATAPLL

AH11

Vcc3_3[2]

AB10

Vcc1_5_A[10]

AB9

Vcc1_5_A[11]

AC10

Vcc1_5_A[12]

AD10

Vcc1_5_A[13]

AE10

Vcc1_5_A[14]

AF10

Vcc1_5_A[15]

AF9

Vcc1_5_A[16]

AG9

Vcc1_5_A[17]

AH9

Vcc1_5_A[18]

E3

VccSus3_3[19]

C1

VccUSBPLL

AA2

VccSus1_05/VccLAN1_05[1]

Y7

VccSus1_05/VccLAN1_05[2]

ICH7M

ICH7M

Vcc1_05[1]
Vcc1_05[2]
Vcc1_05[3]
Vcc1_05[4]
Vcc1_05[5]
Vcc1_05[6]
Vcc1_05[7]
Vcc1_05[8]
Vcc1_05[9]

CORE

CORE

Vcc1_05[10]
Vcc1_05[11]
Vcc1_05[12]
Vcc1_05[13]
Vcc1_05[14]
Vcc1_05[15]
Vcc1_05[16]
Vcc1_05[17]
Vcc1_05[18]
Vcc1_05[19]
Vcc1_05[20]

VCC PAUX

VCC PAUX

VccSus3_3/VccLAN3_3[1]
VccSus3_3/VccLAN3_3[2]
VccSus3_3/VccLAN3_3[3]
VccSus3_3/VccLAN3_3[4]

Vcc3_3/VccHDA

VccSus3_3/VccSusHDA

V_CPU_IO[1]
V_CPU_IO[2]

VCCA3GP

VCCA3GP

V_CPU_IO[3]

Vcc3_3[3]
Vcc3_3[4]
Vcc3_3[5]
Vcc3_3[6]
Vcc3_3[7]
Vcc3_3[8]

IDE

IDE

Vcc3_3[9]
Vcc3_3[10]
Vcc3_3[11]

Vcc3_3[12]
Vcc3_3[13]
Vcc3_3[14]
Vcc3_3[15]
Vcc3_3[16]
Vcc3_3[17]

PCI

PCI

Vcc3_3[18]
Vcc3_3[19]
Vcc3_3[20]
Vcc3_3[21]

VccRTC
VccSus3_3[1]
VccSus3_3[2]

VccSus3_3[3]
VccSus3_3[4]
VccSus3_3[5]
VccSus3_3[6]

VccSus3_3[7]
VccSus3_3[8]
VccSus3_3[9]

VccSus3_3[10]
VccSus3_3[11]
VccSus3_3[12]
VccSus3_3[13]

USB

USB

VccSus3_3[14]
VccSus3_3[15]
VccSus3_3[16]
VccSus3_3[17]
VccSus3_3[18]

Vcc1_5_A[19]
Vcc1_5_A[20]

Vcc1_5_A[21]

ATXARX

ATXARX

Vcc1_5_A[22]
Vcc1_5_A[23]

Vcc1_5_A[24]

Vcc1_5_A[25]
VccSus1_05[1]
VccSus1_05[2]

VccSus1_05[3]

Vcc1_5_A[26]

Vcc1_5_A[27]

Vcc1_5_A[28]

Vcc1_5_A[29]

Vcc1_5_A[30]

USB CORE

USB CORE

3

ICH Core Power

Z1602

L11
L12

C258

C258

C220

C220

C266

L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18

V5
V1
W2
W7

U6
R7
AE23

AE26
AH26

AA7
AB12
AB20
AC16
AD13
AD18
AG12
AG15
AG19

A5
B13
B16
B7
C10
D15
F9
G11
G12
G16

W5
P7
A24

C24
D19
D22
G19

K3
K4
K5
K6
L1
L2
L3
L6
L7
M6
M7
N7

AB17
AC17

T7
F17
G17

AB8
AC8

K7
C28

G20
A1

H6
H7
J6
J7

C266

.1U-10V-04R-K

.1U-10V-04R-K

.1U-10V-04R-K

.1U-10V-04R-K

.1U-10V-04R-K

.1U-10V-04R-K

Z1601

C627

C627
.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

C237

C237

.1U-16-04Y-Z

.1U-16-04Y-Z

C213

C213

C268

C268

C225

C225

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C292

C292

C563

C563

C271

C271

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C288

C288

C195

C195

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C289

C289

C324

C324

C287

C287

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

VCC1_5A

C283

C283

C232

C232

C277

C277

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

+1.5V

C318

C318

C612

C612

.1U-16-04Y-Z

.1U-16-04Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

940mA

C265

C265

C201

C201

C222

C222

C221

C221

.1U-10V-04R-K

.1U-10V-04R-K

.1U-10V-04R-K

.1U-10V-04R-K

C620

C620
.1U-16-04Y-Z

.1U-16-04Y-Z

14mA

+1.05V

+3.3VS

C285

C285

.1U-16-04Y-Z

.1U-16-04Y-Z

C209

C209

.1U-16-04Y-Z

.1U-16-04Y-Z

C245

C245

C231

C231

1U-10-04R

1U-10-04R

.1U-16-04Y-Z

.1U-16-04Y-Z

C293

C293

C279

C279

.1U-16-04Y-Z

.1U-16-04Y-Z

1U-10-04R

1U-10-04R

C284

C284

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3VS

C286

C286

C315

C315

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

R163 0-04R163 0-04

C291

C291

.1U-16-04Y-Z

.1U-16-04Y-Z

C199

C199

.1U-16-04Y-Z

.1U-16-04Y-Z

C276

C276

.1U-16-04Y-Z

.1U-16-04Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

B46

B46

BD-QT1005RL030

BD-QT1005RL030

C210

C210

1U-10-04R

1U-10-04R

C261

C261

1U-10-04R

1U-10-04R

C236

C236

1U-10-04R

1U-10-04R

C312

C312

.1U-16-04Y-Z

.1U-16-04Y-Z

R101 @0-04R101 @0-04
C172

C172

.1U-16-04Y-Z

.1U-16-04Y-Z

2.2U-10-06Y-Z

2.2U-10-06Y-Z

C577

C577
@4.7U-10-08Y-Z

@4.7U-10-08Y-Z

+1.5V

C267

C267

2.2U-6.3-06R-K

2.2U-6.3-06R-K

330mA

+3.3V

+3.3VA_RTC

C308

C308

.1U-16-04Y-Z

.1U-16-04Y-Z

C628

C628

40mA

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

+1.05VS

2

R119

R119

1 2

C630

C630

C629

C629

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V

0_06

0_06

U17E

U17E

A4

VSS[1]

VSS[98]

A23

VSS[2]

VSS[99]

B1

VSS[3]

VSS[100]

B8

VSS[4]

VSS[101]

B11

VSS[5]

VSS[102]

B14

VSS[6]

VSS[103]

B17

VSS[7]

VSS[104]

B20

VSS[8]

VSS[105]

B26

VSS[9]

VSS[106]

B28

VSS[10]

VSS[107]

C2

VSS[11]

VSS[108]

C6

VSS[12]

VSS[109]

C27

VSS[13]

VSS[110]

D10

VSS[14]

VSS[111]

D13

VSS[15]

VSS[112]

D18

VSS[16]

VSS[113]

D21

VSS[17]

VSS[114]

D24

VSS[18]

VSS[115]

E1

VSS[19]

VSS[116]

E2

VSS[20]

VSS[117]

E4

VSS[21]

VSS[118]

E8

VSS[22]

VSS[119]

E15

VSS[23]

VSS[120]

F3

VSS[24]

VSS[121]

F4

VSS[25]

VSS[122]

F5

VSS[26]

VSS[123]

F12

VSS[27]

VSS[124]

F27

VSS[28]

VSS[125]

F28

VSS[29]

VSS[126]

G1

VSS[30]

VSS[127]

G2

VSS[31]

VSS[128]

G5

VSS[32]

VSS[129]

G6

VSS[33]

VSS[130]

G9

VSS[34]

VSS[131]

G14

VSS[35]

VSS[132]

G18

VSS[36]

VSS[133]

G21

VSS[37]

VSS[134]

G24

VSS[38]

VSS[135]

G25

VSS[39]

VSS[136]

G26

VSS[40]

VSS[137]

H3

VSS[41]

VSS[138]

H4

VSS[42]

VSS[139]

H5

VSS[43]

VSS[140]

H24

VSS[44]

VSS[141]

H27

VSS[45]

VSS[142]

H28

VSS[46]

VSS[143]

J1

VSS[47]

VSS[144]

J2

VSS[48]

VSS[145]

J5

VSS[49]

VSS[146]

J24

VSS[50]

VSS[147]

J25

VSS[51]

VSS[148]

J26

VSS[52]

VSS[149]

K24

VSS[53]

VSS[150]

K27

VSS[54]

VSS[151]

K28

VSS[55]

VSS[152]

L13

VSS[56]

VSS[153]

L15

VSS[57]

VSS[154]

L24

VSS[58]

VSS[155]

L25

VSS[59]

VSS[156]

L26

VSS[60]

VSS[157]

M3

VSS[61]

VSS[158]

M4

VSS[62]

VSS[159]

M5

VSS[63]

VSS[160]

M12

VSS[64]

VSS[161]

M13

VSS[65]

VSS[162]

M14

VSS[66]

VSS[163]

M15

VSS[67]

VSS[164]

M16

VSS[68]

VSS[165]

M17

VSS[69]

VSS[166]

M24

VSS[70]

VSS[167]

M27

VSS[71]

VSS[168]

M28

VSS[72]

VSS[169]

N1

VSS[73]

VSS[170]

N2

VSS[74]

VSS[171]

N5

VSS[75]

VSS[172]

N6

VSS[76]

VSS[173]

N11

VSS[77]

VSS[174]

N12

VSS[78]

VSS[175]

N13

VSS[79]

VSS[176]

N14

VSS[80]

VSS[177]

N15

VSS[81]

VSS[178]

N16

VSS[82]

VSS[179]

N17

VSS[83]

VSS[180]

N18

VSS[84]

VSS[181]

N24

VSS[85]

VSS[182]

N25

VSS[86]

VSS[183]

N26

VSS[87]

VSS[184]

P3

VSS[88]

VSS[185]

P4

VSS[89]

VSS[186]

P12

VSS[90]

VSS[187]

P13

VSS[91]

VSS[188]

P14

VSS[92]

VSS[189]

P15

VSS[93]

VSS[190]

P16

VSS[94]

VSS[191]

P17

VSS[95]

VSS[192]

P24

VSS[96]

VSS[193]

P27

VSS[97]

VSS[194]

ICH7M

ICH7M

1

P28
R1
R11
R12
R13
R14
R15
R16
R17
R18
T6
T12
T13
T14
T15
T16
T17
U4
U12
U13
U14
U15
U16
U17
U24
U25
U26
V2
V13
V15
V24
V27
V28
W6
W24
W25
W26
Y3
Y24
Y27
Y28
AA1
AA24
AA25
AA26
AB4
AB6
AB11
AB14
AB16
AB19
AB21
AB24
AB27
AB28
AC2
AC5
AC9
AC11
AD1
AD3
AD4
AD7
AD8
AD11
AD15
AD19
AD23
AE2
AE4
AE8
AE11
AE13
AE18
AE21
AE24
AE25
AF2
AF4
AF8
AF11
AF27
AF28
AG1
AG3
AG7
AG11
AG14
AG17
AG20
AG25
AH1
AH3
AH7
AH12
AH23
AH27

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

ICH7M Power

ICH7M Power

ICH7M Power

5008

5008

5008

1

of

of

of

16 33Thursday, June 26, 2008

16 33Thursday, June 26, 2008

16 33Thursday, June 26, 2008

C

C

C

5

WEBCAM CON

D D

USB_PN115
USB_PP115

C C

+5VS

USB_PP315
USB_PN315

3A

Modify Rev:B

R100

R100

Z1701WEBCAM_ON

1 2

@47K-1-04

@47K-1-04

R267 0-04R267 0-04

1 2

R266 0-04R266 0-04

1 2

Modify Rev:C

PS1

PS1

POLYSW-12

POLYSW-12

CK-2012F2SF-900T04

CK-2012F2SF-900T04

Q17

Q17

@TR-2N3904

@TR-2N3904

BD-QT1608RL030HC

BD-QT1608RL030HC

L10

L10

4

R2I1R2O

WEBCAM_ON#

R307

R307

B

@100K-04

@100K-04

1 2

E C

B40 0-06B40 0-06

+5V

WEBCAM_ON23

WEBCAM_ON
1

B47

B47

Modify R:B

USB3+

R1O3R1I

USB3-

2

G

Q36

Q36

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C229

C229
22U-10-08Y-Z

22U-10-08Y-Z

200mA

@FET-SI2301BDS

@FET-SI2301BDS

DS

C440

C440

ON
OFF0

WEBCAM_PWR

C147

C147
10U-10-08Y-Z

10U-10-08Y-Z

4

C421

C421
.1U-16-04Y-Z

.1U-16-04Y-Z

12

R66

R66
100K-04

100K-04

C151

C151
@1U-10-04Y-Z

@1U-10-04Y-Z

LED option

LED123

CCD_USB1­CCD_USB1+

LED223

CON-WTB-3801-F06N-01R

CON-WTB-3801-F06N-01R

C127

C127
.1U-16-04Y-Z

.1U-16-04Y-Z

USB1_5V

1

USB3-

2

USB3+

3
4

CN7

CN7

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

GND1GND2

CN8

CN8

CON-USB-1775527-TYC

CON-USB-1775527-TYC

3

B49

USB_PP415
USB_PN415

B49

BD-QT1608RL030HC

BD-QT1608RL030HC

3A

PS2

PS2

+5VS

POLYSW-12

GND1

GND1

GND2

GND2

POLYSW-12

C228

C228
22U-10-08Y-Z

22U-10-08Y-Z

L3

L3

4

R1O3R1I

R2I1R2O

CK-2012F2SF-900T04

CK-2012F2SF-900T04

2

Modify R:B

C146

C146
22U-10-08Y-Z

22U-10-08Y-Z

USB40+ USB40­USB40-

2

Modify R:C

C166

C166

@1U-10-04Y-Z

@1U-10-04Y-Z

1

C137

C137

GND1GND2

CN10

CN10

USB3_5V

1

USB40+

2
3
4

CON-USB-1775527-TYC

CON-USB-1775527-TYC

@1U-10-04Y-Z

@1U-10-04Y-Z

SATA_CONN.

Modify R:C

B B

USB_PP715
USB_PN715

3A

+5VS

PS3

PS3

L11

L11

4

R1O3R1I

R2I1R2O

CK-2012F2SF-900T04

CK-2012F2SF-900T04

POLYSW-12

POLYSW-12

2

Modify R:B
Modify R:C

C183

C695

C695
47U/6.3V_POSCAP

47U/6.3V_POSCAP

C183

10U-10-08Y-Z

10U-10-08Y-Z

USB2_5V
USB7­USB7+

GND1GND2

CN13

CN13

1
2
3
4

CON-USB-1775527-TYC

CON-USB-1775527-TYC

+

+

USB7+
USB7-

SATA_TXP014
SATA_TXN014

SATA_RXN014
SATA_RXP014

C401 .01U-16-04X-KC401 .01U-16-04X-K

C442 .01U-16-04X-KC442 .01U-16-04X-K
C394 .01U-16-04X-KC394 .01U-16-04X-K
C393 .01U-16-04X-KC393 .01U-16-04X-K

+5V

SATA_TXP_CON
SATA_TXN_CON

SATA_RXN0_C
SATA_RXP0_C

CN5

CN5

P1
P2
P3
P4
P5
P6
P7
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15

GND1
GND2

CON-1775609-1-TYC

CON-1775609-1-TYC

+5V

Modify R:B

C711

C711
10U-10-08Y-Z

10U-10-08Y-Z

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

USB/WEBCAM/SATA

USB/WEBCAM/SATA

USB/WEBCAM/SATA

1

of

of

of

17 33Thursday, June 26, 2008

17 33Thursday, June 26, 2008

17 33Thursday, June 26, 2008

C

C

C

5

LED

+3.3V

LED2 LED-L-C190GKTLED2 LED-L-C190GKT

Z1801

R195 220-04R195 220-04

D D

R201 220-04R201 220-04

Modify Rev:B

LED3 LED-L-C190GKTLED3 LED-L-C190GKT

Z1802

LED4

LED4

AC

LED-L-C190GKT

LED-L-C190GKT

A C

A C

R202 220-04R202 220-04

+3.3V

R200

R200
10K-04

10K-04

C347

C347
.1U-16-04Y-Z

.1U-16-04Y-Z

C348

C348
.1U-16-04Y-Z

.1U-16-04Y-Z

C349

C349
.1U-16-04Y-Z

.1U-16-04Y-Z

PWR_LED

4

SATA_LED# 14,23

RF_LED_ON# 23

PWR_LED 23

+3.3VA

Modify Rev:B

LED1

LED1

3 4

1 2

LED-L-C195G

LED-L-C195G

3

CHGB_LED#

CHGR_LED#

C344

C344
.1U-16-04Y-Z

.1U-16-04Y-Z

R198 220-04R198 220-04

R197 220-04R197 220-04

C343

C343
.1U-16-04Y-Z

.1U-16-04Y-Z

CHG_B_LED# 23

CHG_R_LED# 23

2

3G Module Conn.

100K-04

100K-04

3G_ON_HV

FET-2N7002

FET-2N7002

1

VIN

R392

R392

D

Q43

Q43

G

S

3G_ON# 23

SATA_LED#

RF_LED_ON#

TP_CLK 23
TP_DATA 23

LED6

LED6

@LED-L-C195G

@LED-L-C195G

Modify Rev:B

+3.3VA

AC2

AC1

C350

C350
@.1U-16-04Y-Z

@.1U-16-04Y-Z

USB_PN615
USB_PP615

EDGE Module 2A(5V)
HSPA Module 3A(3.3V)

BluetoohSSD

BT_ON#23

USB_PP515
USB_PN515

2

Modify Rev:C

4

CK-2012F2SF-900T04

CK-2012F2SF-900T04

+3.3V

+5V

Modify Rev:B

CK-2012F2SF-900T04

CK-2012F2SF-900T04

4

R1O3R1I

R2I1R2O

L13

L13

R2I1R2O

L14

L14

R1O3R1I

1 2

R524 0_06R524 0_06

1 2

R525 0_06R525 0_06

C543

C543

B/T_ON#

2

2

4.7U-10-08R-K

4.7U-10-08R-K

4.7P-50-04N-C

4.7P-50-04N-C

3G_ON_HV

C702

C702

Z1809
Z1810

C703

C703

C701

C701

C700

C700

10P-25-04N

10P-25-04N

10P-25-04N

10P-25-04N

150P-25-04N

150P-25-04N

USB_BT+
USB_BT-

+3.3V

C643

C643

C645

C645

.1U-16-04Y-Z

.1U-16-04Y-Z

C644

C644
.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:C

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

5008

5008

5008

Date: Sheet

Date: Sheet

Date: Sheet

C557

C557

150P-25-04N

150P-25-04N

4.7U-10-08R-K

4.7U-10-08R-K

+3.3V

R347

R347

47K-04

47K-04

Modify R:B

G10ILX

G10ILX

G10ILX

LED / TP CON

LED / TP CON

LED / TP CON

1

Modify Rev:B

3G_CON

3G_CON

12
11
10
9
8
7
6
5
4
3
2
1

CN21

CN21

CN22

CN22

8
7
6
5
4
3
2
1

BlueTooth_CON

BlueTooth_CON

C534

C534
.1U-16-04Y-Z

.1U-16-04Y-Z

9

10

of

of

of

18 33Thursday, June 26, 2008

18 33Thursday, June 26, 2008

18 33Thursday, June 26, 2008

For 2'nd ID

USB_SSD­USB_SSD+

C175

C175

4.7U-10-08R-K

4.7U-10-08R-K

LED

CN26

CN26

GND1

@CON-6701-F12N-00R

@CON-6701-F12N-00R

Modify Rev:B

CN14

CN14

318
5 6
7 4
9 2

SSD_CON

SSD_CON

+3.3VA

PWR_LED

CHGB_LED#
CHGR_LED#

4

SATA_LED# 14,23
RF_LED_ON# 23

21GND2
3
4
5
6

10

Power Button

C C

Modify Rev:B

CN1

CN1

@CON-6701-F12N-00R

@CON-6701-F12N-00R

+3.3VA

21GND2
3
4
5

GND1

6

MMB_SMB_CLK 23
MMB_SMB_DAT 23

MMB_INT# 23
PWRON# 22

C370

C370

100P-50-04N-J

100P-50-04N-J

Modify Rev:C

B B

Modify Rev:C

L12

USB_PN015
USB_PP015

A A

L12

R2I1R2O

4

R1O3R1I

CK-2012F2SF-900T04

CK-2012F2SF-900T04

5

+5V

2

LED5

LED5

Z1806

@LED-L-C190GKT

@LED-L-C190GKT

+3.3V

R203 @220-04R203 @220-04

R196 @220-04R196 @220-04

R199 @220-04R199 @220-04

Z1807

Z1808

1 2

Touch Pad Button

14

14

SW1

SW1

TP_L_BTN

1 2
3 4
5 6

L_BTN

L_BTN

.1U-16-04Y-Z

.1U-16-04Y-Z

+5V

C593

C593

LED8

LED8

1 2

LED7

LED7

1 2

CN23

CN23

CON-6701-F12N-00R

CON-6701-F12N-00R

11109128765432

C339

C339

.1U-16-04Y-Z

.1U-16-04Y-Z

PWR_LED

C345

C345
@.1U-16-04Y-Z

@.1U-16-04Y-Z

@LED-L-C190GKT

@LED-L-C190GKT

@LED-L-C190GKT

@LED-L-C190GKT

13

1

13

TP_CLK
TP_DATA

TP_R_BTN

C340

C340
.1U-16-04Y-Z

.1U-16-04Y-Z

3

CHGB_LED#

CHGR_LED#

C342

C342
@.1U-16-04Y-Z

@.1U-16-04Y-Z

SW2

SW2

R_BTN

R_BTN

1 2
3 4
5 6

C

C

C

5

4

3

2

1

D D

CLK_DEBUG BD7,30

C C

MINI CARD CON

Modify Rev:C

JP11

JP11

OPEN

OPEN

C316

C316

Modify Rev:B

@.1U-16-04Y-Z

@.1U-16-04Y-Z

PCIE_WAKE#15,20

CLK_PCIE_NEW_CARD#7
CLK_PCIE_NEW_CARD7

LPC_AD014,23,30
LPC_AD114,23,30

PCIE_RXN215 +3.3VS
PCIE_RXP215

PCIE_TXN215
PCIE_TXP215

LPC_AD214,23,30
LPC_AD314,23,30

12

LPC_FRAME#14,23,30

C322

C322

.1U-16-04Y-Z

.1U-16-04Y-Z

R132 0-04R132 0-04

1 2

+3.3VS
+3.3VS

MC_WAKE1

MINI_CLKREQ1#

1

WAKE#

3

BT_DATA

5

BT_CLK

7

CLKREQ#

9

GND

11

REFCLK-

13

REFCLK+

15

GND

17

Reserved/UIM_C8

19

Reserved/UIM_C4

21

GND

23

PERn0

25

PERp0

27

GND

29

GND

31

PETn0

33

PETp0

35

GND

37

Reserved

39

Reserved

41

Reserved

43

Reserved

45

Reserved

47

Reserved

49

Reserved

51

Reserved

CON-PCI-1775838-1-TYC

CON-PCI-1775838-1-TYC

UIM_RESET

W_DISABLE#

LED_WWAN#

LED_WLAN#
LED_WPAN#

CN17

CN17

UIM_PWR
UIM_DATA

UIM_CLK
UIM_VPP

PERST#

+3.3VAUX

SMB_CLK

SMB_DATA

USB_D­USB_D+

+3.3VS

C309

C309

4.7U-6.3-06R

4.7U-6.3-06R

C625

C625
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.5V

C241

C241
.1U-16-04Y-Z

.1U-16-04Y-Z

2
4
6
8
10
12

Z1901

14
16
18
20
22
24
26
28

Z1902

30

Z1903

32
34
36
38
40
42
44
46
48
50
52

+3.3VS

+1.5V

R150 @0-04R150 @0-04

12

WLAN_DISABLE1#

+1.5V

TP18TP18
TP17TP17

+1.5V
+3.3VS

R173 0-04R173 0-04

1 2

+3.3VS

R130

R130

10K-04

10K-04

1 2

MINI_CLKREQ1#

C227

C227
@.1U-16-04Y-Z

@.1U-16-04Y-Z

3.3V
GND

1.5V

GND

GND

+1.5V

GND

GND

+1.5V

GND

+3.3V

LDRQ1# 14
INT_SERIRQ 15,23,30
PCI_RST# 15

+3.3V

12

R168

R168
@100K-04

@100K-04

WIRELAN_ON 23
PLT_RST# 9,15,20,23,30

C338

C338
@4.7U-6.3-06R

@4.7U-6.3-06R

C624

C624
.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:B Modify Rev:C

C341

C341

4.7U-6.3-06R

4.7U-6.3-06R

C334

C334
.1U-16-04Y-Z

.1U-16-04Y-Z

C235

C235
.1U-16-04Y-Z

.1U-16-04Y-Z

C303

C303

4.7U-6.3-06R

4.7U-6.3-06R

Modify Rev:C

Intel PRO/Wireless 2100 LAN

PIN11

PIN12 Slow Blinking

PIN13

B B

Hi(3.3V) Solid ON

LED_WLAN_LINK

Low(0V)
Hi(3.3V)

LED_WLAN_ACT Beacon traffic to Ap

Low(0V)
Hi(3.3V)

HW_RadioXMIT_OFF#

Low(0V)

1 flash/3 sec
LED OFF
Rapid Blinking

LED OFF
Enable

Disable

Associated AP
Not Associated with an AP
Power OFF or RF_Kill active
Passing data traffic to AP

Power OFF or not activity or RF_Kill active
Radio transmitter is ON

Radio transmitter turn off

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

Mini Card

Mini Card

Mini Card

5008

5008

5008

19 33Thursday, June 26, 2008

19 33Thursday, June 26, 2008

19 33Thursday, June 26, 2008

of

of

1

of

C

C

C

5

R159

R159

EVDD12

1 2

0-06

0-06

C2692.2U-10-06R-K C2692.2U-10-06R-K

+3.3VS

D D

+3.3VS_LAN +3.3VS_LAN

C538

C538

C234

C234

.1U-16-04Y-Z

.1U-16-04Y-Z

C574

C574

.1U-16-04Y-Z

.1U-16-04Y-Z

VCTRLD_1.2V_OUT

C572

C572

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

R127 0-04R127 0-04

Modify Rev:C

12

R126

R126

DVDD1.2V

C C

DVDD1.2V
+3.3VS_LAN

B B

R460 0-04R460 0-04

PLT_RST#9,15,19,23,30

+3.3VS_LAN_A
LAN_MDI0+
LAN_MDI0-

LAN_MDI1+
LAN_MDI1-

PCIE_WAKE#15,19

1 2

C590 @.01U-16-04X-KC590 @.01U-16-04X-K

Close to IC

2.49K-1-04

2.49K-1-04

U18

U18

1

VCTRL12A

2

AVDD33

3

MDIP0

4

MDIN0

5

NC

6

MDIP1

7

MDIN1

8

NC

9

NC

10

NC

11

NC

12

NC

13

NC

14

NC

15

DVDD12

16

VDD33

GLAN_RST#

PCIE_TXP115

PCIE_TXN115
CLK_PCIE_GLAN7
CLK_PCIE_GLAN#7

+3.3VS_LAN

VCTRLD_1.2V_OUT

RSET_LAN

LAN_XO

58

65

63

60

64

62

59

NC

NC

GND

LED057LED156LED255LED3

RSET

CKTAL261CKTAL1

DVDD12

VCTRL12D

RTL8102E

RTL8102E

MAPIN118LANWAKEB19PERSTB20DVDD1221NC22HSIP23HSIN24EGND25REFCLK_P26REFCLK_M27EVDD1228HSOP29HSON30EGND31NC

MAPIN0

17

DVDD1.2V LAN_XI

53

54

VDD33

EVDD12

1 2

DVDD1.2V

51

52

NC

GPO

50

GPI

DVDD12

ISOLATEB

CLKREQB

49

DVDD12

EESK

EEDI

VDD33

EEDO
EECS

TEST5
TEST4
TEST3
TEST2

VDD33
TEST1

TEST0

32

LAN_TX­LAN_TX+

48
47
46
45
44
43
42
41
40
39
38

NC

37
36
35
34
33

4

R142 0-04R142 0-04

C264

C264

0.1U-10-06Y-Z

0.1U-10-06Y-Z

Modify Rev:B

+3.3VS

R406

R406

3.6K-04

3.6K-04

1 2

ISOLATE#

Z2001

R423 0-04R423 0-04

C592 .1U-10V-04R-KC592 .1U-10V-04R-K

C591 .1U-10V-04R-KC591 .1U-10V-04R-K

1 2

C528

C528

0.1U-10-06Y-Z

0.1U-10-06Y-Z

+3.3VS_LAN

DVDD1.2V

+3.3VS_LAN

1 2

CLOSE TO PIN2

C259

C259

C570

C570

0.1U-10-06Y-Z

0.1U-10-06Y-Z

0.1U-10-06Y-Z

0.1U-10-06Y-Z

R419 1K-04R419 1K-04
R411 @1K-04R411 @1K-04
R424 15K-1-04R424 15K-1-04

C233

C233
.1U-16-04Y-Z

.1U-16-04Y-Z

1 2
1 2
1 2

DVDD1.2V

+3.3VS_LAN_A

DVDD1.2V

PCIE_RXN1 15
PCIE_RXP1 15

PM_SLP_S3# 15,23

+3.3V

LAN_MDI1+
LAN_MDI1-

LAN_MDI0+
LAN_MDI0-

3

T1

16

1

RX+

RD+

15

2

RX-

RD-

TCD

TCD

C226

C226

C217

C217

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

14

3

CT0

CT0

13

4

NC

NC

12

5

NC

NC

11

6

CT1

CT1

10

7

TX+

TD+

9

8

TX-

TD-

NS68168T1NS68168

150P-3K-18N-J

150P-3K-18N-J

2

L1

TRX+
TRX-

CT0

CT1

TTX+
TTX-

R12475-1-04 R12475-1-04

R13575-1-04 R13575-1-04

1 2

1 2

Z2002

Z2003

C196

C196

C200

C200
150P-3K-18N-J

150P-3K-18N-J

L1

5

L1O

6

L2O

7

R1O

8

R2O

CK-223LC0801T2.2

CK-223LC0801T2.2

Modify Rev:B

4

L1I

3

L2I

2

R1I

1

R2I

1

TRL0+
TRL0­TRL1+

TRL1-

CN4

CN4

1

TD+/TRL0+

2

TD-/TRL0-

3

RO+/TRL1+

4

NC/TRL2+

5

NC/TRL2-

6

RO-/TRL1-

7

GND

NC/TRL3+

8

GND

NC/TRL3-

CON-RJ45-C100E5-10804-L-ALL

CON-RJ45-C100E5-10804-L-ALL

GND1
GND2

PJP3

LAN_XI
LAN_XO

Y2

25M-6-30-KT-DY225M-6-30-KT-D

C530

C530

C531

A A

C531
22P-50-04N-J

22P-50-04N-J

22P-50-04N-J

22P-50-04N-J

+/- 30 PPM

5

4

PJP3

1 2

CLOSE

CLOSE

Power Consumption Chart

+3.3VS_LAN

DVDD1.2V

EVDD12

RTL8102E

3.3V

1.2V

1.2V

3

TBD

TBD

TBD

2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

G10ILX

G10ILX

G10ILX

LAN RTL8102E

LAN RTL8102E

5008

5008

5008

LAN RTL8102E

1

20 33Thursday, June 26, 2008

20 33Thursday, June 26, 2008

20 33Thursday, June 26, 2008

of

of

of

C

C

C

5

D D

4

3

2

1

CLK_CARD487

Y1

@12MHz_49_SMTY1@12MHz_49_SMT

R308

R308

@10M-1-04

@10M-1-04

C506

C506

@20P-50-04N-J

@20P-50-04N-J

R123

R123

VREG RTS5158_AVPLL

0-04

C682

C682

2.2U-10-06Y-Z

2.2U-10-06Y-Z

Modify R:C

0-04

C197

C197

C207

C207

1U-10-04Y-Z

1U-10-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

RTS5158_RREF

Modify R:B

C251

C251
@.1U-16-04Y-Z

@.1U-16-04Y-Z

1
2
3
4
5
6
7
8
9

VREG

10
11
12

R114 6.2K-04R114 6.2K-04

USB_PN215
USB_PP215

CARD_3V3

C508

C508

+3.3V

C243

C243

100P-50-04N-J

100P-50-04N-J

.1U-16-04Y-Z

.1U-16-04Y-Z

C C

For RTS5158E Rev:E

+3.3V

76mA

Modify R:B

B B

Modify R:B

+3.3V

Z2101

Z2102

U6

U6

AV_PLL
RREF
AV33
DM
DP
AG33
A3V3_OUT
5V_IN
CARD_3V3
VREG
D3V3_OUT
DGND

C507

C507
@20P-50-04N-J

@20P-50-04N-J

R133

R133

1 2

0-04

0-04

Z2105

12

R304

R304

R325 close to Y4

0-04

0-04

Z2104

47

48

45

46

XTLI

XTLO

AG_PLL

MODE_SEL

RTS5158E

RTS5158E

CF_CD#13GPIO014CF_D1015CF_D916CF_D217CF_D8/SM_CD#18CF_D1/XD_CD#19CF_D0/SM_WPM#/SD_WP20CF_A0/SD_CD#21CF_DMACK#22CF_A1/XD_D423CF_DMARQ

R125

R125
10K-04

10K-04

44

43

42

RST#

XD_CLE/CF_D3

Modify R:B

C208

C208
47P-16-04Y-Z

47P-16-04Y-Z

5158_RST#

SD_DAT2

SD_DAT3

41

39

40

XD_ALE/CF_D4

XD_CE#/CF_D11

SD_DAT3/XD_WE#/CF_D5

SD_DAT2/XD_RE#/CF_D12

SD_CLK/XD_D1/MS_CLK/CF_D7

SD_DAT6/XD_D7/MS_D3/CF_D15

SD_DAT7/XD_D2/MS_D2/CF_IOWR#

SD_DAT0/XD_D6/MS_D0/CF_RST#

SD_DAT1/XD_D3/MS_D1/CF_IORDY

SD_WP

SD_CD#

38

37

XD_RDY/CF_D13

SD_DAT4/XD_WP#/CF_D6

SD_DAT5/XD_D0/CF_D14

MS_INS#/CF_IORD#

XD_D5/MS_BS/CF_A2

24

R505

R505

@0-04

@0-04

Modify R:B

SD_CMD

DGND

CF_CS0#

+3.3V

D3V3

SD_DAT1/MS_D1

R134

R134
100K-04

100K-04

C215

C215

1U-10-04Y-Z

1U-10-04Y-Z

36
35
34
33
32
31
30
29
28
27
26
25

SD_CMD

SD_CLK/MS_CLK

MS_D3

MS_INS#
MS_D2
SD_DAT0/MS_D0

R506 0-04R506 0-04

MS_BS

Modify R:B

SD_DAT1/MS_D1

Modify R:B

+3.3V

C509

C509
.1U-16-04Y-Z

.1U-16-04Y-Z

SD_CD#
SD_DAT2
SD_DAT3
SD_CMD

CARD_3V3
SD_CLK/MS_CLK

SD_DAT0/MS_D0
SD_DAT1/MS_D1
SD_WP

CARD_3V3
SD_CLK/MS_CLK
MS_D3
MS_INS#
MS_D2
SD_DAT0/MS_D0
SD_DAT1/MS_D1
MS_BS

C278

C278
.1U-16-04Y-Z

.1U-16-04Y-Z

solve the SD not detect issue !

B20

B20
FCM1608C-121T03

FCM1608C-121T03

B25

B25
FCM1608C-121T03

FCM1608C-121T03

C246

C246
.1U-16-04Y-Z

.1U-16-04Y-Z

Modify R:C

CN24

CN24

1

SD_CD

2

SD_DAT2

3

SD_DAT3/CD

4

SD_CMD

5

SD_VSS

6

SD_VDD

7

SD_CLK

8

SD_VSS

9

SD_DAT0

10

SD_DAT1

11

SD_WP

12

MS_VSS

13

MS_VCC

14

MS_SCLK

15

MS_DATA3

16

MS_INS

17

MS_DATA2

18

MD_DATA0/SDIO

19

MS_DATA1

20

MS_BS

21

MS_VSS

22

GND

23

GND

CON-C-R-MDR019-C0-1042-PRO

CON-C-R-MDR019-C0-1042-PRO

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

Card reader (RTS5158E)

Card reader (RTS5158E)

Card reader (RTS5158E)

5008

5008

5008

G10ILX

G10ILX

G10ILX

1

of

of

of

21 33Thursday, June 26, 2008

21 33Thursday, June 26, 2008

21 33Thursday, June 26, 2008

C

C

C

5

Q25

Q25
TR-2SA1797Q-MPT3

TR-2SA1797Q-MPT3

+5V

D D

E C

12

R446

R446

B

1K-1-04

1K-1-04

Z2201

12

C594

C594

R441

R441

1K-1-04

1K-1-04

Z2202

1

C582

C582
.1U-16-04Y-Z

.1U-16-04Y-Z

R429

R429

Z2203

1 2

100K-1-04

100K-1-04

Z2205

B14 0-06B14 0-06

+5V

12

R436

R436

5.11K-1-04

5.11K-1-04

U19A

U19A

84

LM358

LM358

Z2204

3

12

.1U-16-04Y-Z

.1U-16-04Y-Z

2

R440

R440
10K-1-04

10K-1-04

0~3.3V

FAN_CTRL0

12

R428

R428
100K-1-04

100K-1-04

FAN_CTRL0 23

C160

C160

4.7U-10-08Y-Z

4.7U-10-08Y-Z

0~5V

4

Z2206
Z2207

C161

C161
@220P-50-04N-J

@220P-50-04N-J

5
6

CPU FAN CONTROL

CN11

CN11

3
2
1

CON-WTB-3801-F03N-01R

CON-WTB-3801-F03N-01R

PIN NC1~2=GND POWER

U19B

U19B

7

LM358

LM358

3

High speed current return path Capactor

VIN +1.8VS

C653

C653

C654

C654

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

+5V

+1.8VS

+3.3V

C667

C667

C666

C666

100P-50-04N-J

100P-50-04N-J

0.1U-10-04X-K

0.1U-10-04X-K

+3.3VS

+1.8VSVIN

+1.05V

+1.5V

C657

C657

C656

C656

C655

C655

0.1U-10-04X-K

0.1U-10-04X-K

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

100P-50-04N-J

+1.05V

+1.5V +3.3V

C670

C670

C669

C669

C668

C668

0.1U-10-04X-K

0.1U-10-04X-K

100P-50-04N-J

100P-50-04N-J

0.1U-10-04X-K

0.1U-10-04X-K

C662

C662

C659

C659

C661

C661

100P-50-04N-J

100P-50-04N-J

0.1U-10-04X-K

0.1U-10-04X-K

+3.3VS +5VS

C672

C672

C671

C671

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

0.1U-10-04X-K

2

+3.3V

C664

C664

C665

C665

100P-50-04N-J

100P-50-04N-J

0.1U-10-04X-K

0.1U-10-04X-K

+5VS

C673

C673

0.1U-10-04X-K

0.1U-10-04X-K

+5V+5VS

+5V_CODECVDD

0.1U-10-04X-K

0.1U-10-04X-K

+5V_AMP

C674

C674

0.1U-10-04X-K

0.1U-10-04X-K

C677

C677

0.1U-10-04X-K

0.1U-10-04X-K

CODEC_GND

Modify Rev:B

C675

C675

0.1U-10-04X-K

0.1U-10-04X-K

+5V_AMP

C678

C678

0.1U-10-04X-K

0.1U-10-04X-K

C676

C676

100P-50-04N-J

100P-50-04N-J

1

C600 @10P-25-04NC600 @10P-25-04N
C642 @10P-25-04NC642 @10P-25-04N

Modify Rev:C

SMBCLK_EC 5,7,23
SMBDAT_EC 5,7,23

AC-Jack

CN2

CN2
CON-DCIN-2DC-G756X200

+1.05V

R291

R291

R290

R289

R289
@4.7K-04

@4.7K-04

R290
@4.7K-04

@4.7K-04

R292

R292
@4.7K-04

@4.7K-04

@4.7K-04

@4.7K-04

R293

R293
@4.7K-04

@4.7K-04

C C

H_VID36,26
H_VID46,26
H_VID66,26
H_VID56,26
H_VID26,26
H_VID16,26
H_VID06,26

B B

R287

R287
@4.7K-04

@4.7K-04

R288

R288
@4.7K-04

@4.7K-04

CON-DCIN-2DC-G756X200

23

45

1

Modify Rev:B Modify Rev:B

C699

C83

C83

C683

C683

@22P-50-04N-J

@22P-50-04N-J

@.01U-50V-06Y-Z

@.01U-50V-06Y-Z

C699

C28

C28

22P-50-04X-K

22P-50-04X-K

1U-25-06R-K

1U-25-06R-K

ADAP IN PWR Botton

Modify Rev:B

+3.3VA

Modify Rev:B

Modify Rev:B

DC_IN_VCC

A A

R223

R223

1 2

100K-04

100K-04

5

12

R226

R226

AC_IN

0-04

0-04

Z2208

DS

Q31

Q31
FET-2N7002

Z2209

FET-2N7002

G

12

12

R225

R225

R227

R227

100K-04

100K-04

150-1-04

150-1-04

ADAP_IN 23

4

SW4

SW4

POWER_BTN

POWER_BTN

A
B
C
D

3

DC_IN+

12

R25

R25

12.1K-1-06

12.1K-1-06

SAFTY_PROTECT23

+5VA_LDO

Modify Rev:C
modify package to 0805

B2

B2

BEAD 80/5A HCB2012KF-800T50

BEAD 80/5A HCB2012KF-800T50

C57

C57

.01U-50V-06Y-Z

.01U-50V-06Y-Z

R518

R518

@10K-04

@10K-04

R483

R483
100K-04

100K-04

C524

C524
.1U-25-06X-K

.1U-25-06X-K

PWRON# 18

Modify Rev:C

D5

DC_IN_VCC

A C

DC_INDC_IN_B

JP10

R513

R513
@330K-04

@330K-04

R516

R516
@330K-04

@330K-04

JP10

OPEN_5A

OPEN_5A

U27 *SI4835BDY

U27 *SI4835BDY

1
2
3

S

S

G

G

G

PWRSW 23

4

DS

12

D

D

R515

R515
@150K-04

@150K-04

Q56

Q56

@2N7002

@2N7002

8
7
6
5

RCH1

RCH1

1 2

.025-1-25-2

.025-1-25-2

C21

C21
220P-50V-06N-J

220P-50V-06N-J

R514

R514
@330K-04

@330K-04

DS

Q55

Q55

G

@2N7002

C690

C690

@0.1U-10-04X-K

@0.1U-10-04X-K

@2N7002

R517

R517

@10K

@10K

+3.3VA

R482

R482
47K-04

47K-04

DS

Q41

Q41

G

FET-2N7002K

FET-2N7002K

SK34AD5SK34A

D6

A C

SK34AD6SK34A

CHG_VCC

VIN

VbVIN

R503

R503
100K-04

100K-04

DS

Q52

Q52
2N7002K

2N7002K

G

2

DS

G

R504

R504
100K-04

100K-04

Modify Rev:B

Q53

Q53
2N7002

2N7002

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

5008

5008

5008

Date: Sheet

Date: Sheet

Date: Sheet

G10ILX

G10ILX

G10ILX

PWR SW/FAN/HSCRP CAP/DC IN

PWR SW/FAN/HSCRP CAP/DC IN

PWR SW/FAN/HSCRP CAP/DC IN

22 33Thursday, June 26, 2008

22 33Thursday, June 26, 2008

22 33Thursday, June 26, 2008

1

of

of

of

C

C

C

5

D D

LRST1#

R450 100K-04R450 100K-04

1 2

C601

C601
.1U-16-04Y-Z

.1U-16-04Y-Z

LPC:4Eh-4Fh

RC_IN = KBC RESET

SATA_LED#14,18

C C

R472

R472

@20M-04

@20M-04

Y4

14

32.768KHz_SMDY432.768KHz_SMD

C617

C617
10P-25-04N

10P-25-04N

B B

C622

C622

C605

C605

.1U-16-04Y-Z

.1U-16-04Y-Z

4.7U-10-08R-K

4.7U-10-08R-K

+3.3VA

LPC_AD014,19,30
LPC_AD114,19,30
LPC_AD214,19,30
LPC_AD314,19,30

INT_SERIRQ15,19,30
LPC_FRAME#14,19
CLK_EC_LPC7

H_RCIN#14

H_A20GATE14 CHG_I 29

1 2

EC_EXTSMI#15

Modify Rev:C

R470

R470
0-04

0-04

Z2301

C610

C610
10P-25-04N

10P-25-04N

R485

R485

100K-04

100K-04

COYOTE_RDY30
SB_SPI_EN#15
+5V_ON#24

CHG_ON#29

TP_CLK18

TP_DATA18

BAT_SMBCLK29
BAT_SMBDAT29

MMB_SMB_CLK18
MMB_SMB_DAT18

EC_+3.3VA

C581

C581

C556

C556

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

C606

C606

.1U-16-04Y-Z

.1U-16-04Y-Z

U21

U21

LPC_AD0

10

LPC_AD1
LPC_AD2
LPC_AD3

INT_SERIRQ
LPC_FRAME#

Modify Rev:B

LAD0

9

LAD1

8

LAD2

7

LAD3

5

SERIRQ

6

LFRAME#

13

LPCCLK

4

KBRST#/GPB6

126

GA20/GPB5

Z2304

R494

R494

15

ECSMI#/GPD4

@0-04

@0-04

23

ECSCI#GPD3

LRST1#

14

WRST#

EC_XI

128

CLK32K

EC_XO

2

CK32KE

KEYIN7

65

KSI7

KEYIN6

64

KSI6

KEYIN5

63

KSI5

KEYIN4

62

KSI4

KEYIN3

61

KSI3/SLIN#

KEYIN2

60

KSI2/INIT#

KEYIN1

59

KSI1/AFD#

KEYIN0

58

KSI0/STB#

57

KSO17/GPC5

56

KSO16/GPC3

KEY_OUT15

55

KSO15

KEY_OUT14

54

KSO14

KEY_OUT13

53

KSO13

KEY_OUT12

52

KSO12/SLCT

KEY_OUT11

51

KSO11/ERR#

KEY_OUT10

46

KSO10/PE

KEY_OUT9

45

KSO9/BUSY

KEY_OUT8

44

KSO8/ACK#

KEY_OUT7

43

KSO7/PD7

KEY_OUT6

42

KSO6/PD6

KEY_OUT5

41

KSO5/PD5

KEY_OUT4

40

KSO4/PD4

KEY_OUT3

39

KSO3/PD3

KEY_OUT2

38

KSO2/PD2

KEY_OUT1

37

KSO1/PD1

KEY_OUT0

36

KSO0/PD0

SPI_CLK

105

FLCLK/SCK

SPI_CE#

101

FLAD0/SCE#

SPI_SI

102

FLAD1/SI

SPI_SO

103

FLAD2/SO

FLFRAME#

100

FLFRAME#/GPG2/LF

COYOTE_RDY

85

PS2CLK0/GPF0

86

PS2DAT0/GPF1

87

PS2CLK1/GPF2

88

PS2DAT1/GPF3

TP_CLK

89

PS2CLK2/GPF4

TP_DATA

90

PS2DAT2/GPF5

BAT_SMBCLK

110

SMCLK0/GPB3

BAT_SMBDAT

111

SMDAT0/GPB4

SMBCLK_EC

115

SMCLK1/GPC1

SMBDAT_EC

116

SMDAT1/GPC2

MMB_SMB_CLK

117

SMCLK2/GPF6

MMB_SMB_DAT

118

SMDAT2/GPF7

IT8512E-CX QFPS128-04M-60

IT8512E-CX QFPS128-04M-60

8512E-CX version -> C338 SMT 0 Ohm
8512E-JX version -> C338 SMT 0.1uF

.1U-16-04Y-Z

.1U-16-04Y-Z

11

INT-H

INT-H

INT-H

INT-H

INT-L

INT-L

INT-H

INT-H

Z2302

C603

C603

VCC

VSS12VSS27VSS49AVSS75VSS91VSS

B45

B45

BD-QT1608RL060

BD-QT1608RL060

C621

C621

.1U-16-04Y-Z

.1U-16-04Y-Z

114

121

VSTBY26VSTBY50VSTBY92VSTBY

VSTBY

System BUS

System BUS

KB Matrix Interface

KB Matrix Interface

IT8512E

IT8512E

Embedded

Embedded
Controller

Controller

SPI Flash

SPI Flash

INT-H

INT-H

PS/2

PS/2

SM BUS

SM BUS

VSS

1

C585

C585
.1U-16-04Y-Z

.1U-16-04Y-Z

3

74

127

VBAT

AVCC

VSTBY

DAC

DAC

INT-H

INT-H

INT-H

INT-H

INT-L

INT-L

RING#/PWRFAIL#/LPCRST#/GPB7

TMRI0/WUI2/GPC4

INT-L

INT-L

TMRI1/WUI3/GPC6

PWUREQ#/GPC7

RI1#/WUI0/GPD0

INT-H

INT-H

RI2#/WUI1/GPD1

LPCRST#/WUI4/GPD2

INT-L

INT-L

INT-L

INT-L

INT-H

INT-H

INT-L

INT-L

LPCPD#/WUI6/GPE6

INT-H

INT-H

FLRST#/WUI7/GPG0/TM

INT-L

INT-L

GPH0/ID0/SHBM

INT-L

INT-L

INT-L

INT-L

VSS

113

122

4

+3.3VA

ADC0/GPI0
ADC1/GPI1
ADC2/GPI2
ADC3.GPI3
ADC4/GPI4
ADC5/GPI5
ADC6/GPI6

ADC/GPI

ADC/GPI

ADC7/GPI7

DAC0/GPJ0
DAC1/GPJ1
DAC2/GPJ2
DAC3/GPJ3
DAC4/GPJ4
DAC5/GPJ5

PWM0/GPA0
PWM1/GPA1
PWM2/GPA2
PWM3/GPA3
PWM4/GPA4
PWM5/GPA5
PWM6/GPA6
PWM7/GPA7

RXD/GPB0
TXD/GPB1

GINT/GPD5
TACH0/GPD6
TACH1/GPD7

L80HLAT/GPE0

EGAD/GPE1
EGCS#/GPE2
EGCLK/GPE3

PWRSW/GPE4

WUI5/GPE5

L80LLAT/GPE7

GPG1/ID7

FLAD3/GPG6

GPH1/ID1
GPH2/ID2
GPH3/ID3
GPH4/ID4
GPH5/ID5
GPH6/ID6

CTX/GPB2
CRX/GPC0

3

KEYBOARD CON

CON-FPC-6901-F24N-00R

CON-FPC-6901-F24N-00R

KEYIN7

24

24

KEYIN6

23

NC1

23

NC1

KEYIN5

22

22

KEYIN4

21

NC2

21

NC2

KEYIN3

20

20

KEYIN2

19

19

KEYIN1

18

18

KEYIN0

17

17

KEY_OUT15

16

16

KEY_OUT14

15

15

KEY_OUT13

14

14

KEY_OUT12

13

13

KEY_OUT11

12

12

KEY_OUT10

11

11

KEY_OUT9

10

10

KEY_OUT8

9

9

KEY_OUT7

8

8

KEY_OUT6

7

7

KEY_OUT5

6

6

KEY_OUT4

5

5

KEY_OUT3

4

+3.3VA

C608

C608
.1U-16-04Y-Z

.1U-16-04Y-Z

66
67
68
69
70
71
72
73

76
77
78
79
80
81

24
25
28
29
30
31
32
34

108
109
112

120
124
16

18
21
22
33
47
48

LID#

19
82
83
84
125

P_ID0

35

P_ID1

17
20

106
107
104

93
94
95
96
97
98
99

123
119

EC_BSEL0

Modify Rev:B

Modify Rev:B

BATT_TEMP 29
ADAPTOR_I 29
BAT_V 29
DDR2_TEMP 28
BAT_I 29
SLP_S3_COY 30

SYS_TEMP 12

LED1 17
FAN_CTRL0 22

CHG_REF 29
PWR_LED 18
PM_THROTTING# 15

CHG_B_LED# 18
CHG_R_LED# 18
LED2 17
WIRELAN_ON 19
BTL_BEEP 31
BT_ON# 18
PM_RSMRST# 15
EC_BL_PWM 13

PM_SLP_S4# 15,30
PM_SLP_S3# 15,20,30

MMB_INT# 18

LCDSW0 13
LCDSW1 13

ADAP_IN 22
PWRBTN# 15
PLT_RST# 9,15,19,20,30
EC_PROCHOT# 5

EC_BL_EN 13

SET_V 29
PWROK 15
VCORE_ON 26
PWRSW 22

MUTE 31

SLP_S4_COY 30
+3.3VS_ON 24,28
WEBCAM_ON 17

SAFTY_PROTECT 22

+1.8VS_ON 27
SENBAT_V 29
3G_ON# 18

BATTOFF 28

RF_LED_ON# 18
+1.05VS_ON 25

+1.5V_ON 25

EC_EXTSMI#

BAT_SMBCLK
BAT_SMBDAT

SMBUS LEVEL SHIFT

C595 22P-25-04NC595 22P-25-04N
C549 22P-25-04NC549 22P-25-04N

CPU TYPE

4
3
2
1

CN3

CN3

R421 4.7K-04R421 4.7K-04

1 2

R486 4.7K-04R486 4.7K-04

1 2

R487 4.7K-04R487 4.7K-04

1 2

SMBCLK_EC
SMBDAT_EC

Modify Rev:C

CPU_BSEL05,9

KEY_OUT2

3

KEY_OUT1

2

KEY_OUT0

1

+3.3V

+3.3VA

R93

R93

1 2

100K-04

100K-04

Z2303

SMBCLK_EC

SMBDAT_EC

2

1

FLASH ROM(SPI)

+3.3VA

C576

8
7
6
5

+3.3VA

1

2

SPI_HOLD#SPI_SO
SPI_SI

Modify Rev:B

1 2

R496 47K-04R496 47K-04

LID#

3

SW3

SW3

MRSS22L

MRSS22L

EC_BSEL0

0
1

C576

1U-10-06Y-Z

1U-10-06Y-Z
C599

C599

4.7U-10-08R-K

4.7U-10-08R-K
R437

R437

1 2

10K-04

10K-04

+3.3VA

MHZ

133

+3.3VA

R443

R443

10K-04

10K-04

1 2

U20

U20

SPI_CE#

1

CS#

VCC

2

SO

HOLD#

SPI_WP# SPI_CLK

3

WP#

SCK

GND4SI

W25X80

W25X80

LID SW

C346

C346
.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

R488

R488

R489

R489

4.7K-04

4.7K-04

4.7K-04

4.7K-04

1 2

1 2

SMBCLK_EC 5,7,22

SMBDAT_EC 5,7,22

CLK GEN/THERMAL SMBUS

+3.3V

12

R99

R99
100K-04

100K-04

EC_BSEL0

Q14

Q14

B

TR-2N3904

TR-2N3904

E C

BSEL

FSB

FSB533
FSB400 100

A A

Platform ID

P_ID0
P_ID1

5

4

3

+3.3VA

12

12

R445

R445

R388

R388
@10K-04

@10K-04

@10K-04

@10K-04

MODEL

U10ILX

ID

(ID0)

(ID1)

0

0

0

1

1

0

1

1

2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

G10ILX

G10ILX

G10ILX

EC IT8512 / BIOS

EC IT8512 / BIOS

EC IT8512 / BIOS

5008

5008

5008

1

of

of

of

23 33Thursday, June 26, 2008

23 33Thursday, June 26, 2008

23 33Thursday, June 26, 2008

C

C

C

5

4

3

2

1

180 mils 180 mils

+3.3VA +3.3VS

Q21

Q21
FET-P1503BV

FET-P1503BV

1

8

2

7

3

6

S

S

D D

C C

B B

Modify Rev:C

5

180 mils 180 mils

+1.05VS +1.05V

240 mil 240 mil

+5VS +5V

Q40

Q40
FET-P1503BV

FET-P1503BV

8
7
6
5

D

D

D

D

JP2 OPENJP2 OPEN

1 2

G

G

4

G

G

4

C182

C182
.1U-25-06X-K

.1U-25-06X-K

1
2
3

S

S

Z2408

C540

C540
1U-25-06X-K

1U-25-06X-K

Z2401

C219

C219
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z
R144 47K-04R144 47K-04

C533

C533
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z

R362 20K-04R362 20K-04

Modify Rev:B

for slove leakage current

3.3VS_ON_HV

1 2

FET-2N7002

FET-2N7002

5V_ON_HV

1 2

FET-2N7002

FET-2N7002

Q23

Q23

VIN

12

12

R156

R156

R151

R151

100K-04

100K-04

100K-04

100K-04

DS

Z2402

Q24

Q24

G

Q47

Q47

B

TR-2N3904

TR-2N3904

E C

VIN

12

R385

R385
10K-04

10K-04

DS

G

Z2403

C692

C692

1 2

C691

C691

@0.1U-10-04X-K

@0.1U-10-04X-K

Modify Rev:B

+5V_ON# 23

R430

R430

100K-04

100K-04

+3.3VS_ON 23,28

180 mils 180 mils

+3.3VA

+5VS

Q39

Q39
FET-P1503BV

FET-P1503BV

8
7
6
5

D

D

R425

R425

10K-04

10K-04

FET-2N7002

FET-2N7002

Q45

Q45

G

G

4

Z2411

1
2
3

S

S

Z2404

C560

C560
1U-25-06X-K

1U-25-06X-K

Q49

Q49

G

DS

+3.3V

DS

FET-SI2301BDS

FET-SI2301BDS

G

C553

C553
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z
R399 47K-04R399 47K-04

1 2

+5VREF

R378

R378

Z2412

1 2

1K-04

1K-04

C555

C555

.1U-16-04Y-Z

.1U-16-04Y-Z

Modify Rev:C

5V_ON_HV

5V_ON_HV

@0.1U-10-04X-K

@0.1U-10-04X-K

Modify Rev:B

Modify Rev:C

holec256bs210x177d138

HOLETC236BC276D87H5HOLETC236BC276D87

PAD2

SMD180X165

SMD180X165

M18

M18
M-MARK1

M-MARK1

M7
M-MARK1M7M-MARK1

5

PAD2

SMD180X165

SMD180X165

M4
M-MARK1M4M-MARK1

M5
M-MARK1M5M-MARK1

H5

M11

M11
M-MARK1

M-MARK1

PAD1

PAD1

A A

M20

M20
M-MARK1

M-MARK1

holec256bs210x177d138

HOLETC256BC177D138

HOLETC256BC177D138

HOLETC236BC276D87H6HOLETC236BC276D87

H6

M21

M21
M-MARK1

M-MARK1

HOLETC370BO646X370D118H8HOLETC370BO646X370D118

H11

H11

H12

H12

M2

M15

M15

M-MARK1M2M-MARK1

M-MARK1

M-MARK1

HOLETC236BC276D87H9HOLETC236BC276D87

HOLETC236BC276D87

HOLETC236BC276D87

H8

H13

H13

M10

M10
M-MARK1

M-MARK1

HOLETC217BC118D59

HOLETC217BC118D59

H9

M1
M-MARK1M1M-MARK1

4

H10

H10

M14

M14
M-MARK1

M-MARK1

HOLETSH339X315BC315D102

HOLETSH339X315BC315D102

H15

H15

M16

M16
M-MARK1

M-MARK1

HOLETSH339X315BC315D102

HOLETSH339X315BC315D102

M13

M13
M-MARK1

M-MARK1

HOLETC118BC276D118

HOLETC118BC276D118

HOLETC221BC276D59H7HOLETC221BC276D59

H16

H16

M6
M-MARK1M6M-MARK1

H7

M3
M-MARK1M3M-MARK1

HOLETSH339X312BC315D102H4HOLETSH339X312BC315D102

M19

M19
M-MARK1

M-MARK1

H14

H14

HOLEC276D103H1HOLEC276D103

HOLEC236D110H3HOLEC236D110

H4

M23

M23
M-MARK1

M-MARK1

3

HOLEC276D103H2HOLEC276D103

H1

H3

M9
M-MARK1M9M-MARK1

H2

M22

M22
M-MARK1

M-MARK1

HOLETC217BC118D59

HOLETC217BC118D59

M12

M12
M-MARK1

M-MARK1

H18

H18

Modify Rev:C

HOLEC221D119

HOLEC221D119

H17

H17

M8
M-MARK1M8M-MARK1

M17

M17
M-MARK1

M-MARK1

HOLEC91D91BC178

HOLEC91D91BC178

H19

H19

M24

M24
M-MARK1

M-MARK1

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

2

Date: Sheet

G10ILX

G10ILX

G10ILX

VIN SW

VIN SW

5008

5008

5008

VIN SW

of

of

of

24 33Thursday, June 26, 2008

24 33Thursday, June 26, 2008

24 33Thursday, June 26, 2008

1

C

C

C

5

120 mils

VIN

D D

C152

C152

4.7U-25-08R-K

4.7U-25-08R-K

1.05VS/8A

320 mils

+1.05VS

C C

1.05VS_OUT

+

+

C483

C169

C169

C155

C155

100P-50-04N-J

100P-50-04N-J

2.2U-10-06R-K

2.2U-10-06R-K

C483

C153

C153

C154

C154

330u/2.5V_POS

330u/2.5V_POS

2.2U-10-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

C479

C479
1U-25-06R-K

1U-25-06R-K

L2 4.7UH_BCRH105/8AL2 4.7UH_BCRH105/8A

R113 30.2K-1-04R113 30.2K-1-04

Modify Rev:B

Modify Rev:B

R112

R112
51R-1-04

51R-1-04

C518

8138_CS2N

1000P-25-04X-K

1000P-25-04X-K

C518

15nF/16V/X7R

15nF/16V/X7R

C527

C527

R341

R341

5.3K-04

5.3K-04

Modify Rev:B

Modify Rev:B

R117

R117
100K-1-04

100K-1-04

C526

C526
22pF

22pF

C697

C697

4.7U-25-08R-K

4.7U-25-08R-K

R507

R507

2.2R_06

2.2R_06

1 2

Z2507

C186

C186

2200P-50V-04X-K

2200P-50V-04X-K

8138_VREF

4

AC

D14

D14

BAT54

Q13

Q13
FET-ME4410A

FET-ME4410A

D

D

G

G

Q16

Q16
FET-ME4410A

FET-ME4410A

D

D

G

G

4

4

Modify Rev:B

R96

R96

Z2505

1 2

2.2_06

2.2_06

8138_LX2

8138_LDR2

C164

C164
2200P-50V-04X-K

2200P-50V-04X-K

BAT54

Z2504 Z2510

C529

C529

0.22uF/50V/X7R_0603

0.22uF/50V/X7R_0603

8138_HDR2

D12

D12

SK14A

SK14A

A C

C723

C723

4.7U-25-08R-K

4.7U-25-08R-K

567

8

S

S

123

567

8

S

S

123

Modify Rev:B

8138_CS2P

C206

C206
1000P-50-04X-K

1000P-50-04X-K

8138_CS2N

Z2508

R343

R343

84.5K-1-04

84.5K-1-04
R342

R342

52.3K-1-04

52.3K-1-04

1U-10-04R

1U-10-04R

3

+5VS

R380 0-04R380 0-04

Z2501

R393

R393
22-1-04

22-1-04

Z2502

C239

C239

U5

U5

5

18

BST2

VDDA

19

HDR2

20

LX2

17

LDR2

22

CS2P

23

CS2N

24

VSET2

21

PGD2

C542

C542

1U-10-04R

1U-10-04R

16

VDDP

OZ8138

OZ8138
QFN24

QFN24

VIN

C541

C541
.01U-50V-04X-K

.01U-50V-04X-K

13

12

11

14

9

8

7

10

8138_HDR1

8138_CS1P

8138_CS1N

Z25138138_CS2P

AC

D15

D15
BAT54

BAT54

Modify Rev:B

C548

C548

0.22uF/50V/X7R_0603

0.22uF/50V/X7R_0603

1000P-50-04X-K

1000P-50-04X-K

R121

R121
1K-1-04

1K-1-04

Z2503

15

2

VIN

BST1

GNDP

HDR1

LX1

LDR1

CS1P

CS1N

VSET1

PGD1

R131

R131

1 2

2.2_06

2.2_06

8138_LX1

8138_LDR1

Modify Rev:B

C240

C240

2

C177

C177

C181

C181

4.7U-25-08R-K

4.7U-25-08R-K

1U-25-06R-K

1U-25-06R-K

567

8

D

D

Q22

Q22

Z2511

4

G

G

FET-ME4410A

FET-ME4410A

S

S

123

567

8

D

D

Q26

Q26

D16

R369

R369
75K-1-04

75K-1-04

D16

G

G

S

S

SK14A

SK14A

123

A C

FET-ME4410A

FET-ME4410A

Modify Rev:B

R370

R370

8138_VREF

57.6K-1-04

57.6K-1-04

4

C282

C282

2200P-50V-04X-K

2200P-50V-04X-K

1 2

Z2512

R508

R508

2.2_06

2.2_06

C250

C250

2200P-50-04X-K

2200P-50-04X-K

8138_CS1P

L6 4.7UH_BCRH105/8AL6 4.7UH_BCRH105/8A

R140

R140
100K-1-04

100K-1-04

R149

R149

40.2K-1-04

40.2K-1-04

Modify Rev:B

C554 12nF/16V/X7RC554 12nF/16V/X7R

C545

C545

7.68K-1-04

7.68K-1-04

22pF

22pF

R368

R368

R148

R148
51R-1-04

51R-1-04

8138_CS1N

C546

C546
1000P-25-04X-K

1000P-25-04X-K

1

1.5V_OUT

+

+

C307

C307

330u/2.5V_POS

330u/2.5V_POS

Modify Rev:B

C321

C321

4.7U-10-08Y-Z

4.7U-10-08Y-Z

1.5V/6A

+1.5V

1 2

JP4

JP4

OPEN_4A

OPEN_4A

C319

C319

1U-25-06R-K

1U-25-06R-K

B B

+1.05VS_ON23 +1.5V_ON 23

+1.5V_ON23

R115 @180K-04R115 @180K-04

R116 39.2K-04R116 39.2K-04

Disable Skip

R129

R129
0R-04

0R-04

C223

C223

.1U-25V-04Y-Z

.1U-25V-04Y-Z

A A

5

4

R139

R139
@110K-1-04

@110K-1-04

C230

C230
.1U-25V-04Y-Z

.1U-25V-04Y-Z

R122

R122
124K-04

124K-04

8138_VREF
Z2509

8138_ON2

1

ON/SKIP2

C205

C205
@1000P-50-04X-K

@1000P-50-04X-K

3

VREF

4

TSET

AGND AND GND CONNECT WITH SHAPE

3

ON/SKIP1

8138_ON1

6

C247

C247

R154

R154

@1000P-50-04X-K

@1000P-50-04X-K

124K-04

25

GNDA

124K-04

R400 39.2K-04R400 39.2K-04

2

Disable Skip

PJP2

PJP2

1 2

CLOSE

CLOSE

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

G10ILX

G10ILX

G10ILX

1.5VS/1.05VS

1.5VS/1.05VS

1.5VS/1.05VS

5008

5008

5008

1

of

of

of

25 33Thursday, June 26, 2008

25 33Thursday, June 26, 2008

25 33Thursday, June 26, 2008

C

C

C

5

D D

+3.3V

R77

R77
@10K-04

@10K-04

1 2

8770_PSI#

R78

R78

4.7K-04

R295

R295

1 2

100K-1-04

100K-1-04

4.7K-04

1 2

C132

C132
100P-50-04X-K

100P-50-04X-K

C C

VCORE_ON23

B B

DELAY_VR_PWRGOOD9,15

VCORE_CLK_EN#15

H_VID06,22
H_VID16,22
H_VID26,22
H_VID36,22
H_VID46,22
H_VID56,22
H_VID66,22

R294 0-04R294 0-04

H_DPRSTP#14
PM_DPRSLPVR9,15

1 2

R296 0-04R296 0-04

1 2

C124 470P-25-04X-KC124 470P-25-04X-K

C475 .22uF-25-04X-KC475 .22uF-25-04X-K

R64

R64

1 2

71.5K-1-04

71.5K-1-04

CPU_VIN

8770_PSI#
Z2601
8770_DPRSTP#
8770_DPRSLPVR

12

R61

R61
200K-1-04

200K-1-04

4

+5V8770_VCC

R63

R63

1 2

10-04

10-04

C471

22

LX2

DH221DL224PGND2

25

MAX8770_QFN40

MAX8770_QFN40

23

C471
1U-10-04R

1U-10-04R

VDD

30

BST1

29

DH1

8770_LX1

28

LX1

26

DL1

14

CSP2

15

CSN2

27

PGND1

Z2606

12

FB

Z2608

10

CCI

Z2609

13

GNDS

17

CSP1

16

CSN1

C123

C123

1U-10-04R

1U-10-04R

+3.3V

R76

R76
10K-1-04

10K-1-04

1 2

CCV

TIME

Z2602

Z2603

19

U14

U14

VCC

2

PWRGD

1

CLKEN

31

D0

32

D1

33

D2

34

D3

35

D4

36

D5

37

D6

3

PSI

38

SHDN

40

DPRSTP

39

DPRSLPVR

9

CCV

7

TIME

11

REF

18

GND

41

EP

6

THRM

5

VRHOT

4

POUT

8

TON

BST2

20

+5V

R59

R59

1 2

1.65K-1-04

1.65K-1-04

Modify Rev:B

R58

R58

1 2

@0-04

@0-04

C473

C473
4700P-25-04X-K

4700P-25-04X-K

Z2604

8770_CSP1

8770_CSN1

8770_DH1

1 2

3

R276

R276

100-04

100-04

Z2607

C126

C126
4700P-25-04X-K

4700P-25-04X-K

C133

C133
.22U-25-06X-K

.22U-25-06X-K

8770_DL1

1 2

12

R272

R272
@10-04

@10-04

2

CPU_VIN

C392

C392

C391

C391

C389

C389

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

Q34A

Q34A

182

SP8K10S_FD5

R274

R274
@10-1-04

@10-1-04

SP8K10S_FD5

7

8770_DH1_IN

635

SP8K10S_FD5

SP8K10S_FD5

Q34B

Q34B

4

VCORE_VCCSENSE 6

Modify Rev:B

R248

R248

1 2

2.2_06

2.2_06

C397

C397
@1000P-25-04X-K

@1000P-25-04X-K

R60

R60

100-04

100-04

12

VCORE_VSSSENSE 6

4.7U-25-08R-K

12

R247

R247
@2.2-04

@2.2-04

D9

Z2605

SK14AD9SK14A

C398

C398

A C

@2200P-50-04X-K

@2200P-50-04X-K

8770_CSP1
8770_CSN1

Use differential routing away from switch nodes
8770LX1 and 8770LX2

C80

C80

1000P-25-04X-K

1000P-25-04X-K

Modify Rev:B

12

R269

R269

2.1K-1-04

2.1K-1-04

1 2

1K-1-04

1K-1-04

1R5UH_PCMC063T

1R5UH_PCMC063T

R282

R282

C472

C472

.22U-25-06X-K

.22U-25-06X-K

JP6 OPEN_SJP6 OPEN_S

1 2

Modify Rev:C

PL1

PL1

R511

R511

Z2610

1 2

0_06

0_06

1

1A

VIN

4A /160mil

+CPU_CORE

JP8

JP8

OPEN_4A

OPEN_4A

1 2

Modify Rev:B

C112 4.7U-10-08Y-ZC112 4.7U-10-08Y-Z

C98 4.7U-10-08Y-ZC98 4.7U-10-08Y-Z

C104 220u/6.3V_POS

C104 220u/6.3V_POS

+

+

PJP1

PJP1

1 2

CLOSE

CLOSE

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

CPU CORE

CPU CORE

CPU CORE

5008

5008

5008

1

of

of

of

26 33Thursday, June 26, 2008

26 33Thursday, June 26, 2008

26 33Thursday, June 26, 2008

C

C

C

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

G10ILX

G10ILX

G10ILX

CPU CORE

CPU CORE

CPU CORE

5008

5008

5008

C

C

C

5

811_REF

12

R209

R209

44.2K-1-04

44.2K-1-04

12

D D

+1.8VS_ON23

C C

R8

90.1K-1-04R890.1K-1-04

811_REF

C356

C356

+1.08VS_SET

C11

C11

Modify Rev:B

1000P-25-04X-K

1000P-25-04X-K

2.75V

C12

C12
.1U-16-04Y-Z

.1U-16-04Y-Z

VIN

R4 1K-04R4 1K-04

12

R5

39.2K-1-04R539.2K-1-04

12

R206

R206
124K-1-04

124K-1-04

@.01U-16-04X-K

@.01U-16-04X-K

+5VS

12

R3

22.6-1-04R322.6-1-04

C358

C358
1U-10-04R

1U-10-04R

1 2

811_ON

4

811_CSN
811_CSP
811_LX

811_HDR

9

11

12

10

U12

U12

LX

CSP

CSN

HDR

13
14
15

Z2701

16

17

22N-16-04X-K

22N-16-04X-K

VSET
VREF
TSET
VDDA

GNDA

OZ811LN

OZ811LN

C357

C357

Z2702

Z2704

C6
10N-25-04X-KC610N-25-04X-K

OZ811

GNDA1VIN2ON/SKIP3PGD

BST
LDR

GNDP

VDDP

4

+5VS VIN

Modify Rev:B

AC

D4
BAT54D4BAT54

+5VS

Z2703

8
7
6

C18

C18

5

.22U-25-06X-K

.22U-25-06X-K

C360

C360

1U-10-04R

1U-10-04R

PJP6

PJP6

1 2

CLOSE

CLOSE

811_LDR

811_HDR

Modify Rev:B

1 2

R22

R22

811_HDR_M

2.2_06

2.2_06

Modify Rev:B

FET-ME4410A

FET-ME4410A

C20

C20
1500P-50-04X-K

1500P-50-04X-K

4

Q4

Q4

4

3

80mil

G

G

G

G

2

C66

C66

C67

C67

C68

R509

R509

2.2_06

2.2_06

1 2

Z2705

C33

C33
2200P-50-04X-K

2200P-50-04X-K

4.7U-25-08R-K

4.7U-25-08R-K

C68

4.7U-25-08R-K

4.7U-25-08R-K

L8 4.7UH_BCRH105/8AL8 4.7UH_BCRH105/8A

12

811_CSP

R216

R216
100K-1-04

100K-1-04

1 2

12N-50-04X-K

12N-50-04X-K

C16

C16
22P-50-04N-J

22P-50-04N-J

R218

R218

37.4K-1-04

37.4K-1-04
C17

C17

12

R219

R219
51-1-04

51-1-04

811_CSN

C15

C15
1000P-25-04X-K

1000P-25-04X-K

12

R10

R10

7.65K-1-04

7.65K-1-04

+1.8VS_OUT

+

+

C698

C698

C386

C386

100P-50-04N-J

100P-50-04N-J

330u/2.5V_POS

330u/2.5V_POS

Modify Rev:B

12

12

C382

C382

C385

C385

C387

C387

C381

C381

10U-6.3V-06R

10U-6.3V-06R

2.2U-6.3V-06R-K

2.2U-6.3V-06R-K

10U-6.3V-06R

10U-6.3V-06R

4.7U-10-08Y-Z

4.7U-10-08Y-Z

567

8

D

D

1U-25-06R-K

1U-25-06R-K

Q5

Q5

S

S

FET-ME4410A

FET-ME4410A

123

567

8

D7

D

D

SK14AD7SK14A

S

S

A C

123

Modify Rev:B

JP5 OPENJP5 OPEN

1 2

1

1.8VS/6A

240 mils

C383

C383

2.2U-6.3V-06R-K

2.2U-6.3V-06R-K

+1.8VS

C380

C380

100P-50-04N-J

100P-50-04N-J

Modify Rev:B

C379

C379

100P-50-04N-J

100P-50-04N-J

Modify Rev:B

12

12

R299

R299

3.24K-1-04

3.24K-1-04

R298

R298
10K-1-04

10K-1-04

Z2707

Modify R:B

U15

U15

1

VIN

3

REFEN

2

GND

FIFT6137B

FIFT6137B

2

B B

A A

5

DDR2 Termination Power

+1.8VS

Modify R:B

12

C29

C29

R12

R12

Z2706

10K-1-04

10K-1-04

12

1U-10-06Y-Z

1U-10-06Y-Z

C19

C19

R11

R11
10K-1-04

10K-1-04

.01U-16-04X-K

.01U-16-04X-K

1

3

2

U13

U13

VIN

REFEN

GND

FIFT6137B

FIFT6137B

OUTPUT

4

+5VS

C378

C378
.1U-16-04Y-Z

.1U-16-04Y-Z

5

VCNTL

6

VCNTL

7

VCNTL

8

VCNTL

4

C14

C14

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C13

C13

4.7U-10-08Y-Z

4.7U-10-08Y-Z

0.9Vs = 2A

+0.9VS

3

+3.3V

C485

C485

1U-10-06Y-Z

1U-10-06Y-Z

C480

C480

.01U-16-04X-K

.01U-16-04X-K

+5V

C491

C491

5

VCNTL

6

VCNTL
VCNTL
VCNTL

OUTPUT

90mil

7

+2.5V

8

.1U-16-04Y-Z

.1U-16-04Y-Z

4

Modify R:C Solve the ripple noise

C482

C482

Modify Rev:C

10U-10-08Y-Z

10U-10-08Y-Z

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

1.5V/1.05VS/0.9VS

1.5V/1.05VS/0.9VS

1.5V/1.05VS/0.9VS

1

27 33Thursday, June 26, 2008

27 33Thursday, June 26, 2008

27 33Thursday, June 26, 2008

of

of

of

C

C

C

5

D D

4

3

2

1

815_VREF

Mode

<0.4V

OFF
PWM

>0.6V
>2.1V

SKIP

+5VA_LDO_IN

DS

Q51

Q51

G

2N7002

2N7002

Output Voltage =[ Vref x R2/(R1+R2) ] x 2

R1

R414

R414

+3.3VA_VSET

1 2

49.9K-1-04

49.9K-1-04

12

R418

R418

R2

75K-1-04

75K-1-04

VIN

6
2
3
4

Z2803

5
1

C273

C273

C272

C272

1U-10-06Y-Z

1U-10-06Y-Z

1U-25-06R-K

1U-25-06R-K

.1U-16-04Y-Z

.1U-16-04Y-Z

+5VS_VSET

12

R416

R416

R2

150K-1-04

150K-1-04

12

R415

R415
15K-1-04

15K-1-04

C573

C573
1000P-25-04X-K

1000P-25-04X-K

2.75V

C569

C569

R1

C571

C571
1000P-50-04X-K

1000P-50-04X-K

25

GNDA

ON/SKIP1
VIN
VREF
TSET
VDDA
ON/SKIP2

8

7

CS1N

VSET1

OZ815

OZ815

CS2N

VSET2

23

24

9

CS1P

CS2P

22

10

21

1 2

11

12

LX1

HDR1

PGD1

HDR2

LX220PGD2

19

PJP4

PJP4

CLOSE

CLOSE

OZ815LN

OZ815LN

815_HDR1

815_LX1

CS1P
CS1N

Thermistor

CS2N
CS2P

815_LX2
815_HDR2

U8

U8

13

BST1

14

LDR1

16

VDDP

15

GNDP

17

LDR2

18

BST2

Modify Rev:B

DDR2_TEMP23

815_BST2
815_LDR2
+5VA_LDO

815_LDR1
815_BST1

C550

C550
.22U-25-06X-K

.22U-25-06X-K

+3.3V

12

RT2

RT2

VR-ERT-J1VR103J

VR-ERT-J1VR103J

12

R394

R394

1.5K-1-04

1.5K-1-04

AC

D21

D21
BAT54

BAT54

C551

C551
.22U-25-06X-K

.22U-25-06X-K

+5VA_LDO

C218

C218
1U-10-06Y-Z

1U-10-06Y-Z

AC

D20

D20
BAT54

BAT54

815_HDR2

Modify Rev:B

815_HDR1

Modify Rev:B

Q20

Q20

567

D

D

FET-ME4410A

FET-ME4410A

R105

R105

3.3VA_HDR

2.2_06

2.2_06

R305

R305

2.2_06

2.2_06

815_LDR2

FET-ME4410A

FET-ME4410A

5VS_HDR

FET-ME4410A

FET-ME4410A

815_LDR1

Modify Rev:B

4

Q19

Q19

FET-ME4410A

FET-ME4410A

C171

C171

Q37

Q37

4

Q38

Q38

4

C523

C523

2200P-50-04X-K

2200P-50-04X-K

G

G

S

S

567

D

D

4

G

G

S

S

1500P-50-04X-K

1500P-50-04X-K

567

D

D

G

G

S

S

567

D

D

G

G

S

S

1 2

1 2

Discharge Resister

12

12

R110

R110

R211

R211

@100-06

@100-06

@100-06

@100-06

C174

C174

8

1U-25-06R-K

1U-25-06R-K

Modify Rev:B

123

8

1 2

Z2801

123

C522

C522

8

1U-25-06R-K

1U-25-06R-K

123

Modify Rev:C

12

8

Z2802

123

12

300mil

VIN

R510

R510

2.2_06

2.2_06

C173

C173
2200P-50-04X-K

2200P-50-04X-K

VIN

R325

R325

2.2_06

2.2_06

C516

C516

@2200P-50-04X-K

@2200P-50-04X-K

R300

R300
@100-06

@100-06

C176

C176

4.7U-25-08R-K

4.7U-25-08R-K

C521

C521

4.7U-25-08R-K

4.7U-25-08R-K

A C

D13

D13

A C

SK14A

SK14A

CS2P

D19

D19

SK14A

SK14A

CS1P

12

R241

R241
@100-06

@100-06

Modify Rev:B

L4 4.7UH_BCRH105/8AL4 4.7UH_BCRH105/8A

12

R143

R143
100K-1-04

100K-1-04

R138

R138

1 2

56K-1-04

56K-1-04

C562

C562

8.2N-25-04X-K

8.2N-25-04X-K

C558

C558
22P-50-04N-J

22P-50-04N-J

L5 4.7UH_BCRH105/8AL5 4.7UH_BCRH105/8A

12

R367

R367
100K-1-04

100K-1-04

R384

R384

1 2

40.2K-1-04

40.2K-1-04

C561

C561

8.2N-25-04X-K

8.2N-25-04X-K

C559

C559
22P-50-04N-J

22P-50-04N-J

+2.5V+1.05V +1.05VS +3.3V+1.5V+0.9VS +3.3VS +5V +5VS+1.8VS

12

R13

R13
@100-06

@100-06

12

R145

R145
51-1-04

51-1-04

CS2N

C564

C564
3300P-50-04X-K

3300P-50-04X-K

12

R401

R401
51-1-04

51-1-04

CS1N

C565

C565
3300P-50-04X-K

3300P-50-04X-K

12

R53

R53
@100-06

@100-06

+3.3VA_VOUT

+

+

C535

C535

+5VS_OUT

+

+

C575

C575

12

220u/6.3V_POS

220u/6.3V_POS

220u/6.3V_POS

220u/6.3V_POS

R111

R111
@100-06

@100-06

3.3VA/5.5A

JP3 OPENJP3 OPEN

1 2

C212

C212

C211

C211

C214

C214

1U-25-06R-K

1U-25-06R-K

4.7U-10-08Y-Z

4.7U-10-08Y-Z

100P-50-04N-J

100P-50-04N-J

JP7 OPENJP7 OPEN

1 2

C579

C579

C578

C578

C580

C580

1U-25-06R-K

1U-25-06R-K

2.2U-10-06R-K

2.2U-10-06R-K

100P-50-04N-J

100P-50-04N-J

12

R120

R120
@100-06

@100-06

C536

C536

.1U-16-04Y-Z

.1U-16-04Y-Z

5VS/6A

C679

C679

10U-10-08Y-Z

10U-10-08Y-Z

Modify Rev:B

12

R409

R409
@100-06

@100-06

+3.3VA

+5VS

C681

C681

C680

C680

10U-10-08Y-Z

10U-10-08Y-Z

10U-10-08Y-Z

10U-10-08Y-Z

12

R434

R434
@100-06

@100-06

+1.8V/+5V_ON Voltage

+3.3VA_ON

Q48

Q48

1 2

1 2

Vb

R500

R500

10K

10K

R164

R164

62.5K-1-04

62.5K-1-04

R167

R167

39.2K-1-04

39.2K-1-04

B

TR-2N3904

TR-2N3904

E C

Modify Rev:B

+3.3VA_ON

12

R161

R161

100K-1-04

100K-1-04

+5VS_ON

12

R160

R160
124K-1-04

124K-1-04

+5VA_LDO

12

DS

G

R501

R501
47K-1-04

47K-1-04

Q42

Q42
FET-2N7002

FET-2N7002

Modify Rev:C

C263

C263
@.01U-16-06X-K

@.01U-16-06X-K

C262

C262
@.01U-16-04X-K

@.01U-16-04X-K

Q46

Q46
FET-SI2301BDS

FET-SI2301BDS

DS

G

AC_IN

AUX_OFF5

+5VA_LDO_IN

C C

+3.3VS_ON23,24

B B

Modify Rev:B

BATTOFF23

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

+3.3VA/+5VA

+3.3VA/+5VA

+3.3VA/+5VA

5008

5008

5008

1

C

C

C

of

of

of

28 33Thursday, June 26, 2008

28 33Thursday, June 26, 2008

28 33Thursday, June 26, 2008

CHARGER

A

CHG_VCC

Close to PIN 9

4 4

Close to IC

DC_IN

R15 10-1-06R15 10-1-06

1 2

DC_IN_B

R19 10-1-06R19 10-1-06

1 2

D3 SK34AD3 SK34A

VIN

Q2 FET-SI4835BDY

Q2 FET-SI4835BDY

1
2
3

S

S

R14 330-04R14 330-04

1 2

DC_IN

3 3

C49

C49

@2200P-50-04X-K

@2200P-50-04X-K

C7 4.7U-25-08R-KC7 4.7U-25-08R-K

C8 1U-25-06R-KC8 1U-25-06R-K

ICHP

C375

C375

Close to IC

1U-25-06R-K

1U-25-06R-K

ICHM

C376

C376
1U-25-06R-K

1U-25-06R-K

D

D

G

G

4

Z2908

12

R20

R20
20K-1-04

20K-1-04

IACN
IACP

AC

VCHG

8
7
6
5

Q1

Q1

1
2
3

S

S

G

G

C353

C353
.22U-16-06X-K

.22U-16-06X-K

Z2903

D

D

FET-SI4835BDY

FET-SI4835BDY

4

Z2901

12

R9
0-06R90-06

Z2902

9
10
11
12
13
14
15
16

8
7
6
5

U11

U11

VAC
HDR
CHIGH
ACAV
ICHP
ICHM
IACM
IACP

OZ8602

OZ8602

1 2

B

L7

L7

CHG_LX

D2

SK34AD2SK34A

A C

REF

LV

GND

COMP

VSET
ICHG

CELLS

ISET

PJP5

PJP5

CLOSE

CLOSE

4.7UH_BCRH105/8A

4.7UH_BCRH105/8A

REF

8

LV

7
6

R208 1K-1-04R208 1K-1-04

Z2905 Z2906

5

1 2

CHARGER VSET

4
3
2
1

C377

C377
.1U-16-04Y-Z

.1U-16-04Y-Z

VCHG_OUT

C359

C359
.1U-10V-04R-K

.1U-10V-04R-K

C9
.1U-16-04Y-ZC9.1U-16-04Y-Z

C10

C10

C3

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-KC34.7U-25-08R-K

12

R7
107K-1-04R7107K-1-04

12

R6
56K-1-04R656K-1-04

C2

.1U-25-06Y-ZC2.1U-25-06Y-Z

C354

C354

4.7U-10-08Y-Z

4.7U-10-08Y-Z

RCH2

RCH2

.025-1-25-2

.025-1-25-2

C

C1

2.2U-6.3-06R-KC12.2U-6.3-06R-K

DS

Q50

Q50

FET-2N7002

FET-2N7002

D

Charge I limit =2.5A

RCH3

RCH3

1 2

.04-1-25

.04-1-25

4

G

12

R498

R498
@75K-1-04

@75K-1-04

ICHP

ICHM

12

1 2

R497 0-04R497 0-04

R215 10-1-06R215 10-1-06

1 2

R217

R217

100K-04

100K-04

ADAPTOR_I 23
SET_V 23

CHG_I 23

CHG_ON# 23

VCHG

H(2.7V)
L(0.5V)

Vch =Nx(4.1 +Vset/10)
N=Cell (pin2 =hing -->4, low -->3)

L
H

SET_V

16.84V ( 4CELL )

12.71V ( 3CELL )

CHG_ON

CHARGER ON
CHARGER OFF

E

CHG_I

Ich

3.36V

2.8A

3V

2.5A

2.4V

2A

1.2V

1A

0.48V

ADAPTOR_I

Voltage

250mVW20W
500mV

40W

750mV

60W

1V

80W

1.25V

100W

XX

0.4A

CHARGER CURRENT =V(CGH_I)/(Rch*30)

Vichg =RAD1*Irsense*10

Modify Rev:B

BATTERY CON

+3.3VA

R212

R212
20K-1-04

BATT_TEMP23

2 2

20K-1-04

5A

VCHG

BAT_SMBCLK23
BAT_SMBDAT23

+3.3VA

B1

B1
HCB2012KF-800T50

HCB2012KF-800T50

BAT_V_ON#

Modify Rev:C
modify package to 0805

Q29

Q29
FET-3LP01C

FET-3LP01C

DS

G

R210

R210

100K-04

100K-04

R214 100-1-04R214 100-1-04
R213 100-1-04R213 100-1-04

C361

C361

C363

C363

@22P-50-04N-J

@22P-50-04N-J

@22P-50-04N-J

@22P-50-04N-J

C362

C362

C364

C364

22P-50-04N-J

22P-50-04N-J

22P-50-04N-J

22P-50-04N-J

Modify Rev:C

BAT1C
BAT1D
BATT_DUMP
BATT_TEMP

BAT+

4

Modify Rev:B

O_BTJ-07RO4G

O_BTJ-07RO4G

GND2
7

6
5
4
3
2
1
GND1

CN19

CN19

Battery Voltage Detect

BAT+

R229

R229
931K-0.1-04

931K-0.1-04

C384

C384

R230

R230

1U-10-04Y-Z

1U-10-04Y-Z

133K-0.1-04

133K-0.1-04

1 1

DS

Q32

Q32

G

FET-2N7002

FET-2N7002

A

BAT_V 23

BAT_V_ON#

FET-2N7002

FET-2N7002

BAT+

17.6V->BAT_V=2.2V

16.8V->BAT_V=2.1V

13.2V->BAT_V=1.65V

R228

R228

12.6V->BAT_V=1.575V

100K-04

100K-04

9V->BAT_V=1.125V

DS

Q33

Q33

Z2912

G

R232

R232
200K-1-04

200K-1-04

R231

R231

SENBAT_V 23

1K-04

1K-04

B

C

Charge / Discharge Detect

R207

CHG_REF23

C352

C352
1U-10-04Y-Z

1U-10-04Y-Z

R207

20K-1-04

20K-1-04

R2

1.5K-1-04R21.5K-1-04

Z2911

R1
0-06R10-06

4

D

C5
1U-10-04Y-ZC51U-10-04Y-Z

Z2909
Z2910

R205

R205

1.5K-1-04

1.5K-1-04

VIN

C355

C355

1000P-25-04X-K

1000P-25-04X-K

C4

.1U-25-06Y-ZC4.1U-25-06Y-Z

84

U1A

U1A

3

1

2

LM358

LM358

R204 16.5K-1-04R204 16.5K-1-04

BAT_I 23

C351

C351

D1

ZN-UDZS-3.3BD1ZN-UDZS-3.3B

.1U-25-04Y-Z

.1U-25-04Y-Z

A C

CLOSE EC PIN

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

BATT IN / CHARGER

BATT IN / CHARGER

BATT IN / CHARGER

29 33Thursday, June 26, 2008

29 33Thursday, June 26, 2008

29 33Thursday, June 26, 2008

E

of

of

of

C

C

C

5

4

3

2

1

D D

D5

GND

D6

GND

C6

GND

E4

GND

E8

@0.1U-10-04X-K

@0.1U-10-04X-K

C311

C311
@100P-50-04X-K

@100P-50-04X-K

+3.3VA

F7

F8
G4
G5
H4
H5
K2
K4
K5

A5
B5
C5
G6
G7
G8
H6
H7
H8
H9
A7

H10

C336

C336
@4.7U-6.3-06R

@4.7U-6.3-06R

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

VDDP_FLASH
VDDP
VDDP
VDDP
VDDP
VDDP
VDDP
VDDP_SLE66
VDDP
PWROK_PS
SPI_HOLD
VDD_DECAP

VAUX_RR

K6

C616

C616
@0.1U-10-04X-K

@0.1U-10-04X-K

C328

C328
@0.1U-10-04X-K

@0.1U-10-04X-K

C C

+3.3V

C252

C252

C257

C257

C242

C242

C329

C329

C253

C253

@4.7U-6.3-06R

@4.7U-6.3-06R

@0.1U-10-04X-K

@0.1U-10-04X-K

@0.1U-10-04X-K

@0.1U-10-04X-K

@0.1U-10-04X-K

@0.1U-10-04X-K

B B

A A

COLAY in the Body

R433 @0-04R433 @0-04

LPC_AD0_3245
LPC_AD1_3245

R438 @0-04R438 @0-04
R444 @0-04R444 @0-04

LPC_AD2_3245
LPC_AD3_3245

R449 @0-04R449 @0-04

INT_SERIRQ_3245

R451 @0-04R451 @0-04
R455 @0-04R455 @0-04

LPC_FRAME#_3245
SB_CS0_N1_3245

R459 @0-04R459 @0-04

U9A

U9A

LPC_AD0_3245

2

LPC_AD1_3245
LPC_AD2_3245
LPC_AD3_3245
INT_SERIRQ_3245
LPC_FRAME#_3245
SB_CS0_N1_3245

CL3245

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

19

OE

1

NC

@SN74CBTLV3245ARGYR

@SN74CBTLV3245ARGYR

@0.1U-10-04X-K

@0.1U-10-04X-K

Z3001
VDD_DECAP

C254

C254

C615

C615
@1U-10-06R-K

@1U-10-06R-K

+3.3VA_RTC

R147 @10K-04R147 @10K-04

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
INT_SERIRQ
LPC_FRAME#
SB_CS0_N1

+3.3V

20

VCC

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

B8

GND

10

+3.3V

LPC_AD0 14,19,23
LPC_AD1 14,19,23
LPC_AD2 14,19,23
LPC_AD3 14,19,23
INT_SERIRQ 15,19,23
LPC_FRAME# 14,19
SB_CS0_N1 15

R153 @10K-04R153 @10K-04

TP29TP29

JTAG_NSRST

F4

G3

NCF3NC

NC

GPIO14D1GPIO15

VAUX_RTC

K3

D2

TP28TP28 TP25TP25TP26TP26 TP22TP22TP31TP31 TP24TP24 TP23TP23

UART_TX

JTAG_TCK

C10

D4

D8

E3

E7

NCD3NC

NCD7NC

NC

NC

M-S96

M-S96

GPIO13E1GPIO12

GPIO11F1GPIO10

GPIO7

GPIO3

F2

E2

H3

G1

Z3005

Z3006

Z3007

TP30TP30

TP32TP32

TP39TP39

TP27TP27

DBGREQ

JTAG_TMS

JTAG_NTRST

JTAG_TDO

JTAG_TDI

UART_RX

A4

A10

B4

B10

C4

NCC2NCC3NC

NCC7NCC8NCC9NC

SPI_CSB6SPI_MISOB7SPI_MOSI

GPIO6

GPIO5

GPIO4

GPIO2

J1

K1

K8

H1

Z3008

Z3009

Z3012

TP38TP38

TP34TP34

NCB9NC

SPI_WP

A6

B8

R155 @0-04R155 @0-04

NCB2NCB3NC

LFRAMED9LSERIRQ

D10

SB_SPI_WP#
SB_SPI_DO
SB_SPI_DI

NCA9NC

LAD2

LAD3G9LAD0

F9

NCA1NCA2NCA3NC

LAD1

E9

G10

SB_CS0_N1_3245

MCLK2
MCLK1

RTC_XTAL2
RTC_XTAL1

PLTRST
LRESET

PWROK_COY2
PWROK_COY1

PS_ON

SLP_S5__COY

SLP_S4_COY

SLP_S3__COY

SLP_S5
SLP_S4
SLP_S3

LCLK

SPI_CLK

I2C_SCL

I2C_SDA

H2

G2

R146 @10K-04R146 @10K-04

SB_SPI_DO 15
SB_SPI_DI 15

U10

U10

MCLK2

K10

MCLK1

K9

RTC_XTAL2

B1

RTC_XTAL1

C1

K7
E10

J10
J9

J8

J7
J6
J5
J4
J3
J2

F10
A8

Modify Rev:C

PLT_RST#
Z3002

COYOTE_RESET
PWROK_COY

Z3003

Z3004

SLP_S4_COY
SLP_S3_COY

PM_SLP_S4#
PM_SLP_S3#

CLK_DEBUG BD
SB_SPI_CLK

Z3010
Z3011
LPC_AD0_3245

LPC_AD1_3245
LPC_AD2_3245
LPC_AD3_3245

INT_SERIRQ_3245
LPC_FRAME#_3245

+3.3V

TP36TP36

TP37TP37

PLT_RST# 9,15,19,20,23

R184 @0-04R184 @0-04

TP35TP35
TP33TP33

Y5
@40M-20-30-SY5@40M-20-30-S

PIN 2,4=GND POWER

3 1

C317

C317
@20P-50-04N-J

@20P-50-04N-J

SLP_S4_COY 23
SLP_S3_COY 23

PM_SLP_S4# 23
PM_SLP_S3# 15,23

CLK_DEBUG BD 7,19
SB_SPI_CLK 15

C327

C327
@20P-50-04N-J

@20P-50-04N-J

C332

C332
@0.1U-10-04X-K

@0.1U-10-04X-K

COYOTE_CLK_IN14

Y3

Y3

1 4

@32.768KHz_SMD

@32.768KHz_SMD

C249

C249
@22P-50-04N-J

@22P-50-04N-J

COYOTE_RDY 23

R128

R128

@0-04

@0-04

C248

C248
@22P-50-04N-J

@22P-50-04N-J

R191 @0-04R191 @0-04

R190 @0-04R190 @0-04

COYOTE_CLK_IN#

COYOTE_RESET

PLT_RST#

U7

U7

1

NC

VCC

2

IN

3

GND

Y

@SN74AHC1G14DCKR

@SN74AHC1G14DCKR

Z3013

4

COYOTE_CLK_IN#

5

+3.3V

R118

R118
@0-06

@0-06

C198

C198
@0.1U-10-04X-K

@0.1U-10-04X-K

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

FlexGo_Coyote

FlexGo_Coyote

FlexGo_Coyote

1

C

C

C

of

of

of

30 33Thursday, June 26, 2008

30 33Thursday, June 26, 2008

30 33Thursday, June 26, 2008

5

AMP VDD

+5VS

R193

R193
100K-04

+5VS_B

G

Z3101

DS

B34

B34

BD-QT1608RL600

BD-QT1608RL600

100K-04

Q28

Q28

G

FET-2N7002

FET-2N7002

+5VS

+3.3V

38mA

+5V_CODECVDD

C325

C325
.1U-16-04Y-Z

.1U-16-04Y-Z

CODEC_GND

C331

C331

4.7U-10-08Y-Z

4.7U-10-08Y-Z

LOCATE UNDER CODEC.
USE 80 MILLS WIDE TRACE

BRIDGING AGND AND DGND PLANES

B44

B44
0-06

0-06

B35

B35
@BD-QT1608RL060HC

@BD-QT1608RL060HC

B43

B43
@BD-QT1608RL060HC

@BD-QT1608RL060HC

B36

B36
@BD-QT1608RL060HC

@BD-QT1608RL060HC

R194 @0-04R194 @0-04

D D

Q27

Q27

D S

FET-SI2301DSE

FET-SI2301DSE

C C

CODEC_GND

4.7U-10-08Y-Z

4.7U-10-08Y-Z

+5V_CODECVDD

C300

C300

4

HP_JD_SENSE# Z3102

HP_JD_SENSE#32

R481

R481
20K-1-04

20K-1-04

CODEC_GNDCODEC_GND

23mA

+3.3V

C337

C337

.1U-16-04Y-Z

.1U-16-04Y-Z

JDREF

CODEC_GND

R186 10-04R186 10-04

ACZ_SDATAOUT14

R19239.2K-1-04 R19239.2K-1-04

C323

C323

4.7U-10-08Y-Z

4.7U-10-08Y-Z

3

MIC_VREFO_R

MIC2_VREFO

33

30

32

31

DCVOL

MIC2-VREFO

LINE2-VREFO

MIC1-VREF0-R

ALC662-GR

ALC662-GR

CODEC_BITCLK

C607

C607
@22P-50-04N-J

@22P-50-04N-J

MIC_VREFO_L 32

MIC_VREFO_L

29

28

LINE1-VREF0

MIC1-VREF0-L

CODEC_DIN

27

VREF

CODEC_SYNC

MIC_VREFO_R32

FRONT_L +5V_CODECVDD
FRONT_R

36

34

35

U22

U22

Sense B

FRONT-L

FRONT-R

37

VREFO-R

38

AVDD2

39

SURR-L

40

JDREF/NC

41

SURR-R

42

AVSS2

43

CENTER

44

LFE

45

SIDERSURR-L

46

SIDERSURR-R

47

SPDIFI/EAPD

48

SPDIFO/MIDI-O

DVDD11GPIO0/DMIC-CLK2GPIO1/DMIC-L3DVSS14SDATA-OUT5BIT-CLK6DVSS27SDATA-IN8DVDD29SYNC10RESET#11PCBEEP

CODEC_+3.3V

C614

C614
.1U-16-04Y-Z

.1U-16-04Y-Z

26

25

AVSS1

AVDD1

LINE1-R
LINE1-L

CD-GND

LINE2-R
LINE2-L
Sense A

12

R458 33-04R458 33-04
R464 33-04R464 33-04
R467 33-04R467 33-04

Z3103

MIC1-R
MIC1-L

CD-R

CD-L
MIC2-R
MIC2-L

CODEC_PCBEEP

24
23
22
21
20
19
18
17
16
15
14
13

4.7U-10-08Y-Z

4.7U-10-08Y-Z

MIC2_R
MIC2_L

SENSEA

C623

C623

C298 1U-6.3-04Y-ZC298 1U-6.3-04Y-Z
C290 1U-6.3-04Y-ZC290 1U-6.3-04Y-Z

C294 1U-6.3-04Y-ZC294 1U-6.3-04Y-Z

ACZ_RST# 14
ACZ_SYNC 14
ACZ_SDATAIN0 14
ACZ_BITCLK 14

2

CODEC_GNDCODEC_GND

LINE2_R 32
LINE2_L 32

R169 20K-1-04R169 20K-1-04

MIC2_VREFO

INT_MIC Z3104

MIC_JD_SENSE# 32

R180

R180

10K-04

10K-04

R181

R181

1K-04

1K-04

Modify R:B

ACZ_SPKR_B1

C299

C299

4.7U-10-08Y-Z

4.7U-10-08Y-Z

CODEC_GND

MIC_JD_SENSE

ACZ_SPKR_B2

C305

C305
@1U-6.3-04Y-Z

@1U-6.3-04Y-Z

MIC_R 32
MIC_L 32

CODEC_GND

C310 1U-6.3-04Y-ZC310 1U-6.3-04Y-Z

C304 1U-6.3-04Y-ZC304 1U-6.3-04Y-Z

1

C330

C330
1U-6.3-04Y-Z

1U-6.3-04Y-Z

INT_MIC

R178

R178
@0-04

@0-04

INT_MIC

Z3105

B33

B33
BD-1608K-601T03-300

BD-1608K-601T03-300

ACZ_SPKR 15

BTL_BEEP 23

Modify R:C
Solve the record sound too small

R182

R182

3.24K-1-04

3.24K-1-04

R187 0-06R187 0-06

R512

R512

@4.7K-04

@4.7K-04

CN25

CN25

1
2

CON-WTB-3801-F02N-01R

CON-WTB-3801-F02N-01R

B B

R171 47K-1-04R171 47K-1-04

CODEC_GND

Modify R:B

B24

B24

+5V

BD-QT2012RL030HC

BD-QT2012RL030HC

A A

5

C583

C583
@4.7U-10-08Y-Z

@4.7U-10-08Y-Z

C274

C274
@4.7U-10-08Y-Z

@4.7U-10-08Y-Z

CODEC_GND

C295

C295
@.1U-16-04R-K

@.1U-16-04R-K

+5V_AMP

CODEC_GND

FRONT_L

MUTE23

+5V_AMP

4

C314

C314

C320

C320
C306

C306

R185 100K-04R185 100K-04

CODEC_GND

CODEC_GND

APA2068_BYPASS

1U-6.3-04Y-Z

1U-6.3-04Y-Z

APA2068_RIN-

1U-6.3-04Y-Z

1U-6.3-04Y-Z

APA2068_LIN-

1U-6.3-04Y-Z

1U-6.3-04Y-Z

AMP_SHDN#

3

R170

R170

30.9K-1-04

30.9K-1-04

VOLUME

R174

R174

6.49K-1-04

6.49K-1-04

7

U23

U23

8

VOLMAX

4

BYPASS

VOLUME

3

RIN-

6

LIN-

1

MUTE

2

SHUTDOWN#

+5V_AMP

C584

C584

C326

C326

4.7U-10-08Y-Z

4.7U-10-08Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

CODEC_GND

15

10

14

ROUT+

VDD

VDD

16

ROUT-

SE/BTL#FRONT_R

13

SE/BTL#

9

LOUT-

11

LOUT+

GND5GND

APA2068

APA2068

12

PIN17 =CODEC_GND

CODEC_GND CODEC_GND

SPKR1+
SPKR1-

SPKL1­SPKL1+

R183

R183
100K-04

100K-04

1 2

R410 0_06R410 0_06

1 2

R402 0_06R402 0_06

1 2

R422 0_06R422 0_06

1 2

R417 0_06R417 0_06

2

B18 BD-QT1608RL060HCB18 BD-QT1608RL060HC

Z3106
Z3107

B17 BD-QT1608RL060HCB17 BD-QT1608RL060HC

B16 BD-QT1608RL060HCB16 BD-QT1608RL060HC

Z3108

B15 BD-QT1608RL060HCB15 BD-QT1608RL060HC

Z3109

INT SPK AMP

CN12

CN12

SPK_R+

1

1

SPK_R-

2

2

SPK_L-

3

5

3

5

SPK_L+

4

6

4

6

CON-WTB-3801-F04N-01R

CON-WTB-3801-F04N-01R

C502

C502

C503

C503

C504

C504

C505

C505

@680P-50-04X-K

@680P-50-04X-K

@680P-50-04X-K

@680P-50-04X-K

@680P-50-04X-K

@680P-50-04X-K

@680P-50-04X-K

@680P-50-04X-K

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

G10ILX

G10ILX

G10ILX

CODEC & AMP

CODEC & AMP

5008

5008

5008

CODEC & AMP

1

of

of

of

31 33Thursday, June 26, 2008

31 33Thursday, June 26, 2008

31 33Thursday, June 26, 2008

C

C

C

5

4

3

2

1

MIC/Line In JACK

C281

MIC_JD_IN#

C281

@.1U-16-04R-K

@.1U-16-04R-K

5
4
3
6
2
1

Modify Rev:B
Modify Rev:C

Solve the ESD issue

CN16

CN16

CON_AUDIO_2SJ-S351-A01_SIN

CON_AUDIO_2SJ-S351-A01_SIN

B28

MIC_JD_SENSE#31

for ESD

4.7K-04

4.7K-04

Modify Rev:B

R303 1K-1-04R303 1K-1-04
R499 1K-1-04R499 1K-1-04

R172

R172

R157

R157

4.7K-04

4.7K-04

C280

D D

MIC_R31

MIC_L31

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C280

C256

C256

MIC_R_EXT
MIC_L_EXT

BD-1608K-601T03-300

BD-1608K-601T03-300

B22

B22

B21 BD-1608K-601T03-300B21 BD-1608K-601T03-300

470P-25-04X-K

470P-25-04X-K

B28

BD-1608K-601T03-300

BD-1608K-601T03-300

JACK_MIC_R

JACK_MIC_L

C255

C255

470P-25-04X-K

470P-25-04X-K

MIC_JPIN4

B23

B23

C238

C238

BD-1608K-601T03-300

BD-1608K-601T03-300

Modify Rev:B

MIC_VREFO_L31
MIC_VREFO_R31

MIC_VREFO_L
MIC_VREFO_R

HeadPhone JACK

C C

HP_JD_SENSE#31

B30

R188

+

+

LINE2_R31

LINE2_L31

C693 100U/4V_POSCAP

C693 100U/4V_POSCAP

+

+

C694 100U/4V_POSCAP

C694 100U/4V_POSCAP

LINE2_R_C

LINE2_L_C

Modify Rev:B

R188

75-1-04

75-1-04
R176

R176

75-1-04

75-1-04

LINE2_R_B

LINE2_L_B

R177

R177

22k-04

22k-04

22k-04

22k-04

CODEC_GND CODEC_GND

B30

BD-QT1608RL600

BD-QT1608RL600

BD-QT1608RL600

BD-QT1608RL600

R189

R189

PHONE_OUT_R
PHONE_OUT_L

B29

B29

C313

C313

@470P-25-04X-K

@470P-25-04X-K

C301

C301

@470P-25-04X-K

@470P-25-04X-K

B32

B32

BD-1608K-601T03-300

BD-1608K-601T03-300

PHONE_PIN4

B31

B31

BD-1608K-601T03-300

BD-1608K-601T03-300

LINE_OUT_IN#

C333

C333

@.1U-16-04R-K

@.1U-16-04R-K

CN18

CN18

5
4
3
6
2
1

CON_AUDIO_2SJ-S351-A01_SIN

CON_AUDIO_2SJ-S351-A01_SIN

Modify Rev:B
Modify Rev:C

Solve the ESD issue

Modify Rev:B

B B

MDC

+3.3VS+3.3VS

Modify Rev:B

CN15

CN15

1

GND

ACZ_SDATAOUT14

ACZ_SYNC14

ACZ_SDATAIN114

A A

5

R141 33-04R141 33-04

4

MDC_SYNC

3

SDO

5

GND

7

SYNC

9

SDI

11

RST#

3.3Vmain/aux

GND113GND214GND315GND416GND517GND6

2

RES1

4

RES2

6
8

GND

10

GND

12

BCLK

CON-BTB-88018-120L

CON-BTB-88018-120L

18

C260

C260

C244

MDC_BCLK

4.7U-10-08R-K

4.7U-10-08R-K

C244
.1U-16-04Y-Z

.1U-16-04Y-Z

R158

R158

33-04

33-04

ACZ_BITCLK 14ACZ_RST#14

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

2

Date: Sheet

G10ILX

G10ILX

G10ILX

EXT_MIC/HEADPHONE/MDC

EXT_MIC/HEADPHONE/MDC

EXT_MIC/HEADPHONE/MDC

5008

5008

5008

1

of

of

of

32 33Thursday, June 26, 2008

32 33Thursday, June 26, 2008

32 33Thursday, June 26, 2008

R137

R137
@0-04

@0-04

Z3201

3

C

C

C

5

D D

4

3

2

1

MDC

MH1

MH1

MH2

UCN501

UCN501

1
2

MDC CON-1

C C

B B

MDC CON-1

UC503 150P_3KV_1808UC503 150P_3KV_1808

URV502

URV502
DSSAP3100SBRP

DSSAP3100SBRP

UC505 150P_3KV_1808UC505 150P_3KV_1808

MDC_CHASIS_GND

MODEM_RX+

MODEM_TX+

MDC C0N-2

MDC C0N-2

2
1

UCN2

UCN2

MDC_GND1MDC_GND1 MDC_GND1 MDC_GND

MH2

PTH

PTH

PTH

PTH

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

G10ILX

G10ILX

G10ILX

CODEC & AMP

CODEC & AMP

5008

5008

5008

CODEC & AMP

1

of

of

of

33 34Thursday, June 26, 2008

33 34Thursday, June 26, 2008

33 34Thursday, June 26, 2008

C

C

C

5

Chnage Note: R:A to R:B
LAYOUT

1.PAGE.5 - R43 change to connect the CpuCore pull high to solve sequence issue

2.PAGE.7 - USB48MHZ add 10pf for EMI

4.PAGE.11 - Cap change to 2.2uF for CRT ripple noise

5.PAGE.13- Add diode for CRT 5V leakage issue

6.PAGE.13 - Modify LCD Power to cover white screen for LCD issue

D D

7.PAGE.14 - Enable INTVERMAN

8.PAGE.15 - USB 4 & 6 Swap for verify HSPA board eye pattaon issue

9.PAGE.17 - Change to POLYFUSE for USB shundown issue

10.PAGE.17 - Remove SATA 3.3V Power

11.PAGE.18 - Charge LED connect to 3.3VA

12.PAGE.18 - SATA_LED connect to EC for SSD HD used

13.PAGE.19 - Add CN20 CN17 for Second ID used

14.PAGE.20 -Reverse LAN singal for PINDEFINE issue

15.PAGE.21-for 5158E issue change the 3.3V

16.PAGE.22-for Safty reserve the Protect circuit

17.PAGE.22-Powerswitch Conn revese

18.PAGE.23-Lid IC pull high 47K for resume issue

19.PAGE.23-Change EC pindefine for 4/6 EC VERISON ISSUE

20.PAGE.28 Add Power down mode cut system power for battary leakage issue

21.PAGE.29 Battary conn reverse for M1 request

22.PAGE.29 Battary conn reverse

C C

B B

4

3

2

1

Chnage Note: R:A to R:B

BOM

1.PAGE.7- c130 C89 mount 10pF for EMI

2.PAGE.11 C142 change to 2.2uF

3.PAGE.13 change to U27 U25 and gate for H & V singal

4.PAGE.13 R159 R173 39 ohm to 0 ohm

5.PAGE.13 Add D7 for CRT 5V leakage

6.PAGE.14 R185 mount 330K for Enable intverman mode

7.PAGE.14 R221 mount 10K for EC_SMI PULL HIGH

8.PAGE.16 R274 R265 remove for Enable interman mode

9.PAGE.17 0ohm change L1 common choke for EMI

10.PAGE.17 L2 L3 L5 change the CK-2012F2SF-900T04 for EMI request

11.PAGE.17 PS1 ~3 change to POLYFUSE for USB shundown issue

12.PAGE.18 SSD 3G ' B/T change to common choke CK-2012F2SF-900T04 for EMI request

13.PAGE.20 R348 PULL HIGH 3.6K for Lan Power manger
14 PAGE.21 Y4 change type for Thermal issue , mirror to BOT side
15 PAGE.21 C366 change to 2.2uF for Cardreader power
16 PAGE.21R326 R331 change bead value for EMI request FCM1608CF-121T03
17 PAGE.21R326 R331 change bead value for EMI request FCM1608CF-121T03
18 PAGE.23 R372 mount 47K for Lid ic issue can't resume form its self
19 PAGE.24 mount JP9 for enable INTVERMAN mode
20 PAGE.24 R587 C649 R401 C404 R393 C402 for fine tune Power sequence timing
21 PAGE.25 modify value for 1.8VS& 1.05VS
22 PAGE.26 modify value for CPU Core
23 PAGE.27 modify value for +1.5V
24 PAGE.28 modify value for 3.3VA & 5VS
25 PAGE.28 Q58 2n7002 change to 3904
26 PAGE.29 CN19 change to reserve connector (battary)
27 PAGE.31 R561 change to 6.5k_1% for Amp Gain
28 PAGE.32 C625 C626 change type for Thd+N 100uF
29 PAGE.33 R608 R609 mount 1k for ESD issue
30 PAGE.33 R568 R569 change 22k FOR sound too small
30 PAGE.33 CN23 CN24 change type for ID

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

5008

5008

5008

G10ILX

G10ILX

G10ILX

Appendix Ver. History

Appendix Ver. History

Appendix Ver. History

1

of

34 34Thursday, June 26, 2008

of

34 34Thursday, June 26, 2008

of

34 34Thursday, June 26, 2008

CCustom

CCustom

CCustom
