B75H2-M4 USER MANUAL
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation
of the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.
ii
B75H2-M4 USER MANUAL
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouilieur du Canada.
The manual consists of the following:
Describes features of the
motherboard.
H
page 1
Describes installation of
motherboard components.
H
page 7
H
page 27
H
page 55
Installing the Motherboard
Introducing the Motherboard
Provides information on using the BIOS Setup Utility.
Describes the motherboard
software.
Limits and methods of mesurement of radio disturbance characteristics of information technology equipment
EN 55022
EN 61000-3-2
Disturbances in supply systems caused
EN 61000-3-3
Disturbances in supply systems caused by household appliances and similar electrical equipment “ Voltage fluctuations”
EN 55024
Information technology equipment-Immunity characteristicsLimits and methods of measurement
EN 60950
Safety for information technology equipment including electrical business equipment
CE marking
About the Manual
This device is in conformity with the following EC/EMC directives:
Chapter 4
Chapter 1
Chapter 2
Chapter 3
Using BIOS
Using the Motherboard Software
Chapter 5
Trouble Shooting
Provides basic trouble
shooting tips.
page 59
H
iii
B75H2-M4 USER MANUAL
Chapter 2 7
Installing the Motherboard 7
Safety Precautions..............................................................................7
Installing the Motherboard in a Chassis.......................................7
Checking Jumper Settings..................................................................8
Installing Hardware...........................................................................9
Installing the Processor............................................................9
Installing the CPU Cooler........................................................11
Installing Memory Modules...................................................12
Installing Add-on Cards..........................................................13
Connecting Optional Devices.................................................15
Installing a SATA Hard Drive...................................................21
Connecting Case Components........................................................22
Front Panel Header................................................................24
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...........................................................................................1
Pakage Contents..................................................................................1
Specifications......................................................................................2
Motherboard Components................................................................4
I/O Ports...............................................................................................6
Chapter 3 27
Using BIOS 27
About the Setup Utility......................................................................27
The Standard Configuration........................ ...........................27
Entering the Setup Utility.......................................................27
Resetting the Default CMOS Values.....................................28
Using BIOS.........................................................................................28
BIOS Navigation Keys..............................................................29
Main Menu.............................................................................30
Advanced Menu......................................................................31
Chipset Menu..........................................................................43
M.I.B III(MB Intelligent Bios III) Menu....................................46
Boot Menu...............................................................................50
Security Menu.........................................................................51
Exit Menu................................................................................52
Updating the BIOS......................................................................53
iv
B75H2-M4 USER MANUAL
Chapter 4 55
Using the Motherboard Software 55
Auto-installing under Windows XP/7/8.......................................55
Running Setup........................................................................55
Manual Installation..........................................................................57

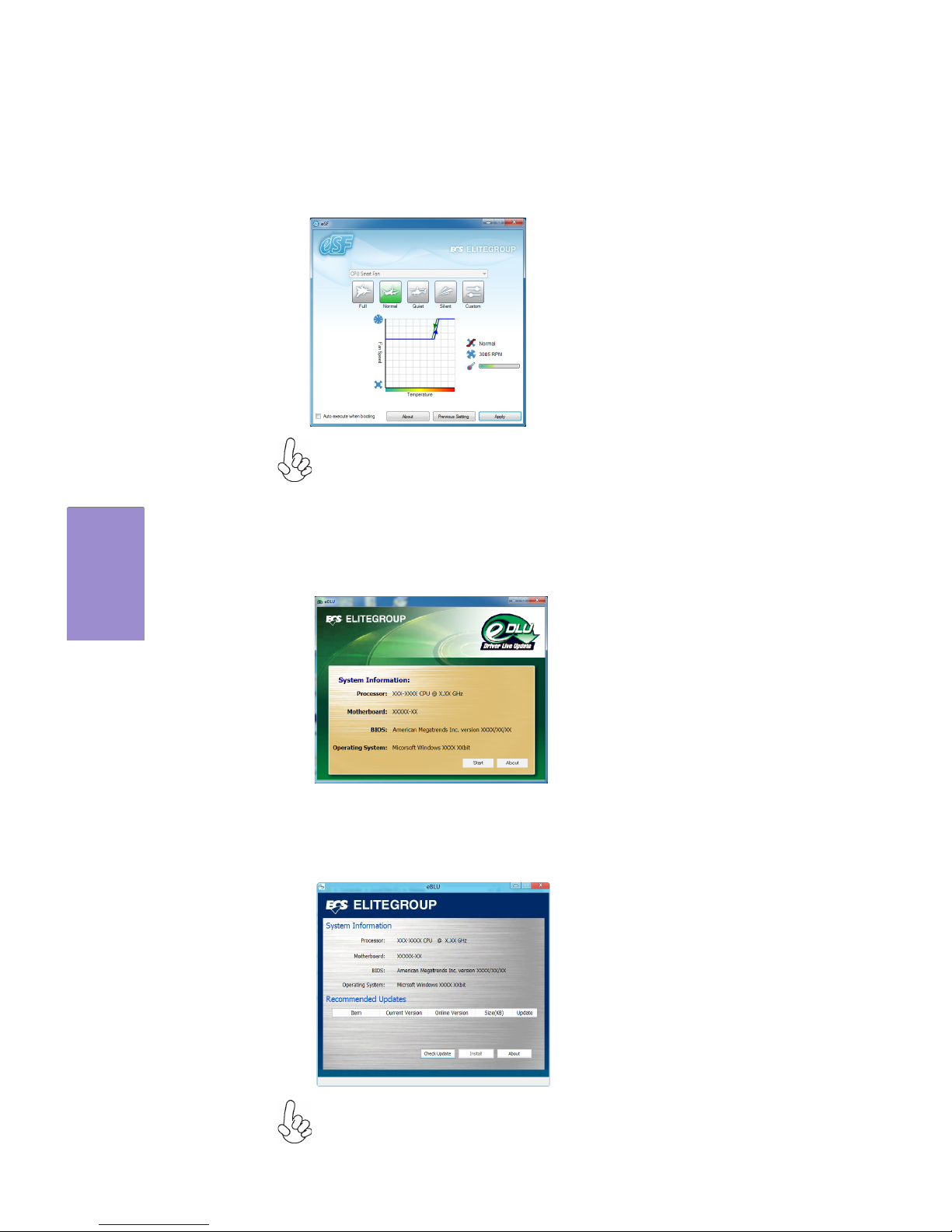

ECS Utility Software (Intelligent EZ Utility).....................................57
Chapter 5 59
Trouble Shooting 59
Start up problems during assembly..............................................59
Start up problems after prolong use............................................60
Maintenance and care tips..............................................................60
Basic Troubleshooting Flowchart.....................................................61
1
B75H2-M4 USER MANUAL
Chapter 1
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the B75H2-M4 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1155
socket for 2nd/3rd Generation Intel
®®
®®
®
Sandy/Ivy Bridge Processors.
This motherboard is based on Intel
®®
®®
®
B75 Express Chipset for best desktop platform
solution. It supports up to 16 GB of system memory with dual channel DDR3 1600/
1333/1066 MHz. One PCI Express x16 slot, intended for Graphics Interface, is fully
conformed to PCI Express 3.0* Standard. In addition, one PCI Express x1 slot and one
PCI1 slot are for extending usage.
It integrates USB 2.0 and USB 3.0 interface, supporting up to eight USB 2.0 ports (four
USB 2.0 ports and two USB 2.0 headers support additional four USB 2.0 ports) and
four USB 3.0 ports (two USB 3.0 ports at the rear panel and one USB 3.0 header supports additional two USB 3.0 ports).
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including PS/2 mouse and PS/2 keyboard combo connector, four USB 2.0 ports, one
HDMI (or DVI) port, one VGA port, two USB 3.0 ports, one RJ45 LAN connector, and
audio jacks for microphone, line-in and 6-ch line-out.
In addition, this motherboard supports one SATA 6Gb/s and three SATA 3Gb/s con-
nectors for expansion.
Your motherboard package ships with the following items:
Package Contents
B75H2-M4 Motherboard
Quick Installation Guide
User Manual
DVD
I/O Shield
1 SATA 3Gb/s Cable, 1 SATA 6Gb/s Cable
The package contents above are for reference only, please take the actual
package items as standard.
*Intel Ivy Bridge CPU required.
Chapter 1
2
B75H2-M4 USER MANUAL
CPU
Specifications
• Intel® B75 ChipsetChipset
• Dual-channel DDR3 memory architecture
• 2 x 240-pin DDR3 DIMM sockets support up to 16 GB
• Supports DDR3 1600/1333/1066 MHz DDR3 SDRAM
Memory
• 1 x PCI Express x16 Gen3* slot
(*Intel Ivy Bridge CPU required.)
• 1 x PCI Express x1 slot
• 1 x PCI1 slot
• Supported by Intel® B75 Express Chipset
- 3 x Serial ATA 3Gb/s devices
- 1 x Serial ATA 6Gb/s device
Expansion
Slots
Storage
• 1 x PS/2 keyboard and PS/2 mouse combo connector
• 4 x USB 2.0 ports
• 1 x HDMI port (or DVI port)
• 1 x VGA port
• 2 x USB 3.0 ports compatible to both USB 3.0/2.0 devices
(blue)
• 1 x RJ45 LAN connector
• 1 x Audio port (1x Line in, 1x Line out, 1x Mic_in Rear)
Rear Panel I/O
LAN • Realtek RTL8111E Gigabit Lan
- 10/100/1000 Fast Ethernet Controller
- Wake-on-LAN and remote wake-up support
• LGA1155 socket for 2nd/3rd Generation Intel® Sandy/Ivy Bridge
Processors
• Supports New 22nm Intel® CoreTM micro-architecture
• DMI 5.0GT/s
Note: Please go to ECS website for the latest CPU support list.
Note: Please go to ECS website for the latest Memory support list.

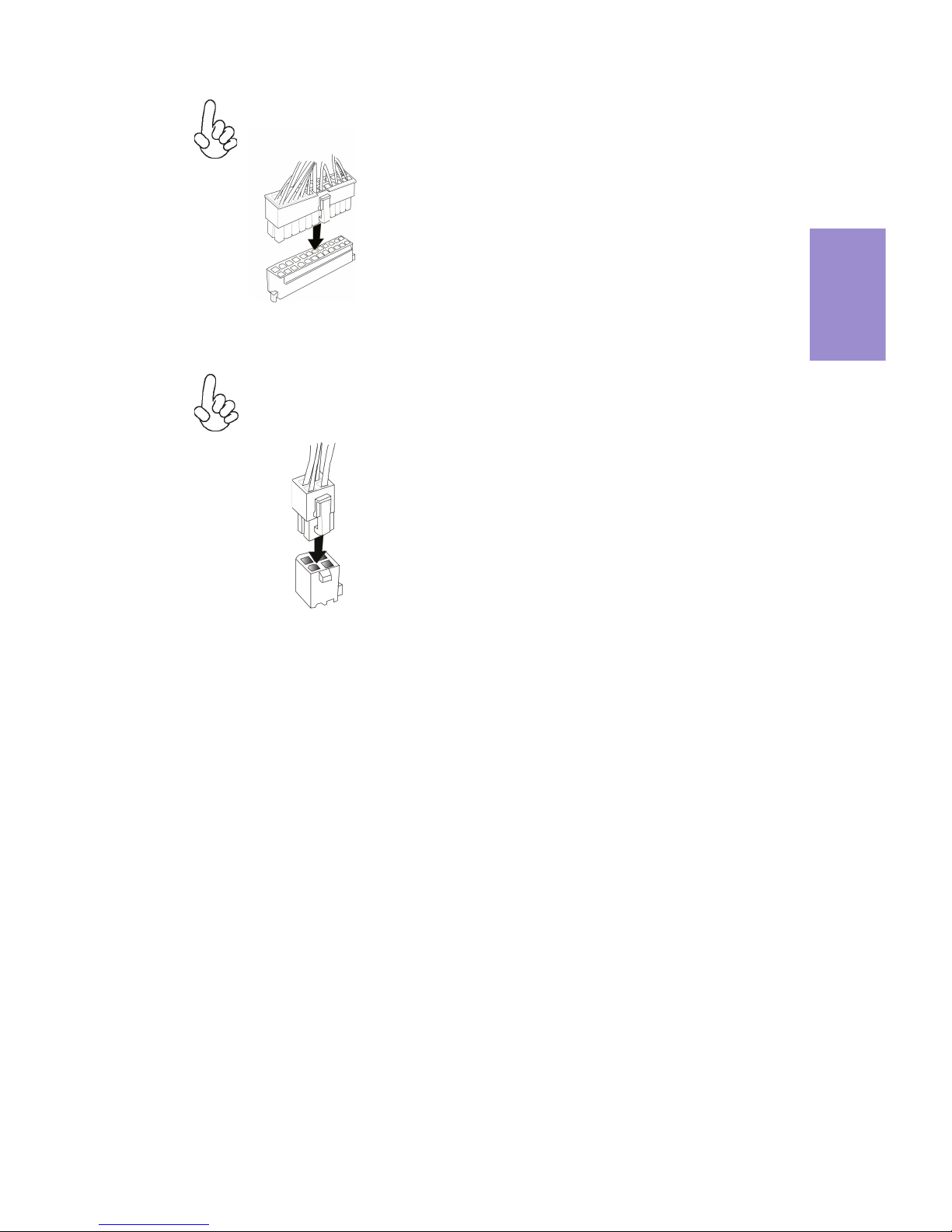

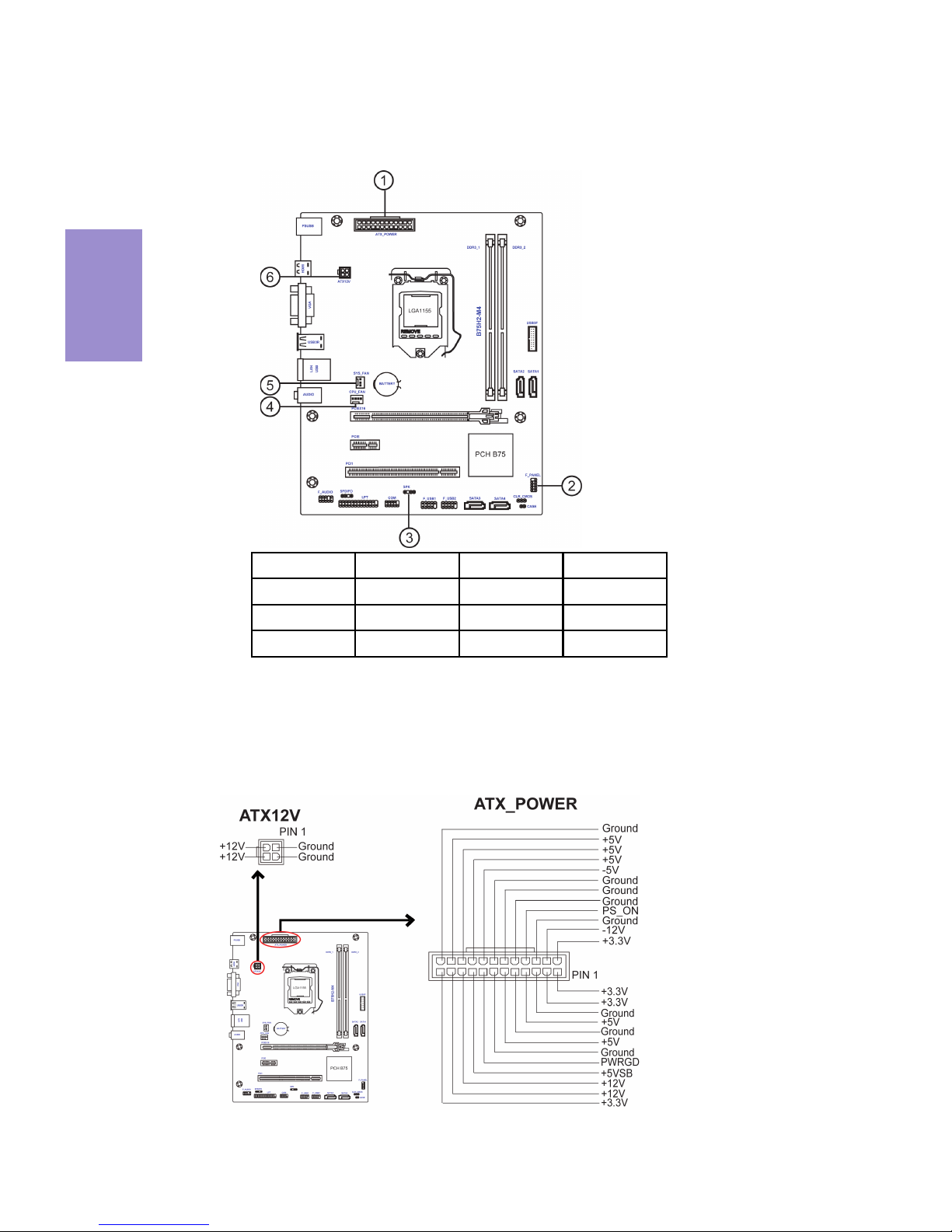

• 1 x 24-pin ATX Power Supply connector
• 1 x 4-pin 12V Power connector
• 1 x 4-pin CPU_FAN connector
• 1 x 3-pin SYS_FAN connector
• 2 x USB 2.0 headers support additional four USB 2.0 ports
• 1 x USB 3.0 header supports additional two USB 3.0 ports
• 3 x SATA 3Gb/s connectors
• 1 x SATA 6Gb/s connector
• 1 x COM header
• 1 x Case open header
• 1 x SPDIF out header
• 1 x CLR_CMOS header
Internal I/O
Connectors &
Headers
• Realtek ALC662 (colay: VT1705CF)
- 6 Channel High Definiton Audio Codec
- Compliant with HD audio specification
Audio
3
B75H2-M4 USER MANUAL
Chapter 1
• AMI BIOS with 64Mb SPI Flash ROM
• Supports Plug and Play
• Supports ACPI & DMI
• STR(S3)/STD(S4)
• Supports Hardware Monitor
• Audio, LAN, can be disabled in BIOS
• F7 hot key for boot up devices option
• Supports Pgup clear CMOS Hotkey (Has PS2 KB Model only)
• Supports Dual-display (depends on display output)
• Supports Multi-Language
System BIOS
Form Factor
• Micro-ATX Size, 230mm x 180mm
• 1 x Front Panel audio header
• 1 x Front Panel switch/LED header
• 1 x Speaker header
• 1 x Parallel port header(LPT)
• Supports AC,97/HD Audio auto detect (default)
Chapter 1
4
B75H2-M4 USER MANUAL
Motherboard Components
5
B75H2-M4 USER MANUAL
Chapter 1
Table of Motherboard Components
LABEL
COMPONENTS
1. CPU Socket
LGA1155 socket
2. DDR3_1~2
240-pin DDR3 Module slots
3. USB3F
Front panel USB 3.0 header
4. SATA1
Serial ATA 6.0 Gb/s connector
5. SATA2~4
Serial ATA 3.0 Gb/s connectors
6. F_PANEL
Front panel switch/LED header
7. CLR_CMOS
Clear CMOS jumper

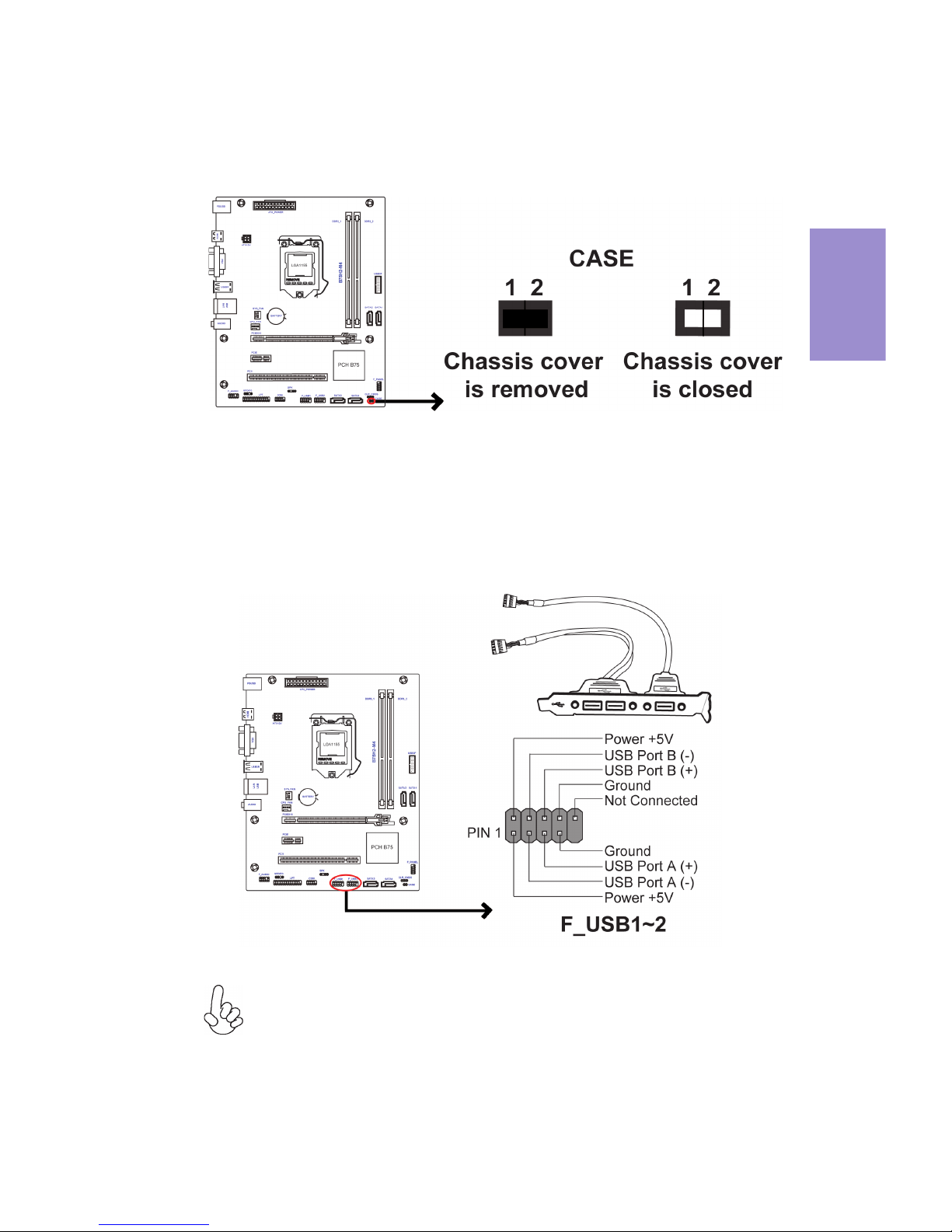

8. CASE
CASE open header
9. F_USB1~2
Front panel USB 2.0 headers
10. COM
Onboard serial port header
11. LPT
Printer header
12. SPDIFO
SPDIF out header
13. F_AUDIO
Front panel audio header

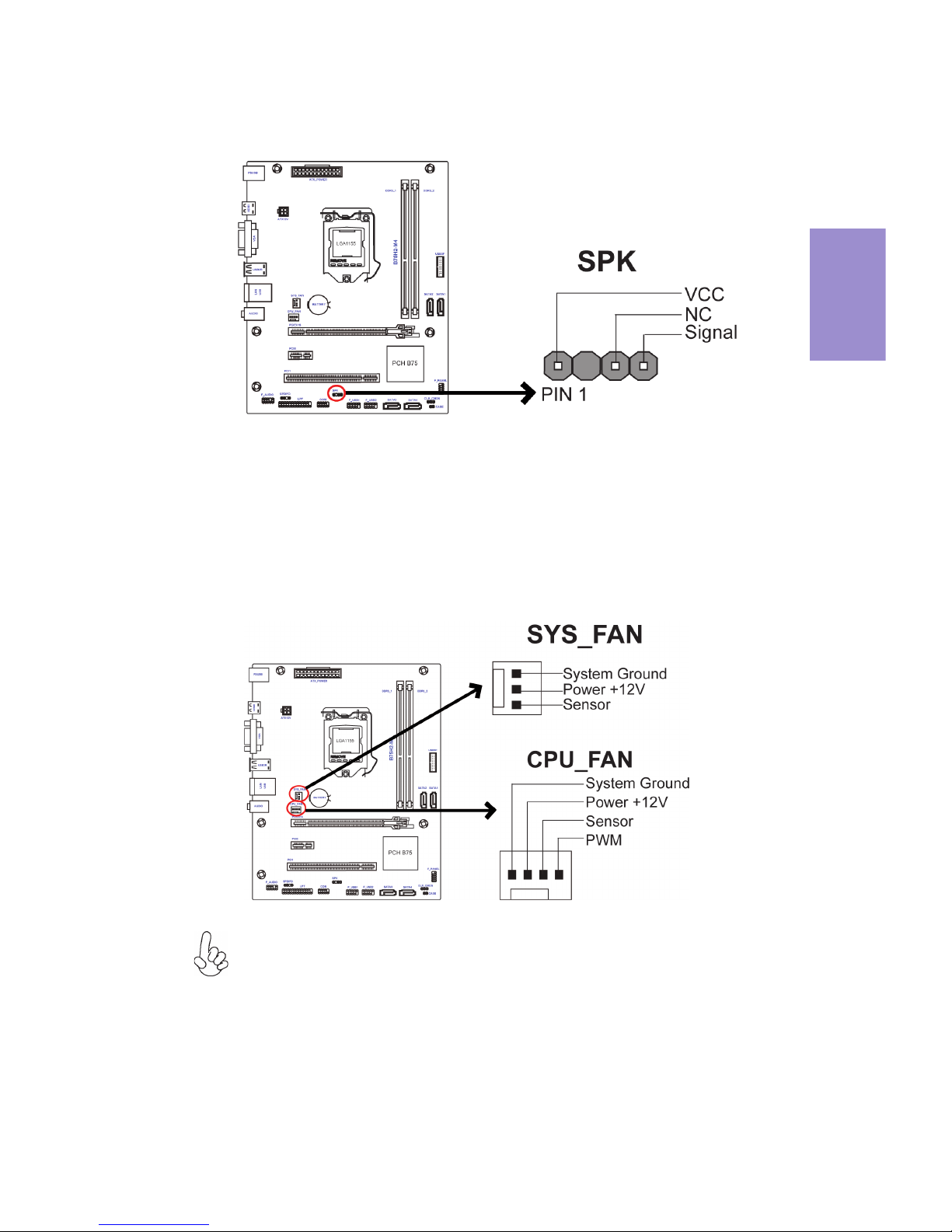

14. SPK
Speaker header
15. PCI1
32-bit add-on card slot
16. PCIE
PCI Express x1 slot
17. PCIEX16
PCI Express slot for graphics interface
18. CPU FAN
4-pin CPU cooling fan connector
19. SYS_FAN
3-pin system cooling fan connector
20. ATX12V
4-pin +12V power connector
21. ATX_POWER
Standard 24-pin ATX power connector
Chapter 1
6
B75H2-M4 USER MANUAL
I/O Ports
1. PS/2 Mouse and PS/2 Keyboard combo connector
Use this PS/2 port to connect a PS/2 mouse or a PS/2 keyboard.
2. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
3. HDMI (or DVI) Port
You can connect the display device to the HDMI (or DVI) port.
4. VGA Port
Connect your monitor to the VGA port.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
8. Line-out(lime)
It is used to connect to speakers or headphones.
9. Microphone(pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No d ata
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
or
Chapter 2
7
B75H2-M4 USER MANUAL
Chapter 2
Installing the Motherboard
2-1. Safety Precautions
2-2. Installing the motherboard in a Chassis
This motherboard carries a Micro ATX form factor of 230 x 180 mm. Choose a chassis
that accommodates this from factor. Make sure that the I/O template in the chassis
matches the I/O ports installed on the rear edge of the motherboard. Most system
chassis have mounting brackets installed in the chassis, which corresponds to the
holes in the motherboard. Place the motherboard over the mounting brackets and
secure the motherboard onto the mounting brackets with screws.
Follow these safety precautions when installing the motherboard:
• Wear a grounding strap attached to a grounded device to avoid damage
from static electricity.
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard.
• Leave components in the static-proof bags.
• Always remove the AC power by unplugging the power cord from the power
outlet before installing or removing the motherboard or other hardware
components.
Do not over-tighten the screws as this can stress the motherboard.
Chapter 2
8
B75H2-M4 USER MANUAL
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
2-3. Checking Jumper Settings
Chapter 2
9
B75H2-M4 USER MANUAL
2-4. Installing Hardware
2-4-1. Installing the Processor
• This motherboard has an LGA1155 socket.
• When choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the clock speed
and system bus frequency of the processor, and the quantity of internal
cache memory and external cache memory.
• You may be able to change the settings in the system Setup Utility. We
strongly recommend you do not over-clock processor or other components to run faster than their rated speed.
• The following illustration shows CPU installation components.
A. Press the hook of lever down with your thumb and pull it to the right
side to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open
position.
C. Grasp the edge of the package substrate. Make sure pin 1 indicator
is on your bottom-left side. Aim at the socket and place the package
carefully into the socket by purely vertical motion.
Chapter 2
10
B75H2-M4 USER MANUAL
D. Rotate the load plate onto the package IHS (Intergraded Heat
Spreader). Engage the load lever while pressing down lightly onto the
load plate. Secure the load lever with the hook under retention tab. Then
the cover will flick automatically.
Please save and replace the cover onto the CPU socket if processor is removed.
Chapter 2
11
B75H2-M4 USER MANUAL
A. Apply some thermal grease onto the contacted area between the
heatsink and the CPU, and make it to be a thin layer.
B. Fasten the cooling fan supporting base onto the CPU socket on the
motherboard. And make sure the CPU fan is plugged to the CPU fan
connector.
C. Connect the CPU cooler power connector to the CPU_FAN connector.
2-4-2. Installing the CPU Cooler
• Install the cooling fan in a well-lit work area so that you can clearly see the
motherboard and processor socket.
• Avoid using cooling fans with sharp edges in case the fan casing and the
clips cause serious damage to the motherboard or its components.
• To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 3800 rpm at least. CPU fan and heat sink installation procedures may vary with the type of CPU fan/heatsink supplied.
The form and size of fan/heatsink may also vary.
• DO NOT remove the CPU cap from the socket before installing a CPU.
• Return Material Authorization (RMA) requests will be accepted only if the
motherboard comes with the cap on the LGA1155 socket.
• The following illustration shows how to install CPU fan.
Chapter 2
12
B75H2-M4 USER MANUAL
2-4-3. Installing Memory Modules
• This motherboard accommodates four memory modules. It can support
two 240-pin DDR3 1600
*/1333/1066.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install at least one module in any of the two slots. Total memory
capacity is 16 GB.
• Refer to the following to install the memory modules.
C. The slot latches are levered upwards and latch on to the edges of the
DIMM.
A. Push the latches on each side of the DIMM slot down.
B. Install the DIMM module into the slot and press it firmly down until it
seats correctly. Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot.
*Intel Ivy Bridge CPU required.
Chapter 2
13
B75H2-M4 USER MANUAL
2-4-4. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can
increase the motherboard’s capabilities by adding hardware that performs tasks
that are not part of the basic system.
PCIEX16 Slot
The PCI Express x16 slot is used to install an external PCI Express graphics card that is fully compliant to the PCI Express
Base Specification revision 3.0
*.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.
The PCI Express x1 slot is fully compliant to the PCI Express Base
Specification revision 2.0.
PCIE Slot
This motherboard is equipped with one standard PCI slot. PCI
stands for Peripheral Component Interconnect and is a bus
standard for expansion cards, which for the most part, is a
supplement of the older ISA bus standard. The PCI slot on this
board is PCI v2.3 compliant.
PCI1 Slot
*Intel Ivy Bridge CPU required.
Chapter 2
14
B75H2-M4 USER MANUAL
Install the VGA Card in the PCIE X16 slot
1 Remove a blanking plate from the system case corresponding to the slot
you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
1. For some add-on cards, for example graphics adapters and network adapters, you have to install drivers and software before you can begin using the
add-on card.
2. The onboard PCI interface does not support 64-bit SCSI cards.
Follow these instructions to install an add-on card:
Please refer the following illustrations to install the add-on card:
Install the LAN Card in the PCIE X1 slotInstall the VGA Card in the PCI1 slot
Chapter 2
15
B75H2-M4 USER MANUAL
2-4-5. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 USB3F 5 COM
2 SATA1 ~4 6 LPT
3 CASE 7 SPDIFO
4 F_USB1~2 8 F_AUDIO
Chapter 2
16
B75H2-M4 USER MANUAL
Please make sure that the USB cable has the same pin assignment as indicated above. A different pin assignment may cause damage or system hangup.
This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0
ports, which delivers 5Gb/s transfer rate.
1. USB3F: Front Panel USB 3.0 header
SATA2~4 connectors are used to support the Serial ATA 3.0Gb/s devices, and SATA1
connector supports the Serial ATA 6.0Gb/s device, simpler disk drive cabling and
easier PC assembly. It eliminates limitations of the current Parallel ATA interface.
But maintains register compatibility and software compatibility with Parallel ATA.
2. SATA1~4: Serial ATA connectors
Chapter 2
17
B75H2-M4 USER MANUAL
The motherboard have two USB 2.0 headers supporting four USB 2.0 ports. Additionally, some computer cases have USB ports at the front of the case. If you have this
kind of case, use auxiliary USB connector to connect the front-mounted ports to the
motherboard.
3. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
Please make sure that the USB cable has the same pin assignment as indicated above. A different pin assignment may cause damage or system hangup.
4. F_USB1~2: Front Panel USB 2.0 headers
Chapter 2
18
B75H2-M4 USER MANUAL
5. COM: Onboard serial port header
6. LPT: Onboard parallel port Header
This is a header that can be used to connect to the printer, scanner or other devices.
Connect a serial port extension bracket to this header to add a serial port to your
system.
Chapter 2
19
B75H2-M4 USER MANUAL
This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface)
output to digital multimedia device through optical fiber or coaxial connector.
7. SPDIFO: SPDIF out header
The front panel audio header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC’ 97 front panel audio to HD onboard headers,
please set as below picture.
8. F_AUDIO: Front Panel Audio Header
Chapter 2
20
B75H2-M4 USER MANUAL
If you use AC’ 97 Front Panel, please tick off the option of “Disabled Front Panel
Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel
Detect
” .
* For reference only
AC’ 97 Audio Configuration: To enable the front panel audio connector to support AC97 Audio mode.
If you use AC’ 97 Front Panel, please don’ t tick off “ Using Front Jack Detect ” . If you
use HD Audio Front Panel, please tick off the option of “Using Front Jack Detect ”.
* For reference only
Chapter 2
21
B75H2-M4 USER MANUAL
2-4-6. Installing a SATA Hard Drive
About SATA Connectors
Your motherboard features four SATA connectors supporting a total of four drives.
SATA refers to Serial ATA (Advanced Technology Attachment) is the standard interface
for the IDE hard drives which are currently used in most PCs. These connectors are
well designed and will only fit in one orientation. Locate the SATA connectors on the
motherboard and follow the illustration below to install the SATA hard drives.
To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the Serial
ATA protocol. This SATA cable comes with a SATA power cable. You can connect either
end of the SATA cable to the SATA hard drive or the connector on the motherboard.
Refer to the illustration below for proper installation:
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the other
end to the power supply.
* For reference only
Installing Serial ATA Hard Drives
This section describes how to install a SATA Hard Drive.
Chapter 2
22
B75H2-M4 USER MANUAL
1 & 6. ATX_POWER (ATX 24-pin Power Connector) & ATX12V (ATX12V Power
Connector)
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V.
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
2-4-7. Connecting Case Components
No. Components No. Components
1ATX_POWER4 CPU_FAN
2 F_P ANEL 5 SYS_FAN
3 SPK 6 ATX12V
Chapter 2
23
B75H2-M4 USER MANUAL
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX match perfectly.
Connecting 24-pin power cable
24-pin power cable
The ATX12V4P power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V4P
match perfectly.
Connecting 4-pin power cable
4-pin power cable
Chapter 2
24
B75H2-M4 USER MANUAL
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that
data is being read from or written to the hard drive. For the LED to function properly,
an IDE drive should be connected to the onboard IDE interface. The LED will also
show activity for devices connected to the SCSI (hard drive activity LED) connector.
Power/Sleep/Message waiting LED
Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides
power on/off, sleep, and message waiting indication.
Reset Switch
Supporting the reset function requires connecting pin 5 and 7 to a momentary-contact switch that is normally open. When the switch is closed, the board resets and
runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at
least 50 ms to signal the power supply to switch on or off. The time requirement is
due to internal de-bounce circuitry. After receiving a power on/off signal, at least
two seconds elapses before the power supply recognizes another on/off signal.
2. Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:
Chapter 2
25
B75H2-M4 USER MANUAL
Connect the case speaker cable to SPK.
3. SPK: Speaker
This concludes Chapter 2. The next chapter covers the BIOS.
4 & 5. CPU_FAN (CPU cooling FAN Power Connector) & SYS_FAN (System Cooling FAN Power Connector)
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
Connect the system cooling fan connector to SYS_FAN.
Connect the CPU cooling fan cable to CPU_FAN.
Chapter 2
26
B75H2-M4 USER MANUAL
Memo
B75H2-M4 USER MANUAL
27
Chapter 3
About the Setup Utility
The computer uses the latest “American Megatrends Inc.” BIOS with support for
Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup
instructions for configuring the motherboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information
when the power is turned off. When the system is turned back on, the system is
configured with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
• Hard drives, diskette drives and peripherals
• Video display type and display options
• Password protection from unauthorized use
• Power Management features
The settings made in the Setup Utility affect how the computer performs. Before
using the Setup Utility, ensure that you understand the Setup Utility options.
This chapter provides explanations for Setup Utility options.
The Standard Configuration
A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the
future.
This Setup Utility should be used:
• when changing the system configuration
• when a configuration error is detected and you are prompted to make
changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security
Setup
Press DEL to enter SETUP
Chapter 3
Using BIOS
Entering the Setup Utility
When you power on the system, BIOS enters the Power-On Self Test (POST) routines.
POST is a series of built-in diagnostics performed by the BIOS. After the POST routines
are completed, the following message appears:
B75H2-M4 USER MANUAL
28
Chapter 3
Press the delete key to access BIOS Setup Utility.
Using BIOS
When you start the Setup Utility, the main menu appears. The main menu of the
Setup Utility displays a list of the options that are available. A highlight indicates
which option is currently selected. Use the cursor arrow keys to move the highlight
to other options. When an option is highlighted, execute the option by pressing
<Enter>.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to
execute that option. Other options lead to dialog boxes that prompt you for information.
Some options (marked with an icon
) lead to submenus that enable you to change
the values for the option. Use the cursor arrow keys to scroll through the items in the
submenu.

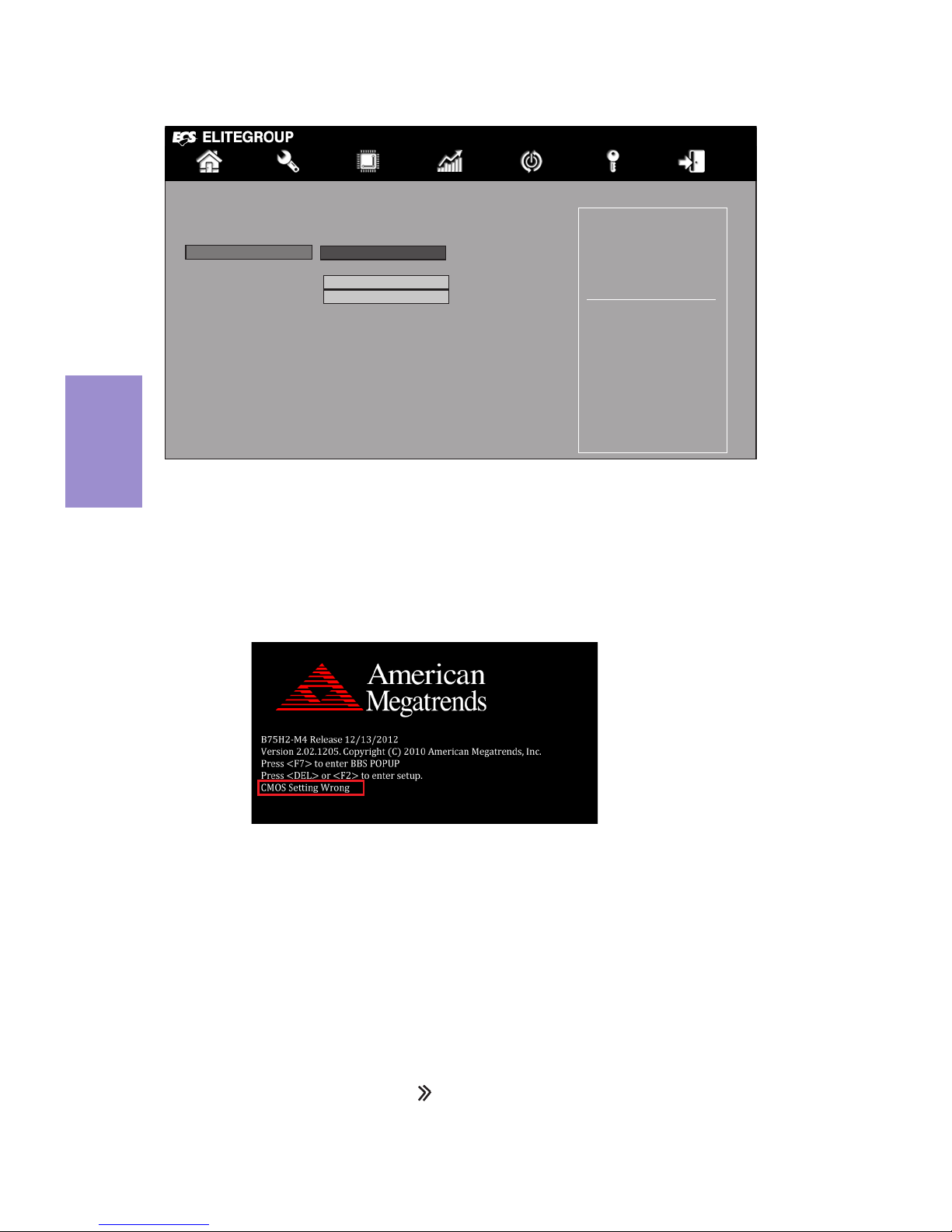

Resetting the Default CMOS Values
When powering on for the first time, the POST screen may show a “CMOS Settings
Wrong” message. This standard message will appear following a clear CMOS data
at factory by the manufacturer. You simply need to Load Default Settings to reset
the default CMOS values.
Note: Changes to system hardware such as different CPU, memories, etc. may
also trigger this message.
Choose the system default
language
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
BIOS Information
System Language English
System Date
Wed 04/24/2013
System Time 00:02:37
B75H2-M4 USER MANUAL
29
Chapter 3
The default BIOS setting for this motherboard apply for most conditions
with optimum performance. We do not suggest users change the default
values in the BIOS setup and take no responsibility to any damage caused
by changing the BIOS settings.
In this manual, default values are enclosed in parenthesis. Submenu items are
denoted by an icon
.
BIOS Navigation Keys
The BIOS navigation keys are listed below:
KEY FUNCTION
Scrolls through the items on a menu
+/- Change Opt.
F2 Previous Value
F3 Optimized Defaults
F1 General Help
ESC Exits the current menu
Enter Select
F4 Save & Exit
1. For the purpose of better product maintenance, the manufacture
reserves the right to change the BIOS items presented in this manual. The
BIOS setup screens shown in this chapter are for reference only and may
differ from the actual BIOS. Please visit the manufacture’s website for
updated manual.
2. In this Gui BIOS, you can operate by mouse or keyboard. Click : select
item; Double click: enter; Right click: exit.
B75H2-M4 USER MANUAL
30
Chapter 3
System Date & Time
The Date and Time items show the current date and time on the computer. If you are
running a Windows OS, these items are automatically updated whenever you make
changes to the Windows Date and Time Properties utility.
System Language (English)
This item is used to set system language.
When you enter the BIOS Setup program, the main menu appears, giving you an
overview of the basic system information. Select an item and press <Enter> to
display the submenu.
Main Menu
Choose the system default
language
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
BIOS Information
System Language English
System Date
Wed 04/24/2013
System Time 00:02:37
B75H2-M4 USER MANUAL
31
Chapter 3
The Advanced menu items allow you to change the settings for the CPU and other
system.
Advanced Menu
LAN Configuration
The item in the menu shows the LAN-related information that the BIOS
automatically detects.
Onboard LAN Controller (Enabled)
Use this item to enable or disable Onboard LAN 1 controller.
Press <Esc> to return to the Advanced Menu page.
LAN Configuration Parameters
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
LAN Configuration
PC Health Status
ACPI Settings
CPU Configuration
SATA Configuration
USB Configuration
Super IO Configuration
Intel(R) Rapid Start Technology
Intel(R) Smart Connect Technology
Intel ME BIOS Extension Configuration
Power Management Setup
Enabled/Disabled Onboard
LAN1 Controller
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
LAN Configuration
Onboard LAN Controller Enabled
B75H2-M4 USER MANUAL
32
Chapter 3
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
CPU/System Smart Fan Control (Enabled)
This item allows you to enable/disable the control of the CPU/System fan speed by
changing the fan voltage.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
DeltaT 3
Smart Fan Slope PWM value 10 PWM value/unit
CPU Fan Full Speed Offset (-) 23
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
System Temperature : 24 0C
CPU Fan Speed : 0 RPM
System Fan Speed : 0 RPM
CPU Voltage : 1.152V
DIMM Voltage : 1.548V
+5V : 5.160V
+12V : 11.952V
-=- PECI Mode -=-
Offset to TCC Activation Temp. : -47
Smart Fan Function
PC Health Status
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
DeltaT 3
Smart Fan Slope PWM value 10 PWM value/unit
System Fan Full Speed Offset (-) 23
System Smart Fan Control
Smart Fan Mode Normal
Enabled
B75H2-M4 USER MANUAL
33
Chapter 3
System Component Characteristics
These items display the monitoring of the overall inboard hardware health events,
such as CPU fan speed, CPU & DIMM voltage... etc.
Smart Fan Mode (Normal)
This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a
better operation environment. If you choose Normal mode, the fan speed will be
auto adjusted depending on the CPU temperature. If you choose Quiet mode, the
fan speed will be auto minimized for quiet environment. If you choose Silent mode,
the fan speed will be auto restricted to make system more quietly. If you choose
Manual mode, the fan speed will be adjusted depending on users’ parameters.
Smart Fan Start PWM value (180)
Smart Fan Start TEMP(-) (30)
This item is used to set the start PWM value of the smart fan.
This item is used to set the start temperature of the smart fan.
DeltaT (3)
This item specifies the range that controls CPU temperature and keeps it from going
so high or so low when smart fan works.
Smart Fan Slope PWM value (10 PWM value/unit)
This item is used to set the Slope Select PWM of the smart fan.
This item is used to set the CPU/System fan full speed offset value.
CPU/System Fan Full Speed Offset(-) (23)
• System Temperature
• CPU Fan Speed
• System Fan Speed
• CPU Voltage
• DIMM Voltage
• +5V
• +12V
Press <Esc> to return to the Advanced Menu page.
Press <Esc> to return to the PC Health Status page.
B75H2-M4 USER MANUAL
34
Chapter 3
ACPI Setting
The item in the menu shows the highest ACPI sleep state when the system enters
suspend.
ACPI Sleep State (S3(Suspend to RAM))
This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default).
Press <Esc> to return to the Advanced Menu page.
CPU Configuration
Scroll to this item and press <Enter> to view the following screen:
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
ACPI Settings
ACPI Sleep State S3 (Suspend to RAM)
Select the highest ACPI
sleep state the system
will enter when the
suspend button is pressed.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled for Windows XP and
Linux (OS optimized for HyperThreading Technology) and
Disabled for other OS (OS not
optimized for Hyper-Threading
Technology). When Disabled
only one thread per enabled core
is enabled.
CPU Configuration
Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz
64-bit Supported
Processor Speed 3400 MHz
Processor Stepping 206a6
Microcode Revision 28
Processor Cores 4
Intel HT Technology Supported
Intel VT-x Technology Supported
Hyper-threading Enabled
Active Processor Cores All
Limit CPUID Maximum Disabled
Execute Disable Bit Enabled
Intel Virtualization Technology Enabled
CPU C3 Report Disabled
CPU C6 Report Enabled
Enhanced Halt (C1E) Enabled
B75H2-M4 USER MANUAL
35
Chapter 3
Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz
This is display-only field and diaplays the information of the CPU installed in your
computer.
64-bit (Supported)
This item shows the computer supports EMT64.
Processor Speed (3400MHz)
This item shows the current processor speed.
Processor Stepping (206a6)
This item shows the processor stepping version.
Microcode Revision (28)
This item shows the Microcode version.
Processor Cores (4)
This item shows the core number of the processor.
Execute Disable Bit (Enabled)
This item allows the processor to classify areas in memory by where application
code can execute and where it cannot. When a malicious worm attempts to insert
code in the buffer, the processor disables code execution, preventing damage or
worm propagation. Replacing older computers with Execute Disable Bit enabled
systems can halt worm attacks, reducing the need for virus related repair.
Intel Virtualization Technology (Enabled)
When disabled, a VMM cannot utilize the additional hardware capabilities provided
by Vandor Pool Technology.
Enhanced Halt (C1E) (Enabled)
Use this item to enable the CPU energy-saving function when the system is not
running.
Press <Esc> to return to the Advanced Menu page.
Limit CPUID Maximum (Disabled)
Use this item to enable or disable the maximum CPUID value limit.
Intel HT Technology (Supported)
This item shows that your computer supports Intel HT technology or not.
Intel VT-x Technology (Supported)
This item shows that your computer supports Intel VT-x technology or not.
CPU C3 Report (Disabled)
Use this item to enable or disable CPU C3(ACPI C2) report to OS.
CPU C6 Report (Enabled)
Use this item to enable or disable CPU C6(ACPI C3) report to OS.
Hyper-threading (Enabled)
Use this item to enable or disable hyper-threading.
Active Processor Cores (All)
Use this item to control the active processor cores.
B75H2-M4 USER MANUAL
36
Chapter 3
SATA Configuration
Use this item to show the mode of serial SATA configuration options.
SATA Mode (IDE Mode)
Use this item to select SATA mode.
SATA Port 1~4 (Not Present)
This motherboard supports four SATA channel and each channel allows one SATA
device to be installed. Use these items to configure each device on the SATA channel.
Press <Esc> to return to the Advanced Menu page.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Determines how SATA
Controller(s) operate.
SATA Configuration
SATA Mode IDE Mode
SATA Port1 Not Present
SATA Port2 Not Present
SATA Port3 Not Present
SATA Port4 Not Present
B75H2-M4 USER MANUAL
37
Chapter 3
USB Configuration
Scroll to this item and press <Enter> to view the following screen:
All USB Devices (Enabled)
Use this item to enable or disable all USB devices.
Legacy USB Support (Enabled)
Use this item to enable or disable support for legacy USB devices. Setting to Audio
allows the system to detect the presence of the USB device at startup. If detected,
the USB controller legacy mode is enabled. If no USB device is detected, the legacy
USB support is disabled.
Press <Esc> to return to the Advanced Menu page.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
USB Support Parameters
USB Configuration
All USB Devices Enabled
Legacy USB Support Enabled
B75H2-M4 USER MANUAL
38
Chapter 3
Super IO Configuration
Use this item to show the information of the Super IO Configuration.
Super IO Chip (IT8728)
This item shows the information of the super IO chip.
Serial Port 0 Configuration
Scroll to this item and press <Enter> to view the following screen:
Press <Esc> to return to the Super IO Configuration page.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
IT8728
Serial Port 0 Configuration
Parallel Port Configuration
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled or Diabled Serial
Port (COM)
Serial Port 0 Configuration
Serial Port Enabled
Device Settings IO=3F8h; IRQ=4;
Change Settings Auto
Set Parameters of Serial
Port 0 (COMA)
Super IO Chip
Super IO Configuration
B75H2-M4 USER MANUAL
39
Chapter 3
Parallel Port Configuration
Scroll to this item and press <Enter> to view the following screen:
Parallel Port (Enabled)
This item allows you to enable or disable parallel port.
Device Settings (IO=378h; IRQ=5)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Device Mode (Standard Parallel Po...)
This item shows the information of the device mode.
Press <Esc> to return to the Super IO Configuration page.
Press <Esc> to return to the Advanced Menu page.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled or Disabled Parallel
Port (LPT/LPTE)
Parallel Port Configuration
Parallel Port Enabled
Device Settings IO=378h; IRQ=5
Change Settings Auto
Device Mode Standard Parallel Po...
B75H2-M4 USER MANUAL
40
Chapter 3
ISCT Configuration (Disabled)
Use this item to enable/disable ISCT Configuration.
Intel(R) Rapid Start Technology
Use this item to show the information of Intel(R) Rapid Start Technology.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Intel(R) Rapid Start Technology
Disabled
Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology (Disabled)
Use this item to enable or disable the Intel(R) Rapid Start Technology.
Intel(R) Smart Connect Technology
Use this item to show the information of Intel(R) Smart Connect Technology.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled/Disabled ISCT
Configuration
ISCT Configuration Disabled
Press <Esc> to return to the Advanced Menu page.
B75H2-M4 USER MANUAL
41
Chapter 3
Intel ME BIOS Extension Configuration
Use this item to show the information of Intel ME BIOS Extension Configuration.
Intel(R) Rapid Start Technology
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enable/Disable Intel(R)
Active Management
Technology BIOS Extension.
Note: iAMT H/W is always
enabled.
This option just controls
the BIOS extension execution.
If enabled, this requires
additional firmware in the
SPI device
Intel AMT Disabled
MEBx Setting Screen Disabled
MEBx Selection Screen Disabled
Intel AMT (Disabled)
This item just controls the BIOS extension execution. If enabled, this requires
additional firmware in the SPI device.
MEBx Setting Screen (Disabled)
This item allows you to enable or disable the MEBx Setting Screen.
MEBx Selection Screen (Disabled)
This item allows you to enable or disable the MEBx selection screen.
B75H2-M4 USER MANUAL
42
Chapter 3
EUP Function (Enabled)
This item allows user to enable or disable EUP function.
Resume By PS2 MS (S3) (Disabled)
This item enables or disables you to allow mouse activity to awaken the system
from power saving mode.
Power Management Setup
This page sets up some parameters for system power management operation.
Resume By PME (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the PCI Modem or
PCI LAN card. You must use an ATX power supply in order to use this feature. Use this
item to do wake-up action if inserting the PCI card.
Resume By USB 1.x/2.0 (S3) (Disabled)
This item allows you to enable/disable the USB device wakeup function from S3
mode.
Resume By RING (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the Modem. You
must use an ATX power supply in order to use this feature.
Resume By PS2 KB (S3) (Disabled)
This item enables or disables you to allow keyboard activity to awaken the system
from power saving mode.
Power LED Type (Dual Color LED)
This item shows the type of the power LED.
Press <Esc> to return to the Advanced Menu page.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
About Resume by Ring
Power Management Setup
Resume By RING Disabled
Resume By PME Disabled
Resume By USB 1.x/2.0(S3) Disabled
Resume By PS2 KB (S3) Disabled
Resume By PS2 MS (S3) Disabled
Resume By RTC Alarm Disabled
EUP Function Enabled
Power LED Type Dual Color LED
Resume By RTC Alarm (Disabled)
The system can be turned off with a software command. If you enable this item,
the system can automatically resume at a fixed time based on the system’s RTC
(realtime clock). Use the items below this one to set the date and time of the wakeup alarm. You must use an ATX power supply in order to use this feature.
B75H2-M4 USER MANUAL
43
Chapter 3
IGD Multi-Monitor (Disabled)
This item enables or disables IGD (Internal Graphics device) multi-monitor.
System Agent Configuration
Scroll to this item and press <Enter> and view the following screen:
IGD Memory (64M)
This item shows the information of the IGD(Internal Graphics device) memory.
DVMT Memory (256M)
When set to Fixed Mode, the graphics driver will reserve a fixed position of the
system memory as graphics memory, according to system and graphics requirements.
Chipset Menu
The chipset menu items allow you to change the settings for the North Bridge
chipset, South Bridge chipset and other system.
System Agent (SA)
Parameters
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
System Agent Configuration
PCH Configuration
ME Configuration
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
System Agent Configuration
IGD Memory 64M
DVMT Memory 256M
IGD Multi-Monitor Disabled
Select DVMT 5.0 PreAllocated (Fixed) Graphics
Memory size used by the
Internal Graphics Device.
B75H2-M4 USER MANUAL
44
Chapter 3
Press <Esc> to return to the chipset menu page.
Restore AC Power Loss (Power Off)
This item enables your computer to automatically restart or return to its operating
status.
Audio Configuration
This item shows the information of the audio configuration.
Azalia HD Audio (Enabled)
This item enables or disables Azalia HD audio.
Azalia Internal HDMI codec (Enabled)
This item enables or disables Azalia Internal HDMI codec.
PCH Configuration
Scroll to this item and press <Enter> to view the following screen:
F4: Save & Exit
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Select AC power state
when power is re-applied
after a power failure
PCH Configuration
Restore AC Power Loss Power Off
Audio Configuration
Azalia HD Audio Enabled
Azalia internal HDMI codec Enabled
Case Open Warning
Chassis Opened
Disabled
Case Open Warning (Disabled)
This item enables or disables the warning if the case is opened up, and the item
below indicates the current status of the case.
Chassis Opened (No)
This item indicates whether the case has been opened.
No
B75H2-M4 USER MANUAL
45
Chapter 3
ME Configuration
Scroll to this item and press <Enter> to view the following screen:
ME FW Version (8.1.30.1350)
This item shows the ME FW version.
Press <Esc> to return to the Chipset Menu page.
ME Subsystem Help
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enable/Disable ME Firmware
ME Control (Enabled)
Use this item to enable or disable ME Firmware.
Management Engine Technology Configuration
ME FW Version 8.1.30.1350
ME Control Enabled
EnabledEna
B75H2-M4 USER MANUAL
46
Chapter 3
CPU OverClocking Configuration
Scroll to this item to view the following screen:
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.
M.I.B III (MB Intelligent BIOS III) Menu
ME Subsystem Help
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU OverClocking
Configuration
M.I.B III (MB Intelligent BIOS III)
CPU OverClocking Configuration
Chipset OverClocking Configuration
B.O.M.P Technology Enabled
Auto Detect DIMM/PCI Clk Enabled
Spread Spectrum Enabled
Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz
Processor Speed 3400 MHz
Memory Frequency 1333 MHz
Total Memory 2048 MB (DDR3 )
Enabled
Disabled
0
10
38
37
36
35
0
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enhanced Intel SpeedStep
Technology
Intel Graphics Configuration
Graphics Core Ratio Limit 27
Graphics Voltage(1/256)
CPU OverClocking Configuration
CPU Frequency 100.00
CPU Ratio 34
Enhanced Intel SpeedStep Technology Enabled
Turbo Mode
Runtime Turbo Enable Disabled
Over Clocking Extra Vo1.(1/256 V) 0
IA Core Current Maximum
iGFX Core Current Maximum
Long Duration Power Limit Override Maximum
Long Duration Maintained 10
Short Duration Power Limit Override Maximum
1 Core Ratio Limit 38
2 Core Ratio Limit 37
3 Core Ratio Limit 36
4 Core Ratio Limit 35
0
Enabled
B75H2-M4 USER MANUAL
47
Chapter 3
Enhanced Intel SpeedStep Technology (Enabled)
This item allows users to enable or disable the EIST(Enhanced Intel SpeedStep Technology).
Graphics Voltage(1/256) (0)
This item allows you to adjust the internal GFX voltage.
Graphics Core Ratio Limit (27)
This item allows you to control the internal GFX Turbo ratio.
CPU Ratio (34)
This item allows users to control non turbo CPU ratio.
System Temperature :
CPU Fan Speed :
System Fan Speed :
CPU Voltage :
DIMM Voltage :
+12V
CPU Frequency (100.00)
This item shows the information of the CPU frequency.
Turbo Mode (Enabled)
This item allows you to control the Intel Turbo Boost Technology.
Runtime Turbo Enable (Disabled)
This item shows if CPU support Runtime Turbo.
IA Core Current (Maximum)
Use this item to control CPU Current Limit.
iGFX Core Current (Maximum)
Use this item to control iGFX Core Current Limit.
Long Duration Power Limit Override (Maximum)
Intel(R) Turbo Boost Technology will use this power limit during the Long Duration
Power Limit Time Window.
Long Duration Maintained (10)
Use this item to control the time window over PL1 Value should be maintained. This
is for Turbo Mode.
Short Duration Power Limit Override (Maximum)
Intel(R) Turbo Boost Technology will use this power limit for a very short duration.
After that, the Long Duration Power Limit will be honored .
1/2/3/4 Core Ratio Limit
This item shows the Core Ratio Limit Value.
Overclocking Exrra Vol. (1/256 V) (0)
This item allows you to control Extra CPU Voltage.
B75H2-M4 USER MANUAL
48
Chapter 3
Chipset OverClocking Configuration
Scroll to this item to view the following screen:
Row Precharge Time (tRP) (9)
This item specifies Row precharge to Active or Auto-Refresh of the same bank.
CAS Latency (tCL) (9)
This item determines the operation of DDR SDRAM memory CAS (colulmn address
strobe). It is recommended that you leave this item at the default value. The 2T
setting requires faster memory that specifically supports this mode.
RAS# to CAS# Delay (tRCD) (9)
This item specifies the RAS# to CAS# delay to Rd/Wr command to the same bank.
Row Refresh Cycle Time (tRFC) (74)
This item specifies the row refresh cycle time.
RAS# Active Time (tRAS) (24)
This item specifies the RAS# active time.
Write Recovery Time (tWR) (10)
This item specifies the write recovery time.
Active to Active Delay (tRRDmin) (4)
This item controls the ACTIVE bank x to ACTIVE bank y in memory clock cycles.
Write to Read Delay (twTR) (5)
This item specifies the write to read delay time.
Performance Memory Profiles (Automatic)
This item enables you to set the Performance Memory Profile.
Main Advanced Chipset M.I.B III Boot Security Exit
Memory Multiplier Configuration
Performance Memory Profiles Automatic
Memory Timing Configuration
CAS# Latency (tCL) 9
RAS# to CAS# Delay (tRCD) 9
Row Precharge Time (tRP) 9
RAS# Active Time ( tRAS) 24
Write Recovery Time (tWR) 10
Row Refresh Cycle Time (tRFC) 74
Active to Active Delay (tRRD) 4
Write to Read Delay (tWTR) 5
Read CAS# Precharge (tRTP) 5
Four Active Window Delay (tFAW) 20
The selection of Performance
Memory Profiles which impacts memory sizing behavior.
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
B75H2-M4 USER MANUAL
49
Chapter 3
B.O.M.P Technology (Enabled)
This item allows users to enable or disable B.O.M.P technology. This function can run
safe setting to setup menu when system boot fail 3 times.
Spread Spectrum (Enabled)
If you enable spread spectrum, it can significantly reduce the EMI (Electro-Magnetic
Interference) generated by the system.
Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz
This is display-only field and displays the information of the CPU installed in your
computer.
Processor Speed (3400 MHz)
This item shows the CPU speed.
Memory Frequency (1333 MHz)
This item shows the memory frequency.
Auto Detect DIMM/PCI Clk (Enabled)
When this item is enabled, BIOS will disable the clock signal of free DIMM/PCI slots.
Total Memory (2048 MB (DDR3))
This item shows the total memory of DDR3.
This item controls the four bank activate time in memory clock cycles.
Four Active Window Delay (tFAW) (20)
Press <Esc> to return to the M.I.B III menu page.
Read CAS# Precharge (tRTP) (5)
This item controls the Read to PRECHARGE delay for memory devices, in memory
clock cycles.
B75H2-M4 USER MANUAL
50
Chapter 3
This page enables you to set the keyboard NumLock state.
Boot Menu
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
Windows 7 or other OS:
Boot policy for Legacy OS
Windows 8: Boot Policy for
UEFI OS without
Compatibility Support
Module (CSM)
Manual: User customized
CSM parameters & boot
policy
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Boot Configuration
This item shows the information of the Boot Configuration.
Bootup NumLock State (On)
This item enables you to select NumLock state.
Quiet Boot (Enabled)
This item enables or disables quiet boot.
Boot mode select (LEGACY)
Use this item to select boot mode.
Operation System Select (Windows7 or other OS)
This item is used to select the operation system.
Boot Configuration
Launch PXE OpROM (Disabled)
The item enables or disables launch PXE Option ROM.
Launch Storage OpROM (Enabled)
The item enables or disables launch Storage Option ROM.
Set Boot Priority
This item enables you to set boot priority for all boot devices.
Boot Option #1/2/3/4/5/6/7
These items show the boot priorities.
Operation System Select Windows7 or other OS
Launch PXE OpROM
Disabled
Launch Storage OpROM Enabled
Fast Boot Disabled
Bootup NumLock State On
Quiet Boot Enabled
Boot mode select LEGACY
Set Boot Priority
Boot Option #1 Hard Disk
Boot Option #2 CD/DVD
Boot Option #3 USB/Floppy
Boot Option #4 USB CD/DVD
Boot Option #5 USB Hard Disk
Boot Option #6 USB Flash:SD/MMC Car...
Boot Option #7 Network
Fast Boot (Disabled)
This item enables or disables fast boot.
USB Flash Drive Priorities
B75H2-M4 USER MANUAL
51
Chapter 3
This page enables you to set setup administrator password and user password.
Security Menu
Administrator Password Status (Not Install)
This item shows administrator password installed or not.
User Password Status (Not Install)
This item shows user password installed or not.
Platform Mode (Setup)
This item shows platform mode setup or not.
Secure Boot (Disabled)
This item allows you to enable or disable the secure boot state.
Secure Boot Control (Disabled)
This item is used to control the secure boot flow, it is possible only if system runs in
User Mode.
Disabled
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Administrator Password Status Not Install
User Password Status Not Install
Administrator Password
Platform Mode Setup
Secure Boot Disabled
Secure Boot Control Disabled
Set Administrator Password
USB Flash Drive Priorities
This item enables you to specify the sequence of loading the operating system. Press
the <Enter> to see the submenu.
B75H2-M4 USER MANUAL
52
Chapter 3
Boot Override
Use this item to select the boot device.
This page enables you to exit system setup after saving or without saving the
changes.
Exit Menu
Save Changes and Reset
This item enables you to save the changes that you have made and resit.
Discard Changes and Exit
This item enables you to discard any changes that you have made and exit.
Save Options
This item enables you to save the options that you have made.
Save Changes
This item enables you to save the changes that you have made.
Discard Changes
This item enables you to discard any changes that you have made.
Restore Defaults
This item enables you to restore the system defaults.
Save as User Defaults
This item enables you to save the changes that you have made as user defaults.
Restore User Defaults
This item enables you to restore user defaults.
Discard Changes and Reset
This item enables you to discard any changes that you have made and reset.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
Reset the system after
saving the changes.
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Save Changes and Reset
Discard Changes and Exit
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
SD/MMC Card Reader 1.00
B75H2-M4 USER MANUAL
53
Chapter 3
Updating the BIOS
You can download and install updated BIOS for this motherboard from the
manufacturer’s Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:
This concludes Chapter 3. Refer to the next chapter for information on the software
supplied with the motherboard.
1 If your motherboard has a BIOS protection jumper, change the setting to
allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Ad-
vanced BIOS features, disable it. (Firmware Write Protect prevents BIOS
from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to
Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer’s
Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer.
(You might need to run the Setup Utility and change the boot priority items
on the Advanced BIOS Features Setup page, to force your computer to
boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file
name of the new BIOS and then press <Enter>. Example: AFUDOS.EXE
040706.ROM
7 When the installation is complete, remove the bootable device from the
computer and restart your computer. If your motherboard has a Flash
BIOS jumper, reset the jumper to protect the newly installed BIOS from
being overwritten. The computer will restart automatically.
B75H2-M4 USER MANUAL
54
Chapter 3
Memo
55
B75H2-M4 USER MANUAL
Chapter 4
Chapter 4
Using the Motherboard Software
The auto-install DVD-ROM makes it easy for you to install the drivers and software.
The support software DVD-ROM disc loads automatically under Windows XP/7/8.
When you insert the DVD-ROM disc in the DVD-ROM drive, the auto-run feature will
automatically bring up the installation screen. The screen has four buttons on it:
Setup, Utilities, Browse CD and Exit.
Auto-installing under Windows XP/7/8
Displays the path for all
software and drivers
available on the disk.
Open Windows Explorer
and show the contents
of the support disk.
Click “Exit” button to
close the Auto-Setup
window.
Browse CD:
Click the “Setup”
button to select and
run the software
installation program.
Click the “ Utilities”
button to select and
install ECS Intelligent
Utility.
Information:
Follow these instructions to install device drivers and software for the
motherboard:
The following screens are examples only. The screens and driver lists will be
different according to the motherboard you are installing.
1. Click Setup. The installation program begins:
Running Setup
The motherboard identification is located in the upper left-hand corner.
56
B75H2-M4 USER MANUAL
Chapter 4
2. Click Next. The following screen appears:
3. Check the box next to the items you want to install. The default options are recommended.
5. Follow the instructions on the screen to install the items.
4. Click Next to run the Installation Wizard. An item installation screen appears:
Drivers and software are automatically installed in sequence. Follow the
onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.
Windows 8 will show the following screen after system restart, you
must select “Desktop” in the bottom left to install the next driver.
57
B75H2-M4 USER MANUAL
Chapter 4
If the auto-install DVD-ROM does not work on your system, you can still install
drivers through the file manager for your OS (for example, Windows Explorer). Look
for the chipset and motherboard model, and then browse to the directory and path
to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that
automatically detects your operating system before installation. Other drivers have
the setup program located in the operating system subfolder.
Manual Installation
ECS Utility Software (Intelligent EZ Utility)
ECS Intelligent EZ Utility provides friendly interfaces under Windows O.S, which makes
your computing more easily and conveniently.
If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC)
for information on installing the driver or software for your operating system.
These software(s) are subject to change at anytime without prior notice. Please
refer to the support disk for available software.

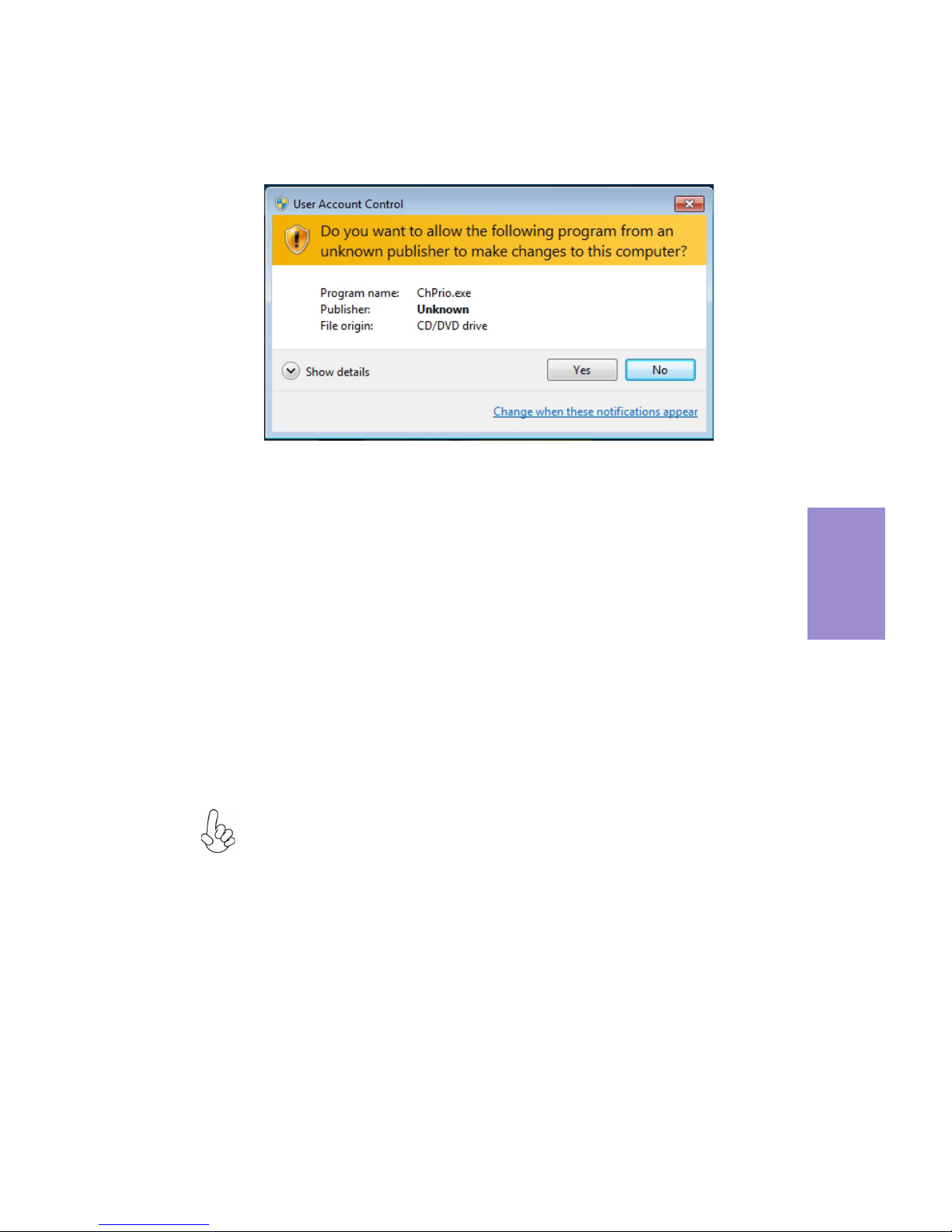

Windows 7/8 will appear below UAC (User Account Control) message after
the system restart. You must select “Yes” to install the next driver. Continue
this process to complete the drivers installation.
58
B75H2-M4 USER MANUAL
Chapter 4
eBLU
ECS eBLU utility makes BIOS update faster and easier. eBLU will list the latest BIOS
with a default check-mark. Click”install” button to install.
eDLU
ECS eDLU utility makes updating drivers fast and easy. eDLU saves time and hassle
by listing all the latest drivers online. Just select the one you prefer and start to
download and install the drivers.
eSF
eSF(Smart Fan) utility provides easy and safe way to adjust fan speed in accordance
with your PC’s system loading and temperature.
It has five modes to adjust fan speed in a safe range without entering the BIOS to
optimize your system cooling environment.
Microsoft .NET Framework 3.5 is required.
Microsoft .NET Framework 3.5 is required.
59
B75H2-M4 USER MANUAL
Chapter 5
Chapter 5
Trouble Shooting
Start up problems during assembly
After assembling the PC for the first time you may experience some start up
problems. Before calling for technical support or returning for warranty, this
chapter may help to address some of the common questions using some basic
troubleshooting tips. You may also log onto our ECS website for more information:
a) System does not power up and the fans are not running.
1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and
other peripherals including keyboard and mouse. Leave only the motherboard,
CPU with CPU cooler and power supply connected. Make sure the power cord is
plugged into the wall socket & the switch on the Power Supply Unit (PSU) is turned
“ on “ as well. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as
screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent
pin may cause failure to boot and sometimes permanent damage from short circuit.
5. Check the 12V power connector is connected to the motherboard.
6. Check that the 12V power & ATX connectors are fully inserted into the
motherboard connectors. Make sure the latches of the cable and connector are
locked into place.
b) Power is on, fans are running but there is no display
1. Make sure the monitor is turned on and the monitor cable is properly connected
to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is
connected.
a. continuous 3 short beeps: memory not detected
b. 1 long beep and 8 short beeps: VGA not detected
c) The PC suddenly shuts down while booting up.
1. The CPU may experience overheating so it will shutdown to protect itself. Apply
the thermal grease onto the CPU heatsink & ensure the CPU fan is well-connected
with the CPU heatsink. Check if the CPU fan is working properly while the system
is running.
http:// www.ecs.com.tw/ECSWebSite/Support/Support_FAQ.aspx?MenulD=49&
childid=M 49&LanlD=0
60
B75H2-M4 USER MANUAL
Chapter 5
Your computer, like any electrical appliance, requires proper care and
maintenance. Here are some basic PC care tips to help prolong the life of the
motherboard and keep it running as best as it can.
1. Keep your computer in a well ventilated area. Leave some space between the
PC and the wall for sufficient airflow.
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and
Start up problems after prolong use
After a prolong period of use your PC may experience start up problems again. This
may be caused by breakdown of devices connected to the motherboard such as
HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause
of failure.
1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper
in Chapter 2 for Checking Jumper Settings in this user manual. When completed,
follow up with a Load Optimised Default in the BIOS setup.
2. Check the CPU cooler fan for dust. Long term accumulation of dust will reduce its
effectiveness to cool the processor. Clean the cooler or replace a new one if
necessary.
3. Check that the 12V power & ATX connectors are fully inserted into the
motherboard connectors. Make sure the latches of the cable and connector are
locked into place.
4. Remove the hard drive, optical drive or DDR memory to determine which of
these components may be at fault.
areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once
every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the
system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the
wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.
Maintenance and care tips
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at
default speed. Doing a Load Optimised Default will also disable the Smartfan.
5. Check whether there is any bulked up electrolytic capacitor or abnormal
component.
Please logo onto our ECS website: http://www.ecs.com.tw/ECSWebSite/Support/
Technical_Support_List.aspx?MenuID=50&LanID=0 for more information.
uB rewoP
desserp si no
.trats ot sliaf CP tub
seY
ylppuS rewoP fi kcehC
tinU
gnikrow si )USP(
No
No
dnuos peeB ynA
No
kcehc dna SOMC RLC
rewop V21 UPC fi
detcennoc si
CP eht tratseR
?draob ro USP htiw melborP
AMR tcatnoc >- melborp draob fI
deulp si droc rewop CA gg
?no denrut si hctiws USP dna
seY
melborp draoB
AMR tcatnoc >-
No
:speeb trohs 3 fI -
ylreporp ton yromem MMID
eruliaf yromem ro detresni
:speeb trohs 8 dna peeb gnol 1 fI -
detceted ton AGV
seY
seY
neercs TSOP ta tlaH
seY
OMC RL dna SC tser .tra
AMR tcatnoc ,liaf fI
seY
No
eussi ecived larehpireP
.melborp DDH-
,rorre putes SOMC-
d .SOMCRLC ot een
ts ot liaf metsyS elbatsnu ro tra
a
es SOIB yfidom re
.gn
M SOC RLC tratser dna
hctiws USP no nruT
tekcos llaw ot tcennoc ro
.tratser dna
No
h rotinom fi kcehC sa
sid
yalp
rotinom fi kcehC
yalpsid sah
Basic Troubleshooting Flowchart
61
62
B75H2-M4 USER MANUAL
Chapter 5
Memo
Loading...
