USB Temperature and Humidity Data Logger
Instruction Manual
Model: DS-102
2
Contents
1. Introduction......................................................................... 4
1.1 Package Contents...................................................4
1.2 Features....................................................................5
2. Installation........................................................................... 5
2.1 Insert battery............................................................ 5
2.2 Wall mount............................................................... 6
3. Button Function.................................................................. 6
4. Program Mode....................................................................7
4.1 Quick Display Mode................................................ 7
4.2 Setting Mode............................................................ 7
4.3 MAX/MIN Mode....................................................... 8
4.4 Sleep Mode.............................................................. 8
4.5 Calibration Mode..................................................... 9
4.5.1 Temperature calibration..............................9
4.5.2 Humidity calibration..................................... 9
4.6 Logging Mode.......................................................... 9
4.6.1 Cycle Mode................................................. 10
4.6.2 Acyclic Mode.............................................. 10
4.6.3 Segmented Mode...................................... 10
4.7 Other Features.......................................................11
4.7.1 History Clear...............................................11
4.7.2 Memory Status........................................... 11
4.7.3 Low Battery Condition.............................. 12
5. Software............................................................................ 12
5.1 System requirements............................................12
5.2 Installation of the Software.................................. 12
6. Specification:.................................................................... 19
7. Warranty Information.......................................................20
3
1. Display
2. Set key
3. + key
4. - key
5. USB port
4
1. Temperature
2. MAX/MIN value
3. Humidity
4. Memory status
5. Logging mode icon
6. Time period icon
7. Time/Date/Interval/year
8. Low battery indicator
1. Introduction
Thank you for choosing this item for your data logging
requirement. Small, simple and affordable, our DS102 Data
Logger can measure and record temperature and humidity data
at specified intervals ranging from once every 8 seconds to
once every 4 hours. It is our goal to bring you accurate, low-cost,
easy-to use data logger that integrate easily into the user’s
working environment.
1.1 Package Contents
1x data logger unit
1x USB cable
1x CD ROM
1x 3V lithium battery CR2032
Instruction manual
5
1.2 Features
Water resistance
Measure and log temperature and humidity data
Instant data download with PC/laptop
USB interface for set-up and data download
Easily re-configurable using included software
Selectable logging intervals from 8 seconds to 4 hours
(default 5minute)
Selectable temperature unit in °F or °C
Time, date and unit synchronized your PC
Low battery indicator
2. Installation
2.1 Insert battery
1). First use a large coin to open the
battery cover at the back of the unit.
2).Check the correct polarization,
insert 1 x 3V (CR2032) lithium cell,
positive (+) pole up, into the battery
compartment and replace the cover.
3). When the battery is inserted, all
the segments of the LCD display for
about 3 seconds then enter to
normal mode.
Caution: Do not reverse the polarity of the battery
6
2.2 Wall mount
You can mount this item on a wall by using a screw (not
included)
3. Button Function
"SET" BUTTON:
In normal display, press “SET” button to alternate the
display of time, date and logging intervals
In normal display, press ”SET” button for 2 seconds to enter
setting mode
In normal display, press "SET" and "+" buttons at the same
time for 5 seconds to enter Calibration mode
"+" BUTTON:
In normal display, press “+” button to alternate the display
of Max, Min and current temperature & humidity
In setting mode, press “+” button to increase the value of
information being set.
In Max/Min mode, press “+” button for 2 seconds, the Max
or Min value will be reset to current reading
"-" BUTTON:
In normal display, press “-” button for 2 seconds to clear the
history data
In setting mode, press “-” button to decrease the value of
information being set.
7
4. Program Mode
There are six program modes: Quick Display Mode, Setting
Mode, Max/Min mode, Sleep Mode, Calibration mode and Data
Logging mode.
4.1 Quick Display Mode
In Normal Mode, press the “SET” button to enter the Quick
Display Mode as follows
1) Display time
2) Display date
3) Logging interval
4.2 Setting Mode
In Normal Mode, press the “SET” button for 2 seconds to enter
Set Mode. The first setting will begin flashing. You can press
the “SET” button again to skip any step, as defined below.
1) 12/24 hour format
2) Manual time setting (hour/minutes)
3) Date setting(DD-MM/MM-DD)
4) Calendar setting (year/month/date)
5) Temperature display unit degree Celsius or Fahrenheit
6) Logging interval setting from 8 seconds to 4 hours (default
5minute)
The temperature and humidity data will be measured per
60 seconds as default and be stored according to the
logging interval. If the interval is set to a number less than
60 seconds, both the temperature and humidity data will
be measured and stored according to the logging interval
time.
8
Note: In the setting mode, press”+” or ”-” buttons to change or
scrolls the value. Hold the button for 2 seconds can change
fast.
Note: The setting mode will return to normal display while idle
30s.
4.3 MAX/MIN Mode
In Normal mode, press ”+” button to enter the MAX mode, and
the Max icon and maximum records will display
Press ”+” button again to enter the MIN mode, and the MIN icon
and minimum records will display
Press ”+” button again to return to the Normal mode
While in Max or Min mode, press “+” button for 2 seconds, the
Max or Min value will be reset to current reading
Note: Press “SET” button or wait 30 seconds, and the
MAX/MIN Mode will return to normal mode.
4.4 Sleep Mode
If LCD “AUTO OFF” function was chosen on the PC software,
the device will automatically enter sleep mode if no button is
pressed for 10 minutes to save battery life. Press any button to
exit sleep mode.
In Sleep Mode, the unit detects temperature and humidity data
as Normal Mode.
9
4.5 Calibration Mode
While in Normal Mode, press “SET” and “+” buttons at the same
time for 5 seconds to enter Calibration Mode. The temperature
value will begin flashing. Press the “+” button or “-“ button to
increase or decrease the temperature bias to match the
calibrated source. Press the “SET” key, the humidity value will
begin flashing. Press the “+” button or “-“ button to increase or
decrease the humidity bias to match the calibrated source.
4.5.1 Temperature calibration
To calibrate temperature, we recommend a mercury or red spirit
(fluid) thermometer. Bi-metal (dial) and other digital
thermometers are not a good source and have their own margin
of error. Using a local weather station in your area is also a poor
source due to changes in location, timing (airport weather
stations are only updated once per hour) and possible
calibration errors (many official weather stations are not
properly installed and calibrated)
4.5.2 Humidity calibration
To calibrate humidity, you will need an accurate source, such as
a sling psychrometer.
4.6 Logging Mode
The logging mode to be set on the PC software.
There are three types of logging mode: Cycle Mode, Acyclic
Mode, and Segmented Mode.
The default mode is Cycle Mode.
10
4.6.1 Cycle Mode
If Cycle Mode selected, the icon will display.
In Cycle mode, when the memory is full, the oldest data sets
stored will be overwritten by the new ones entered.
4.6.2 Acyclic Mode
If Acyclic Mode selected, the icon will display
In Acyclic Mode, when the memory is full, logging stops.
Logging will continue when memory is cleared via the PC
software.
4.6.3 Segmented Mode
You can set max. 4 time periods through the setting menu on
the PC software. These periods can’t be overlapped. The time
period must be later than the current time. It will start logging
from the set start time and stop from the set end time in a time
period.
Time period icon
Time period 1
Time period 2
Time period 3
Time period 4
If time period was selected, the time period icon circle frame
11
will be displayed
During the logging period, the time period icon inside will
be flashing
If memory is full or out of the period range, the time period icon
will be displayed
Note:
If the logging mode is changed, the history data in data logger
will be cleared automatically. Please download the data to PC
before you change the logging mode.
Press and hold the “-” button, it will indicate ”CLEAR” on the
screen and the memory icon will flash, which means ready for
clearing history record.
4.7 Other Features
4.7.1 History Clear
While in Normal Mode, press and hold the “-” button for 2
seconds, it will indicate “CLEAR” on the screen and the history
data will be cleared.
4.7.2 Memory Status
There are 10 bar graphs to indicate the memory store capacity.
One bar graph is indicating 10% memory. The history data and
the previous settings of the logger won’t lose when battery is
changed.
12
4.7.3 Low Battery Condition
When the battery voltage is under proper operation requirement
the XX symbol will show on the LCD and the battery need to be
replace with new one.
5. Software
5.1 System requirements
To install the software onto your PC, the minimum requirements
are as follows:
Operating System: Windows XP, Windows Vista, windows7,
windows 8, windows 10
Internet Explorer 6.0 or above
Processor: Pentium III 500 MHz or above
Memory: at least 128MB, 256MB recommended
CD-ROM Drive
Data logger and PC must be connected by USB cable
5.2 Installation of the Software
1. Switch on your PC and insert the CD-ROM into the CD-ROM
Drive.
2. Double click “DataLogger.exe”
3. Choose the language and then install the “DataLogger.exe”
on your PC.
5.3 Basic Settings of the “USB Data logger” Software
After the “Data logger” program has been started, the following
main window will appear on the PC screen:
13
Insert the Data Logger into the USB port of your computer.
While data logger connected to PC successfully, the data will
be uploaded to PC automatically and the icon of
will be displayed. Otherwise the will be
displayed.
It will generate a unique Device ID for each data logger.

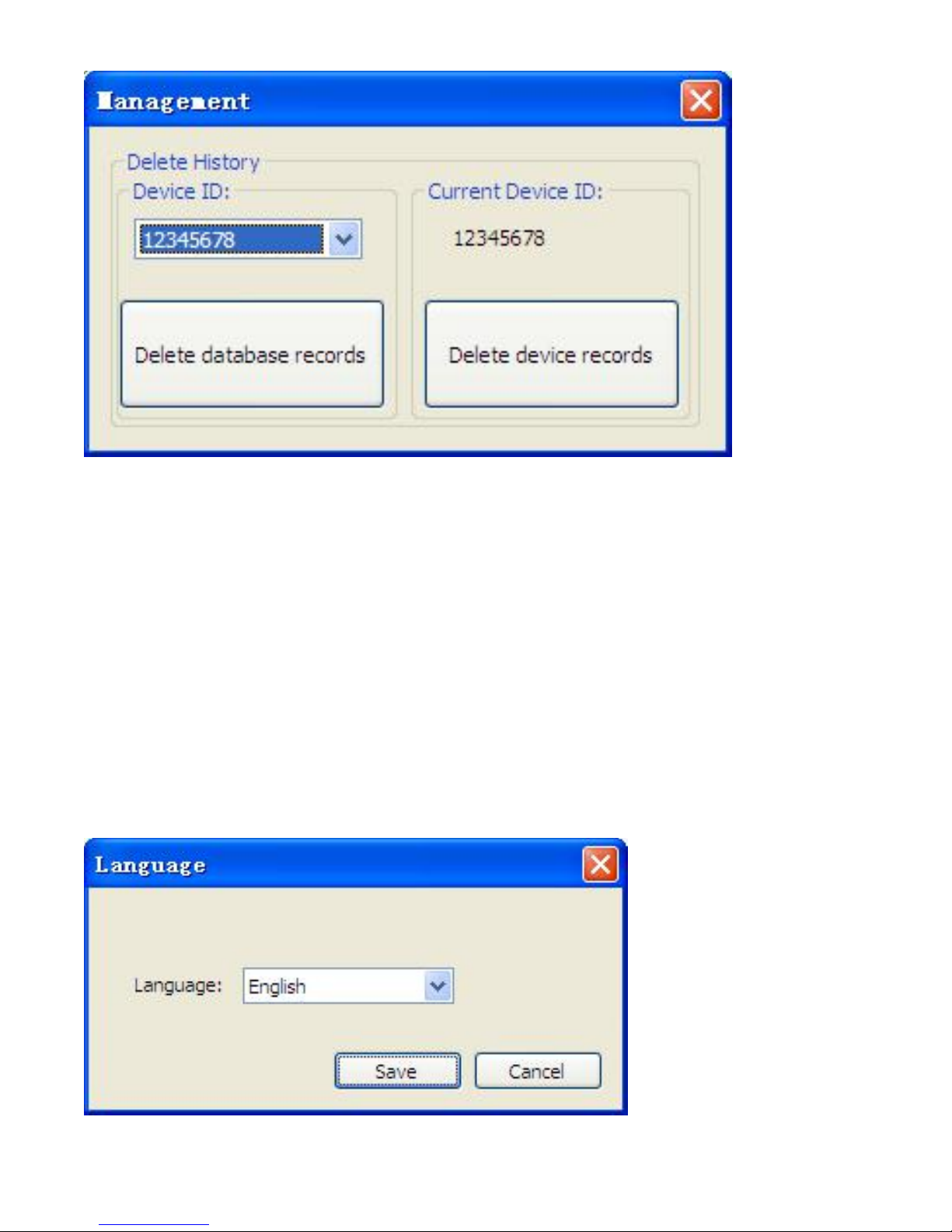

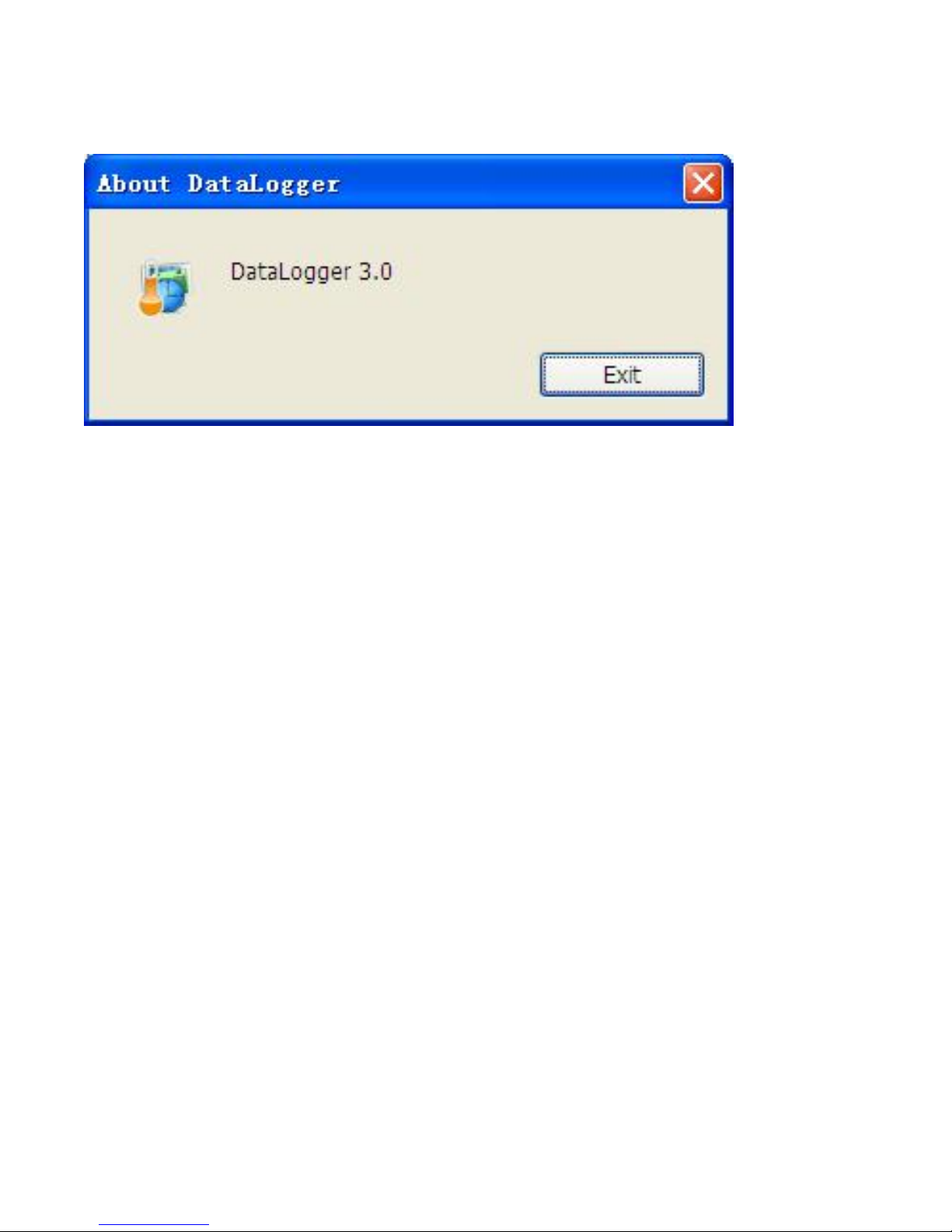

Tool Bar: The tool bar at the top of the screen has 4 options;
Menu, Management, Language and Help.
Menu option
Click setup button, enters the Setup Menu
14
Interval: 8 Seconds to 240 minutes
Time display: Set Time display as 12 hours or 24 hours mode.
Mode: Set the logging mode among Cycle Mode, Acyclic Mode,
and Segmented Mode..
Temperature unit: Set the device to read in either Celsius (°C)
15
or Fahrenheit (°F)
Date Format: Set the date format in DM or MD.
LCD: If LCD “AUTO OFF” function was chosen, the device will
automatically enter sleep mode while no button is pressed for
10 minutes to save battery life. Press any button to exit sleep
mode.
Offset Value: Temperature and humidity offset value can be
set.
Click ”Save” to save the settings.
Click History button to enter History Menu
This screen allows the viewing of the recorded data and also
provides a path to export the data to an Excel compatible CSV
file. If you wanted to see all history data in a desired time period,
choose the time duration and press Search to reload the history
data. If you have multiple data loggers, select the desired
16
device history data from the Device ID pull-down menu. Click
Exit button to exit the History Menu.
Click Graph button to enter Graph Menu
This screen allows the viewing of the history data plotted in
graph format and also provides a path to export the data to
a .jpeg file. If you want to see more details, just use your mouse
to select the area you wanted and the display will be
automatically updated in more detailed scale:
17
Management option
Click management button, enters the Management menu
18
Click “Delete database records” button to delete the history
data on the PC. The user should disconnect the device from the
PC to stop the data transfer before they click “Delete database
records” button.
Click “Delete device record” button to delete the data record on
the device.
Language option
Click Language button, enters the Language menu
19
Help option
About information
All the settings from the base unit is mirrored into the PC
software, so once you have done your setting on the base unit,
then you don’t need to make any setting changes on the PC
software. However you can still easily make any setting
changes you wanted from the PC and download the changes
into the base station (the setting change will be refreshed when
next full minute arrives on the base station).
6. Specification
Memory : Max 20,736 temperature and
relative humidity readings
Logging Interval : 8 seconds to 4 hours
Measure Temperature Range : -40 to 140°F
Temperature accuracy : +/-1.0°F under 32-122°F
Measures humidity range : 10%-99%RH
Humidity accuracy : +/-4% under 20%-80%
Software : Windows XP, windows Vista,
windows 7/8/10
Power : single 3 V lithium battery (included)
20
Battery Life : 1 year typical
(Depends on sample rate, ambient temperature)
Dimensions : 92x62x18mm
7. Warranty Information
We disclaim any responsibility for any technical error or
printing error, or their consequences.
All trademarks and patents are recognized.
We provide a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is
valid only on products purchased and only to the original
purchaser of this product. To receive warranty service, the
purchaser must contact us for problem determination and
service procedures.
This warranty covers only actual defects within the product itself,
and does not cover the cost of installation or removal from a
fixed installation, normal set-up or adjustments, claims based
on misrepresentation by the seller or performance variations
resulting from installation-related circumstances.
Loading...
