WaterWorks
Demand
AUTOMATIC WATER CONDITIONER
Model WS 1000
Installation
Operation
Maintenance
Repair Parts
IF YOU HAVE QUESTIONS WHEN
INSTALLING, OPERATING AND
MAINTAINING YOUR CONDITIONER,
AND WHEN SETTING THE TIMER...
CALL TOLL FREE
1-800-86 WATER
Manufactured by EcoWater Systems, Inc. PO BOX 64420, ST. PAUL, MN 55164 Part No. 7213921 (10/99)
WaterWorks TM...... AUTOMATIC WATER CONDITIONER
I IIII
WaterWorks RESIDENTIAL WATER SOFTENER WARRANTY
FULL ONE YEAR WARRANTY ON WATER SOFTENER
For one year from the date of purchase, when this water softener is installed and maintained in accordance with
our instructions, Sears will repair, free of charge, defects in material or workmanship in this water softener.
FULL TEN YEAR WARRANTY AGAINST LEAKS
For ten years from the date of purchase, Sears will furnish and install a new current model water softener tank or
salt storage drum, free of charge, if either the tank or drum develop a leak.
TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS SERVICE CENTER
THROUGHOUT THE UNITED STATES. This warranty applies only while this product is in use in the United States.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
I I IIIII IIII
If you want your water softener professionally installed, contact Sears Installation. They will arrange for a prompt, quality
installation by Sears Authorized Installers.
SEARS INSTALLATION POLICY
All installation labor arranged by Sears shall be performed
in a neat, workmanlike manner in accordance with gener-
ally accepted trade practices. Further, all installations
shallcomply with all local laws, codes, regulations, and or-
dinances. Customer shall also be protected, during instal-
lation, by insurance relating to Property Damage, Work-
man's Compensation and Public Liability.
SEARS INSTALLATION WARRANTY
In addition to any warranty extended to you on the Water-
Works merchandise involved, which warranty becomes
effective the date the merchandise is installed, should the
workmanship of any Sears arranged installation prove
faulty within one year, Sears will, upon notice from you,
cause such faults to be corrected at no additional cost to
you.
SAFETY GUIDES
FOLLOW THE INSTALLATION INSTRUCTIONS CAREFULLY. FAILURE TO INSTALL THE SOFTENER PROPERLY
VOIDS THE WARRANTY.
BEFORE YOU BEGIN INSTALLATION, READ THIS ENTIRE MANUAL. THEN, OBTAIN ALL THE MATERIALS AND
TOOLS YOU WILL NEED TO MAKE THE INSTALLATION.
CHECK LOCAL PLUMBING AND ELECTRICAL CODES. THE INSTALLATION MUST CONFORM TO THEM. InMas-
sachusetts, plumbing codes of Massachusetts shall be adhered to. Consult with your licensed plumber.
USE ONLY LEAD-FREE SOLDER AND FLUX FOR ALL SWEAT-SOLDER CONNECTIONS, AS REQUIRED BY
STATE AND FEDERAL CODES.
USE CARE WHEN HANDLING THE SOFTENER. DO NOT TURN UPSIDE DOWN, DROP, OR SET ON SHARP PRO-
TRUSIONS.
OO NOT LOCATE THE SOFTENER WHERE FREEZING TEMPERATURES OCCUR. DO NOT ATTEMPT TO TREAT
WATER OVER 120°E FREEZING, OR HOT WATER DAMAGE VOIDS THE WARRANTY,
AVOID INSTALLING IN DIRECT SUNLIGHT. EXCESSIVE SUN HEAT MAY CAUSE DISTORTION OR OTHER DAM-
AGE TO NON-METALLIC PARTS.
THE SOFTENER REQUIRES A MINIMUM WATER FLOW OF 3 GALLONS PER MINUTE AT THE INLET. MAXIMUM
ALLOWABLE INLET WATER PRESSURE IS 125 PSI. IF DAYq-IME PRESSURE IS OVER 80 PSI, NIGHTTIME PRES-
SURE MAY EXCEED THE MAXIMUM. USE A PRESSURE REDUCING VALVE IF NECESSARY. ( ADDING A PRES-
SURE REDUCING VALVE MAY REDUCE THE FLOW.)
THE SOFTENER WORKS ON 24 VOLT-60 Hz ELECTRICAL POWER ONLY. BE SURE TO USE THE INCLUDED
TRANSFORMER.
THIS SYSTEM IS NOT INTENDED TO BE USED FOR TREATING WATER THAT iS MICROBiOLOGICALLY UNSAFE
OR OF UNKNOWN QUALITY W_THOUT ADEQUATE DISINFECTION BEFORE OR AFTER THE SYSTEM.
2
WaterWorks ...... AUTOMATIC WATER CONDITIONER
UNPACKING / INSPECTION
The softener is completely assembled at the factory,
except as required at installation, and is shipped in
1 master carton.
Be sure to check the entire softener for any shipping
damage or parts loss. Also note any damage to the
shipping cartons.
Small parts, needed to install the softener, are on a
skin-packed cardboard piece. To avoid loss of the
small parts, keep them on the skin-pack until you are
ready to use them.
TABLE OF CONTENTS
PAGE NO.
WARRANTY, SAFETY GUIDES .................................................. 2
SPECIFICATIONS, DIMENSIONS ................................................ 4
BEFORE STARTING INSTALLATION ............................................. 5
TYPICAL INSTALLATION ILLUSTRATION ........................................ 6
INSTALLATION STEPS ...................................................... 7 - 9
PROGRAMMING THE ELECTRONIC DEMAND TIMER ....................... 10 - 11
SANITIZING PROCEDURES ................................................... 11
WATER AND WATER CONDITIONING ...................................... 12 - 13
HOW THE WATER SOFTENER WORKS .................................... 13-14
GENERAL WATER SOFTENER MAINTENANCE ............................. 15 - 16
ELECTRONIC DEMAND TIMER FEATURES AND SERVICE
TIMER DISPLAYS / OPTIONAL RECHARGE CONTROLS, PROGRAM
MEMORY, AUTOMATIC ELECTRONIC DIAGNOSTICS ..................... 17 - 18
SERVICE CHECKOUT PROCEDURES, WIRING SCHEMATIC .............. 18 - 20
WATER FLOW THROUGH VALVE .............................................. 21
REPAIR PARTS ........................................................... 22 - 25
3
WaterWorks ...... AUTOMATIC WATER CONDITIONER
SPECIFICATIONS / DIMENSIONS
MODEL WS 1000
See Rating Decal, Located On The Softener
4O / ,77
8x40
See Rating Decal
7O
5
20 - 125
120
3
RATED CAPACITY
AMOUNT OF HIGH CAPACITYRESIN (Ibs ! cuft)
RESIN TANKNOMINAL SIZE (in., dia x height)
SERVICEFLOW RATE (gpm)
WATERSUPPLYMAXIMUM HARDNESS(gpg)®
WATERSUPPLYMAX. CLEAR WATERIRON (ppm)®
WATERPRESSURELIMITS (rain. / max. psi)
WATERTEMPERATUREMAXIMUM (°F)
WATERSUPPLYMINIMUM FLOW RATE (gpm)
REGENERATIONCYCLEFLOW RATES(gpm)
FILL (flow to brine tank)
BRINING 1
BRINE
RINSE}._-- (flow to
BACKWASH I drain)
FASTRINSE "J
,3
.15
.10
1.8
1,8
® Determined by water analysis from a qualified water testing
laboratory.
48-3/4"
41-1/4"
- 3-3/8"
INLET_- _OU_T_L.
<---- 18-1/4"---_
FACTS AND FIGURES TO KEEP
Fill in the blanks below and keep this book in a safe
place so you always have these facts.
Water Softener Model No.I-
Serial Number
Date Installed
Water Hardness Grains Per Gallon
Iron Content Parts Per Million
*pH Taste And/Or Odor
1 The model number is on the rating decal, located on
the back of the softener top covers.
4
WaterWorks ....... AUTOMATIC WATER CONDITIONER
BEFORE STARTING INSTALLATION
WHERE TO INSTALL THE SOFTENER
• Place the softener as close as possible to the
pressure tank (well system) or water meter (city
water).
• Place the softener as close as possible to a floor
drain, or other acceptable drain point (laundry
tub, sump, standpipe, etc.).
Connect the softener to the main water supply
pipe BEFORE or AHEAD OF the water heater.
DO NOT RUN HOT WATER THROUGH THE
SOFTENER. Temperature of water passing
through the softener must be less than 120°F
(49°C).
• Keep outside faucets on hard water to save soft
water and salt,
• Do not install the softener in a place where it
could freeze, Freeze damage is not covered
by the warranty.
Put the softener in a place water damage is least
likely to occur if a leak develops. The manufac-
turer will not repair or pay for water damage.
A 120 volt electric outlet, to plug the included
transformer into, is needed within 10 feet of the
softener. The softener has a 10 foot power
cable. If the outlet is remote (up to 100 ft), use
18 gauge wire to connect. Be sure the electric
outlet and transformer are protected from
wet weather.
If installing the softener in an outside location,
you must take the steps necessary to assure the
softener, installation plumbing, wiring, etc., are
as well protected from the elements, contamina-
tion, vandalism, etc., as when installed indoors.
• Keep the softener out of direct sunlight. The
sun's heat will melt plastic parts.
ll_ TOOLS, PIPE and FITTINGS, OTHER MATERIALS YOU WILL NEED
=In and out pipes to the softener must be at least 3/4"
size. Some local codes require a minimum of 1" pipe
size. To plumb with 1" pipes, buy adaptors to fit the
1" pipe threads on the installation adaptors or by-
pass valve (see page 6 and 7). You should maintain
the same, or larger, pipe size as the water supply
pipe, up to the softener inlet and outlet.
•Use copper, brass, or galvanized pipe and fittings.
Some codes may also allow CPVC plastic pipe.
•ALWAYS install a bypass valve or valves. Either
use the bypass valve included, or 3 shut-oft valves.
You need to buy (see pages 6, 24 and 25) the op-
tional installation adaptors if you do not use the in-
cluded bypass valve. Bypass valves let you turn off
water to the softener for repairs if needed, but still
have water in the house pipes.
•Drain hose (3/8" or 7/16" inside diameter) is need-
ed for valve and salt tank drains. A 20' length of
hose is included, if you need more, good quality,
thick-wall, flexible hose is available at most hard-
ware stores.
,If a rigid valve drain is needed, to comply with
plumbing codes, you can buy the parts needed (see
page 8) to connect a 1/2 in. copper tubing drain.
•Nugget or pellet water softener salt is needed to fill
the brine tank (see page 9 and 15).
I1_PLAN HOW YOU WILL INSTALL THE SOFTENER
You must first decide how to run in and out pipes to
the softener. Look at the house main water pipe at
the point where you will connect the softener. Is the
pipe soldered copper, glued plastic, or threaded gal-
vanized ? What is the pipe size?
Now look at the typical installation illustration on
page 6. Use it as a guide when planning your partic-
ular installation. Be sure to direct raw, hard water
to the softener valve inlet fitting. The valve is
marked IN and OUT.
5
WaterWorks TM....... AUTOMATIC WATER CONDITIONER
TYPICAL INSTALLATION ILLUSTRATION
(BRINE TANK NOT SHOWN)
SOLDERED COPPER,
SOFT
WATER 1
[]... TO INCLUDED BYPASS
VALVE AT SOFTENER
3/4" pipe
[]... TO OPTIONAL INSTALLATION and fittings_
ADAPTORS AT SOFTENER, US-
ING 3-VALVE BYPASS
120V
outlet
HARD WATERTO
OR CPVC _.,_," OUTSIDEFAUCETS
l * included with softener
j straight connector (2)
nut (2) *
in.. 1- copper tube (2) *
gasket (2) *
Bypass Valve *
- pull OUT for SERVICE
- push IN for BYPASS
Note: Threads on the bypass valve are
1" male pipe. If 1" pipes are needed, buy
adaptors and plumb to the 1" threads.
THREADED GALVANIZED OR BRASS
SOFT
WATER
shutoff valve
OUTLET
- open for service
- close for bypass
3/4" copper (or
CPVC)
I t / I
_ut (2) *
q_-.._ copper tuba (2) *
"- gasket (2) *
installation adaptor and
o-ring (2) - optional
INLET
BYPASS - close for service
VALVE - _t3 -r"P.--,t"t-'!#_ .._'-'tb" OUTSIDE FAUCETS
open for bypass HARD WATERTO
N *,N,ET
VALVE WATER _ _ SOFT
- open for service _ WATER
- close for bypass !l
hi
/I FRO.'f To
SOFTENER SOFTENER
INLET
CROSS-OVER
Use if water supply flows from
the left. Include single or 3-valve bypass.
* included with softener
Note: Threads on the installation adaptors are
1" male pipe. If 1" pipes are needed, buy adap-
tors and plumb to the 1" threads.
6
WaterWorks ....... AUTOMATIC WATER CONDITIONER

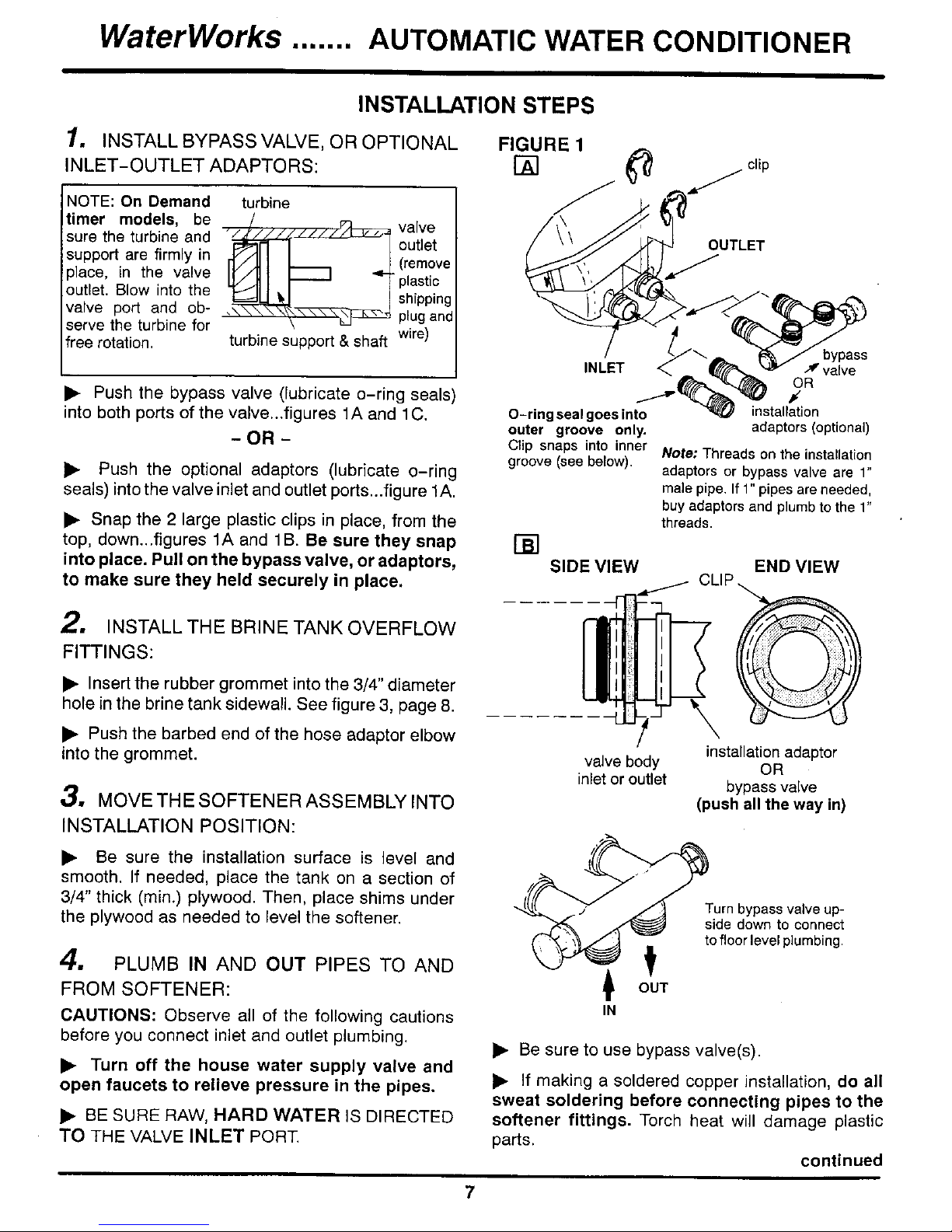

INSTALLATION STEPS
1. INSTALL BYPASS VALVE, OR OPTIONAL
INLET-OUTLET ADAPTORS:
NOTE: On Demand
timer models, be
sure the turbine and
support are firmly in
place, in the valve
outlet. Blow into the
valve port and ob-
serve the turbine for
free rotation,
turbine
"/ ]///z_ valve
I outlet
r_/lq t _ __L (remove
u 41 i---" -I plastic
I_=IU _1 I shipping
"_"'__ plug and
turbine support & shaft wire)
• Push the bypass valve (lubricate o-ring seals
into both ports of the valve...figures 1A and 1C.
-OR -
• Push the optional adaptors (lubricate o-ring
seals) into the valve inlet and outlet ports...figure 1A.
• Snap the 2 large plastic clips in place, from the
top, down...figures 1A and 1B. Be sure they snap
into place. Pull on the bypass valve, or adaptors,
to make sure they held securely in place.
2, INSTALL THE BRINE TANK OVERFLOW
FITTINGS:
• Insert the rubber grommet into the 3/4" diameter
hole in the brine tank sidewall. See figure 3, page 8.
• Push the barbed end of the hose adaptor elbow
into the grommet.
3. MOVE THE SOFTENER ASSEMBLY INTO
INSTALLATION POSITION:
FIGURE 1
[] # / clip
INLET
O-ring seal goes into
outer groove only.
Clip snaps into inner
groove (see below).
[]
SIDE VIEW
OUTLET
bypass
valve
OR
#
installation
adaptors (optional)
Note: Threads on the installation
adaptors or bypass valve are 1"
male pipe, If 1" pipes are needed,
buy adaptors and plumb to the 1"
threads.
valve body
inlet or outlet
END VIEW
LlP.
installation adaptor
OR
bypass valve
(push all the way in)
• Be sure the installation surface is level and
smooth. If needed, place the tank on a section of
3/4" thick (min.) plywood. Then, place shims under
the plywood as needed to level the softener.
4. PLUMB IN AND OUT PIPES TO AND
&
o;,
FROM SOFTENER: _ T
CAUTIONS: Observe all of the following cautions IN
before you connect inlet and outlet plumbing.
• Turn off the house water supply valve and
open faucets to relieve pressure in the pipes,
• BE SURE RAW, HARD WATER IS DIRECTED
TO THE VALVE INLET PORT.
Turn bypass valve up-
side down to connect
to floor level plumbing.
• Be sure to use bypass valve(s).
• If making a soldered copper installation, do all
sweat soldering before connecting pipes to the
softener fittings. Torch heat will damage plastic
parts.
continued
7
WaterWorks TM.....,. AUTOMATIC WATERCONDITIONER
INSTALLATION STEPS, continued
IMPORTANT: If you will use the grounding clamps
and wire in step 7 on page 9, put the clamps on the
copper tubes before soldering.
• When turning threaded pipe fittings onto plastic
fittings, use care not to cross-thread.
• Use pipe joint compound on all external pipe
threads.
• Support inlet and outlet plumbing in some man-
ner (use pipe hangers) to keep the weight off of the
valve fittings.
5, CONNECT AND RUN THE VALVE DRAIN
HOSE:
• Take a length of the in-
cluded hose and attach to the
valve drain fitting. So water
pressure does not blow the
hose off, use a hose clamp to
drain fitting
on valve
secure in place.
• Locate the other end of the
hose at a suitable drain
point...floor drain, sump, laundry
tub, etc. Check and comply
with local codes.
valve drain
hose
IMPORTANT: If you need a hose
longer than the length included,
use high quality, thick-wall hose
that will not easily kink or col-
lapse. The water softener will not
work if water cannot exit this
hose during regenerations.
TO
floor drai
back-pressure that could reduce brine draw during
regenerations.
CONNECTING A RIGID VALVE DRAIN TUBE
To adapt a copper drain tube to the softener, use
a hacksaw to cut the barbed end from the drain
fitting as shown. Buy a compression fitting (1/4"
female pipe thread x 1/2"O.D. tube) and needed
tubing from your local hardware store.
FIGURE 2
1/4" NPT threads
_ _'/_.. .. barbs
clip
cut barbs
from drain fitting
compression fitting, _ -
1/4" NPT x 1/2" O.D. tube
/not furnished)
1/2" o.e. copper tube
(notfurnished)
6. CONNECT AND RUN THE BRINE TANK
OVERFLOW HOSE (see figure 3):
• Attach another length of the included hose to the
drain elbow, installed in step 2, page 7. Use a hose
clamp to hold it in place.
• Locate the other end of the hose at the drain
point. DO NOT ELEVATE THIS HOSE HIGHER
THAN THE ELBOW ON THE BRINE TANK. DO
NOT TEE THIS HOSE TO THE VALVE DRAIN
HOSE.
NOTE: This drain is for safety only. If the brine tank
should over-fill with water, the excess is carried to
the drain.
• -Fieorwirethehoseinplaceatthe _-'J_ FIGURE3_
drain point. Water pressure will
cause it to whip during the backwash 1-112" AIR GAP
and fast rinse cycles of regeneration.
Also provide an air gap of at least 1-1/2" between the
end of the hose and the drain point. An air gap pre-
vents possible siphoning of sewer water, into the
softener, if the sewer should "back-up".
• If raising the drain hose overhead is required to
get to the drain point, do not raise higher than 8'
above the floor. Elevating the hose may cause a
F"3
I
I
brinewelJ"
I
I
I
I
[
hose
adaptor
grommet___
overflow
drain hos_
_to floor
drain
8
WaterWorks ....... AUTOMATIC WATER CONDITIONER
INSTALLATION STEPS, continued
7'. INSTALL GROUNDING CLAMPS AND
WIRE (IF NEEDED):
• To maintain electrical ground continuity in the
house cold water piping, install the included ground
clamps as shown. Be sure the pipes are clean, un-
der the clamps, to assure good contact.
FIGURE 4
hose clamp gro_nd_
copper tube
(inlet - outlet)
NOTE: A 3-valve bypass system
maintains ground continuity.
8. FLUSH PIPES, EXPEL AIR FROM SOFT-
ENER, AND TEST YOUR INSTALLATION FOR
WATER LEAKS:
CAUTION: To avoid water or air pressure dam-
age to softener inner parts, be sure to do the fol-
lowing steps exactly as listed.
A. Fully open 2 cold, soft water faucets nearby the
softener.
valve, pausing several times to allow the softener
to pressurize slowly.
E. After about 3 minutes, open a HOTwater fau-
cet for 1minute, or until all air is expelled, then close.
F. Close both cold water faucets.
G. Check your plumbing work for leaks and fix right
away, if any are found. BE SURE TO OBSERVE
PREVIOUS CAUTION NOTES.
H. Turn on the gas or electric supply to the water
heater. Light the pilot, if applicable.
9. ADD WATER AND SALT TO THE BRINE
TANK:
• Remove the salt storage area cover. Add about
3 gallons of water into the tank. DO NOT ADD INTO
THE BRINEWELL.
• *Fill the tank with NUGGET, PELLET or coarse
SOLAR water softener salt. Do not use rock, block,
granulated, and ice cream making salts, or salt with
iron removing additives. Also see page 15. Salt
storage capacity is 200 Ibs or more.
*Note: If the softener is installed in a humid base-
ment or other damp area, it is better to fill the tank
more often using less salt (see salt bridging in the
maintenance section). Eighty to 100 Ibs of salt will
last for several months, depending on water hard-
ness and family size.
B. Place bypass valve(s) in "bypass" position. On
a single valve, slide the stem into BYPASS. On a
3-valve system, close the inlet and outlet valves,
and open the bypass valve...see page 6.
C. Fully open the house main water pipe shutoff
valve. Observe a steady flow from both opened fau-
cets.
10. CONNECT TO ELECTRICAL POWER:
• The softener works on 24 volt, 60 Hz electric pow-
er. The included transformer changes standard 120
volt AC house power to 24 volts. Plug the trans-
former into a 120 volt outlet only. Be sure the out-
let is always "live" so it can not be switched off by
mistake.
D. Place bypass valve(s) in "service", EXACTLY
as follows. KEEP SOFT WATER FAUCETS OPEN.
1. SINGLE BYPASS VALVE: SLOWLY, slide the
valve stem toward "service", pausing several times
to allow the softener to pressurize slowly.
2. 3-VALVE BYPASS: Fully close the bypass valve
and open the outlet valve. SLOWLY, open the inlet
Fasten the 2 power cable lugs to the 2 screws on the
transformer, and tighten the screws. Then, plug the
transformer into the electrical outlet.
11.PROGRAM THETIMER, pages 10and 11:
9
WaterWorks ...... AUTOMATIC WATER CONDITIONER
PROGRAMMING THE DEMAND TIMER
display /
TOUCH-HOLD button --------
WATER CONDITIONER
/ up button
------- down button
SELECT button
I_ TIMER SETTINGS REQUIRED...upon installation, and after an extended power outage (see Pro-
gram Memory, page 17).
NOTES:
• WHEN THE TRANSFORMER IS PLUGGED INTO THE ELECTRICAL OUTLET (STEP 10, PAGE 9),
• 12"00AM (flashing), and PRESENT TIME show in the display area. Program the timer as instructed below.
ff SR - - is flashing, use the UP _ or DOWN V button to set the correct SR code (SR22) for model WS
1000. Then, press the SELECT button and program the timer below .... If the wrong SR code shows, see
Manual Initiated Electronic Diagnostics on pages 18 and 19.
• A "beeper" sounds while pressing buttons for timer programming. One beep signals a change in the timer
display. Repeated beeps means the timer will not accept a change from the button you have pressed, and
you should use another button.
• To set the timer, you will use the UP _ , DOWN _7 and SELECT buttons.
Jl_ SET PRESENT TIME OF DAY
NOTE: If the words PRESENT TIME do not show in the display, press the SELECT button until they do.
1. Press the UP or DOWN button to set. The UP
button moves the display ahead; the DOWN
moves the time backward ..................................
NOTE: Each press of the buttons changes the time
by 1 minute. Holding the buttons in changes the
time 32 minutes each second.
2. When the present time shows, press SELECT
to set.
If the present time is between noon
and midnight, be sure PM shows.
If the present time is between mid-
night and noon, be sure AM shows.
;Z:I0,.
PRESENT TIME
II_ SET WATER HARDNESS NUMBER
NOTE: If 15 (factory default) and HARDNESS do not show in the display, press SELECT until they do.
1. Press the UP or DOWN button to set your water
hardness number in the display. DOWN moves the
display down to 1. UP moves the display up to the
maximum (95) .....................
l II-
ID
HARDNESS
TIMER SETTINGS CONTINUED, NEXT PAGE
10
WaterWorks ...... AUTOMATIC WATER CONDITIONER
PROGRAMMING THE DEMAND TIMER, continued
• SET WATER HARDNESS NUMBER ...continued
NOTE: Each press of a button changes the display
by 1 between 1 and 25. Above 25, the display
changes 5 at atime ... 25, 30, 35, etc. Holding a but-
ton in changes the numbers twice each second. See
the specified maximum hardness, page 4.
2. When your water hardness number shows, press
SELECT to set.
You can get the grains per gallon (gpg) hardness
of your water supply from a water analysis labora-
tory, or call and ask your local water department, if
you are on a municipal supply.
• SET REGENERATION (STARTING) TIME
NOTE: RECHARGE TIME and a flashing 2:00 AM (factory default) should show in the display. This is a good
time for regeneration to start (over in about 2 hours) in most households because water is not in use. HARD
WATER is bypassed to house faucets during regeneration .... See Automatic Bypass on page 13.
1. Press the UP or DOWN button to set the desired
regeneration start time ........................................
If no change is needed, go to step 2 following. To change this time, if desired, do step 1.
I "_, o'*, ,''I AM
,'."1 It t
L.I _°1
REC_GErIME
NOTE: Each press of the buttons changes the time
by I hour. Holding the buttons in changes the time
twice each second.
2. Press the SELECT button once more .............
Be sure to observe the AM or PM, as you did when
setting the time of day.
The display shows the present
time of day and RECHARGE TO-
NIGHT.
The other special features of your timer are explained on page 17.
TO COMPLETE THE INSTALLATION, DO THE
SANITIZING PROCEDURES.
Care is taken at the factory to keep your water soft-
ener clean and sanitary. Materials used to make the
softener will not infect or contaminate your water
supply, and will not cause bacteria to form or grow.
However, during shipping, storage, installing and
operating, bacteria could get into the softener. For
this reason, sanitizing as follows is suggested(D
when installing.
1. Be sure to complete all installation steps, includ-
ing timer programming.
2. Pour about 3/4 oz of common 5.25% household
bleach (Clorox, Linco, Bo Peep, White Sail, Eagle,
etc.,) into the brinewell (figure 3, page 8).
3. Use the RECHARGE NOW feature on the timer,
to start an immediate regeneration. The bleach is
drawn into and through the water softener to sani-
tize it. This sanitizing regeneration is over in about
2 hours. Then, soft water is available for your use.
(D NOTE: Sanitizing is recommended by the water Quality
Association for disinfecting. On some water supplies, they sug-
gest periodic sanitizing.
NOTE: When the above sanitizing regeneration is over, your house COLD water supply is fully soft
immediately. However, your water heater is filled with hard water and, as hot water is used, it will
refill with soft water. When all the hard water is replaced in the water heater, hot only, and mixed hot
and cold water will be fully soft. If you want totally soft water immediately after the above regeneration,
drain the water heater until the water runs cold. If you do drain the water heater, use extreme care
as the water could cause severe burns.
11
WaterWorks ...... AUTOMATIC WATER CONDITIONER
WATER AND WATER CONDITIONING
WATER .......................................................................
Man's very existence depends on water. It is 1 of the
basic commodities of life. Water is best as nature
provides it, is a common misconception. Practically
all natural water needs refinement or treatment to
make it safe to drink or more satisfactory to use.
The earth's water supply cycle starts in the upper
cloud layers. As it falls to the earth as rain or snow,
it picks up impurities and gases from the atmo-
sphere. Landing on earth, it seeps over and through
the ground, dissolving earth minerals. Passing
through limestone, it dissolves calcium and magne-
sium, the hardness minerals. Iron deposits impart
iron to the water. Acidity and sediments are other
water conditions.
Municipal water supplies come from surface reser-
voirs, such as lakes and rivers, or from underground
reservoirs. Usually, municipalities chlorinate the wa-
ter to make it safe to drink. Sediment is removed by
filtration. Tastes and odors are reduced or elimi-
nated. The water is conditioned to comply with cer-
tain specifications. However, hardness minerals,
tastes and odors are not always reduced to the most
desirable levels.
Underground reservoirs provide our private water
supplies. Because the water is raw and untreated,
it can have varying amounts of hardness, iron,
tastes, odors, acidity, or combinations of these. Dif-
ferent localities and water levels affect mineral con-
tent.
WATER CONDITIONING ...................
Water conditioning is the treatment of 4 general
conditions. These are: Hardness, Iron, Acidity,
Sediments.
HARDNESS is a term to describe the presence of
calcium and magnesium minerals in water. A chemi-
cal analysis accurately measures the amount of
minerals in grain weight. For example, 1 gallon of
water with 5 grains per gallon (gpg) hardness has
dissolved minerals, that if solidified, about equals
the size of 1 ordinary aspirin tablet. One gallon of
water, 25 gpg hard, has a mineral content equal in
size to 5 aspirin tablets. Water hardness varies
greatly across the country. It generally contains from
3 to 100 gpg.
Hard water affects living in general. Hardness min-
erals combine with soap to make a soap curd. The
curd greatly reduces the cleaning action of soap.
Precipitated hardness minerals form a crust on
cooking utensils, appliances, and plumbing fixtures.
Even the tastes of foods are affected. A water soft-
ener removes the hardness minerals to eliminate
these problems, and others.
Sodium Information: Water softeners using sodium
chloride (salt) for regeneration add sodium to the
water. Persons on sodium restricted diets should
consider the added sodium as part of their overall in-
take.
IRON in water is measured in parts per million
(ppm). The total* ppm of iron, and type or types*, is
mm,=llwwlllJml,wl'w=l=t=l.wll,mwliR.wll
determined by chemical analysis. Four different
types of iron in water are: [] Ferrous (clear water),
[] Ferric (red water), [] Bacterial and organically
bound iron, [] Colloidal and inorganically bound
iron (ferrous or ferric).
'_Water may contain 1 or more of the 4 types of iron and
any combination of these. Total iron is the sum of the con-
tents.
[] Ferrous (clear water) iron is soluble and dissolves
in water. It is usually detected by taking a sample of
water in a clear bottle or glass. Immediately after tak-
ing, the sample is clear. As the water sample stands,
it gradually clouds and turns slightly yellow or brown
as air oxidizes the iron. This usually occurs in 15 to
30 minutes. A water softener will remove moderate
amounts of this type of iron (see specifications).
[] Ferric (red water), and [] Bacterial and organical-
ly bound irons are insoluble. This iron is visible im-
mediately when drawn from a faucet because it has
oxidized before reaching the home. It appears as
small cloudy yellow, orange, or reddish suspended
particles. After the water stands for a period of time,
the particles settle to the bottom of the container.
Generally these irons are removed from water by
filtration. Chlorination is also recommended for bac-
terial iron.
[] Colloidal and inorganically bound iron is of ferric
or ferrous form that will not filter or exchange out of
continued
12
WaterWorks ...... AUTOMATIC WATER CONDITIONER
WATER AND WATER CONDITIONING, continued
water• In some instances, treatment may improve
colloidal iron water, but always CONSULT A QUALI-
FIED WATER CHEMISTRY LAB before attempting
to treat it. Colloidal iron water usually has a yellow
appearance when drawn• After standing for several
hours, the color persists and the iron does not settle,
but remains suspended in the water.
Iron in water causes stains on clothing and plumbing
fixtures. It negatively affects the taste of food, drink-
ing water, and other beverages.
ACIDITYor acid water is caused by carbon dioxide,
hydrogen sulfide, and sometimes industrial wastes.
It is corrosive to plumbing, plumbing fixtures, water
heaters, and other water using appliances. In can
also damage and cause premature failure of seals,
diaphragms, etc., in water handling equipment•
A chemical analysis is needed to measure the de-
gree of acidity in water. This is called the pH of water.
Water testing below 6.9 pH is acidic• The lower the
pH reading, the greater the acidity. A neutralizer fil-
ter or a chemical feed pump are usually recom-
mended to treat acid water•
SEDIMENT is fine, foreign material particles sus-
pended in water. This material is most often clay or
silt. Extreme amounts of sediment may give the wa-
ter a cloudy appearance. A sediment filter normally
corrects this condition•
HOW THE WATER SOFTENER WORKS
SOFT WATER SERVICE, AND REGENERATION ...see illustrations, page 14
SERVICE
When the softener is providing soft water, it is called
"Service". During service, hard water flows from the
house main water pipe into the softener. Inside the
softener resin tank is a bed made up of thousands
of tiny, plastic resin beads. As hard water passes
through the bed, each bead attracts and holds the
hardness minerals. This is called ion-exchanging. It
is much like a magnet attracting and holding metals.
Water without the hardness minerals (soft water)
flows from the softener and to the house pipes.
•After a period of time, the resin beads hold all of the
hardness minerals they can and cleaning is needed
to remove them. This cleaning is called regenera-
tion, or recharge• The demand timer automatically
determines when regenerations occur• The solid
state timer is programmed for regeneration days•
Regeneration is started at 2:00 a.m. (factory setting)
by the softener timer, and consists of 5 stages or
cycles. These are: FILL, BRINING, BRINE RINSE,
BACKWASH, and FAST RINSE.
REGENERATION
• FILL: Salt, dissolved in water, is called brine. Brine
is needed to clean the hardness minerals from the
resin beads. To make the brine, water flows into the
salt storage area during the fill stage as shown on
page 16.
• BRINING: During brining, brine travels from the
salt storage area, into the resin tank. Brine is the
cleaning agent needed to remove the hardness min-
erals from the resin beads. The hardness minerals,
and brine are discharged to the drain•
The nozzle and venturi create a suction to move the
brine, maintaining a very slow rate to get the best
resin cleaning with the least salt.
• BRINE RINSE: After a pre-measured amount of
brine is used, the brine valve closes. Water contin-
ues to flow in the same path as during brining, ex-
cept for the discontinued brine flow. Hardness min-
erals and brine flush from the resin tank, to the drain.
• BACKWASH: During backwash, water travels up
through the resin tank at a fast flow rate, flushing ac-
cumulated iron, dirt, and sediments from the resin
bed and to the drain•
• FASTRINSE: Backwash is followed by a fast flow
of water down through the resin tank. The fast flow
flushes brine from the bottom of the tank, and packs
the resin bed.
After fast rinse, the softener returns to soft water
service.
AUTOMATIC HARD WATER BYPASS DURING REGENERATION ....................
For emergency needs, hard water is available to you should avoid using HOT water because the wa-
the home during the regeneration cycles. However, ter heater will refill with the hard water.
13
WaterWorks ..... . AUTOMATIC WATER CONDITIONER
WATER FLOW THROUGH SOFTENER
SOFT WATER SERVICE FILL
soft water hard water soft water hard water
OUT IN OUT IN
salt storage
tank
not shown}
brine valve
resin tank
resin bed
s_tstorage
tank
brine valve
\
fill water
BRINING / BRINE RINSE
hard water hard water
bypass OUT IN
• n
brine va_
brine
BACKWASH
hard water hard water
bypass OUT IN
t !
> drain
resin bed lifted
and expanded
FAST RINSE
soft water hardwater
OUT IN
14
WaterWorks ...... AUTOMATIC WATER CONDITIONER
GENERAL WATER SOFTENER MAINTENANCE
CHECKING THE SALT STORAGE LEVEL,
Brine (salt dissolved in water) is needed for each
and every regeneration. The water for making brine
is metered into the salt storage area by the softener
valve and timer. However, you must keep the tank
full of salt.
AND REFILLING ........................
pure. NUGGET, PELLET or coarse SOLAR salts are
recommended. Do not use rock, block, granulated,
and ice cream making salts. They contain dirt and
sediments, or mush and cake, and will create main-
tenance problems.
WHEN TO REFILL WITH SALT: Check the salt level
a few weeks after you install the softener and every
week after that. Never allow the softener to use all
the salt before you refill it. Without salt, you will soon
have hard water.
Use clean water softener salts only, at least 99.5%
NOTE: WATER SOFTENING SALT WITH IRON
REMOVING ADDITIVES: Some salts have an ad-
ditive to help the softener handle iron in the water
supply. Although this additive may help to keep the
softener resin clean, it may also release corrosive
fumes that weaken and shorten the life of some
softener parts.
BREAKING A SALT BRIDGE ..........
Sometimes, a hard crust or salt bridge forms in the
salt storage area. It is usually caused by high humid-
ity or the wrong kind of salt. When the salt bridges,
an empty space forms between the water and sa]t.
Then salt will not dissolve inthe water to make brine.
If the brine tank is full of salt, it is hard to tell if you
have a salt bridge. Salt is loose on top, but the bridge
is under it. The following is the best way to check for
a salt bridge.
Salt should be loose all the way to the bottom of the
tank. Take a broom handle, or like tool, and careful-
ly push it down intothe salt, working it up and down.
If the tool strikes a hard object (be sure it's not the
bottom or sides of the tank), it's most likely a salt
bridge. Carefully break the bridge with the tool. DO
NOT pound on the walls of the tank.
II'l'#l'lWmWWlIBl=fl,l.llmJmOl,lmj=l,eBl=.
push tool into salt
bridge to break
Pencil
Mark
Broom Handle Salt
"_ Salt Bridge
_. Water Level
If the wrong kind of salt made the bridge, take it out.
Then fill the tank with nugget or pellet salt only. In hu-
mid areas, it is best to fill with less salt, more often.
CLEANING IRON OUT OF THE WATER SOFTENER ...............................
Your water softener takes hardness minerals (cal-
cium and magnesium) out of the water. Also, it can
control some (see specifications, page 4) "clear wa-
ter" iron. With clear water iron, water from a faucet
is clear when first put into a glass. After 15 to 30 min-
utes, the water begins to cloud or turn rust colored.
A water softener WILL NOT remove any iron that
makes the water cloudy or rusty as it comes from the
faucet (called red water iron). To take red water iron
out of water, or over the maximum of clear water
iron, an iron filter or other equipment is needed.
If your water supply has clear water iron, periodic
resin bed cleaning is needed. Clean the bed at least
every 6 months, or more often if iron appears in the
soft water between treatments. Follow directions on
the resin bed cleaner container.
15
WaterWorks ...... AUTOMATIC WATER CONDITIONER
GENERAL WATER SOFTENER MAINTENANCE, continued
CLEANING THE NOZZLE AND VENTURI ASSEMBLY ..............................
A clean nozzle and venturi is needed for the soft-
ener to work right. This small unit makes the suc-
tion to move brine from the salt storage area to the
resin tank during regeneration. If it becomes
plugged with sand, silt, dirt, etc., the softener will not
work and you will get hard water.
To get to the nozzle and venturi, remove the softener
top cover. Be sure the softener is in service cycle (no
water pressure at nozzle and venturi). Then, while
holding the nozzle & venturi housing with 1 hand,
turn off the cap. Lift out the screen support and
screen, then the nozzle and venturi. Wash and rinse
the parts in warm water until clean. If needed, use
a small brush to remove iron or dirt. Also check and
clean the gasket.
NOTE: Some models have a smarl flow plug located
in the nozzle and venturi, and/or a small cone
shaped screen in the housing. Be sure to check and
clean these parts, if your model is so equipped.
Carefully replace all parts in the correct order. Lubri-
cate the o-ring seal with silicone grease and place
in position. Install and tighten the cap, BY HAND
ONLY. DO NOT OVER-TIGHTEN AN D BREAK THE
CAP OR HOUSING.
can_
O-ring Seal _
Screen Support _.......,_._@
Screen _ /_'_
_ *Flow Plug
Nozzle & Venturi _ _'J (1-EP)
Gasket _"_ ,_ Screen
IMPORTANT= Be sure _ _
holes in the gasket are cen-
tered directly over the small
holes in the nozzle & venturi
housing.
*Flow Plug
(HVDC)
Nozzle& Venturi
Housing
*INSTALL WITH NUMBERED SIDE
UP CONCAVE SIDE DOWN. Seeiden-
tification chart on page 24.
SERVICE CHECKLIST
No salt in storage tank: See page 15 to refill, then
start a regeneration, or recharge.
Transformer unplugged at wall outlet, or power
cable disconnected: Reconnect to electrical pow-
er and start a regeneration, or recharge.
Fuse blown, circuit breaker popped, or circuit
mistakenly switched off: Check and resolve as
needed. Then, start a regeneration, or recharge.
Plumbing bypass valve(s) in "bypass" position:
Refer to page 6 and position valve(s) as needed to
direct soft water to house pipes. Then, start a regen-
eration, or recharge.
Timer not programmed: See page 10.
Nozzle & venturi dirty, or salt in storage tank
bridged: See page 15, and above to clean. Then,
start a regeneration, or recharge.
16
WaterWorks ...... AUTOMATIC WATER CONDITIONER
DEMAND TIMER FEATURES, AND SERVICE
NOTE: SEE PAGES 10 AND 11 TO SET THE TIMER TO THE CORRECT TIME OF DAY, WATER HARD-
NESS NUMBER, AND RECHARGE START TIME.
NORMAL OPERATION, TIMER DISPLAYS
During normal operation, the present f
time of day, and AM or PM, show in -_.' /g_,u /
the time d sp ay area. When the de- [
J
mend computer determines a regen-
eration is needed, RECHARGE TONIGHT begins to
flash in the display, along with the present time. RE-
# # i = = = w i a = a I # # • I # i i i = • i i D . i = i III I i i i . = a j
CHARGE TONIGHT flashes until the
next regeneration start time, thenl _. l-lpM I
REC_RGETONIG_J
changes to RECHARGE NOW, I -"
which flashes until the regeneration
is over.
feature: OPTIONAL RECHARGE CONTROLS .....................................
Sometimes, a manually started regeneration (recharge) may be desired, or needed. Two examples are:
... You have used more water than usual (house guests, extra washing, etc.) and you may run out of soft water
before the next regeneration.
... You did not refill the storage tank with salt before it was all gone.
Use 1 of the following features to start a regeneration immediately, or at the next preset regeneration start
time.
RECHARGENOW ! -" I-# J"E_'RGENOW_" IC- _u
Press and hold in the TOUCH - HOLD button until
RECHARGE NOW starts to flash in the time display
area. The softener begins an immediate regenera-
tion, and when over in about 2 hours, you will have
a new supply of soft water. Once started, you cannot
cancel this regeneration.
RECHARGE TONIGHT
3:
RECHARGE TONIGH7 ,
Touch (do not hold) the TOUCH - HOLD button, and
RECHARGE TONIGHT flashes in the time display
area. A regeneration will occur at the next preset re-
generation start time. If you decide to cancel this re-
generation, touch the same button once more.
VACATION NOTE ..................................................... ...... ......
o,o,.,,=,, ,,
This demand water softener regenerates only when water is used and softening capacity must be restored.
For this reason, the softener will not regenerate while you are away from home for extended periods.
feature: PROGRAM MEMORY ...................................................
If electrical power to the softener is interrupted, the
time display is blank, but the timer keeps correct
time for about 6 hours. When power is restored, you
have to reset the present time only if the display is
flashing. All other settings are maintained and nev-
er require resetting unless a change is desired.
If the time is flashing after a long power outage, the
softener continues to work as it should to provide
you with soft water. However, regenerations may oc-
cur at the wrong time of day until you reset the timer
to the correct time of day, page 10.
feature / service: AUTOMATIC ELECTRONIC DIAGNOSTICS .......................
The timer computer has a self-diagnostic function
for the electrical system (except input power and
water meter). The computer monitors the electronic
components and circuits for correct operation. If a
malfunction occurs, an error code appears in the
timer display.
The following chart (page 18) shows the error codes
that could appear, and possible defects for each
code. While an error code is displayed, all timer but-
tons are inoperable except for the SELECT button.
SELECT remains operational so
the service person can make the
Manual Initiated Electronic Diag- IE 03
nostics to further isolate the defect, I-/-
and check the water meter.
17
WaterWorks ...... AUTOMATIC WATER CONDITIONER
POSSIBLE
DEFECT
DEMAND TIMER FEATURES, AND SERVICE, continued
ERROR CODE DISPLAYED
Err01 I Err02 I Err03 I Err04
wiringharness, orconnectionto switch i positionswitch 0 motorinoperative
valvedefectcausinghightorque
Err 05
timer(PWA)
TO REMOVE AN ERROR CODE: (1) unplug transformer (2) correct defect (3) plug transformer in (4)
Wait for at least 6 minutes. The error code will return if the reason for the error code was not corrected,
service: TIMER / SOFTENER, SERVICE CHECKOUT PROCEDURE .................
If you are not getting soft water, and an error code
is not displayed, use the procedures below to find
the problem. First, make the following visual checks.
VISUAL CHECKS: (1) Is there electrical power to
the outlet the softener transformer is plugged into?
(2) Is there salt in the storage tank? (3) Is the plumb-
ing bypass valve(s) directing water for soft water
service? -see page 6- (4) Is the valve drain hose
open to the drain, not elevated too high, and unob-
structed? If you do not find a problem with the visual
checks, continue below.
T'MERSHOWSWRON T,MEI lSlectr calpowerwaso,Rs-] [,nvestigatereasonforpower]
AND DAY,AND/OR IS FLASHINGI_ 1set the correct time of day.. _loss. Be sure outlet for softener
_ " = Icannot be switched off.
i
t
Lj , _r P W _--.-JREPAIRAS--]
Check electricalpower totimer I _ [--_ NO POWERF---- _ NI=FI3Fr3 i
TIMER DISPLAY BLANK ....... Do manual diag-
I -I (outlet, transformer, power r_ _ _
nostics to verify
/ cable, all connections. I I
proper function.
TIMERDISPLAYSHOWSCORRECTIr "I ' L'D'I POWE R OKAY _" 1E)'EaF=EHCTIVEI
TIME AND DAY,AND IS STEADY _ Do manual /
' Ldiagnostics]
service: MANUAL INITIATED ELECTRONICS DIAGNOSTIC ........................
1. To enter diagnostics, press and hold the SELECT
button until (000 - -) shows in the display,
lUUL, p
-I-q- ,-or
WATER METER (A) SWITCH (B)
(A)The first 3 digits indicate water meter operation
as follows:
$ 000 (steady) = soft water not in use...no flow
through the meter.
-- OPEN A NEARBY SOFT WATER FAUCET --
$ 000 to 199 (continual) = repeats display for each
gallon of water passing through the meter.
i
I
I
SENSOR
"'" HOUSING
_TURBINE
_TURBINE
SUPPORT AND
SHAFT
VALVE
OUTL
continued
18
WaterWorks ...... AUTOMATIC WATER CONDITIONER
DEMAND TIMER FEATURES, AND SERVICE, continued
If you don't get a reading in the display, with faucet
open, pull the sensor from the valve outlet port. Pass
a small magnet back and forth in front of the sensor•
You should get a reading in the display. If you get a
reading, unhook the in and out plumbing and check
the turbine for binding.
(B) The letter (P) and dash(es) indicate POSITION
switch operation. The letter appearing means the
switch is closed; the dash means the switch is open.
Use the TOUCH - HOLD (Recharge Tonight - Now)
button to manualty advance the valve into each
cycle and check correct switch operation.
CORRECT
SWITCH
DISPLAYS
VALVE CYCLE STATUS
Valve in service, fill, brining,
backwash or fast rinse position.
_ p Valve rotating from one position
to another.
C. While in this diagnostic screen, the following in- 2. Press the SELECT button and I cooE
formationisavailableandmaybebeneficialforvari- hold in 3 seconds until a Service I ,.._" ,..,'" " "-' I
ous reasons• This information is retained by the Rating code appears in the display, t """'" '_"_"'
computer from the first time electrical power is ap-
plied to the face plate.
•..Press the UP/_ button to display the number of
days this face plate has had electrical power ap-
plied.
For correct softener operation, the SR number
must be SR22.
To reset the code, if wrong, press the UP or DOWN
button until the correct number shows.
•..Press the DOWN _7 button to display the num-
ber of regenerations initiated by this face plate since
the SR code number was entered.
3. Press SELECT to return the present time display.
If the code was changed, make ALL the timer set-
tings, pages 10 and 11.
NOTE: If the face plate is left in a diagnostic display (or a flashing
display when setting times or hardness), present time automatically
returns if a button is not pressed within 4 minutes.
service: MANUAL ADVANCE REGENERATION CHECK ..............................
This check verifies proper operation of the valve
motor, brine tank fill, brine draw, regeneration flow
rates, and other controller functions. First, make
the initial checks, and the manual initiated diag-
nostics.
J.nO NI
NOTE: The face plate display must show a steady
time (not flashing).
1. Press the TOUCH - HOLD button and hold in for
3 seconds. RECHARGE NOW begins to flash as the
softener enters the fill cycle of regeneration. Re-
move the brinewell cover and, using a flashlight, ob-
serve fill water entering the brine tank.
$ If water does not enter the tank, look for an ob-
structed nozzle, venturi, fill flow plug, brine tubing,
or brine valve riser pipe.
markers
2. After observing fill, press the TOUCH - HOLD but-
ton to move the softener into brining. A slow flow of
water to the drain will begin, Verify brine draw from
19
WaterWorks ...... AUTOMATIC WATER CONDITIONER
DEMAND TIMER FEATURES, AND SERVICE, continued
the brine tank by shining a flashlight into the brine-
well and observing a noticeable drop in the liquid
level.
NOTE: Be sure a salt bridge is not preventing water
with salt contact,
Ii, tf the softener does net draw brine...
•..nozzle and/or venturi dirty or defective.
...nozzle and venturi not seated properly on gasket.
...restricted drain {check drain fitting and hose).
...defective nozzle and venturi seal.
...other inner valve defect (rotor seal, rotor & disc,
wave washer, etc.).
NOTE: If water system pressure is low, an elevated
drain hose may cause back pressure, stopping
brine draw.
3. Again, press the TOUCH - HOLD button to move
the softener into backwash. Look for a fast flow of
water from the drain hose.
A slow flow indicates a plugged top distributor,
backwash flow plug, or drain hose.
4. Press TOUCH - HOLD to move the softener into
fast rinse. Again look for a fast drain flow. Allow the
softener to rinse for a few minutes to flush out any
brine that may remain in the resin tank from the brin-
ing cycle test.
5. To return the softener to service, press TOUCH -
HOLD.
WIRING SCHEMATIC
TRANSFORMER
120V_
124V
L_
_) I
VALVE
MOTOR
BACK OF FACEPLATE TIMER
rn
WATER
METER
SENSOR
POSITION
SWITCH
20
WaterWorks ...... AUTOMATIC WATER CONDITIONER
SERVICECYCLE
WATER FLOW THROUGH VALVE
position switch
venturi
FILL CYCLE
valve cam
rotor & disc
To Valve Outlet
(soft water)
€
from Valve Inlet fill flow
(hard water) plug
.top distributor
resin tank
bottom distributor _..._.----_l
BRINING and BRINE RINSE CYCLES
bypass hard water
to valve outlet
venturi
fill water
(soft)
To Valve Outlet
(soft water) tf_
r :;n
bottom distributor --'-_'-4_:_(;_::_:_
from Valve Inlet
(hard water)
top distributor
resin tank
bypass hard water
to valve outlet
BACKWASH CYCLE
flowplug
nozzle
I"
brine from
salt stor-
age tank
soft water
to valve outlet
from Valve Inlet
(hard water)
FASTRINSECYCLE
drain
from Valve Inlet
(hard water)
f \
drain
from Valve Inlet
(hard water)
t
!
21
CYCLE TIMES - MINUTES, demand timer
SR22
*FILL 2 - 9
#BRINING & BR, RINSE 100
BACKWASH 7
FAST RINSE 3
•_Timevaries with the operating level (grains capacity restored) each
regeneration
WaterWorks ...... AUTOMATIC WATER CONDITIONER
REPAIR PARTS - SOFTENER ASSEMBLY
8
3O
l
31-.-p'_
20
24
j Jl
J
J
28 _29
27
22
WaterWorks ,M...... AUTOMATIC WATER CONDITIONER
I I I
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
PART
NO.
7207718
7207726
7176292
7088033
7112963
7077870
7105047
0501741
0502272'
7113058
7180314
7180291
7213939
7215868
7118333
7132840
7095373
7192785
7163689
REPAIR PARTS - SOFTENER ASSEMBLY
DESCRIPTION OF PART
Hose Clamp (2)
Ground Wire
Clamp Section (2)
C_amp Retainer (2)
O-ring Seal Kit
O-ring Seal, 2-7/8" x 3-1/4"
O-ring Seal, 13/16" x 1-1/16"
O-ring Seal, 2-3/4" x 3"
Top Distributor
Repl. Bottom Distributor
Resin, 26-1/2 Ibs (1/2 cu ft)
Resin, 53 Ibs (1 cu ft)
Resin Tank, 8" dia x 40"
Bottom Cover
Faceplate Cover (also order follow-
ing decal)
Decal
Timer (PWA)
Wire Harness
Power Cord
Transformer
Salt Hole Cover
Vapor Barrier
KEY
NO.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
PART
NO.
7178626
7155115
7082150
710O819
7155034
7161831
0900431
9003500
1103200
7116488
7171349
7095470
7113008
1205500
7092252
7080663
7131365
7113016
DESCRIPTION OF PART
Rim
Brinewell Cover
Wing Nut, 1/4-20
BrineweU
Screw, 1/4-20 Nylon
Repl. Brine Tank
Hose Clamp
Grommet
Hose Adaptor
Brine Valve Assembly
Screen
Brine Tube
Float, Stem & Guide Assembly
Clip
Brine Valve Body
Clip
Screen
Tubing Assembly
23
WaterWorks ...... AUTOMATIC WATER CONDITIONER
REPAIR PARTS - VALVE ASSEMBLY
IDENTIFI- OUTSIDE
CATION DIA.
NUMBER
18 .37
1-EP .295
HVDC .295
ACTUAL SIZES
(excludingcenter hole)
52
19
20
30
27
j 26
\\43
44
CENTER
HOLE
DIA.
,138
@
0501228
7092615
7097252
AVAILABLEOPTION
for installing softener
withoutincludedby-
pass vane
21
24
WaterWorks TM...... AUTOMATIC WATER CONDITIONER
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
REPAIR PARTS - VALVE ASSEMBLY
PART
NO.
7070412
_7117816
7030713
7077472
7074123
7085263
7082087
7199232
7199729
7170262
7167659
7146043
7148532
7082582
10521829
7095030
1148800
7214969
7081201
7170319
7082053
7129889
7092642
DESCRIPTION OF PART
Screw, #4-24 x 1-1/8"
Spacer
Switch
Expansion Pin
Screw, #10-14 x 2" (5)
Valve Cover
Wave Washer
Rotor & Disc
Cap
O-ring Seal, 1.1" x 1.4"
Screen Support
Screen
Aspirator (Nozz./Vent) - also order
following gasket
Gasket
Flow Plug,. 1gpm
Cone-Screen
Fill Flow Plug, .3 gpm
Nozzle & Venturi Assembly (Includes
key nos. 9 through 17)
Retainer
O-ring Seal, 1/4" x 3/8" (2)
Valve Body
Spring
Plug (Drain Seal)
Seal (Nozzle & Venturi)
O-ring Seal, 3/8" x 9/16"
Rotor Seal
KEY PART
NO. NO.
27 --
28 --
29 --
30 7129716
31 0900431
32 7024160
33 7170327
34 0501228
35 7142942
36 7113927
37 0503288
38 7117808
39 0900857
40 7133008
41 7131755
42 0507369
43 0507615
44 7170335
45 7116713
46 7181580
47 7147243
48 --
49 --
50 9000803
51 7129871
52 1202600
53 2207800
54 7170288
DESCRIPTION OF PART
O-ring Seal, 3-3/8" x 3-5/8"
O-ring Seal, 3/4" x 15/18"
O-ring Seal, 7/16" x 5/8"
Seal Kit - Includes Key Nos. 24 - 29
Hose Clamp
Drain Hose Adaptor
O-ring Seal, 5/8" x 13/16"
Flow Plug, Backwash / F. Rinse
control
Clip
Cam and Gear
Bearing
Motor Plate
Screw, #6-20 x 3/8" (2)
Motor - Includes Key No, 41
Screw, #8-20 x 7/8" (2)
Installation Nut (2)
Installation Tube (2)
Washer (2)
Clip (2)
Sensor Housing
Turbine and Support Assembly
Turbine Support
Turbine
O-ring Seal
Bypass Valve
Nut-Ferrule
Installation Adaptor (2) - optional
O-ring Seal, 15/16" x 1-3/16" (2)
25
WaterWorks ...... AUTOMATIC WATER CONDITIONER
NOTES
26
WaterWorks ...... AUTOMATIC WATER CONDITIONER
NOTES
27
Loading...
