Ecor pro EPD50 MAX User guide

EPD50 MAX - manual

• DryFan Desiccant Dehumidier.
A unique product and a revolution to the way we keep living spaces, lofts, basements,
boats, holiday homes, garages and storage areas dry all day and every day.

DRYFAN® TECHNOLOGY

UK

USER MANUAL

PAGE 2-12

DE

GEBRAUCHSANWEISUNG

MODE D’EMPLOI

FR

NL

GEBRUIKSAANWIJZING

SEITE 13-24

PAGE 25-36

PAG. 37-48

Made in P.R.C.

POWERED BY

INTODUCTION

UK

EPD50 MAX
DryFan Desiccant Dehumidier

Well-suited for applications where excess
moisture needs to be removed from the air
without producing condensate water. The use of
desiccant technology allows for eective moisture
removal even in low-temperature environments,
which is a notable advantage.

DE

EPD50 MAX
Adsorptionsluftentfeuchter

Geeignet für Anwendungen, bei denen
überschüssige Feuchtigkeit aus der Luft entfernt
werden muss, ohne dass Kondensation entsteht.
Der Einsatz der Adsorptionstechnologie
ermöglicht eine eektive Feuchtigkeitsentfernung
auch in Umgebungen mit niedrigen Temperaturen,

FR

EPD50 MAX
Déshumidicateur à adsorption DryFan.

Convient aux applications où l'excès d'humidité doit
être éliminé de l'air sans produire de condensation.
L'utilisation de la technologie d'adsorption permet
d'éliminer ecacement l'humidité même dans les
environnements à basse température, ce qui constitue
l'un de ses principaux avantages.

NL

EPD50 MAX
DryFan adsorptie-ontvochtiger.

Geschikt voor toepassingen waar overtollig vocht uit de
lucht moet worden verwijderd zonder condenswater te
produceren. Het gebruik van adsorptietechnologie
maakt eectieve vochtverwijdering mogelijk, zelfs in
omgevingen met lage temperaturen, een van de grote
voordelen. duurzaamheid.

einer seiner Hauptvorteile.

2

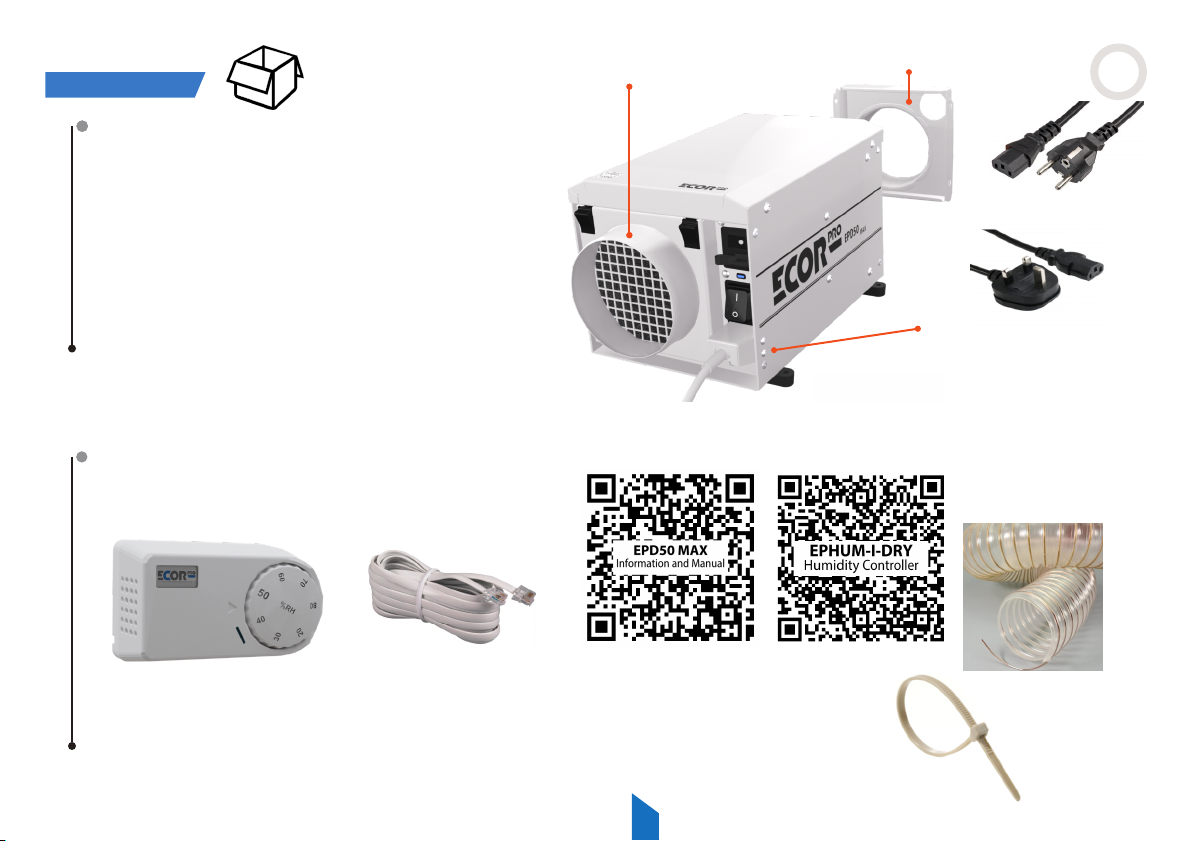

OUT THE BOX

• 125 mm front & back anges (white)

UK

• EPD50 MAX with
standard lter holder

2 m wire / Euro type F plug

•

• 2 m wire / UK D-plug

• EPHUM-I-DRY
humidistat

• 2 m white of controller
cord / RJ11 connectors

• 125 mm front ange
(white)

• 125 mm back ange
(white)

• QR Code for full user
manual

• 1 m ex duct 40 mm to t

• Tie-wrap

EPHUM-I-DRY

humidistat for for
humidity control (%R.H.)

• 2 m of
controller cord,
RJ11 connectors

• Connect the controller cord in the
device and in the hygrostat.
Turn on the top switch (white dot down)
Set the desired humidity (%R.H.)

2 m wire EU plus

•
plug

• Loosen middle screw
to t the correct plug.
Screw must be re­ fasten securely.

EPD50 MAX, strong white epoxy nish.
Comes with 125 mm anges for front and rear.

• 1 meter ex duct
dia. 40 mm to t

• Tie -wrap

UK

3

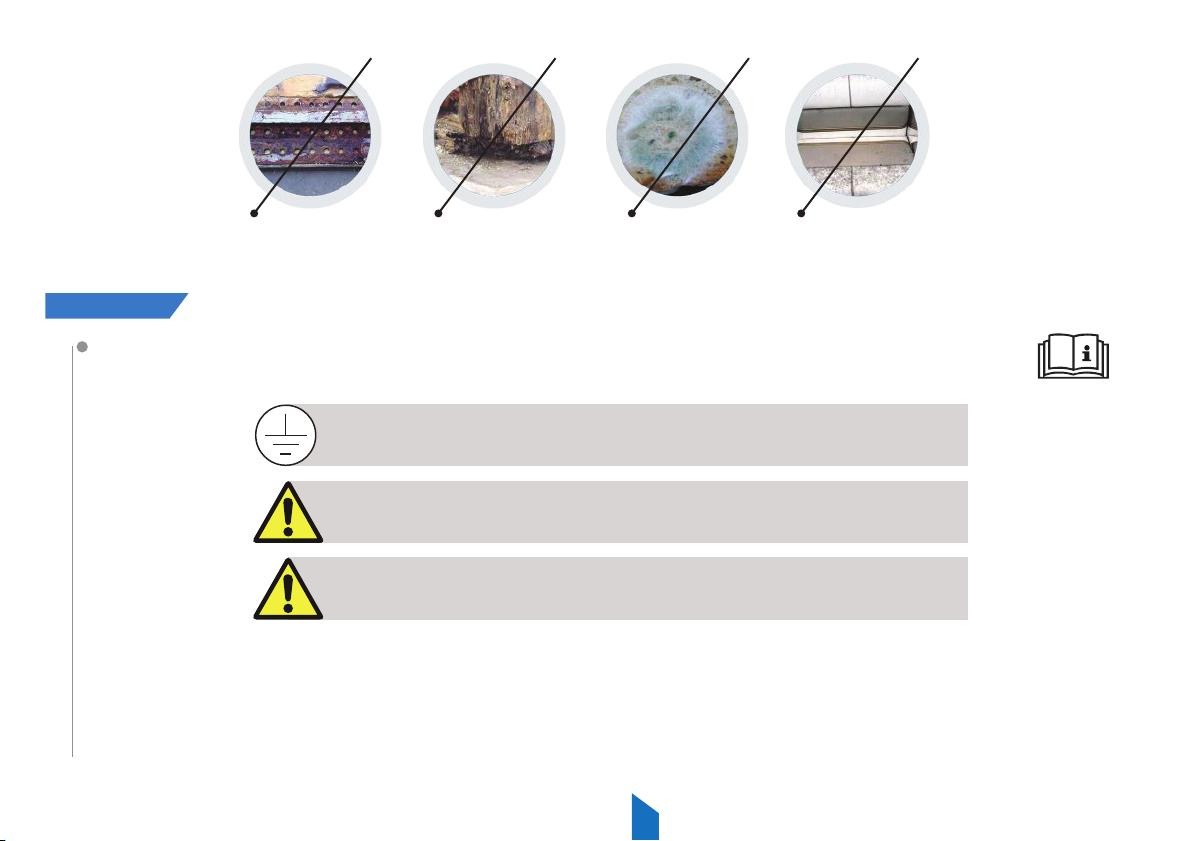

For industrial processes and ood recovery, also to prevent rust, wood rot, bacteria and fungi.
For applications where excess moisture needs to be removed from the air.

SAFETY (1)|

For safety reasons, read this information carefully before operating. Persons who are not familiar
with this type of product must not use it. Keep the manual in a safe place for future reference.

This appliance must be earthed and should only be connected
to an earthed 230V – 50 Hz mains supply.

The installation must be in accordance with the regulations
of the country where the unit is used.

The unit is designated for indoor operation.

The dehumidifier is safe, however, as with other electrical appliance, use it with care.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

+

4

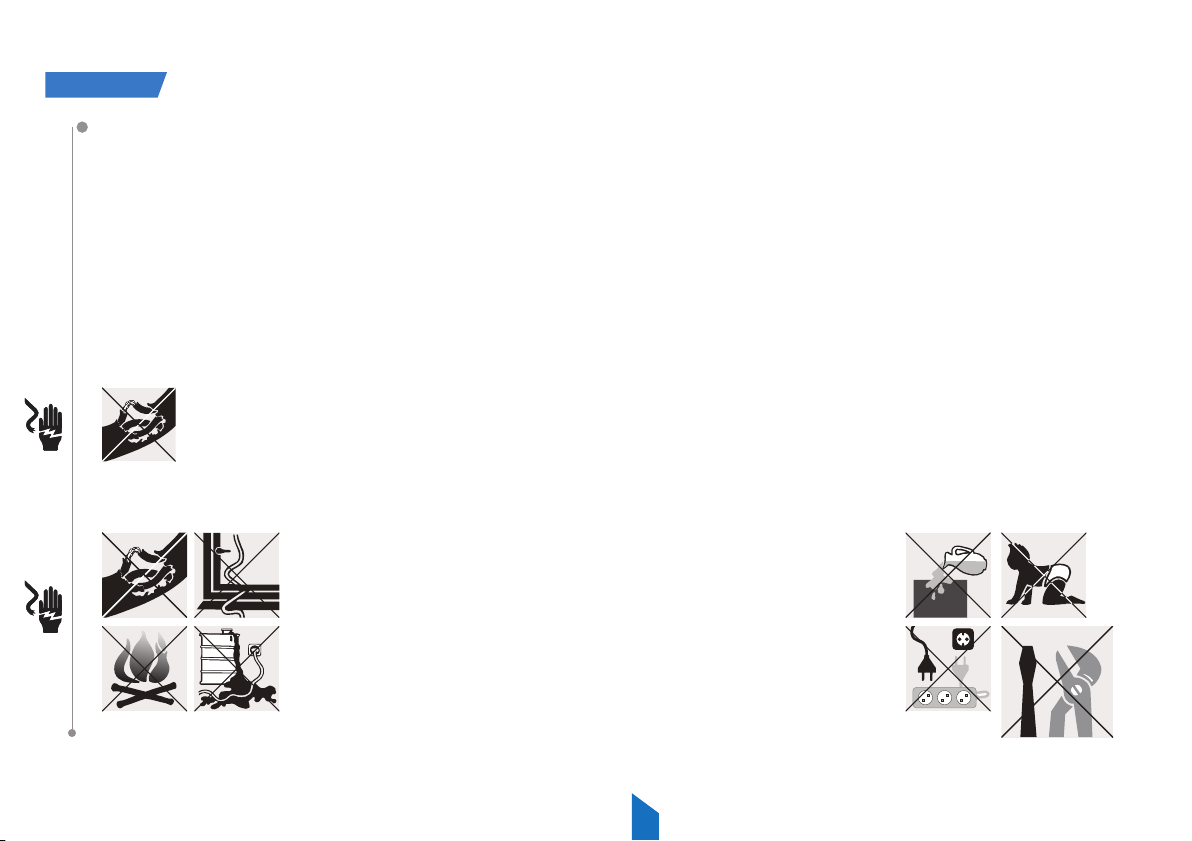

SAFETY (2)|

• Do not clean the dehumidifier by spraying it or immersing it in water.

• Do not insert any object into the opening of the dehumidifier.

• Disconnect from the mains before cleaning the unit or any of its components.

• Never connect to an electrical outlet using an extension cord.

If an outlet is not available, one should be installed by a licensed electrician.

• Place the dehumidifier in location appropriate to the appliance IP-rating (see technical data).

• Any service other than regular cleaning, setting fan mode or filter replacement should be performed by an
authorised service representative. Failure to do so could result in a loss of warranty. Your dehumidifier is
supplied with an electrical cable (15 ft) and an earthed plug. Should it be necessary to replace this plug at
any time, you must use an earthed electrical plug.

Warning! Never operate this appliance if it has a damaged cord or plug.
If the supply cord is damaged an approved service representative or a similar qualified person
must replace it in order to avoid any hazards.

There should be direct access to the electrical plug after connecting the power!

Do not use your dehumidifier under the following conditions:

• If the power cable is damaged

• Where the power cable may be easily damaged

• Close to heat source

• Where small children may be left unattended

• Where there is a risk of liquids falling on the unit

• Where it may be damaged by chemicals

This product is not made for DIY repair.

5

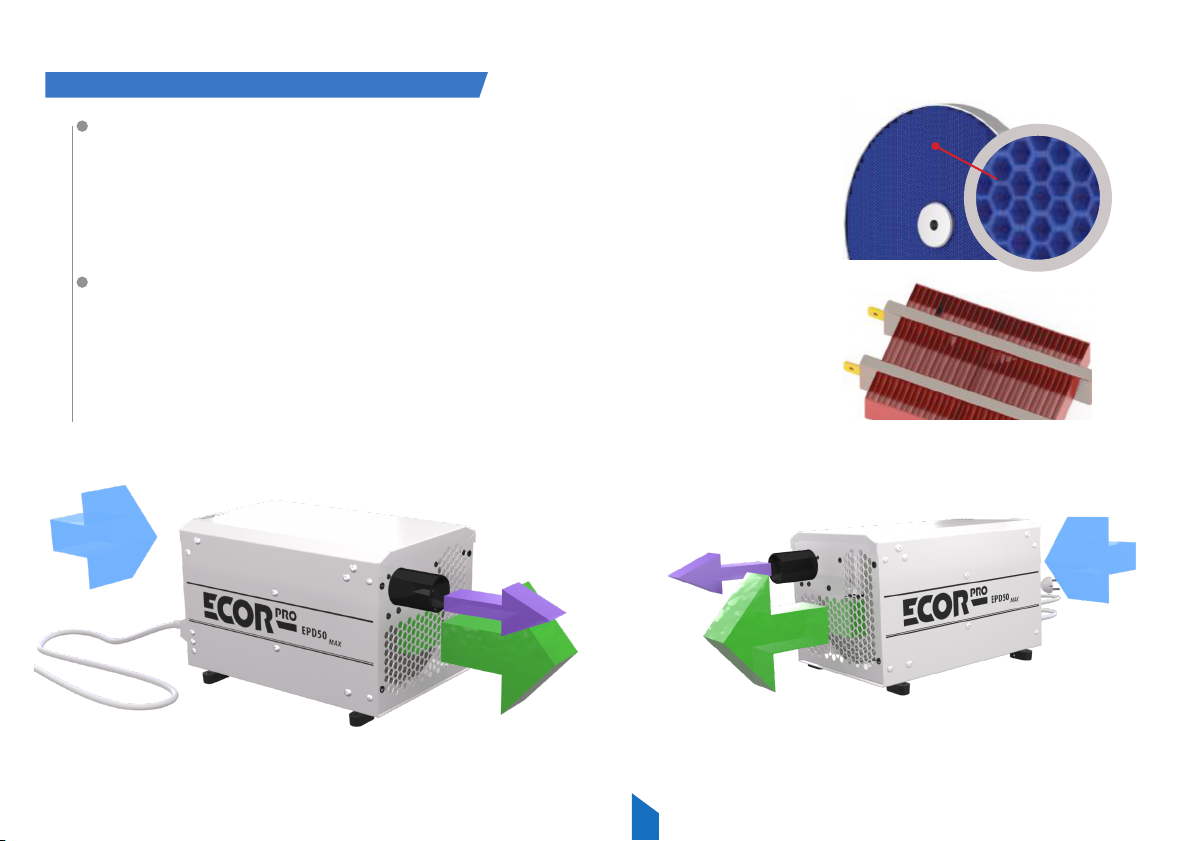

HOW OUR UNIQUE TECHNOLOGY WORKS |

PATENTED DESICCANT ROTOR

The Desiccant Rotor is the heart of the DryFan® system. It is an array of
especially absorbent membranes – patent protected – arranged as a series
of corrugations (as shown in the cut-away image) to give a vast surface
area that was developed over many years, making it an extremely efficient
moisture collector.

PATENTED REGEN HEATER

A patented ceramic PTC Regen Heater. (PTC Positive Temperature
Coefficient) is self regulating so never to overheat. However, as triple safety
we include a separate overheat smart sensor in the dehumidifier.
The patented technology is both safe and energy efficient and can never
overheat to hazardous temperatures, even if vents become accidentally
blocked.

+

• damp air in

• wet air
exhaust

• damp air in

• wet air
exhaust

• dry ltered air out

6

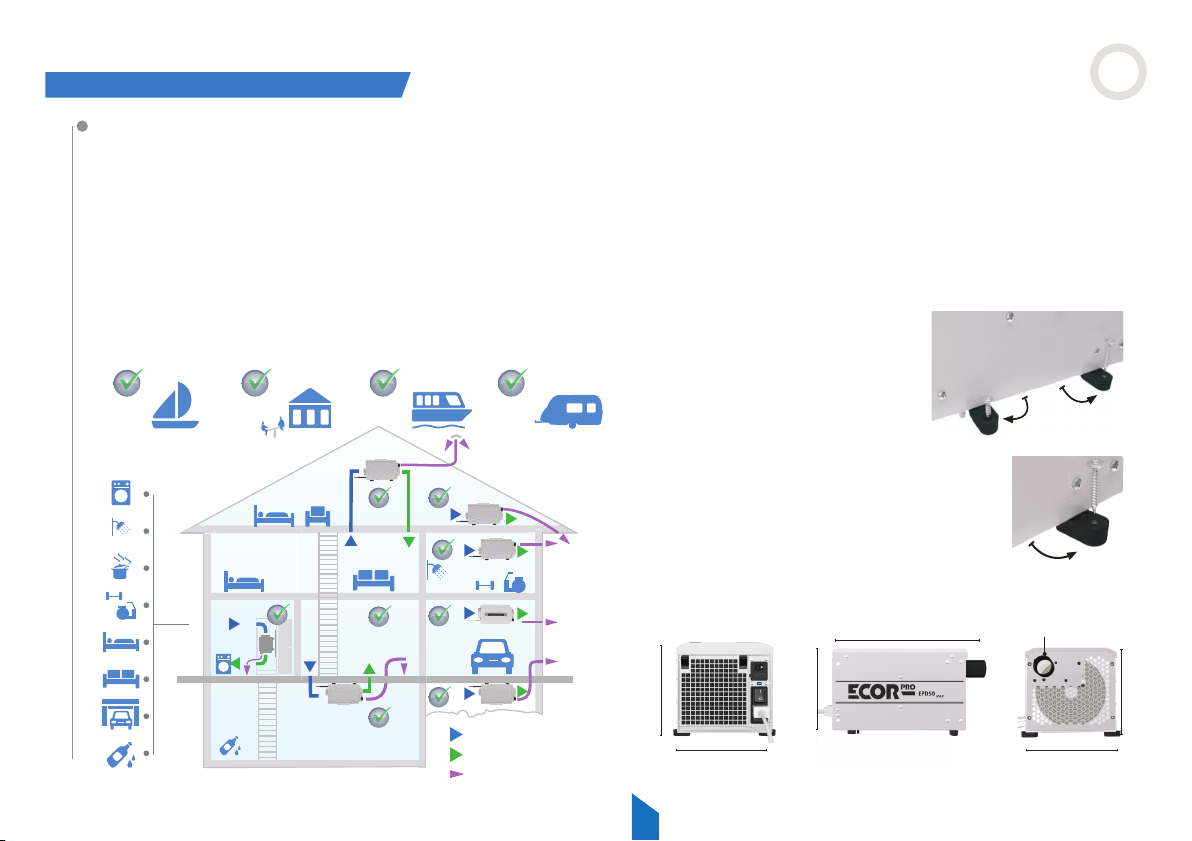

POSITIONING (1)

UK

POSITIONING

The models have been designed for indoor use however,
they can be placed inside or outside the room to be dried.

Internal Positioning:

When positioning the unit inside the room, place it
centrally, ensuring inlet and outlet ducts are clear of

obstruction. If required, ducts can be connected to the
outlet and/or inlet (where fitted) to direct the drying

to specific areas. The ‘Wet Air Out’ MUST be ducted
outside the room.

External Positioning (Outlet Duct Fitted Only):

When positioning the unit outside the room, connect
ducting to the outlet to direct the dry air-stream into
the room to be dried. Optionally, the inlet may also be
ducted to the room to give a re-circulation eect. In
this case however, because the unit uses a portion for
the inlet air for regeneration. Provision must be made
in the inlet duct to draw air also from outside the room.

FIXING

The dehumidier can be
mounted in any position, even
upside down. Skewed, tilted or
upside down. No spirit level is
needed (therefore ideal for use
in ships and boats). Turn out
the feet at the bottom of the unit
and you will see the xing points.
Secure all 4 feet with screws or
bolts (not supplied) to the oor,
wall or ceiling.

328 mm

Ø 40 mm

207 mm

damp air in

+

dry ltered air out

wet air exhaust drain

207 mm

7

207 mm

197 mm197 mm

POSITIONING (2)

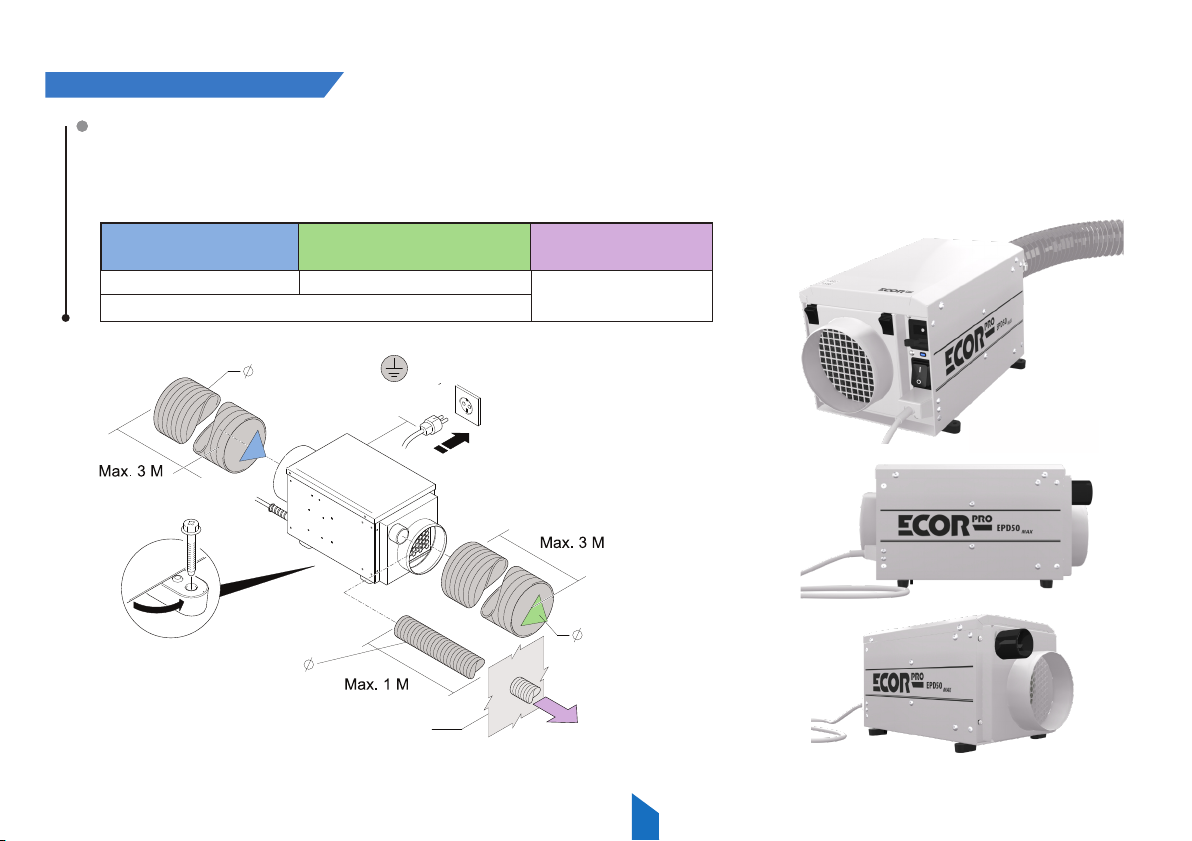

Note:

External ductwork will reduce restrict airow and therefore the amount of water the dehumidifiers will
extract. To maximize airow and water extraction always keep any ducting to minimum.
Maximum lengths in meters of any ducts are outlined in the table.

Maximum damp air in

duct length (m)

3.0

together with a maximum length of 3 m

Maximum dry ltered air

out duct length (m)

3.0

125 mm

40 mm

Maximum wet air out

duct length (m)

1.0

220-240V / 50Hz

Front and back anges
(125 mm) are included
for mounting external
ducts.

125 mm

Outside vent

8

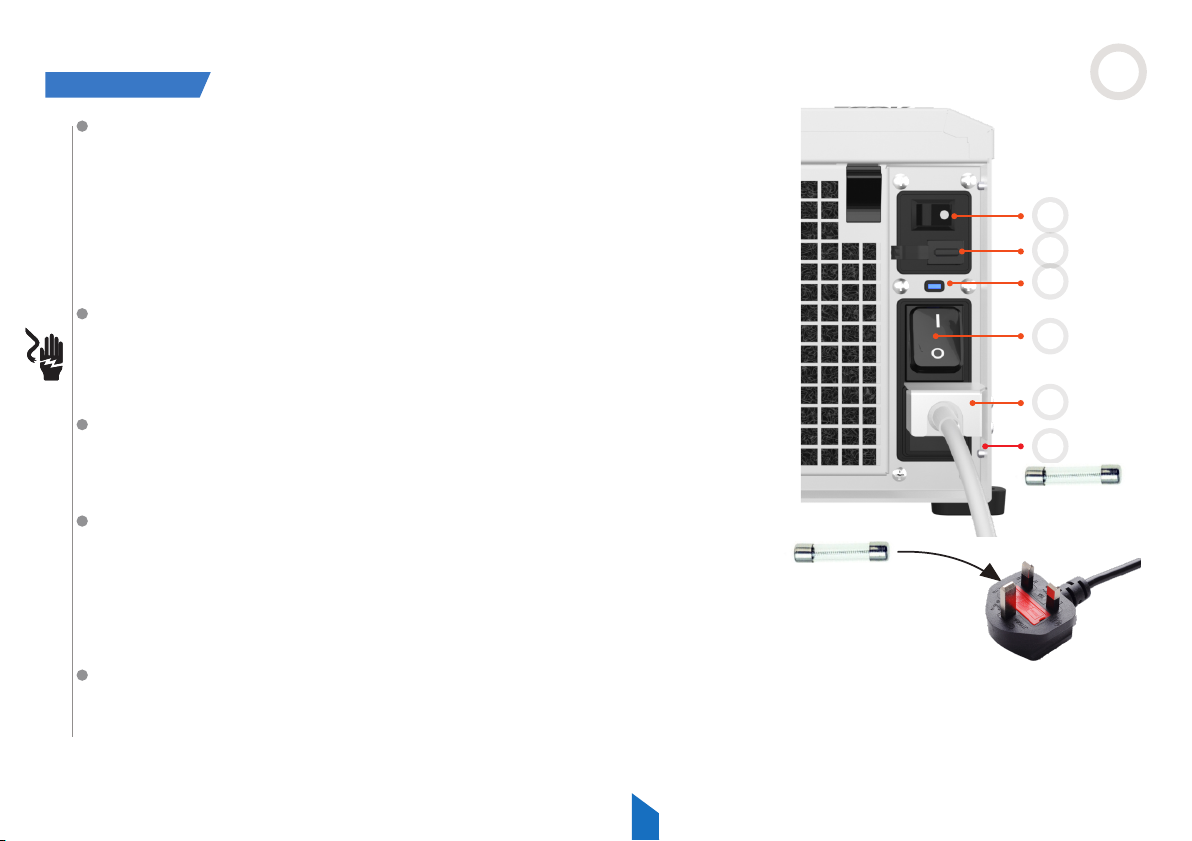

OPERATION (1)|

All controls are located at the front of the unit, next to the air intake.

1. Continuous Fan; "white spot pressed" is on.

2. Dust cover with an RJ11 connector behind it for the remote control

3. LED light. Led lights up showing status

4. On of switch of the unit. "I" is on, "O" is o.

5. Socket for 230V. Protective cap also prevents the cord

from slipping loose.

6. Holder for fuse 230V - 10 A

OPERATION

Check the rating plate. Connect the unit to the correct mains voltage and
lines. Place the “wet out duct” outside the room/area to be dried.
Turn the unit on (“I”).

STAND ALONE

Turn o the remote control switch. Press the black area of the switch.
The unit will now operate continuously 24/7 without a remote control
maximum dehumidication.

REMOTE OPERATION WITH HUMIDISTAT (EPHUM-I-DRY)

For remote operation it is necessary to connect the humidistat controller
(provided) via the cord and RJ11 connectors (plug on the humidistat and
into “2” on the unit). The dehumidifier will now be controlled by the remote
humidistat that is using low power and only 12V. Download the manual
via the QR code (page 3). The lower the number, the dryer the room.

UK

1

2
3

4

5

6

Fuse under socket
230V 10A.

Fuse in plug (UK only)
230V 13A.

NOTE: A low setting of say 10% means the room is regulated to a very dry
level while a setting of say 90% the room will be maintained at a relatively
humid level. The right level for the room may vary with weather,
temperature and occupation conditions over time.

+

9

OPERATIO

OPERATION (2)

CLEANING

Disconnect from the mains before cleaning or servicing the unit or any of its
components.

Wipe regularly clean with a moist cloth (a soft, damp cloth) and a
mild household detergent, Never use chemicals, petrol, aggressive detergents or
other cleansing solutions

.

AIR FILTER

The dehumidifier has an inlet air filter. This should be checked periodically and
if necessary cleaned. It can be cleaned with a vacuum cleaner or hand

washed in mild detergent only. Replacement filters are available from your
supplier. ATTENTION: Do not run the unit without a filter fitted

as dust will impair the performance of the Rotor.

Remove the plug from the socket before checking fuses. If the appliance
does not work, check the appliance fuse 230V-10A and/or the plug fuse (UK
only) 230V-13A.

Attention!

As an added safety feature, if this dehumidifier overheats internally, the internal
safety fuse will stop the unit from working. To reset this fuse, unplug the
dehumidifier from the power source and then plug it in again. Check filters are

clean and ducting allows adequate air flow to operate.

Attention!

The unit will run 5 minutes after turned o for internal cooling!

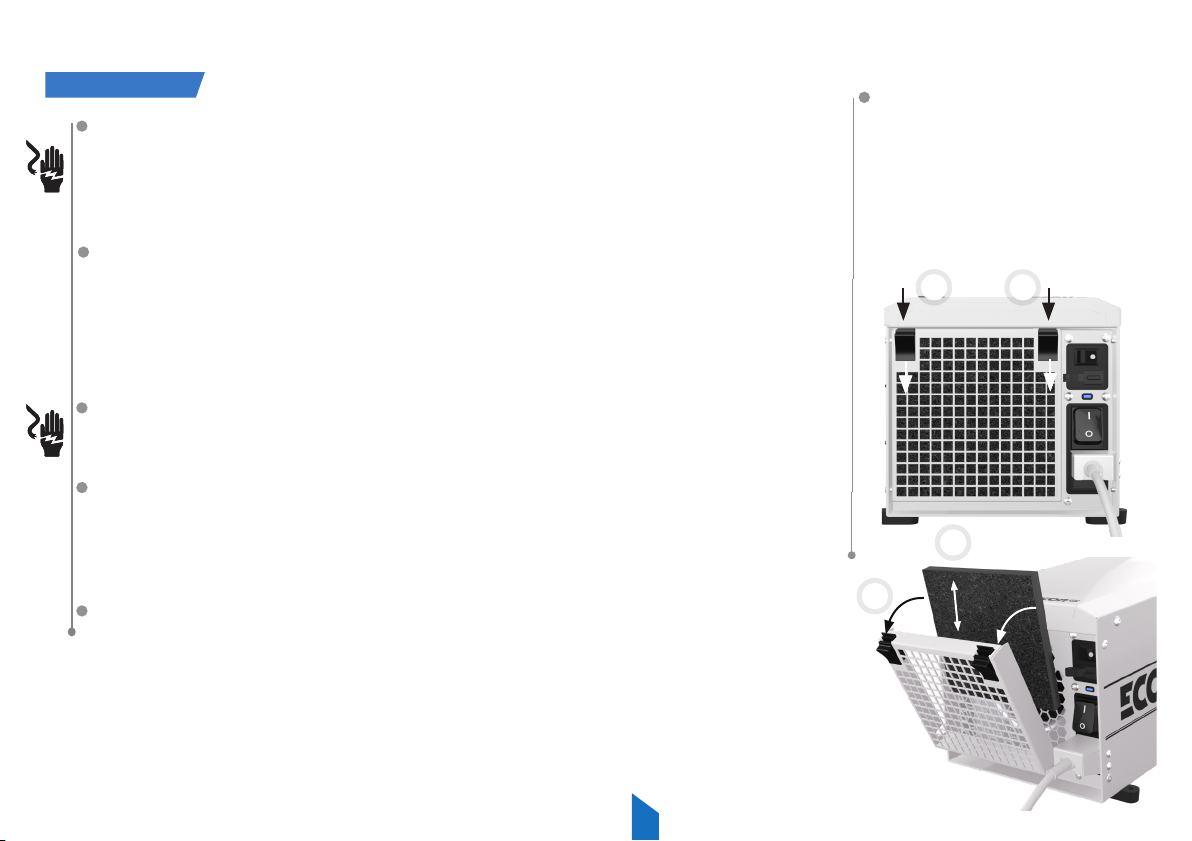

Changing Air Filter

1) Slide down both black lips at
the same time.

2) Fold the lter housing forward.

3) Take out the lter and exchange
it for a clean lter and close the
lter housing again.

1

1

3

2

10

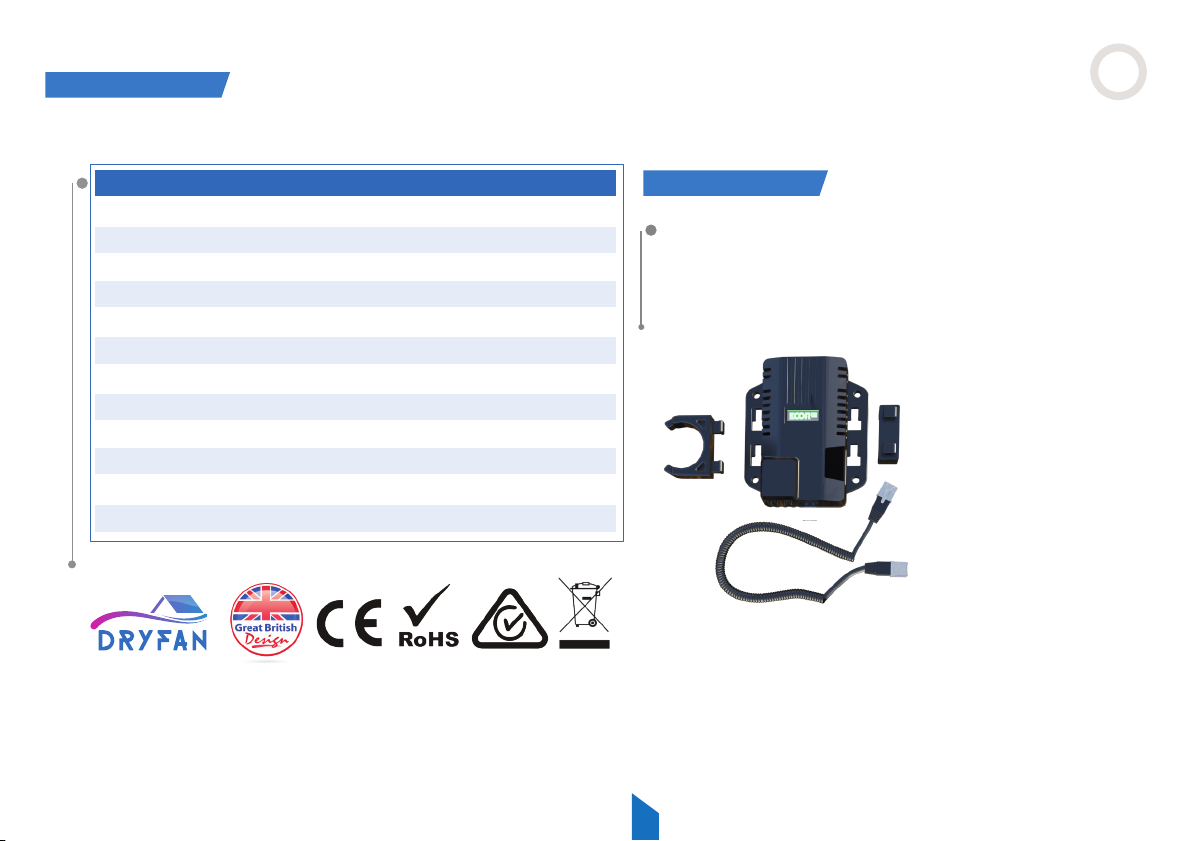

TECHNICAL DATA|

UK

Extraction @ 350C / 90% RH
Typical extraction @ 270C / 60% RH
Air Flow (Process Air in)
Air Flow (Exhaust Air Out)
Air Flow (Fresh Dry Air Out)
Mains (Single Phase)
Current @ 270C / 60% RH
Power @ 270C / 60% RH
Temperature Range
Dimensions LxDxH
Net Weight
Noise Level

REVV1 Subject to Change.

POWERED BY

EPD50 MAX

13 litres/day
11 litres/day
210 m/hr
35 m/hr
180 m/hr
230 V/50 Hz

2.4 A

0.55 kW

-20 C - +40 C
328 x 197 x 207 mm

6.1 kg
52 dB

Made in P.R.C.

OPTIONAL PARTS|

PART NUMBER:

• Replacement Filter pack of three - EPFILPACK FOUR

• Humidistat Controller (WiFi) - EPHUM-I-MAX
with 1 m “Curley” of controller
cord / RJ11 connectors

• Humidistat Controller
(WiFi) EPHIM-I-MAX

• 1 meter “Curley” of
controller cord, RJ11
connectors

11

End of the period of use

Waste electrical equipment
must not be disposed of in
normal household waste.
Take this product to your
local recycling centre for
proper disposal.

www.ecor-pro.com • [email protected]

Ende der Nutzungsdauer

Elektroaltgeräte dürfen nicht im
normalen Hausmüll entsorgt.
Hausmüll entsorgt werden.
Bringen Sie dieses Produkt zur
ordnungsgemäßen Entsorgung
zu Ihrem örtlichen Recycling­Center.

Fin de la période d'utilisation

Les déchets d'équipements
électriques ne doivent pas être
jetés avec les déchets dans les
ordures ménagères. Remettez
ce produit à votre centre de
recyclage local pour qu'il soit
éliminé de manière appropriée.

Einde van de gebruiksperiode

Afgedankte elektrische
apparatuur mag niet bij het
normale huishoudelijk afval.
Breng dit product naar uw
plaatselijke recyclingcentrum
voor correcte verwijdering.

Subject to modications.

The manufacturer/ supplier is not liable for damages and
consequences of incorrect connections.

Änderungen vorbehalten.

Der Hersteller/ Lieferant haftet nicht für Schäden und ihre Folgen
bei nicht korrekten Anschlüssen.

Sous réserve de modications.

Le fabricant / fournisseur rejette toute responsabilité pour tout
dommage ou toute conséquence de branchements incorrects.

Wijzigingen voorbehouden.

De fabrikant / leverancier is niet aansprakelijk voor schade en
gevolgen van onjuiste aansluitingen.

Made in P.R.C.

12
