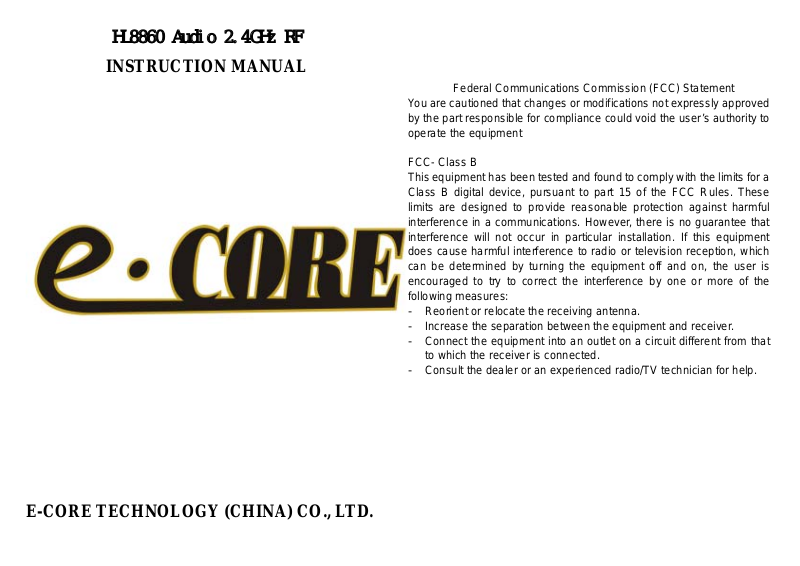

E Core Technology HL8860 Users Manual

HL8860 Audio 2.4GHz RF

INSTRUCTION MANUAL

E-CORE TECHNOLOGY (CHINA) CO., LTD.

Federal Communications Commission (FCC) Statement
You are cautioned that changes or modifications not expressly approved
by the part responsible for compliance could void the user’s authority to
operate the equipment

FCC- Class B
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a communications. However, there is no guarantee that
interference will not occur in particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Thanks for select our RF 2.4G Audio controller! For play more

conviently and correctly, please read the manual carefully before
playing.

Product brief Introduction

HL8860 wireless Audio controller adopt 2.4GHz RF technology,
with steady connection capacity, far distance, low function wastage;
beautiful outlook, good handle , make you ear be personally on the
scene!

Technology Specification

1. Application: Wireless Home TV Headphone
Wireless Portable Headphone

2. GFSK modulation

3. Long distance > 50m (Line of sight)

4. RF frequency hopping in 34 channels

5. USB and analog dual audio inputs

6. Audio format 16bit , 48KHz sampling rate

7. Robust packet error correction

8. Power On/Off pop noise reduction

9. Work voltage：TX DC5V,RX DC3.0V

10. Low power consumption

11. No RF induced audio noise

12. Support no audio detection function

13. Work current：Transmit Controller work current 170mA ,

Receiver Controller work current 40mA

14. Frequency Range 2406 ~ 2472 MHz

15. Tx RF Radiation Power Typ. 18 dBm

16. RX RF sensivity Typ.-79 dBm

17. Size：TX 14.5*100*60mm; RX 200×170×75mm

Product Introduction

SW1

Transmit Controller function sketch map (TX)
