E Core Technology HL2507 Users Manual

Contents

English Page 4

Canadian Fran
Español Page 31

is Page 17

Product Overview

In order to make sure you get the best possible results from your
new Express Speaker, please thoroughly read and carefully follow
all instructions in this User’s Manual or on the product. Keep this
User’s Manual in a convenient location for future reference.

Package contents:

Express Speaker x 1
Power Adapter x 1
Aux Cable x 1
User’s Manual x 1

If any of these were missing or damaged, please visit

bemwirelesss.com to obtain replacement.

Compatibility

All devices enabled with Bluetooth technology, including iPhones,
iPads, iPods, smartphones, laptops, tablets and more.

Also compatible with any device that has a standard 3.5mm
earphone jack such as MP3 players, PSP, mobile phones, etc.

Meet the Express Speaker

Before learning about your Express Speaker, take a moment to look
it over and familiarize yourself with its features.

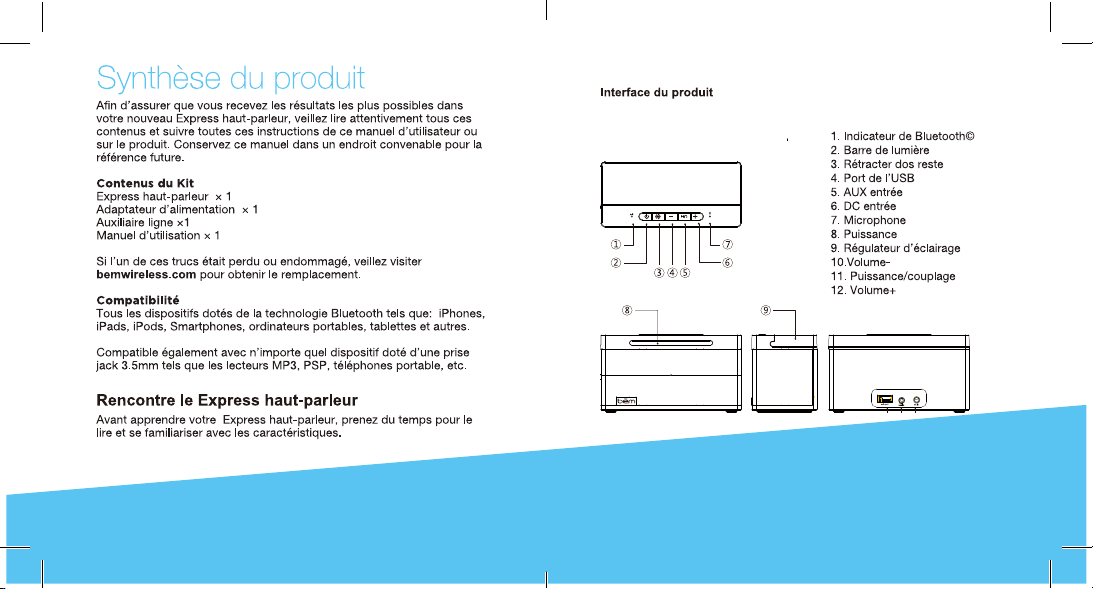

Product Interface

mic

140.0000

©

usb out

indicator

dc in

aux in

1. Bluetooth

2. Light Bar

3. Retracting back rest

4. USB port

5. Aux in

6. DC in

7. Microphone

8. Power

9. Dimmer

10. Volume –

11. Power / Pair

12. Volume +

54

Getting Started

We know you are excited to experience your new Express Speaker.
These two easy steps will get you up and running quickly.

Step 1: Power It

Connect your Express Speaker to an outlet using the included
power adapter,

Step 2: Connect it

There are two options for connecting to your Express Speaker—
wirelessly by Bluetooth

Connect Wirelessly

Once the Express Speaker is powered on the Bluetooth©
indicator will light and tone confirming that the unit is currently
in Bluetooth© pairing mode will sound. Go to the Bluetooth©
settings on your mobile phone, tablet or computer to find the
device named “Express”. A tone will sound to confirm the device
has paired successfully. Next time the Express Speaker and
connected device will pair automatically.

Hold the Play/Pause button for 5 seconds will disconnect the
connected device and enter pairing mode for pairing a new
device.

©

or wired using the included aux cable.

Direct Connection

The Express Speaker can also be connected to any device that
has a headphone jack or line out using the included aux cable.

Please note the play/pause button only operates when
connected via Bluetooth.

Operation Details

Press the power button to turn on the Express Speaker.
The Bluetooth

ready to be paired. Press the power button again to turn off the
unit and the Bluetooth indicator light will go out.

Play modes
Bluetooth mode: play an audio signal from the connected

Bluetooth device.
AUX mode: play an audio signal from the connected “wired” device.

Please note: if an Aux cable is connected to the speaker it will not
play music from Bluetooth connected devices.

Speaker Phone

After paired your mobile phone to Express Speaker with Bluetooth,
the speaker phone function can be used.

Making calls: Call will automatically t
not, tap play/pause button

©

indicator will light up to signify the unit is on and

ransfer to the speakerphone. If

76

Speaker Phone (cont.)

Answering calls: Tap play/pause button to answer the incoming call
Ending calls: Tap play/pause button during the call to end the call
Rejecting calls: Hold play/pause button to reject the incoming call

Redial last number: Double tap play/pause button to redial last
number when it is not in a call

Night Light

The LED Night light will turn on when express is powered on,
Press the dimmer button to adjust the brightness by following

order: high-middle-low-off.

Audio Use

Follow the above connection steps to pair a Bluetooth device
with the Express Speaker. At this point you can send any kind
of audio signal to your speaker (music, video, gaming, etc.).
Just use your device as normal and the audio will play through
your Express Speaker.

Controls

Press the Play/Pause button to play or pause the music when using
a music player through your Bluetooth© connected device.

Pressing the + and - buttons will increase or decrease the volume
on the Express Speaker. Please note that this will not affect the
volume levels on the connected device.

Charging Your Device

The Express speaker features a standard USB charging port at
the back with 5V, 1A power output to charge your device, like
iPhones, iPods and smartphones. Please reference the instructions
of device for details.

The charging cable is not included.

Connection

Laptop / notebook / PC
As the Bluetooth© versions for these types of devices varies

greatly, the connection methods will differ as well. If you can
not connect with the Express Speaker using the previous
method instructed you may need to install a new version of
the Bluetooth driver.

Please reference the instructions of device for details.

Troubleshooting

Issue: Pairing is unsuccessfully after multiple attempts
Solution:

• Check if the Bluetooth indicator light is on. If the indicator
light is off, please press the power button to turn the unit
on. If the Bluetooth indicator light still doesn’t come on after
pressing the power button, please charge the unit.

• Check for other Bluetooth devices around the surroundings
that may interfere with searching and turn devices off.

98

Troubleshooting (cont.)

• Power off and then power on the unit to restart the Bluetooth
function of the unit or your Bluetooth device

• Unplug any cables plugged into the AUX IN, restart all
devices and then attempt pairing again.

Issue: Interference or static during playback
Solution:

• Avoid using the device between concrete or other building
structures that may interfere with the signal.

• Please check if the battery level of the unit and the
Bluetooth© device and charge if necessary.

For more troubleshooting help go to http://bemwireless.com

Maintenance

Please follow the instructions below for cleaning your
Express Speaker.

• Power off the unit and unplug the power adapter from
wall outlet

• Use a soft, dry, lint-free cloth and wipe gently

• Do not use alcohol, benzene, thinners or other chemical
detergents as these can cause the casing to be warped
or discolored

For questions, comments or to purchase more be¯m wireless
products go to bemwireless.com

Storage

• Power off the Academia if the unit will not be used for an
extended period of time.

• Do not set the unit in a damp environment, high temperatures
or in direct sunlight.

More Info

For questions, comments or to purchase more be¯m wireless
products go to: bemwireless.com

You can also follow us at:

facebook.com/bemwireless

twitter.com/bemwirelessco

youtube.com/bemwireless

For information on your product’s warranty go to:

bemwireless.com/support

1110

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received,

including interference that may cause undesired
operation.

2. Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.

This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.

receiver.

Product Name : Express Speaker
Model Number : HL2507
Power Supply: 5V,2A
Output Power: 2.5W X 2
USB charging output: 5V,1A
Bluetooth V4.0+EDR , profile Supported: A2DP, AVRCP
Working Range: Approximately 25ft, 8m
Working Atmosphere: 0˚C-40˚C / 20%-90%RH

be¯m wireless

http://bemwireless.com/

be¯m wireless LLC.

1725 Kilkenny Ct.

Woodstock, IL. USA

Made in China

1312
