Model ECOP20
How to install, operate
and maintain your Undersink
Drinking Water System
Do not return unit to store
If you have any questions or concerns when
installing, operating or maintaining your
Undersink Drinking Water Filter System,
call our toll free number:
1-800-693-1138
Monday- Friday, 7 AM - 6 PM CST
or visit www.ecopurewaterproducts.com
When you call, please be prepared to provide
the model, date code and serial number of
your product, found on the rating decal,
located inside the cover.
System tested and certified by NSF International
against NSF/ANSI Standards 42 & 53,
for the reduction of the claims specified
on the performance data sheet.
Manufactured and warranted by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
Installation and Operation Manual
7316151 (Rev. E 9/13/13)
3-1/2"8-3/8"
13"
Filter 1 Filter 2
Table of Contents
Parts of the System / Materials and Tools Needed / Typical Undersink Installation . . . . . . . . . . . . . . . . .3
Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6

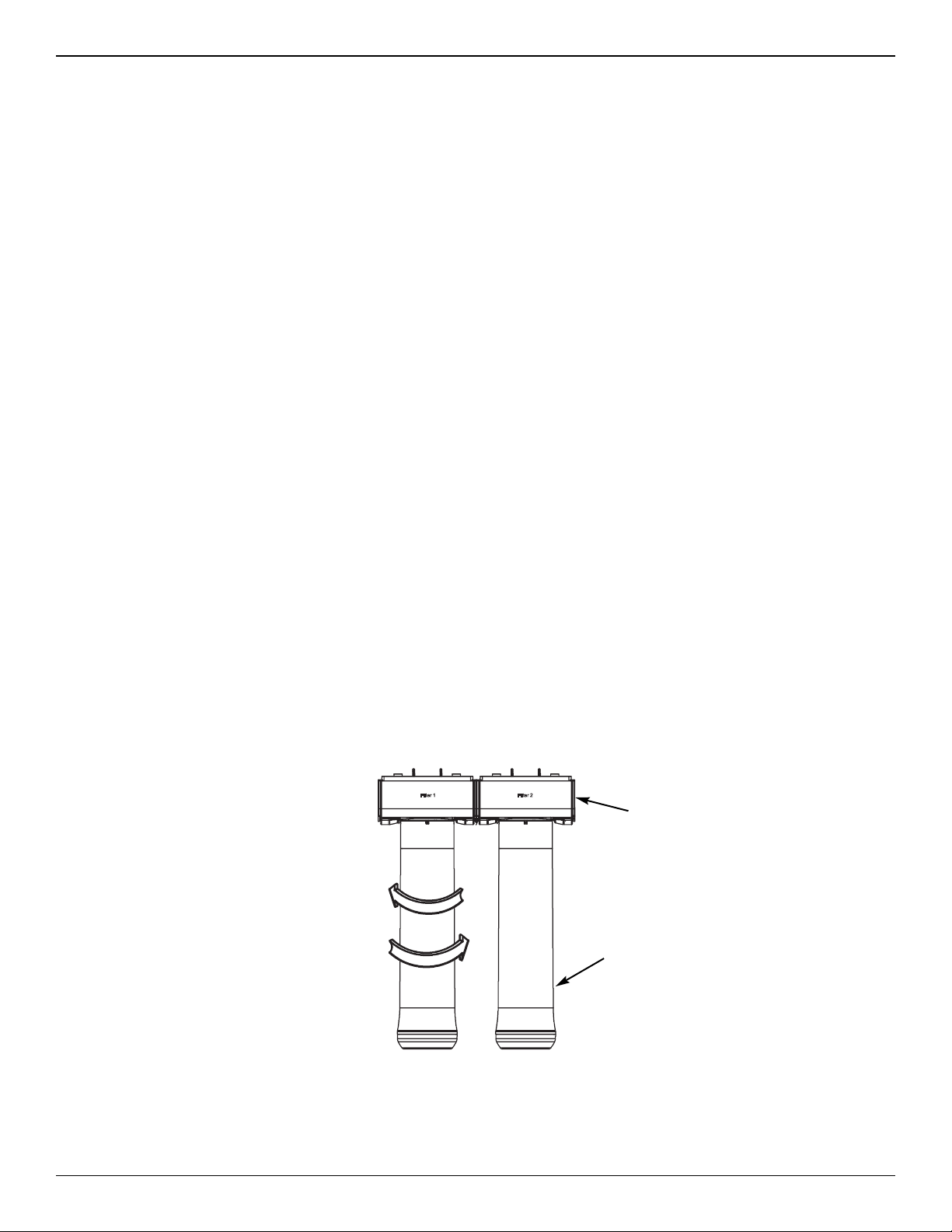

Filter Cartridge Life / Filter Cartridge Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Faucet Timer / Battery Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Troubleshooting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Exploded View / Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Before You Start
q Read all steps and guides carefully before installing and using your undersink drinking water filter system. Follow all steps exactly to correctly install. Reading this manual will also help you to get all the benefits from the undersink drinking water filter system.
q Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. This system is certified for cyst reduction and may be used on disinfected
waters that may contain filterable cysts.
q All plumbing should be done in accordance with local codes and requirements. In Massachusetts,
plumbing code 248 CMR 3.00 and 10.00 shall be adhered to. Consult with your licensed plumber.
q The undersink drinking water filter system works on water pressures of 30 psi (minimum) to 125 psi
(maximum). If your house water pressure is over the maximum, install a pressure reducing valve in the
water supply pipe to the filter system.
q Do not install the undersink drinking water filter system outside, or in extreme hot or cold temperatures. Temperature of the water supply to the undersink drinking water filter system must be between
40°F and 100°F. Do not install on hot water.
Specifications and Dimensions
Min. - Max. Supply Water Pressure 30 - 125 psi (207 - 862 kPa)
Min. - Max. Supply Water Temperature 40 - 100 °F (4 - 38 °C)
Inlet - Outlet 3/8" quick connect fittings and tubing included
8-3/8”
3-1/2”
13”
Questions? Call toll free: 1-800-693-1138
2
Parts of the System
• filter system assembly
• water supply fitting

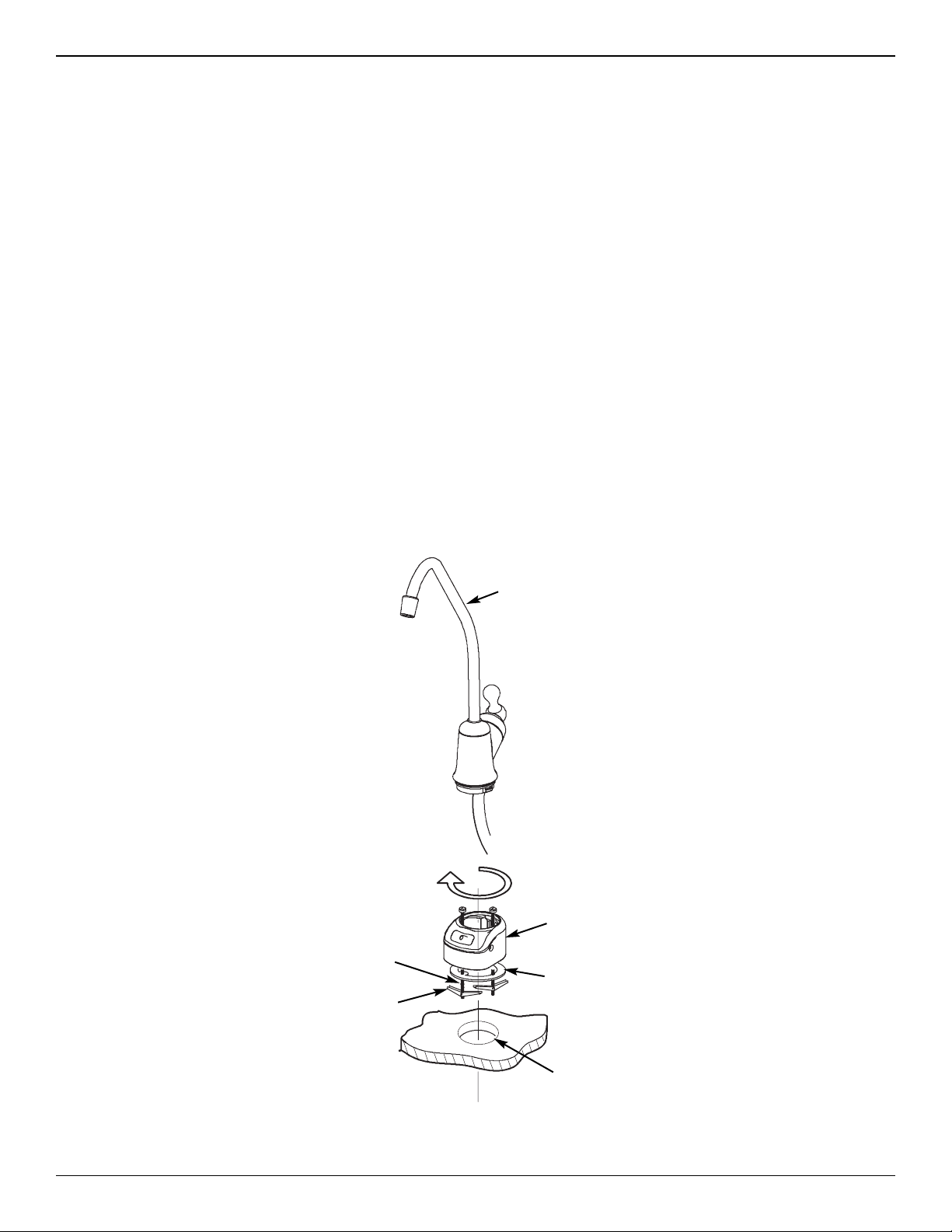

• filtered water faucet for sink or countertop mounting
• 3/8" tube bends
• 3/8" tubing to make all needed connections
Materials and Tools Needed
NOTE: Gather the required tools before starting installation. Read and follow
the instructions provided with any tools listed here.
• slotted and Phillips screwdrivers
• pliers and adjustable jaw wrench
• tubing cutter
• electric drill and 1-1/4" drill bit if mounting hole is needed for the faucet
IMPORTANT: To avoid damaging the sink, consult a qualified plumber or
installer for drilling procedures in porcelain or stainless steel.
Typical Undersink Installation
Locate the water filter housing on the cold water supply pipe, under the kitchen and/or bathroom sink, to
filter the cold drinking water. Refer to the following drawing.
filtered water
supply fitting
shutoff valve
NOTE: If tubing needs to make a sharp
bend, use included tube benders to
prevent kinking.
SINK
HOT COLD
faucet
4-1/4”
Yellow
WATER
IN
filter 1
Blue
WATER
OUT
filter 2
Fig. 1
NOTE: Be sure to allow a minimum space of 1-1/2" under the system
for removing the filter cartridges, in order to change the cartridges.
Questions? Call toll free: 1-800-693-1138
3

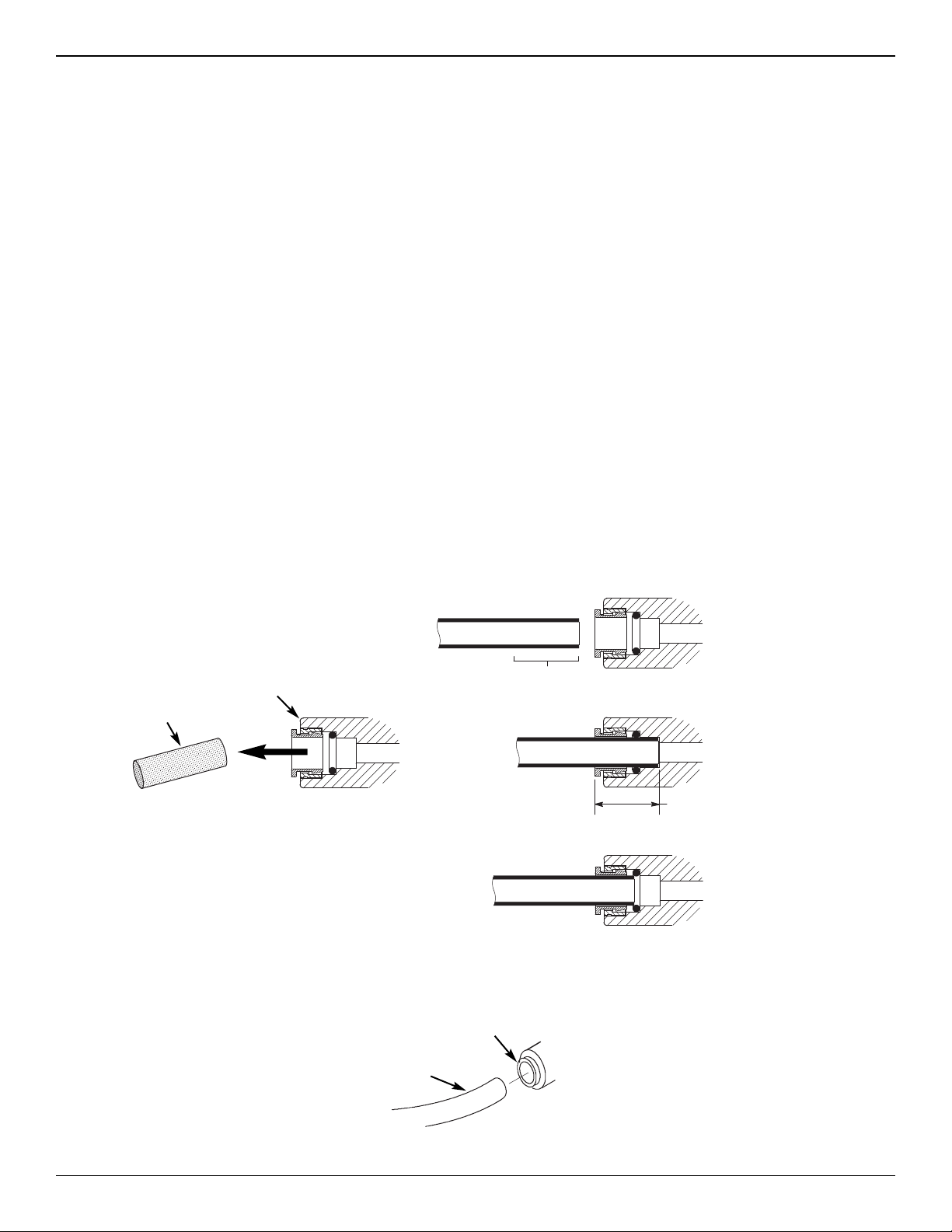

Installation Steps
Step 1 - Cold Water Supply Fitting
Check and comply with local plumbing codes as you plan, then install a cold feed (supply) water fitting.
The fitting must provide a leak-tight connection to the water filter 3/8" tubing. A typical connection using
the included water supply fitting is shown in Figure 2A. An optional connection using standard plumbing
fittings (not included) is shown in Figure 2B.
Cold Water Supply Fitting
1. Close the water shut off valve that is immediately before supply fitting and open faucets to drain water
from the sink cold water pipe.
2. Remove nut that connects the cold water faucet to cold water plumbing.
3. Thread water supply fitting onto pipe and reconnect nut to bottom of fitting.
Optional Pipe Fittings (compression type shown)
NOTE: Be sure to turn off the water supply and open a faucet to drain the pipe.
Complying with plumbing codes, install a fitting on the cold water pipe to adapt 3/8" OD tubing. A typical
connection is shown in Figure 2B. If threaded fittings are used, be sure to use pipe joint compound or
thread sealing tape on outside threads.
A. Water supply connection
(using included water supply fitting)
cold water
faucet stud
thread sealing
tape on threads
cold water
pipe
cold water
shutoff
water supply fitting
3/8" tubing to
water filter inlet
B. Water supply typical connection
(using compression fitting)
- parts not provided -
cold water
shutoff
3/8" compression
fitting
insert
cold water
pipe
3/8" tubing to
Water Filter inlet
ferrule
Fig. 2
Questions? Call toll free: 1-800-693-1138
4
