EcoNet Cardio-M Plus Operation Manual

1/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Cardio-M Plus

OPERATION

MANUAL

2/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Warranty

- The warranty for this product runs for 2 years (for EU countries). But the

warranty for accessories runs for 6 months.

- Warranty repair or replacement will b e made by the Medical Econet GmbH

Service Center at no charge for the warranty period, if properly used under
normal conditions, in accordance with the instructions for use.

- In the event of a malfunction or fail ure during the warranty period, the

customer should inform Medical Econet GmbH. of the model name, serial
number, date of purchase and a description of the problem with the
equipment.

3/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Contact Medical Econet GmbH

Contact Us If you have any questions or comments relating to our

products or purchasi ng, please contact our office at the
telephone number or e-mail address below. You can talk
to our sales people. M edical Econet GmbH always
welcomes your inquiries. Please contact us.

 Customer service [phone]

※

When the product is not operating correctly, please

contact our customer service center with the name of

the model, serial number, and a description of the

problem you are experiencing.

Technical
assistance

Please contact this number for technical support.

 [phone]
 e-mail: [e-mail]

4/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Fee-Based Service

If you wish to make a claim when the product is damaged through misuse, we
charge repair fees. Please read the manual before you make a claim.

1. The warrant y does not cover cl eaning, adjusti ng and instructions for use.

2. A fault of custom er
When the product is damaged or broken due to customer’s improper use or

misuse.

- When the power cord is replaced i mproperly b y the user.

- When the user drop s the product while moving.

- When the user uses unauthorized accessories.

- When the product is repaired by an un authorized person.

3. Others

- When the product is damaged by any external mean s; such as, but not limited
to a natural disaster (fire, flood or earthquake).

- When warranty of main unit or acc essories ends.

5/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Definition of WARNING, CAUTIONS and NOTE

 In order to stress the contents of this manual, we define the terms below.

Please follow the warning and caution instructions.

 The manufacturer or service agents are not responsible for the damage

resulting from inappropriate use or carelessness.

WARNING

There may be serious injuries, fatal accidents or financial damages i f you
violate these instructions.

CAUTIONS

There may be slight injuri es or reduced damages if you violate these
instructions.

NOTE

There may not be any dangerous events, but it is important to note this
instruction for installation, use, maintenance or repair.

6/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Environment Instructions

 Please do NOT use or place the product in such an en vironment explained

below.

Avoid placing in an
area exposed to
moi sture. Do not
touch the equipment
with wet hands.

Avoid exposure to
direct sunlight.

Avoid placing in an
area where there i s a
high variation of
temperature.
Operating
temperature rang es

from 10 to 40°C (50 to
104℉) and humidity

ranges from 30 to 85%.

Avoid placing in
the vicinity of
electric heaters.

Avoid placing in an
area where there i s
an excessive rise in
humidity or a
ventilation problem.

Avoid placing
where there is an
excessive shock

or vibration may
occur.

Avoid placing in an
area where chemicals
are stored or where
there is danger of gas
leakage.

Avoid inserting
dust, and
esp ecially metal
material into the
equipment.

Do not disjoint or
disassemble the
equipment. Medical
Econet GmbH
America, Inc takes n o
responsibility for it.

Power off when the
equipment is not
fully installed.
Otherwise,
equipment could
be damaged.

7/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Safety Instructions for Electricity

Please note the following precautions b efore using the p roduct.

• Is the power supply cord proper? (100 - 240V AC)

• Is every cord connected properly to the product?

• Is the grounding connected correctly? (Otherwise, noise can occur.)

NOTE

In order to avoid signal noise, do not place the product near power
generators, X-ra y equipment, broadcasting equipment or mobile electric
cords. These may cause the product to report inaccurately. It is important
to use an independent electrical circuit and stable grounding. When
sharing an electrical outlet with other appliances, the result may also be
inaccurate.

NOTE

The classification of Cardio M Plus is as below:

 Its classification against electric shocks is Class Ⅰ, Type-BF.
 It is not proper to use this product near a flammable anesthetic or solvent.

 IEC/EN 60601-1 (Safety of Electric Medical Equipment) standard, noise

events: A class & IEC/EN60601-1- 2 (Electromagnetic Compatibility
Requirements) stan dard, noise level: B

NOTE

Diagnosis of Cardi o M Plus needs to b e confirmed by a medical specialist.

NOTE

The accessories connected to analog or digital connectors should be
authorized in accordance with IEC standards (e.g. IEC 950 for data
processing equipment and IEC 601-1 for medical equipment). Moreover,
every composition should correspond with EN 60601-1:1993.

WARNING

This equipment must only be connected to a grounded electrical connection.

WARNING

Do not touch accessible connect or pins and the patient simultaneously.

8/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Safety Symbols

Symbols Contents

Isolated patient connection. (IEC 601-1-Type BF)

Power on.

Power off.

ATTENTION:
Refer to the user’s manual.

Ground connection.

External Signal IN/OUT Port

ECG

9/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Contents

Chapter 1. General Information .............. 12

1) Product Overview ..................................................... 13

2) Product Features ........................................................ 13

3) Product Configuration .............................................. 14

Basic Components And Accessories .................................. 14

Optional Components ............................................................. 15

Body Configuration ..................................................................... 16

Front Panel .................................................................................. 19

Control Panel ............................................................................ 21

Power ........................................................................................... 22

4) System Installation ..................................................... 24

Precautions For Installation ........................................................ 24

Power Connection ...................................................................... 24

Patient Cable Connection ........................................................ 24

Paper Installation ......................................................................... 24

System Start .................................................................................. 25

5) System Setup .............................................................. 26

Reset ............................................................................................ 26

Chapter 2.

Preparation For Electrocardiography

27

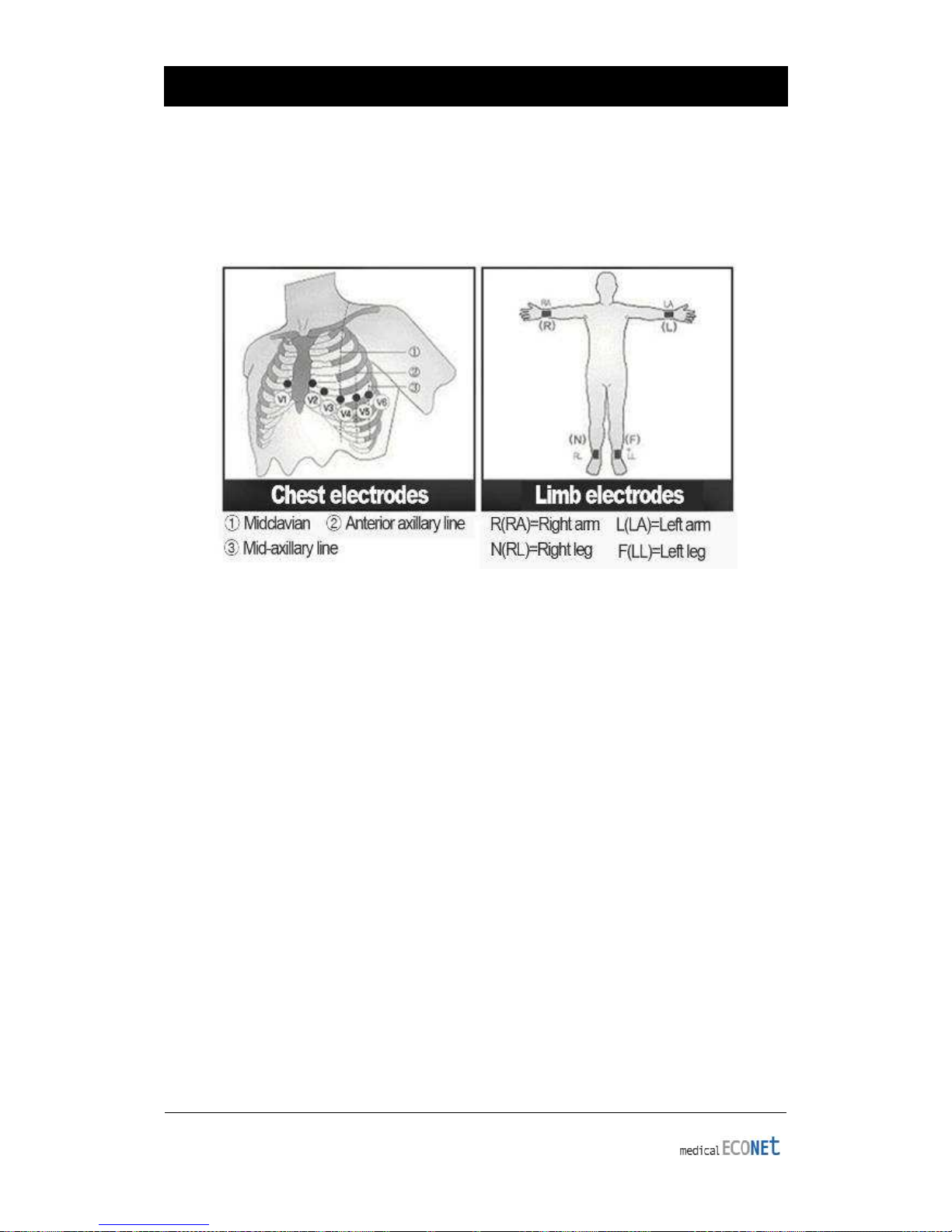

1) Location Of Electrode ............................................. 28

2) Electrode Connection ............................................. 29

Patient Cable Connection ........................................................ 29

How To Attach Electrodes.......................................................... 29

Countermeasures For Bad Lead Connection ......................... 30

10/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 3.

Electrocardiography

...................... 31

1) To Start ........................................................................ 33

2) Basic Setup ............................................................... 34

General ......................................................................................... 34

Sensitivity Setup ............................................................................ 35

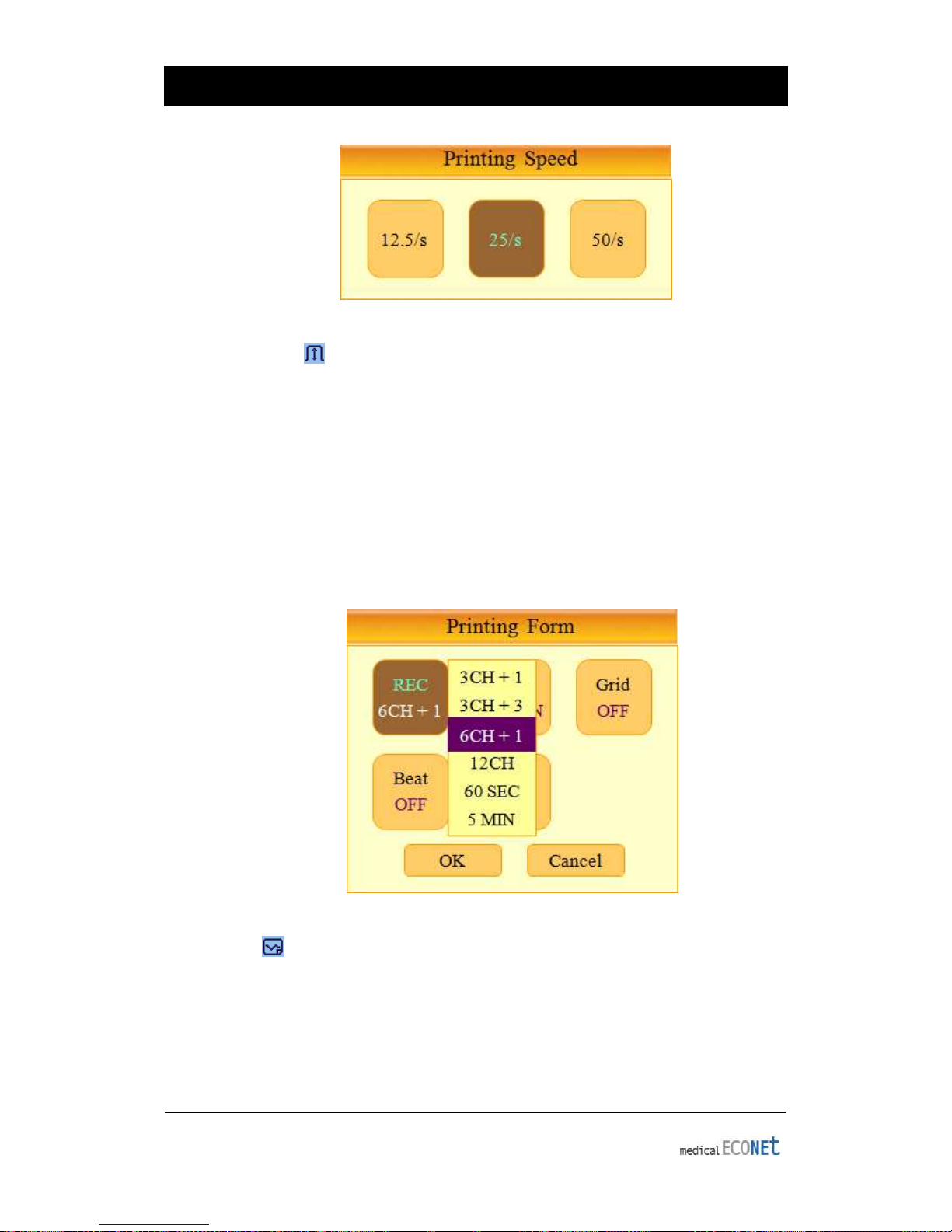

Printing Speed Setup ................................................................... 35

Channel Form Setup ................................................................... 36

Rhythm Printing Setup ................................................................. 37

Grid On/Off .................................................................................. 37

Beat Report Setup ....................................................................... 38

Diagnosis Printing Setup .............................................................. 39

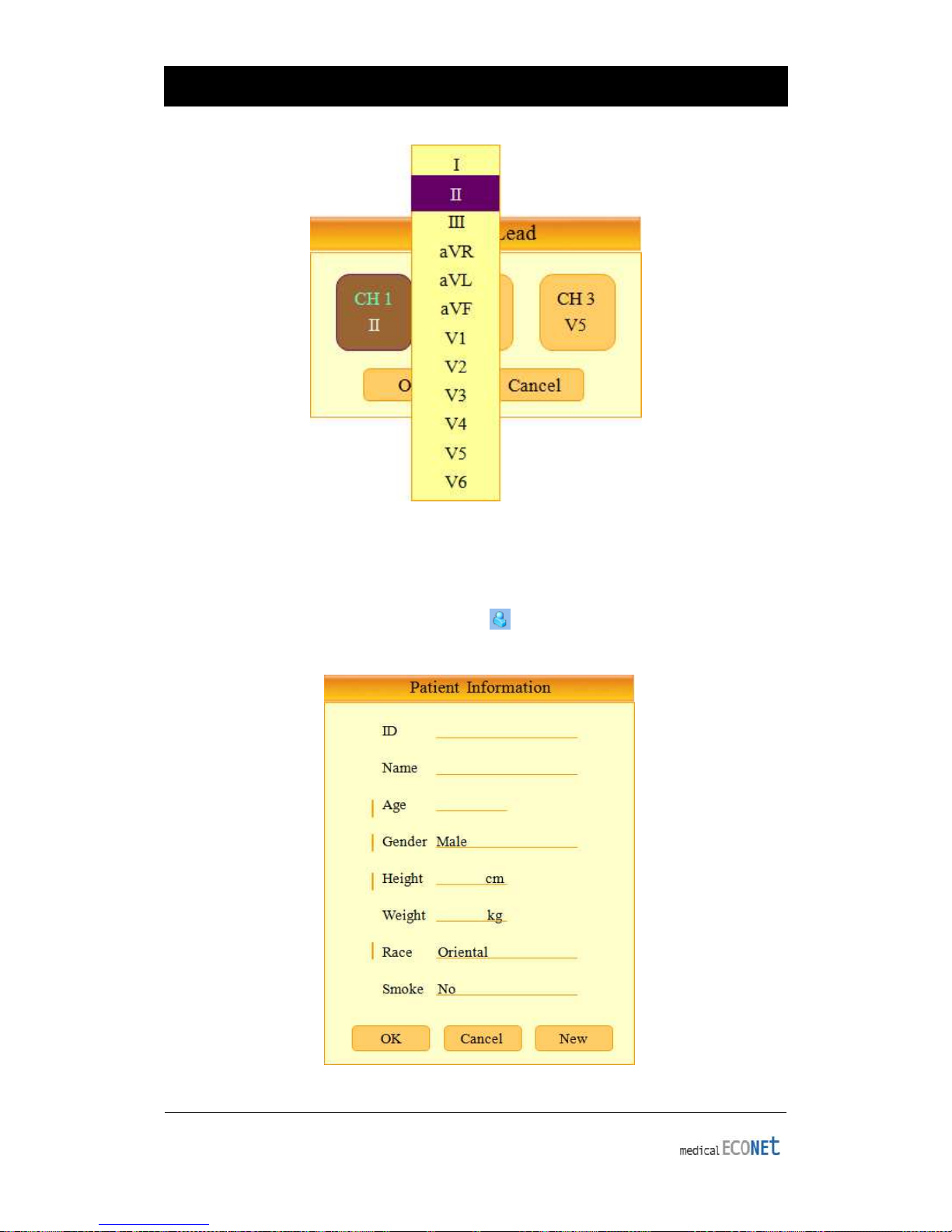

Rhythm Lead ................................................................................ 39

Patient Information Input ........................................................... 40

Pediatrics Diagnosis ..................................................................... 42

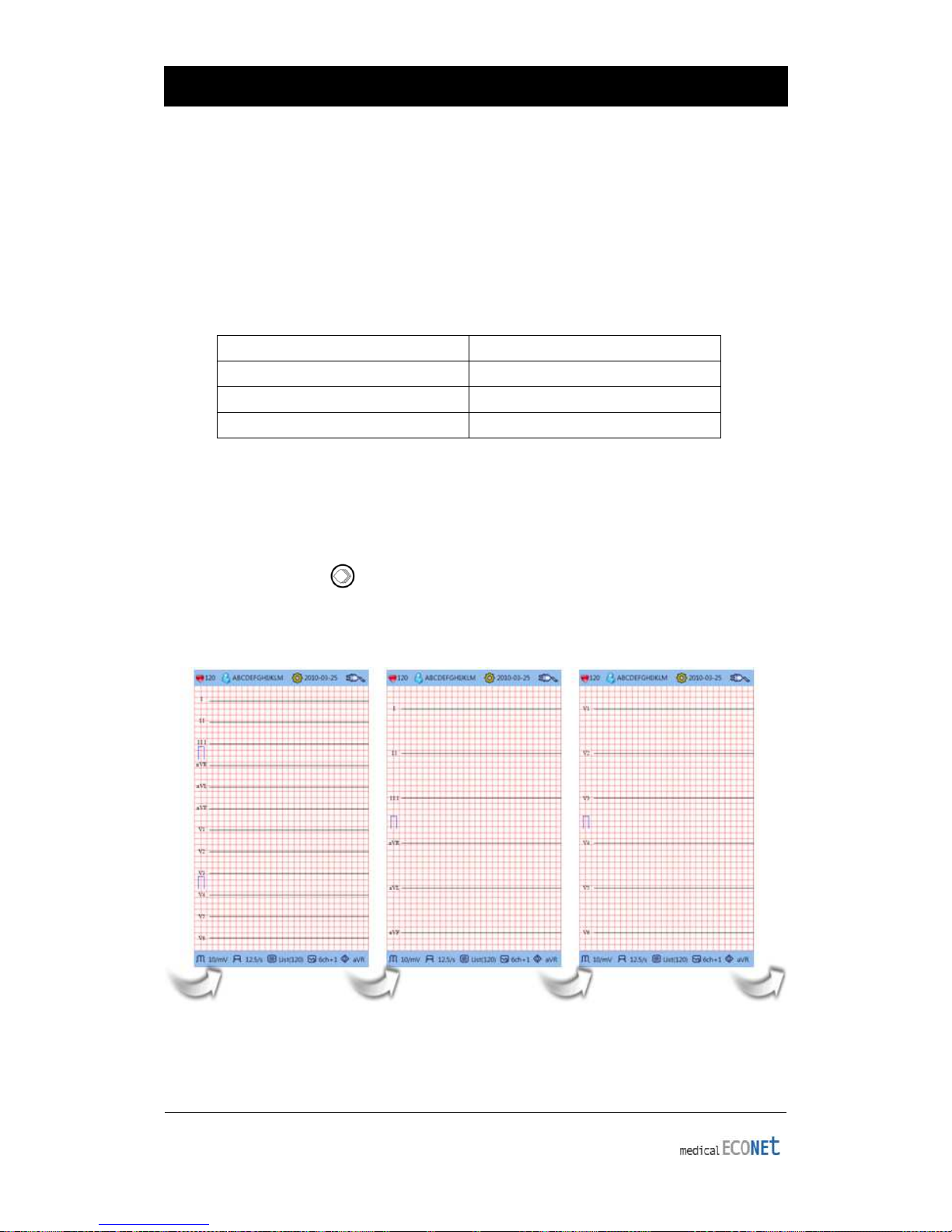

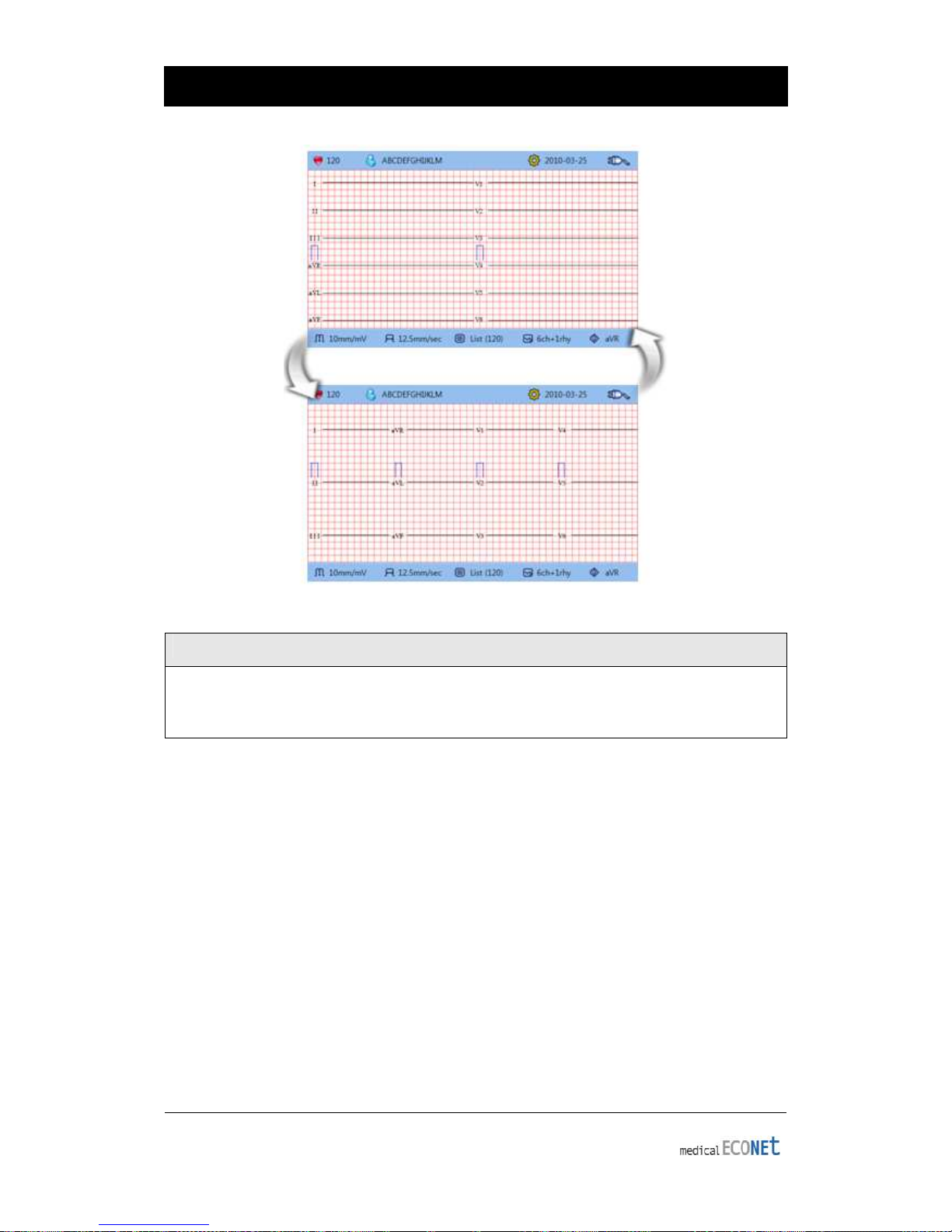

3) LCD Monitor Display ................................................ 43

4) Rhythm Mode Printing ............................................. 45

Printing Speed ............................................................................ 45

How To Print ................................................................................ 45

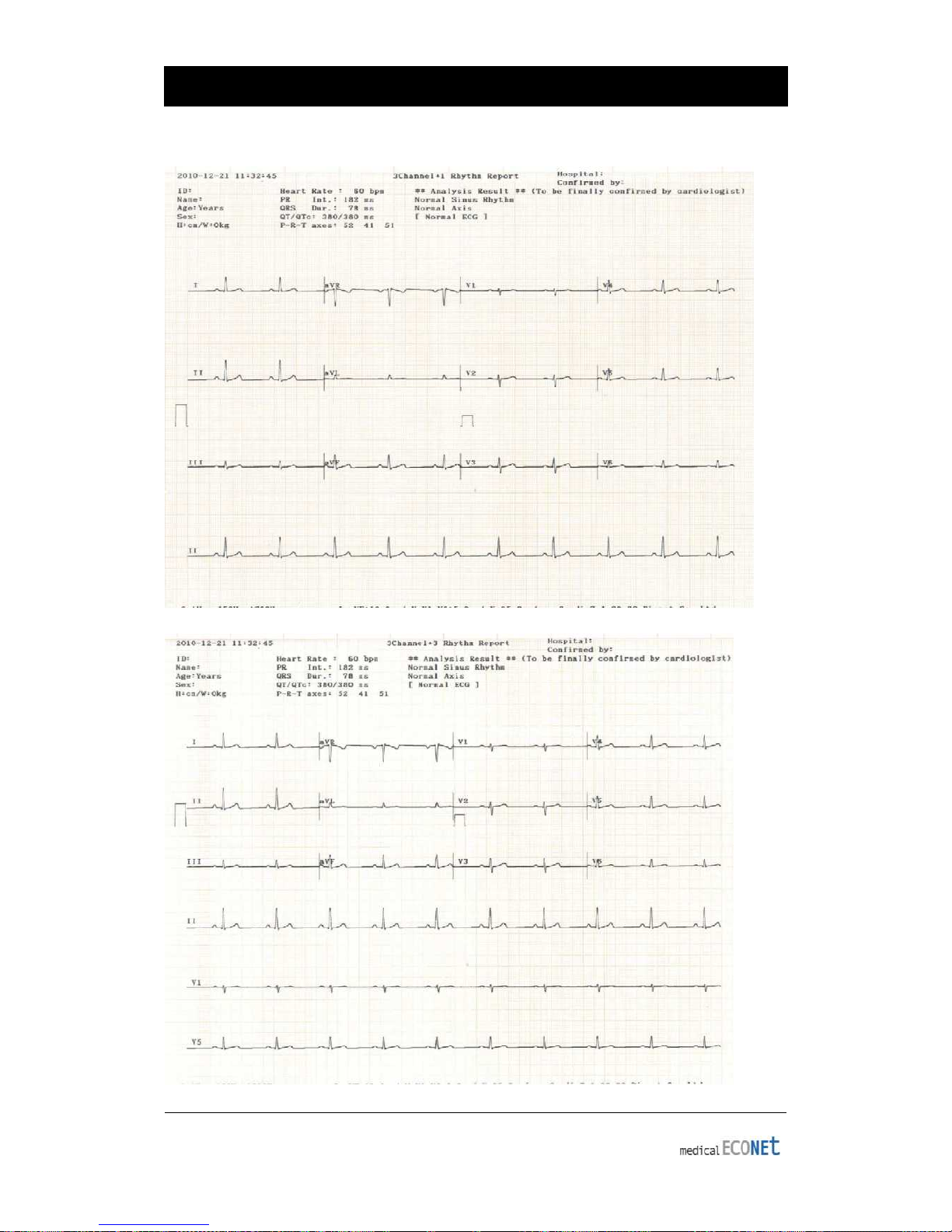

5) Record Mode Printing ............................................... 46

10 Second ECG Recording ........................................................ 46

60 Second ECG Recording ........................................................ 47

5 Minute ECG Recording ........................................................... 48

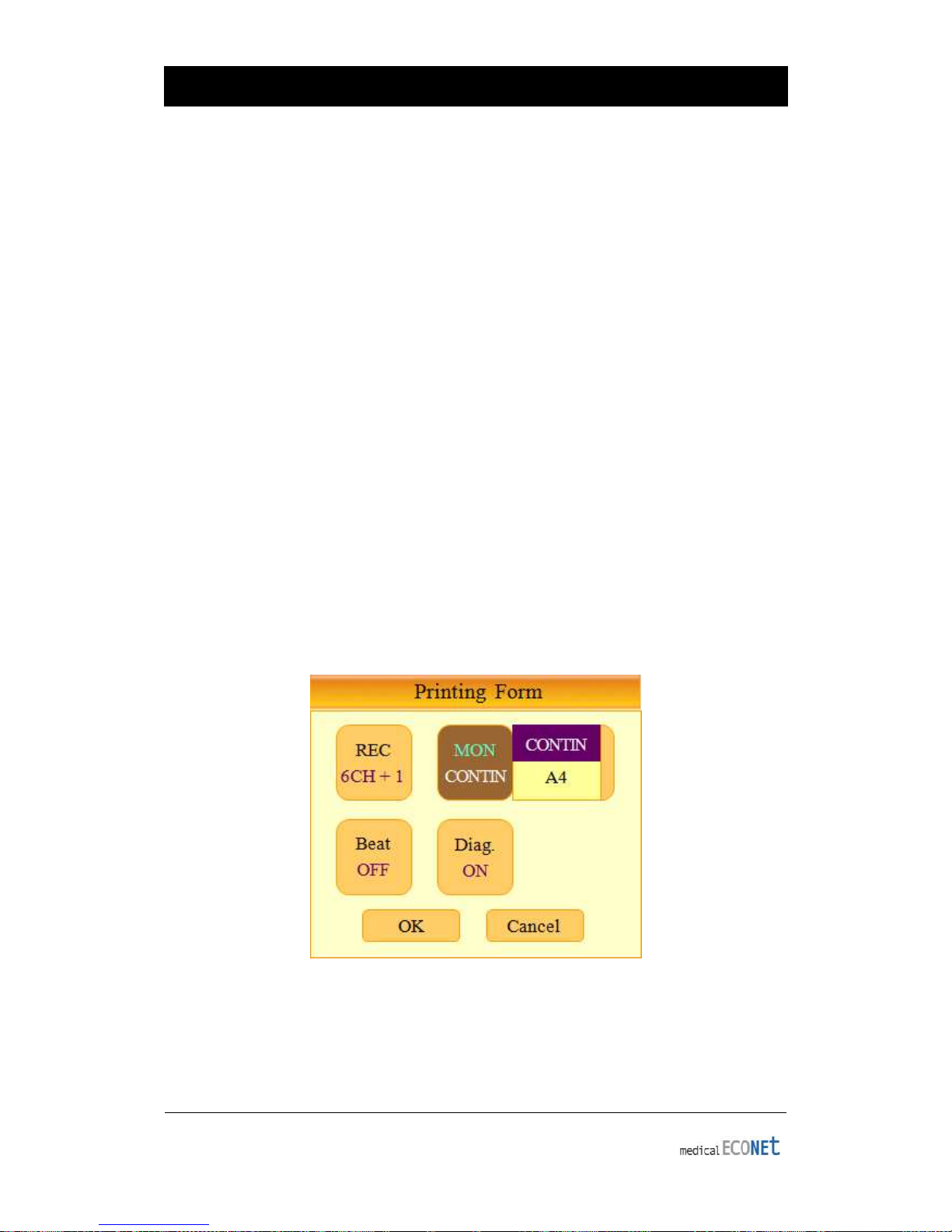

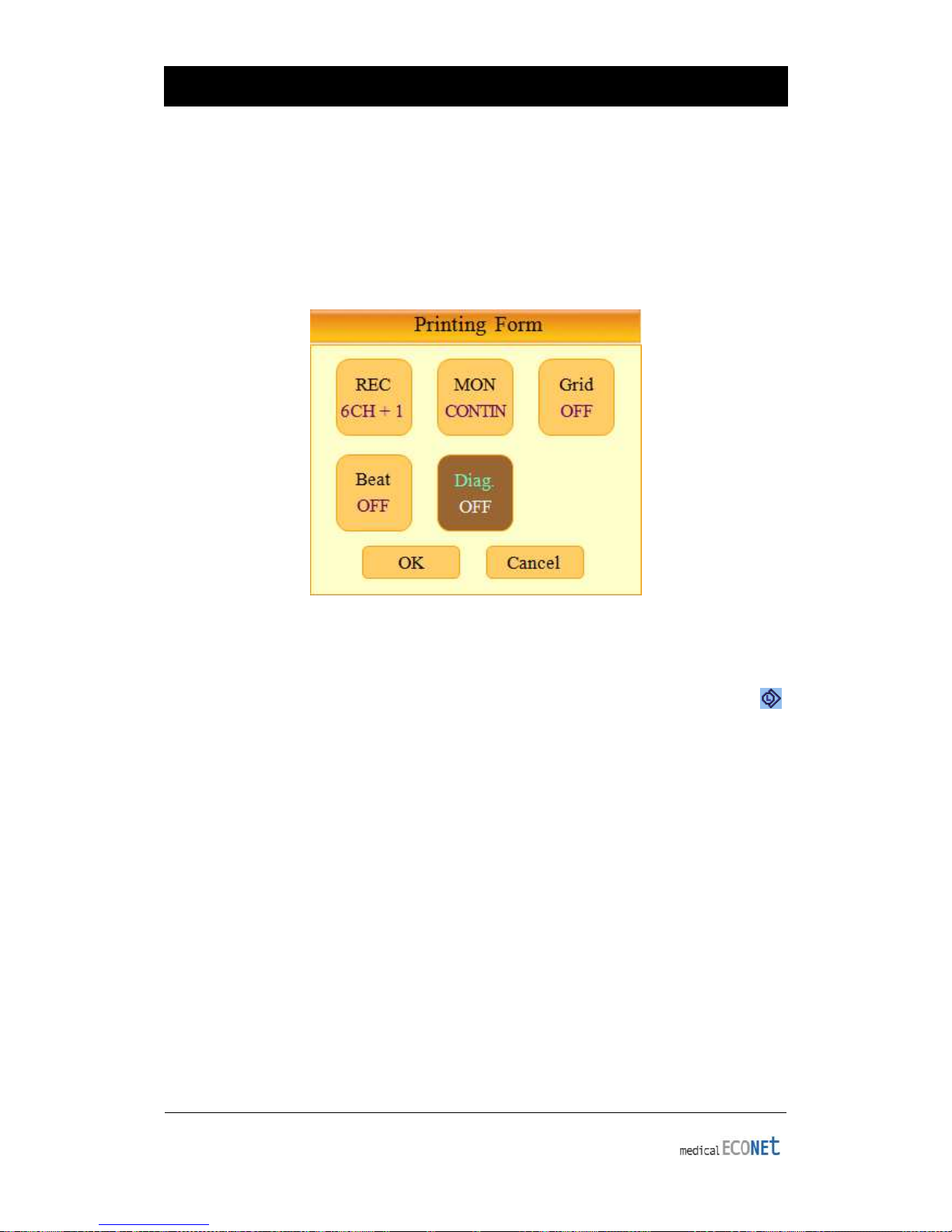

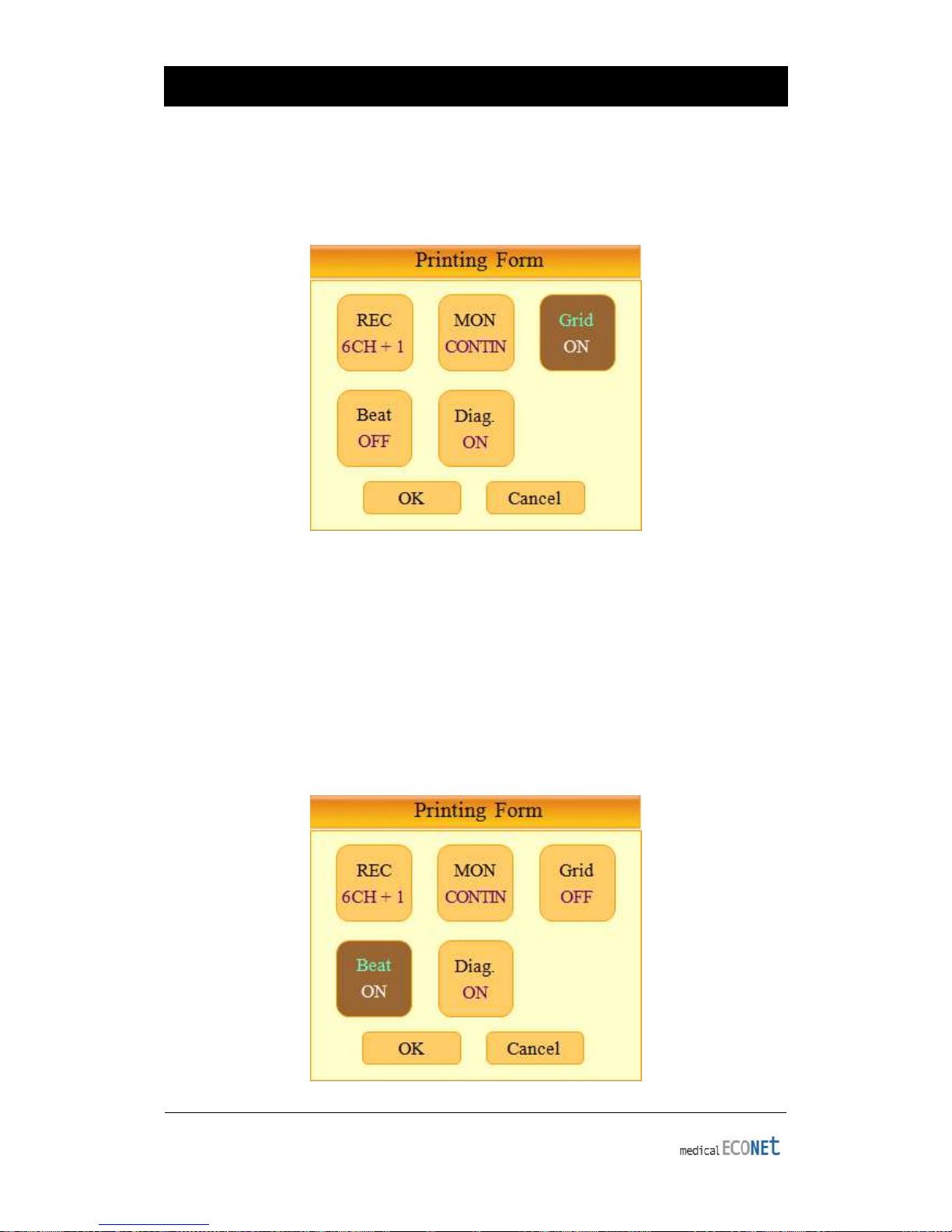

6) Printing Form .............................................................. 49

7) Copy Mode Printing .................................................. 55

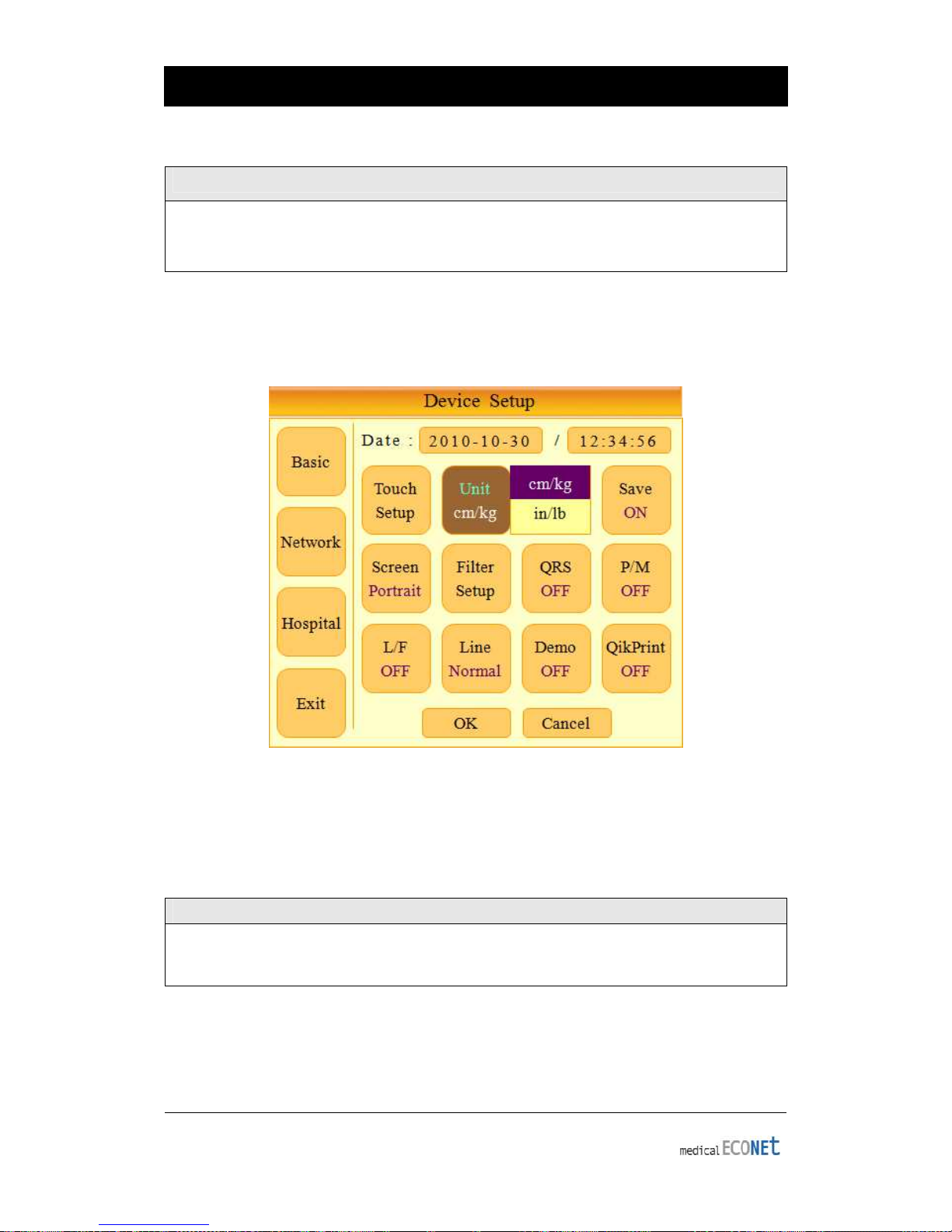

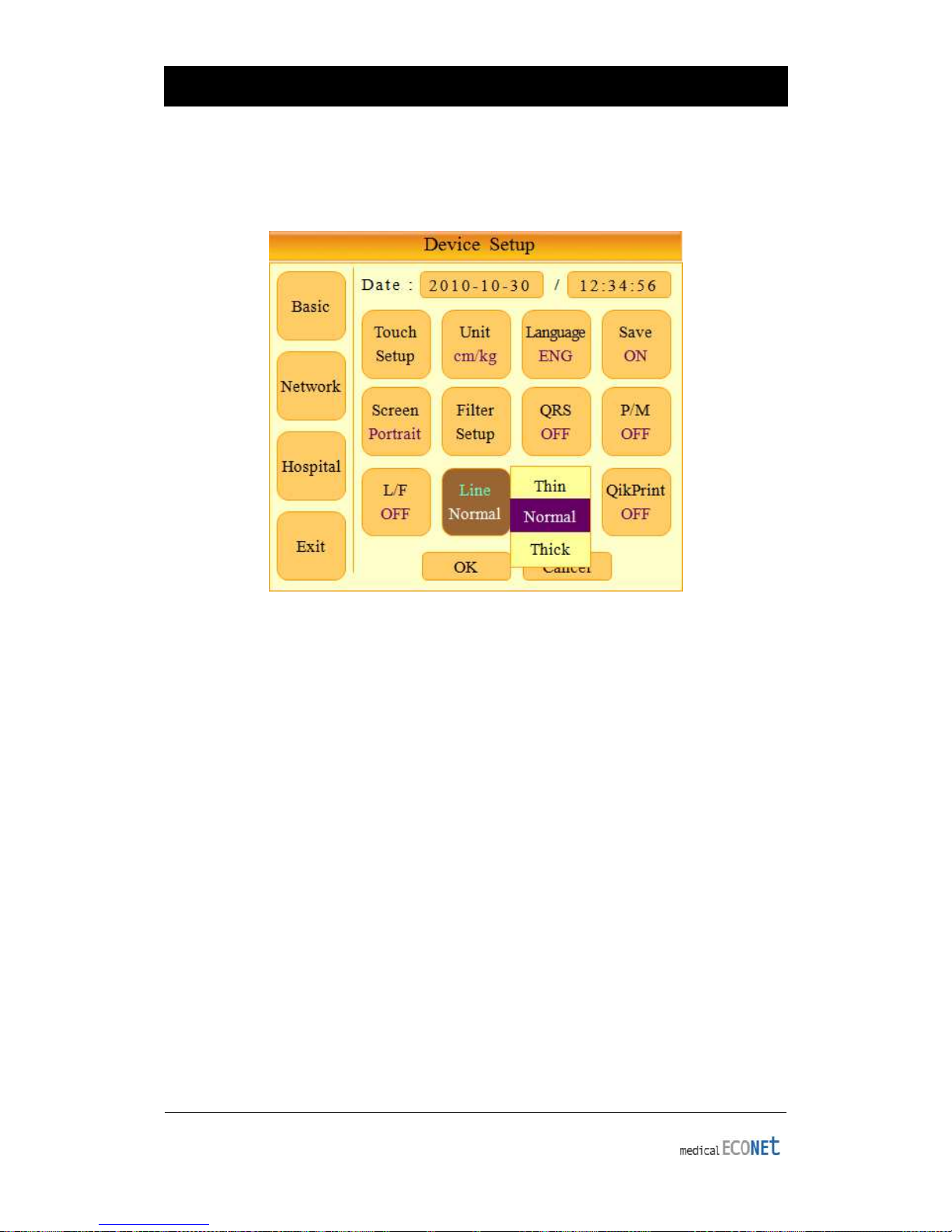

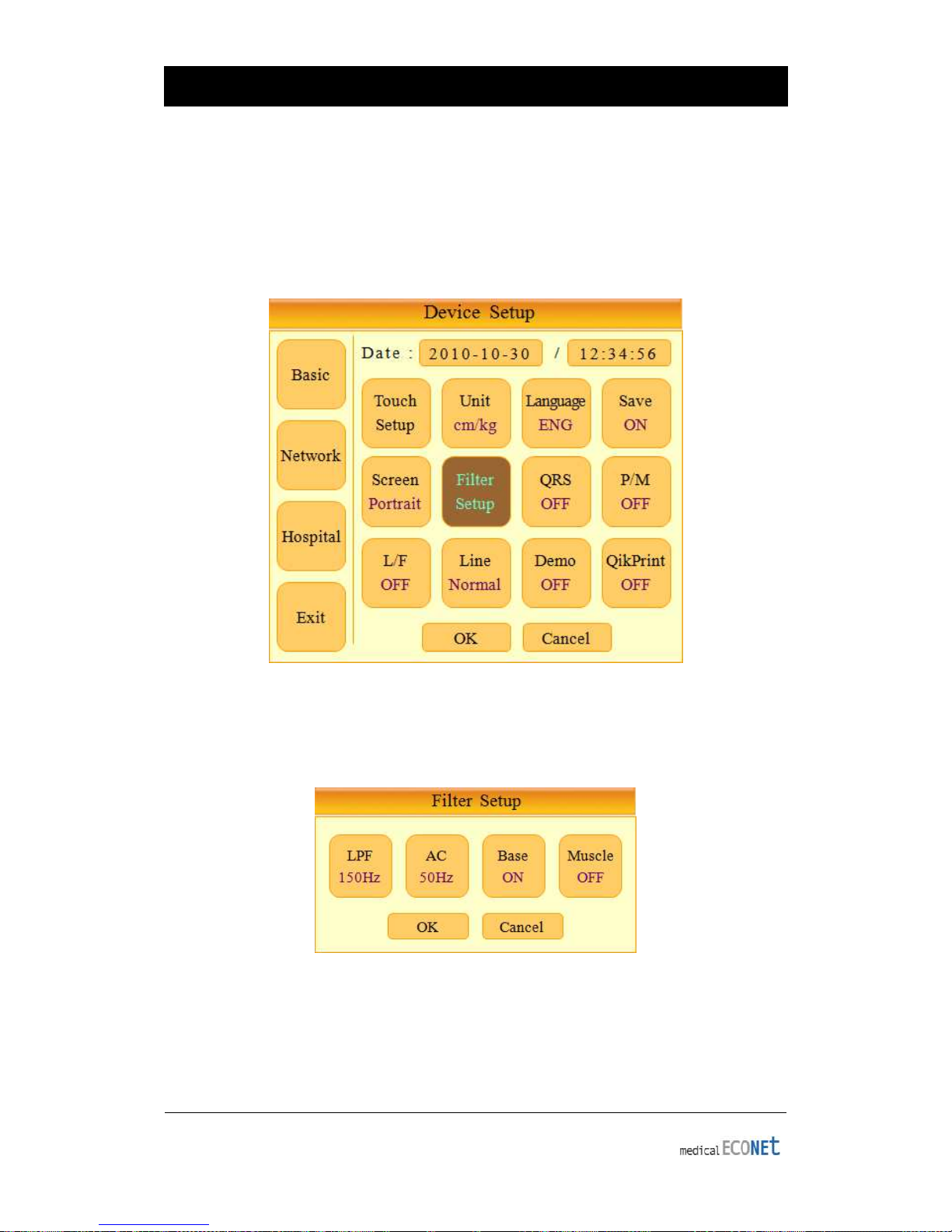

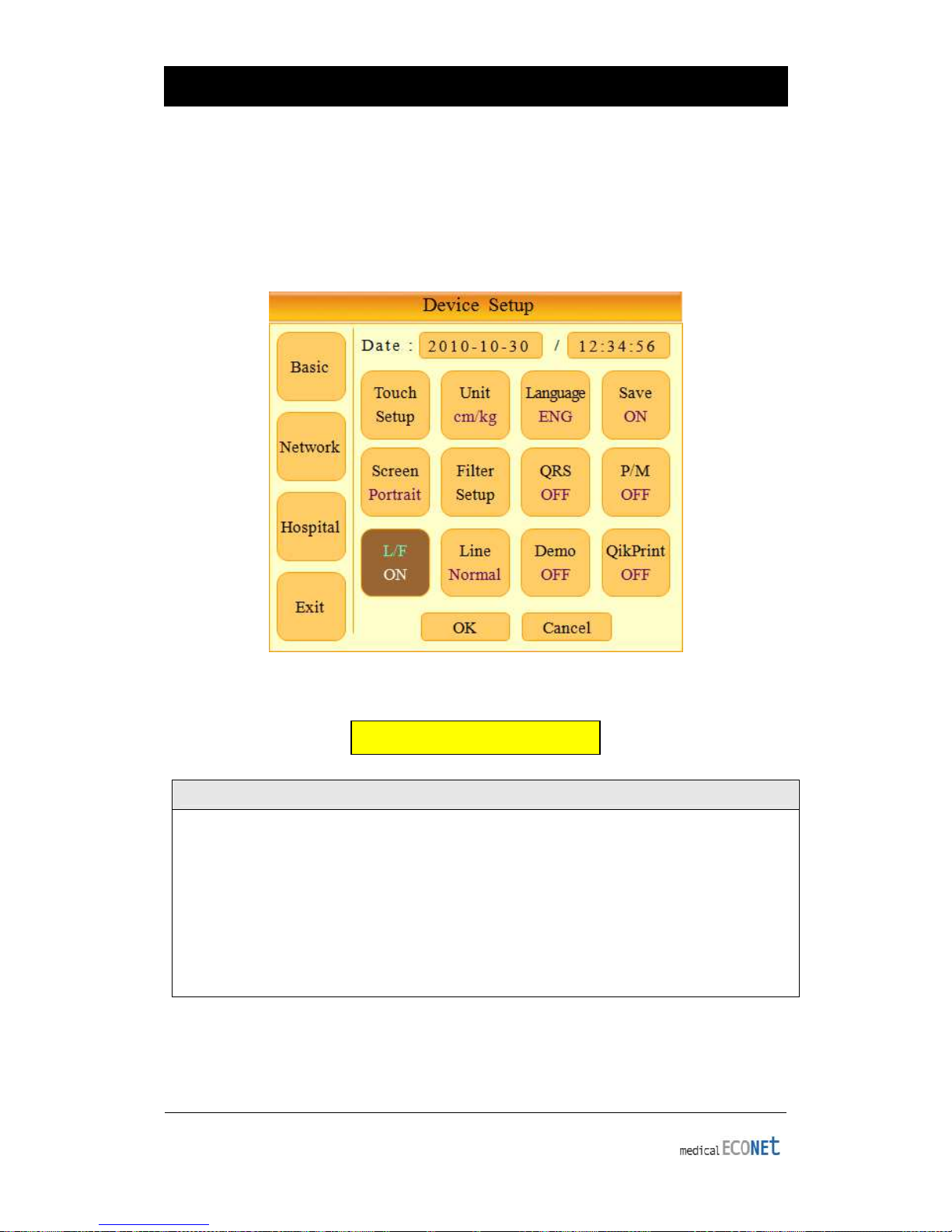

8) Device Setup ............................................................ 57

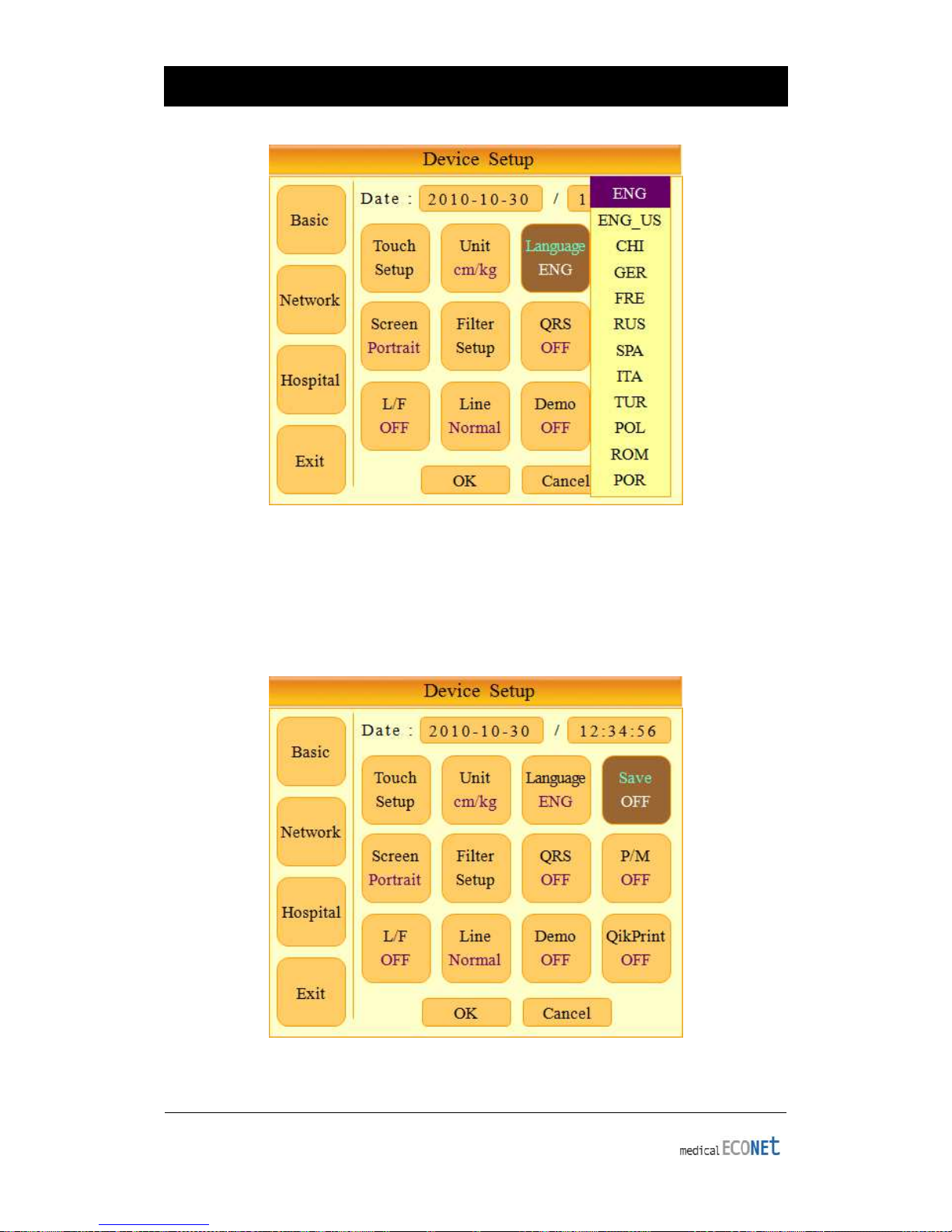

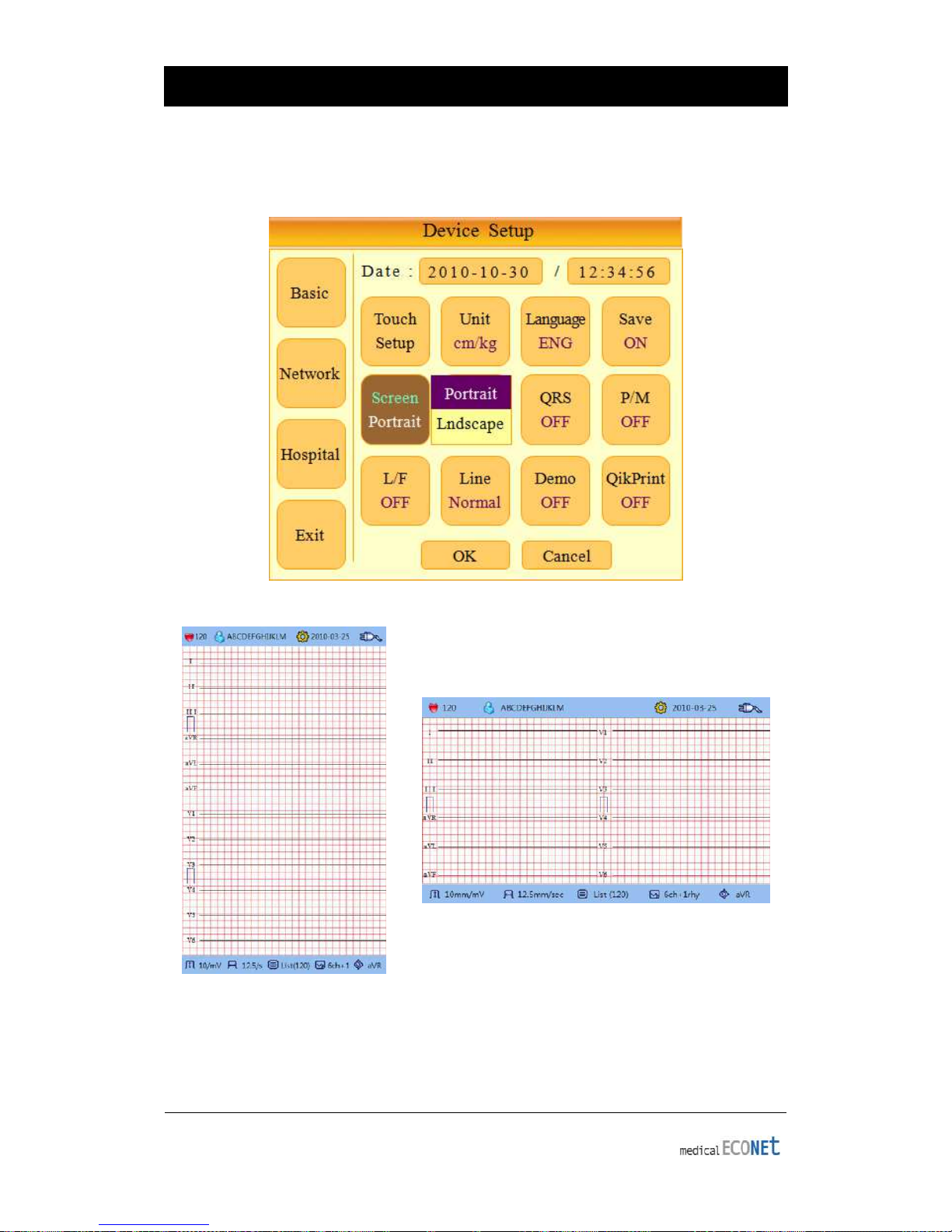

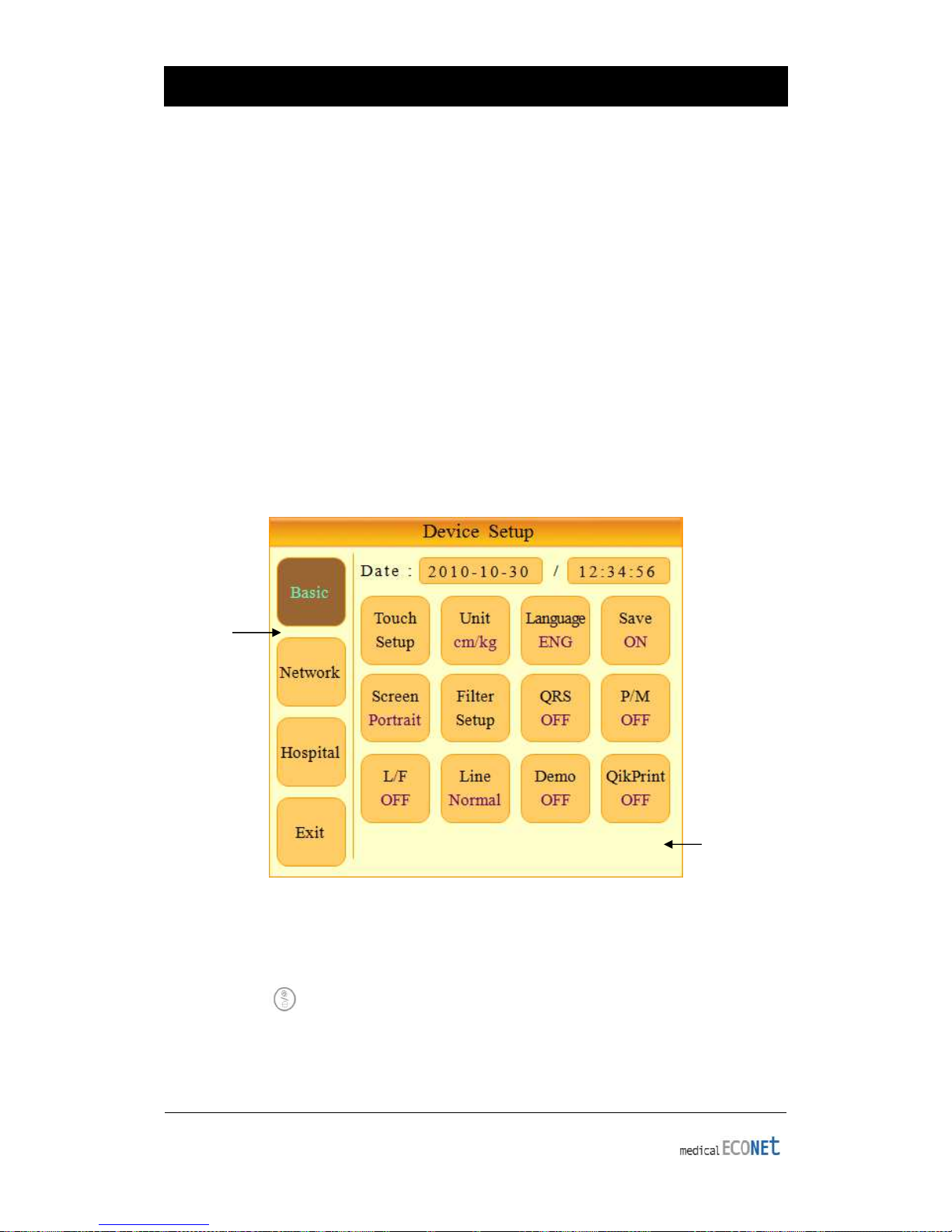

Basic Setup ................................................................................... 57

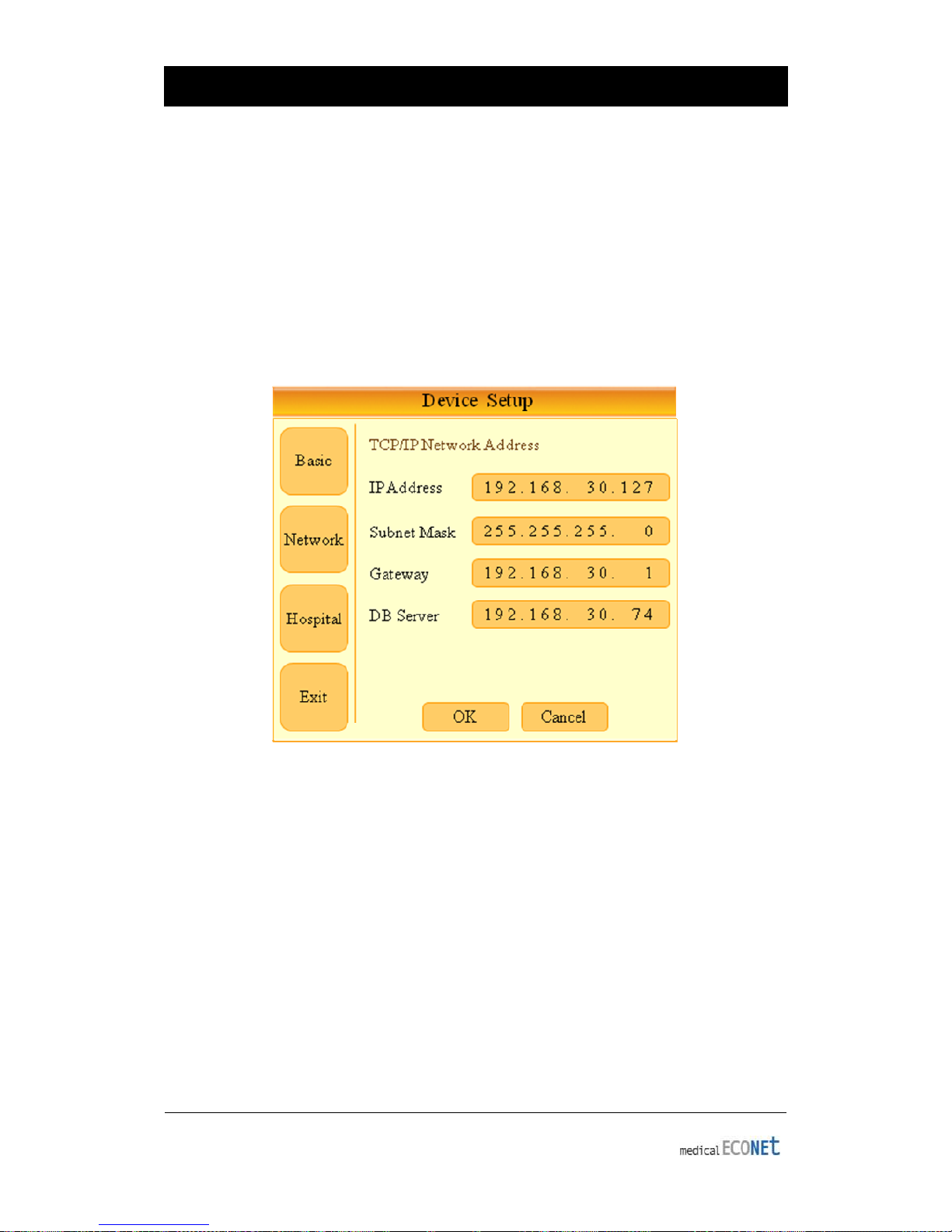

Network Setup .............................................................................. 69

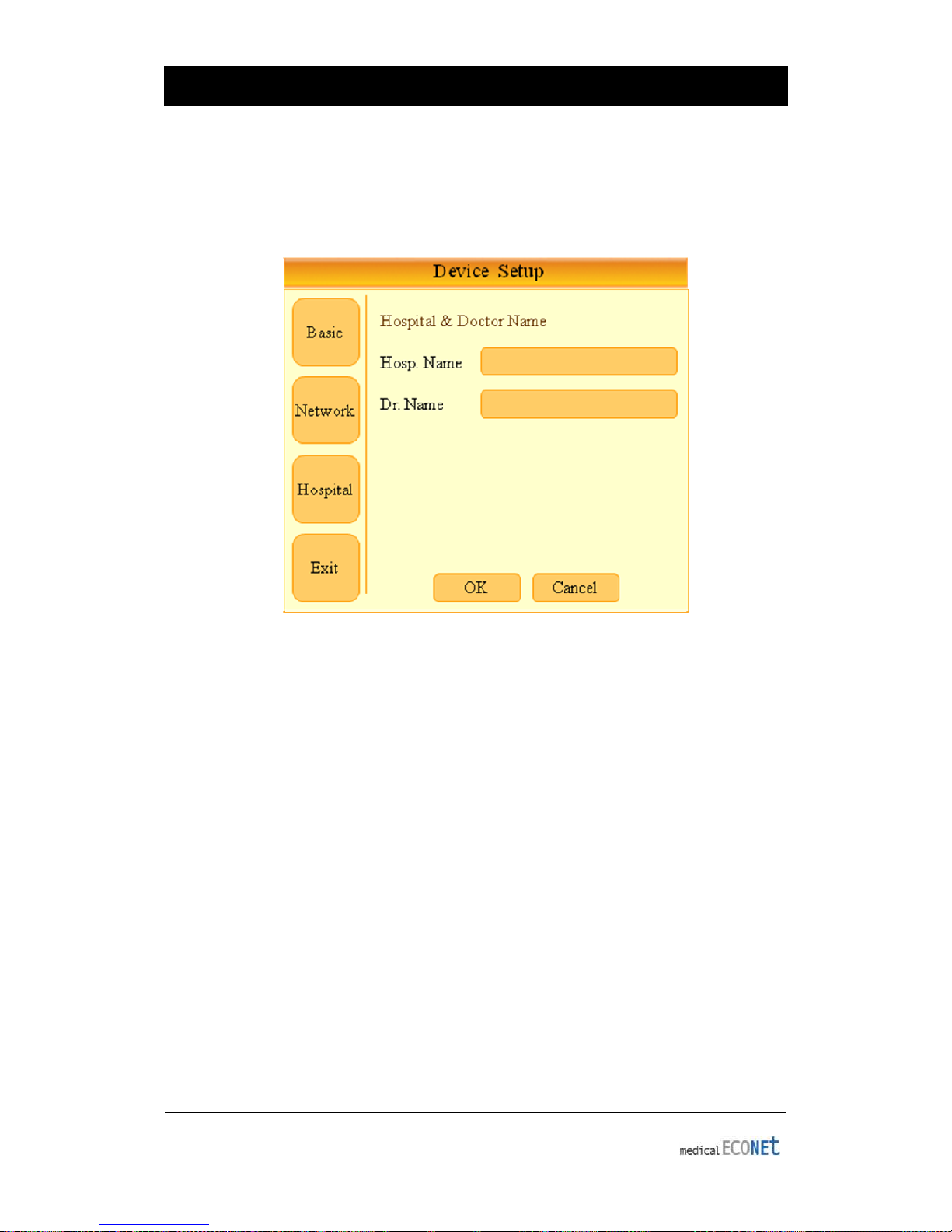

Hospital Setup .............................................................................. 70

9) Network Functions ..................................................... 71

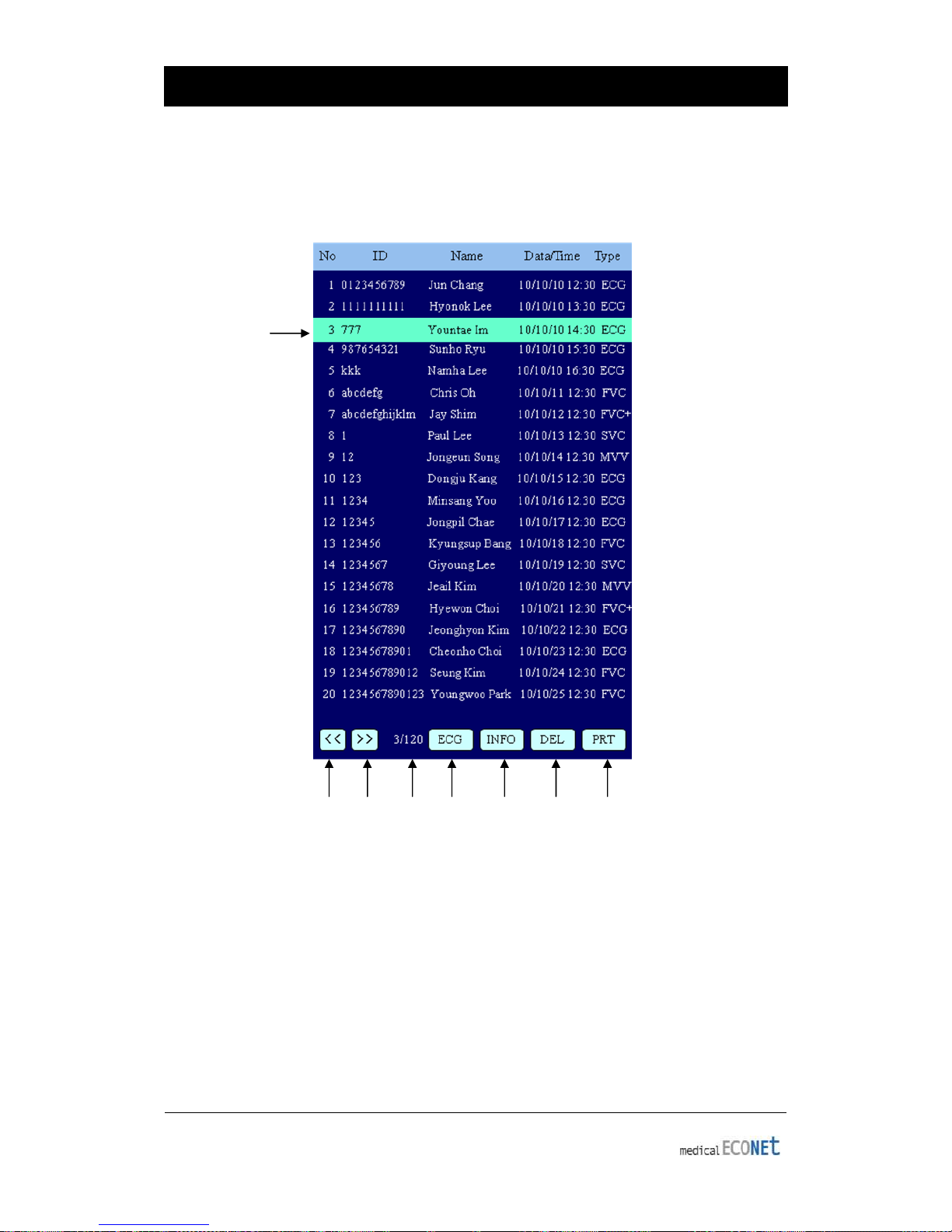

10) Data Management .................................................. 72

11/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 4.

System Management

..................... 75

1) Maintenance And Cleaning ..................................... 76

2) Regular Check-Up .................................................... 76

3) Trouble Shooting ........................................................ 76

Chapter 5. Specification .......................... 78

12/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 1. General Information

1) Product Overview

2) Product Features

3) Product Configuration

Basic Components And Accessories
Optional Components
Body Configuration
Front Panel
Control Panel
Power

4) System Installation

Precautions For Installation
Power Connection
Patient Cable Connection
Paper Installation
System Start

5) System Setup

Reset

13/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

1) Product Overview

Cardio M Plus is an electrocardiogram (EKG) device capable of measuring and
recording 12 channels of cardiac signals of patients. The device enables operators to
record cardiac signals, review them using various viewing modes, and perform
automatic detection of cardiac conditions.

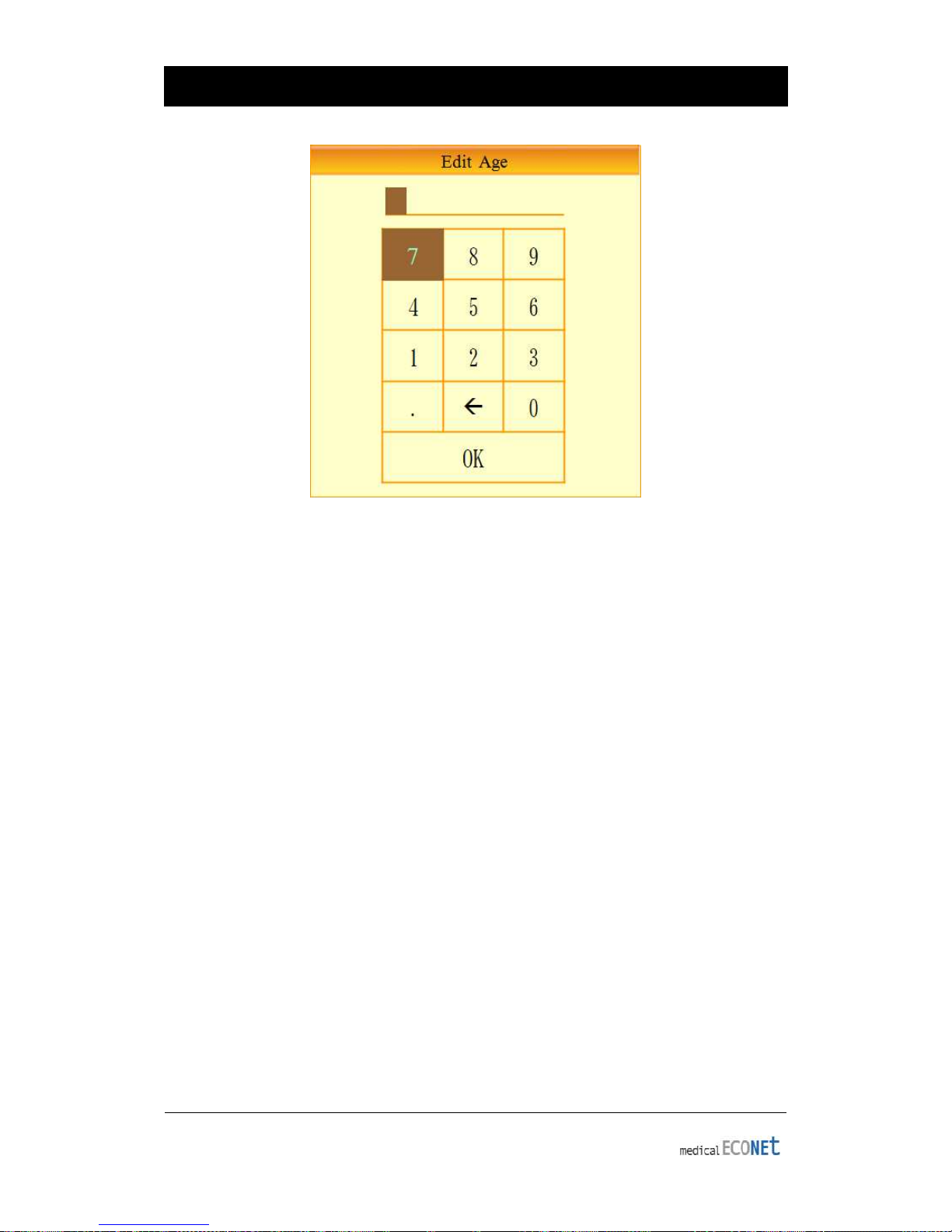

In addition, the device allows operators to enter patient information for it to be
printed alongside cardiac signals, so that operators can sort and manage charts
conveniently. Furthermore, user convenience has been further enhanced by addition
of a functionality that can initiate EKG recording & saving, filter enhancing, parameter
sorting and automatically detecting cardiac signal all at once by pressing one key.

A battery (optional) can be added to the device so that the device can be
operated conveniently during bedside visits or emergency conditions.

2) Product Features

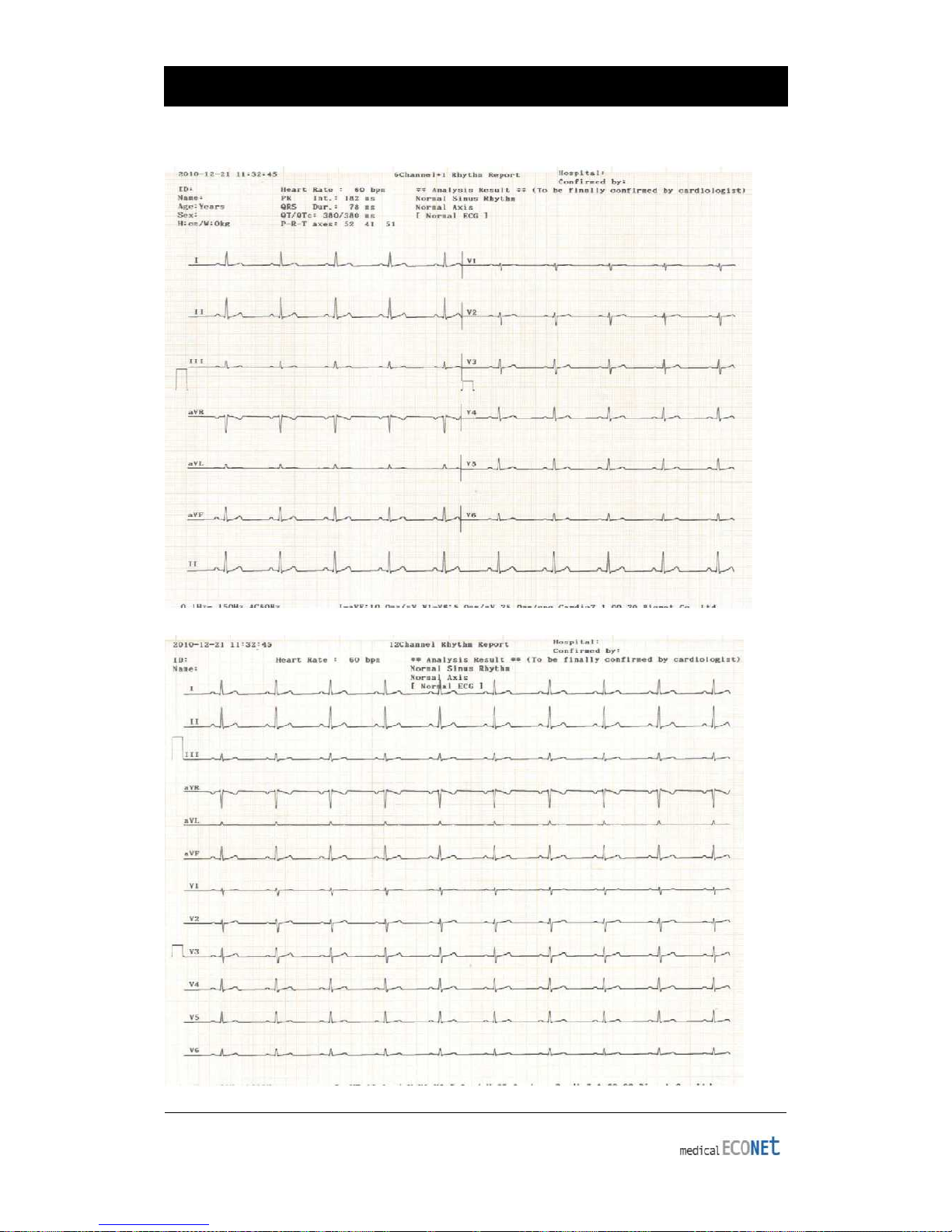

- Print 12-channel (ch) cardiac signals with reports in: 3ch+1 rhythm, 3ch+3 rhythms,
6ch+1 rhythm, and 12ch rhythm patterns on A4 size printing paper.

- Record a rhythm from 1 channel for 60 seconds or 5 minutes then print it on A4 size
printing paper.

- Record and print 12 channel rhythms continuously and simultaneously.

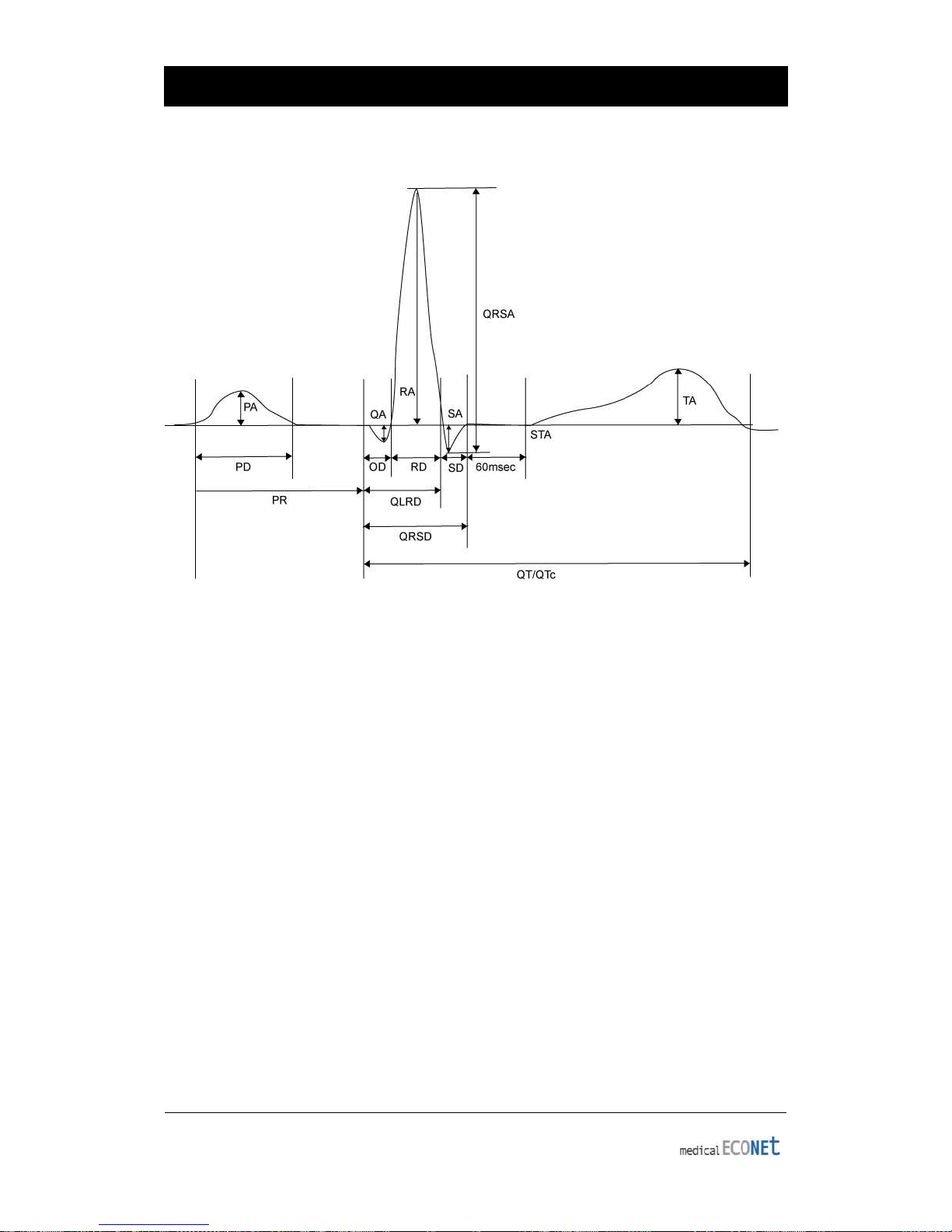

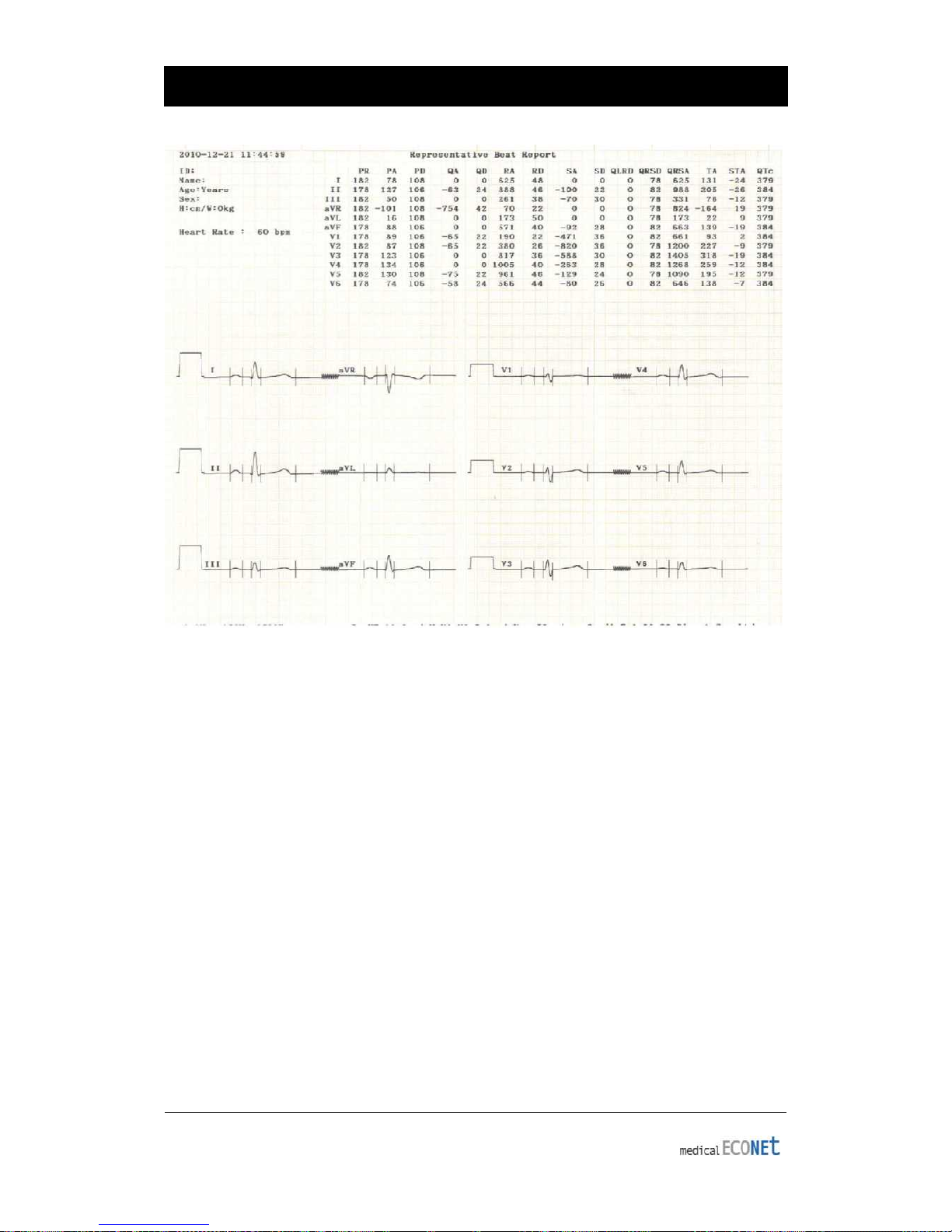

- Calculate heart rate, P-R-T axis and PR, QRS, QT and QTc widths from recorded signals
automatically and print them on a report for use in rhythm analysis.

- Get diagnostic reports using automatic detection functionality.

- Able to modify filter setting, signal sensitivity, printing speed, channel view settings and
rhythm settings, and print on previously recorded EKG signals to aid data analysis.

- Able to attach a battery so that the device can become portable.

- Manage chart effectively by addition of patient and operator data on EKG printout.

- Up to 120 EKG recordings can be saved in device memory.

14/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

3) Product Configuration

The Cardio M Plus system consists of the items below. Unpack the package and check
the items below are included. Also, be sure to check for any damage to the body and
accessories.

Basic Components And Accessories

① Cardio M Plus Body (1 ea.)
② Patient Cable (1 ea.)
③ Disposable Electrodes (1 set)
④ ECG Clips (1 set)
⑤ ECG Paper (1 ea.)

⑥Rechargeable Battery

⑦User Manual (1 ea.)

⑧Power Cord

③

⑤

⑥

①

⑦

⑧

②

④

15/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Body Configuration

▣ Top View

① ② ③ ④ ⑤

① Handle

② Printer Cover

③ Printer Cover Opening Button

④ LCD

⑤ Control Panel

16/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

▣ Front View

①

① Printer Cover Opening Button

▣ Rear View

① ② ③

④ ⑤ ⑥

① Protective Ground Terminal

② Power Switch

③ USB Port

④AC Power Connection Port

⑤ RS-232C Serial Port

⑥RJ45 LAN Port

17/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

▣ Left Side View

①

① Handle

▣ Right Side View

①

① Patient Cable Connection Port

NOTE

To avoid an expected electric shock, do not open the equipment cover or
disassemble the equipment. Refer servicing to Medical Econet GmbH
America, Inc.

18/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Front Panel

Rotary key

Power status

Battery status

Graphic display window

Rhythm

Record

Copy

ECG/Spiro

View

Net/ESC

19/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

During device boot up, you can see the system version and the Medical Econet

GmbH name.

20/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

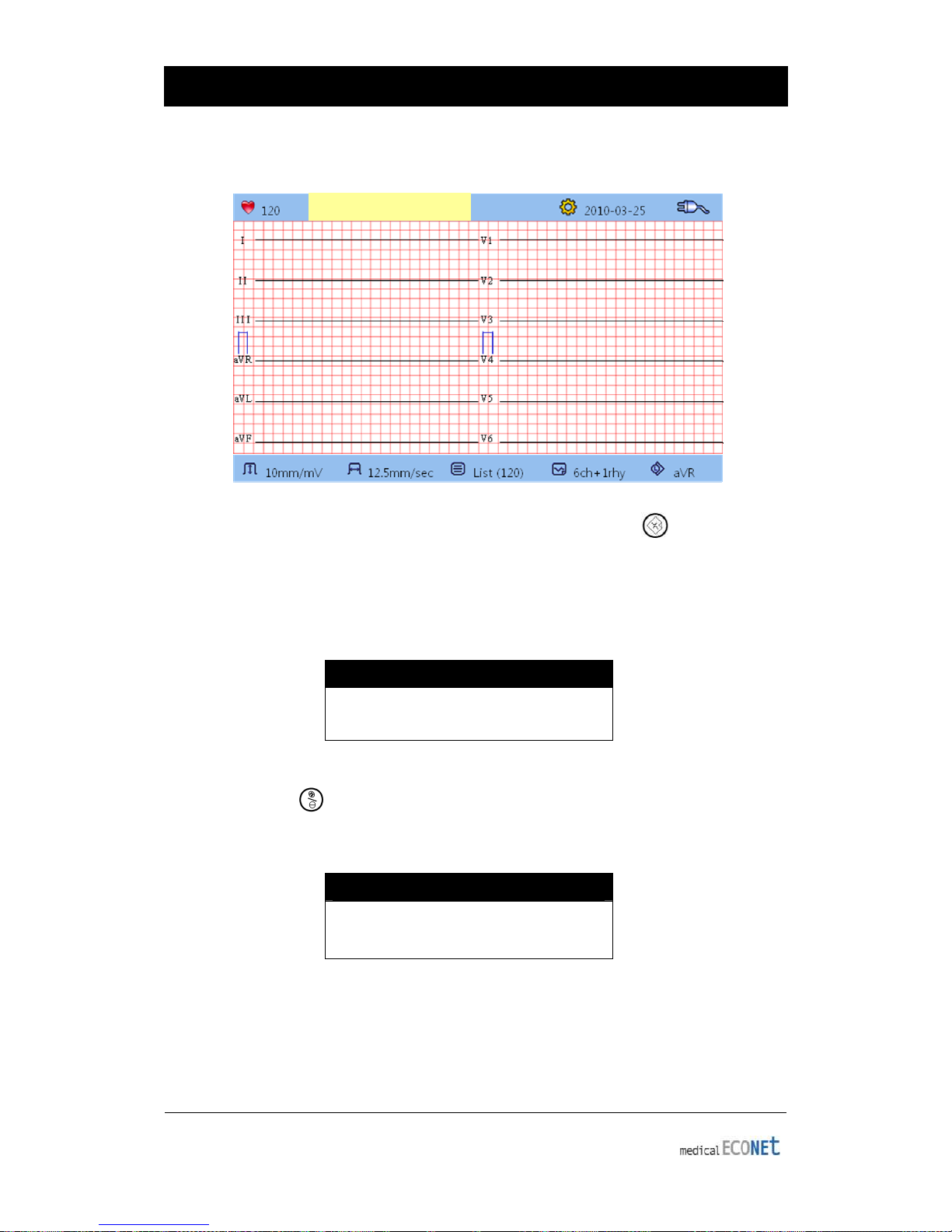

The following descriptions explain data on the graphic LCD.

① ② ③ ④

⑤ ⑥ ⑦ ⑧ ⑨

① Displays The Heart Rate.

② Displays Patient ID.

③ Displays The Date.

④ Displays Battery Status or AC Power Connection Status.

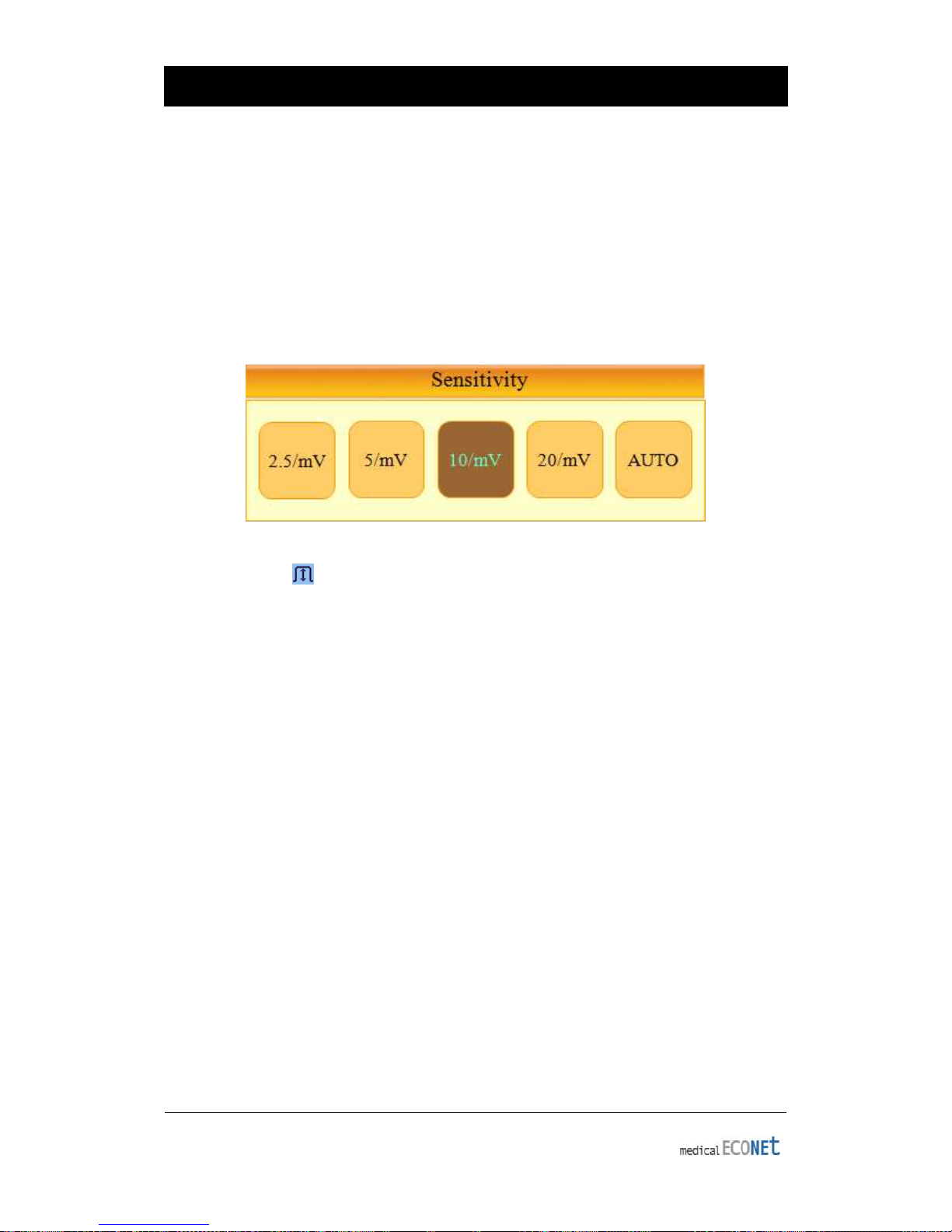

⑤ Displays ECG Sensitivity with One of 5, 10, 20, and Auto (mm/mV).

⑥ Displays Printing Speed With One Of 12.5, 25, And 50 (mm/sec).

⑦ Displays Number Of Data In Memory.

⑧ Displays A Printing Report Channel Form With One Of 3ch+1rhy, 3ch+3rhy, 6ch+1rhy,

12ch rhy, 60s 1rhy and 5m 1rhy.

⑨ Displays a Rhythm Channel Setup with One Of I, II, III, aVR, aVL, aVF, V1, V2, V3, V4,

V5 And V6.

21/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Control Panel

① ② ③ ⑦

④ ⑤ ⑥ ⑧ ⑨

▣ Button

①

Print out the rhythm data on A4 size or continuous paper.

②

Print out the data in a selected form after recording 10
sec data or 60 sec data.

③

Process the recorded data wit

h or without revision and

print them out.

④

Change a view of the graphic display window to initial
main window.

⑤

Change the view of the graphic display window.

⑥

NET: Execute communication using networking.

ESC: Cancel commands or change into the former mode

for main menu printing.
(This key is context sensitive.)

22/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

▣ LED

⑦

A light indicator lets you know that the battery is on

and

shows your current battery charging status. A red light
indicator lets you know that the battery is charging and a

green light indicator lets you know the batter is fully

charged.

⑧

Green light indicates connection with an AC adapter.

▣ Rotary Switch

⑨

Use when navigating or selecting menu items
(s

ame functionalities can be achieved by touching

menu items on the screen).

Power

▣ AC Power

When AC Power is connected to the device, power LED light will be green; if the
battery is installed, charging will commence.

<AC Power> <Battery Power>

▣ Battery Power

The device will get its power from the battery and the unit will display the battery
power icon (shown above), when the system is powered on, the battery is connected
to the device and the AC power is disconnected. When the battery power is low, an
alarm sound will ring from the device speaker and LCD display will show a “Battery Low”
message. Connect the AC power immediately or the device will automatically shut
down in a few minutes.

• Charging time: Maximum 4 hours

• Time to use continuously: Over 1 hour(100 ECG printouts)

23/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

▣ Display Battery Power Status

 : Battery Fully Charged
 : Battery Charge Half-Full
 : Battery Charge Low
 : Battery Almost Fully Drained

▣ Replacing Battery

When replacing battery for this device, the same type of battery should be used.

• Type: GP1300AAM-PACK Ni-MH battery (12V/2600mAh)

• When to replace: Battery will automatically be charged when the device is

connected to AC power, and cannot be charged when separated from the
device. Battery is designed to have a charging cycle of 500 times or more. If the
device could only last 20 minutes or less on a battery power, the battery needs
to be replaced. Additionally, when a battery pack is damaged or leaking
chemicals, replace it immediately. Do not use damaged battery packs with the
device.

NOTE

When replacing the fuse, use the same type (T3A250V) to protect the device
from risk of fire.

24/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

4) System Installation

Precautions For Installation

While installing Cardio M Plus, please pay attention to the following items:

- Use the equipment between the ambient temperature 10 to 40℃ (50 to 104℉) and

humidity 30 - 85％.

- Check the power cord is properly connected, and the probe carefully handled.

- Do not plug multiple cords in a power outlet.

- Install and operate Cardio M Plus unit on a flat surface.

- If you experience noise, ground the device.

- Do not use a power cord that may make a connection noise.

- Device preference will be recorded in the internal memory even when it is off.

- Prevent any shock or excessive force that may cause damage to the device.

- Place the device away from any dust or flammable materials.

Power Connection

The equipment needs electrical power to operate. Plug in one end of the power cable
to wall socket and the other to Cardio M Plus.

Patient Cable Connection

- Connect the patient cable to the patient cable connection port on the right side of
the body.

- Connect limb electrodes to RL (N), LL (F), RA(R), and LA (L) leads of the patient cable

and chest electrodes to V1 (C1), V2 (C2), V3 (C3), V4 (C4), V5 (C5), and V6 (C6),

respectively.

Paper Installation

- Push the printer cover release button to the right to open the printer door of the
Cardio M Plus. Install EKG paper with the side to be recorded appearing on top. Close
the cover to finish the paper installation process.

25/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

System Start

- After all installation processes are finished; turn on the power switch to see the Cardio
M Plus logo, system firmware version, the company name, and icons for ECG or
spirometer mode displayed on the LCD screen.

- To select ECG mode, locate the selection box on the ECG and press the rotary key or
touch the selection box on the screen.

26/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

5) System Setup

Reset

Press the VIEW key on the control panel for more than three seconds to initialize the
system setup to the factory mode. In three seconds, the following messages are
displayed for a second and then reset starts.

SYSTEM MESSAGE

Factory Default Setting
Loading...

* Defaults Are As Follows:

Sensitivity (SENS) 10mm/mV

Printing speed (SPD) 25mm/s

Grid (GRID) Off

Channel form (FORM) 6ch+1rhy

Rhythm channel (RHY) II

Base Line filter (BASE) On

EMG filter (MUSC) Off

Power noise filter (AC)

60Hz when ENG, ENG_US setting
50Hz for other languages

Low pass filter (LPF) 40hz

Diagnosis (Diagnosis) On

Stored Data (List) Delete

Pace Maker (P/M) Off

Lead Fault (L/F) On

Unit Setting(unit) cm/kg

Beat form On

Monitoring Form Continue

QRS Sound Off

File Save Off

Printer Line Normal

27/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 2. Preparation For Electrocardiography

1) Location Of Electrode

2) Electrode Connection

Patient Cable Connection
How To Attach Electrodes
Countermeasures For Bad Lead Connection

28/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

1) Location Of Electrode

Attach electrodes to the patient’s body to record an electrocardiogram of twelve
standard leads [ I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 ], as shown below.

Limb electrodes are located as follows.

 RL (N): Right Leg
 LL (F): Left Leg
 RA (R): Right Arm
 LA (L): Left Arm
 V1 (C1): Fourth Intercostal Space At The Right Border Of The Sternum
 V2 (C2): Fourth Intercostal Space At The Left Border Of Sternum
 V3 (C3): Midway Between Location V2 and V4
 V4 (C4): At The Mid-Clavicular Line In The Fifth Intercostals Space
 V5 (C5): At The Another Axillary Line On The Same Horizontal Level As V4
 V6 (C6): At The Anterior Axillary Line On The Same Horizontal Level As V4 and V5

29/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

2) Electrode Connection

* Check Points

Check the status of equipment and attachment to patient’s body before
measuring.

Check for any mechanical danger.
Check cables and accessories connected to the outside.

Check all the devices to measure the patient.

Patient Cable Connection

Connect the patient cable to the patient cable port of the Cardio M Plus.

How To Attach Electrodes

Attach electrodes after placing the patient on the bed, helping him/her to be relaxed,
and cleaning electrode contact points on the patient’s skin by using a disinfective
alcohol or water. Finally, attach leads to the parts as explained in aforementioned
“location of electrode” part.

Caution

Use only electrodes and patient cables provided from Medical Econet GmbH
America, Inc. Medical Econet GmbH America, Inc. will take no responsibility for
any accidents involving 3rd party accessories.

30/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Countermeasures For Bad Lead Connection

After turning on the power switch, enter the ECG test to check waveforms of all leads.
On this menu, operators can check waveforms of all leads and their noise, and may
see “Lead Fault” message displayed on the LCD screen.

NOTE

- Message will be displayed when L/F is set to ON in System Setup, and will

NOT be displayed when set to OFF.

-

“Lead Fault” message will appear, and a buzzer alarm will go off when lead
fault occurs during printing.

The following two cases could cause a lead fault error.

- First case, leads are detached from the patient’s body. In this case, re-attach leads
normally.

- Second case, signal conductivity between leads and the patient’s body is low. In
this case, replace the electrodes.

If the two above cases have been performed and the operator is still experiencing
noise or lead fault conditions, the patient cable may be faulty. Please contact the
Medical Econet GmbH service center.

Lead Fault! All Leads.

31/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 3. Electrocardiography

1) To Start

2) Basic Setup

General

Sensitivity Setup

Printing Speed Setup

Channel Form Setup

Grid On/Off

Rhythm Printing Setup

Beat Report Setup

Diagnosis Printing Setup

Rhythm Lead

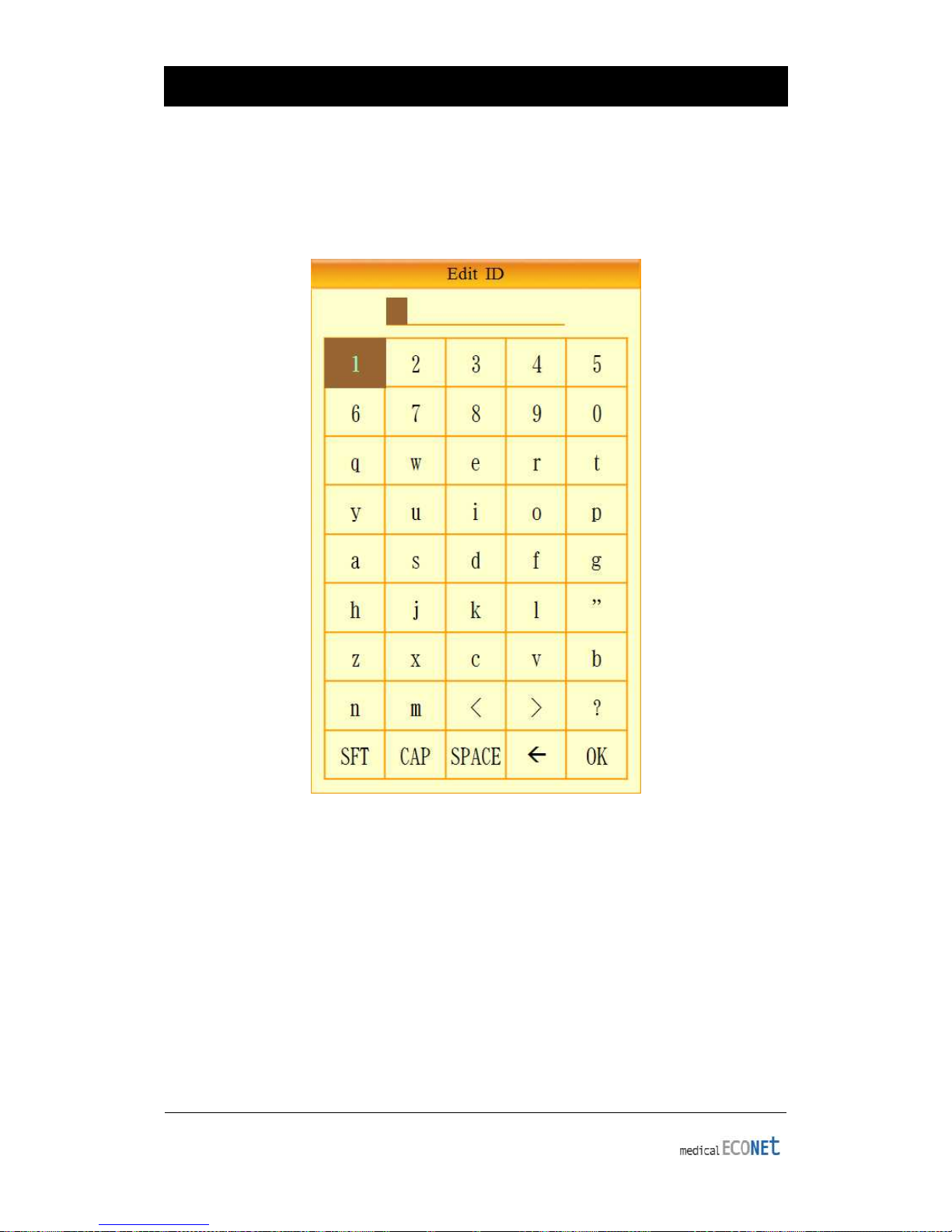

Patient Information Input

Pediatrics Diagnosis

3) LCD Monitor Display

4) Rhythm Mode Printing

Printing Speed

How To Print

5) Record Mode Printing

10 Second ECG Recording

60 Second ECG Recording

5 Minute ECG Recording

6) Printing Form

32/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

7) Copy Mode Printing

8) Device Setup

Basic Setup

Network Setup

Hospital Setup

9) Network Functions

10) Data Management

33/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

1) To Start

. Connect leads to the patient, and then turn on the device in accordance with the

preparation steps for measuring electrocardiogram in Chapter 2.

. Set up filter, sensitivity, printing speed, channel form, and rhythm settings in

accordance with the steps shown in “Basic Set-Up” in Chapter 3.

. Enter the patient information in accordance with the steps of “Basic Setup” in Chapter

3.
. If the waveform displayed on the LCD is abnormal or has excess noise, follow the

instruction of “Countermeasures by Bad Lead Connection” in Chapter 2.

. If the waveform displayed on the LCD is normal, press the REC key to record the

electrocardiogram of the patient.

. To copy the same report as the previously printed report, press the COPY key

. To do monitoring signal by printer, press the RHYTHM key

. To stop the machine during the printing or saving processes, press the STOP key

The following buttons will be most commonly used when operating Cardio M Plus.

Rhythm Printing: Pause monitoring on the LCD display, and print real­time waveform using the printer. Can get either continuous or A4 sized
EKG rhythm printouts.

Diagnostic Printing: Record 10 seconds of data starting after button is
pressed. Then, the device will extract important parameters for
diagnosis and print the summary on an A4 sized printout.

Copy Printing: Reprint the report with the same settings or adjusted
settings. The following settings can be adjusted between printouts; such
as, filter, wave sensitivity, printing speed, channel mode, etc.

Pause: Used when cancelling execution, returning to previous mode
when entering main menu or pausing the printer during printing.

34/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

2) Basic Setup

General

When the device is on, the current configuration values of the system will be shown on
the LCD in the order of the heart rate, patient information, time, battery status,
sensitivity, printing speed, application of the base line filter, application of the
electromyogram filter, printing channel configuration, and selection of the rhythm lead.

These configuration values can be changed using either a rotary key or touch screen.
With the rotary key, the desired menu and changed configuration values can be set
easily.

Same functionality can also be achieved with the touch screen by pressing and
changing the desired information on the LCD.

1. Changing The Configuration Value With The Rotary Key

In this case, please follow these steps: enter Menu Mode, navigate and select Menu
and then change values.

- Entering Menu Mode: Operate by rotating the rotary key clockwise or counter­clockwise.

- Menu Navigation: Operate by rotating the rotary key. Menu movement will occur in
the same direction as the direction of the key’s rotation.

- Menu Selection: Initiate by pressing the rotary key. Menu box for setting of the
selected menu will be displayed.

- Modifying setting values: Move to desired setting, then modify & select values in the
same manner as menu movement shown above. If there are any previously set values,
setting the menu box with the previous value will appear. If there are no OK buttons,
setting the menu will automatically close and return to setting the menu display. If
there are a lot of setting values, enter them all, then click on the OK button to indicate
data entry is complete to close the menu box.

2. Changing The Setup Value With The Touch Screen

You select Menu and change the setup value.

- Select Menu: You could select the menu by touching the screen. Unlike the rotary key,

the setup box appears when you select Menu.

- Change the value: You need to touch the item on the screen to select.

(In the event of system configuration, you should use only the rotary key to set up a

value.)

35/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Sensitivity Setup

This is a functionality that can modify sensitivity of the output signal, when the
outputting signal’s amplitude is too large to cause overlap with neighboring signals, or
too small so that signal diagnosis is difficult.

Users can set all 12 channels to 2.5mm/mV, 5mm/mV, 10mm/mV or 20mm/mV. Users
can also set it to Auto which will automatically set the sensitivity level for each channel;
for example I, II, III, aVR, aVL, aVF to 10 mm/mV and V1, V2, V3, V4, V5, V6 to 5mm/mV.
Note that 10mm/mV means printing 1mV signal as 10mm in amplitude on the printing
paper

.

To change the sensitivity of the signal, select and enter the wave amplitude menu on

the main display ( ) using the rotary key or touch screen, and open the setting menu
display shown above. After that, use the rotary key to select the desired sensitivity level
and press down to enter or select it using the touch screen to set the size of waveform
displayed on screen.

Selected values are shown on the bottom of EKG printouts in the following way:
when 2.5, 5, 10 and 20 are selected, they will be displayed as “all channels:

2.5mm/mV,” “all channels: 5mm/mV,” “all channels: 10mm/mV” and “all channels:
20mm/mV” When Auto is selected, sensitivity level will be printed as “I-aVF: 10mm/mV,
V1-V6: 5mm/mV.”

The left side of the graph display will show the channel name and a bar graph, so
users can notice recently changed values easily. (For 20mm/mV, only one bar graph
will appear so that overlapping of indicators does not occur.)

Printing Speed Setup

This is the function used to adjust the width of the signal displayed. Three values, 12.5
mm/s, 25 mm/s, and 50 mm/s are available for adjustment. 25 mm/s means to record
the signal of the electrocardiogram for a second on 25 mm. Therefore, the width of 12.5
mm/s is a half of the width of 25 mm/s, and the width of 50 mm/s becomes two times
the width of 25 mm/s. If you want to record the broad width of the signal, set up the
higher value.

36/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

To modify EKG waveform’s printing speed, place the selection block to speed

information menu ( ) by rotating the rotary key, then press it to select or touch the
speed information menu directly. The above Printing Speed menu will be shown. Select
desired speed using the rotary key or touch screen. Set value will be displayed on the
bottom of the printout form as 12.5mm/s, 25mm/s or 50mm/s. Note that if the user
wishes to print in A4 size, set the printing size to 25mm/s.

Channel Form Setup

Select the channel form setting of the Printing Form. Currently 6 types of channel
forms (3ch+1rhy, 3ch+3rhy, 6ch+1rhy, 12ch rhy, 60s 1rhy and 5m 1rhy) are offered in
Cardio M Plus.

To select the printout channel form settings, place the selection block to the print

setup menu. ( ) and press down using the rotary key or touch screen input to select
the desired channel forms in the printing form menu.

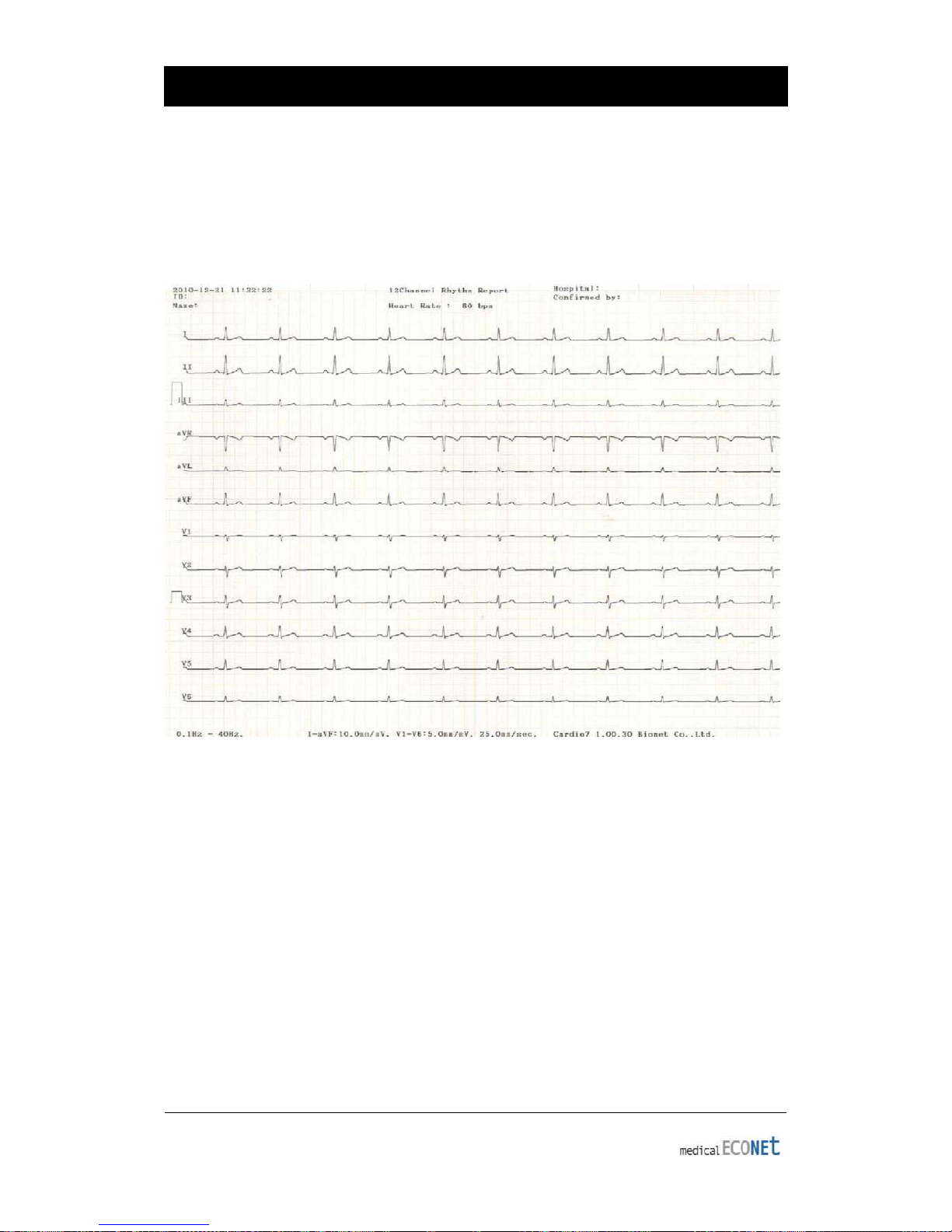

Set values will be printed on top of the printout form as: “3 Channels + 1 Rhythm
Report,” when it’s 3ch+1rhy; “3 Channels + 3 Rhythm Report,” when it’s 3ch+3rhy; “‘6
Channels + 1 Rhythm Report,” when it’s 6ch+1rhy; it will show “12 Channels Rhythm
Report,” when it’s 12ch rhy; it will show “1 Rhythm Report(60 sec),” when it’s 60 sec 1rhy;
and it will show “1 Rhythm Report(5 min),” when it’s 5 min 1rhy.

37/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

- 3ch+1rhy mode will be showing a 10-second EKG recording with channels I, II, III for the
first 2.5 seconds; aVR, aVL, aVF for the next 2.5 seconds; V1, V2, V3 for the following 2.5
seconds; then V4, V5, V6 for the final 2.5 seconds. Additionally, it will display the rhythm
of the selected 1 lead on the bottom for 10 seconds.

- 3ch+3rhy mode will be showing a 10-second EKG recording with channels I, II, III for the
first 2.5 seconds; aVR, aVL, aVF for the next 2.5 seconds; V1, V2, V3 for the following 2.5
seconds; then V4, V5, V6 for the final 2.5 seconds. Additionally, it will display rhythms of
the selected 3 leads on the bottom for 10 seconds.

- 6ch+1rhy mode will be showing a 10-second EKG recording with channels I, II, III, aVR,
aVL, aVF for the first 5 seconds; then V1, V2, V3, V4, V5, V6 for the last 5 seconds.
Additionally, it will display the rhythm of the selected 1 lead on the bottom for 10
seconds.

- 12ch rhy mode will record 10-second EKG measurements of all 12 leads in the order of
channels I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6.

- 60 sec 1rhy mode will record the EKG of the selected 1 lead for 60 seconds with 6 lines
of 10-second long measurements.

- 5 min 1rhy mode will record the EKG of the selected 1 lead for 5 minutes with 15 lines
of 20-second long measurements.

Rhythm Printing Setup

Under rhythm printing mode, the user can set whether a printout will be done
continuously or fit in A4 size (10-second EKG recordings). The rhythm printout setting can
be set using the printing form mode. Under Mon menu, use the rotary key or touch
screen to select between A4 or continuous options.

Grid On/Off

Printing grid may be needed when fax paper is used instead of EKG paper for printing.
A grid line will be shown for every 5mm X 5mm space and dots for every 1mm X 1mm
space. If EKG paper supplied by Medical Econet GmbH is used, the grid option should

38/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

be turned off as it already contains a grid on the paper.

The grid option could also be set on the Printing Form menu. In the Grid menu, use the
rotary key or touch screen to change the grid option between ON and OFF. When the
Grid option is set to ON, the grid will be printed out, and no grid will print if the unit is OFF.

Beat Report Setup

During the diagnostic print, set the output of the representative beat information. The
beat report is added to regular printout (3ch+1rhy, 3ch+3rhy, 6ch+1rhy and 12ch rhy
output), and has “Representative Beat Report” printed on the upper part of the printout
form. This Beat report has representative waveforms of each lead and shows any
important parameters calculated from recordings.

In the Beat menu under the Printing Form menu, use the rotary key or touch screen to
select between ON and OFF to turn the option on or off. ON will cause the Beat report
to be printed, and selecting OFF will disable the Beat report from printing.

39/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Diagnosis Printing Setup

Under diagnosis printing mode, users can set whether diagnosis results will be printed
alongside waveforms. Diagnosis printing can be turned ON or OFF in the Printing Form
setting under Diag menu. ON sets diagnosis results to be printed and OFF disables
diagnosis printing.

Rhythm Lead

To select Rhythm Lead, move the selection block to the Rhythm Lead setting( )
located at the bottom of the screen and select, using either the rotary key or touch
screen, to enter the Rhythm Lead setting. In the Rhythm Lead setting, select the desired
channel, then select the desired rhythm lead using the rotary key or touch screen.

The lead selected from channel 1 will become the base lead in 3ch+1rhy and
6ch+1rhy modes, showing on the bottom of the printout form. It will also be used in 60
sec 1rhy and 5 min 1rhy modes as the only lead being recorded and printed. For
3ch+3rhy mode, lead selected under channels 1, 2 and 3 will be printed on the bottom
of the printout and become the base rhythm for other channels.

40/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Patient Information Input

In this menu, operators can input the patient’s ID, name age, sex, height, weight,
race and smoking habit. In order to enter the patient’s information, move the selection

block to the Patient Information input setting ( ) and select input fields using either the
rotary key or touch screen.

〈〈〈〈Patient Information Selection Mode〉〉〉〉

41/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

The Information input mode will be displayed after selecting the value to enter using
either the rotary key or touch screen. Use the rotary key or touch desired values on the
screen to enter information. Input mode includes Keyboard for both characters and
numbers and Keypad mode for numbers only. On values where only the number should
be entered, users will see the keypad appear instead of the regular keyboard input.

〈〈〈〈Information Input Mode〉〉〉〉

42/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

〈〈〈〈Information Input Mode〉〉〉〉

Pediatric Diagnosis

Pediatric diagnosis is supported for patients ages 3 to 15 years old. When entering
patient information, if the input age entered by the operator in the Age section falls
between 3 to 15 years old, the device will automatically apply a pediatric diagnosis. If
the patient is 16 years old or older, the device will perform a regular (adult) diagnosis
instead.

43/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

3) LCD Monitor Display

Monitor mode display shows the currently measured electrocardiogram signal in real
time. The monitor mode display function is used for the following two purposes: One is
to check whether the signals from the all channels are coming out properly; the other
one is to see the status of the electrocardiogram of the patient for a long time.

Filters for the monitor mode display are below. (Setup in system setup)

BASE LINE On (fixed)

Electromyogram Filter (EMG) Off (fixed)

Power Supply Filter (AC) Option

Low Pass Filter (LPF) 40hz (fixed)

The printing speed can be selected to 12.5 mm/s, 25 mm/s, and 50 mm/s, and the
sensitivity can be selected to 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, and Auto.

Display output can either be done in portrait or landscape views. If it’s in portrait
mode, press the VIEW ( ) key to switch viewing mode. There are a total of 3 different
viewing modes: one displaying all 12 leads and two displays, each showing 6 leads. The

following diagram shows the display switch order with arrows indicating each press of
the VIEW key.

In the landscape mode, there are a total of two display options with either 2 6-lead
columns or 4 3-lead columns. The following diagram shows a display switch order with
arrows indicating each press of the VIEW key.

44/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Note

Display output mode can be set in Basic Setup under the Device Setup menu.
(Please refer to the Device Setup)

* Displayed heart rate is the average of 4 heartbeats.

45/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

4) Rhythm Mode Printing

In rhythm mode printing, the measured ECG signals would be printed in real-time.
Rhythm mode printing allows operators to perform the following two functions: one is to
verify that signals in all channels are active before recording ECGs, and the other is to
print the ECGs rhythm status of the patient for a longer duration.

In this rhythm mode, filter setting is fixed as follows:

BASE LINE On (fixed)

Electromyogram Filter (EMG) Off

Power Supply Filter (AC) Option

Low Pass Filter (LPF) 40hz

Printing Speed

Printing speed can be set to 12.5 mm/s, 25mm/s, 50mm/s and signal level can be set
to 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, and Auto.

(In rhythm mode printing, it prints only to 25mm/s if you select the A4 printing.)

How To Print

The Filter setting value is fixed. Set the required printing speed and sensitivity and press
the RHYTHM ( ) key. Then, the system starts printing according to the selected speed
with the following message on the LCD:

SYSTEM MESSAGE

Printing..

Press NET/ESC ( ) key to stop printing the EKG rhythm. After pressing the key, the
system will stop printing and the display system setting after indicating the following

message for 1 second on the LCD:

SYSTEM MESSAGE

Process Canceling...

46/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

5) Record Mode Printing

For the record mode display, save the electrocardiogram in the memory first, and
apply the filter which is set up by the user to the saved electrocardiogram, and then
extract the parameters for the heart rate, PR interval, QRS duration, QT/QTc, and P-R-T
axes. Then, print out the heart rate according to the sensitivity, printing speed, and
channel form that are set up by the user.

10 Second ECG Recording

When one of 3ch+1rhy, 6ch+1rhy, 12ch rhy, and beat is selected for the channel form,
press the RECORD ( ) key to display the saving time as below and save the 10-

second data to the memory.

SYSTEM MESSAGE

*Record 10 seconds *

When the 10-second data saving is completed, the following message will be
displayed on the LCD screen and the setup filter will be applied to the saved data.
After that, the parameters that were required for the diagnosis will be extracted from
the data.

SYSTEM MESSAGE

Data Processing…

When the data processing is completed, the following message will be displayed on
the LCD screen, and then the printing will start:

SYSTEM MESSAGE

Printing…

Press the NET/ESC ( ) key to stop and exit while saving data or printing the EKG
report. Once saving or printing stops, the following message will be displayed on the
LCD screen for one second, followed by the initial screen:

4

47/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

SYSTEM MESSAGE

Process Canceling…

60 Second ECG Recording

When the channel form is set to 60 sec 1rhy, pressing the RECORD ( ) key will make

the device record EKG data, while printing record duration for 60 seconds on a
predetermined rhythm channel.

SYSTEM MESSAGE

*Record 60 seconds *

Once the EKG recording is done, the following message will appear on the LCD
display while recorded data is filtered and processed to acquire the heart rate:

SYSTEM MESSAGE

Data Processing…

After data processing is finished, the following message will appear on the LCD screen,
followed by printing of the recorded signal:

SYSTEM MESSAGE

Printing…

Press the PAUSE ( ) key to pause or exit during data saving or printing. After

pressing the key, the following message will be displayed on the LCD screen for 1
second, then saving or printing will stop.

SYSTEM MESSAGE

Process Canceling...

35

48/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

112sec Recording…

5 Minute ECG Recording

When the channel form is set to 5 min 1rhy , pressing the RECORD ( ) key will make

the device record EKG data, while printing record duration for 5 minutes on a
predetermined rhythm channel.

Once the EKG recording is done, the following message will appear on the LCD screen,
followed by printing of the recorded signal:

SYSTEM MESSAGE

Printing…

Press the PAUSE ( ) key to pause or exit during data saving or printing. After

pressing the key, the following message will be displayed on the LCD screen for 1
second, then saving or printing will stop:

SYSTEM MESSAGE

Process Canceling...

49/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

6) Printing Form

In this section, descriptions and samples of various printing forms are provided.

Rhythm Report Form

50/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

- Record Report Form (3ch+1rhy)

- Record Report Form (3ch+3rhy)

51/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

- Record Report Form (6ch+1rhy)

- Record Report Form (12ch rhy)

52/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

- Record Report Form (60 sec. 1rhy)

- Record Report Form (5 min. 1rhy)

- Record Report Form (Beat Report)

53/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

54/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

* Beat Report Parameters

PR: PR Interval
PA: P Amplitude
PD: P Duration
QA: Q Amplitude
QD: Q Duration
RA: R Amplitude
RD: R Duration
SA: S Amplitude
SD: S Duration
QLRD: Duration Between Q And Last R
QRSD: QRS Duration
QRSA: QRS Amplitude
TA: T Amplitude
STA: ST Amplitude
QTc: Collect Q-T Interval

55/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

7) Copy Mode Printing

Copy Mode Printing is a function to print out the same report as the previously printed
report. In Copy Mode, users can also print out the same previous data but with
changed settings such as filter type, sensitivity, printing speed, channel form, and
rhythm number if more than one rhythm is recorded.

Copy Mode can be entered by pressing the COPY ( )key following an EKG
recording. After pressing the COPY Key, the following message will be displayed on the

LCD screen, and the printing process will start:

SYSTEM MESSAGE

Printing…

If Copy Mode Printing is called without performing an EKG recording, there would be
no EKG data to copy. In this case, the following message box will be displayed for 1
second, followed by the setup status of the system being displayed:

SYSTEM MESSAGE

No ECG recorded!

Note

If the original record time was less than the recording time required by the
output printout, copy will not function.

If you change the filter setup from the previously saved EKG data, the following
message will be displayed with the changed filter being applied:

SYSTEM MESSAGE

Copy Processing…

When the filter application is completed, the following message will be displayed, and
the printing process will start:

56/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

SYSTEM MESSAGE

Printing…

If the device encounters a problem before it finishes printing, the following message
will be displayed for 1 second before returning to previous menu:

SYSTEM MESSAGE

Abnormal End!

Press the PAUSE ( ) key in order to abort the printing. Once printing is stopped, the
following message will be shown for one second on the LCD screen before returning to

the previous menu:

SYSTEM MESSAGE

Process Canceling...

57/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

8) Device Setup

Device Setup consists of Basic Setup, Network Setup and Hospital Setup main menus.
Preferences for each main menu item can be set by navigating menus representing
each section. Upon entering the Device Setup Menu, users will see the Basic Setup
menu highlighted. After selecting preferences for all desired sections, press the Ok
button to apply and the Cancel button to abandon the setting. To exit from Device
Setup, press the NET/ESC key on the control panel or select Exit section.

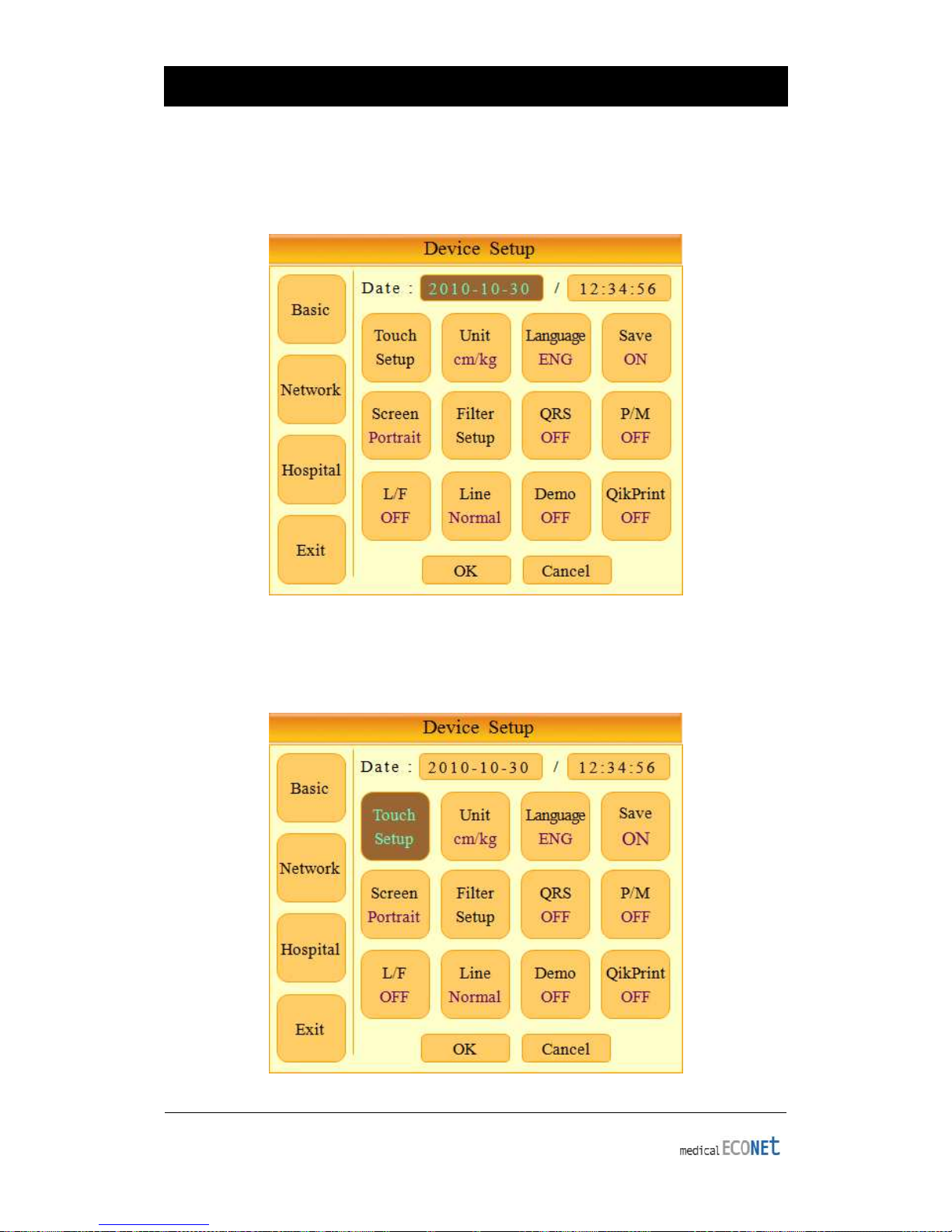

Basic Setup

Basic Setup consists of Date, Time, Touch screen (Touch Setup), Unit, Language, Save,
Screen, Filter, QRS, P/M, L/F, Line, Demo and QikPrint menus. Use the rotary key or touch
screen to select a desired menu item, which would then open its submenu to allow the
user to enter the desired input values.

To save a modification after setting values in each submenu, select OK. To abandon
changes, select Cancel.

After selecting either OK or Cancel, the screen will go back to the Device Setup view.

The NET/ESC ( ) key will function the same as the Cancel button.

Main
Menu
Section

Sub­Menu
Section

58/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

①①①①

Setup Date And Time

You can set the month, date, hour, minute and second information using the rotary
key in Date/Time menu. (Touch screen functionality update planned)

②②②②

Touch Setup

You can calibrate the touch screen by setting the coordinates.

59/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Note

When the user selects the Touch Setup menu, all windows will disappear and the
touch screen setup will start. No keys will be operational until the Touch Setup is
complete.

③③③③

Unit

You can set units of height and weight information in Cardio M Plus. Currently, users
can choose between metric and U.S. standard units; cm/Kg and in/lb

④④④④

Language

You can set up the language for displaying and printing in Cardio M Plus. You can
choose languages among ENG(English), ENG_US(Capital letters printing),
CHI(Chinese), GER(German), FRE(French), RUS(Russian), SPA(Spanish), ITA(Italian),
TUR(Turkish), POL(Polish), ROM(Romanian) and POR(Portuguese).

Note

When ENG_US is selected, printing paper will be set to lettered(280mm) from A4.

60/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

⑤⑤⑤⑤

Saving

In this menu, users can decide whether a message box to ask the user about
saving data should appear or not. If ON is selected, there will be a message box
asking users about saving data. If OFF is selected, the message box will not appear
and no data will be saved.

61/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

⑥⑥⑥⑥

Screen Mode Setup

For screen mode, users can choose either portrait or landscape layouts.

< Portrait Mode > < Landscape Mode >

⑦⑦⑦⑦

Filter Setup

62/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

The signal output generated by the device may contain extra unwanted signals in
addition to the EKG wave such as AC noise, base line drift caused by respiration,
noise generated by an electrical field nearby, etc. Applying filters could help to
reduce or remove those unwanted signals from the output of the device.

To change filter information, enter the Filter Setup Menu either by moving the
selection block over and select it using the rotary key or by touching the menu on
the touch screen.

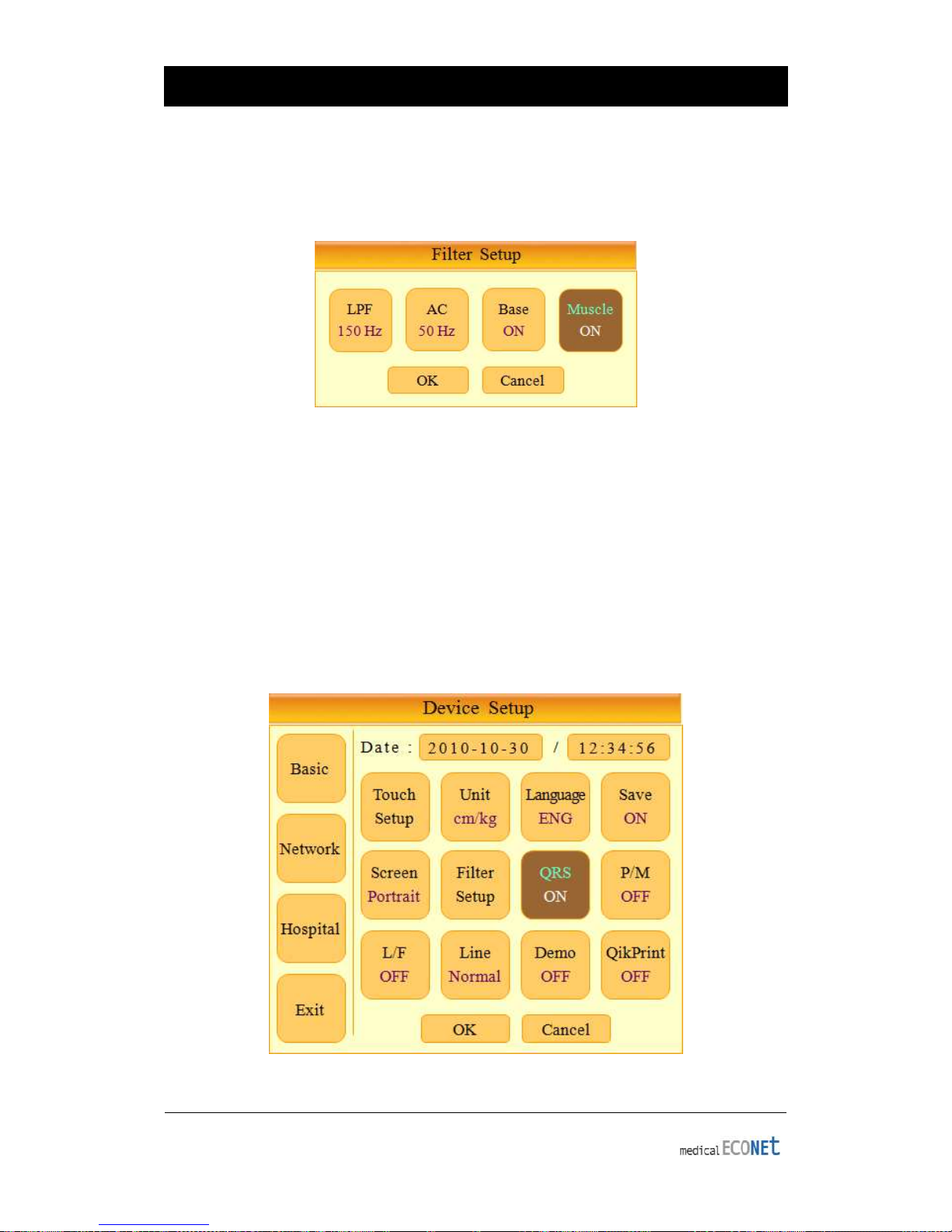

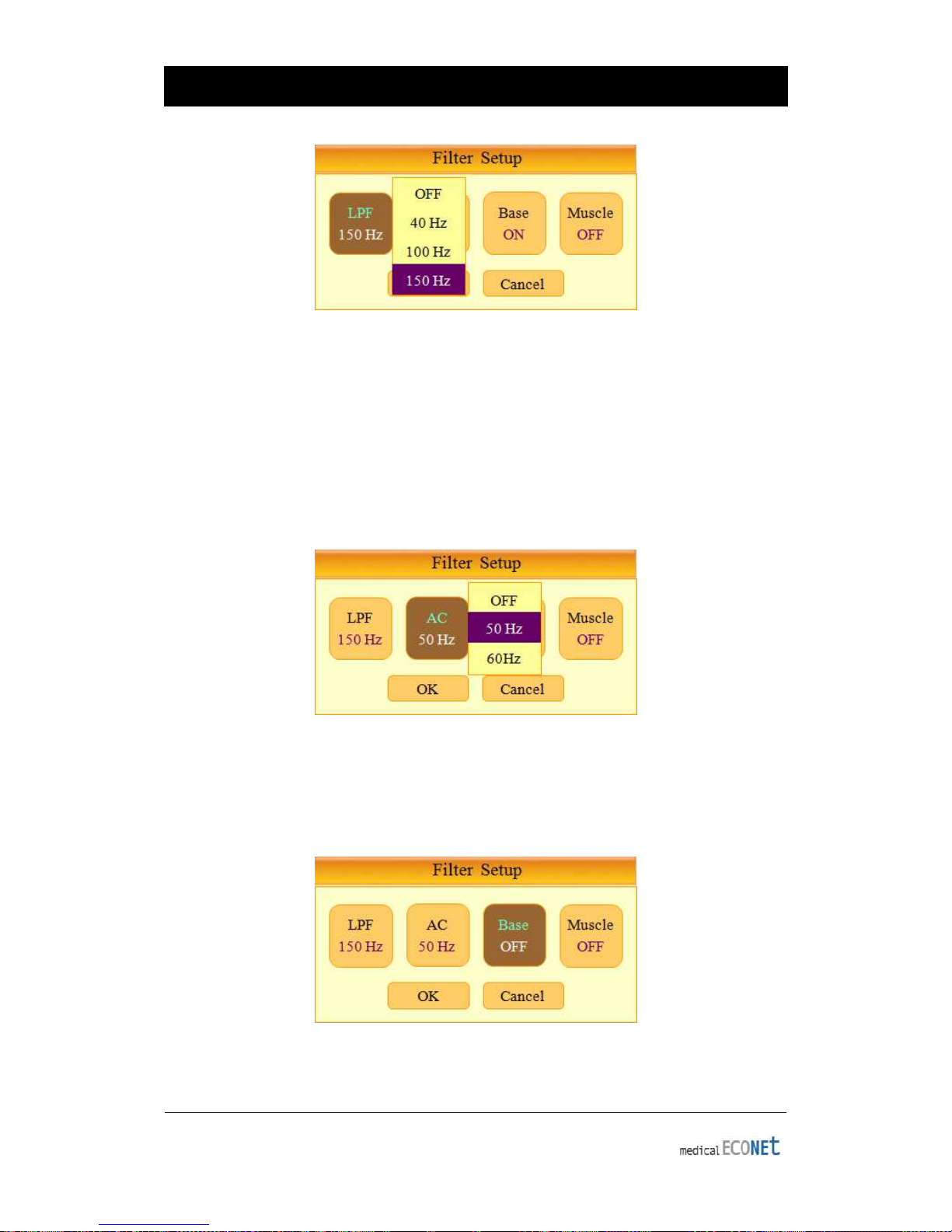

Upon selection, the Filter Setup menu, shown below, will appear. Use either the
rotary key or touch screen to navigate and select menu items to edit. After editing,
OK must be selected in order to apply the changed value.

If the recorded EKG signal contains a lot of noise, Low Pass Filter (LPF) may help to
clear it. For Low Pass Filter, 40Hz, 100Hz, 150Hz and OFF option is offered. Here, 40Hz
option means the filter will remove any unwanted signal with frequencies above
40Hz. Low Pass Filter values will appear on the bottom of the printout form; if LPF
setting is OFF then as ~250Hz; if the LPF setting is 40Hz then as ~40Hz; if LPF setting is
100Hz then as ~100Hz; if LPF setting is 150Hz, then as ~150Hz.

63/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

There are three types of an AC power noise filter; 60Hz, 50Hz and OFF. When set to
OFF, the filter will not be applied. If the filter is set to 50Hz or 60Hz, then the AC filter
will remove 50Hz or 60Hz power noise correspondingly. In the U.S., the AC filter
should be set to 60Hz. Check the properties of your power source before setting AC
filter properties.

Under battery power, there would be no AC noise being generated. In this case,
please set the AC filter setting to OFF so that output signal would not be distorted.

The status of the AC filter can be checked on the bottom part of the printout ­indicating AC 60Hz, AC 50Hz or AC OFF.

Base line drift is caused by the patient’s breathing. It can be seen as ECG signals
being overlapped on a large parabola. To remove Base line drift from EKG
printouts, select ON. Otherwise, select OFF. The set value will appear on the bottom
part of the printed form indicating 0.1HZ- when set to ON, and 0Hz- when set to OFF.

Electromyogram is caused by the patient’s organs or muscle parts. When the ECG
is recorded on patients with strong electromyogram responses, the ECG output

64/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

may not be clear. In Cardio M Plus, electromyogram can be eliminated by using
the Muscle Filter. Select ON to apply the filter to the output and OFF to get the
unfiltered output. When you switch on the filter, EMG is indicated on the bottom of
the printed form.

The use of filters can distort the original output. Therefore, you may reduce the
possibility of signal distortion, if you set the filters OFF when the signals are clear. For
your reference, we recommend that Baseline and AC filters be set to ON most of
the time. Use of the electromyogram filter should depend on signal conditions.
When there is a lot of noise in the output, it is recommended that the LPF filter be
set to 40Hz.

⑧⑧⑧⑧ QRS Sound Setup

In this menu, users can set the device to ring an alarm sound when a QRS beat has
generated while it is in waiting mode. Users can either set the alarm ON or OFF by
selecting the menu with ON turning on and OFF turning off the alarm sound.

65/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Note

No sound will ring while printing even when the QRS sound is set to ON.

①

①①

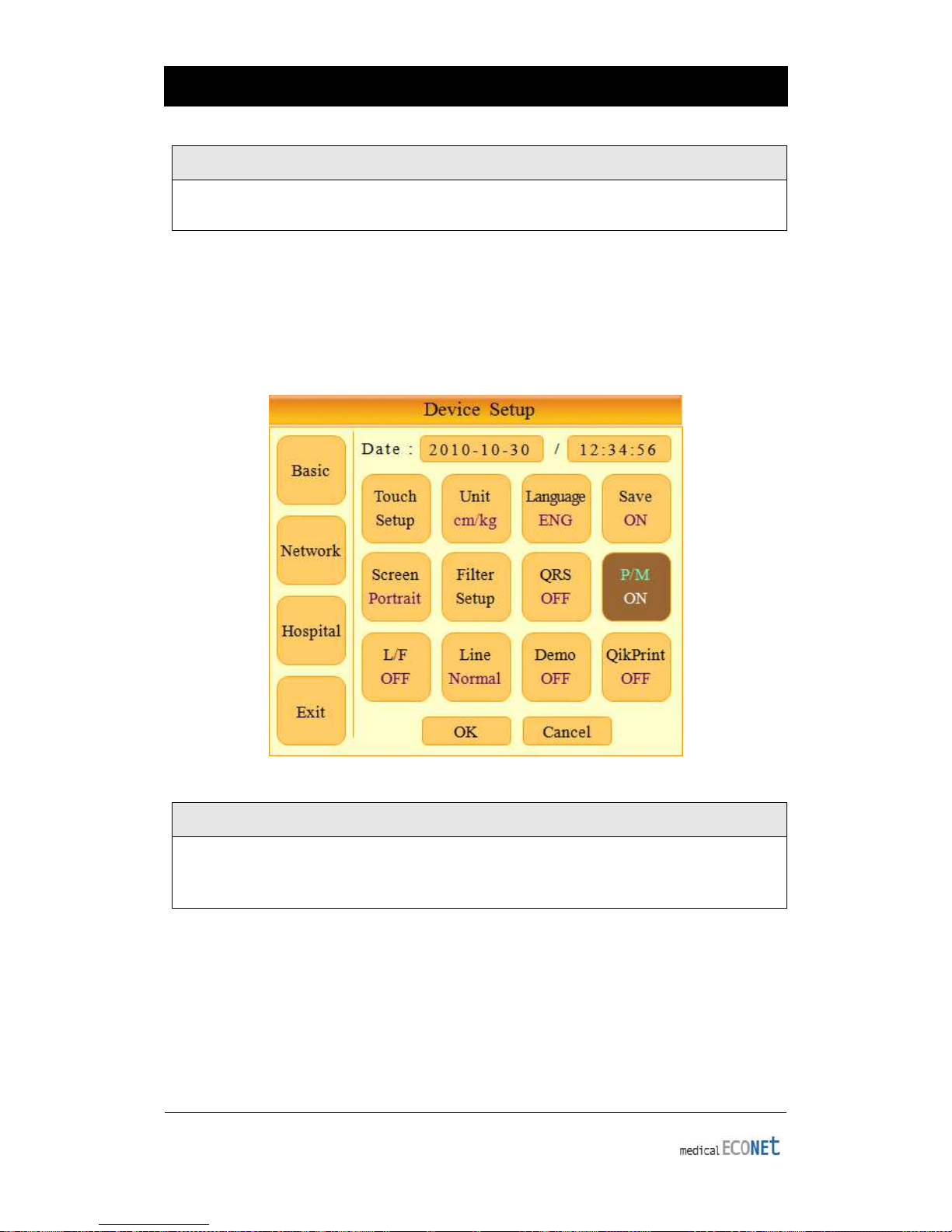

① Pacemaker Signal Display Setting

When a signal from the patient’s pacemaker is registered by Cardio M Plus, users
can set whether to print location of the pacemaker device in rhythm and
diagnostic printing modes or not. In [P/M] menu within the Device Setup, users can
set it to either ON or OFF. ON for placing the pacemaker location on the printout,
and OFF for disabling the pacemaker location print.

Note

We recommend that [P/M] be set to OFF in normal conditions and ON when

measuring the EKG of patients with a pacemaker.

66/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

②②②②

Lead Fault Signal Display Setting

When there is a Lead Fault event, this setup sets whether the “Lead Fault” message
will be displayed on the LCD screen of the device or not.

Selecting [L/F] menu will switch between ON and OFF in the menu, with ON turning
on the message display and OFF switching off the message display.

The following message for Lead Fault will be shown with affected channels:

Note

- If the RL lead becomes faulty, the device will display a message saying all

leads are faulty (“Lead Fault! All Leads.”)

-

If a Lead Fault occurs during monitoring or recording, a buzzer alarm will
sound and the message box will pop up.

-

No pacemaker signal may be detected. Additionally, if a Lead Fault occurs,
please re-measure the EKG as it could have affected the measurement by
the device.

Lead Fault! All Leads.

67/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

③

③③

③ Line Thickness (Printing) Setting

This menu sets the thickness of lines in printouts. Thin indicates thin lines, Normal is
regular thickness, and Thick is bold lines.

④

④④

④ Demo Mode Setting

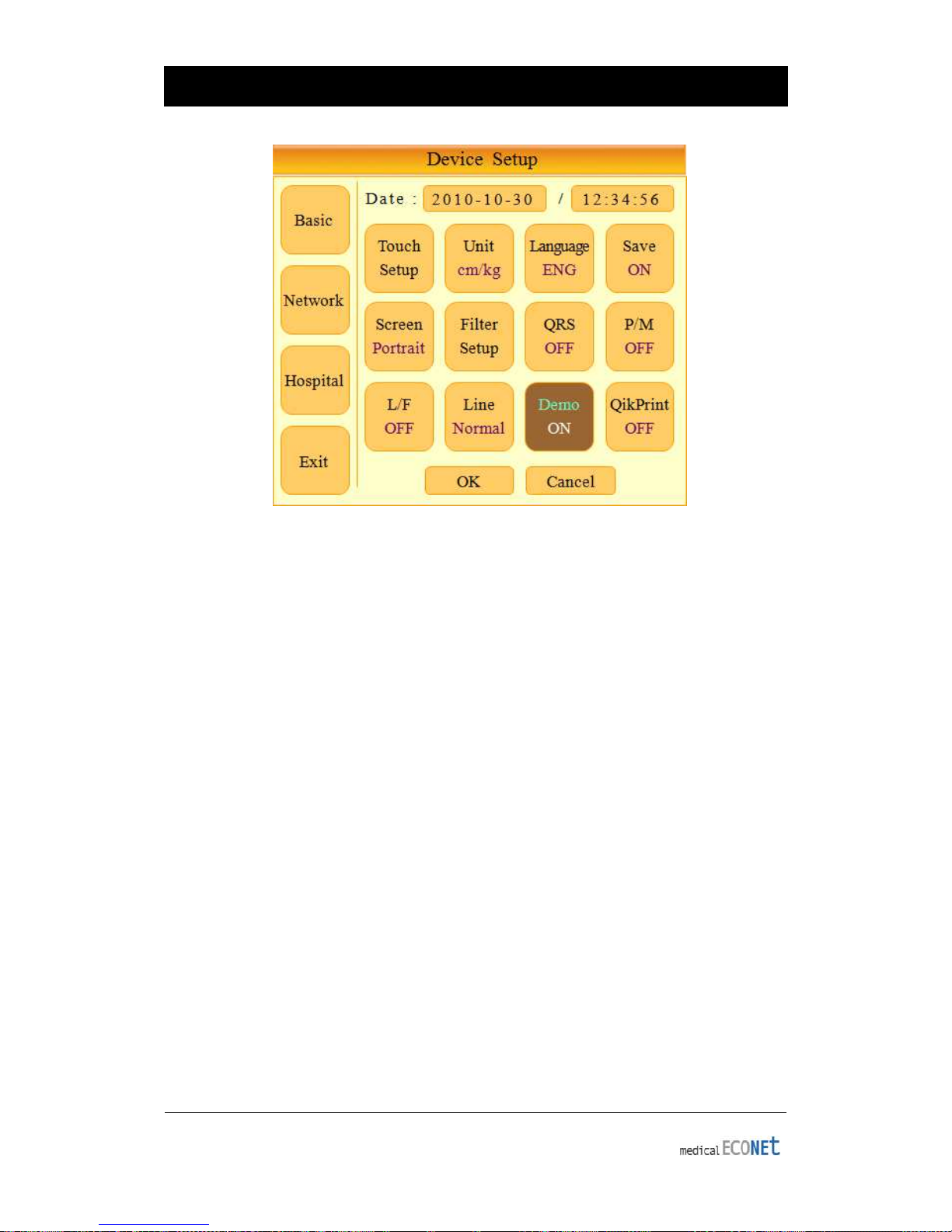

This menu puts Cardio M Plus in demo mode. When it is set to ON, 60bpm Sinus
Normal Rhythm signal will be displayed on the device and DEMO sign will appear
on the upper part of the LCD screen. Users can test rhythm, diagnostic, copy
printing functions as well as PC communication and other miscellaneous functions
in Cardio M Plus.

68/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

69/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

⑬⑬⑬⑬ QikPrint (Quick Printing) Setting

In this mode, users can choose to set or cancel the QikPrint rapid printing function.
When the function is ON, Cardio M Plus will save printing time by utilizing 5-second
buffering.

Note

- When the ON setting is used, you should operate by pressing the Diagnostic

Printing button after the signal is stabilized. The device will utilize data from 5
seconds prior to button pressing for the function, which means diagnostic
information and output printout will be negatively affected if the signal is
unstable.

-

QikPrint(Quick Printing) setting only affects 10-second recording modes. It will
not function on neither 60-second, nor 5-minute recording modes.

70/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Network Setup

In Network Setup, users will be able to set network information for the device. Neither
automatic IP address assignment nor DNS setup functionalities are supported by the
Cardio M Plus.

The IP Address field sets a unique IP address, which is assigned to the device by the
hospital’s network provider. In the DB server field, users can enter the IP address of the
PC/Workstation where EKG data from the device will be transmitted to (i.e., IP address
of the PC where BMS Plus software that can receive EKG information from device and
store has been installed). For subnet mask and gateway field, usually the same
information from the DB server can be entered.

* Network information can only be entered using the rotary key.

71/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Hospital Setup

Enter names of the hospital (clinic) and attending doctor which will be recorded and
printed along with the EKG data.

72/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

9) Network Functions

Any previously acquired or newly taken measurements from the device can be
transmitted to the server PC/workstation for comprehensive data management.

(1) Entering Patient Information

In order to transmit patient data from the device to a PC/workstation, patient
information should be entered first. Note that the patient ID must be entered as it is a
required input value for network functions.

(2) Sharing EKG Data Without Printing

While in the EKG Main screen, pressing the NET/ESC ( ) key after entering the
patient’s ID will trigger a message box with text “Send new record data?” will appear.
Select Yes, if one wishes to take a new EKG measurement then transmit; select No to
transmit any previously recorded EKG recordings; select Cancel to abandon data
transmission.

If Yes is selected, the device will go through Recording  Analyzing  Sending
processes as the data gets transmitted to the server PC/workstation. If No is chosen, the
previously recorded data will be sent to the server PC/workstation without going
through the Recording and Analyzing processes.

(3) Transmitting Saved Data

After printing the EKG data by pressing RECORD ( ) button and saving the data to

the device, the saved data can be transmitted to the PC/ Workstation. Select ( )

from the bottom of the EKG Main screen. Pressing the NET/ESC ( ) key will trigger the
device to transmit data to the PC/workstation, when the Data Management screen
appears. For guides in managing acquired data, you should refer to the ”10) Data
Management Screen” section.

- Data transmission to a PC can only occur while the server program on the

PC is running. Therefore, please check to make sure the server program on
the PC is in operation before pressing the Communication/Pause key on the
device.

- If the size of the data for transmission is too large, it may take longer (more

than a minute) than usual.

- A transmission error could happen if the network communication is

disrupted, while transmitting the data to the PC. In this case, the device will
display a “Transmission Error” message first, then attempt to resend
automatically 1 time and complete the transmission as long as the network
disruption does not reoccur. However, if the disruption continues, the user
will have to press the Communication/Pause key again to manually initiate
the data transmission. If the problem persists, the EKG device may have to
be turned off then on to perform data transmission.

- When transmitting multiple sets of data to the PC after saving, a network

error could occur which may cause transmission halt and subsequent loss of
data. Therefore, we recommend users practice the following procedures to
minimize such loss:

1. In the EKG Main, press the NET button to transmit data to the PC immediately

after measuring.

2. When transmitting multiple sets of measurements, rather than sending all data

at once, we recommend users transmit individual data after each
measurement.

73/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

10) Data Management

(1) Window And Function Description

      

 Currently Selected Data
 Previous Page
 Next Page
 Current Cursor Position/Number Of All Data.
 Previous Menu (Shown As ECG or SPR) – Show Menu Prior To Entering Data

Management Screen

 Display Information Of Highlighted Patient
 Delete Highlighted Data From The Device
 Print Highlighted Data

* When you move to the right or left with the rotary key at the first or last data, data will
be shown per page.



74/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

* When you select Info, Delete or Print with no data saved, the following message is
displayed:

SYSTEM MESSAGE

No Data..

(2) Sending Data

With the NET/ESC ( ) key, users can transmit saved data to a PC/workstation.

 Attempting connection to PC/workstation.

SYSTEM MESSAGE

DB Connecting…

 Transmitting data to PC/workstation.

SYSTEM MESSAGE

Sending Saved Data[**]

 Indicating that the data transmission is finished.

SYSTEM MESSAGE

Transmission Complete!

* System Message: if a connection to the PC has failed.

SYSTEM MESSAGE

Connection Error

* System Message: if a data transmission has failed.

SYSTEM MESSAGE

Transmission Error

75/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

(3) Copying Data to a USB Flash Drive

With the ‘Copy’ ( )key, user can copy saved data to a USB flash drive.

 Copying data to a USB flash drive.

SYSTEM MESSAGE

File Copying…

 Indicating that the data copy is finished.

SYSTEM MESSAGE

File Copy Success.

 System message : if a USB flash drive is not connected.

SYSTEM MESSAGE

Please, checking the device.

 System messages : the reasons when the data copy failed

SYSTEM MESSAGE

File Copy Failed – File Busy

SYSTEM MESSAGE

File Copy Failed – Memory Full

SYSTEM MESSAGE

File Copy Failed – Protocol Fault

76/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

WARNING

When a defibrillator is used, do not touch the patient cable or apparatus.

WARNING

When you are connecting to the electrodes or the patient cable, make sure
connectors never come into contact with any other conductive parts, or are
grounded. In particular, make sure that all of the ECG electrodes are attached
to the patient, to prevent them from contacting conductive parts or contact
with ground.

WARNING

Use the provided ECG patient cable for measuring ECG in the operating room.
The patient cable cannot be used for measuring respiration.

WARNING

Do not use the Cardio M Plus in combination with any Electro-Surgical (ES)
equipment.

WARNING

Users must use the same type of electrode or any other electrodes with
biocompatibility certification proven by one of the international standards.

WARNING

Cardio M Plus must be operated under the supervision of a health care
professional, especially when it is used on a pacemaker-treated patient.

77/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 4. System Management

1) Maintenance And Cleaning

2) Regular Check-Up

3) Trouble Shooting

78/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

1) Maintenance And Cleaning

There are various ways to keep the Cardio M Plus clean and well-maintained. This
section outlines several actions that could damage or stain the machine permanently
and thus need to be avoided by operators of the device. If unapproved materials that
may cause damage to the product were used, the product warranty may not be
honored even though the period of guarantee may not have been expired.

WARNING

- Check main unit and electrodes thoroughly after cleaning.

-

Do not use old or damaged equipment on patients!

 To keep the machine clean, apply Isopropyl alcohol (consisting of 70% solution in

water) on a soft cloth and scrub the body and the measuring electrodes with the
warm water once a month. Do not use lacquer, thinner, ethylene, or the oxidizing
substance.

 Keep the cable from dust or stain. Wipe the cable with a cloth that is wet with

warm water (40°C/ 104 F), and with Isopropyl alcohol (consisting of 70% solution in

water) once a week.

 Do not soak the device and its cables into any liquid or detergent. Keep the

machine and its cables away from any liquid.

Disposal Of Your Old Appliance

1. All electrical and electronic products should be disposed separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.

2. Correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.

3. For more detailed information about disposal of your old appliance, please contact
your local government office, waste disposal service or local distributor where the
product was purchased.

2) Regular Check-Up

Perform the safety inspection on the Cardio M Plus periodically (at least once a year).
See the service manual (provided by Medical Econet GmbH upon receipt of written
request) for details on the inspection of Cardio M Plus.

3) Trouble Shooting

(1) When nothing or blurred out lines are bring printed, during print out operation.
 The upper cover of the printer may not have been closed properly. Check and close

the upper cover completely before using the machine.

(2) When the device is powered by the battery instead of AC power, the buzzer rings
for three times consecutively and the following message is displayed on the screen:

79/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

SYSTEM MESSAGE

Battery Low

 The battery is almost used up. Connect the AC power supply in order to continue
operating the machine.

(3) When the device is printing EKG results, there is a lot of noise added to the signal:
 Check whether the AC power supply filter is set up properly. If it is still noisy, even

though the AC power supply filter is ON, connect the ground wire to the GND electrode
of the system. Do not use the GND with that of AC power supply. Instead, connect GND
to the patient’s bed or any other metal around the device that is connected to the
building’s wall.

* If you continue to have problems even after following the aforementioned points, or
other problems that are not mentioned above, contact Medical Econet GmbH’s
customer service.

80/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

Chapter 5. Specification

ECG leads 12 standard leads, acquired simultaneously and continuously

Dimension 296(W) x 305.5(H) x 92.5(D)mm, approx. 3.5kg

Recording channel

3, 6, 12 channels 10 second recording and beat report
1 channel 60 second or 5 minute recording

Sensitivity 2.5, 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV

Printing speed 12.5, 25, 50 mm/s

Filters

AC (50/60 Hz, -20dB or better)
Muscle (25~35Hz, -3dB or better)
Base line drift (0.1Hz, -3dB or better)
Low pass filter: off, 40Hz, 100Hz, 150Hz

Display 7 inch 800x480 pixel Color TFT LCD display & 12 channels preview

Monitor display

HR, ID, date, AC or battery state, sensitivity, speed, number of
saved data, printing form, rhythm lead

User interface

Touch screen(alphanumeric keyboard and keypad),
push button and rotary switch

Patient data ID, name, age, sex, height, weight, race, smoke

Basic measurement Heart rate, PR, QRS, QT/QTc, P-R-T axis

Recorder

Thermal print head, roll paper
Report paper: width:A4:210mm or 8.5”, length:A4:300mm or 11”
Resolution: vertical: 8dot/mm, Horizontal: 16dot/mm

Electrical

Resolution: 500 sample/sec.
Internal noise: 20 µV (p-p)max

Input impedance: ≥ 10 MΩ

Input range: ≥ ±5mV
Common mode rejection: > 100dB
DC offset voltage: ≥ ±300mV
Time constant: 3.2sec

Patient leakage current: < 10 µA

Frequency response: 0.05 ~ 150Hz
Isolated and defibrillation protected

Signal quality control Disconnected lead detection, pacemaker pulse detection

ECG data storage storage for 120 ECGs (internal on flash memory), USB key support

ECG Interpretation

Application: screening for cardiac abnormalities in the general
population
Population: adults, children
Location: general physician’s office
Accuracy: high-specificity program intended for low-risk patient

Power Power supply: AC or built-in battery(option)

81/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

95 ~ 240 VAC, 50/60Hz, 1.0 ~ 0.5A, 60W max

Battery (Ni-MH) 1 hour of normal use (approx. 100 ECG printouts)

Communication PC connection with RS232 interface and LAN

Safety conformity

ClassⅠ, Type BF

Environment

Operating humidity: 30~85%

Operating temperature: 10 ~ 40℃ (50 to 104℉)

Atmospheric pressure: 70 ~ 106KPa

Standard accessory

Power cord 1 ea., patient cable 1 ea.,
limb 1 set(4 ea.), chest ball 1 set(6 ea.),
chart paper 1 ea., operation manual 1 ea.

Options Rechargeable battery, cart, hanger

82/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

WARRANTY

Product Name Electrocardiograph

Model Name Cardio M Plus

License Number

License Date

Serial Number

Warranty period 2 years from the date of purchase

Date of purchase

Customer

Hospital:
Name:
Add ress:
Contact No:

Seller’s Name

Manufacturer’s

Name

※ Thanks for purchasing Cardio M Plus.

※ This product is a medical machine.

※ This product meets the strict quality requirements thoroughly.

83/83

Version 1.0

Cardio

CardioCardio

Cardio----M Plus

M PlusM Plus

M Plus Operation Manual

Operation ManualOperation Manual

Operation Manual

International Sales & Service

Medical Econet GmbH

Mainstr. 6 c-d

45768 Marl

Germany

www.medical-econet.com

Medical Econet GmbH

Model Name: Cardio M Plus
