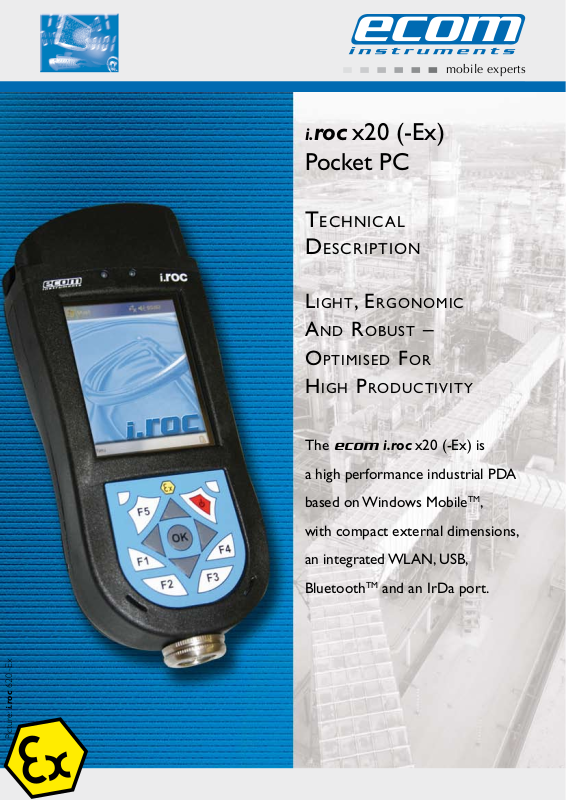

The ecom i.roc x20 (-Ex) is
a high performance industrial PDA
based on Windows MobileTM,
with compact external dimensions,
an integrated WLAN, USB,
BluetoothTM and an IrDa port.
Picture: i.roc 620 -Ex
Trend-setting success
The success of our industrial PDA i.roc x20 is an excellent example of how the
use of mobile solutions can help optimise profitability and efficiency of your company. Whatever the size and type of business, there exists oppor tunities to further
optimise production flow and data transfer. Customised and wisely applied mobile
information technology can detect and utilise these oppor tunities, thereby helping
to make the company more profitable. For process controlling this means continual
identification and diagnosing of faults in order to make the correct decision for production flow. At management level, intelligent information systems can prevent the
occurrences of standstill and waste, improve production performance and therefore
help guide the company to higher efficiencies.
Application of state-of-the-art technology
The XScale processor, the operator interface featuring different Windows mobile
operating systems, the impact resistant TFT display with touchscreen function and
the extensive range of equipment and accessories all got to make the i.roc the
perfect tool. The i.roc product concept is truly impressive, with its innovative power
and flexibility allowing the early adoption and application of new ways of working in
hazardous areas. The long term product strategy with HP fur ther guarantees investment security for our clients.
Versatility by flexibility
ecom instruments already provide customised and
flexible solutions for mobile applications in a variety of
industries in co-operation with partners such as HP,
Deister electronics, microsensys and Barcodat.
If you have a requirement for a tailored solution - please
contact us.
Non-incendive PDA i.roc 520 -Ex
while process visualising
Concept
Many PDAs provide
the possibility to
integrate barcode
scanners or RFID
reading devices via
CF card slot.
The i.roc x20
features the considerably more flexible way
of integrating modules
by interface into an
individually designed
casing. The dustproof
and water-proof casing,
consisting of three
parts, facilitates
customised
hardware.
Possible applications
• Visualising of processes • Logistics
• Water treatment • Management Information System
• Maintenance • Mobile internet access
• Quality assurance • Commissioning
• Service sector • BOS
Active and passive
RFID Tags
Especially when using RFID the customer
and his application finally decide which
kind of frequency, tags and reading devices are used. In cooperation with solution par tners ecom instruments has
developed optimised RFID modules
especially for mobile applications. These
guarantee the highest level of flexibility
and freedom of decision.
620 -Ex with DS x10
i.roc
2D barcode imager
All common linear bar codes as well as 2D codes with high
amounts of data and integrated security features, such as Aztec
or DataMatrix, can be read directly. Complete labels can easily and rapidly be scanned using the integrated CMOS camera.
According to the needs and requirements of the client also other
reading systems, like classic laser scanners, can be applied.
Interfaces
With the demand for efficiency of production and logistics, it is
essential that high quality radio transmission solutions are available. The i.roc x20 provides adaptability, so that the latest technology can be applied. Depending on individual requirements, different ways of communication can be selected on the i.roc x20.
Online access can allow direct access into the company. Both
WLAN and Bluetooth interfaces are integrated as standard,
allowing serial point to point connections or network access.
mobile experts
Handwriting recognition for verification of data
Highlights
• ruggedised, IP 65
• flexibly applicable
• extensive equipment
• individual solutions for customers
(even for low quantity requirements)
• integrated WLAN and Bluetooth
• handwriting recognition
• one-hand operation
• open system platform for easy
integration
Bluetooth connection for data transfer
Radio transmission techniques like WLAN allow
wireless control as well as wor king from a
distance
i.roc 420 in landscape mode with
optional RFID module
Overview
Three model types, 420, non-incendive
520 -Ex and intrinsically safe 620 -Ex with Ex
certifications available
Based on HP iPAQ technology
Available operating systems are Windows
Mobile 2003 SE, compatible to WM 2003 PE
or Microsoft Windows Mobile 5, using
state-of-the-ar t Microsoft technology
for future projects
Onboard WLAN (802.11b) chip with a
range of up to 300m (985’), enable access to
data wherever and whenever. IEEE 801.1x
compliant, WEP, TKIP, PSK, Cisco Leap,
WPA, WPA2 (Funk Odyseey Client),
DSSS modulation type, country specific
use of frequency bands between 2.400 GHz
and 2.497 GHz, 100 mW TX power, WECA
Wi-Fi, UL, CSA, ANATEL, CE specified
Integrated Bluetooth class II chip (1 mW
TX power) with a range up to 10m (33’).
Suppor ts the most common Bluetoothprofiles like ActiveSync, A2DP(Advanced Audio
Distribution Profile), AVRCP(Audio Video
Remote Control Profile), BIP (Basic Imaging
Profile),BPP(Basic Printer Profile), DUN(DialUp Networking), FTP(File Transfer Protocol),
GAP(Generic Access Profile), HFP(Hands
Free Profile), HCRP(Hard Copy Replacement Profile), HSP(Headset Support Profile),
HQA(High Quality Audio), HID(Human
Interface Device Profile), LAP(LAN Access
Profile), OBEX(Object Exchange Profile),
OPP(Object Push Profile), PAN(Personal
Area Network), SPP(Serial Port Profile),
SDAP(Service Discover y Application Profile)

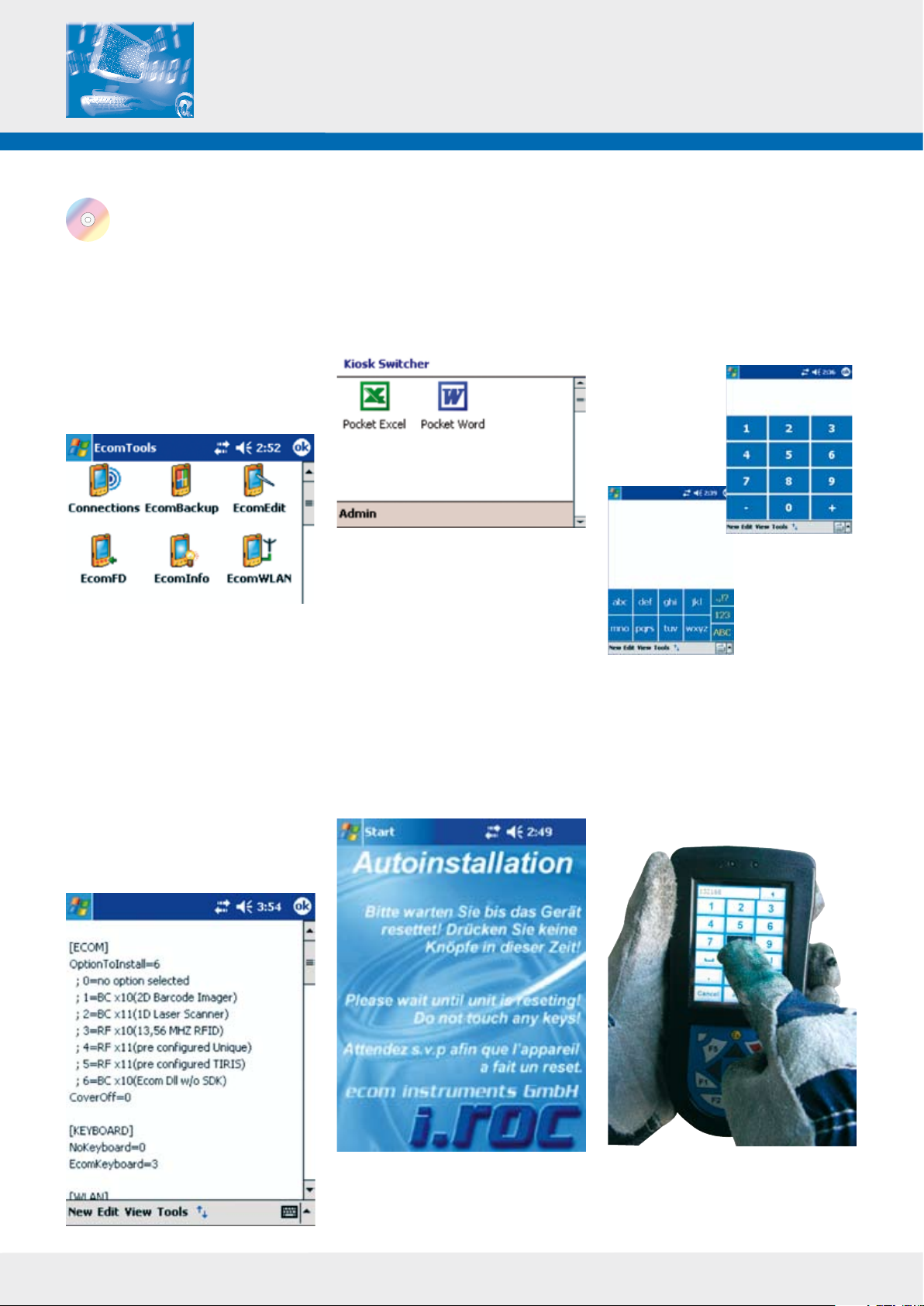

Software package included, AutoInstall,
Pre-Config Tool, AutoBackup/Restore
with System monitoring, Kiosk mode,
virtual fullscreen keyboard
Program other infrared enabled devices using
IrDA / SIR / FIR with up to 4Mbit/sec
Highspeed USB 2.0 connection to a standard
desktop PC via Dockingstation DS x10
Internal serial RS232 interface for connecting
optional read/write modules or communication
modems
RFID read / write modules for different
frequencies like 125 kHz / 134 kHz / 13.56 MHz
Modules for collecting barcodes using
1D Barcode Laser or 2D Barcode Imager
Development of customer specific modules
mobile experts
Barcodemodules
Two main types of barcode reading devices are available. There are laser scanners that record the barcode by means
of a reading line. This is more than sufficient for one-dimensional codes, since
one line contains all information. After
the introduction of two-dimensional
codes the laser scanners were improved in a way in which deflection mirrors
create a second scan line that is generated at a cer tain angle.
This way it is possible to read stacked
two-dimensional codes. The second type
of device is called an „area imager“. Integrated picture record modules record
the barcode as if taking a photo. Then
software algorithms are applied to find
the barcode area within the picture,
to recognise type and turning position
and finally to identify the bar code. This
makes it possible to read matrix codes
as well.
The automatic recording and implementing of data to a wide range of
concepts is of increasing impor tance. It
is demanded to store as much data as
possible in a space as small as possible. In
addition it must be possible to read and
process this data reliably.
Nowadays there are approximately 30
symbologies on the market. The optional integrable CMOS Barcode Imager
BCx10-Ex fitted to the i.roc x10 can
read all common barcodes, such as ID
linear codes, 2D stacked /matrix codes,
OCR fonts, postal codes. This module
comprises an omni-directional (360º)
scanning range and a double coloured
„aimer“ that marks the scanning area.

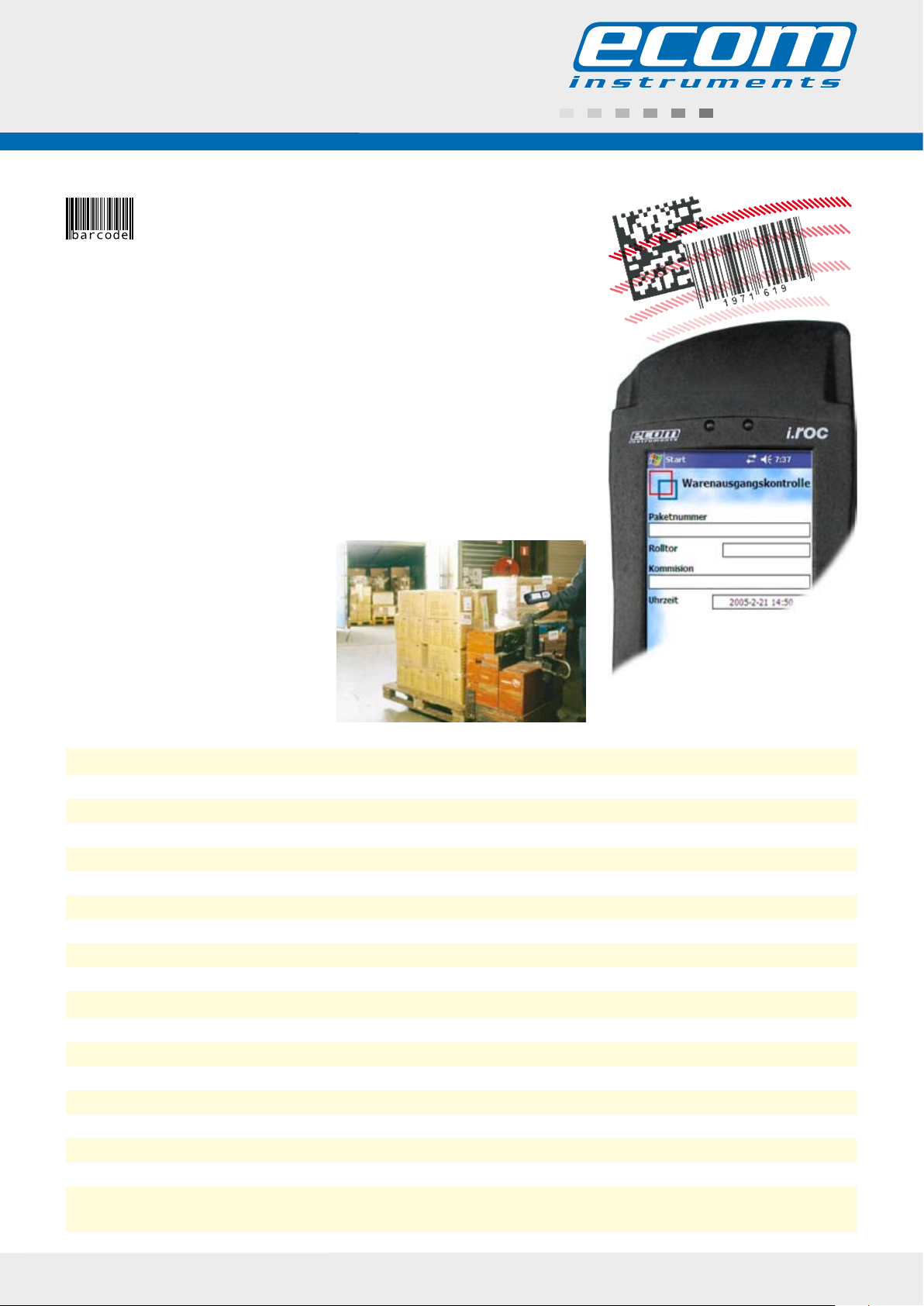

Example: check of goods issue
Application of the industrial PDA`s
i.roc 420 in a shipping depar tment.
Technical data BC x10 -Ex imager:
readable bar codes:
2D:
Linear:
Postal: Postnet, Planet Code, British, Canadian, Japanese, KIX (Netherlands)
OCR Fonts: OCR-A and OCR-B
Focus: 178 mm (7”) from front panel (nominal)
Scan area: 360°
Viewing angle: ±40°
Surround light: 535 lux - 100.000 lux (49’ cd - 9292’ cd)
PDF417, MicroPDF417, MaxiCode, Data Matrix,QR Code, Aztec, Aztec Mesas, Code 49, EANUCC Composite
Code 39, Code 128, Codabar, UPC, EAN, Interleaved 2 of 5, Reduced Space Symbology, Code 93, Codablock F
Technical data BC x10 -Ex laserscanner:
readable bar codes: UPC/EAN, Code 128, Code 39, Code 93, I 2 of 5, Discrete 2 of 5, Codabar,MSI Plessey
Focus: min. 30 mm (1.18”), max 760mm (29.92”)
Light Source: Visible Laser Diode 650 nm
Scan Angle: 53° (typical)
Scan Patterns: Linear
Scan Rate: 39 (± 3) scans/sec (bi-directional)
Ambient Light: 4844 lux - 107640 lux (450’ cd - 10000’ cd)
Laser Classification: CDRH/IEC Class 2
Read/Write
Modules
Flexible in application and robust, RFID
write/read systems provide for quick
and reliable identification of objects at
various distances.
Primarily developed for application in
production, commerce and logistics, the
user memor y has up to 2kb, depending
on the type of transponder, which allows
for the recording of information relating
to the product to be stored without
having to be connected to an external
database.
Basics of RFID technology
RWU
(Read/Write/Unit)
data
communication
distance

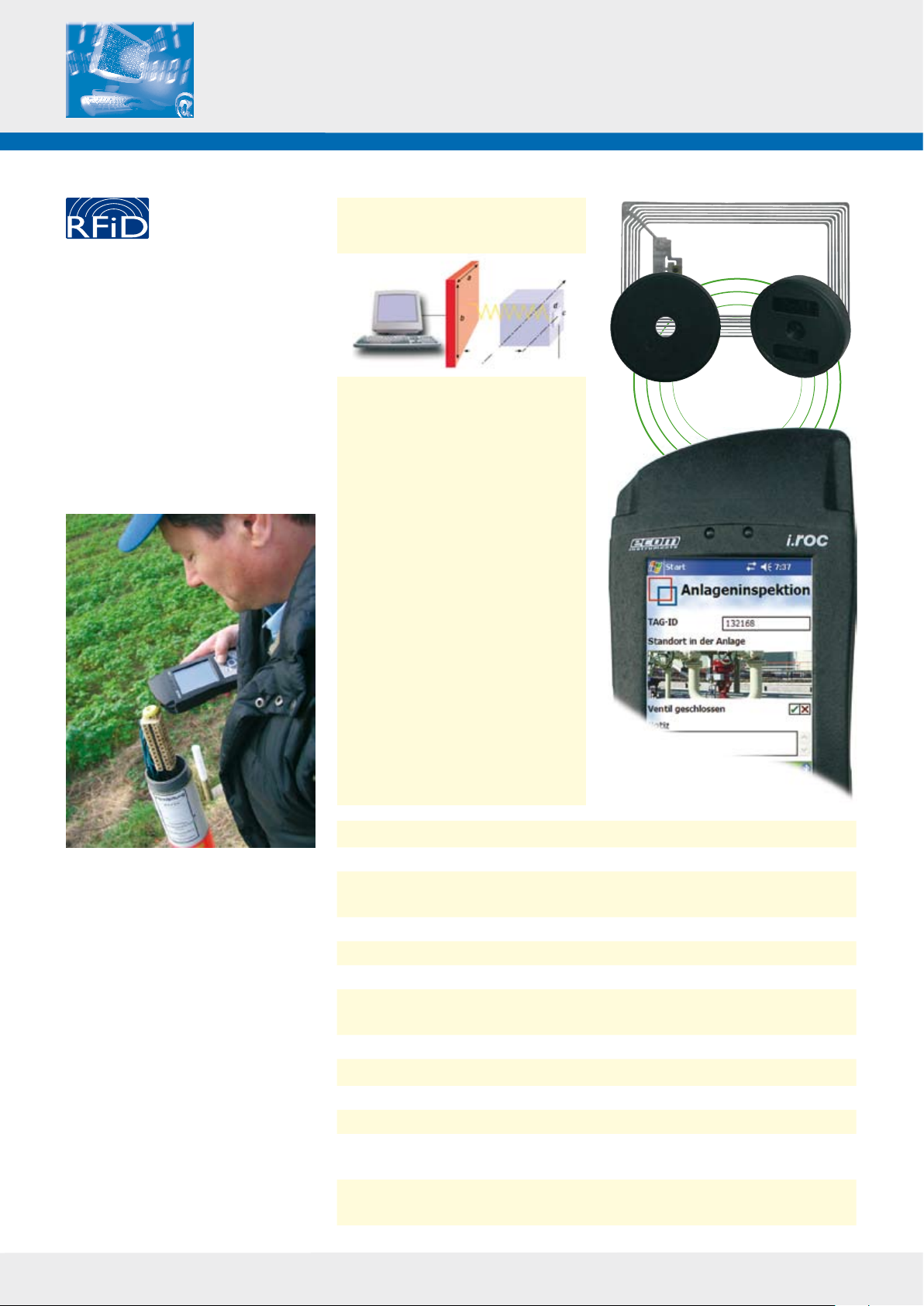

Radio Frequency IDentification (RFID)
comprises wireless data transfer on the
physical basis of electro-magnetic alternating fields. A RFID system consists of a
transponder and a mobile or stationary
write/read unit with antenna.
Transponders feature a micro chip and a
coil/antenna in different casings (plastics,
glass, coins, key holders, smart label) and
work within different frequency ranges.
With regard to power supply transponders are distinguished as:
Wherever the mobile storage of data is required,
e.g. for object identification, service or storage
management, the RFID module is the ideal
solution.
• Integration into already existing
systems is possible.
• relatively wide reading-range
• anti-collision, logging by more
than one transponder in the field
• software updates possible
• active
(with battery for own power supply)
• passive
(power supply for data transfer
inductive from write/read unit)
During field operation
while inspecting system par ts.
Technical data: RF x10 -Ex (13.56 MHz)
Operation frequency: 13.56 MHz
Write/Read range: up to 80 mm (3.14”), depending on transponder
type and environment
Speed of data transmissioin: about 26 kB/sec.
Writing transponder: < 50 ms per block
Reading transponder: < 50 ms per block
Transponder types: ISO 15693, Tag-It, I-CODE,
EM, SLI, HFI, LRI and Infineon
Technical data: RF x11 -Ex (125 KHz)
Operation frequency: 125 KHz (134 KHz on request)
Write/Read range:
Transponder types: UNIQUE, HITAG-1, HITAG-S, TIRIS,
Special features: Software loader for firmware update provides
up to 80 mm, (3.14”) depending on transponder
EM 4X25, EM 4X70, Q5 (other types on request)
highest flexibility for customer applications
TEC PU 54
Transponder
mobile experts
ecom instruments offers a vast variety of very different tags for industrial environments. Each of these transponders is optimised for the scanners we are providing.
In order to provide the greatest variety possible, there are very different kinds of
chip sets and types in different forms of casing. Therefore a corresponding tag can be
delivered for almost every application and purpose. Some of them are also available
as off-the-shelf products.

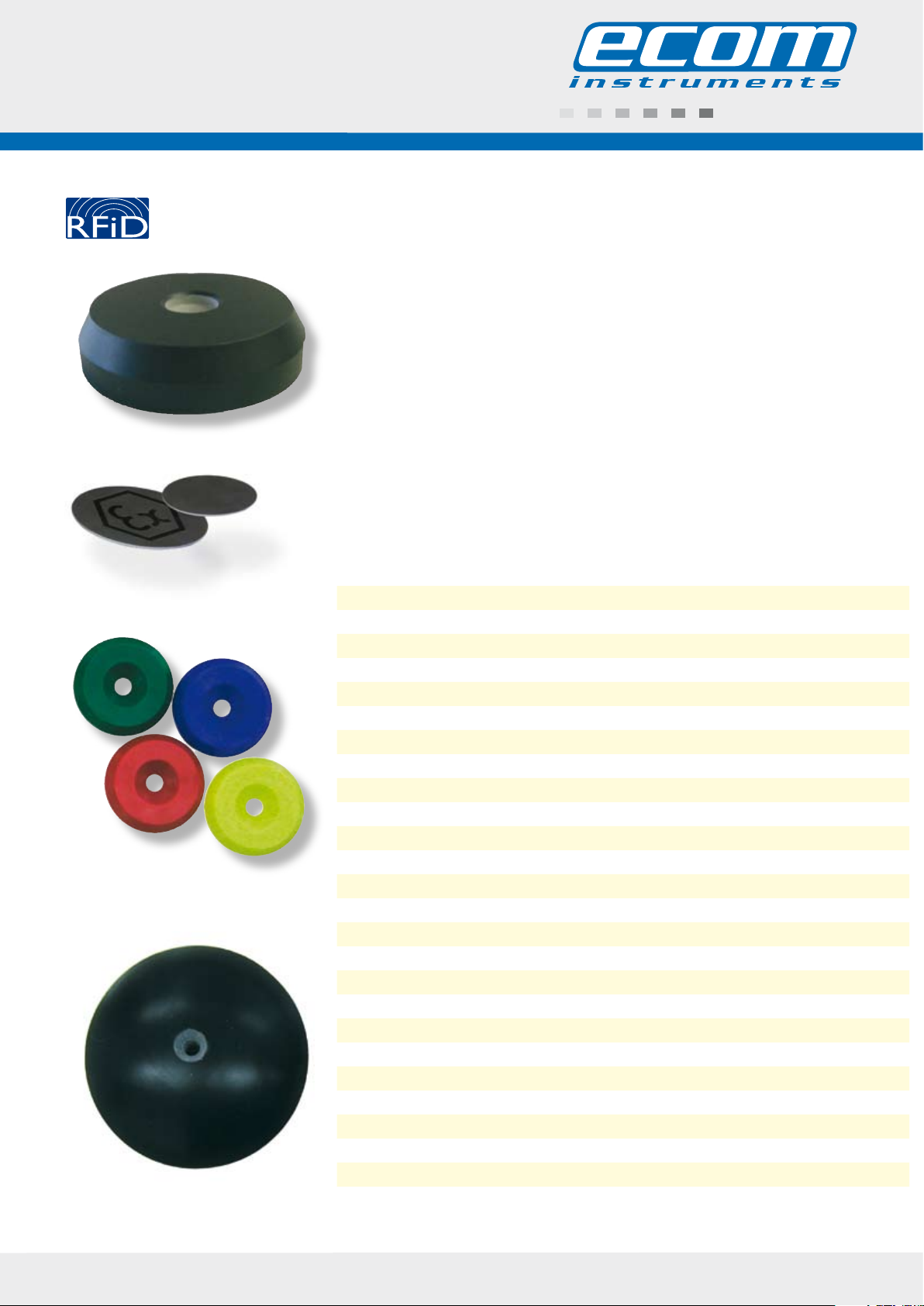

For example the PU Tag. It is available in 3 different sizes and forms. With diameters
from 34 mm (1.3”) , over 54 mm (2.2”) up to 90 mm (3.5”). Special attention has
been paid to the chemical resistance and the big reach of application concerning
temperatures. Thanks to the special PU grouting and casing (IP 67) they can resist
temperatures of up to 120°C and most acids and bases used in industrial processes.
On this page we can only show you a small selection of the possible transponders.
Please contact us if you would like to discuss in fur ther detail the complete available
range.
RDC 30/50 sli disk
TEC PU 34
Transponder
LF 125kHz 410x Unique TEC PU 34*
LF 125kHz 410x Unique Ex-TEC PU 34*
LF 125kHz 410x Unique TEC PU 54
LF 125kHz 410x Unique Ex-TEC PU 54
LF 125kHz 410x Unique TEC PU 90
LF 125kHz 410x Unique Ex-TEC PU 90
LF 125kHz 410x Unique Epoxy Disk 30 / RDC30
LF 125kHz 410x Unique Ex-Epoxy Disk 30 / RDC30
LF 125kHz HITAG S 2048 TEC PU 34*
LF 125kHz HITAG S 2048 Ex-TEC PU 34*
LF 125kHz HITAG S 2048 TEC PU 54
LF 125kHz HITAG S 2048 Ex-TEC PU 54
LF 125kHz HITAG S 2048 TEC PU 90
LF 125kHz HITAG S 2048 Ex-TEC PU 90
LF 125kHz HITAG S 2048 Epoxy Disk 30 / RDC30
LF 125kHz HITAG S 2048 Ex-Epoxy Disk 30 / RDC30
TEC PU 90
HF 13,56MHz I • Code SLI TEC PU 34*
HF 13,56MHz I • Code SLI Ex-TEC PU 34*
HF 13,56MHz I • Code SLI TEC PU 54
HF 13,56MHz I • Code SLI Ex-TEC PU 54
HF 13,56MHz I • Code SLI TEC PU 90
HF 13,56MHz I • Code SLI Ex-TEC PU 90
HF 13,56MHz I • Code SLI Epoxy Disk 30 / RDC30
HF 13,56MHz I • Code SLI Ex-Epoxy Disk 30 / RDC30
* Standard color black, different colors on request
Client specific solutions
Today it is more impor tant than ever that there is a flexible approach to meeting client requirements.
ecom instruments offers this flexibility for clients projects - large or small. Not all projects require a high number of units
and need only an individual and customised solution. Small challenging solutions in par ticular demand dedicated application. On
this and the following pages we showcase the versatility of the i.roc’s x20 by the way of client projects that have already been
achieved. Many of these solutions are now part of our standard portfolio.
Contact us. We are more than willing to give you fur ther information in a personal conversation.

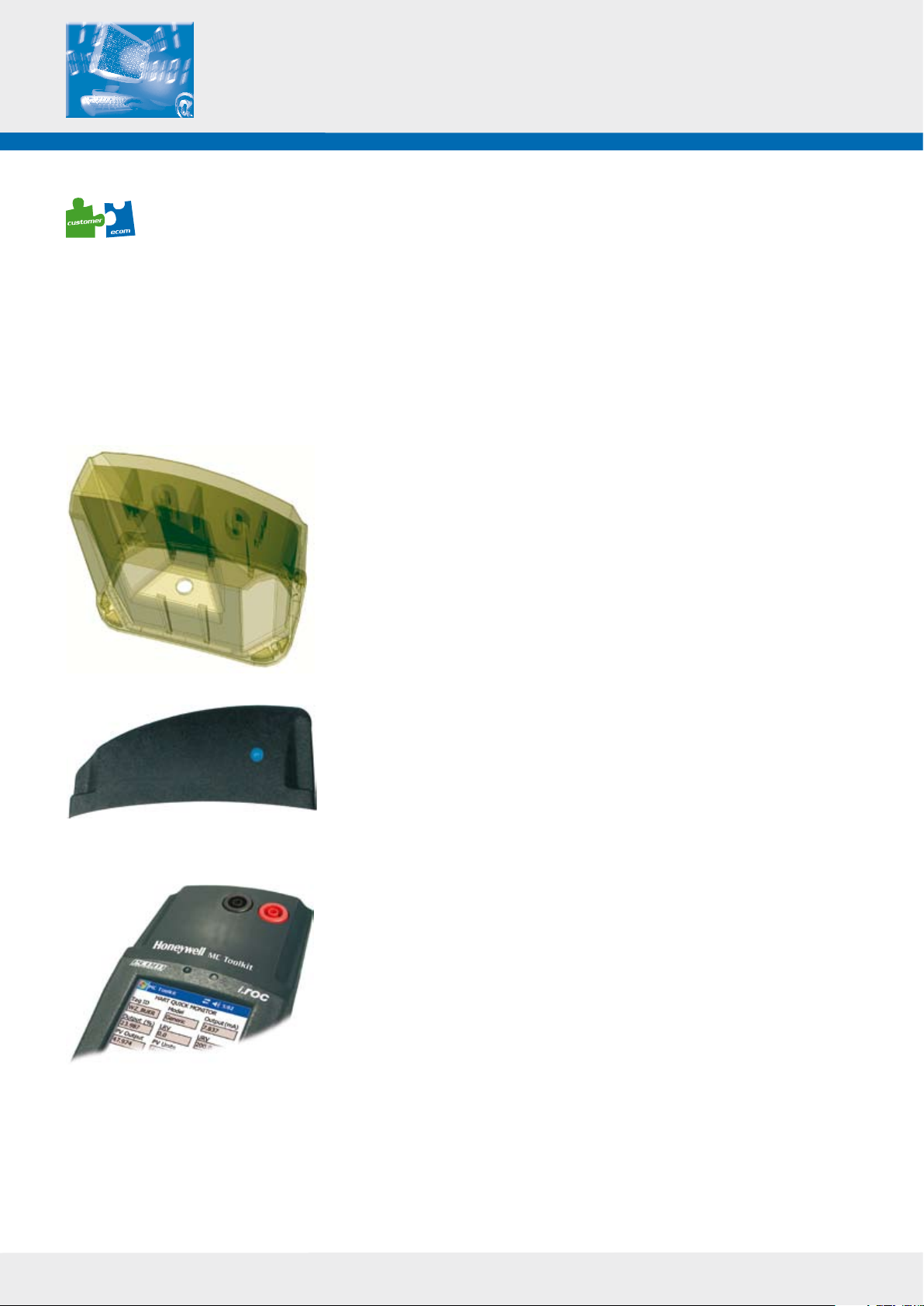

868 MHz radio module
Here, one of the main problems was the installation of an omni- directional rod
antenna. In addition, it was interesting that the radio module that was to be used,
was bigger than a certain mechanical size, which made it impossible to fall back
on the previous solution. Finally, the project was realised by the ver tical installation of the blanks and the mechanical protection of the antenna. In addition,
the radio module was of a size and dimensions that meant it was neccessar y to
re-design the casing.
CAD production drawing
Non-Ex: Class 1 Bluetooth Module
High scope if a radio contact is used, global use without national restrictions
as with WLAN 802.11b, total robustness and interference resistance, combined
with a PDA that is easy to use – that was the profile of demand when the project
was started. All this was put into practicse by the way of installation of a Class 1
Bluetooth radio module. The Bluetooth interface still is one of the most secure
radio contacts, it can be switched to „invisibility”-mode and cannot be „seen” by
anyone anymore and changes the frequency 1600 times per second in the 2.4
GHz band, which is approved all over the world.
MCT202 - HART®/DE Modem
ecom instruments developed for Honeywell the intrinsically safe
Configuration and Maintenance Tool for HART® or DE protocol enabled
pressure or temperature transmitters. Comprising of the industrial PDA PC i.roc
627 complete with integrated HART®/DE Modem and software applications MC
Toolkit and SDC 625.
Variety via flexibility
This is only a selection of options that have already been realised. Also for you and your application ecom instruments can
be the flexible partner for the realisation of such a solution.
Note:
Some of the solutions that have been presented on this site and solutions given have not been developed for hazardous locations.
For application in hazardous locations only those modules with the designation „Ex“ in the title (for example BC x10 -Ex) are
allowed to be used.
mobile experts
The extensive range of accessories (leather carry case, hand strap, USB data
transfer set, car holder, additional batteries, charging cable, etc.) further enhances
the application and use of the i.roc.
Here is just a selection of accessories currently available. If you have a specific requirement - please contact us.

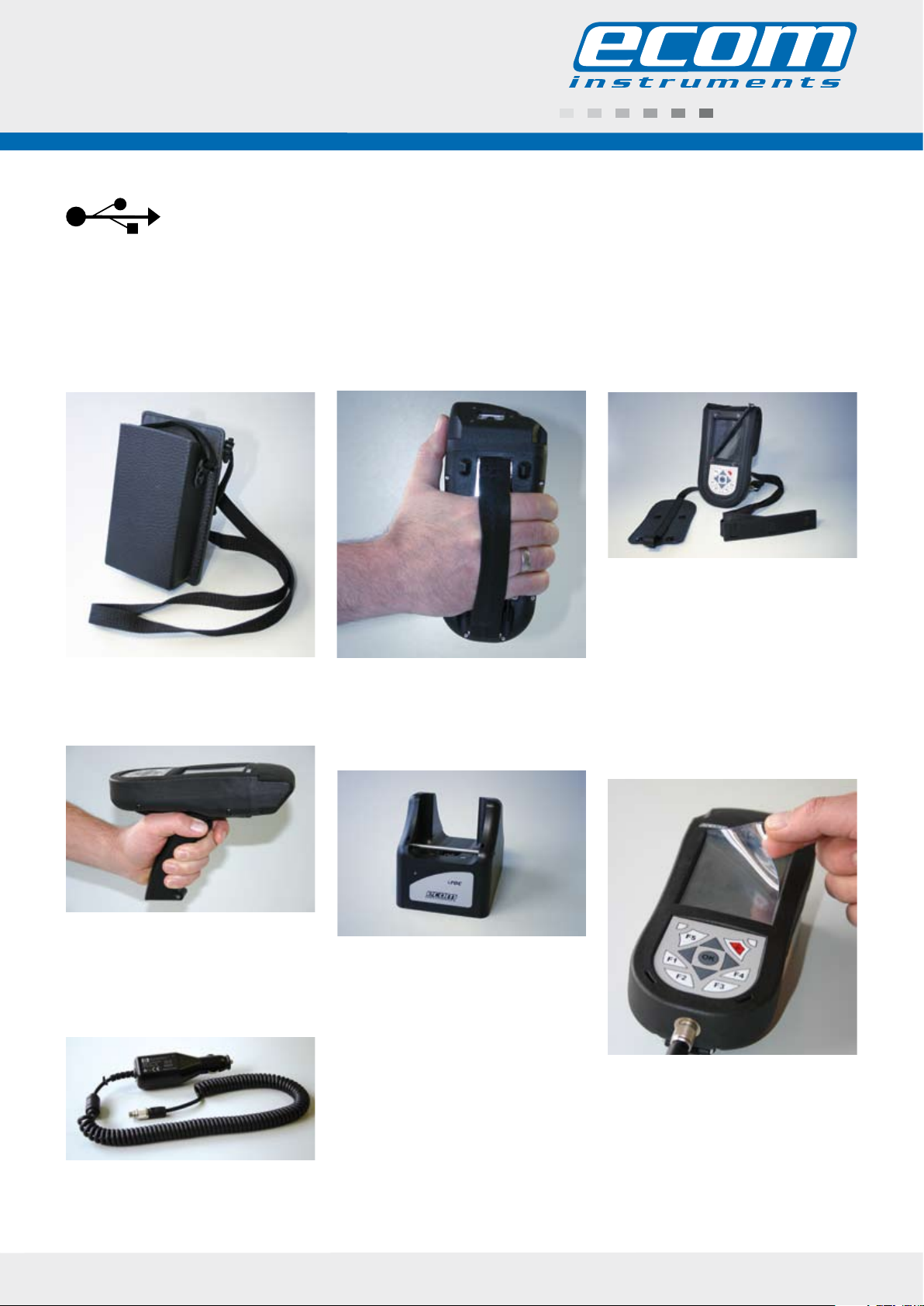

Accessories
Leather bag with belt loop
and carrying strap
The leather bag combines carrying
comfor t and easy handling.
Handle
Hand strap
This hand strap reduces handling fatigue
and helps prevent accidental dropping.
Dockingstation
Leather carry case with
carrying strap and stylus
Especially made for use with the i.roc
series, this leather carr y case fur ther
expands and enhances the usage of the
i.roc. While providing much higher impact protection as well as comfortable
carr ying, its flexible design means that
it is also suitable for i.roc units that are
fitted with either RFID or Barcode mo-
dules.
Display-protection
Ergonomically sound handling using the
screw-on type handle broadens the possibilities of functions and applications.
Charging adapter for vehicles
The i.roc can also be recharged in cars
using the charging adapter LGx10 car.
The docking station DS x10 can be used
to charge the devices internal battery
pack as well as synchronise data with
a desktop PC connected via USB. Depending on custom configuration, when
inser ting the i.roc x20, a synchronisation
software, like Microsoft Active Sync, will
run automatically.
This special antistatic display protection
film consists on a relativ soft material.
The writing sense reminds like to pens
on a paper. The soft material of the film
protects the surface from scratches.
They can easily be removed and cleaned
and reused several times.
Software
ecom Tools
To set up the i.roc x20 series exactly to customers specifications, ecom instruments
developed some smar t software applications and tools. The functions described
on these pages are principially available
on every i.roc x20. Projects or customer
specific programms can be realised easily
and quickly.
KioskMode
One of the favorite applications for Pocket
PC is to allow only the use of predefined
programs - This functionality is called Kiosk
Mode. The tool KioskSwitcher which can
be used on every i.roc x20 allows it to set
up nearly every custom application in such
a Kiosk Mode.
Keyboards
Especially for PDAs for industrial use a
reliable and easy method of recording
data is required. Responding to these
requirements ecom instruments
decided to take a new road – with
virtual full-screen keyboards.
ecom Edit
With the help of this tool the end-user is
able to configure the PDA. With “AutoInstall” and the “SystemBackup”, the new
configuration will be loaded after next
hardreset. The parameters are devided into
several chapters like WLAN, Bluetooth,
Power, Storage, Keyboard and others. The
configuration file can be also modified on
the desktop computer before distributing
to your mobile devices. This allows an easy
way to configure a large amount of devices within a project.
AutoInstall
One of the best ways to back up and
restore all the information you wish to
keep on your mobile device. It is safe, easy
to install, simple to use and it‘s developed exactly for the i.roc x20 series effor ts.
System Super Visors can choose between
using an AutoInstall or SystemBackup function , together these two applications fullfill
every customers wish to preconfigure
Worn and dir ty keypads, ingress of dust
and contaminants and a lack of keypad
illumination are now no longer a problem.
• three different layouts
(numeric, alpha, special) available
• fast-switch key
Perfectly designed for data input while wearing
gloves.
Technical Data
mobile experts
Processor
Intel XScale® PXA 270 Processor (520 MHz)
RAM
64 MB SDRAM
ROM
Flash ROM 128 MB (depending on operating system language
up to 80 MB user accessable iPAQ File Store) , built-in SD
card slot,
(fitted with standard 1 GB SD card)
, build in CF card
slot
Display
3.5” transreflective TFT color display, 64k, QVGA, 240 x 320
pixel, portrait and landscape mode, protected by a Makrolon
panel
Audio
Integrated microphone and loudspeaker,
internal 3.5mm Stereo audio jacket
Power supply
Rechargeable lithium-ion battery, different capacities depending on model type ( i.roc 420: 2880 mAh; i.roc 520 -Ex: 2880
mAh; i.roc 620 -Ex: 3600 mAh)
Note: The batter y’s service life depends on the user’s operating habits and the PDA’s configuration. The use of radio modules and background lighting significantly reduces operating
time (larger batteries available on request).
Charger
LG x10 ( Input: 100~240 VAC, 50/60 Hz, 0.3 A,
Output: 5VDC (typical), 2A (typical)
different countr y plugs available
Keyboard
On/off – switch, reset keys, 5 programmable function keys,
5-way navigation field (customised design on request)
Housing
Protection class IP 65 (immersion for brief periods), antistatic
non-corroding housing, shock resistance 1m (3.28‘) onto concrete
Dimensions
L x W x D:
420 178 x 85 (89) x 39 (49) mm
7” x 3.3” (3.5”) x 1.5” (1.9”)
520 -Ex 178 x 85 (89) x 39 (49) mm
7” x 3.3” (3.5”) x 1.5” (1.9”)
620 -Ex 178 x 85 (89) x 39 (49) mm
7” x 3.3” (3.5”) x 1.5” (1.9”)
Weight
420: approx. 550 grams (19.4 oz)
520 -Ex: approx. 550 grams (19.4 oz)
620 -Ex: approx. 700 grams (24.6 oz)
Temperature ranges
Storage temp.: -10°C ..... +60°C (14°F ..... 140°F)
Charging temp.: 0°C ..... +45°C (32°F ..... 113°F)
Working temp. 42x: -10°C ..... +60°C (14°F ..... 140°F)
Working temp. 52x -Ex: -10°C ..... +50°C (14°F ..... 122°F)
Working temp. 62x -Ex: -10°C ..... +50°C (14°F ..... 122°F)
Relative humidity
Storage up to 90% r.h.
Operation up to 90% r.h.
Maximum altitude
Storage up to 12,192 m (40,000 ft)
Operation up to 4,572 m (15,000 ft)
Ex-data device types
i.roc 620 -Ex
ATEX Zone 1 / 21
II 2 G EEx ia IIC T4
II 2 D T99°C IP 65
i.roc 627 -Ex
FM Class I, Division 1, Group A-D
FM
C
(Certification 620 -Ex included)
US
APPROVED
i.roc 520 -Ex
ATEX Zone 2 / 22
II 3 G EEx nL IIC T4
II 3 D T99°C IP 65
i.roc 527 -Ex
FM Class I, Division 2, Group A-D
FM
C
(Certification 520 -Ex included)
US
APPROVED
i.roc 623 -Ex
ATEX Mining
I M1 EEx ia I
-10°C ≤ Ta ≤ +50°C
i.roc
420
Ruggedized Industrial PDA
mobile experts
WEEE-Reg.-Nr.: DE 934 99306 FLY i.roc x20 (-Ex) 02.06.2006
06/06 Suject to change without notice!
Thank you for reading this data sheet.
For pricing or for further information, please contact us at our UK Office, using the details
below.
UK Office
Keison Products,
P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England.
Tel: +44 (0)1245 600560
Fax: +44 (0)1245 600030
Email: sales@keison.co.uk
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the
suitability of this product.
Loading...
