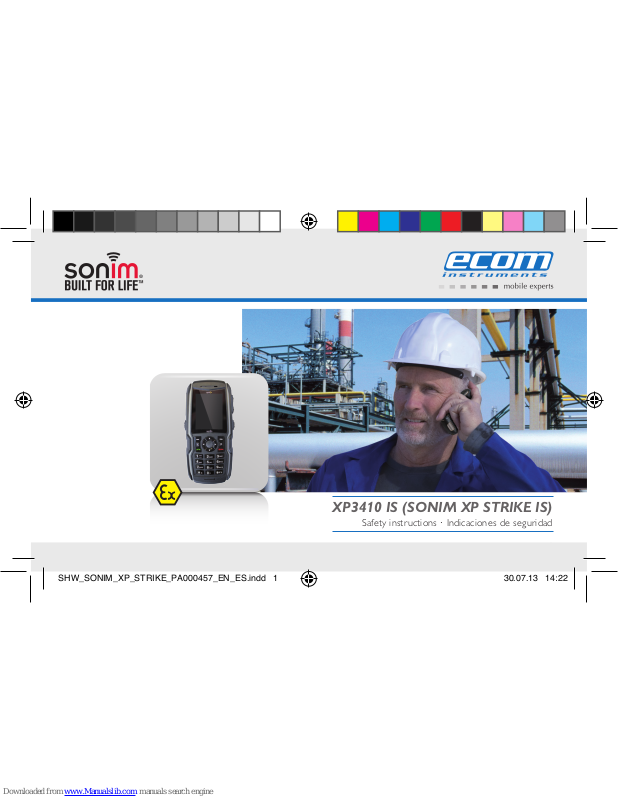

XP3410 IS (SONIM XP STRIKE IS)

Safety instructions · Indicaciones de seguridad

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 1 30.07.13 14:22

2

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 2 30.07.13 14:22

3

Note:

The current safety instructions, operating instructions, EC Declaration of Conformity and the Certificate of
Conformity can be downloaded from the relevant product page at www.ecom-ex.com, or alternatively they
can be requested directly from the manufacturer.

Content

1. Application .................................................................................................................................................................................................................4

2. Safety precautions ..................................................................................................................................................................................................4

3. Faults and damage ...................................................................................................................................................................................................4

4. Safety regulations ....................................................................................................................................................................................................5

5. Ex-Data ........................................................................................................................................................................................................................7

6. Specifications ............................................................................................................................................................................................................7

7. Changing the battery .............................................................................................................................................................................................8

8. Safety precautions for the battery ..............................................................................................................................................................10

9. Repair .........................................................................................................................................................................................................................11

10. Cleaning, maintenance and storage .........................................................................................................................................................11

11. Disposal ...................................................................................................................................................................................................................12

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 3 30.07.13 14:22

4

1. Application

1.1 NEC

The XP3410 IS (SONIM XP STRIKE IS) is an intrinsically safe water-, dust- and impact resistant mobile phone
for industrial application in areas with an increased risk of explosion. Approved for Division 1 and 2 Class I, II, III

2. Safety precautions

These safety instructions contain information and safety regulations which are to be observed without fail for
safe operation in the described conditions. Non-observance of this information and these instructions can have
serious consequences or it may violate regulations.
Please read these safety instructions carefully before starting to use the device! In the event of conflicting
information the details specified in the safety precautions shall apply.
In case of any doubt (in the form of translation or printing errors) the English version shall apply.

3. Faults and damage

If there is any reason to suspect that the safety of the device has been impaired, it must be withdrawn from use
and removed immediately from the hazardous-area. Measures must be taken to prevent it from being restarted
accidentally.

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 4 30.07.13 14:22

5

The safety of the device may be compromised, if, for example:

- There is visible damage to the housing.

- The device has been subjected to excessive loads.

- The device has been improperly stored.

- The device has been damaged in transit.

- Device markings or inscriptions are illegible.

- Malfunctions occur.

- Permitted limit values have been exceeded.

4. Safety regulations

Use of the XP3410 IS (SONIM XP STRIKE IS) intrinsically safe mobile phone assumes that the operator
observes the conventional safety regulations and has read the certificate of conformity in order to eliminate
faulty operation of the device.
The following points are to be observed:

- The device has to be protected against strong impacts.

- The device must be protected against permanent UV-radiation.

- The unit should not be used in close proximity to processes generating high charges.

- Friction of the housing should be avoided as far as possible for electrostatic reasons.

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 5 30.07.13 14:22

6

- Do not disassemble the device.

- Use only the original battery module “Ex-BPC 41“.

- Do not dismount the battery pack inside hazardous-area.

- It is not allowed to carry dismounted battery packs into the hazardous-area.

-

The battery module may only be charged outside the hazardous-area and only by using the Safety box “SBH 07”.

- The battery module may only be charged in a temperature range of 0 - 45 °C.

-

The data connection is only allowed outside the hazardous area and only allowed by using the Safety box “SBH 07”.

- For charging or data transfer first connect the Safety box “SBH 07” to the phone, then connect the the Safety
box “SBH 07” to an USB-A socket. If done differently, the Safety box “SBH 07” may get harmed.

- When changing the battery (outside hazardous-area), ensure that both the device and the battery module

are clean of dust and dirt.

- Only accessories approved by ecom instruments GmbH may be used. See relevant product page at www.
ecom-ex.com.

- The wired headset may not be used inside potentially explosive areas.

- Only accessories specifically certified for use with this equipment inside potentially explosive areas may be
connected, such as the C-C550 IS Remote Speakter Microphone certified under Intertek Authorization to
mark no. 3153168.

- It must be ensured that the device is not taken into zones 0 or 20.

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 6 30.07.13 14:22

7

5. Ex-Data

5.1 NEC

Ex-Marking: IS Class I, Division 1, Groups A-D T4
IS Class II, Division 1, Groups E-G T4
IS Class III, Division 1

Ambient temperature : Ta -20 °C ... +55 °C
Approved for Division 1 and 2 Class I, II, III.

6. Specifications

Networks: CDMA 850/1900 MHz
Bluetooth: 2.1 +EDR (AVRCP, A2DP, GAVDP, HFP1.5, HSP, GOEP, OPP)

Display: 5 cm (2 inch), 240 x 320 pixels
Power supply: Ex-BPC 41, Li-Ion 3.7 V
Dimensions (without battery): 126 x 60 x 25 mm
Weight (including battery SC): approx. 210 g
Protection class: IP68

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 7 30.07.13 14:22

8

7. Changing the battery

Changing the battery is allowed only outside hazardous-area!
Please also observe section 4. Safety regulations.

1. If the battery is mounted, switch off the phone and turn the battery module’s screws anti-clockwise with a

suitable screwdriver.

2. Lift the battery module at the top side between the screws.

3. Insert a MicroSD card (max. 16 GB) if needed.

4. Insert the battery module by first placing the noses on the bottom side of the battery module into the

respective holes in the phone’s housing at its bottom. Press the battery module down at the top side and
tighten the screws of the battery compartment clockwise with a suitable screwdriver.
Do not overtighten the screw! They need to be fastened hand-tight!

5. Charge the mobile phone: The battery supplied with the phone is not fully charged. It is recommended to

charge the phone for five hours before using it for the first time. The full capacity of the battery is reached
after 3-4 complete charge/discharge cycles.

Note:

- There is a risk of explosion if the battery is not exchanged properly or if it is exposed to a flame.

- Do not short-circuit the battery.

SHW_SONIM_XP_STRIKE_PA000457_EN_ES.indd 8 30.07.13 14:22
