Ecom Instruments EX-TIME 50, EX-TIME 40 User Manual

Instruction Manual

Ex-Time 40 / 50

Contents

1. Introduction 13

1. Introduction

The Ex-Time 40 and the Ex-Time 50 are quartz movement wall clocks
designed for internal use in Ex-hazardous areas classified as Zone 1
and 2 according IEC/CENELEC or division 1 according to NEC.

2. Safety Advice 13

3. Faults and Damage 13-14

4. Safety Regulations 14

5. Ex-Data 14-15

6. Technical Data 15-16

7.

Use and Application / Operating Instructions 17-18

8. Repairs 18

9. Cleaning, Maintenance and Storage 18

10. Guarantee and Liability 19

11. Declaration of EC Conformity 20

12. EC -Type Examination Certificate 21-22

13. Certificate of Compliance 23-24

12

2. Safety Advice

These Operating Instructions contain information and safety regula­tions which must be followed to ensure safe and reliable operation of
the unit under the described conditions.
Failure to follow the information and instructions contained in these
Operating Instructions can have dangerous consequences or may vio­late applicable rules and regulations.
Please take the time to carefully read through these Operating
Instructions before you start using the unit.
In the event of any doubt or discrepancies (e.g. due to errors in trans­lation and/or printing), the original German language version of the
Operating Instructions should be referred to.

3. Faults and Damage

If there is any reason to suspect that the safety or integrity of the unit
has been compromised, then it must be taken out of operation imme­diately and removed from the Ex-zone without delay.
Precautionary measures must be taken in order to prevent any further
use of the unit in the Ex-zone. It is recommended that the unit should
be then sent to the manufacturer to be examined.
The safety and integrity of the unit may be compromised by,
for example:

External damage is evident on the housing.

-

- The unit has been subjected to excessive

- loads for which it is not designed.

- Incorrect storage of the unit.

- Damage sustained in transit.

- Correct certification is illegible.

- Functionality errors occur.

- Permitted tolerances or threshold values have been exceeded.

13

4. Safety Regulations

The use of the Ex-Time 40 / 50 unit meets the requirements of the
regulations providing that the user observes and applies the require­ments as laid down in the regulations and that improper and incorrect
use of the unit is avoided.

The following safety regulations must be complied with:

- The housing of the quartz mechanism and the battery

- compartment must not be opened within the Ex-zone.

- The battery must only be changed outside of the Ex-zone.

- Additional or spare batteries must not be carried in the Ex-zone.

- Only the "type-approved” batteries as listed in these Operating - -

- Instructions may be used.

- Ensure that Ex-Time 40 and 50 units are securely attached

- to the wall.

- Precautionary measures must be taken to prevent the unit from - -
falling into an area classified as zone 0.

- The entire back face of the unit must only be cleaned with a - - - - -
damp cloth.

5. Ex-Data

EC Certificate
of Conformity no.: PTB 02 ATEX 2197 X

Ex-Designation

Approved for areas classified as zones 2 and 1, device group II, gas
group C potentially explosive gases, vapours or mist,
temperature class T4

II 2 G EEx ia IIC T4

Report job
identification no.: 3015562

FM identification: I.S. Class I Division 1 Group A-D T4

6. Technical Data

Ambient temperature Ta: 0 ... +50°C

Storage temperature: 0 ... +50°C

Battery / power supply:

Battery operating time: 1 year

Accuracy of
quartz mechanism: +15/-5 seconds per month

Dimensions:

(Ex-Time 40) 400 x 60 mm
(Ex-Time 50) 500 x 70 mm

Weight (incl. batteries):
(Ex-Time 40) 2.0 kg
(Ex-Time 50) 3.4 kg

CE labelling: 0102

1 x LR14 acc. to IEC; C

1514

Table of type-approved LR 14 batteries

Manufacturer Type

Varta Alkaline Electric Power No.8014

Varta Alkaline Universal No.4014

Duracell Alkaline

Duracell Professional Alkaline Battery Procell

Duracell Duracell Plus

Panasonic Alkaline Industrial Battery

Ralston LR 14 Energizer

7. Use and Application / Operating Instructions

Before use, please read these operating instructions very carefully in
order to familiarise yourself with the functions of the Ex-Time
40 / 50. For you own safety and information, please read the
following instructions.

7.1 Commissioning

Use an appropriate screwdriver to undo the two screws on the
battery compartment cover (on the opposite side from the quartz
mechanism). Remove the battery compartment cover and insert a bat­tery of the correct type (LR14) (refer to the table under section 6 –
technical data ) into the battery compartment. Please refer to the dia­gram on the housing to make sure that battery is inserted with the cor­rect polarity. Refit the battery compartment cover (the spring faces
towards the battery), refit the battery compartment cover screws and
tighten securely. Then use the white adjusting wheel on the housing of
the clockwork mechanism in order to set the correct time.

GP Super Alkaline Battery

Daimon Alkaline

7.2 Changing the battery

To change the battery, use an appropriate screwdriver to undo the two
screws on the battery compartment cover. Remove the battery com­partment cover and dispose of the old battery.
Insert a new battery (only use type-approved batteries ‘ refer to the
table under section 6 – technical data; check for correct polarity ‘
check the diagram on the battery housing ). Refit the cover to the bat­tery compartment (the spring faces towards the battery) and secure it
with the two screws. The clock will now start to run again. Then use
the white adjusting wheel on the housing of the quartz mechanism in
order to set the correct time.
Please ensure that all used and defective batteries are properly dispo­sed of in an environmentally friendly manner.

1716

7.3 Wall Mounting

An integral metal bracket located on the rear of the clock enables the
Ex-Time 40 / 50 to be suitably mounted on an appropriate wall. The
fixing of the unit must be secure at all times and precautionary measu­res must be taken to prevent the Ex-Time 40 / 50 from
falling into an area classified as zone 0.

ecom instruments GmbH offers a 2-year warranty for function
and materials on this product under the specified operating and
maintenance conditions.
This warranty does not extend to products which have been used
improperly, altered, neglected, damaged by accident or subjected to
abnormal operating conditions or improper handling.

7.4 Time Setting

The white adjusting wheel on the quartz mechanism is used to make
any necessary time adjustments.

8. Repairs

Repairs are subject to the terms and conditions of ELEX V. It is recom­mended that all repairs are carried out by the manufacturer, so as to
check and test the safety and reliability of the unit after any repairs are
performed.

9. Cleaning, Maintenance and Storage

The entire back face of the unit must only be cleaned with a damp
cloth Do not use solvents or abrasive cleaning agents to clean the unit.
We recommended having the function and the accuracy of the device
checked by the manufacturer every two years.
The batteries should be taken out of the unit if it is to be out of use for
a length of time. The storage temperature should be within the permit­ted range of 0°C to +50°C.

10. Guarantee and Liability

In the event of a warranty claim, the faulty device should be sent in.
We reserve the right to readjust or repair the unit.
The above warranty terms represent the sole rights of the
purchaser to compensation and apply exclusively and in place of all
other contractual or statutory warranty obligations.

ecom instruments GmbH does not accept liability for specific, direct,
indirect, incidental or consequential damages or losses including the
loss of data, regardless of whether they are caused by breach of war­ranty, lawful or unlawful actions, actions in good faith or other actions.

If in certain countries the restriction of statutory warranty and the
exclusion or restriction of incidental or subsequential damages is
unlawful, then it may be possible that the above restrictions and exclu­sions do not apply for all purchasers. If any clause in these warranty
terms should be found to be invalid or unenforceable by a competent
court, then such a judgement shall not affect the
validity or enforceability of any other clause contained in these warran­ty terms.

11. Declaration of EC Conformity

1918

We

ecom Instruments GmbH

Industriestraße 2

D-97959 Assamstadt

declare under our sole responsibility that the product

Ex-Time 40 / Ex-Time 50

to which this declaration relates is in accordance with the provision of the fol­lowing directives

94/9/EC Equipment and protective systems

intended for use in potentially

explosive atmospheres

and is in conformity with the following standards or other normative
documents

EN 50014:1997 Electrical apparatus for potentially

explosive atmospheres
General requirements

EN 50020:1994 Electrical apparatus for potentially explosive

atmospheres Intrinsic safety "i”

ecom Instruments GmbH,
Assamstadt, den 09.11.01

Physikalisch-Technische Bundesanstalt Braunschweig und Berlin

(1) EC-Type-Examination Certificate

(2) Equipment and Protective Systems Intended for Use in Potentially

(3) EC-Type-Examination Certificate Number PTB 02 ATEX 2197 X

(4) Device: Explosion-proof Wall Clock, type Ex-time **

(5) Manufacturer: ecom instruments GmbH

(6) Address: Industriestrasse 2, 97959 Assamstadt, Germany

(7) The design of this device and any acceptable variation thereto are specified
in the schedule to this certificate and the documents therein referred to.

(8) The Physikalisch-Technische Bundesanstalt, notified body No. 0102 in
accordance with Article 9 of the European Community Council Directive of
March 23, 1994 (94/9/EC), certifies that this device has been found to

(9) Compliance with the Essential Health and Safety Requirements has been

(10) If there is an "X” after the certificate number, special conditions for the safe

(11) This EC-Type-Examination Certificate relates only to the design and

(12) The labeling of this device must include the following information:

Explosive Atmospheres – Directive 94/9/EC

comply with the Essential Health and Safety Requirements relating to the
design and construction of equipment and protective systems intended for
use in potentially explosive atmospheres, given in Annex II to the directive.

The examination and test results are recorded in the confidential report
PTB Ex 02-22330.

assured by compliance with

EN 50014:1997 + A1 + A2 EN 50020: 1994

use of the device are provided in the schedule to this certificate.

examination of the specified device in accordance with Directive 94/9/EC.
Further requirements of this directive apply to the manufacture and supply
of the device. These requirements are not covered by this certificate.

20

12. EC Type Examination Certificate

II 2 G EEx ia IIC T4

(13) S c h e d u l e

21

(14) EC-Type-Examination Certificate PTB 02 ATEX 2197 X

(15) Device Description

(16) Examination Report PTB Ex 02-22330

(17) Special Conditions

(18) Essential Safety and Health Requirements

Certifying body for Explosion Protection

Braunschweig,

By the order of

Dr.-Ing. U. Johannsmeyer

Government Director

The explosion-proof wall clock, type Ex-Time ** can be used in potentially
explosive atmospheres.

The admissible ambient temperature range is 0 C - 50 C.

Electrical Data

Auxiliary power.................. Battery 1.5 V model LR14 (see (17))

Feed circuit........................ in ignition protection class for

Only use battery types that are listed in the operating instructions
supplied with the device.

are fulfilled in accordance with the above-mentioned directives

intrinsic safety EEx ia IIC
Maximum values:
Uo = 1.5 V
Io = 866 mA
Po = 60 mW
for clockwork connection

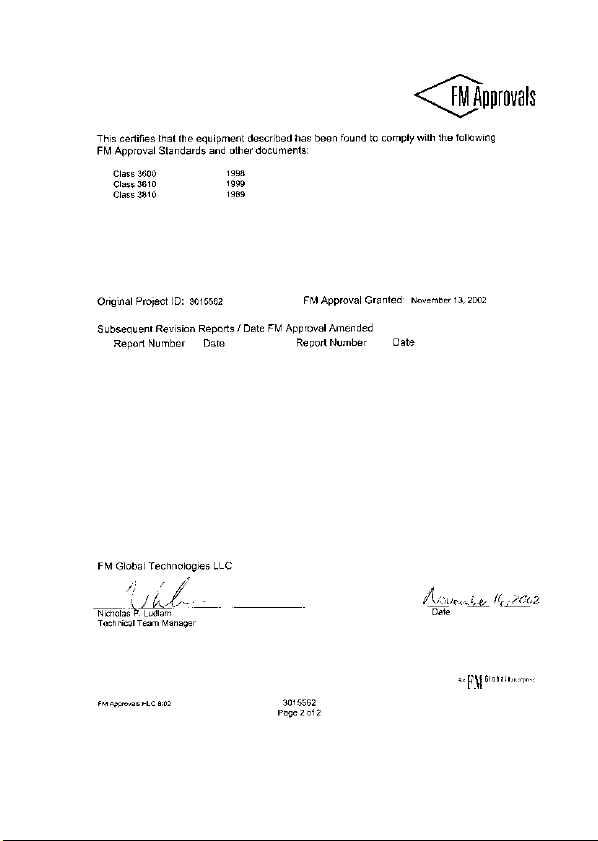

13. Certificate of Compliance

Sommaire

22

23

24

ecom instruments GmbH

Industriestraße 2

D-97959 Assamstadt

Tel.: [phone] / 42 24 0

Fax: [phone] / 42 24 90

E-Mail: [e-mail]

Internet: www.ecom-ex.com

1820/1830AL01A00 02/03 Änderungen vorbehalten!
