Ex-MX4 BT
Contents Page
1. Application 26
2. Safety instructions 26
3. Errors and load restrictions 26
4. Safety regulations 26
4.1 Special conditions for use in Zone 0 areas 27
5. Safety instructions 27
6. Ex data 27
7. Technical specifications 27
7.1 Bluetooth™ configuration 29
8. Functional description / operating instructions 29
8.1 Operation 29
8.2 Measuring marking 30
8.3 Measurement 30
8.4 Operating and display elements 30
8.5 Display screen 30
8.6 Settings 31
8.7 Setup 31
8.7.1 Slave mode (passive mode/Bluetooth™) 31
8.7.2 Master mode (active mode/Bluetooth™) 32
8.7.3 User-defined configuration (Bluetooth™) 33
8.7.4 High alarm (upper limit) 34
8.7.5 Low alarm (lower limit) 35
8.7.6 Time 35
8.7.7 Date 35
8.7.8 Offset 35
8.8 Setting the mode 36
8.8.1 Max value 36
8.8.2 Min value 36
8.8.3 Min-Max range 36
8.8.4 Difference value 36
8.8.5 Average value 37
8.8.6 Sensor port 37
8.9 Data 37
8.9.1 Storing the measured values 37
8.9.2 Displaying the memory 37
8.10 Display 38
8.10.1 Graphics range 38
8.10.2 Selecting the graphics functions 38
8.10.3 Begin (Manual Range) 38
8.10.4 End (Manual Range) 38
8.10.5 Cycle 39
8.11 Changing batteries 39
9. Emissivity 39
9.1 Setting the emissivity 40
9.2 Selecting the material 40
9.3 Emissivity in case of an unknown value 40
10. Troubleshooting 41
11. Repairs 41
12. Cleaning, maintenance and storage 41
13. Disposal 42
14. Warranty and liability 42
26
Note:
The prevailing operating manual, EC Declaration of Conformity and the Ex-certificate
can be downloaded from the relevant product page under www.ecom-ex.com or they
can be requested directly from the manufacturer.
1. Application
The Ex-MX4 BT is a contactless temperature measuring device with an integrated
Bluetooth™ and is designed for industrial use in potentially explosive areas of Zones 2
and 1 in accordance with Directive 99/92/EC (ATEX 137).
2. Safety instructions
This operating manual contains information and safety regulations that must be
followed to ensure the safe and reliable operation of the device under the described
conditions. Non-observance of the information and instructions can have dangerous
consequences or may contravene applicable regulations.
Please take the time to read through the operating manual carefully before you
start using the device.
The German version of this operating manual shall prevail in the event of any doubt or
discrepancies (for example, due to translation or printing errors).
3. Errors and load restrictions
If there is a possibility of the safety of the device being hampered, the device must be
taken out of operation and removed from the Ex-area immediately.
Accidental re-commissioning of the device must be prevented.
We recommend sending the device to the manufacturer for examination.
The safety of the device may be at risk if, for example:
- damages are visible on the casing
- the device has been subjected to excessive loads for which it is not designed
- the device has been improperly stored
- the device has been damaged in transit
- labels on the device are illegible
- malfunctions occur
- obvious measuring inaccuracies occur
- measurements using the device are not possible any longer
- permitted threshold values have been exceeded
4. Safety regulations
Persons using the device must observe the standard safety regulations and read the
certificate to prevent incorrect operation of the device.
The following safety regulations must be observed in addition:
- The device must not be opened inside the Ex-area.
- The batteries must be changed only outside the Ex-area.
- Additional batteries must not be carried in the Ex-area.
- Only the approved battery types must be used.
27
- In potentially explosive areas, the device must be operated only when in its leather
pouch. Please ensure that the leather pouch
is always closed completely and is undamaged while using.
- Only the accessories approved by ecom instruments GmbH must be used.
- Avoid using the device in corrosive acidic or alkaline mediums.
- Please ensure that the device is not taken into Zone 0 areas.
- The supplied thermocouple must be used only outside the Ex-area.
4.1 Special conditions for use in Zone 0 areas
Temperature measurement using the Ex-MX4 BT is allowed within Zone 0 only if the
following conditions are met:
1. The Ex-MX4 BT temperature measuring device must not be brought into Zone 0.
2. Absolutely ensure that the device does not fall into Zone 0, even by mistake. To
ensure this, the device‘s carrying sling must also be attached securely to the
operator’s belt or to a belt loop. The length of the carrying sling should be measu-
red such that the Ex-MX4 BT is still at a distance of 50 cm from the boundary area
of Zone 0 when it hangs freely on the carrying sling.
Only carrying slings approved by ecom instruments GmbH must be used.
5. Safety instructions
- Caution: laser beam!
- Do not look directly into the laser beam!
- Do not aim the beam at other people!
- Danger of eye damage!
- Laser class 2
- Power < 1 mW
- Wave length 635 nm
6. Ex data
EC-type examination certificate no.: TÜV 00 ATEX 1597 X
Ex designation: II 2 G EEx ia IIC T4
Approved for Zones 1 and 2, device group II, gas group C potentially explosive gases,
vapours or mist, temperature class T4.
7. Technical specifications
Measuring range: -30°C ... +900°C
Display resolution: 0.1°C
Ambient temperature: 0°C... +50°C;
laser operation up to a maximum of 45°C
Storage temperature: -20°C ... +50°C (without batteries)
Batteries / power supply: 2 x LR06 (AA) type approved in compliance with IEC
28
Emissivity: 0,10 ... 1.50 (0.95 preset)
Measuring spot marking: 3 point laser marking
Optical resolution (standard optics): 60:1 (19 mm measuring spot for 1.15 m)
Accuracy (+25 °C): ± 0.75% of the measured value or ± 0.75 K,
whichever is greater
(± 2 K for measurement objects below –5 °C)
Ambient derating (at +25 °C ± 25 K): < 0.05 K/K or < 0.05 %/K, whichever is greater
Reproducibility: ± 0.5% of the measured value or ± 0.5 K,
whichever is greater;
± 1K for measurement objects below –5 °C
Spectral sensitivity: 8-14 µm
Response time: 250 ms (95%)
Dimensions: 200 x 170 x 50 mm
Weight: Approximately 600 g
CE mark:
0102
Manufacturer: Model (LR6):
Varta Alkaline No. 4806 LR6
Varta Alkaline Extra Longlife No. 4006
Varta Alkaline Maxi Tech No. 4706
Varta Alkaline Electric Power No. 8006
Varta No. 4706 Alkaline LR6
Varta LR6 High Energy No. 4906
Duracell Alkaline
Duracell Professional Alkaline Battery Procell
Duracell Alkaline Ultra
Duracell Ultra M3 MN1500 LR6
Duracell Plus MN1500 LR6
Duracell Procell MN1500 LR6
Panasonic Alkaline Power Line Industrial Battery LR6
Panasonic Powermax 3 LR6
Eveready Alkaline Energizer
Eveready Energizer No. E91
GP Super Alkaline Battery 15A LR6
Daimon Alkaline
Rayovac Maximum Alkaline Battery
Double Lion King Alkaline Battery
RS Alkaline
29
7.1 Bluetooth
TM
configuration

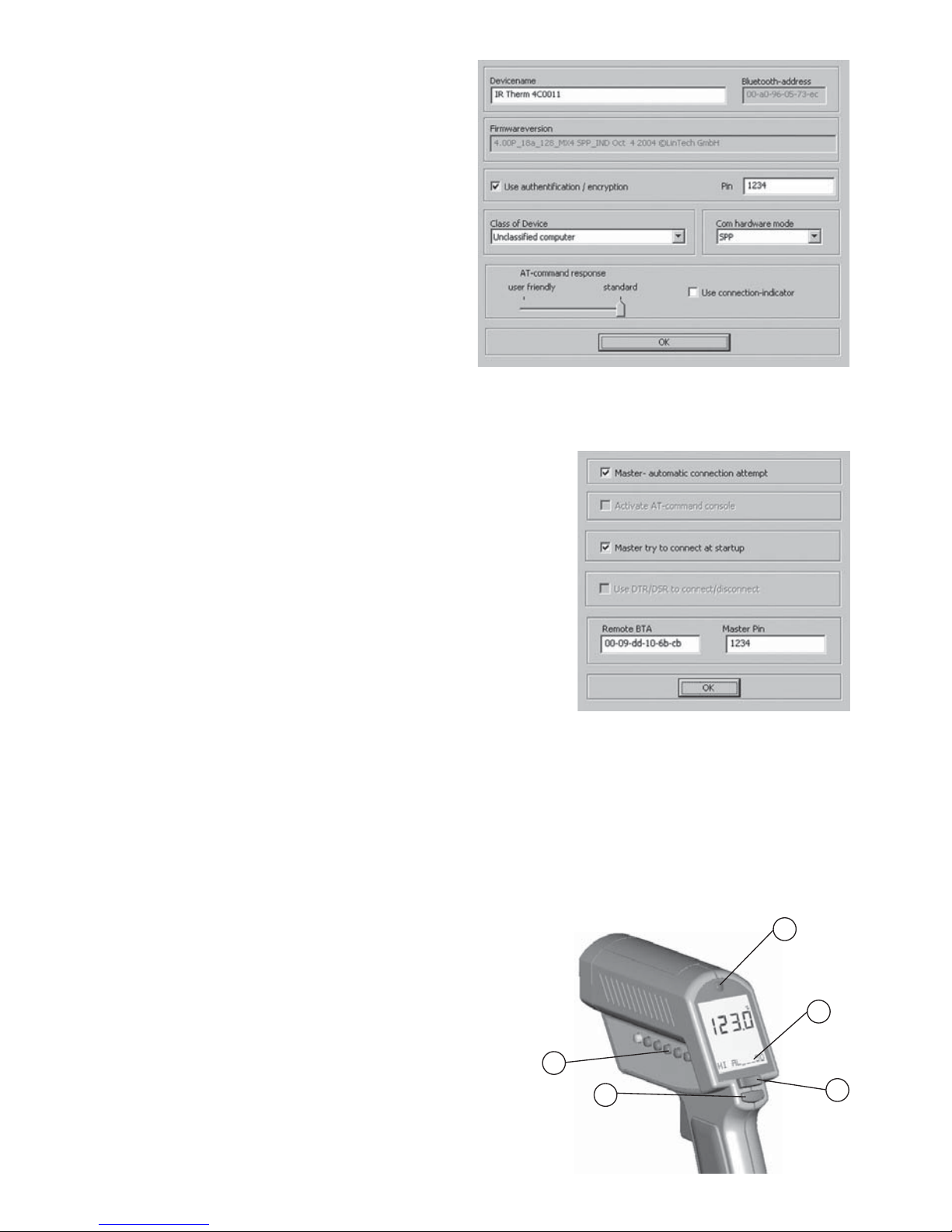

The Ex-MX4 BT allows data transfer via BluetoothTM.
System requirements:
- Windows-compatible computer (operating systems 98, ME, 2000, XP or higher).
- Bluetooth system completely installed on the computer (not included in the scope of
supply).

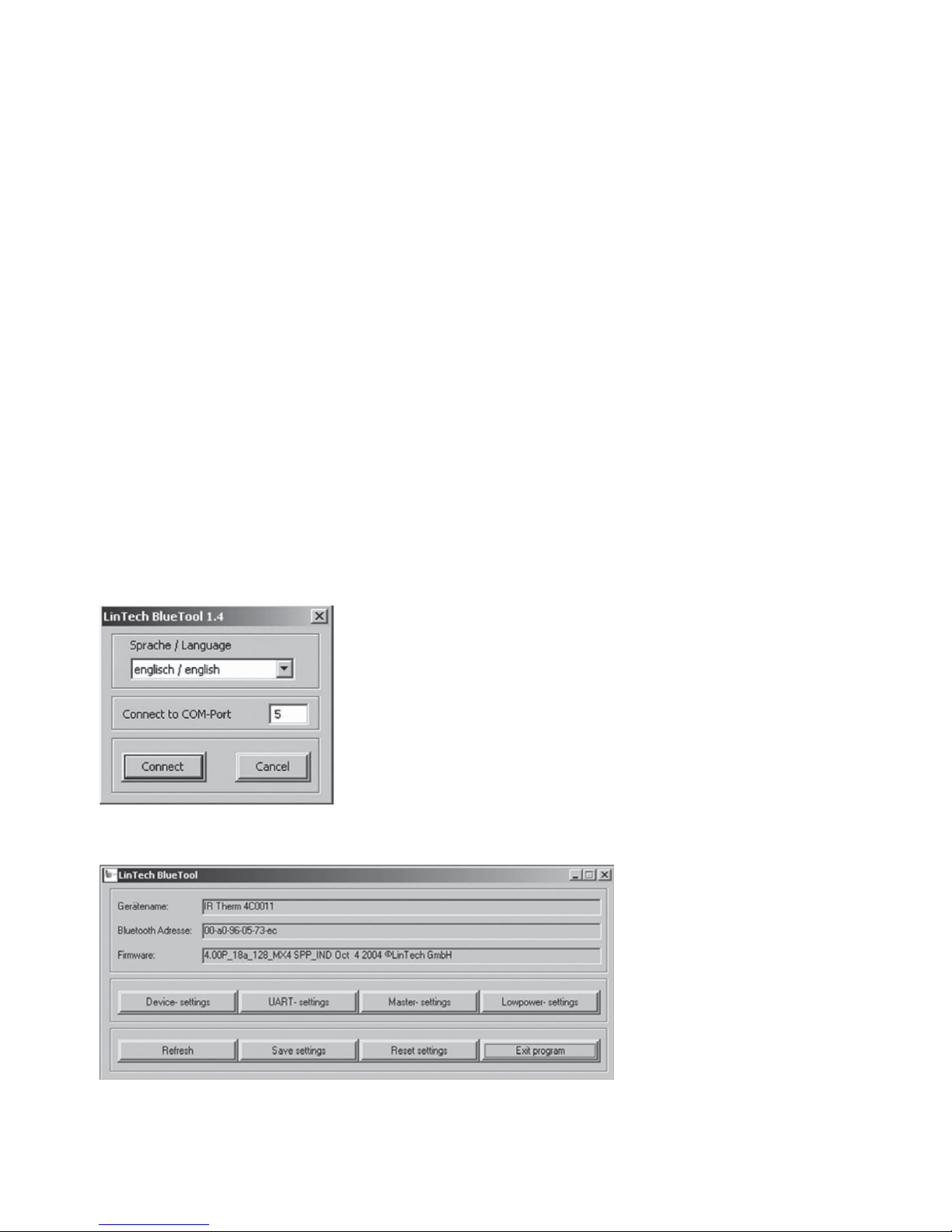

- Configuration software BlueTool (included in the supplied CD).
After installing the Bluetooth system on the computer, the thermometer can be ope-
rated in different modes (for the description of modes, refer to 8.7 Setup).
Please refer to the PDF files in the Bluetooth_Modul and BlueTool folders in the supplied CD for information regarding the configuration of the LinTech Bluetooth module.
8. Functional description / operating instructions
Please take the time to read through this operating manual carefully to ensure that you
are familiar with and can use all the functions of your Ex-MX4 BT. Please go through
the instructions on the following pages for your own safety and information!
8.1 Operation
All objects with a temperature above absolute zero radiate infrared energy that spreads
in all directions at the speed of light. If an infrared thermometer is aimed at a measurement object, the lens gathers the energy and focuses it on an infrared sensor.
The sensor reacts by generating a voltage signal that is directly proportional to the
absorbed energy. The microprocessor-controlled electronic unit of the device can
determine and display the current temperature using additional parameters. Measurement objects with a shiny or polished surface not only radiate energy, but also reflect a
part of the radiation from their surroundings.
An emissivity factor between 0.1 and 1.5 takes account of this fact so that only the
actually radiated (and not the reflected) energy is included in the calculation of the
measured value. The majority of applications are measured with an emissivity of 0.95.
It is therefore preset to 0.95 in our device and can be adjusted in steps of 0.01 depending on the application. Emissivity range over 1.00 is intended for applications, where
adjacent measurement objects having different temperatures are to be measured. For
example, this is the case if there are two conveying lines with different temperatures
and the temperature of ‚the colder one‘ is to be measured. The radiated reflected
energy would thereby falsify the measurement and hence a correct result would be
impossible. The temperature can now also be measured accurately using the emissivity setting > 1.00 by way of a one-time reference measurement using a contact thermometer.
30
8.2 Measuring marking

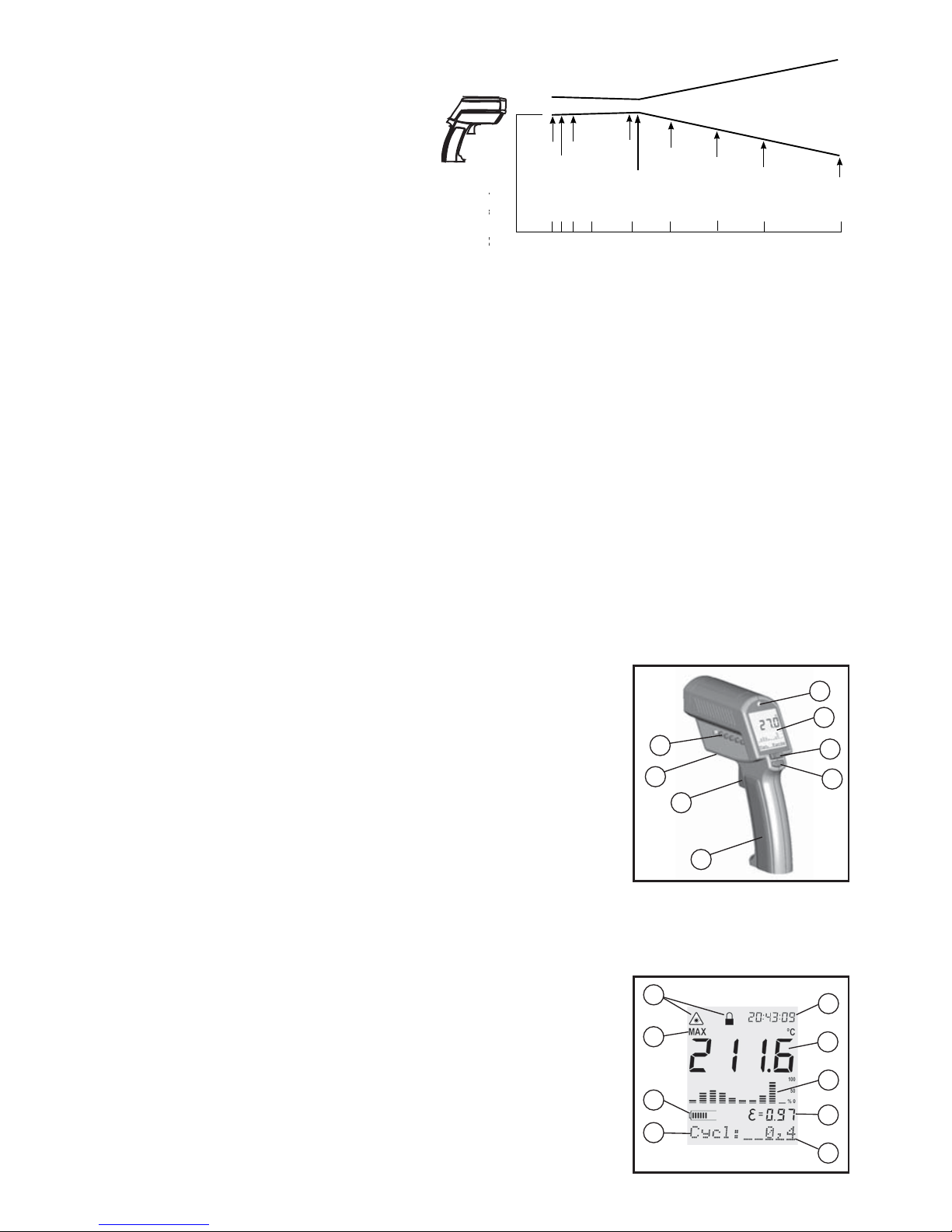

Keep in mind that the measured part
of the object surface (3 point measuring
spot marking) changes with the increasing measuring distance as shown
in the figure. The ratio between the
measuring distance and measuring
spot diameter isapproximately 60: 1 at
the focus point and approximately 35:1
in the distant field (> 10 m). To take continuous readings, set the LOCK switch in the
battery compartment to „On“ and press the measurement button (the laser does not
remain on continuously). Reset the LOCK switch to „Off“ for the normal operation.
The laser sight makes sighting a measurement object easier. Laser points indicate the
exact diameter of the measuring spot. You can use the LASER function key for switching
the laser on and off by keeping the measurement button pressed. The laser icon (refer
to 8.5 Display screen) indicates the switched-on laser.
8.3 Measurement
Aim at the object to be measured and press the measurement button. The measured
temperature is shown in the display. It is visible in the display for seven seconds after
releasing the measurement button. If another button is not pressed, the device switches
off automatically after this time. Selected functions remain set and the function selection
menu returns to the initial position. To recall the last measured value, press ENTER
without pressing the measurement button.
8.4 Operating and display elements
(A) Acoustic/optical warning signal
(B) Display
(C) Arrow keys
(D) Enter key
(E) 11 setting switches
(F) Measurement button
(G) Tripod connection
(H) 6 function keys
For selecting the functions, switch on the device by pressing the measurement button
(F). Then press the appropriate function key (H). In order to change the functions, either press ENTER or press the current function key first and then the desired one.

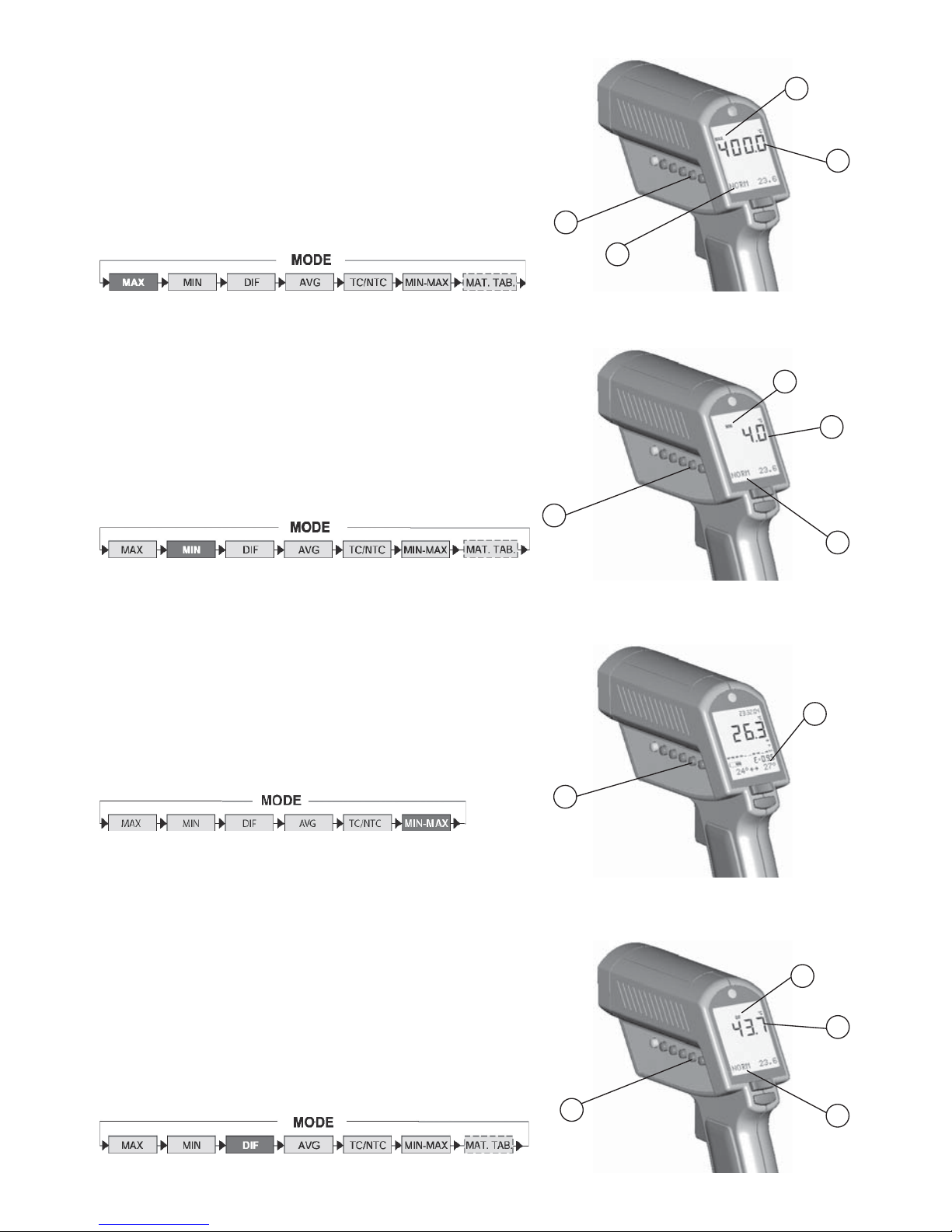

8.5 Display screen
(1) Status and warning icon (6) Status line
(2) Time (7) Mode display
(3) Measured value (8) Battery status
(4) Graphical display of (9) MAX, MIN, DIFF... Icon
the measured value
(5) Emissivity
19 mm @ 1150 mm
Messfleck-
durchmesser (M) (mm)
ENTFERNUNG (E) SENSOR ZUM MESSOBJEKT (mm)
A
H
G
F
E
B
C
D
2
1
9
8
7
3
4
5
6
Measuring
spot diameter
DISTANCE (E) BETWEEN THE SENSOR AND THE MEASUREMENT OBJECT (mm)
Focus point E:M = 60:1 Distant field E:M= 35:1
31
8.6 Settings

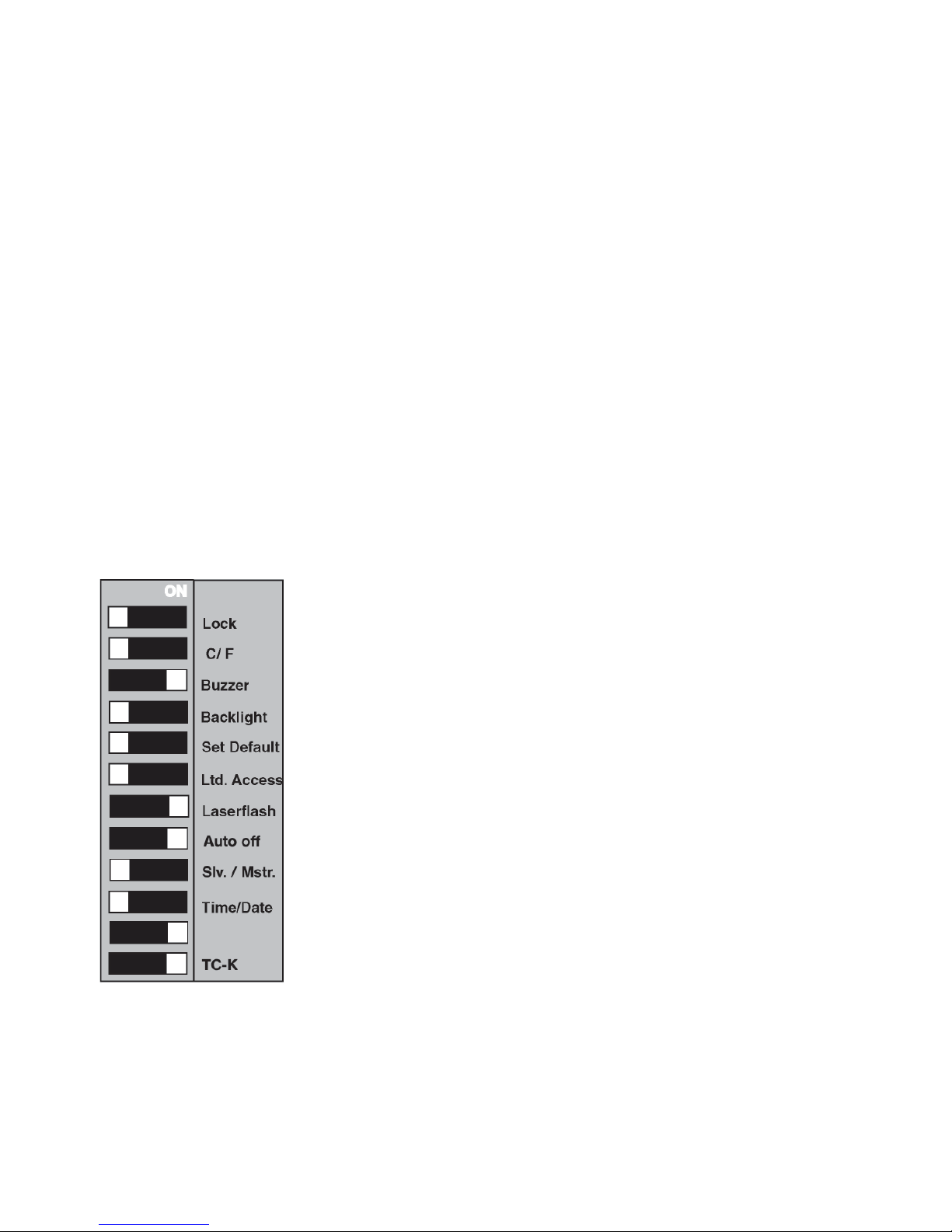

Open the battery compartment. You can set the DIL switches.
Lock: (ON) locks the measurement button.
°C/°F: Toggling the display between °C and °F (the time and date format
also change).
Buzzer: (ON) acoustic alarm.
Backlight: (ON) display light
Set default: reset to the factory defaults.
Ltd. Access: Function keys are disabled.
Laserflash: The laser marking starts blinking when the alarm values are exceeded.
Auto Off: (On) The turn-off time does not extend automatically after receiving
a command from the software (applicable only to the operation in
the master mode)
Slv./Mstr.: Toggles the BluetoothTM mode.
Time/Date: Toggles between the date and time display.
TC-K: Thermocouple type
Temperature range for the K type: -30°C ... +400 °C
Note: The thermocouple must be used only outside the Ex-area!
8.7 Setup
8.7.1 Slave mode (passive mode/Bluetooth™)
The thermometer is constantly ‚on‘ in this mode and the computer searches for it. This
is advantageous when the temperature needs to be monitored continuously.
Caution: Batteries of the thermometer that is operated continuously discharge considerably quickly when compared with those used intermittently.
Factory defaults
DIL switch
32
Proceed as follows:
1. Open the handle of the thermometer and set the DIL switch 9 to OFF (SLAVE).
2. Switch on the thermometer using the measurement button.
3. Press the Setup key. The following scrolling message appears on the display -
“Bluetooth on-up, off-down“. Activate the Bluetooth operation by pressing the Up
key below the display. A blinking icon in the display indicates the stand-by mode
of the Bluetooth module - The lock icon indicates continuous operation.
Note: If the auto-executing battery test detects that the battery is too low (display:
„LowBat - no BT“), the Bluetooth application is not started.
4. Now launch the Bluetooth software on your computer and let it search for Bluetooth
devices and connect them. (The exact functioning for your Bluetooth application
can be referred to from the corresponding operating manual).
5. The thermometer is detected as „IR Therm....“. The requested PIN is „1234“ by
default. Right-click the icon of the device and switch to the „Properties“ sub-
menu. Remember the number of the ComPort. The green light-emitting diode over
the display of the thermometer indicates the existing connection.
6. Now start the corresponding application software, if yet to start, for the thermometer.
Before you can exchange data between the thermometer and the computer you
have to set the ComPort number as mentioned in point 5.
7. Press the Setup key and then the Down key below the display to terminate the
Bluetooth™ connection. If data is being transferred at this moment, you cannot stop
the Bluetooth™ module.
Important note: Aforementioned statements are applicable only to the thermometer in
the delivery condition. It can be set by the user using the „BlueTool“ software. Refer to
the „User-defined configuration“ section for this purpose.
8.7.2 Master mode (active mode/Bluetooth™)
After switching on, the thermometer is automatically connected to the computer, the
address of which has been programmed in the thermometer. This takes place using
the supplied BlueTool software (refer to the „User-defined configuration“ section for
this purpose). The active mode is especially suitable for the intermittent operation of
the infrared thermometer. Energy consumption of the thermometer is considerably less
than that in the passive mode.
Proceed as follows:
1. Open the handle of the thermometer and set the DIL switch 9 to ON (Master).
2. Switch on the thermometer using the measurement button.
3. Press the Setup key, the following scrolling message appears on the display -
“Bluetooth on-up, off-down“.
Activate Bluetooth™ by pressing the Up key below the display. A blinking icon in the
display indicates the stand-by mode of the Bluetooth module - the lock icon indicates
continuous operation.
33
The thermometer starts searching for the corresponding computer. When the connection is established, a green LED above the display illuminates and the colour of
the Bluetooth™ icon on the connected computer changes. You can now transfer the
data to the application software of the thermometer. If the measurement button is not
pressed and data is not transferred, the thermometer switches off automatically after
approximately 7 seconds.
8.7.3 User-defined configuration (Bluetooth™)
Proceed as follows:
Open the handle of the thermometer and set the DIL switch 5 to ON (Set default).
Does „Default“ appear in the display? The DIL switch 9 must be set to OFF (slave) at
this point in time without fail. Now start the Bluetooth module as described under the
passive mode.
Programming the thermometer with the help of BlueTool
Launch the Bluetooth software on your computer and start the device search. Double-click the infrared thermometer icon to establish a connection (indicated by the
green LED at top-left of the display and changed colour of the Bluetooth icon on your
computer).
You can view the properties by right-clicking the service under Serial Ports.
Note down the number of the connected ComPort.
Now launch the BlueTool application, enter this ComPort number and then click Connect.
A configuration window opens.
It shows various details about the device and multiple fields for invoking other setting
options.
34
Open „Device settings“ first.
Here you can allocate a name to the
thermometer and change the PIN.
Caution: Do not forget this PIN, since it is
always requested for encrypted transfer
and for connections using the BlueTool
software. Select SPP as the ComHardware
mode and deactivate the connection
indicator. Confirm the settings with OK.
Now open „Master settings“.
Select the checkboxes in front of “Master tries to establish a connection automatically“ and “Master
tries to establish a connection while starting“. The
Remote BTA field contains the address of the
current computer.
Note: Only if you wish that the thermometer should
respond to another computer (e.g. PDA or Notebook)
later, enter the Bluetooth address of this computer.
The same naturally applies to the PIN in this window.
It is then mandatory to connect to the other computer.
Therefore, please remember it well. Click OK. First click „Save settings“ in the main
window - the data is transferred to the thermometer.
You can verify the current settings with „Update“. Then exit the program. Now reset the
DIL switch 5 in the handle of the thermometer to OFF. Press the DOWN key below the
display. Wait till the device switches off automatically (approximately 7 s).
8.7.4 High alarm (upper limit)
The setting of a temperature value, which when
exceeded should initiate an optical (blinking red
LED (A) and blinking laser) and an acoustic warning signal. Press SETUP (N) twice. Change the
current setting (6) using arrow keys (C).
Confirm the input with ENTER (D).
A
N
D
6
C
35
8.7.5 Low alarm (lower limit)
The setting of a temperature value, which when
drops below this value should initiate an optical
(blinking green LED (A) and blinking laser) and
an acoustic warning signal. Press SETUP (N) thrice.
Change the current setting (6) using arrow keys (C).
Confirm the input with ENTER (D).

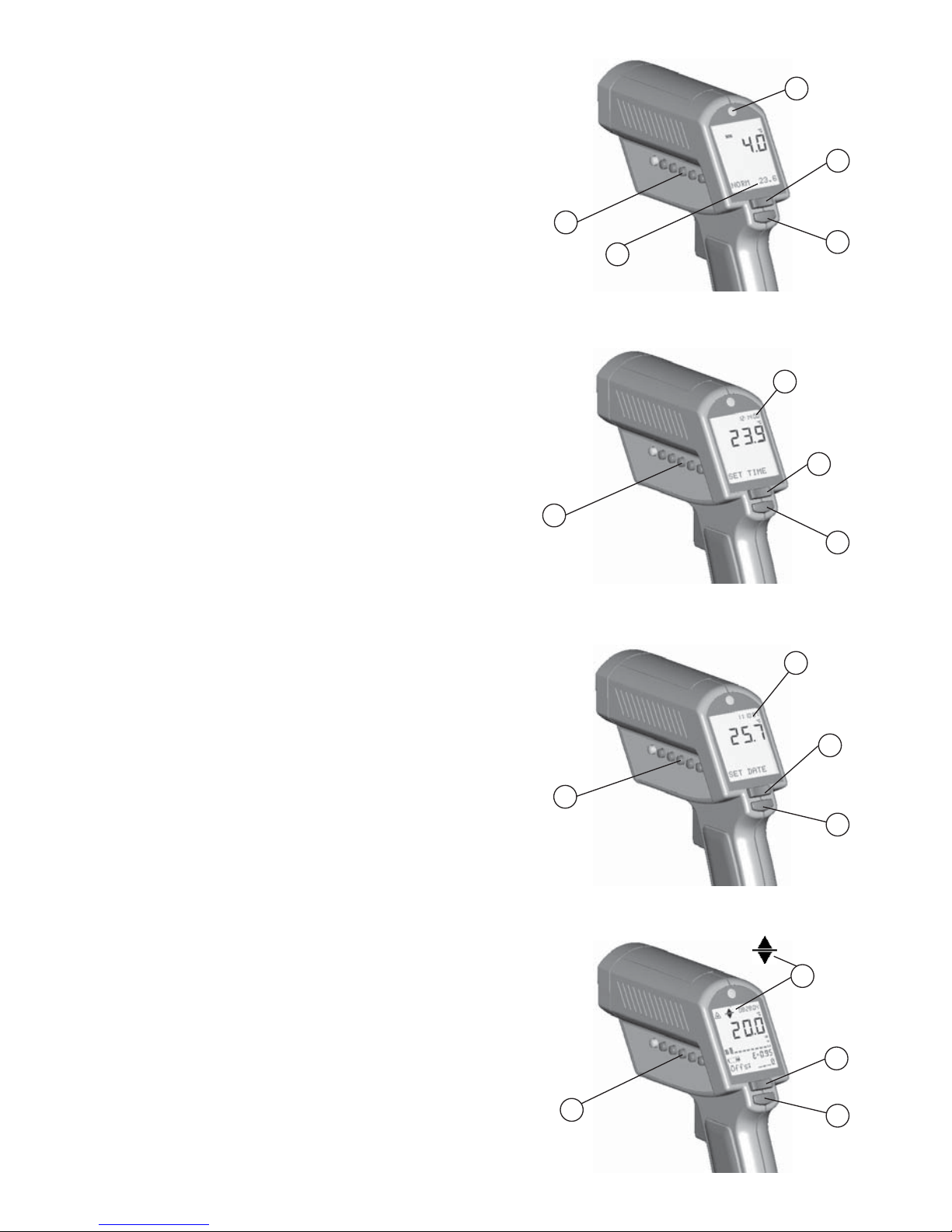

8.7.6 Time
Set the time (2) (appears in the display, in the data
memory and in the printout). Press SETUP (N) four
times. Change the setting using arrow keys (C) and
ENTER (D). Press SETUP again to confirm the
change.
8.7.7 Date
Set the date (2) (appears in the data memory and in
the printout). Press SETUP (N) five times. Change the
setting using arrow keys (C) and ENTER (D). Press
SETUP again to confirm the change.
8.7.8 Offset
This function adds or subtracts the set offset value
(± 10 °C) from every measured temperature value.
You can thus minimise (permissible) deviations in the
display of different devices or improve the accuracy
within a restricted temperature range when emissivity
has been set correctly. Press the Setup key (N) till
„Offset“ appears in the display. Select the value
using arrow keys (C) and confirm with Enter (D).
The icon (1) appears in the display.
A
N
6
C
D
2
N
C
D
2
N
C
D
1
N
C
D
36
8.8 Setting the mode
8.8.1 Max value
To activate the maximum value mode, press MODE (O)
till the MAX icon (9) appears. The highest measured
value (3) is always displayed as long as the
measurement button is kept pressed. The currently
measured value appears in the status line (7).
8.8.2 Min value
To activate the minimum value mode, press MODE (O)
till the MIN icon (9) appears. The lowest measured
value (3) is always displayed as long as the
measurement button is kept pressed. The currently
measured value appears in the status line (7).
8.8.3 Min-Max range
To display the minimum and maximum temperature
values determined during the measurement in the
status line, press MODE (O) till both values are
displayed (6).
8.8.4 Difference value
To activate the difference value mode, press MODE (O)
till the DIF icon (9) appears. The difference between
the highest and lowest measured temperature (3) is
always displayed as long as the measurement button
is kept pressed. The currently measured value
appears in the status line (7).
9
O
7
3
9
O
3
7
2
O
9
O
3
7
37

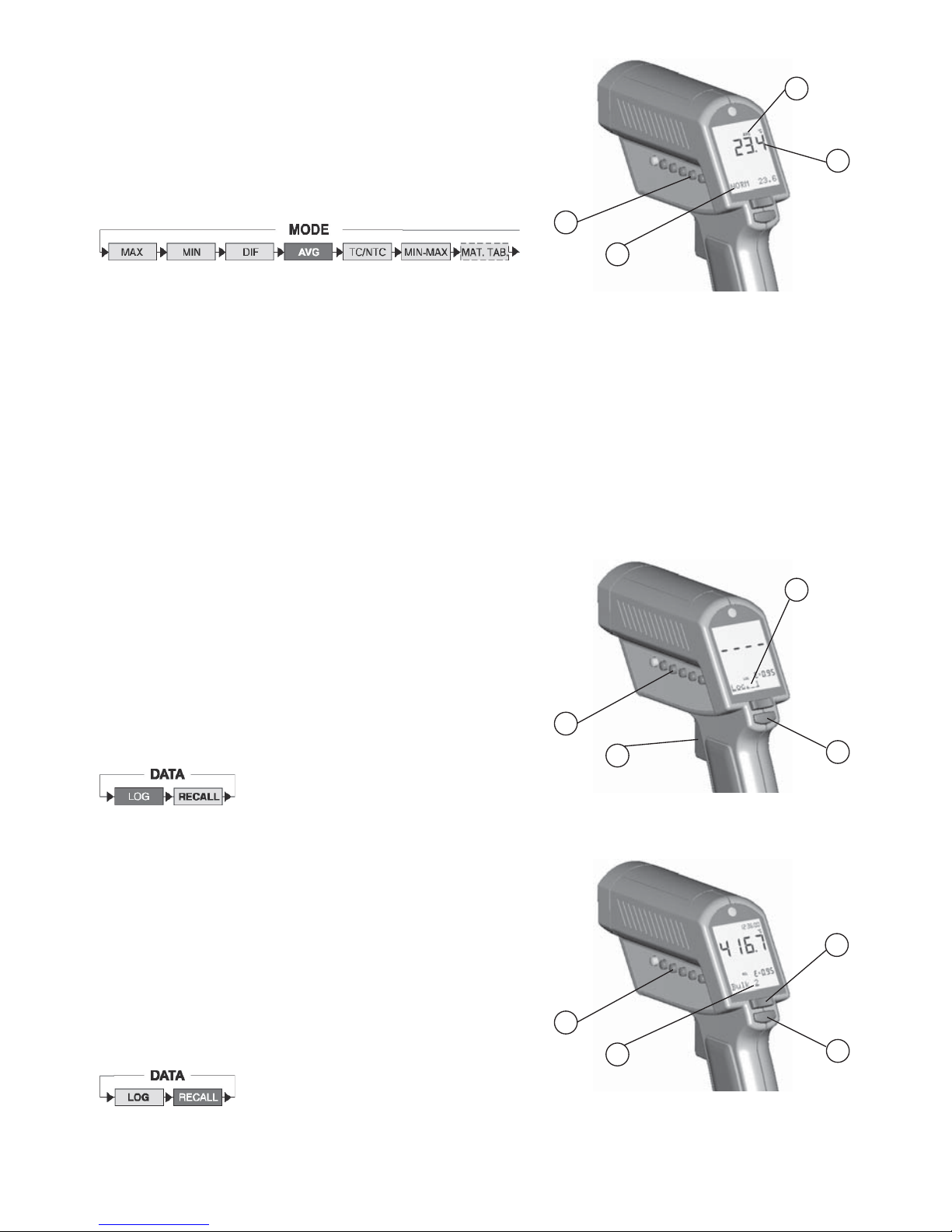

8.8.5 Average value
To activate the average value mode, press MODE (O)
till the AVG icon (9) appears. The average of measured
temperatures (3) is calculated and displayed as long as
the measurement button is kept pressed. The currently
measured value appears in the status line (7).
8.8.6 Sensor port
This function must be executed only outside the Ex-area.
Proceed as follows for determining an unknown emissivity:
Connect the sensor to the port at the end of the handle. Press MODE till the corresponding sensor icon appears in the display. The temperature measured by the sensor
is displayed in the status line in a small font. The infrared measured value is displayed
in the main display screen.
8.9 Data
8.9.1 Storing the measured values
Use ENTER (D) for invoking LOG (6) in the display.
Now press the measurement button (F) and record.
Please ensure that the laser marking remains inside
the surface to be measured. To store the temperature
value, release the measurement button. The next
memory location is invoked.
Note: Pressing the DATA key (M) once invokes the
same function.
8.9.2 Displaying the memory
For reading the stored values, press ENTER (D)
without pressing the measurement button. Then
press the DATA key (M) till RCL appears in the
display. A memory location is displayed (6). You
can use arrow keys (C) for selecting another
memory location.
9
O
7
3
6
M
F
D
C
M
6
D
38
8.10 Display
8.10.1 Graphics range
The graphical component (4) of the display shows
the last 10 measured values as a trend display. The
measuring range of a column (B) can be calculated
automatically by the device (Auto Range Function)
or set manually (Manual Range Function).

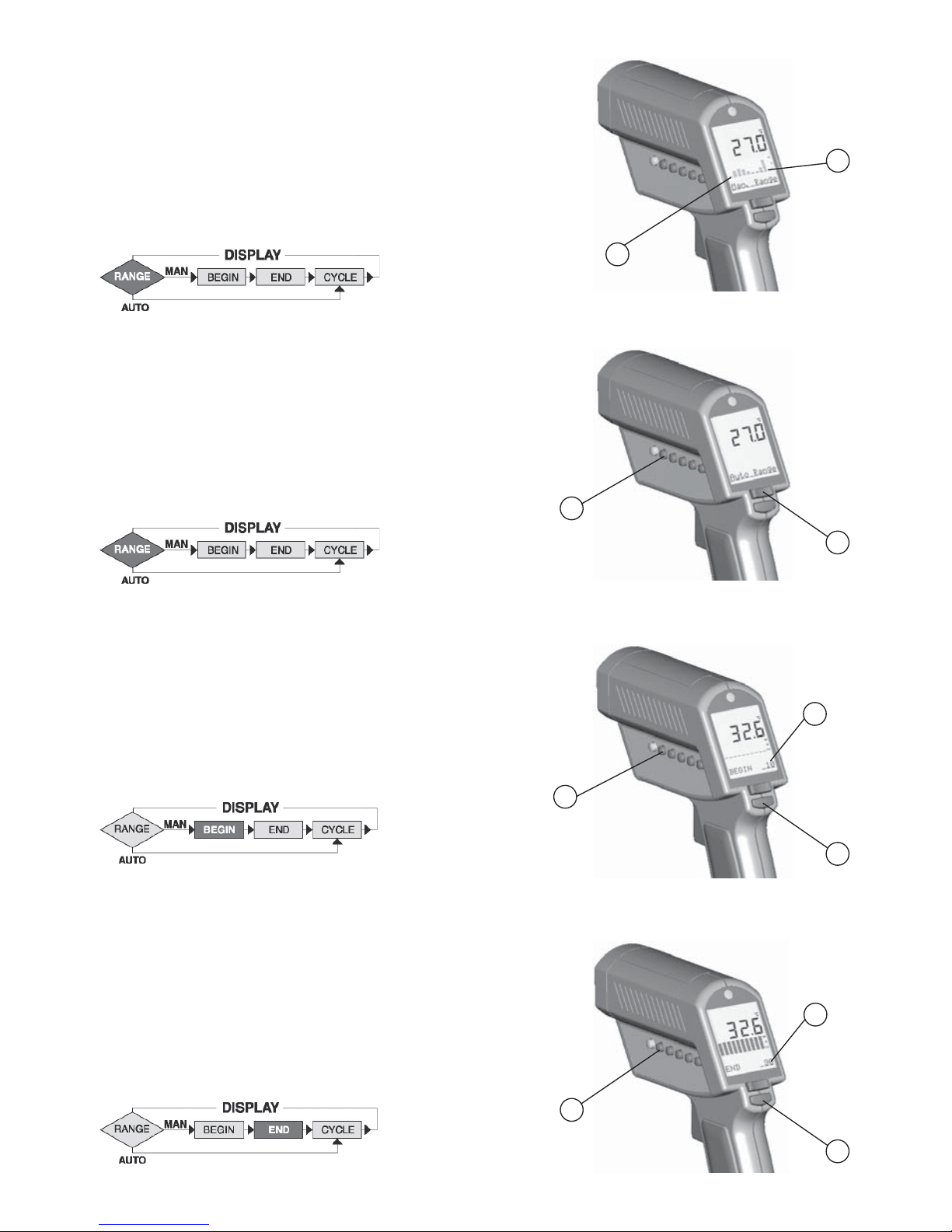

8.10.2 Selecting the graphics functions
Press DISPLAY (L) once. Use arrow keys (C) to
choose between Auto Range (temperature range
includes measured minimum and maximum values)
and Manual Range (refer to the section 8.10.3).
8.10.3 Begin (Manual Range)
Manual setting of the lower limit of the temperature
range to be shown graphically. Press DISPLAY (L)
till „Begin“ appears in the status line. Change the
value (6) using arrow keys (C).
8.10.4 End (Manual Range)
Manual setting of the upper limit of the temperature
range to be shown graphically. Press DISPLAY (L) till
„End“ appears in the status line. Change the value (6)
using arrow keys (C).
B
4
L
C
6
L
L
C
C
6
39

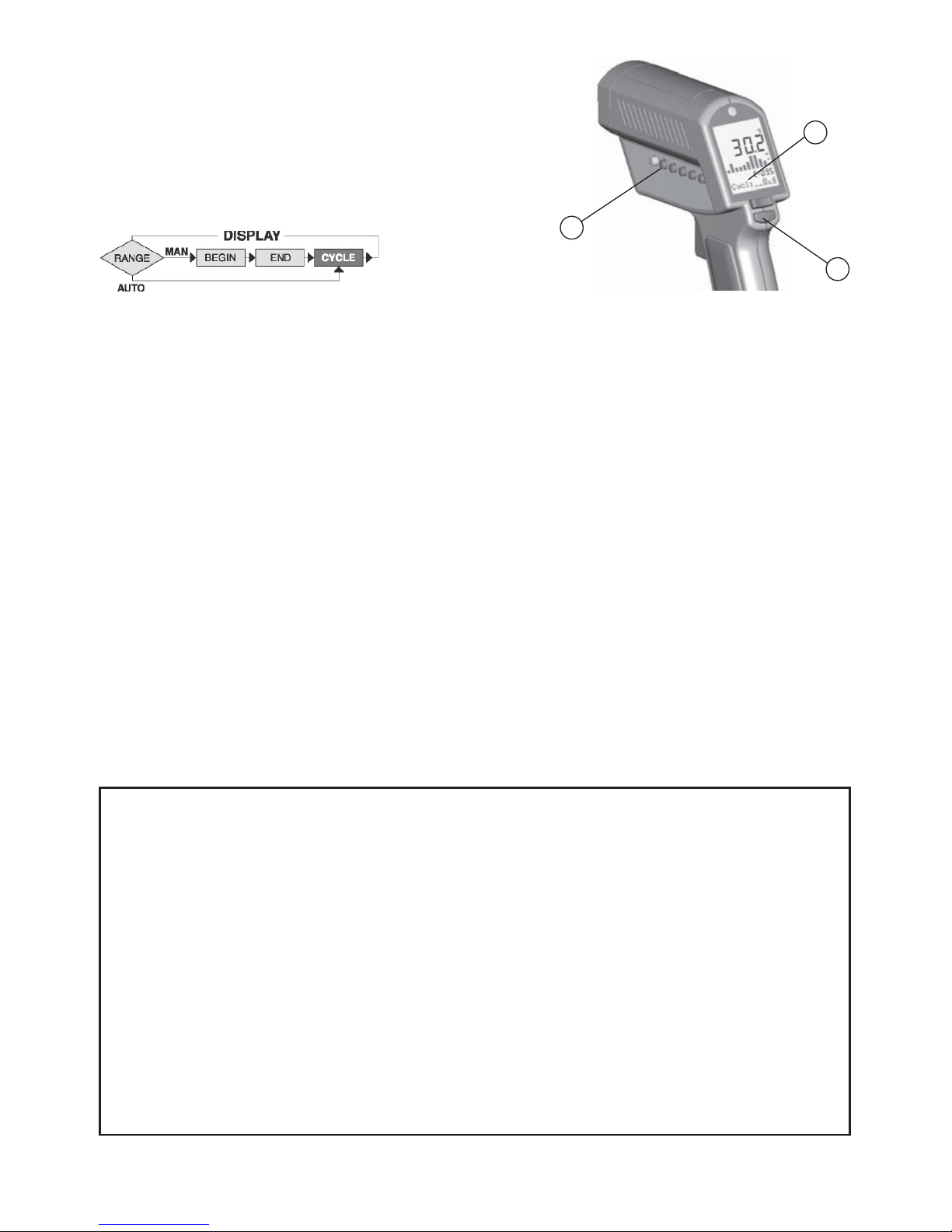

8.10.5 Cycle
The setting of the interval, in which numeric and
graphical display is refreshed automatically. Press
DISPLAY (L) till Cycl.: (7) appears in the status line.
Change the cycle time using arrow keys (C). The
default setting is 0.2 s.
8.11 Changing batteries
First remove the leather pouch and then open the battery compartment by pressing
the upper handle halves lightly. Then open the handle. You need 2 Type LR6 (AA / type
approved) batteries for operating the measuring device.
- Always replace all batteries together.
- Make sure that the polarity of the inserted batteries is correct.
- Please ensure that all used batteries are properly disposed of in an environment friendly manner.
9. Emissivity
Most organic materials as well as lacquered and oxidised surfaces have an emissivity
of 0.95. The emissivity is preset to 0.95 in the Ex-MX4 BT for this reason, but can be
changed using the rocker switch.
The determination of the temperatures of shiny or highly polished metal surfaces results in inaccurate measured values. To compensate for this, the surface to be measured can be covered with adhesive tape or painted matt black. Wait until the adhesive
tape attains the same temperature as the material underneath it. Then determine the
temperature of the adhesive tape (corresponds to the material) or the painted surface.
Aluminium* 0.30 Skin 0.98 Brass* 0.50
Asbestos 0.95 Wood*** 0.94 Oil 0.94
Asphalt 0.95 Limestone 0.98 Paper 0.95
Basalt 0.70 Ceramics 0.95 Sand 0.90
Concrete 0.95 Carbon 0.85 Dirt 0.94
Lead* 0.50 Copper* 0.95 Snow 0.90
Ice 0.98 Plastic** 0.95 Steel* 0.80
Iron* 0.70 Foodstuffs, 0.90 Textiles 0.94
Paint 0.93 frozen Water 0.93
Glass (plate) 0.85 Foodstuffs, 0.93 Bricks 0.90
Rubber 0.95 hot
*oxidised, **impervious to light, more than 50 µm, ***natural
L
C
7
40

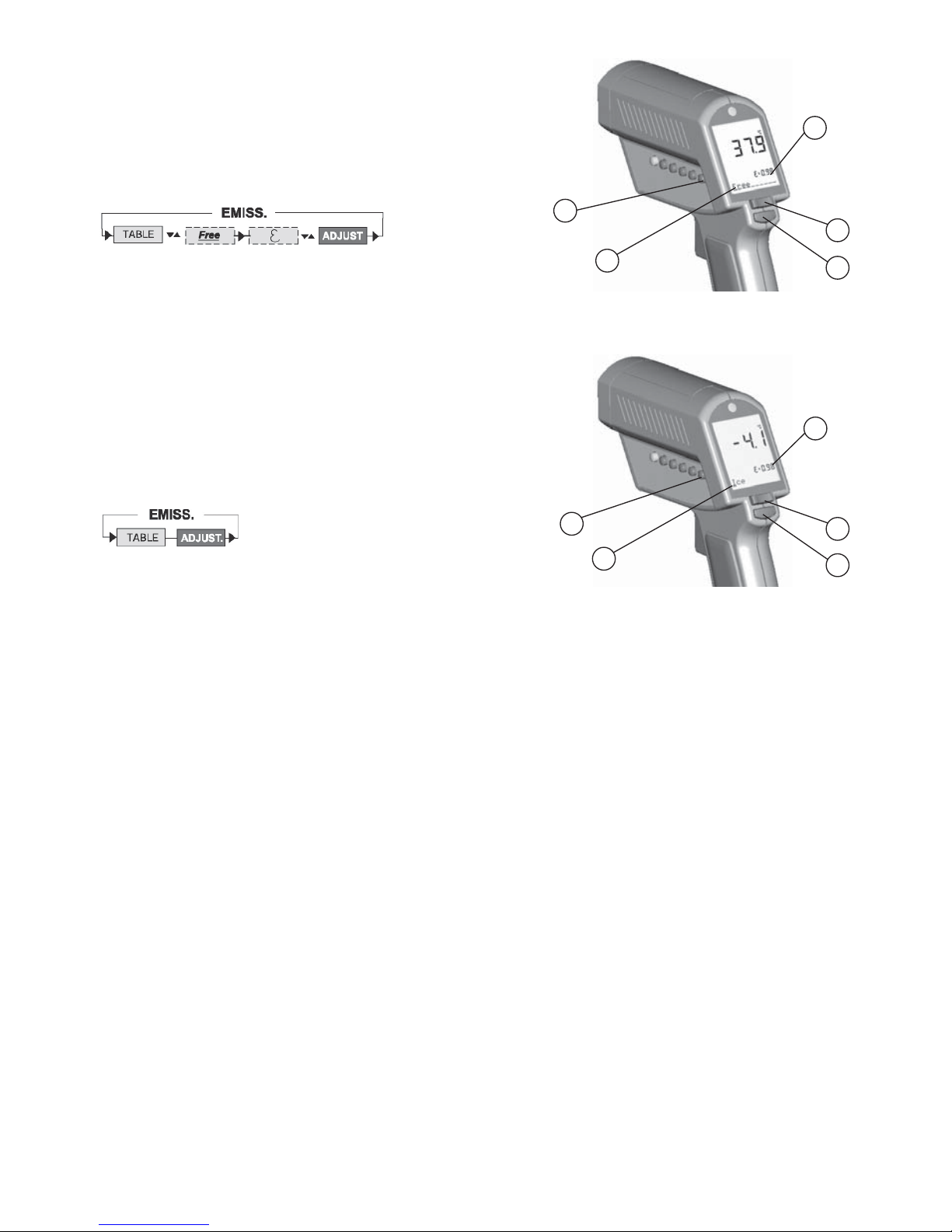

9.1 Setting the emissivity
Press EMISS. (P). Select „Free“ (7) using arrow keys
(C). Press EMISS. again. The emissivity icon (5) in the
display starts blinking. Change the emissivity using
arrow keys (C). Confirm the input with ENTER (D).
9.2 Selecting the material
Press EMISS. (P). The display shows a material name
(7), the emissivity and the newly calculated measured
value (5). Use arrow keys (C) for selecting another
material. Use ENTER (D) to confirm the selection.
9.3 Emissivity in case of an unknown value
To be used only outside the Ex-area!
Connect a sensor to set the device for a material having an unknown emissivity (only
outside the Ex-area). Then press the measurement button and maintain the measuring
range of the sensor within the range of the object to be measured.
Wait till the measured value of the sensor stabilises and then record the measured
value. Release the measurement button and press it again. Now measure the same
range of the object. Press the Emiss. key and select the „Free“ material name using
arrow keys. Press the Emiss. key again till the emissivity icon starts blinking. You can
now use arrow keys to change the value till the displayed temperature matches that of
the contact sensor.
For connecting the sensor, refer to 8.8.6.: Sensor port.
5
P
P
D
C
5
C
7
7
C
41
10. Troubleshooting
Display Fault Procedure
- O - The target temperature is Select a target within
above or the range
- U - below the measuring range
------------------------------------------------------------------------------------------------EEPROM-Err EEPROM error Please contact the manufacturer
------------------------------------------------------------------------------------------------CalAreaErr Calibration error Please contact the manufacturer
ProbCalErr Calibration error Please contact the manufacturer
------------------------------------------------------------------------------------------------No display Weak or discharged Replace batteries
batteries
------------------------------------------------------------------------------------------------Battery icon Weak or flat Replace batteries
blinks or LowBatt batteries
is displayed
------------------------------------------------------------------------------------------------Laser does not work Weak or flat Replace batteries
batteries
Ambient temperature Work at an ambient temperature
over +45 °C of + 45 °C or less than that.
11. Repairs
Repair work is subject to the different nationally valid regulations and directives. We
therefore recommend that such work be performed by ecom instruments GmbH, Germany, as all repairs must be examined to ensure functional safety.
12. Cleaning, maintenance and storage
- Only use an appropriate cloth or sponge to clean the device. Do not
use solvents or abrasive cleaning agents for cleaning, especially the lens.
Cleaning the lens:
Blow off loose particles with clean air. Then remove the remaining impurities carefully
using a soft brush. Wipe the surface carefully with a moist swab. The swab can be
moistened with water.
- We recommend that the functionality and accuracy of the device be checked by the
manufacturer every two years.
- The batteries should be removed from the device if it is to be stored for long periods.
- The storage temperature should be within the permitted range between -20°C and
+50°C (without batteries)!
42
13. Disposal
Old electrical equipment and „historic“ old electrical equipment from ecom instruments
GmbH will be disposal obligation and disposed of at no cost in accordance with the
EC Directive 2002/96/EC and the German Electrical and Electronic Equipment law of
16/03/2005. The costs of the transport of the equipment to ecom instruments GmbH are
borne by the sender.
14. Warranty and liability
As per the general terms and conditions of business, ecom instruments GmbH offers
a 2-year warranty for the functioning and materials of this product under the specified
operating and maintenance conditions. This does not cover all wearing parts (e.g.
batteries and lamps).
This warranty does not extend to products that have been used improperly, altered,
used negligently, damaged by accident or subjected to abnormal operating conditions
or improper handling.
Warranty claims can be asserted by sending the defective device. We reserve the right
to re-calibrate, repair or replace the device.
The above warranty terms represent the sole rights of the purchaser for compensation
and apply exclusively and in place of all other contractual or statutory warranty obligations. ecom instruments GmbH does not accept liability for specific, direct, indirect,
incidental or consequential damages or losses, including the loss of data, regardless
of whether they are caused by breach of warranty, lawful or unlawful actions, actions in
good faith or other actions.
If the restriction of statutory warranty and the exclusion or restriction of incidental or
consequential damages is unlawful in certain countries, then it may be possible that
the above restrictions and exclusions do not apply for all purchasers. If any clause in
these warranty terms is found to be invalid or unenforceable by a competent court,
then such a judgement shall not affect the validity or enforceability of any other clause
contained in these warranty terms.
ALPINE
COMPONENTS
Postal Address
Alpine Components Ltd
Innovation Centre, Highfield Drive
Churchfields
St. Leonards-on-
Sea
TN38 9UH
United Kingdom
Telephone
01424 858118
Website Address
www.alpine-
components.co.uk
"Alpine Components" is the abbreviated trading name for "Alpine Components Limited"
The company has been trading since 1991 and was incorporated on 13/11/2006 in the United Kingdom
Company Registration Number: 05996485
VAT Number: GB583598190
Loading...
