Ecom Instruments Ex-Handy 06 Safety Instructions

Ex-Handy 06

Safety instructions

18

Contents

1. Application 19

2. Safety precautions 19

3. Faults and damage 19

4. Safety regulations 20

5. Ex-Data 22

6. Technical specifications 22

7. SAR certification 23

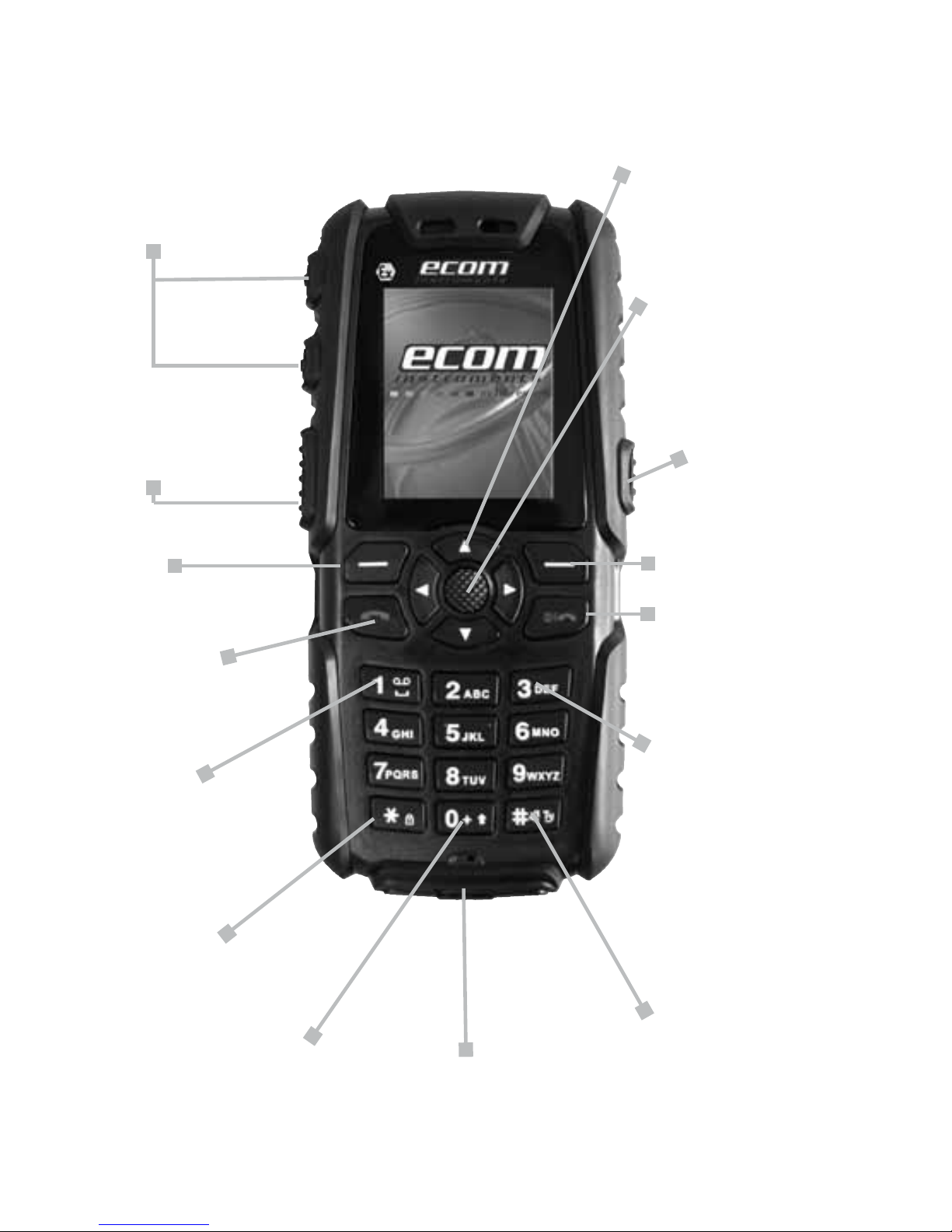

8. Button functions 24

9. Rechargeable battery and commissioning 25

9.1 Changing the battery 25

9.2 Commissioning 25

9.3 Safety instructions 27

10. Repair 28

11. Cleaning, maintenance and storage 29

12. Disposal 29

13. Warranty and liability 30

14. EC Declaration of Conformity 32

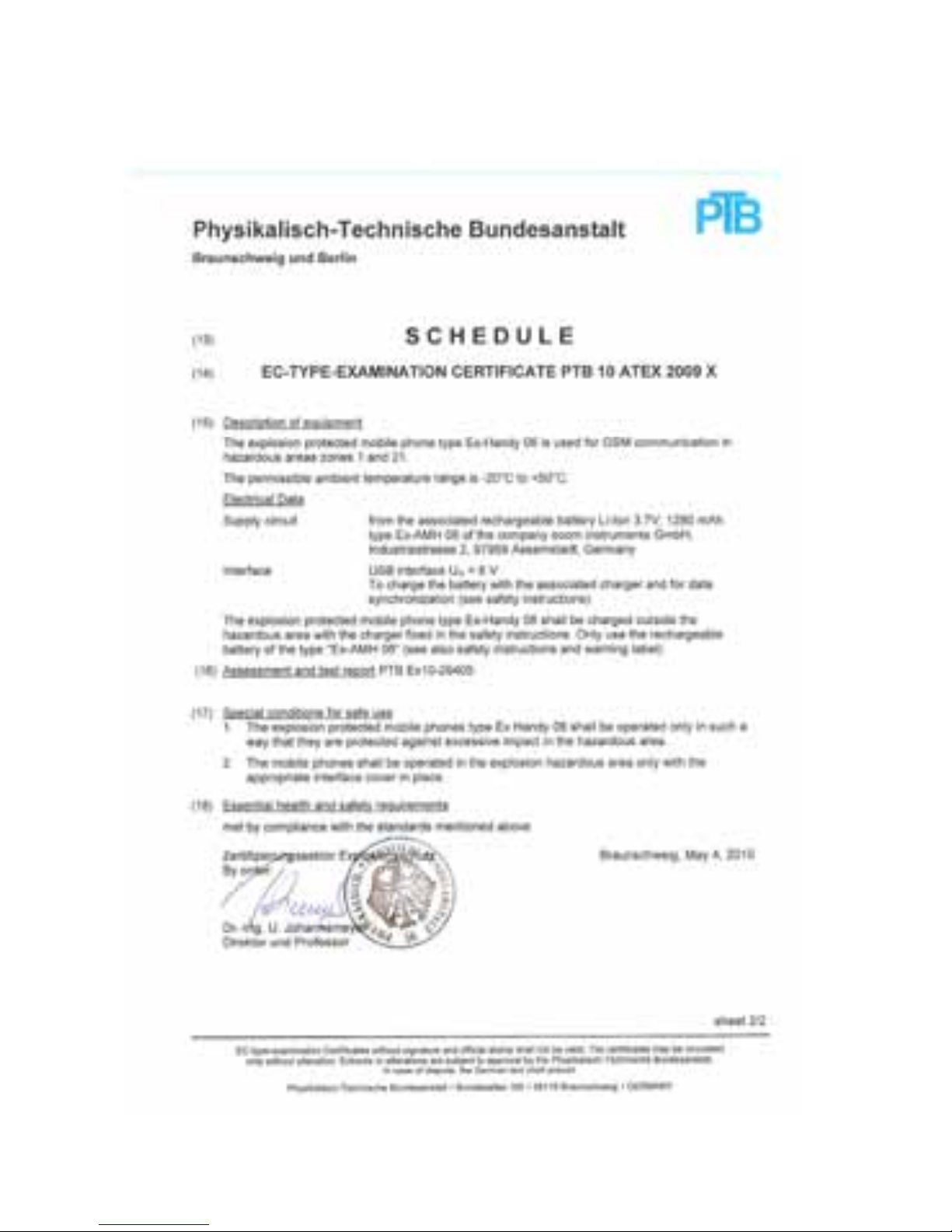

15. EC type approval test certificate 33

Note:

The current safety precautions, operating instructions, EC Declara­tion of Conformity and the EC type approval test certificate can be
downloaded from the relevant product page at www.ecom-ex.com, or
alternatively they can be requested directly from the manufacturer.

19

1. Application

The Ex-Handy 06 is an explosion-shielded, water-, dust- and impact­resistant mobile phone for industrial application in areas with an
increased risk of explosion in zones 1, 2, 21 and 22 in accordance
with directive 1999/92/EC (ATEX 137) and 94/9/EC (ATEX 95).

2. Safety instructions

These safety instructions contain information and safety regula­tions which are to be observed without fail for safe operation in
the described conditions. Non-observance of this information and
these instructions can have serious consequences or it may violate
regulations.

Please read these operating instructions carefully before starting to
use the unit! In the event of conflicting information the details speci­fied in the safety precautions shall apply.

In case of any doubt (in the form of translation or printing errors) the
German version shall apply.

3. Faults and damage

If there is any reason to suspect that the safety of the unit has been
impaired, it must be withdrawn from use and removed immediately
from the Ex-area. Measures must be taken to prevent it from being
restarted accidentally.

The safety of the unit may be compromised, if, for example:

- there is visible damage to the housing.

20

- the unit has been subjected to excessive loads.

- the unit has been improperly stored.

- the unit has been damaged in transit.

- unit markings or inscriptions are illegible.

- malfunctions occur.

- permitted limit values have been exceeded.

4. Safety regulations

Use of the explosion-proof mobile phone Ex-Handy 06 assumes that
the operator complies with conventional safety regulations and has
read the certificate in order to eliminate faulty operation of the unit.

The following points are to be observed:

- The unit is to be protected from increased impact.

- The unit should not be opened inside the Ex-area.

- The battery module may not be changed inside the Ex-area!

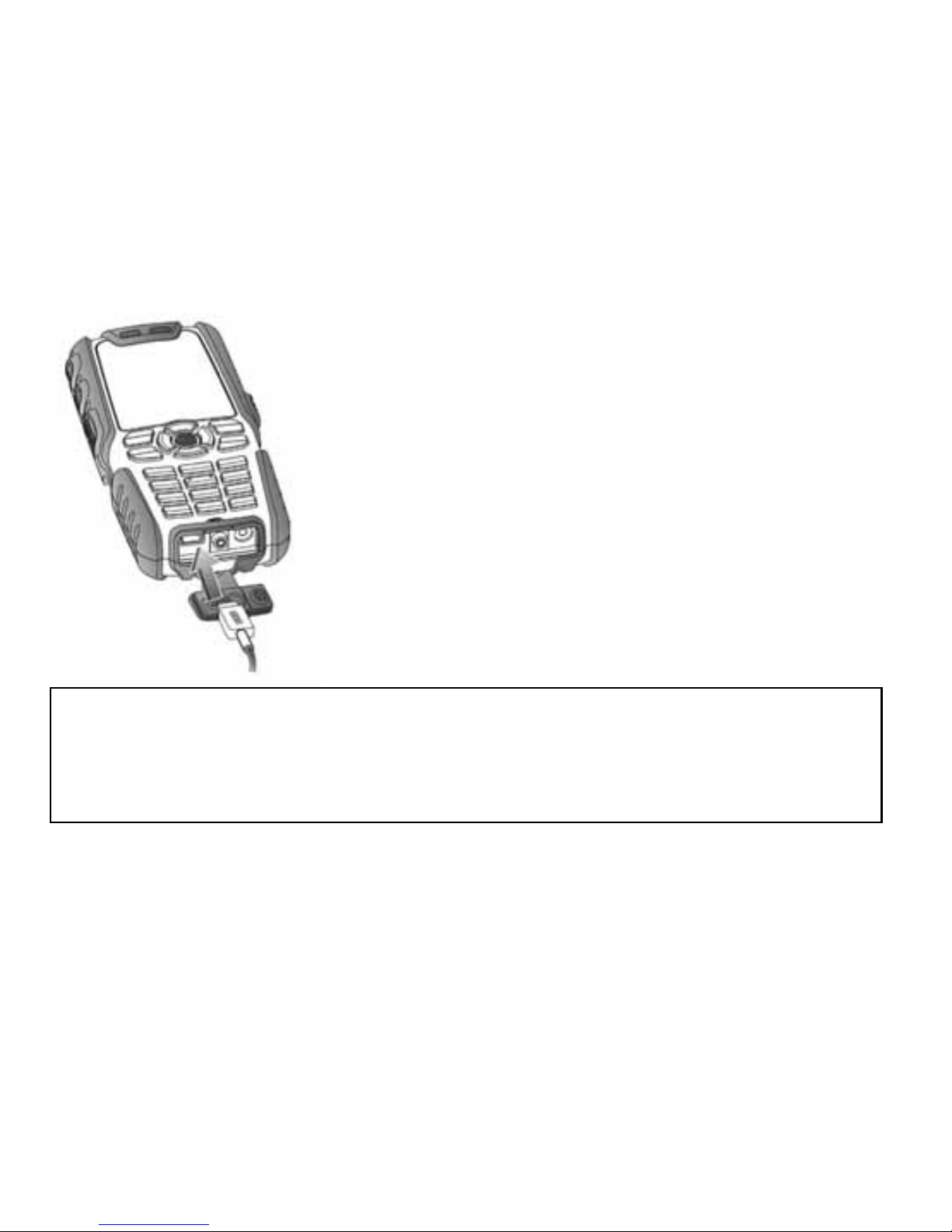

- The battery module may only be charged outside the Ex-area and
only then using the following appropriate chargers:
battery charger DSA-0051-05C, DSC-6PFA-05 or car charger
ALX 20. Data synchronization and charging via USB data cable
PCX 20 connected to a commercially digital evaluation device (eg
personal computer) tested according to EN 60950.
The USB signals are specified to Um = 6 V.

- The battery module may only be charged in a temperature range of
0 °C - 45 °C.

- Only accessories approved by ecom instruments GmbH may be
used.

21

- Observe the corresponding laws that are in force in the respecti­ve country regarding the use of mobile phones while operating a
vehicle!

- Use of the mobile phone in an airplane is not permitted!

- Switch off the mobile phone when in close proximity to medical
instruments and if you are requested to do so by corresponding
regulations!

- Manufacturers of cardiac pacemakers recommend a minimum
distance of 15.3 cm (6“) is maintained between a mobile phone and
a pacemaker.

- Do not switch on the mobile phone when the use of such devices is
prohibited, as it may cause interference or result in danger.

- Only the original battery module AMX 60 Ex-AMH 06 (Li-Ion 3,7V)
should be used!

- The charging socket cover must be firmly engaged in the unit.

- When changing the battery the unit and the battery terminals are to
be checked for cleanliness and cleaned, if necessary.

- It must be ensured that the unit is not taken into zones 0 or 20!

22

5. Ex-Data

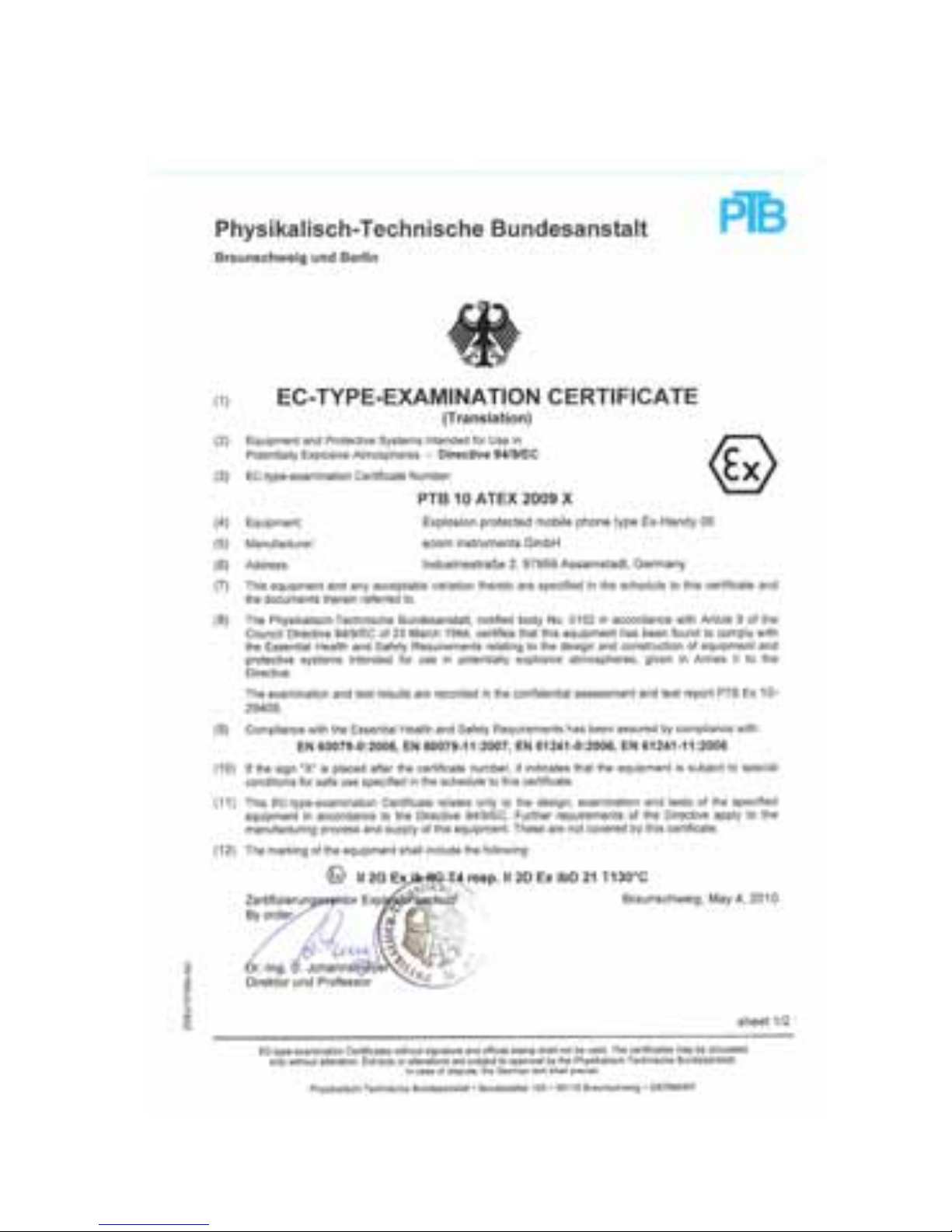

Certificate of Conformity no.: PTB 10 ATEX 2009 X

Ex-designation: II 2G Ex ib IIC T4
II 2D Ex ibD 21 T130°C

Ex-Handy 06
Approved for zone 1, device group II, explosion group IIC (explosive
gases, vapours or mist), temperature class T4.
Approved for zone 21, device group II, dust Ex-atmosphere, max. sur­face temperature (for surfaces on which dust can develop) +130 °C.

6. Technical specifications

Networks:
GSM 900 MHz
1800 MHz
1900 MHz
Power supply: Battery module Ex-AMH 06
Dimensions: 119 x 57 x 30 mm
Weight: approx. 200 g

CE-designation: 0 0102

Ambient temperature: -20 °C ... +50 °C
Protection rating: IP 67
