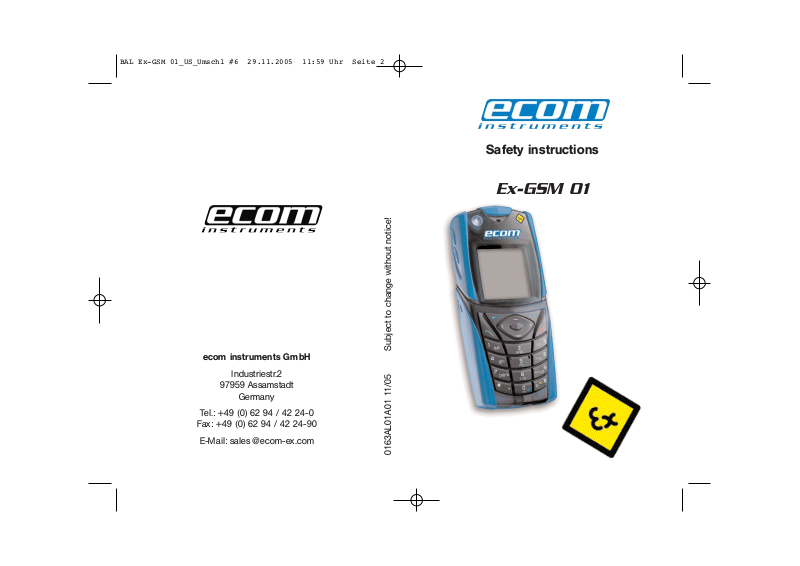

Safety instructions
Ex-GSM 01
1
1 Application 2
2 Safety instructions 2
3 Errors and load restrictions 2
4 Safety regulations 3
5 Ex-data 3
6 Accessories 3
7 Technical Data 3
8 Operating instructions 4
8.1 Safety in traffic 4
8.2 Operating environment 4
8.3 Electronic equipment 4
8.3.1 Cardiac pacemaker 5
8.3.2 Hearing aid 5
8.3.3 Other medical equipment 5
8.3.4 Places with appropriate signs 5
8.4 Transport 6
8.4.1 Motor vehicles 6
8.4.2 Aircrafts 6
8.5 Emergency calls 6
9 Certification Information (SAR) 7
10 Commissioning 9
10.1 Getting started 9
10.1.1 Installing the SIM card and battery 9
10.1.2 Charging the battery 11
10.1.3 Switching the phone on and off 11
10.1.4 Keys and connectors 12
10.1.5 Changing the shell and key mat 13
10.1.6 Attaching the carrying strap to the phone 14
10.2 Standby mode 15
10.2.1 Main indicators in standby mode 16
10.2.2 Some useful shortcuts in standby mode 16
10.2.3 Keypad lock (Keyguard) 17
10.3 Telephone functions 17
10.3.1 Infrared 17
10.3.2 GPRS 17
10.3.3 Java™-Applications 18
10.3.4 Voice commands 18
10.3.5 Push to talk 18
10.3.6 E-Mails 19
10.4 Access codes 19
11 Repairs 20
12 Care and maintenance 20
13 Warranty and Liability 21
14 Certificate of Compliance 23
14.1 For USA 23
14.2 For Canada 25
15 Control Drawing 27
2
Note:
The current safety instructions, and the Ex-certificate are available
for download from the relevant product page under www.ecom-ex.com;
alternatively they can be requested directly from the manufacturer.
1 Application
The Ex-GSM 01 is a portable Non-Incendive cell phone for industrial use in
explosion-hazardous areas of Class I, DIV 2, Groups A, B, C and D according
to FM standards.
2 Safety instructions
These safety instructions contain information and safety regulations that must
be followed to ensure safe and reliable operation of the unit under the described conditions. Failure to follow the information and instructions can have
dangerous consequences or may contravene applicable regulations.
Please take the time to carefully read through the owner’s manual before you start
using the unit.
3 Errors and load restrictions
If there is any risk that the safety or integrity of the unit has been compromised, the unit must be taken out of operation immediately and removed from
the Ex-area without delay.
Action must be taken to prevent the device from being accidentally placed into
operation again.
We recommend that the unit should be sent to the manufacturer to be examined.
The safety and reliability of the unit may be at risk if, for example:
- visible damage is evident on the housing,
- the unit has been subjected to excessive loads for which it is not designed,
- the unit has been improperly stored,
- the unit has been damaged in transit,
- inscriptions or lettering on the unit are illegible,
- malfunctions occur,
- permitted tolerances or threshold values have been exceeded.
3
4 Safety regulations
Any person using the unit must observe the standard safety regulations and
read the certificate to prevent incorrect operation or abuse of the unit.
The following additional safety regulations must also be observed:
- The unit must not be opened within the Ex-area.
- The battery must only be changed outside the Ex-zone.
- Additional or spare batteries must not be carried in the Ex-area.
- The battery must only be charged outside of the Ex-area with the appropriate/original charger.
- Only the battery module NOKIA BL- 5B may be used.
- It must be ensured that the unit is not taken into DIVISION 1.
- Only accessories approved by ecom instruments GmbH may be used.
- Avoid the use in aggressive acids and alkalis.
5 Ex-data
Report Job Identification No.: 3025128
FM-Indicator: NI/I/2/ABCD T6, Ta = 50°C
Intrinsically Safe for use in a Class I, Division 2, Groups A, B, C & D with a
Temperature class of T6
6 Accessories
It is possible to connect the associated NOKIA headset HS-8 - other connections are not allowed inside hazardous areas.
The battery must be charged with the appropriate charging set outside of the
hazardous area only.
7 Technical Data
Ambient temperature Ta: 14 °F to 122 °F (-10 °C to 50 °C)
Battery type: Standard Li-Ion Battery 760 mAh, NOKIA BL- 5B
Talk Time: Up to 5 hours
Standby Time: Up to 10 days
Battery talk and standby times are estimates only and depend on network configuration, signal strength,
features used, battery age and condition, charging practices, temperatures to which battery is exposed,
whether use is in digital mode (or analog mode, if any), and many other factors. Please note that the
amount of time a phone is used for calls will affect its standby time. Likewise, the amount of time that the
phone is turned on and in standby mode will affect its talk time.
4
Size: 4.1 in x 1.8 in x .9 in (10.6 cm x 4.7 cm x 2.4 cm)
Weight: 3.5 ounces (101 grams)
8 Operating instructions
Before using the equipment for the first time, please read the safety and operating instructions very thoroughly. Remember there is no vibra call in your
modified ex-cell phone, please ignore all instructions in the original operating
manual which describe the use and function of the vibra call. Further, the integrated camera is deactivated due to ex-relevant reasons.
8.1 Safety in traffic
NEVER attempt to hold a mobile phone in the hand whilst driving a motor vehicle. Never lay it on the passenger seat or in an unsecured place, as in the
event of sudden braking or manoeuvres serious injury or damage may be
caused by the unit being thrown around. Secure the phone in the holder provided for it.
Never forget that:
Road safety has priority!
8.2 Operating environment
The regulations valid for a particular area must be complied with under all circumstances. The mobile phone unit must always be switched off when the
use of mobile telephones is forbidden or when interference could be caused
which could result in dangerous situations.
The unit must always be held in the normal operating position. As parts of the
telephone are magnetic, metal objects could be attracted. Particularly, persons
with a hearing-aid should not use the on an ear which has a hearing-aid fitted.
To prevent metal objects being attracted to the telephone, it should always be
secured in the suitable holder provided for it. Never let a credit card or other
device storing data magnetically come near the telephone as this could result
in the data being erased.
8.3 Electronic equipment
Most modern electronic equipment is screened to prevent interference from
socalled RF-signals (radio frequencies). However it is just possible that certain
pieces of equipment are not screened against the RF-signals generated by
your mobile telephone.
5
8.3.1 Cardiac pacemaker
The following instructions apply to persons fitted with a cardiac pacemaker:
• When the mobile phone unit is switched-on, ensure that a minimum distance
of 20 cm between the mobile- phone unit and the Pacemaker is maintained.
• In order to help guarantee this distance, it is recommended that the mobile
phone unit is not kept in a breast pocket.
• To minimise interference we recommend that the ear furthest away from the
Pacemaker is used when using the mobile phone unit.
• Furthermore, we recommend that should you suspect that damage to the
Pacemaker has been caused, you should switch the mobile phone unit off
immediately. In order to guarantee the correct functioning of your
Pacemaker, you should seek medical advice.
8.3.2 Hearing aid
In case of malfunctioning of certain types of hearing aid, please refer the problem to your local service provider.
8.3.3 Other medical equipment
As with other electronic equipment, your mobile phone can interfere with
inadequately screened medical equipment. Should you need information on
the screening needed to protect an item of medical equipment against external RF signals, please contact the doctor responsible or the manufacturer of
the equipment. In general, to avoid malfunctioning, you should switch your
mobile phone off in all health institutions where this is specifically requested
by signs, labels or regulations.
Please remember:
In hospitals and other health institutions, equipment is used which is
very susceptible to interference from external RF.
8.3.4 Places with appropriate signs
You should switch your mobile phone off wherever there are signs requesting
this.
6
8.4 Transport
8.4.1 Motor vehicles
In certain circumstances, RF signals can interfere with the correct functioning
of incorrectly installed or inadequately screened systems in your motor vehicle (e.g. electronically controlled fuel injection, electronic ABS - (Antilock
Brake Systems), electronic speed controllers or airbag systems). You can
obtain information about your vehicle from the manufacturer or his representative.
To be on the safe side and avoid malfunctioning, you should have your mobile
phone built into your car by a qualified person. Incorrect installation or maintenance can have dangerous consequences.
Don’t forget that these faults result in invalidation of the guarantee given with
the unit.
We recommend a regular check of the parts of the mobile telephone installed
in your vehicle. In the case of an accident in a vehicle fitted with airbag(s),
these are filled with great force. In order to minimize the risk of injury or malfunctioning, no parts should be installed in the space that would be taken up
by the inflated airbag
8.4.2 Aircrafts
The use of mobile phones in aircrafts is normally forbidden. You should therefore switch the mobile phone off before boarding the aircraft. Because the use
of a mobile telephone on board an aircraft can have dangerous consequences, failure to comply with this regulation can result in the mobile telephone
services of the offender being suspended or denied and/or legal action taken
against the offender.
8.5 Emergency calls
Because a 100% coverage of the mobile-telephone network is technically very
difficult to realize, a connection cannot be guaranteed in all situations and
locations.
We therefore recommend that you do not rely entirely on the mobile telephone
when it is question of communication in a medical emergency. A guaranteed
acceptance of an
emergency call is also not possible when additional telephone functions or net
services are activated. Information on this subject can be obtained from the
mobile telephone operator.
7
Procedure in the event of an emergency call:
1. Switch the telephone on if it is not already switched on. Check whether
the signal strength is adequate. In certain networks it may be necessary
to plug a valid SIM card into the telephone.
2. Press the red off / END key as many times as is necessary (e.g. to end
call or quit a menu etc.) to erase the display and prepare the mobile
telephone for making a call.
3. Enter the emergency number (e.g. 911, 112 or some other official emer
gency number) which is valid for your current location. The emergency
numbers vary from place to place.
4. Press the green call / SEND key.
Important :
If you happen to have activated several functions, it may be that you
must
switch them off first before you can make the emergency call.
9 Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE
TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Governement. These limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by
8
the FCC is 1.6 W/kg*. Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined
at the highest certified power level, the actual SAR of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the
power output.
Before a phone model is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests are performed
in positions and locations (for example, at the ear and worn on the body) as
required by the FCC for each model.
The highest SAR value for this model phone as reported to the FCC when
tested for use at the ear is 1.26 W/kg, and when worn on the body, as described in this user guide, is 1.29 W/kg. (Body worn measurements differ among
phone models, depending upon available enhancements and FCC requirements).
While there may be differences between the SAR levels of various phones and
at various positions, they all meet the government requirement. The FCC has
granted an Equipment Authorization for this model phone with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found
under the Display Grant section of http://www.fcc.gov/oet/fccid after searching
on FCC ID LJPNPL-4.
For body worn operation, this phone has been tested and meets the FCC RF
exposure guidelines for use with a carry case, belt clip, or holder that contains
no metal and that positions the headset a minimum of 5/8-inch (1.5 cm) from
the body. Use of other carry cases, belt clips, or holders may not ensure compliance with FCC RF exposure guidelines. If you do not use a body-worn
accessory and are not holding the phone at the ear, position the handset a
minimum of 5/8-inch (1.5 cm) from your body when the phone is switched on.
* In the United States and Canada the SAR limit for mobile phones used by
the public is 1.6 watts/kilogram (W/kg) averaged over one gram tissue. The
Loading...
