1 Interduction

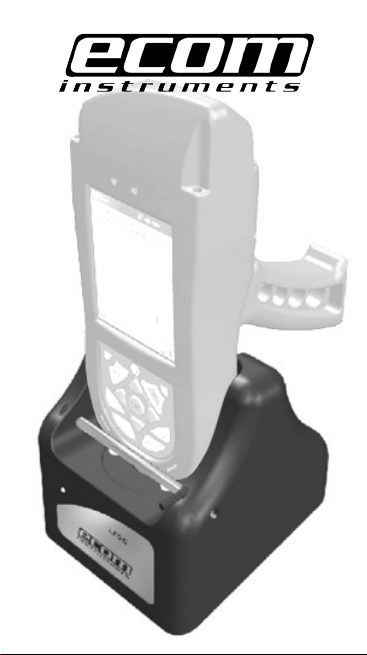

The docking station DS x10 is an USB docking
station between the ecom i.roc x10 -Ex and a PC
with an USB port for the use outside hazardous
areas. All different i.roc x10 versions (41x, 51x, 61x)
can be used.
2. Safety Advice
These instruction manual contain information and
safety regulations that must be followed to ensure
safe and reliable operation of the unit under the
described conditions. Failure to follow the information and instructions can have dangerous consequences or may contravene applicable legislation.
Please take the time to carefully read through these
safety instructions before you start using the unit.
In the event of any doubt or discrepancies
(e.g. due to translation or printing errors),
the German version of the
instruction manual shall govern.
15
3. Faults and Damage
If there is any reason to suspect that the safety of
the unit has been affected then it must be immediately withdrawn from use and precautionary measures taken in order to prevent any further use.
It is recommended that the equipment be then
sent back to the manufacturers for testing.
The safety and integrity of the unit may
be compromised by, for example:
- External damage to the housing.
- Exposure to excessive loads.
- Incorrect storage of the unit.
- Damage sustained in transit.
- Correct certification is illegible.
- Functionality errors occur.
4. Safety Regulations
The use of the docking station DS x10 meets the
requirements of the regulations providing that the
user observes and applies the requirements as
laid down in the regulations and that improper and
incorrect use of the unit is avoided.
16
5. General Safety Instructions
- The device must not be brought into the
Ex-area.
- The device may be operated only with the
designated LG x10 charger.
6 Technical data
Ambient temperature: 0°C .... +45°C (32°F...113°F)
Storage temperature: -10°C .... +60°C (14°F...140°F)
Weight: ca. 1040 g (36,7 oz)
Dimensions: 134 x 120 x 120 mm
CE designation:
(5,3’’ x 4,7’’ x 4,7’’)
7 Functional description /
Operating Instructions
Please take the time to read carefully through
this instruction manual to ensure that you are
familiar with and can use all the functions on
your device. For you own safety and information
please read through the information on the
following pages!
17
7.1 Content of delivery / order numbers
# A0002797
-adapter for i.roc x10
-contact board for adaptor
# A0002796
-docking station i.roc x10
-USB cable
complete set # AS002795
-docking station DS x10
-USB cable
-adapter for i.roc x10
-contact board for adaptor
# ET0002752
-contact board for adaptor
7.2 Installing ActiveSync
Note:
To ensure that synchronisation functions correctly, Microsoft ActiveSync 3.7 or higher
must be installed on your PC before you connect the i.roc x10 and PC using the docking
station DS x10.
How to install Microsoft ActiveSync on your PC:
1. Insert the enclosed Companion CD into the CD
drive on your PC.
2. Select the link for installing Microsoft
ActiveSync.
18
3. Follow the instructions given by the installation
wizard. You can obtain additional information
when installing ActiveSync by clicking on the
Help button.
4. Once ActiveSync has been installed on the PC,
connect the two devices using the docking
station.
Note:
Microsoft Outlook 98 or higher must be installed on your
PC to be able to synchronise emails with your i.roc x10 Ex pocket PC using Microsoft ActiveSync. If you do not
use Outlook, install the Microsoft Outlook 2002 software
from the companion CD. Microsoft Outlook Express does
not function with the i.roc x10 Pocket PC and
ActiveSync.
7.3 Synchronising with your PC
After installing ActiveSync, you can:
- set-up partnerships and use them to synchronise
data with a maximum of two PCs.
- select the data to be synchronised with your
i.roc x10 -Ex pocket PC, for example
contacts, calendar, inbox, tasks, favourites, files,
memos and AvantGo.
19
Note:
To synchronise files, drag the selected files from your
PC into the synchronised folder on the i.roc x10 -Ex
pocket PC. If when you created the partnership, you
called the pocket PC "PC1", for example, the synchronised folder will also be called "PC1". During the synchronisation process, the files are moved onto or from the
i.roc x10 -Ex Pocket PC.
7.4 Ports
1. Status LED
No i.roc inserted
charger LG x10 fits correctly to
mains voltage
An i.roc is inserted correctly and
connected charger
LG x10 fits correctly to mains voltage
Note:
The status LED shows not the charging state
of the i.roc, this is shown via the red LED on
the i.roc itself.
20
2. pen holder
3. USB port for PC connection
4. port for charger LG x10
Note:
Always connect the DS x10 docking station
with an inserted and powered LG x10 charger
before connecting to a PC or the i.roc x10 -Ex.
7.5 Connecting to a PC
7.5.1 Unscrew the adaptor from the backside of the
docking station.
7.5.2 Screw the adaptor to the 5 pin charging plug on
the buttom side of the i.roc x10.
Note:
A reverse polarity with the
adaptor or contact board is not
possible. You can connect it to
the i.roc x10 in any direction.
21
7.5.3 Insert the i.roc x10 into the docking station.
Note:
When the i.roc x10 is connected correctly to
the PC and mains voltage, it starts immediately charging and establishing a connection.
If this is not the case please check the correct connection of the cables and refer to the
part troubleshooting inside the i.roc x10
manual.
7.6 Replacement of the contact board
During normal use the contact board has some
kind of abrasion. If you cannot connect between
i.roc x10 and docking station any more, please replace the contact board by srewing the adaptor off.
These contact board can be ordered separately.
22
8 Repairs
Repair work is subject to the nationally valid regulations and directives. We therefore recommend that
such work be performed by ecom instruments GmbH,
Germany, as all repairs must be examined to ensure
functional and safety.
9 Cleaning, Storage / Maintenance
- Only use a suitable cloth or sponge to clean the
device. Do not use solvents or abrasive cleaning
agents to clean the device.
- We recommended having the operation of the device
checked by the manufacturer every two years.
- The storage temperature must remain within the spe-
cified limits!
10. Guarantee and Liability
For this product, ecom Instruments GmbH guarantees
the function and material for a period of two years
under normal operating and maintenance conditions.
Wearing parts, rechargeable and non-rechargeable
batteries are exempt from this. A six-month warranty
applies to rechargeable batteries.
The guarantee does not apply to products which are
improperly used, modified, neglected, damaged in
23
accidents or exposed to abnormal operating conditions. Claims under the guarantee can be made by
returning the defective equipment to the manufacturer.
We reserve the right to repair, renew the settings or
exchange the device.
The above-mentioned guarantee conditions are the
sole and only right of the purchaser to compensation,
are exclusively valid and replace all other contract or
legal warranty obligations. ecom Instruments GmbH
accepts no responsibility for special, direct, indirect,
accompanying or consequential damage as well as
losses including the loss of data which may arise
through the use or acquisition of the equipment independent of whether it was caused by violation of the
warranty obligation, lawful or unlawful action, action in
good faith or any other action.
If in certain countries the limitation of a legal guarantee
as well as the exclusion or limitation of accompanying
or consequential damage is not permissible, it may be
that the abovementioned limitations and exclusions are
not valid for every
purchaser. Should any such clauses of these guarantee terms be declared null and void or not realisable
by a competent court, then the effectiveness or enforceability of any of the other conditions of these guarantee terms will be unaffected by the court decision.
24
11 Declaration of EC conformity
Herewith, ecom instruments GmbH declares that the
product is in conformity with all applicable and
necessary standards.
Note:
Further details regarding decleration of conformity
and product information can be found
at the downloadbutton on:
http://www.ecom-ex.com
25
ecom instruments GmbH
Industriestr. 2
D-97959 Assamstadt
Tel.: + 49 (0) 62 94 / 42 24 0
Fax: + 49 (0) 62 94 / 42 24 90
E-Mail: sales@ecom-ex.com
Internet: www.ecom-ex.com
