Ecolink Intelligent Technology PIRZB1 User Manual

ZigBee Home Automation 1.2
Wireless Digital Pet Immune PIR Detector

Installation Instructions

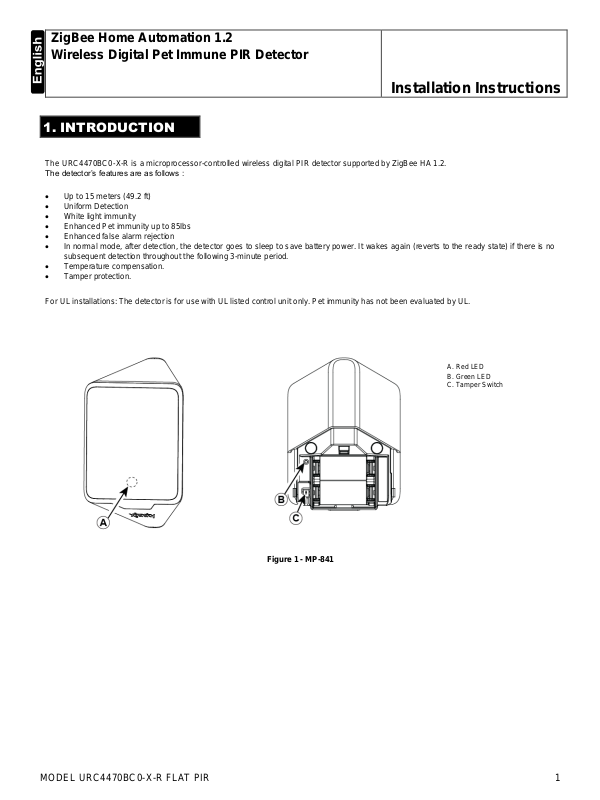

1. INTRODUCTION

The URC4470BC0-X-R is a microprocessor-controlled wireless digital PIR detector supported by ZigBee HA 1.2.
The detector’s features are as follows :

 Up to 15 meters (49.2 ft)
 Uniform Detection
 White light immunity
 Enhanced Pet immunity up to 85Ibs
 Enhanced false alarm rejection
 In normal mode, after detection, the detector goes to sleep to save battery power. It wakes again (reverts to the ready state) if there is no

subsequent detection throughout the following 3-minute period.

 Temperature compensation.
 Tamper protection.

For UL installations: The detector is for use with UL listed control unit only. Pet immunity has not been evaluated by UL.

Figure 1 - MP-841

A. Red LED
B. Green LED

C. Tamper Switch

MODEL URC4470BC0-X-R FLAT PIR 1

2. SPECIFICATIONS

Detector Type

Two - Dual element low-noise pyroelectric sensor

Optical Data

18 parabolic mirrors for long range
18 parabolic mirrors for close range

Max. Coverage

15 x 15 m, (49.2 x 49.2 ft) / 90°

Pet Immunity

Up to 38 kg (85 lb)

Internal Batteries

Two 3V Lithium batteries, type CR-123A. For UL installations, use Panasonic only

Nominal Battery Capacity

1400 mAh per battery

Battery Life (with LED on)

Typically over 5 years

Note: Inability to connect with wireless network, or wireless link quality no higher than 20% may

significantly reduce the expected battery life.

Battery Power Test

Performed immediately upon battery insertion and during each transmission to the panel

Alarm Period

3 seconds

Visual Indications

Red LED lights for about 3 seconds upon transmission of alarm & tamper messages and upon motion
detection in the walk test mode only.
Red LED flashes during the power-up stabilization period, or after restoring (pressing) the tamper switch.
Red LED does not light upon transmissions of supervision messages or alarm detection after termination
of walk test mode.

“Sleep” Timer

After an alarm, the detector will go into low power mode and not check for motion for 3 minutes. After 3
minutes the detector will check for motion. If there is still motion, it will NOT transmit. If after 3 minutes
there is no motion it will transmit to the panel. Timer disabled in the walk test mode

Supported Network

ZigBee H.A 1.2

Frequency

2.405 – 2.480 Ghz as per IEEE 802.15.4

Tamper Alert

Reported when a tamper event occurs and in any subsequent message, until the tamper switch is
restored

PFD

Signaling at 5 minute intervals

Check in

Signaling at 27 minute intervals

Height

2.9 m (7.5 ft).

Installation Options

Surface or corner

RFI Protection

>20 V/m up to 1000 MHz

Operating Temperatures

-10°C to 50°C (14°F to 122°F

Storage Temperatures

-20°C to 60°C (-4°F to 140°F)

USA

CFR 47 part 15

ANSI/UL 639

Size (H x W x D)

83 x 61 x 42 mm (3.27 x 2.4 x 1.66”)

Weight (with battery)

90 g (3.17 oz)

Color

White

ELECTRICAL

FUNCTIONAL

WIRELESS

MOUNTING

ENVIRONMENTAL

COMPLIANCE WITH STANDARDS

PHYSICAL

2 MODEL XXXX FLAT PIR
