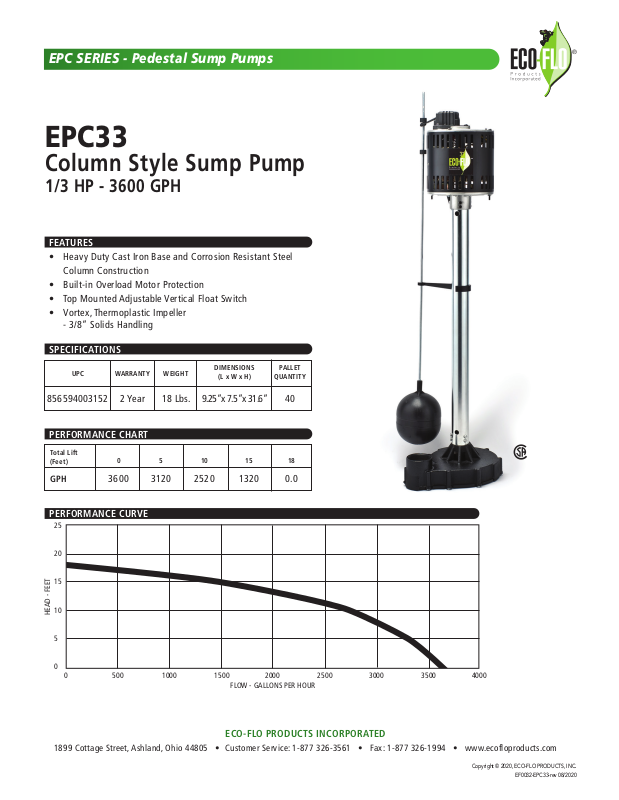

EPC SERIES - Pedestal Sump Pumps
EPC33
Column Style Sump Pump
1/3 HP - 3600 GPH
FEATURES
• Heavy Duty Cast Iron Base and Corrosion Resistant Steel
Column Construction
• Built-in Overload Motor Protection
• Top Mounted Adjustable Vertical Float Switch
• Vortex, Thermoplastic Impeller
- 3/8” Solids Handling
®
SPECIFICATIONS
UPC WARRANTY WEIGHT
(L x W x H) QUANTITY
DIMENSIONS PALLET
856594003152 2 Year 18 Lbs. 9.25”x 7.5”x 31.6” 40
PERFORMANCE CHART
Total Lift
(Feet)
GPH 3600 3120 2520 1320 0.0
0 5 10 15 18
PERFORMANCE CURVE
25
20
15
10
HEAD - FEET
5
0
0 500 1000 1500 2000 2500 3000 3500 4000
FLOW - GALLONS PER HOUR
ECO-FLO PRODUCTS INCORPORATED
1899 Cottage Street, Ashland, Ohio 44805 • Customer Service: 1-877 326-3561 • Fax: 1-877 326-1994 • www.ecofloproducts.com
Copyright © 2020, ECO-FLO PRODUCTS, INC.
EF0032-EPC33-rev 08/2020
