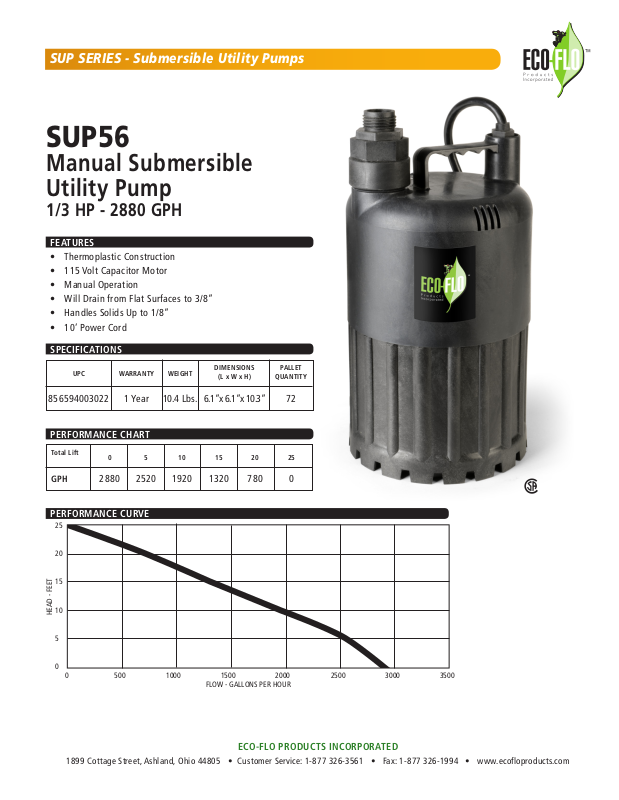

SUP SERIES - Submersible Utility Pumps
SUP56
Manual Submersible
Utility Pump
1/3 HP - 2880 GPH
FEATURES
• Thermoplastic Construction
• 115 Volt Capacitor Motor
• Manual Operation
• Will Drain from Flat Surfaces to 3/8”
• Handles Solids Up to 1/8”
• 10’ Power Cord
SPECIFICATIONS
UPC WARRANTY WEIGHT
(L x W x H) QUANTITY
856594003022 1 Year 10.4 Lbs. 6.1”x 6.1”x 10.3” 72
DIMENSIONS PALLET
PERFORMANCE CHART
Total Lift
GPH 2880 2520 1920 1320 780 0
PERFORMANCE CURVE
25
20
15
10
HEAD - FEET
5
0
0 500 1000 1500 2000 2500 3000 3500
0 5 10 15 20 25
FLOW - GALLONS PER HOUR
ECO-FLO PRODUCTS INCORPORATED
1899 Cottage Street, Ashland, Ohio 44805 • Customer Service: 1-877 326-3561 • Fax: 1-877 326-1994 • www.ecofloproducts.com
