Page 1

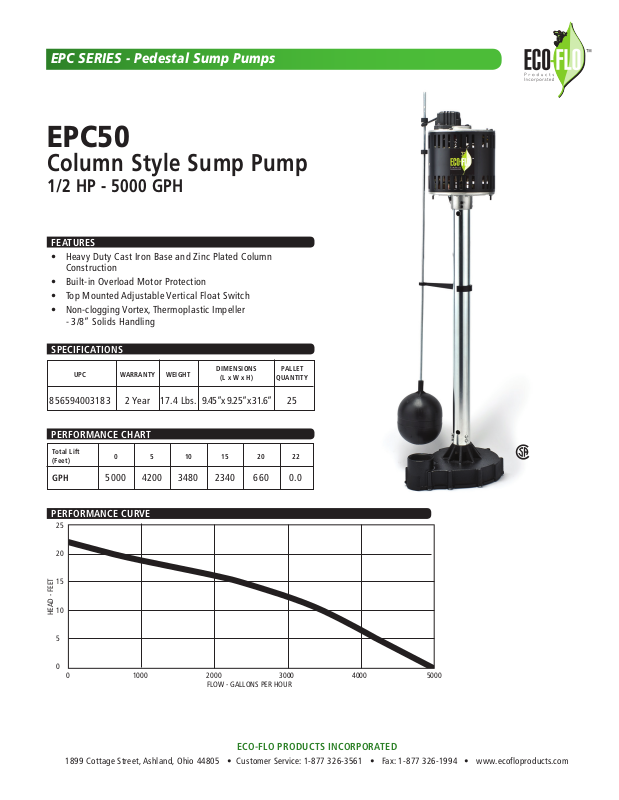

EPC SERIES - Pedestal Sump Pumps
EPC50
Column Style Sump Pump
1/2 HP - 5000 GPH
FEATURES
• Heavy Duty Cast Iron Base and Zinc Plated Column
Construction
• Built-in Overload Motor Protection
• Top Mounted Adjustable Vertical Float Switch
• Non-clogging Vortex, Thermoplastic Impeller
- 3/8” Solids Handling
SPECIFICATIONS
UPC WARRANTY WEIGHT
(L x W x H) QUANTITY
DIMENSIONS PALLET
856594003183 2 Year 17.4 Lbs. 9.45”x 9.25”x 31.6” 25
PERFORMANCE CHART
Total Lift
(Feet)
GPH 5000 4200 3480 2340 660 0.0
PERFORMANCE CURVE
25
20
15
10
HEAD - FEET
5
0 5 10 15 20 22
0
0 1000 2000 3000 4000 5000
1899 Cottage Street, Ashland, Ohio 44805 • Customer Service: 1-877 326-3561 • Fax: 1-877 326-1994 • www.ecofloproducts.com
FLOW - GALLONS PER HOUR
ECO-FLO PRODUCTS INCORPORATED
