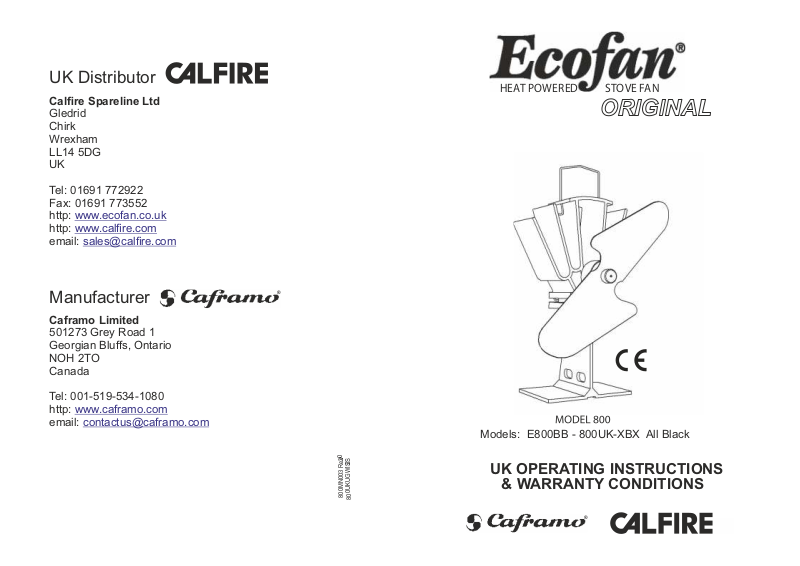

ECOFAN E800BB User Manual

UK Distributor

Calfire Spareline Ltd

Gledrid
Chirk
Wrexham
LL14 5DG
UK

Tel: [phone]
Fax: [phone]
http:

www.ecofan.co.uk

http:

www.calfire.com

email:

sales@calfire.com

HEAT POWERED STOVE FAN

Manufacturer

Caframo Limited

501273 Grey Road 1
Georgian Bluffs, Ontario
NOH 2TO
Canada

Tel: [phone]
http:

www.caframo.com

email:

[e-mail]

®

Models: E800BB - 800UK-XBX All Black

2

2

UK OPERATING INSTRUCTIONS

& WARRANTY CONDITIONS

800MN003 Rev0

800UKUGWISS

®

Ecofan Operating Instruction

The Ecofan is designed to be used on freestanding wood stoves with normal surface
temperatures of 230°F - 650°F (110°C- 345°C). Temperatures above 650°F (345°C) may
damage your Ecofan. Relocate your Eco f a n to a cooler spot on your stove if the surface
temperature exceeds 650°F (345°C). Good wood stove safety practice includes using a

stove thermometer.

®

UK Warranty

This product has a 2 year warranty.

Calfire Spareline Limited offer warranty support to UK residents who have bought their
Ecofans through bona fide UK retailers. If you bought your Ecofan direct from another
Country; through a non-authorised dealer or if you live outside of the UK, you will need to
contact the original seller for warranty support.

Safety

* Ensure the Ecofan handle is upright before placing on stove.
* While in use, the base of the Ecofan is very hot. DO NOT TOUCH!
When repositioning your Ecofan always use the handle.

Getting the Most From Your Ecofan

For optimum performance, placement on the stov es’s
surface is critical to allow cooler air to be drawn over the
cooling fins. Place the Ecofan at the back corner o f the
stove as shown in the diagram. Should the gap be tween
the Ecofan and back wall be less than 150mm (6”) then
move the Ecofan forward along the side of your stove and
turn it in slightly. This should ensure the fan can d raw
necessary cool air from the rear/side of the stove. The
Ecofan should not be used directly in front of the stove
pipe or at the front of the stove.

NOTE: Overheating will reduce the Ecofan’s effectiveness and may damage the
thermoelectric module and void the warranty. Remove the Ecofan from the stove if
temperature exceeds 650°F (345°C).

Model

Fuel Savings

Feel the Heat Faster*

Minimum Stove Top**

Blade Size

* T ime taken to reach 68°F (20°C) from a cold start of 63°F (17°C) in a standard test environment
ORIGINAL: 87 minutes UltrAir: 76 minutes AirMax: 68 minutes No fan: 110 minutes

** Temperature required to produce 50 CFM airflow

For further information or answers to Frequently Asked Questions

800 Original
100 CFM

12%

20%

230°F (110°C)

8" (206 mm)

please visit www.ecofan.co.uk

®

810 UltrAir

125 CFM

14%

31%

212°F (100°C)
8" (206 mm)

812 AirMax

175 CFM

18%

38%

185°F (85°C)

9" (232 mm)

This product is warranted to be free from any manufacturer’s defects in material and
workmanship for a period of 2 years from the date of purchase. Should this product become
defective or fail to operate under normal conditions within this 2 year period, simply email
ecofans@calfire.com advising which model you have; the serial number of your unit (found
on the underside of the top casting); when and from where you purchased the item and
details of the fault you are experiencing. If subsequently instructed to return the item then
this should be sent, with a copy of the warranty notification email and a copy of the o riginal
invoice or cash register slip, to the UK Ecofan distributor Calfire Spareline Ltd at the
following address:

Please ensure that you provide full contact details including an email address and mobile
phone number as these can be used by the carrier to advise when the returned parcel will be
delivered to you. Goods should not be returned without first having advised Calfire of the
problem being experienced and having received the instruction to do so.

This warranty does not cover abnormal wear or damages resulting from accident, misuse,
abuse or, if applicable, breakage (when such breakage is not due to a manufacturin g defect)
and any other incidental or consequential damages. This warranty is in lieu of an y other
expressed warrantie s.

Calfire Spareline Ltd., Gledrid. Chirk. Wrexham LL14 5DG

UK Refurbishment Service

Should repair become necessary after the warranty period has expired then review the ‘UK
Refurbishment Service’ options at: www.ecofan.co.uk/warrantyterms

Motor Replacement Kits

The Ecofan motor is designed for several seasons of use under
normal operating conditions. If your fan spins much slower or
the blade requires a push to start, a simple motor replacement
may be the solution.

Please contact Calfire Spareline Ltd at 01691 772922 or

Part # MRKCA02

Keep the Box

We recommend that you keep the your Ecofan box. You can use this for storage over the
summer months and it will make it easier if you need to return the fan under guarantee or for
refurbishment.

sales@calfire.com for further details or dealer information.

®
