How to install
your ecobee
Switch+
Installing this product involves
handling high voltage wiring. Each
step of the enclosed instructions must
be followed carefully.
To avoid fire, personal injury, or death,
turn off your circuit breakers and
follow the proper safety precautions
before proceeding.
UNSURE ABOUT HANDLING
ELECTRICAL WIRING?
CONSULT A QUALIFIED ELECTRICIAN.
Warning
Step-by-step visual
guides that land you
right at registration
Download the ecobee app—where you’ll
find videos, diagrams, and a guided tour
of registration and smart features.
Getting your Switch+
up and running is as
easy as 1-2-3
1. Download the ecobee app.
2. Install your Switch+.
3. Register ecobee Switch+ to
unlock Amazon Alexa and other
smart features.
You’ll need to turn off your power for
installation. We recommend getting
started during the day.
Daylight helps

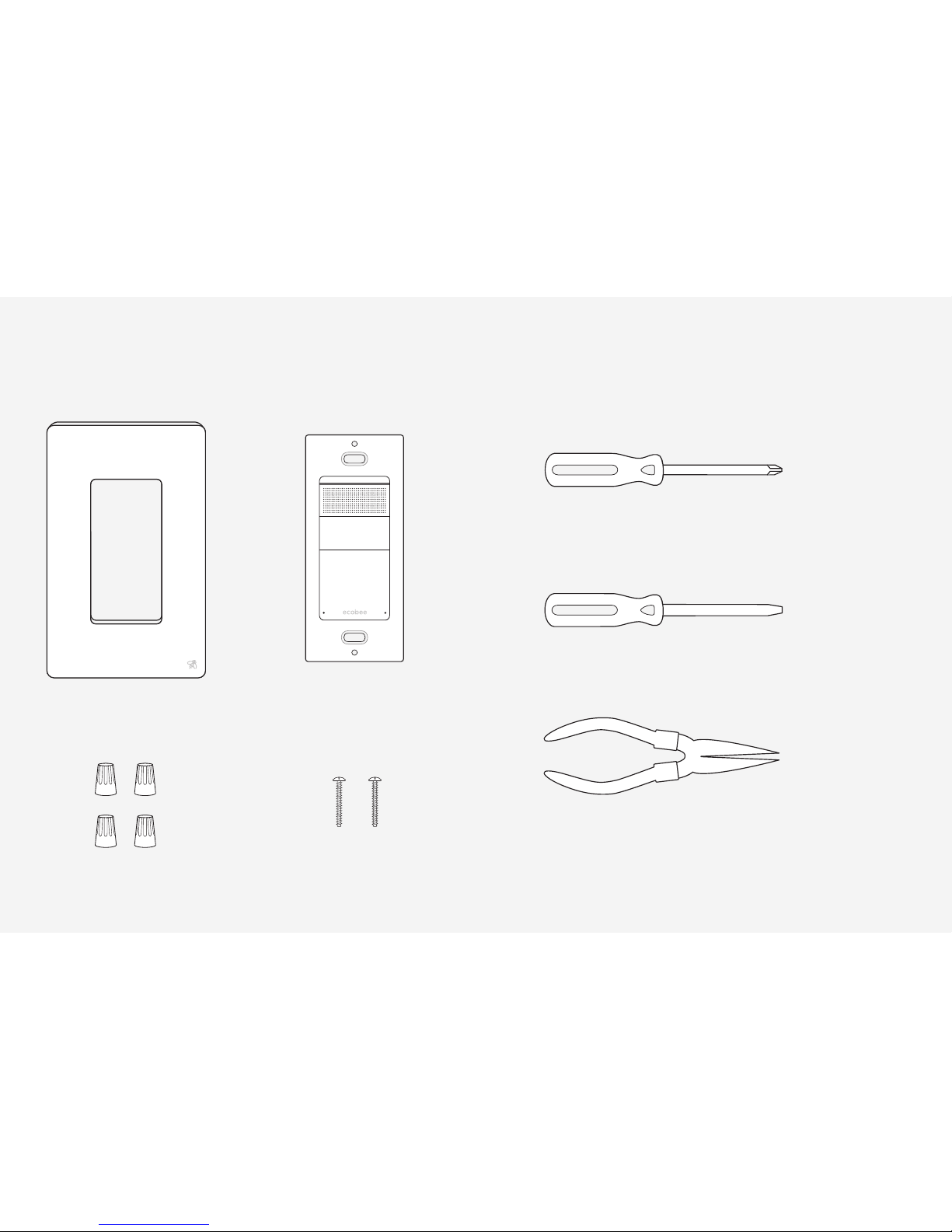

What’s in the box:
Wall plate
ecobee
Switch+
4 wire nuts
2 mounting
screws
Tools you’ll need:
Flat head
screwdriver
Phillips
head #2
screwdriver
Pliers
(optional)
Compatibility
and rating
1

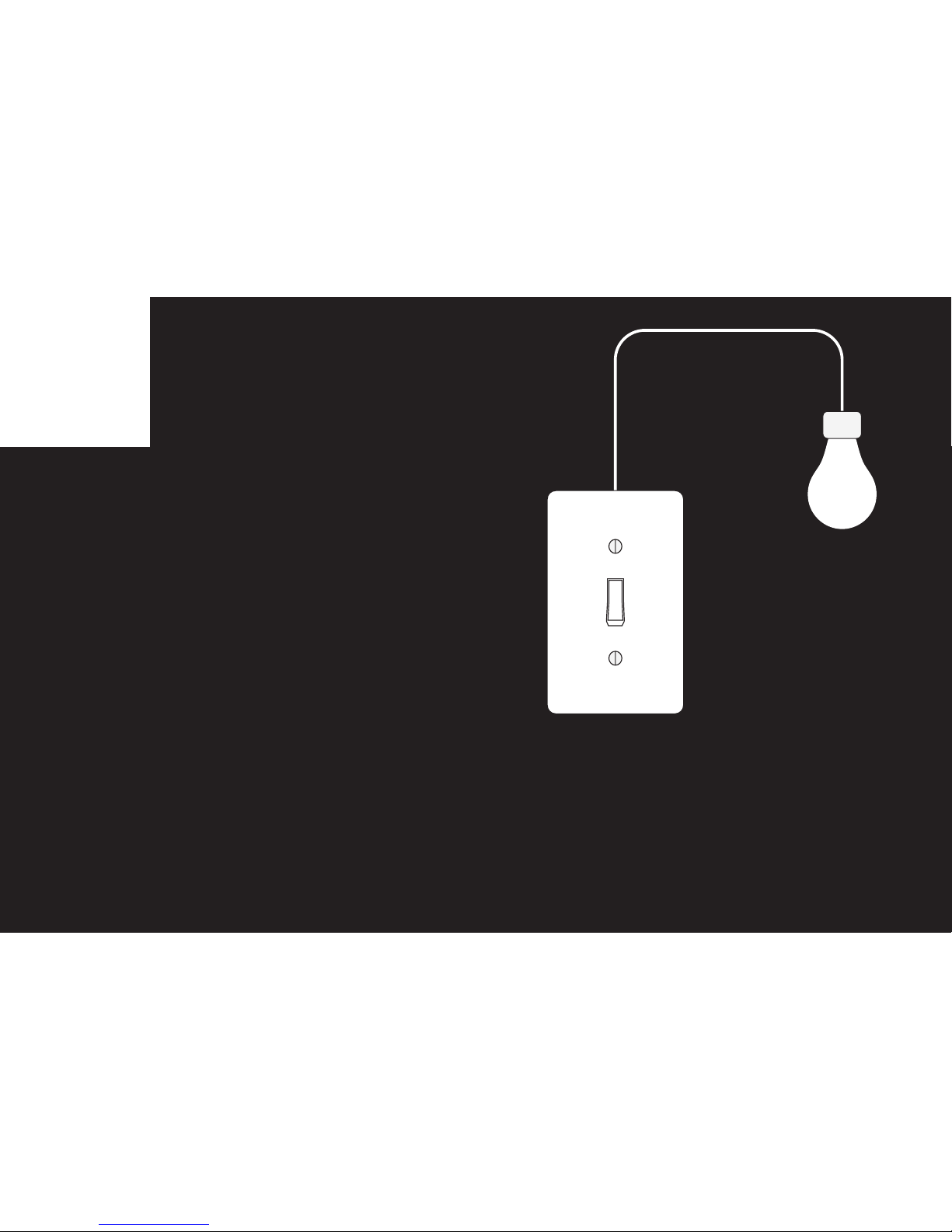

Is this location controlled
by only one switch?
ecobee Switch+ can only be installed in
locations where the light is controlled by
only one switch.
Rating
120V AC 60Hz
600W Incandescent
150W I.BAL (LED and CFL)
Do you have at least one
neutral wire in your set-up?
Neutral wires are white and come as
either a single wire or a pair. Unsure?
Keep reading for instructions.

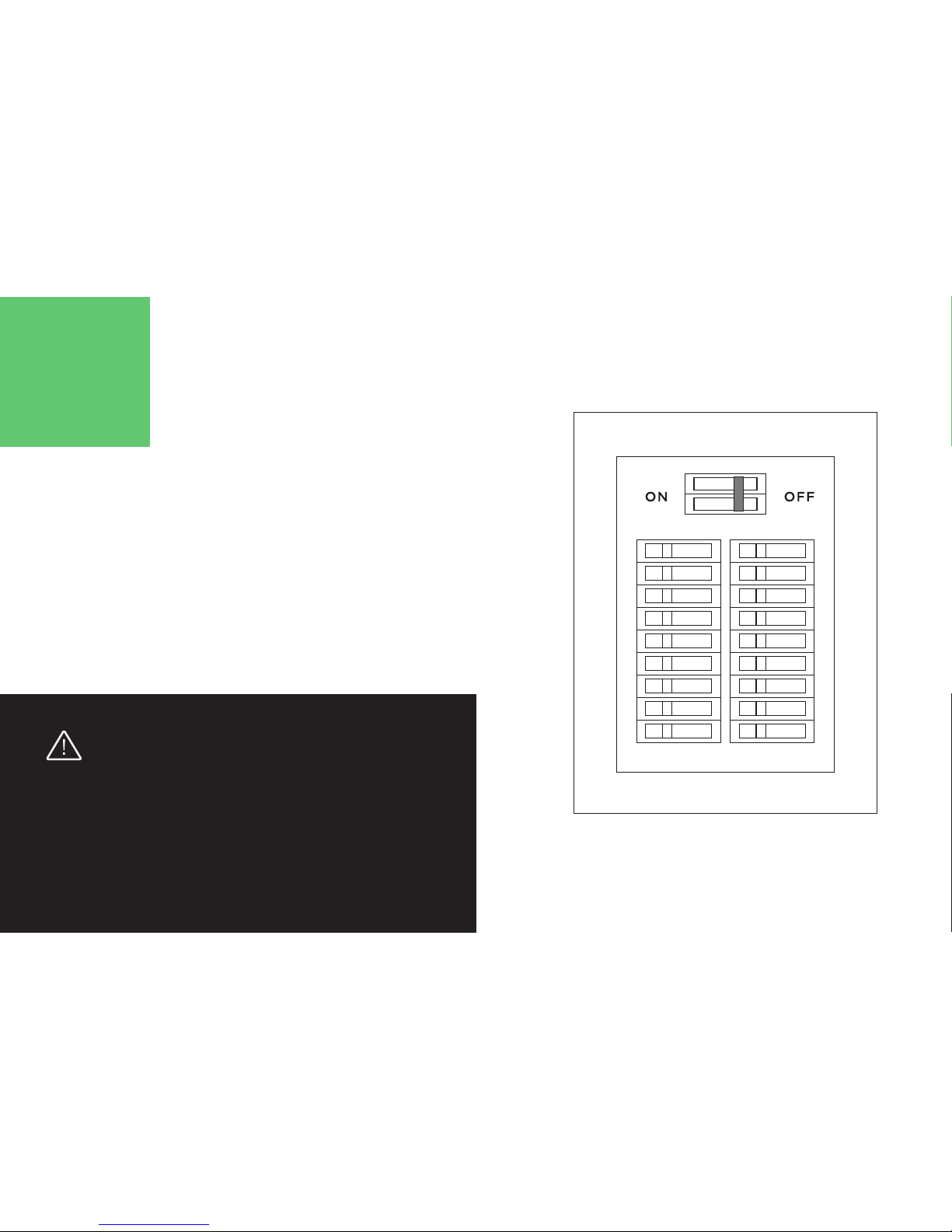

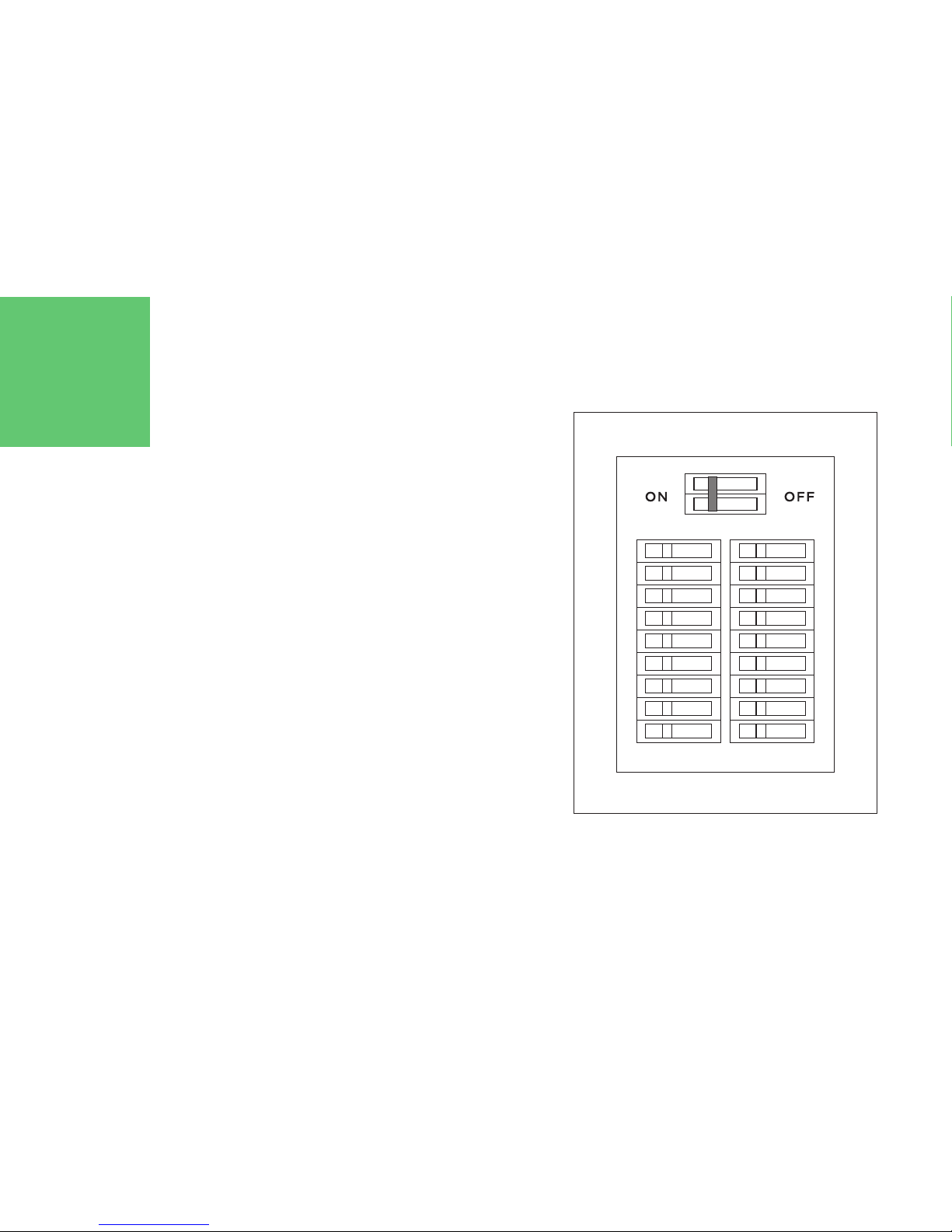

Turn off the circuit breaker for the switch
you’re replacing.
If breakers aren’t labeled, turn off
the master power.
Your lights should NOT turn on.
Confirm you’ve turned off the right
breaker by flipping your wall switch on
and off several times.
Before proceeding
2
Turn off
your breakers
If paint has dried around your
switch, it may require more
force to unmount it.

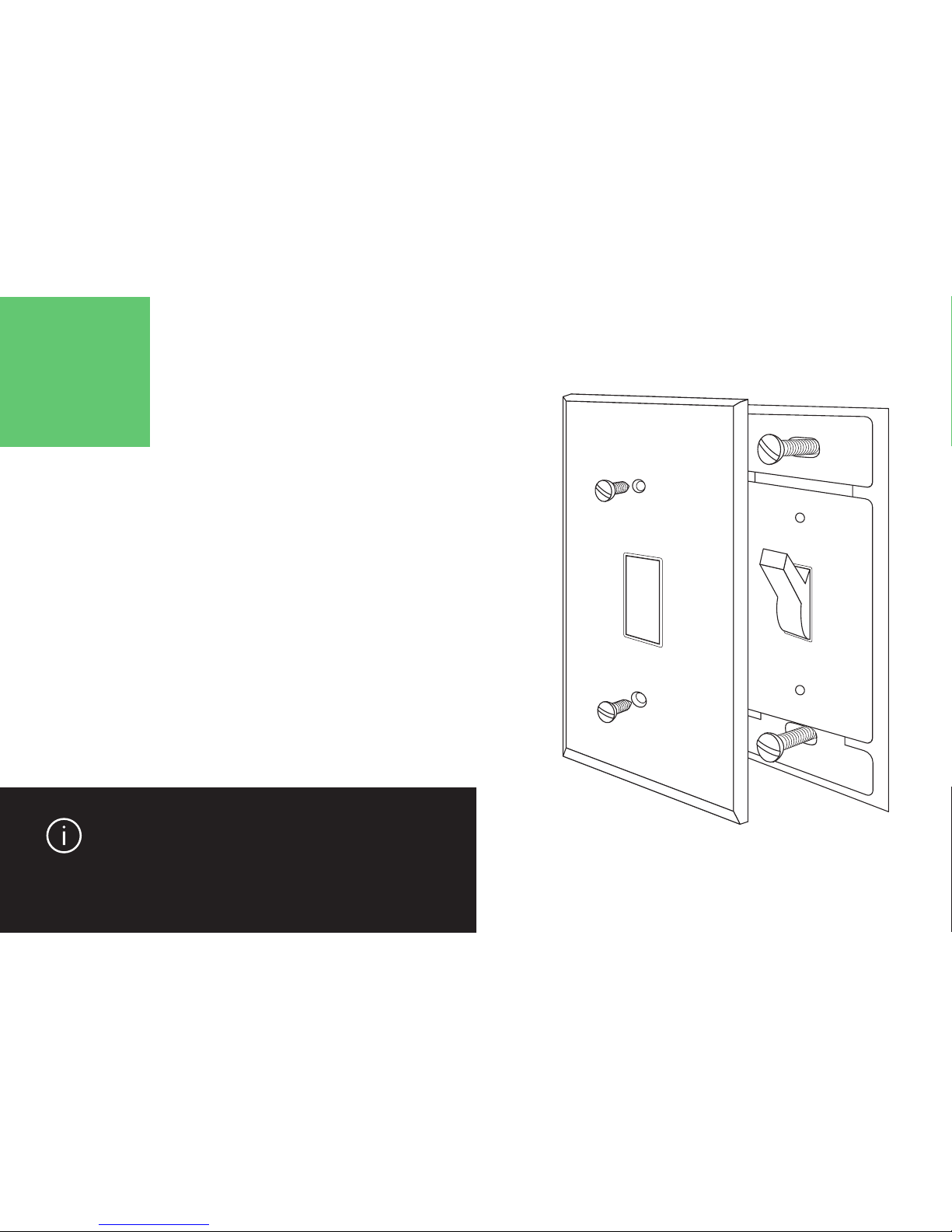

Unscrew your existing wall plate and
switch from the wall.
Disconnect the wires attached to
your switch by turning the wire nuts
counterclockwise. Remove your
existing switch.
Remove
old switch
3

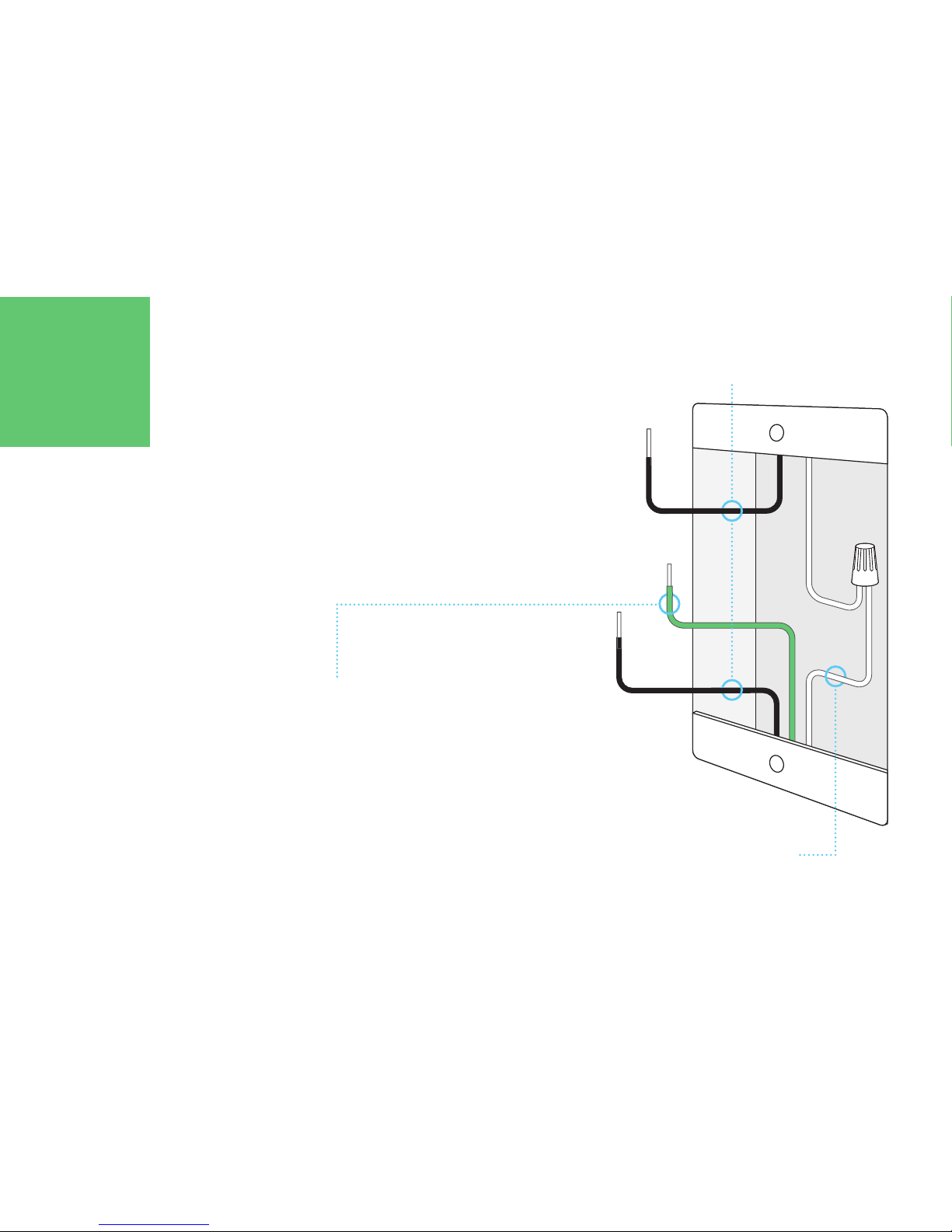

You should see 4 types of wires in your
wall box. Here’s how to identify them.
Identify
wires
4
Line and load wires (black or red)
are connected to your existing switch.
Ground wire (exposed copper or green)
typically comes from the wall box.
Neutral wires (white)
typically come in a pair and are
fastened together by a wire nut.
Needed for installation.
5
Line wire
(black)
Switch wires
(black)
Ground wire
(green)
Neutral wire
(white)
Load wire
(black)
Match the neutral wire from your Switch+
to the 2 neutral wires from your wall box.
Together, insert them into the wire nut
to connect. Match the remaining wires as
shown and secure with wire nuts.
Connect your
Switch+
Switch wire
Switch wire
Neutral wire
Ground wire
Line wire
Load wire
Neutral pair
Ground wire or screw
Don’t know how to use a wire nut?
Turn the page for help.
If you have pliers, use them to
gently twist wires together before
inserting them into the wire
nut. You can also use them to
straighten curved wires.
If they separate or shift inside the nut,
realign the wires and replace the cap.
Twist the cap clockwise until the wires
are secured.
Wire nuts are used to connect two or
more wires together.

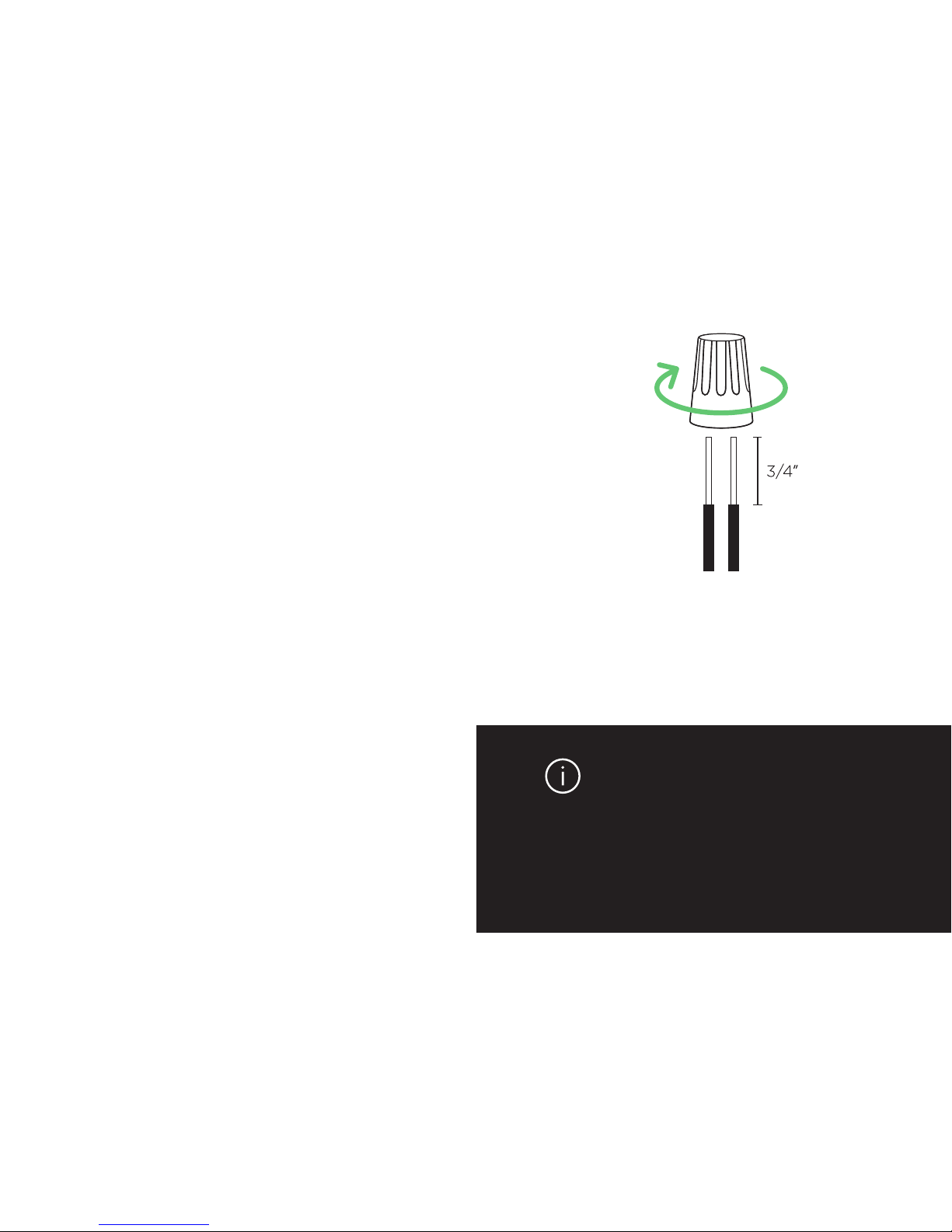

Connecting wires
Hold the wires you’re connecting
parallel to one another so that the ends
are aligned.
Holding the wires together and parallel,
insert them into a wire nut. Twist the
wire nut clockwise until secure. Double-
check by tugging on the wires gently.
Wire nuts 101

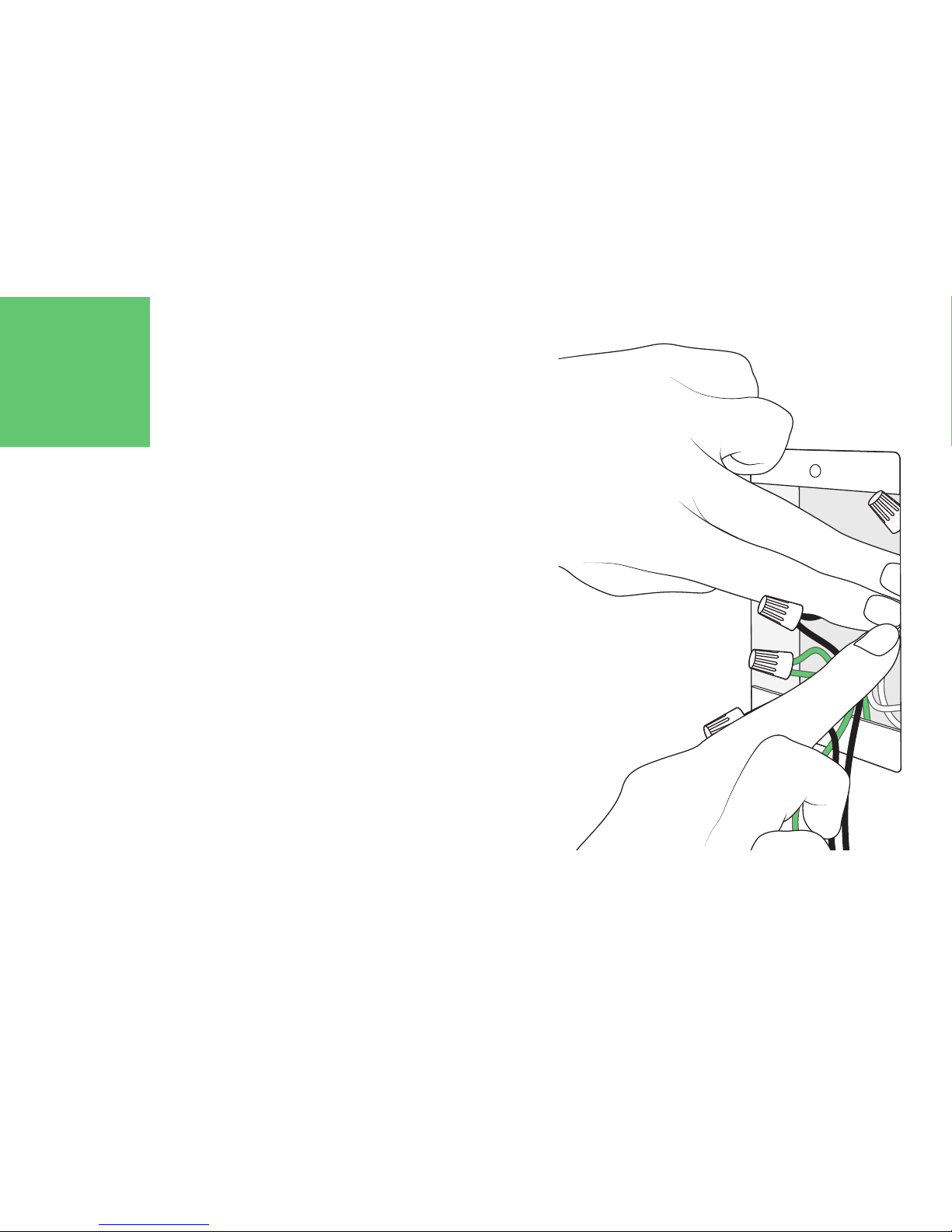

Fit wire nuts
into wall box
6
Push each wire nut in—one at a
time—as close to the back of the wall
box as possible.

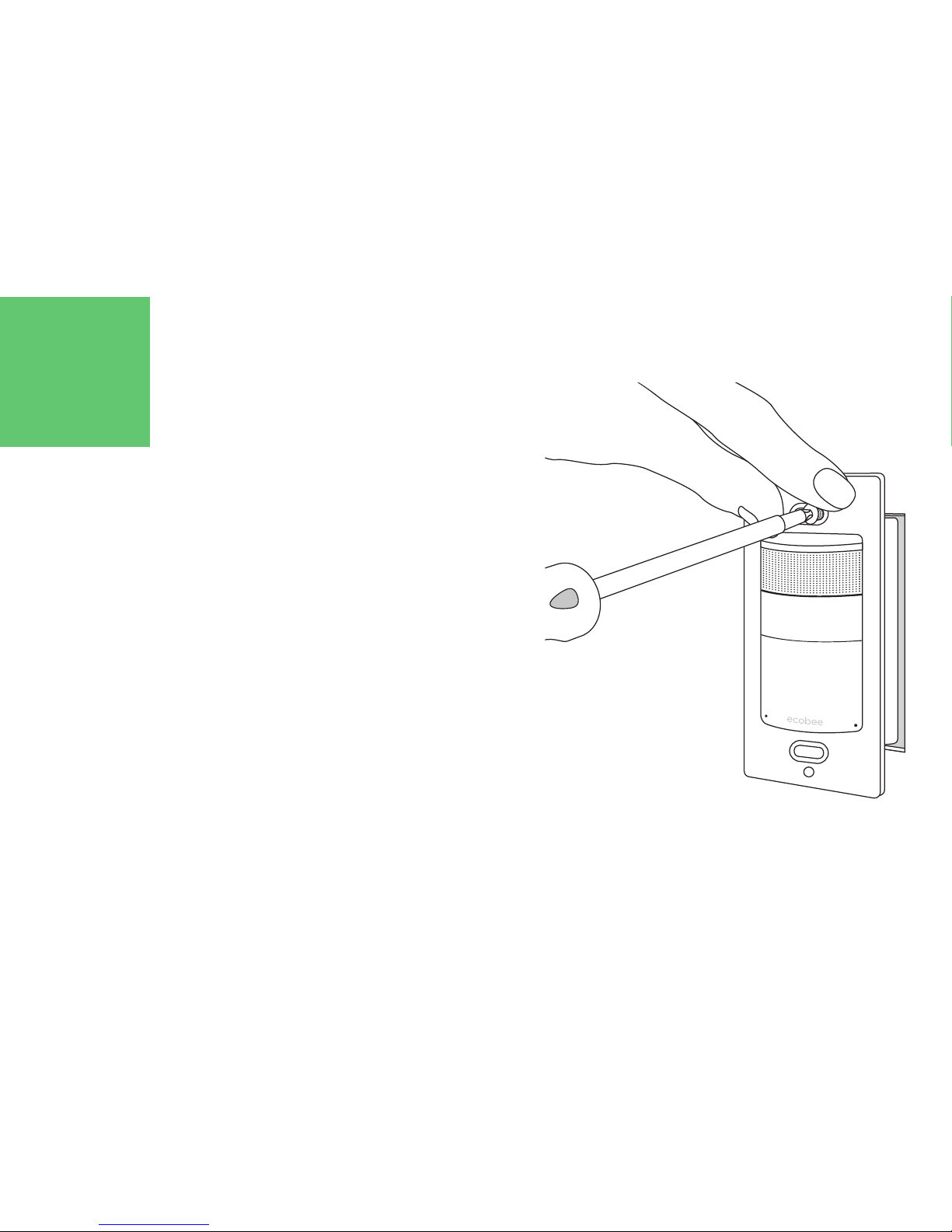

Using the mounting screws provided,
mount your ecobee Switch+. Make sure
it’s level and flush against the wall.
Mount ecobee
Switch+
7
Return to your circuit breaker and
turn on the power for the switch you
just replaced.
8
Power system
back on

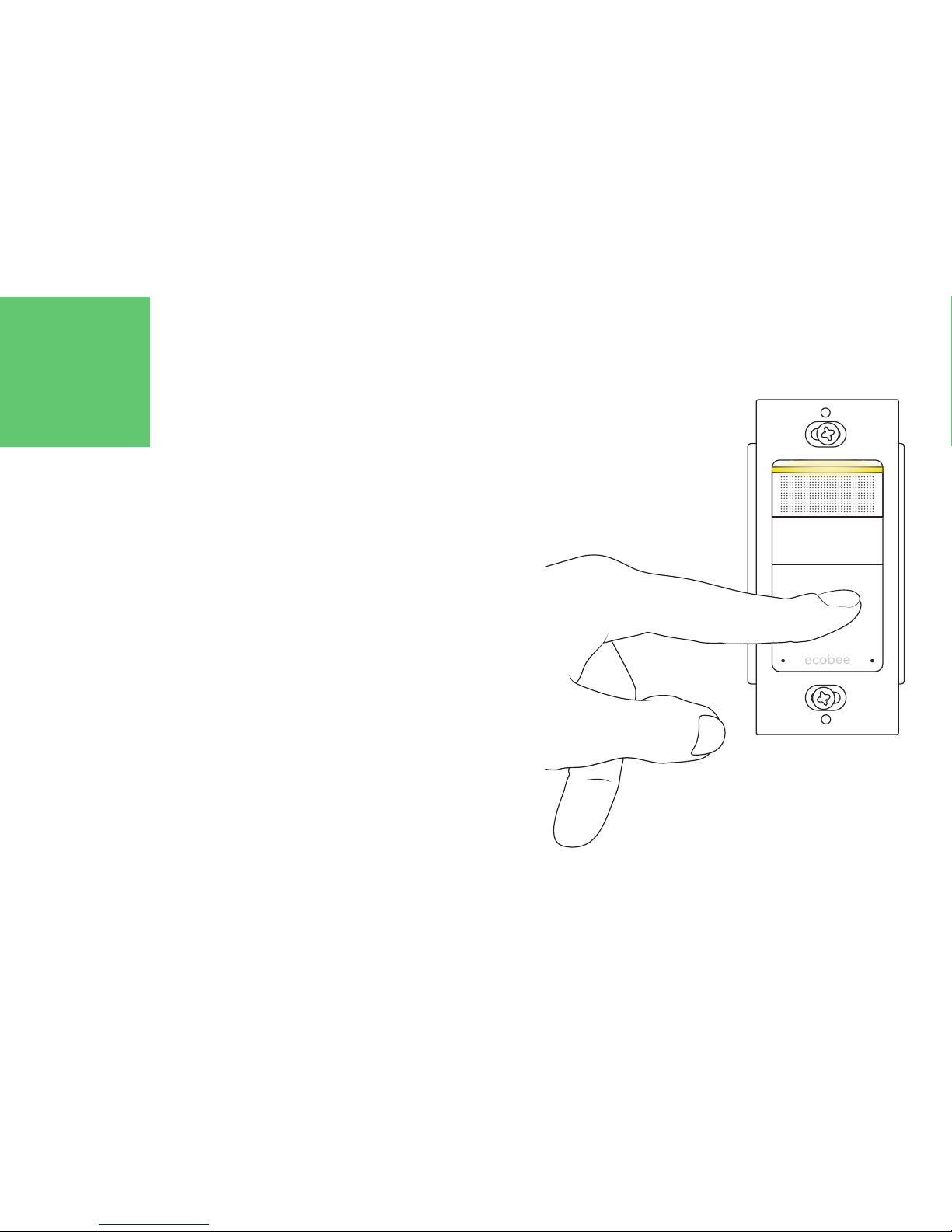

Test your
Switch+
9
Give your Switch+ a moment to power
on. Test it by turning it on and off,
using the on/off button on the front of
your Switch+. If it powers on, snap on
your wall plate.
If your Switch+ does not power on, turn
off your circuit breaker and double check
that your wires are connected securely.
Then test again.
Still a no-go? Call ecobee customer
support at 1-877-932-6233.
Keep going on the ecobee app to register
your device, connect to Wi-Fi, and unlock
smart features.
To connect to HomeKit, use the ecobee
app on your iOS device and refer to the
code on the back of this manual.
Congratulations,
you did it!

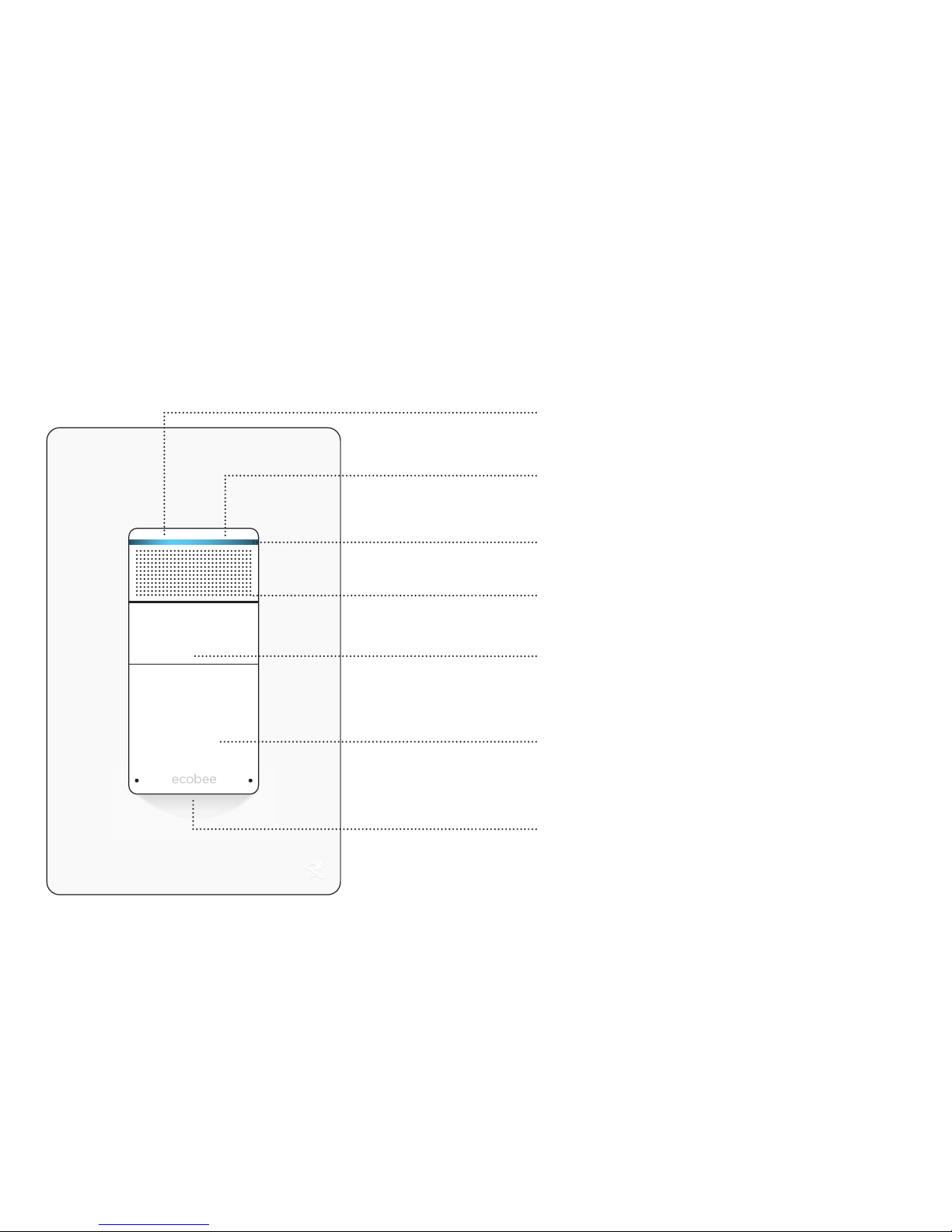

Your ecobee Switch+
Light bar
Glows when Alexa is responding to you.
On/off button
Turns it on or off the old-fashioned way.
Night light
Keeps your nights fumble-free.
Mic off button
Put Alexa on Do Not Disturb.
Action button
Hold to interrupt Alexa.
Speaker
Play music, listen to the news, and more.
Occupancy sensor
Turns on the lights when you walk into the
room, and off when you leave.
Ask Alexa*
Ask to turn the lights on or off, set a
timer, read the news or weather,
play music or podcasts, and more.
Turns off your lights for you
We’ll take care of it when the
room is empty.
Here’s what your
Switch+ can do
Go hands-free
Have your lights turn on when you
enter the room and it’s dark.
Smarter outdoor lighting
Upgrade your lighting to
automatically turn on at sunset
and off when you choose.
Night light
Enable the night light setting on
your ecobee app to make your
Switch+ glow in the dark.
Troubleshooting
