Eco Steam, Steam Master Master User Manual

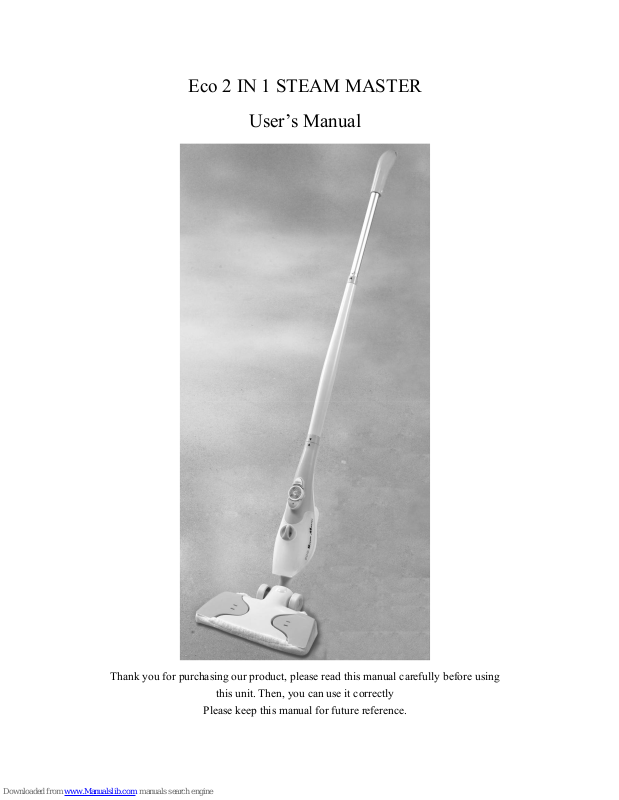

Eco 2 IN 1 STEAM MASTER
User’s Manual
Thank you for purchasing our product, please read this manual carefully before using
this unit. Then, you can use it correctly
Please keep this manual for future reference.
Safety Instructions
Warning: Danger of scalding
● The steam cleaner must not be directed onto equipment containing electrical
components, such as inside the oven.
● The steam cleaner must be unplugged after use and before the maintenance of
the unit.
● If the power cord is damaged, it must be replaced by the manufacturer, its
service agent, or a qualified person in order to avoid hazards.
Warning
● Do not repair or change anything yourself in order to avoid fire and other
accidents.
● Do not let children touch this product to avoid shock, scalding and other
accidents.
● Do not direct the nozzle towards any person or animal. This will cause serious
scalding.
● Do not submerge this unit in water or pour water onto it. This will cause it to
short circuit, or lead to an electric shock or fire.
● Do not operate this unit, its cord, or its plug with wet hands as it could lead to an
electric shock.
Attention
● Fill the water tank with clean water only. Do not add any other kind of liquid.
● Do not pull the power cord forcibly. Hold the plug only and then gently pull it
out of the socket.
● If the connection is too loose, stop using this product.
● Pull out the plug when the machine is not in use. Otherwise, shock, electric
leakage or fire may arise due to bad insulation.
● Do not use it without water in the tank.
● Turn off the power when assembling or disassembling the accessories.
Do not use this unit in the following conditions
● The product or any part of the product is damaged.
● The power cord or the socket is damaged.
● There is leakage of steam or water.
In these instances, please shut off the power and pull the power cord out and contact a
mechanic.
Description of all parts
3
16
14
17
5 6
7 4
19
20
1
2
11
13
8
9
10
21
18
15
12
11. Scraper
12. Lemon acid
13. Round nylon brush
14. Round wire brush
15. Brush for floor attachment
16. Angled nozzle
17. Clothes plate
18. Cleaning stick
19. Measuring cup
20. Power cord
21. Wheel attachment
1. Main body
2. Square floor attachment
3. Water tank knob
4. Power indicator light
5. Steam control knob
6. Power switch
7. Handle
8. Non-woven cloth
9. Microfibre cloth
10. Clothes brush
