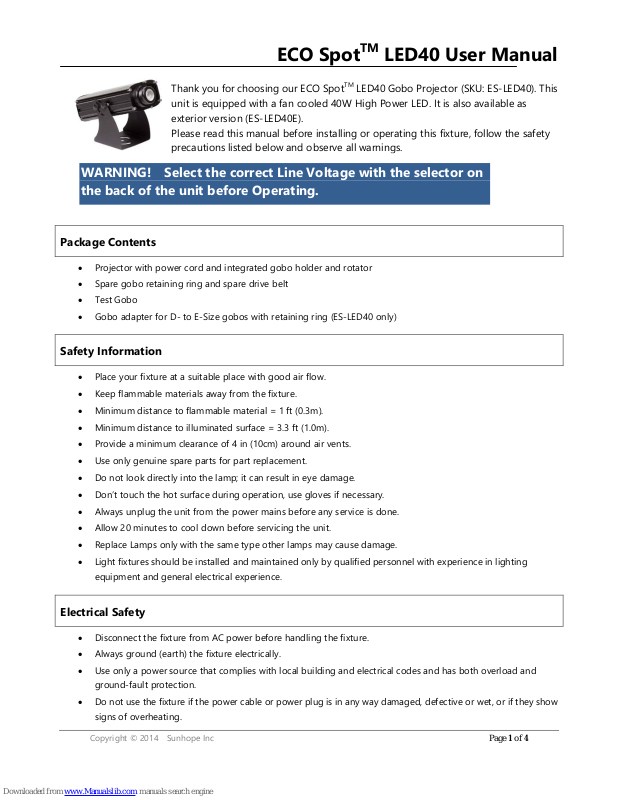

ECO SpotTM LED40 User Manual

Copyright © 2014 Sunhope Inc Page 1 of 4

Thank you for choosing our ECO Spot

TM

LED40 Gobo Projector (SKU: ES-LED40). This
unit is equipped with a fan cooled 40W High Power LED. It is also available as
exterior version (ES-LED40E).
Please read this manual before installing or operating this fixture, follow the safety
precautions listed below and observe all warnings.

Package Contents

• Projector with power cord and integrated gobo holder and rotator

• Spare gobo retaining ring and spare drive belt

• Test Gobo

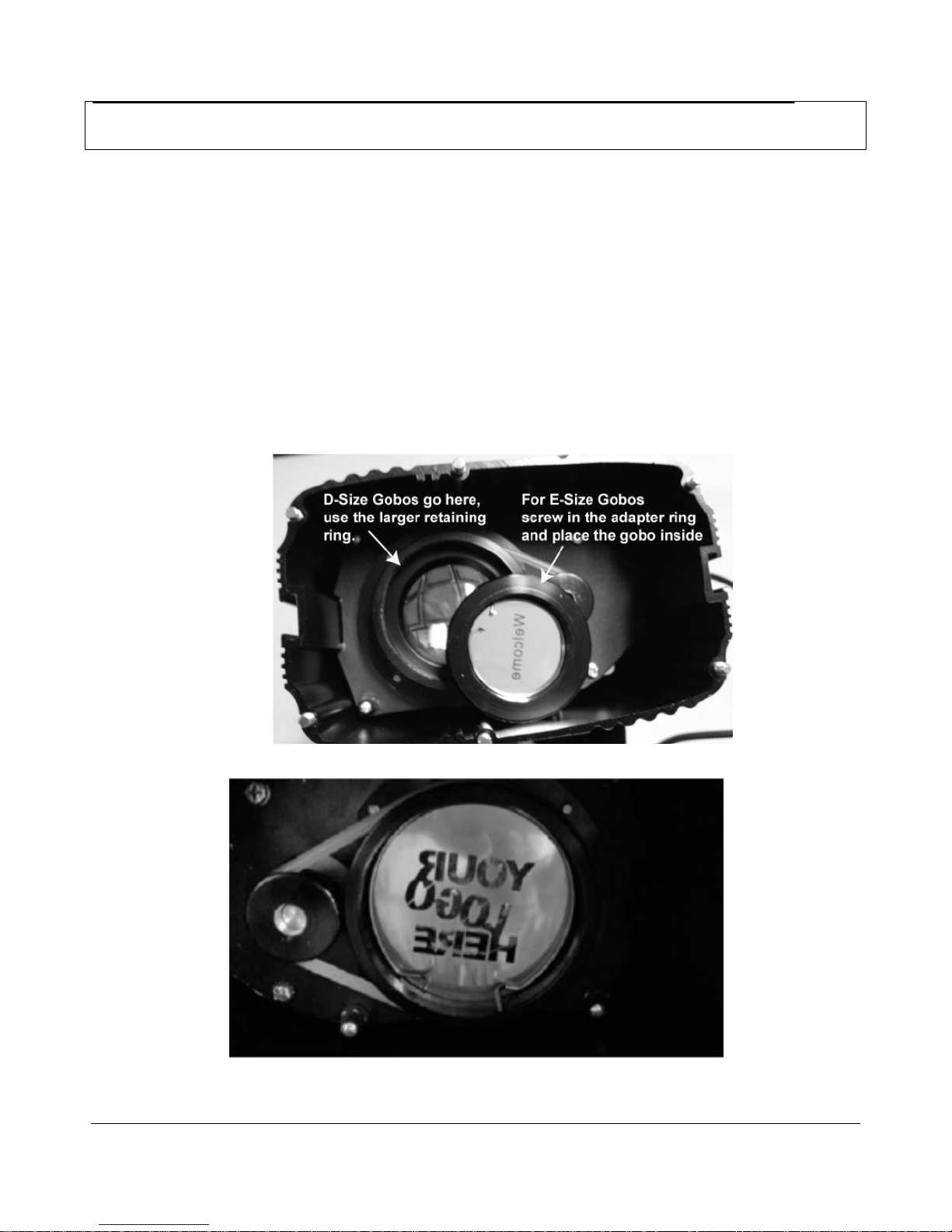

• Gobo adapter for D- to E-Size gobos with retaining ring (ES-LED40 only)

Safety Information

• Place your fixture at a suitable place with good air flow.

• Keep flammable materials away from the fixture.

• Minimum distance to flammable material = 1 ft (0.3m).

• Minimum distance to illuminated surface = 3.3 ft (1.0m).

• Provide a minimum clearance of 4 in (10cm) around air vents.

• Use only genuine spare parts for part replacement.

• Do not look directly into the lamp; it can result in eye damage.

• Don’t touch the hot surface during operation, use gloves if necessary.

• Always unplug the unit from the power mains before any service is done.

• Allow 20 minutes to cool down before servicing the unit.

• Replace Lamps only with the same type other lamps may cause damage.

• Light fixtures should be installed and maintained only by qualified personnel with experience in lighting

equipment and general electrical experience.

Electrical Safety

• Disconnect the fixture from AC power before handling the fixture.

• Always ground (earth) the fixture electrically.

• Use only a power source that complies with local building and electrical codes and has both overload and

ground-fault protection.

• Do not use the fixture if the power cable or power plug is in any way damaged, defective or wet, or if they show

signs of overheating.

WARNING! Select the correct Line Voltage with the selector on
the back of the unit before Operating.

ECO SpotTM LED40 User Manual

Copyright © 2014 Sunhope Inc Page 2 of 4

Handling Instructions

• Before the initial start-up, please unpack and carefully check for damage caused during transportation.

• Place your fixture at a suitable place with good air flow.

• Make sure there are no flammable materials close to the lamp.

• When suspending the fixture above ground level, verify that the structure can hold at least 10 times the weight

of all installed devices.

• Verify that all external covers and rigging hardware are securely fastened and use an approved means of

secondary attachment such as a safety cable.

Warranty

One Year from Date of Purchase.

Focusing

• Power up the projector by pressing the larger switch in the back.

• Turn on the gobo rotator with the smaller switch in the back and switch it off when the gobo projects in the

desired position.

• Focus the projection by twisting the lens in and out until the image is well focused. When used for the first time,

the lens will often need to be twisted outwards many rotations to reach the focusing point.

Lens Options

• The projector accommodates interchangeable projection lenses to allow optimizing the projection size and

resulting brightness at varying distances. The more narrow the lens, the smaller and brighter the image will be

at a given distance.

• Standard 20 degree (default)

• Optional lenses : Semi Narrow 15 degree and Semi Wide 25 degrees

Gobo Rotator

• The gobo rotator can be turned on/off with the red push-button switch on the back plate.

• There are no controls for rotating speed or direction.

Multi-functional Yoke

• The yoke can slide over the whole length of the fixture body to accommodate multiple pointing directions.

• The yoke serves as stand.

• The yoke can be screwed to a wall or ceiling or fastened with a C-clamp.
