User Manual
XMD Series
1U High Resolution LCD Drawer
Options Available:
- SDI
- HDMI / Audio
- Touch-Screen / DC Power
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML27V02A -- Generation 4 -- www.EclipseRackmount.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, f re or electrical shock.
■ Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modif ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, f re, water, lightning, or other acts of nature, unauthorized product modif cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power f uctuation or failure.
□ Use of supplies or parts not meeting our specif cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modif cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 02 -- ML27V02A -- www.EclipseRackmount.com
Contents
< Part. 1 >
1.1 Package Contents
1.2 Structure Diagram & Dimensions
1.3 Installation
< Part. 2 >
2.1 Product Specifications
2.2 On-Screen Display Operation ( OSD )
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
XMD-17
Specifications / OSD
P. 1
P.1 - 2
P. 3
P.4 - 5
P.6 - 7
P.8 - 9
< Part. 3 >
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 HDMI & Audio
3.3 17” Touch-Screen : Resistive, Capacitive
3.4 48V, 24V or 12VDC power
Options
P.10
P. 11
P.12
P.13
Page 03 -- ML27V02A -- www.EclipseRackmount.com
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specif cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the f nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microf ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microf ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microf ber cloth f rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Page 04 -- ML27V02A -- www.EclipseRackmount.com
< Part 1 >
< 1.1 > Package Contents
The above package content is only for the base models ( VGA and DVI-D only ).
It varies with options such as SDI, HDMI, audio, touch-screen & DC power.
XMD-17 unit X 1
- 6ft VGA cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
< 1.2 > Structure Diagram
1
2
3
1
LCD panel
4
LCD OSD membrane
4
5
6
2
Installation Slide
3
Audio speaker ( for HDMI or Audio option )
Page 05 -- ML27V02A -- www.EclipseRackmount.com
5
Carry handle to release the 2-pt lock
6
2-point lock

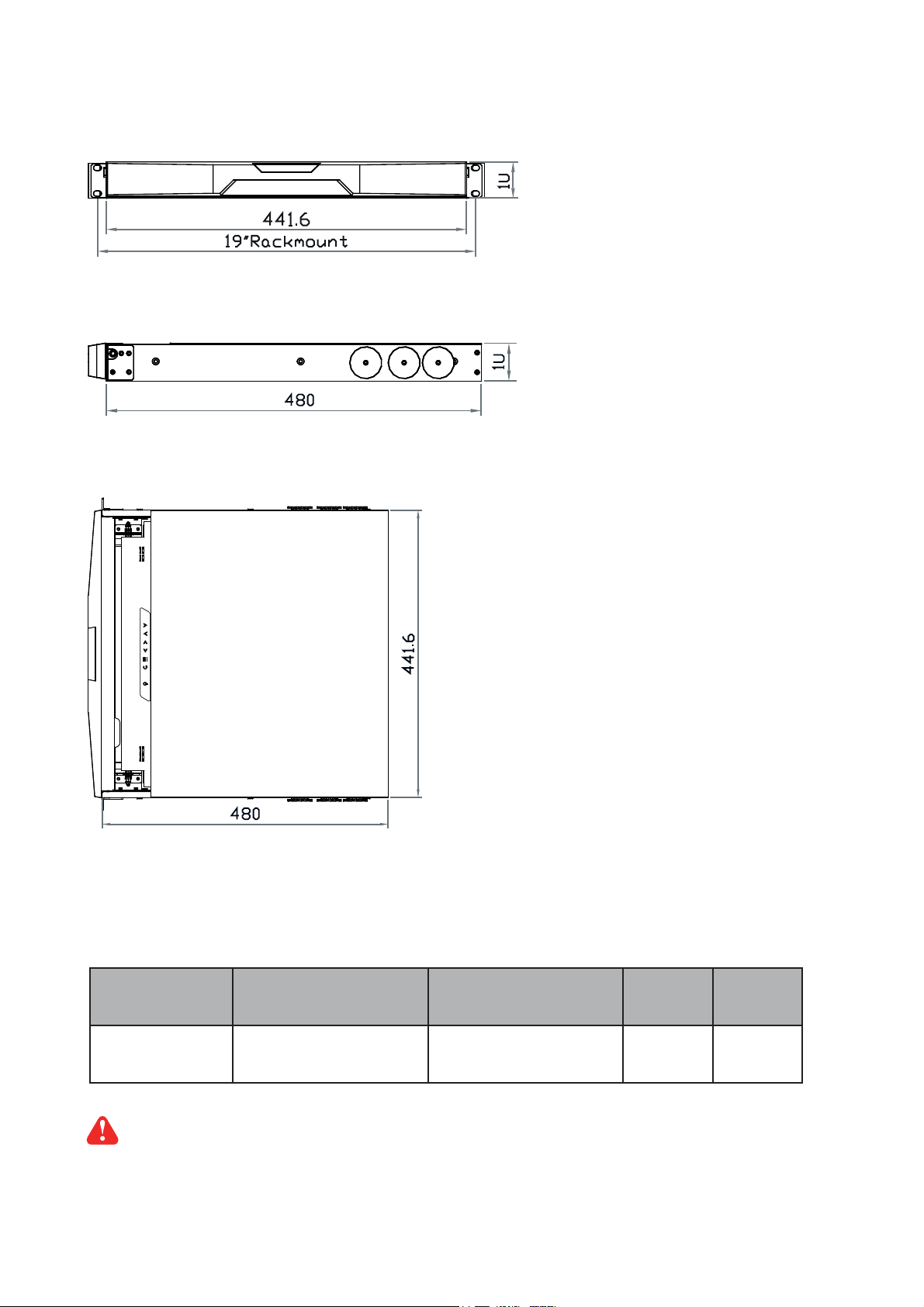

< 1.2 > Dimensions
Front View
XMD-17
Side View
Top View
UNIT : mm
1mm = 0.03937 inch
Model
XMD-17
The weight is only for the base models. It varies with accessories & options
such as SDI, HDMI, audio, touch-screen & DC power.
Page 06 -- ML27V02A -- www.EclipseRackmount.com
Product Dimension
(W x D x H)
441.6 x 480 x 44 mm
17.4 x 18.9 x 1.73"
Packing Dimension
(W x D x H)
590 x 687 x 120 mm
23.2 x 27 x 4.7”
Net
Weight
11 kg
24 lb
Gross
Weight
15 kg
33 lb
■ Fix the display drawer into the rack.
Complete the installation
Step
3
■ Insert the left and right rear mounting brackets into
the display drawer.
Step
1
< 1.3 > Installation - How to install Installation Slides
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
Page 07 -- ML27V02A -- www.EclipseRackmount.com
< Part 2 >
< 2.1 > Product Specifications
LCD
Panel
Video
Connectivity
Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920 x 1200
Brightness ( typ. ) 210
Contrast Ratio ( typ. ) 600:1
Color 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 65/65/55/55
Response Time ( ms ) 30
Dot pitch ( mm ) 0.191
Display Area ( mm ) 367.20H x 229.50V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
Digital HDMI HDMI 1.1, CEA-861-D
Analog VGA Analog 0.7Vp-p
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
XMD-17
DVI DVI-D, TMDS single link
Audio
Connectivity
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
Regulatory Safety Approval FCC & CE
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Audio Output
Speaker Output Power 2 x 2W
Power Consumption
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
50 / 60Hz
Screen display ON 34W or less
Power saving mode 4W or less
Power button OFF 1W or less
Page 08 -- ML27V02A -- www.EclipseRackmount.com
Environmental
Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical
Specification
Applicable
Format
Product ( W x D x H )
Packing ( W x D x H )
eight 11 kgs / 24 lbs
Net W
Gross Weight 15 kgs / 33 lbs
DVI-D / VGA Input PC Signal 1920 x 1200 x 60Hz
441.6 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
590 x 687 x 120 mm
23.2 x 27 x 4.7 inch
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Page 09 -- ML27V02A -- www.EclipseRackmount.com
< 2.2 > On-Screen Display Operation ( OSD )
Membrane Switch Function
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed control
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
XMD-17
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will f ash continuously when there is no signal input.
1
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
2
1
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast : Adjust the difference between the image background
(black level) and the foreground (white level)
Hue: Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness :
Adjust the image from weak to sharp
Page 10 -- ML27V02A -- www.EclipseRackmount.com
< 2.2 > On-Screen Display Operation ( OSD )
2
PC
Auto adjust : Automatically adjust sizes, centers and f ne tunes the
video signal to eliminate waviness and distortion.
Clock : Adjust the clock value
Phase : Adjust the phase value
V. Position : Align the screen image up or down
Audio
Audio mode : Movie / Voice / Normal / Music mode to choose
Volume : Adjust the volume of sound
Bass :
Treble : Set the value of treble sound
Balance : Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
H. Position : Align the screen image left or right
3
Set the value of bass sound
4
MISC
Language : Select the language in which the OSD menu is
displayed - English
Sleep timer : Set the off time
PIP mode :
PIP position : Enter into PIP position
Adjust picture in picture setting
PIP source : Enter into the Sub source and sound source
System reset : Return the adjustment back to factory setting
Information : Select for Help
Page 11 -- ML27V02A -- www.EclipseRackmount.com
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 2.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSD Menu → MISC → PIP Mode → Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu → MISC → PIP Position → top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu → MISC → PIP Mode → Large / Small
Size of Sub screen
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
Page 12 -- ML27V02A -- www.EclipseRackmount.com
< 2.3.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSD Menu → MISC → PIP Mode → PBP
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
Sub screenMain screen
< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu → MISC → PIP Source → VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV
The PIP / PBP is operable in the following table :
Sub
Main
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
TV
VGA S-Video Composite DVI-D HDMI SDI YPbPr TV
xo o ooooo
ox x oooox
ox x oooox
oo o xxooo
oo o xxooo
oooooxxo
oooooxxo
ox x oooox
Page 13 -- ML27V02A -- www.EclipseRackmount.com
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
The SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with CyberV iew Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, the board provides an
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
Power
in - out
VGA
Audio
PC in out
DVI-DHDMI
***
For SDI option, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
XMD-17
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
HD-SDI 1080p
1080i
720p
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
Page 14 -- ML27V02A -- www.EclipseRackmount.com
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< 3.2 > Options :
- HDMI
- Audio
For the above options, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
( HDMI 1.1, CEA-861-D )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
Power
Audio
VGA
PC in out
DVI-DHDMI
Page 15 -- ML27V02A -- www.EclipseRackmount.com

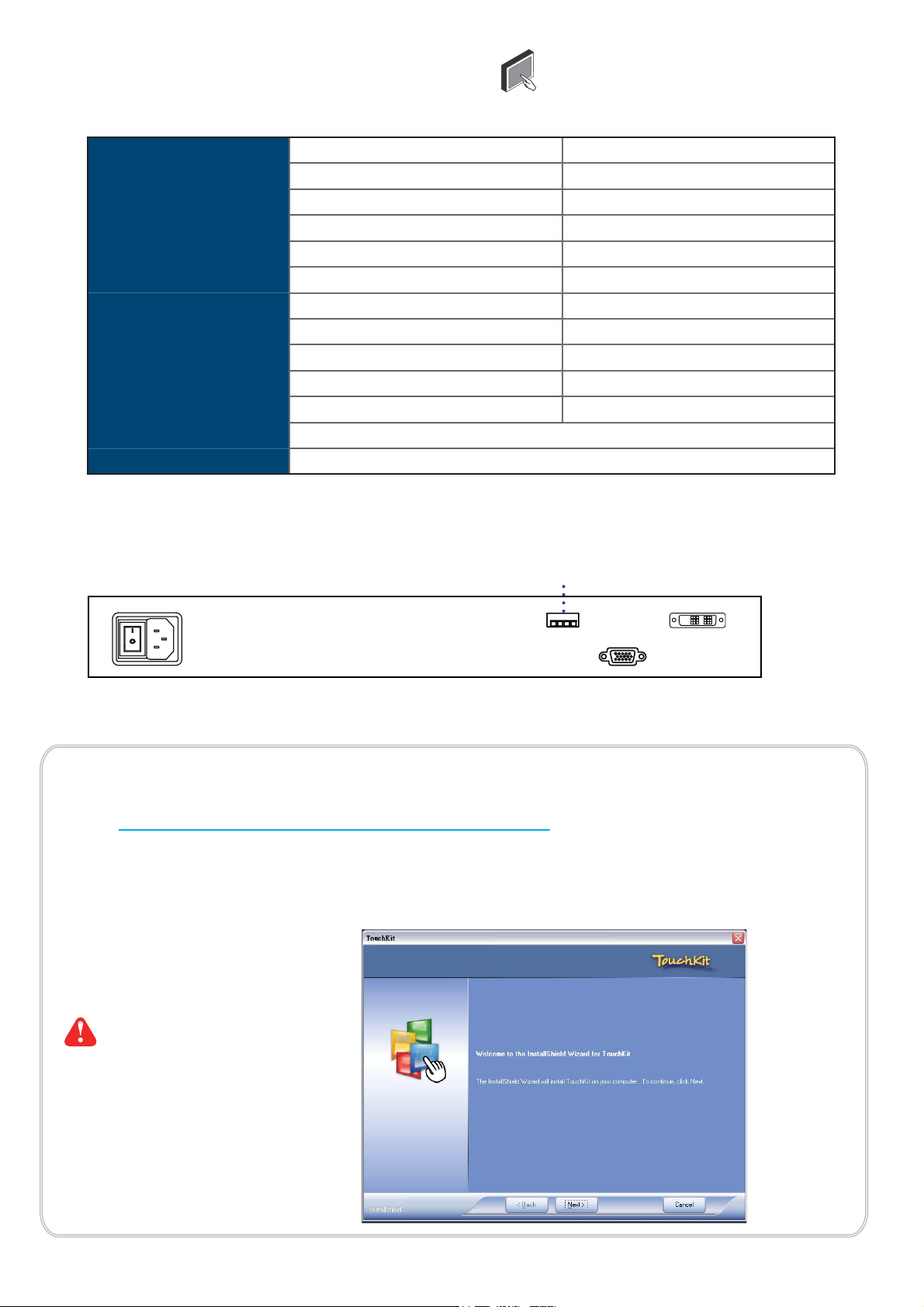

< 3.3 > Options : Touch-Screen & Driver
17" USB Touch-Screen Specification
XMD-17
Model TRB e-Resistive
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical T
Surface Hardness
Haze
Glass
Connector
Compatibility
ransmittance
5-Wire Resistive Capacitive
Single Single
Stylus or Finger
≤ 50g / Stylus=R0.8 ≤ 50g
10 million touches 300 million touches
15 ms 20 ms
80% ± 3% 92% ±2%
3H 9H
8% ± 3% 7%
2.2 ±0.2 mm 2.8 mm ±10%
Windows 7 / XP / Vista, Linux
USB Type A
TCB e-Capacitive
Finger
■ USB touch-screen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touch-screen unit is not made of toughened glass, please handle it carefully
USB Touch-Screen
Power
VGA
DVI-D
***
For touch-screen option, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
Please follow the below steps to setup the touch-screen:
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/RMDL/software.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to f nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please do the initial calibration
after the f rst setup
Page 16 -- ML27V02A -- www.EclipseRackmount.com
VGA
DVI-D
( 1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
***
For DC power option :
DC power

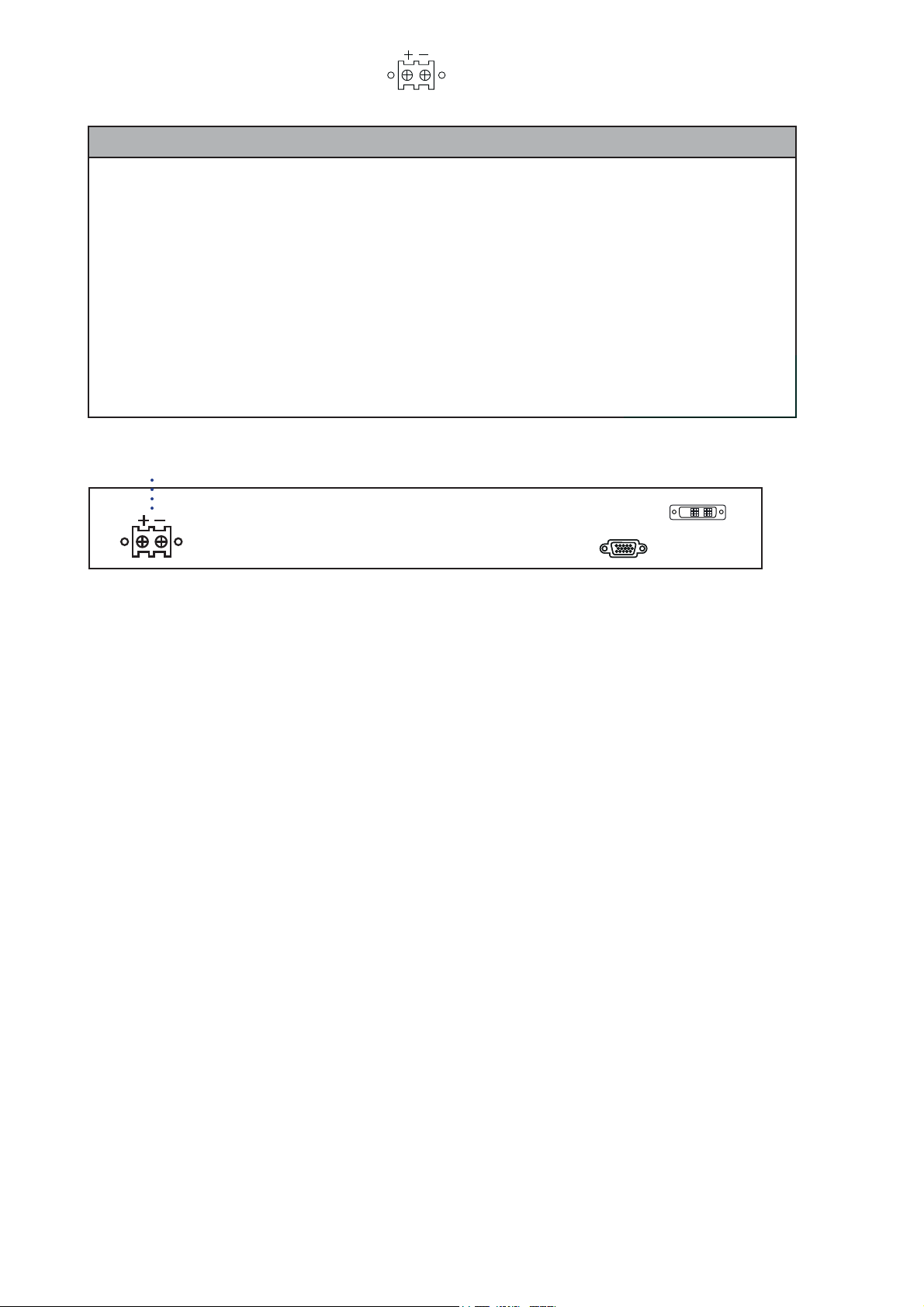

< 3.4 > Options : DC Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Efficiency 84% 85% 85%
Page 17 -- ML27V02A -- www.EclipseRackmount.com
The company reserves the right to modify product specif cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved.
Manual ML27V02A -- www.EclipseRackmount.com
Loading...
