User Manual
SMD Series (17" / 19")
1U Sun-Specific LCD Drawer
Options Available:
- DC Power
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML20V02A -- Generation 4 -- www.EclipseRackmount.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, f re or electrical shock.
■ Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modif ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, f re, water, lightning, or other acts of nature, unauthorized product modif cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power f uctuation or failure.
□ Use of supplies or parts not meeting our specif cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modif cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 02 -- ML20V02A -- www.EclipseRackmount.com
Contents
< Part. 1 >
1.1 Package Contents
1.2 Structure Diagram & Dimensions
1.3 Installation
< Part. 2 >
2.1 Product Specifications
2.2 On-Screen Display Operation ( OSD )
SMD-17 / SMD-19
Specifications / OSD
P. 1
P.1 - 2
P. 3
P.4 - 5
P.6 - 7
< Part. 3 >
3.1 48V, 24V or 12VDC power
Options
P. 8
Page 03 -- ML20V02A -- www.EclipseRackmount.com
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specif cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the f nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microf ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microf ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microf ber cloth f rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Page 04 -- ML20V02A -- www.EclipseRackmount.com
< Part 1 >
< 1.1 > Package Contents
The above package content is only for the base model ( VGA and DVI-D only ).
It varies with options such as DC power.
SMD-17 / 19
SMD-17 or SMD-19 unit X 1
- 6ft VGA cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
< 1.2 > Structure Diagram
1
2
1
LCD panel
4
Carry handle to release the 2-pt lock
3
4
5
2
Installation Slide
3
LCD OSD membrane
Page 05 -- ML20V02A -- www.EclipseRackmount.com
5
2-point lock

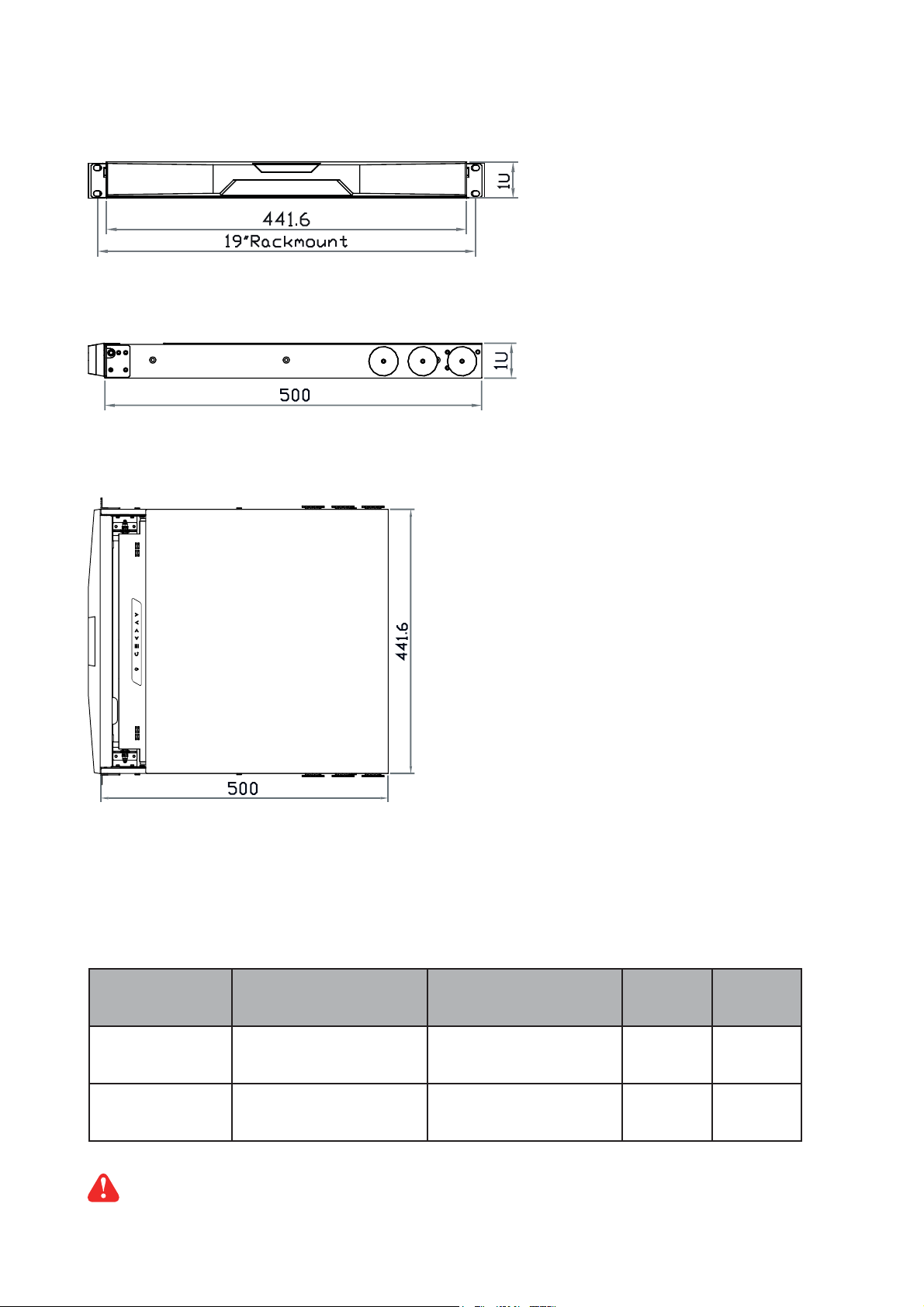

< 1.2 > Dimensions
Front View
Side View
Top View
UNIT : mm
1mm = 0.03937 inch
Model
SMD-17
SMD-19
The weight is only for the base models. It varies with accessories & options
such as DC power
Page 06 -- ML20V02A -- www.EclipseRackmount.com
Product Dimension
(W x D x H)
441.6 x 500 x 44 mm
17.4 x 19.7 x 1.73"
441.6 x 500 x 44 mm
17.4 x 19.7 x 1.73"
.
Packing Dimension
(W x D x H)
590 x 687 x 120 mm
23.2 x 27 x 4.7”
590 x 687 x 120 mm
23.2 x 27 x 4.7”
Net
Weight
10.5 kg
23 lb
12.5 kg
28 lb
Gross
Weight
16.5 kg
36 lb
18.5 kg
41 lb
< 1.3 > Installation - How to install Installation Slides
M6 screw, cage nut & cup washer x 8 are provided.
SMD-17 / 19
Step
1
■ Insert the left and right rear mounting brackets into
the display drawer.
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
Step
Complete the installation
3
■ Fix the display drawer into the rack.
Page 07 -- ML20V02A -- www.EclipseRackmount.com
< Part 2 >
< 2.1 > Product Specifications
LCD
Panel
SMD-17 SMD-19
Manufacturer
Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD
1152 x 900 ( Direct ) 1152 x 900 ( Direct )
Display pixel ( dots x lines )
1280 x 1024 ( Native ) 1280 x 1024 ( Native )
Brightness ( typ. ) 250 250
Contrast Ratio ( typ. ) 1000:1 1000:1
Color 16.7 M 16.7 M
Viewing Angle ( L/R/U/D ) 80/80/80/80 80/80/80/80
Response Time ( ms ) 5 5
Dot pitch ( mm ) 0.264 0.294
Display Area ( mm ) 337.92H x 270.33V 376.32H x 301.05V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H 3H
Backlight Type CCFL CCFL
MTBF ( hrs ) 50,000 50,000
Video
Connectivity
Audio
Connectivity
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
Digital DVI DVI-D, TMDS single link
Analog
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio Input Connector 3.5mm stereo jack
Audio Output
Speaker Output Power 2 x 2W
Power Consumption
VGA Analog 0.7Vp-p
Impedance / Power level 30kΩ / 750mV
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
50 / 60Hz
Screen display ON 25W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety Approval FCC & CE
Page 08 -- ML20V02A -- www.EclipseRackmount.com
SMD-17 / 19
Environmental
Conditions
Physical
Specif cation
Applicable
Format
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
SMD-17 SMD-19
Product ( W x D x H )
Packing ( W x D x H )
Net Weight 10.5 kgs / 23 lbs 12.5 kgs / 28 lbs
Gross Weight 16.5 kgs / 36 lbs 18.5 kgs / 41 lbs
DVI-D / VGA Input PC Signal 1152 x 900 x 66Hz
441.6 x 500 x 44 mm 441.6 x 500 x 44 mm
17.4 x 19.7 x 1.73 inch 17.4 x 19.7 x 1.73 inch
590 x 687 x 120 mm 590 x 687 x 120 mm
23.2 x 27 x 4.7 inch 23.2 x 27 x 4.7 inch
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Page 09 -- ML20V02A -- www.EclipseRackmount.com
< 2.3 > On-Screen Display Operation ( OSD )
Membrane Switch Function
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed control
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will f ash continuously when there is no signal input.
1
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
2
Page 10 -- ML20V02A -- www.EclipseRackmount.com
< 2.3 > On-Screen Display Operation ( OSD )
OSD Conf guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
SMD-17 / 19
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
Page 11 -- ML20V02A -- www.EclipseRackmount.com
< Part 3 >

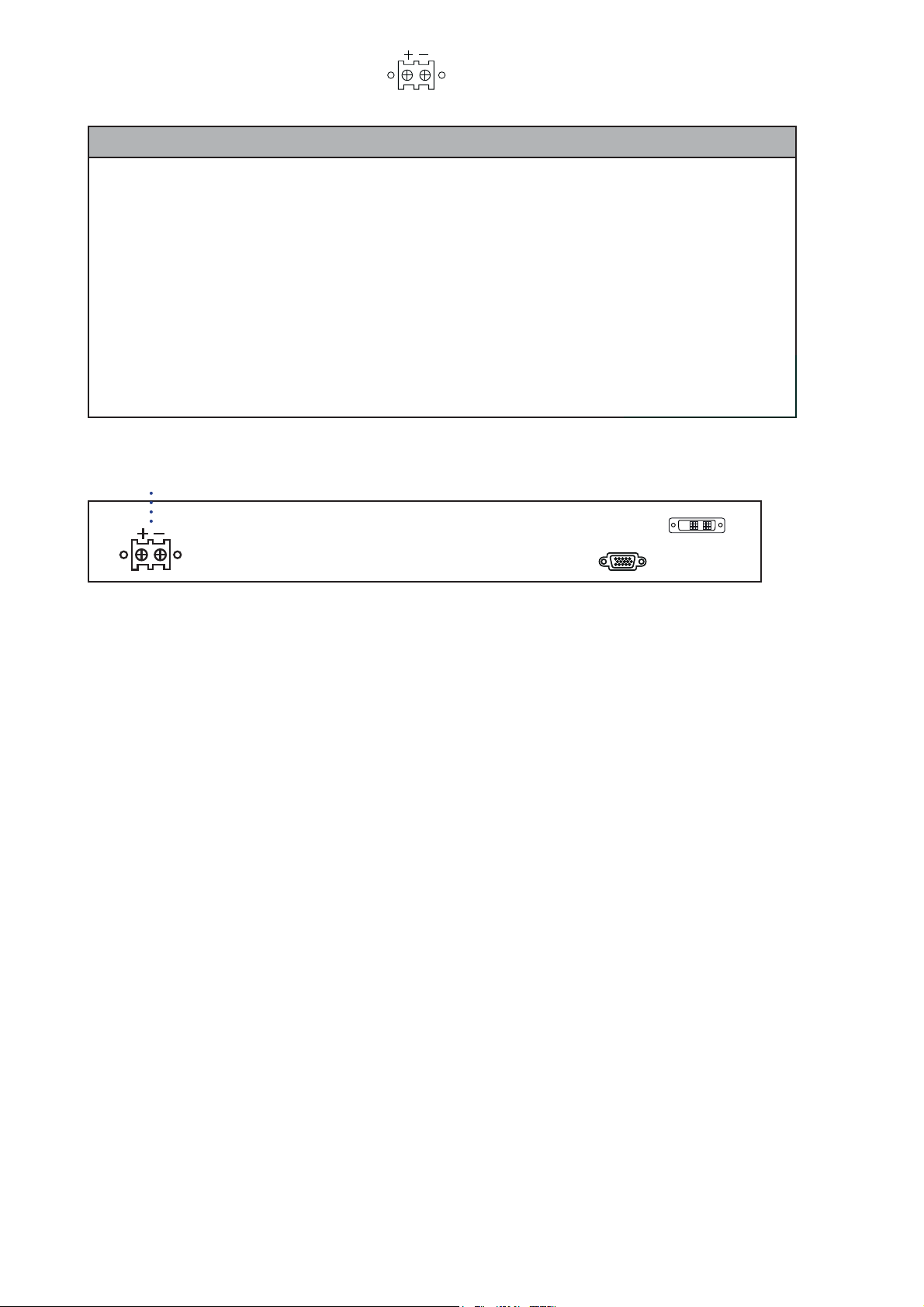

< 3.1 > Options : DC Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
EfILciency 84% 85% 85%
DC power
***
DVI-D
VGA
For DC power option :
( 1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 500mm ( 19.7" ) to 570mm ( 22.4" )
Page 12 -- ML20V02A -- www.EclipseRackmount.com
The company reserves the right to modify product specif cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved.
Manual ML20V02A -- www.EclipseRackmount.com
Loading...
