Eclipse Rackmount FMP-21 User Manual

User Manual
FMP-21
8U 1080p Rackmount Monitor Panel
Options Available:
- SDI / MCS
- BNC / HDMI / Audio
- MIL-type or Lockable Connector
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML38V02A -- Generation 4 -- www.EclipseRackmount.com
Legal Information
First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions Please read all of these instructions carefully before you use the device. Save this manual for future reference.
Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment’s ratings label.
Observe all precautions and warnings attached to the equipment.
If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, f re or electrical shock.
Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.
What the warranty does not cover
Any product, on which the serial number has been defaced, modif ed or removed.
Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, f re, water, lightning, or other acts of nature, unauthorized product modif cation, or
failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by us. Any damage of the product due to shipment. Removal or installation of the product. Causes external to the product, such as electric power f uctuation or failure. Use of supplies or parts not meeting our specif cations. Normal wear and tear. Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modif cations made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re-position or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 02 -- ML38V02A -- www.EclipseRackmount.com
Contents
< Part. 1 >
1.1 Package Contents
1.2 Structure Diagram & Dimensions
1.3 Installation
< Part. 2 >
2.1 Product Specifications
2.2 On-Screen Display Operation ( OSD )
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
FMP-21
Specifications / OSD / Remote Controller
P. 1 P.1 - 2 P.3 - 4
P.5 - 6 P.7 - 8
P.9 - 10
< Part. 3 >
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 MCS Multi-Display Control Solution
3.3 AV3.0 Upgrade :
3.4 21" Touch-Screen : Resistive, Capacitive, Multi-touch
3.5 48V, 24V or 12VDC power
3.6 MIL-Type or Lockable Connector
Options
DVI-D + VGA + HDMI + BNC + S-Video + Audio
P. 11 P.12 P.13
P.14 P.15 P.16
Page 03 -- ML38V02A -- www.EclipseRackmount.com
Before Installation
It is very important to mount the equipment in a suitable cabinet or on a stable surface.
Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
Use only cleansers made specif cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the f nish.
Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microf ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microf ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microf ber cloth f rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Page 04 -- ML38V02A -- www.EclipseRackmount.com
< Part 1 >
< 1.1 > Package Contents
< 1.2 > Structure Diagram
Front view
FMP-21
FMP-21 unit X 1
- 6ft VGA cable X 1
- Power adapter X 1
- Power cord X 1
- Fastener screw for rear bracket x 2
1
2
LCD panel
1
LCD membrane
2
3
Latch to release the display panel from the rear bracket
4
Rear mounting bracket
5
Power adapter basket
Audio
Power VGADVI-D HDMI
3
Power adapter
Rear view
4
5
Power cord
S-VideoBNC
out - in - in
Video PC
Basic I/O
AV3.0 upgrade
Options
Page 05 -- ML38V02A -- www.EclipseRackmount.com
: DVI-D + VGA + HDMI w/ speaker
: DVI-D + VGA + HDMI + BNC + S-Video + audio
: SDI, USB for touch-screen & DC power
< 1.2 > Dimensions
Front View Side View
Rear View
Bottom View
UNIT : mm
1mm = 0.03937 inch
Model
FMP-21
Page 06 -- ML38V02A -- www.EclipseRackmount.com
Product Dimension
(W x D x H)
501.9 x 64 x 353 mm
19.8 x 2.5 x 13.9"
Packing Dimension
(W x D x H)
555 x 124 x 537 mm
21.9 x 4.9 x 21.1"
Net
Weight
7.5 kg
16.5 lb
Gross
Weight
10 kg
22 lb
< 1.3 > VESA Mount Installation
FMP-21
M4 screw
VESA mount ( 100*100mm )
Hardware and M4*4 pcs for VESA mount are not provided
Page 07 -- ML38V02A -- www.EclipseRackmount.com
latch
< 1.3 > Rear Mounting Bracket Installation
rear bracket
Step
1
Mount the rear bracket with M6 screw set.
8 x M6 screw set are required.
M6 screw sets are not provided.
Step
2
Insert the upper part of the FMP-21
display panel into the rear bracket.
Fastener screw
Step
3
Push the lower part of the FMP-21
display panel into the rear bracket.
Step
4
Fix the FMP-21 display panel into the rear
bracket with two fasteners ( Left & right side ).
Lock the FMP-21 display panel by the
latch ( on the bottom left & right side ).
Page 08 -- ML38V02A -- www.EclipseRackmount.com
< Part 2 >
< 2.1 > Product Specifications
LCD Panel
Manufacturer
Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920 x 1080
Brightness ( typ. ) 250
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 85/85/80/80
Response Time ( ms ) 5
Dot pitch ( mm ) 0.248
Display Area ( mm ) 476.64H x 268.11V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
FMP-21
Video Connectivity
Audio Connectivity
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio Input Connector 3.5mm stereo jack
Audio Output
Speaker Output Power 2 x 2W
Power Consumption
VGA Analog 0.7Vp-p
Composite ( RCA ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Impedance / Power level 30kΩ / 750mV
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
50 / 60Hz
Screen display ON 32W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety Approval FCC & CE
Page 09 -- ML38V02A -- www.EclipseRackmount.com
Environmental Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical Specification
Applicable Format
Product ( W x D x H )
Packing ( W x D x H )
eight 7.5 kgs / 16.5 lbs
Net W
Gross Weight 10 kgs / 22 lbs
DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz
HDMI Input
PC Signal Same as VGA
Video Signal
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
501.9 x 64 x 353 mm
19.8 x 2.5 x 13.9 inch
555 x 124 x 537 mm
21.9 x 4.9 x 21.1 inch
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
1080p : 50 / 60Hz
1080i : 50 / 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Page 10 -- ML38V02A -- www.EclipseRackmount.com
< 2.2 > On-Screen Display Operation ( OSD )
Membrane Switch Function
Turn the monitor on or off
Display the OSD menu Act as an Enter key to select screen setting options
Scroll through menu options and adjust the displayed control
Exit the OSD screen Go back to the previous on-screen sub-menu or main menu
FMP-21
Remark : All LED touch buttons in WHITE light. The LED of Power touch button will f ash continuously when there is no signal input.
1
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
2
1
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast : Adjust the difference between the image background
(black level) and the foreground (white level)
Hue: Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness :
Adjust the image from weak to sharp
Page 11 -- ML38V02A -- www.EclipseRackmount.com

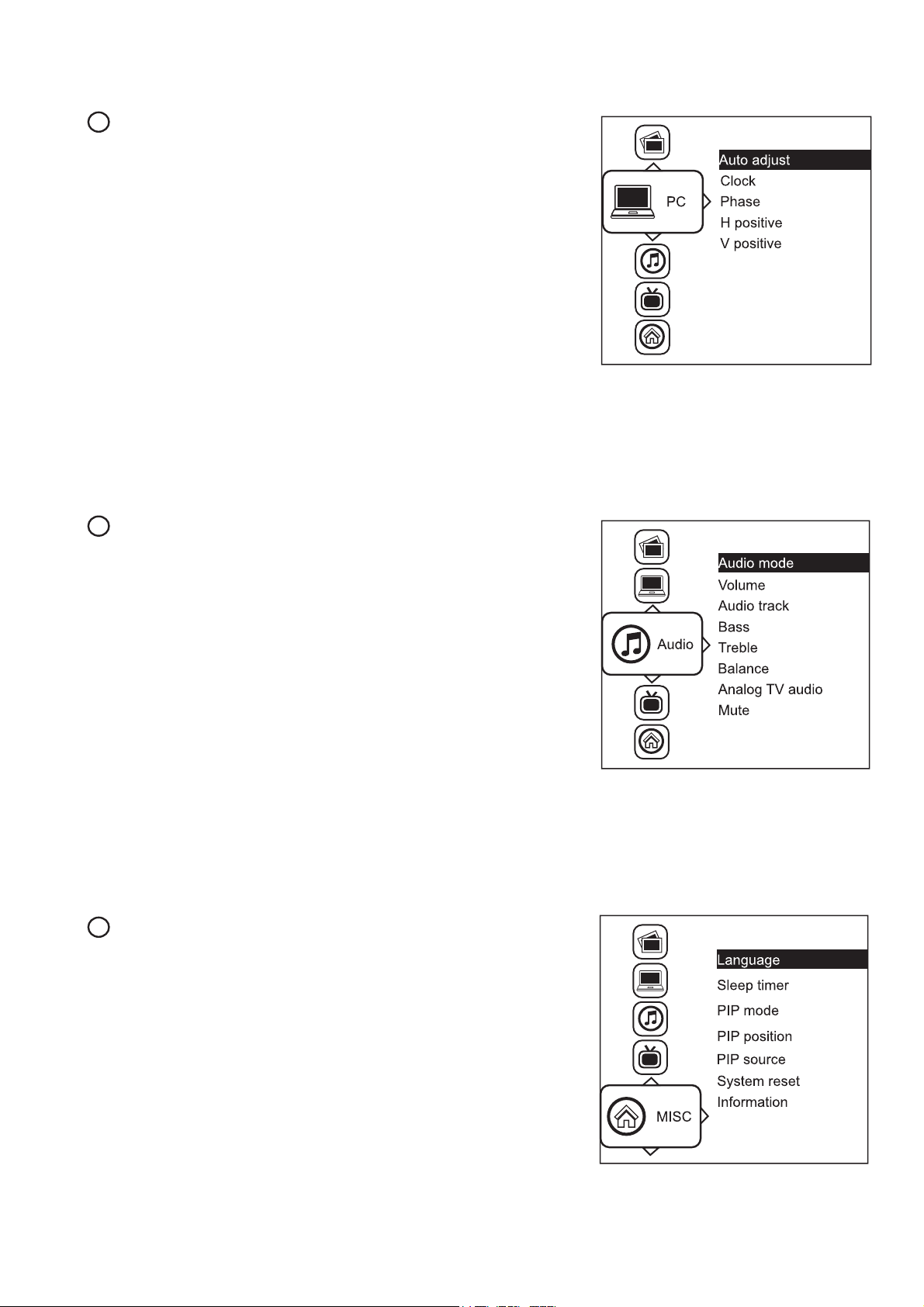

< 2.2 > On-Screen Display Operation ( OSD )
2
PC
Auto adjust : Automatically adjust sizes, centers and f ne tunes the
video signal to eliminate waviness and distortion.
Clock : Adjust the clock value
Phase : Adjust the phase value
V. Position : Align the screen image up or down
Audio
Audio mode : Movie / Voice / Normal / Music mode to choose
Volume : Adjust the volume of sound
Bass :
Treble : Set the value of treble sound
Balance : Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
H. Position : Align the screen image left or right
3
Set the value of bass sound
4
MISC
Language : Select the language in which the OSD menu is
displayed - English
Sleep timer : Set the off time
PIP mode :
PIP position : Enter into PIP position
Adjust picture in picture setting
PIP source : Enter into the Sub source and sound source
System reset : Return the adjustment back to factory setting
Information : Select for Help
Page 12 -- ML38V02A -- www.EclipseRackmount.com
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 2.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSD Menu MISC PIP Mode Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu MISC PIP Position top left / top right / bottom left / bottom right
FMP-21
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu MISC PIP Mode Large / Small
Size of Sub screen
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
Page 13 -- ML38V02A -- www.EclipseRackmount.com
< 2.3.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSD Menu MISC PIP Mode PBP
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
Sub screenMain screen
< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu MISC PIP Source VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV
The PIP / PBP is operable in the following table :
Sub Main
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
TV
VGA S-Video Composite DVI-D HDMI SDI YPbPr TV
xo o ooooo
ox x oooox
ox x oooox
oo o xxooo
oo o xxooo
oooooxxo
oooooxxo
ox x oooox
Page 14 -- ML38V02A -- www.EclipseRackmount.com
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
The SDI input is an ideal solution for the broadcast­grade video and high resolution CCTV market.
Designed for use with CyberV iew Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, the board provides an SDI input module without using additional space or power and it comes standard with a 2-year warranty.
FMP-21
SDI
Audio
out - in - in
Video PC
Power
VGADVI-D HDMIS-VideoBNC
out - in
*** For SDI option, the AD board will be upgraded to AV3.0, and this comes standard with HDMI, DVI-D,
VGA, S-Video, BNC and audio inputs.
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p 1080i 720p
HD-SDI 1080p
1080i 720p
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
@60 / 50Hz, 4:2:2 @30 / 25 / 24Hz, 4:4:4 @60 / 50Hz, 4:4:4 @60 / 50Hz, 4:4:4
@30 / 25 / 24Hz, 4:2:2 @60 / 50Hz, 4:2:2 @60 / 50Hz, 4:2:2
Max. Transmission Distance 75 ohm coaxial cable
Page 15 -- ML38V02A -- www.EclipseRackmount.com
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< 3.2 > Options : MCS ( Multi-Display Control )
HDMI S-VideoBNC
Video PC
Audio
out - in - in
VGA DVI-D
Power
The MCS solution is able to control the OSD of various CyberView LCD displays up to 64 units.
The RS-232C is used for the communication between the PC and f rst display via a 15' serial cable, while the CAN bus is used for the
LCD displays. They may be cascaded together via Cat 5/6 and daisy chained up to 1,000 meters.
Specifically designed for our displays, the MCS input module saves additional space/power and is covered by the 2-year standard warranty.
MCS
Linkinoutset
*** For additional information and specs on MCS, please contact your supplier.
*** For MCS option, casing depth will be changed.
RS-232C
15 feet serial cable
( extender required for lengths longer than 15' )
Set switch
For the 1st and last display,
push the set switch upward
For other daisy chain displays,
push the set switch downward
LINK
RJ-45 jack
Page 16 -- ML38V02A -- www.EclipseRackmount.com
OUT
Cat 5 / 6 cable
max. 300 meters
IN OUT
Cat 5 / 6 cable
max. 300 meters
Daisy chain up to 1,000 meters and 64 displays
IN OUT IN OUT
Cat 5 / 6 cable
max. 300 meters
up to 64 displays
< 3.3 > AV3.0 Upgrade Options :
FMP-21
- BNC
- Audio
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
Audio
out - in - in
Video PC
Power
VGADVI-D HDMIS-VideoBNC
Page 17 -- ML38V02A -- www.EclipseRackmount.com
< 3.4 > Options : Touch-Screen & Driver
21.5" USB Touch-Screen Specification
Model TRB e-Resistive
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
5-Wire Resistive Capacitive Projected Capacitive
Single Single Dual
Stylus or Finger Finger Finger
50g / Stylus=R0.8 50g 50g
10 million touches 300 million touches 100 million touches
15 ms 20 ms 20 ms
80% ± 3% 87% ±2% 90% ±2%
3H 9H 7H
8% ± 3% 7% 3%
3.2 ±0.2 mm 2.8 mm ±10% 2.4 ±0.15 mm
USB Type A USB Type A
Windows 7 / XP / Vista, Linux Windows 7
TCB e-Capacitive TMC2 Multi-touch
USB touch-screen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
For detailed information, please refer to the attached CD disc
As the touch-screen unit is not made of toughened glass, please handle it carefully
USB Touch-Screen
Power VGADVI-D HDMI
TRB & TCB Driver
Please follow the below steps to setup the touch-screen:
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/RMDL/software.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to f nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please do the initial calibration after the f rst setup
Page 18 -- ML38V02A -- www.EclipseRackmount.com
< 3.4 > Options : Touch-Screen & Driver
TMC2 Driver
Connect the USB cable from the USB port on the LCD to a computer. The touch-screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
< 3.5 > Options : DC Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
FMP-21
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Efficiency 84% 85% 85%
Page 19 -- ML38V02A -- www.EclipseRackmount.com
< 3.6 > Options : MIL-type or Lockable Connector
Input Part no. MIL Standard
MIL - type Connector
DC Power ( Male )
***
MS3470W8-33P MIL - DTL - 26482
Lockable Connector
VGA
***
( Male )
***
There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design f exibility possible. For more information, please contact your supplier.
Input Part no. Standard
DC Power ( Male )
USB LUSB - A111 - 00 -
MS3470W14-15P MIL - DTL - 26482
YM-Ext-461CP001 D-type 3W3
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Connectors are not available independently.
Page 20 -- ML38V02A -- www.EclipseRackmount.com
The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved.
Manual ML38V02A -- www.EclipseRackmount.com
Loading...
