Eclipse Rackmount ERXS User Manual
User Manual
ERXS Series
1U Sun-Specific High Res LCD KBD Drawer
Options Available:
- SDI
- Audio
- DC Power
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML14V02A -- Generation 4 -- www.EclipseRackmount.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, f re or electrical shock.
■ Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modif ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, f re, water, lightning, or other acts of nature, unauthorized product modif cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power f uctuation or failure.
□ Use of supplies or parts not meeting our specif cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modif cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 02 -- ML14V02A -- www.EclipseRackmount.com
Contents
< Part. 1 >
1.1 Package Contents
1.2 Structure Diagram & Dimensions
1.3 Installation

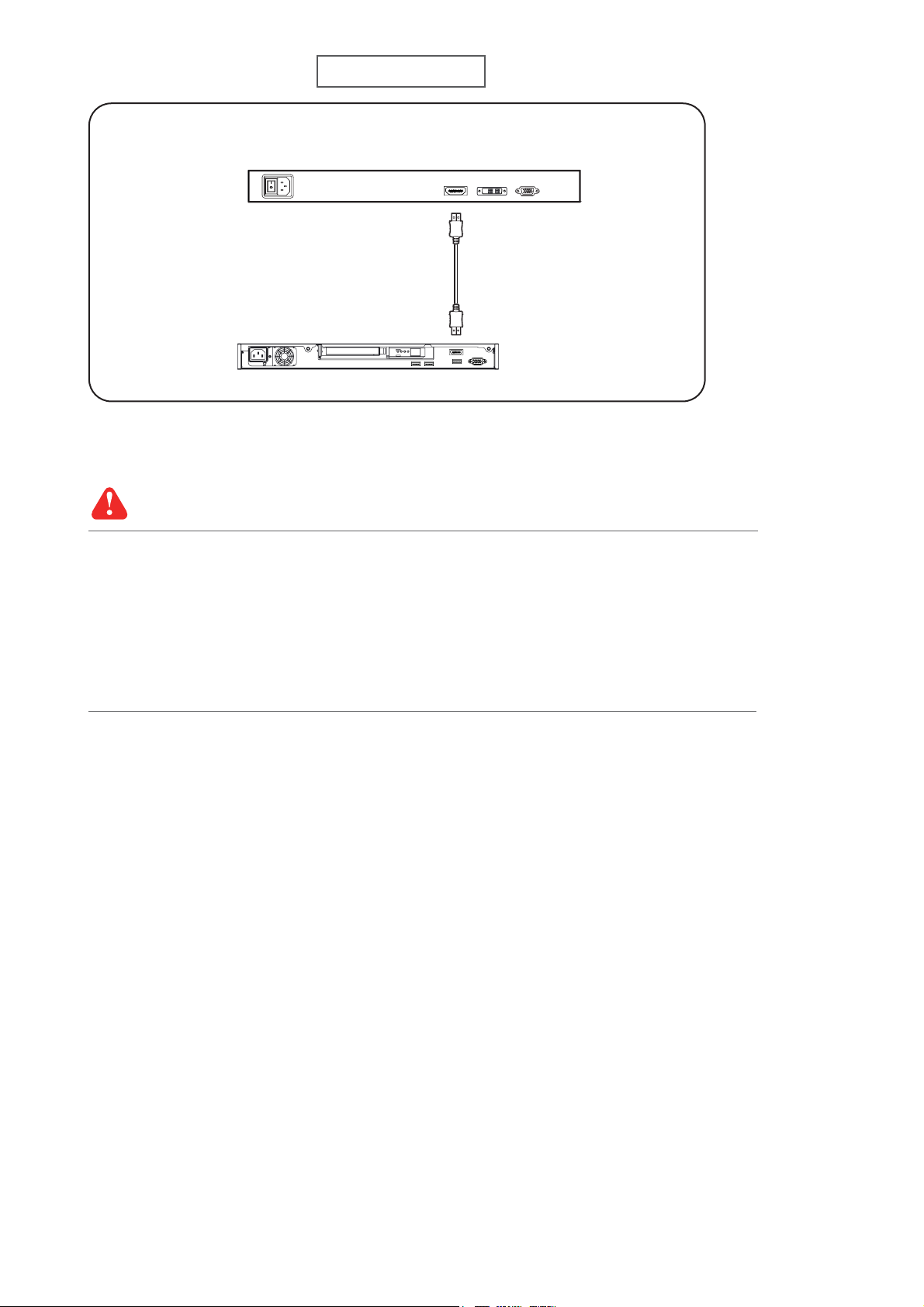

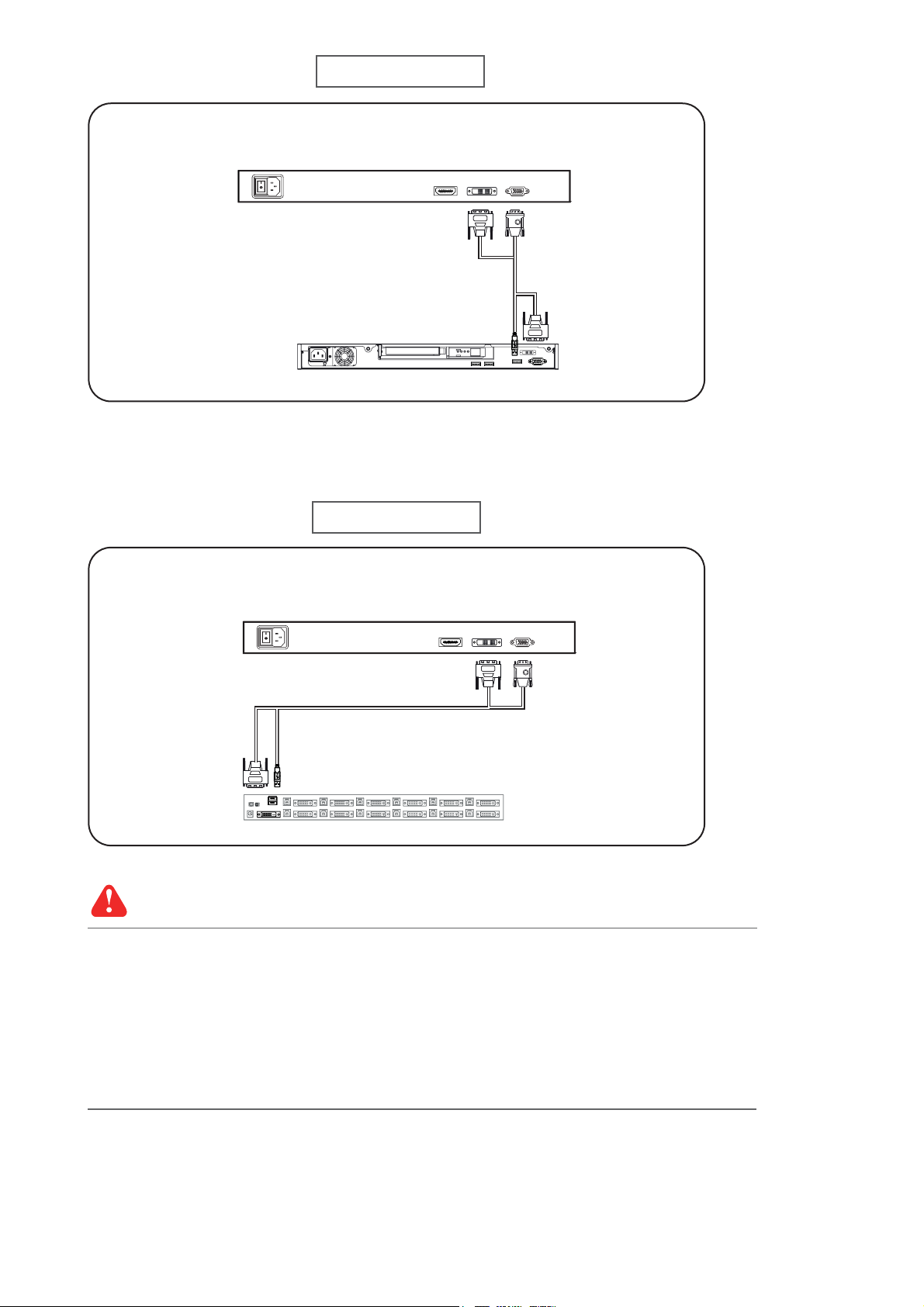

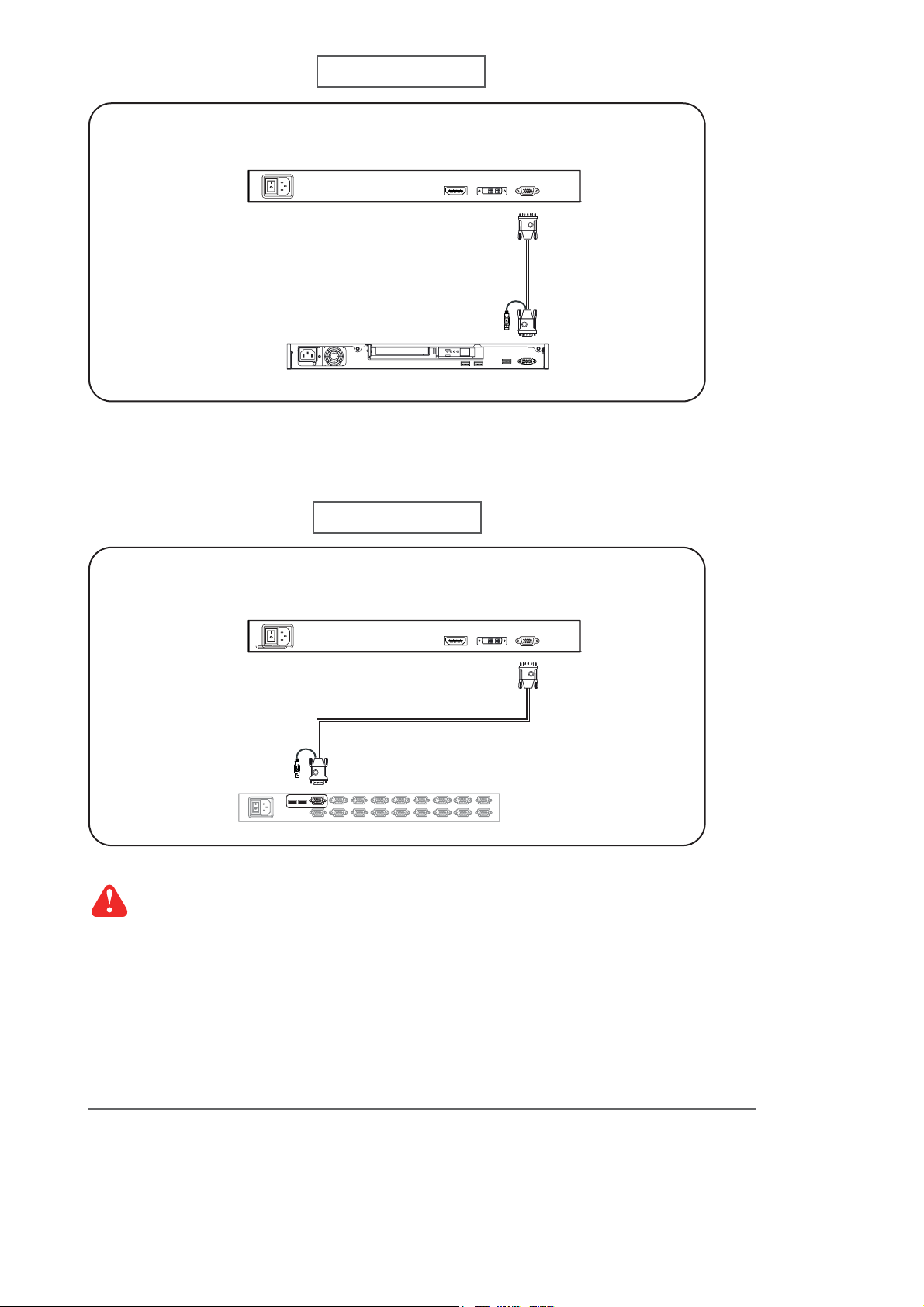

1.4 Connection
< Part. 2 >
2.1 Product Specifications

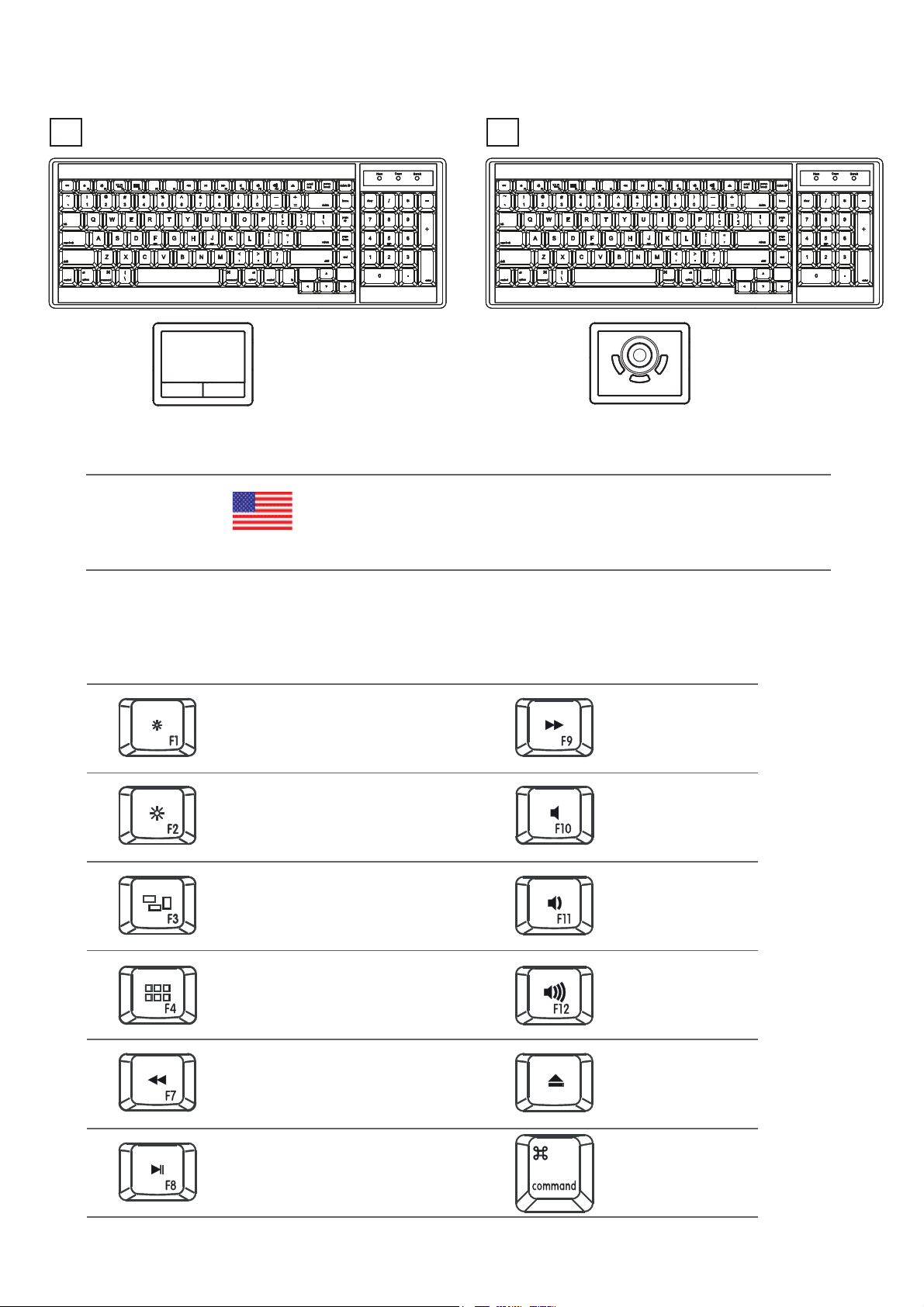

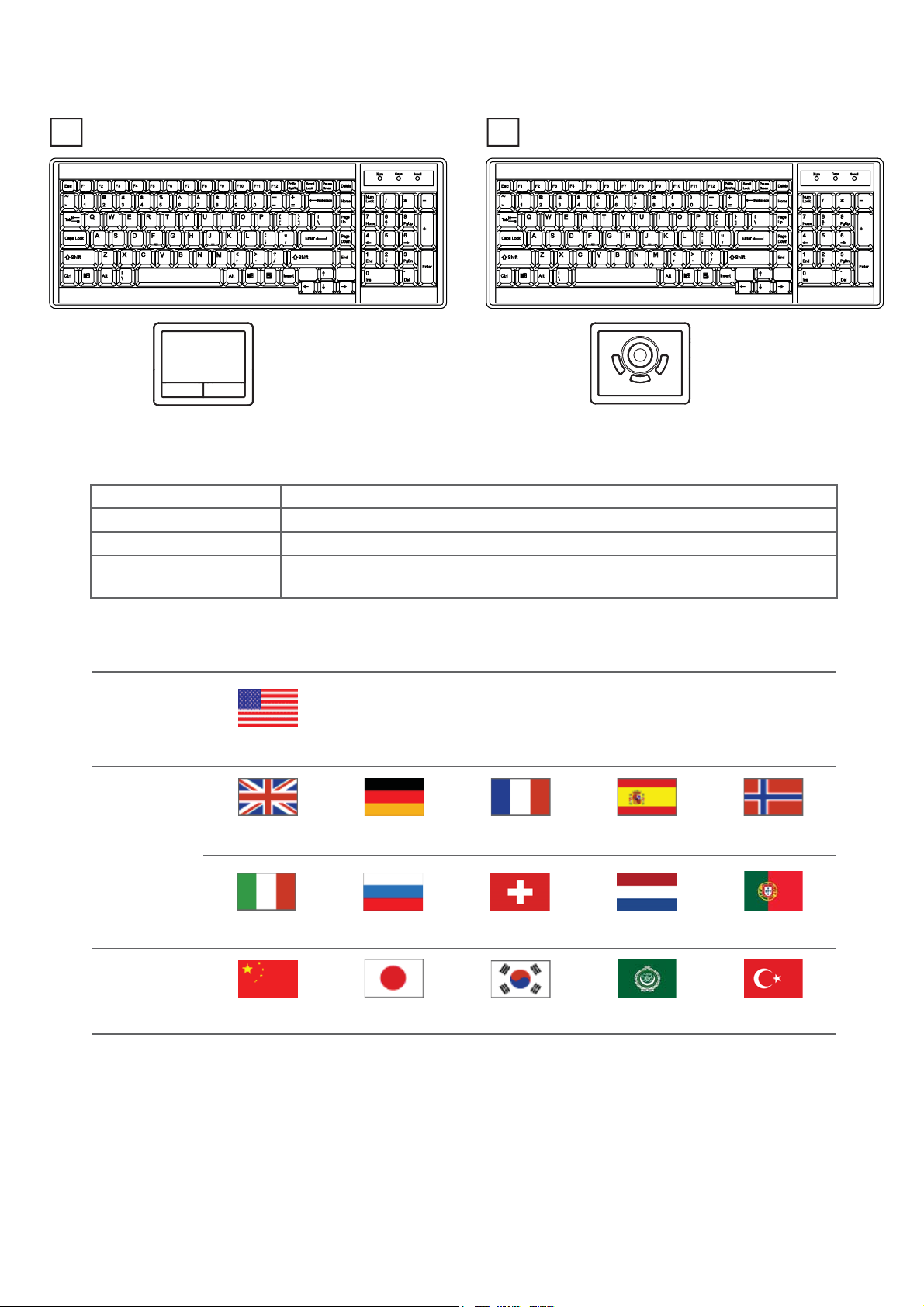

2.2 Keyboard / Mouse Specifications

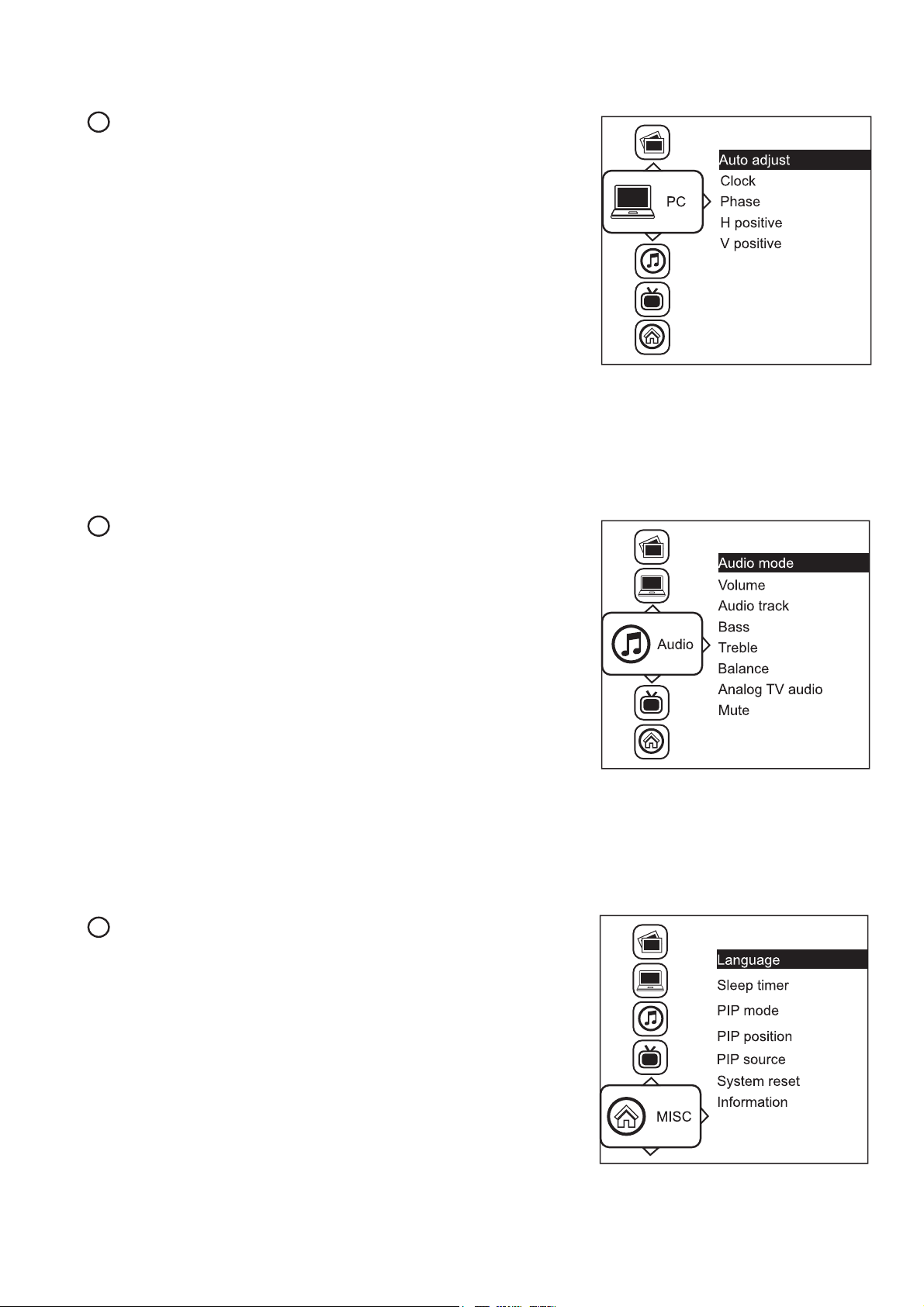

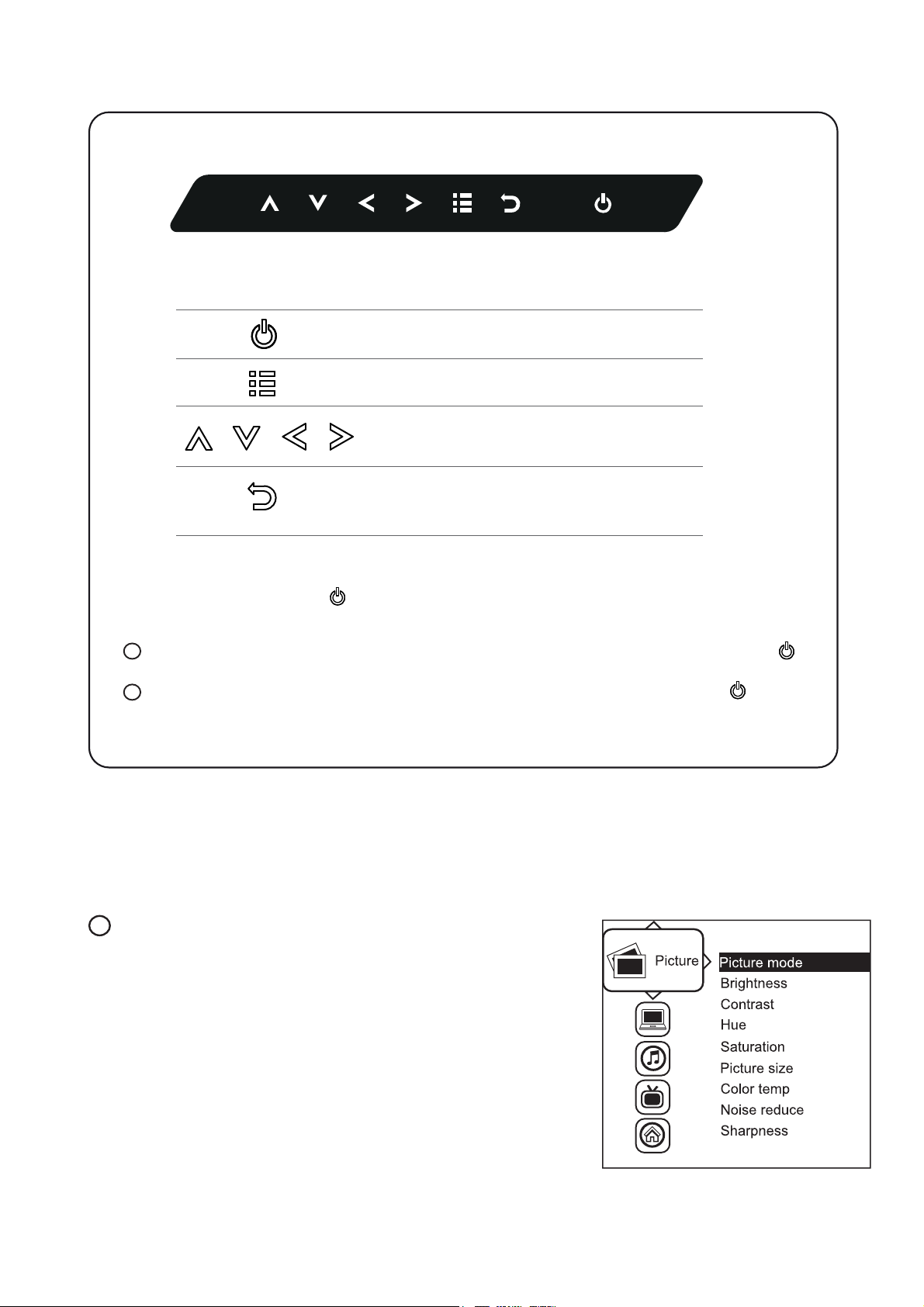

2.3 On-Screen Display Operation ( OSD )

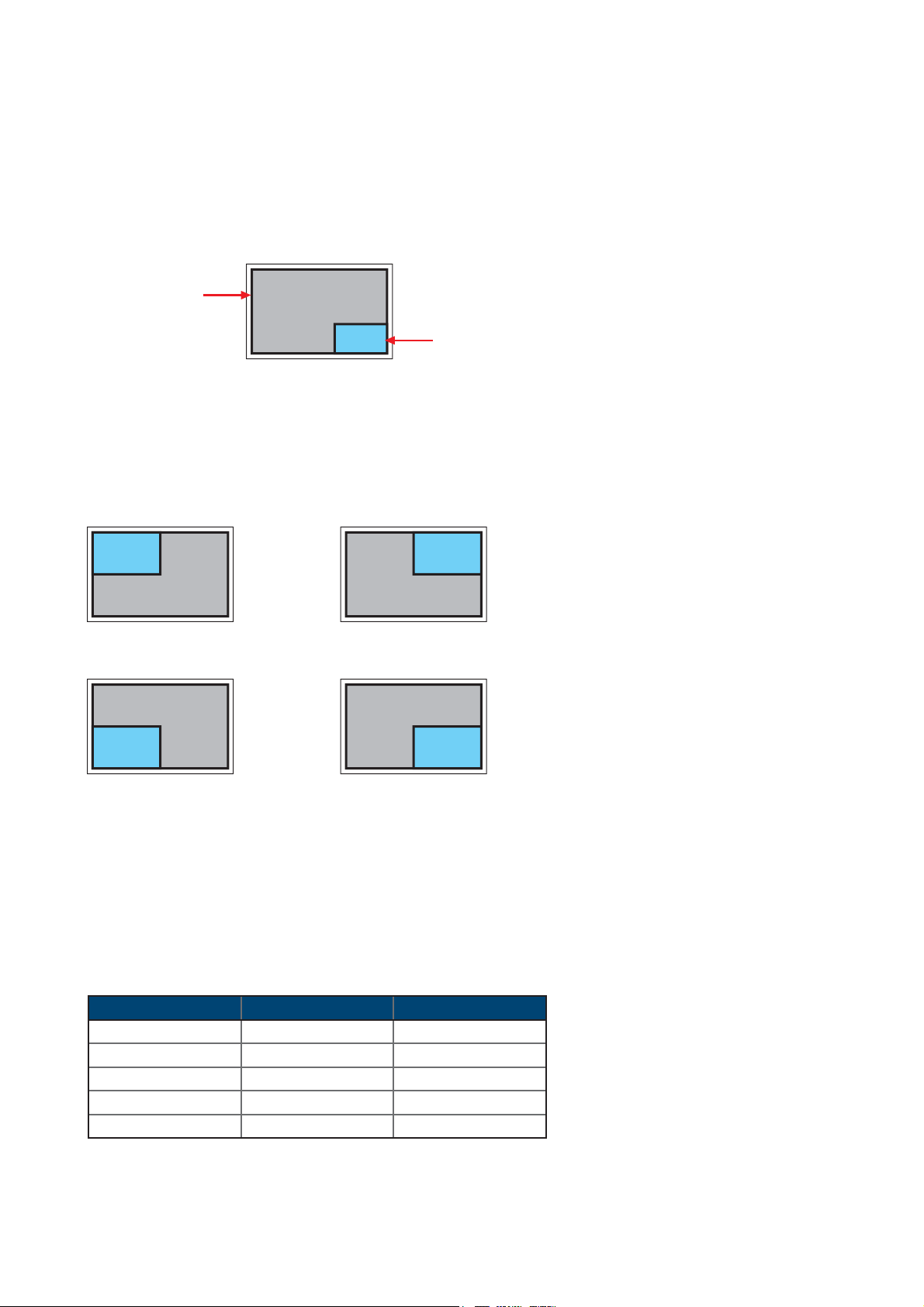

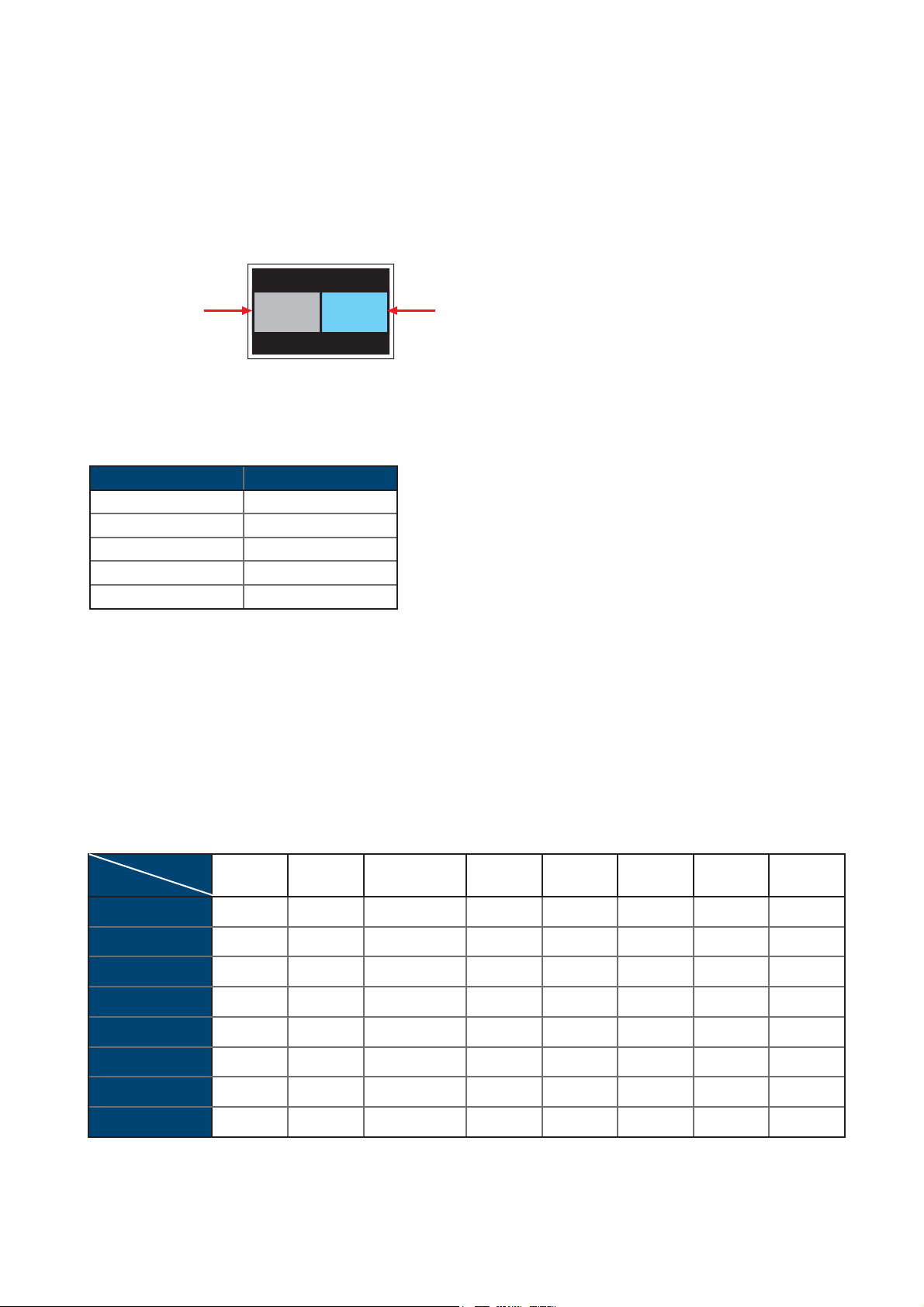

2.4 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
ERXS-17
Specifications / OSD
P. 1
P.1 - 2
P.3 - 5
P.6 - 8
P.9 - 10
P.11 - 13
P.14 - 15
P.16 - 17
< Part. 3 >

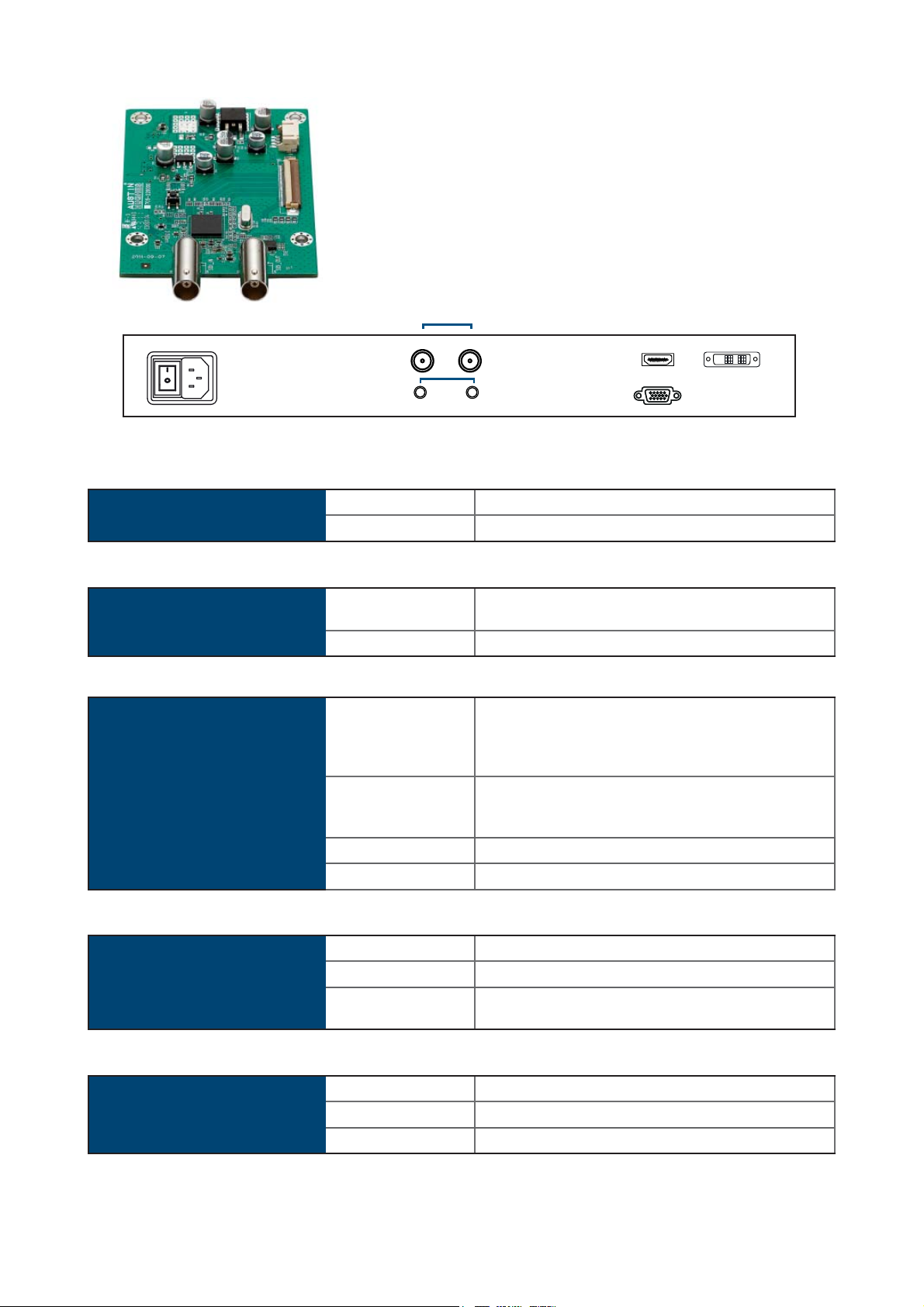

3.1 3G / HD / SD-SDI Broadcast-Grade input
3.2 Audio

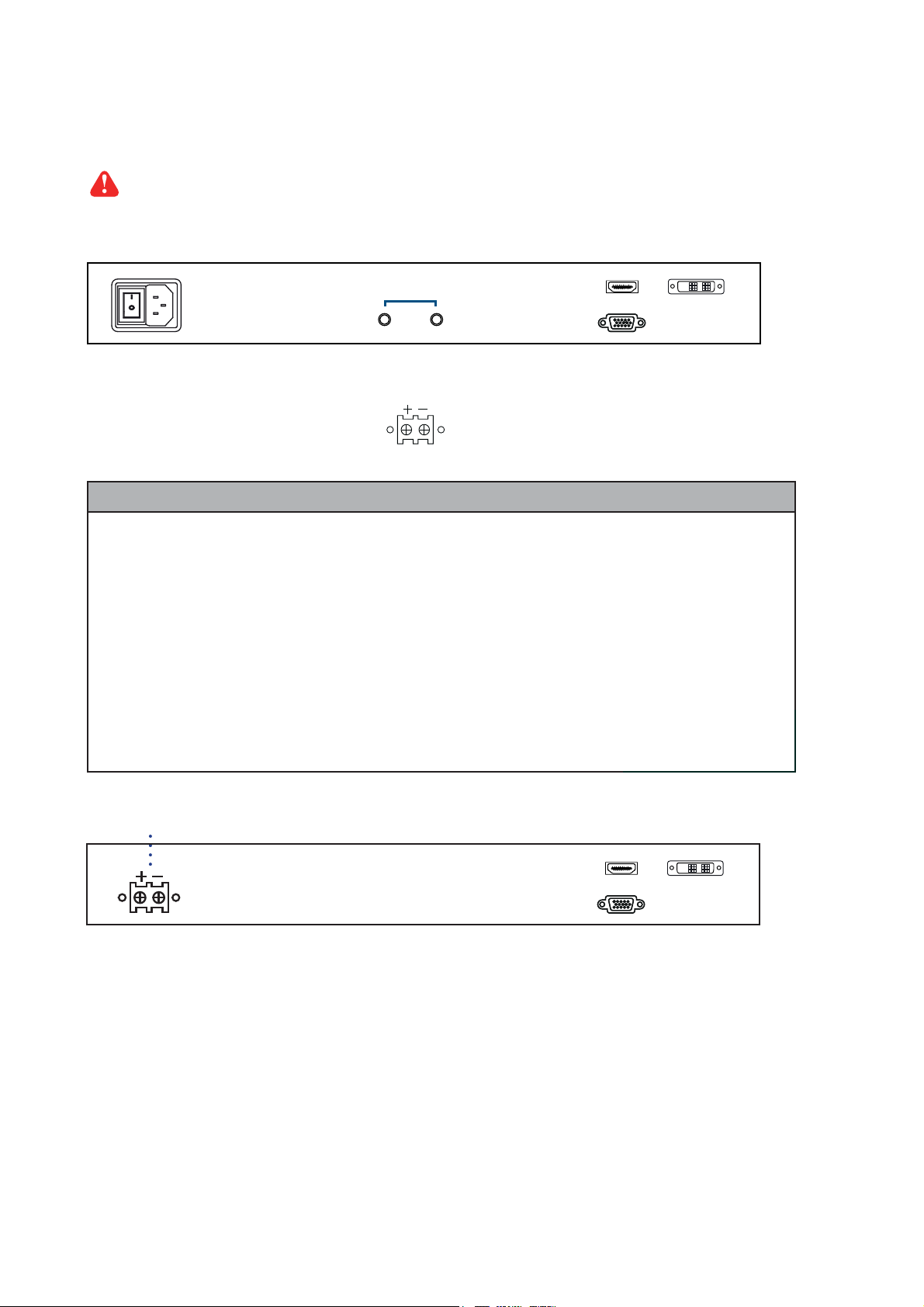

3.3 48V, 24V or 12VDC power
Options
P.18
P.19
P.19
Page 03 -- ML14V02A -- www.EclipseRackmount.com
Contents
< Part. 4 >
Matrix
DB-15 KVM
Combo
DB-15 KVM
Integrated KVM
Local Remote 8-port 16-port 32-port
111
112
110
120
1 3 0 8-M4X 16-M4X -
Local Remote 8-port 16-port 32-port
101
110
1 0 0 8-USB 16-USB -
Part Numbers Ending In:
8-M3X-IP 16-M3X-IP -
8-M4X-2IP 16-M4X-2IP -
8-M2X 16-M2X -
8-M3X 16-M3X -
Part Numbers Ending In:
8-IP 16-IP -
8-2X 16-2X -
DVI-D
KVM
USB Hub
DB-15 KVM
PS/2
DB-15 KVM
Part Numbers Ending In:
Local Remote 12-port - -
1 0 0 12-DVI - -
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
101
110
1 0 0 8-USB-H 16-USB-H -
Part Numbers Ending In:
Local Remote 8-port - -
1 0 0 8-PS2 - -
8-IP-H 16-IP-H -
8-2X-H 16-2X-H -
Page 04 -- ML14V02A -- www.EclipseRackmount.com
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specif cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the f nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microf ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microf ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microf ber cloth f rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Page 05 -- ML14V02A -- www.EclipseRackmount.com
< Part 1 >
< 1.1 > Package Contents
ERXS-17 unit X 1
- CAX-6 6ft DVI-D console cable X 1
( Alternative : CAU-6 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, audio & DC power.
< 1.2 > Structure Diagram
1
2
3
4
1
LCD interchangeable module kit
6
Keyboard interchangeable module kit
5
6
7
8
9
10
2
Installation Slides
3
LCD membrane
4
Membrane switch (KVM option)
5
Micro switch for screen auto power off
Page 06 -- ML14V02A -- www.EclipseRackmount.com
7
Mouse interchangeable module kit
8
Blue Power LED
9
Front USB port for device access ( USB Hub KVM only )
10
Molded front handle
< 1.2 > Dimensions
Front View
ERXS-17
Side View
Top View
UNIT : mm
1mm = 0.03937 inch
Model
ERXS-17
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI, audio & DC power.
Page 07 -- ML14V02A -- www.EclipseRackmount.com
Product Dimension
(W x D x H)
441.6 x 480 x 44 mm
17.4 x 18.9 x 1.73"
Packing Dimension
(W x D x H)
590 x 768 x 140 mm
23.2 x 30.2 x 5.5”
Net
Weight
10.9 kg
24 lb
Gross
Weight
15.8 kg
34.8 lb

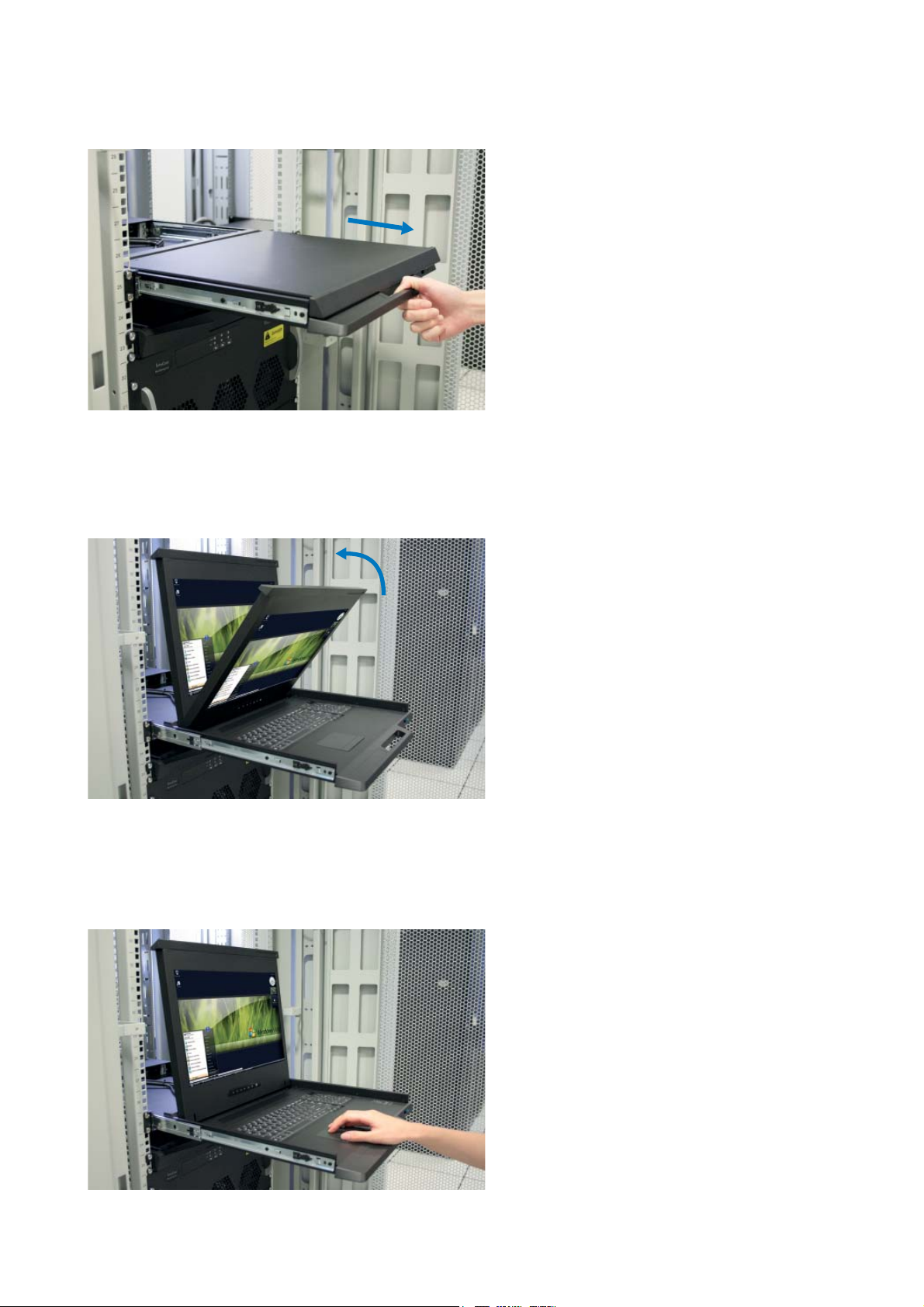

■ Fix the LCD console drawer into the rack.
Complete the installation
Step
3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step
1

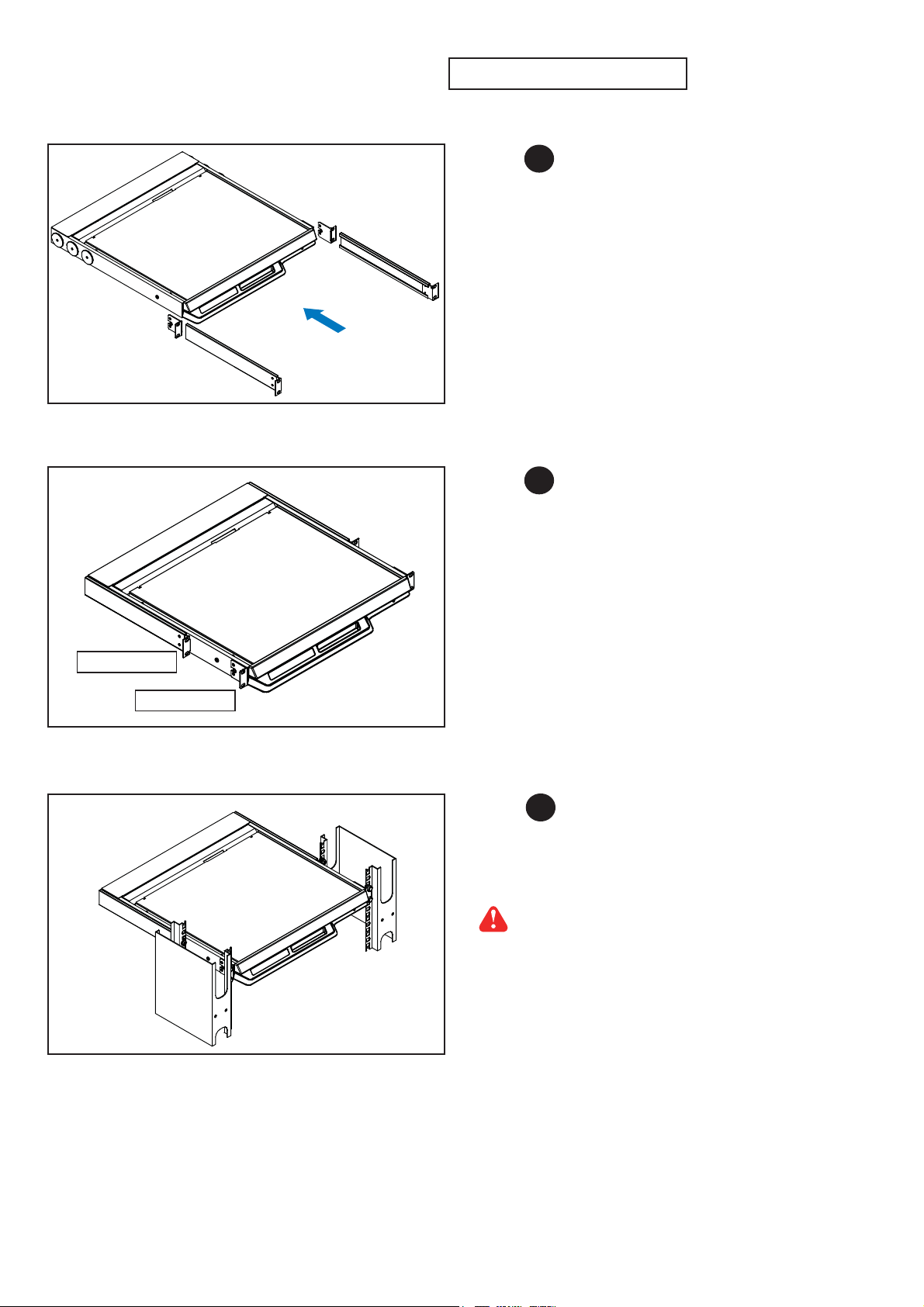

< 1.3 > Installation - How to install Installation Slides
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
