ERW Series
1U Widescreen LCD Console Drawer
Options Available:
- SDI
- HDMI / BNC / Audio
- Full Range KVM
- DC Power
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML07V02A -- Generation 4 -- www.EclipseRackmount.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, f re or electrical shock.
■ Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modif ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, f re, water, lightning, or other acts of nature, unauthorized product modif cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power f uctuation or failure.
□ Use of supplies or parts not meeting our specif cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modif cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 02 -- ML07V02A -- www.EclipseRackmount.com
Contents
< Part. 1 >
1.1 Package Contents
1.2 Structure Diagram & Dimensions
1.3 Installation
1.4 Connection
< Part. 2 >
2.1 Product Specif cations
2.2 Keyboard / Mouse Specifications
2.3 On-Screen Display Operation ( OSD )
ERW-19
Specifications / OSD
P. 1
P.1 - 2
P.3 - 5
P.6 - 7
P.8 - 9
P.10
P.11 - 12
< Part. 3 >
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 HDMI, S-Video + BNC & Audio
3.3 48V, 24V or 12VDC power
Options
P.13
P.14
P.15
Page 03 -- ML07V02A -- www.EclipseRackmount.com
Contents
< Part. 4 >
Matrix
Cat6 KVM
Combo
Cat6 KVM
Matrix
DB-15 KVM
Integrated KVM
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
111 - 16-Cat6-M3X-IP 32-Cat6-M3X-IP
112 - 16-Cat6-M4X-2IP 32-Cat6-M4X-2IP
110 - 16-Cat6-M2X 32-Cat6-M2X
120 - 16-Cat6-M3X 32-Cat6-M3X
1 3 0 - 16-Cat6-M4X 32-Cat6-M4X
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
1018-Cat6-IP 16-Cat6-IP 32-Cat6-IP
1108-Cat6-2X 16-Cat6-2X 32-Cat6-2X
1 0 0 8-Cat6 16-Cat6 32-Cat6
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
111 8-M3X-IP 16-M3X-IP -
112 8-M4X-2IP 16-M4X-2IP -
110 8-M2X 16-M2X -
120 8-M3X 16-M3X -
Combo
DB-15 KVM
DVI-D
KVM
USB Hub
DB-15 KVM
1 3 0 8-M4X 16-M4X -
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
101 8-IP 16-IP -
110 8-2X 16-2X -
1 0 0 8-USB 16-USB -
Part Numbers Ending In:
Local Remote 12-port - -
1 0 0 12-DVI - -
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
101 8-IP-H 16-IP-H -
110 8-2X-H 16-2X-H -
1 0 0 8-USB-H 16-USB-H -
Part Numbers Ending In:
PS/2
DB-15 KVM
Page 04 -- ML07V02A -- www.EclipseRackmount.com
Local Remote 8-port - -
1 0 0 8-PS2 - -
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specif cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the f nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microf ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microf ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microf ber cloth f rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Page 05 -- ML07V02A -- www.EclipseRackmount.com
< Part 1 >
< 1.1 > Package Contents
ERW-19 unit X 1
- CAX-6 6ft DVI-D console cable X 1
( Alternative : CAU-6 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, AV, audio & DC power.
< 1.2 > Structure Diagram
1
2
3
4
1
LCD interchangeable module kit
7
Keyboard interchangeable module kit
5
6
7
8
9
10
11
2
Installation Slides
3
LCD membrane
4
Membrane switch (KVM option)
5
Micro switch for screen auto power off
6
Audio speaker ( for HDMI or Audio option )
Page 06 -- ML07V02A -- www.EclipseRackmount.com
8
Mouse interchangeable module kit
9
Blue Power LED
10
Front USB port for device access ( USB Hub KVM only )
11
Molded front handle
< 1.2 > Dimensions
Front View
ERW-19
Side View
Top View
UNIT : mm
1mm = 0.03937 inch
Model
ERW-19
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI, AV, audio & DC power.
Page 07 -- ML07V02A -- www.EclipseRackmount.com
Product Dimension
(W x D x H)
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73"
Packing Dimension
(W x D x H)
590 x 823 x 140 mm
23.2 x 32.4 x 5.5”
Net
Weight
11.5 kg
25 lb
Gross
Weight
16.3 kg
36 lb
< 1.3 > Installation - How to install Installation Slides
Step
1
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
Step
Complete the installation
3
■ Fix the display drawer into the rack.
M6 screw, cage nut & cup washer x 8 are provided.
Page 08 -- ML07V02A -- www.EclipseRackmount.com
< 1.3 > Installation - How to install 2 Post Brackets*
■ Fix the LCD console drawer into the 2 post rack.
Complete the installation
Step
3
M6 screw, cage nut & cup washer x 8
are not provided.
Rear mounting
Front mounting
ERW-19
Step
1
■ Release front mounting ears before applying 2 post
r ack brackets.
■ Insert rear mounting brackets into the LCD console
drawer.
* Requires Part #: MB-751-12
Step
2
■ Align each rear mounting bracket to a suitable length.
P.
Page 09 -- ML07V02A -- www.EclipseRackmount.com
< 1.3 > Installation - Using the Drawer
■ Hold the handle and slide out the
drawer.
■ Lift the LCD to a suitable angle.
■ Operate the LCD console drawer.
Page 10 -- ML07V02A -- www.EclipseRackmount.com
< 1.4 > Connection to USB Server via CAX-6 cable
LCD Console Drawer
DVI-D
Power
KVM
CAX-6 DVI-D
console cable
DVI-DUSB
USB server
< 1.4 > Connection to External KVM via CAX-6 cable
ERW-19
LCD Console Drawer
Power
DVI-D KVM
CAX-6 DVI-D
console cable
DVI-D USB
DVI console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer , we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. ERI is not responsible for damage caused in this way.
Page 11 -- ML07V02A -- www.EclipseRackmount.com
< 1.4 > Connection to USB Server via CAU-6 cable
LCD Console Drawer
Power
KVM
CAU-6 VGA
console cable
VGAUSB
USB server

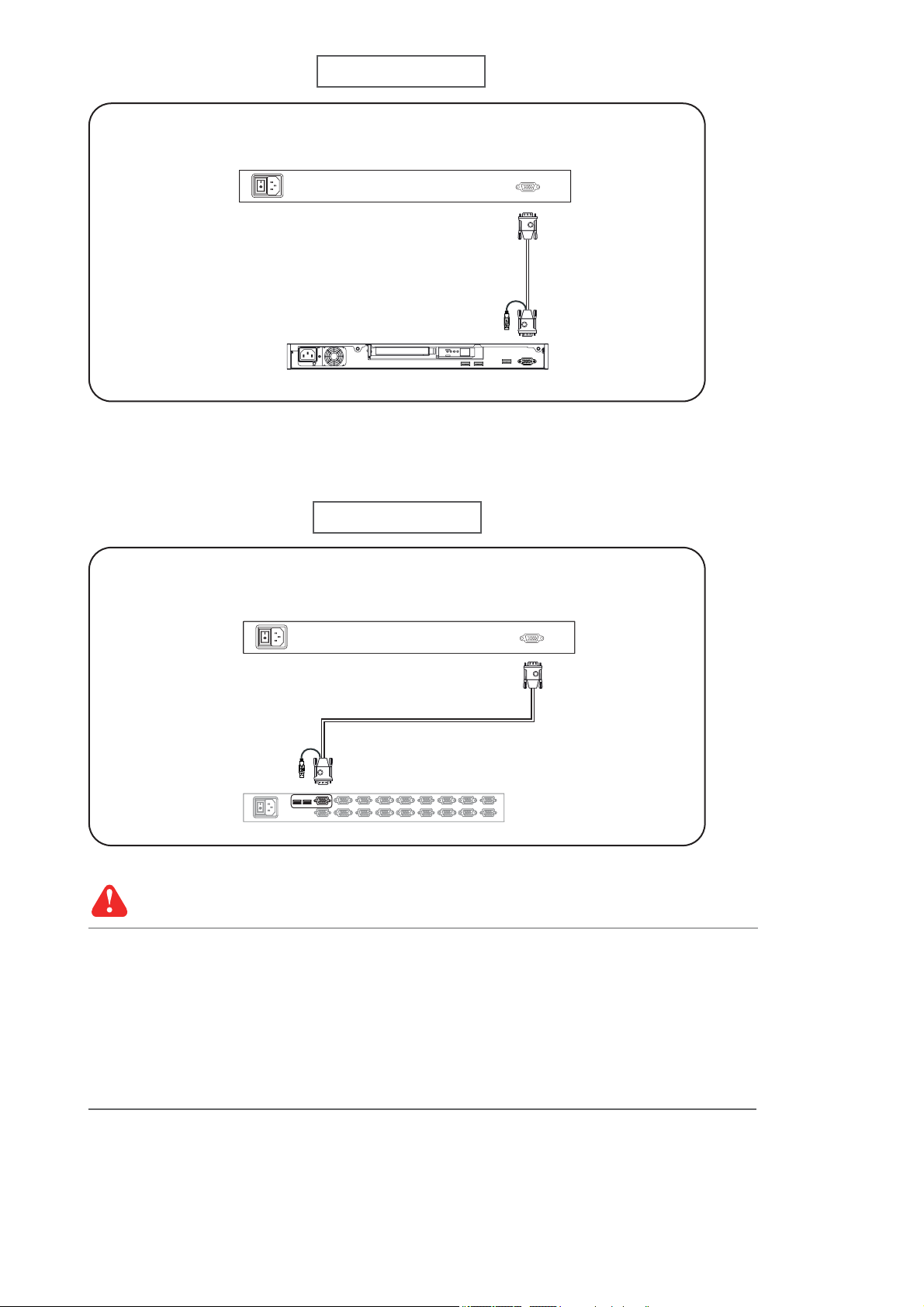

< 1.4 > Connection to External KVM via CAU-6 cable
LCD Console Drawer
Power
KVM
CAU-6 VGA
console cable
USB VGA
USB console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer , we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. ERI is not responsible for damage caused in this way.
Page 12 -- ML07V02A -- www.EclipseRackmount.com
< Part 2 >
< 2.1 > Product Specifications
LCD
Panel
Manufacturer
Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1440 x 900
Brightness ( typ. ) 250
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 80/80/80/80
Response Time ( ms ) 5
Dot pitch ( mm ) 0.2835
Display Area ( mm ) 408.24H x 255.15V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
ERW-19
Video
Connectivity
Audio
Connectivity
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio Input Connector 3.5mm stereo jack
Audio Output
Speaker Output Power 2 x 2W
Power Consumption
VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Impedance / Power level 30kΩ / 750mV
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
50 / 60Hz
Screen display ON 25W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety Approval cUL, FCC & CE
Page 13 -- ML07V02A -- www.EclipseRackmount.com
Applicable
Format
DVI-D / VGA Input PC Signal 1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Environmental
Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical
Specification
Product ( W x D x H )
Packing ( W x D x H )
eight 11.5 kgs / 25 lbs
Net W
Gross Weight 16.3 kgs / 36 lbs
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
Page 14 -- ML07V02A -- www.EclipseRackmount.com
< 2.2 > Keyboard / Mouse Specifications
ERW-19
Gn
G keyboard integrated with touch pad
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
Gb
G keyboard integrated with track ball
Supporting layouts
America
United States
United Kingdom Germany France Spain Norway
EMEA
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
Page 15 -- ML07V02A -- www.EclipseRackmount.com
< 2.3 > On-Screen Display Operation ( OSD )
Membrane Switch Function
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed control
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will f ash continuously when there is no signal input.
1
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
2
Page 16 -- ML07V02A -- www.EclipseRackmount.com
< 2.3 > On-Screen Display Operation ( OSD )
OSD Conf guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
ERW-19
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
Page 17 -- ML07V02A -- www.EclipseRackmount.com
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
The SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with CyberV iew Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, the board provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
Power
Audio
in - out
in - in - out
PC Video
S-Video BNC
KVM
DVI-DHDMI
*** For SDI option, casing depth will be changed from 460mm ( 18.1” ) to 530mm ( 20.9” )
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
HD-SDI 1080p
1080i
720p
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
Page 18 -- ML07V02A -- www.EclipseRackmount.com
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< 3.2 > Options :
ERW-19
- HDMI
- BNC
- Audio
( 1 ) Either HDMI or DVI-D can be selected.
( 2 ) For the above options, casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
( HDMI 1.1, CEA-861-D )
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
Power
Audio
in - in - out
PC Video
S-Video BNC
KVM
DVI-DHDMI
Page 19 -- ML07V02A -- www.EclipseRackmount.com
KVM
DVI-D
DC power
< 3.3 > Options : DC Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
EfILciency 84% 85% 85%
***
For DC power option :
( 1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
Page 20 -- ML07V02A -- www.EclipseRackmount.com
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved.
Manual ML07V02A -- www.EclipseRackmount.com
Loading...
