User Manual
ERL Series
1U 20" LCD Console Drawer
Options Available:
- DVI-D / HDMI / BNC / Audio
- Full Range KVM
- DC Power
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML08V02A -- Generation 3 -- www.EclipseRackmount.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, f re or electrical shock.
■ Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modif ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, f re, water, lightning, or other acts of nature, unauthorized product modif cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power f uctuation or failure.
□ Use of supplies or parts not meeting our specif cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modif cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 02 -- ML08V02A -- www.EclipseRackmount.com
Contents
< Part. 1 >
1.1 Package Contents
1.2 Structure Diagram & Dimensions
1.3 Installation
1.4 Connection
< Part. 2 >
2.1 Product Specifications
2.2 Keyboard / Mouse Specif ications
2.3 On-Screen Display Operation ( OSD )
ERL-20
Specifications / OSD
P. 1
P.1 - 2
P.3 - 4
P. 5
P.6 - 7
P.8
P. 9
< Part. 3 >
3.1 HDMI, DVI-D, S-Video + BNC & Audio
3.2 48V, 24V or 12VDC power
Options
P.10
P. 11
Page 03 -- ML08V02A -- www.EclipseRackmount.com
Contents
< Part. 4 >
Matrix
Cat6 KVM
Combo
Cat6 KVM
Integrated KVM
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
111 - 16-Cat6-M3X-IP 32-Cat6-M3X-IP
112 - 16-Cat6-M4X-2IP 32-Cat6-M4X-2IP
110 - 16-Cat6-M2X 32-Cat6-M2X
120 - 16-Cat6-M3X 32-Cat6-M3X
1 3 0 - 16-Cat6-M4X 32-Cat6-M4X
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
1018-Cat6-IP 16-Cat6-IP 32-Cat6-IP
1108-Cat6-2X 16-Cat6-2X 32-Cat6-2X
1 0 0 8-Cat6 16-Cat6 32-Cat6
Part Numbers Ending In:
Matrix
DB-15 KVM
Combo
DB-15 KVM
DVI-D
KVM
Local Remote 8-port 16-port 32-port
111 8-M3X-IP 16-M3X-IP -
112 8-M4X-2IP 16-M4X-2IP -
110 8-M2X 16-M2X -
120 8-M3X 16-M3X -
1 3 0 8-M4X 16-M4X -
Part Numbers Ending In:
Local Remote 8-port 16-port 32-port
101 8-IP 16-IP -
110 8-2X 16-2X -
1 0 0 8-USB 16-USB -
Part Numbers Ending In:
Local Remote 12-port - -
1 0 0 12-DVI - -
Part Numbers Ending In:
PS/2
DB-15 KVM
Page 04 -- ML08V02A -- www.EclipseRackmount.com
Local Remote 8-port - -
1 0 0 8-PS2 - -
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specif cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the f nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microf ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microf ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microf ber cloth f rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Page 05 -- ML08V02A -- www.EclipseRackmount.com
< Part 1 >
< 1.1 > Package Contents
ERL-20 unit X 1
- CAE-6 6ft Combo KVM cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, HDMI, DVI-D, AV, audio & DC power.

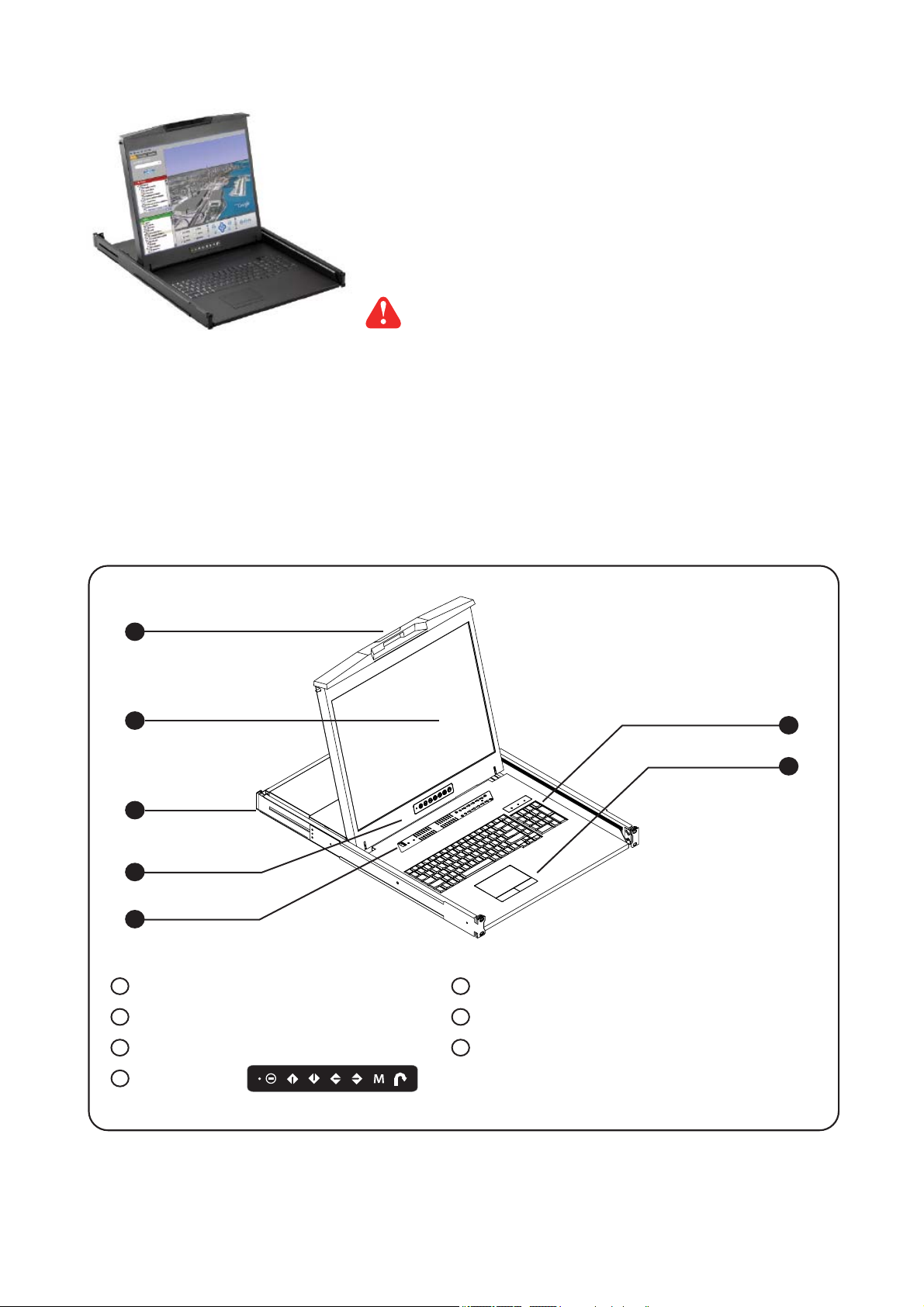

< 1.2 > Structure Diagram
1
2
3
4
5
1
Carry handle to release the 2-pt lock
5
Membrane switch (KVM option)
6
7
2
LCD interchangeable module kit
3
Installation Slides
4
LCD membrane
Page 06 -- ML08V02A -- www.EclipseRackmount.com
6
Keyboard interchangeable module kit
7
Mouse interchangeable module kit

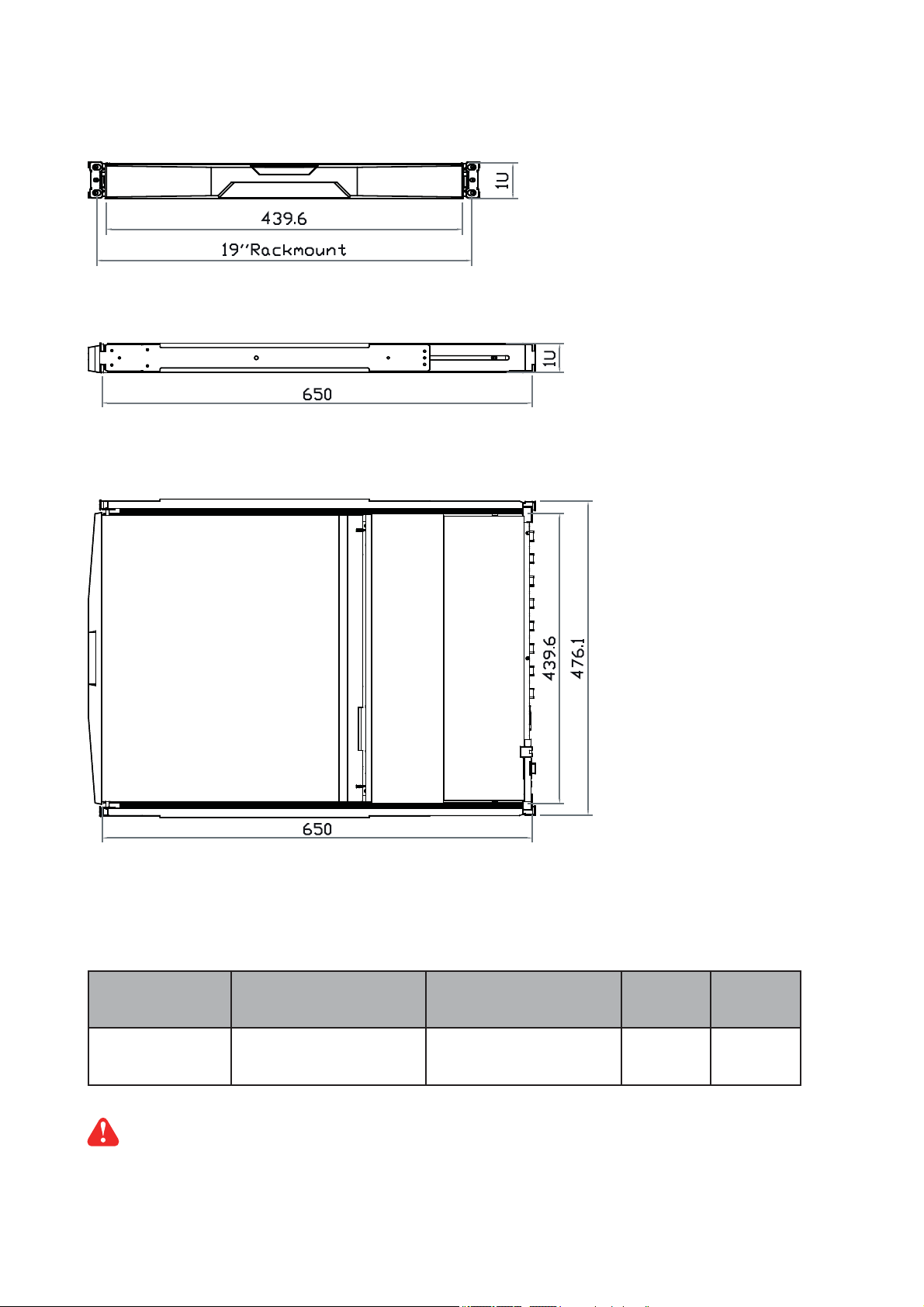

< 1.2 > Dimensions
Front View
ERL-20
Side View
Top View
UNIT : mm
1mm = 0.03937 inch
Model
ERL-20
The weight is only for the single console models. It varies with accessories & options
such as KVM, HDMI, DVI-D, AV, audio & DC power.
Page 07 -- ML08V02A -- www.EclipseRackmount.com
Product Dimension
(W x D x H)
439.6 x 650 x 44 mm
17.3 x 25.6 x 1.73"
Packing Dimension
(W x D x H)
595 x 860 x 140 mm
23.4 x 33.9 x 5.5”
Net
Weight
14.5 kg
31.9 lb
Gross
Weight
22 kg
48.4 lb
< 1.3 > Installation - How to install 1U 20" LCD Tray
Rear side
Left bracket
Right bracket
Mounting bracket
Front side
Step
1
■ Attach the left and right mounting bracket to
rack 19" mounting rails.
■ Adjust the mounting bracket to f t your rack.
■ M6 screw x 8 pcs included.
Leave all M6 screws slightly loose, until
you complete the installation in step
Step
2
3
■ Pick up the LCD tray.
■ Insert the LCD tray into the mounting bracket.
■ Pull and hold the left & right black arrow buttons
on the rails.
■ Return the LCD tray to park position.
Black arrow button
Front side
Rear kit
M3.2 screw
M6 screw
Step
3
■ Fix the rear kit to the mounting bracket with M3.2
screw x 4 pcs included.
This step is necessary. Failure to complete this
will cause damage.
Step
Complete the installation
4
■ Tighten all 8 pcs of M6 screw to complete the
installation.
Page 08 -- ML08V02A -- www.EclipseRackmount.com
< 1.3 > Installation- Using the Drawer
ERL-20
■ Press the handle button and slide out the
drawer.
■ Lift the LCD to a suitable angle.
■ Operate the LCD console drawer.
Page 09 -- ML08V02A -- www.EclipseRackmount.com
< 1.4 > Connection to PS/2 or USB Server
LCD console drawer LCD console drawer
KVM
CAE-6 Combo
KVM cable
PS/2 server USB server
< 1.4 > Connection to External KVM
LCD console drawer LCD console drawer
KVM KVM
KVM
CAE-6 Combo
KVM cable
CAE-6 Combo
KVM cable
PS/2 console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer , we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. ERI is not responsible for damage caused in this way.
CAE-6 Combo
KVM cable
USB console KVM
Page 10 -- ML08V02A -- www.EclipseRackmount.com
< Part 2 >
< 2.1 > Product Specifications
LCD
Panel
Manufacturer
Panel Size ( diagonal ) 20-inch TFT color LCD
Display pixel ( dots x lines ) 1600 x 1200
Brightness ( typ. ) 300
Contrast Ratio ( typ. ) 800:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 16
Dot pitch ( mm ) 0.255
Display Area ( mm ) 408.00H x 306.00V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type CCFL
MTBF ( hrs ) 45,000
ERL-20
Video
Connectivity
Audio
Connectivity
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio Input Connector 3.5mm stereo jack
Audio Output
Speaker Output Power 2 x 2W
Power Consumption
VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Impedance / Power level 30kΩ / 750mV
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
50 / 60Hz
Screen display ON 48W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety Approval FCC & CE
Page 11 -- ML08V02A -- www.EclipseRackmount.com
Environmental
Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical
Specification
Applicable
Format
Product ( W x D x H )
Packing ( W x D x H )
eight 14.5 kgs / 31.9 lbs
Net W
Gross Weight 22 kgs / 48.4 lbs
VGA Input PC Signal 1600 x 1200 x 60Hz
439.5 x 650 x 44 mm
17.3 x 25.6 x 1.73 inch
595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch
1400 x 1050 x 60Hz
1440 x 900 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1
152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Page 12 -- ML08V02A -- www.EclipseRackmount.com
< 2.2 > Keyboard / Mouse Specifications
Gn
G keyboard integrated with touch pad
ERL-20
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
Supporting layouts
America
United States
United Kingdom Germany France Spain Norway
EMEA
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
Page 13 -- ML08V02A -- www.EclipseRackmount.com
< 2.3 > On-Screen Display Operation ( OSD )
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Display the OSD menu
Power on / off LCD
Power light
Green = On
Orange = Power saving
Membrane Switch Function
OSD Conf guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
Page 14 -- ML08V02A -- www.EclipseRackmount.com
< Part 3 >
< 3.1 > Options :
- HDMI
- DVI-D
- BNC
- Audio
Either HDMI or DVI-D can be selected.
( HDMI 1.1, CEA-861-D )
( DVI-D TMDS single link )
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
Power
Audio
in - in - out
PC Video
S-Video BNC
DVI-DHDMI
KVM
Page 15 -- ML08V02A -- www.EclipseRackmount.com
< 3.2 > Options : DC Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Efficiency 84% 85% 85%
DC power
***
Option excludes 1 x power cord and 1 x AC power adapter
KVM
Page 16 -- ML08V02A -- www.EclipseRackmount.com
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved.
Manual ML08V02A -- www.EclipseRackmount.com
Loading...
