OWNER'SMANUAL

We appreciate your purchase of this receiver.

Please read through this manual for correct operation.

We suggest that after reading it you keep this manual

in a safe place for future reference.

ESN E8 High-Power "Customize" CD/MS Receiver with MP3/WMA Decoder and Remote

CD8445

For your safety in using the

CD8445

Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD8445. They show safe and correct ways to handle the product so as to prevent personal injury to you, others and to avoid property damage.

Before reading through the manual, take time to read through and learn the important information listed in this section.

This sign indicates a situation in which incorrect

Warning

Caution

handling or disregard of this sign might result in death or serious personal injury.

This sign indicates a situation in which incorrect handling or disregard of this sign might result in personal injury or may result solely in damage to property.

Warning

● Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; Eclipse will not be held liable for damages including, but not limited to serious injury, death or property damage resulting from installations that enable unintended operation.

● This equipment requires 12V DC and should only be installed in a vehicle with a 12V negative ground electrical system. Any other installation may cause a fire or other severe damage to the equipment and the vehicle.

● Never install this equipment where it will interfere with safe operation of the vehicle. Never block the drivers’ view. Do not install equipment where it may interfere with operation of the brakes, the steering or any safety equipment, including seat belts and air bags.

● Before drilling holes in a vehicle for installation, you must confirm the locations of pipes, tanks, electrical wiring, and other vehicle systems and components to ensure that there will be no interference or contact. In addition, you must also apply rust prevention and leak prevention measures at the drilling area. Otherwise, fire or electric shock could occur.

● When installing equipment do not remove or alter existing vehicle fasteners, including nuts, bolts, screws, clips, and fittings. Never detach, move or alter existing vehicle wiring, including electrical grounds and straps. Alteration of existing vehicle components may make vehicle unsafe to operate.

● Before installation, remove the negative (-) battery terminal to prevent shocks, electrical arcing, fires, and damage to vehicle wiring and the equipment you are installing.

● Secure wiring with tape or plastic ties so that wires do not interfere with vehicle operation, including brake pedal, gear shifter and steering. Position wires so that they will not be rubbed, abraded, or damaged by moving vehicle components, including power seats.

Warning

● To avoid equipment and vehicle damage, including fire, never supply power to installed equipment in a way which will overload the capacity of an existing vehicle circuit. Never leave a power supply wire or connection uninsulated. Always install supplied fuses, circuit breakers, and relays.

● Air bags are vital safety equipment. Never install equipment in a way which will alter air bag wiring or interfere with air bag deployment. Air bags must function properly in the event of an accident.

● When installation is complete, test all vehicle electrical systems for proper operation, including lights, horn, brake lights, and emergency flashers.

● For your protection, never use a power drill without safety glasses or goggles. Debris or broken drill bits may cause severe eye injuries, including blindness.

● Use electrical tape to insulate the ends of all wires, even if not used. Proper insulation prevents arcs, shocks and fires.

● Some equipment uses batteries. Never install equipment where young children can get access to batteries. If a battery is swallowed, seek medical attention immediately.

● When vehicle is moving, never take your eyes off the road to make adjustments to the equipment. You must pay attention to the road to avoid accidents, do not let the operation or adjustment of the equipment distract you from proper vehicle operation.

● The driver should not look at the screen while driving. Accidents may result if you are not paying attention to the forward direction.

● Do not put foreign objects in the loading slot of Memory Stick or disc. Fires or shocks may result.

● Do not disassemble or alter this equipment. Accidents, fires or shocks may result.

● Do not let water or foreign objects enter the internal parts of this equipment. Smoke, fires or shocks may result.

● Pay attention to where the remote control is left. Traffic accidents or problems with driving may result if the remote control makes its way under the foot pedals etc. when the vehicle is stopped or when it goes around a corner.

Warning

● Do not use when it is broken (the screen is not lit or no sound comes out). Accidents, fires or shocks may result.

● Always replace fuses with fuses of identical capacity and characteristics. Never use a high capacity fuse than the original. Using the wrong type of fuse may cause a fire or severe damage.

● If foreign objects or water enters the equipment, smoke comes out, or there is a strange odor, stop using it immediately, and contact your dealer. Accidents, fires, or shocks may result if you continue to use it in these conditions.

● The driver should not change the Memory Stick or CD while driving. As accidents may result if you are not paying attention to the forward direction, first stop the car at a safe location and then proceed.

● Plastic bags and wrappings may cause suffocation and death. Keep away from babies and children. Never put bag over your head or mouth.

Caution

● Wiring and installing this equipment requires expertise and experience. Professional installation is recommended. Consult with your dealer or a professional installer. Incorrect wiring may damage the equipment or interfere with safe vehicle operation.

● Use only the accessory parts as specified. Using other parts may cause damage to the equipment or cause parts to fall or fly off the equipment.

● Do not install the unit in places where it may get dew condensation on (around the air conditioning hose, etc.), come in contact with water, or in condition of high moisture, dust or oily smoke. If water, moisture, dust or oily smoke enters this unit, smoke, fires or malfunctions may result.

● Avoid installing in places where it cannot be fastened securely or where there are strong vibrations. Also, if you installed the unit with double-sided tape, first wipe away dirt and wax from the installation area. Otherwise, the unit may come loose due to vibration while driving, causing problems for driving and resulting in traffic accidents or injuries.

● Do not install in places with direct sunlight or where it will be hit directly by hot air from the heater. This may increase the temperature of the interior of this equipment, resulting in fires and malfunctions.

● Do not block the fan, heat sink or vents of this unit. When fan, heat sink or vent is blocked, the interior overheats, and fires may result.

● Connect as specified in the installation manual. If not connected normally, fires or accidents may result.

● When installing in vehicles equipped with air bags, check the manufacturer's cautions regarding operation before operating. Airbags may not operate properly.

● Carry out the wiring such that cords are not pinched by movable parts such as seat rails, and screw parts of the vehicle body. Accidents, fires and shocks may result from disconnection and electrical shorts.

● Carry out the wiring such that the cord does not make contact with metal parts. The cord maybe be damaged by contact with metal parts, resulting in fire and shocks.

Caution

● Avoid hot surfaces when wiring equipment. High temperatures may damage wiring, causing shorts, arcing and fires.

● When changing the installation location for this equipment, please consult the dealer where you bought it for safety reasons. Expertise is necessary for removal and installation.

● Keep volume to a reasonable level so that you can hear sounds from outside the vehicle, including warning sounds, voices, and sirens. Failure to do so may cause an accident.

● Be careful that hands and fingers are not pinched when adjusting the tilting angle or closing display. Injuries may result.

● Do not put your hands or fingers into the loading slot of Memory Stick or disc. Injuries may result.

● Do not touch the heat dissipating part of the amp. Burns may result from the heat of this part.

● Do not recharge dry batteries. Dry batteries may rupture, resulting in injuries.

● Do not use batteries other than those specified. Also, do not mix old and new batteries. Injuries or pollution to the surroundings may result from battery ruptures and leakage.

● When inserting batteries into the equipment, be careful with the polarity (positive/negative), and insert them as indicated. If the battery polarities are incorrect, injuries and pollution to the surroundings may result from battery ruptures and leakage.

● Replace used batteries as soon as possible; they may leak and damage equipment. Battery leakage can burn your skin or your eyes. Wash hands after handling.

● If alkaline solution from alkaline dry batteries makes contact with your skin or clothes, flush with clean water. If any of the solution gets in your eyes, also flush clean with water and then seek medical attention.

● When disposing of lithium dry batteries, affix insulating tape to the positive and negative terminals, and after they are insulated, dispose of them according to the "Local municipal ordinances". Shorts, fires and ruptures may result from disposal when coming contact with other electrically conductive objects such as metal parts, etc.

Caution

● Do not short, disassemble or heat the batteries, or place them in fire or water. Fire and injuries may result from battery rupture and leakage.

● Store the remote control in a place away from direct sunlight, high temperatures, and high moisture levels. The case may change shape, and the batteries may rupture and leak.

● Do not use this equipment except for in-vehicle use. Shocks or injuries may result.

● Be careful of the position of the volume when turning the power source ON. Hearing damage may result if very loud noise is emitted when the power is turned ON.

● Do not operate under abnormal conditions such as when the sound is broken or distorted. Fires may result.

● This equipment uses invisible laser light. Do not disassemble or alter this equipment. If trouble occurs, contact the dealer where you bought the equipment. Altering this equipment may cause exposure to laser emissions (worsening eyesight), or result in accidents, fires or shocks.

● If the equipment is dropped or the cosmetics appear broken, turn off the power to the main unit and contact your dealer. If used in this condition, fires or shocks may result.

Table of Contents

Operating precautions.............................................................................. 16

Names of controls and parts.................................................................... 23

ESN security operating precedure .......................................................... 24

Basic operation ......................................................................................... 41

How to operate the CD player .................................................................. 72

How to operate the MP3/WMA player ...................................................... 82

How to operate the Memory Stick player ................................................ 91

How to operate the tuner........................................................................ 104

How to operate the Sound Adjustment Mode ...................................... 115

How to operate the AREA SHOT function (U.S.A. only) ...................... 151

How to use the remote control .............................................................. 162

How to operate the receiver with an optional CD changer connected

How to operate the tuner with an optional HD RADIO tuner

connected (U.S.A. only)... 174

How to operate the tuner with an optional SIRIUS satellite radio tuner

connected (U.S.A. only)... 181

Others....................................................................................................... 187

.... 170

III

VII

VIII

XII

XIII

XIV

If you have a question: ........................................................................... 190

Specifications.......................................................................................... 195

Before installlation.................................................................................. 197

Mounting instruction .............................................................................. 198

How to contact customer service .......................................................... 209

XVI

XVII

XVIII

XIX

Table of Contents

Operating precautions......................................................................... 16

Notes on operation........................................................................................................16

About compact discs .....................................................................................................17

About cleaning a CD .....................................................................................................19

About Memory Sticks ....................................................................................................20

About cleaning the Memory Sticks................................................................................22

Names of controls and parts .............................................................. 23

ESN security operating procedure ..................................................... 24

About ESN ....................................................................................................................24

How to switch the security type (Key CD security/Memory Stick security) ................... 25

How to operate the ESN (Key CD) security ..................................................................26

How to program the Key CD................................................................................... 26

How to cancel the Key CD......................................................................................27

How to change the Key CD ....................................................................................28

How to resume normal operation (ESN security lock out)......................................28

What happens if an incorrect CD is inserted? ........................................................29

How to operate the ESN (Memory Stick) security......................................................... 30

How to record a security code ................................................................................30

How to cancel the Memory Stick security...............................................................32

How to change the Memory Stick ........................................................................... 34

How to resume normal operation (ESN security lock out)......................................35

What happens if a Memory Stick or security code is incorrect? .............................37

How to operate the ACC security.................................................................................. 38

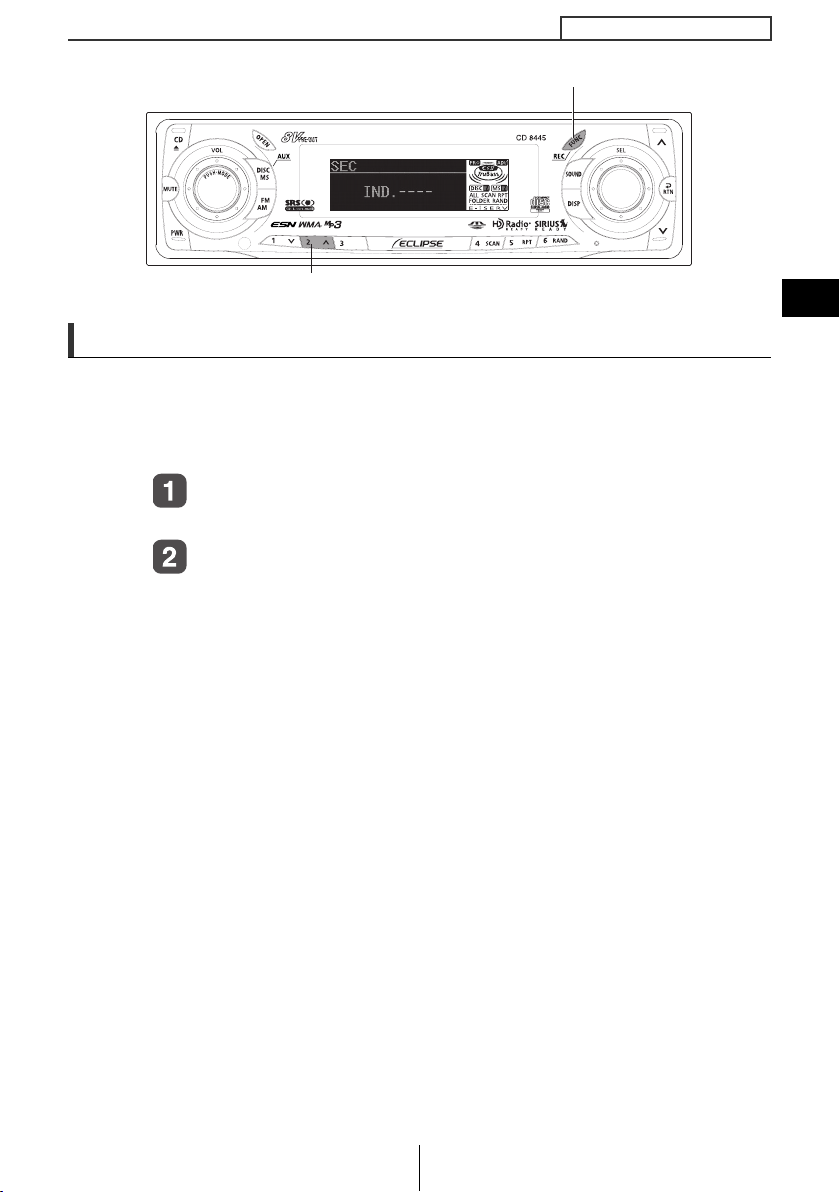

How to turn the security indicator on/off........................................................................39

How to read the Electronic Serial Number ....................................................................40

Basic operation .................................................................................... 41

Turning the power on and off ........................................................................................41

Listening to CD ............................................................................................................. 42

Listening to MG Memory Stick ......................................................................................43

Listening to the tuner ....................................................................................................44

Adjusting audio volume .................................................................................................45

Switching audio control modes ..................................................................................... 46

VOL (VOLUME) Mode............................................................................................ 46

BASS Mode ............................................................................................................ 46

MID (MIDDLE) Mode ..............................................................................................47

TREB (TREBLE) Mode...........................................................................................47

BAL (BALANCE) Mode...........................................................................................47

FAD (FADER) Mode............................................................................................... 47

NON-F (NON-FADER) Mode..................................................................................47

SVC (Source Volume Control) Mode......................................................................48

Enabling the loudness control....................................................................................... 49

Making changes with Display Adjustment Mode ...........................................................50

Switching the motion picture...................................................................................51

Switching the brightness.........................................................................................52

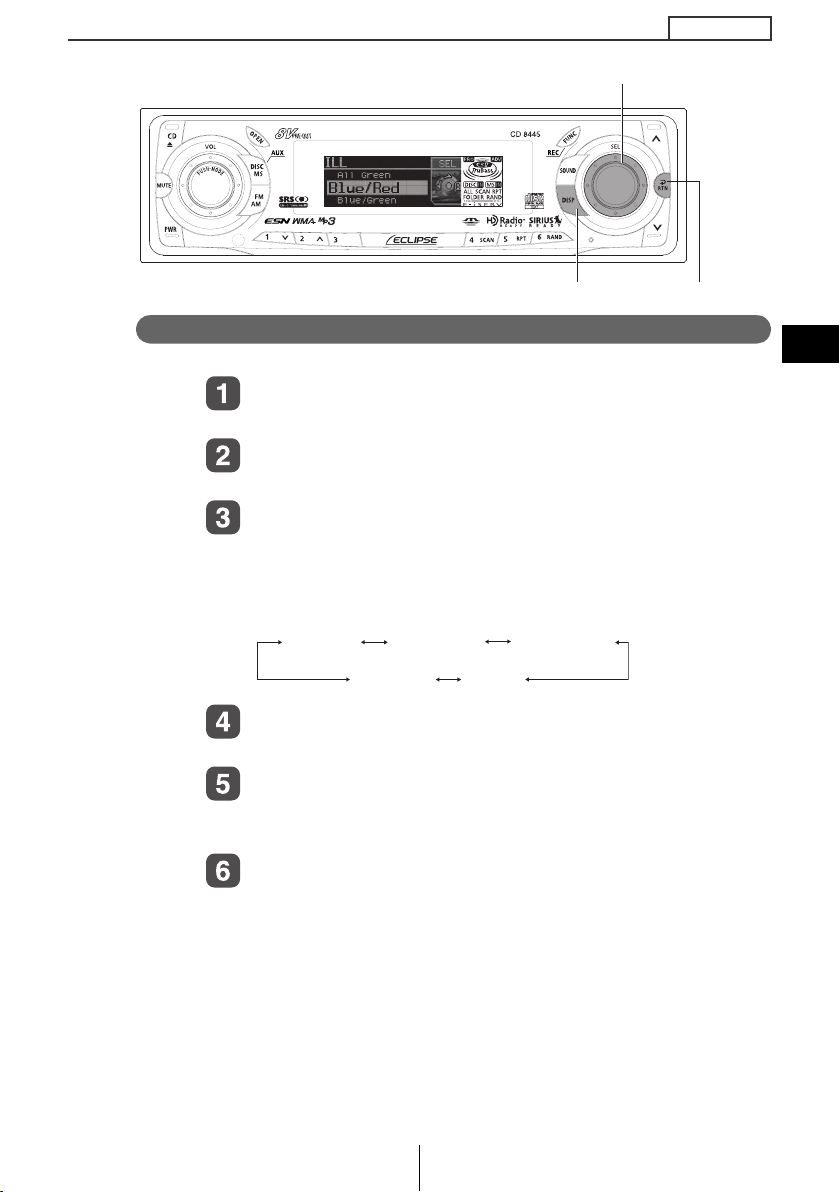

Changing illumination color.....................................................................................53

Disabling the display...............................................................................................54

Importing DISP screens.......................................................................................... 55

Displaying Amplifier Status (E-AMP DISP).............................................................58

Making changes with Function Mode............................................................................59

Disabling the guide tone feature (for button operation) ..........................................61

Clock display on/off.................................................................................................62

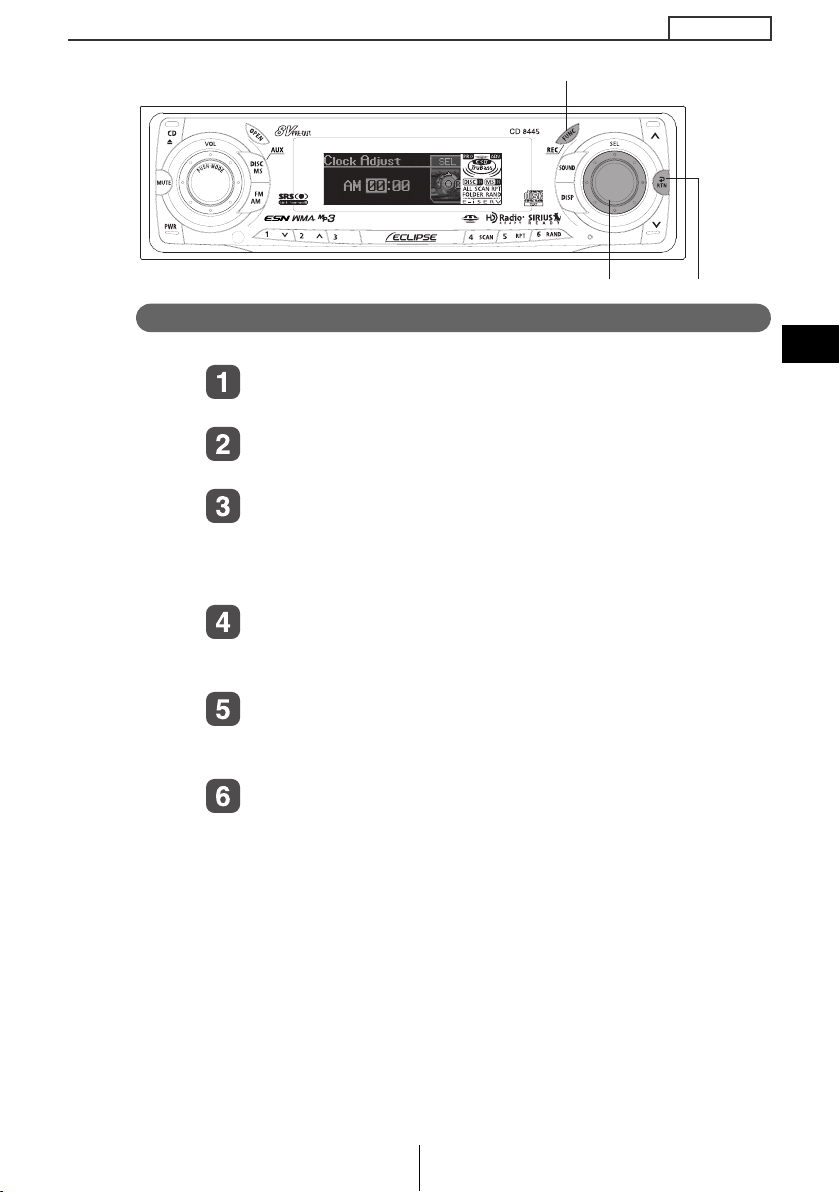

Setting the time.......................................................................................................63

Switching demonstration screen display................................................................. 64

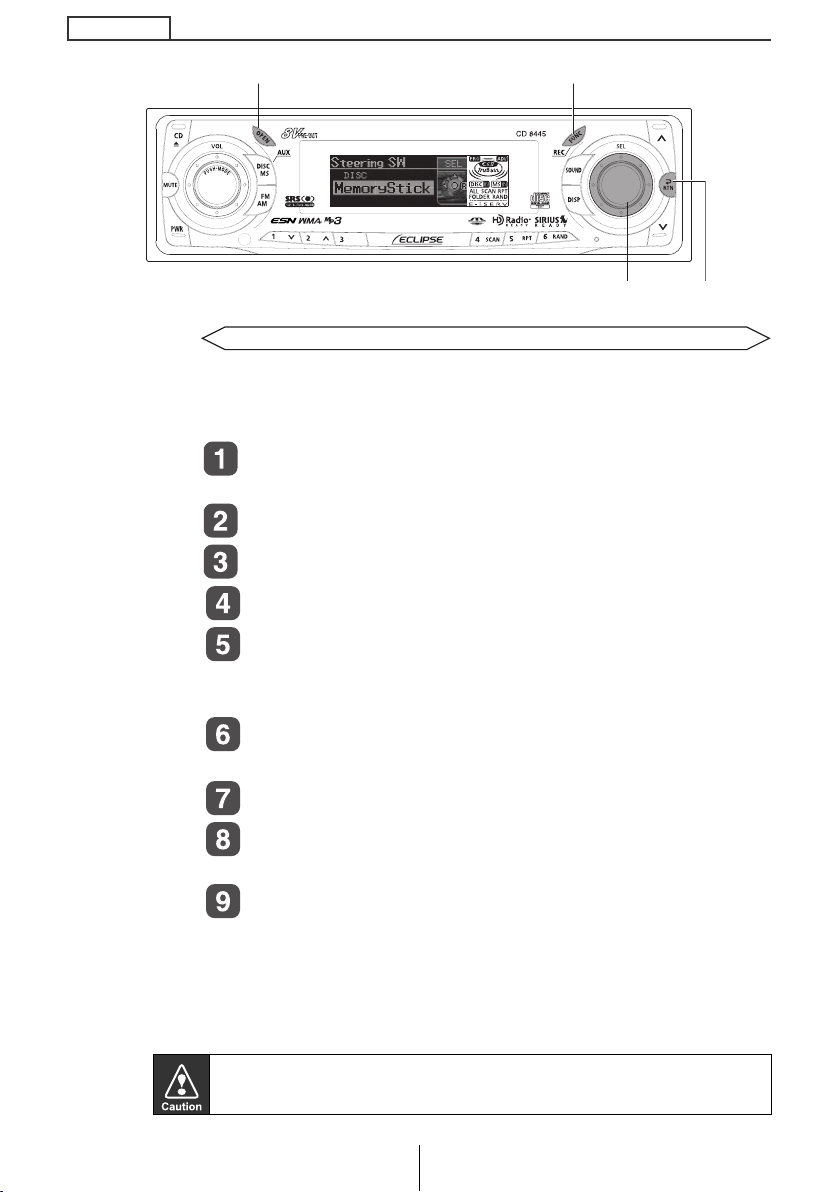

Setting the steering switch function (U.S.A. only)...................................................65

Others ........................................................................................................................... 69

Operation assist function ........................................................................................ 69

Displaying a memo.................................................................................................70

Setting a memo.......................................................................................................70

Deleting a memo.....................................................................................................71

How to operate the CD player ............................................................. 72

Listening to CDs............................................................................................................72

Advancing to the next track or returning to the beginning of the track being played ....73

Fast Forward/Rewind....................................................................................................73

Playing the beginning of tracks (SCAN)........................................................................73

Repeating the same track (REPEAT) ...........................................................................74

Playing tracks in random order (RANDOM)..................................................................74

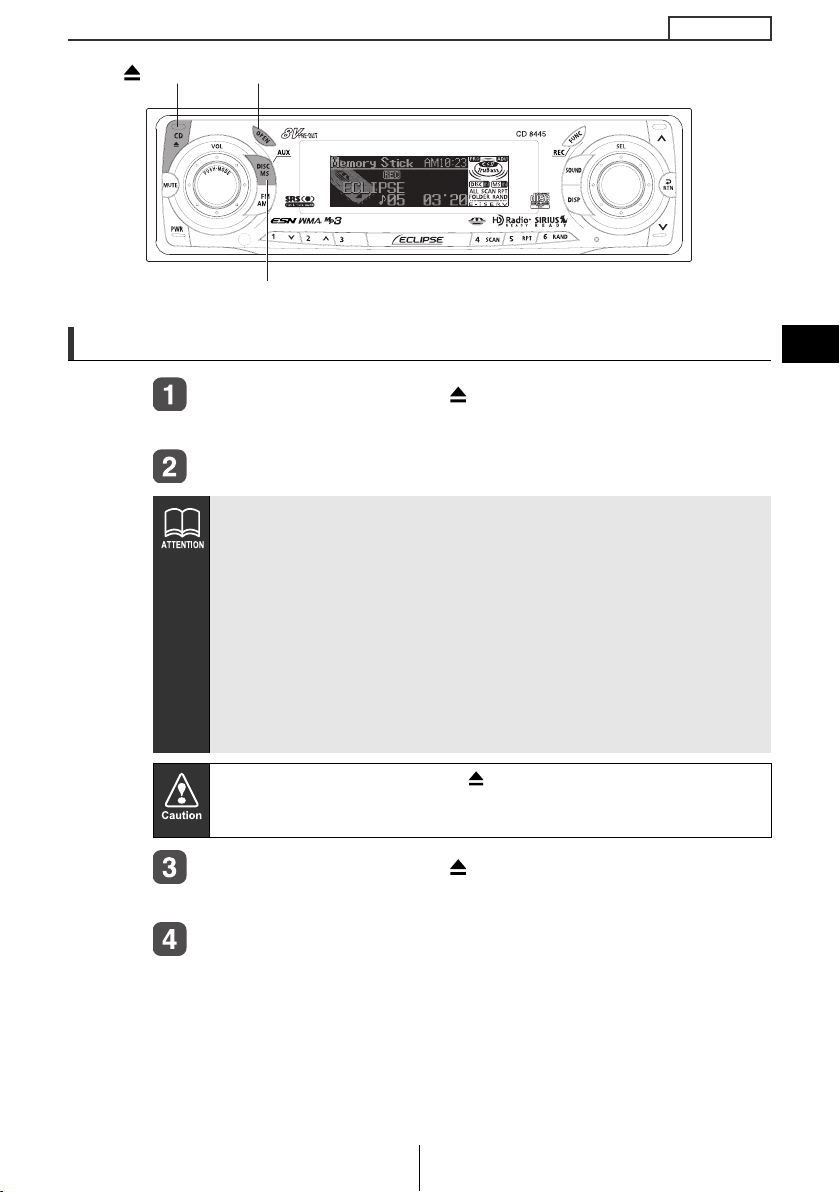

Ejecting the disc............................................................................................................75

Creating a title for a CD ................................................................................................ 76

Changing a previously set title ......................................................................................78

Deleting a previously created title.................................................................................80

Displaying CD text ........................................................................................................81

How to operate the MP3/WMA player................................................. 82

About MP3/WMA .......................................................................................................... 82

What is MP3/WMA?................................................................................................82

Playable MP3 file standards ...................................................................................82

Playable WMA file standards..................................................................................82

ID3/WMA tags.........................................................................................................83

Media...................................................................................................................... 83

Format of discs....................................................................................................... 84

File names ..............................................................................................................85

Multi-sessions......................................................................................................... 85

Playing MP3/WMA.................................................................................................. 85

MP3/WMA playing time display .............................................................................. 85

Display order of MP3/WMA file/folder names......................................................... 85

Listening to MP3/WMA file............................................................................................86

Advancing to the next track (file) or returning to the beginning of the track (file)

being played.................................................................................................................. 87

Skipping to the next or previous folder..........................................................................87

Fast Forward/Rewind....................................................................................................87

Return to the root directory of the CD ........................................................................... 87

Playing the beginning of files (SCAN) ........................................................................... 88

Repeating the same file (REPEAT) .............................................................................. 88

Playing files in random order (RANDOM) ..................................................................... 89

Displaying title...............................................................................................................90

How to operate the Memory Stick player........................................... 91

Listening to MG Memory Stick ......................................................................................91

Advancing to the next track or returning to the beginning of the track being played ....92

Fast Forward/Rewind....................................................................................................92

Playing the beginning of tracks (SCAN)........................................................................92

Repeating the same track (REPEAT) ...........................................................................93

Playing tracks in random order (RANDOM)..................................................................93

Ejecting the Memory Stick ............................................................................................94

Recording on Memory Stick.......................................................................................... 95

Selecting tracks to be recorded .................................................................................... 97

Setting sound quality.....................................................................................................98

Deleting recorded file ..................................................................................................100

Formatting MG Memory Stick (quick format) ..............................................................102

How to operate the tuner................................................................... 104

Tuning to a station ......................................................................................................104

Entering stations into memory automatically

(The automatic preset mode: ASM) ............................................................................105

Manually setting stations into memory ........................................................................ 106

Preset station scan .....................................................................................................107

Setting a station name ................................................................................................108

Deleting a station name ..............................................................................................110

Changing the reception sensitivity for automatic scanning ......................................... 111

Changing the radio band location ...............................................................................112

FM reception characteristics .......................................................................................113

FM reception differs from AM ...............................................................................113

Fading out.............................................................................................................113

Reception area of FM broadcasts.........................................................................114

Multipath...............................................................................................................114

How to operate the Sound Adjustment Mode ................................. 115

About Sound Adjustment Mode .................................................................................. 115

Position selector ...................................................................................................116

SRS Circle Surround II (CS II) ..............................................................................116

DSP ......................................................................................................................116

Parametric equalizer............................................................................................. 116

Time Alignment.....................................................................................................118

Crossover ............................................................................................................. 119

Multi-harmonizer...................................................................................................120

Non-fader phase ...................................................................................................121

Non-Fader output.................................................................................................. 121

E-iSERV sound effect customizations ..................................................................121

Operations during Normal Mode................................................................................. 124

DSP Setting ..........................................................................................................125

Position selector setting (POSITION) ...................................................................126

Non-fader phase selection (Non-F Phase) ........................................................... 127

Crossover adjustment (X-Over)............................................................................128

Multi-harmonizer settings (Harmonizer)................................................................129

Non-Fader Output.................................................................................................130

Operations during Advance Mode .............................................................................. 131

SRS Circle Surround II (CS II) ..............................................................................132

Parametric equalizer adjustment (PEQ) ...............................................................133

Selecting an equalizer mode from memory .......................................................... 135

Measuring/display frequency characteristic..........................................................136

Simplified time alignment settings (Time Alignment) ............................................139

Crossover adjustment (X-Over)............................................................................145

Multi-harmonizer settings (Harmonizer)................................................................146

Non-fader phase selection (Non-F Phase) ........................................................... 147

Non-Fader Output.................................................................................................148

Importing Sound Data...........................................................................................149

How to operate the AREA SHOT function (U.S.A. only) ................. 151

About the AREA SHOT ...............................................................................................151

To use the AREA SHOT function .........................................................................152

Map data...............................................................................................................153

GPS (Global Positioning System).........................................................................153

Reading the AREA SHOT data ...................................................................................154

Changing the AREA SHOT mode ...............................................................................156

Using the AREA SHOT mode .....................................................................................157

AREA SHOT Screen Configuration ......................................................................157

Switching between guidance points...................................................................... 158

Re-scrolling through text information ....................................................................159

Changing AREA SHOT screens ...........................................................................160

Display Arrows......................................................................................................161

How to use the remote control ......................................................... 162

Precautions in use of the remote control ....................................................................162

Cleaning the remote control ........................................................................................ 162

Turning the power on/off .............................................................................................163

Adjusting the audio volume .........................................................................................163

Muting the volume ................................................................................................163

Switching playback modes.......................................................................................... 164

How to play the tuner ..................................................................................................164

Selecting the FM/AM band ................................................................................... 164

Selecting a station (manually or automatically) ....................................................165

Selecting preset stations....................................................................................... 165

How to play CDs ......................................................................................................... 165

Switching disc modes ...........................................................................................165

Advancing to the next track or returning to the beginning of the track being

played ...................................................................................................................166

Skipping to the next or previous disc....................................................................166

How to play MP3/WMA ...............................................................................................167

Switching disc modes ...........................................................................................167

Advancing to the next file or returning to the beginning of the file being played...167

Skipping to the next or previous folder .................................................................167

Replacing the battery..................................................................................................168

How to operate the receiver with an optional CD changer

connected ........................................................................................... 170

Listening to a CD ........................................................................................................170

Advancing to the next track or returning to the beginning of the track being played ..170

Fast Forward/Rewind..................................................................................................171

Playing the beginning of tracks (SCAN)......................................................................171

Repeating the same track (REPEAT) .........................................................................172

Playing tracks in random order (RANDOM)................................................................172

Skipping to the next or previous CD ...........................................................................173

Specifying a CD to play...............................................................................................173

How to operate the tuner with an optional HD Radio tuner

connected (U.S.A. only)..................................................................... 174

About HD Radio .......................................................................................................... 174

Tuning to a station ......................................................................................................175

Entering stations into memory automatically

(The automatic preset mode: ASM) ............................................................................176

Manually setting stations into memory ........................................................................ 177

Preset station scan .....................................................................................................178

Switching between displays when receiving HD Radio...............................................179

HD Radio reception settings .......................................................................................179

How to operate the tuner with an optional SIRIUS satellite

radio tuner connected (U.S.A. only) ................................................. 181

About SIRIUS satellite radio .......................................................................................181

Selecting the radio mode ............................................................................................182

Selecting a channel.....................................................................................................182

Category selection ......................................................................................................183

Direct channel selection ..............................................................................................183

Manually setting channels into memory ...................................................................... 185

Preset channel scan ................................................................................................... 186

Switching displays when using the SIRIUS satellite radio ..........................................186

Others ................................................................................................. 187

Connecting portable audio players to the AUX jack.................................................... 187

Changing auxiliary input sensitivity....................................................................... 188

User Registration Key display..................................................................................... 189

If you have a question: ...................................................................... 190

Displayed information (for troubleshooting) ................................................................191

Specifications..................................................................................... 195

Before installation.............................................................................. 197

Components................................................................................................................ 197

Installation angle .........................................................................................................197

Mounting instruction ......................................................................... 198

Mounting the main unit................................................................................................ 198

Names of lead wires and destinations .......................................................................201

System ........................................................................................................................ 203

How to contact customer service..................................................... 209

Operating precautions

ATE

AGIC

TICK

EMORY

Operating precautions

Notes on operation

● For your safety, play only at volume levels that allow outside sounds to be heard.

● We recommend using with this player a disc with the

logo shown to the left.

● You can play music CDs(CD-R/CD-RW) on this player. Be sure to use discs that have been properly processed. Depending on the editing equipment used, some discs

TEXT

may not play properly.

● Do not insert anything other than a CD and a Memory Stick into the head unit.

ATE

TICK

EMORY

AGIC

Do not insert any foreign objects, such as coins or credit cards, into the disc slot. Be especially watchful of children’s mischief in this regard.

● Avoid severe mechanical shock. When the player is subjected to severe vibration while traveling over a rough surface, playback may be intermittent. When a situation like this occurs, resume playback after returning to a smoother road.

● About dew condensation. In cold or rainy weather, just as the interior glass surface gets fogged, dew (water condensation) may also settle on the deck. When this occurs, disc playback may become intermittent or impossible. Dehumidify the air in the vehicle for a while before resuming playback.

Operating precautions

ATE

AGIC

TICK

EMORY

ATE

AGIC

TICK

EMORY

● Cleaning the disc slot.

ATE

TICK

EMORY

AGIC

The disc slot tends to get dusty. Clean it occasionally to prevent accumulated dust from scratching the discs.

● With the front panel open, many functions will not operate, therefore, the front panel will need to be closed during operation.

About compact discs

● The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback. Observe the following precautions to ensure high quality sound performance:

● Do not leave an ejected disc in the disc slot for very long;

ATE

TICK

EMORY

AGIC

the disc may warp. Discs should be stored in their cases and kept away from high temperature and humidity.

● Do not stick a piece of paper or tape. Do not write on or scratch either side of a disc.

● Discs spin at a high speed inside the deck. Keep cracked or warped discs out of the player to avoid damage it.

● Avoid touching the recorded surface when handling a disc; handle discs by their edges.

Operating precautions

About brand new CDs

● You may notice that some brand new discs are rough around the center hole or outside edge. Remove the rough edges with the side of a ballpoint pen, etc. Rough edges may prevent proper loading in the deck. Flakes from the rough edges may also stick to the recorded surface and interfere with playback.

Rough Edges

Ballpoint pen

Rough Edges

Flakes

About CD accessories

● Do not use accessories (stabilizers, protective seals, laser lens cleaners, etc.) sold for "improving sound performance" or "protecting CDs." The changes in CD thickness or outside dimensions made by these accessories may cause problems in the player.

●

Please be sure NOT to attach any ringshape protector (or other accessory) to your discs. Those protectors are commercially available and said to protect disc and to improve sound quality (and antivibration effect), but they can do more harm than good in regular uses. The most common problems are disc insertion, disc ejections, and won't play problems due to the protector ring that came off in the disc mechanism.

Recorded surface

Operating precautions

About borrowed CDs

● Do not use a CD with glue or remnants of adhesive tape or labels. They may cause the CD to get stuck inside or damage the deck.

How to remove CDs

● When removing the ejected disc, pull it straight out along the slot. Pressing downward in the process may scratch the recorded surface of the disc.

OKA

NO GOOD

About irregularly-shaped CDs

● Specially-shaped CDs, like heartshaped or octagonal CDs, cannot be played. Do not attempt to play them, even with an adapter, since they may damage the player.

About cleaning a CD

● Use a commercially available compact disc cleaner to

● Do not use benzine, thinner, LP record spray or other

XXXX

clean a CD, wiping gently from the center to the edge.

cleaners on CDs. They may damage a CD’s finish.

Operating precautions

About Memory Sticks

● Do not store Memory Sticks in places that are subject to

● In order to protect the player, the player's functions will

● If using a Memory Stick Duo, you will need to use it with

● Only Memory Sticks with a capacity of up to 128 MB can

● Memory Stick PRO types of Memory Stick cannot be

● If MG Memory Stick is not being used for prolonged time,

● MG Memory Sticks bearing one of the marks at the left

● Memory Sticks bearing one of the marks at left can be

● If the write protection switch on a MG Memory Stick or

● Do not remove a MG Memory Stick while it is being

● Please format the MG Memory Stick on this deck. A MG

● When a Memory Stick is formatted, all data on that

static electricity and electrical interference, otherwise the data they contain may become corrupted.

be stopped automatically if a problem occurs. If the player cannot be operated even after following the instructions that appear on the screen, the unit is malfunctioning, and you should ask the place of purchase for further advice.

a Memory Stick Duo adapter.

be used in the unit.

used.

remove it from the unit.

can be used.

used for writing and reading data other than music data.

MagicGate Memory Stick and Memory Stick are trademarks of Sony Corporation.

Memory Stick is at the lock position, audio recordings and other data cannot be saved onto it.

accessed for playback or recording, otherwise the data on the MG Memory Stick may become corrupted. If the data becomes corrupted, it can no longer be retrieved.

Memory Stick formatted by another deck may not be playback or record data.

Memory Stick will be erased. (Includes Memory Stick security recorded data and sound quality data)

Operating precautions

● MG Memory Stick supplied is not formatted. MG Memory Stick must be formatted prior to use. Refer to "Formatting MG Memory Stick (quick format)" on page 102 for instructions on formatting MG Memory Sticks.

● It may not be possible to use MG Memory Sticks that have just been purchased. If this happens, use the unit to format the MG Memory Stick. Refer to "Formatting MG Memory Stick (quick format)" on page 102 for instructions on formatting MG Memory Sticks.

● Some recordings and other data may not be played back or written/read, depending on the device that was used to save the data.

● Do not use Memory Sticks with labels that are peeling off or that have name tags (labels) attached.

● Store Memory Sticks in places away from direct sunlight and high humidity, otherwise the Memory Sticks may become unusable.

OKAY

NO GOOD

● Place Memory Sticks in their protective cases during transportation and storage.

● Do not touch the terminals with your hands or with metallic objects.

● When removing the ejected Memory Stick, pull it straight out along the slot. Pressing downward in the process may scratch the recorded surface of the Memory Stick.

Operating precautions

About cleaning the Memory Sticks

● In order to maintain good audio performance from Memory Sticks, periodically wipe the cartridge clean of any dust and other contamination with a dry cloth.

Names of controls and parts

ATE

AGIC

TICK

EMORY

Front view

With the front open

Names of controls and parts

TICK

EMORY

ATE

AGIC

Never place an object or rest your hands or the like on the front panel.

[CD ] button Opens/closes front panel and ejects CD.

[AUDIO CONTROL] button Adjusts volume and performs other functions.

[DISC MS] button

Switches disc modes, Memory Stick mode and switches to AUX mode.

[OPEN] button Opens/closes front panel.

[SOUND] button Turns the sound adjustment mode ON/OFF.

[FUNC] button Turns function mode ON/OFF.

[SEL] button Selects radio stations and CD tracks.

[/] button

Automatically finds radio reception or to fast forward/rewind.

[RTN] button Returns to previous screen.

[RESET] button

[DISP] button

Reset deck functions to default settings. Turns the display adjustment mode ON/OFF and switches screen

display. Displays User Registration Key.

Buttons [1] to [6] Selects radio preset channels and performs disc mode functions.

[FM AM] button Switches to radio mode and switches radio bands.

[PWR] button Turns deck power ON/OFF.

[MUTE] button* Activates and deactivates mute.

Disc slot Inserts compact discs.

Memory Stick slot Inserts and ejects Memory Stick.

*: Double function button ➞ "MUTE" & "AREA SHOT" functions

ESN security operating procedure

About ESN

This deck is equipped with ESN (ECLIPSE Security Network). A preregistered music CD (Key CD), four-digit security code, or a Memory Stick on which all unit functions will not operate, even by turning the ignition switch to the ACC or ON position or reconnecting the battery after turning the ignition switch off or disconnecting the battery during maintenance.

ESN can be set or cancelled using any of the following methods:

• Key CD security (See page 26)

You can record a specific CD that you have as a "key CD" with the deck, and this CD can then be used to set and cancel the security settings.

• Memory Stick security (See page 30)

You can record a Memory Stick and a secret code (security code) with the deck, and this Memory Stick or secret code (security code) can then be matched with the deck to set and cancel the security settings.

• ACC security (See page 38)

This method can only be used when Memory Stick security has already been set. When ACC security is set, button operations are disabled when the ignition switch is turned to OFF and then back to ACC.

ESN security operating procedure

[FUNC] button

Button [3]

How to switch the security type (Key CD security/ Memory Stick security)

You can switch the type of security being used (Key CD security or Memory Stick security). The initial setting is for Key CD security to be used.

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [3], and hold both for the more than two seconds.

Security type will switch from Key CD security (DISC SEC) ↔ Memory Stick security (MS SEC) in order each time the button is pressed.

If a security is activated, switching the security type is not available.

III

ESN security operating procedure

[CD ] button

[FUNC] button[OPEN] button

Button [6]

How to operate the ESN (Key CD) security

How to program the Key CD

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [6], and hold both for more than one second.

A [SEC] message appears, in two seconds it will change to [DISC].

● If a CD has already been inserted, a [SEC] message appears, and then the front panel opens and the CD is ejected.

● If a security is activated, programming the Key CD is not available.

Press the [OPEN] or [CD ] button.

The front panel opens; The CD8445 is now ready for your Key CD in the CD slot.

Insert the CD into the slot.

A [SEC] message appears, then the Key CD is ejected.

Press the [OPEN] or [CD ] button.

The front panel closes.

● If there is a problem with the inserted CD, an [ERR] message will appear for two seconds and the CD will be ejected. Reinsert the ejected CD.

● If a CD causes the [ERR] message to appear twice in a row, a [CHANGE] message will appear for two seconds. Try another CD.

●

Copy Protected CD and MP3/WMA CD-ROM cannot be programmed for Key CD security.

● The Security indicator will flash whenever the vehicle's ignition is switched off.

How to cancel the Key CD

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [6], and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [DISC].

Press the [OPEN] or [CD ] button.

The front panel opens; The CD8445 is now ready for your Key CD in the CD slot.

ESN security operating procedure

III

If a CD has already been inserted, a [SEC] message appears, and then the front panel opens and the CD is ejected.

Insert your Key CD into the slot.

A [CANCEL] message appears, then the Key CD is ejected. The Key CD is cancelled.

● This process cancels the protection for ESN deck.

● If power to the ESN deck is disconnected, then reconnected, a

Key CD will not need to be inserted in order to return the unit to normal operation.

● Inserting a CD other than the Key CD will not cancel the protection. Instead, the display [ERR] for two seconds, then the normal CD playback mode will activate.

Press the [OPEN] or [CD ] button.

The front panel closes.

ESN security operating procedure

[OPEN] button[CD ] button

[FUNC] button

Button [6]

How to change the Key CD

First, cancel the existing Key CD.

Refer to "How to cancel the key CD".

Next, program a new Key CD.

Refer to "How to program the Key CD".

How to resume normal operation (ESN security lock out)

If power is disconnected while ESN security is active (a Key CD was programmed), operation is disabled until power is restored and the unit unlocked. Follow this procedure to resume normal operation.

When the power is turned on after disconnecting the battery power, a [SEC] message will appear for two seconds. Thereafter, message changes to [DISC] and the press the [OPEN] or [CD ] button, then the CD8445 is ready to accept your Key CD into the slot.

Insert your Key CD.

If the correct CD is inserted, an [OK] message will appear for two seconds and the CD will begin playing.

● If the incorrect CD is inserted, an [ERR_] ("ERR" and error number) message will appear for two seconds, after which the CD will be ejected.

● If [ERR5] (the 5th time an error has occurred) appears, [HELP] will appear, after which the CD will be ejected. When [HELP] appears, carry out the operations for an ESN security lock out by following the procedure in "What happens if an incorrect CD is inserted?" on page 29.

● You must be use the same CD used for Key CD programming; a duplicate CD may not work properly.

What happens if an incorrect CD is inserted?

After the 5th incorrect attempt, the display reads [HELP] for five seconds.

After the [HELP] message will appear for five seconds, serial number will appear.

Press the [OPEN] or [CD ] button to close the front panel.

ESN security operating procedure

Press the [FUNC] button, then button [6], and hold them for five seconds.

After the [SEC] message will appear for two seconds, rolling code (six digit) will appear.

Press the [FUNC] button.

A [DISC] message appears. You will have five more attempts the to insert correct disc.

Insert the key CD into the slot.

If the correct CD is inserted, an [OK] message will appear for two seconds and the CD will be ejected.

● If an incorrect CD is inserted, an [ERR_] ("ERR" and error number) message will appear for two seconds, after which the CD will be ejected.

● This process cancels the protection for ESN deck.

● Note ●

If after 5 tries the correct Key CD is not inserted, the display reads [CALL800]; the unit must be returned to Eclipse to be reset. In this case, please contact your Eclipse dealer for assistance. For country-specific customer service information, refer to "How to contact customer service" on page 209.

III

Your Key CD can be easily forgotten. Write the album name in a reminder note (See page 211).

ESN security operating procedure

[FUNC] button

Buttons [1] to [4]

Button [6]

How to operate the ESN (Memory Stick) security

How to record a security code

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [6], and hold both for more than one second.

A [SEC] message appears, in two seconds it will change to [MS].

● If a Memory Stick has already been inserted, a [MS EJECT] message appears. In this case, eject the Memory Stick and insert again. (Refer to "Ejecting the Memory Stick" on page 94 for details on ejection of the Memory Stick.)

● If the security is already activated, recording the security code function is not available.

Insert the Memory Stick into the slot.

A [ - - - -] (security code input display) appears. (Refer to "Listening to MG Memory Stick" on page 43 for details on insertion of the Memory Stick.)

Input a security code by pressing buttons [1] to [4].

Enter a four-digit security code using digits 0 to 9, A to F. The number (shown on the display) changes in ascending order between 0 and 9, A and F each time the button is pressed. Each button number (1 to 4) corresponds to each digit (first to fourth) of the security code.

ESN security operating procedure

Press the [FUNC] button for more than one second.

The security code is registered in the deck and security is set. The registered security code is encrypted and then written to Memory Stick.

When the security code is registered using a Memory Stick that contains several kinds of data, such as music, etc., be careful not to clear the recorded data by formatting the Memory Stick.

Eject the Memory Stick.

Refer to "Ejecting the Memory Stick" on page 94.

III

ESN security operating procedure

[FUNC] button

Buttons [1] to [4]

Button [6]

How to cancel the Memory Stick security

The security function can be canceled when the security code that has been recorded with the deck is entered and verified. Canceling the security function can be done by entering the security code into the deck, or by using the Memory Stick.

Canceling the security function by entering the security code

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [6], and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [- - - -] (Security code input display).

A security code is entered by pressing the buttons [1] to [4].

Press the [FUNC] button.

If a security code is entered and the deck verifies that it is correct, [CANCEL] will appear on the display and the security

function will be canceled.

If the security code that is entered does not match the code that is recorded by the deck, [ERR] will appear on the display for two seconds and operation will continue as normal without the security function being canceled.

ESN security operating procedure

[DISC] button [FUNC] button

Button [6]

Canceling the security function using a Memory Stick

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [6], and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [- - - -] (Security code input display).

Press the [DISC] button.

A [MS] message will appear.

If a Memory Stick has already been inserted, a [MS EJECT] message appears. In this case, eject the Memory Stick and insert again. (Refer to "Ejecting the Memory Stick" on page 94 for details on ejection of the Memory Stick.)

Insert the Memory Stick and close the front panel.

The recorded data will be read from the Memory Stick.

If the contents recorded in the Memory Stick match the information recorded by the deck, [CANCEL] will appear on the display.

The security function will be canceled and the deck will return to normal operation.

III

● If a reading error occurs or if an incorrect Memory Stick is inserted, [ERR] will appear on the display for two seconds, and then the display will change to [EJECT]. If this happens, eject the Memory Stick and try again.

● Security setting cannot be canceled by this procedure if the Memory Stick containing the security code is formatted.

Eject the Memory Stick.

Refer to "Ejecting the Memory Stick" on page 94.

ESN security operating procedure

How to change the Memory Stick

You can change the Memory Stick and security code that have been recorded by the deck to a different Memory Stick and security code.

Cancel the security code that has been recorded with the deck.

Refer to "How to cancel the Memory Stick security" on page

32.

Re-record the new Memory Stick and security code that you would like to use.

Refer to "How to record a security code" on page 30.

ESN security operating procedure

[FUNC] button

Buttons [1] to [4]

How to resume normal operation (ESN security lock out)

If power is disconnected while ESN security is active (a security code was recorded), operation is disabled until power is restored and the unit unlocked. Follow this procedure to resume normal operation. ESN security lock can be canceled by directly entering the security code into the deck, or by using the Memory Stick that was being used when the security code was recorded.

Canceling ESN security lock out using security code entry

When the power is turned on after disconnecting the battery power, a [SEC] message will appear for two seconds. Thereafter, message changes to [- - - -] (Security code input display).

A security code is entered by pressing the buttons [1] to [4].

III

ESN security operating procedure

● If the security code does not match the information recorded by

● If [ERR5] (the 5th time an error has occurred) appears, [HELP] will

[DISC] button [FUNC] button

Press the [FUNC] button for more than one second.

If the security code matches the code recorded by the deck, [OK] will appear on the display and the security function will be canceled.

the deck, [ERR_] (ERR and the error number) will appear on the display for two seconds, and then [- - - -] (security code entry display) will appear. If this happens, check the security code and repeat the procedure from step 2.

appear. When [HELP] appears, carry out the operations for an ESN security lock out by following the procedure in " What happens if a Memory Stick or security code is incorrect?" on page

37.

Canceling ESN security lock using Memory Stick

After the battery is connected and the deck's power is turned on, [SEC] will appear on the display for two seconds. After this, [- - - -] (security code entry display) will appear.

Press the [DISC] button.

[MS] will appear on the display. If you press the [DISC] button once more, the display will return to [----] (security code entry display).

Insert the Memory Stick that has been recorded, and then close the front panel.

The recorded data will be read from the Memory Stick.

ESN security operating procedure

If the contents recorded in the Memory Stick match the information recorded by the deck, [OK] will appear on the display for two seconds, and then the deck will return to normal operation.

● If the contents recorded in the Memory Stick do not match the information recorded by the deck, [ERR_] (ERR and the error number) will appear on the display for two seconds, and then [- - -

-] (security code entry display) will appear. If this happens, check the Memory Stick and repeat the procedure from step 2.

● If [ERR5] (the 5th time an error has occurred) appears, [HELP] will appear. When [HELP] appears, carry out the operations for an ESN security lock out by following the procedure in " What happens if a Memory Stick or security code is incorrect?" on page

37.

● ESN security lock cannot be canceled by this procedure if the Memory Stick containing the security code was formatted.

What happens if a Memory Stick or security code is incorrect?

After the 5th incorrect attempt, the display reads [HELP] for five seconds.

After the [HELP] message was displayed for five seconds, serial number will appear. You will only get 5 unsuccessful unlock code entries. After the 5th attempt, you will be asked to insert the DISC (Key CD). At this point, please contact your local Eclipse dealer or Eclipse Customer Service for procedure on unlocking the unit.

III

● Note ●

For country-specific customer service information, refer to "How to contact customer service" on page 209.

Your security code and Memory Stick can be easily forgotten. Write the security code and Memory Stick title in a reminder note (See page 211).

ESN security operating procedure

How to operate the ACC security

ACC security involves using Memory Stick security to record a security code, and then when the ignition switch is turned to OFF and back to ACC, the operation of all buttons is disabled.

Check that the unit is in standby.

Once a security code has been recorded, press the [FUNC] button and button [5] simultaneously for more than two seconds.

The ACC security function will be activated. Press the [FUNC] button and button [5] simultaneously for two seconds or more again to cancel the ACC security function.

[FUNC] button

Button [5]

● If the vehicle's battery is disconnected at times such as during servicing, ACC security will be canceled.

● When ignition switch is turned OFF and back to ACC, the operation all button is disabled. If this happen, resume normal operation. (Refer to "How to resume normal operation (ESN security lock out)" on page 35.)

ESN security operating procedure

[FUNC] button

Button [2]

How to turn the security indicator on/off

Once ESN security is activated, the indicator flashes whenever the vehicle's ignition switch is turned off, warning potential thieves that the unit is protected. However, if do not want this visible deterrent, it may be turned off.

With the unit in standby, press the [FUNC] button, then button [2] and hold both for more than one second.

[IND. FLASH] or [IND.-----] appears on the display.

[IND. FLASH] means the security indicator will flash when the vehicle's ignition switch is off, and [IND.-----] means it will not. Repeat the above steps to reactivate the flash mode.

III

ESN security operating procedure

[FUNC] button

Button [4]

How to read the Electronic Serial Number

Check that the unit is in standby.

Press and hold the [FUNC] button, then button [4], and hold both for more than one second.

[ESN] appears on the display, followed by an eight-digit number; this number is your electronic serial number (ESN). You may use this number to identify your Eclipse CD8445 in the event of theft recovery.

Basic operation

[PWR] button

This section covers basic operating procedures. For additional details, please refer to the sections on specific functions.

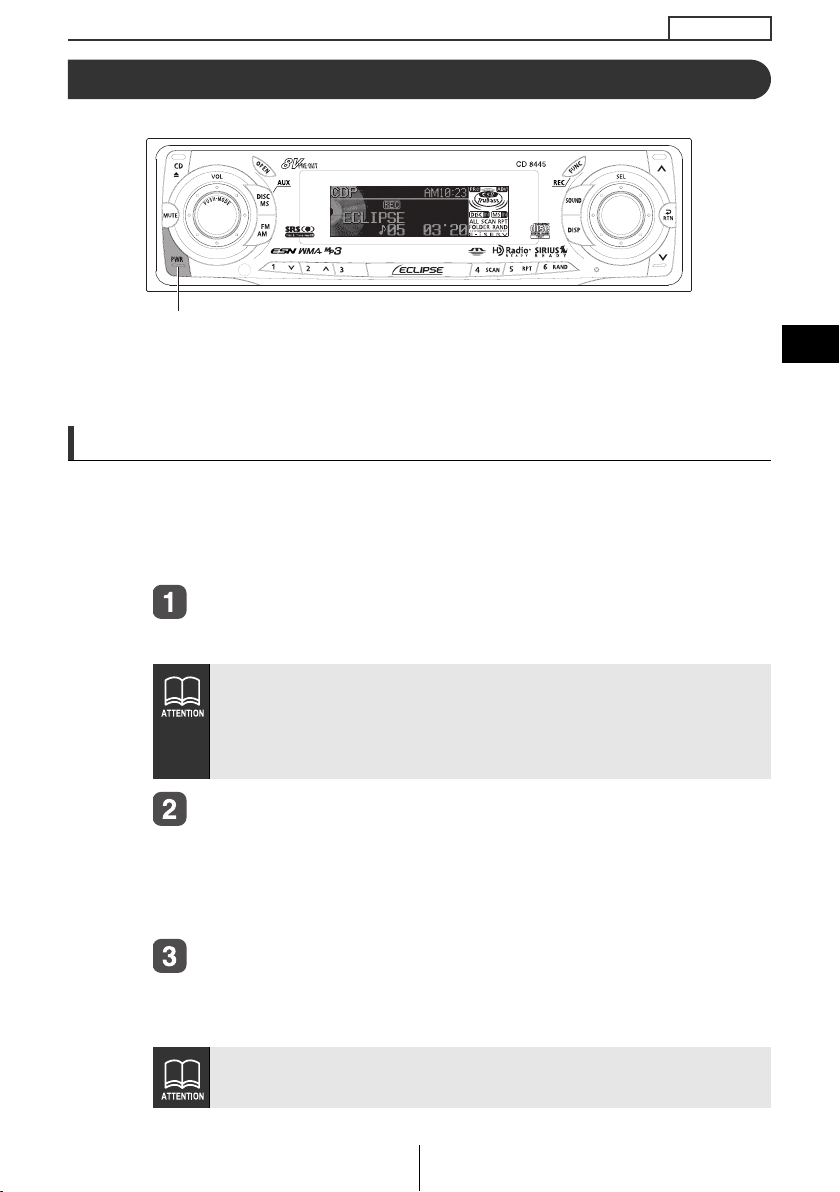

Turning the power on and off

When the power is turned on, the state used when the power was turned off such as CD and tuner playback is restored. When the vehicle has no ACC position on the ignition switch, care is needed when turning off the deck. Follow Step 2 or Step 3 when turning off the power.

When power is OFF, press the [PWR] button.

Basic operation

The power will come ON.

When the deck's power is turned on for the first time or if the battery terminals have been disconnected because of a reason such as vehicle maintenance and the power is then turned back on, the deck will start up in FM1 mode. After this, the broadcast stations will be searched for automatically and stored in buttons [1] to [6].

When power is ON, press the [PWR] button for less than two seconds.

The power will go OFF and the deck will be in Standby. If you press the [PWR] button again for more than one second, the power will go completely off.

When power is ON, press the [PWR] button for more than two seconds.

The power will go completely OFF.

If a car is not equipped with an ACC position (for example, a European car), press the [PWR] button for more than two seconds.

Basic operation

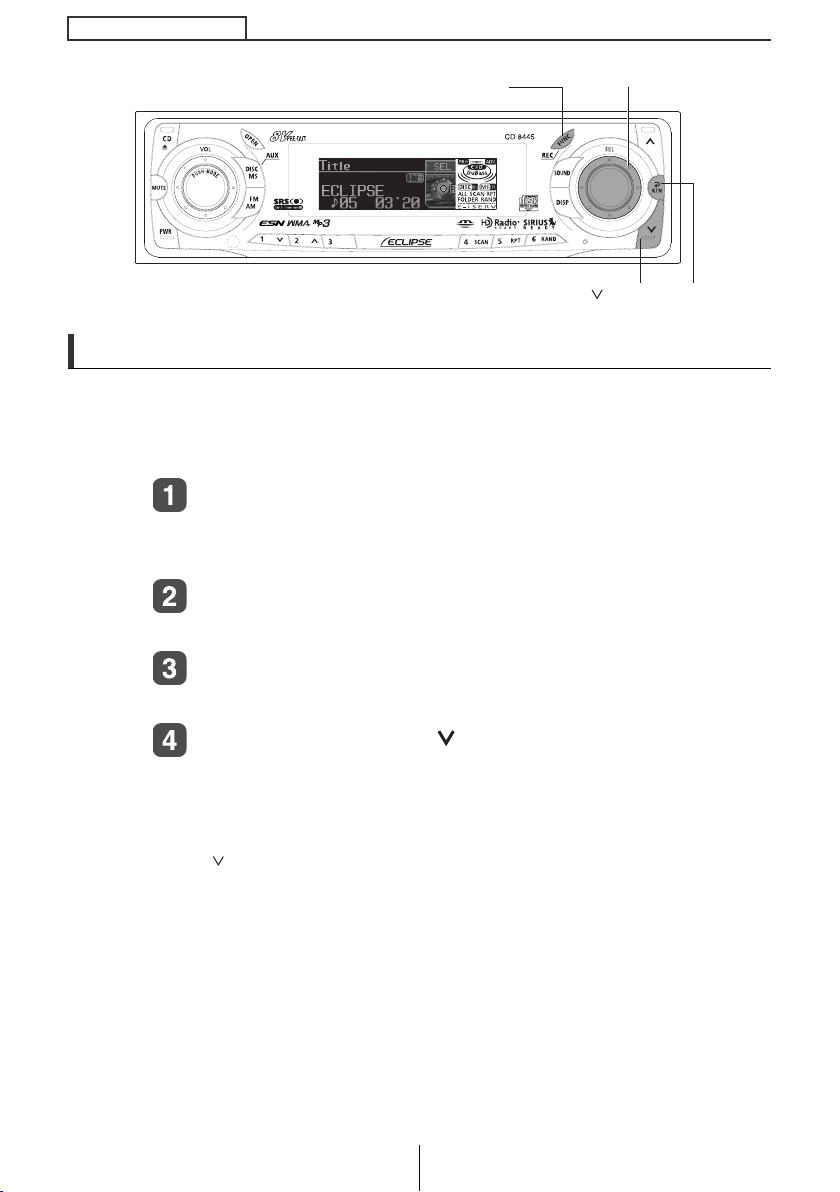

[CD ] button

[OPEN] button

[DISC MS] button

Listening to CD

Press the [OPEN] or [CD ] button.

The front panel opens.

Insert a CD into the disc slot, label side up.

The CD will immediately start playing.

When a CD is already loaded, press the [DISC MS] button to switch to the CD mode.

Do not press the [OPEN] or [ This could cause an injury and damage to the front panel.

] button while CD is being inserted.

Press the [OPEN] or [CD ] button.

The front panel closes.

Basic operation

[CD ] button

[OPEN] button

[DISC MS] button

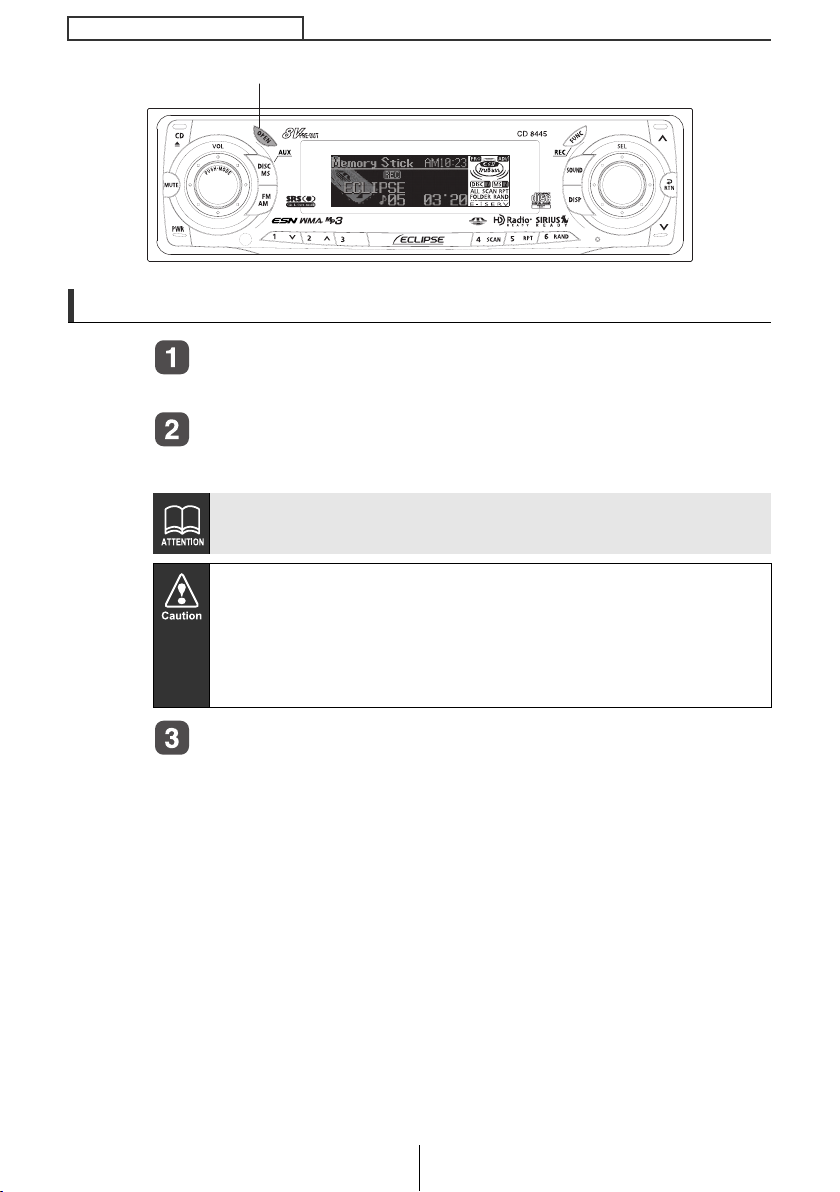

Listening to MG Memory Stick

Press the [OPEN] or [CD ] button.

The front panel opens.

Insert a MG Memory Stick into the Memory Stick slot.

● Insert the MG Memory Stick with the mark facing inwards and press MG Memory Stick into place until a clicking sound is heard. Do not press forcefully when the MG Memory Stick makes contact with the internal stopper because it cannot be inserted any further. (The MG Memory Stick should be protruding a few millimeters from the Memory Stick slot.)

● Use a Memory Stick Duo adapter when inserting the Memory Stick Duo. (If the Memory Stick Duo is inserted without the adapter, it will not be ejected from the unit.)

● When the MG Memory Stick is already loaded, press the [DISC] button to switch to the Memory Stick mode.

Do not press the [OPEN] or [ is being inserted. This could cause an injury and damage to the front panel.

] button while the MG Memory Stick

Press the [OPEN] or [CD ] button.

The front panel closes.

Press the [DISC MS] button to switch to the Memory Stick mode.

MG Memory Stick will start playing.

Basic operation

[FM AM] button

Listening to the tuner

Press the [FM AM] button.

This will turn the tuner on.

Press the [FM AM] button for less than one second to switch to the desired FM or AM bands.

For example, radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM with each press of the button.

Turn the [SEL] button to the left or right to tune to a station.

Buttons [1] to [6]

[SEL] button

[] button

[ ] button

Turn to the right: Tunes to higher frequencies. Turn to the left: Tunes to lower frequencies.

Press the [ ] or [ ] button to start the automatic station search.

[ ] button: Starts searching toward higher frequencies. [ ] button: Starts searching toward lower frequencies.

● If stations have been stored in memory, pressing a button from [1] to [6] will directly select a station. (Refer to the section "Manually setting stations into memory" on page 106)

● When an optional HD Radio tuner unit is connected, digital broadcasts have reception priority. (U.S.A. only)

[MUTE] button

[AUDIO CONTROL] button

Basic operation

Adjusting audio volume

Turn the [AUDIO CONTROL] button to the left or right.

Turn to the right: Increases the volume.

Turn to the left: Decreases the volume.

Press the [MUTE] button for less than one second to cut the volume or restore it instantly.

Do not adjust the volume or other controls while driving the vehicle. Do so only while parked in a safe location.

Basic operation

[AUDIO CONTROL] button

Switching audio control modes

Various audio control modes may be fine-tuned using this procedure.

Press the [AUDIO CONTROL] button for less than one second to select the item to be adjusted.

Modes will switch in the order shown below each time the button is pressed.

When the audio control is set to the Advance mode:

VOL BAL*

SVC*

NON-F

FAD*

When the audio control is set to the Normal mode:

NON-F

MID

FAD*

TREB

BAL*

VOL BASS

SVC*

*1: Adjustments cannot be made when the position selector or CS II

is ON.

*2: Setting cannot be made in FM mode.

VOL (VOLUME) Mode

Adjusts volume. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Increases the volume. Turn to the left: Decreases the volume.

BASS Mode

Adjusts bass level. Bass mode can be adjusted for each source (CDP/CDC, FM and AM and Memory stick player). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes low sounds. Turn to the left: Softens low sounds.

[AUDIO CONTROL] button

MID (MIDDLE) Mode

Adjusts middle level. Mid mode can be adjusted for each source (CDP/CDC, FM and AM and Memory stick player). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes medium sounds. Turn to the left: Softens medium sounds.

TREB (TREBLE) Mode

Adjusts treble level. Treble mode can be adjusted for each source (CDP/CDC, FM and AM and Memory stick player). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes high sounds. Turn to the left: Softens high sounds.

Basic operation

BAL (BALANCE) Mode

Adjusts left/right speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes right speakers. Turn to the left: Emphasizes left speakers.

FAD (FADER) Mode

Adjusts front/rear speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes front speakers. Turn to the left: Emphasizes rear speakers.

NON-F (NON-FADER) Mode

Adjusts non-fader level (for connected sub-woofers, etc.). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Increases level. Turn to the left: Decreases level.

Basic operation

[AUDIO CONTROL] button

SVC (Source Volume Control) Mode

You can set different volume levels for each audio mode. The volume for the initial FM mode (default value: 40) is used as a reference for storing the differences in volume that have been set for each audio mode. When SVC is set, the volume level can change as shown in the example settings in the table below.

Setting examples:

Audio mode FM AM CD

Default value (Volume level)

Reference

(40)

SVC SVC setting (Volume level)

Reference

(40)

setting

value

+15 (55)

(40)

SVC

setting

value

-10 (30)

Memory Stick

(40)

SVC

setting

value

+5 (45)

When volume level in FM mode is adjusted

45 55 ➔ 60 30 ➔ 35 45 ➔ 50

from 40 to 45

When volume level in CD mode is adjusted

45 ➔ 70 60 ➔ 80* 60 50 ➔ 75

from 35 to 60

When volume level in AM mode is adjusted

70 ➔ 5 20 60 ➔ 0* 75 ➔ 10

from 80 to 20

When volume level in Memory Stick mode is

5 ➔ 30 20 ➔ 45 0 ➔ 20 35

adjusted from 10 to 35

*: The volume levels can be set to a maximum of 80 and a

minimum of 0. If you try to go past the maximum or minimum volume level, the level will not change. For the CD changer, SVC adjusts the volume using the setting value for the CD player.

[AUDIO CONTROL] button

Turn the [AUDIO CONTROL] button to the left or right. Turn to the right:Increases the SVC setting level. Turn to the left:Decreases the SVC setting level. The volume difference can be set within a range of -10 to +20.

If the battery terminals have been disconnected because of a reason such as vehicle maintenance, the SVC settings will return to their default values. If this happens, you will need to make the settings again.

Enabling the loudness control

The loudness control may be turned on to emphasize low and high frequencies at low volume levels. Loudness compensates for the apparent weakness of low and high frequencies at low volume by boosting the bass and treble levels.

Basic operation

Press and hold the [AUDIO CONTROL] button until the [LOUD ON] display appears on the screen.

● To disable the loudness feature, repeat the above procedure to display the [LOUD OFF] indication.

● Loudness control is not available when CSII is ON. In order to enable loudness control, turn OFF CSII. (For details on turning CSII ON/OFF, see page 132.)

Basic operation

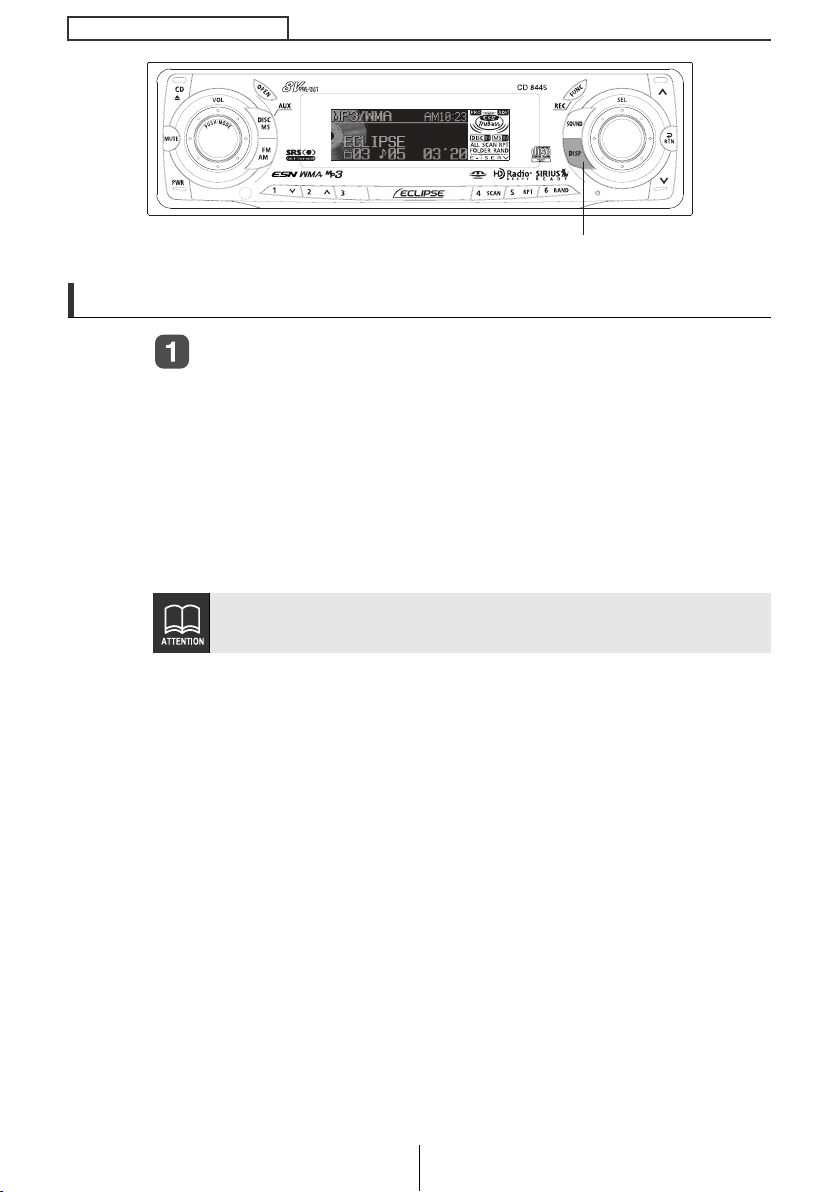

[SEL] button

[DISP] button

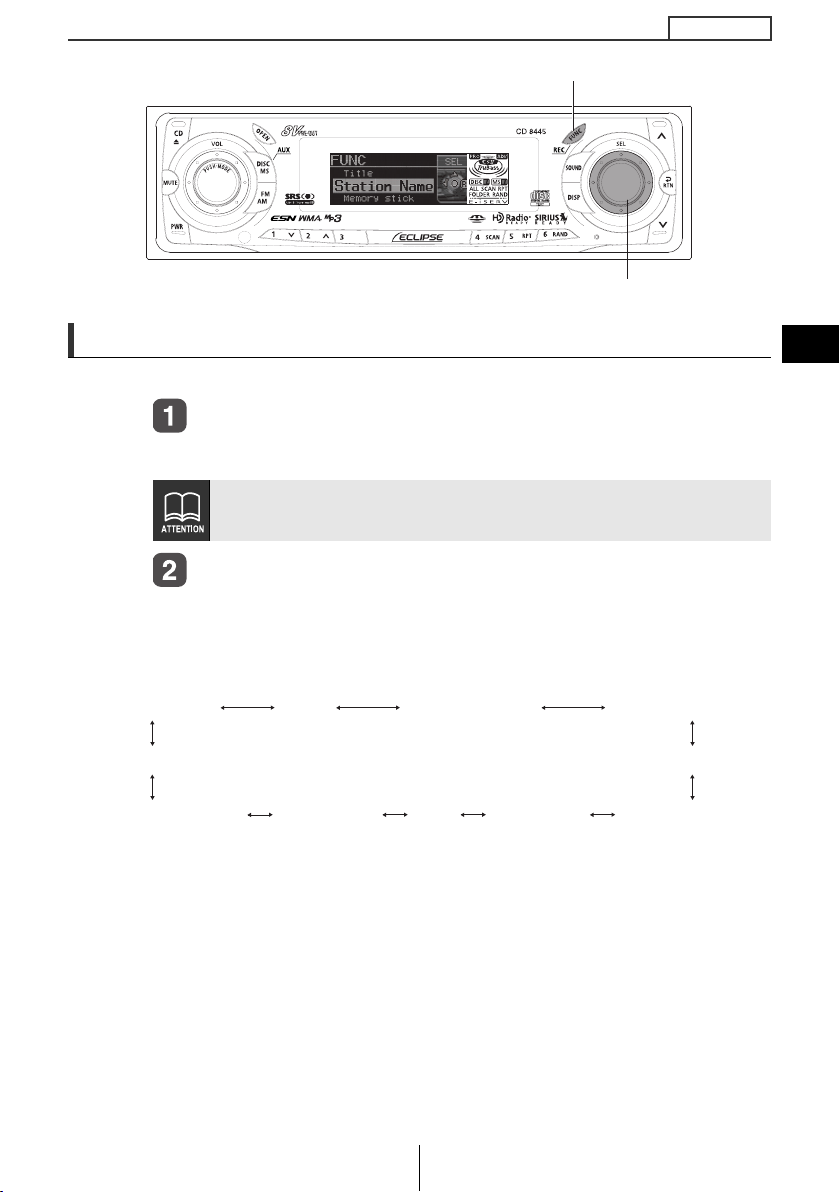

Making changes with Display Adjustment Mode

This mode lets you adjust the display brightness, change the button illumination color and turn the display on and off.

Press the [DISP] button for less than one second.

Enters display adjustment mode.

If you press the [DISP] button during display adjustment mode, the display adjustment mode is canceled and the mode returns to normal music mode.

Turn the [SEL] button in either direction to display setting items for selection.

When the button is turned, the setting item changes in the following order and the selected item is highlighted.

Motion Picture

Bright

ILL

Disp ON/OFF

Disp Data

E-AMP DISP*

*: Only when the DSP amp is connected.

Basic operation

[SEL] button

[DISP] button [RTN] button

Switching the motion picture

You can select a moving picture screen that is already available in the deck and show it on the display. The deck has three types of motion picture available.

In addition, moving picture screens provided by the ECLIPSE website (E-iSERV) can be downloaded, imported into the deck and displayed. Applications can also be downloaded and your own images can be converted into moving pictures. (For details, see page 55.)

Turn the [SEL] button to select the Motion Picture.

The selection item will be highlighted.

Press the [SEL] button.

The Motion picture selection mode is activated.

Turn the [SEL] button to select the Motion Picture Type A, B, C and OFF.

The selection item will be highlighted.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in display adjustment mode.

Press the [DISP] or [RTN] button to exit display adjustment mode.

Basic operation

[SEL] button

[DISP] button [RTN] button

Switching the brightness

Adjust the display brightness to the best level.

Turn the [SEL] button to select Bright.

The selected item will be highlighted.

Press the [SEL] button.

The mode will change to luminance adjustment mode.

Turn the [SEL] button to adjust brightness.

When the button is turned, the brightness level changes in the following order. (Level) 1↔2↔3↔4↔5

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in display adjustment mode.

Press the [DISP] or [RTN] button to exit display adjustment mode.

Basic operation

[SEL] button

[DISP] button [RTN] button

Changing illumination color

You can change the button illumination color in the following way.

Turn the [SEL] button to select ILL.

The selected item will be highlighted.

Press the [SEL] button.

The screen for changing the illumination color will appear.

Turn the [SEL] button to adjust the illumination color.

When the button is turned, the illumination color changes in the following order.

Blue/Red Blue/Green

All Green

Blue/Amber

All Red

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in display adjustment mode.

Press the [DISP] or [RTN] button to exit display adjustment mode.

Basic operation

[SEL] button

[DISP] button [RTN] button

Disabling the display

You can turn the display on and off in the following way.

Turn the [SEL] button to select Disp ON/OFF.

The selected item will be highlighted.

Press the [SEL] button.

The screen for turning the screen display on and off will appear.

Turn the [SEL] button to select ON or OFF.

The selected item will be highlighted.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in display adjustment mode.

Press the [DISP] or [RTN] button to exit display adjustment mode.

● When the display is OFF, when one of the buttons is activated, the screen display will come on within 6 seconds.

● When the OFF function is selected, the screen display will turn off. However, it is possible to adjust the display adjustment mode.

Importing DISP screens

Moving picture screens provided by the ECLIPSE website (EiSERV) can be downloaded and used instead of pre-set moving pictures. To download moving picture screens follow the ECLIPSE website (E-iSERV). After downloading the data to your PC, copy the data to a Memory Stick or CD-R and import the data into the deck. (URL: http://www.e-iserv.jp) Applications for creating moving picture screens can be downloaded, allowing you to create your own original moving picture screens. Screens can be created by following the steps shown below:

Select several pages of images to use in your moving picture.

Access The ECLIPSE Website. (URL: http://www.e-iserv.jp)

Download ECLIPSE’s original image editing software (VF Animation) following the instructions provided by the website.

Basic operation

Using the image editing software (VF Animation), adjust image size to fit the display. To edit images follow the instructions provided with the editing software.

Convert your edited images into moving pictures following the instructions provided by the image editing software (VF Animation).

Copy the moving pictures to a Memory Stick or a CD-R.

Import into the deck.

Basic operation

[OPEN] button

[SEL] button

[DISP] button [RTN] button

Turn the [SEL] button to select Disp Data.

The selected item will be highlighted.

Press the [SEL] button.

The Disp Data mode is activated.

Turn the [SEL] button to select media types.

Press the [SEL] button.

● When using a CD-R: The front panel opens automatically and, if a CD has already been loaded into the deck, it will automatically eject.

● When using a Memory Stick: If the Memory Stick containing the images is not inserted, the front panel opens automatically.

Load your selected media.

Press the [OPEN] button to close the front panel.

Turn the [SEL] button to select files.

The selected item will be highlighted.

Press the [SEL] button.

The moving picture screen will be displayed.

Turn the [SEL] switch to select from the locations to which you want to import the data: [Type A] – [Type C].

When the button is turned, the setting item changes in the following order and the selected item is highlighted.

Type A Type B Type C

Press the [SEL] button.

[OK?] appears on the display.

Basic operation

Press the [SEL] button.

This begins importing the data into the deck. If the data has already been imported, the data will be overwritten. When importing has completed, [Completed] will appear and the front panel opens automatically, and CD-Rs will automatically eject. Press the [OPEN] button to close the panel.

When using a Memory Stick:

● Data downloaded from the ECLIPSE website (E-iSERV) can be saved in folders on the Memory Stick as follows:

MSFTEN

DISP

User creation

XXXXXXXX.vfd

Automatic creation

File extension

● Files that can be imported into the deck are created automatically when downloaded from the E-iSERV website.

● The file name can be changed using 8 alphameric characters (space cannnot be used).

When using a CD-R:

● The deck can only import files from CD-R that have been written in root directories.

XXXXXXXX.vfd

Automatic creation

File extension

● Disc formats that may be used are as follows:

• CD-ROM (MODE 1)

• CD-ROM (MODE2_FORM 1) *CD-ROMs written in MODE2_FORM2 cannot be read.

● The file name can be changed using 8 alphameric characters (space cannnot be used).

● Do not turn ON/OFF the power is this deck or ignition switch while the importing. The importing will be interrupted and the data may be damaged.

● When data is imported from a CD-R, the importing process will take a long time if a lot of data other than the import data has also been saved to the CD-R.

Press the [RTN] button.

At this time, other adjustments can also be made in display adjustment mode.

Press the [DISP] or [RTN] button to exit display adjustment mode.

Basic operation

[SEL] button

[DISP] button [RTN] button

Displaying Amplifier Status (E-AMP DISP)

If a DSP Amp is connected, the status of the DSP amp will be displayed.

Turn the [SEL] button to select E-AMP DISP.

The selected item will be highlighted.

Press the [SEL] button.

The E-AMP DISP mode is activated.

Turn the [SEL] button to select which amplifier status you wish to display.

When the button is turned, the setting item changes in the following order and the selected item is highlighted.

E-AMP1 E-AMP2

E-AMP8 E-AMP7

E-AMP3

E-AMP6

E-AMP4

E-AMP5

The deck will display all connected amps.

Press the [SEL] button.

The status of the selected amp will be displayed.

Turn the [SEL] button to change display content.

Each turn of the button allows you to toggle through status categories as follows:

TMP(˚F) TMP(˚C) CURRENT VOLTAGE

Press the [RTN] button.

At this time, other adjustments can also be made in display adjustment mode.

Press the [DISP] or [RTN] button to exit display

adjustment mode.

[FUNC] button

[SEL] button

Basic operation

Making changes with Function Mode

A variety of settings can be changed.

Press the [FUNC] button for less than one second.

The function mode is activated.

If you press the [FUNC] button during function mode, the adjustment mode is canceled and the mode returns to normal music mode.

Turn the [SEL] button in either direction to display setting items for selection.

When the button is turned, the setting item changes in the following order and the selected item is highlighted.

Area Shot*

Steering SW*

1, 8

7, 8

AUX Sensitivity*

: Cannot make settings other than for AREA SHOT operation.

: Cannot make settings other than for CD or CD changer

: Cannot make settings other than for tuner operation.

: Settings cannot be adjusted during recording.

(Refer to page 154 for details on AREA SHOT operation.)

operation. (Refer to page 76 for details on CD operation.)

(Refer to page 108 for details on tuner operation.)

Title*

HD Radio*

Station Name*

5, 8

Demo Clock Adjust

Memory Stick*

Guide Tone

Clock ON/OFF

Basic operation

: This setting can only be chosen when HD radio reception is

available. (Refer to page 179 for details on HD Radio operation.)

: Refer to page 188 for details on AUX Sensitivity.

: Refer to page 65 for details on Steering switch.

: U.S.A. only.

[FUNC] button

Basic operation

[SEL] button

Disabling the guide tone feature (for button operation)

The receiver is set at the factory to emit a beep tone in response to button operation. The guide tone feature may be disabled in the following procedure:

Turn the [SEL] button to select Guide Tone.

The selected item will be highlighted.

Press the [SEL] button.

The guide tone mode will be switched ON/OFF.

Turn the [SEL] button to select ON or OFF.

The selected item will be highlighted.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

[RTN] button

Basic operation

[FUNC] button

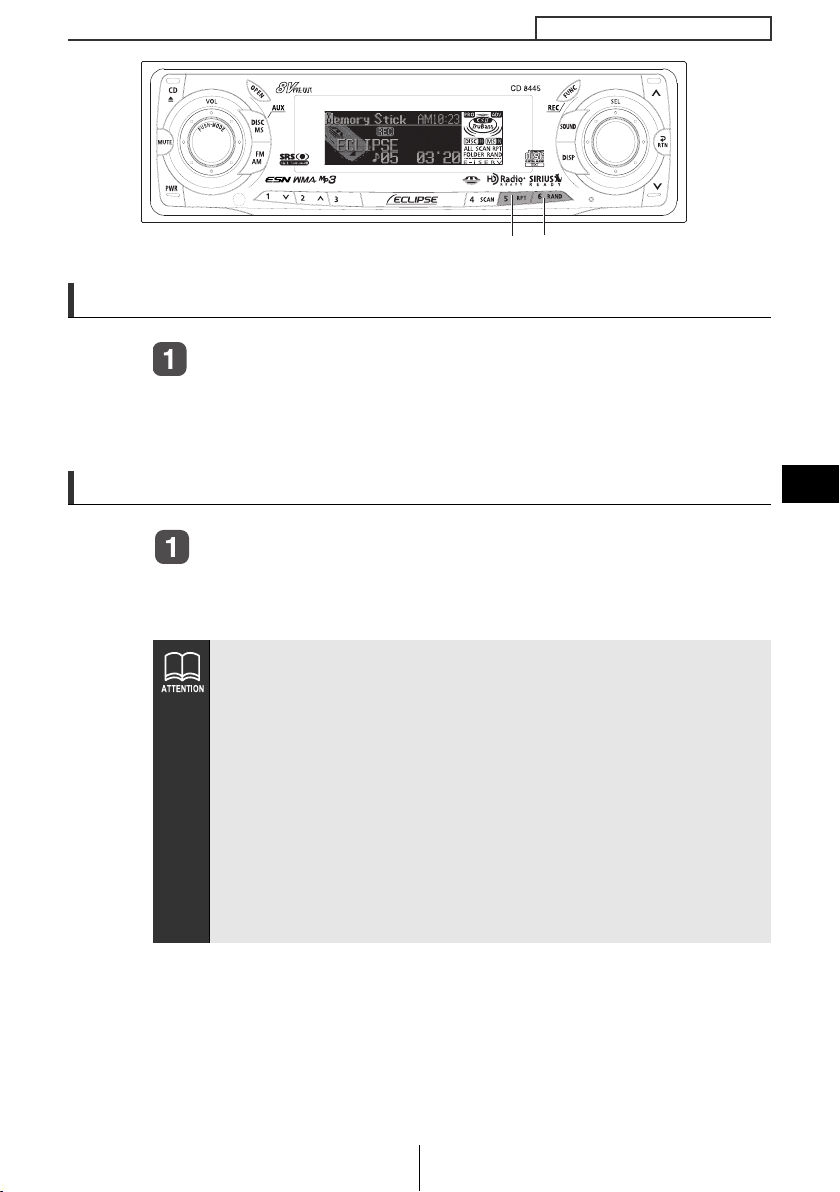

Clock display on/off

Switches the clock display to ON/OFF.

Turn the [SEL] button to select Clock.

The selected item will be highlighted.

Press the [SEL] button.

The clock display ON/OFF mode is activated.

Turn the [SEL] button to select ON or OFF.

The selected item will be highlighted.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

The clock display can also be turned on and off by pressing the [6] button while the power is turned off.

Button [6]

[SEL] button

[RTN] button

[FUNC] button

Basic operation

Setting the time

This receiver uses the 12-hour display notation.

Turn the [SEL] button to select Clock Adjust.

The selected item will be highlighted.

Press the [SEL] button.

The clock adjustment mode is activated.

Press the [SEL] button to display the item to be selected for adjustment.

Hours or minutes will be switched each time the button is pressed.

Turn the [SEL] button.

Turn to the right: Turns the time forward. Turn to the left: Turns the time back.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

[SEL] button

[RTN] button

Basic operation

[FUNC] button

[SEL] button [RTN] button

Switching demonstration screen display

You can set the demonstration screen display to appear or not appear when the power is turned on. When the power turns on, the various demonstration screens such as the audio operation screens and motion picture screens will appear repeatedly in the following order.

Opening screen ➔ FM operation screen ➔ CD operation screen ➔ MP3/WMA operation screen ➔ Memory Stick operation screen ➔ CD Changer operation screen ➔ Sound Adjustment Mode operation screen ➔ Motion Picture A ➔ Motion Picture B ➔ Motion Picture C ➔ Ending screen ➔ Opening screen ➔ · · · · ·

If you press a button while the demonstration screens are being displayed, the demonstration screens will be canceled and the audio operation screen will be displayed. If you do not operate the status display function within 15 seconds, the display will return automatically to the demo screen.

Turn the [SEL] button to select the Demo.

The selected item will be highlighted.

Press the [SEL] button.

The Demo ON/OFF mode is activated.

Turn the [SEL] button to select ON or OFF.

The selected item will be highlighted.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

Setting the steering switch function (U.S.A. only)

The vehicle’s factory loaded steering switch becomes inoperable when the CD8445 is installed. The ECLIPSE website (E-iSERV) provides software that enables steering switch operation even with the installation of the deck. Import this software into your CD8445. For details, contact the store from which you purchased your deck. Depending on your vehicle’s make and model, material downloaded from the website may not be compatible with your steering switch.

Software for the steering switch can be downloaded and imported into the deck as follows:

Access The ECLIPSE Website. (URL : http/www.e-iserv.jp)

Download the steering switch software following instructions provided on the ECLIPSE website (E-iSERV). (Because material available on the website may not be compatible with the steering switches found on some automobiles, make sure to check the website for details about compatibility.)

Copy the downloaded software to CD-R or a Memory Stick.

Basic operation

Import the data into the deck from the CD-R or Memory Stick. (For details about importing into the deck, see page 66.)

The steering switch can be operated.

Consult the store from which you purchased your CD8445 about compatibility and set-up procedures.

Basic operation

[OPEN] button

Reading steering switch data

The steering switch data that has been downloaded from E-iSERV (website) to a Memory Stick or CD-R can be loaded into the deck and saved there.

[FUNC] button

[SEL] button

[RTN] button

Press the [FUNC] button for less than one second.

The function mode is activated.

Turn the [SEL] button to select Steering SW.

Press the [SEL] button.

Select media by turning the [SEL] button.

Press the [SEL] button.

“INSERT DISC” or “INSERT MS” will be displayed and the

panel will open automatically.

Insert the Memory Stick or CD-R to be used for saving the steering switch data.

Press the [OPEN] button to close the front panel.

Turn the [SEL] button to select the file to be saved.

The selected file name is highlighted.

Press the [SEL] button.

The CD-R or Memory Stick data is read. While it is reading, [READING] is displayed. If the data can be read successfully, [Completed] will appear on the display. When using CD-R data, the CD-R will automatically eject when reading is complete.

Do not turn off power or ignition switch during process. This will corrupt the data.

Basic operation

When using a Memory Stick: Data downloaded from the ECLIPSE website (E-iSERV) can be saved in folders on the Memory Stick as follows:

MSFTEN

DATA

User creation

XXXXXXXX.ssw

Automatic creation

File extension

● Files that can be imported into the deck are created automatically when downloaded from the E-iSERV website.

● The file name can be changed using 8 alphameric characters (space cannnot be used).

When using a CD-R:

● The deck can only import files from CD-R that have been written to root directories.

XXXXXXXX.ssw

Automatic creation

File extension

● Disc formats that may be used are as follows:

• CD-ROM (MODE 1)

• CD-ROM (MODE2_FORM 1) *CD-ROMs written in MODE2_FORM2 cannot be read.

● The file name can be changed using 8 alphameric characters (space cannnot be used).

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

During Step , the function mode can also be cancelled by pressing the [FUNC] button.

Basic operation

Compatibility with various switches

The compatibility of the deck's various modes and the steering switches installed on your vehicle are as follows:

Button operation

Short tap TUNE UP TRACK UP –

Hold

Short tap TUNE DOWN TRACK DOWN –

Hold

Short tap Volume UP Volume UP Volume UP

Hold

Short tap Volume DOWN Volume DOWN Volume DOWN

Hold

Button operation

Short tap Volume UP –

Hold

Short tap Volume DOWN –

Hold

Tuner Disc mode AUX

SEEK UP

SEEK DOWN

Gradually

increases volume

Gradually

decreases volume

Change to the

disc mode

Gradually

increases volume

Gradually

decreases volume

Change to the various audio

Others Power OFF

–

modes

Switch Name

SEEK+

SEEK-

VOL+

VOL-

MODE –

Switch Name

SEEK+ –

SEEK- – – –

VOL+

VOL-

MODE –

: Switch names change depending on vehicle make and model.

: If a SIRIUS satellite radio tuner (purchased separately) is connected, categories can be switched when

in the satellite mode.

Mode

FAST UP –

FAST DOWN –

Gradually

increases volume

Gradually

decreases volume

Change to the

AUX mode

Mode

–

Power ON in the

tuner mode

Gradually

increases volume

Gradually

decreases volume

Change to the

tuner mode

Others

Operation assist function

Basic operation

In display adjustment mode, function mode and sound adjustment mode, the screen displays help to guide you in carrying out operations.

The function button selected for adjustment is displayed.

The buttons that are used for adjustment operation flash.

Basic operation

[] button

Buttons [1] to [5] [SEL] button

Displaying a memo

If memos have been set, a memo recorded corresponding to a number button [1] to [5] appears on the screen when the number button is pressed briefly while the power of the main unit is turned off.

Setting a memo

Press and hold any number button for more than two seconds while in the Standby mode.

The state shifts to the MEMO setting mode.

Press the [ ] button to select the character type.

Pressing the button will switch types from [ABC] (alphabet characters) to [123] (numeric characters) and then [!&?] (symbols).

Press either [SEL] or [ ] button to select the position in which to enter the character.

The character will be inserted where the cursor is flashing: [SEL] button: Moves the cursor to the right. [ ] button: Advances the cursor to the left. Pressing and

holding the [ ] button moves the cursor to the left.

[] button

Basic operation

[SEL] button

[RTN] buttonButton [6]

Turn the [SEL] button to the left or right to select characters.

Turn to the right: Advances the character forward in its type. Turn to the left: Moves the character backward in its type.

[Upper-case alphabet characters] Initial value [A] [Right direction] A¡B ¡C ¡

[Numeric characters] Initial value [1] [Right direction] 1 ¡ 2 ¡3 ¡

[Symbol] Initial value [!] [Right direction] !¡ " ¡ # ¡$ ¡ % ¡ & ¡’ ¡ ( ¡ ) ¡* ¡ + ¡ , ¡– ¡ . ¡ / ¡: ¡ ; ¡ < ¡= ¡ > ¡ ? ¡@ ¡ ´ ¡ _

...

X¡Y ¡Z

...

8 ¡ 9 ¡0

Press the [SEL] button to select characters.

● To change the type of character to be entered, repeat steps 2 and 3.

● A maximum of 10 characters may be entered per memo.

● A maximum of 5 memos may be stored.

Press the [RTN] button.

Memo settings are now completed.

Deleting a memo

Press the number button corresponding to the memo to be deleted for more than two seconds while the power is turned off.

Press the [6] button for more than two seconds.

The memo will be deleted.

How to operate the CD player

[DISC MS] button

First press the [DISC MS] button for less than one second to switch to the disc mode. It is assumed here that a CD has already been loaded into the unit.

Listening to CDs

Press the [DISC MS] button for less than one second to switch to the CD player mode.

This starts CD play.

Disc mode will switch from CD player ➔ Memory Stick player in order each time the button is pressed.

If an external CD changer is connected, each additional press of the [DISC] button will switch modes from CD changer 1 ➔ CD changer 2 ➔ Memory Stick player ➔ CD player.

A changer or player with no discs loaded will be skipped.

● Playback may be intermittent when there is a scratch on a CD or when the recorded side is dirty.

● Only two external CD changers may be connected.

How to operate the CD player

[SEL] button

[4 SCAN] button

Advancing to the next track or returning to the beginning of the track being played

Turn the [SEL] button to the left or right.

Turn to the right: Advances to the next track. Turn to the left:

Returns to the beginning of the track being played. (Repeat turning for previous tracks.)

Fast Forward/Rewind

Fast forward or rewind the song currently being played.

Press and hold the [ ] or [ ] button.

[ ] button

[] button

[ ] button: Fast forward. [ ] button: Rewind.

Playing the beginning of tracks (SCAN)

Press the [4 SCAN] button.

Pressing the button causes the player to move up to the next track and play it for 10 seconds, then move up to the next track and play it for 10 seconds, and so on until the button is pressed again.

● To continue playing a desired track, press the button again to stop scanning.

● After the entire disc is scanned once, ordinary playback starts from the point where scanning started.

How to operate the CD player

[6 RAND] button[5 RPT] button

Repeating the same track (REPEAT)

Press the [5 RPT] button to repeat the track being played.

To cancel, press the [5 RPT] button again.

Playing tracks in random order (RANDOM)

Press the [6 RAND] button to play the tracks in random order.

To cancel, press the [6 RAND] button again.

● During random playback, press the [5 RPT] button to repeat the track being played. To cancel repeat play (go back to random play), press the [5 RPT] button again. During playback of a particular track: The track being played is played repeatedly. While searching: The following track is played repeatedly.

● Occasionally the same track happens to be played (selected) two or more times in a row; this is normal operation and is not a sign of a problem.

● When any of the functions - "Playing the beginning of tracks,"Repeating the same track"and "Playing tracks in random order"- is selected, a message such as [SCAN], [REPEAT] or [RANDOM] appears on the display to verify the current function.

How to operate the CD player

[CD ] button

[OPEN] button

Ejecting the disc

Press the [CD ] button.

The front panel opens and the disc is ejected.

Remove the disc and press the [CD ] or [OPEN] button.

The front panel closes. If left alone for 15 seconds after the disc ejection, the front panel closes after the BEEP sound.

● Do not drive with the front panel open. The panel may cause unexpected personal injury during a panic stop, or the like.

● Do not attempt to close the front panel by hand. Doing so may damage the panel.

How to operate the CD player

Creating a title for a CD

A CD title may be created, attached and displayed for your discs. If external CD changers are connected, a title for a CD will be created in the same way. It is assumed here that the CD to be titled is playing.

No CD text disc can be set.

Press the [FUNC] button for less than one second while in the disc mode.

The function mode is adtivated.

[FUNC] button

[SEL] button

[] button

[RTN] button[ ] button

Turn the [SEL] button to select Title.

The selected item will be highlighted.

Press the [SEL] button.

The disc title setting mode is activated.

Press the [ ] button to select the character type.

Pressing the button will switch types from [ABC] (Upper-case alphabet characters) to, [123] (numeric characters) and then [!&?] (symbols).

Press either [SEL] or [ ] button to select the position in which to enter the character.

The character will be inserted where the cursor is flashing: [SEL] button: Moves the cursor to the right. [ ] button: Advances the cursor to the left. Pressing and

holding the [ ] button moves the cursor to the left.

How to operate the CD player

Turn the [SEL] button to the left or right to select characters.

Turn to the right: Advances the character forward in its type. Turn to the left: Moves the character backward in its type.

[Upper-case alphabet characters] Initial value [A] [Right direction] A¡B ¡C ¡

...

X¡Y ¡Z

[Numeric characters] Initial value [1] [Right direction] 1 ¡ 2 ¡3 ¡

[Symbol] Initial value [!] [Right direction] !¡ " ¡ # ¡$ ¡ % ¡ & ¡’ ¡ ( ¡ ) ¡* ¡ + ¡ , ¡– ¡ . ¡ / ¡: ¡ ; ¡ < ¡= ¡ > ¡ ? ¡@ ¡ ´ ¡ _

...

8 ¡ 9 ¡0

Press the [SEL] button to select characters.

● To change the type of character to be entered, repeat steps 3 and 4.

● A maximum of 14 characters may be entered per title.

● 30 titles can be stored.

● If the number of discs that can be memorized is exceeded, the

information about the disc whose playing time is oldest is deleted.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

How to operate the CD player

[FUNC] button

Changing a previously set title

If external CD changers are connected, a previously set title for a CD will be changed in the same way. It is assumed here that the disc mode is selected.

Press the [FUNC] button for less than one second while in the disc mode.

The function mode is activated.

Turn the [SEL] button to select Title.

The selected item will be highlighted.

[SEL] button

[ ] button

[RTN] butto

Press the [SEL] button.

The disc title setting mode is activated.

Press either [SEL] or [ ] button to move the cursor to the position in the title for inserting or changing characters.

[SEL] button: Moves the cursor to the right. [ ] button: Advances the cursor to the left.

How to operate the CD player

Turn the [SEL] button to the left or right to select characters.

Turn to the right: Advances the character forward in its type. Turn to the left: Moves the character backward in its type.

Press the [SEL] button.

The selected settings will take effect.

To leave a space blank, follow these steps.

1.Select and flash the space to be blank.

2.Turn the [SEL] button to make a blank space flashing.

3.Press the [SEL] button to move.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

How to operate the CD player

[FUNC] button [SEL] button

Deleting a previously created title

If external CD changers are connected, a previously created title for a CD will be deleted in the same way. It is assumed here that the disc mode is selected.

Press the [FUNC] button for less than one second while in the disc mode.

The function mode is activated.

Turn the [SEL] button to select Title.

The selected item will be highlighted.

Press the [SEL] button.

The CD title being played at this point will be deleted.

Hold the [6] button down for more than two seconds.

The title has now been deleted.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

[6] button

[RTN] butto

Displaying CD text

Only the built-in CD player supports CD TEXT. It can not be displayed with the optional CD changer. If the CD came with a logo shown below, it is recorded with a disc title and track titles. These information will be displayed during playback.

Press the [DISP] button for more than one second.

How to operate the CD player

[DISP] button

Pressing the [DISP] button while text is displayed scrolls the display in the order DISC title ➔ TRACK title, and then the display stops with the TRACK title. CD TEXT recorded with characters other than alphanumeric and symbols cannot be displayed.

How to operate the MP3/WMA player

About MP3/WMA

The making of MP3/WMA files by recording from sources such as broadcasts, records, recordings, videos and live performances without permission from the copyright holder for uses other than personal enjoyment is prohibited.

What is MP3/WMA?

MP3 (MPEG Audio Layer III) is a standard format for audio compression technology. By using MP3 a file can be compressed to one-tenth the size of the original.

WMA (Windows Media technology. WMA files can be compressed to a size smaller than MP3 files. This deck has limitations on MP3/WMA file standards and recorded media and formats that can be used.

Playable MP3 file standards

● Supported standards: MPEG-1 Audio Layer III

● Supported sampling frequencies: 44.1, 48 (kHz)

Supported bit rate: 64, 80, 96, 112, 128, 160, 192, 224, 256, 288, 320 (kbps)

●

● Supported channel modes: stereo

Audio) is format for audio compression

* Supports VBR. (64~320kbps) * Does not support free format.

Playable WMA file standards

● Supported standards: WMA Ver. 7 WMA Ver. 8 WMA Ver. 9

● Supported sampling frequencies: 32, 44.1, 48 (kHz)

●

Supported bit rate: 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)

* Supports VBR (48~192 kbps). * Does not support lossless compression. * Does not support WMA files recorded at a

frequency of 48kHz with a bit rate of 48kbps.

How to operate the MP3/WMA player

ID3/WMA tags

MP3/WMA files have an "ID3/WMA Tag" that allows input of information so that data such as song title and artist can be saved. This deck supports ID3v. 1.0, 1.1 and WMA tags.

Media

Media capable of playing MP3/WMA includes CD-R and CD-RW discs. Compared to CD-ROM media commonly used for music discs, CD-R and CD-RW discs are fragile in high temperature/high humidity environments and one section of the CD-R and CD-RW may become incapable of playback. Fingerprints or scratches on the disc may prevent playback or cause skipping during playback. Sections of a CD-R and CD-RW may deteriorate if left inside a vehicle for long periods of time. It is also recommended that CD-R and CD-RW discs be kept in a light-blocking case because the discs are vulnerable to ultra-violet light.

How to operate the MP3/WMA player

Format of discs

The format of discs to be used must be ISO9660 Level 1 or Level 2. Control items for this standard are as follows:

● Maximum directory layers: 8 layers

●

Maximum characters for folder names/file names: 32 (including "." and 3

●

Allowable characters for folder names/file names:

●

Number of files/folders possible on a single disc: 999

[Configuration example for CD supporting MP3/WMA]

● Total number of folders possible on a single disc: 255

● Maximum folders this deck can recognize: 256*

*: A root directory is counted as one folder.

Root directory (F1)

Folder 2

001.mp3

002.mp3

003.mp3

004.txt

005.mp3

F158

F159

F255

Folder 158

Folder 159

001.mp3

002.mp3

Folder 255

letter file extension)

A~Z, 0~9, _ (underscore)

Number of files/folders possible on a single disc is 999. Files aside from MP3/WMA files (Example:

004.txt) also count as single files.

How to operate the MP3/WMA player

File names

Only files with the MP3/WMA file extension ".mp3", ".wma" can be recognized as MP3/WMA and played. Be sure to save MP3 files with the ".mp3" file extension. Be sure to WMA files with the ".wma" file extension. The "MP" or "WMA" letters of the file extension will be recognized whether entered as uppercase letters or lowercase letters.

If the ".mp3", ".wma" file extension is attached to a file other than an MP3/WMA file, that file will be mistakenly recognized by the deck as an MP3/WMA file and played, resulting in loud noise output that can damage the speakers. Be sure to avoid attaching the ".mp3", ".wma" file extension to files that are not MP3/WMA files.

Multi-sessions

Multi-sessions are supported, and playing of CD-R and CD-RW discs with annotated MP3/WMA files is possible. However, when "Track at once" has been written, close the session or process the warning message. Standardize the format of each session without changing the format.

Playing MP3/WMA

When a disc with recorded MP3/WMA files is inserted, the deck first checks all the files on the disc. No sound is output while the deck is checking the files on the disc. It is recommended that the disc be recorded without files other than MP3/WMA files and without unnecessary folders in order to speed up the checking of disc files by the deck.

MP3/WMA playing time display

It is possible that playing time will not be correct, depending on the writing condition of the MP3/WMA file.

* It is possible that playing time will not be correct when VBR Fast

Up/Down is operated.

Display order of MP3/WMA file/folder names

Names of MP3/WMA folders and files within the same level are displayed in the following order.

1. MP3/WMA folders displayed first, by ascending order of

numbers, letters.

2. Files displayed next, by ascending order of numbers, letters.

How to operate the MP3/WMA player

[DISC MS] button

Button [3]

Listening to MP3/WMA file

Press the [DISC MS] button for less than one second to switch to the CD player mode.

This starts MP3/WMA file play. Disc mode from CD player ➔ Memory Stick player in order each time the button is pressed. If an external CD changer is connected, each additional press of the [DISC] button will switch modes from CD changer 1 ➔ CD changer 2 ➔ Memory Stick player ➔ CD player. A changer or player with no discs loaded will be skipped.

● Playback may be intermittent when there is a scratch on a CD or when the recorded side is dirty.

● Only two external CD changers may be connected.

● Note ●

● When music data recorded in the normal way (CD-DA) is

present on the same disc with MP3/WMA music files, the normally recorded music data will be played. To listen to the MP3/WMA music files, press button [3] for more than one second.

● When a non-MP3/WMA file is played, "NO SUPPORT" will appear.

● The optional CD changer cannot be used to play MP3/ WMA files.

● WMA files protected by license control are skipped. Playback continues after the skipped file. In the event that all files are protected by license control the CD-R will not

playback and “PROTECT” will be displayed.

How to operate the MP3/WMA player

[SEL] button

Buttons [1 ] and [2 ]

[ ] button

[RTN] button

Advancing to the next track (file) or returning to the beginning of the track (file) being played

Turn the [SEL] button to the left or right.

Turn to the right: Advances to the next track (file). Turn to the left: Returns to the beginning of the track (file) being

played. Repeat turning for previous tracks (files).

Skipping to the next or previous folder

Press button [1 ] or [2 ].

Button [1 ]: Selects the next lower folder. Button [2 ]: Selects the next folder.

Fast Forward/Rewind

Fast forward or rewind the song currently being played.

Press and hold the [ ] or [ ] button.

[ ] button: Fast forward. [ ] button: Rewind.

Return to the root directory of the CD

In the root directory, when a file cannot replay, the system will return to the first file that can perform a replay. (In the configuration example, the file is returning to 001.mp3. See page 84.)

Press the [RTN] button.

How to operate the MP3/WMA player

[4 SCAN] button [5 RPT] button

Playing the beginning of files (SCAN)

Press the [4 SCAN] button.

Press the button briefly to play just the first 10 seconds of each song for all the files in the same layer of the folder being played. Pressing the button until [FOLDER SCAN] is displayed will play just the first 10 seconds of the first song in each folder.

● To continue playing a desired file, press the button again to stop

scanning.

● After the entire disc is scanned once, ordinary playback starts

from the point where scanning started.

Repeating the same file (REPEAT)

Press the [5 RPT] button.

Press the button briefly to repeat the file being played. Pressing the button until [FOLDER REPEAT] is displayed will repeat all the files in the same layer as the folder being played. To cancel, press the [5 RPT] button again.

How to operate the MP3/WMA player

[6 RAND] button[5 RPT] button

Playing files in random order (RANDOM)

Press the [6 RAND] button.

Press the button briefly to randomly play the files in the same layer as the folder being played. Pressing the button until [ALL RANDOM] is displayed will randomly play the files in all the folders. To cancel, press the [6 RAND] button again.

● During random playback, press the [5 RPT] button to repeat the

file being played. To cancel repeat play (go back to random play), press the [5 RPT] button again. During playback of a particular file: The file being played is played repeatedly. While searching: The following file is played repeatedly.

● Occasionally the same file happens to be played (selected) two

or more times in a row; this is normal operation and is not a sign of a problem.

How to operate the MP3/WMA player

Displaying title

Press the [DISP] button for more than one second.

Each time the button is pressed, the following will be displayed in order. Folder Name/File Name* ➔ Tag *: The display area shows a maximum of 14 characters and then

scrolls to display the remaining characters. After the folder name is displayed, the file name will be displayed by scrolling. After the file name is scrolled, the display will be fixed.

[DISP] button

Folder name/file name or tag recorded with characters other than alphanumeric and symbols cannot be displayed.

How to operate the Memory Stick player

Music data recorded on "MG Memory Stick" with ATRAC3 (an audio compression technology) can be played on this deck. Recording from music CD to the MG Memory Stick is also possible. The following explanation for the operation is made assuming that the MG Memory Stick has already been inserted. First press the [DISC MS] button for less than one second to switch to the disc mode. It is assumed here that a MG Memory Stick has already been loaded into the deck.

● Artist name and music title (track titles) can be displayed when

they are recorded on the MG Memory Stick. A maximum of 10 characters (1 byte alphabets, numeric or symbols) can be displayed.

● Music data recorded with MP3/WMA and ATRAC3 Plus cannot

be played.

[DISC MS] button

Listening to MG Memory Stick

Press the [DISC MS] button for less than one second to switch to the Memory Stick player mode.

Disc mode will switch from CD player ➔ Memory Stick player in order each time the button is pressed. If an external CD changer is connected, each additional press of the [DISC MS] button will switch modes from CD changer 1 2

➔

Memory Stick player ➔ CD player.

A changer or player with no discs loaded will be skipped.

➔

CD changer

VII

How to operate the Memory Stick player

[ ] button

[4 SCAN] button

[SEL] button

[ ] button

Advancing to the next track or returning to the beginning of the track being played

Turn the [SEL] button to the left or right.

Turn to the right: Advances to the next track. Turn to the left:

Returns to the beginning of the track being played. (Repeat turning for previous tracks.)

Fast Forward/Rewind

Fast forward or rewind the song currently being played.

Press and hold the [ ] or [ ]button.

[ ] button: Fast forward. [ ] button: Rewind.

Playing the beginning of tracks (SCAN)

Press the [4 SCAN] button.

Pressing the button causes the player to move up to the next track and play it for 10 seconds, then move up to the next track and play it for 10 seconds, and so on until the button is pressed again.

● To continue playing a desired track, press the button again to

stop scanning.

● After the entire disc is scanned once, ordinary playback starts

from the point where scanning started.

How to operate the Memory Stick player

[5 RPT] button

[6 RAND] button

Repeating the same track (REPEAT)

Press the [5 RPT] button to repeat the track being played.

To cancel, press the [5 RPT] button again.

Playing tracks in random order (RANDOM)

Press the [6 RAND] button to play the tracks in random order.

To cancel, press the [6 RAND] button again.

● During random playback, press the [5 RPT] button to repeat the

track being played. To cancel repeat play (go back to random play), press the [5 RPT] button again. During playback of a particular track: The track being played is played repeatedly. While searching: The following track is played repeatedly.

● Occasionally the same track happens to be played (selected)

two or more times in a row; this is normal operation and is not a sign of a problem.

● When any of the functions - "Playing the beginning of tracks",

"Repeating the same track" and "Playing tracks in random order"- is selected, a message such as [SCAN], [REPEAT] or [RANDOM] appears on the display to verify the current function.

VII

How to operate the Memory Stick player

[OPEN] button

Ejecting the Memory Stick

Press the [OPEN] button.

The front panel opens.

Eject the Memory Stick.

Lightly press the Memory Stick once.

Memory Stick will not eject by itself. Lightly press the Memory Stick to eject.

● Do not drive with the front panel open. The panel may cause

unexpected personal injury during a panic stop, or the like.

● Do not attempt to close the front panel by hand. Doing so may

damage the panel.

● Do not eject the Memory Stick while the Memory Stick access

indicator is illuminated.

Press the [OPEN] button.

The front panel closes.

Recording on Memory Stick

Using ATRAC3 audio compression technology, this deck compresses the music data played on the built-in CD player, radio, external CD changer and other external inputs (such as portable players), and records the data on the MG Memory Stick.

CDs being played on the deck can be recorded to a memory stick as digital data. Music from the radio, CD changers, external inputs (such as portable players) is to a memory stick in analog. MP3/WMA files cannot be recorded.

As this deck supports SCMS (Serial Copy Management System), MG Memory Stick recording from media (such as CD-R and CD-RW) digitally recorded from music CDs is not possible. Recording data of copy-proof music CDs is not possible either.

● Unrecorded contents, deleted music and vocal data caused by

problems, malfunctions and defects of this deck will not be warranted.

●

Use of your recordings other than for the personal entertainment is strictly prohibited by the copyright law without permission from the copyright holder.

● Unreprodusable recordings should be test recorded first in

order to ensure all music and vocal data are recorded properly.

● Do not turn ON/OFF the power this deck or ignition switch while

recording. The recording will be interrupted and the data may

be damaged.

How to operate the Memory Stick player

VII

How to operate the Memory Stick player

Insert the MG Memory Stick.

When attempting to record from a CD, make sure to insert the CD. When attempting to record from the radio, etc., make sure to turn ON the desired sound source.

Press the [FUNC] button for more than one second.

Recording begins. When recording a music CD, the CD plays simultaneously.

Press the [FUNC] button for more than one second.

Recording stops.

● A track is not recorded if recording is stopped in the middle of

the track.

● In case 1 Track was selected at the "Selecting tracks to be

recorded" on page 97, select tracks using the [SEL] button and start recording.

● A MG Memory Stick formatted by another this deck may not be

able to record data.

[FUNC] button

Selecting tracks to be recorded

The track to be recorded can be selected.

Press the [FUNC] button for less than one second.

The function mode is activated.

Turn the [SEL] button to select Memory Stick.

The selection item is highlighted.

Press the [SEL] button.

The Memory Stick setting mode is activated.

How to operate the Memory Stick player

[FUNC] button

[SEL] button [RTN] button

VII

Turn the [SEL] button to select REC Mode.

The selection item is highlighted.

Press the [SEL] button.

The REC mode selection mode is activated.

Turn the [SEL] button to select All or 1 Track.

The selection item is highlighted. ALL: Records all tracks in the disc. 1 Track: Records only the selected track.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in Memory Stick setting mode.

Press the [RTN] button.

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

How to operate the Memory Stick player

Setting sound quality

The recording sound quality (the recording bit rate) can be set. The recording bit rate may be selected from 66k, 105k and 132k. Sound quality and data size increases as the bit rate increases.

Press the [FUNC] button for less than one second.

The function mode is activated.

Turn the [SEL] button to select Memory Stick.

The selection item is highlighted.

[FUNC] button

[SEL] button [RTN] button

Press the [SEL] button.

The Memory Stick setting mode is activated.

Turn the [SEL] button to select REC Quality.

The selection item is highlighted.

Press the [SEL] button.

The REC quality selection mode is activated.

How to operate the Memory Stick player

[FUNC] button

[SEL] button [RTN] button

Turn the [SEL] button to select 66kbps, 105kbps or 132kbps.

The selection item is highlighted.

Press the [SEL] button.

The selected settings will take effect.

Press the [RTN] button.

At this time, other adjustments can also be made in Memory Stick setting mode.

Press the [RTN] button.

VII

At this time, other adjustments can also be made in function mode.

Press the [FUNC] or [RTN] button to exit function mode.

How to operate the Memory Stick player

Deleting recorded file

The recorded files being played back can be deleted.

Press the [FUNC] button for less than one second, when the recording file being played back.

The function mode is activated.

Turn the [SEL] button to select Memory Stick.

The selection item is highlighted.

Press the [SEL] button.

[FUNC] button

[SEL] button [RTN] button

The Memory Stick setting mode is activated.

Turn the [SEL] button to select Delete.

The selection item is highlighted.

Press the [SEL] button.

The file deletion selection screen will be displayed.

100
