OWNER'SMANUAL

We appreciate your purchase of this receiver.

Please read through this manual for correct operation.

We suggest that after reading it you keep this manual

in a safe place for future reference.

CD5405

ESN E5 High-Power CD Receiver

www.eclipse-web.com

FUJITSU TEN LIMITED

Contact:FUJITSU TEN CORP. OF AMERICA 19600 So. Vermont Avenue, Torrance, CA 90502 Call:800-233-ECLIPSE

OWNER'S MANUAL

CD5405 ESN E5 Hi

h-Power CD Receiver

090001-14660700 0411MT (F.O

)

"ECLIPSE" is a registered trademark of FUJITSU TEN LIMITED in 48 countries

including the U.S. and Japan.

CUSTOMER NOTICE

Please retain this booklet and write in the serial number of your CD5405 for identification. The serial number is labeled or stamped on the chassis.

Serial No.

For your safety in using the

CD5405

Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD5405. They show safe and correct ways to handle the product so as to prevent personal injury to you, others and to avoid property damage.

Before reading through the manual, take time to read through and learn the important information listed in this section.

This sign indicates a situation in which incorrect handling or disregard of this sign might result in death or serious personal injury.

This sign indicates a situation in which incorrect handling or disregard of this sign might result in personal injury or may result solely in damage to property.

• Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; Eclipse will not be held liable for damages including, but not limited to serious injury, death or property damage resulting from installations that enable unintended operation.

• This equipment requires 12V DC and should only be installed in a vehicle with a 12V negative ground electrical system. Any other installation may cause a fire or other severe damage to the equipment and the vehicle.

• Never install this equipment where it will interfere with safe operation of the vehicle. Never block the driver's view. Do not install equipment where it may interfere with operation of the brakes, the steering or any safety equipment, including seat belts and air bags.

• When installing equipment do not remove or alter existing vehicle fasteners, including nuts, bolts, screws, clips, and fittings. Never detach, move or alter existing vehicle wiring, including electrical grounds and straps. Alteration of existing vehicle components may make vehicle unsafe to operate.

Warning

Caution

Warning

• Before installation, remove the negative (-) battery terminal to prevent shocks, electrical arcing, fires, and damage to vehicle wiring and the equipment you are installing.

• Secure wiring with tape or plastic ties so that wires do not interfere with vehicle operation, including brake pedal, gear shifter and steering. Position wires so that they will not be rubbed, abraded, or damaged by moving vehicle components, including power seats.

• To avoid equipment and vehicle damage, including fire, never supply power to installed equipment in a way which will overload the capacity of an existing vehicle circuit. Never leave a power supply wire or connection uninsulated. Always install supplied fuses, circuit breakers, and relays.

• Air bags are vital safety equipment. Never install equipment in a way which will alter air bag wiring or interfere with air bag deployment. Air bags must function properly in the event of an accident.

• For your protection, never use a power drill without safety glasses or goggles. Debris or broken drill bits may cause severe eye injuries, including blindness.

• Use electrical tape to insulate the ends of all wires, even if not used. Proper insulation prevents arcs, shocks and fires.

• Some equipment uses batteries. Never install equipment where young children can get access to batteries. If a battery is swallowed, seek medical attention immediately.

• When vehicle is moving, never take your eyes off the road to make adjustments to the equipment. You must pay attention to the road to avoid accidents, do not let the operation or adjustment of the equipment distract you from proper vehicle operation.

• The driver should not look at the screen while driving. Accidents may result if you are not paying attention to the forward direction.

• Do not put foreign objects in the loading slot of disc. Fires or shocks may result.

• Do not disassemble or alter this equipment. Accidents, fires or shocks may result.

Warning

• Do not let water or foreign objects enter the internal parts of this equipment. Smoke, fires or shocks may result.

• Pay attention to where the remote control is left. Traffic accidents or problems with driving may result if the remote control makes its way under the brake pedal etc. when the vehicle is stopped or when it goes around a corner.

• Do not use when it is broken (the screen is not lit or no sound comes out). Accidents, fires or shocks may result.

• Always replace fuses with fuses of identical capacity and characteristics. Never use a heavier fuse than the original. Using the wrong type of fuse may cause a fire or severe damage.

• If foreign objects or water enters the equipment, smoke comes out, or there is a strange odor, stop using it immediately, and contact your dealer. Accidents, fires, or shocks may result if you continue to use it in these conditions.

• The driver should not change the CD while driving. As accidents may result if you are not paying attention to the forward direction, first stop the car at a safe location and then proceed.

• Plastic bags and wrappings may cause suffocation and death. Keep away from babies and children. Never put bag over your head or mouth.

•

Wiring and installing this equipment requires expertise and experience. Professional installation is recommended. Consult with your dealer or a professional installer. Incorrect wiring may damage the equipment or interfere with safe vehicle operation.

•

Use only the accessory parts as specified. Using other parts may cause damage to the equipment or cause parts to fall or fly off the equipment.

• Do not install the unit in places where it may get dew condensation on (around the air conditioning hose, etc.), come in contact with water, or in condition of high moisture, dust or oily smoke. If water, moisture, dust or oily smoke enters this unit, smoke, fires or malfunctions may result.

Caution

Warning

• Avoid installing in places where it cannot be fastened securely or where there are strong vibrations. Also, if you installed the unit with double-sided tape, first wipe away dirt and wax from the installation area. Otherwise, the unit may come loose due to vibration while driving, causing problems for driving and resulting in traffic accidents or injuries.

•

Do not install in places with direct sunlight or where it will be hit directly by hot air from the heater. This may increase the temperature of the interior of this equipment, resulting in fires and malfunctions.

•

Do not block the fan, heat sink or vents for this unit. When fan, heat sink or vent is blocked, the interior overheats, and fires may result.

• Connect as specified in the installation manual. If not connected normally, fires or accidents may result.

• When installing in vehicles equipped with air bags, check the manufacturer's cautions regarding operation before operating. Airbags may not operate properly.

• Carry out the wiring such that cords are not pinched by movable parts such as seat rails, and screw parts of the vehicle body. Accidents, fires and shocks may result from disconnection and electrical shorts.

• Carry out the wiring such that the cord does not make contact with metal parts. The cord is may be damaged by contact with metal parts, resulting in fire and shocks.

• Avoid hot surfaces when wiring equipment. High temperatures may damage wiring, causing shorts, arcing and fires.

• When changing the installation location for this equipment, please consult the dealer where you bought it for safety reasons. Expertise is necessary for removal and installation.

• Keep volume to a reasonable level so that you can hear sounds from outside the vehicle, including warning sounds, voices, and sirens. Failure to do so may cause an accident.

• Do not put your hands or fingers into the loading slot of disc. Injuries may result.

• Do not touch the heat dissipating part of the amp. Burns may result from the heat of this part.

• Do not recharge dry batteries. Dry batteries may rupture, resulting in injuries.

Caution

• Do not use batteries other than those specified. Also, do not mix old and new batteries. Injuries or pollution to the surroundings may result from battery ruptures and leakage.

• When inserting batteries into the equipment, be careful of the polarity (positive/negative), and insert them as indicated. If the battery polarities are incorrect, injuries and pollution to the surroundings may result from battery ruptures and leakage.

• Replace used batteries as soon as possible; they may leak and damage equipment. Battery leakage can burn your skin or your eyes. Wash hands after handling.

•

If alkaline solution from alkaline dry batteries makes contact with your skin or clothes, flush with clean water. If any of the solution gets in your eyes, also flush clean with water and then seek medical attention.

•

When disposing of lithium dry batteries, affix insulating tape to the positive and negative terminals, and after they are insulated, dispose of them according to the "Local municipal directives". Shorts, fires and ruptures may result from disposal together with other electrically conductive objects such as metal parts, etc.

•

Do not short, disassemble or heat the batteries, or place them in fire or water. Fire and injuries may result from battery rupture and leakage.

• Store the remote control in a place away from direct sunlight, high temperatures, and high moisture levels. The case may change shape, and the batteries may rupture and leak.

• Do not use this equipment except for in-vehicle use. Shocks or injuries may result.

• Be careful of the position of the volume when turning the power source ON. Hearing damage may result if very loud noise is emitted when the power is turned ON.

• Do not operate under abnormal conditions such as when the sound is broken or distorted. Fires may result.

• This equipment uses invisible laser light. Do not disassemble or alter this equipment. If trouble occurs, contact the dealer where you bought the equipment. Altering this equipment may cause exposure to laser emissions (worsening eyesight), or result in accidents, fires or shocks.

• If the equipment is dropped or the cabinet is broken, turn off the power to the main unit and contact your dealer. If used in this condition, fires or shocks may result.

Caution

Table of Contents

Operating precautions ............................................. 10

Notes on operation ..................................................................... 10

About compact discs .................................................................. 11

About cleaning a CD .................................................................. 13

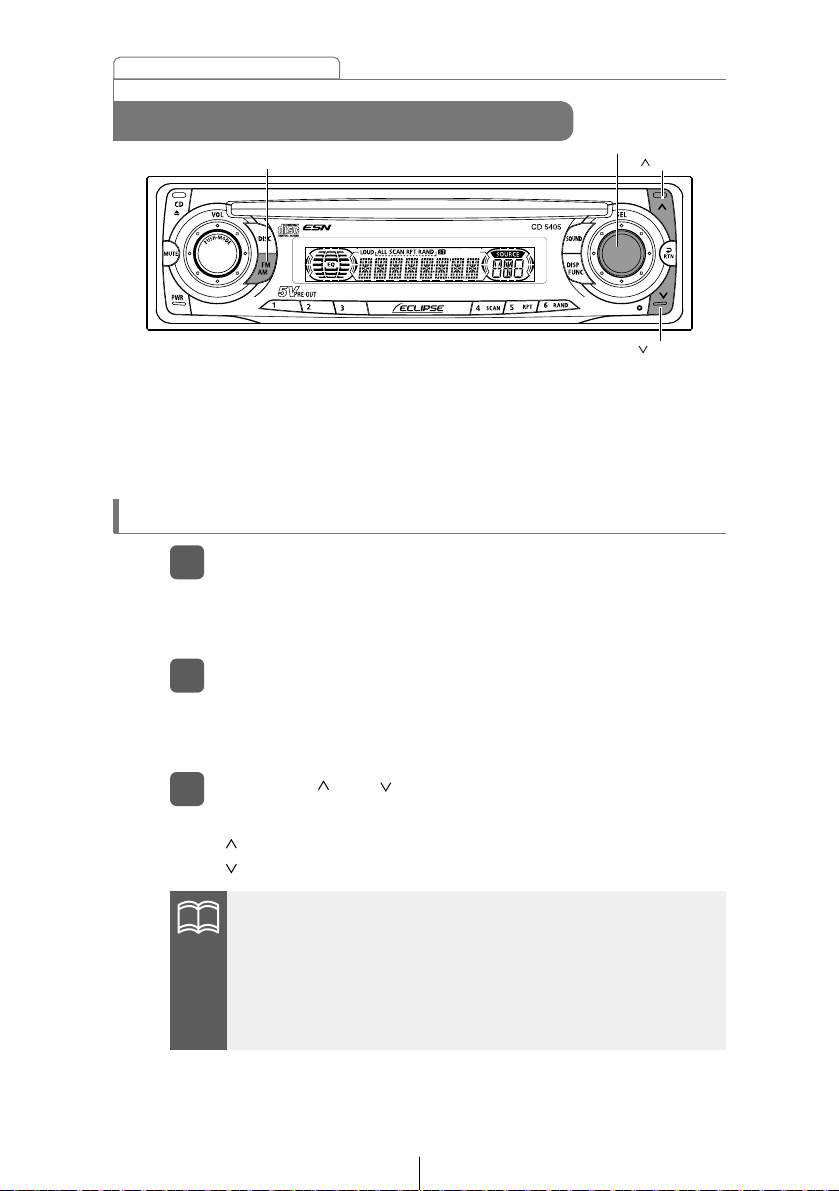

Names of controls and parts .................................. 14

ESN security operating procedure ......................... 15

About ESN .................................................................................. 15

How to operate the ESN (Key CD) security ................................ 16

How to program the Key CD ................................................ 16

How to cancel the Key CD ................................................... 17

How to change the Key CD .................................................. 18

How to resume normal operation (ESN security lock out) ... 18

What happens if an incorrect CD is inserted? ...................... 19

How to turn the security indicator on/off ..................................... 20

How to read the Electronic Serial Number ................................. 20

Basic operation ........................................................ 21

Turning the power on and off ..................................................... 21

Listening to a CD ........................................................................ 22

Listening to the tuner .................................................................. 23

Adjusting audio volume .............................................................. 24

Switching audio control modes ................................................... 25

VOL (VOLUME) Mode ......................................................... 25

BASS Mode ......................................................................... 25

MID (MIDDLE) Mode ........................................................... 26

TREB (TREBLE) Mode ........................................................ 26

BAL (BALANCE) Mode ........................................................ 26

FAD (FADER) Mode ............................................................ 26

NON-F (NON-FADER) Mode ............................................... 26

NF-P (NON-PHASE) Mode .................................................. 27

LOUD Mode ......................................................................... 27

Storing user presets for the equalizer ........................................ 27

Changing the equalizer mode .................................................... 28

Making changes with Function Mode ......................................... 29

Disabling the guide tone feature (for button operation) ........ 29

Setting the time .................................................................... 30

Changing the LINE OUT mode ............................................ 31

How to operate the CD player ................................. 32

Listening to CDs ......................................................................... 32

Advancing to the next track or returning to the beginning of the

track being played ...................................................................... 33

Fast Forward/Rewind ................................................................. 33

Playing the beginning of tracks (SCAN) ..................................... 33

Repeating the same track (REPEAT) ......................................... 34

Playing tracks in random order (RANDOM) ............................... 34

Ejecting the disc ......................................................................... 35

Switching the display .................................................................. 35

How to operate the tuner ........................................ 36

Tuning to a station ...................................................................... 36

Entering stations into memory automatically

(The automatic preset mode: ASM) .......................................... 37

Manually setting stations into memory ....................................... 38

Preset station scan ..................................................................... 39

Switching the display .................................................................. 39

Changing the reception sensitivity for automatic scanning ........ 40

Changing the radio band location ............................................... 40

FM reception characteristics ...................................................... 41

FM reception differs from AM ............................................... 41

Fading out ............................................................................ 41

Reception area of FM broadcasts ........................................ 42

Multipath .............................................................................. 42

How to use an optional remote control ................. 43

Precautions in use of the remote control .................................... 43

Cleaning the remote control ....................................................... 43

Turning the power on/off ............................................................ 44

Adjusting the audio volume ........................................................ 44

Muting the volume ................................................................ 44

Switching playback modes ......................................................... 45

How to play the tuner ................................................................. 45

Selecting the FM/AM band ................................................... 45

Selecting a station (manually or automatically) .................... 46

Selecting preset stations ...................................................... 46

How to play CDs ......................................................................... 46

Switching disc mode ............................................................ 46

Advancing to the next track or returning to the beginning

of the track being played ...................................................... 47

Replacing the battery ................................................................. 48

If you have a question: ............................................ 49

Displayed information (for troubleshooting) ................................ 50

Specifications .......................................................... 53

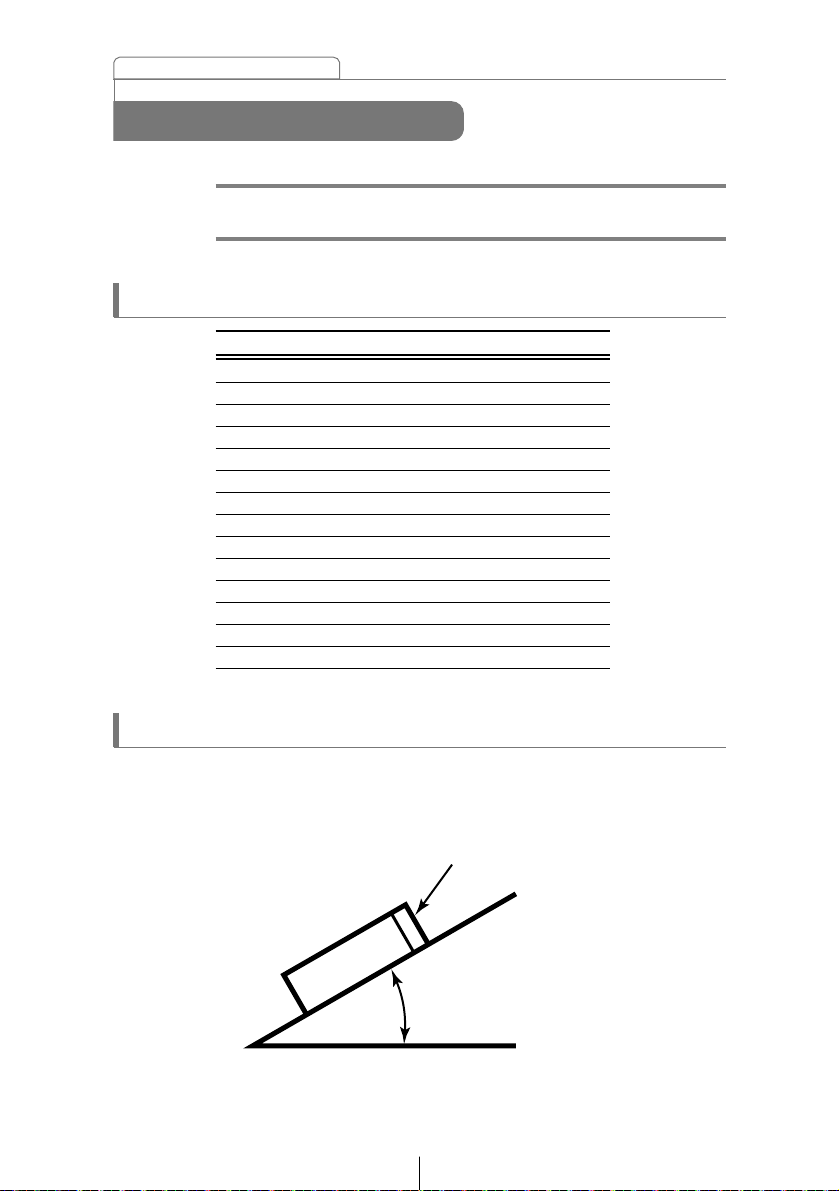

Before installation ................................................... 54

Components ............................................................................... 54

Installation angle ........................................................................ 54

Mounting instruction ............................................... 55

Mounting the main unit ............................................................... 55

Names of lead wires and destinations ........................................ 58

System ....................................................................................... 59

How to contact customer service ............................62

Operating precautions

• For your safety, play only at volume levels that allow outside sounds to be heard.

• We recommend using with this player a disc with the logo shown to the left.

• You can play music CDs(CD-R/CD-RW) on this player. Be sure to use discs that have been properly processed. Depending on the editing equipment used, some discs may not play properly.

• CD-R and CD-RW discs recorded in the MP3 file format are not playable.

• Do not insert anything other than a CD into the disc slot. Do not insert any foreign objects, such as coins or credit cards, into the disc slot. Be especially watchful of children’s mischief in this regard.

• Avoid severe mechanical shock. When the player is subjected to severe vibration while traveling over a rough surface, playback may be intermittent. When a situation like this occurs, resume playback after returning to a smoother road.

• About dew condensation. In cold or rainy weather, just as the interior glass surface gets fogged, dew (water condensation) may also settle on the deck. When this occurs, disc playback may become intermittent or impossible. Dehumidify the air in the vehicle for a while before resuming playback.

• Cleaning the disc slot. The disc slot tends to get dusty. Clean it occasionally to prevent accumulated dust from scratching the discs.

Notes on operation

Operating precautions

• The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback. Observe the following precautions to ensure high quality sound performance:

• Do not leave an ejected disc in the disc slot for very long; the disc may warp. Discs should be stored in their cases and kept away from high temperature and humidity.

• Do not stick a piece of paper or tape on, nor write on or scratch either side of a disc.

• Discs spin at a high speed inside the deck. Keep cracked or warped discs out of the player to avoid damaging it.

• Avoid touching the recorded surface when handling a disc; handle discs by their edges.

About compact discs

Operating precautions

About CD accessories

• Do not use accessories (stabilizers, protective seals, laser lens cleaners, etc.) sold for “improving sound performance” or “protecting CDs.” The changes in CD thickness or outside dimensions made by these accessories may cause problems in the player.

About brand new CDs

• You may notice that some brand new discs are rough around the center hole or outside edge. Remove the rough edges with the side of a ballpoint pen, etc. Rough edges may prevent proper loading in the deck. Flakes from the rough edges may also stick to the recorded surface and interfere with playback.

Rough Edges

Ballpoint pen

Flakes

Recorded surface

Rough Edges

• Please be sure NOT to attach any ring-shape protector (or other accessory) to your discs. Those protectors are commercially available and said to protect disc and to improve sound quality (and antivibration effect), but they can do more harm than good in regular uses. The most common problems are disc insertion, disc ejections, and won't play problems due to the protector ring that came off in the disc mechanism.

Operating precautions

About borrowed CDs

• Do not use a CD with glue or remnants of adhesive tape or labels. They may cause the CD to get stuck inside or damage the deck.

How to remove CDs

• When removing the ejected disc, pull it straight out along the slot. Pressing downward in the process may scratch the recorded surface of the disc.

OKAY

NO GOOD

About irregularly-shaped CDs

• Specially-shaped CDs, like heart-shaped or octagonal CDs, cannot be played. Do not attempt to play them, even with an adapter, since they may damage the player.

• Use a commercially available compact disc cleaner to clean a CD, wiping lightly from the center to the edge.

• Do not use benzine, thinner, LP record spray or other cleaners on CDs. They may damage a CD’s finish.

XXXX

About cleaning a CD

Names of controls and parts

① ② ④ ⑥ ⑦③

⑬⑫

⑪

⑩⑧

⑨

⑭

⑤ ⑧

[CD (EJECT) ] button [DISC] button [FM AM] button Disc slot [DISP FUNC] button [SOUND] button [SEL] button [ / ] button [RTN] button [RESET] button

Buttons [1] to [6]

[AUDIO CONTROL] button [PWR] button [MUTE] button

Ejects compact disc. Switches between disc modes. Switches to radio mode and switches radio bands. Inserts compact discs. Switches screen display and turns function mode ON/OFF. Sets the equalizer settings. Selects radio stations and CD tracks. Automatically finds radio reception or to fast forward/rewind. Returns to previous screen. Resets deck functions to default settings. Selects radio preset channels and performs disc mode functions. Adjusts volume and performs other functions. Turns deck power ON/OFF. Mutes or cancels muting.

ESN security operating procedure

About ESN

This deck incorporates ESN (ECLIPSE Security Network). The ESN is a security system which disables all deck functions when the power is restored if the deck is stolen from the vehicle. Once the ESN is activated, removing power to the deck or vehicle will activate the security feature. Setting or canceling of the security feature can be done with a "Key CD". It is necessary to register a music CD as the "Key CD" in advance.

ESN security operating procedure

•If there is a problem with the inserted CD, an [ERR] message will appear for two seconds and the CD will be ejected. Reinsert the ejected CD.

•If a CD causes the [ERR] message to appear twice in a row, a [CHANGE] message will appear for two seconds. Try another CD.

•Copy protected CD cannot be programmed for Key CD security.

•The Security indicator will flash whenever the vehicle’s ignition is switched off.

•If a CD has already been inserted, a [SEC] message appears, and then the CD is ejected.

•If a security is activated, programming the Key CD is not available.

How to operate the ESN (Key CD) security

How to program the Key CD

[DISP FUNC] button

Button [6]

Check that the the unit is in standby.

Press and hold button [6], then the [DISP FUNC] button, and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [DISC]. The CD5405 is now ready to accept your Key CD in the CD slot.

Insert the CD into the slot.

A [SEC] message appears, then the Key CD is ejected.

ATTENTION

ESN security operating procedure

•This process cancels the protection for the ESN deck.

•If power to the ESN deck is disconnected, then reconnected, a

Key CD will not need to be inserted in order to return the unit to normal operation.

•Inserting a CD other than the Key CD will not cancel the protection. Instead, the display [ERR] for two seconds, then the normal CD playback mode will activate.

If a CD has already been inserted, a [SEC] message appears, and then the CD is ejected.

How to cancel the Key CD

[DISP FUNC] button

Button [6]

Check that the unit is in standby.

Press and hold button [6], then the [DISP FUNC] button, and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [DISC]. The CD5405 is now ready to accept your Key CD in the CD slot.

Insert your Key CD into the slot.

A [CANCEL] message appears, then the Key CD is ejected. The Key CD is canceled.

ATTENTION

ESN security operating procedure

•If an incorrect CD is inserted, an [ERR_] ("ERR" and error number) message will appear for two seconds, after which the CD will be ejected.

•If [ERR5] (the 5th time an error has occurred) appears, [HELP] will appear, after which the CD will be ejected. When [HELP] appears, carry out the operations for an ESN security lock out by following the procedure in "What happens if an incorrect CD is inserted?" (See next page).

•You must use the same CD used for Key CD programming; a duplicate CD may not work properly.

How to change the Key CD

If power is disconnected while ESN security is active (a Key CD was programmed), operation is disabled until power is restored and the unit unlocked. Follow this procedure to resume normal operation.

How to resume normal operation (ESN security lock out)

First, cancel the existing Key CD.

When the power is turned on after disconnecting the battery power, a [SEC] message will appear for two seconds. Thereafter, the message changes to [DISC] and the CD5405 is ready to accept your Key CD into the slot.

Next, program a new Key CD.

Refer to “How to program the Key CD.”

Insert your Key CD into the slot.

If the correct CD is inserted, an [OK] message will appear for two seconds and the CD will begin playing.

Refer to “How to cancel the Key CD.”

ATTENTION

ESN security operating procedure

•If an incorrect CD is inserted, an [ERR_] ("ERR" and error number) message will appear for two seconds, after which the CD will be ejected.

•This process cancels the protection for the ESN deck.

What happens if an incorrect CD is inserted?

 Note 

If after five tries the correct Key CD is not inserted, the display reads [CALL800]; the unit must be returned to Eclipse to be reset. In this case, please contact your Eclipse dealer for assistance. For country-specific customer service information, refer to "How to contact customer service" on page 62.

Your key CD can be easily forgotten. Write the album name in a reminder note (See Page 67).

[DISP FUNC] button

Button [6]

After the 5th incorrect attempt, the display reads [HELP] for five seconds.

[HELP] will appear for five seconds, after which the serial number will appear.

Press button [6], then the [DISP FUNC] button, and hold them for five seconds.

After the [SEC] message will appear for two seconds, rolling code will appear.

Press the [DISP FUNC] button.

After the [SEC] message will appear for two seconds, rolling code will appear.

Insert your Key CD into the slot.

If the correct CD is inserted, an [OK] message will appear for two seconds and CD will be ejected.

ATTENTION

ESN security operating procedure

How to turn the security indicator on/off

With the unit in standby, press button [2], then the [DISP FUNC] button and hold both for more than one second.

[IND. FLASH] or [IND. -----] appears on the display.

[IND. FLASH] means the security indicator will flash when the vehicle’s ignition is off, and [IND. -----] means it will not. Repeat the above steps to reactivate the flash mode.

Once ESN security is activated, the indicator flashes whenever the vehicle’s ignition is turned off, warning potential thieves that the unit is protected. However, if you do not want this visible deterrent, it may be turned off.

How to read the Electronic Serial Number

Check that the unit is in standby.

Press button [4], then the [DISP FUNC] button, and hold both for more than one second.

[ESN] appears on the display, followed by an eight-digit number; this number is your electronic serial number (ESN). You may use this number to identify your Eclipse CD5405 in the event it is recovered after being stolen.

Button [2]

[DISP FUNC] button

Button [4]

Basic operation

Turning the power on and off. When the power is turned on, the state used when the power was turned off such as CD and tuner playback is restored. When the vehicle has no ACC position on the ignition switch, care is needed when turning off the deck. Follow Step 2 or Step 3 when turning off the power.

Turning the power on and off

When power is OFF, press the [PWR] button.

The power will come ON.

When power is ON, press the [PWR] button for less than two seconds.

When power is ON, press the [PWR] button for more than two seconds.

The power will go completely OFF.

This section covers basic operating procedures. For additional details, please refer to the sections on specific functions.

If a car is not equipped with an ACC position (for example, a European car), keep the [PWR] button depressed for more than two seconds.

Basic operation

[PWR] button

The power will go OFF and the deck will be in Standby. If you press the [PWR] button again for more than one second, the power will go completely off.

When the deck's power is turned on for the first time or if the battery terminals have been disconnected because of a reason such as vehicle maintenance and the power is then turned back on, the deck will start up in FM1 mode. After this, the broadcast stations will be searched for automatically and stored in buttons [1] to [6].

ATTENTION

Basic operation

Listening to a CD

Insert a CD into the disc slot, label side up.

The CD will start playing.

When a CD is already loaded, press the [DISC] button to switch to the CD mode.

[DISC] button

ATTENTION

Basic operation

Listening to the tuner

Press the [FM AM] button.

This will turn the tuner on.

Press the [FM AM] button to switch to the desired FM or AM bands.

Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

Turn the [SEL] button to the left or right to tune to a station.

Turn to the right: Tunes to higher frequencies. Turn to the left: Tunes to lower frequencies.

Press the [ ] or [ ] button to start the automatic station search.

[ ] button: Starts searching toward higher frequencies. [ ] button: Starts searching toward lower frequencies.

If stations have been stored in memory, pressing a button from [1] to [6] will directly select a station. (Refer to the section “Manually setting stations into memory” on page 38)

[ ] button

[FM AM] button

[ ] button

[SEL] button

Buttons [1] to [6]

ATTENTION

Basic operation

Adjusting audio volume

Turn the [AUDIO CONTROL] button to the left or right.

Turn to the right: Increases the volume. Turn to the left: Decreases the volume.

Do not adjust the volume or other controls while driving the vehicle. Do so only while parked in a safe location.

[AUDIO CONTROL] button

[MUTE] button

Press the [MUTE] button for less than one second to cut the volume or restore it instantly.

ATTENTION

Warning

Basic operation

Various audio control modes may be fine-tuned using this procedure.

Modes will switch in the order shown below each time the button is pressed.

When the LINE OUT mode is REAR

When the LINE OUT mode is NON-FEDER

Switching audio control modes

Press the [AUDIO CONTROL] button for less than one second to select the item to be adjusted.

VOL BASS TREB BALMID FAD LOUD

VOL BASS TREB BALMID

LOUD NF-P NON-F

FAD

Adjusts volume. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Increases the volume. Turn to the left: Decreases the volume.

Adjusts bass level. Bass mode can be adjusted for each source (CDP, FM and AM). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes low sounds. Turn to the left: Softens low sounds.

VOL (VOLUME) Mode

BASS Mode

[AUDIO CONTROL] button

Basic operation

Adjusts left/right speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes right speakers. Turn to the left: Emphasizes left speakers.

Adjusts front/rear speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes front speakers. Turn to the left: Emphasizes rear speakers.

BAL (BALANCE) Mode

FAD (FADER) Mode

Adjusts non-fader level (for connected sub-woofers, etc.). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Increases level. Turn to the left: Decreases level.

NON-F (NON-FADER) Mode

[AUDIO CONTROL] button

Adjusts treble level. Treble mode can be adjusted for each source (CDP, FM and AM). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes high sounds. Turn to the left: Softens high sounds.

TREB (TREBLE) Mode

Adjusts middle level. Mid mode can be adjusted for each source (CDP, FM and AM). Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes medium sounds. Turn to the left: Softens medium sounds.

MID (MIDDLE) Mode

Basic operation

The loudness control may be turned on to emphasize low and high frequencies at low volume levels. Loudness compensates for the apparent weakness of low and high frequencies at low volume by boosting the bass and treble levels. Turn the [AUDIO CONTROL] button until the [LOUD ON] display appears on the screen.

LOUD Mode

The merging of sound between the front and rear speakers and the woofer can be improved by selecting the phase. Switch the phase to a phase which lets the speakers combine without any disharmony. Turn the [AUDIO CONTROL] button to select NORMAL or REVERSE. NOR : Normal phase REV : Reverse phase

NF-P (NON-FADER PHASE) Mode

Storing user presets for the equalizer

[AUDIO CONTROL] button

The adjustment values for BASS, MIDDLE and TREBLE settings made in the audio control mode can be stored. The stored adjustment values can be called by changing the equalizer mode. For detail, see "Changing the equalizer mode" on page 28.

The adjusted values are stored.

Press the [AUDIO CONTROL] button for more than one second.

To disable the loudness feature, repeat the above procedure to display the [LOUD OFF] indication.

ATTENTION

EQ (equalizer) mode can be used to adjust the frequency of the audio channels being played back in accordance with the genre and instruments of the music being played. Apart from four equalizer modes, this deck offers the audio adjustment mode in which you can store set BASS, MIDDLE, and TREBLE adjustment values, and the CUSTOM Mode in which and you can apply these adjustment values.

Each time the button is pressed, the equalizer mode changes in the following order.

Changing the equalizer mode

Press the [SOUND] button for less than one second.

DEFEAT (equalizer OFF)

POWER (bass tones emphasized)

SHARP (high tones emphasized)

VOCAL (mid tones emphasized)

CUSTOM (stored user-preset values for the equalizer)

Basic operation

[SOUND] button

Basic operation

A variety of settings can be changed.

The function mode is activated.

Setting items will be displayed in the following order when the [SEL] button is turned to the right.

Making changes with Function Mode

Press the [DISP FUNC] button for more than one second.

The receiver is set at the factory to emit a beep tone in response to button operation. The guide tone feature may be disabled in the following procedure:

Turn the [SEL] button to select BEEP.

The Guide Tone Mode will be switched ON/OFF.

Press the [SEL] button.

At this time, other adjustments can also be made in Function Mode.

Press the [RTN] button.

Press the [DISP FUNC] or [RTN] button to exit Function Mode.

Turn the [SEL] button to select ON or OFF.

Press the [SEL] button to select current setting.

Turn the [SEL] button in either direction to display setting items for selection.

[DISP FUNC] button

[RTN] button

Disabling the guide tone feature (for button operation)

BEEP CLOCK LINE OUT

[SEL] button

Basic operation

Turn the [SEL] button to select CLOCK.

This receiver uses the 12-hour display notation.

The clock adjustment mode is activated.

Press the [SEL] button.

Hours or minutes will be switched each time the button is pressed.

Press the [SEL] button to display the item to be selected for adjustment.

Turn to the right: Turns the time forward. Turn to the left: Turns the time back.

Turn the [SEL] button to the left or right.

At this time, other adjustments can also be made in Function Mode.

Press the [RTN] button.

Press the [DISP FUNC] or [RTN] button to exit Function Mode.

[RTN] button

Setting the time

[DISP FUNC] button

[SEL] button

Basic operation

Turn the [SEL] button to select LINE OUT.

When you select NON-F as the LINE OUT mode, you can make the NON-F and NF-P settings in the audio control mode.

Press the [SEL] button.

Turn the [SEL] button to select REAR or NON-F.

Press the [SEL] button for more than five seconds.

At this time, other adjustments can also be made in Function Mode.

Press the [RTN] button.

Press the [DISP FUNC] or [RTN] button to exit Function Mode.

[RTN] button

Changing the LINE OUT mode

[DISP FUNC] button

[SEL] button

How to operate the CD player

Listening to CDs

Press the [DISC] button.

First press the [DISC] button to switch to the disc mode. It is assumed here that a CD has already been loaded into the unit.

This starts CD play.

Playback may be intermittent when there is a scratch on a CD or when the recorded side is dirty.

How to operate the CD player

[DISC] button

Caution

How to operate the CD player

Advancing to the next track or returning to the beginning of the track being played

Turn the [SEL] button to the left or right.

Turn to the right: Advances to the next track. Turn to the left: Returns to the beginning of the track being

played. (Repeat turning for previous tracks.)

Playing the beginning of tracks (SCAN)

Press button [4].

Pressing the button causes the player to move up to the next track and play it for 10 seconds, then move up to the next track and play it for 10 seconds, and so on until the button is pressed again.

•To continue playing a desired track, press the button again to stop scanning.

•After the entire disc is scanned once, ordinary playback starts from the point where scanning started.

Fast forward or rewind the song currently being played.

[ ] button: Fast forward. [ ] button: Rewind.

Fast Forward/Rewind

Press and hold the [ ] or [ ] button.

[ ] button

Button [4]

[ ] button

[SEL] button

ATTENTION

How to operate the CD player

Repeating the same track (REPEAT)

Press button [5] to repeat the track being played.

To cancel, press button [5] again.

Playing tracks in random order (RANDOM)

Press button [6] to play the tracks in random order.

To cancel, press button [6] again.

•During random playback, press button [5] to repeat the track being played. To cancel repeat play (go back to random play), press button [5] again. During playback of a particular track: The track being played is played repeatedly. While searching: The following track is played repeatedly.

•Occasionally the same track happens to be played (selected) two or more times in a row; this is normal operation and is not a sign of a problem.

•When any of the functions - “Playing the beginning of tracks,” “Repeating the same track” and “Playing tracks in random

order” - is selected, a message such as [SCAN], [REPEAT] or [RANDOM] appears on the display to verify the current function.

Buttons [5] and [6]

ATTENTION

How to operate the CD player

Ejecting the disc

Press the [CD (EJECT)] button.

Disc is ejected.

[CD (EJECT)] button

[DISP FUNC] button

Switching the display

Press the [DISP FUNC] button for less than one second.

Each time the button is pressed, the following will be displayed in order. Elapsed time

➔ Clock

How to operate the tuner

Tuning to a station

Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

First, press the [FM AM] button to start tuner operation. There are automatic and manual methods for setting stations in memory. The receiver will accept up to 24 stations in memory: 6 in AM and 18 in FM (6 each for FM1, FM2 and FM3.) (Initial setting)

Press the [FM AM] button to switch to the desired FM or AM bands.

How to operate the tuner

Turn the [SEL] button to the left or right to tune to a station.

Turn to the right: Tunes to higher frequencies. Turn to the left: Tunes to lower frequencies.

Press the [ ] or [ ] button to start the automatic station search.

[ ] button: Starts searching toward higher frequencies. [ ] button: Starts searching toward lower frequencies.

At times, it may be difficult to maintain optimum reception because the antenna affixed to your vehicle is in motion constantly (relative to the broadcast antenna), encountering continuous variation in the received radio signals’ strength. Other factors affecting reception include interference from natural obstacles, sign posts, etc.

[FM AM] button

[ ] button

[SEL] button

ATTENTION

How to operate the tuner

If the vehicle’s battery is disconnected (for repairs to the vehicle or for removing the receiver), all stations in memory will be lost. In such a case, set stations in memory again.

Press the [SEL] button for more than two seconds until a beep is heard.

The automatic preset mode starts. The [ASM ON] indicator on the screen flashes, and stations are automatically entered in memory under buttons [1] to [6]. These buttons are called preset buttons.

•Pressing the preset buttons ([1] to [6]) allows you to make onetouch station selections. The frequency of the selected station is indicated on the display.

•When a new station is set in memory, the station previously set in memory will be deleted.

•If there are fewer than six receivable stations, the stations set in the remaining buttons will be retained.

Press the [FM AM] button to switch to the desired FM or AM bands.

Entering stations into memory automatically (The automatic preset mode: ASM)

Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

[FM AM] button

[SEL] button

Buttons [1] to [6]

ATTENTION

Caution

How to operate the tuner

Manually setting stations into memory

Press the [FM AM] button to switch between FM and AM.

Turn the [SEL] button to the right or left to tune to the station to be entered in memory.

This section covers the setting of stations in memory under the numbered buttons.

Select any button, from [1] to [6], and press it for more than two seconds.

The tuned station is now memorized and set in the button selected. Repeat the procedure to set additional manually tuned stations in memory, in turn, for buttons [1] to [6]. These buttons are called the preset buttons.

If the vehicle’s battery is disconnected (for repairs to the vehicle or for removing the receiver), all stations in memory will be lost. In such a case, set stations in memory again.

•Pressing the preset buttons ([1] to [6]) allows you to make onetouch station selections. The frequency of the selected station is indicated on the display.

•When a new station is set in memory, the station previously set in memory will be deleted.

[FM AM] button

[SEL] button

Buttons [1] to [6]

ATTENTION

Caution

How to operate the tuner

Preset station scan

Press the [SEL] button for less than one second.

[P SCAN] will appear on the display, and stations stored under preset buttons [1] through [6] will be played for five seconds each.

To stop the preset scan mode at a desired station, press the [SEL] button again.

The receiver will stay tuned to the desired station.

This function enables reception of all the stations in the preset buttons for five seconds each.

Switching the display

Press the [DISP FUNC] button for less than one second.

Each press of the button switches the display the clock and current frequency.

[SEL] button

[DISP FUNC] button

Buttons [1] to [6]

How to operate the tuner

Changing the reception sensitivity for automatic scanning

Check that the deck is in standby mode.

Press and hold the [FM AM] button, then button [1], and hold both for more than three seconds.

The mode switches between AUTO mode and DX mode each time the buttons are pressed.

Check that the deck is in standby mode.

Press and hold the [FM AM] button, then button [3], and hold both for more than three seconds.

The radio band switches between USA, ASIA, AUS and LATIN each time the buttons are pressed. After changing the location, the power will turn on in FM1 mode. After this, the broadcast stations will be searched for automatically and stored in buttons [1] to [6].

The deck lets you select the reception sensitivity to be used for automatic scanning of stations. The two sensitivity modes available for this deck are AUTO mode and DX mode.

Changing the radio band location

The location for the radio bands used between the North America region and the Asia/Australia/Latin region can be switched. The default setting is USA (North America).

AUTO Mode

During automatic scanning, the reception sensitivity switches automatically to one of two levels. Initially the reception sensitivity is set to the low level so that only stations with strong signals are received. If no stations could be received, the reception sensitivity is increased so that stations with weaker signals can also be received.

DX Mode

Because the reception sensitivity for automatic scanning is set to the high level from the start, even stations with weaker signals can be received. (Signal crossover may result in some stations being hard to hear.)

[FM AM] button

Buttons [1] and [3]

How to operate the tuner

FM reception characteristics

A characteristic of transmitted signals is that lower frequencies travel further. FM frequencies are much higher than AM’s (similar to a ray of light): they won’t bend but they will reflect. Often, they will be interrupted by tall buildings, mountains, etc., taking direct and indirect paths to your vehicle’s antenna. The distance at which FM stations can be received satisfactorily is usually not nearly as far as that which AM stations can be received.

In weak signal or “fringe” reception areas, FM stations may fade out completely, or fade in and out. When driving in weak signal areas, such as near hills, through valleys or tunnels, among tall buildings, etc., you may encounter unusual noise interference. THIS IS NOT A TUNER PROBLEM. In this case, you can only wait until you are in a better reception area, tune to a stronger station, or reduce the treble level.

In general, FM has much better tonal quality than AM. However, FM and FM stereo reception encounter several characteristic problems not encountered with AM. FM is more difficult to receive than AM in a moving vehicle. The following are explanatory notes on what to expect from FM reception and on how to get satisfactory performance.

Ionosphere Ionosphere

AM Radio Waves FM Radio Waves

FM reception differs from AM

Fading out

How to operate the tuner

A home receiver can catch weak FM stereo signals through the use of a tall, directional or ultra-sensitive antenna. In a moving vehicle, the area for good reception is limited because of varying conditions encountered while driving, including the types and heights of broadcast antenna structures, signal strength, engine noise, etc. For best reception with manual antenna, extend the antenna mast as far as possible.

The reflection characteristics of FM waves cause another problem called multipath–FM wave signals reflecting off of buildings, mountains, etc. When the antenna receives direct and reflected waves at the same time, distortion of sound in the treble range often occurs, such as static or harsh-sounding voices. THIS IS NOT A TUNER PROBLEM. Only moving to another area with a clearer signal path can remedy the situation.

REFLECTED

WAVE

REFLECTED

WAVE

DIRECT WAVE

Reception area of FM broadcasts

Multipath

Transmitting Antenna 100 Meters High Effective Radiation Power 1kW

FM Stereo Auto Radio 12.4 miles

FM Monaural Auto Radio 31 miles

Home FM Stereo Receiver 62 miles

Reception quality varies depending on the power of the FM station, natural and artificial barriers,weather conditions, etc.

How to use an optional remote control

Cleaning the remote control

Precautions in use of the remote control

• Be careful when handling the remote control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction.

• Keep the remote control free of moisture, dust and water. Do not subject it to shock.

• Do not place the remote control unit where it will get hot, such as on the dashboard or near a heater vent. Allowing the remote control unit to overheat may warp its case or cause other problems.

• Do not operate the remote control unit while driving because doing so could cause an accident.

• When using the remote control, point it directly at the remote control light receptor.

• The light receptor may not operate correctly if it is exposed to bright light such as direct sunlight.

• Be sure to press the [PWR] button on the main unit for more than two seconds to shut it down before leaving the car, or the car battery may be run down. When the main unit is shut down, the remote control will not work.

• Remove the batteries from the remote control unit whenever it is not to be used for a long time.

• Use a dry cloth to keep the unit clean. If the remote control unit gets extremely dirty, clean it with a cloth moistened in diluted liquid detergent. Do not use alcohol or thinner; these compounds may damage the finish.

• In no event should benzine or thinner be used. These substances will damage the case or finish.

How to use an optional remote control

[PWR] button

[MUTE] button

[ ] button

Remote-control light receptor

Turning the power on/off

Press the [PWR] button.

The power turns on or off each time the button is pressed.

When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored.

When the main unit is shut down, the remote control will not work.

Adjusting the audio volume

Press the [ ] or [ ] button.

[ ] button: Increases the volume. [ ] button: Decreases the volume.

Muting the volume

Press the [MUTE] button to cut the volume or restore it instantly.

[ ] button

ATTENTION

How to use an optional remote control

[MODE] button

[TU] button

Switching playback modes

Press the [MODE] button.

Press the button to switch modes in the following sequence:

Press the [BAND] or [TU] button.

Each press will switch tuner modes from FM1 ➔ FM2 ➔ FM3 ➔ AM.

Tuner Disc

How to play the tuner

Selecting the FM/AM band

Select the tuner mode first.

[BAND] button

How to use an optional remote control

[DISC] button

[ PRESET CH ] buttons

[ TUNE•SEEK ] buttons

Selecting a station (manually or automatically)

A short tap of the button will allow manual station tuning. Pressing for more than one second will start automatic tuning.

Selecting preset stations

Switching disc mode

A total of six stations may be selected (preset tuning) out of those already set in memory through the main unit. (Refer to “Manually setting stations into memory,” page 38.)

How to play CDs

Select the disc mode first.

Press the [ TUNE•SEEK ] button.

[ ] button: Tunes to higher frequency stations. [ ] button: Tunes to lower frequency stations.

Press the [ PRESET CH ] button.

Press the [BAND] or [DISC] button.

[ ] button: Select the next higher number preset button. [ ] button: Select the next lower number preset button.

[BAND] button

How to use an optional remote control

[ TRACK ] buttons

Hold the [ ] button down to fast forward, or the [ ] button to rewind through the track being played.

Advancing to the next track or returning to the beginning of the track being played

Press the [ TRACK ] button.

[ ] button: Skips to the next track. [ ] button: Returns to the beginning of the track being

played. (Press repeatedly to move to previous tracks.)

ATTENTION

How to use an optional remote control

Replacing the battery

Remove the back cover of the remote control unit by gently pressing and sliding it in the direction indicated by the arrow.

Use two AAA-size batteries.

Install the two batteries provided into the compartment as illustrated inside the compartment.

Return the back cover into place by sliding it in the direction indicated by the arrow.

•Be extremely careful not to swallow the battery.

•The battery life is approximately one year. If the remote control

unit does not operate correctly or if the button lamp gets dim, replace the batteries.

•Be sure to orient the batteries correctly so that the positive and negative poles match the diagram.

•Do not use one new battery and one old one; use two new batteries.

•Use only two of the same kind of battery.

•If any liquid is seen leaking from the batteries, remove both

batteries and dispose of them properly. Thoroughly clean the battery compartment with a dry cloth. Then install new batteries.

To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor immediately.

Warning

Caution

If you have a question:

First check the items mentioned below before attempting to troubleshoot problems.

If a problem occurs, for instance when the unit does not respond to any button presses, or the display doesn't work correctly, press the [RESET] button using a paper clip or similar item. Pressing the [RESET] button will delete all the entries from memory. The settings will return to those made at the factory prior to shipment.

If you have a question:

[RESET] button

Caution

If you have a question:

Information Contents Explanation and remedial action to take

INFO 3 DISCS ARE DIRTY OR The loaded disc is dirty or upside down. Check it

DAMAGED for proper orientation and verify it is clean.

INFO 5

CD PLAYER FAILS

•The CD player is inoperative for some reason. Go

MECHANICALLY

through the CD removal procedure.

•If a CD fails to eject, have your dealer fix the problem.

INFO 6

WHEN THE CD PLAYER

•The temperature in the CD player is too high for

INTERNAL TEMPERATURE

operation. Wait till it cools down.

IS HIGH (TO PROTECT

•Resume playing after the “High temperature

PICKUP UNIT)

sensed and CD stopped" display disappears. If the CD still cannot play, have your dealer repair it.

INFO 7 AN INTERNAL POWER •Turn the ACC off once before turning it on once

SUPPLY FAILURE IS again to resume the operation. OCCURRING •If the function still cannot be restricted, contact

your dealer.

Displayed information (for troubleshooting)

The information listed in the chart below is displayed to show the status of the CD player. Refer to the chart for the appropriate action.

If you have a question:

Common to all

ProblemMode Causes

Is the volume control up sufficiently?

Is MUTE functioning?

Dead or weak sound

Is the fader or balance control set far to one side?

Other probable causes include broken audio-signal wiring or a faulty speaker.

Are too many electrical items installed, causing a lack of power?

Power does not turn on.

Frequencies or titles set in memory are deleted.

No guide tone sounds.

Other probable causes include a run-down car battery, broken power or interconnection wiring.

Has the car battery been disconnected for repair or checked out?

Are too many electrical items installed and causing lack of available power?

Other probable causes include rundown car battery, broken power or interconnection wiring.

Is the guide tone disabled?

Is the battery low?

Remedial action to take

Turn up the volume control.

Cancel MUTE.

Readjust the fader and balance controls to more normal positions.

Have your dealer check the problem.

Reenter them into memory.

Have your dealer check the problem.

Enable the guide tone.

Replace battery.

Refer to page

37,

The remote control does not work.

Is the battery installed in reverse polarity?

Is direct sunlight hitting the remote control light receptor?

Other probable causes include a malfunctioning remote control.

Reinstall the battery in the correct polarity.

Use the remote control close to the receptor.

Have your dealer check the problem.

If you have a question:

ProblemMode Causes

Remedial action to take

Refer to page

The disc cannot be ejected.

The disc cannot be inserted. The disc is ejected as soon as it is inserted. Or, the disc cannot be ejected.

Sound skips around. Sound is intermittent. Sound is bad in quality.

Is an extra label or seal applied to the disc?

Are there rough edges, deformations or damaged areas on the disc?

Is the disc damaged? (scratched, warped, etc.)

Is the disc clean?

Is the player mounted at a proper angle? Is the player mounted loosely?

Are you driving over a rough surface?

If unknown

Do not apply labels or seals to the disc.

Try inserting another disc. Removed any burrs. Do not use a deformed or damaged disc.

Try another disc. Do not play a damaged disc.

Clean the disc.

Have your

dealer

check it

out.

Avoid playback while driving over rough surfaces.

Press the [DISC] button a bit longer (forced Eject).

Mode Problem Causes Remedial action to take

Tuner

Is the antenna retracted?

Is the tuner correctly tuned to a station?

Receives no stations,

Are you driving outside the service area of your preset stations?

or receives static noise.

Are you operating other equipment with a computer, or a mobile phone, in your vehicle at the same time as your receiver?

Other problems may include a loose or disconnected antenna cable, a, bad antenna cable or a bad

Extend the antenna.

Tune to a station.

Tune to a local station. (Please note, there may be no local stations servicing the area where you are currently driving.)

Avoid operating such equipment while using the receiver.

Have your authorized Eclipse retailer check the problem.

Refer to page

Specifications

Power Supply 14.4V DC (11-16V) Current Drain 3A Dimensions (W x H x D)

In-Dash Unit 7" x 2" x 6-1/8" (178 x 50 x 155mm) Mass (weight) Approx. 1.4kg Usage temperature range -20°C to + 65°C (-4°F to 149°F ) Storage temperature range -40°C to + 85°C (-20°F to 185°F )

Frequency Range

USA: 87.75~107.9MHz (0.2MHz step) Asia: 87.5~108MHz (0.05MHz step)

Australia: 87.5~108MHz (0.1MHz step)

Latin America: 87.75~107.9MHz (0.1MHz step) Usable Sensitivity 13dBf 50dB Quieting Sensitivity 14dBf Frequency Response 30~15,000Hz, 3dB Stereo Separation 38dB (1kHz)

Frequency Range

USA: 530~1,710kHz (10kHz step) Asia: 522~1,629kHz (9kHz step)

Australia: 522~1710kHz (9kHz step)

Latin America: 530~1710kHz (10kHz step) Usable Sensitivity 20µV

Frequency Response 20~20,000Hz, 3dB Wow & Flutter Below measurable limits Stereo Separation 80dB S/N Ratio (A-weighted) 95dB Dynamic Range 95dB Total Harmonic Distortion 0.008%

Power Output 14W x 4 (20Hz~20kHz, 1% THD,

4Ω, Vcc=14.4V) Max 50W x 4 Output Level/Impedance 5V /55Ω line-out impedance Tone Action Bass : 12dB at 80Hz

Middle : 12dB at 630Hz

Treble : 12dB at 10kHz Loudness +10dB at 100Hz/+6.5dB at 10kHz

Specifications

Before installation

Installation angle

In order to maintain proper functioning, install the unit within an angle of 30 degrees from horizontal (standard). If this is not done, sound skipping or ejection of the CD may occur.

FRONT

STANDARD

WITHIN AN ANGLE OF 30 DEGREES

No. Item Q'ty

1 Main unit 1 2 Mounting sleeve 1 3 Side bracket 2 4 Rear bracket 1 5 Bezel 1 6 Bushing 1 7 Self-tapping screw (6 x 16 mm) 1 8 Stud bolt 1

9 Flat head screw (red:5 x 8 mm) 4 10 Hex-head bolt (red:5 x 8 mm) 4 11 Hex-head bolt (6 x 20 mm) 1 12 Hex nut (5 mm) 1 13 Hex nut (6 mm) 1 14 Interconnecting cable 1

Components

Before installation

 Note 

Be sure to disconnect the vehicle battery's negative terminal before installing the receiver.

Mounting instruction

Mounting the main unit

Insert the mounting sleeve into the opening in the vehicle dash board or console box.

Use a screwdriver or the like to bend the tabs in the mounting sleeve to secure the mounting sleeve.

Attach the side brackets to the main unit using flathead screws.

MAIN UNIT1

SIDE BRACKETS [ x 2 ]

FLAT HEAD SCREWS [ x 2 ] (red: 5 x 8mm)

Mounting instruction

-If installing the main unit by the mounting sleeve-

DASH BOARD OR CONSOLE BOX

MOUNTING

SLEEVE

BEND THE MOUNTING TABS.

Mounting instruction

Mount the stud bolt to the main unit.

Insert the main unit into the mounting sleeve until it locks in place.

Fasten the rear of the main unit using either method [A] or [B].

Install the bezel on the main unit.

TOP

Select method [A] or [B] to suit the interior configuration of the vehicle.

[A]

TOP

[B]

METAL OF

DASH BOARD OR CONSOLE BOX

VEHICLE

TOP

BUSHING

STUD BOLT

MOUNTING SLEEVE

DASH BOARD OR CONSOLE BOX

HEX HEAD BOLT (6 x 20mm)

BEZEL

SELF TAPPING

SCREW (6 x 16mm)

TOP

MOUNTING SLEEVE

BEZEL

HEX NUT (6mm)

HEX NUT (5mm)

REAR BRACKET

STUD BOLT

METAL OF VEHICLE

Mounting instruction

Remove the pocket and any other accessories from the center cluster to make room for the main unit.

Remove the mouiting side brackets for the pocket.

Attach the side brackets to the main unit.

CENTER CLUSTER

POCKET

SCREWS

-If installing the main unit by the side brackets of the vehicle-

Install the main unit in the vehicle.

SIDE BRACKETS

POCKET

MAIN UNIT

HEX HEAD BOLT (red: 5 x 8mm)

SCREWS [x4]

Mounting instruction

Names of lead wires and destinations (refer to Page 60)

No. Name Wire color Destination

1 ACC Red Connect where the power comes on

when the ignition is in the ACC position.

2 B+ Yellow Connect where the power is

constantly available, regardless of the ignition switch's position.

3 Ground Black Connect where good body

grounding is available.

Antenna power supply

Blue Connect to the automatic-antenna

control terminal of the vehicle.

Illumination power supply

Orange/White

Connect to where power comes on when the headlights are turned on.

Control power supply

Blue/White

Connect to the control terminal for the external amplifier, etc.

7 & 8

Line-out terminals Connect to the RCA input connectors

of an external amplifier.

9 Speaker leads Connect them to their respective

speaker leads.

 Note 

To prevent unconnected leads from shorting out, insulate them by wrapping their tips with electrical tape. Similarly, insulate the ends of connected leads. If an external amplifier is to be connected to the receiver, be sure to ground its outside housing to the vehicle body (a metal part).

 Caution 

Never connect the power supply to the speaker leads, otherwise it cause damage to the main unit.

Mounting instruction

System

Mounting instruction

1) CD5405 Receiver, used alone

Caution

Never connect the power supply to the speaker leads, otherwise it cause damage to the main unit.

REAR or NON-FADER (SELECTABLE)

FRONT

ANTENNA PLUG

White (+)

16P

CD5405

(–)

White/Black

Red

(–)

(+)

Yellow

TO ACC (Power Supply) 1

(+)

Gray

Green

Gray/Black

Blue

Orange/White

TO HEADLIGHT SWITCH (Illumination)

TO POWER ANTENNA RELAY (Supply)

TO BATTERY + 12V (Permanent Supply)

(–)

Blue/White

(–)

(+)

Purple

Green/Black

Purple/Black

Black

INTERCONNECTING CABLE

TO GROUND 3

TO TURN-ON LEAD OF EACH UNIT (Supply) 6

Mounting instruction

TO SIGNAL INPUT OF

2) CD5405 + Power Amplifier

Caution

Never connect the power supply to the speaker leads, otherwise it cause damage to the main unit.

AUXILIARY POWER

AMPLIFIER

INSULATE EACH

WIRE WITH TAPE

INSULATE EACH

WIRE WITH TAPE

FRONT 7

REAR or NON-FADER

(SELECTABLE)

(–)

(+)

White

ANTENNA PLUG

16P

CD5405

INTERCONNECTING CABLE

(+)

Gray

White/Black

(–)

(+)

Green

Gray/Black

Red

Yellow

Blue

TO ACC (Power Supply) 1

TO BATTERY + 12V (Permanent Supply) 2

TO POWER ANTENNA RELAY (Supply) 4

(–)

Green/Black

(–)

(+)

Purple

Purple/Black

Black

Blue/White

Orange/White

TO GROUND 3

TO HEADLIGHT SWITCH (Illumination)

TO TURN-ON LEAD OF EACH UNIT (Supply) 6

How to contact customer service

Should the product require service, please contact your nearest following Eclipse dealer.

<U.S.A/CANADA>

DIVISION OF FUJITSU TEN CORP. OF AMERICA 19600 SOUTH VERMONT AVENUE, TORRANCE, CA 90502 Phone: (310) 327-2151

FUJITSU TEN (AUSTRALIA) PTY LTD. ECLIPSE AUSTRALIA Phone: 1800-211-411

Cobra Malaysia Sdn. bhd. Level 5, Axis Plaza, Jalan U1/44, Glenmarie, 40150 Shah Alam, Selangor D.E., Malaysia. Phone: 03-5569-4200 Fax: 03-5569-4201

Cobra Singapore Pte Ltd Trademart 60, Martin Road, # 05-20, Singapore 239065 Phone: 6737 2568 Fax : 6737 9538

How to contact customer service

<KOREA>

Transpectra Co., Ltd. 115-16 nonhyun dong kangnam ku Seoul, Korea. Phone: 02-540-4595 Fax: 02-2-540-4666

HYUNDAI AUTONET Co., LTD. 1st FL. Namhyoung Bldg, 746-23 Yeoksam-Dong, Kangnam-Ku, Seoul, Korea 135-080 Phone: 02-508-6001 Fax: 02-2-508-6067

Sentrek Taiwan, LTD. 1, 9F, Lane 155, Section 3, Peishen RD., Shenkeng, Taipei Hsien, 222 Taiwan, R.O.C. Phone: 02-2662-8110 Fax: 02-2662-8117

Sho-Ten Co., Ltd. 114/9 Soi Suwansawadi, Thungmahamek, Rama 4 Rd., Sathorn, Bangkok 10120, Thailand. Phone: 02-671-9610-12 Fax: 02-671-9614

MEMO

Memo

••••••••••••••••••••••••••••••••••••••••••••••••••••

MEMO

Memo

••••••••••••••••••••••••••••••••••••••••••••••••••••

MEMO

Memo

••••••••••••••••••••••••••••••••••••••••••••••••••••

IMPORTANT

RECORD YOUR “KEY CD”

HERE…

STORE YOUR “KEY CD”

ALONG WITH YOUR

OWNER’S MANUAL

TAKE THIS OUT.

Eclipse - Fujitsu Ten CD5405 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
