OWNER'S MANUAL

We appreciate your purchase of this receiver.

Please read through this manual for correct operation.

We suggest that after reading it you keep this manual

in a safe place for future reference.

ESN E3 High-Power CD Receiver

MODEL CD3404

For your safety in using the

CD3404

Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD3404. They show safe and correct ways to handle the product so as to prevent personal injury to you and others and to avoid property damage.

Before reading through the manual, take time to read through and learn the important information listed in this section.

This sign indicates a situation in which incorrect handling or disregard of this sign might result in death or serious personal injury.

This sign indicates a situation in which incorrect handling or disregard of this sign might result in personal injury or may result solely in damage to property.

• Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; Eclipse will not be held liable for damages including, but not limited to serious injury, death or property damage resulting from installations that enable unintended operation.

• This unit is intended for operation in DC 12-volt, negativegrounded vehicles only. Never use it in 24-volt vehicles such as heavy trucks or diesel cars with cold-region specifications.

• Do not change CDs while driving. Doing so may result in an accident.

Warning

Caution

Warning

• Do not place the vinyl storage bag over a person. It may cause a serious accident or death by suffocation.

• Do not adjust the controls while driving the car. To adjust the controls, stop the car in a safe location.

• To prevent accidents, store batteries for the remote control out of the reach of small children. In case a child swallows a battery, consult a physician immediately.

• Do not disassemble or rebuild this product. Doing so may cause an accident, fire or electrical shock.

• When it is necessary to replace the fuse, always use a fuse of the correct rating (number of amperes). Use of fuses with higher amperage ratings may cause a fire.

• Do not operate the product in a malfunctioning condition, for instance, when the audio does not play. Doing so may result in an accident, fire or electrical shock.

• If an abnormal situation occurs, such as foreign matter entering or liquid splashing on the product, or smoke or a strange odor emitting from the unit, shut off the product immediately and consult the dealer from whom you purchased it. Continued operation may cause an accident, fire or electrical shock.

• Do not install this product in locations where it may obstruct the driver's view, or where it may endanger passengers in the vehicle. Otherwise, an accident or injury may result.

• To prevent damaging the vehicle, confirm the locations of hoses, electrical wiring, and the fuel tank prior to drilling holes to install this product. Also, take care so that the product does not interfere, not come in contact with them. Otherwise, a fire may result.

• Do not install this product in locations where it may interfere with the operation of the steering wheel, shift lever, brake pedal, etc. Otherwise, an accident or injury may result.

• When installing this product, never use existing nuts or bolts that secure parts of the fuel tank, or the steering or braking systems. Otherwise improper steering or braking or a fire may result.

Warning

• To prevent a short circuit from occurring, disconnect the battery's negative terminal before installing this product. Otherwise, an electric shock or injury may result.

• When using an existing nut and/or bolt from the vehicle to ground this product, do not use any that secure parts of the steering or braking systems. Otherwise, an accident may result.

• Bundle cables and harnesses with electrical tape or wire ties to prevent them from interfering with moving parts. If they should entangle the steering wheel, shift lever or brake pedal, an accident may result.

• Never supply power to another electrical appliance by splicing or tapping into this product's power lead (wire). Otherwise, the current capacity of the wire will be exceeded, resulting in a fire or electric shock.

• Never attempt to disassemble or modify the product. Otherwise, an accident, fire or electric shock may result.

• When replacing fuses, be sure to use fuses of the specified capacity (amperage). Otherwise, damage to the unit, fire or an electric shock may result.

• When installing the product into a vehicle with a passenger side air bag, do not secure it to the air bag's cover or in places where it may impede air bag deployment. Otherwise, proper air bag operation may not be ensured in the event of an accident, causing injury or death.

• When making holes using a drill or similar tool, be sure to wear protective eyewear. Otherwise, an injury such as loss of eyesight may result.

• Exposed wires must be insulated with electrical tape. Otherwise, a short circuit, fire, or electric shock may result.

Warning

• Play the audio at a moderate volume level that permits you to hear sounds from outside the car. Driving without being able to hear outside sounds may result in an accident.

• Keep foreign objects out of the disc slot. They may cause fire or electrical shock. Another possibility is that discs may be damaged or become stuck.

• Do not stick your fingers or hands into the disc slot. Doing so may cause personal injury.

• This product must be operated only as on-board equipment, or it may cause electrical shock or injury.

• Do not play distorted sounds for long periods of time; the speakers may overheat and cause a fire.

• This product uses an invisible laser light. In case a problem develops, be sure to consult the dealer from whom you purchased the product. Do not disassemble or rebuild the unit; rebuilding it may expose you and others to a dangerous laser emission (which would damage eyesight) or cause an accident.

• Never use batteries other than those specified. Do not mix new and old cells. Doing so may cause a fire or personal injury due to a battery explosion or chemical leaks.

• Pay attention to the (+) and (-) polarity of the battery when installing them in the product. Incorrect installation may cause personal injury or product damage spoilage due to a battery explosion or chemical leakage.

• For best results, this product should be installed by a professional installer. Contact the dealer whom you purchased the product for an appointment.

• When installing this product, be sure to use the supplied mounting hardware. If parts other than those supplied are used, the unit may be damaged internally, or may not be held in place securely and become dislodged.

Caution

• Avoid installing this product in places where it may get wet, such as near windows, or in places that are moist or dusty. Presence of liquid, moisture or dust inside this product can cause short circuiting, resulting in smoke or fire.

• Do not install this product in locations where it cannot be fastened securely, such as places subject to frequent vibration. Otherwise, it may become dislodged and cause an accident or injury.

• Do not block this product's vent or heat sink. If either is blocked, excessive heat build-up may occur and cause a fire.

• If this product is not connected properly, a short circuit, fire or accident may occur.

• When routing cables, use care so they do not contact sharp metal parts such as brackets or screw tips. Otherwise, a short circuit, electric shock, fire or accident may result.

• Do not obstruct the vent on this product. If blocked, excessive heat build-up may occur and cause a fire.

Caution

Table of Contents

Operating precautions ............................................. 10

Notes on operation ..................................................................... 10

About compact discs .................................................................. 11

About cleaning a CD .................................................................. 13

Names of controls and parts .................................. 14

ESN security operating procedure ......................... 15

About ESN .................................................................................. 15

How to operate the ESN (Key CD) security ................................ 16

How to program the Key CD ................................................ 16

How to cancel the Key CD ................................................... 17

How to change the Key CD .................................................. 18

How to resume normal operation (ESN security lock out) ... 18

What happens if an incorrect CD is inserted? ...................... 19

How to turn the security indicator on/off ..................................... 20

How to read the Electronic Serial Number ................................. 20

Basic operation ........................................................ 21

Turning the power on and off ..................................................... 21

Listening to a CD ........................................................................ 22

Listening to the tuner .................................................................. 23

Adjusting audio volume .............................................................. 23

Switching audio control modes ................................................... 24

VOL (VOLUME) Mode ......................................................... 24

BASS Mode ......................................................................... 24

TREB (TREBLE) Mode ........................................................ 24

BAL (BALANCE) Mode ........................................................ 25

FAD (FADER) Mode ............................................................ 25

Enabling the loudness control .................................................... 25

Making changes with Function Mode ......................................... 26

Disabling the guide tone feature (for button operation) ........ 26

Setting the time .................................................................... 27

How to operate the CD player ................................. 28

Listening to CDs ......................................................................... 28

Advancing to the next track or returning to the beginning of the

track being played ...................................................................... 29

Fast Forward/Rewind ................................................................. 29

Playing the beginning of tracks (SCAN) ..................................... 29

Repeating the same track (REPEAT) ......................................... 30

Playing tracks in random order (RANDOM) ............................... 30

Ejecting the disc ......................................................................... 31

Switching the display .................................................................. 31

How to operate the tuner ........................................ 32

Tuning to a station ...................................................................... 32

Entering stations into memory automatically

(The automatic preset mode: ASM) .......................................... 33

Manually setting stations into memory ....................................... 34

Preset station scan ..................................................................... 35

Switching the display .................................................................. 35

Changing the reception sensitivity for automatic scanning ........ 36

Changing the radio band location ............................................... 36

FM reception characteristics ...................................................... 37

FM reception differs from AM ............................................... 37

Fading out ............................................................................ 37

Reception area of FM broadcasts ........................................ 38

Multipath .............................................................................. 38

How to use an optional Card remote control ........ 39

Precautions in use of the remote control .................................... 39

Cleaning the remote control ....................................................... 39

Turning the power on/off ............................................................ 40

Adjusting the audio volume ........................................................ 40

Cutting the volume instantly (muting) ................................... 40

Switching playback modes ......................................................... 41

How to play the tuner ................................................................. 41

Selecting the FM/AM band ................................................... 41

Selecting a station (manually or automatically) .................... 42

Selecting preset stations ...................................................... 42

How to play CDs ......................................................................... 42

Swithcing disc mode ............................................................ 42

Advancing to the next track or returning to the beginning

of the track being played ...................................................... 43

Replacing the battery ................................................................. 44

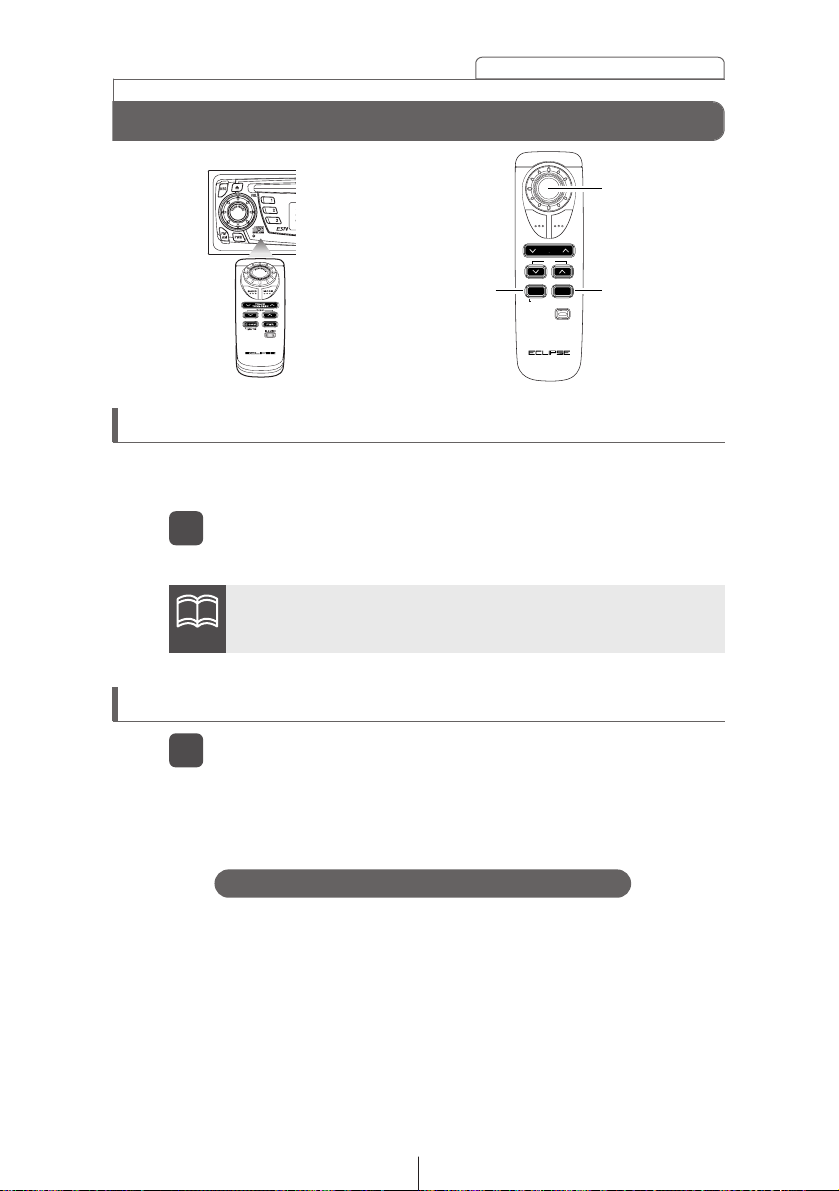

How to use an optional NOB remote control ........ 45

Turning the power on/off ............................................................ 45

Adjusting the audio volume ........................................................ 45

Cutting the volume instantly (muting) ................................... 45

Switching playback modes ......................................................... 46

How to play the tuner ................................................................. 46

Selecting the FM/AM band ................................................... 46

Selecting a station (manually or automatically) .................... 47

Selecting preset stations ...................................................... 47

How to play CDs ......................................................................... 47

Swithcing disc mode ............................................................ 47

Advancing to the next track or returning to the beginning

of the track being played ...................................................... 48

Replacing the battery ................................................................. 49

If you have a question: ............................................ 51

Displayed information (for troubleshooting) ................................ 52

Specifications .......................................................... 55

Before installation ................................................... 56

Components ............................................................................... 56

Installation angle ........................................................................ 56

Mounting instruction ............................................... 57

Mounting the main unit ............................................................... 57

Names of lead wires and destinations ........................................ 59

System ....................................................................................... 60

How to contact customer service ............................64

Operating precautions

• For your safety, play only at volume levels that allow outside sounds to be heard.

• We recommend using with this player a disc with the logo shown to the left.

• You can play music CDs(CD-R/CD-RW) on this player. Be sure to use discs that have been properly processed. Depending on the editing equipment used, some discs may not play properly.

• Do not insert anything other than a CD into the disc slot. Do not insert any foreign objects, such as coins or credit cards, into the disc slot. Be especially watchful of children’s mischief in this regard.

• Avoid severe mechanical shock. When the player is subjected to severe vibration while traveling over a rough surface, playback may be intermittent. When a situation like this occurs, resume playback after returning to a smoother road.

• About dew condensation. In cold or rainy weather, just as the interior glass surface gets fogged, dew (water condensation) may also settle on the deck. When this occurs, disc playback may become intermittent or impossible. Dehumidify the air in the vehicle for a while before resuming playback.

• Cleaning the disc slot. The disc slot tends to get dusty. Clean it occasionally to prevent accumulated dust from scratching the discs.

Notes on operation

Operating precautions

• The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback. Observe the following precautions to ensure high quality sound performance:

• Do not leave an ejected disc in the disc slot for very long; the disc may warp. Discs should be stored in their cases and kept away from high temperature and humidity.

• Do not stick a piece of paper or tape on, nor write on or scratch either side of a disc.

• Discs spin at a high speed inside the deck. Keep cracked or warped discs out of the player to avoid damaging it.

• Avoid touching the recorded surface when handling a disc; handle discs by their edges.

About compact discs

Operating precautions

About CD accessories

• Do not use accessories (stabilizers, protective seals, laser lens cleaners, etc.) sold for “improving sound performance” or “protecting CDs.” The changes in CD thickness or outside dimensions made by these accessories may cause problems in the player.

About brand new CDs

• You may notice that some brand new discs are rough around the center hole or outside edge. Remove the rough edges with the side of a ballpoint pen, etc. Rough edges may prevent proper loading in the deck. Flakes from the rough edges may also stick to the recorded surface and interfere with playback.

Rough Edges

Ballpoint pen

Flakes

Recorded surface

Rough Edges

• Please be sure NOT to attach any ring-shape protector (or other accessory) to your discs. Those protectors are commercially available and said to protect disc and to improve sound quality (and antivibration effect), but they can do more harm than good in regular uses. The most common problems are disc insertion, disc ejections, and won't play problems due to the protector ring that came off in the disc mechanism.

Operating precautions

About borrowed CDs

• Do not use a CD with glue or remnants of adhesive tape or labels. They may cause the CD to get stuck inside or damage the deck.

How to remove CDs

• When removing the ejected disc, pull it straight out along the slot. Pressing downward in the process may scratch the recorded surface of the disc.

OKAY

NO GOOD

About irregularly-shaped CDs

• Specially-shaped CDs, like heart-shaped or octagonal CDs, cannot be played. Do not attempt to play them, even with an adapter, since they may damage the player.

• Use a commercially available compact disc cleaner to clean a CD, wiping lightly from the center to the edge.

• Do not use benzine, thinner, LP record spray or other cleaners on CDs. They may damage a CD’s finish.

XXXX

About cleaning a CD

Names of controls and parts

① ② ④ ⑤⑥③

⑫⑪ ⑩ ⑨ ⑧⑥

⑦

⑬

③

[DISC] button

[ (EJECT) ] button

Buttons [1] to [6]

Disc slot

[DISP] button

[SEEK /FAST ] button

[SEL] button

[FUNC] button

[RTN] button

[RESET] button

[PWR] button

[FM AM] button

[AUDIO CONTROL] button

Switches disc modes.

Ejects compact disc.

Selects radio preset channels and performs disc mode

functions.

Inserts compact discs.

Switches screen display.

Automatically finds radio reception and fast forward/rewind.

Selects radio stations and CD tracks.

Turns function mode ON/OFF.

Returns to previous screen.

Resets deck functions to default settings.

Turns deck power ON/OFF.

Switches to radio mode and switches radio bands.

Adjusts volume and performs other functions.

ESN security operating procedure

About ESN

This deck incorporates ESN (ECLIPSE Security Network). The ESN is a security system which disables all deck functions when the power is restored if the deck is stolen from the vehicle. Turning the power of the deck off or switching the vehicle's ignition switch off activates the security feature. Setting or canceling of the security feature can be done with a "Key CD". It is necessary to register an music CD as the "Key CD" in advance.

ESN security operating procedure

•If there is a problem with the inserted CD, an [ERR] message will appear for two seconds and the CD will be ejected. Reinsert the ejected CD.

•If a CD causes the [ERR] message to appear twice in a row, a [CHANGE] message will appear for two seconds. Try another CD.

•The Security indicator will flash whenever the vehicle’s ignition is switched off.

If a CD has already been inserted, a [SEC] message appears, and then the CD is ejected.

How to operate the ESN (Key CD) security

Check that the Power is OFF.

Press and hold button [6], then the [FUNC] button, and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [DISC]. The CD3404 is now ready to accept your Key CD in the CD slot.

Insert the CD into the slot.

A [SEC] message appears, then the Key CD is ejected.

How to program the Key CD

[FUNC] button

Button [6]

ATTENTION

ESN security operating procedure

•This process cancels the protection for the ESN deck.

•If power to the ESN deck is disconnected, then reconnected, a

Key CD will not need to be inserted in order to return the unit to normal operation.

•Inserting a CD other than the Key CD will not cancel the protection. Instead, the display [ERR] for two seconds, then the normal CD playback mode will activate.

If a CD has already been inserted, a [SEC] message appears, and then the CD is ejected.

Insert your Key CD into the slot.

A [CANCEL] message appears, then the Key CD is ejected. The Key CD is cancelled.

Turn OFF the Power.

Press and hold button [6], then the [FUNC] button, and hold both for more than one second.

A [SEC] message appears, then in two seconds it will change to [DISC]. The CD3404 is now ready to accept your Key CD in the CD slot.

How to cancel the Key CD

[FUNC] button

Button [6]

ATTENTION

ESN security operating procedure

•If an incorrect CD is inserted, an [ERR_] ("ERR" and error number) message will appear for two seconds, after which the CD will be ejected.

•If [ERR5] (the 5th time an error has occurred) appears, [HELP] will appear, after which the CD will be ejected. When [HELP] appears, carry out the operations for an ESN security lock out by following the procedure in "What happens if an incorrect CD is inserted?" (See next page).

•You must use the same CD used for Key CD programming; a duplicate CD may not work properly.

First, cancel the existing Key CD.

Refer to “How to cancel the Key CD.”

Next, program a new Key CD.

Refer to “How to program the Key CD.”

How to change the Key CD

If power is disconnected while ESN security is active (a Key CD was programmed), operation is disabled until power is restored and the unit unlocked. Follow this procedure to resume normal operation.

When the power is turned on after disconnecting the battery power, a [SEC] message will appear for two seconds. Thereafter, the message changes to [DISC] and the CD3404 is ready to accept your Key CD into the slot.

Insert your Key CD into the slot.

If the correct CD is inserted, an [OK] message will appear for two seconds and the CD will begin playing.

How to resume normal operation (ESN security lock out)

ATTENTION

ESN security operating procedure

•If an incorrect CD is inserted, an [ERR_] ("ERR" and error number) message will appear for two seconds, after which the CD will be ejected.

•This process cancels the protection for the ESN deck.

After the 5th incorrect attempt, the display reads [HELP] for five seconds.

[HELP] will appear for five seconds, after which the serial number will appear.

Press button [6], then the [FUNC] button, and hold them for five seconds.

After the [SEC] message will appear for two seconds, rolling code will appear.

Press the [FUNC] button.

A [DISC] message appears. You will have five more attempts the correct disc.

Insert your Key CD into the slot.

If the correct CD is inserted, an [OK] message will appear for two seconds and CD will be ejected.

432

What happens if an incorrect CD is inserted?

O Note O

If after five tries the correct Key CD is not inserted, the display reads [CALL800]; the unit must be returned to Eclipse to be reset. In this case, please contact your Eclipse dealer for assistance. For country-specific customer service information, refer to "How to contact customer service" on page 64.

Your key CD can be easily forgotten. Write the album name in a reminder note (See Page 67).

[FUNC] button

Button [6]

ATTENTION

ESN security operating procedure

How to turn the security indicator on/off

With the power OFF, press button [2], then the [FUNC] button and hold both for more than one second.

[IND. FLASH] or [IND. -----] appears on the display.

[IND. FLASH] means the security indicator will flash when the vehicle’s ignition is off, and [IND. -----] means it will not. Repeat the above steps to reactivate the flash mode.

Once ESN security is activated, the indicator flashes whenever the vehicle’s ignition is turned off, warning potential thieves that the unit is protected. However, if you do not want this visible deterrent, it may be turned off.

How to read the Electronic Serial Number

Turn OFF the Power.

Press button [4], then the [FUNC] button, and hold both for more than one second.

[ESN] appears on the display, followed by an eight-digit number; this number is your electronic serial number (ESN). You may use this number to identify your Eclipse CD3404 in the event it is recovered after being stolen.

Button [2]

[FUNC] button

Button [4]

Basic operation

Turning the power on and off. When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored. When the vehicle has no ACC position on the ignition switch, care is needed when turning off the deck. Follow Step 2 or Step 3 when turning off the power.

Turning the power on and off

When power is OFF, press [PWR] button.

The power will come ON.

When power is ON, press the [PWR] button for less than two seconds.

When power is ON, press the [PWR] button for more than two seconds.

The power will go completely OFF.

This section covers basic operating procedures. For additional details, please refer to the sections on specific functions.

If a car is not equipped with an ACC position (for example, a European car), keep the [PWR] button depressed for more than two seconds.

Basic operation

[PWR] button

The power will go OFF and the deck will be in Standby. If you press the [PWR] button again for more than one second, the power will go completely off.

When the deck's power is turned on for the first time or if the battery terminals have been disconnected because of a reason such as vehicle maintenance and the power is then turned back on, the deck will start up in FM1 mode. After this, the broadcast stations will be searched for automatically and stored in buttons [1] to [6].

ATTENTION

+ 47 hidden pages
