Eclipse PE300BU Operator's Manual

UHS Battery Burnisher
PE300BU
Operator’s Manual
Instructions For Use
Failure to read and understand this manual before operating this machine or performing service
on this machine may result in injury to the operator or nearby personnel or result in damage to the
machine or nearby property. Each operator must be trained in the operation of this machine before
being allowed to use it. Contact Amano Pioneer Eclipse Customer Service at 1-800-367-3550 or
+1-336-372-8080 or an authorized Amano Pioneer Eclipse Distributor to inquire about training or to
request a replacement manual.
NOTICE
Proper maintenance is necessary with all battery powered floor machines.
Following the scheduled maintenance procedures found in your operation
manual will provide many years of uninterrupted service.
recommended to have your machine serviced by certified service personnel
every three months. This service should include an emissions check.
! FOR YOUR SAFETY !
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any or other appliance.
Record This Important Information
Date of Purchase
Purchased From
Address
City State Zip
Phone Contact
Machine Model
Machine Serial Number
Important Phone Numbers
Medical Emergency
Police
Fire Department
In this Operation Manual you will find three statements that you must read and observe to ensure safe operation of this machine.
DANGER! indicates that the possibility of severe bodily injury or death can occur if DANGER!
statements are ignored. Read and observe all DANGER! statements included in the Operation Manual and attached to the machine.
WARNING! indicates that the possibility of bodily injury to the operator and other people can occur
if WARNING! statements are ignored. Read and observe all WARNING! statements included in the Operation Manual and attached to the machine.
CAUTION! indicates that the possibility of damage to the machine or other property can occur if
CAUTION! statements are ignored. Read and observe all CAUTION! statements included in the Operation Manual and attached to the machine.
Table of Contents
Quick Reference Specifications..........................................5
Safety Precautions..............................................................6
Operator Responsibility.......................................................7
Test for Operator-Ear Sound Pressure Level.................7
Test for Hand Arm Vibration...............................................7
Machine Preparation...........................................................8
Unpacking the Machine..................................................8
Machine Storage.............................................................8
Repacking the Machine..................................................8
Transporting the Machine...............................................8
Connecting the Batteries................................................9
Installing the Skirt...........................................................9
Machine Components.......................................................10
Traction Model..............................................................11
Key Switch................................................................11
Handle Lever.............................................................11
Burnish Switch..........................................................11
Changine Direction...........................................................14
Stopping & Turning off Machine........................................14
Operation on Inclines........................................................14
Installing / Changing Burnishing Pad................................14
Dust Bag Removal............................................................15
Caster Parking Brake.......................................................15
Pad Pressure Adjustment................................................15
Post Operation Checklist..................................................15
Maintenance...............................................................16
Scheduled Maintenance...........................................16
Body & Battery Cover..............................................17
Battery Maintenance................................................17
Lead Acid Batteries.................................................17
Rear Casters.............................................................18
Belt Maintenance.....................................................18
Belt Replacement....................................................18
Alarm Codes.....................................................................19
Reverse Switch.........................................................11
Traction Speed Control.............................................11
Hour / Battery Meter..................................................11
Alarm LED................................................................11
Pad Assist Model..........................................................11
Key Switch................................................................11
Handle Lever............................................................11
Burnish Switch..........................................................11
Hour / Battery Meter..................................................11
Over Current Protection...............................................11
Onboard Battery Charger.............................................12
Battery Charger Controls..............................................12
Battery Charger Settings.............................................13
Battery Charger Fault Codes.......................................13
How the Machine Works...................................................14
Pre-Operation Checklist....................................................14
Turning on the Machine...................................................14
Machine Troubleshooting..................................................20
Machine Specifications.....................................................21
Parts Manual.....................................................................23
Electrical Schematic - Pad Assist.............................24

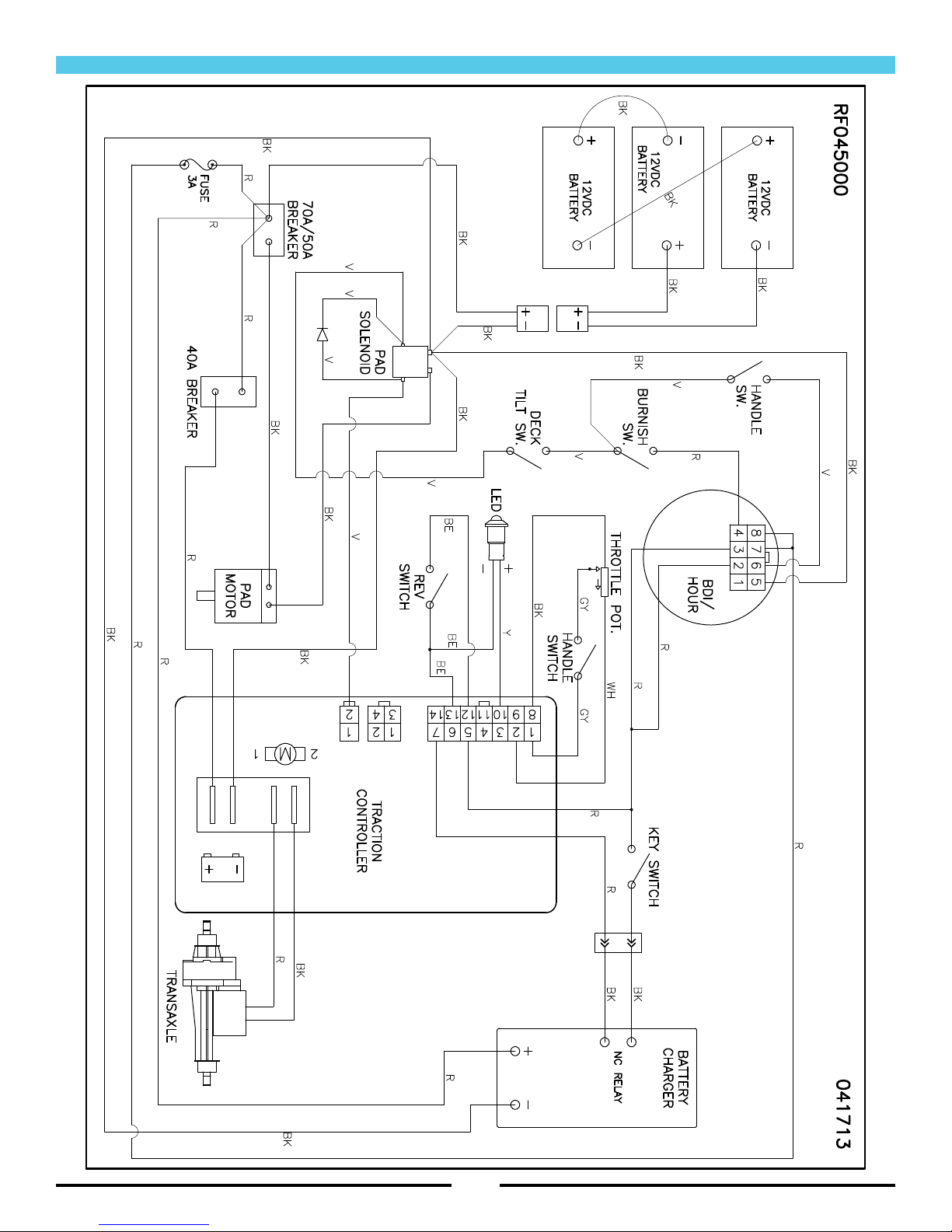

Electrical Schematic - Traction.................................25
Connections - Pad Assist..........................................26
Connections - Traction.............................................28
Skirt, Deck & Axle Bracket Assembly......................30
Main Bottom Assembly - Pad Assist........................32
Main Bottom Assembly - Traction...........................34
Main Rear Assembly...............................................36
Main Top Assembly..................................................38
Main Front Assembly...............................................40
30” Deck Assembly..................................................42
30” Skirt, Pulley & Tensioner Assembly...................44
Manufacturer’s Warranty...................................................46
5
Notes:
________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________
6
Quick Reference
Specifications:
l Voltage: 36VDC (Qty. 3 - 12VDC Batteries)
2
l Burnish Rate: ±31,200 ft
±42,900 ft
l Overload Protection: Resettable Breakers
l Operating Time: Approximately 3 hours
l Pad Pressure: Adjustable
Routine Maintenance Parts:
l Cloth Dust Bag: MP414100
l Paper Dust Bap: MP414200 (3 Per Pack)
l Pad Holder: MP435000 [24”]
MP471000 [30”] Qty. 2
l Pad Retainer: MP432400
l 3A Glass Fuse: MP234700
/hr (2899 m2/hr) [24”]
2
/hr (3985 m2/hr) [30”]
l Charger Fuse: MP473100 (230V)
l Dust Skirt: MP434200 [24”]
MP459800 [30”]
l Skirt Edging: MP139800 - 7 ft (214 cm) [24”] MP139800 - 8 ft (244 cm) [30”]
l Battery: MP223500 (12V Lead Acid) Qty. 3 MP413600 (12V AGM) Qty. 3
l Gas Spring: MP434500 [24”] MP450300 [30”]
l Deck Belt: MP449100 [30”]
l Burnish Motor Brush Kit: MP433200
l Transaxle Motor Brush Kit: MP433300
Your Authorized Amano Pioneer Eclipse Distributor: _____________________________________
Authorized Amano Pioneer Eclipse Distributor Phone Number: _____________________________
Amano Pioneer Eclipse Phone Number: +1-336-372-8080
7
Safety Precautions
Anyone operating the machine should read the following carefully and be informed of potentially dangerous operating conditions. Operators should be familiar with the location and use of all safety devices on the machine. DO NOT use the machine if it is not in proper operating condition, and report any damage or operation faults immediately.
DANGER! This machine has parts including the pad/
brush assemblies that can cause severe injury if these parts are contacted while they are moving. DO NOT allow any part of the body or clothing to come in contact with these parts while they are moving. DO NOT try to change the pads/brushes while the machine is running. DO NOT allow other people to come near the machine while it is in operation. DO NOT allow the machine to run unattended. DO NOT leave the machine in a place where unauthorized or untrained personnel could use the machine. DO NOT run the machine with the pads/ brushes off center, damaged or missing. DO NOT operate the machine if the machine has loose parts.
WARNING! Batteries emit hydrogen gas. Explosion or
fire can result. Keep sparks and open flame away. Keep covers open when charging. DO NOT smoke around batteries. Avoid skin contact with the acid contained in the batteries. Never allow metal objects to lay across battery tops.
WARNING! Operate from the rear of the machine only.
WARNING! Inspect pad holders regularly. A fractured pad
holder may result in pad fragments causing injury.
WARNING! Use caution when operating the machine on
a ramp or incline. DO NOT turn the machine, or leave it unattended, on a ramp or incline.
WARNING! Store machine inside. Keep the electrical
components of the machine dry. DO NOT PRESSURE
WASH MACHINE.
WARNING! Modifications or alterations to this machine
can lead to personal injury or damage to the machine. DO NOT make unauthorized modifications or alterations to this machine. Amano Pioneer Eclipse assumes no liabilities for injury or damage resulting from an unauthorized modification or alteration to the machine. Any unauthorized modification or alteration to this machine voids all warranties.
WARNING! The motor and motor controller become hot
enough while the machine is in operation, and for a long time after the machine is shut off, to cause severe burns. DO NOT touch these parts of the machine until they have cooled.
WARNING! Injury can occur to the eyes and body while
using the machine. Safety goggles, safety shoes, and safety clothing are recommended while operating the machine.
WARNING! Machine vibration may cause tingling
or numbness in the fingers or hands. Gloves are recommended to reduce machine vibration. If tingling or numbness persists, shut off the machine. If the vibration is caused by loose parts such as an off center pad/ brush, adjust or tighten these parts before using the machine again.
WARNING! DO NOT burnish on an incline. This machine
is designed to burnish on a flat level floor.
CAUTION! DO NOT operate machine unless trained and
authorized. DO NOT operate machine unless you have read and understand the operation manual. DO NOT operate machine in flammable or explosive areas.
CAUTION! Before starting machine ensure all safety
devices are in place and functioning properly. Before starting machine check for proper operation.
CAUTION! When using machine, go slowly on inclines
or slippery surfaces. Use care when operating machine in reverse. Follow all manufacturers instructions on chemical product containers when handling, mixing, or using chemical products.
CAUTION! When servicing machine, stay clear of
moving parts. DO NOT wear loose clothing when working on machine. Block machine wheels before raising or jacking up machine. Use hoist stands that will support the weight of the machine. Wear eye and ear protection when using pressurized air. Disconnect battery connections before servicing machine. Use only replacement parts supplied by Amano Pioneer Eclipse or a Amano Pioneer Eclipse Authorized Distributor or Service Center.
8
This machine is manufactured for
commercial use only.
This machine is designed and manufactured for burnishing indoor hard floor surfaces. Amano Pioneer Eclipse does not recommend use of this machine in any environment other than an indoor environment.
Battery powered floor equipment is designed and manufactured for commercial use only. These machines are designed to burnish most modern types of floors including composition tile, stone, marble, terrazzo, and resilient floor covering, and some coated wood floors.
These machines should not be used
l By unqualified or untrained personnel. l Unless properly maintained and adjusted. l On areas with obstructions such as thresholds, floor
outlet boxes, etc.
l In areas where loose debris or other objects are
present.
Operator Responsibility
The operator is responsible for performing the recommended daily maintenance and checkups of the machine to keep it in good working condition. The operator must inform the service mechanic or supervisor when recommended maintenance procedures are required as described in the “MAINTENANCE” section of this manual.
lRead this manual carefully before operating this
machine.
lFOR SAFETY: DO NOT operate machine before
reading and understanding the operation manual.
lCheck the machine for shipping damage.
Keep your machine regularly maintained by following the maintenance information in this manual. Order parts and supplies only from an Authorized Amano Pioneer Eclipse Distributor. Use the parts illustration section of your manual when ordering parts. During and after operation, perform the recommended daily and hourly procedures outlined in the Maintenance Chart.
Test for Operator-Ear Sound Pressure Level
Amano Pioneer Eclipse measures and rates the operator-ear sound pressure level for hand-guided floor treatment and floor cleaning machines for industrial use. All tests are performed in accordance with European Machinery Directive (2006/42/EC).
lOutdoor test area consists of a flat open space free
from effects of signboards, buildings or hillsides for at least 15 m (50 ft) from the center of the test surface. Indoor tests are conducted in a semi-anechoic or sound deadening room.
lThe test surface is a single sheet of floor covering
at least 1 m (3.3 ft) wider and longer than the equipment being tested. In order to not affect the sound reading, the observer taking readings is at least 2 m (6.6 ft.) from the equipment being tested, or standing directly behind the operator.
lAll machines are tested while stationary and centered
on the test surface. With the traction drive in neutral (where applicable) the test is conducted with the machine at maximum engine or motor speed as specified by the manufacturer.
lThe operator is located in the normal operating
position with the microphone or meter supported independent of the machine, 1,68 m (66 in) above the test surface, 25 cm (10 in) to the right and left centerline of the operators position, and 20 cm (8 in) to the rearmost point of the handle, with the handle in the most forward position.
lThe sound level meter is observed for a minimum of
5 seconds or until a stabilized reading is obtained. The maximum repeatable sound level observed during the test at each microphone position is recorded and documented.
Test for Hand-Arm Vibration at the Grip
Surface of Hand-Guided Machinery
Amano Pioneer Eclipse measures and rates the vibration at the machine-hand contact surface of hand-guided machines that are provided with handles in accordance with European Machinery Directive (2006/42/EC).
lThe test area consists of a flat open floor area that
allows the machine to be operated normally.
lThe transducer is mounted firmly at a point halfway
along the length of the handle where the handle would normally be held.
lMachines are tested while stationary, with all
mechanisms necessary for the equipment to perform its intended functions engaged and the traction drive in neutral (if applicable). The machine will be tested at maximum engine or motor speed as specified by the manufacturer of the subject machine.
lThe measurements are recorded from the dominant
axis.
9
Machine Preparation
Unpacking the Machine
The machine is shipped boxed on a wooden pallet. To unpack machine:
1. Cut and remove bands holding the box to the pallet.
2. Remove staples attaching the box to the platform at the bottom edge of the box.
3. With two people, one at either end of the box, lift box straight up and off machine.
4. Remove loose accessories from the top of machine.
5. Cut and remove bands securing the machine to the pallet.
6. Lower the attached ramp
7. If the machine has batteries then remove the battery cover and plug the battery pack plug into the machine, turn on the key, drive the machine down the ramp off the pallet. If the machine does not have batteries, pull the machine down the ramp and off the pallet. See the “Connecting the Batteries” section of the manual.
8. Carefully back the machine off of the pallet.
Machine Storage
1. Machine should be stored in a dry environment.
2. Store machine away from objects that may fall and damage it.
3. Never store burnisher near an open flame or heat producing device.
4. Make sure burnisher is cleaned properly by wiping machine down with damp cloth before storing.
CAUTION! NEVER PRESSURE WASH MACHINE!
5. Disconnect batteries before storage.
Repacking the Machine
Refer to Unpacking section on page 8 and repack machine using original packing materials and container.
Transporting the Machine
When shipping the machine, make sure the batteries are disconnected and the machine is secured in the transporting vehicle.
10
Connecting the Batteries
1. Place the batteries in the machine oriented as shown in diagram.
2. Connect the batteries as shown in the battery connection diagram.
3. DANGER! Incorrect connection of batteries can
cause explosion and/or serious injury.
4. Double check battery connections.
5. Connect the battery pack plug to the machine.
Installing the Skirt
1. Lift the deck upward about 90 degrees by pulling up on the front of the deck. At this point, the tilt latch will hold the deck in the pad change position. (Ref. Machine Operation - Installing/Changing Burnishing Pad)
2. Remove steel skirt from bubble wrap packing and on the outside of the skirt, loosen the 1/4” hex bolt with jam.
3. Slide the skirt onto the burnish head aligning the slots in the skirt with the tabs on the deck. Make sure the 1/4” bolt is at the back of the shroud.
4. Tighten the 1/4” bolt until the skirt is snug around the deck but also floats up and down freely.
5. Tighten jam nut and lower deck to burnish position. (Ref. Machine Operation: Installing/Changing Burnishing Pad)
11
Machine Components
Controls and Instruments
4
7
3 1
5
6
2
12
300BU Traction Model
1. Key Switch - Turns the machine on/off.
2. Handle Lever - When the lever is engaged the machine will move forward. If the Burnish switch is on, the pad will also start turning. If the burnish head is tilted up into the pad change position, the burnish motor will not engage.
NOTE: The machine needs to be moving when the burnish switch is turned on or off in order to keep from
burning the oor.
3. Burnish Switch - Turns burnish function on/off. The burnish motor will not engage unless the burnish switch is on and the handle lever is engaged. If the burnish head is tilted up into the pad change position, the burnish motor will not engage.
4. Reverse Switch - Hold down this switch while the handle lever is engaged and the machine will move in reverse. Once the reverse switch is released the machine will start moving forward.
5. Traction Speed Control - Turn the knob clockwise to increase speed. Turn the knob counter-clockwise to decrease speed.
6. Hour Meter / Battery Discharge Indicator - The LCD displays the number of burnishing hours. The machine will only count hours while burnishing. The row of LEDs display the charge level of the battery pack. When all the yellow LEDs are lit, the battery pack is fully charged. In order to protect the battery pack, when the red LED is lit, the burnish motor will stop and the machine should be recharged.
7. Alarm LED - Displays trouble codes as a blink pattern. In normal operation this LED will be off. If it comes on, refer to the troubleshooting section.
Over Current Protection
1. 70A Breaker - Over current protection for the burnish motor. Push to reset.
2. 40A Breaker - Over current protection for the traction drive. Push to reset.
3. 3A Fuse In-Line holder - Over current protection for key switch.
13
Onboard Battery Charger
To charge the batteries, first drive the machine to a flat, dry, well-ventilated area then turn the machine off. If using lead acid batteries, check the water level in all the battery cells (see Battery Maintenance section). If the level is low, add just enough distilled water to cover the plates. **DO NOT OVERFILL!**
Then plug the charger cord into a wall socket. The battery charger will initialize and then soft start the charging cycle.
WARNING! Batteries emit hydrogen gas when
charging. Explosion or fire can result. Keep sparks and open flame away when charging.
CAUTION! When servicing machine, wear protective
gloves and goggles when handling batteries or battery cables. Avoid contact with battery acid.
Battery Charger Controls
1. Three-digit display + symbol (1), to view A=charging current, U=battery voltage, h=charging time, C=charging ampere-hours (AH), E=energy used to charge (KWh)
2. Button for the Selection of the display mode (2): A, U, h, C, E. After 10 seconds the display returns to the display of charging current.
3. Red control indicator (3): when it is on, the charging cycle has started.
4. Yellow control indicator (4): when it is on, the final phase of the charging cycle has started.
5. Green control indicator (5): when it is on, the charging cycle has finished.
Once the charge cycle is complete, the charger will remain active in a trickle charge mode to maintain the charge on the batteries until the charger is unplugged from the wall socket.
14
Charger Settings
The On-Board battery charger settings need to be set for your battery type before charging. Failure to properly set will result in battery damage.
To determine your battery type, see battery label or contact your battery supplier.
To change charger settings:
1. Unplug the charger.
2. Peel back the corner of the display label.
3. Set the DIP switches, according to your battery pack, as shown below. If your battery pack type is not listed please call Amano Pioneer Eclipse at +1 -336-372-8080 for correct setting.
Battery Charger Fault Codes
Fault Description Remedy
No
Display
a




No display on the charger, no LED indicators.
Incorrect battery connection or no battery connection.
The maximum voltage admissible by the battery has been exceeded. The charge cycle was interrupted.
The maximum temperature has been exceeded. The charge cycle was interrupted.
The maximum time for the charging phase has been exceeded. The charge cycle was interrupted.
The total safety time has interrupted the charge cycle.
Check that the plug is connected to an operating wall outlet. Check fuse. 20A fuse MP265100.
Check the connection and the polarity of the battery connection.
Restart the charge cycle. If problem persists, battery pack may be damaged.
Restart the charge cycle. If problem persists, battery pack may be damaged.
Restart the charge cycle. If problem persists, battery pack may be damaged.
Restart the charge cycle. If problem persists, battery pack may be damaged.

Internal charger fault. Replace battery charger.
15
How the Machine Works
The Burnish components of the machine are:
l Burnish pad holder l Burnish pad l Burnish motor l Dust Collection Bag
As the machine moves forward, the burnish pad shines the floor. Any excess dirt or wax gets picked up by the pad and distributed into the dust collection bag via the dust collection system.
Pre-Operation Checklist
Before operating the machine:
l Check that the Burnish Switch is in the off position. l Check the pad holder to ensure there are no breaks
or cracks.
l Check correct connection of the batteries. l Check that the Dust Collection Bag is empty. l Release caster breaks.
Turning on the Machine
1. Complete pre-operation check.
2. Turn the Key to the ON position.
3. Turn on the burnish switch and engage the handle levers.
4. Adjust speed as needed with traction speed control knob. (Traction Models Only)
Changing Direction
Installing / Changing Burnishing Pad
1. Make sure the Burnish Switch is OFF.
2. Lift on the front of the deck and tilt deck into the pad change position.
3. Remove the center device by turning counter­clockwise and carefully remove the old pad from the Velcro material.
CAUTION! CAREFULLY INSPECT THE PAD
HOLDER FOR CRACKS OR DAMAGE! REPLACE IF NECESSARY.
4. Pull center from new pad, align pad on pad holder and secure with centering device by turning clockwise.
5. Press pad firmly onto pad holder face.
6. Lift the front of the shroud and lift the shroud release lever and SLOWLY let the shroud return to the down position.
When the handle levers are engaged the machine will travel in the forward direction. To travel in reverse, while the handle levers are engaged, hold down the reverse switch. The machine will change from forward direction to reverse direction. The machine will continue in the reverse direction until the reverse switch is released.
Stopping & Turning Off Machine
To stop the machine, release the handle levers and the machine will smoothly break to a stop and after 3 seconds the burnish motor will stop. When turning the machine off, turn off the burnish switch and then turn off the key switch.
Operation on Inclines
CAUTION! When the machine is traversing on an
incline, up or down, move slowly.
CAUTION! Do not run burnish pad on an incline. The maximum rated climb and descent incline is 6°.
CAUTION! KEEP HOLD OF THE DECK TO
AVOID INJURY!
16
Dust Bag Removal
The machine has two dust bag options. A re-usable cloth bag and a disposable paper bag. Monitor the dust bag carefully and empty/change as needed. The dust
collection system will not operate effectively when the dust bag is full. Under heavy burnishing conditions the dust bag should be emptied/changed every hour.
1. Turn off the Burnish Motor.
2. Unscrew the knobs holding the dust bag cover to the shroud.
3. Pull the dust bag off the dust tube.
Pad Pressure Adjustment
The pad pressure is set at the factory for optimal burnish performance in most conditions. If the pad pressure needs to be adjusted, follow the procedure outlined below.
NOTE: Pad pressure adjustments should only be performed by a qualified technician.
1. Turn burnish switch off.
2. Remove back panel.
3. Adjust ball end to increase or decrease pad pressure as shown in diagram.
Increase Pad Pressure
Decrease Pad
Pressure
4. Empty/Change dust bag.
Caster Parking Brake
The two rear casters are equipped with brakes. To set the brake, push down the “ON” side of the brake lever. To release the brake push down the “OFF” side of the brake lever. The caster breaks should only be used as a parking brake if needed. Before moving the machine make sure both breaks are released.
Post Operation Checklist
Turn the machine OFF and perform the following checks:
lCheck for wire, string, or twine wrapped around the
burnish pad.
l Check for frayed wires or damage.
lEmpty the dust collection bag.
lInspect batteries.
l Plug in on-board battery charger.
17
Maintenance
Scheduled Maintenance
Interval
Operation
Empty/Clean Dust Bag
Inspect Pad Holder
Inspect Battery water level (Lead Acid only)
Check wiring harness for fray or cut
Check for loose/missing nuts or screws
Tighten nuts and screws
Check brushes on transaxle motor and burnish motor
Lubricate rear casters
Check Burnish motor ampere draw
Daily
l
l
l
Every
25 Hrs
l
Every
50 Hrs
l
Every
100 Hrs
l
l
Every
200 Hrs
l
Every
500 Hrs
Every
1000 Hrs
l
Replace the gas shock
Inspect Burnishing Head Assembly (30”)
Inspect Deck Drive Belt (30”)
Replace Drive Belt (30”)
These items must be performed with the proper tools and training. Contact a Amano Pioneer Eclipse
Factory Certified Technician unless you have the proper equipment and mechanical proficiency.
l
l
l
As Required
18
Body & Battery Cover
The body may be cleaned with a damp cloth to remove dust and scuff marks. More stubborn scuff marks on the tank exterior can be removed with a vinyl cleaner
Battery Maintenance
The batteries are deep cycle 12 volt batteries. The lifetime of the batteries is limited by the number of charges the batteries receive. To get the most life from the batteries, charge them when the battery discharge LED (Red) starts to blink (20% charge left). Use only the on-board battery charger supplied to charge the batteries.
Periodically clean the top surface of the batteries and the terminals, and check for loose connections. Use a strong solution of baking soda and water. Brush the solution sparingly over the battery tops, terminals, and cable clamps.
CAUTION! DO NOT ALLOW ANY BAKING SODA SOLUTION TO ENTER THE BATTERIES!
Use a wire brush to clean the terminal posts and cable connectors. After cleaning, apply a coating of clear battery post protectant to the terminals and the cable connectors. Keep the tops of the batteries clean and dry.
To prevent a possible short circuit, keep all metallic objects off the top of the batteries. Replace any worn or damaged wires.
Lead Acid Batteries
Sealed batteries no additional maintenance required.
CAUTION! When working with batteries, always wear
eye protection and protective clothing.
CAUTION! Batteries emit hydrogen gas. NO SMOKING!
Never add acid to the batteries, only distilled water. Always keep the battery caps on, except when adding water or taking hydrometer readings.
CAUTION! Never use tap water to fill battery cells. Tap water contains contaminants that will damage the battery. Only use distilled water to fill battery cells.
Check the electrolyte level in each battery cell before and after charging, and after every 50 hours of operation. Do not charge the batteries unless the fluid is slightly above the battery plates. If needed, add just enough distilled water to cover the plates. Never add acid to the batteries.
CAUTION! DO NOT OVERFILL!
Measuring the specific gravity, using a hydrometer, is a way to determine the charge level and condition of the batteries. If one or more of the battery cells test lower than the other battery cell (0.050 or more), the cell is damaged, shorted, or is about to fail.
CAUTION! Battery damage will occur if the electrolyte level does not cover the battery plates.
CAUTION! Machine and/or battery damage can occur
if the electrolyte level is above the bottom of the tube in each cell.
20
Rear Casters
Each of the two rear casters has two grease fittings. Lubricate each caster with a grease gun every 100
hours of machine operation
Belt Replacement
Part No: MP449100
1. Place a 9/16” wrench on the bolt of the tensioner idler pulley and rotate the tensioner downward.
2. With the tension removed, remove the belt from the tensioner pulley.
3. Slowly allow the tensioner to rotate to a natural position.
4. Remove the belt from the deck.
5. With belt removed, inspect all of the fasteners for proper tightness. Also check the bearings for wear and the condition of each pulley.
6. Install the new belt using the belt diagram.
Belt Maintenance (30” Models)
1. Push machine to level surface.
2. Turn machine off and disconnect the battery pack.
3. Lift up on the front of the deck, placing the deck in the pad change position.
4. Remove the pad retainer and pads from the pad holders.
5. Remove the pad holders from each of the drive pulleys, by removing the (4) bolts in the center of the pad holder.
6. Locate and remove the (4) bolts that fasten the pulley cover to the deck.
7. Rotate the deck belt. If there are excessive cracks in the belt ribs and chunks that have broken off the ribs, the belt needs to be replaced.
7. Use a 9/16” wrench to rotate the tensioner down so the new belt can be installed.
8. Slowly allow the tensioner to tighten against the belt.
9. Turn the belt through several revolutions to make sure the belt tracks properly.
10. Reinstall the pulley cover.
11. Reinstall the pad holders on to the drive pulleys.
12. Turn the pad holders to verify that there is no interference.
13. Install pads onto the pad holders.
14. Slowly lower the deck back to the operating position.
20
Alarm Codes (Traction Only)
*Given the following alarm codes, troubleshooting should only be done by a Amano Pioneer Eclipse
Factory Certified Technician. A programming handset may be required for troubleshooting.
Number of
Flashes
1 (fast) Low Battery Voltage
1 (medium) Handle lever engaged at key on Disengage the handle lever, key off and key back on to clear
1 (slow) Machine Time Out
2 Motor Disconnected
3 Motor Wiring Trip
6 Inhibit Active
7 Throttle Trip
8 Possible Controller Trip
Description Possible Cause
The battery needs charging or there is a bad connection to the battery. Check the connections to the battery. If the connections are good, try charging the battery.
The machine has been left with the key on. Turn the key off and then back on again.
The motor has a bad connection. Check all the connections and leads between the motor and the controller.
The motor has a short circuit to a battery. Check all the connections and leads between the motor and the battery.
The controller is being inhibited from driving. Check the state of the Inhibit unputs.
A throttle trip is indicated. Make sure that the throttle is in the rest position before switching on the vehicle.
A possible controller trip is indicated. Make sure that all connections are secure.
9 Solenoid Brake Trip
10 High Battery Voltage
The parking brakes have a bad connection. Check the parking brake and motor connections. Make sure the controller connections are secure.
An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections.
21
Machine Troubleshooting
Problem Possible Cause Remedy
Breaker Tripped Push breaker button to reset
Machine will not turn on
Burnish motor will not start
Red LED Flashing on Dash
Machine exhibits poor burnishing performance
Incorrect battery connection
On-board battery charger plugged in Unplug the charging cord from the machine
Key switch failure Check key switch is functioning and wiring to the key switch is correct
Failed Fuse Check the fuse in the in line fuse holder.
Deck tilted into pad change position Lower the deck to the burnish position
Speed control knob turned all the way counter­clockwise (off)
Burnish switch off Turn on burnish switch
Handle levers not engaged Engage handle levers
70A breaker tripped
Battery lockout Batteries need to be charged
Check alarm code reference sheet Troubleshoot accordingly
Pad dirty Remove debris or string/twine from pads; clean pad; replace pad
Incorrect pad Use more aggressive burnishing pad
Pad worn down Replace pad
Check batteries are wired together correctly via the battery connection diagram, check the Anderson connectors are plugged together
Turn speed control knob clockwise to increase speed
Push 70A breaker to reset. DO NOT use round pads on the PE300BU30X. Using round pads will shorten the run time and trip the breaker. The use of round pads on this machine will damage the burnish motor and void the warranty.
Machine exhibits very aggressive burnish performance
Dust collection not working properly
(30”) Smell of burnt rubber
Gas Spring faulty
Incorrect pad Use less aggressive burnishing pad
Dust collection bad, is not collecting dust
Skirt is not sealing to the oor
Belt out of adjustment Check the automatic tensioner
Check ampere draw of burnish motor (should not be above 50 amps); replace gas spring
Empty dust bag
Check the dust tube to see if there is an obstruction
Skirt is bent or damaged. Replace if necessary.
Adjust the skirt to t tightly against the seal, but still able to move freely
Check wear edge on bottom of the skirt and replace if necessary
22
Machine Specications
Voltage: 36VDC (Qty. 3 - 12VDC Batteries)
Sound Level: < 70 dB(A)
Vibration: Less than 2.5 m/s
Forward Speed: 3.25 mph (5.23 km/h)
Reverse Speed: 1.5 mph (2.4 km/h)
Burnish Motor: 2.5 hp (1.86 kw) Permanent Magnet
Transaxle: .25 hp (186 watts)
Battery Charger: 36V 25A On-Board
Wheels: 8 in. (20.3 cm) Solid
Battery: 12VDC Lead Acid 228 Ah (Qty. 3)
Weight 126 lbs (57 kg) each - Total Battery Weight 378 lbs (171.5 kg)
12VDC AGM 235 Ah (Qty. 3)
Weight 140 lbs (63.5 kg) each - Total Battery Weight 418 lbs (189.6 kg)
24” Machines
2
Pad Size: 24” (61.0 cm)
Pad Speed: 1800 RPM
Deck Width: 26” (66 cm)
Length: 49” (124 cm) Head Up 61” (155 cm) Head Down
Height: 45” (114 cm)
Weight: 231 lbs (105 kg) w/o Batteries
30” Machines
Pad Size: 16” (41 cm) Qty. 2
Pad Speed: 2000 RPM
Deck Width: 33” (84 cm)
Length: 51” (130 cm) Head Up 60” (152 cm) Head Down
Height: 45” (114 cm)
Weight: 245 lbs (111 kg) w/o Batteries
23
PE300BU
Battery Burnisher
Parts Manual
Notes:
________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________
24
Electrical Schematic - Traction
25
Connections - Traction
26
Connections - Traction (Continued)
Item Ref. No. Description Qty
A MP432200 HARNESS, MAIN, TRACTION 1
B MP432100 HARNESS, C.PANEL, TRACTION 1
C MP426800 HARNESS, MOTOR, BURNISH 1
D MP427000 HARNESS, SWITCH, TILT 1
E MP427200 CABLE, BATTERY, SOLENOID 1
F1 MP424200 MOTOR, 2000 RPM, ASM. (30”) 1
F2 MP434100 MOTOR, 1800 RPM, ASM. (24”) 1
G MP414800 BREAKER, CIRCUIT, 70A 1
H MP207000 SOLENOID, 36VDC, SPNO 1
I MP234700 FUSE, 3A, GLASS 1
J SA028100 CHARGER, AUSTRALIAN, ASM. 1
K MP279700 CABLE, BATTERY, w/ PLUG 1
L MP238200 CABLE, BATTERY, 13.5” 1
M MP279800 CABLE, BATTERY 1
Item Ref. No. Description Qty
N1 MP223500 BATTERY, 12V, LEAD ACID 3
N2 MP413600 BATTERY, 12V, SEALED 3
O MP426900 HARNESS, WIRING, TR. AXLE 1
P MP424500 TRANSAXLE, 36V, ASM. 1
Q MP409401 CONTROLLER, TRACTION 1
R MP414900 BREAKER, CIRCUIT, 40A 1
S MP254600 DIODE, 6A, ASM. 1
T SA028000 LED, RED, REPLACEMENT 1
U MP318400 SWITCH, MICRO, 12V 1
V MP427500 WIRE, 10AWG, RED, 3”L 1
W MP427600 WIRE, 10AWG, REG, 16”L 1
X MP427700 WIRE, 10AWG, BLK, 12”L 1
Y MP411400 CORD, POWER, AUSTRALIAN 1
27
2 3 3
5
Skirt, Deck & Axle Bracket Assembly
4
6
12
8
9
14
1
10
21
23
20 18 19
17
11
13
9
7
16
25
24
RF044600
22
093013
28
Skirt, Deck & Axle Bracket Assembly (continued)
Item Ref. No. Description Qty
1A MP425200 SKIRT, 20”, ASM. 1
1B MP434200 SKIRT, 24”, ASM. 1
2 NB050600 BOLT, HEX, 1/4” X 2-1/2” 1
3 NB3350 WASHER, FLAT, 1/4” 2
4 MX1045 NUT, HEX, 1/4” 1
5A MP139800 EDGING, WEAR, SKIRT (20”) 6 FT
5B MP139800 EDGING, WEAR, SKIRT (24”) 7 FT
6 MP6600 FELT, VELCRO, BLK, 2” 2 (4”)
7 MP423700 BRACKET, AXLE / TRANSAXLE 1
8 MP423800 TUBE, MOUNT, SHROUD 1
9 MP237100 BUSHING, FLANGED, 1/2” 6
10 NB039704 PIN, CLEVIS, 1/2” X 4-1/2” 1
11 NB025600 PIN, PRESTO, 3/32” X 1-5/8” 1
12 MP414300 BALL, STUD, 10MM 1
13A NB068900 BOLT, HEX, 1/2” X 1-1/2” (20”) 1
13B NB068800 BOLT, HEX, 7/16” X 1-1/2” (24”/ 30”) 1
Item Ref. No. Description Qty
14A NB014600 NUT, LOCK, 1/2” (20”) 1
14B NB067700 NUT, LOCK, 7/16” (24”) 1
15 N/A N/A -
16A MP432600 SHROUD, 20”, ASM. 1
16B MP438800 SHROUD, 24”, ASM. 1
17 MP237100 BUSHING, FLANGED, 1/2” 2
18 MP318400 SWITCH, MICRO, 12V 1
19 NB9625 SCREW, #4 X 3/4” 2
20 NB007000 NUT, LOCK, #4 2
21 NB043800 GROMMET, 2” ID 1
22A MP415100 FELT, VELCRO, BLK, 1” (20”) 6 FT
22B MP415100 FELT, VELCRO, BLK, 1” (24”) 7 FT
23A MP424200 MOTOR, 2000 RPM, ASM. (20”/30”) 1
23B MP434100 MOTOR, 1800 RPM, ASM. (24”) 1
24 NB6851 BOLT, HEX, 3/8” X 3/4” 4
25 MX1075 WASHER, LOCK, 3/8” 4
29
Main Bottom Assembly - Traction
5
2
8
101314
9
7
14
6
1
13
12
12
3
12
4
14
13
12
11
RF044400
041713
30
Main Bottom Assembly - Traction (continued)
Item Ref. No. Description Qty
1A MP424400 BRACKET, AXLE, ASM. (20”) 1
1B MP440800 BRACKET, AXLE, ASM. (24”) 1
2 MP424500 TRANSAXLE, 36V, ASM. 1
3 PG001801 BRACKET, TRANSAXLE 2
4 NB6545 BOLT, HEX, 5/16” X 1” 4
5 NB3265 NUT, LOCK, 5/16” 4
6 BA003300 KEY, 3/16” X 1-1/2” 2
7 NB018500 RING, RETAINING, 3/4” 2
8 MP409800 WHEEL, 8” X 2” 2
9 NB9302 SCREW, SET, 1/4” X 3/8” 4
10 NB9505 WASHER, FLAT, 5/16” X 1-1/2” 2
11 MP432500 CASTER, 4”, w/ BRAKE 2
12 NB9267 WASHER, FLAT, 5/16” 20
13 NB6111 WASHER, LOCK, 5/16” 14
14 NB9745 BOLT, HEX, 5/16” X 3/4” 14
31
Main Rear Assembly
8
5
7
6
1
3
9
6
12
10
20
2
5
4
7
6
16
5
7
6
18
11
14
RF044100
13
17
21
15
19
013113
32
Main Rear Assembly (continued)
Item Ref. No. Description Qty
1 MP422901 PLATE, MOUNT, SHOCK 1
2 MP206000 BALL, STUD, 10MM 1
3 NB3265 NUT, LOCK, 5/16” 1
4A MP434500 SPRING, GAS
4B MP450300 SPRING, GAS
5 NB9267 WASHER, FLAT, 5/16” 9
6 NB6111 WASHER, LOCK, 5/16” 11
7 NB9745 BOLT, HEX, 5/16” X 3/4” 9
8 NB005700 NUT, JAM, 5/16” 2
9 NB006600 NUT, KEPS, #10 2
10 SA028100 CHARGER, AUSTRALIAN, ASM. 1
(24”) 1
(30”) 1
Item Ref. No. Description Qty
11 MP423101 PLATE, MOUNT, CHARGER 1
12 NB6035 TIE, CABLE, 1/8” X 4” 3
13 NB040400 SCREW, PH, #10 X 3/4” 4
14 NB006600 NUT, KEPS, #10 4
15 MP423001 PLATE, MOUNT, SOLENOID 1
16 MP207000 SOLENOID, 36VDC, SPNO 1
17 NB6535 BOLT, HEX, 1/4” X 3/4” 2
18 NB9845 NUT, KEPS, 1/4” 2
19 MP409401 CONTROLLER, TRACTION 1
20 MX1011 SCREW, #8 X 1-1/4” 2
21 NB9710 NUT, KEPS, #8 2
33
Main Top Assembly
15
13
16
18
26
21
20
17
19
22
23
25
24
8
1
2
14
11
7
6
5
9
27
12
3
4
10
RF049900
070914
34
Main Top Assembly (continued)
Item Ref. No. Description Qty
1 MP423201 LEVER, HANDLE, LEFT 1
2 MP423202 LEVER, HANDLE, RIGHT 1
3 NB6390 PIN, ROLL, 1/4” X 1-1/8” 2
4 MP431401 PLATE, COVER, REAR 1
5 NB9267 WASHER, FLAT, 5/16” 4
6 NB6111 WASHER, LOCK, 5/16” 4
7 NB9745 BOLT, HEX, 5/16” X 3/4” 4
8 NB9710 NUT, KEPS, #8 2
9 NB041200 SCREW, PH, #8 X 3/4” 2
10 MP077400 COVER, VINYL 2
11 NB043600 SCREW, PH, #8 X 3/8” 6
12 MP432900 SPRING, LEVER, HANDLE 1
13 MX1025 SCREW, PH, #10 X 3/4” 2
14 NB9510 NUT, FLANGE, #10 2
15 MP431600 PANEL, CONTROL, TRACTION 1
16 MP426200 DECAL, C.PANEL, TRACTION 1
Item Ref. No. Description Qty
17 MP414501 METER, HOUR / BATTERY 1
18 MP414600 SWITCH, ROCKER, DPST 1
19A MP411300 SWITCH, 36V 1
19B KC4834001 KEY, SWITCH (NOT SHOWN) 1
20 MP505600 SWITCH, PUSH (TRACTION) 1
21 PG016400 POTENTIOMETER (TRACTION) 1
22 MP418000 KNOB (TRACTION) 1
23 MP318400 SWITCH, MICRO, 12V 1
24 NB051000 SCREW, #4 X 1” 2
25 NB007000 NUT, LOCK, #4 4
26 SA028000 LED, RED, 36V 1
27 MP424100 PANEL, CONTROL, PAD ASSIST 1
28 MP426300 DECAL, C.PANEL, PAD ASSIST 1
29 NB9625 SCREW, #4 X 3/4” 2
30 MP038300 MOLDING, TRIM 16”
35
Main Front Assembly
27
22 23 24
20
16
19
18
17
10*
6
5
1
26
25
2
21
4
3
6
15
14
13
12
11
33
27
32
28
RF044200
34
30
33
31
36
19
8
7
10
20
9
102813
Main Front Assembly (continued)
Item Ref. No. Description Qty
1 NB039704 PIN, CLEVIS, 1/2” X 4-1/2” 1
2 NB025600 PIN, PRESTO, 3/32” X 1-5/8” 1
3 MP423301 LATCH, TILT 1
4 NB026200 BOLT, SHLD, 3/8” X 1/2” 1
5 NB038600 BOLT, SHLD, 3/8” X 3-1/2” 1
6 NB3265 NUT, LOCK, 5/16” 2
7A MP435000 PAD HOLDER, 24” 1
7B MP471000 PAD HOLDER, 16” 2
7C MP432400 RETAINER, PAD (NOT SHOWN) 1
8 NB018600 WASHER, FLAT, 3/4” 1
9 N/A N/A -
10 NB9505 WASHER, FLAT, 5/16” X 1-1/2” 1
11A MP434200 SKIRT, 24”, ASM. 1
11B MP459800 SKIRT, 30”, ASM. 1
12 MP414100 BAG, DUST, CLOTH 1
13 MP414200 BAG, DUST, PAPER 1
14 MP431300 COVER, BAG, DUST 1
15 MP155600 KNOB, 1/4” X 3/4” 2
16 MP423900 RETAINER, BATTERY 1
Item Ref. No. Description Qty
17A MP434400 SPRING, COMP., .81” ID
17B MP448800 SPRING, COMP., .83” ID
18 NB9267 WASHER, FLAT, 5/16” 2
19 NB6111 WASHER, LOCK, 5/16” 3
20 NB9745 BOLT, HEX, 5/16” X 3/4” 3
21 NB025200 WASHER, FLAT, 3/8” 2
22 NB3350 WASHER, FLAT, 1/4” 4
23 NB6110 WASHER, LOCK, 1/4” 4
24 NB6530 BOLT, HEX, 1/4” X 1” 4
25 MP8300 HOOK, VELCRO, 1” 2”
26 MP464800 FILTER, DUST, MOTOR 1
27 MP432700 COVER, BATTERY, ASM. 1
28 MP422801 PLATE, MOUNT, PLUG 1
29 MP414800 BREAKER, CIRCUIT, 70A 1
30 MP414900 BREAKER, CIRCUIT, 40A 1
31 MP427200
32 NB6535 BOLT, HEX, 1/4” X 3/4” 2
33 NB9845 NUT, KEPS, 1/4” 4
34 NB9000 BOLT, HEX, 1/4” X 1-1/2” 2
CABLE, BATTERY, SOLENOID
(24”) 1
(30”) 1
1
37
30” Deck Assembly
27
25
24
17
28
26
31
26
35
30
37
36
39
19
8
18
21
19
14
13
8
12
18
11
38
10
22
33
32
8
23
34
16
15
20
9
8
1
3
5
29
7
6
2
4
RF050000 071014
38
30” Deck Assembly (continued)
Item Ref. No. Description Qty
1 MP456700 SHROUD, 30”, ASM. 1
2 MP237100 BUSHING, FLANGED, 1/2” 2
3 MP318400 SWITCH, MICRO, 12V 1
4 NB9625 SCREW, #4 X 3/4” 2
5 NB007000 NUT, LOCK, #4 2
6 MP424200 MOTOR, 2000 RPM, ASM. 1
7 BA003200 KEY, 3/16” X 1” 1
8 MX1075 WASHER, LOCK, 3/8” 9
9 NB6851 BOLT, HEX, 3/8” X 3/4” 4
10 NB018600 WASHER, FLAT, 3/4” 1
11 MP445600 PULLEY, 4” 1
12 NB9505 WASHER, FLAT, 5/16” X 1-1/2” 1
13 NB6111 WASHER, FLAT, 5/16” 1
14 NB9745 BOLT, HEX, 5/16” X 3/4” 1
15 NB1588 BOLT, HEX, 3/8” X 2-1/2” 2
16 MP453300 SPACER, PULLEY 2
17 MP453500 PULLEY, 4”, ASM. 2
Item Ref. No. Description Qty
21 MP262400 IDLER, FLAT, 3.2” 2
22 MP449500 TENSIONER, BELT, ASM. 1
23 NB6042 BOLT, HEX, 3/8” X 1” 1
24 MP449100 BELT, K060620 1
25 MP472400 PAD HOLDER, 16”, ASM. 2
26 NB6110 WASHER, LOCK, 1/4” 12
27 NB6530 BOLT, HEX, 1/4” X 1” 8
28 MP454100 COVER, BELT, ASM. 1
29 NB049000 SCREW, BH, 1/4” X 3/4” 4
30 NB3350 WASHER, FLAT, 1/4” 4
31 MX1045 NUT, HEX, 1/4” 4
32 MP415100 FELT, VELCRO, 1” 87”
33 MP285500 SEAL, TRIM, w/ BULB 87”
34 NB034800 WASHER, FLAT, 3/8” X 1-1/2” 2
35 MP471000 PAD HOLDER, 16” 1
36 MP432400 RETAINER, PAD 1
37 NB064900 SCREW, #10 X 1/2” 3
18 NB3450 WASHER, FLAT, 3/8” 4
19 NB046200 NUT, HEX, 3/8” 4
20 NB010100 BOLT, CARRIAGE, 3/8” X 2” 2
38 MP448301 PLATE, PAD HOLDER, ADAPTER 1
39 NB068200 SCREW, SH, 1/4” X 3/4” 6
39
30” Skirt, Pulley & Tensioner Assembly
3 3 4
1
2
7
18
19
20
6
6
5
8
17
15
16
11
14
13
9
RF050100
11
12
10
071014
40
30” Skirt, Pulley & Tensioner Assembly (continued)
Item Ref. No. Description Qty
1 MP459800 SKIRT, 30”, ASM. 1
2 NB050600 BOLT, HEX, 1/4” X 2-1/2” 1
3 NB3350 WASHER, FLAT, 1/4” 2
4 MX1045 NUT, HEX, 1/4” 1
5 MP449300 MOLDING, BLK, w/ ADHESIVE 90”
6 MP140000 DOT, FELT 4
7 MP373100 WASHER, RUBBER 2
8 MP139800 EDGING, WEAR 90”
9 MP449000 BODY, TENSIONER 1
10 MP452401 PLATE, EXT., TENSIONER 1
Item Ref. No. Description Qty
11 MP448501 PLATE, MOUNT, TENSIONER 2
12 MP448900 IDLER, FLAT, 3.24” X 1” 1
13 NB3450 WASHER, FLAT, 3/8” 1
14 MX1075 WASHER, LOCK, 3/8” 1
15 NB051800 BOLT, HEX, 3/8” X 1-1/4” 1
16 NB6111 WASHER, LOCK, 5/16” 3
17 NB001800 BOLT, HEX, 5/16” X 1-1/4” 3
18 MP453400 PULLEY, 4” 1
19 MP453200 BEARING, 6203 2
20 NB017000 RING, RETAINING, 40MM 2
41
Limited Warranty
PE300BU
TO QUALIFY FOR THIS WARRANTY
(1) Machine must be registered at the time of purchase on a form
provided by Amano Pioneer Eclipse Corporation. Your Amano Pioneer Eclipse Distributor is responsible for the registration of your machine. Please cooperate with your Distributor in supplying necessary information on the card.
(2) The machine must have been purchased from Amano Pioneer
Eclipse Corporation or an authorized Amano Pioneer Eclipse Distributor.
(3) This warranty extends to the original purchaser only and is not
transferable to subsequent owners.
TIME PERIODS
(1) Rotational molded parts are warranted for eight (8) years. (2) Batteries warranted by battery manufacturer for one (1) year. (3) THREE (3) YEAR WARRANTY - For parts on the PE300BU.
Warranted to be free from defects in material and workmanship for a period of three (3) years from the date of purchase by the original owners. (See Exclusions)
(4) ONE (1) YEAR WARRANTY - For labor necessary to make
warranty repairs.
EXCLUSIONS (Not Covered by Warranty)
(1) Parts that fail through normal wear by reason of their
characteristics (cords, pads, belts, skirt, wheels, pad holder, or other consumable parts).
(2) This warranty does not extend to parts affected by misuse,
neglect, abuse or improper maintenance. All defective parts must be returned to the distributor for credit.
THE OBLIGATION OF AMANO PIONEER ECLIPSE CORPORATION
(1) The obligation of Amano Pioneer Eclipse under this warranty
is limited to repairing or replacing, at its option, any part which is proven to be defective in material or workmanship under normal use for the applicable period stated above.
(2) Warranty repairs will be made by your Amano Pioneer Eclipse
Distributor without charge for parts and labor. They will be compensated with a warranty labor rate of $45.00 per hour, for the first year of ownership.
(3) Parts repaired or replaced under this warranty are warranted
only during the balance of the original warranty period. All defective parts replaced under these warranties become the property of Amano Pioneer Eclipse.
WARRANTY SERVICE
To obtain warranty service, take your machine and proof of purchase to any authorized Amano Pioneer Eclipse Distributor. Amano Pioneer Eclipse will not reimburse expenses for service calls or travel. For the Distributor in your area, call Amano Pioneer Eclipse Customer Service Department at 800-367-3550 or 336-372-
8080. If you are dissatisfied with the service that you receive, call or write Amano Pioneer Eclipse Customer Service Department for further assistance.
INSTRUCTIONS AND CONDITIONS FOR WARRANTY REIMBURSEMENT
l Order replacement part: Orders will be processed and charged,
as normal procedure.
l Call Amano Pioneer Eclipse for R/A number. l You will need the Machine Serial Number and the Machine
Model Number.
l Parts must be returned, accompanied with the R/A number to
be eligible for warranty credit.
l All Warranty Parts will be shipped prepaid UPS Ground, any
other method will be at the recipients expense.
l Freight on any Warranty Part after 30 days must be paid for by
the Purchaser.
l Warranty labor rate is $45.00 per hour. l Credit will be issued upon completion of the above steps, at the
above rates.
DISCLAIMER OF CONSEQUENTIAL
AMANO PIONEER ECLIPSE DISCLAIMS ANY RESPONSIBILITY FOR LOSS OF USER TIME OF THE AMANO PIONEER ECLIPSE MACHINE OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGE EXCEPT AS STATED IN THE WARRANTY APPLICABLE TO EACH MACHINE. EXCEPT AS STATED IN SUCH WARRANTIES, THE COMPANY DOES NOT OTHERWISE WARRANT ANY MACHINE AND NO WARRANTY, EXPRESS, IMPLIED OR STATUTORY IS MADE BY THE COMPANY.
Copyright 2017 Amano Pioneer Eclipse Corporation
LT070700_D; 020217
42
Amano Pioneer Eclipse Corporation
1 Eclipse Rd l PO Box 909
Sparta, North Carolina 28675 l USA
www.pioneereclipse.com
+1-336-372-8080
1-800-367-3550
Fax +1-336-372-2913
EC Restriction of Hazardous Substances Directive (2011/65/EU)
Harmonized Standards Applied: EN 12100-1, EN12100-2
© 2017 Amano Pioneer Eclipse Corporation
EC Machinery Directive 2006/42/EC,
LT070700
300BU_Aust_D
Loading...
