Eclipse NEMON 2 User Manual

8/16 Channel H.264 Stand-Alone DVR

User’s Manual

▪ H.264 Stand-Alone DVR

▪ Superior Video Quality

▪ S-ATA Hard Disc Drive

▪ USB Mouse & Backup

▪ Advanced Network Features

Preface

We welcome you as a new user of the world's best digital video recorder (DVR), and the leading
Digital Video Surveillance System. For effective usage, please read this manual carefully. For
future reference, please keep this manual close to hand.

Copyright/Authentication/Trademark/Limited Warranty

Copyright

This manual is produced under copyright law. None of its contents may be copied or duplicated
without prior approval.
Copyright 2009~

Authentication

CE, FCC, KCC

Trademark

Ethernet(TM) is the trademark of Xerox Corporation.
Microsoft(TM), MS-DOS(TM), Windows(TM logo), Windows(TM) and Windows NT(TM) are the
trademarks of Microsoft Corporation, used in the United States and elsewhere.

Limited Warranty

• The manufacturer, importer and agent shall not be responsible for accidental damage (including
injury) and other damage caused by inappropriate use or operation of this product.

• The information in this manual is prepared based on the current specifications for the product.
The manufacturer is currently adding new functions and will continue to upgrade the product
with new technology. All specifications may be changed without notice to individual users.

Cautions

We strongly recommend that users read all safety cautions carefully before operating the product,
to operate the product appropriately.
Since the indicated cautions contain critical safety information, they must be fully complied with.
The cautions are categorized into Danger, Warning, Caution and Important.

Risk of death or serious injury.
This is the highest priority danger warning.

Risk of serious or lesser degree of injury.
May also cause damage to the product or to property.

Risk of minor injury or damage.

Requirements or limitations regarding operation. Users are
recommended to read the relevant details carefully so as to
operate the product properly and without harm.

The above cautions indicate the degree of damage that may occur due to inappropriate use of
the system.

1

Risk of death or serious injury.
This is the highest priority danger warning.

• RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE. DISPOSE OF USED
BATTERY ACCORDING TO THE INSTRCTIONS.

• THIS EQUIPMENT IS INDOOR USE AND ALL THE COMMUNICATION WIRINGS ARE LIMITED TO
INSIDE OF THE BUILDING.

• Please connect the power cord only to the type of AC outlet indicated in the manual or product
specification. If connected to other types of power outlet, fire and electric shock may result.

• Do not expose the product to moisture and dampness. Doing so may result in fire and electric
shock.

• Do not place heavy objects on top of the power cord. Damage to the power cord may result in
fire and electric shock.

• Do not place containers with liquid or small metal objects on top of the product. Liquid or small
metal objects getting into the unit may lead to f ire and electric shock.

• Do not score, bend, twist, pull or heat the power cord. Damage to the power cord may lead to
fire and electric shock.

• Do not remove the top casing of the product. Doing so may result in electric shock. If internal
examination and maintenance are deemed necessary, contact the authorized system vendors
or installers.

• Do not modify the product in any way. Doing so may lead to fire and electric shock.

• In case of lightning, immediately turn off the power switch and remove the power cord from
the power outlet. Failure to do so may result in fire and electric shock.

• Please use only the power cord supplied with the product. Use of other power cords may result
in fire and electric shock.

• In case of smoke, smell or noise, immediately turn off the power switch and remove the power
cord from the power outlet. Continued operation of the product may result in fire and electric
shock. Request a maintenance service from the authorized system vendors or installers.

• If the product is dropped or damaged, turn off the power switch and remove the power cord
from the power outlet. Continued operation of the product may result in f ire and electric shock.
Users should request a maintenance service from the authorized system vendors or installers.

• Do not touch the product with wet hands. Doing so may result in electric shock.

Risk of serious or lesser degree of injury.
May also cause damage to the product or to property.

• Do not leave the power cord or other cables in passageways. Passers-by may trip and fall.

• Avoid contact with water or beverages. Contact with water or beverages may result in damage
that cannot be repaired.

• In case of lightning, immediately turn off the power switch and remove the power cord from
the power outlet. The product may otherwise be damaged.

• Excessive current from the product and the camera may result in an electric shock. Connect the
power cord to an external device only when the products themselves are disconnected from
their power supply.

2

Risk of minor injury or damage.

• If a foreign substance is stuck to the product, remove it using a soft cloth or tissue. Do not use
chemical agents (thinner, solvent, etc.) to remove the substance.

• Do not operate or store the product in the following places.

- An area that is either too cold or too hot

- An area of high humidity, or in front of an air-conditioner, or in places subject to sudden
temperature changes

- An area where there is excessive dust

- Areas where heat from the product cannot be emitted through both of the product's side
ventilation openings

• Do not place credit cards/telephone cards/bank account books/tickets and other objects with
magnetic properties near the product.

• Static electricity may cause damage to the internal parts of the product. Please remove static
electricity from your body before touching the rear panel and internal electronic parts of the
product.

• If this product is damaged beyond repair or reaches its maximum service life, dispose of it in
compliance with local laws and regulations regarding the disposal of lead and plastic waste.

Requirements or limitations regarding operation. Users are
recommended to read the relevant details carefully so as to
operate the product properly and without harm.

• The product may not work properly if the power source is unstable or and if electric shock
occurs. Make sure the correct rated power is available.

• The product is designed to be proof against electric power failures; however, damage may
occur as a result of power failure. Current data may be damaged or data might not be
recorded. Make sure to use an Uninterruptible Power Supply (UPS).

• Since the product is designed to record video data on the hard disk, an error in the hard disk or
other miscellaneous errors might prevent the product from recording properly. Periodic
maintenance is required for proper operation of the product.

• The product is designed for users to configure their own interface. However a user
configuration error could lead to operation malfunction. This product should be set up by
certified installers only.

• Since the product is connected - and tightly coupled - to exterior accessories (camera, sensor,
LAN, Hard Disk, etc.), there is a risk of malfunction from external causes. Ensure periodic
maintenance by the certified installers.

• Use the rack mounting handle provided with the product for installation.

• In this product, 1 Kbyte equals 1,024 bytes, 1 Mbyte equals 1,024,000 bytes and 1 Gbyte
equals 1,024,000,000 bytes.

3

Contents

Preface ............................................................................................... 1

Copyright/Authentication/Trademark/Limited Warranty ................................................ 1

Cautions ................................................................................................................... 1

Contents............................................................................................. 4

Chapter 1. Introduction ..................................................................... 6

1. The System ......................................................................................................... 6

2. General Features ................................................................................................ 6

3. Specification ....................................................................................................... 7

Chapter 2. System Installation .......................................................... 8

1. Package Contents............................................................................................... 8

2. Connecting Devices ............................................................................................ 9

3. Cautions ........................................................................................................... 11

Chapter 3. Using DVR....................................................................... 12

1. Basic Operation ................................................................................................ 12

1-1. Front Panel & IR Remote Controller ................................................................... 12

Description....................................................................................................... 12

1-2. Turning on the System ...................................................................................... 13

1-3. Menu Bar......................................................................................................... 13

1-4. Display Icons ................................................................................................... 14

1-5. User or Admin Login ......................................................................................... 15

1-6. The Main Menu ................................................................................................ 15

1-7. Contextual Menu .............................................................................................. 17

2. DVR Configuration............................................................................................ 18

2-1. SYSTEM........................................................................................................... 18

2-1-1.MENU>SYSTEM>Information ................................................................... 18

2-1-2. MENU > SYSTEM > Date & Time............................................................. 19

2-1-3. MENU > SYSTEM > User......................................................................... 19

2-1-4. MENU > SYSTEM > Quick Setup.............................................................. 20

2-1-5. MENU > SYSTEM > System Log .............................................................. 21

2-2. DEVICE............................................................................................................ 22

2-2-1. MENU > DEVICE > Camera..................................................................... 22

2-2-2. MENU > DEVICE > Audio........................................................................ 23

2-2-3. MENU > DEVICE > Alarm........................................................................ 23

2-2-4. MENU > DEVICE > Keyboard .................................................................. 24

2-2-5. MENU > DEVICE > RS232 & RS485......................................................... 24

2-3. DISPLAY .......................................................................................................... 25

2-3-1. MENU > DISPLAY > Display .................................................................... 25

2-3-2. MENU > DISPLAY > Monitoring ............................................................... 26

2-4. RECORD .......................................................................................................... 27

2-4-1. MENU > RECORD > Storage ................................................................... 27

2-4-2. MENU > RECORD > Record..................................................................... 27

2-4-3. MENU > RECORD > Record Tools ............................................................ 29

2-5. NETWORK ....................................................................................................... 30

2-5-1. MENU > NETWORK > Address ................................................................ 30

2-5-2. MENU > NETWORK > DDNS ................................................................... 30

2-5-3. MENU > NETWORK > Notification ........................................................... 31

2-5-4. MENU > NETWORK > Transmission ......................................................... 31

4

2-6. EVENT ............................................................................................................. 32

2-6-1. MENU > EVENT > Sensor ....................................................................... 32

2-6-2. MENU > EVENT > Motion ....................................................................... 33

2-6-3. MENU > EVENT > Video Loss.................................................................. 35

2-6-4. MENU > EVENT > Text-In ....................................................................... 36

2-6-5. MENU > EVENT > System....................................................................... 37

3. Playback ........................................................................................................... 39

3-1. Go to Time....................................................................................................... 40

3-2. Calendar Search ............................................................................................... 40

3-3. Event Search.................................................................................................... 40

3-4. Text-In Search.................................................................................................. 41

3-5. Backup Data Playback ...................................................................................... 42

3-6. Playback Control .............................................................................................. 42

4. Backup.............................................................................................................. 43

4-1. Backup ............................................................................................................ 43

4-2. Instant Backup................................................................................................. 44

4-3. Clip Maker........................................................................................................ 44

Chapter 4. Remote Software NEMON .............................................. 45

1. Using NEMON ................................................................................................... 45

1-1. Starting the Software........................................................................................ 45

1-2. Site Set Up ...................................................................................................... 47

1-3. Favorite Set Up ................................................................................................ 49

1-3. Site List Panel .................................................................................................. 50

1-4. Tool Panel ........................................................................................................ 51

1-4-1. DVR Status............................................................................................. 51

1-4-2. PTZ ....................................................................................................... 51

1-4-3. TEXT-IN................................................................................................. 52

1-4-4. GPS ....................................................................................................... 52

2. Remote Playback.............................................................................................. 53

2-1. Calendar Search ............................................................................................... 53

2-2. Event Search.................................................................................................... 54

3-3. Text-In Search.................................................................................................. 55

3-4. Saving the recorded data .................................................................................. 56

3-5. Play Backup Data ............................................................................................. 57

3-6. Play Independent HDD Data on PC.................................................................... 58

4. Setup ................................................................................................................ 59

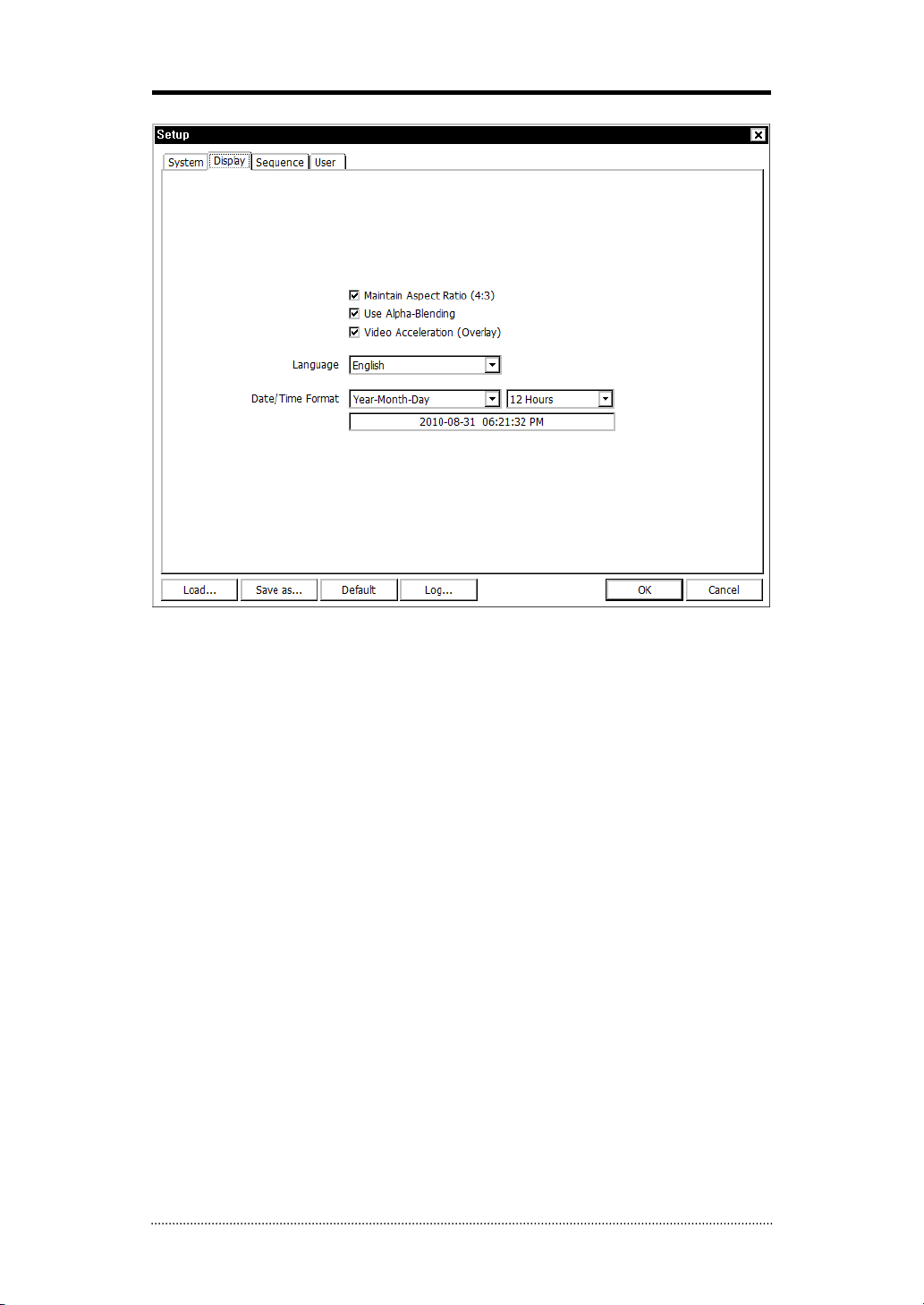

4-1. Nemon Setup ................................................................................................... 59

4-2. Remote Setup .................................................................................................. 63

4-3. Remote Upgrade .............................................................................................. 64

5. Nemon Callback................................................................................................ 65

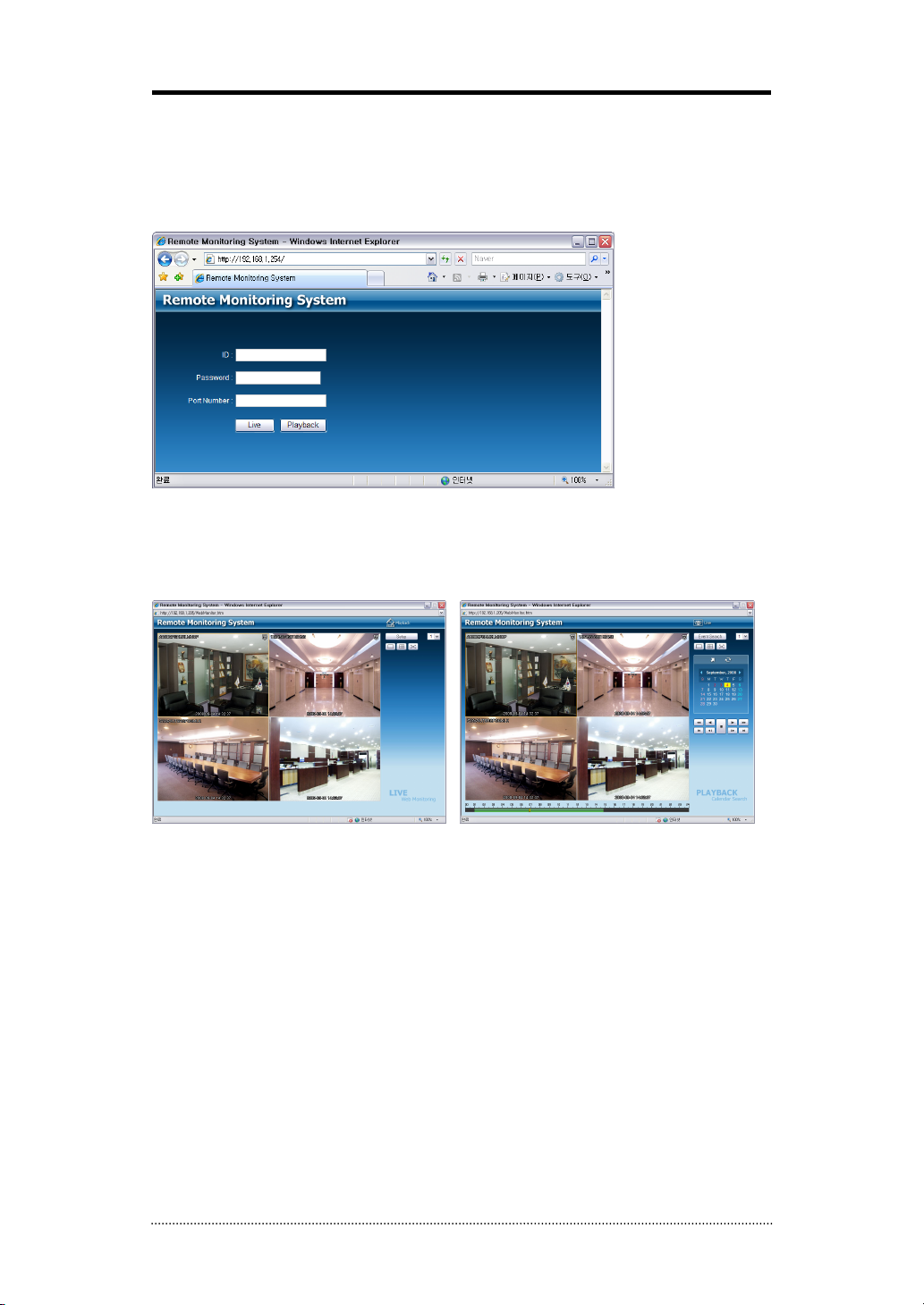

Appendix A. Remote Access Using I.E. ............................................ 67

Appendix B. How to set DDNS using router..................................... 68

1. Domain Name Creation ................................................................................. 68

2. Router Configuration..................................................................................... 70

3. DVR Configuration ........................................................................................ 71

COMPLIANCE NOTICE OF FCC: ............................................................................. 72

WEEE (Waste Electrical & Electronic Equipment)................................................. 72

ROHS Compliance................................................................................................. 72

5

Chapter 1. Introduction

1. The System

Great Value but Less Budget Product is in Your Hand now. No more to f ind high quality product
with affordable target price in the market. As part of 4 ~ 16 channel DVR series, this DVR is the
exact solution what you looking for in four channel DVR. The big demand of real H.264 four
channel DVR with high performance and stability but pay less from end users make it possible to
launch the DVR.
With our full built-in function, you don't need to waste of your time to find four channel solution
of yours. Now you can have the great value product from us to make your full H.264 DVR product
line unique.

2. General Features

• True H.264 Standard Video Compression

• Embedded Linux System to give you the Ultimate Reliability

• Dedicated DB Structure for Stability

• Various Recording Resolution D1/Half D1/CIF

• CMS (Central Monitoring System)

• Easy Setup same like DVR GUI in CMS

• Web Monitoring, Searching and Setup

• Own Media Player for Backup Playback

• Four USB Port for Mouse operation, Multi USB Hub and Backup

• Up to Four SATA HDD and No Limitation of Capacity

• Two- Way Audio

• Multiple DVRs can be operated with One Keyboard Controller

• Text-In & Relay Output Support

• 4 Audio Input support

• Spot Output with Event Pop up Function

6

3. Specification

Model 8 Channel 16 Channel

Video

Audio

Device

Display

Recording

Playback

Network

Storage 3xSATA HDD & 1xSATA ODD (or max. 4 SATA HDD w/o ODD)

Backup CD & DVD-RW, External HDD(USB), External USB Memory

Control

Approval FCC, CE, KCC

Power Consumption DC12V, 6.67A (80W)

Operating Temperature 5°C ~ 40°C / 41°F~104°F

Operating Humidity 0%~80% / non-condensing

Dimension 430(W)x92.5(H)x428(D)mm / 16.9(W)x3.64(H)x16.8(D)inch

Weight 5.38Kg / 11.86lb (without HDD)

In 8 BNC 16 BNC

Out 1VGA,& 1 BNC Main, 1 Spot Output

In 4 RCA (Line-In)

Out 1 RCA (Line-Out)

Sensor In 8 TTL 16 TTL

Alarm Out 2 Relay + 2 TTL

I/O Interface RS232, RS485, USB2.0 x 3, USB1.1 x 1 for Mouse

Speed Real Time

Resolution 720 x 480 (NTSC), 720 x 576 (PAL)

Split Screen 1,4,9,PIP,Digital Zoom 1,4,9,13,16,PIP,Digital Zoom

Compression H.264 Codec

120fps@CIF(NTSC)

100fps@CIF(PAL)

Speed /

Resolution

Picture Quality Very High, High, Standard, Low

Mode Time-lapse, Event, Time & Event, Emergency (Panic)

Display 1, 4, 9, Digital Zoom 1,4,9,13,16,Digital Zoom

Search Mode Calendar Search, Event Search, Text-In Search, Go to Time

Playback Mode

Interface Ethernet (10/100 Base)

Protocol TCP/IP, HTTP, DHCP, ADSL(PPPoE)

Application Live, Playback, Setup, Notification (Callback, E-Mail)

Web Browse Internet Explorer 7 or higher

OSD Graphic User Interface (Multilingual)

ROHS ROHS Compliance

60fps@Half D1(NTSC)

50fps@Half D1(PAL)

30fps@D1(NTSC)

25fps@D1(PAL)

Multi Channel Normal & Reverse Play,

RW & FF ( x2, x4, x8, x16, x32), Frame to Frame, Pause

Front Panel Button, USB Mouse,

IR Remote Controller, Joystick Controller

240fps@CIF(NTSC)

200fps@CIF(PAL)

120fps@Half D1(NTSC)

100fps@Half D1(PAL)

60fps@D1(NTSC)

50fps@D1(PAL)

7

Chapter 2. System Installation

1. Package Contents

The following components are included in the product:

DVR Unit

DC Adaptor

Power Cord

CD

(User's Manual

& Network S/W)

Remote Controller

Quick Guide

8

2. Connecting Devices

The rear panels of the DVR comprise the following:

[8 Channel Model]

[16 Channel Model]

Video Input

Connect the coaxial cables from the cameras to the BNC video connectors.

Loop-Through Video

Connect the coaxial cables from the Loop BNC connector to another device.

Audio Input

The DVR can record audio up to 4 sources. Connect the audio sources to the Audio-In RCA
connectors. Audio input channels need external pre-amplif iers.
It is the user's responsibility to determine if local laws and regulations permit recording audio.

Video Output

Connect the main monitor to either the Video Out (CVBS) or VGA out connector. Connect the spot
monitor to the SPOT connector as needed.

9

ETC

• Audio Out: The DVR does not have amplified audio output, so you will need a speaker with
and amplifier.

• RS-232C: An RS-232C connector is provided to connect an ATM or POS machine for Text-In
function. Use a cable with a DB9 (female) connector to connect to the DVR.

• Network: Connect a Cat5 cable with an RJ-45 connector to the DVR connector for remote
monitoring, remote playback, remote setup. See
configuring the Network connections.

• USB: Four USB ports are provided to connect external devices like HDD, Flash memory for
Backup, System upgrade or USB mouse. Two USB ports is located on the rear panel and the
other two are on the front panel. A USB mouse can be connected only front panel USB port
dedicated only for mouse.

• Reset: The DVR has a Reset switch that will only be used to return all the settings to the
original factory settings. To reset the unit, turn the DVR off first. Turn it on again while poking
the straightened paperclip in the reset hole. Hold the switch until the DVR is initializing.

• Power Connector: Connect adapter cable to the power connector on the rear panel. (DC12V,

6.67A) Input AC power to the adapter. (free voltage from 100V to 240V, 50/60Hz)

Sensor Input

Chapter 3-2. DVR Configuration

for

16(8) sensor input connectors are provided to connect external devices. You can use sensors to
signal the DVR with event. To make connections on the terminal block, press and hold the button
and insert the wire in the hole below the button.

Alarm Output & RS485

4 alarm output connectors are provided to connect external alarms such as sirens or lights. 2
alarm output connectors have internal relays and the others are TTL signals.
The RS485 connector can be used to control PTZ cameras. The DVR can also be controlled
remotely by a control keyboard.

• Front USB: Two USB ports are provided to connect external devices like HDD, Flash memory
for Backup, System upgrade or USB mouse on the front panel. A USB mouse can be connected
only front panel USB port dedicated only for mouse.

Note

: This manual covers 8-channel and 16-channel DVRs. The DVRs are identical except for the
number of cameras, audio inputs and alarms. The illustrations and descriptions in this manual
refer to the 16 channel model.

10

3. Cautions

• Avoid installing the product where there are direct rays or it is hot by locating near from heat

generator. (May cause fire)

• Do not put vase, flowerpot, cup, cosmetics, drug, and anything the contain water on product.

(May cause fire or electric shock, and it may injure people by falling)

• Do not insert or drop any metal object (coin, hair pin) or flammable object (match, paper) into

air hole. (May cause fire or electric shock)

• Do not put any heavy object on it. (May injure people by being fell or destroyed.)

• Put power plug surely not to be moved. (If not, this may cause fire.)

• Unplug power plug and antenna when there are thunders and lightening. (May cause fire.)

• For cleaning the product, wipe surface with dry towel. Using chemical agent or cleaner may

change the color and unpeel paint.

• Do not put several plugs at same time. (May cause electric shock.) If there is smoke or strange

smell, stop operation. In this case, turn the power off and unplug it, and then contact our
service center. (If you keep using it, this may cause fire or electric shock.)

• Do not unplug by pulling cord. (If cord is damaged, it may cause fire or electric shock.)

• Do not plug or unplug with wet hands. (May cause electric shock.)

• Keep the power cord untwisted. (May cause fire or electric shock.)

• Use proper adapter. (Using too much electric power may cause f ire or electric shock.)

• Do not install it at where exposed to rain and wind and water drop. (May cause fire, electric

shock and transformation.)

• Keep away from fire. (May cause fire.)

• Do not disassemble or remodel on your own. (May cause malfunction or electric shock.)

• Do not put next to flammable materials like flammable spray. (May cause fire.)

• Do not install it at a place with too much dirt. (May cause fire.)

• Do not install it on unstable places like shaking table and inclined place or shaking place. (May

injure users by falling down or being upside down.)

• Do not put an heavy object on power cord or avoid it from being pressed by the device. (May

cause fire or electric shock.)

• In case of using extension cord, do not use several devices at same time. (May cause fire with

abnormal heating of extension.)

• When there are dirt on power plug pin or power outlet, clean it nicely. (May cause fire.)

• Do not damage on power cord or plug, and bend or twist or pull too much, and put it between

other objects or heat. If power outlet insertion part is not tight, do not use it. (May cause fire
or electric shock.)

• Do not drop or give a shock to the product. (May injure people or cause malfunction.)

• Do not touch power adaptor or signal controller. (May cause electric shock.)

• Do not put any object too close to block cooling fan. (May cause f ire.)

• In case of exchanging batteries with improper type, there might be danger of explosion.

• For used batteries, throw away separately from other garbage.

• When you take out batteries, avoid children from eating them by mistake. Keep them away

from children. (If a child ate them, contact a doctor right away.)

11

Chapter 3. Using DVR

1. Basic Operation

1-1. Front Panel & IR Remote Controller

The DVR should be correctly installed before proceeding. The location and the shape of the
buttons may vary depending on the DVR model.

Control

USB Port

Camera Buttons (1~0)

MENU / EXIT Button

DISPLAY Button

SEQUENCE Button Displays live channels sequentially.

Up, Down, Left, Right

Arrow, ENTER Buttons

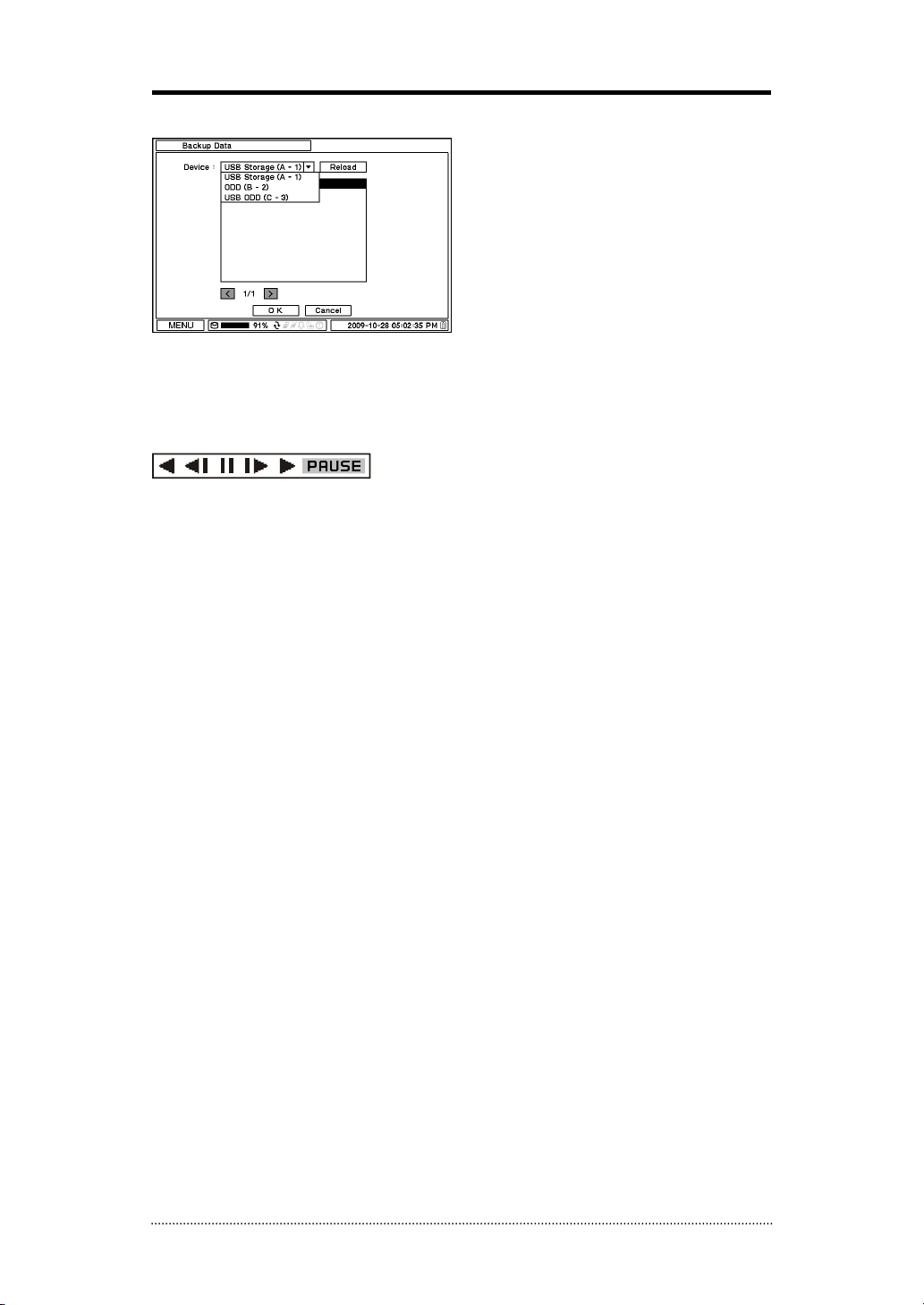

BACKUP Button Copies recorded data to an external storage device.

PLAYBACK Button Changes to the playback mode from the live mode.

PAUSE Button

Description

Two USB ports are located on the front panel. A USB mouse
can be connected USB port dedicated only for mouse as
picture directed.

Pressing camera buttons and Enter button will cause the
selected camera to display full screen. Buttons are used to
enter passwords.

Enters the Setup Menu. User will need to enter the authorized
password to assess Setup. In Playback mode, MENU button
displays the Playback Menu.

Changes the screen display mode in the current screen or
playback screen.

These are used to change settings for the product in MENU
mode or used in PTZ control mode. (pan, tilt)

Under playback mode, the button can be used to pause the
playback screen.

- Display menu to save PTZ preset under PTZ mode.

PLAY Button

R.PLAY Button

STEP FORWARD Button

STEP BACKWARD Button

12

Plays the video forward. Press the button repeatedly to
increase play speed up to max 32 times (1, 2, 4, 8, 16, 32
times) faster. Use this button to move right when setting the
menu.

- Focus on far distance under PTZ mode.

Plays the video backward. Press the button repeatedly to
increase play speed up to max 32 times (1, 2, 4, 8, 16, 32
times) faster. Use this button to move right when setting the
menu.

- Zoom Out under PTZ mode.

Move forward by one frame under Pause. Use this button to
move up when setting the menu.

- Focus on near distance under PTZ mode.

Move backward by one frame under Pause. Use this button to
move down when setting the menu.

- Zoom In under PTZ mode.

EJECT Button

PTZ Button Changes to the PTZ control mode from the live mode.

ZOOM Button Zooms the current image on the screen.

PIP Button Changes to PIP screen mode from live screen.

FREEZE Button Freeze the current screen.

AUDIO Button Selects a camera for live & playback audio output.

SPOT Button Assigns the SPOT output channel.

OSD Button Turns on/off the OSD display.

LOG Button Checks the system’s log information.

ID Button Selects the DVR system ID. (Remote controller only)

E.REC Button

Status LED Power, HDD, Network, Alarm

It will open or close the backup drive such as CD-RW or DVD

- Display menu to load PTZ presets under PTZ mode.

Pressing the E.REC button stars Emergency Recording Mode of
all camera channels, and displays "!" on the screen. Pressing
the button again will stop E.REC mode.

1-2. Turning on the System

Connecting the power cord will turn on the power of DVR. It will take approximately 10 to 30
seconds for the system to be initialized. Once the system is initialized, it will display live screen,
and begin to record video automatically.

Note

: To turn off the system, select SHUTDOWN under main menu (MENU > SHUTDOWN) and

unplug the power cord when the shutdown message appears.

: When installing the HDD for the first time, the HDD should be formatted first.

Note

“MENU > RECORD > Storage > HDD format”

1-3. Menu Bar

The menu bar will appear on the bottom of the screen as shown below.

Pressing the Menu will bring up the main menu list.

Shows the % of HDD being used.

Turns on when the HDD is set to be overwritten.

Sequence display mode.

Turns on when the system is connected to the network.

13

Turns on when the Alarm is being activated.

E.REC (Emergency Recording) Mode.

Displays date & time.

IR Remote Controller

1-4. Display Icons

No Recording

Recording (Red)

E.REC (Emergency Recording)

Event Recording (Red)

Pre Event Recording (Blue)

Motion Detection

Sensor Detection

Text I n

PTZ Camera

Instant Backup

Clip Maker (Blue)

Backup (Red)

Video Loss

14

1-5. User or Admin Login

Press MENU to enter main menu screen. Login in screen appears to enter ID (Administrator or
User) and Password. Password can be set up to 8 numbers by the combination of numbers from
0 to 9. The factory default password is ‘none’ so press OK to log in to the system for a first time
log in. Password can be set under password set up option (MENU > SYSTEM > User). System will
be automatically log out if it is not in-use for sometime. This "Auto Logout Time" can be set
under password set up option (MENU > SYSTEM > User).

1-6. The Main Menu

The Main Menu of DVR consists of SYSTEM, DEVICE, DISPLAY, RECORD, NETWORK and EVENT.
And each menu consists of various sub menus that allow detail set up of the system. Use Mouse,
Remote Controller or Front Buttons to access to each menu.

Note

: Please make sure the system log out is done when the system setting or operation

completed to prevent any unauthorized changes of system settings or operations.

MAIN MENU

Information

Date & Time

SYSTEM

DEVICE

DISPLAY

RECORD

User

Quick Setup

System Log

Camera

Audio

Alarm

Keyboard

RS232 & RS485

Display

Monitoring

Storage

Record

Record Tools

15

Address

NETWORK

EVENT

LOGOUT

SHUTDOWN

DDNS

Notification

Transmission

Sensor

Motion

Video Loss

Tex t-In

System

16

1-7. Contextual Menu

Additional Contextual Menu screen appears by pressing right button on the Mouse. Layout option
allows changing Camera on the monitor. Select preferred camera display option on the monitor.

Camera : Select camera no.
Layout : Select display mode
OSD : Select OSD display option
Text-In Info.: On/Off Text-In OSD
Freeze : Pause current image display
Sequence : Begin sequence display
Zoom : Zoom in image by X2
PIP : Select PIP mode and camera
Spot : Select each spot monitors’ display
Audio : Select Audio outs
PTZ : Select PTZ options
Backup : Select backup options
Playback : Playback recorded data
E. Record : Start Emergency Recording
Log : Select System/Event log
Eject : Eject installed ODD
Setup Menu: Enter Main setup menu

For more information on Contextual Menu please refer to 2. DVR Configuration.

17

2. DVR Configuration

2-1. SYSTEM

Under SYSTEM menu, System configuration options for general Information, Date &Time, User,
Quick Setup and System Log can be selected.

2-1-1.MENU>SYSTEM>Information

In the Information screen, DVR Name, System Version, Upgrade, Mac Address and Configuration

options can be selected. Highlight and press DVR Name
the DVR by using the virtual keyboard.

To Upgrade the system, save the upgrade file to USB Flash Memory and connect it to DVR. Once
the Device is connected, press Upgrade button to execute system upgrade.
Upgrade will take approximately 5 minutes. DVR will reboot automatically when the upgrade is
completed.

Note

: DO NOT remove USB Flash Memory or turn off the system during the upgrade. Removing
USB Flash Memory or Turning off the system during the upgrade may cause system
malfunctioning.

Remote Control ID

Enter Remote Control ID to control multiple DVRs individually. If Remote Control ID remains as 0,
Remote ID does not have to be selected when using remote controller. It will work as general ID
for any remote controls and a remote control will communicate with any DVRs with ID 0.

Video Type

The system automatically detects camera signal types as NTSC/PAL. But the system also offers
manual selection options for different signal types.

Configuration

System settings can be saved and loaded using Configuration option

Export: Save settings to USB Flash Memory
Import: Load saved settings from USB Flash Memory
Default: Load factory default settings

Note

: Configuration Import does not affect or changes system and network settings.
Network settings will also not be changed when selecting Default option.

to enter or change DVR name. Name

18

2-1-2. MENU > SYSTEM > Date & Time

Press

format.

from the Time Synch server.

2-1-3. MENU > SYSTEM > User

button to set up Date and Time. Press Format button to select a date & time display

In the Date & Time, Time Zone, Date, Time,
NTP Server, Holiday options can be selected.

Highlight and press Time Zone
right Time Zone.

Select ‘Use Daylight Saving Time’ if it is
applicable. Enter start and end date/time for
local ‘Daylight Saving Time’.

Select ‘Use NTP’ to enter Time Servers to be

synchronized with DVR. Highlight and press
to enter Time Server using the virtual keyboard.
Press ‘Update’ to synchronize the DVR time
with the registered time server.

Note

: NTP is not essential for DVR operation.
Any type of Standard Time Server can be used
(e.g. time.windows.com). Time Synch might
not be completed due to heavy traffic or delays

Press Holiday to set specif ic dates for Holiday

setup. Set specific date by pressing

Change and delete dates using
buttons.

Note

: There are some Holidays fall on different
days. Therefore, they have to be updated every
year.

to select

button.

and

Press User Tab to enter/add a new user.

Auto Login: It allows a user to log in right after the system boots up automatically. As a system
allows auto log in without the authentication process please make sure DVR has a limited access
by non authorized personnel.

19

Auto Logout: Turn On or Off Auto Logout option.

Press

User Name: Enter a user name
Group: Select a Group which a new user will belong to
Password: Set a new password or change a password.

Note

is no default password for Administrator/User.

Set user registration and access rights for the system. Press Group tap to add and set group.

Press to add a new group. Enter a group name and select access rights for a group. To

remove an existing Group, press

2-1-4. MENU > SYSTEM > Quick Setup

to add a new user. To remove an existing user, press next to it.

: DO NOT have to enter Current password when setting password for the first time as there

next to it.

20

Quick Setup Menu allows easy and basic setup
for main menu settings.

2-1-5. MENU > SYSTEM > System Log

In the System Log, full list of system logs can
be searched.

Press Reload button to refresh log list. USE

button to search log list page by page.

Log list can be export in txt format.

21
