Eclipse AVN6600, AVN5500, MRE-700, WHP-100, iPC-106 Brochure

...

2006 Brochure (SPRING Vol.2)

2006 SPRING Mobile Entertainment Brochure

Music Driving On

To make driving a better and more enjoyable experience. That’s always been ECLIPSE’s mission since we started crafting mobile electronics over half a century ago. We focus on creating products that communicate the passion and emotion in music. Today ECLIPSE also manufactures in-car visual entertainment along with multichannel sound to create extraordinary in-car theater products. And combined with technologies such as navigation and internet-based system customization, the latest generation of products undeniably enhance the total driving experience.

IntroductionIntroduction 2

AVN SeriesVN Series 4

AVX SeriesVX Series 1212

CD ReceiversCD Receivers 1414

Peripheral EquipmentPeripheral Equipment 2222

AmplifiersAmplifiers 2424

SpeakersSpeakers 2828

Introduction 2

AVN Series 4

AVX Series 12

CD Receivers 14

Peripheral Equipment 22

Amplifiers 24

Speakers 28

In a class all its own.

The full-featured AVN7000 installs easily for a sophisticated look and does not require any hideaway units for operation. With a sleek, stylish design, the AVN7000 enhances any car interior.

AVN7000

HDD Navigation System with 7˝ Wide TFT Display

and DVD/MS Multi-Source Receiver

AVN5495

ESN E5 6.5˝ Wide TFT Touch-Panel Display CD/DVD/MS

Multi-Source Receiver with HDD Navigation

The built-in 30GB HDD contains the navigation database as well as Music Juke that automatically stores up to 3,000 tracks from CDs, creating a sizable on-board music library. The AVN5495 offers dual zone operation, allowing the front and rear passengers to have separate entertainment in each zone. Along with navigation, DVD-Video or CD entertainment is easily enjoyed without having to change discs and without any interruption.

AVN is the innovative ECLIPSE concept that integrates audio, visual and navigation into clean, stylish designs that grace any car interior.

Navigation

Audio/Visual

30GB HDD

6.5˝ wide TFT display with touch control

CD/CD-R/RW, MP3

DVD-Video, DVD-R/RW and DVD+R/RW*

Dual zone operation

50W x 4

Circle Surround

CDDB-enabled

3,000 track Music Juke

• Multiple search modes

• Split screen displays

• Map scale from 150 feet to 250 miles

• Voice announcements and guidance

• FM/AM tuner

•Advanced 24-bit ∆∑ DAC

•High-performance DSP:

•

5-mode soundfield control

•

9-band EQ

•

Listening position selector

• 5V preamp output

• Video output for rear monitor

• Video input

• CD Changer-ready (2 units)

• Memory Stick-ready

• Rear view camera-ready

• MS ESN security

A true feat of engineering, the AVN7000 includes a 20GB HDD, 7˝ display and all required circuitry in a single DIN configuration that installs easily. Advanced construction and layout techniques made it possible along with new developments such as the Ultima Engine with its astonishing processing power. Entertainment is also at a high level. The AVN7000 is an exceptional performer without equals.

Navigation

Audio/Visual

20GB 1.8˝ HDD

Ultima Engine

over 32,000 map colors

approx. 4 million POIs

7˝ wide TFT display with touch control

CD/CD-R/RW, WMA and MP3

DVD-Video, DVD-R/RW and DVD+R/RW*

Dual zone operation

MOSFET 50W x 4

5.1 ch. surround sound (with DCU105)

Dual color illumination

E-iSERV connectivity (with DCU105)

TV Tuner-ready

SIRIUS Satellite Radio-ready

• Multiple search modes

• Split screen displays

• Map scale from 150 feet to 250 miles

• Voice announcements and guidance

• Time zones (7 areas)

• FM/AM tuner

• Advanced 24-bit ∆∑ DAC

• High-performance DSP:

•

7-band PEQ

•

Time alignment

•

Crossover

•

Listening Position Selector

• 5V preamp output (with DCU105)

• Video output for rear monitor

• Video input

• CD Changer-ready (2 units)

• Memory Stick Duo

• Rear view camera-ready

• HD Radio-ready

• Twin security system

•

MS ESN security

•

Detachable front panel

HDD Series

*Please refer to Note and Precautions.

AVN6600

DVD Navigation System with 6.5˝ Wide TFT Display

and Dual-DVD Multi-Source Receiver

The AVN6600 allows flexible operation as it is equipped with two DVD playing mechanisms. Discs do not have to be switched as with a single DVD player. With navigation ongoing, entertainment can also be happening at the same time. The AVN6600 also makes it possible for passengers in the front and rear to be entertained.

DVD-based AVN products offer the benefits of dual-disc mechanisms for versatile entertainment to please all car occupants as well as feature leading navigation technologies, creating an extremely desirable product category.

Navigation

Audio/Visual

DVD + DVD mechanisms

6.5˝ wide TFT display with touch control

CD/CD-R/RW, WMA and MP3

DVD-Video, DVD-R/RW and DVD+R/RW*

Dual play operation

50W x 4

Circle Surround

SIRIUS Satellite Radio-ready

TV Tuner-ready

Ready for iPod

• Multiple search modes

• Split screen displays

• Map scale from 75 feet to 250 miles

• Voice announcements and guidance

• FM/AM tuner

•Advanced 24-bit ∆∑ DAC

•High-performance DSP:

•

5-mode soundfield control

•

7-band PEQ

•

Crossover

•

Listening position selector

• 5V preamp output

• Video output for rear monitor

• Video input

• CD Changer-ready (2 units)

• Rear view camera-ready

• HD Radio-ready

• ESN security

AVN5500

DVD Navigation System with 6.5˝ Wide TFT Display

and DVD Multi-Source Receiver

The easiest way to experience the significant driving experience that AVN provides along with music entertainment, the AVN5500 combines highly-effective DVD-based navigation with an additional CD deck.

Navigation

Audio/Visual

DVD + CD mechanisms

Street map

6.5˝ wide TFT display with touch control

CD/CD-R/RW, MP3

DVD-Video, DVD-R/RW and DVD+R/RW*

50W x 4

SIRIUS Satellite Radio-ready

• Multiple search modes

• Split screen displays

• Map scale from 75 feet to 250 miles

• Voice announcements and guidance

• FM/AM tuner

•High-performance DSP:

•

5-mode soundfield control

•

9-band GEQ

•

Listening position selector

• 5V preamp output

• Video output for rear monitor

• Video input

• CD Changer-ready (2 units)

• Rear view camera-ready

• HD Radio-ready

• ESN security

DVD Series

Dual play provides independent front and rear entertainment options.

*Please refer to Note and Precautions.

Dimensions (W × H × D) 6-15/16˝ × 1-7/16˝ × 6-5/16˝ 175 × 36.5 × 160mm

Connects to AVN7000 and AVX5000.

Complete processing power enhances audio and video performance as well as offering more playback options.

24-bit DSP

Gold-plated RCA pin connectors

Time Alignment Pro

Crossover Pro

Advanced 24-bit DAC

AV Matrix IC

DCU105

5.1ch. Decoder/AV Matrix Unit

Partners the AVN7000 to provide 5.1ch. surround sound for surround-encoded material as well as upmixing 2-channel sources to surround. Also expands connectivity and flexible routing of multiple program sources.

The DCU105 provides professional 5.1 ch. surround sound for theater quality performance and also enables comprehensive audio customization that is remarkably easy. For instance, complex operations such as speaker time alignment, parametric EQ and crossover frequency points can be performed precisely.

DCU105 Audio Video Matrix

Dolby Digital 5.1 ch.

dts 5.1 ch.

Dolby Pro Logic

Time Alignment Pro

Parametric EQ Pro

Crossover Pro

5V preamp output

AV Matrix Selector

MOSFET 50W x 4

High-performance audio functions and features

Full 5.1 ch. surround sound options that create a perfect in-car environment for any entertainment media.

The DCU105 enables dual operation zones so that navigation can be onscreen in front while one rear passenger enjoys a DVD and another views playback from an external video source. An optional TV Tuner can also be connected.

Connecting the DCU105 to the AVN7000 expands its scope of operation and system control with surround sound decoding options as well as comprehensive audio processing. Premium components ensure no-compromise performance.

Increased versatility offers more enjoyment for all passengers.

GAME

(VTR2)

OutputOutput

DVD

Player

(VTR1)

Monitor 1 Monitor 2

Video

Camera

(VTR2)

Input

OutputOutput

DVD

Player

(VTR1)

Monitor 1 Monitor 2

DCU105 DCU105

Multi-function 24-bit Dolby decoder

Digital inputs

Synchronizes all speaker arrival times at listener.

Optimizes speaker to speaker transitions for a smoother system response.

System setups

AVN7000 + DCU105

Expansion options

Adding a DCU105 to the AVN7000 instantly opens up a wealth of system expansion possibilities that satisfy all occupants in a car with personalized entertainment options.

DCU105

SW8200

E505CSP

MRE-700

WHP-100

Front 1-way

Front 3-way

SIRIUS Satellite Radio SIR-ECL1 HD Radio HDR105 TV Tuner TVR105 CD Changer CH3083 Rear view camera BEC105

Recommended options

Dimensions (W × H × D) 4-11/16˝ × 1-5/16˝ × 3-9/16˝

120 × 32 × 90mm

iPC-106

Interface Adapter for iPod

E505CSP

Center Speaker with 20W Power Amplifier

A simple way to enjoy surround sound by adding a central active speaker.

Allows enjoying favorite music from an iPod. Also recharges when connected.

Note: Only for iPods with dock connection.

Please refer to iPod Control Function chart on p18 for other AVN models.

Dimensions (W × H × D): 6-3/4˝ × 1-1/16˝ × 4-9/16˝

171.5 × 25.5 × 115.1mm

MRE-700

7˝ Widescreen Monitor

MRE-700W

7˝ Widescreen Monitor Package

Its slim and silver-colored enclosure adds the perfect touch of style to rear entertainment systems, featuring automatic screen dimming to suit ambient light, a built-in speaker and headphones jack. Dedicated WHP-100 wireless headphones can also be used. AV inputs are on front and back of unit.

Contains all the components and hardware that is required to create an ideal rear entertainment system.

Includes MRE-700 ✕ 2, RAS-100 (AV Matrix), dedicated wireless remote control.

WHP-100

Wireless Headphones

These wireless headphones are ideal for rear entertainment when different program sources are simultaneously being played. Switchable between 2 frequencies.

Photo: AVN6600

AVN6600/AVN5495/AVN5500 + MRE-700W

For the above-listed AVN products, adding the RAS-100 AV Matrix enables putting together an ideal rear seat entertainment system with full routing and switching capabilities.

Program material signals routed from the AVN6600 to the RAS-100.

Routing program material signals from the RAS-100 through the AVN6600.

MRE-700

WHP-100

AVN6600

Output 3

Output 2

DVD Player

MRE-700

Input 1

Input 2

Output 1

GAME

Output 2

Output 1

DVD Player

MRE-700

Input 1

Input 2

AVN6600

(Video)

RAS-100

iPod

iPC-106* SIRIUS Satellite Radio SIR-ECL1* HD Radio HDR105* TV Tuner TVR105* CD Changer CH3083 Rear view camera BEC105

Recommended options

Program material from 2 sources seen on 2 monitors. Program material from 2 sources seen on 3 monitors.

SIR-ECL1

ECLIPSE COMPATIBLE SIRIUS SATELLITE RADIO TUNER

HDR105

HD Radio Tuner Unit

Dimensions (W × H × D) 4-15/16˝ × 1-7/16˝ × 4-3/16˝ 125 × 35 × 105mm

Dimensions (W × H × D) 6-15/16˝ × 1-7/16˝ × 6-5/16˝ 175 × 36.5 × 160mm

BEC105

Rear View Camera

RMC105

Wireless Remote

Rear view camera-ready

The BEC105 optional rear camera can be connected to the AVN units to facilitate parking.

CH3083

8-Disc CD Changer with

Magazine Unit

Dimensions (W × H × D) 5-15/16˝ × 1-3/16˝ × 4-3/16˝ 150 × 30 × 105.2mm

TVR105

TV Tuner Unit

*For connection details of each unit, please see p18 – p19.

MDV-06D

2006 Version Update Navi Disc

For: AVN5435 and AVN2454. Includes Street Map data. MDV-06D data compiled as of December 2004.

Specifications

NAME

GENERAL Power output Dimensions (W × H × D) Weight DISPLAY Display Resolution

FM TUNER Frequency range Usable sensitivity

Screen aspect ratio

AVN7000

50W × 4 (MAX)

7˝ × 2˝ × 6-1/2˝ (180 × 50 × 165mm)

5.1lbs (2.3kg)

7˝ wide (16:9), low-glare panel

336,960 dots (480 × 234 × 3)

87.75 — 107.9MHz (200kHz step) 19dBf (98.1MHz)

4 types

AVN5495

50W × 4 (MAX)

7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm)

7.9lbs (3.6kg)

6.5˝ wide (16:9), low-glare panel 280,800 dots (400 × 234 × 3)

87.75 — 107.9MHz (200kHz step) 12dBf (98.1MHz)

4 types

Media

HDD DVD CD Memory Stick

Navigation

Security

Navi Device

Displaying

Operation

Searching

Routing

Assistance

DVD Navigation Ultima Engine

HDD Navigation

Display

Street name Point-of-Interest (POI)

Touch panel control

Address search POI Name POI Category

Memory search

Emergency search

Previous search Map search Intersection search Freeway search (ENTER/EXIT) Coordinates search Telephone number search Home search Quick access point search

3 routes information

Route preview

Detours Enroute stopping points

Voice announcement Voice announce switch L/R Voice announce volume control Intersection zooming Freeway guidance Auto rerouting Estimated arrival time

ECLIPSE Security Network Detachable front panel

Select User

Split screen

Features List

Other

1.8˝ 20GB

●

7˝ EGA

●

approx. 4,000,000 points

●

Hospital/Police

●

English/French

●

●*

(MS Duo only)

AVN7000

30GB

●

6.5˝ EGA

●

—

●

approx. 3,150,000 points

●

Hospital/Police

●

English/French

—

●

—

●

AVN5495

—

6.5˝ EGA

●

—

●

approx. 5,990,000 points

●

—

●

Hospital/Police

●

—

●

English/French

—

●

—

●

—

AVN6600

—

AVN5500

—

6.5˝ EGA

●

—

●

approx. 5,990,000 points

Street map ——●●

●

—

●

Hospital/Police

●

—

●

English/French

—

●

—

●

—

AVN6600

50W × 4 (MAX)

7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm)

7.0lbs (3.2kg)

6.5˝ wide (16:9), low-glare panel 280,800 dots (400 × 234 × 3)

87.75 — 107.9MHz (200kHz step) 13dBf (98.1MHz)

4 types

AVN5500

50W × 4 (MAX)

7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm)

6.6lbs (3.0kg)

6.5˝ wide (16:9), low-glare panel 280,800 dots (400 × 234 × 3)

87.75 — 107.9MHz (200kHz step) 13dBf (98.1MHz)

4 types

*1: Memory Stick Duo is sold separately and compatible with 128MB or under.

Front-1 way system

DCU105 connected

Front-3 way system

AM TUNER Frequency range 530 — 1.710kHz (10kHz step) Usable sensitivity 22µV CD SECTION Frequency response 20 — 20,000Hz ±3dB

EQUALIZER SECTION Equalizer 63Hz — 16kHz (25 points) ±10dB

Total harmonic distortion 0.04% (0dB 1kHz) MS SECTION Frequency response 20 — 20,000Hz ±3dB Total harmonic distortion 0.04% (0dB 1kHz)

HDD SECTION Operating temperature range –10 — 65°C Storage temperature range –40 — 85°C

530 — 1.710kHz (10kHz step)

22µV

20 — 20,000Hz ±3dB

63Hz — 12kHz (1/2oct.step) ±10dB

0.04% (0dB 1kHz)

20 — 20,000Hz ±3dB

0.04% (0dB 1kHz)

–10 — 65°C –40 — 85°C

530 — 1.710kHz (10kHz step)

22µV

20 — 20,000Hz ±1dB

63Hz — 12kHz (25 points) ±10dB

0.02% (0dB 1kHz)

— —

530 — 1.710kHz (10kHz step)

22µV

20 — 20,000Hz ±1dB

63Hz — 12kHz (1/2oct.step) ±10dB

0.01% (0dB 1kHz)

— —

DVD-Video

AVN7000 only

— — —

—

———

DVD

Audio function

Audio device

ANALOGUE RADIO TUNER

●

DVD-R/RW, DVD+R/RW ●

●

Dolby Digital 5.1ch. dts 5.1ch. Dolby Pro Logic

●CD-R/RW

●

—

MP3

●WMA

● (Magic Gate Memory Stick Duo)

●

ATRAC3

Time Alignment

7 bands 7 bands

9 bands 9 bands

Parametric EQ Graphic EQ

F/R/C: independent 5 bands, SW: 1 band

Crossover

MP3/WMA/ATRAC3 MP3/ATRAC3 MP3/WMA MP3Multi-Harmonizer

FR, FL, F, R, OFF

● (Audio customize)

Listening Position selector Non Fader Level/Phase control

●Woofer output

E-iSERV Connectivity

MOSFET 50W × 4

FM1: 6, FM2: 6, FM3: 6

Amplifier

●Advanced 24-Bit ∆∑ DAC

F/R/NF, 2VPre Amp Output

Front/ Rear/Center/Subwoofer, 5V

Video Output

●

Video Input

●

●Digital Output (Coaxial)

—

Digital Input (Coaxial)

—

Digital Input (Optical)

●

AM: 6AM

SIRIUS SATELLITE RADIO-ready

Ready for iPod

●

CD Changer-ready 2 (daisy chain) Rear View Camera-ready ● TV Tuner-ready

●

Rear Monitor output 12

HD Radio-ready ●

▲*

OPTIONAL

AUDIO

Car type: 6 types, Speaker position:

Tweeter Rear SP

Front (L/R), Rear (L/R), Center, Subwoofer

F-Hi (L/R), F-Mid (L/R), F-ML (L/R), R (L/R), Center, Subwoofer

F (HPF)/R (HPF)/ C (HPF)/SW (LPF)

F-Hi (HPF), F-Mid (HPF/LPF), F-ML (HPF/LPF), R (HPF), SW (LPF)

*2: Please refer to Note and Precautions. *3: Please see Control Function chart on p23 for details.

● ●——

MUSIC JUKE ● (3,000 track) ——

—

Circle Surround II ●●—

AVN7000 AVN5495 AVN6600 AVN5500

— —

●

—

— —

●

—

— —

●

—

●

— —

●

—

●

—

● ——

—

——

—

●

—

50W × 4

F/R/NF, 5V

FM1: 6

AM: 6

2 (daisy chain)

—

●

—

▲*

●

— —

●

—

●

—

50W × 4

F/R/NF, 5V

FM1: 6, FM2: 6, FM3: 6

AM: 6

2 (daisy chain)

●

—

●

— —

●

—

●

—

50W × 4

F/R/NF, 5V

FM1: 6

AM: 6

2 (daisy chain)

●

—

▲*

• FM/AM tuner

• Advanced 24-bit ∆∑ DAC

• High-performance DSP:

•

Parametric equalizer

•

Time alignment

•

Crossover

•

Listening Position Selector

• 5V preamp output (with DCU105)

• Video output for rear monitor

• Video input

• CD Changer-ready (2 units)

• Rear view camera-ready

• HD Radio-ready

• Twin security system

•

MS ESN security

•

Detachable front panel

CD/CD-R/RW, WMA and MP3

DVD-Video, DVD-R/RW and DVD+R/RW

Circle Surround

Memory Stick Duo

MOSFET 50W x 4

5.1 ch. surround sound (with DCU105)

TV Tuner-ready

7˝ TFT display with touch control

SIRIUS Satellite Radio-ready

E-iSERV connectivity

The Area Shot feature has been newly refined to offer more assistance for travel routes. Now map displays are in fullcolor and up to 5 POIs can be shown. Location displays can now conveniently be viewed with 3-step zoom in ability.

NEW Area Shot

AVX Series

Routes can be set by accessing ECLIPSE’s E-iSERV server. Map data is then downloaded onto a Memory Stick Duo which can be input into the AVX5000.

Location displays have 3-step zoom viewing ability.

Note:

Area Shot is convenient for reviewing the route. However, the car must not be in motion when using Area Shot. GPS option for AVX5000 allows current position to be displayed. NAVTEQ ON BOARD is a trademark of NAVTEQ.

wide

close-up

medium

For the ultimate in mobile entertainment, the AVX Series offers various configurations and features to select from. Each offers a brilliant combination of audio and visual technologies that demonstrate ECLIPSE’s commitment to enjoyable driving.

Dedicated to providing the best in entertainment.

The AVX5000 is an elegant and compact unit that effortlessly handles program material on DVD, CD, and Memory Stick with its uncompromising build quality and use of premium parts and components. The AVX5000 can also be partnered with the amazing DCU105 Audio Video Matrix to take advantage of complete surround features and functions as well as versatile signal routing to increase system expansion options. This allows DVD Dual Play so that the front and rear passengers can enjoy separate entertainment. In addition, E-iSERV connectivity enables easy comprehensive audio customization to optimize system response for any car.

Stylish appearance complements any cockpit.

Featuring a sophisticated design and appearance that enhances any interior, the AVX5000 sports a matte black finish with translucent acrylic and silver design accents that give it a stylish look. Its slim, single DIN dimensions contain a large, high-resolution 7˝ display that emerges at the touch of a button.

AVX5000

DVD/MS Multi-Source Receiver with 7˝ Wide TFT Display

AVX2404

Hi-Power CD/DVD/MS Receiver

with 5.8˝ Touch-Panel TFT Display and MP3/5.1 Decoder

AVX2494

6.5˝ Wide TFT Touch Panel VGA Display

CD/DVD/MS Multi-Source Receiver with 20GB HDD for Music Juke

An incredible performer, the AVX2404 is ready to offer any entertainment required. The most popular audio-dedicated formats as well as DVD-Video combine with 5.1ch. surround sound for satisfying any entertainment desire.

’04 Product of the Year

Incorporating a 20GB HDD for immense music file storage as well as a brilliant VGA display, the AVX2494 offers the best of entertainment for audio and visual program material.

Audio/Visual

20GB HDD

6.5˝ TFT VGA display with touch control

CD/CD-R/RW, MP3

DVD-Video

3,000 track Music Juke

CDDB-enabled

• FM/AM tuner

•High-performance DSP:

•

5-mode soundfield control

•

9-band GEQ

•

Listening position selector

• CD Changer-ready (2 units)

• Memory Stick-ready

• Rear view camera-ready

Audio/Visual

5.8˝ TFT display with touch control

CD/CD-R/RW, MP3

DVD-Video

MOSFET 50W x 4

Multi window

5.1 ch. surround sound

• FM/AM tuner

• Advanced 24-bit ∆∑ DAC

•High-performance DSP:

•

5-mode soundfield control

•

7-band GEQ

•

Listening position selector

• Video input/output

• CD Changer-ready

• Memory Stick-ready

• Rear view camera-ready

• Wallpaper selectable

Specifications

14.4V Power Supply AVX5000 AVX2494 AVX2404 Max. Power Output 50W × 4 40W × 4 50W × 4 Display 7˝ wide (16:9), low-glare panel 6.5˝ wide (16:9), low-glare panel 5.8˝ wide (16:9), low-glare panel Display Resolution 336,960 dots (480 × 234 × 3) 1,152,000 dots (800 × 480 × 3) 280,800 dots (400 × 234 × 3) Screen Aspect Ratio 4 types 3 types FM Frequency Range 87.75 — 107.9MHz (200kHz step)

Usable Sensitivity 15dBf 13dBf

AM Frequency Range 530 — 1710kHz (10kHz step)

Usable Sensitivity 24µV22µV

CD Frequency Response 20 — 20,000Hz, -2±2dB — 0±2dB 20 — 20,000Hz, 1dB

Total Harmonic Distortion 0.03% (0dB, 1kHz) 0.03% (0dB, 1kHz)

Equalizer

Parametric: 63Hz — 16kHz±10dB, (25points)

Graphic: 63Hz — 12kHz, ±10dB

Dimensions (W × H × D) 7˝ × 2˝ × 6-1/2˝ (180 × 50 × 165mm) 7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm) Weight 4.8lbs (2.2kg) 6.8lbs (3.1kg) 6.2lbs (2.8kg)

Note: Please refer to iPod Control Function chart on p23 for other AVX models.

A CD Receiver that changes all the rules.

Along with a feature and function list that offers more than any other product in its class, the CD7000’s consummate performance and user customization features make it the audiophile choice.

The CD7000 incorporates many new features and functions previously never seen in CD Receivers, redefining just what is possible to achieve on this platform.

CD7000 Special Features

Focus

Generates virtual speakers that create a front-firing, higher-positioned soundfield.

TruBass

Generates a virtual subwoofer for satisfying low frequency reinforcement.

Circle Surround

Multichannel surround sound is generated from any audio source.

Circle Surround

Audio enhancement technology featuring Circle Surround to upmix any program material audio signals for full surround effects on 4-speaker systems, Focus that raises the soundfield and positions it in front of the listeners and TruBass for low frequencies to be perceived as being output from small speakers.

New CD Receivers

Combining style and function, the CD7000 incorporates stunning firsts such as the large, multi-color OEL display, GPS connectivity for enhanced driving assistance functions, and a rotary multi-function control that simplifies complex tasks.

Brilliant OEL display

This new display’s beautiful image quality enhances map displays and slide shows, greatly adding to ease of use.

Additional GPS-linked functions

Using GPS functions provides a useful traveling directional display as well as a speedometer display, longitude and latitude.

New rotary mode switch

A new control that makes operation easier and smoother. Using this control is intuitive, easier and faster to locate the desired music than with conventional controls. Quickly scroll through many of MP3 and WMA files with the rotary switch and use MODE to switch to more precise operation with the directional key.

GPS-linked volume control

With the GPS105 connected, the system volume is automatically compensated to match the car's speed.

A choice of 6 display patterns is available at the touch of a button.

Default screen

traveling direction

speedometer

Louder as the car increases speed. Softer as car’s speed drops.

Dynamic scroll bar

Located on the right of the display area is a scrolling bar that graphically shows scroll progress so you always know where you are, even in a long list.

Smoother, easier operation

GPS information (with GPS105)

On screen Slide show

Full screen Spectrum analyzer

Display pattern selection

MODE switch directional key

At home

Area Shot

E-iSERV

In the Car

Input start point and destination information — street address, city, state, and zip code.

Images such as from a digital camera can be input to a PC. E-iSERV can then be accessed in order to download a proprietary application.

Now using this application images can be assembled into an animated clip.

View the map(s) and confirm the route.

Load the data (on MS or CD-R) into the CD Receiver.

Time Alignment

Set delay and level for each speaker to align arrival times for a more natural imaging soundfield.

Crossover

Adjusts speaker to speaker transition frequencies for smooth system integration, creating a better overall response without speaker discontinuities.

Parametric EQ

Up to 10 frequency bands for each channel can be adjusted to eliminate peaks and dips in system frequency response.

E-iSERV

www.eclipse-web.com

This is where E-iSERV starts!

Motion Picture

Customizing the display panel is easy using a downloadable proprietary application to edit and sequence up to a maximum of 70 images to create a 7-sec. animated clip.

User’s PC

User’s vehicle

User vehicle data downloaded onto a Memory Stick is transferred into E-iSERV via a PC and the internet.

Internet

connection

Internet

connection

Data customized for the user’s own car and map data for Area Shot is downloaded from E-iSERV, put on a Memory Stick or CD, then input into the head unit.

E-iSERV advances

ECLIPSE’s E-iSERV has raised user customization to a new level that many thought could not be done. By using the internet and a personal computer, the user can access functions and features that can optimize in-car system response and provide map guidance, along with customizing displays and enhanced control abilities.

Area Shot

Adding value to CD Receivers with map viewing and route assistance, this feature allows searching for a destination and downloading the route to get there. Once the data has been input into the CD Receiver, it can be viewed to confirm the route.

Audio Customize

E-iSERV allows a degree of user customization previously unavailable except with test equipment and technicians. Audio data and system response from a specific car is sent to a dedicated audio processing server where it is evaluated and adjusted to create a system response tailored for that particular car.

E-iSERV

Original database

Audio Customize

Area Shot Motion Picture

Other Content

CD5000 Motion Picture feature.

CD7000 Motion Picture feature.

Automated map display switching

GPS allows automated map switching, moving from one map display to the next as the car progresses along a route instead of having to manually shift from one map display to the next.

Upcoming intersection heads up signal

Greatly adding to driving convenience is this new Tone Guide feature which generates a sound signal when the current display includes an intersection. As the car continues to travel and approaches the intersection, the sound is generated twice. This audible heads up frees the driver from having to constantly refer to the map display, reducing stress and allowing more driving enjoyment.

Intersection-to-intersection displays

On the map display, once the car leaves the area of the route's first intersection, the display automatically shifts to a display that shows the intersection most recently passed as well as the one coming up.

Quick POI information

Useful POI information is available at the touch of a button on the desired category. From the selected category, the 5 closest POIs to the car's current position are shown. Simply press on any displayed POI and various details are shown.

Realtime progress reports

Helping to have an idea of the progress made on a travel route reassures the driver. The GPS-linked CD7000 and CD5000 show realtime readouts of the distance remaining to the next intersection as the car travels. This is always onscreen regardless of the map type being shown.

Aligning display with car’s direction

It is always more user-friendly to have the map display aligned with the direction of travel. The map automatically reorients so that the car’s direction of travel agrees with the compass needle, making it easier to drive.

Full route simulation

Before traveling, this feature allows you to confirm the entire travel route from START to GOAL and familiarize yourself with it.

NEW AREA SHOT

The CD7000 and CD5000 make best use of enhanced GPS functions to assist driving when the optional GPS105 is connected.

The CD4000 and CD3000 will only show the actual distance between two intersections as the GPS105 cannot be used.

Automatically switches to next map area when car enters it.

next map area

Intersection Intersection

Automatically changes when leaving A

Intersection A

Intersection B

Sound repeats just before destination

5 closest POIs.

Select button to see details.

Heading-upward displayNorth-upward display (standard)

CD5000

CD7000

CD7000 Features

ECLIPSE’s latest CD Receivers incorporate technology and features that easily surpass conventional CD receivers by significantly improving basic audio performance, increasing user-customization options and refining map guidance functions. These are complete audio solutions for the mobile environment.

Positioned at the top of the new CD Receiver lineup are the CD7000 and CD5000. Designed to satisfy perfectionist audio requirements, each is built around a high-performance CD mechanism and advanced audio circuits that extract the maximum audio potential from CDs, MP3s, WMA and ATRAC3 files. In addition, ECLIPSE’s interactive E-iSERV enables sophisticated user audio customization as well as new Area Shot map guidance features.

CD7000

CD/MS Multi-Source Receiver with Fully Motorized Organic EL Display

CD5000

CD/MS Multi-Source Receiver with Fully Motorized VF Face

MOSFET 50W × 4 (max.) MOSFET 50W × 4 (max.)

•Advanced 2-mode Sound Control DSP:

•

Parametric EQ

11-band (3-way speaker system) 7-band (4 speaker plus subwoofer system)

•

Time Alignment

•

Crossover

•Multi-Harmonizer

•Custom Mode

•Rotary Mode Switch

•FM/AM tuner

•Advanced 24-bit ∆∑ DAC

•5V preamp output

(front/rear/non-fader)

•3 prs. pre outputs

•1 aux input + 1 aux input-ready

•Memory Stick-ready

•CD Changer-ready (2 units)

•HD Radio-ready

•GPS unit-ready for Area Shot and

digital compass

• Twin security system

•

MS ESN security

•

Detachable front panel

•Remote control

6-pattern illumination

Making it easier than ever to personalize the CD7000 to match user preferences or an interior color scheme, a choice of six illumination patterns are offered.

CD Receivers

CD/CD-R/RW, ATRAC3 (MS), WMA and MP3

Circle Surround

E-iSERV connectivity

New Area Shot (map, directivity arrow, text and POI)

Color OEL display

SIRIUS Satellite Radio-ready

6-pattern illumination

Ready for iPod

•Advanced 2-mode Sound Control DSP:

•

7-band Parametric EQ (advanced on)

•

Time Alignment (advanced on)

•

Crossover

•

Listening Position Selector

•Multi-Harmonizer

•Custom Mode

•FM/AM tuner

•Advanced 24-bit ∆∑ DAC

•High 8V preamp output

(front/rear/non-fader)

•3 prs. pre outputs

•1 aux input + 1 aux input-ready

•Memory Stick-ready

•CD Changer-ready (2 units)

•HD Radio-ready

•GPS unit-ready for Area Shot

•ESN security

•Remote control

CD/CD-R/RW, ATRAC3 (MS), WMA and MP3

Circle Surround II

E-iSERV connectivity

New Area Shot (map, directivity arrow, text and POI)

Full-dot VF display

SIRIUS Satellite Radio-ready

5-pattern illumination

Ready for iPod

The full featured Parametric EQ with two separate modes makes it easy to optimize 3-way speaker systems using 11 frequency bands as well 4-speaker plus subwoofer with 7 frequency bands for a smooth overall response without peaks or dips.

Full parametric EQ functions

Blue / Green

All Red

Blue / Amber

4SP + 1SW

All Green

All Amber

Blue / Red

3Way

Options

The CD4000 and CD3000 can easily be at the top of most CD Receiver lineups. Accommodating CDs, MP3 and WMA files, both these products offer superb audio performance as well as full user-customization features.

CD4000

CD Multi-Source Receiver with Fully Motorized Face

CD3000

CD Multi-Source Receiver with Fully Motorized Face

MOSFET 50W × 4 (max.) MOSFET 50W × 4 (max.)

•Bass/Mid/Treble control

•

3-band GEQ

•

Crossover

•FM/AM tuner

•5V preamp output

(front/rear/non-fader)

•3 prs. pre outputs

•1 aux input + 1 aux input-ready

•CD Changer-ready (2 units)

•HD Radio-ready

•ESN security

•Remote control

Interface Adapter for iPod

ECLIPSE's proven ESN now offers an additional level of deterrence. ESN is activated with a Memory Stick Duo that is designated to function as a locking/unlocking device for the CD7000. The front panel can also be detached, rendering the CD7000 totally inoperative once removed.

For compatibility with today’s preeminent personal audio device, ECLIPSE’s iPC-106 can be used for effectively controlling a connected iPod.* When connected to the CD7000, CD5000, CD4000 and CD3000 the adapter provides full control capabilities. The Rotary Mode Switch makes it easier and even faster to scroll up and down many of songs as well as Playlists, Artists, Albums and Genres.

Twin security system

CD/CD-R/RW, WMA and MP3

E-iSERV connectivity

Area Shot (arrow and text)

3 color LCD

SIRIUS Satellite Radio-ready

5-pattern illumination

•Bass/Mid/Treble control

•

3-band GEQ

•

Crossover

•FM/AM tuner

•5V preamp output

(front/rear/non-fader)

•3 prs. pre outputs

•1 aux input-ready

•CD Changer-ready (2 units)

•HD Radio-ready

•ESN security

•Remote control

(optional)

CD/CD-R/RW, WMA and MP3

E-iSERV connectivity

Area Shot (arrow and text)

3 color LCD

SIRIUS Satellite Radio-ready

Ready for iPod

* iPods with dock connection

iPC-106

Interface Adapter for iPod

Dimensions (W × H × D) 4-11/16˝ × 1-5/16˝ × 3-9/16˝ 120 × 32 × 90mm

Note: Please see Control Function chart on p23 for details.

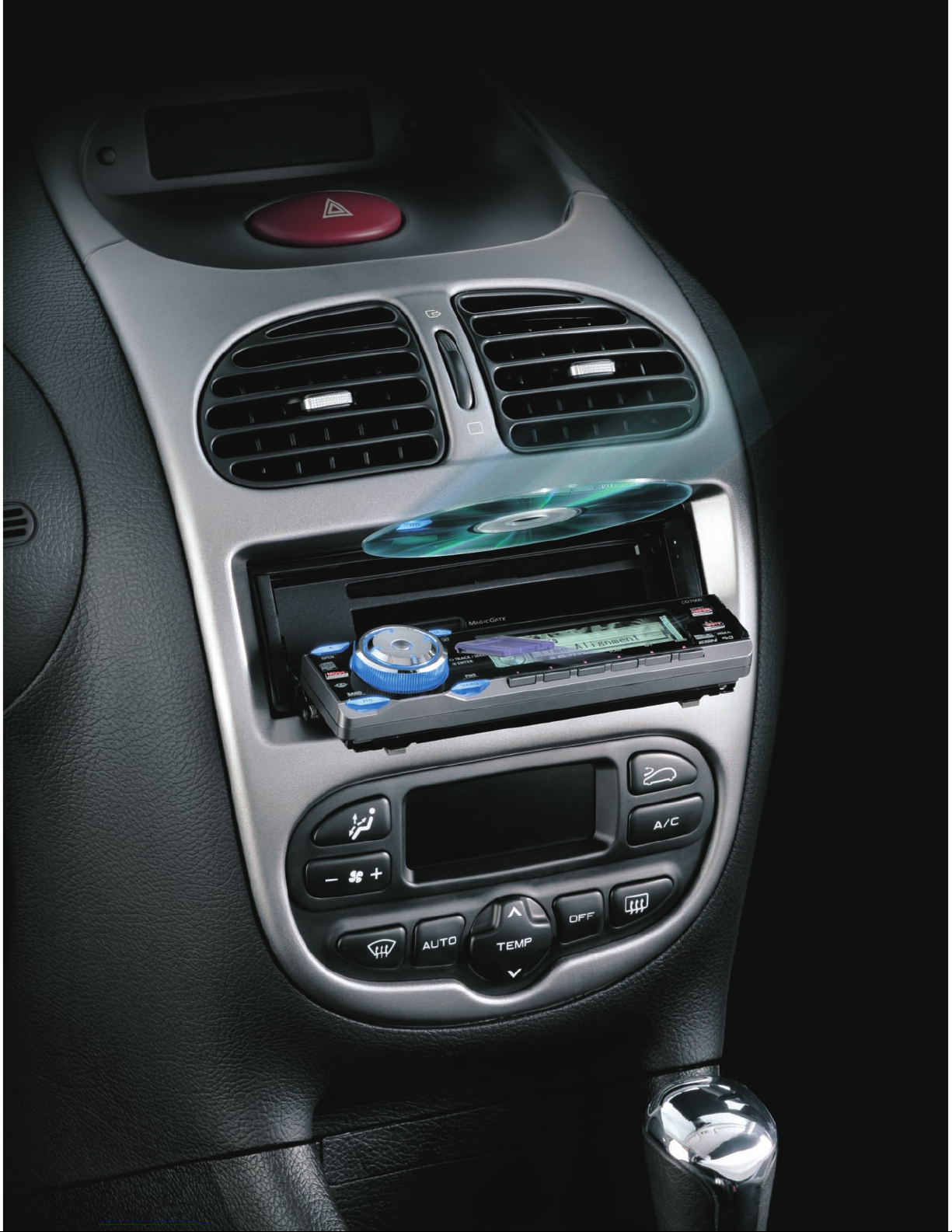

Photo: CD7000

The CD2000 and CD1000 represent the entry point to ECLIPSE products, but the performance of these products outshines labels. Maintaining ECLIPSE’s traditional emphasis on audio excellence by prioritizing features made it possible.

CD2000

CD Multi-Source Receiver

CD1000

CD Multi-Source Receiver

MOSFET 50W × 4 (max.) 50W × 4 (max.)

CD Receivers

AUX105

AUX Cord

CH3083

8-Disc CD Changer with Magazine Unit

RMC105

Wireless Remote

MEI-100

Pro Tuning Microphone

Remote control-ready

Options

SIR-ECL1

ECLIPSE COMPATIBLE SIRIUS SATELLITE RADIO TUNER

HDR105

HD Radio Tuner Unit

SIRIUS Satellite Radio-ready

The CD Receivers are able to take advantage of all the benefits of satellite broadcasting. The optional ECLIPSE SIR-ECL1 satellite radio tuner can be easily connected for enjoying this exciting new entertainment.

HD Radio-ready

The CD Receivers will deliver all the potential of HD Radio-enhanced broadcasts simply by connecting the optional HDR105 HD Radio Tuner.

•Bass/Mid/Treble control

•

3-band GEQ

•FM/AM tuner

•5V preamp output

(front/rear/non-fader)

•3 prs. pre outputs

•CD Changer-ready (2 units)

•HD Radio-ready

•ESN security

•Remote control (optional)

CD/CD-R/RW, MP3

High contrast LCD

SIRIUS Satellite Radio-ready

•Bass/Treble control

•

5-mode preset EQ + 1 customizable EQ

•FM/AM tuner

•Dual preoutput

•Detachable front panel

•Remote control (optional)

CD/CD-R/RW, WMA and MP3

2 color LCD

GPS105

GPS Unit

CD Changer-ready

GPS unit-ready

Connects to compatible CD Receiver units for use with Area Shot to enhance its features.

Measures system response to help optimize system frequency response.

Specifications

(178 × 50 × 157.5mm)

(178 × 50 × 150mm)

Feature List

CD7000 CD5000 CD4000 CD3000 CD2000 CD1000

CONTROL

Remote Control ●●●Optional Optional Optional CD Changer Control ●●●●●— CD-R/CD-RW ●●●●●● WMA ●●●●— ● MP3 ●●●●●● ATRAC3 Decode (Memory Stick) ●●———— Ready for iPod

* ●●●●▲—

Sirius-ready ●●●●●— HD Radio-ready ●●●●●— Digital Servo System (DSS) ●●●●●●

TUNER

FM / AM 6/18 6/18 6/18 6/18 6/18 6/18 Station Name Input ●●————

AUDIO

Output Voltage and Impedance 5V/55Ω 8V/55Ω 5V/55Ω 5V/55Ω 5V/55Ω 2.5V/1kΩ MOSFET Amplification ●●●●●— Advanced 24-bit ∆∑ DAC ●●———— Source Volume Control (SVC) ●●●●—— Sound Control Mode Speaker Layout Advanced ————

3Way

4SP+SW

On Off ————

Circle Surround II — ●●————— Parametric EQ Hi/Mid: Front/ Front/ —

Independent

Rear: Rear:

————

—

5bands 7band 7band —

+Low 1band

—

Graphic EQ ———— ●(3band) ●(3band) ●(3band) ●(2band) Frequency Response Analysis ●●● ————— Time Alignment ●●●

(3Way)

(F/R/SW)

(Simplified)

—————

Crossover ●●

●● ● ● ——

(3Way)

(F/R/SW)

Bass/Mid/Treble Control ● ——●●●●▲(Bass/Treble) Loudness ●●● ●●●●● Multi-Harmonizer (MP3/WMA/ATRAC3/iPod) ●●●● ———— Listening Position Selector ——●● ———— SFC ———● ———— Non Fader Level / Phase Control ●●●●●— Dual Pre Outputs ●●●●●● Non-Fader Pre Outputs ●●●●●— AUX In ●

(1+1optional)●(1+1optional)●(1+1optional)

Optional ——

GENERAL

Display Multi color OEL 8 step VF 3 color LCD 3 color LCD LCD 2 color LCD illumination 6 pattern 5 pattern 5 pattern Amber Amber Green Motion Picture ●●———— Dimmer Control ●●———● E-iSERV Connection ●●●●—— Audio Customize (E-iSERV) ●●———— Motion Picture Customize (E-iSERV) ●●———— Area Shot (E-iSERV) ●●●●—— MS ●●———— CD-R ●●●●—— GPS Connection ●●———— Tone Guide (W/GPS) ●●(beep) ———— POI ● ————— Auto Map Switch (W/GPS) ●●———— Route Simulation ● ————— Distance Display ●●●●—— GPS-linked volume control ● ————— GPS Information Display (W/GPS) ● ————— ESN security ●●●●●— Detachable Front Panel ● ————● Full Face Tilt ●●●●——

* Please see Contorl Function chart on p23 for details.

14.4V Power Supply CD7000 CD5000 CD4000 CD3000 CD2000 CD1000 Max. Power Output 50W × 4 (MOSFET) 50W × 4 Lineout Output Level/Impedance 5V(0dB)/55Ω 8V(0dB)/55Ω 5V(0dB)/55Ω 2.5V(0dB)/1kΩ Tone Bass/Mid/Treble ±12dB at 80Hz/±12dB at 630Hz/±12dB at 10kHz ±10dB at 100Hz/—/±8dB at 10kHz

Control

Loudness +10dB at 100Hz/+6.5dB at 10kHz +8.5dB at 100Hz/+4dB at 10kHz

FM Frequency Range USA: 87.75 — 107.9 MHz (200kHz step) Latin America: 87.75 — 107.9 MHz (100kHz step)

Usable Sensitivity 15dBf Frequency Response 30 — 15,000Hz ±3dB

40 — 15,000Hz

Stereo Separation 38dB (1kHz) 35dB (1kHz)

AM Frequency Range USA: 530 — 1,710kHz (10kHz step) Latin America: 530 — 1,710kHz (10kHz step)

Usable Sensitivity 22µV

CD Frequency Response 20 — 20,000Hz, ±3dB 5 — 20,000Hz, ±3dB

S/N Ratio (A-weighted) 100dB 95dB

Total Harmonic Distortion 0.008% 0.01%

Channel Separation 85 80dB

MS Frequency Response 20 — 20,000Hz, ±3dB —

S/N Ratio (A-weighted) 100dB —

Total Harmonic Distortion 0.008% —

Dimensions (W × H × D) 7˝ × 2˝ × 6-1/8˝ (178 × 50 × 155mm)

7˝ × 2˝ × 6-1/8˝ 7˝ × 2˝ × 5-7/8˝

CD Changer GPS Unit

Cassette Tuner

Equalizers

CH3083

8-Disc CD Changer with Magazine Unit

Functioning as an immense mobile jukebox with storage for 8 CDs, the CH3083 is ideal for increasing music content as it is also compatible with CD-R/RW discs.

•CD and CD-R/RW discs

•8 disc magazine

•Coaxial digital output

•Multiple unit connectivity (2 units)

•Precision optical pickup

•“No disc contact” transport

•Reinforced high-rigidity chassis

4502

ESN E5 Cassette Tuner with CDC/DSP Control and Remote

Allowing those with extensive tape libraries to continue enjoying their favorite music with better performance than before, the 4502 is an ideal solution because it easily connects to an ECLIPSE CD Changer as well.

•DSP EQ

•Full logic Hybrideck tape mechanism

•FM/AM tuner

•Large 13-segment LCD

•5V preamp output with low 55Ω impedance

•3 prs. pre outputs

•CD Changer-ready (2 units)

•E-LAN data link system

•ESN security with CD changer

EQ2102

30-Band 1/3 Octave Competition Equalizer

An EQ tool for professional applications where systems require precision tonal contouring at a 1/3 octave level, the EQ2102 offers easeof-use over sophisticated EQ parameters when used with an RTA and pink noise, resulting in smooth band-to-band frequency transitions.

• Stereo configured unit

• 30 frequency bands

• Input level control

• EQ defeat

• Boost cut selectable ±6/12dB

• Switchable subwoofer crossover

• Summed channel line output

• LED overload indicators

21010

5-Band Graphic/1-Band Parametric Equalizer/Crossover

This parametric equalizer/crossover allows any system to achieve a wellbalanced response for smooth, accurate sound.

• Master gain and defeat switch

• Input level and selector

• Front/rear fader

• 5-band Graphic EQ

• Low frequency-dedicated

• 1-band parametric EQ

• Subsonic and low/high pass filters

• Dedicated subwoofer crossover control

•

Adjustable 0 to 4 second turn-on delay protection

MZ0803

Magazine unit

GPS105

GPS Unit

Connects to compatible AVX and CD Receiver units for use with Area Shot to enhance its features.

Optional for: AVX5000, CD7000, CD5000

Dimensions (W × H × D) 6-15/16˝ × 1-7/16˝ × 6-5/16˝ 175 × 36.5 × 160mm

Digital radio options

SIR-ECL1

ECLIPSE COMPATIBLE SIRIUS SATELLITE RADIO TUNER

Optional for: AVN7000, AVN6600, AVN5500

AVX5000, CD7000, CD5000, CD4000, CD3000, CD2000

Dimensions (W × H × D) 4-15/16˝ × 1-7/16˝ × 4-3/16˝ 125 × 35 × 105mm

Optional for: AVN7000, AVN6600, AVN5500

AVX5000, CD7000, CD5000, CD4000, CD3000, CD2000

Dimensions (W × H × D) 6-15/16˝ × 1-7/16˝ × 6-5/16˝ 175 × 36.5 × 160mm

HDR105

HD Radio Tuner Unit

Interface Adapter for iPod

iPC-106

Interface Adapter for iPod

This option offers the easiest way to enjoy popular digital satellite broadcasting simply by connecting the SIR-ECL1 to a compatible head unit.

Use this convenient option to connect to any of the compatible head units to take advantage of the digital broadcast content offered by a growing number of commercial radio stations.

The new iPC-106 iPod Interface Adapter makes it possible to continue to enjoy the most popular personal music device together with ECLIPSE products.

Dimensions (W × H × D) : 4-11/16˝ × 1-5/16˝ × 3-9/16˝ 120 × 32 × 90mm

*1: Playlist/Album/Artist/Genre/Song *2: Playlist/Album/Artist/Song

ECLIPSE models

Mode Track next/previous Fast next/previous Text display Search mode Browsing list Repeat All repeat Random Album random Power supply/charge

iPod full control SIRIUS control CDCH control CDCH control SIRIUS control CDCH control CDCH control

●●●●●●●

● ——————

●●——● ——

●●●●●●●

● ——————

●●●●●●●

● ——————

●●●●●●●

AVN6600

AVX5000 AVX2494, AVX2404

AVN Series AVX Series

AVN7000, AVN5500

iPC-106 Functions

AVN5495

ECLIPSE models

Mode Track next/previous Fast next/previous Text display Search mode Browsing list Repeat All repeat Random Album random Power supply/charge

iPod full control SIRIUS control CDCH control

●●●

● ——

●●—

●●●

● ——

●●●

● ——

●●●

CD7000, CD5000, CD4000, CD3000 CD2000

CD Series

Note: iPods with dock connection.

Photo: AVN6600 Photo: CD7000

Power Amplifiers

ECLIPSE power amplifiers feature advanced digital and analog circuit topologies to achieve maximum performance over a range of different power ratings.

ECLIPSE’s latest power amplifiers feature new ICEpower® technology. Seeing increasing use even in ultra high-end audiophile equipment, ICEpower® advantages include superior audio quality, compactness and reduced energy demand as well as reliability. Employing ICEpower® analog technology in ECLIPSE power amplifiers enable them to deliver stunning results in terms of linearity and reduced THD, increased dynamic range and high power stage efficiency.

In an ICEpower® analog circuit the analog signal is modulated into a PWM (Pulse Width Modulation) signal with the Controlled Oscillation Modulator (COM). Then after the power stage, this PWM signal feeds back into the Multivariable Enhanced Cascade Control (MECC) where it is compared to the original input signal and any differences are compensated for to eliminate power stageinduced distortion. The post output filter analog signal also feeds back into the MECC that compensates for output filter load dependent characteristics. The end result is superb sound quality free from conventional Class D limitations.

ICEpower® technology revitalizes the amplifier line.

Analog input

Power Supply

COM Modulator MECC Control

Power

Conversion

Demodulation

Power Amplifier Series

Joining the acclaimed EA Series is a brand new generation of power amplifiers, ECLIPSE’s XA Series which utilize analog ICEpower® technology to create optimal amplification for the mobile environment.

XA5000

5/4/3 Channel Class D Amplifier with

Channelflex Crossover plus Subsonic Filter

XA4000

4/3/2 Channel Class D Amplifier with

Channelflex Crossover plus Subsonic Filter

Designed to offer an ideal amplification solution for powering a full speaker setup that uses four speakers plus subwoofer. Includes high and low pass

filters plus subsonic filters as well as a variable bass boost that can be used to best effect with a dedicated subwoofer control.

Adaptable four channel amplifier that can be bridged to configure a more powerful two channel unit that provides

350W per channel. Subsonic filter and variable bass boost are provided as well as high and low pass filters.

XA2000

2/1 Channel Class D Amplifier with

Channelflex Crossover plus Subsonic Filter

XA1000

1 Channel Class D Subwoofer Amplifier

This versatile and powerful amplifier is ideal for powering a four speaker plus subwoofer system and can also be

bridged to function as a 300W single channel amplifier for ultimate systems.

Designed for use in the most demanding systems as a dedicated high-performance subwoofer amplifier.

ECLIPSE’s XA Amplifier Series utilize the latest advancements in digital amplification topologies to create superior sounding amplifiers dedicated for the mobile environment. The XA Amplifier Series features high sound quality and is also extraordinarily energy-conscious.

XA Amplifier Series

• ICEpower® full-range Class D operation.

• Attractive design for practicality and ease of use with all

controls such as level, crossover, low frequency boost and high/low pass filter adjustments mounted on the top panel.

• Output terminals conveniently located to allow multiple inline unit installations.

• Bright LED indicators also mounted on the top assist in setting system levels to prevent amplifier clipping.

• Very high efficiency rate with low current draw.

900W 840W

360W 640W

Note:

XA5000/XA4000/XA2000 incorporate ICEpower

technology.

EA4000

4/3/2 Channel Power Amplifier with

ChannelFlex Crossover plus Subsonic Filter

EA2000

2/1 Channel Class Power Amplifier with

ChannelFlex Crossover plus Subsonic Filter

Featuring MOSFET devices for a pure, natural sound that can also be bridged to deliver 150W into 2 channels.

Medium powered, beautiful-sounding amplifier that can be transformed into a powerful 175W amplifier by bridging.

Class D Competition Series

DA7232 DA7122

The Integrated Amplifier Series offers outstanding sound quality with a distinctive appearance. Audiophile-grade power amplification is featured along with high current MOSFET switching power supplies that combine for dynamic performance with any speaker system.

EA Amplifier Series

• High current, high-efficiency MOSFET switching power supply

delivers significant power when demanded.

• Capable of high current delivery.

• “Easy Tune” top-mounted controls for easily adjusting amplifier

parameters even after installation.

• Sleek, low-profile appearance with laser-cut top plate

allows installation virtually anywhere.

400W (4Ω)

950W × 2

1200W

180W (4Ω)

14.4V Power Supply XA5000 XA4000 XA2000 XA1000 EA4000 EA2000 DA7232 DA7122 Channel 5/4/3 4/3/2 2/1 1 4/3/2 2/1 2 1 Power Output (max.), 10% THD 2Ω 900W 840W 360W 640W 400W (4Ω) 180W (4Ω) 950W × 2 1200W × 1

2Ω 75W × 4 + 450W 175W × 4 150W × 2 480W ——850W × 2 950W × 1

Power Output

4Ω 50W × 4 125W × 4 100W × 2 — 75W × 4 60W × 2 620W × 2 650W × 1

1% THD

4Ω Sub Chnl. 300W × 1 ——320W × 1 ——620W × 2 650W × 1

4Ω Bridged 150W × 2 350W × 2 300W × 1 — 150W × 2 175W × 1 —— THD @ Rated @2Ω —————— <1.0% Power

@4Ω 0.05% — 0.05% <1.0%

@4Ω Sub Chnl. 0.25% ——0.25% —— <1.0% S/N Ratio*, 1W out >90dB >120dB Frequency Response, 1W out 20 — 20,000Hz (stereo) 20 — 200Hz 20 — 20,000Hz 4 — 200Hz, ±1dB @4Ω Amp Crossovers Hi-Pass 18dB/oct. 30 — 500Hz — 30 — 500Hz —

Lo-Pass 18dB/oct. 50 — 500Hz 20 — 200Hz 50 — 500Hz 50 — 200Hz

Subsonic 18dB/oct. 18Hz Defeat 1 — 60Hz Pre-Amp Output Lo-Pass 18dB/oct. — No Filter No Filter — No Filter No Filter 50 —200Hz Dimensions (W × H × D)

15-3/4˝ × 2-5/16˝ × 15-3/4˝ × 2-5/16˝ × 9-13/16˝ × 2-5/16˝ × 9-13/16˝ × 2-5/16˝ × 13-3/8˝ × 2-5/16˝ × 9-13/16˝ × 2-5/16˝ ×

21˝ × 2˝ × 11-1/16˝ 15-3/4˝ × 2˝ × 11-1/16˝

10-3/16˝ 10-3/16˝ 10-3/16˝ 10-3/16˝ 10-3/16˝ 10-3/16˝

400 × 59 × 259mm 400 × 59 × 259mm 250 × 59 × 259mm 250 × 59 × 259mm 340 × 59 × 259mm 250 × 59 × 259mm

533 × 52 × 300mm 400 × 52 × 300mm

Specifications

* Meets CEA2006 guidelines

1 Channel Class D Subwoofer Amplifier2 Channel Class D Subwoofer Amplifier

Note:

DA7232/DA7122 incorporate ICEpower® technology.

Subwoofers

SW9182 Pro

18˝ Subwoofer (1Ω × 4)

SW9152 Pro

15˝ Subwoofer (1Ω × 4)

SW9152 15˝ Subwoofer (4Ω + 4Ω) SW9122 12˝ Subwoofer (4Ω + 4Ω) SW9102 10˝ Subwoofer (4Ω + 4Ω)

• Polyether foam surround

• Solid titanium cone

• Dual mirror-imaged spiders

• Titanium voice coil former

•‘‘Bottomless” design

• Aero-vented pole piece

• Cast aluminum frame

• Triple-stacked magnet

• RMS power handling: Pro 3000W/ 750W

• Max. power handling: Pro 5000W/1500W

• Voice coil: Pro Quad/DVC

• QCA (Quick Change Assembly) technology

• Voice coil diameter: Pro 4˝/3˝

• Magnet motor: Pro 500 oz /250 oz

SW9000 Series

Continuing to rule as ECLIPSE’s top subwoofers, the SW9000 Series is also available in special competition-grade Pro configurations. Featuring Titanium Quad(4) and Double Voice Coil (DVC) technology to ensure quick response, high efficiency and extreme SPLs. The non-pro SW9000 Series offers Dual Voice Coils (DVC) with reference sound quality and ultra-low response that is taut and powerful with welldefined pitch.

SW9100 Titanium DVC Series

SW9100 Titanium Quad-Pro Series

Pro Series

QCA (Quick Change Assembly) basket replacement

SW8200 12˝ Subwoofer (4Ω) SW8000 10˝ Subwoofer (4Ω)

SW9182Pro SW9152Pro SW9152 SW9122 SW9102 SW8200 SW8000

Size 18˝ 15˝ 15˝ 12˝ 10˝ 12˝ 10˝ Fs 24Hz 27Hz 22Hz 22Hz 26Hz 16Hz 18Hz Qts 0.17 0.15 0.39 0.30 0.47 0.42 0.40 DCR 1Ω × 41Ω × 44Ω + 4Ω 4Ω + 4Ω 4Ω + 4Ω 3Ω 3Ω Vas 5.7 Cuft 2.0 Cuft 6.10 Cuft 3.20 Cuft 2.10 Cuft 8.27 Cuft 3.75 Cuft Xmax (one way)

3.5˝ peak-to-peak (max: 4˝)3.5˝ peak-to-peak (max: 4˝)

1.75˝ 1.50˝ 1.50˝ 1.50˝ 1.50˝

Continuous Power Handling 3000W 3000W 750W 750W 750W 670W 625W Maxmum Power Handling 5000W 5000W 1500W 1500W 1500W 2000W 1900W

SW8000 Series

The heavy-duty SW8000 series is available in the most popular sizes and sports a distinctive look.

• RMS power handling: 670W/625W

• Max. power handling: 2000W/1900W

• Linear transducer technology

• Solid aluminum cone heat sink

• Single 4Ω compound linear voice coil

• 200oz dual stacked magnet

• Aluminum cast basket

• Aluminum cast magnet heat sink

• SBR synthetic rubber surround

• Polyester-cotton spider

•QCA (Quick Change Assembly) technology

• 10awg push and screw terminal

SW8000 Series

The world’s first passive, long throw audiophile subwoofer for the mobile environment offers ideal transient response with accurate excursion, producing taut and powerful low frequencies that significantly enhance music.

ECLIPSE linear transducer technology*

* Patent pending

Final appearance may be changed.

-50 -40 -30 -20 -10 0 10 20 30 40 50

BI (N/A)

BI vs. x

dispiacement (mm)

Bi fit between -24mm and 28mm

Non-Linear Voice Coil Linear Voice Coil

-50 -40 -30 -20 -10 0 10 20 30 40 50

BI (N/A)

BI vs. x

dispiacement (mm)

Bi fit between -24mm and 28mm

Linear Transducer speaker’ flat BL (force) vs. displacement (travel) graph compared to a conventional speaker’s bell-shaped curve.

Subwoofers

SW7200 SW7000 SW6200 SW6000 SW4200 SW4000

Size 12˝ 10˝ 12˝ 10˝ 12˝ 10˝ Fs 28Hz 35Hz 31Hz 38Hz 32Hz 38Hz Qts 0.52 0.58 0.77 0.70 0.56 0.6 DCR 4Ω + 4Ω 4Ω + 4Ω 4Ω + 4Ω 4Ω + 4Ω 4Ω 4Ω Vas 2.24 Cuft 0.85 Cuft 2.0 Cuft 0.85 Cuft 2.75 Cuft 1.25 Cuft Xmax (one way) 0.70˝ 0.70˝ 0.03˝ 0.30˝ 0.30˝ 0.27˝ Continuous Power Handling 500W 450W 350W 300W 250W 200W Maxmum Power Handling 1500W 1300W 1000W 900W 750W 600W

•RMS power handling: 350W/300W

• Max. power handling: 1000W/900W

•RMS power handling: 250W/200W

• Max. power handling: 750W/600W

•RMS power handling: 500W/450W

• Max. power handling: 1500W/1300W

SW7200 12˝ Subwoofer (4Ω + 4Ω) SW7000 10˝ Subwoofer (4Ω + 4Ω)

• Solid aluminum cone heat sink

• Dual 4Ω aluminum voice coil

• Aluminum cast basket

• Rubber magnet boot

• Injection santoprene surround

• Dual conex mirrored spider

• Thruster air vent cooling system

• Vortex design basket heat sink

Side view of SW7000 Series

SW7000 Series

SW6200 12˝ Subwoofer (4Ω + 4Ω) SW6000 10˝ Subwoofer (4Ω + 4Ω)

SW6000 Series

A new redesigned SW6000 Series copes with increased input power capability and heavy duty requirements including a doubling of cone excursion. The cone material is now a Kevlar composite, new centralized terminals are included and the series has a completely new look that reflects its upgraded performance.

• Kevlar composite cone

• Dual 4Ω aluminum voice coil

• ABS + 15% fiber filled magnet coverd

• Injection santoprene surround

• Rubber gasket

• Flat pc spider

• Air vent cooling system

• Quad 10awg chrome terminal

Side view of SW6000 Series

SW6000 Series

SW4200 12˝ Subwoofer (4Ω) SW4000 10˝ Subwoofer (4Ω)

SW4000 Series

The new SW4000 Series easily competes with subwoofers of a higher class. A new Kevlar composite cone extends lows, maintains rapid transient response and well-defined pitch. Distinguished by an attractive and practical grill design, these speakers offer an ideal solution for extending system response.

•Kevlar composite cone

•Integrated grill assembly

•Foam surround

•Polycarbonate spider

•43oz magnet (SW4200), 30oz magnet (SW4000)

•4-layer aluminum single voice coil

•Air vent cooling system

Side view of SW4000 Series

SW4000 Series

SW7000 Series

The SW7000 Series incorporates a heatsink voice coil/cone thermal sink that allow producing 500W without strain. ECLIPSE’s low distortion/high excursion speaker cone design philosophy lets the speaker travel 1.4 inches, which is the most in its class.

SYSTEMS

SW6124BXD SW6124BX SW5124BX

Subwoofer Driver SW6124 × 2 SW6124 SW5124 Frequency Response 28 — 250Hz 28 — 250Hz 35 — 250Hz Sensitivity 1W/m SPL 88dB 85dB 88dB Normal Impedance 8Ω + 8Ω Parallel = 4Ω 4Ω 4Ω Dimensions (W × H × D) 27.6˝ × 13.8˝ × 15.3˝ (701 × 350 × 389mm) 14.7˝ × 13.9˝ × 15.3˝ (373 × 353 × 389mm) 18.9˝ × 15˝ × 8˝ (480 × 381 × 203mm) Weight (Gross) 51.8lbs (23.5kg) 30.8lbs (14kg) 26lbs (11.8kg) Weight (Net) 51.3lbs (23.3kg) 30.5lbs (13.9kg) 25.5lbs (11.6kg) Finish Grey & Black Vinyl Grey & Black Vinyl Grey & Black Vinyl Continuous Power Handling 500W 250W 125W Maximum Power Handling 1000W 500W 250W

SW5124BX

12˝ Truck-box Subwoofer System

•RMS power handling: 125W

• Max. power handling: 250W

SW6124BXD

12˝× 2 Subwoofer System

•RMS power handling: 500W

• Max. power handling: 1000W

• Single 4Ω terminal

SW6124BX

12˝ Subwoofer System

•RMS power handling: 250W

• Max. power handling: 500W

ECLIPSE subwoofer systems are constructed from sturdy wood, carefully assembled and well-damped for a tight bass. Finished in attractive and durable vinyl, these subwoofer systems are ready for final installation.

Featuring a configuration specifically designed for the installation space requirements of trucks, SUVs and similar vehicles, the SW5124BX incorporates a special low-profile bass driver that saves space and still delivers a massive low frequency sound.

Cutaway view of the SW5124 Lo-Profile Custom Application Woofer shows the significantly reduced depth of this speaker that makes it an ideal choice to install in a truck-box enclosure.

Speaker Grill Speaker Grill

Woofer driver

•solid aluminum cone (SC8365: 6-1/2”) (SC8355: 5-1/4”)

•Aluminum diecast baskets

•Santoprene surround

•Porous flat spider

•Aluminum voice coil former

•Very narrow voice coil gaps

•Vented pole piece

Midrange driver

•1-1/2˝ solid aluminum hard dome

•Neodymium magnet

•Aluminum voice coil former

•Ferro-fluid cooled

•Flush-mounting kit

Tweeter

•3/4˝ solid aluminum hard dome

•Neodymium magnet

•Aluminum voice coil former

•Ferro-fluid cooling

•Flush-mounting kit

Crossover

•Audiophile-grade, speaker-specific matched component passive crossover with clear lexan cover

•12dB/octave high-pass, 6dB/octave low-pass Butterworth Optimum Q crossover filters

•OFC wirewound air core inductors and metallized polypropylene capacitors

•Tweeter protection circuit

•Variable tweeter sensitivity (-3dB/0dB/+3dB)

When size limitations are not a factor for speaker installations, ECLIPSE Component Series Speakers are an ideal choice. These are complete two- and three-way speaker systems with different components and crossovers designed to synergistically work together in perfect balance right from the start.

Component Series Speakers

SC8365

6-1/2˝ Component 3-Way Speaker System

• RMS power handling: 100W

• Max. power handling: 300W

• Sensitivity (1Watt/meter) SPL: 88dB

• Crossover frequencies: woofer/midrange 1400Hz,

midrange/tweeter 5kHz

• Mounting Depth: 2-7/8˝

SC8355

5-1/4˝ Component 3-Way Speaker System

• RMS power handling: 85W

• Max. power handling: 250W

• Sensitivity (1Watt/meter) SPL: 87dB

• Crossover frequencies: woofer/midrange 1400Hz,

midrange/tweeter 5kHz

• Mounting Depth: 2-5/8˝

Woofer driver

•Metalized Mica PP

•8-spoke, diecast vented aluminum basket frame

•Santoprene surround

•Symmetrical Low Distortion Spider

•High porous spider material

•1-1/4˝ voice coil

•Aluminum voice coil former

•Narrow gap coil design

•Chromed vented air-cooled pole piece

•Gold-plated input terminals

•Grills included

High Frequency Driver

•Neodymium magnet

•1˝ aluminum hard dome tweeter cone

•Ferro-fluid cooling

•Flush and angle mounting kits included

Crossover

• Passive 2-way optimized component-specific crossover network

•Compact, low-profile crossover with clear plexiglass cover

•12dB/octave hi- and low-pass Butterworth filters

•Tweeter protection circuit

•Air/iron core inductors

•ECLIPSE HQ capacitors

•Variable tweeter sensitivity (-3dB/0dB/+3dB)

•Gold-plated input/output terminals

SC8264

6-1/2˝ 2-Way Driver with 1˝ Aluminum Tweeter

• RMS power handling: 85W

• Max. power handling: 250W

• Mounting Depth: 2-7/8˝

SC8254

5-1/4˝ 2-Way Driver with 1˝ Aluminum Tweeter

• RMS power handling: 75W

• Max. power handling: 220W

• Mounting Depth: 2-3/8˝

3-Way SC-Series

2-Way SC-Series

Point Source Series Speakers

The SP Series II Point Source is an innovative 2-way component system that offers mounting options for the high frequency driver positioning flexibility in order to better meet installation requirements and achieve optimal sound. Woofers feature a new Kevlar composite for increased power handling and the external crossovers employ premium components.

Sound improvements

The improved power handling capability of ECLIPSE Point Source Series Speakers and the detachable tweeter option allows them to be more versatile to better suit a car's interior in achieving the maximum performance. ECLIPSE subwoofers can also be used for greater low frequency impact, blending easily with the sonic signature of these speakers.

An ideal solution

Specifically designed to function as self-contained speakers that represent the easiest way to drastically upgrade an in-car system, ECLIPSE Point Source Speakers are available in configurations to suit virtually any car. With a distinctive high-performance appearance, the many advantages these speakers have raise them above conventional replacement speakers.

SP6900 6 × 9˝ 2-Way Point Source SP6500 6-1/2˝ 2-Way Point Source

•RMS power handling: 90W

•Max. power handling: 270W

•RMS power handling: 60W

•Max. power handling: 180W

SP5700

5 × 7˝ / 6 × 8˝ 2-Way Point Source

SP5000 5-1/4˝ 2-Way Point Source

•RMS power handling: 55W

•Max. power handling: 165W

•RMS power handling: 50W

•Max. power handling: 150W

2-Way SP-Series

SP6900 SP6500 SP5700 SP5000

6 × 9˝ 6-1/2˝ 5 × 7˝/ 6 × 8˝ 5-1/4˝

1˝ 1˝ 1˝ 1˝

270W 180W 165W 150W

90W 60W 55W 50W

88dB 87dB 88dB 84.5dB

45 — 40,000Hz 85 — 40,000Hz 90 — 40,000Hz 105 — 40,000Hz

45Hz 85Hz 90Hz 105Hz 24oz 12oz 12oz 10oz

3.5˝ 2-1/4˝ 2-3/8˝ 2-1/4˝

3.6 3.6 3.6 3.6

Woofer Size Tweeter Size Max. Power Handling RMS Power handling Sound Pressure Level Frequency Response Fs Magnet Size Mounting Depth Voice Coil DCR (Ω)

•1˝ titanium hard dome tweeter

•Low mass, low distortion Kevlar-PMI cone

•Neodymium tweeter magnet

•Detachable tweeter

•Grilles and Adaptors included

•Woofer, bullet diffuser for tweeter height extension

•Tweeter relocation kit (flush/surface mount kit)

Configuration Style

Point Source

Point Source w/ Extended Tweeter

Point Source Detached Tweeter

Direct speaker replacement for factory-installed speakers.

The speaker can be detached into woofer and tweeter components so that the woofers can be installed in doors while tweeters can be installed closer to windows and other positions such as the dashboard.

Tweeters can be installed flush or mounted on dashboards and other locations as separate housings are provided.

For installations where the speaker is mounted some distance behind the grille, the supplied tweeter stand-off spacer can be added to extend the tweeter for better high frequency dispersion.

Integrateed Series Speakers

ECLIPSE Integrated Series speakers are integrated concentric units that are designed to replace factory speakers for significantly better music fidelity.

Hybrid Mica PP Cone Woofer

The ECLIPSE speaker cone is hybrid mica PP for rigidity under intense power, ensuring distortionfree performance.

Butyl rubber surround

The butyl rubber surround allows linear cone excursion and dampens cone resonance for undistorted dynamic peaks and clarity at all levels.

Kapton voice coil former

Handles a large amount of heat without deforming.

Tweeter protection

A solid state device protects the speaker system from power overloads. This device will momentarily shut down the tweeter circuit, and will automatically reset when the condition normalizes.

Super tweeter

(for SE8495, SE8375, SE8365,

SE8355, SE8405 only)

To accommodate the extended high frequency response of DVD-Audio discs and to provide superior treble reproduction, the 3-way units incorporate a newly developed super tweeter that goes all the way out to 40kHz (typically 50kHz).

Small neodymium tweeter

The use of a neodymium magnet improves speaker efficiency.

SE8495 6 × 9˝ 4-Way

•RMS power handling: 75W

•Max. power handling: 220W

SE8375 5 × 7˝ 3-Way

•RMS power handling: 40W

•Max. power handling: 120W

SE8355 5-1/2˝ 3-Way

•RMS power handling: 30W

•Max. power handling: 90W

SE8405 4 × 10˝ 3-Way

•RMS power handling: 35W

•Max. power handling: 100W

SE8495 SE8375 SE8465A

6 × 9˝ 4-Way 5 × 7˝ 3-Way 4 × 6˝ 2-Way

50 — 40,000Hz 85 — 40,000Hz 105 — 40,000Hz

93dB 90dB 87dB

●●●

———

●●●

3-1/16˝ 2-1/8˝ 1-3/4˝

Size Frequency Response Sensitivity Hybrid Mica PP Cone Rubber Surround Kapton Voice Coil Former Midrange Dome Mylar Tweeter Dome Super-Tweeter Dome

Neodymium Tweeter Magnet Ferrite Woofer Magnet Mounting Depth

SE8465A 4 × 6˝ 2-Way

•RMS power handling: 30W

•Max. power handling: 90W

SE8245 4˝ 2-Way

•RMS power handling: 25W

•Max. power handling: 75W

SE8465E 4 × 6˝ 2-Way

•RMS power handling: 30W

•Max. power handling: 90W

SE8235 3-1/2˝ 2-Way

•RMS power handling: 20W

•Max. power handling: 60W

SE8365 6 × 1/2˝ 3-Way

•RMS power handling: 40W

•Max. power handling: 120W

SM6500 Marine Loudspeaker

Waterproof full-range speaker

Sensitivity 85dB Woofer Cone 6-1/2˝

(UV Solar-Protected) Tweeter 20mm Aluminum Hard Dome (UV Solar-Protected) Basket Oen Piece Cast Powder Coated

Aluminum Grille Polycarbonite Plastic

(UV Solar-Protected ) Woofer Magnet Ferrite Tweeter Magnet Neodymium Mounting Depth 3-1/2˝

SE8465E SE8365 SE8355 SE8405 SE8245 SE8235

4 × 6˝ 2-Way 6-1/2˝ 3-Way 5-1/2˝ 3-Way 4 × 10˝ 3-Way 4˝ 2-Way 3-1/2˝ 2-Way

105 — 40,000Hz 90 — 40,000Hz 90 — 40,000Hz 65 — 40,000Hz 105 — 40,000Hz 120 — 40,000Hz

87dB 90dB 89dB 91dB 89dB 87dB

●●●●●●

———● ——

●●●●●●

1-3/4˝ 1-7/8˝ 1-7/8˝ 2-3/8˝ 1-5/8˝ 1-1/2˝

Marine Loudspeaker

Specifically designed to withstand the rigors of marine and outdoors environments the SM6500 is ideal for use on boats.

2006/2·E-1095·10 Printed in USA

FUJITSU TEN LIMITED

Contact: FUJITSU TEN CORP. OF AMERICA 19600 So. Vermont Avenue, Torrance, CA 90502 Call: 1-800-55-ECLIPSE (Dealer Locator)

1-800-233-2216 (Information)

www.eclipse-web.com

Notes and Precautions

Product safety notice

• To ensure the safe operation of ECLIPSE products, please read the owner’s manuals carefully prior to using.

• ECLIPSE is not responsible for any accident or damage due to improper installation, connections or products modified in any way.

Warning

• All products are intended for DC 12-Volt operation in negative grounded vehicles only. Never use them in 24-Volt vehicles such as heavy trucks or diesel cars with cold-region specification, aircraft or marine environments unless specifically rated to handle these conditions.

• Do not adjust controls while driving. To adjust the controls, stop the car in a safe location.

Caution

• Installation of products requires experience and knowledge. Ask your ECLIPSE retailer for proper installation.

• ECLIPSE cannot guarantee that every product it manufactures will be able to be installed in every vehicle model or make. To be sure, please consult your ECLIPSE retailer.

• In some cases due to installation-related considerations, additional connecting cables may need to be purchased for an ECLIPSE product.

• The rear view camera is a parking aid. It must be used only to supplement your vehicle's side view and rearview mirrors. It is not a substitute for mirrors and careful driving.

• Do not remove the HDD from the head unit. ECLIPSE is not responsible for any loss of data, damage or malfunction to the disk drive mechanism resulting from unauthorized removal or tampering with the HDD.

• Please be sure to follow instructions provided in the installation manual for correct procedures as incorrect installatiion may affect driving-related operation and/or airbag operation.

• Please make sure only the official parts supplied with the unit are used. Do not substitute other parts as it may affect operation or compromise unit build integrity.

• Optimal MP3 and WMA file reproduction quality depends greatly on the original encoding process. Depending on the original encoding, files may sometimes not play back properly.

• The ECLIPSE navigation system requires its dedicated database for optimal performance. Do not insert other database DVDs that may cause the unit to malfunction or not respond.

General

• Product design and specifications are subject to change without prior notice or obligation as ECLIPSE reserves the right to constantly seek to improve its products.

• Due to characteristics and properties of various photography and printing processes, the color(s) of the actual product may slightly differ from those shown on these pages.

• Some screen images shown are simulated.

• Some graphic examples of ECLIPSE Web services may be

from pre-release software and could vary slightly from the final version.

Licensing and Trademarks

• AVN is a registered trademark of FUJITSU TEN LIMITED.

• Circle Surround II and the SRS logo are trademarks or

registered trademarks of SRS Labs, Inc.

• “Dolby”, “Pro Logic” and the double D symbol 2 are trademarks of Dolby Laboratories and the Dolby Laboratories Licensing Corporation.

• “dts” and “dts Digital Out” is a trademark of Digital Theater System, Inc.

• HD Radio is a trademark of iBiquity Digital Corporation.

• SIRIUS SATELLITE RADIO is a trademark of SIRIUS Satellite

Radio Inc.

• Memory Stick is a registered trademark of Sony Corp.

• Magic Gate is a registered trademark of Sony Corp.

• NAVTEQ ON BOARD is a trademark of NAVTEQ.

• ICEpower

is a registered trademark of Bang & Olufsen

ICEpower a/s.

• iPod

is a trademark of Apple Computer, Inc., registered in

the U.S. and other countries.

Others

• Some recent audio discs may resemble conventional music CDs but are technically not Compact Discs (CD Red Book format) because of the copy protection technology employed. ECLIPSE cannot guarantee operation and performance if these discs are used.

• DVD-R/RW and DVD+R/RW playback is possible only for discs formatted for video mode.

• VR (Video Recording) mode-recorded discs and discs not finalized will not play in the unit.

• Some PC-authored discs may not play due to software application settings during authoring.

• DVD-R/RW, DVD+R/RW and CD-R/RW playback quality may be affected by disk surface condition and disc format initialization process.

• DVD-R/RW, DVD+R/RW, CD and CD-R/RW discs may not operate perfectly on unit due to disc imperfections.

• DVD-R/RW, DVD+R/RW, CD and CD-R/RW disc performance may suffer if a disc exhibits excessive wear, dirt and scratching

• ATRAC3 is an efficient compression codec for digital music files, allowing files to take up just 1/10 their uncompressed size without degrading audio quality.

• Playback of song data is only possible on Magic Gatecompatible memory stick devices.

• Memory Sticks up to 128MB can be used. Initialization must be executed with Windows 2000 or later.

• ECLIPSE is not responsible for any data loss on a Memory Stick or HDD due to unit failure or malfunction.

• Recorded using ATRAC3 compression, an effective compression codec with minimal negative effect on sound quality.

• Song storage can be less than the representative number of song files depending on each song's bit rate and sampling frequency.

Operation notes

• DVD-Video compatible units are only compatible with NTSC standards and Region-1 DVD-Video discs.

• DVD-Video is disabled when the vehicle is in motion. Inserting a DVD-Video will only allow the audio to be heard.

• The Global Positioning System or GPS was developed in the United States. It is a system that pinpoints a current position making use precisely of radio waves transmitted to earth from 3 or 4 GPS satellites.

• GPS data can sometimes be unavailable due to circumstances such as:

•

Interrupted GPS satellite radio waves because of

geographical interference factors such as buildings, tunnels, elevated roads and similar conditions.

•

Unsatisfactory reception due to objects being on or in the

near vicinity of the GPS antenna.

•

Interrupted transmission service may sometimes result

from periodic maintenance or upgrades being performed by the US-based GPS tracking control system.

•

Transmission can be interrupted or degraded when a

digital cellular operating on a 1.5GHz frequency rate is being used in the vicinity of the GPS-enabled unit.

AVN-specific

• AVN7000 map data compiled as of October 2004.

• AVN5495 map data compiled as of June 2004.

• AVN6600 map data compiled as of December 2004.

• AVN5500 map data compiled as of December 2004.

• Do not follow a navigation route if it could place you in an

illegal, unsafe, or dangerous situation.

• Navigation controls cannot be operated in a moving vehicle.

• Please do keep in mind however that since emergency

service providers sometimes change locations and services, a phone call should be made first to verify current availability before proceeding to the destination.

AVX/CD Receivers-specific

• Use map data while being aware of actual road conditions and obeying traffic rules.

• Some E-iSERV graphic examples may be from pre-release software and may vary slightly from the final version.

• Copying, publishing and the use of maps in electronic media or form are only possible when express written consent has been obtained prior to usage.

Eclipse AVN6600, AVN5500, MRE-700, WHP-100, iPC-106 Brochure

Specifications and Main Features

Frequently Asked Questions

User Manual
