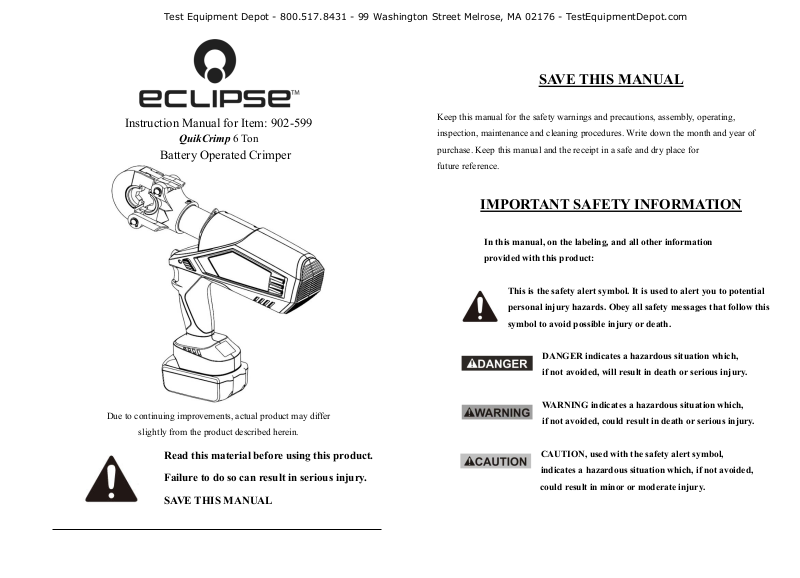

Instruction Manual for Item: 902-599

QuikCrimp 6 Ton

Battery Operated Crimper

Due to continuing improvements, actual product may differ

slightly from the product described herein.

Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write down the month and year of

purchase. Keep this manual and the receipt in a safe and dry place for

future reference.

IMPORTANT SAFETY INFORMATION

In this manual, on the labeling, and all other information

provided with this product:

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

DANGER indicates a hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a hazardous situation which,

if not avoided, could result in death or serious injury.

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL

CAUTION, used with the safety alert symbol,

indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

GENERAL SAFETY RULES

TO WORK IN SAFE CONDITIONS WITH THIS TOOL, IT IS IMPERATIVE TO READ

DIRECTIONS CAREFULLY AND TO FOLLOW THE INSTRUCTIONS CONTAINED. IF

YOU DO NOT RESPECT THE INFORMATION WRITTEN IN THIS INSTRUCTION

MANUAL THE WARRANTY MAY BE VOIDED.

h. Please keep the battery out of the tool to avoid power discharge.

i. Please do not burn the battery or cause short-circuiting, this may cause an

explosion.

j. Do not use an inoperable battery otherwise it can cause an electrical shock.

k. Do not disassemble the battery and charger yourself. If any problem occurs, please

contact the manufacturer or agent.

1. Work area safety:

a. Keep work area clean and clear.

b. This tool is not insulated; do not use on live conductors.

c. Please do not use or store the tool under high temperatures, or around corrosive

fluids. Pay attention to the sealing kits wearing down.

d. Keep children and bystanders away while operating the battery powered crimping

tool. Distractions will cause you to lose control.

2. Electrical safety:

a. Make sure the plug matches the outlet. Never try to change the plug.

b. Do not put tool, battery or charger in a rainy or humid environment, it is easy to

trigger an electrical shock if any water contacts the electrical system of the tool.

c. Do not use electric wire to carry, pull, or draw out the plug and do not connect the

“-”and “+”. The damaged or frayed wire may cause an electrical shock.

d. If the charger is crushed or dropped or if any other damages occur, do not try to

repair it by yourself. Instead, send it back to the authorized service center as soon

as possible. The damaged charger may cause an electrical shock.

e. The best temperature for charging is between 50°F-104°F. Make sure the air hole

of the battery and charger are uncovered during charging.

f. Please cut off the power to the charger each time to reduce the risk of injury to

children or the those who are not experienced with the tool.

g. Do not wait until the battery is completely depleted for recharging.

3. Personal safety:

a. Stay alert, watch what you are doing and use common sense when operating the

tool. Do not use the tool while you are tired or under the influence of drugs, alcohol

or medication. A moment of inattention may result in series personal injury.

b. Always use safety equipment such as a mask, helmet, safety cap, insulating shoes,

etc. to reduce the risk of personal injury.

c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and

gloves away from moving parts. Loose clothes, jewelry or long hair can be caught

in moving parts.

d. Maintain your power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the tool’s operation. If

damaged, have the tool repaired before use. Many accidents are caused by poorly

maintained power tools.

e. Please use the tool properly, the tool with a correct power source will do the job

better and safer at the rate for which it was designed.

f. Do not put your fingers into the head of the tool during operation. Your fingers

could be injured severely.

3. Service:

UNDERSTAND YOUR TOOL

Make sure your Battery Crimping Tool is serviced by a qualified service technician

using only identical replacement parts. This will ensure that the safety of the Battery

Crimping Tool is maintained.

SPECIFIC SAFETY RULES

1) Maintain all labels on the tool that carry important safety information. If unreadable or

missing, contact the manufacturer to replace.

2) This product is not a toy, keep out of reach of children.

3) Do not put your fingers into the head of the tool during operation. Yo ur fingers could be
injured severely.

4) Make sure the head is locked firmly during operation.

5) Do not use the tool without dies.

6) Do not crimp on live cables or conductors.

7) Do only crimp copper or aluminum material.

8) Do not remove limit screw in the head of the tool. This prevents the head from

dropping or popping off.

9) Make sure the head is locked firmly during operation.

10) This tool is not meant for continuous use. After 30 to 40 cycles, allow the tool to cool

for 15 minutes.

11) Do not secure this tool in a vise. This tool is designed for hand-held operation.

12) The built-in safety valve goes through strict pressure tests before marketing; please do

not adjust the pressure yourself. For any pressure related issues, please return the tool

back to the service center. Continue use only after the tool is reissued by trained service

technician.

13) The warnings, precautions, and instructions discussed in this instruction manual cannot

cover all possible conditions and situations that may occur. It must be understood by the

operator that common sense and caution are factors which cannot be built into this

product, but must be supplied by the operator

.

902-599 is a tool for crimping Cu/Al lugs with cable from 6 AWG - 600 MCM. It is powered
by a Li-ion battery, actuated by motor and controlled by MCU, with OLED display and a high
pressure hydraulic system, it is a perfect tool to be used in the electrical and construction
industries.

1. Specification

Max. crimping force: 6 To n

Crimping range: 600 MCM Cu and Al

Stroke: .67 inches

Hydraulic oil: Shell Tellus T15# S2V HV15

Oil capacity: 160 ml

Ambient temperature

Voltage/Capacity: 18V/3.0Ah

Time/crimp: 2.5-5s(Depend on the size of cable)

Time/charger: Approx. 350 times (CU 300 MCM)

Charging time: Approx.1hour

Size of tool: 16x13x3in

Package: Plastic box

Accessories: None

Crimping dies: 6, 4, 2, 1/0 2/0, 3/0 4/0 AWG and 300, 350, 500, 600 MCM

Battery: 2 pcs

Charger: 1 pcs

-14 to 104°F
