EcLine EC-OS-7200D User Manual

User’s Manual

Copyright © 2010

This manual is copyrighted, with all rights reserved. Under the copyright laws, this
manual may not, in whole or in part, be copied, photocopied, reproduced, translated or
converted to any electronic medium or machine readable form without prior written
consent of manufacturer

Important

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to EN55022, and with the limits for a class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the user’s manual, may cause harmful
interference to radio communications. Operation of the equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense. Any unauthorized changes or modifications to this
equipment could void the user’s authority to operate this equipment.

For CE-countries:

- This equipment is in conformity with the CE standards

Table of contents

Preface ...................................................................................................i

Chapter 1 Product Overview........................................................................ 1

1.1 Unpacking............................................................................ 2

1.2 Declaration of conformity ...................................................... 4

1.3 Scanning bar codes.............................................................. 5

1.4 Scanner labelling................................................................... 6

1.5 Maintaining the scanner........................................................10

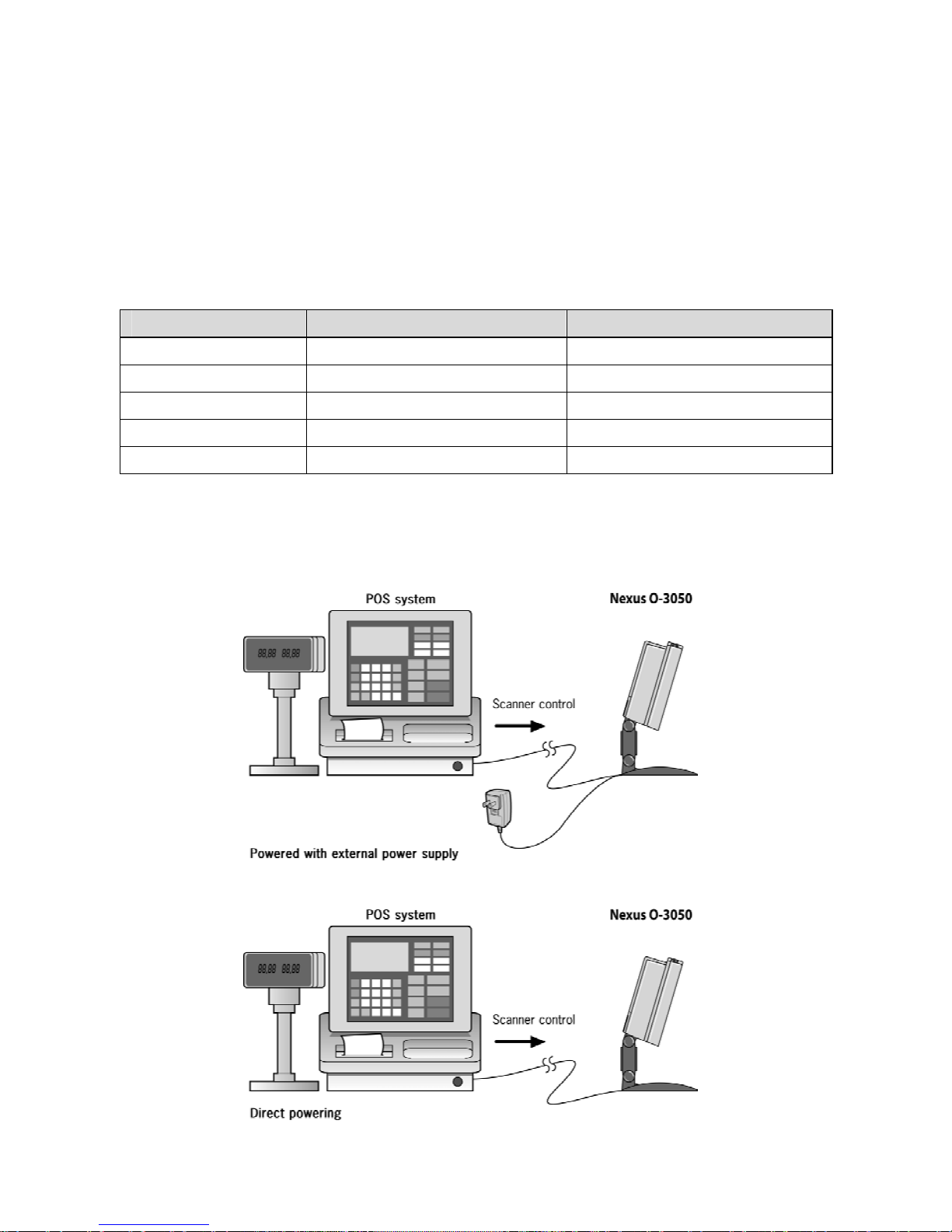

1.6 Controlling the scanner from the POS system.........................11

Chapter 2 Installation...................................................................................... 13

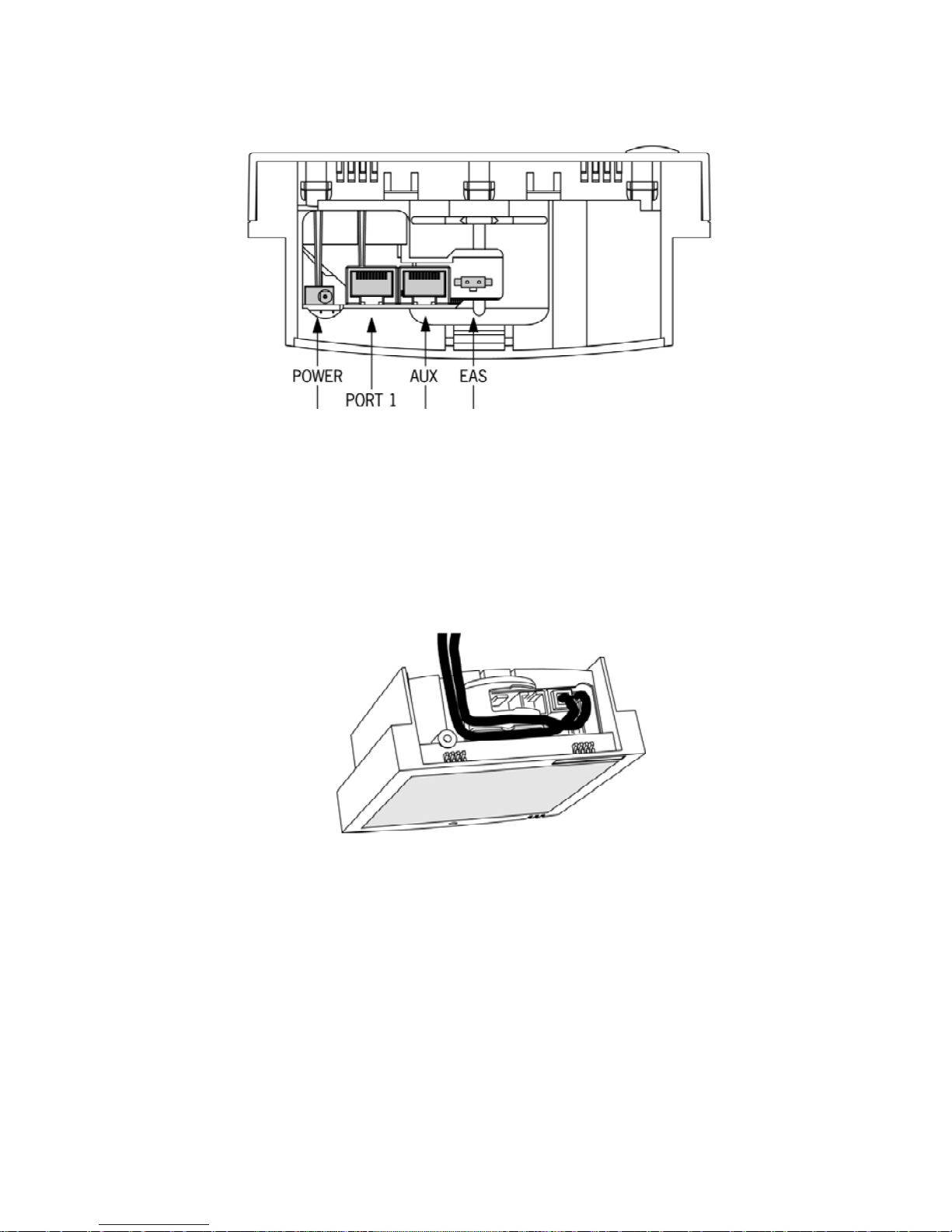

2.1 Connecting the scanner....................................................... 14

2.2 Interface selection .............................................................. 16

2.3 Installing the scanner on a counter surface ........................... 17

2.4 Installing the scanner with the counter stand ............................ 19

2.5 Installing the scanner using the flexible scanner stand............ 19

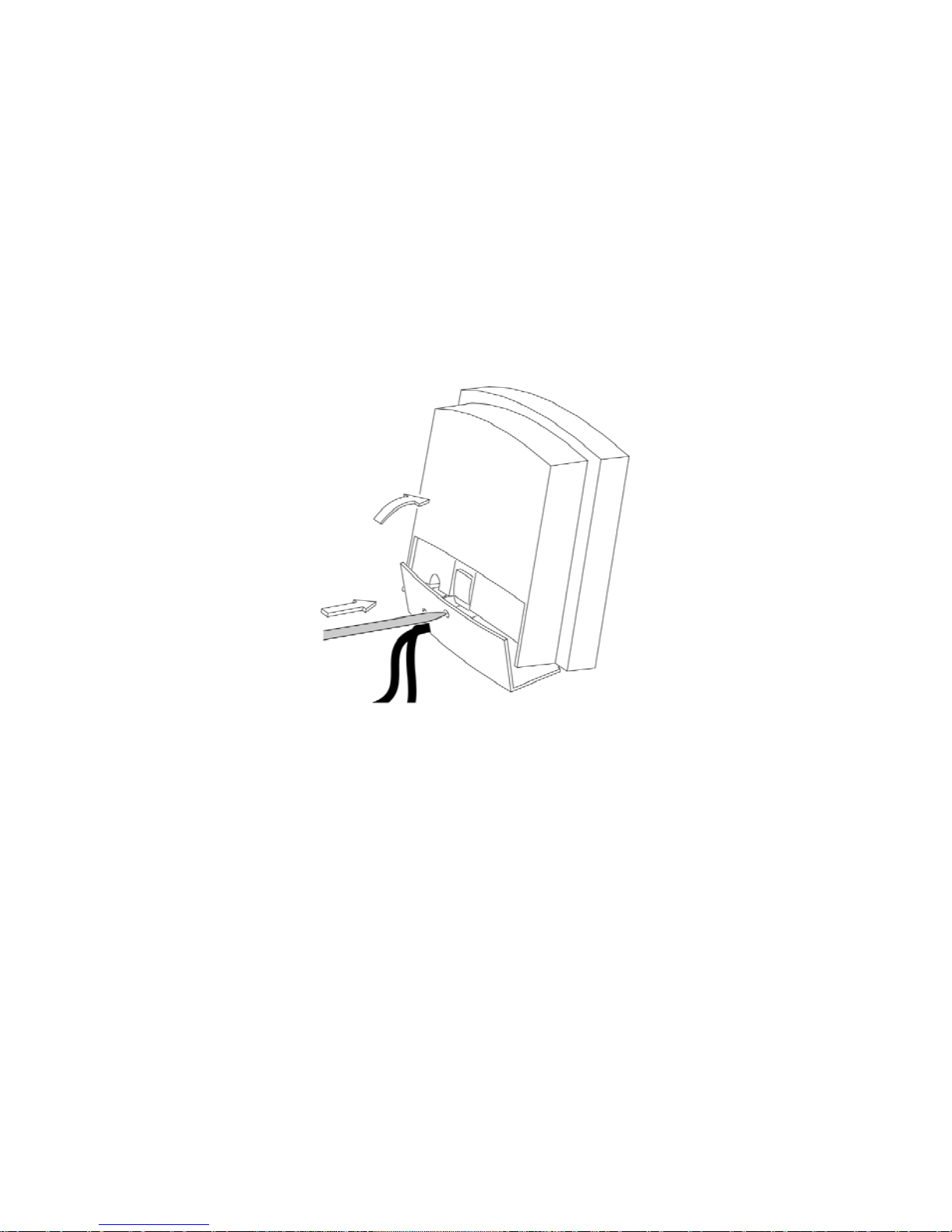

2.6 Removing the scanner from the back cover plate .................. 23

Appendices ............................................................................................... 24

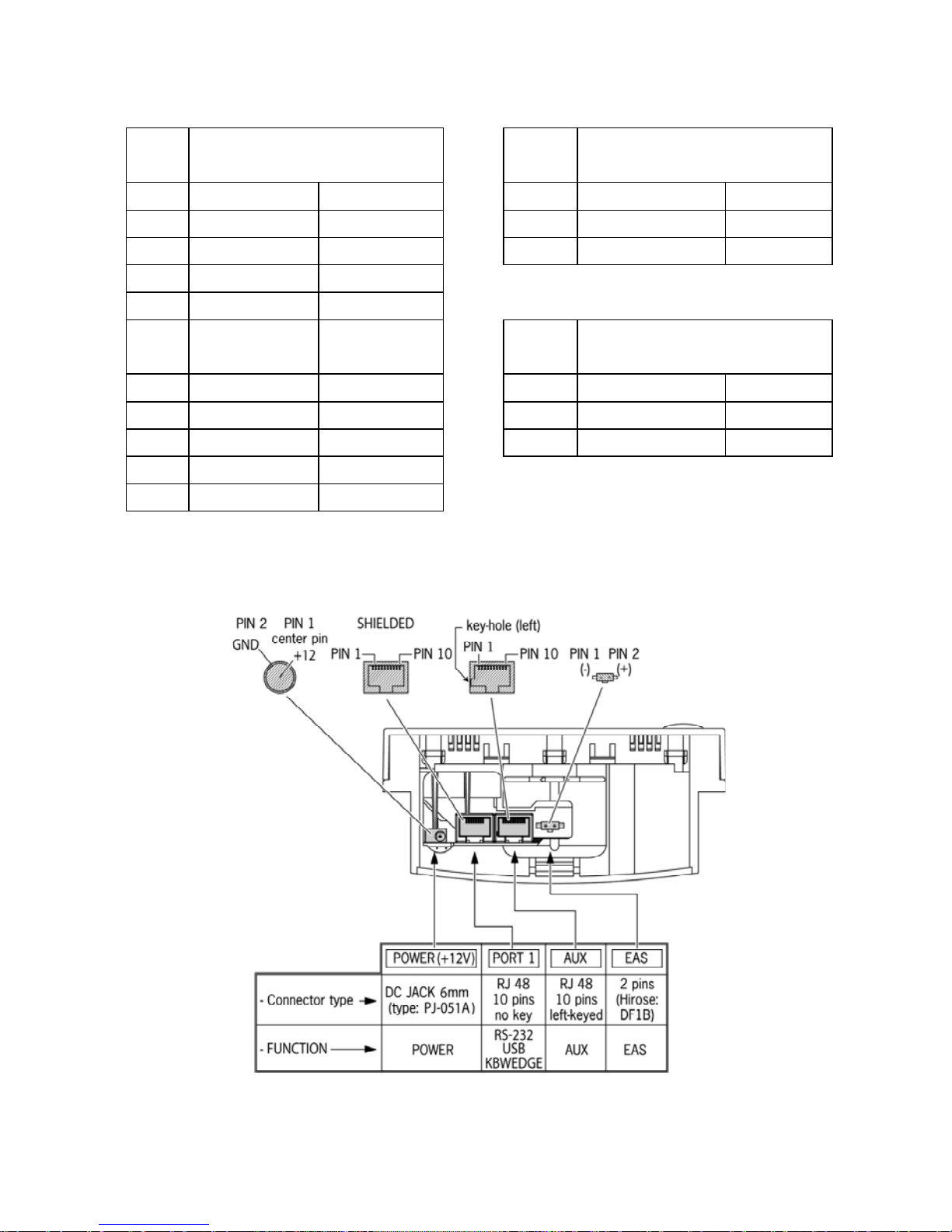

A Connector types and pin definitions...................................... 25

B Technical specifications....................................................... 27

C Troubleshooting.................................................................. 29

Preface

The unit is a new presentation laser scanner which allows hands free bar code
scanning. Bar code labels are read by presenting the labels towards the unit.
Scanning labels with this unit hardly requires any arm movement.
As a result only little free space on the counter top is necessary.

This unit can either be fixed on a counter surface or on a flexible stand. The
flexible stand allows you to direct the scan pattern in a way that is optimal for
your application.

This unit reads all popular bar code symbologies. An important feature of this
unit is its programmable sleep mode. If the unit is not used within a
programmable period of time, the unit switches off automatically. The unit can
be re-activated by pressing the switch on top of the unit.
This unit is available in two colour versions, both supporting multiple interface
for communication with any host system. The multiple interface versions are:
RS-232 + USB + P-USB + Keyboard Wedge.

This manual contains two chapters and three appendices. The first chapter
describes this unit and its general features. The description for installation can
be found in the second chapter. Precisely follow the instructions for the
installation of the unit. Default settings can be changed with the bar code
labels from the Configuration Guide that came with the unit. Appendix A gives
the pin definition for the Data ports of the unit. The pin definition may be
required when you want to make a new cable for communication with the POS/
computer. Technical specifications of this unit can be found in Appendix B.
Refer to Appendix C for troubleshooting if the unit is not working properly.

Chaper 1 Product Overview

Product Overview

2

1.1 UNPACKING

Remove the unit and its accessories from the box and packing material. Refer
to the packing list to make sure you have received all the items ordered.
Visually inspect the unit and accessories for any evidence of physical damage.
Refer to the upper figure on page 5 to locate the interface label and make sure
that the unit interface corresponds with the host system interface. Immediately
contact your supplier if anything appears to be damaged, or if the supported
interface does not correspond with the host system interface.

Product Overview

3

The specific parts of this unit are:

Sleep mode button

- When a sleep mode time-out is programmed,

the unit can be re-activated by pressing this
switch. The sleep mode feature is
programmable with the menu labels from the
Configuration guide.
NOTE: The default value for the sleep mode
time-out is set to 30 minutes. When the unit is
in sleep mode, the LED is intermittently flashing
red.

LED

Good read buzzer

- A red LED indicates that the unit is ready to
read a bar code. A green LED indicates a good
read.

- The buzzer is heard when

ever data has been
read correctly. The frequency and volume can
be adjusted

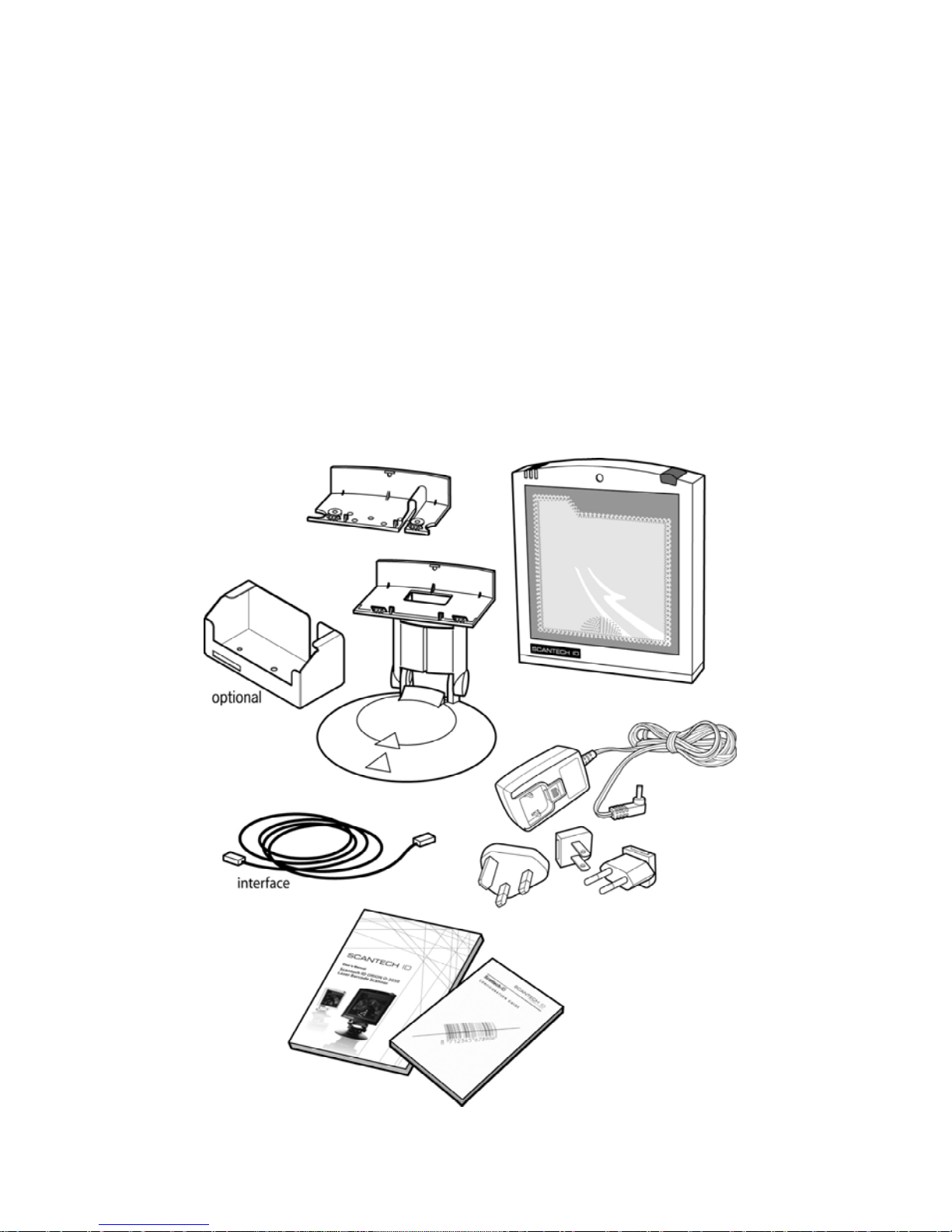

Standard parts & accessories:

Flexible scanner
stand

Back cover plate

Interface cable

Power supply

User’s manual

Configuration guide

- The rotary and flexible stand allows you to
direct the scan pattern in a way that is optimal
for your application (a mounting kit with screws
and tapes

is included).

- This plate serves to fix the unit to the counter.

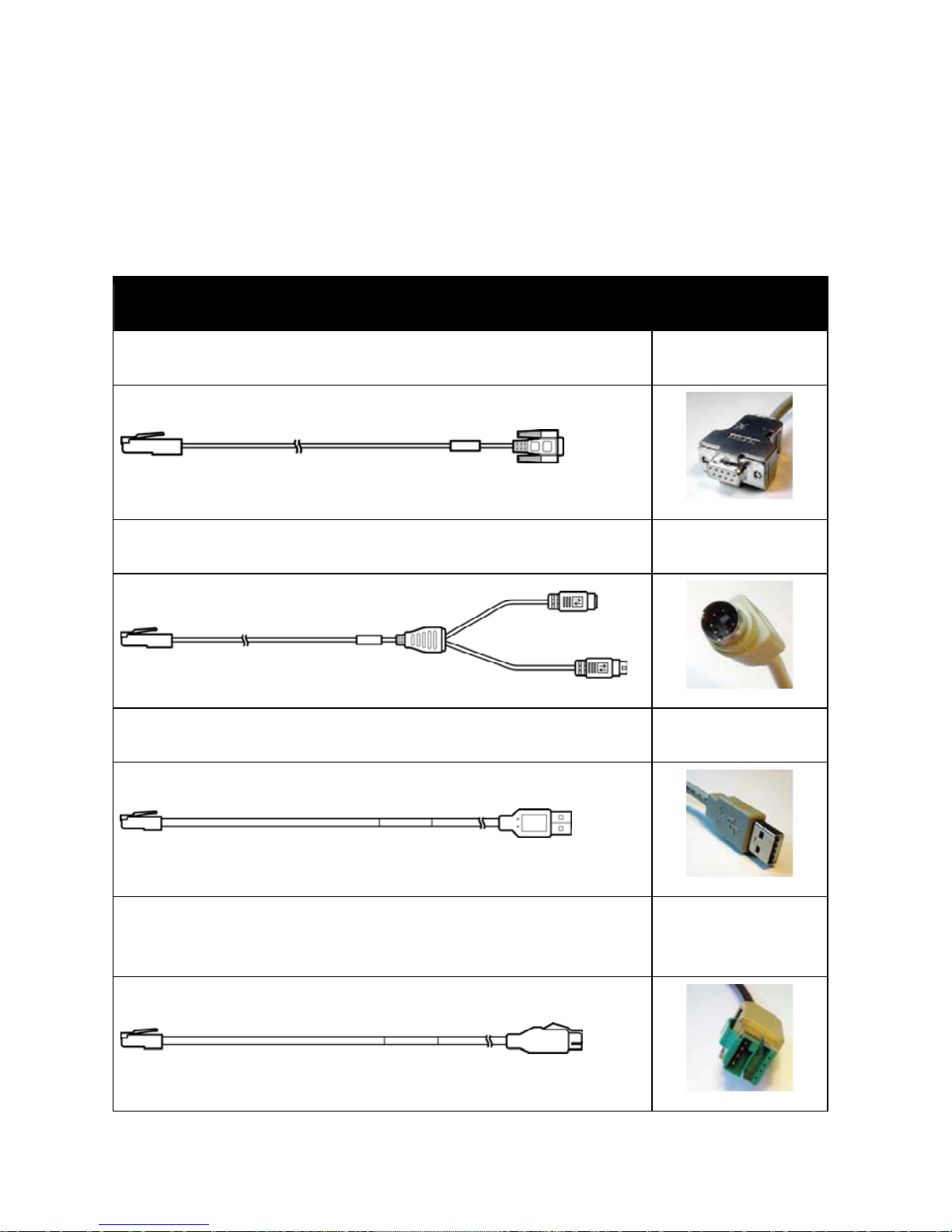

- One of various types of cable to connect to

your host computer / POS system.

- Powers your scanner via the AC power outlet if
your scanner is not directly powered.

- This manual in print

- Booklet containing barcodes for configuration

of your scanner

Optional parts & accessories:

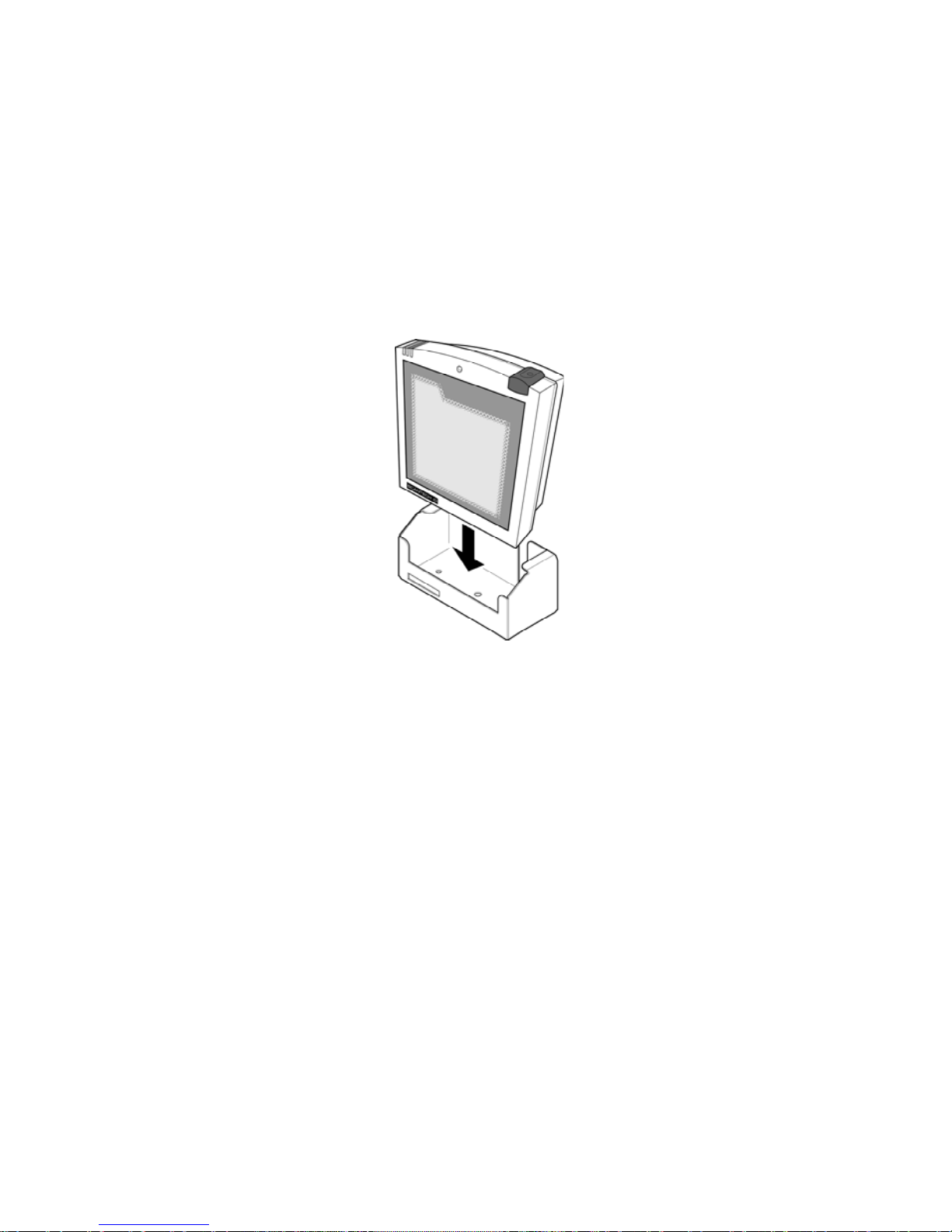

Counter stand

-

The stand serves to fix the unit to the

counter.

Product Overview

4

1.2 DECLARATION OF CONFORMITY

Will comply with the following product specifications:

Laser Safety: -

IEC 825-1 (1993)
Electrical Safety: - EN 60950 (1992), IEC 950 (1991)
EMC: - EN 55022:2006 + A1:2007

- EN 61000-3-2: 2006

- EN 61000-3-3: 1995 + A1:2001 + A2:2005

- EN 55024:1998 + A1:2001 + A2:2003

- IEC 61000-4-2: 1995 + A1: 1998 + A2: 2000;

- IEC 61000-4-3: 2006 + IEC: 61000 -4-4: 2004;

- IEC 61000-4-5: 2005 + IEC: 61000 -4-6: 2003; +A1: 2004 +A2: 2006;

- IEC 61000-4-8: 1993 + A1: 2000; IEC 61000 -4-11:2004

Product Overview

5

1.3 SCANNING BAR CODES WITH THE EC-OS-7200

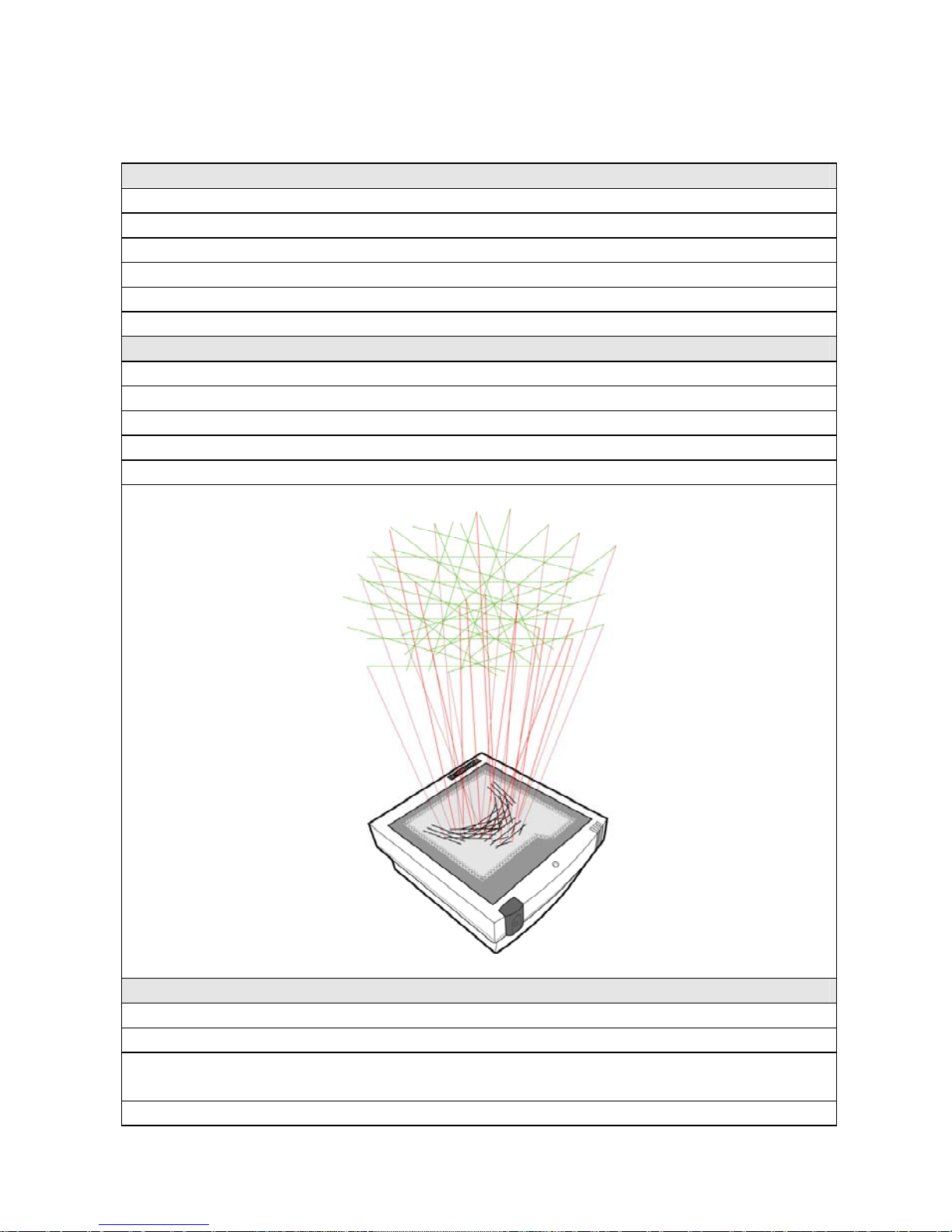

This unit is an omni-directional presentation scanner featuring a 7 directional
scan field with a 24 lines scan pattern. Bar code labels can easily be read by
presenting them to the unit.

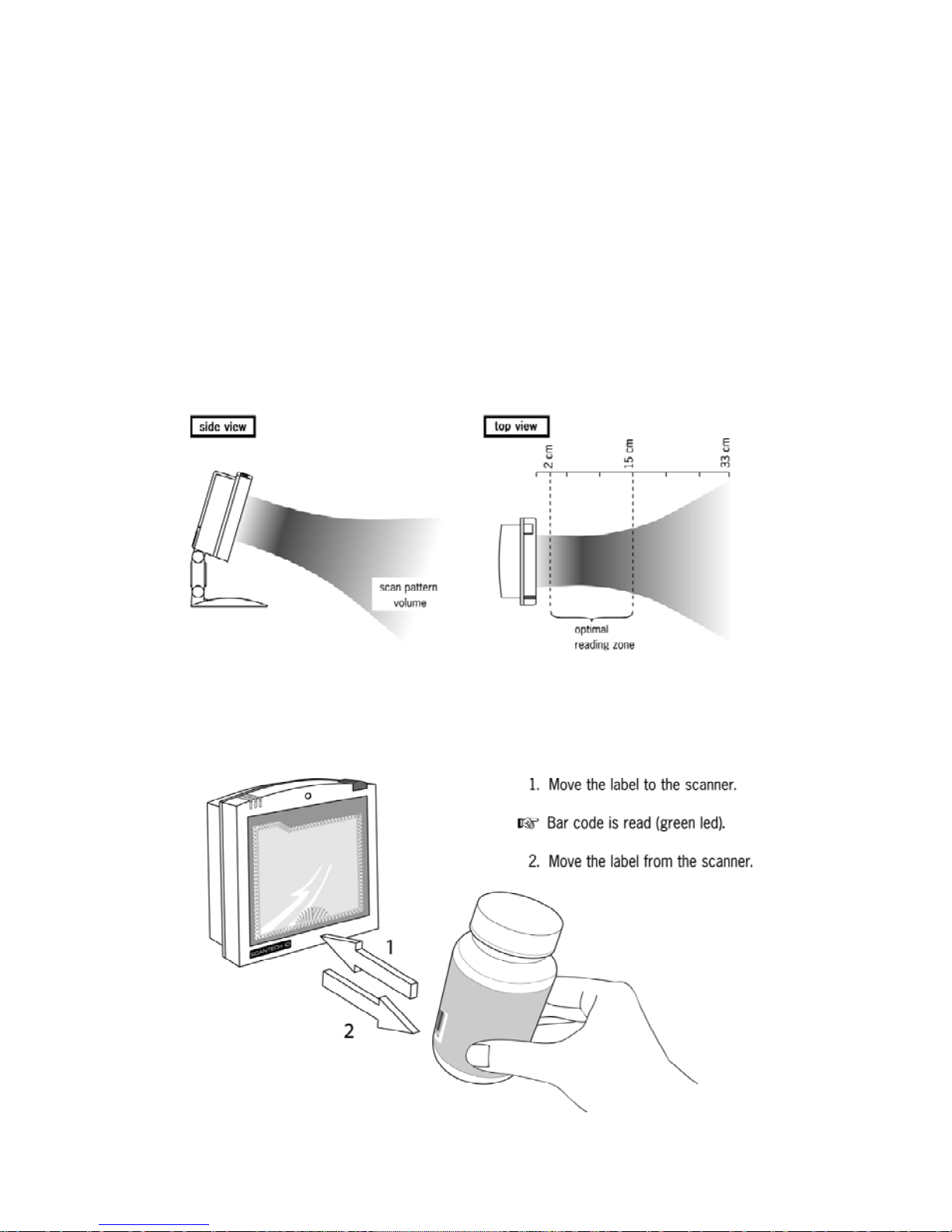

The unit's scan volume is illustrated in the figure below. The optimal reading
zone lies between 2 and 15 cm from the unit window, but bar codes can be
read up to 30 cm (11.8 in.) from the unit window.
If a scanner with flexible stand is purchased, the stand allows you to direct the
optimal reading zone in a way that suits your application most.

Scanning a bar code label with a presentation scanner is very simple:
present the product’s

bar code label to the unit as illustrated in the figure

below.

Product Overview

6

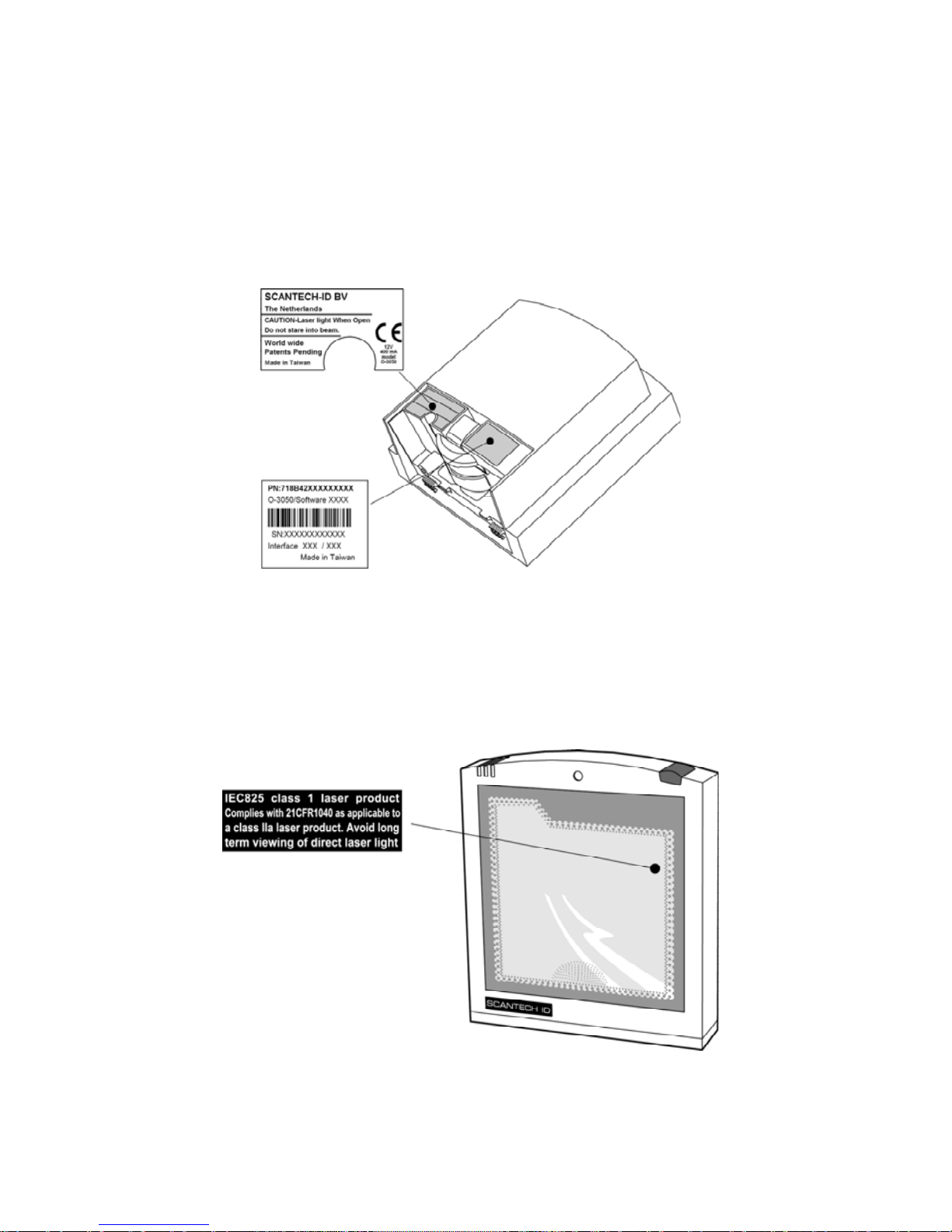

1.4 SCANNER LABELLING

Two labels are present on the housing of the EC-OS-7200 as indicated
in the figure below. Two labels are also visible through the unit window.
All labels are attached by the manufacturer and should not be removed.

The unit’s serial number is found underneath the bar code label as depicted in
the figure above. This official registration number is strictly related to the
device. The supplier may ask

for this number when the unit needs servicing.

Product Overview

7

Laser safety

German:

Der Strichcode-Scanner entspricht den Sicherheitsvorschriften nach IEC 825-1 (1993) für ein
Laserprodukt der Klasse I. Er entspricht auch U.S. 21CFR1040, anwendbar auf ein Laserprodukt der
Klasse IIa. Vermeiden Sie langzeitiges Hineinblicken in direktes Laserlicht.

Dutch:

De scanner voldoet aan de veiligheidsnormen IEC 825-1 (1993) voor een Klasse I laserproduct.
Tevens voldoet de scanner aan U.S. 21CFR1040, van toepassing op een Klasse IIa laserproduct.
Vermijd langdurig kijken in direct laserlicht.

French:

Le scanner est conforme aux normes de sécurité IEC 825-1 (1993) s’appliquant à un produit laser
de la classe I. Il est également conforme à la U.S. 21CFR1040 telle qu’elle s’applique à un produit
laser de la classe IIa. Eviter de rester exposé longtemps à la lumière directe du laser.

Danish:

Skanneren er i overensstemmelse med sikkerhedsstandarden IEC 825-1 (1993) for laserprodukter i
klasse I. Den er også i overensstemmelse med U.S. 21CFR1040, der gælder for laserprodukter i
klasse IIa. Undgå at se direkte på laserlys i længere perioder.

Finnish:

Skanneri täyttää luokan I lasertuotteelle IEC 825-1:ssä (1993) asetetut turvavaatimukset. Se täyttää
myös U.S. 21CFR1040:ssa asetetut vaatimukset siltä osin kuin ne koskevat luokan IIa lasertuotetta.
Vältä pitkäaikaista suoraan laservaloon katsomista.

Swedish:

Avsökaren uppfyller säkerhetsnormen IEC 825-1 (1993) för laserprodukter av klass 1. Den uppfyller
dessutom U.S. 21CFR1040 som gäller för laserprodukter av klass IIa. Undvik att titta i direkt laserljus
under längre perioder.

Norwegian:

Skanneren er i samsvar med sikkerhetsstandarden IEC 825-1 (1993) for laserprodukter i klasse I.
Den er også i samvar med U.S. 21CFR1040 for laserprodukter i klasse IIa. Unngå å se langvarig på
direkte laserlys.

Italian:

Lo scanner è conforme alle norme di sicurezza IEC 825-1 (1993) relative ad un prodotto laser di
Classe 1. È inoltre conforme alla norma U.S. 21CFR1040 relativa ad un prodotto laser di Classe IIa.
Evitare l'esposizione prolungata all'emissione diretta di luce laser.

Portuguese:

O scanner está conforme as normas de segurança IEC 825-1 (1993) para a Classe 1 dos produtos
laser. Também está conforme a norma U.S. 21CFR1040 aplicada nos produtos laser da Classe IIa.
Evite expor os olhos directa e prolongadamente aos raios laser.

Product Overview

8

Spanish:

El scanner reune las normas de seguridad IEC 825-1 (1993) para un producto laser de Clase 1. Y
también reune las normas U.S. 21CFR1040 que se aplican a un producto laser de Clase IIa. Se
debe evitar mirar muy fijo en luz lasérica directa.

English:

The scanner complies with safety standard IEC 825-1 (1993) for a Class I laser product. It also
complies with U.S. 21CFR1040 as applicable to a Class IIa laser product. Avoid long term viewing
of direct laser light.

Optical:

The use of optical instruments with this product will increase eye hazard. Optical instruments include
binoculars, microscopes and magnifying glasses but do not include eye glasses worn by the user.

Radiant Energy:

The unit uses a low-power laser diode operating at 630…670 nm in an opto-mechanical scanner
resulting in less than 0.6 mW peak output power. Laser light observed at 13 cm (5.1 in.) above the
window through a 7 mm (0.28 in.) aperture and averaged over 1000 seconds is less than 3.9 µW
per CDRH Class IIa specification. Do not attempt to remove the protective housing of the scanner,
as unscanned laser light with a peak output up to 0.8 mW could be accessible inside.

Laser Light Viewer:

The unit window is the only aperture through which laser light may be observed on this product. A
failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause
emission levels to exceed those for safe operation. The scanner has safeguards to prevent this
occurrence. If, however, a stationary laser beam is emitted, the failing scanner should be
disconnected from its power source immediately.

Adjustments:

Do not attempt any adjustments to or alteration of this product. Do not remove the scanner’s
protective housing. There are no user-serviceable parts inside.

CAUTION: Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous laser light
exposure.

9

Product Overv

iew

1.5 MAINTAINING THE SCANNER

The unit requires little maintenance. Only occasional cleaning of the unit window
is necessary to remove dirt and fingerprints. Cleaning can be performed during
operation with a non-abrasive glass spray cleaner and a soft lint-free cloth.

Product Overview

10

1.6 CONTROLLING THE SCANNER FROM THE POS

SYSTEM

The EC-OS-7200 can be controlled from the POS system via the RS232C
interface. Control is achieved by transmitting the following single byte
commands to the unit. Default setting the following commands are
available (more details upon request):

ASCII code function byte is also called:

05 Hex power-up re-initialization ENQ or <Ctrl-E>
OE Hex enable (cancels disable) Shift Out or <Ctrl-N>
OF Hex disable Shift In or <Ctrl-O>
12 Hex sleep DC2 or <Ctrl-R>
14 Hex wake (cancels sleep) DC4 or <Ctrl-T>

When the unit is disabled (indicated by the blinking red LED), the motor of the
unit will stay on until the unit goes into sleep mode.

Chapter 2 Installation

Installation

14

Depending on the way you want to use the unit, this unit can be installed in
two different ways: fixed on a counter surface or on a flexible stand.
Instructions for installation on a counter surface are given in Section 2.1.
Instructions for installation on the flexible stand are given in Section 2.2.

Due to many POS systems on the market, a large number of communication
cables are available. Make sure that you have the right cable to connect the
unit to your POS or computer.

NOTE

The unit and the host system must be switched off before sta

rting
the installation of the unit. By following this precaution you prevent
any electrical damage.

You are advised to install the unit in an air circulated place out of
direct sunlight.

2.1 CONNECTING THE SCANNER

Before you connect any cables to the unit, check whether you should guide
them through the foot or counter surface!

This unit features a triple interface in one standard unit:

 RS232 + Keyboard Wedge (KBW) + USB and powered USB.

It also provides:

 Auxiliary port for additional scanner
 EAS connector
 Power connector

If you use “Direct Powering”, power is supplied by the host and you do not need
to connect an external power supply to the Power Input entry.

Installation

15

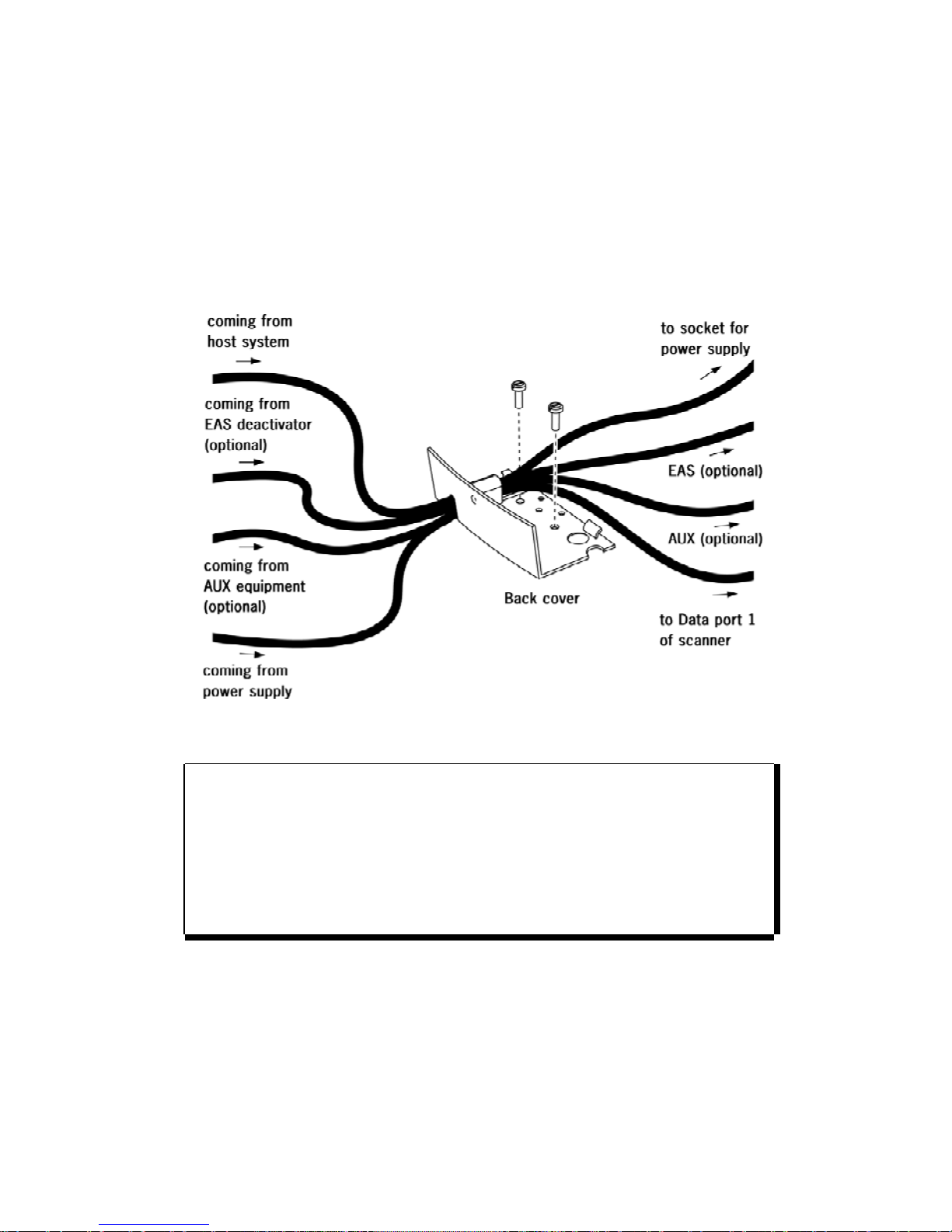

Use the illustration below to see where to connect your cable(s) to the unit.

Before cl

osing the back cover later on (see mounting instructions in chapter 2.3

and 2.4) guide the cables through the unit as shown in the illustration below.

Data port 1. Connect the communication cable to
this port if the host system features the RS232C,
KBWedge, or USB interface.

Installation

16

2.2 INTERFACE SELECTION

This unit allows you to connect your host system using four different
interface cables: RS232, Keyboard Wedge, USB, and Powered USB. On
powering up, the unit senses the type of the interface used and switches to
the appropriate protocol.

Interface Cable Connector type

RS232 (Product Number: 0114-S806121)

Sub-D 9-pin

Keyboard Wedge (Product Number: 0114-S805121)

Standard PS2

USB (Product Number: 0114-S802121)

USB connector

Powered USB (Product Number: 0114-S801121)

Powered USB

connector

Installation

17

2.3 INSTALLING THE SCANNER ON A COUNTER SURFACE

To install the unit

without the flexible scanner stand, follow the instructions

below.

1. Remove the two rubber feet from the back cover. Lead the communication

cable and power supply cable through the slit. Fasten the back cover to the
surface with two screws as illustrated in the figure.

NOTE

 You can use the back cover as a template to mark the places

for the

mounting holes at the counter surface and drill two

holes.

 If you do not want to drill holes in the counter top, the unit can

be installed without fixing it to the surface. In this case the
rubber feet will prevent the unit from sliding.

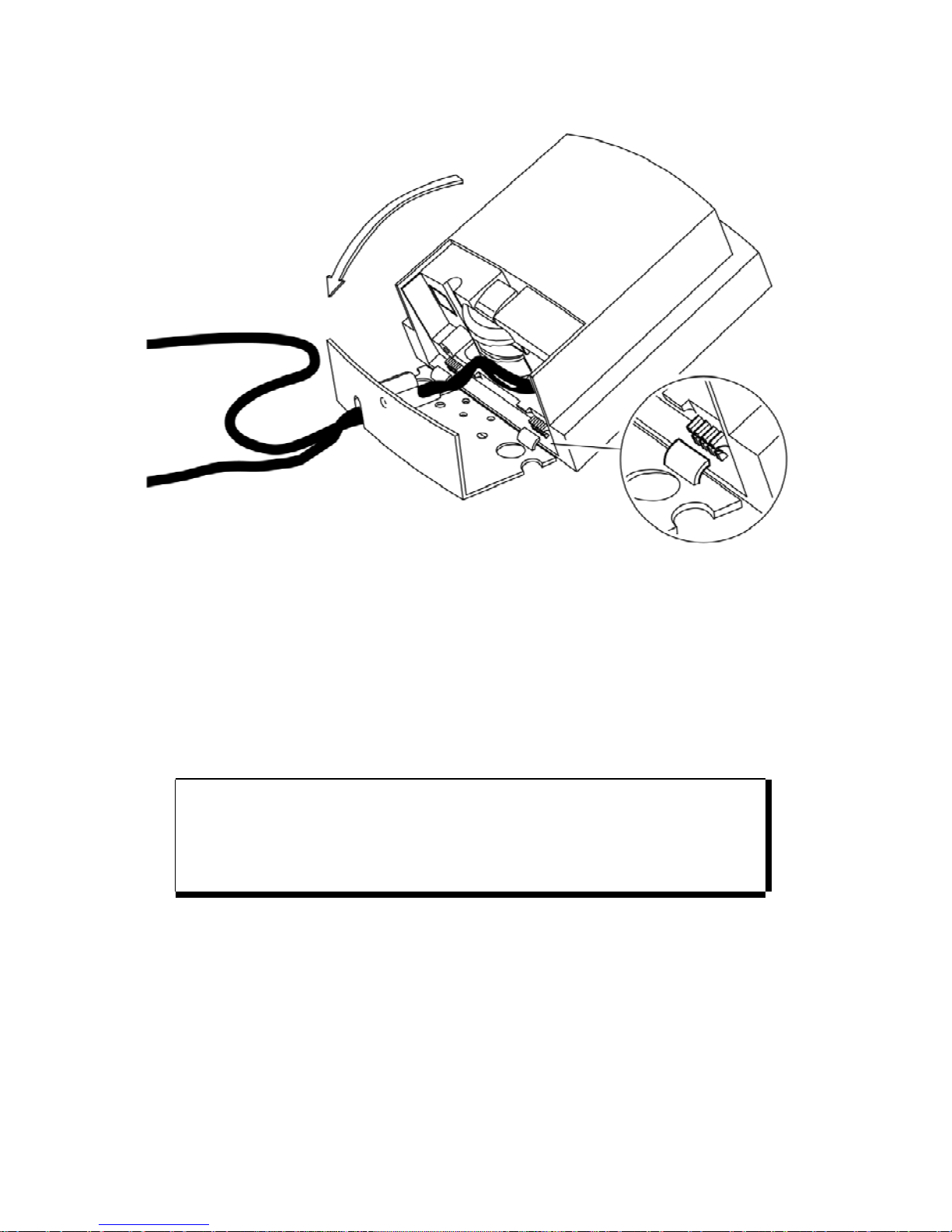

2. Position the unit

as indicated in the figure below and rotate the unit

around the cover. Make sure that connectors and cables are placed as
indicated

in the figures, to allow easy attachment of the unit to the back

cover. Press the unit until a "click" is heard.

Installation

18

3. Plug the remote ends of all cables into the appropriate connections of your
host POS-system.

4

. If you are using an external power supply, power on the unit by plugging the

power supply into an AC power outlet. Switch on the host system.

IMPORTANT

To activate USB or KBW interface, scan the following codes
from the Configuration Guide:

1. Open the unit Programming Mode by scanning code 1.1.

2. Return

to factory default settings by scanning code 1.3.

Once the unit is installed, you can start scanning bar code labels. If you want to
change

the default settings of the unit, proceed to the Configuration Guide

which came with the unit.

Installation

19

2.4 INSTALLING THE SCANNER WITH THE COUNTER STAND

To install the unit with the light stand, follow the instructions below:

1. Fix the stand to the desired place using screws and the screw holes on the
stand.

2. Get all cables connected.

3. Position the unit into the stand as indicated in the figure below.

4. Turn on the host system.

Once the unit is installed, you can

start scanning bar code labels. If you want to
change the default settings of the unit, proceed to the Configuration Guide
which came with the unit.

2.5 INSTALLING THE SCANNER USING THE FLEXIBLE

SCANNER STAND

To install this unit on the flexible scanner stand, lead the cables through the
stand to be connected to the unit. Furthermore the stand should be fastened
to the counter top. Finally, th

is unit should be fastened to the stand.

You are advised to precisely follow the next steps:

1. Remove the cover disk (center cap) from the stand and remove the bott

om

plate from the stand.

Installation

20

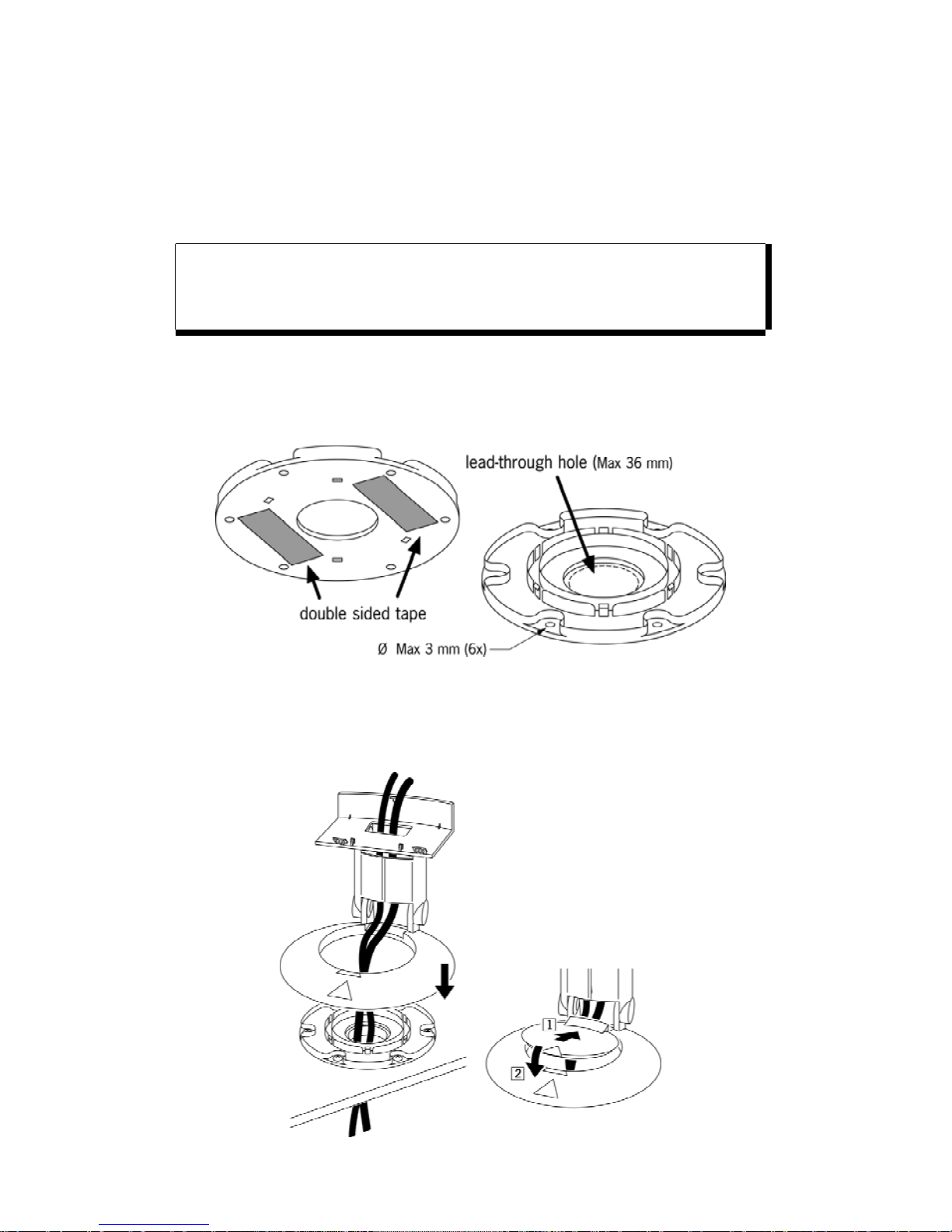

2. Place the bottom plate on the counter and mark the places for the mounting

holes on the counter top and mark the hole to lead the cables through.

3. Drill the mounting holes and the lead-through hole.

NOTE

If you prefer not to drill in your counter, you can mount the stand
using the provided double-sided tape and have the cables leave the
foot at the rear, just above the circular basis.

4. Fix the bottom plate on the counter top using the screws or tape from the

moun

ting ki

t.

5. Lead the cab

les from the bottom upwards through the hole in the counter,

through the bottom plate and through the scanner stand.

Installation

21

6. Click the stand on the bottom pl

ate.

7. Connect the cables to the unit. Refer (for the data cable in particular) to

chapter 2.1 for the correct connections.

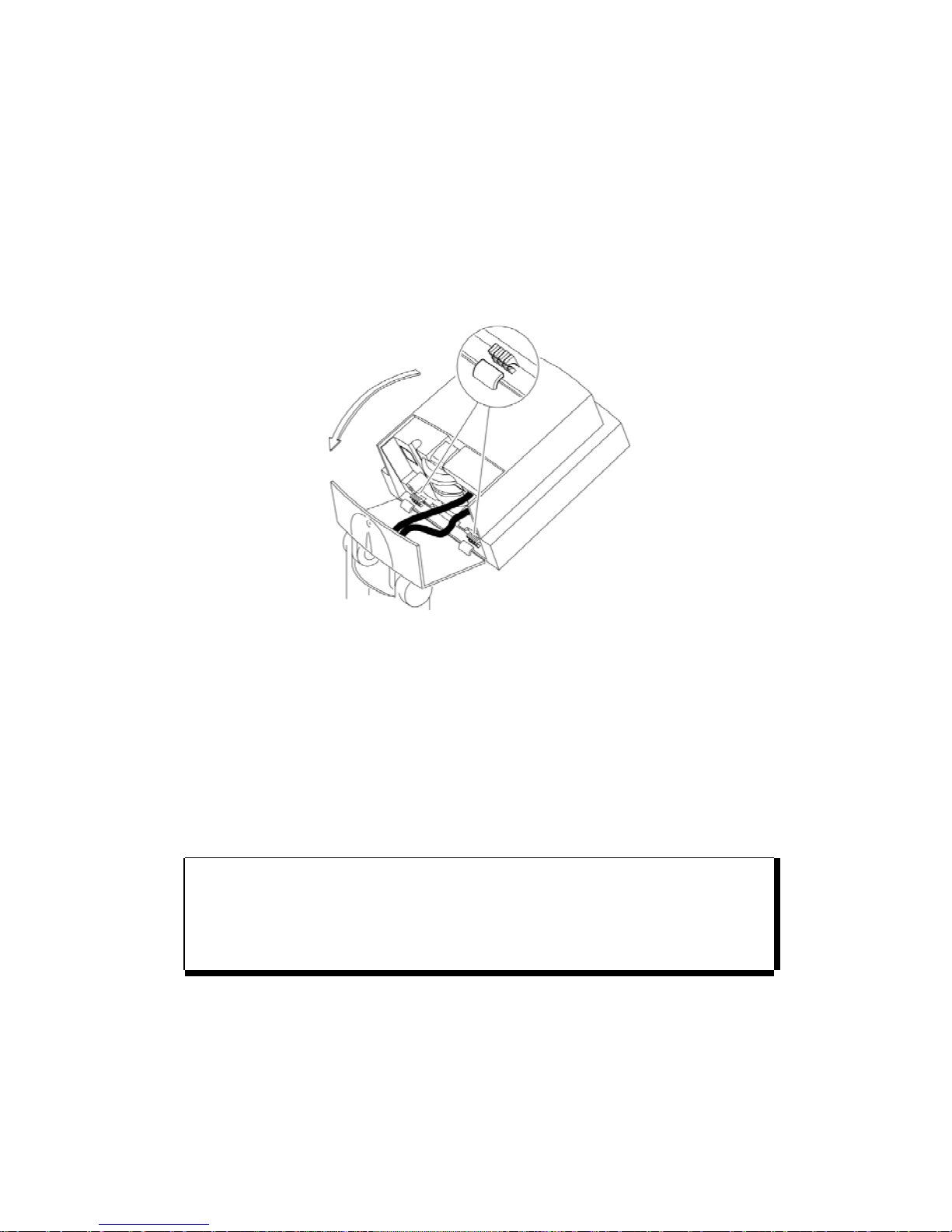

8. Place this unit onto the flexible stand and rotate the unit as indicated in the

figure. Make sure that connectors and cables are properly placed to allow
easy attachment. Press the unit until a "click" is heard.

9. Click the cover disk on the foot of the stand.

10

. Connect the data cable to the host.

11. Place the unit in the desired angle. In case you have an external power

supply, plug the power supply into an AC power outlet.

12. Switch on the host system.

IMPORTANT

To activate USB or KBW interface
scan the following codes from the Configuration Guide:

1. open the unit Programming Mode by scanning code 1.1

2. return to factory default settings by scanning code 1.3

Once the unit is insta

lled, you can start scanning bar code labels. If you want to
change the default settings of the unit, proceed to the Configuration Guide
which came with the unit.

Installation

22

2.6 REMOVING THE SCANNER FROM THE BACK COVER

PLATE

To remove this unit from the back cover plate, that is either attached on the
counter or on the scanner stand:

1. Locate the small hole at the back cover of the unit.

2. Remove the back cover by pressing it with the tip of a stick as indicated in

the figure.

Appendices

A. Connector types and pin definitions

B. Technical Specifications

C. Troubleshooting

Appendices

24

A CONNECTOR TYPES AND PIN DEFINITIONS

This unit supports triple interface in one standard unit: RS232, Keyboard
Wedge (KBW) and USB/USB plus power. The various pin definitions for the
ap

plicable Data port are given on page 20 and 21. The connector to be

used for the port is indicated below.

To activate USB or KBW interface, follow this sequence:

1. Plug in the appropriate interface cable and then power up the
unit.

2. Scan the following codes from the Confi

guration Guide:

- Open the unit Programming Mode by scanning code 1.1

- Return to factory default setti

ngs by scanning code 1.3

Pin definitions for multi interface:

Connector: RJ-48, 10 pins

Multiple Interface

RS-232 KBW USB Powered USB

Pin Description Description Description Description Remark

1 - - IFID IFID IFID = Interface ID
2 CTS PC-Clock - - ­3 RxD PC-Data - - ­4 TxD KB-Data - - IFID = Interface ID
5 RTS KB-Clock - - ­6 Ground Ground Ground Ground Ground
7 - PC - 5V PC - 5V - -

8 - - - +12V

Direct Power,

may be used

to

power scanner

9 -

IFID: connect

to ‘6’

D + D +

IFID = Interface ID

D + = USB data

10 - -

D - D - D - = USB data

Appendices

25

Pin definition for all scanner versions:

AUX Port for HH scanner

EAS

Pin Description Direction Pin Description Direction

1 +5 VDC output 1 ( - ) ­2 CTS input 2 (+) ­3 RXD input
4 (reserved) -

5 RTS output

POWER

6 GND -

Pin Description Direction

7 (reserved) - 1 +12V input
8 (reserved) - 2 GND
9 (reserved) -

10 (reserved) -

The EAS connectio

n is used to connect the internal deactivation antenna to an

external EAS control unit.

Appendices

26

Appendices

27

B TECHNICAL SPECIFICATIONS

Electrical

Power supply voltage 100 – 240 V ac 50/60 Hz (adapter)
DC input to scanner 12VDC, 165mA nominal, 95mA standby

Interfaces RS-232 + USB + Powered-USB + Keyboard Wedge

Optical

Light source Visible laser diode (650 nm)
Depth of field 330 mm
Scan pattern 7 directions scan field, 24 lines scan pattern
Scan rate 2000 scans / second

Decoding

Bar code types EAN/UPC/JAN + Add-on, Code 32 (Ital. Pharmacode)

Code 128, EAN 128, Code 39 (+ full ASCII), Code 93,
Codabar, Interleaved 2/5 and GS1 Databar

Appendices

28

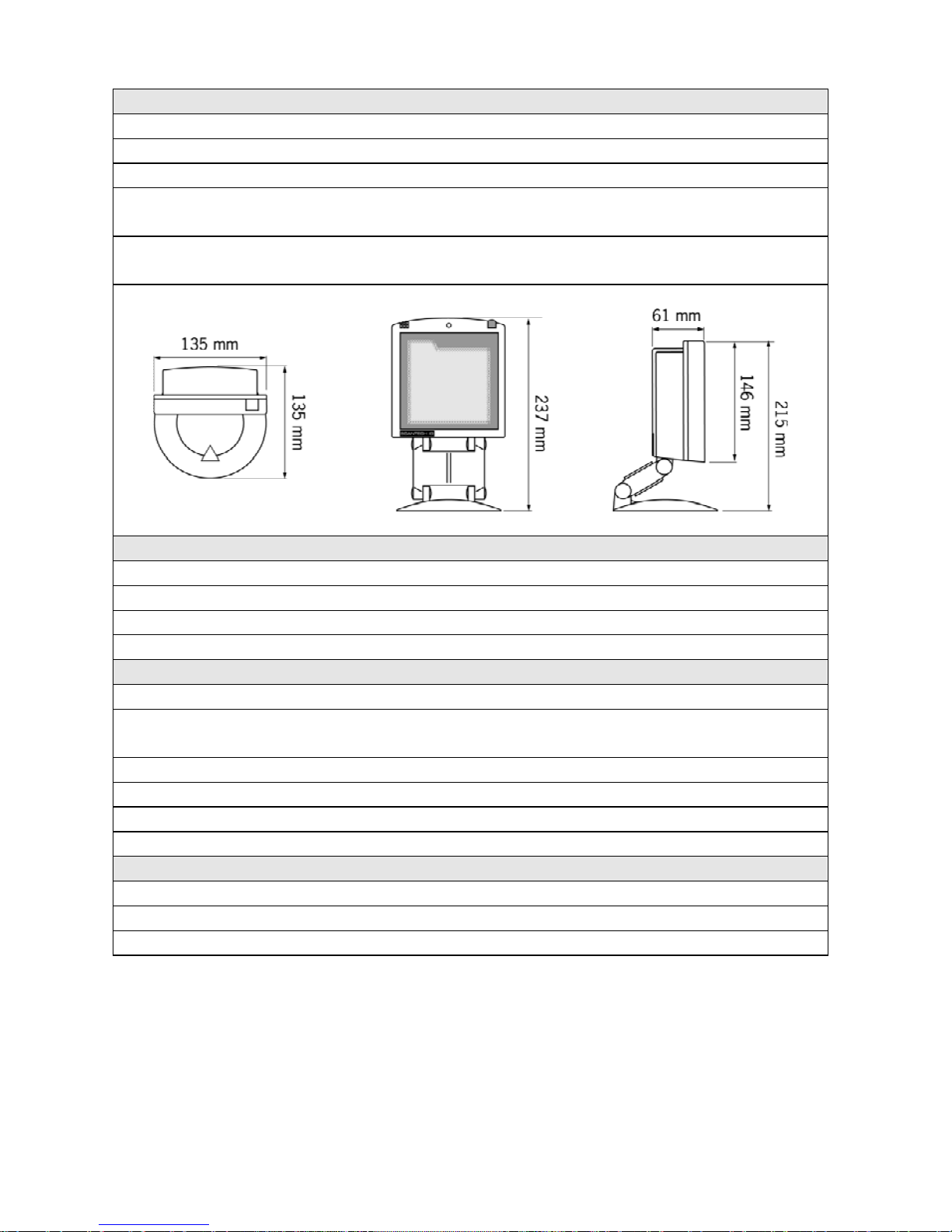

Physical

Weight 500 g
Weight with stand 675 g
Dimensions H x W x D : 146 x 135 x 61 mm

: 5.75 x 5.35 x 2.40 inch

Dimensions with stand H x W x D : 215-237 x 135 x 135 mm

: 8.47 – 9.34 x 5.35 x 5.31 inch

Environmental

Operating temperature 0° C ~ 40° C
Humidity 20% ~ 95% RH (non-condensing)

Safety

Laser safety IEC 825-1 (1993) Class I, U.S. CDRH: 21CFR1040

Class II a

Electrical safety EN 60950 second edition

UL1950, c-UL (according CSA22.2.950)

Flammability rate 94V-0

EM Compatibility

Radio and TV interference EN 55024/22, FCC Part 15 class B, CNS 13438
Electro Static Discharge (ESD) IEC 801-2 (1991)

Appendices

29

C TROUBLESHOOTING

This section contains information on solving problems you may encounter when
using the unit. If troubles occur, take a moment to read the information in this
section. Howeve

r, before referring to the diagnostic tips make sure that the
unit is installed as described in Chapter 2 and that all cables are properly
connected.

Problem Diagnostic Tips

The unit is on but a bar code
cannot

be read. The LED is red.

 The unit window is dirty. Clean the

unit

window as described in the

Maintenance section.

 The presented bar code type is not

enabled. Select the bar code type
with the Configuration Guide.

 This unit is disabled by the host.

Refer to Section 1.6.

 The bar code type you presented to

the unit is not supported by the unit.

The unit is on, but the motor is not
rotating. A bar code cannot be read.
The LED is intermittently flashing red.

 The unit is in sleep mode. Press the

switch on top of the unit to
reactivate the unit (or use the wake
protocol. Refer to section

1.6).

The LED is alternating red/green  Mirror motor is defective and must

be r

eplaced (Authorized pers

onnel

only).
The LED is alternating red/green and
beeps are heard.

 Possible failure of the scanning

safeguard circuit. Immediately

disconnect

the unit from its
power source. Contact your
supplier.

The unit does not accept more
than two or three bar codes

 There is no proper handshaking with

the host

system. Sw

itch the host
system on and check connection
and com

munication settings.

Appendices

30

Problem Diagnostic Tips

The LED is orange.  The laser is not functioning. The

las

er is defective. Contact yo

ur

supplier.

The LED is blinking orange.

 The ambient temperature is too

high. Make sure the

unit has
enough air ventilation and is not
placed in direct sunlight.

The LED remains green

 The unit is continuously seeing a bar

code. Remove all bar code labels
from the scan volume

of the unit

and try again.

 The unit cannot send the data to the

host system. There is no proper
handshaking between the unit and
the host. Scanner buffer is full.
Make sure that all cables are
connected and your host system is
ready to receive data.

A bar code is read by the unit but not
accepted by the host

system.

 The communication cable is not

connected to the serial port of your
host system. Refer to the manual of
your host system to locate the serial
port.

 The communication settings of the

host and unit do not match. Ensure
that the setting values for both
devices

are the same. For proper
adjustment values see the
Configuration Guide.

 The communication cable does not

suit your host system. Contact your
supplier for the correct
communication cable.

 The data format is not supported by

the software running on the host
system.

Appendices

31

Problem Diagnostic Tips

USB is not working

 Unless you use USB plus power, you

need a separate power connection
to the unit like the external power
supply.

 Rest

art the unit by temporarily
disconnecting the power. This may
help the POS system to detect the
unit. The very first time the PC might
install some general drivers, possibly
from your computer setup CD.

 In case of KB emulation you can

select various ‘keyboard languages’
or the universal ‘Alt-input-method’.

 In a windows environment verify with

the device manager that a HID
(Human Interface Device) is installed
for the unit.

 Ensure that both the unit and POS-

system/Computer expect the same
USB protocol (KB emulation, RS-232
emulation or IBM POS protocol).
See Configuration Manual for setup
codes and reset (re-power) the unit
after making any changes.
