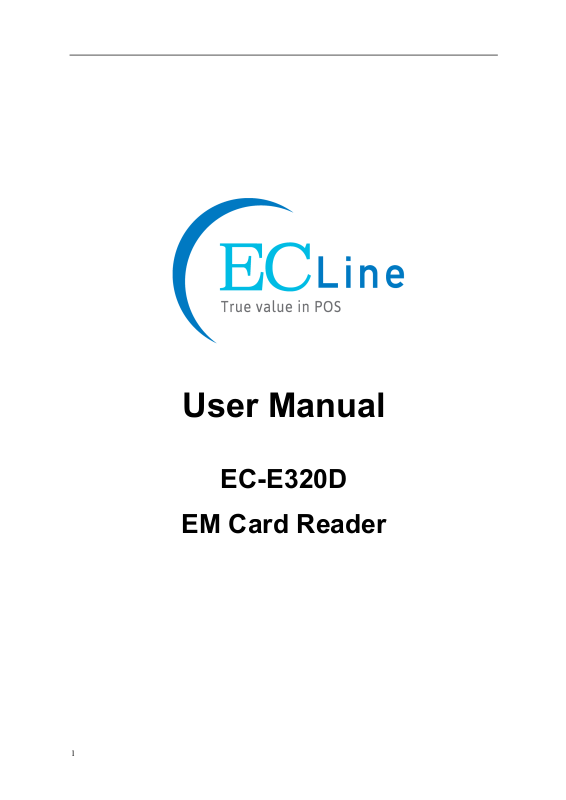

Page 1
1
User Manual
EC-E320D
EM Card Reader
Page 2
2 / 6 April-2018
Chapter(I:(Overview!
1 Introduction：
The EC-E302D is an advanced EM Card Reader, it reads the EM card
identification number and transmits to any connected device. It has a
slim and attractive design and is built for convenience and portability.
With its USB interface, it’s plug and play, and runs without any additional
power source. Designed to sit safely on any desktop, the EC-E302D is
sturdily built, with surface gripping rubber feet.
1.1 Features
² Reads EM Card ID
² Support EM4001, EM4100 or its compatible RFID, ID Card.
² Read first 10 digits of the RFID / Proximity Card
² Bi-Colored LED Light (Green & Red Lights)
² Supports USB 2.0 Standard (compatible with USB 1.1),
² Support Windows 95 / 98 / 2000 / 2003 / XP / Vista / Windows 7 /
Windows 8.1 / Windows 10 / Linux / Android
² Plug and Play, Driverless Device
Page 3
3 / 6 April-2018
Chapter II: Technical Specifications
2.1 Electrical Characteristics:
Operating Voltage Range
5 VDC (USB Powered)
Standby Current
70 mA
Max. Operation Current
90 mA
Supported Transponders
EM Cards
Read Card Distance
5 - 8 cm
Operation Frequency
125 kHz
Communication Speed
106 Kbit/s
2.2 Environmental Characteristics:
Operating Environment
Indoor Use
Operating Temperature Range
-10℃ to 70℃
Storage Temperature Range
-20℃ to 83℃
Relative Humidity Range
0 to 90% (non-condensing)
2.3 Physical Characteristics:
Weight
140g (with USB Cable)
Dimensions (L x W x H)
105 x 70 x 11.8 (4.2 x 2.8 x 0.5 in.)
Page 4
4 / 6 April-2018
Chapter III: Product Illustrations
3.1 The Card Reader Interface
Interface
Mini USB
Page 5
5 / 6 April-2018
Chapter IV: Installation Instruction
4.1 Connect USB Cable with Card Reader and Computer
Mini USB port connect to the card reader and the USB port connect to
the computer.
4.2 Card Reader Successful Connection
Hearing ‘drip’ sound and the red LED lights to indicate there is power to
the reader.
4.3 Plug and Play (Driverless) on Windows OS
The card reader was self–test successful. The device without install any
driver, windows will automatically recognize it.
4.4 Complete Installation
Open MS Excel or Word, the card number would be input by self. The
green LED flashes during the reading process.
! !
Page 6
6 / 6 April-2018
Manufacturer: EC LINE
Thank you very much for using EC Line product
For service, please contact service@ecline.com.hk
www.eclinepos.com
