USER MANUAL MANUAL DE INSTRUCCIONES NOTICE D'UTILISATION BEDIENUNGSANLEITUNG

DAM514

Graphic Symbol Explanation

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flashes printed next to the OUTPUT terminals of the amplifier are intended to alert the user to the risk of hazardous energy. Output connectors that could pose a risk are marked with the lightning flash. Do not touch output terminals while amplifier power is on. Make all connections with amplifier turned off.

WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug the apparatus during lightening sorts or when unused for long periods of time.

13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been

damaged in any way, suck as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Disconnecting from mains: Switching off the POWER switch (25) all the functions and light indicators of the amplifier will be stopped, but fully disconnecting the device from mains is done unplugging the power cord from the mains input socket (23). For this reason, it always shall remain readily operable.

USER MANUAL

1. IMPORTANT NOTE 04

1.1. Compliance with international standards 04

2. INTRODUCTION 05

3. INSTALLATION 06

4. FRONT PANEL 07

5. BACK PANEL 10

6. MAIN SCREEN/MIXER MODE/PRESET MANAGEMENT 12

6.1. MAIN SCREEN 12

6.2. MIXER MODE 13

6.3. RECALL PRESET MENU 13

6.4. SAVE PRESET MENU 14

7. INPUT EDIT MENU 16

8. OUTPUT EDIT MENU 20

9. SETUP MENU 22

10. FRONT PANEL LOCKOUT MENU 25

11. CLEANING 26

12. DIAGRAMS 27

12.1. Function list 27

12.2. Function diagram 27

13. TECHNICAL CHARACTERISTICS 106

14. CONFIGURATION DIAGRAM 108

15. BLOCK DIAGRAM 109

All numbers subject to variation due to production tolerances. ECLER S.A. reserves the right to make changes or improvements in manufacturing or design which may affect specifications.

1. IMPORTANT NOTE

Congratulations! You have acquired the result of painstaking design and manufacturing. Thank you for having chosen our DAM514 digital audio mixer. In order to get the optimum operation and efficiency from your product, it is VERY IMPORTANT before you plug anything - to read this manual very carefully and take seriously into account all considerations specified within it. We strongly recommend that its maintenance be carried out by our Authorised Technical Services.

1.1. Compliance with international standards

The DAM514 complies with the following international standards: EN55103-1 Electromagnetic Compatibility.

Product family standard for audio, video, audio-visual and entertainment lighting control apparatus for professional use Part 1: Emission EN55103-2 Electromagnetic Compatibility. Product family standard for audio, video, audio-visual and entertainment lighting control apparatus for professional use Part 2: Immunity

EN60065 Audio, video and similar electronic apparatus. Safety requirements Complying with the requirements of directives 73/23/EC and 2004/108/EC

2. INTRODUCTION

DAM514 DIGITAL AUDIO MIXER

The DAM514 is a digital audio mixer featuring 5 audio inputs and 4 outputs, DSP processing, RS-

232 connectivity and four remote control ports (0-10VDC).

Main features

 3 stereo line inputs, with RCA connectors  2 balanced dual inputs (microphone/line), with Euroblock connectors, configurable as

independent inputs (mono) or as a fourth stereo linked input

 4 balanced audio outputs, with Euroblock connectors: each output is configurable as a separate

zone output (mono) or as a linked output for a stereo zone (1&2/3&4)

 DSP with 24-bit quantization and 48kHz sampling frequency  2x20 characters LCD Display on the front panel  4 setup keys + digital rotary encoder to navigate in the menus and set the parameters  1 backlit LED key (MUTE or selection function + input or output channel setup) for each input and

each output (9 in total)

 4 REMOTE ports (0-10VDC) to control the volume of inputs or outputs, select sources, recall

presets etc. from external devices, such as WPm series panels

 PAGER port to connect the MPAGE4 4-zone paging station  MUTE port for the muting of one or several output zones via external contact closure  RS-232 interface and compatibility with EclerCOMM software (free download from

http://www.ecler.com/en/products/software.html

) and CA-NET protocol for external remote

control

 Processing:

o Independent level controls for each input and output o Independent mixing of a combination of inputs (channel activation and level) for each

output zone (up to 4 independent mixes)

o Independent 3-band tone adjustment (BASS-MID-TREBLE) for each input o Independent crossover filters for each output o Independent 10-band graphic equalizer for each output o High-Pass filter with adjustable frequency for the MIC/LINE inputs (inputs 4 and 5) o PAGER/DUCKER, independently configurable for inputs 4 and 5, with 2 priority levels o Noise gate, independently configurable for inputs 4 and 5 o Audio feedback (Larsen effect) suppressor, independently configurable for inputs 4 and 5

 System templates for the creation of user setups:

o T1: 4 stereo inputs x 4 mono outputs o T2: 4 stereo inputs x 2 stereo outputs o T3: 4 stereo inputs x 1 stereo output + 2 mono outputs o T4: 3 stereo inputs + 2 mono inputs x 4 mono outputs o T5: 3 stereo inputs + 2 mono inputs x 2 stereo outputs o T6: 3 stereo inputs + 2 mono inputs x 1 stereo output + 2 mono outputs

Each system template automatically sets the operating and control mode of the channels and their settings, including the stereo linked group they pertain to. Example: in a stereo input or output configuration, the settings applied to the left channel are also automatically applied to the right channel, and vice versa

 User presets: 20  Editing names (labels) of inputs, outputs and user presets  Three front panel locking modes, with password protection: total, with the exception of

MUTE/VOL for inputs and outputs, or with the exception of MUTE/VOL of outputs and activation and input levels

3. INSTALLATION

The DAM514 can be mounted in a standard 19” rack (482.6 mm) taking up one height unit

(44 mm).

For professional use it is recommended to place the processor in the same rack as the power

amplifiers.

Given the small power consumption of the unit, no ventilation is required. Nevertheless, it is

advisable not to expose the unit to extreme temperatures as well as ensure a dry and dust-free operating environment.

It is important not to place the processor next to electrical noise sources such as transformers,

voltage dimmers, motors, etc. or their mains supply cables. The metal cover of the device should never be removed under any circumstance for that same reason.

The DAM514 operates with alternate current (AC) between 90 and 264V at 47 to 63Hz. This

device features an oversized power supply which adapts itself to any mains voltage around the world, without the need of manual adjustment.

Even though the noise produced by powering up is minimum, it is always advisable to follow this

power up sequence: signal sources, mixing unit, processor and, finally, power amplifiers. The power down sequence must follow exactly a reverse order. By closely following this sequences, all peaks or transients produced by switching on and off devices do not affect the next devices in the chain and, of course, never reach the loudspeakers, which are extremely sensitive about this.

Ground Loops

Care should be taken, so that the different mechanical and electrical grounds, as well as the chassis and ground connections arriving to the device, to be independent from each other.

Ground loops can be easily detected through a low frequency hum noise (50Hz). Depending on the level of this noise, it can interfere on the music quality.

Audio connections

Usually, many people do not care enough about the quality of cables. Many times, because of a bad connection or bad quality cables, there can be important problems during the music reproduction.

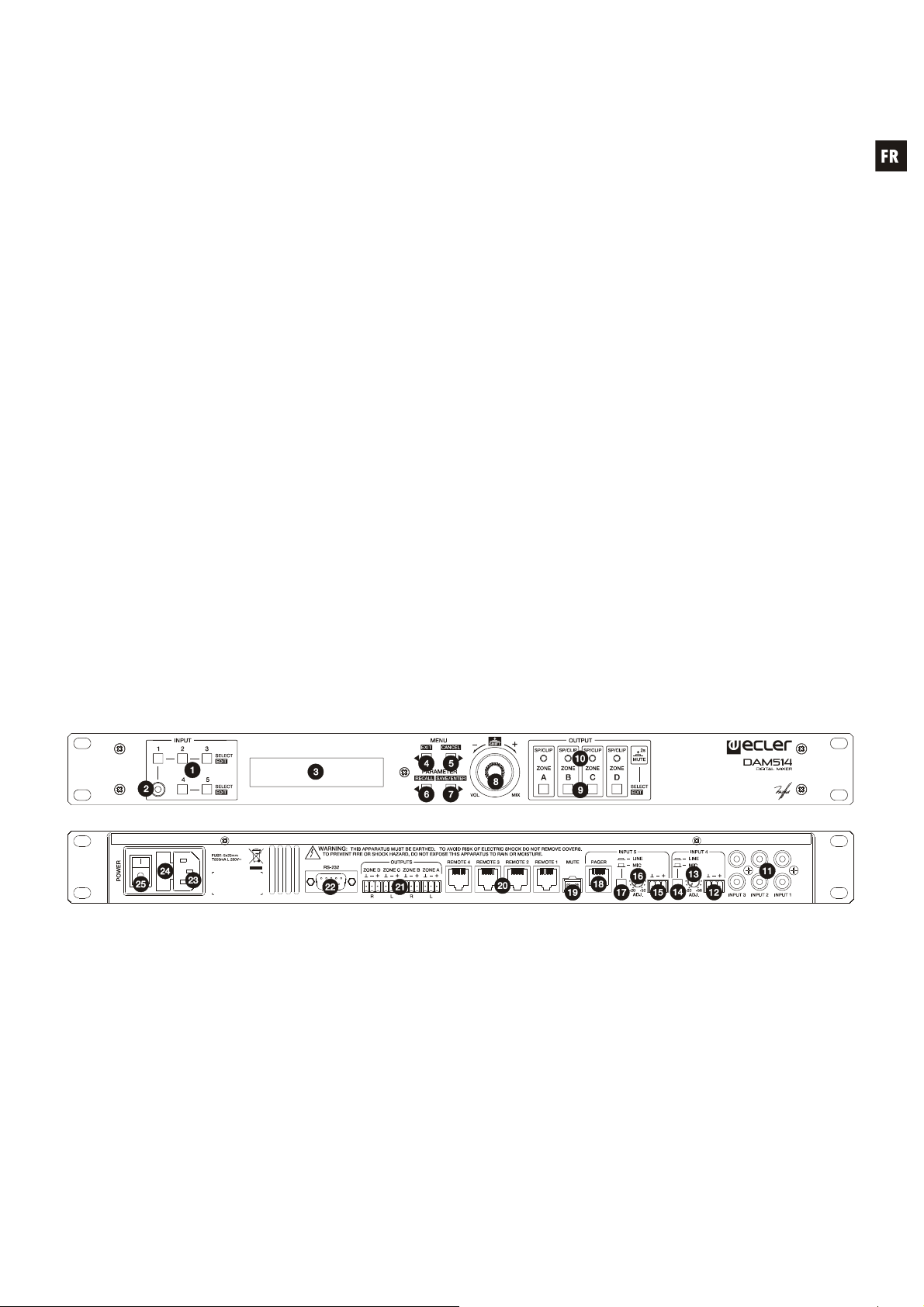

4. FRONT PANEL

INPUT 1 minijack connector

INPUT 1 has a duplicate input connector, for the convenience of use: dual RCA on the back panel and stereo minijack on the front panel.

INPUT keys

The INPUT1 to INPUT5 keys allow you to enable/disable each input for the output zone currently

displayed on the LCD (ZA, ZB, ZC or ZD). The active inputs are mixed and sent to the destination zones, after a DSP processing that have been adjusted in the unit (volumes, tone adjustment, PAGER / DUCKER type priorities, etc.).

To enable or disable inputs for a given zone:

1. Briefly press one of the four A, B, C or D ZONE keys to select the zone

2. The LCD will display the selected zone in its upper left corner (ZA, ZB, ZC or ZD)

3. The backlit INPUT keys 1 to 5 will show the inputs that are enabled for this zone (lit = enabled)

4. Briefly press any of the INPUT keys to enable/disable the corresponding input for this zone

Note: the INPUT 4 and 5 keys are linked if you select the stereo mode for inputs 4 and 5: they simultaneously light up and off when pressing one of them, indicating that this is a stereo pair in which both will receive the same processing for level, EQ, etc.

The INPUT 1 to INPUT 5 keys, in combination with the digital encoder SHIFT function (press and

hold encoder + IN key) also provide access to the input setup menu (see chapter 7).

OUTPUT keys

These four keys, one for each of the outputs (ZONE A, B, C or D), allow you to:

 Short press: select an output zone to be displayed on the LCD (zone indication, ZA, ZB,

ZC, ZD + a horizontal bar indicating the output volume) and adjusted (volume, enabled input selection, etc.)

 Long press (> 2 seconds): enable/disable the MUTE feature of an output. The LED

integrated in the key itself indicates the status of its MUTE function (lit red = MUTE ON). You can press multiple keys simultaneously to enable/disable their MUTE function

Notes:

 The 1&2 and/or 3&4 keys are linked if you select the stereo mode for any pair of outputs:

they simultaneously light up and off when enabling/disabling their MUTE mode, indicating that this is a stereo pair in which both will receive the same processing for level, EQ, etc.

 The DAM514 automatically manages the routing of mono or stereo inputs to mono or

stereo outputs:

o A mono input is directly sent to a mono output, with its corresponding adjustment

of send or mixing level, which is independent of the levels for the other inputs or outputs

o A mono input is duplicated to be sent to the left and right channels of a stereo

output, with its corresponding adjustment of send or mixing level, which is independent of the levels for the other inputs or outputs

o A stereo input is sent to a mono output as a mono sum of its left and right channels

(stereo-to-mono conversion), with its corresponding adjustment of send or mixing level, which is independent of the levels for the other inputs or outputs

o A stereo input is sent to a stereo output, respecting the stereo image between the

two: the left channel of the input will be sent to the left channel (odd) of the output, while the right channel of the input will be sent to the right channel (even) of the output, with its corresponding adjustment of send or mixing level, which is independent of the levels for the other inputs or outputs

LCD display

Display showing digital and text data for inputs, outputs and setup menus, device settings and

information.

"ENCODER"-type rotary selector

The rotary selector allows you to modify the value of the parameters displayed on the LCD, by

increasing or decreasing them depending on the direction of rotation.

From the main screen, which displays one of the output zone and its volume using the horizontal bar graph, it is possible to access the input mixing screen for this output (MIXER mode) or vice versa, with a short press (tap) on the digital encoder (see chapter 6).

In addition to the adjustment (rotation) and switching between main screen and MIXER mode (short press), the rotary ENCODER has a "SHIFT" feature for a secondary function (press and hold while pressing a front panel key). The SHIFT allows you to access to:

 Advanced EDIT modes for inputs or outputs (see chapters 7 and 8 for more information)  The secondary functions of the four setup buttons on front panel, with reverse silk-printing

(EXIT, CANCEL, RECALL and SAVE/ENTER)

Setup keys

The four front panel setup keys allow you to navigate through the various menus and their pages, and access special features thanks to certain combinations of keys pressed simultaneously:

The left and right MENU keys (4, 5) allow to scroll through the different pages of the unit's setup menus.

The left and right PARAM keys (6, 7) allow, within a menu and a page, to select the parameter whose value has to be modified with the rotary encoder (8): the name of the targeted parameter flashes in the display while its value can be edited.

The special combinations of the setup keys are:

 Left and right MENU simultaneously for 2 seconds: access to the unit's SETUP menu (see

chapter 9)

 Left and right PARAM simultaneously for 2 seconds: access to the unit's front panel

locking/unlocking and password management (see chapter 10)

 SHIFT + left MENU (EXIT): return to the main screen, from any menu

 SHIFT + right MENU (CANCEL): undo the last parameter editing and recall the value as

before the change

 SHIFT + left PARAM (RECALL): load one of the presets (device setup) stored in the memory

 SHIFT + right PARAM (SAVE/ENTER):

o SAVE: save a preset (device setup) into memory o ENTER: confirm a critical modification (e.g.: password change)

 Right MENU, kept pressed while powering up the unit: load preset #1, designed to be edited

and saved to be used as booting setup. This operation is allowed even when the unit's front panel is locked with a password

 SHIFT hold down and maintained while powering up the unit: displays the "Power OFF to

recover factory defaults" message. After turning off and on again, default parameters (factory defaults) are restored, erasing all the user data, settings and presets in the unit's memory

SP/CLIP indicator light

The front panel LEDs indicates two types of information:

 Green light or SIGNAL PRESENT (SP): warn of the presence of signal at the mixer inputs.

These indicators illuminate when the input signal exceeds -40dBV.

 Orange light or CLIP: They light up when the signal is near the real clipping (saturation) level,

+12dBV. You must take care that these indicators do not remain continuously lit.

5. BACK PANEL

The back panel features the following connections:

Mains, fuse and power switch

Due to the switched mode power supply, the operating voltage range is 90V – 264V AC, with a frequency between 47Hz and 63Hz. Before powering up the unit, make sure that the DAM514 is correctly connected to ground in a facility that complies with local regulations.

Input and output connectors

The DAM514 has the following audio input connections:

 INPUT1 to INPUT3: unbalanced stereo connection, with 1/8" jack on the front panel (only

INPUT1) and dual RCA on the rear panel. They're designed for -6 dBV and 0 dBV nominal signals, an internal jumper allowing to adjust the sensitivity (see section 12. SETUP DIAGRAM). They can receive signals from CD players, radio tuners, mixing consoles, media players, audio outputs of computers and tablets, etc.

 INPUT 4 & 5 (MIC): dual (MIC/LINE) balanced Euroblock type connections on back panel,

designed for a signal level between 30 dBV and 0 dBV (LINE level), or between 20 dBV and -50 dBV (MIC level), with an ADJ control to adjust the sensitivity. They can operate independently (mono) or be linked as a fourth stereo input for the unit, depending on the operating template or preset selected from the unit's preset recall menu, EclerCOMM Manager application software, a wall panel remote control, etc.

Note: turntables CAN'T BE DIRECTLY CONNECTED to this unit because none of the inputs has

a RIAA preamplifier.

The DAM514 signal output is performed through four balanced 3-pin Euroblock connectors (ZONE A, B, C and D).

PAGER connector

Allows the connection of a MPAGE4 console (optional) to send voice messages with zone selection in real time (paging).

The connected console will use the INPUT5 channel, in LINE mode, for the management of the PAGER function (see the MPAGE4 console manual for more details).

You need to correctly setup the PAGER mode for Input 5 to enable this feature, from the device setup menu (front keys and LCD display) or from EclerCOMM Manager application software (see chapter 7 for more information).

REMOTE connectors

The REMOTE connectors 1 to 4 allow you to control, from a WPm series wall panel or similar (010VDC), the volume of one or several inputs, or the volume of one or several outputs simultaneously, to select sources or presets, etc. The inputs or outputs controlled by each REMOTE port are selected using either the device setup menu (front keys and LCD display) or EclerCOMM Manager application software (see chapter 9 for more information). The WPm series wall panels must be configured with their internal jumpers in 10V / LIN position.

MUTE connector

The rear panel MUTE connector allows the connection of an external potential free contact closure to mute one or several output zones of the device, when an external unit is activating it (example: a central alarm system for emergencies and evacuation). The MUTE port affects the outputs selected from the device setup menu (front keys and LCD display) or from EclerCOMM Manager application software (see chapter 9 for more information).

RS-232 port

The RS-232 serial communication port allows remote management of DAM514 from a computer or external control system supporting theCA-NET protocol, or from the free EclerCOMM Manager application software.

See the manual of the CA-NET protocol for complete information about the details of the connection and the syntax of supported commands.

The specifications of the DAM514 serial connection are

o Baud rate: 9600 (Fixed, without auto-negotiation) o Data bits: 8 o Parity: None o Stop bits: 1 o Flow control: None o Cable: standard RS-232 type, DB9-DB9 (pin-to-pin)

6. MAIN SCREEN/MIXER MODE/PRESET MANAGEMENT

6.1. MAIN SCREEN

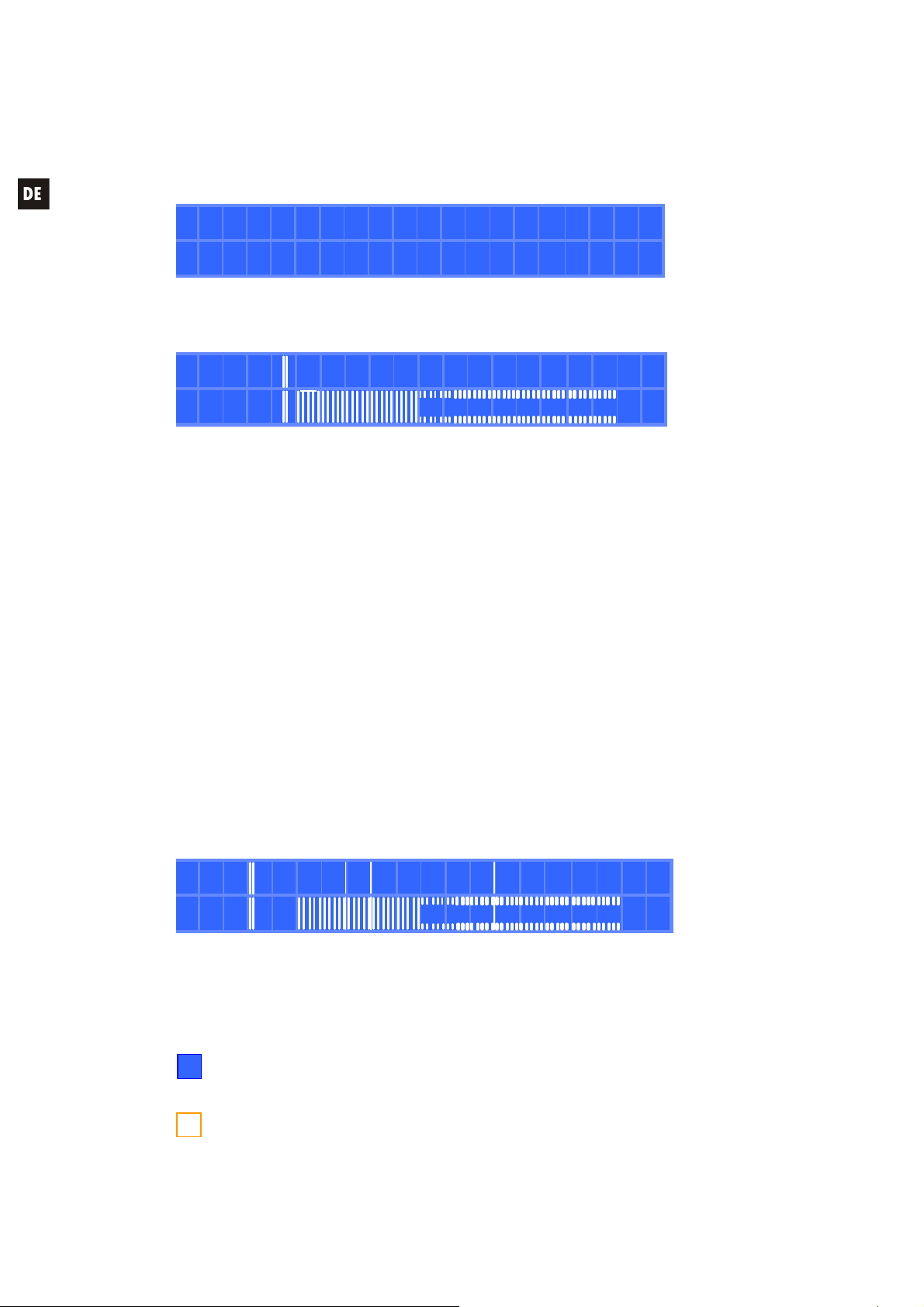

After power on, the screen of the device displays the following information for a few seconds…

D A M 5 1 4 L O A D I N G . . .

…then shows other information similar to this one:

Z A

O U T P U T 1

P 0 1

The information available on this screen, or main screen, is as follows (according to the example above:

 ZA: selected output zone for volume adjustment, selection of sources, etc. The available

zones are ZA, ZB, ZC, ZD (all mono) or ZAB and ZCD if any pair of outputs is configured as a stereo zone

 OUTPUT 1: name of the output zone, by default OUTPUT n, but it is editable  P01: number of the active preset or template. An asterisk to the right of the preset number

indicates that this preset has been modified and not yet re-saved in the DAM514 memory (your changes will be lost when you shut down the computer if they are not saved before…)

 Horizontal Volume Bar: displays the output volume of the relevant zone; it can be directly

altered by rotating the digital encoder

When the displayed output zone has been assigned to a volume control from an external wall panel (WPm series or similar) connected to a REMOTE port of the DAM514 back panel, any modification of the physical remote panel position will briefly display the relevant volume setting on the LCD screen (before return to the main screen):

Z 3

R E M O T E V O L U M E

In addition, the front panel input and output keys use their backlight to give the following information:

P 4 *

 Inputs:

Input enabled for the output zone displayed on screen. A short press on the key switches its status (active/inactive)

Input disabled for the output zone displayed on screen. A short press on the key switches its status (active/inactive)

 Outputs:

Muted output (MUTE=ON). A long press (> 2 seconds) on the key switches its status (unmuted/muted)

Unmuted output (MUTE=OFF). A long press (> 2 seconds) on the key switches its status (unmuted/muted)

Note: you can press multiple keys simultaneously to enable/disable their MUTE function

6.2. MIXER MODE

From the main screen, a short press on the digital encoder switches the screen to the MIXER mode:

Z C

I 1

I 2

I 3 I 4

I 5

V O L 9 9 0 5 0 6 4 9 9

In this mode, it displays the mixing level of each input for the output displayed in the main screen (and in the upper left corner of the MIXER mode screen).

In the example above, we see the following information:

 The displayed output zone is ZONE C  The mixing level of the inputs for this zone is 99 (INPUT1), 0 (INPUT2), 50 (INPUT3), 64

(INPUT4) and 99 (INPUT5)

This mix levels, concerning the inputs routed to the output ZONE C, are totally independent of the mixing volume of the same inputs for the 3 other zones of the device (A, B and D).

From this screen, you can change these mixing levels, using the rotation of the digital encoder to modify a value, and the PARAM keys to select the input you are setting up. The key of the targeted input briefly flashes when its level is altered by rotating the digital encoder.

Notes:

 Inputs, regardless of the mixing level shown in this screen, must be enabled (backlit in blue) for this zone mix to be effective. From this screen or from the main screen, you can press input keys to enable or disable the corresponding inputs in the mix

 From the MIXER screen of a zone, you can switch to the MIXER screen of any other zone, briefly pressing a front panel ZONE key (A, B, C or D)

6.3. RECALL PRESET MENU

The DAM514 has 6 operating templates, which are used as a starting point for the configuration

of an operating mode

It is therefore possible to recall one of these templates, to edit its parameters and save the resulting setup as a PRESET or user memory.

System templates are displayed on the screen with the Txx prefix, where xx is the template number (between 01 and 06), followed by its name or LABEL. These files are not rewritable.

User presets are displayed on the screen with the Pxx prefix, where xx is the preset number (between 01 and 20), followed by its name or LABEL. The default name of all the user presets is USER PRESET, but it can be modified when you save one of them in memory.

The procedure for recalling a preset or a user template is the following one:

 From the main menu, press SHIFT + RECALL  The RECALL PRESET message is displayed and a preset number is flashing

R E C A L L P R E S E T

[ P 0 4 ] S T E R E O 3 W A Y

 Select the preset or template using the rotary control, and then select one of the two

following options:  Press SHIFT + RECALL to validate the selection and activate the new preset,

returning to the main screen, this time with data from the new active preset Or

 Press SHIFT + CANCEL to cancel the selection and display again the preset from the

selection list

Pressing SHIFT + EXIT at any point during the above process cancels the selection and returns the main screen.

6.4. SAVE PRESET MENU

Once you have edited the active preset or template, the procedure to save the current configuration in a user preset memory is the following one:

 From the main menu, press SHIFT + SAVE  The SAVE PRESET message is displayed and a preset number is flashing

S A V E P R E S E T

[ P 0 7 ] S T E R E O L I V E 3 W

 Select the user preset using the rotary control, and then select one of the two following

options:  Press SHIFT + SAVE to validate the selection

 Press SHIFT + CANCEL to cancel the selection and display again the preset from the

selection list

Pressing SHIFT + EXIT at any point during the above process cancels the selection and returns the main screen.

If the selection is validated (SHIFT + SAVE) the following screen is displayed, allowing you to rename the destination preset:

R E N A M E P R E S E T

[ P 0 7 ] S T E R E O L I V E 3 W

To rename the preset:

 Press the right PARAM key to select the first character to edit  Edit the new character with the rotary control  Press the left or right PARAM key to select another character to edit  Edit the new character with the rotary control  Etc…  Pressing SHIFT + CANCEL cancels all previous changes, displays the original name and

maintains the edit mode in order to be able to rename the preset again

 Once all the desired characters are edited, confirm the changes by pressing SHIFT +

SAVE, displaying the PRESET SAVED message for a few seconds. The preset is stored in memory, but is not selected as active preset by the fact of having been saved

 The main screen returns, showing again the current preset at the time, and it is not

necessarily the newly saved preset

Pressing SHIFT + EXIT at any point during the above process cancels the selection and returns the main screen.

The parameters stored in a preset are:

 All the input and output settings, including their names (labels)  The setup for REMOTE ports 1, 2, 3 and 4

7. INPUT EDIT MENU

To open the edit menu for the settings of an input, you have to press SHIFT + INPUTn, INPUTn being the INPUT key corresponding to the desired input (1, 2, 3, 4 or 5).

Once in the edit menu for an input, and in one of its pages, it is possible to obtain the same page for another input by pressing SHIFT + INPUTm, INPUTm being the INPUT key for the new targeted input.

The new edited values are activated in real time. You can cancel an edit operation, returning the value before editing, by pressing SHIFT + CANCEL.

To exit the Edit menu and return to the main screen:

 Press SHIFT + EXIT

 Press SHIFT + INPUTn (the MUTE key of the input n currently edited)

 Stay 2 minutes without operating any control on the front panel

The next pages show the full structure and options of the menu for setting inputs.

Notes:

1. INPUTs 4 and 5 are dual (MICRO/LINE), and feature additional setup menus compared to inputs 1, 2 and 3 (which are only LINE inputs):

o High-pass filter (HP FILTER), with adjustable cut-off frequency between 50 and

150 Hz

o TALKOVER: priority function of an audio input over other audio inputs o NOISE GATE. When this function is turned on, the input remains muted as long as

no signal exceeds the activation threshold of the NOISE GATE, rejecting the background noise picked up by the microphone or the connected device

o FEEDBACK SUPPRESSOR. It's an efficient system to reduce the risk of feedback

loops (audio feedback or Larsen effect) when a microphone source is near the speaker(s) producing its signal, once amplified. When activated, this function slightly shifts the incoming signal frequency on the affected channel before sending it to the matrix mixer and then to the selected output. The shift is so slight that it is barely noticeable to the listener, especially when it occurs in the frequency range of the human voice. A few cycles (Hz) displacement is enough to greatly increase the system protection against possible feedbacks.

2. The adjustable parameters for the TALKOVER function are:

o Activation (ON/OFF) o MODE: DUCKER/PAGER (the latter only for Input 5). It has two operating modes:

 DUCKER: performing after a signal detection (when the signal exceeds the

detection threshold), it attenuates the signals that are assigned to the affected outputs (DUCKED OUTS)

 PAGER (only Input 5): allows messages to be sent in real time from a

MPAGE4 desktop paging station with a microphone

o Priority (PRIO): HIGH/LOW. An input featuring a TALKOVER function set with a

higher priority than another will be able to attenuate or mute the latter in the destination zones, in addition to INPUTs 1 to 3 assigned to these zones. If both inputs have the same priority level (both LOW or both HIGH), the first of two inputs whose Talkover is engaged on a destination zone (its signal exceeding the detection threshold) disables the Talkover of the other input for the same zone, until the end of operation of the first Talkover (when its signal drops back below the activation threshold). Then the Talkover function is available again to be activated by an input that exceeds the threshold

o Attenuated Outputs (DUCKED OUTS): outputs affected by the TALKOVER

function when this one operates in DUCKER mode. The symbol "o" under one of

the zones on the screen indicates that this zone will be affected by DUCKER function

o Activation threshold (TLK THRESHD): trigger threshold of the Talkover function.

The signal of the relevant input activates the Talkover function when it exceeds this threshold. This trigger level depends on the sensitivity setting for the input on the rear panel, but it is independent of the INPUT VOLUME adjustment made on the device (only available in DUCKER mode, since in PAGER mode the function is activated by pressing the PAGE button on the MPAGE4 console)

o Attenuation (DEPTH): attenuation applied by the function, when triggered, on the

rest of the signals sent to the affected zone)

o Attack Time (ATTACK): the time it takes the Talkover function to act from the

moment the signal exceeds the trigger threshold

o Hold Time (HOLD): time during which the Talkover function remains active, once

triggered and once the signal falls back under the trigger threshold (only available in mode DUCKER, since in PAGER mode the function remains active as long as the PAGE button is pressed on the MPAGE4 console)

o Release Time (RELEASE): time that it takes the Talkover function to stop

performing, progressively recovering previous levels of input signals for the affected zone, after the Hold time

o Chime melody or "ding-dong" + playback volume: brief melody that plays when the

Talkover function is activated, in PAGER mode only (two melodies are available)

3. Adjustable parameters for the NOISE GATE function are:

o Activation (ON/OFF) o Activation Threshold (NG THRESHOLD). Defines the input signal level below

which the signal is attenuated with an amount indicated by DEPTH (closed gate)

o Attack Time (ATTACK). Determines the amount of time between the passing of the

threshold and the cancellation of the attenuation applied to the input signal (open gate)

o Hold Time (HOLD): amount of time the gate stays open (without attenuation) once

the signal falls back below the detection threshold.

o Release Time (RELEASE). Determines the time it takes to close the gate again

after the hold time

4. The COPY FROM – PASTE TO operation copies all the settings from the source input to the destination input, except for its name (LABEL)

FrontpanelINPUTSsetup

To edit an INPUT setup, press & hold SHIFT (front knob press) and

the INPUT1, 2, 3, 4 or 5 key. You will then enter into the INPUTs setup menu.

Once in the setup mode of an input, press SHIFT + INPUTx key to move to the

Press SHIFT + EXIT or wait 2 minutes to exit the setup mode.

current setup menu of the new INPUTx input.

DAM514 main screen

INx setup mode

(x = 1, 2, 3, 4 or 5)

Move to the

previous menu

INPUT VOLUME

Move to the

previous menu

BASS / MID /

Move to next / previous menu

INPUT LABEL

TREBLE

SHIFT

INPUTx key

MUTE

PARAM

Move to the

next menu

PARAM

Move to the

next menu

PARAM

Move to the

next menu

Select the first

character to edit

Select the first

parameter to edit

Select the first

parameter to edit

Rotate knob

to change character

I N P U T L A B E L

[ L E F T S T E R E O ]

I N P U T V O L U M E 8 5

B A S S M I D T R E B L E

+ 3 . 8 d B + 1 0 d B - 6 . 0 d B

PARAM

SHIFT

PARAM

SHIFT

Select new

character to edit

Cancel edition

/ get previous

CANCEL

Rotate knob

to change

value

Cancel edition

/ get previous

CANCEL

Rotate knob

to change

value

Select new

parameter to edit

Cancel edition

/ get previous

CANCEL

text

value

Move to the

previous menu

INPUTS 1, 2 and

3 are just LINE

ready and don't

have extended

options

COPY FROM

PASTE TO

INPUTx

is 4

or 5?

YES

Select the first

parameter to edit

PARAM

INPUTS 4 & 5 are MIC/LINE

ready and have extended

options: see next diagram,

INPUT4 & 5 extended setup

options

Rotate knob

to change

value

C O P Y F R O M P A S T E T O

I N 2 I N 1

PARAM

SHIFT

Select new

parameter to edit

Cancel edition

/ get previous

CANCEL

value

INPUTS4&5extendedoptionssetup

As INPUT 4 and 5 are dual (MIC/LINE) inputs they do have extended options when

This fact involves additional configuration menues and options, shown in the next diagram

compared to INPUTs 1 to 3.

BASS / MID /

TREBLE

INx setup mode

(x = 4 or 5)

previous menu

Move to the

previous menu

HIGH PASS

FILTER

TALKOVER

ON/OFF?

OFF

Move to the next menu

Select the first

PARAM

Move to the

next menu

Select the first

parameter to edit

PARAM

Move to the

next menu

ON in PAGER MODE (only

available for INPUT5)

parameter to

edit

Rotate knob

to change

value

H P F I L T E R F R E Q

O N 1 2 0 H z

T L K O V E R M O D E P R I O

O F F D U C K E R H I G H

T L K T H R E S H D D E P T H

- - - - 1 5 . 4 d B

A T T A C K H O L D R E L E A S

4 3 6 m s - - - - 1 0 0 0 m S

C H I M E

M E L O D Y 1 - 1 0 . 6 d B

PARAM

parameter to edit

PARAM

SHIFT

parameter to edit

PARAM

SHIFT

Select new

parameter to edit

SHIFT

Select new

CANCEL

Rotate knob

Select new

CANCEL

Rotate knob

 

CANCEL

to change

Cancel edition / get previous

value

Cancel edition / get previous

value

V O L U M E

Move to next /

previous menu

Cancel edition / get previous

value

Move to the

previous menu

Move to the

previous menu

Move to the

previous menu

NOISE GATE

FEEDBACK

SUPPRESSOR

ON in DUCKER MODE

Select the first

parameter to edit

PARAM

Move to the

next menu

Select the first

parameter to

PARAM

Move to the

next menu

D U C K E D O U T S 1 2 3 4

● ●

T L K T H R E S H D D E P T H

- 2 6 . 2 d B 1 5 . 4 d B

A T T A C K H O L D R E L E A S

4 3 6 m s 2 0 0 0 m s 1 0 0 0 m S

parameter to edit

PARAM

N O I S E G A T E O N

N G T H R E S H D D E P T H

- 2 6 . 2 d B 1 5 . 4 d B

A T T A C K H O L D R E L E A S

4 3 6 m s 2 0 0 0 m s 5 5 0 m S

parameter to edit

PARAM

edit

F E E D B A C K S U P P R E S S O R

O N

PARAM

Select new

SHIFT

Select new

SHIFT

Rotate knob

to change

value

Cancel edition

/ get previous

CANCEL

Rotate knob

to change

value

Cancel edition

/ get previous

CANCEL

Rotate knob

to change

value

Select new

parameter to edit

Cancel edition

/ get previous

CANCEL

Move to next /

previous menu

value

Move to next /

previous menu

value

COPY FROM

PASTE TO

8. OUTPUT EDIT MENU

To open the edit menu for the settings of an output, you have to press SHIFT + OUTPUTn,

OUTPUTn being the OUTPUT key corresponding to the desired output (ZONE A, B, C or D).

Once in the edit menu for an output, and in one of its pages, it is possible to obtain the same page for another output by pressing SHIFT + OUTPUTm, OUTPUTm being the OUTPUT key for the new targeted output.

The new edited values are activated in real time. You can cancel an edit operation, returning the value before editing, by pressing SHIFT + CANCEL.

To exit the Edit menu and return to the main screen:

 Press SHIFT + EXIT  Press SHIFT + OUTPUTn (the OUTPUT key of the output currently edited)  Stay 2 minutes without operating any control on the front panel

The next page shows the full structure and options of the menu for setting outputs.

Notes:

1. The crossover filter applied to each output can be of high-pass (HP) or low-pass (LP) type, both with a Butterworth profile and a slope of 12 dB/octave, and a cut-off frequency adjustable between 20 Hz and 20 kHz

2. The graphic equalizer applied to each output has a setting of ±10 dB for each of the 10 available bands:

 31.5 Hz  63 Hz  125 Hz  250 Hz  500 Hz  1 kHz  2 kHz  4 kHz  8 kHz  16 kHz

3. The COPY FROM – PASTE TO operation copies all the settings from the source output to the destination output, except for its name (LABEL)

FrontpanelOUTPUTSsetup

To edit an OUTPUT setup, press & hold SHIFT (front knob press) and

the OUTPUT ZONE A, B, C or D key. You will then enter into the OUTPUTs setup menu.

Press SHIFT + EXIT or wait 2 minutes to exit the setup mode.

Once in the setup mode of an input, press SHIFT + another OUTPUT ZONE key to

move to the current setup menu of the new OUTPUT.

DAM514 main screen

OUTPUT ZONEx setup

mode

(x = A, B, B or D)

OUTPUT LABEL

Move to the

previous menu

Move to the

previous menu

Move to next / previous menu

CROSSOVER FILTER

Move to the

previous menu

EQUALIZER

COPY FROM

PASTE TO

OUTPUT ZONEx key

SHIFT

PARAM

Move to the

next menu

PARAM

Move to the

next menu

PARAM

Move to the

next menu

PARAM

Select the first

character to edit

Select the first

parameter to edit

Select the first

parameter to edit

Select the first

parameter to edit

Rotate knob

to change character

O U T P U T L A B E L [ O U T P U T 1 ]

X O V E R F I L T E R F R E Q

O F F H P 1 4 7 H z

E Q U A L I Z E R O F F

F R E Q G A I N 3 1 . 6 - 1 . 8

PARAM

C O P Y F R O M P A S T E T O

O U T 2 O U T 4

character to edit

PARAM

SHIFT

parameter to edit

PARAM

SHIFT

Select new

parameter to edit

SHIFT

parameter to edit

PARAM

SHIFT

Select new

CANCEL

Rotate knob

to change

Select new

CANCEL

Rotate knob

to change

CANCEL

Rotate knob

to change

Select new

CANCEL

Cancel edition / get previous

text

value

Cancel edition / get previous

value

Cancel edition / get previous

value

Cancel edition / get previous

value

Move to next / previous menu

9. SETUP MENU

The DAM514 features a general setup menu (hereinafter SETUP menu), or parameters that

globally affect the unit, such as the functions assigned to the REMOTE ports, the MUTE port management, the LCD display management, etc.

To open the SETUP menu you have to simultaneously press and hold down the left and right MENU keys.

The new edited values are activated in real time. You can cancel an edit operation, returning the value before editing, by pressing SHIFT + CANCEL.

To exit the Edit menu and return to the main screen:

 Press SHIFT + EXIT  Stay 2 minutes without operating any control on the front panel

The next page shows the full structure and options of the SETUP menu.

Notes:

1. Each of the REMOTE ports 1 to 4 can be connected to a WPmVOL-SR wall panel or similar, which has two rotary controls: a 5-way selector (0, 1, 2, 3 and 4) and a volume control. Each REMOTE port can be programmed to operate in one of the following modes:

 ALL DISABLED: REMOTE port disabled, no function  IN VOLUME:

o The volume control acts on the overall volume of the inputs. It is necessary to use the

REMOTE INPUTS menu to determine the inputs that will be affected

o The selector is disabled

 ZONE VOLUME:

o The volume control acts on the overall volume of the outputs. It is necessary to use the

REMOTE OUTPUTS menu to determine the outputs that will be affected

o The selector is disabled

 IN SELECTOR:

o The selector acts as an input selector: it allows you to choose between OFF and up to a

maximum of 4 of the 5 available inputs, for the outputs to which it is assigned. It is necessary to determine the inputs that will be part of the selection options (REMOTE INPUTS menu) and the outputs that will be affected by the selection (REMOTE OUTPUTS menu)

o The volume control is disabled

 IN SELECTOR+IN LEVEL:

o The selector acts as an input selector: it allows you to choose between OFF and up to a

o The volume control acts on the volume of the crossing point between the input chosen with

the selector and each of the affected outputs (this allows the same input source to be heard with a volume customized and independent for each output zone)

 IN SELECTOR+ZONE VOL:

o The selector acts as an input selector: it allows you to choose between OFF and up to a

o The volume control acts on the overall volume of the outputs. It is necessary to use the

REMOTE OUTPUTS menu to determine the outputs that will be affected

 PRESET: P1-P5:

o The selector of the remote panel allows you to recall the first five DAM514 presets, P01 to

P05. Only one of the REMOTE ports can be assigned to this option: once this option is assigned to one of them, it disappears from the selection menu of the other REMOTE ports

o The volume control is disabled

 PRESET: P1-P5+ ZONE VOL:

o The selector of the remote panel allows you to recall the first five DAM514 presets, P01 to

P05. Only one of the REMOTE ports can be assigned to this option: once this option is assigned to one of them, it disappears from the selection menu of the other REMOTE ports

o The volume control acts on the overall volume of the outputs. It is necessary to use the

REMOTE OUTPUTS menu to determine the outputs that will be affected

WARNING: when a REMOTE port is programmed to perform the preset recall, it is vital that all the presets targeted by the same port are programmed for the same function. Otherwise, a preset recalled from a REMOTE port could have its preset recall function turned off, and it would be then impossible to recall a new preset from the same REMOTE port

2. In the assignment menu of the REMOTE ports to the inputs or outputs volume control, the signs displayed under the number of an input or output have the following meanings:

Blank = input or output not assigned to a remote port

● = Remote port assigned to the input or output X = Incompatible selection, because it has already been assigned to another remote port

3. In the EXTERNAL MUTE assignment menu, it is possible to select which unit outputs will be muted when (and while) an external contact closure is detected at the MUTE port (normally open) of the back panel:

● = Output affected by the EXTERNAL MUTE function (blank) = Output not affected by the EXTERNAL MUTE function

4. The LCD display adjustment menu (LCD MODE) allows you to adjust the operating mode of the display on standby, that is to say after a few seconds without any action on the front panel keys. Available modes are NORMAL (always on), DIMMED and OFF. In standby mode, any action on a front panel control temporarily returns the LCD display to its normal state (turned on); it turns back to sleep mode after a few seconds without action on the controls.

SETUPMENU

To enter the SETUP menu press & hold MENU left & right front keys.

Press SHIFT + EXIT or wait 2 minutes to exit the setup mode.

DAM514

Press & Hold

both keys

PARAM

Move to the

next menu

Select the first

parameter to edit

Rotate knob

to change

value

R E M O T E 1 M O D E

I N S E L E C T O R + O U T V O L

Select new

parameter to edit

PARAM

SHIFT

INPUTS & OUTPUTS involved

R E M O T E 1 1 2 3 4 5

I N P U T S o o

R E M O T E 1 A B C D

O U T P U T S o o

PARAM

SHIFT

Cancel edition

/ get previous

CANCEL

Rotate knob

to change

value

Select new

parameter to edit

Cancel edition

/ get previous

CANCEL

value

Move to the

value

EXIT+CANCEL

REMOTE 1 MODE

Move to the

next / previous

REMOTE

REMOTE 4 MODE

next menu

Move to next / previous menu

Move to the

previous menu

Move to the

previous menu

Move to the

previous menu

Move to the

previous menu

EXTERNAL MUTE

LCD CONTRAST

LCD MODE

FIRMWARE

VERSION

Move to the

next menu

Move to the

next menu

Move to the

next menu

Rotate knob

to change

value

E X T M U T E A B C D

SHIFT

L C D C O N T R A S T

SHIFT

F I R M W A R E V E R S I O N

o o

Select new

parameter to edit

Cancel edition

/ get previous

value

CANCEL

Rotate knob

to change

value

1 0 0

Select new

parameter to edit

Cancel edition

/ get previous

value

CANCEL

Rotate knob

to change

value

L C D M O D E D I M M E D

Select new

parameter to edit

Cancel edition

/ get previous

value

CANCEL

v 0 1 . 0 3 r 1 2

10. FRONT PANEL LOCKOUT MENU

The DAM514 has a front panel lockout feature, protecting the unauthorized access to the device

with a password.

The locking feature has four operating modes:

 UNLOCK ALL: Lock function disabled, allowing access to all functions and menus of the

equipment

 LOCK ALL: the lock is enabled, until an alphanumeric password is entered. The front panel

controls are disabled, needing access to the lock menu to enter the password and re-enable them.

 UNLOCK OUTS: the lock is enabled, until an alphanumeric password is entered. The front

panel controls are disabled, except for the MUTE keys and the output volume control, needing access to the lock menu to enter the password and re-enable them.

 UNLOCK INS&OUTS : the lock is enabled, until an alphanumeric password is entered. The

front panel controls are disabled, except for the MUTE keys and the output volume control, as well as the input selection and the MIXER mode (input levels for each output), needing access to the lock menu to enter the password and re-enable them.

To access the lock menu, you have to press simultaneously the left and right PARAM keys for 2 seconds, until the next screen appears on the LCD display:

L O C K M O D E U N L O C K M U T E

Using the rotary control, it is possible to change the desired locking mode and then press SHIFT + ENTER to confirm the selection. If you select one of the two password protected modes (LOCK ALL, UNLOCK OUTS or UNLOCK INS&OUTS), the next screen prompts you to enter the lock password:

T Y P E P A S S W O R D [ E C L E R ]

Using the rotary control, edit the selected character, and using the PARAM keys, select the next character to edit. Finally, press SHIFT + ENTER to validate the entered password.

In the password edit mode, you can cancel an edit operation, bringing the initial password back, by pressing SHIFT + CANCEL. Pressing SHIFT + CANCEL for five seconds erases all the characters of the password, to start the edition from scratch.

At any time it is possible to leave the lock menu by pressing SHIFT + EXIT.

Once in one of the password protected locking modes (LOCK ALL or UNLOCK MUTE), the equipment displays the following screen if you press any disabled front panel control:

P A N E L L O C K E D

To re-enable the front panel controls, it is necessary to enter the stored password. To do this, access the lock menu (left and right PARAM keys simultaneously for 2 seconds). The following screen is displayed:

P A S S W O R D R E Q U I R E D [ * ]

Enter the password and press SHIFT + ENTER to validate it.

P A N E L U N L O C K E D

The equipment will be temporarily unlocked, until it remains 2 minutes without any activity on the front panel or returns to the lock menus (left and right PARAM simultaneously for 2 seconds) to confirm or modify the lock mode, in which case it will go back to the password request (the same or a new one), which will be active starting from your validation (SHIFT + ENTER).

To permanently unlock the equipment, access the lock menu and select the UNLOCK ALL mode as new locking mode.

11. CLEANING

The control panel must not be cleaned with any dissolvent, abrasive or petroleum derived substance else paint and silk-printing could be damaged. Whenever cleaning should be necessary use a soft cloth slightly wet with water and neutral liquid soap. Be careful that no liquid gets into the unit through its orifices. Never use sharp or erosive objects to scratch the control panel.

12. DIAGRAMS

12.1. Function list

1. INPUT 1/2/3/4/5 keys

2. INPUT 1 minijack connector

3. Front panel LCD display

4. Setup key, MENU / EXIT

5. Setup key, MENU / CANCEL

6. Setup key, PARAM / RECALL

7. Setup key, PARAM / SAVE/ENTER

8. Rotary encoder knob

9. OUTPUT keys

10. SP/CLIP indicator light

11. RCA input connectors

12. MIC/LINE input

13. Input sensitivity setting

14. MIC/LINE selector

15. MIC/LINE input

16. Input sensitivity setting

17. MIC/LINE selector

18. RJ-45 connector, PAGER

19. Remote volume silencing control, MUTE

20. RJ-45 connector, REMOTE

21. ZONE A/B/C/D amplified outputs

22. Remote control, RS-232 port

23. Mains socket

24. Fuse holder

25. Power switch

12.2. Function diagram

Explicación de los Símbolos Gráficos

El símbolo del relámpago con una flecha en la punta y dentro de un triangulo equilátero, tiene el propósito de alertar al usuario de la presencia de un voltaje peligroso y sin aislar dentro del aparato, y de una magnitud tal que puede constituir riesgo de descarga eléctrica para las personas.

El símbolo de exclamación dentro de un triangulo equilátero, tiene el propósito de alertar al usuario de la presencia de instrucciones importantes sobre la operación y mantenimiento en la información que viene con el producto.

Los símbolos de relámpagos dibujados cerca de los terminales de salida se utilizan para alertar al usuario del riesgo de descargas peligrosas. Los conectores de salida que podrían plantear algún riesgo se indican con este símbolo del relámpago. No toque los terminales de salida mientras que el amplificador esté encendido. Hacer todas las conexiones con el amplificador apagado.

ADVERTENCIA: para prevenir choques eléctricos o riesgo de incendios, no exponer este equipo a la lluvia o la humedad.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

1. Lea estas instrucciones

2. Guarde estas instrucciones

3. Preste atención a todas las advertencias

4. Siga todas las instrucciones

5. No utilice este aparato cerca del agua

6. Límpielo solamente con un paño seco

7. No bloquee ninguna abertura para ventilación. Instálelo de acuerdo con las instrucciones del fabricante

8. No lo instale cerca de fuentes de calor como radiadores, estufas u otros aparatos que produzcan calor, incluidos amplificadores.

9. No elimine el propósito de seguridad del cable de corriente polarizado o con conexión de tierra. Un cable polarizado tiene dos bornes, uno más ancho que el otro. Un enchufe con conexión a tierra, tiene dos bornes y un tercer borne conectado a tierra. Este tercer borne está previsto para su seguridad. Si el cable proporcionado no entra en su enchufe, consulte con un técnico electricista para reemplazar ese enchufe obsoleto.

10. Proteja el cable eléctrico de ser aplastado, en especial en la zona de los conectores, los receptáculos de los mismos y en el punto en el que el cable sale del aparato.

11. Utilice solamente los accesorios especificados por el fabricante.

12. Desconecte el aparato durante las tormentas eléctricas o cuando no lo vaya a usar durante periodos largos de tiempo.

13. Para cualquier reparación, póngase en contacto con un servicio técnico cualificado. La reparación es necesaria cuando el aparato no funciona con normalidad o ha sido dañado por cualquier motivo, ya sea porque el cable o el enchufe estén dañados, porque se hayan derramado líquidos o hayan caído objetos dentro del aparato, o porque el aparato haya sido expuesto a la lluvia o se haya caído.

14. Desconexión de la red: apagando el interruptor de POWER (25) todas las funciones e indicadores del amplificador se pararán, pero la completa desconexión del aparato se consigue desconectando el cable de red de su conector (23). Por esta razón, éste siempre debe tener fácil acceso.

MANUAL DE INSTRUCCIONES

1. NOTA IMPORTANTE 30

1.1. Conformidad con normativas internacionales 30

2. INTRODUCCIÓN 31

3. INSTALACIÓN 32

4. PANEL FRONTAL 33

5. PANEL POSTERIOR 36

6. PANTALLA PRINCIPAL / MODO MIXER / GESTIÓN DE PRESETS 38

6.1. PANTALLA PRINCIPAL 38

6.2. MODO MIXER 39

6.3. MENÚ RECALL PRESET 39

6.4. MENÚ SAVE PRESET 40

7. MENÚ EDICIÓN DE ENTRADAS 42

8. MENÚ EDICIÓN DE SALIDAS 46

9. MENÚ DE CONFIGURACIÓN (SETUP) 48

10. MENÚ DE BLOQUEO DEL PANEL FRONTAL 51

11. LIMPIEZA 52

12. DIAGRAMAS 53

12.1. Lista de funciones 53

12.2. Diagrama de funciones 53

13. CARACTERÍSTICAS TÉCNICAS 106

14. DIAGRAMA DE CONFIGURACIÓN 108

15. DIAGRAMA DE BLOQUES 109

Todos los datos están sujetos a variación debida a tolerancias de producción. ECLER S.A. se reserva el derecho de realizar cambios o mejoras en la fabricación o diseño que pudieran afectar las especificaciones.

1. NOTA IMPORTANTE

¡Enhorabuena!. Vd. posee el resultado de un cuidadoso diseño y una esmerada fabricación. Agradecemos su confianza por haber elegido nuestro mezclador digital de audio DAM514. Para conseguir la máxima operatividad del aparato y su máximo rendimiento es MUY IMPORTANTE, antes de su conexión, leer detenidamente y tener muy presentes las consideraciones que se especifican en este manual. Para garantizar el óptimo funcionamiento de este aparato, recomendamos que su mantenimiento sea llevado a cabo por nuestros Servicios Técnicos autorizados.

1.1. Conformidad con normativas internacionales

DAM514 está conforme a las siguientes normativas internacionales: EN55103-1 Compatibilidad Electromagnética.

Norma de familia de Productos para aparatos de uso profesional de sonido, vídeo, sistemas audiovisuales y para el control de iluminación para espectáculos Parte 1: Emisión EN55103-2 Compatibilidad Electromagnética. Norma de familia de Productos para aparatos de uso profesional de sonido, vídeo, sistemas audiovisuales y para el control de iluminación para espectáculos Parte 2: Inmunidad

EN60065 Aparatos de audio, vídeo y aparatos análogos. Requisitos de seguridad Cumpliendo los requisitos de las directrices 73/23/CEE y 2004/108/CE

+ 80 hidden pages

Ecler DAM514 User Manual [en, de, es, fr]

Specifications and Main Features

Frequently Asked Questions

User Manual
