VOLT

User guide

The contents of this manual may differ in certain respectsfrom the descriptionofyour phone depending on

its software version and your telephone operator.

VOLT

CONGRATULATIONS!

You have just purchased your Echo Volt mobile

phone. This guide contains all the information

needed to use the phone so that you can quickly familiarise yourself, we hope, with the world of Echo.

contained herein do not constitute a guarantee

under the Applicable law. ECHO reserves the right

to change or modify the information contained in this manual at any time.

The information contained in this manual may not be disclosed to third parties or reproduced in any form whatsoever without the express written consent of ECHO. ECHO is a registered trademark of Modelabs

Mobiles SAS.

Limitation of Liability

All content and services accessible through this device are the exclusive property of third parties and are protected by the relevant laws (copyright, patent, licence and/or other intellectual property laws). These services are for your own personal non- commercial use. It is not

permitted to use any content or services without

prior written permission of the content owner. You may not copy, publish, transfer, sell, create derivative works or exploit in any manner or medium any content or services displayed through this device.

Disclaimer

This manual has been prepared with the utmost care and attention and is designed to guide you through the functions and features of your device. However, the information and recommandations

THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” ECHO DOES NOT

GUARANTEE THE CONTENT OR SERVICES SO

PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE WHATSOEVER. ECHO EXPRESSLY DISCLAIMS ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

ECHO DOES NOT GUARANTEE THE

ACCURACY, VALIDITY, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICES MADE AVAILABLE THROUGH THE DEVICE.

ECHO has no control over the content

and services provided by third parties via networks or transmission devices. Moreover, third-

party services may be terminated or interrupted

any time without notice. Therefore, ECHO makes no representation or warranty whatsoever as to the availability of any third party content or service and expressly declines any responsibility for such termination or interruption.

ECHO cannot in any way be held responsible

for the processing and/or monitoring of third party content and services accessible through this device. Any question or request relating to the content or services should be addressed directly to

the respective content or service provider.

An independent third party operator provides the SIM card and the network or system (mobile or other) on which this device operates. ECHO expressly declines any responsibility in respect of the

function, availability, coverage, services, or network

or system capacity (mobile or other).

If your SIM card isn’t at the proper format, you are advised to ask your operator for a micro one. The responsibility of ECHO and its authorised after-sales service is limited only to the cost of repair and/or

replacement of the unit during the warranty period.

What’s in the Box:

1. ECHO Volt mobile phone

2. AC adaptor

3. Micro USB cable

4. Hands-free kit

5. User guide

6. Removable battery

ECHO IS NOT LIABLE IN THE CASE OF NEGLIGENCE, WHETHER CONTRACTUAL OR BASED ON TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL OR SPECIAL DAMAGE, LEGAL FEES, EXPENSES, OR ANY OTHER DAMAGES RESULTING FROM THE USE BY YOU OR ANY THIRD PARTY OF THE CONTENT OR SERVICES ACCESSIBLE THROUGH THIS DEVICE. JURISDICTIONS MAYNOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF THE CONSUMER’S LEGAL RIGHTS,

THEREFORE THIS STATEMENT MAY NOT APPLY TO

YOU.

Getting to know your phone

3,5 mm

headphone jack

Receiver

Rear camera

Flash LED

Front camera

Volume +/-

On-Off/Lock

Touch screen

Return

Micro USB port

SAR rate:0.451W/kg (head) ; 1.68W/kg (body)

Home

Overview

The buttons on your phone

Button Function

On/Off

Pressand hold the buttonto turn the phone on/off. Pressthe buttonlightly to lock the touch screen.

Home

Returns to the home screen and opens Google NOW (press

and hold the button).

Overview

Opens the list of recentapplications.

Return

Returnsto the previousscreen. Closesthe onscreenkeyboard.

VOLUME+/-

Increases or decreases the call volume, the ringtone, music, gamesand other audio functions.

Switch the ringtone to silentmode when the phone rings. Press and hold on Volume- to enablethe meeting profile.

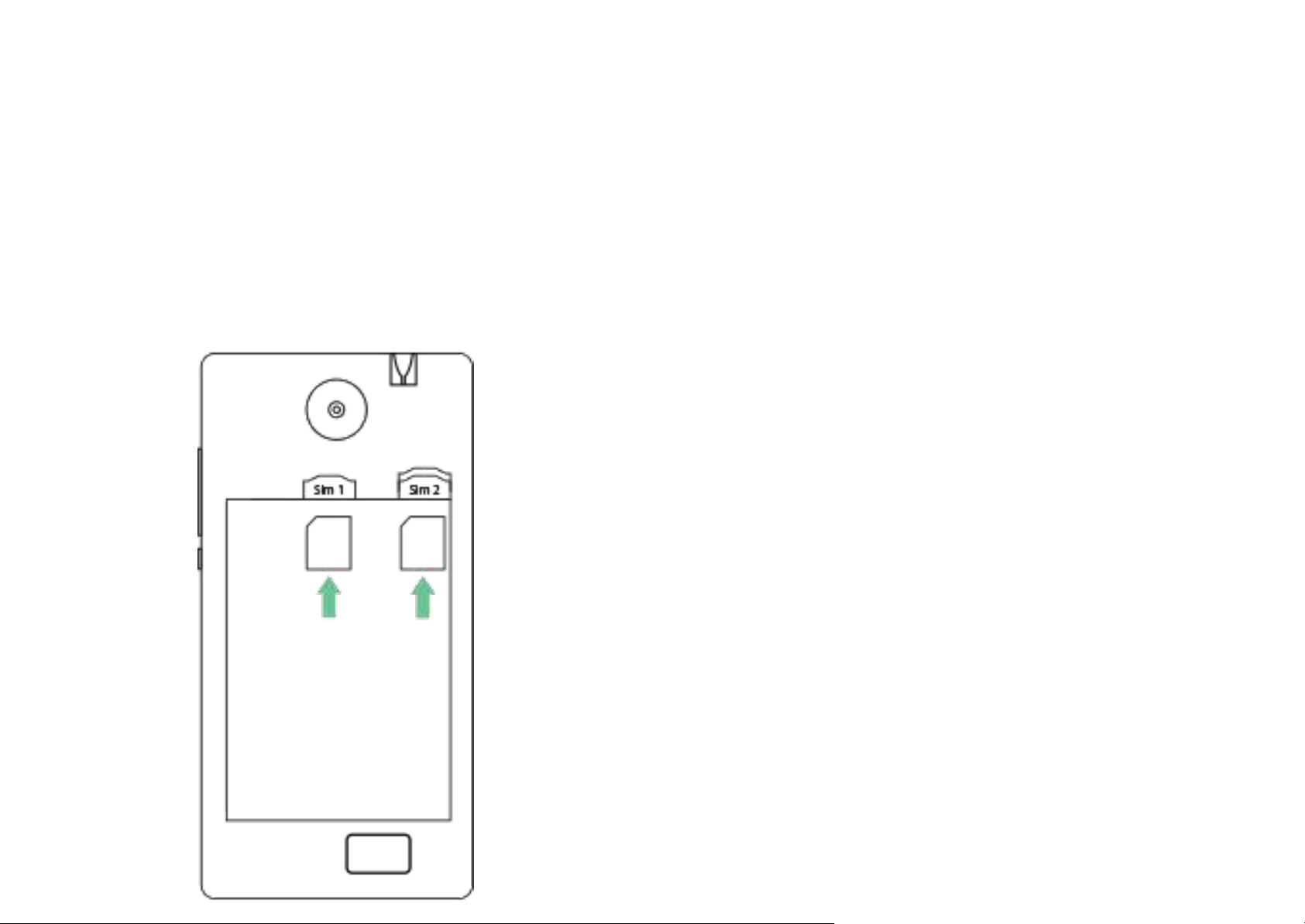

In order to use your telephone, you need to insert

your SIM Card. The back cover of the phone is

clipped on. Please unclip it using the notch on the cover, following the contour of the phone. Insert the SIM cards following the diagrams below, the micro SIM needs to be inserted vertically, the nano SIM needs to be inserted horizontally.

Getting Started

Insertingthe SIM cards

Micro

Sim

Nano Sim

Installing Memory Card Charging the Battery

Your phone takes a MicroSD memory card of up to 32 GB.

Insert the microSD memory card following the diagrambelow, if a Nano SIM isinstalledyouwillhave to push itout in orderto insert the microSDmemory card.

A flashing red light indicates that the battery level is very low: the battery should be recharged because, if the level is too low, it may shorten the life of the battery.

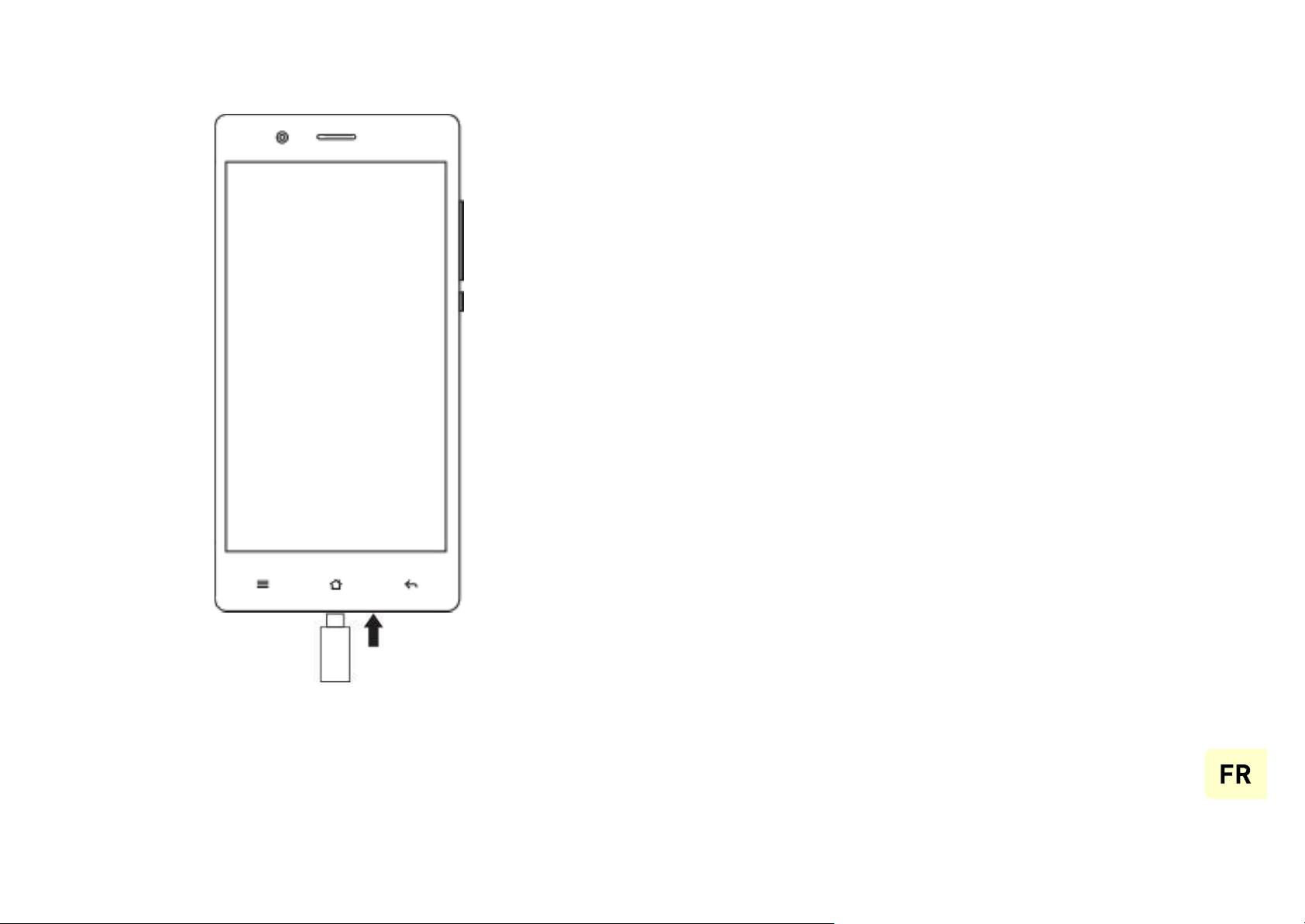

Connect the charger to a power outlet and the micro USB connector to the phone’s USB port. The

phone’s status indicator changes to red, indicating

that the device is charging. Once the phone has finished charging, the

status indicator changes to green and you should unplug the charger.

For more information,refer to the Safety Informa-

tion section.

Turning the Phone On and Off

To turn the phone on, press on the ON/OFF button and hold it down until the phone begins to vibrate.

If your SIM card is locked, you must enter the correct PIN code to unlock the SIM card when the phone is powered up. Your PIN is supplied by your operator; if you did not receive it or have lost it, please contact them.

When the PIN is entered in correctly three times, the

mobile phone is blocked and has to be unblocked

using your PUK (this is supplied with the SIM card; if this is not the case, you should contact your phone operator). To turn the phone off, press and hold the ON-OFF button until the menu opens, then press on

Power Off. Now press OK to confirm. The phone

vibrates when it is shut down completely.

Notifications

Notification icons on the statusbar

Connected to Wi-Fi Bluetooth enabled

Signal strength

GPS in use

Voice call in progress

Connected to HSPA+ (3G++)

Call waiting

Connected to HSPA (3G+)

Missed call

Connected to 3G

Synchronising

Connected to EDGE

New mail

Connected to GPRS

Alarm on

No signal

Silent mode on

Roaming

New voicemail

Wi-Fi available

Connected to 4G

Notifications Panel

Downloading

Drag the status bar downwards to see details of

all your notifications. Information about new

messages received, upcoming calendar events, downloadstatus, etc. will then be displayed.

Connected to computer Battery level

Press on to clear all temporary notifications

New SMS or MMS

(applications that are runningare stilllisted). Drag a notification to the left or right to clear it.

To close the panel, drag it upwards or press on

RETURN .

Airplane mode on

SIMcard modified No SIMcard

To accessthe settings panel,press on .

Depending on the application, notifications may be accompanied by a beep, vibration or a flashing

LED.

Shortcut: pull the notification downwards with two fingers.

Using the Menus

The menus on your phone take the form of a contextualmenu or an optionsmenu.

Options Menu

Contextual Menu

Tobring up an options menu, press on the icon.

To bring up a contextualmenu, press and hold on an item on the screen: the contextual menu then suggests various actionsassociated with the item. For example, if you press and hold on an SMS, the options for the messageare displayed.

The options menu suggests actions or settings for the current screen or application but not for a specific item as it is the casefor the contextual menu.

Note: not all itemshave a contextual menu.When you pressand hold on an item that does not have a menu, nothingwill happen.
