User Manual
Rear EU Number Plate Sensor System
SS-NP2
Page 2
3
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (US)
email - [email protected] (Europe)
2
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (US)
email - [email protected] (Europe)
Fitting InstructionsIntroduction
Box Contents
Key Features
u Volume Control
u Sensitivity setting
for mounting at various heights
u Self-learning sensors
u Number plate frame with 3 sensors
u Control Module
u Speaker
u Power Harness
Congratulations on purchasing EchoMaster parking sensors. This
ultrasonic detection system is designed to assist in the avoidance of
obstacles while reversing.
Disclaimer:
EchoMaster® is strictly a driver assistance device, and should not be relied upon as a substitute for
safe driving practices. Use common sense when parking and always follow recommended safe driving
guidelines. To help prevent accidents, always use caution when parking, looking visually to ensure your
path is clear. Keep speeds under three miles per hour. The owner shall not be entitled to recover from
the Company, its successors or assignees, incidental and consequential damages, such as personal
injury, loss of income, loss of time, loss of prots, loss of vehicle use or property damage. No employee,
agent or representative of the Company of the Selling Retailer may modify, alter or extend this Warranty
in any way. This Warranty gives you specic legal rights. You may also have other rights under this
Warranty which may vary from state to state.
Note: Under no circumstances should you attempt to open the control box or any other component.
Doing so will void all manufacturer’s warranties.
SS-NP2
Rear EU Number Plate Sensor System
SS-NP2
Rear EU Number Plate Sensor System
Remove the number plate from the vehicle.
Drill 10mm hole for the grommet to allow cables to pass through.
Attach the number plate frame to the vehicle.
Note: When installing the frame, note the orientation sticker on the back of
the frame.
Slide number plate into bottom of frame and secure with the 3 clips on top.
Connect the red lead to Reverse light (12V) and the black lead to Ground.
Mount the speaker in the vehicle (clean mounting surface with alcohol swab)
and connect to the control module.
Connect sensors to the control module and mount in vehicle.
To set the sensitivity according to the number plate height, use the 3-position
switch on the control module.
Switch Position Height
1 35-40cm
2 40-60cm
3 60-80cm
Height is measured from the middle of the sensor to the ground.
Page 3
5
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (US)
email - [email protected] (Europe)
4
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (US)
email - [email protected] (Europe)

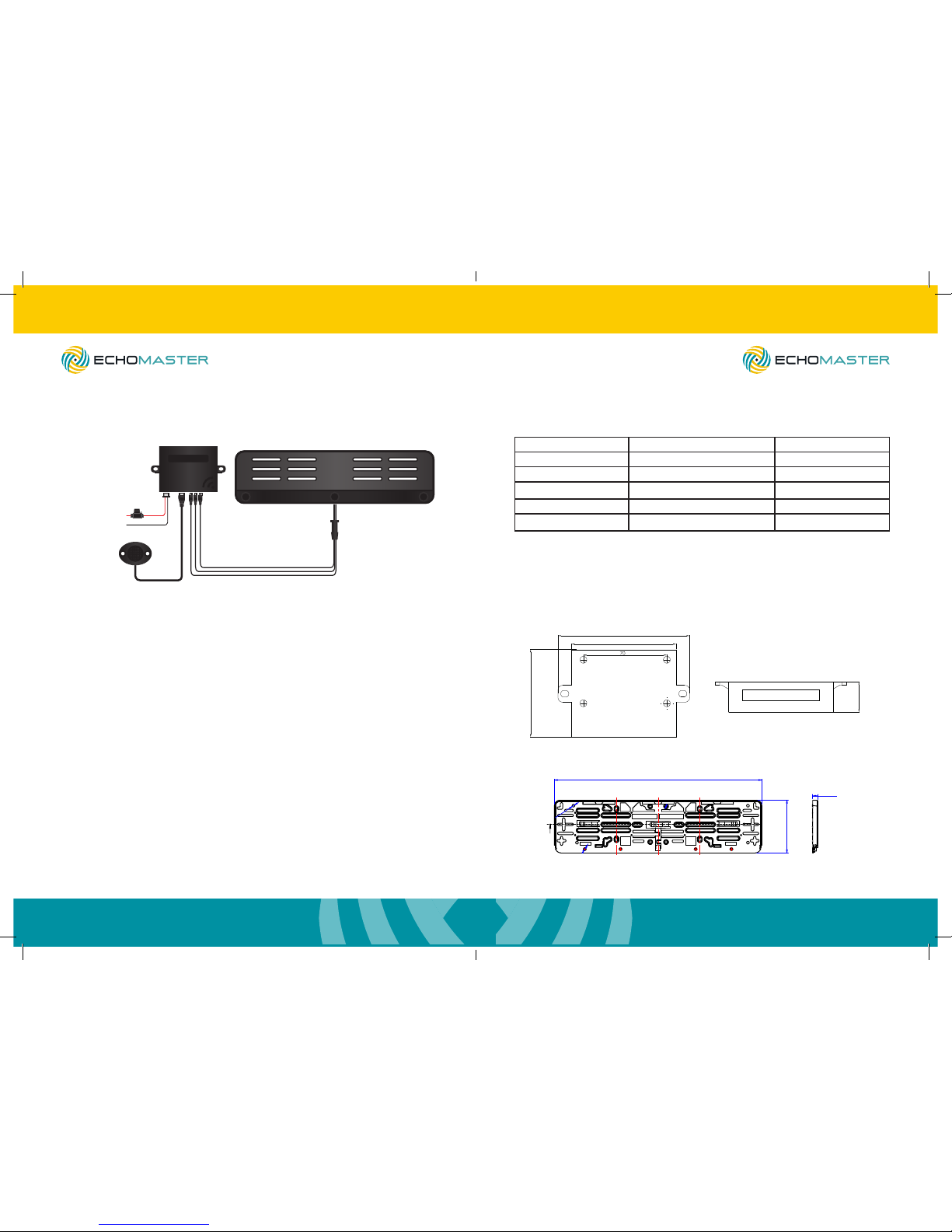

Wiring Diagram
SS-NP2
Rear EU Number Plate Sensor System
SS-NP2
Rear EU Number Plate Sensor System
Operating Guide (continued)
Reverse +12V (Red)
GND (Black)
Operating Guide
The system should beep one time when powered on to notify the driver that it
is on and working.
This system has a learning feature which will ignore objects directly in front
of the sensors at power up (up to 20 cm). To notify the user of the “learned”
blind area, the system will beep once after power up, followed by a
succession of beeps depending on which sensor detects the object. (From
left to right when looking at the frame, left sensor will beep two times, center
sensor 3 times, and right sensor 4 times).
Once an object is detected within the range, the system will alert the driver
via audible tone.
The detection range and audible alerts are as followed on the next page.
Distance Awareness Audible Warning
0-20cm Danger Biiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
30-40cm Caution Bi. Bi.
50-90cm Caution Bi.. Bi.. Bi..
100-150cm Safety Bi… Bi… Bi…
160-200cm Safety --
Note: The chart reects the default zone range. Performance may be affected
by the following: Heavy rain, loose gravel/bumpy road, steep slopes,
at/smooth surfaces. Keep sensor surface free of snow, ice, mud, etc.
Dimensions
110.5mm/ 4.33
87.5mm/ 3.44
83.5mm/ 3.28
25.5mm/1.00
A
530mm/20.86
133.50/5.25
12.7mm/0.5
Page 4
7
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (US)
email - [email protected] (Europe)
6
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (US)
email - [email protected] (Europe)
SS-NP2
Rear EU Number Plate Sensor System
SS-NP2
Rear EU Number Plate Sensor System

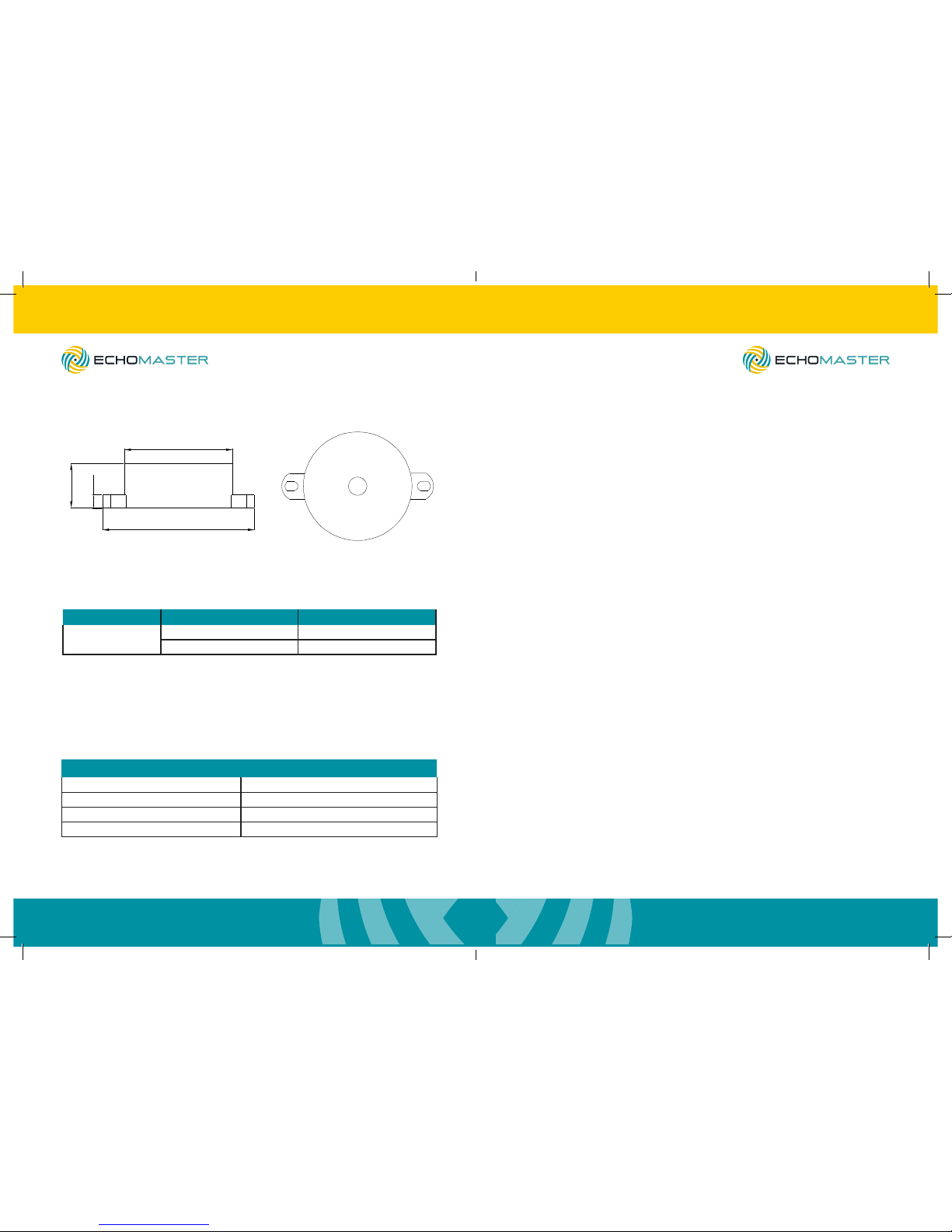

Dimensions (continued)
58mm/2.28
41.5/1.633
4.8/0.189
16.5/0.650
PROBLEM REASON SOLUTION
Sensor doesnt work
Power wire isn’t connected Connect the RED wire to +12V
Sensor(s) connected incorrectly Check each sensor connection
SS-NP2
Operating Voltage Range 9-1 6V DC
Power Consumption 3W
Operating Temperature -20C - +70°C
Detection Range 0.3 to 2.0m
Troubleshooting
Specication
