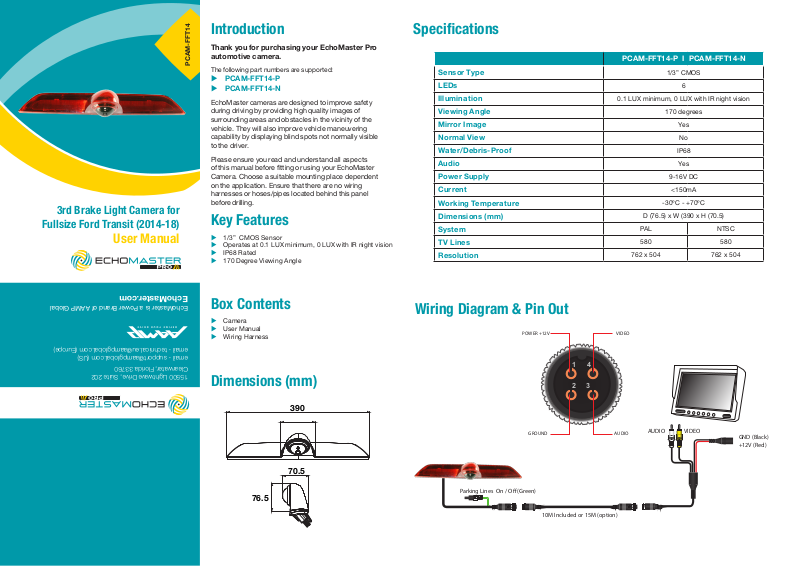

3rd Brake Light Camera for
Fullsize Ford Transit (2014-18)
User Manual
Introduction
Thank you for purchasing your EchoMaster Pro
automotive camera.
PCAM-FFT14
The following part numbers are supported:
u PCAM-FFT14-P
u PCAM-FFT14-N
EchoMaster cameras are designed to improve safety
during driving by providing high quality images of
surrounding areas and obstacles in the vicinity of the
vehicle. They will also improve vehicle maneuvering
capability by displaying blind spots not normally visible
to the driver.
Please ensure you read and understand all aspects
of this manual before tting or using your EchoMaster
Camera. Choose a suitable mounting place dependent
on the application. Ensure that there are no wiring
harnesses or hoses/pipes located behind this panel
before drilling.
Key Features
u 1/3” CMOS Sensor
u Operates at 0.1 LUX minimum, 0 LUX with IR night vision
u IP68 Rated
u 170 Degree Viewing Angle
EchoMaster.com
EchoMaster is a Power Brand of AAMP Global
Box Contents
u Camera
u User Manual
u Wiring Harness
email - [email protected] (Europe)
email - [email protected] (US)
Clearwater, Florida 33760
15500 Lightwave Drive, Suite 202
Dimensions (mm)
Specifications
Sensor Type
LEDs
Illumination
Viewing Angle
Mirror Image
Normal View
Water/Debris-Proof
Audio
Power Supply
Current
Working Temperature
Dimensions (mm)
System
TV Lines
Resolution
Wiring Diagram & Pin Out
POWER +12V VIDEO
1234
1
2 3
PCAM-FFT14-P I PCAM-FFT14-N
1/3” CMOS
6
0.1 LUX minimum, 0 LUX with IR night vision
170 degrees
Yes
No
IP68
Yes
9-16V DC
<150mA
-30ºC - +70ºC
D (76.5) x W (390 x H (70.5)
PAL NTSC
580 580
762 x 504 762 x 504
4
76.5
390
70.5
Parking Lines On / O (Green)
10M Included or 15M (option)
AUDIOGROUND
AUDIO
VIDEO
GND (Black)
+12V (Red)
