Echobox EXPLORER Getting Started Manual

EXPLORER

Getting Started Guide

How to Use the "Explor

Read this manual car
using the product.

er"

efully before

Love it? Shar

.com/echoboxaudio

twitter

facebook.com/echoboxaudio

e it!

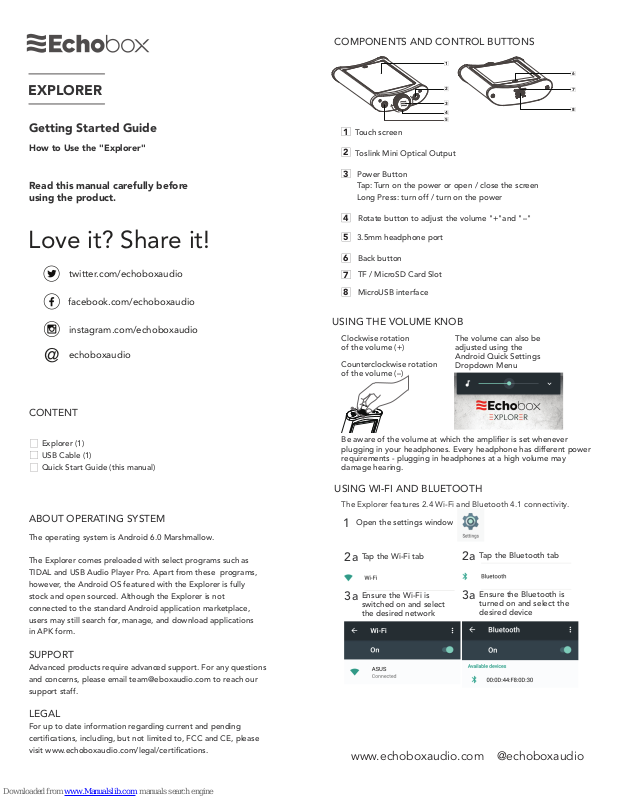

COMPONENTS AND CONTROL BUTTONS

1

2

3

4
5

1

T

ouch screen

2

Toslink Mini Optical Output

Power Button

3

Tap: Turn on the power or open / close the screen
Long Press: turn off / turn on the power

4

Rotate button to adjust the volume "+"and "–"

3.5mm headphone port

5

Back button

6

TF / MicroSD Card Slot

7

MicroUSB interface

8

6

7

8

instagram.com/echoboxaudio

echoboxaudio

@

CONTENT

er (1)

Explor
USB Cable (1)
Quick Start Guide (this manual)

ABOUT OPERA

The operating system is Andr

The Explorer comes preloaded with select programs such as
TIDAL and USB Audio Player Pro. Apart from these programs,
however, the Android OS featured with the Explorer is fully
stock and open sourced. Although the Explorer is not
connected to the standard Android application marketplace,
users may still search for, manage, and download applications
in APK form.

TING SYSTEM

oid 6.0 Marshmallow.

USING THE VOLUME KNOB

Clockwise rotation
of the volume (+)

Counterclockwise rotation
of the volume (–)

Be aware of the volume at which the amplier is set whenever
plugging in your headphones. Every headphone has different power
requirements - plugging in headphones at a high volume may
damage hearing.

The volume can also be
adjusted using the
Android Quick Settings
Dropdown Menu

USING WI-FI AND BLUETOOTH

The Explorer features 2.4 Wi-Fi and Bluetooth 4.1 connectivity.

Open the settings window

1

ap the Bluetooth tab

T

ap the Wi-Fi tab

2a

Ensur

3a

e the Wi-Fi is
switched on and select
the desired network

T

2a

e the Bluetooth is

Ensur

3a

turned on and select the
desired device

SUPPOR

Advanced products require advanced support. For any questions
and concerns, please email [e-mail] to reach our
support staff.

T

LEGAL

For up to date information r
certications, including, but not limited to, FCC and CE, please
visit www.echoboxaudio.com/legal/certications.

egarding current and pending

www

.echoboxaudio.com @echoboxaudio

Enter a passwor

4a

and press connect

d if required

PRECAUTIONS

Battery

The 4,000 mAH lithium battery is not user r
the battery needs to be replaced. In the event a battery is damaged,
please contact our support team immediately by emailing
[e-mail].

eplaceable. If damaged,

EXPLORER POWER ON / OFF

W

e recommend turning the Explorer

off when not in use.

Press and hold the button for 3 seconds

1

to turn the Explorer on

Pr

ess and hold button for until the power down screen

2

appears

(The Explorer's rst boot will take longer than normal)

SCREEN ON / OFF

If the Explor
automatically. To change the Sleep time, access the
Display menu from the Settings menu.

T

1

er remains unused, the screen will turn off

ap button once to turn screen off

For charging, the Explorer can be connected to computers and
other mobile charging devices, as long as charging voltage does
not exceed the current rating of 2A via DC5V.

About Headphones

1) Avoid listening at high volume for extended periods of time

2) Listening to music at high volumes outdoors may block out
external sounds. Please maintain awareness of your surroundings
at all times when listening to headphones or earphones.

3) Listening to music at loud volumes, especially using open-backed
headphones, may cause sound to leak into the surrounding
environment. Please be courteous to others in your vicinity.

TROUBLESHOOTING

If your Explor
try the following:

1. Hold down the power button for 1 – 2 minutes until
the Explorer shuts down.

2. Once the Explorer has shut down, hold the power button
for 30 seconds to restore power to the device.

3. If the Explorer has been restarted and the problem is not
resolved, please contact our support staff at [e-mail].

er experiences any bugs or glitches please

HOW TO USE THE TOUCH SCREEN

The Explor
navigate the device using a variety of gestures, including:

p Press and Hold

Ta

er features an touchscreen which enables users to

ap button once to turn screen on

T

2

T

o unlock the Explorer drag the lock icon upwards

Flick

Merge / Separate

Drag

www

.echoboxaudio.com

EXPLORER SPECIFICATIONS

DAC TEXAS INSTRUMENTS BURR BROWN

PCM 1792 - 24/192K CAPABLE,

ALL PCM FORMATS;

DSD SUPPORT (DSD TO PCM CONVERSION)

POWER TEXAS INSTRUMENTS TPA6120A2

300MW/CHANNEL @ 32 OHMS,

SNR 128DB

OUTPUT IMPEDANCE <1 OHM @ 16 OHMS

OUTPUT 3.5MM STEREO, MINI TOSLINK OPTICAL OUT

OS STOCK ANDROID 6.0 MARSHMALLOW

PROCESSOR ROCKCHIP RK3128 QUAD CORE

PROCESSOR @ 1.3 GHZ

NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

RAM

MEMORY

BATTERY

SCREEN

CONSTRUCTION

CONNECTIVITY

Operating temperature range: -10°C~35°C

The product shall only be connected to a USB interface of versionUSB2.0 or higher.

Test position and configuration Head SAR was performed with the

device configured in the positions according to IEEE1528, and Body

SAR was performed with the device 0mm from the phantom. Body SAR was

also performed with the headset attached and without.

1GB DDR3

64GB INTERNAL, MICRO SD SLOT

4,000 MAH LITHIUM-ION

3.5” LCD

GENUINE WOOD (MAPLE, ZEBRA WOOD,

MAHOGANY, EBONY)

MACHINED ALUMINUM

MICRO USB 2.0, WIFI (802.11 ABGN),

BLUETOOTH (4.1), DLNA

Changes or modications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

RF Exposure Information:
FCC RF Exposure requirements: The highest SAR value reported
under this standard during product certication for use next to the
head with the minimum separation distance of 0mmis 0.159W/Kg.
This transmitter must not be collocated or operating in conjunction
with any other antenna or transmitter.

This product is compliance to FCC RF Exposure requirements and
refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/Gener­icSearch.cfm search for FCC ID: 2AF3Z-X1

Refer to Article 10(9), shall be provided as follows: Hereby, Echobox
Audio, LCC., declares that the radio equipment type Explorer is in
compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet
address: www.echoboxaudio.com/Legal/Explorer/CE

This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz) band in USA.

Specications and design subject to modication without prior notication. Echobox and
the Echobox logo are registered trademarks of Echobox Audio, LLC. TI is a trademark of
Texas Instruments Inc. Android is a trademark of Google Inc. The Bluetooth word mark
and logos are trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Echobox Audio, LLC. is under license. Rockchip is a registered trademark of Rockhip. The
product with the Hi-Res Audio Logo is conformed to Hi-Res Audio standard dened by
Japan Audio Society. The logo is used under license from Japan Audio Society.

udio Player - Explorer

Digital A

FCC ID:2AF3Z-X1

Manufactured by Echobox Audio, LLC in The People’s Republic of China

Echobox Audio, LLC

4707 51st Place SW, Suite 200

Seattle, WA 98116

[e-mail]

www.echoboxaudio.com @echoboxaudio
