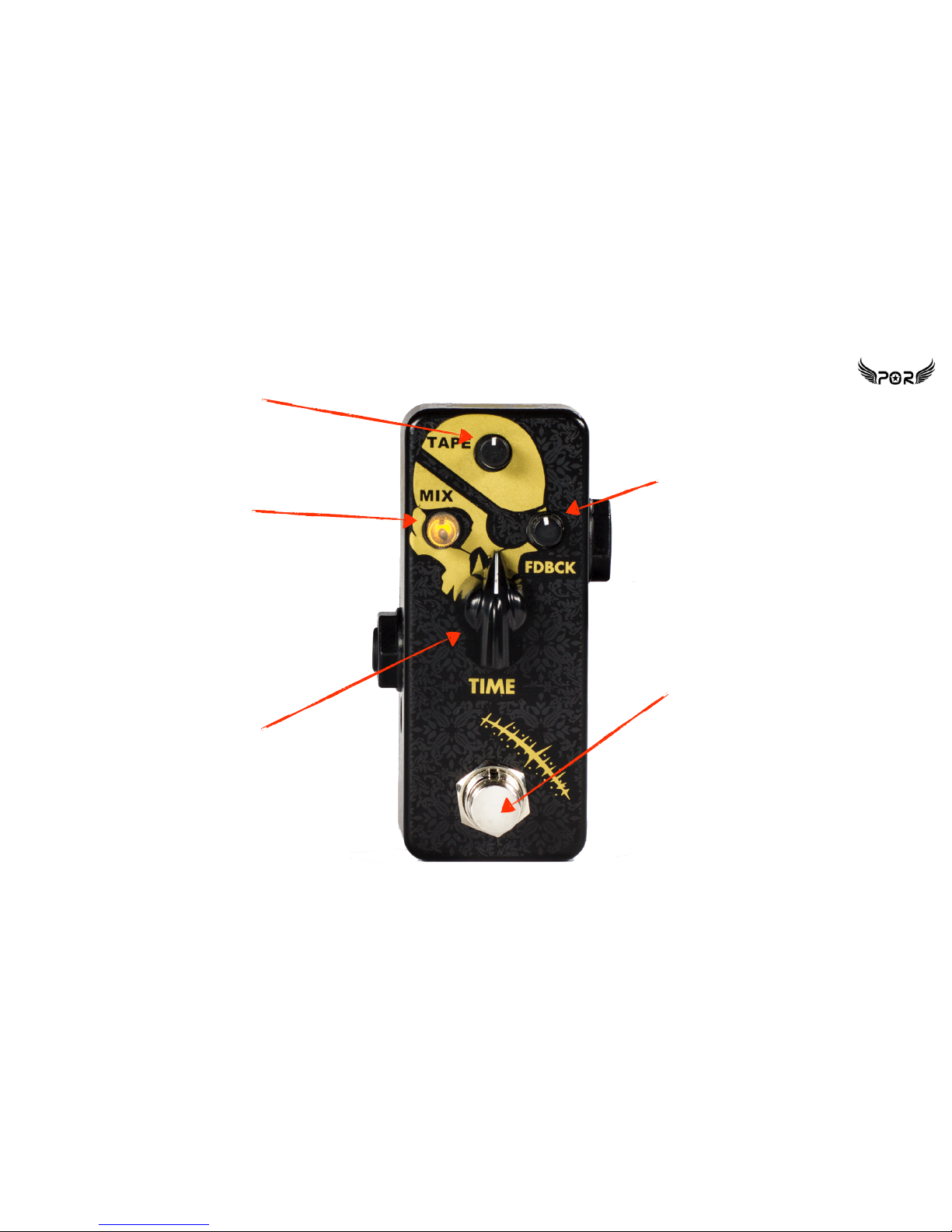

TOP PANEL
MIX CONTROL
Sets the amount of Echo effect added to the source sound.
Has a “click” feeling in the center to indicate the middle position.
Also has a built-in LED light to indicate on/off status of the pedal.
•
Set MIX to minimum (counter clockwise) to have a completely
dry sound and no echo.
•
Set MIX to maximum (clockwise) for a completely wet sound.
In this setting you will only hear the repetition of the echo with
a delay that is based on the position of the SPEED control.
EB Page 2
TIME CONTROL
Sets the frequency of the repetition.
This control will be disabled when an External Expression
Pedal (not included) is connected to the FXP input connector
located on the left panel.
FEEDBACK CONTROL
Sets the amount repetitions of the Echo.
Set this pot all the way (counter clockwise), to have
only one repetition.
If this pot is set to 75% and up you will get a regen
effect (the sound goes in a loop and will
progressively increase the volume and get
distorted)
TRUE BYPASS FOOT SWITCH
Turns the pedal ON/OFF.
TAPE CONTROL
Emulates the effect of a vintage Tape Recorder
(Out of pitch and a slight noise) only on the
repetition of the Echo but not on the input
sound.
F-Pedals - PULSE OF REBELLION SERIESEchoBandit - User’s Guide
2016 F-Vision LLC © All Rights Reserved.
Page 6

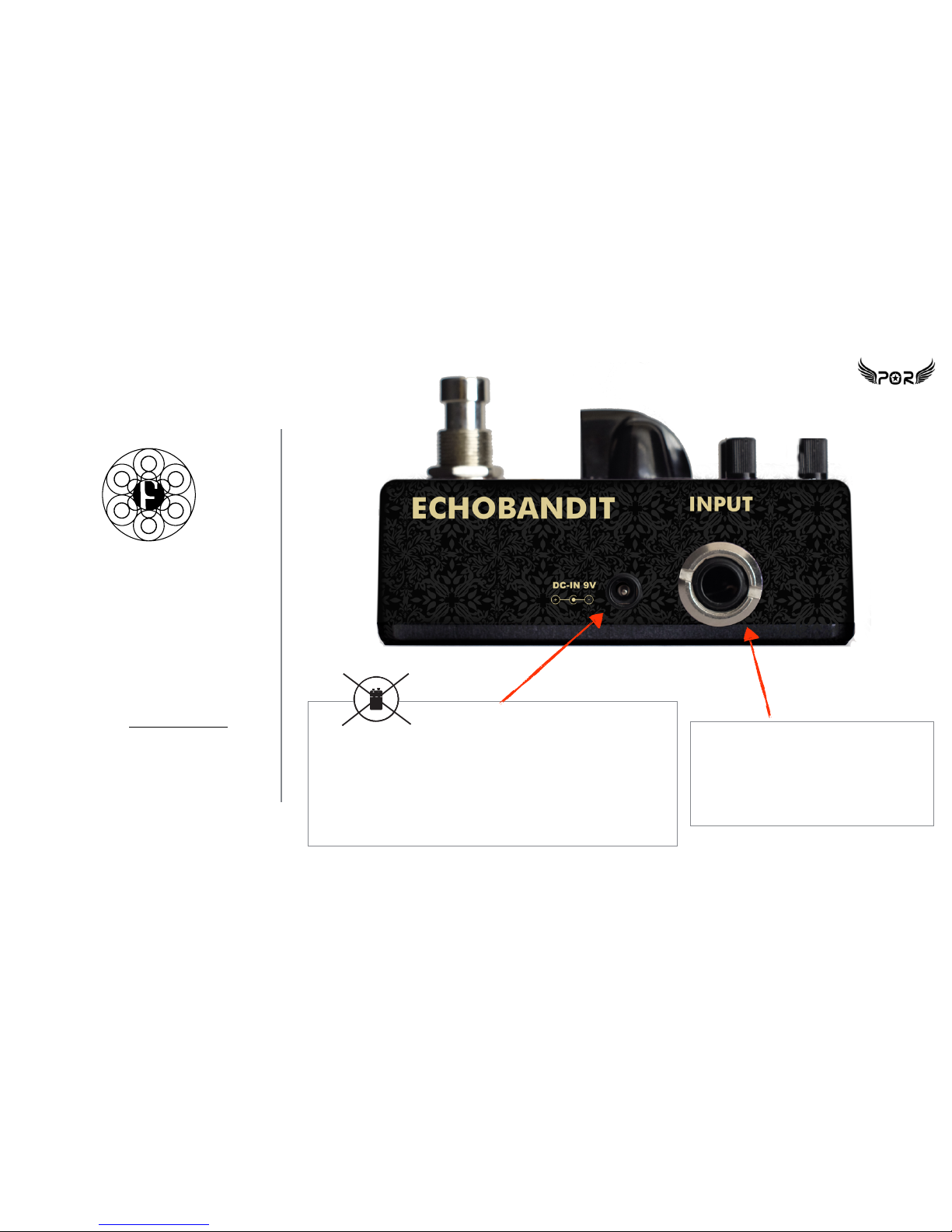

Right Panel Connections
EB Page 3
A.C. Adapter
(Not included) Use a standard Center Negative 9V Power
Supply.
You can use a power supply up to 18V (make sure it’s
regulated)
There is No Battery Slot inside this pedal.
Wireless F-Power
If you have purchased an F-Power
Version ready of Echobandit, simply
place your unit on an F-Board (sold
separately) and Switch on your pedal.
For more information about F-Board
please visit www.f-pedals.com.
Input Jack 1/4 Inches
This is where you plug your guitar (or
any other instrument of your choice)
using a standard 1/4 Inch Jack cable.
F-Pedals - PULSE OF REBELLION SERIESEchoBandit - User’s Guide
2016 F-Vision LLC © All Rights Reserved.
Page 7
EB Page 4
Please do not try to open
the pedal! Keep in mind
that if the stickers on the
screws are removed or
damaged you will lose
your Warranty.
FXP
Here you can connect an External Pedal
Control (Optional) to control the SPEED
by foot.
Output Jack 1/4 Inches
Connect here the 1/4 inch Jack that goes to
your Amplifier or other system of your
choice.
F-Pedals - PULSE OF REBELLION SERIES

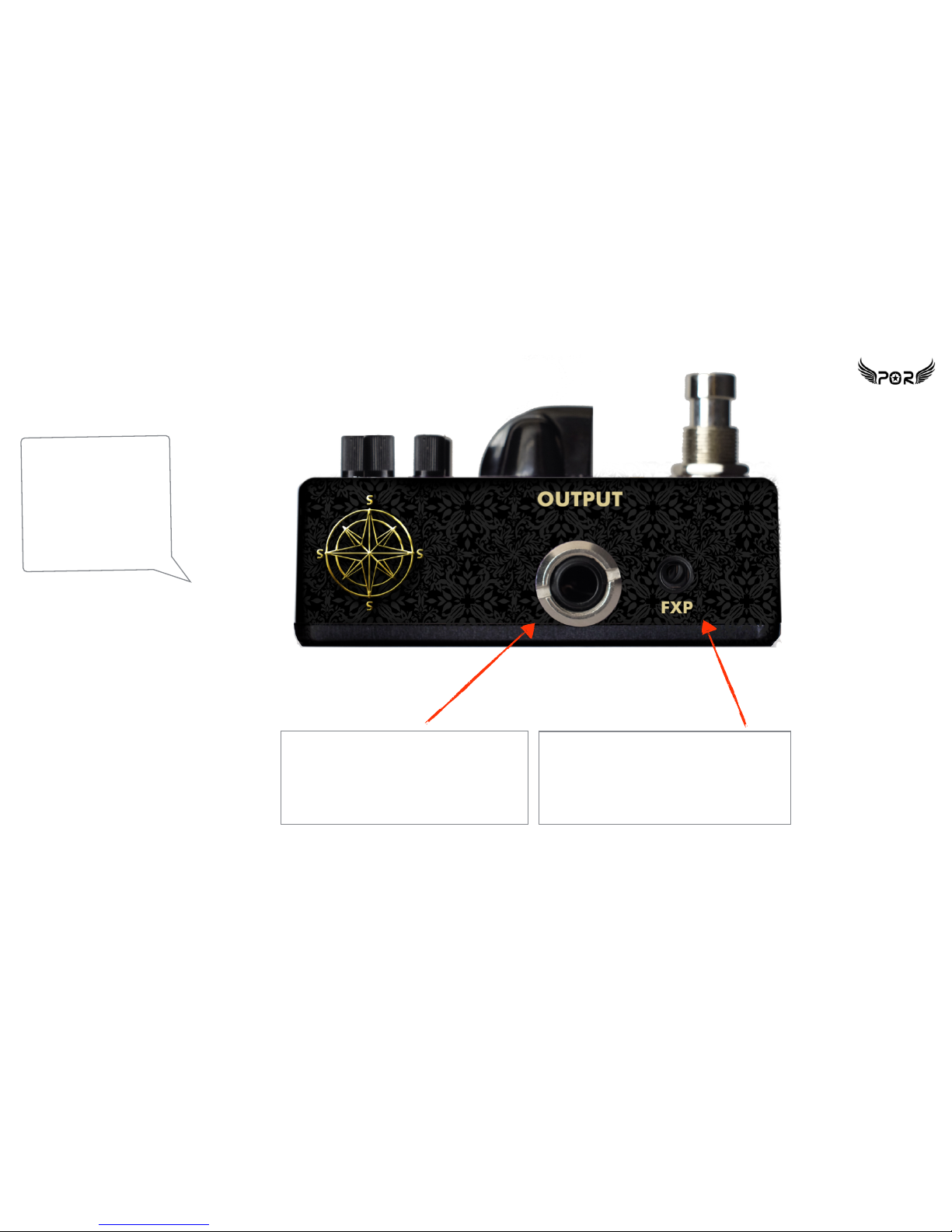

Left Panel Connections
EchoBandit - User’s Guide
2016 F-Vision LLC © All Rights Reserved.
Page 8
Warranty
If you experience a malfunction of the pedal, depending on the country and
region you are!in,!you may either contact the dealer where you purchased the
pedal from, or you can reach us directly!at [email protected].
We will ask you to ship your pedals to us ONLY IF!we find it necessary to perform a
factory repair or replacement. Our!warranty is effective for 1 year (from the date of
purchase of a new unit) and only for issues caused by our manufacturing
defects.!The warranty will be voided if the unit has been misused, abused,
modified by any unauthorized parties, or if any seal sticker on the bottom screws
is removed or broken.!
Although you don’t need to register your product, we will ask for your original
receipt in order to process your request.
F-Pedals reserves the right to make changes or improvements on this
product!without incurring any obligation to install the same on!products
previously manufactured. F-Pedals is not responsible for injuries and/or damages
related to the use of our products.!
Please save your receipt
If you have any questions feel free
to contact us anytime!
