ProThatch Attachment
Operator's Manual
Model 99944200563
MODELS USED ON: SRM-2400SB
SRM-260SB/261SB
PAS-2400
PAS-2601
PAS-230/231
PAS-260/261
PAS-265/266
PAS-280
WARNING
Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. ECHO provides an operator’s
manual. It must be read and understood for proper and safe operation. Failure to
do so could result in serious injury.
X7702093503
X770001303
10/12
2
ProThatch Attachment
Operator's Manual
Model 99944200563
MODELS USED ON: SRM-260SB/261SB
PAS-2400
PAS 230/231
PAS 260/261
PAS-265
X7702093501
X770001301
01/09
WARNING
Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual with your original Pro Attachment Series power source or Split
Boom Trimmer. That manual and this manual must be read and understood for proper
and safe operation. Failure to do so can result in serious injury.
InTroduCTIon
Welcome to the ECHO family. is ECHO product was designed and manufactured to provide long life and on-thejob-dependability. Read and understand this manual. You will nd it easy to use and full of helpful operations tips and
SAFETY messages.
The operaTor's manual
Keep it in a safe place for future reference. Contains specications and
information for safety, operation, maintenance, storage, and assembly
specic to this product.
Table of ConTenTs
Introduction .................................................................... 2
- The Operator's Manual ........................................... 2
Safety ............................................................................. 3
- Manual Safety Symbols & Important Information . 3
- International Symbols ............................................. 3
- Personal Condition and Safety Equipment ............. 4
- Equipment ............................................................... 6
Description ..................................................................... 7
Contents ......................................................................... 8
Assembly........................................................................ 8
- Fender/Wheel Assembly to
Lower Shaft Assembly ............................................ 8
- Lower Drive Shaft Assembly to
Dethatcher Gear Housing ...................................... 8
- Front J-Handle Assembly ....................................... 9
- Power Head Shaft to Lower Shaft Assembly ....... 10
- Fender/Wheel Assembly Adjustment ................... 10
- Front J-Handle Adjustment ....................................11
Operation ...................................................................... 12
Maintenance ................................................................. 13
- Skill Levels ........................................................... 13
- Maintenance Intervals ........................................... 13
- Lubrication ............................................................ 13
- Tine Replacement ................................................ 14
Storage ......................................................................... 16
Specications ............................................................... 16
Servicing Information .................................................. 20
- Parts/Serial Number .............................................. 20
- Service .................................................................. 20
- ECHO Customer Assistance ................................. 20
- Warranty Card ....................................................... 20
- Additional or Replacement Manuals .................... 20
Specications, descriptions and illustrative material in this
literature are as accurate as known at the time of publication,
but are subject to change without notice. Illustrations may
include optional equipment and accessories, and may not
include all standard equipment.
Copyright© 2012 By Echo, Incorporated
All Rights Reserved.
ProThaTch aTTachmenT
oPeraTor's manual
safeTy
WARNING
Refer to your Pro Attachment Series or Split Boom Operator's Manual for correct engine fueling, starting and stopping instructions.
manual safeTy symbols and ImporTanT InformaTIon
Throughout this manual and on the product itself, you will nd safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to
you.
3
DANGER
The safety alert symbol accompanied by the word
“DANGER” calls attention to an act or condition
which WILL lead to serious personal injury or
death if not avoided.
WARNING
The safety alert symbol accompanied by the word
“WARNING” calls attention to an act or condition which CAN lead to serious personal injury or
death if not avoided.
CAUTION
The safety alert symbol accompanied by the word
“CAUTION” calls attention to an act or condition
which may lead to minor or moderate personal
injury if not avoided.
InTernaTIonal symbols
Symbol form/shape
Symbol
description/application
Read and under-
stand Operator's
Manual.
Symbol form/shape
Symbol
description/application
Safety/Alert
CIRCLE AND SLASH SYMBOL
This symbol means the specic action
shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury.
NOTE
This enclosed message provides tips for use, care and
maintenance of the unit.
IMPORTANT
The enclosed message provides information necessary for the protection of the unit.
Symbol form/shape
Symbol
description/application
DO NOT USE
BLADES - Line
Head Only
Symbol form/shape
Symbol
description/application
Thrown
objects
Wear eyes, ears
and head protec-
tion
Wear hand and
foot protection
Wear Face Shield
Keep feet away
from blade
Finger Severing
Rotating
Cutting Attach-
ment
Wear slip resis-
tant foot wear.
Do not operate closer
than 15 M (50 ft.) from
electrical hazards.
Keep bystanders
at least 15 meters
(50 feet) away.
Plan retreat
path from falling
objects.
AVOID KICKOUT
Keep bystanders at least 15
meters (50 feet) away.
Beware Thrown Objects
Wear Eye Protection
Keep bystanders and helpers
away 15 meters (50 feet) away.
4
personal CondITIon and safeTy equIpmenT
WARNING
Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are
not followed. Proper clothing and safety gear must be worn when operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Wear eye protection that meets ANSI Z87.1 or CE requirements whenever you operate the trimmer.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your
grip on the Trimmer/Brush Cutter handles. Gloves also
reduce the transmission of machine vibration to your
hands.
Hearing Protection
ECHO recommends wearing hearing protection whenever
unit is used.
Proper Clothing
Wear snug tting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARVES, JEWELRY, or
clothing with loose or hanging items that could become
entangled in moving parts or surrounding growth..
Wear sturdy work shoes with nonskid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Wear no-slip, heavy duty work gloves.
Keep long hair away from engine and air intake. Retain
hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue
which may lead to heat stroke. Schedule heavy work for
early morning or late afternoon hours when temperatures
are cooler.
Vibration and Cold --
It is believed that a condition called Raynaud’s Phenomenon, which affects the ngers of certain individuals may be
brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sen-
sations followed by loss of color and numbness in the ngers. The following precautions are strongly recommended
because the minimum exposure which might trigger the ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles,
hands and wrists.
• Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to ll each day with jobs where
operating the unit or other hand-held power equipment is not
required.
• If you experience discomfort, redness, and swelling of the ngers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
ProThaTch aTTachmenT
oPeraTor's manual
Repetitive Stress Injuries --
It is believed that overusing the muscles and tendons of the ngers, hands, arms, and shoulders may cause soreness,
swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high
risk for developing a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which
could occur when your wrist swells and squeezes a vital nerve that runs through the area. Some believe that prolonged
exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position. Instead
try to maintain a straight wrist position. Also, when grasping, use your
whole hand, not just the thumb and index nger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force in which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• See a doctor if you feel tingling, numbness or pain in the ngers,
hands, wrists or arms. The sooner RSI/CTS is diagnosed, the more
likely permanent nerve and muscle damage can be prevented.
5
DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator's Manual for
instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while the
unit is in use.
Keep a Firm Grip
• Hold the front and rear handles with both hands, with thumbs and
ngers tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders. Do not over reach.
Avoid Hot Surfaces
• During operation, the drive shaft housing, attachment bearing housing and mufer cover area may become very hot, too hot to touch.
Avoid contact during and immediately after operation.
6

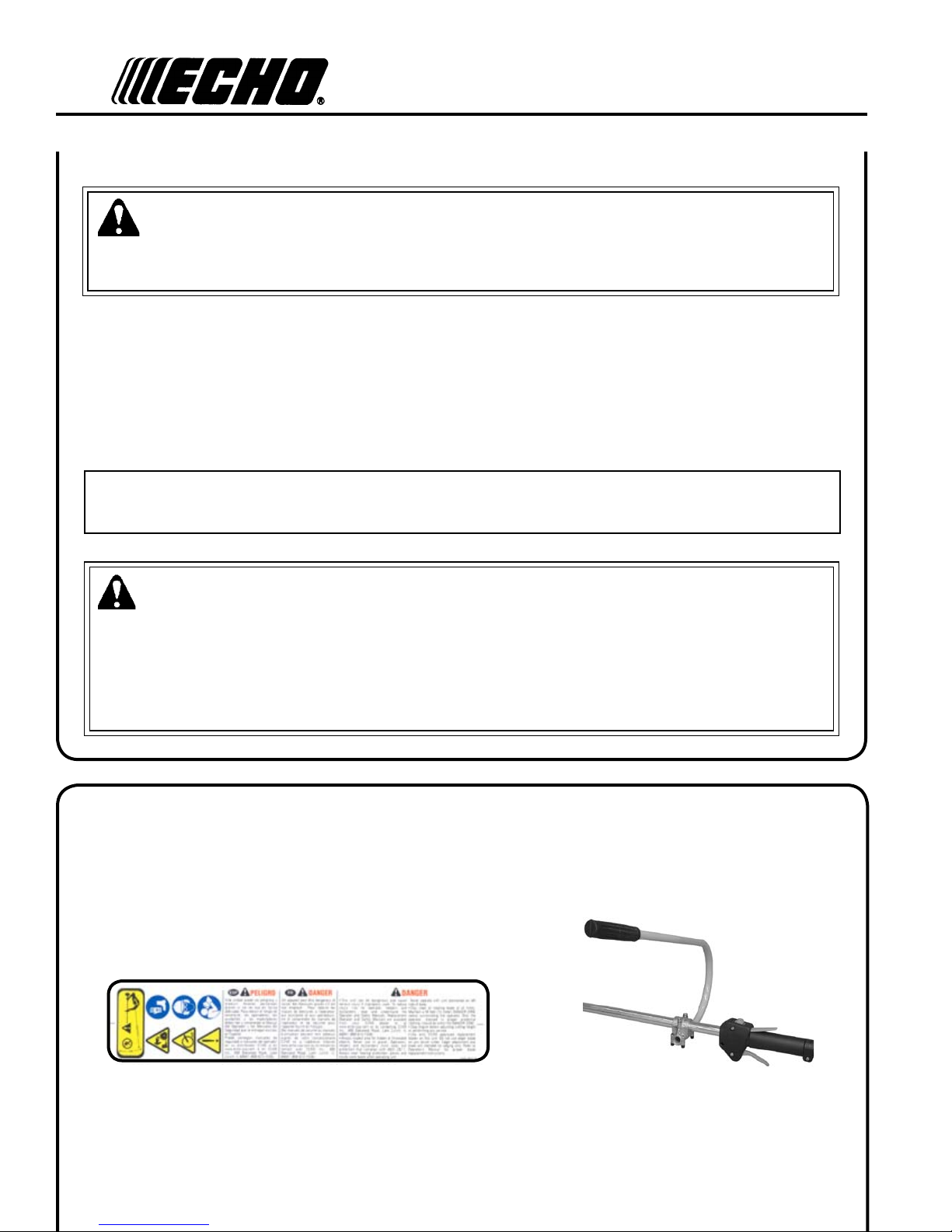

equIpmenT
WARNING
Use this attachment with ECHO approved models only. Serious injury may result from the use of this attachment
combined with a non approved ECHO product.
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or replace as needed.
• Inspect ProThatch tines for damage and that they are rmly secured in place. Replace tines if damaged or missing.
• Check that the dethatcher attachment is rmly attached and in safe operating condition.
NOTE
ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not
been tested and approved by ECHO.
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings.
• ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop
before removing obstructions, clearing debris, or servicing unit.
• DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit.
• NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings.
desCrIpTIon
Locate this safety decal on your attachment. Make sure the decal is legible and that you understand and follow the
instructions on it. If it cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING
instructions for specic information.
