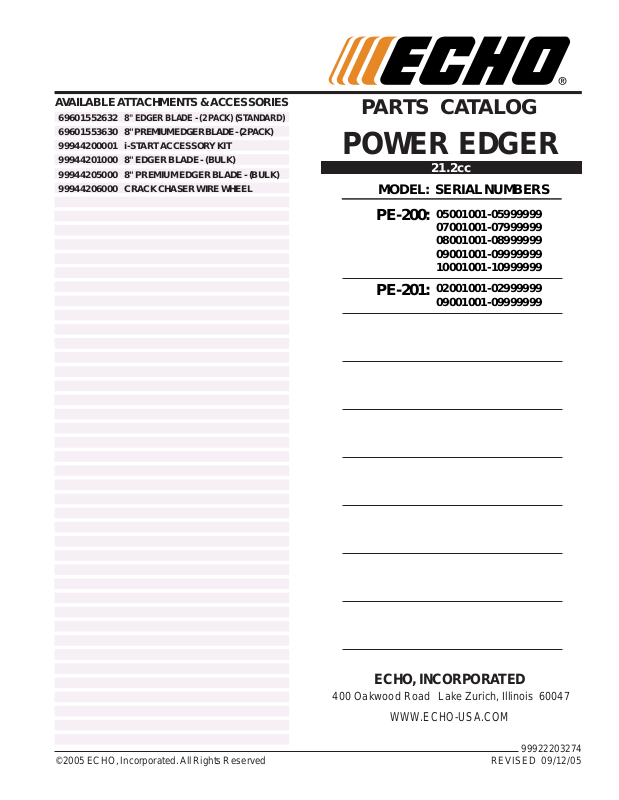

A VAILABLE A TT ACHMENTS & ACCESSORIES
69601552632
69601553630 8" PREMIUM EDGER BLADE - (2 P ACK)
99944200001 i-START ACCESSOR Y KIT
99944201000 8" E DG E R BLADE - (BULK)
99944205000 8" PREMIUM EDGER BLADE - (BULK)
99944206000 CRACK CHASER WIRE WHEEL
8" EDGER BLADE - (2 P ACK) (STANDARD)
PARTS CATALOG
POWER EDGER
21.2cc
MODEL: SERIAL NUMBERS
PE-200:
PE-201:
05001001-05999999
07001001-07999999
08001001-08999999
09001001-09999999
10001001-10999999
02001001-02999999
09001001-09999999
©2005 ECHO, Incorporated. All Rights Reserved
ECHO, INCORPORA TED
400 Oakwood Road Lake Zurich, Illinois 60047
WWW.ECHO-USA.COM
99922203274
REVISED 09/12/05
PE-200, 201
PE-201
ENGINE, IGNITION, SHORT BLOCK, CYLINDER COVER
SERIAL NUMBERS: 02001001-02999999
GASKET KIT
18
28
29
32
26
20
25
19
22
21
30
33
23
31
27
24
2
3
4
13
17
16
15
14
1
6
5
7
8
9
11
10
13
12
2
PE-200, 201
PE-201
ENGINE, IGNITION, SHORT BLOCK, CYLINDER COVER
SERIAL NUMBERS: 02001001-02999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
OPTIONAL ENGINE REPOWER
1
SB1048 1 SHORT BLOCK INCLUDES ITEM 2-17
2
A130000091 1 CYLINDER
3
90016205022 2 BOLT 5X22
4
V100000020 1 GASKET, CYLINDER
5
P021001101 1 PISTON KIT INCLUDES ITEMS 6-9
6
A101000000 2 RING, PISTON
7
10001311520 1 PIN, PISTON
8
10001504630 2 CIRCLIP, PISTON PIN
9
10001411520 2 SPACER, PISTON PIN
10
10010044733 1 CRANKSHAFT ASY INCLUDES ITEM 11
11
V553000010 1 BEARING, NEEDLE
12
10020452131 1 CRANKCASE KIT INCLUDES ITEMS 13-17
13
10021242031 2 OIL SEAL
14
10021503930 2 PIN, DOWEL
15
9403536201 2 BEARING, BALL
16
10024242030 1 GASKET, CRANKCASE
17
90016205028 3 BOLT 5X28
18
P021001591 1 GASKET KIT
19
15660152130 1 COIL, IGNITION
20
90016204022 2 BOLT 4X22
21
15011244330 1 BUSHING
22
15901201620 1 CAP, SPARK PLUG
23
15901103432 1 TERMINAL, SPARK PLUG CAP
24
15901010630 1 SPARK PLUG -- BPM-7A
25
16201052830 1 LEAD, GROUND
26
A409000000 1 FLYWHEEL
27
A160000172 1 COVER, CYLINDER
28
90025305016 1 SCREW 5X16
29
15991248630 1 GUARD, TOP
30
90025304012 2 SCREW 4X12
31
V141000030 1 PLUG, GROMMET
32
89016006361 1 LABEL, CAUTION - HOT
33
X503001400 1 LABEL, MODEL -- PE-201
Also Included In GASKET KIT
3
PE-200, 201
PE-200
ENGINE, IGNITION, SHORT BLOCK, CYLINDER COVER
SERIAL NUMBERS: 05001001-05999999, 07001001-07999999
30
GASKET KIT
18
31
35
28
21
20
27
36
-- PE-200
37
-- PE-201
19
33
CANADA -
23
22
24
34
29
32
25
26
2
3
4
13
17
16
15
14
1
6
5
7
8
9
11
10
13
12
4
PE-200, 201
PE-200
ENGINE, IGNITION, SHORT BLOCK, CYLINDER COVER
SERIAL NUMBERS: 05001001-05999999, 07001001-07999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
OPTIONAL ENGINE REPOWER
1
SB1065 1 SHORT BLOCK INCLUDES ITEM 2-17
2
A130000430 1 CYLINDER
3
90016205022 2 BOLT 5X22
4
V100000080 1 GASKET, CYLINDER
5
P021001101 1 PISTON KIT INCLUDES ITEMS 6-9
6
A101000000 2 RING, PISTON
7
10001311520 1 PIN, PISTON
8
10001504630 2 CIRCLIP, PISTON PIN
9
10001411520 2 SPACER, PISTON PIN
10
A011000101 1 CRANKSHAFT ASY INCLUDES ITEM 11
11
V553000010 1 BEARING, NEEDLE
12
10020452131 1 CRANKCASE KIT INCLUDES ITEMS 13-17
13
10021242031 2 OIL SEAL
14
10021503930 2 PIN, DOWEL
15
9403536201 2 BEARING, BALL 6201
16
10024242030 1 GASKET, CRANKCASE
17
90016205028 3 BOLT 5X28
18
P021004270 1 GASKET KIT
19
A411000130 1 COIL, IGNITION
20
90016204020 2 BOLT 4X20
21
15611054930 1 TUBE
22
15011244330 1 BUSHING
23
15901201620 1 CAP, SPARK PLUG
24
15901103432 1 TERMINAL, SPARK PLUG CAP
25
15901019830 1 SPARK PLUG -- BPM-8Y
26
A425000000 1 SPARK PLUG -- BPMR-8Y CANADA MODELS
27
V485000290 1 LEAD, GROUND
28
A409000160 1 FLYWHEEL
29
A160000172 1 COVER, CYLINDER
30
90025305016 1 SCREW 5X16
31
A162000040 1 GUARD, TOP
32
9110704008 1 SCREW 4X8
33
90025304012 2 SCREW 4X12
34
V141000030 1 PLUG, GROMMET
35
89016006361 1 LABEL, HOT
36
X543000200 1 LABEL, MODEL -- PE-200
37
X503001400 1 LABEL, MODEL -- PE-201
Also Included In GASKET KIT
5
PE-200, 201
ENGINE, IGNITION, SHORT BLOCK, CYLINDER COVER
SERIAL NUMBERS: 08001001-10999999
GASKET KIT
- S/N: 08001001-08999999
18
10001001-10999999
- S/N: 09001001-09999999
19
-- PE-200
36
-- PE-201
37
34
28
CANADA -
21
24
31
32
35
30
33
26
27
29
22
13
17
20
16
23
25
2
3
4
1
6
5
7
8
9
11
10
15
14
13
12
PE 0001 00 8_9_10
6
PE-200, 201
ENGINE, IGNITION, SHORT BLOCK, CYLINDER COVER
SERIAL NUMBERS: 08001001-10999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
OPTIONAL ENGINE REPOWER
1
SB1072 1 SHORT BLOCK INCLUDES ITEM 2-17
2
A130000540 1 CYLINDER
3
90016205022 2 BOLT 5X22
4
V100000160 1 GASKET, CYLINDER
5
P021007712 1 PISTON KIT INCLUDES ITEMS 6-9
6
A101000090 1 RING, PISTON
7
10001311520 1 PIN, PISTON
8
10001504630 2 CIRCLIP, PISTON PIN
9
10001411520 2 SPACER, PISTON PIN
10
A011000101 1 CRANKSHAFT ASY INCLUDES ITEM 11
11
V553000010 1 BEARING, NEEDLE
12
10020452131 1 CRANKCASE KIT INCLUDES ITEMS 13-17
13
10021242031 2 OIL SEAL
14
10021503930 2 PIN, DOWEL
15
9403536201 2 BEARING, BALL 6201
16
10024242030 1 GASKET, CRANKCASE
17
90016205028 3 BOLT 5X28
18
P021008010 1 GASKET KIT S/N: 08001001-08999999 & 10001001-10999999
19
P021007600 1 GASKET KIT S/N: 09001001-09999999
20
A411000130 1 COIL, IGNITION
21
90016204020 2 BOLT 4X20
22
15611054930 1 TUBE
23
15011244330 1 BUSHING
24
15901201620 1 CAP, SPARK PLUG
25
15901103432 1 TERMINAL, SPARK PLUG CAP
26
15901019830 1 SPARK PLUG -- BPM-8Y
27
A425000000 1 SPARK PLUG -- BPMR-8Y CANADA MODELS
28
V485000290 1 LEAD, GROUND
29
A409000210 1 FLYWHEEL
30
A160000580 1 COVER, CYLINDER
31
90025305016 1 SCREW 5X16
32
A162000040 1 GUARD, TOP
33
9110704008 1 SCREW 4X8
34
90025304012 2 SCREW 4X12
35
89016006361 1 LABEL, HOT
36
X543000200 1 LABEL, MODEL -- PE-200
37
X503001400 1 LABEL, MODEL -- PE-201
Also Included In GASKET KIT
7
PE-200, 201
SERIAL NUMBERS: ALL
FAN CASE, CLUTCH, FUEL SYSTEM
2
3
4
5
6
1
7
9
11
10
19
8
12
20
13
14
18
15
16
17
PE 0002 00 000
8
PE-200, 201
SERIAL NUMBERS: ALL
ITEM PART NUMBER QTY DESCRIPTION REMARKS
10150356630 1 FAN COVER ASY
1
90056550005 2 NUT 5
2
90014205028 2 BOLT 5X28
3
90016304018 4 BOLT 4X18
4
16381044330 1 BRACKET, SWITCH
5
16340003460 1 SWITCH, IGNITION
6
17500056830 1 CLUTCH ASY
7
13201056330 1 PIPE, RETURN - 3X6X90mm BULK OPTION: 90017
8
A356000030 1 VALVE, CHECK
9
13131239130 1 PIPE, VENT - 3X5X70mm BULK OPTION: 90014
10
13201013930 1 PIPE, FUEL - 3X5X180mm BULK OPTION: 90014
11
V137000030 1 GROMMET, FUEL
12
13201309820 1 CLIP
13
13120507320 1 FILTER, FUEL
14
A350000290 1 TANK, FUEL
15
90060300005 2 WASHER 5
16
90023805020 2 SCREW 5X20
17
13100455530 1 FUEL TANK CAP ASY INCLUDES ITEMS 20-21
18
13101655830 1 GASKET, FUEL CAP
19
13105156030 1 CONNECTOR, FUEL CAP
20
FAN CASE, CLUTCH, FUEL SYSTEM
9
PE-200, 201
SERIAL NUMBERS: ALL
1
2
3
STARTER, i-30 STARTER
MODEL SERIAL NUMBERS:
PE-200: 05001001 - 05045500
07001001 - 07001032
PE-201: 02001001 - 02999999
4
5
7
8
9
6
10
11
12
ITEMS 1-10 MAY BE REPLACED WITH i-START ACCESSORY KIT #99944200001
14
15
13
16
18
i-30 STARTER
17
19
MODEL SERIAL NUMBERS:
PE-200: 05045501- 05999999
07001033-10999999
PE-201: 09001001-09999999
25
20
21
26
22
23
24
28
27
10
PE-200, 201
SERIAL NUMBERS: ALL
ITEM PART NUMBER QTY DESCRIPTION REMARKS
17720244331 1 STARTER PAWL ASY INCLUDES ITEMS 2-3
1
17723442030 1 SPRING, RETURN
2
17721844330 1 PAWL, STARTER
3
17720054130 1 STARTER ASY INCLUDES ITEMS 5-10
4
17723644330 1 SCREW
5
17721544430 1 DRUM, STARTER
6
17722610120 1 ROPE, STARTER - 3X1000mm BULK OPTION: 99944440000
7
17722742030 1 GUIDE, ROPE
8
17722806530 1 GRIP, STARTER
9
17722042030 1 SPRING, REWIND
10
90016304016 4 BOLT 4X16
11
89011849130 1 LABEL, ECHO
12
A052000180 1 STARTER PAWL ASY INCLUDES ITEMS 14-16
13
P022002100 2 E-RING
14
P022006510 2 SPRING, RETURN
15
P022006850 2 PAWL, STARTER
16
A051000680 1 STARTER ASY INCLUDES ITEMS 18-26
17
17723661830 1 SCREW
18
P022008280 1 PLATE, CAM
19
P022008270 1 SPRING, DAMPER
20
P022006830 1 DRUM
21
P022008260 1 ROPE, STARTER - 3X700mm BULK OPTION: 99944440000
22
17722742030 1 GUIDE, ROPE
23
17722827030 1 GRIP, STARTER
24
17724611120 1 CLIP, STARTER ROPE
25
17722042030 1 SPRING, REWIND
26
90016304016 2 BOLT 4X16
27
X502000150 1 LABEL, i-30
28
STARTER, i-30 STARTER
11
PE-201
PE-200, 201
SERIAL NUMBERS: 02001001-02999999
INTAKE, EXHAUST
GASKET KIT
23
9
8
7
3
2
1
4
6
13
11
12
10
14
15
16
5
18
22
17
21
20
19
12
PE-200, 201
PE-201
SERIAL NUMBERS: 02001001-02999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
21041752730 1 WING BOLT
1
13031306563 1 LID, AIR CLEANER
2
89012106360 1 LABEL, CHOKE
3
13031054130 1 FILTER, AIR
4
90024205065 2 SCREW 5X65
5
12901152730 1 PLATE, PREVENT
6
P021001500 1 CASE, AIR CLEANER
7
A021000110 1 CARBURETOR -- CIU-K58
8
13001642031 1 GASKET, INTAKE
9
90023805020 2 SCREW 5X20
10
13001742031 1 INSULATOR, INTAKE
11
90050000005 2 NUT 5
12
13001042032 1 SHIELD, CYLINDER
13
V104000100 1 SHIELD, MUFFLER
14
A300000140 1 MUFFLER
15
V150000371 1 PLATE, EYE
16
V347000000 4 WASHER, CONICAL
17
90010505055 2 BOLT 5X55
18
14586240630 1 SCREEN, MUFFLER
19
V104000360 1 GASKET, EXHAUST
20
A313000130 1 GUIDE, EXHAUST
21
9136704010 5 SCREW 4X10
22
INTAKE, EXHAUST
Also Included In GASKET KIT
P021001591 1 GASKET KIT
23
13
PE-200, 201
SERIAL NUMBERS: 05001001-10999999
GASKET KIT
1
- S/N: 05001001-05999999
07001001-07999999
- S/N: 08001001-08999999
2
10001001-10999999
3
- S/N: 09001001-09999999
INTAKE
18
16
14
GRAY BLACK -
GRAY BLACK -
5
6
4
9
12
13
11
7
8
-- CANADA
17
15
19
10
14
PE-200, 201
SERIAL NUMBERS: 05001001-10999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
P021004270 1 GASKET KIT S/N: 05001001-05999999 & 07001001-07999999
2
P021008010 1 GASKET KIT S/N: 08001001-08999999 & 10001001-10999999
3
P021007600 1 GASKET KIT S/N: 09001001-09999999
4
21041752730 1 WING BOLT
5
13031306563 1 LID, AIR CLEANER - GRAY
6
13031305863 1 LID, AIR CLEANER - BLACK
7
89012152730 1 LABEL, CHOKE
8
89033252730 1 LABEL, CHOKE CANADA MODELS
9
13031054130 1 FILTER, AIR
10
90022005065 2 SCREW 5X65
11
12901152730 1 PLATE, PREVENT
12
P021000991 1 CASE, AIR CLEANER - GRAY
13
P021004480 1 CASE, AIR CLEANER - BLACK
14
13001013410 1 GASKET, INTAKE
15
90023805020 2 SCREW 5X20
16
13001744330 1 INSULATOR, INTAKE
17
90050000005 2 NUT 5
18
13001042032 1 SHIELD, CYLINDER
INTAKE
Also Included In GASKET KIT
19
------------------ 1 CARBURETOR**
**SEE CARBURETOR DIAGRAMS FOR MODEL APPLICATIONS AND SERIAL NUMBERS
15
Part Number New To This Edition =
PE-200, 201
PE-200
SERIAL NUMBERS: 05001001-08999999
GASKET KIT
- S/N: 05001001-05999999
1
07001001-07999999
2
- S/N: 08001001-08999999
6
5
4
EXHAUST
10
3
8
7
9
16
PE 0003 00 5__8
PE-200, 201
PE-200
SERIAL NUMBERS: 05001001-08999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
P021004270 1 GASKET KIT S/N: 05001001-05999999 & 07001001-07999999
1
P021008010 1 GASKET KIT S/N: 08001001-08999999
2
V104000420 1 SHIELD, MUFFLER
3
14580642030 1 MUFFLER
4
90060000005 2 WASHER
5
90010505055 2 BOLT 5X55
6
14586240630 1 SCREEN, MUFFLER
7
14586642031 1 GASKET, EXHAUST
8
A313000350 1 GUIDE, EXHAUST
9
90024204010 3 SCREW 4X10
10
Also Included In GASKET KIT
EXHAUST
17
PE-200, 201
SERIAL NUMBERS: 09001001-10999999
GASKET KIT
1
6
5
EXHAUST
10
4
3
2
7
8
9
18
PE 0004 00 9_10
PE-200, 201
SERIAL NUMBERS: 09001001-10999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
P021007600 1 GASKET KIT
1
V104000510 1 SHIELD, MUFFLER
2
A300000141 1 MUFFLER
3
V150000371 1 PLATE, EYE
4
V347000000 4 WASHER, CONICAL
5
90010505055 2 BOLT 5X55
6
14586240630 1 SCREEN, MUFFLER
7
V104000360 1 GASKET, EXHAUST
8
A313000600 1 GUIDE, EXHAUST
9
9136704010 5 SCREW 4X10
10
Also Included In GASKET KIT
EXHAUST
19
PE-200, 201
SERIAL NUMBERS: ALL
1
4
5
HANDLE, THROTTLE, DRIVE SHAFT, BLADE SHIELD
2
3
6
10
13
14
11
7
12
13
15
9
16
30
29
25
32
17
31
34
33
28
35
8
36
MODEL SERIAL NUMBERS
PE-201: 02001001-02999999
37
38
39
40
MODEL SERIAL NUMBERS
PE-200: 05001001-10999999
27
PE-201: 09001001-09999999
18
19
21
20
26
24
23
22
20
PE-200, 201
HANDLE, THROTTLE, DRIVE SHAFT, BLADE SHIELD
SERIAL NUMBERS: ALL
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
89016025560 1 LABEL, CAUTION
2
35120108930 1 LOOP HANDLE ASY INCLUDES ITEMS 3-5
3
90050000005 2 NUT 5
4
90060000005 2 WASHER 5
5
90022005040 2 SCREW 5X40
6
35133008930 1 COLLAR
7
35121344330 1 GRIP
8
90024005025 2 SCREW 5X25
9
90050000005 2 NUT 5
10
17811005330 1 SCREW
11
90056000005 1 LOCKNUT
12
61020647730 1 PIPE, MAIN INCLUDES ITEMS 13-14
13
61024655330 2 STOPPER
14
61021755330 1 LINER, FLEXIBLE
15
61001344730 1 DRIVESHAFT, FLEXIBLE
16
89015204930 1 LABEL, ALIGNMENT
17
69901052830 1 SHIELD, BLADE
18
17811355330 1 WING NUT
19
90060500008 1 SPRING WASHER 8
20
90060200008 1 WASHER 8
21
C730000030 1 WHEEL 6X1.5
22
30242452630 1 COLLAR 12
23
90060200010 1 WASHER 10
24
30202955332 1 BRACKET, WHEEL
25
90008000100 2 SCREW 8
26
61025055330 1 BOLT
27
69901755330 1 SHIELD, BLADE
28
90008000200 2 SCREW 4X20
29
69902552630 1 PLATE, PROTECTION
30
90008000300 2 SCREW 4X16
31
90056250005 3 LOCKNUT 5
32
90016205022 3 BOLT 5X22
33
69601552632 1 CUTTER BLADE - 2 PER PACKAGE
34
89016052631 1 LABEL, CAUTION
35
C450000070 1 TRIGGER, THROTTLE
36
17804306930 1 SPRING, THROTTLE RETURN
37
90070000005 1 E-RING 5
MODEL PE-201 SERIAL NUMBERS: 02001001-02999999
17800144430 1 CABLE, THROTTLE
38
90050200006 2 NUT 6
39
MODELS PE-200 & 201 SERIAL NUMBERS: 05001001-10999999
V430000671 1 CABLE, THROTTLE
40
21
PE-200, 201
SERIAL NUMBERS: ALL
GEAR CASE, TOOLS
11
20
19
1
15
14
13
12
16
17
18
21
22
23
5
4
3
2
24
6
10
9
8
7
25
26
27
22
PE-200, 201
SERIAL NUMBERS: ALL
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
61040252633 1 GEAR CASE ASY INCLUDES ITEMS 2-23
2
90070600010 1 CIRCLIP 10
3
90070200022 1 CIRCLIP 22
4
90085806900 1 BEARING, BALL
5
90085506900 1 BEARING, BALL
6
61030052630 1 GEAR SET
7
90030020022 1 SPLIT PIN 2X22 BULK OPTION: 89850201130 -10 PER PACKAGE
8
90051300010 1 NUT - LEFT HAND
9
61031404131 1 PLATE, ADAPTER - LOWER
10
C535000140 1 PLATE, ADAPTER - UPPER
11
61041307130 1 SEAL
12
61031507130 1 SPACER
13
90070200032 1 CIRCLIP, 32
14
9403536201 1 BEARING, BALL
15
61036008931 1 SHAFT, P.T.O.
16
90070600012 1 CIRCLIP, 12
17
90080000609 1 BEARING, BALL 609
18
61023904130 2 SHIM WASHER
19
61046027431 1 HOUSING, GEAR
20
90024205014 1 SCREW 5X14
21
61043450031 1 BOLT 8X8
22
90010005030 2 BOLT 5X30
23
90060000005 2 WASHER 5
24
61022555331 1 COLLAR
GEAR CASE, TOOLS
25
89751801131 1 LOCKING TOOL
26
89511200330 1 SPANNER 8X10
27
X602000020 1 WRENCH, W/SCREWDRIVER
23
PE-200, 201
PE-201
SERIAL NUMBERS: 02001001-02999999
2
CARBURETOR -- CIU-K58
1
32
29
25
27
22
23
20
12
21
24
28
13
11
33
34
26
4
3
6
5
10
9
8
30
7
35
36
15
14
19
31
16
17
18
24
PE-200, 201
PE-201
SERIAL NUMBERS: 02001001-02999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000110 1 CARBURETOR -- CIU-K58
12534452130 2 SCREW, METERING DIAPHRAGM COVER
1
12534213210 1 COVER, METERING DIAPHRAGM
2
------------------ 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
3
12537613120 1 NOZZLE, CHECK VALVE
4
12532908560 1 CAP, LIMITER - HIGH SPEED
5
P005000400 1 NEEDLE - HIGH SPEED
6
12537242030 1 SWIVEL
7
12532713930 1 CLIP, SWIVEL
8
P005000390 1 SHAFT, THROTTLE
9
12531342030 1 SPRING, THROTTLE RETURN
10
12531413930 1 SCREW, THROTTLE VALVE
11
12531649030 1 VALVE, THROTTLE
12
12532715130 1 CLIP, THROTTLE SHAFT
13
12533406960 1 SCREW, IDLE ADJUST
14
12533306960 1 SPRING, IDLE ADJUST
15
12538313310 1 BASE, PURGE
16
12538108660 1 PUMP, PURGE
17
12536311610 1 RETAINER, PURGE PUMP
18
12531011610 2 SCREW, PURGE BASE
19
12533942030 1 SCREW, METERING LEVER PIN
20
CARBURETOR -- CIU-K58
P005000580 1 REPAIR KIT INCLUDES ITEM 22-31
21
------------------ 1 DIAPHRAGM, METERING
22
------------------ 1 GASKET, METERING DIAPHRAGM
23
------------------ 1 PIN, METERING ARM
24
------------------ 1 LEVER, METERING
25
------------------ 1 VALVE, INLET NEEDLE
26
------------------ 1 SPRING, METERING LEVER
27
------------------ 1 WELCH PLUG
28
------------------ 1 STRAINER
29
------------------ 1 DIAPHRAGM, FUEL PUMP
30
------------------ 1 GASKET, FUEL PUMP
31
12530313310 1 DIAPHRAGM/GASKET KIT INCLUDES ITEM 33-36
32
------------------ 1 DIAPHRAGM, METERING
33
------------------ 1 GASKET, METERING DIAPHRAGM
34
------------------ 1 DIAPHRAGM, FUEL PUMP
35
------------------ 1 GASKET, FUEL PUMP
36
25
PE-200, 201PE-200
SERIAL NUMBERS:
CARBURETOR -- RB-K66B
PE-200: 05001001 - 05032540
PE-200: 07001001 - 07001032
1
3
5
6
7
2
8
21
4
16
15
14
12
13
28
33
27
32
31
11
10
26
34
35
9
25
24
23
22
19
29
20
30
26
17
18
PE-200, 201
PE-200
SERIAL NUMBERS:
PE-200: 05001001 - 05032540
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PE-200: 07001001 - 07001032
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000382 1 CARBURETOR -- RB-K66B SUPERSEDES:
A021000380 CARBURETOR -- RB-K66
A021000381 CARBURETOR -- RB-K66A
12534413931 3 SCREW, ROTOR COVER ASY
1
P005000690 1 ROTOR COVER ASY
2
P005000120 1 NUT, CABLE
3
P005000700 1 SCREW, CABLE ADJUST
4
P005000180 1 SWIVEL
5
P005000190 1 E-RING
6
P005000100 1 SCREW, THROTTLE ADJUST
7
P005000280 1 O-RING
8
---------------- 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
9
P005000570 1 JET
10
P005000370 1 PLUG KIT
11
P005000930 1 PRIMER BASE ASY
12
P005000270 1 SCREW, PRIMER BASE ASY
13
12538108660 1 PUMP, PRIMING
14
P005000250 1 RETAINER, PRIMING PUMP
15
12531061830 4 SCREW, PRIMING PUMP RETAINER
16
12534252130 1 COVER, DIAPHRAGM
17
12534452130 2 SCREW, DIAPHRAGM COVER
18
12533942030 1 SCREW, METERING LEVER PIN
19
CARBURETOR -- RB-K66B
P005000950 1 REPAIR KIT INCLUDES ITEMS 21-30
20
P005001000 1 ROLLER, GUIDE
21
---------------- 1 PIN, METERING LEVER
22
---------------- 1 LEVER, METERING
23
---------------- 1 VALVE, INLET NEEDLE
24
---------------- 1 SPRING, METERING LEVER
25
---------------- 1 STRAINER
26
---------------- 1 DIAPHRAGM, PUMP
27
---------------- 1 GASKET, PUMP
28
---------------- 1 GASKET, METERING
29
---------------- 1 DIAPHRAGM, METERING
30
P005000550 1 DIAPHRAGM/GASKET KIT INCLUDES ITEMS 32-35
31
---------------- 1 DIAPHRAGM, PUMP
32
---------------- 1 GASKET, PUMP
33
---------------- 1 GASKET, METERING
34
---------------- 1 DIAPHRAGM, METERING
35
27
PE-200
PE-200, 201
SERIAL NUMBERS:
CARBURETOR -- RB-K70
PE-200: 05032541 - 05044753
1
3
5
6
7
2
8
21
4
16
15
14
12
13
28
33
27
32
11
31
10
26
34
35
9
25
24
23
22
19
29
20
30
28
17
18
PE-200
PE-200, 201
SERIAL NUMBERS:
PE-200: 05032541 - 05044753
ITEM PART NUMBER QTY DESCRIPTION REMARKS
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000720 1 CARBURETOR -- RB-K70
12534413931 3 SCREW, ROTOR COVER ASY
1
P005001230 1 ROTOR COVER ASY
2
P005000120 1 NUT, CABLE
3
P005000700 1 SCREW, CABLE ADJUST
4
P005001240 1 SWIVEL
5
P005000190 1 E-RING
6
P005000100 1 SCREW, THROTTLE ADJUST
7
P005000280 1 O-RING
8
---------------- 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
9
P005001260 1 NEEDLE - HIGH SPEED
10
P005001250 1 PLUG
11
P005000930 1 PURGE BASE ASY
12
P005000270 1 SCREW, PURGE BASE ASY
13
12538108660 1 PUMP, PURGE
14
P005000250 1 RETAINER, PURGE PUMP
15
12531061830 4 SCREW, PRIMING PUMP RETAINER
16
12534252130 1 COVER, DIAPHRAGM
17
12534452130 2 SCREW, DIAPHRAGM COVER
18
12533942030 1 SCREW, METERING LEVER PIN
19
CARBURETOR -- RB-K70
P005000950 1 REPAIR KIT INCLUDES ITEMS 21-30
20
P005001000 1 ROLLER, GUIDE
21
---------------- 1 PIN, METERING ARM
22
---------------- 1 LEVER, METERING
23
---------------- 1 VALVE, INLET NEEDLE
24
---------------- 1 SPRING
25
---------------- 1 STRAINER
26
---------------- 1 DIAPHRAGM, PUMP
27
---------------- 1 GASKET, PUMP
28
---------------- 1 GASKET, METERING
29
---------------- 1 DIAPHRAGM, METERING
30
P005000550 1 DIAPHRAGM/GASKET KIT INCLUDES ITEMS 32-35
31
---------------- 1 DIAPHRAGM, PUMP
32
---------------- 1 GASKET, PUMP
33
---------------- 1 GASKET, METERING
34
---------------- 1 DIAPHRAGM, METERING
35
29
PE-200, 201
PE-200
SERIAL NUMBERS:
PE-200: 05044754 - 05999999
PE-200: 07001033 - 07999999
CARBURETOR -- RB-K70A
1
4
11
27
26
5
6
2
7
20
8
25
9
10
24
23
22
3
15
14
13
12
32
30
31
30
16
33
34
21
18
28
19
29
17
PE-200
PE-200, 201
SERIAL NUMBERS:
PE-200: 05044754 - 05999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PE-200: 07001033 - 07999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000721 1 CARBURETOR -- RB-K70A
12534413931 3 SCREW, ROTOR COVER ASY
1
P005001620 1 ROTOR COVER ASY
2
P005001330 1 SCREW, CABLE ADJUST
3
P005001240 1 SWIVEL
4
P005000190 1 E-RING
5
P005000100 1 SCREW, THROTTLE ADJUST
6
P005000280 1 O-RING
7
---------------- 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
8
P005001260 1 NEEDLE - HIGH SPEED
9
P005001270 1 PLUG
10
P005000930 1 PRIMER BASE ASY
11
P005000270 1 SCREW, PRIMER BASE ASY
12
12538108660 1 PUMP, PRIMING
13
P005000250 1 RETAINER, PRIMING PUMP
14
12531061830 4 SCREW, PRIMING PUMP RETAINER
15
12534252130 1 COVER, DIAPHRAGM
16
12534452130 2 SCREW, DIAPHRAGM COVER
17
12533942030 1 SCREW, METERING LEVER PIN
18
CARBURETOR -- RB-K70A
P005000950 1 REPAIR KIT INCLUDES ITEMS 20-29
19
P005001000 1 ROLLER, GUIDE
20
---------------- 1 PIN, METERING LEVER
21
---------------- 1 LEVER, METERING
22
---------------- 1 VALVE, INLET NEEDLE
23
---------------- 1 SPRING, METERING LEVER
24
---------------- 1 STRAINER
25
---------------- 1 DIAPHRAGM, PUMP
26
---------------- 1 GASKET, PUMP
27
---------------- 1 GASKET, METERING
28
---------------- 1 DIAPHRAGM, METERING
29
P005000550 1 DIAPHRAGM/GASKET KIT INCLUDES ITEMS 31-34
30
---------------- 1 DIAPHRAGM, PUMP
31
---------------- 1 GASKET, PUMP
32
---------------- 1 GASKET, METERING
33
---------------- 1 DIAPHRAGM, METERING
34
31
PE-200, 201
SERIAL NUMBERS: 08001001-10999999
CARBURETOR -- RB-K75
1
5
12
28
27
6
7
2
8
21
9
26
10
11
25
24
23
3
4
16
15
14
13
33
32
32
31
17
34
35
22
19
29
20
30
18
RB_K75 740 8_9_10
PE-200, 201
SERIAL NUMBERS: 08001001-10999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000740 1 CARBURETOR -- RB-K75
12534413931 3 SCREW, ROTOR COVER ASY
1
P005001320 1 ROTOR COVER ASY
2
P005001330 1 SCREW, CABLE ADJUST
3
12534452130 1 SCREW, ROTOR COVER
4
P005001240 1 SWIVEL
5
P005000190 1 E-RING
6
P005000100 1 SCREW, THROTTLE ADJUST
7
P005000280 1 O-RING
8
------------------ 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
9
P005001260 1 NEEDLE - HIGH SPEED
10
P005001270 1 PLUG
11
P005000930 1 PRIMER BASE ASY
12
P005000270 1 SCREW, PRIMER BASE ASY
13
12538108660 1 PUMP, PRIMING
14
P005000250 1 RETAINER, PRIMING PUMP
15
P005001900 4 SCREW, PRIMING PUMP RETAINER
16
12534252130 1 COVER, DIAPHRAGM
17
12534452130 2 SCREW, DIAPHRAGM COVER
18
12533942030 1 SCREW, METERING LEVER PIN
19
CARBURETOR -- RB-K75
P005001670 1 REPAIR KIT INCLUDES ITEMS 21-30
20
P005001000 1 ROLLER, GUIDE
21
------------------ 1 PIN, METERING LEVER
22
------------------ 1 LEVER, METERING
23
------------------ 1 VALVE, INLET NEEDLE
24
------------------ 1 SPRING, METERING LEVER
25
------------------ 1 STRAINER
26
------------------ 1 DIAPHRAGM, PUMP
27
------------------ 1 GASKET, PUMP
28
------------------ 1 GASKET, METERING
29
------------------ 1 DIAPHRAGM, METERING
30
P005001660 1 DIAPHRAGM/GASKET KIT INCLUDES ITEMS 32-35
31
------------------ 1 DIAPHRAGM, PUMP
32
------------------ 1 GASKET, PUMP
33
------------------ 1 GASKET, METERING
34
------------------ 1 DIAPHRAGM, METERING
35
33
Loading...
