Assembly instructions for echo pbAv-4600

vAcuum AttAchment

89856109362
12/10

X7501092302

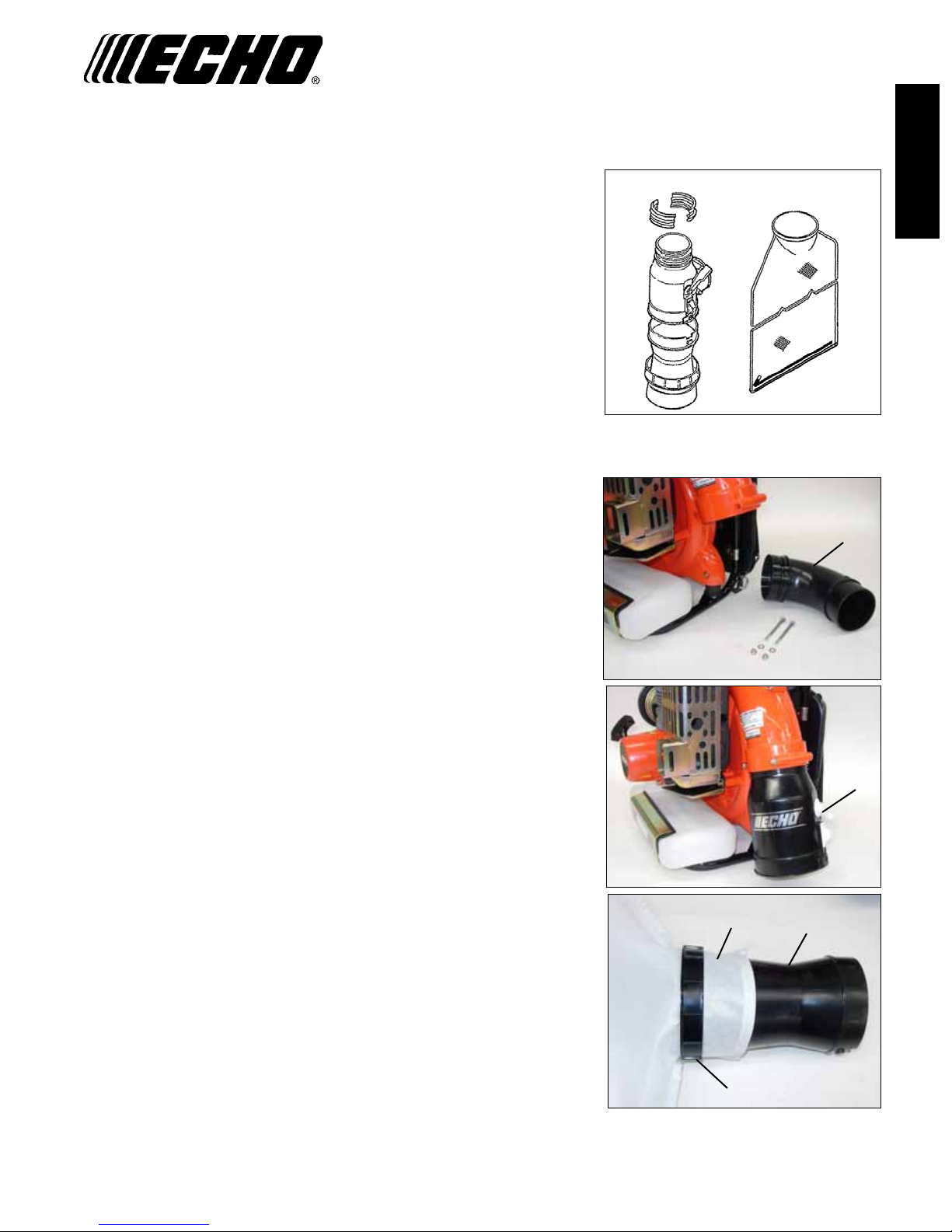

instAllAtion instructions

1. Remove the elbow (A) attached to the fan case.

This attachment is designed for outside vacuuming.
Attach it to your POWER BLOWER as described below, set the lever in the
vacuum position and you are ready to vacuum your lawn, garden etc. You may

also use it to gather nuts lying on the ground. By only a ick of the lever, the

machine can be returned to its original function of a power blower.

This attachment ts Power Blower Models PB-403/413, PB-4600, PB-46LN,
PB-46HT, PB-460/461LN, PB-600, PB-601, PB-610, PB-620

2. Insert suction tube (B) fully into the fan case outlet. Replace both nuts and

bolts. (Use two adapters between suction tube and retainers, if necessary.)

3. Attach bag (C) to connector (D) and secure it with xing ring (E).

A

b

c

D

e

contents

1 - Adapter
1 - Bag
1 -Suction tube
1 - Connector

2

E
N
G
L

I
S
H

Assembly instructions for echo pbAv-4600 vAcuum AttAchment

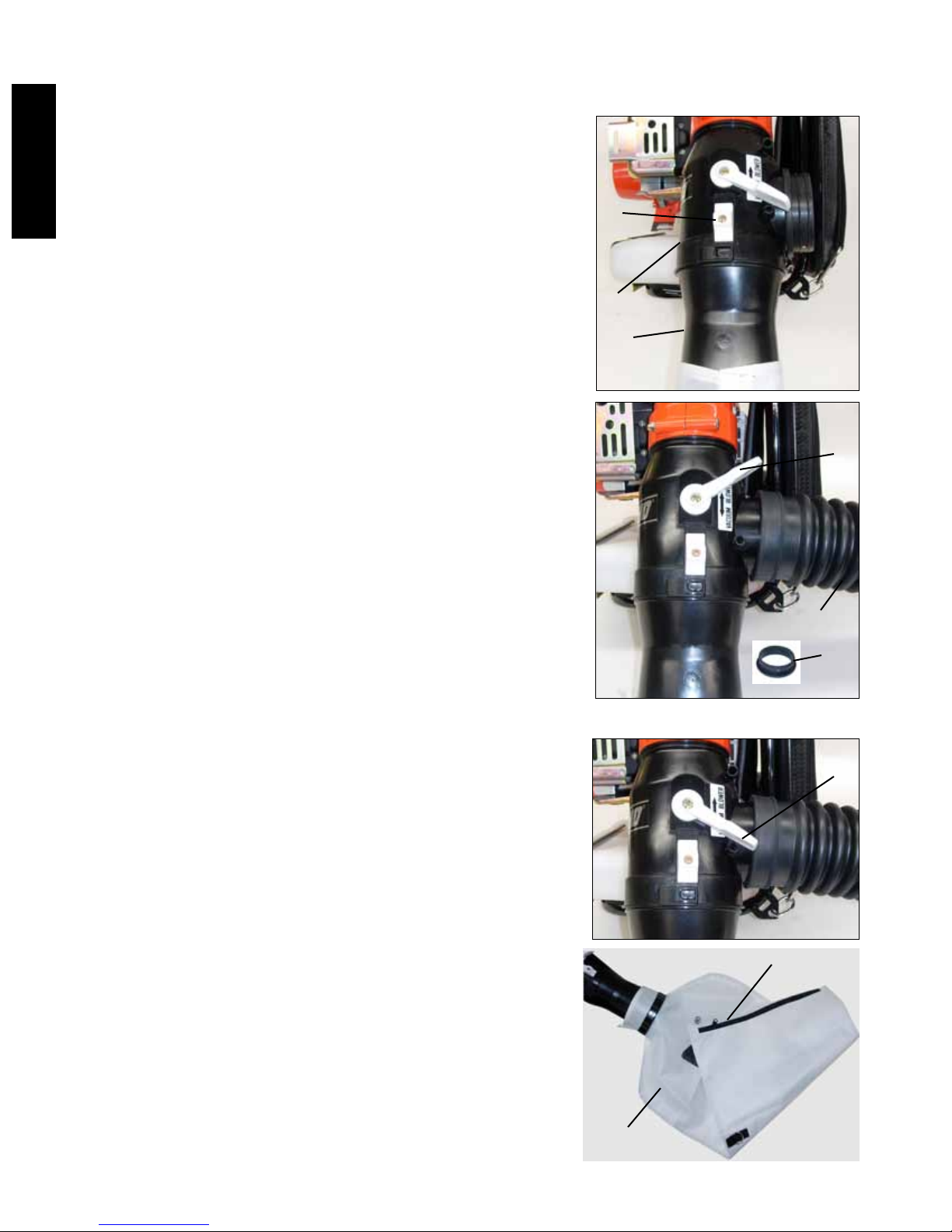

4. Insert connector (D) into the suction tube (B) fully, and turn it clock-

wise.

5. Push stopper (F) down to lock suction tube to connector.

Note: Ensure that connector (D) is securely fastened.

6. Install exible pipe (G) to the suction tube (B) as shown, and secure

with clamp from blower.

Note: Remove rubber adapter (H) from suction tube, if necessary to t
exible pipe.

operAtion

1. Turn the lever (I) to vacuum as shown to begin operation.

2. It is not necessary to set the machine down when emptying the bag
(C). Just open zipper (J) and the bag can be completely emptied in a

matter of seconds.

3. To return to the blower function, switch the lever (I) back to the

blower position.

f

b

D

G

h

i

J

i

c

3

E
N
G
L

I
S
H

troubleshootinG

Poor suction

When suction rapidly decreases, it may be due to excessively clogged pipe.
You can briey turn the lever to blower, which will blow out whatever is clogging the bag.

When suction gradually decreases, it may be that the bag is dirty.

You can brush off dust or wash the bag in water as necessary. Dry it before using.

In case of any other trouble, refer to trouble shooting in the Operator’s Manual of each blower.

Important:

Poor suction due to a dirty bag will result in high engine revolutions, which may cause severe engine damage.

Follow the instructions for operation in the Operator’s Manual of each blower.

7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO, 198-8760, JAPAN
PHONE: [phone] FAX: [phone]

YAMABIKO CORPORATION

© 2010 YAMABIKO CORPORATION

OPERATE BLOWER/VACUUM SAFELY AND AVOID DAMAGE TO BLOWER

DANGER

• DO NOT point the blower pipe in the direction of people or animals.

• ALWAYS wear safety glasses and a face lter mask.

• NEVER operate vacuum without vacuum bag properly attached.

• DO NOT attempt to vacuum up ash from outdoor replaces or barbecue pits.

• DO NOT attempt to vacuum up lit smoking materials.

• This unit is designed to vacuum up debris such as leaves, small bits of paper, small

twigs, weeds and grass clippings. Do not use this unit for any other purpose.

• DO NOT vacuum up nails, glass, or other sharp objects. Damage to unit might occur.

• DO NOT force objects into suction pipe.

• DO NOT attempt to clear unit or free fan if vacuum becomes plugged or jammed

without rst shutting unit off and removing spark plug wire.
